- 1. Component 4: Introduction toInformation and Computer Science BCC PPT 2

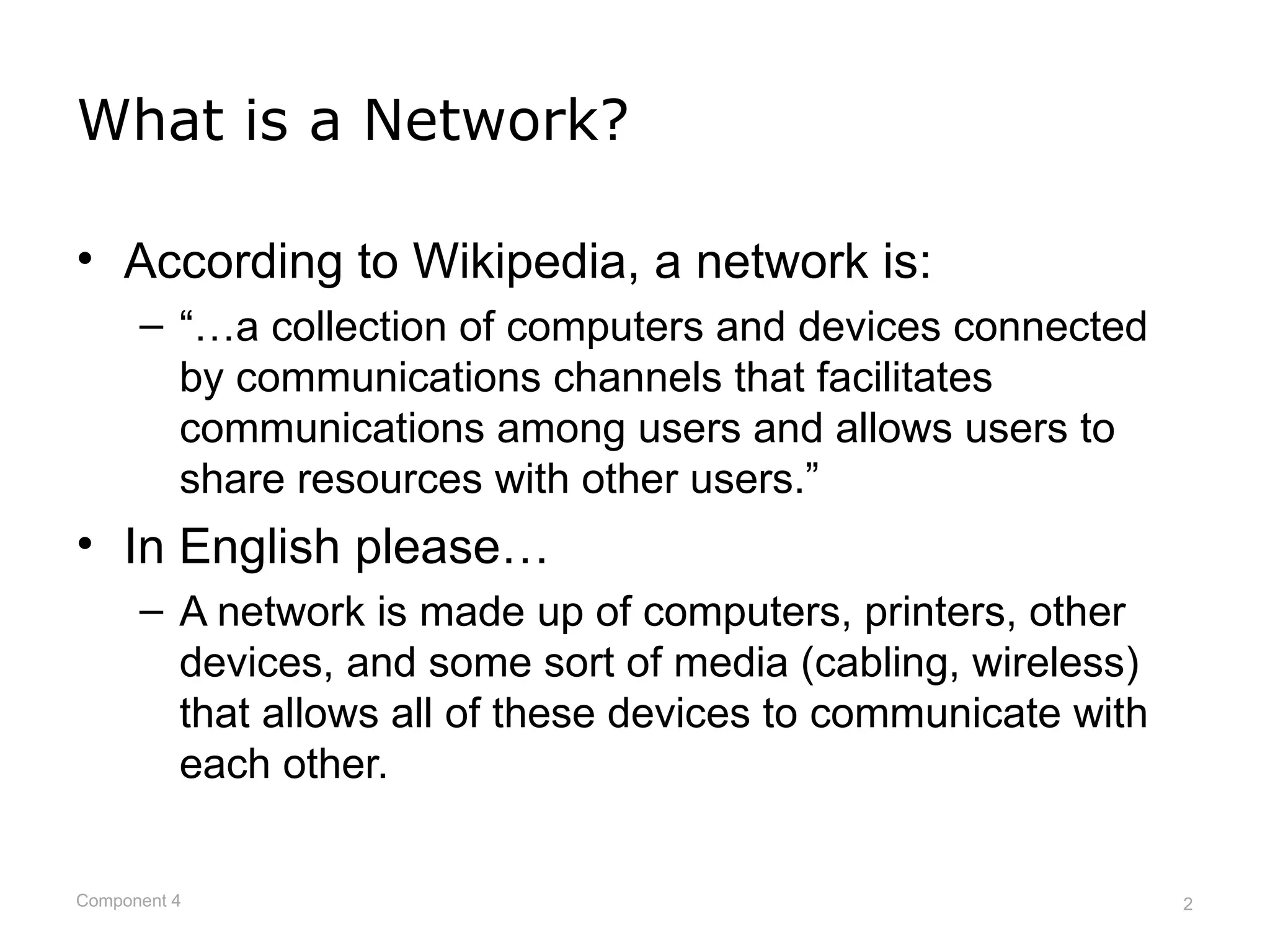

- 2. What is aNetwork? • According to Wikipedia, a network is: – “…a collection of computers and devices connected by communications channels that facilitates communications among users and allows users to share resources with other users.” • In English please… – A network is made up of computers, printers, other devices, and some sort of media (cabling, wireless) that allows all of these devices to communicate with each other. Component 4 2

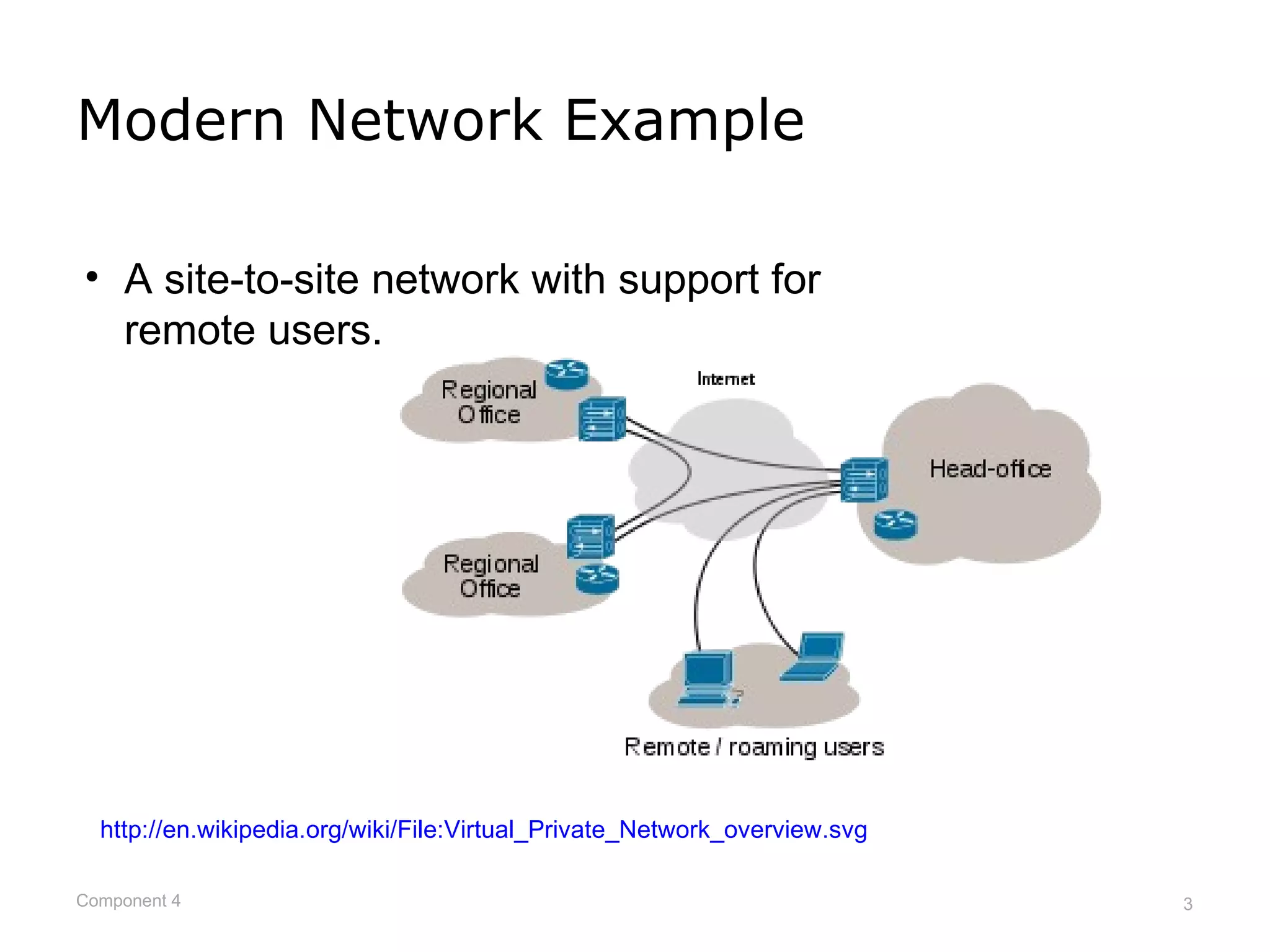

- 3. Modern Network Example •A site-to-site network with support for remote users. http://en.wikipedia.org/wiki/File:Virtual_Private_Network_overview.svg Component 4 3

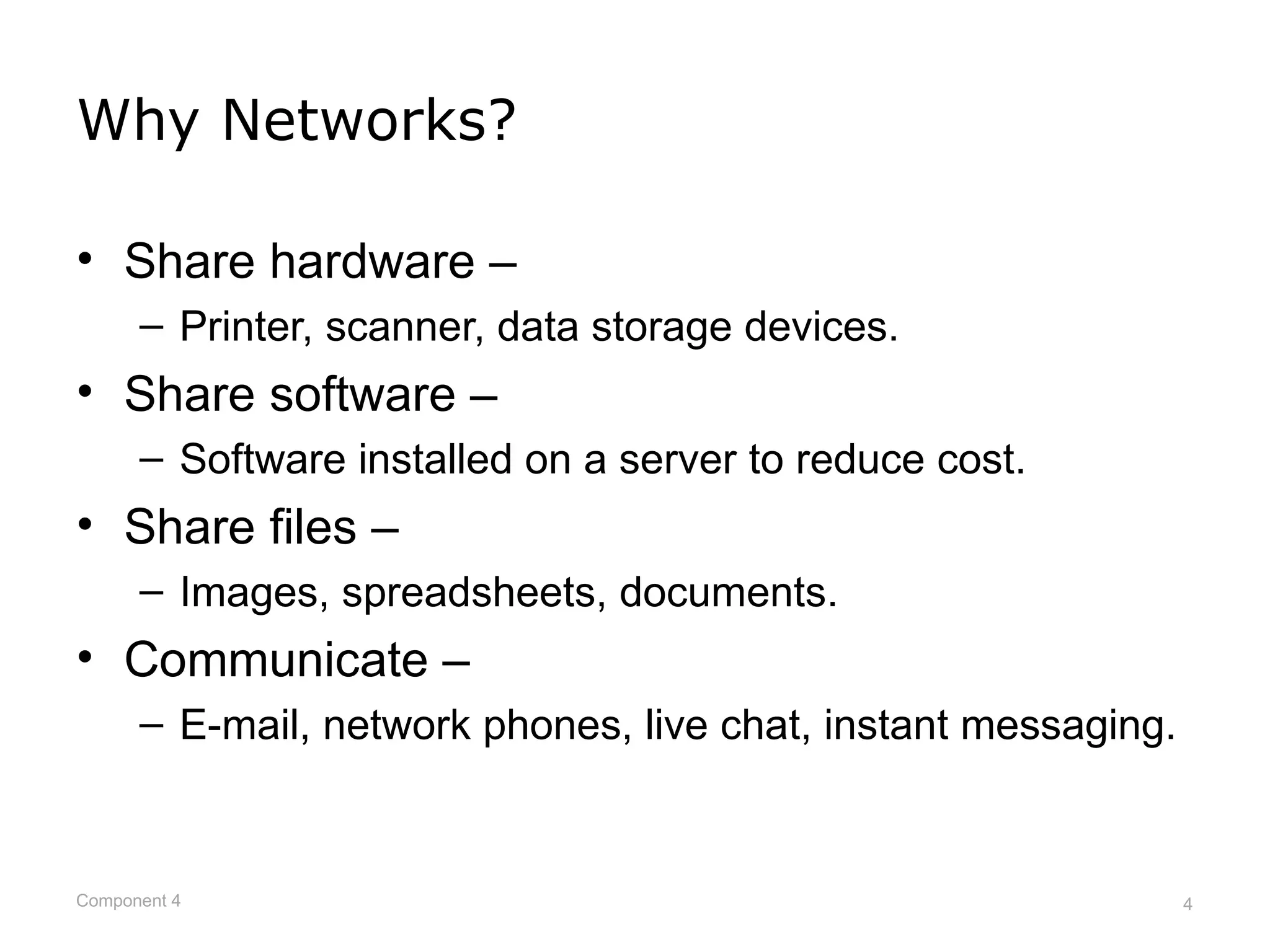

- 4. Why Networks? • Sharehardware – – Printer, scanner, data storage devices. • Share software – – Software installed on a server to reduce cost. • Share files – – Images, spreadsheets, documents. • Communicate – – E-mail, network phones, live chat, instant messaging. Component 4 4

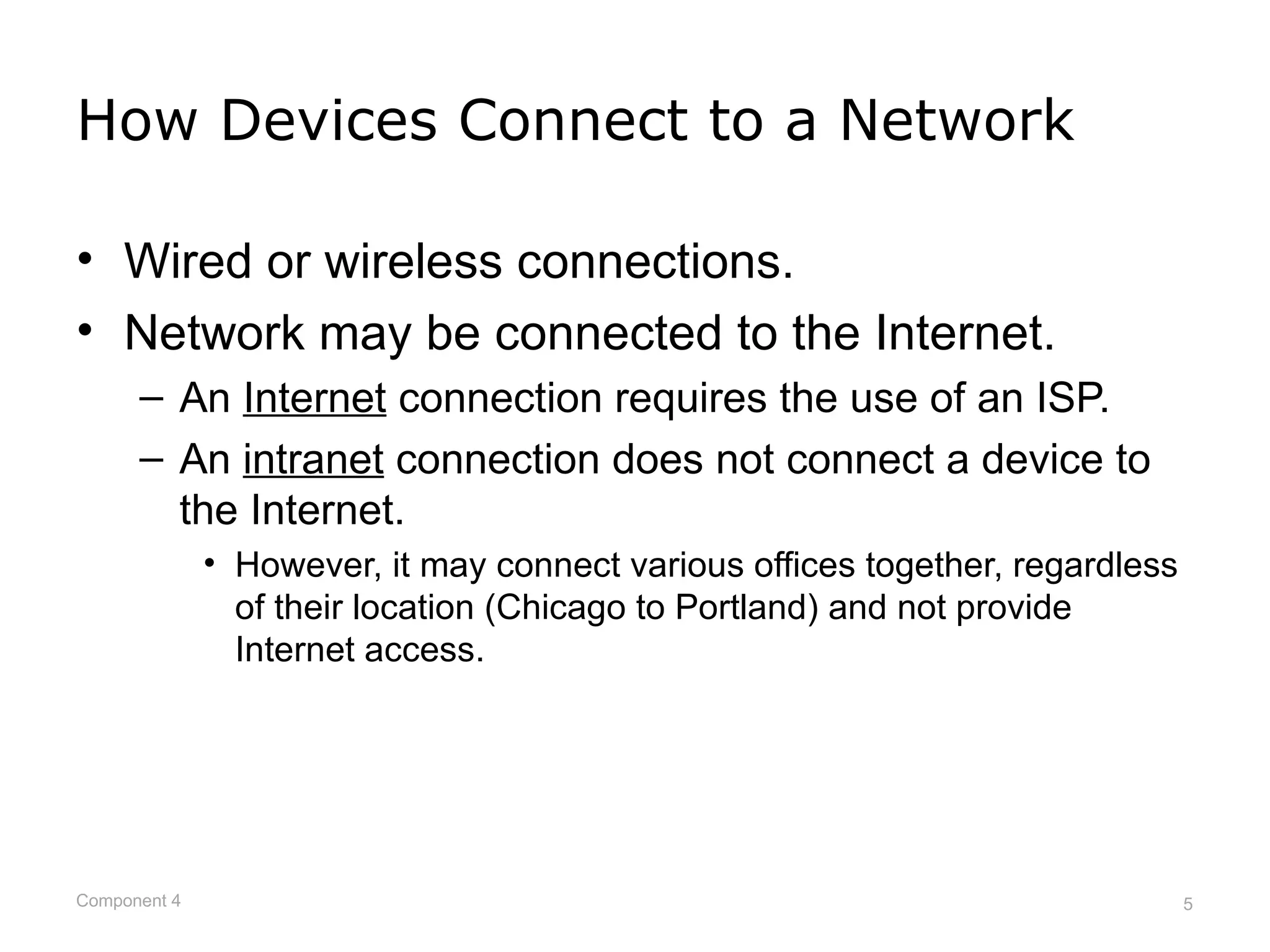

- 5. How Devices Connectto a Network • Wired or wireless connections. • Network may be connected to the Internet. – An Internet connection requires the use of an ISP. – An intranet connection does not connect a device to the Internet. • However, it may connect various offices together, regardless of their location (Chicago to Portland) and not provide Internet access. Component 4 5

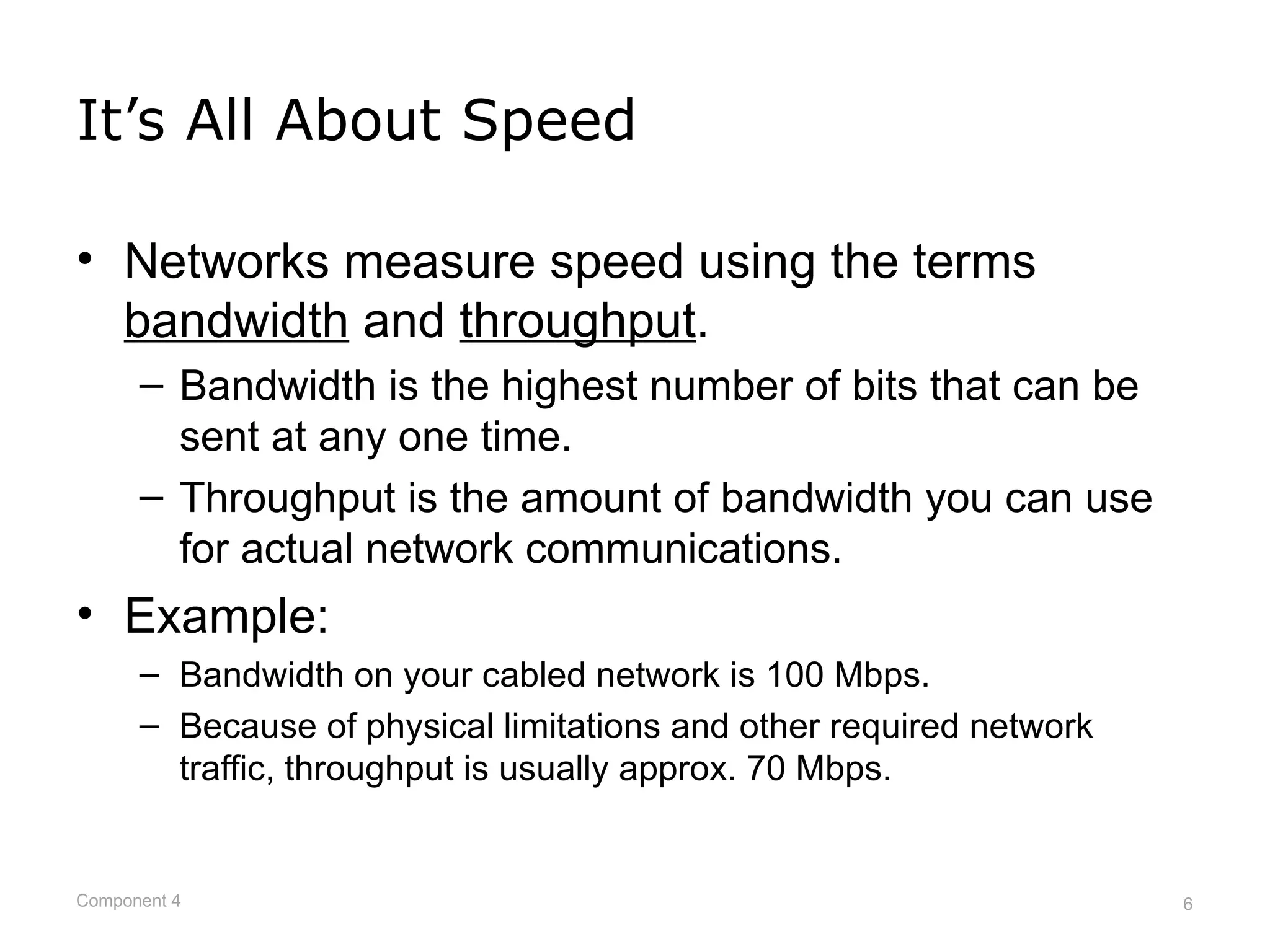

- 6. It’s All AboutSpeed • Networks measure speed using the terms bandwidth and throughput. – Bandwidth is the highest number of bits that can be sent at any one time. – Throughput is the amount of bandwidth you can use for actual network communications. • Example: – Bandwidth on your cabled network is 100 Mbps. – Because of physical limitations and other required network traffic, throughput is usually approx. 70 Mbps. Component 4 6

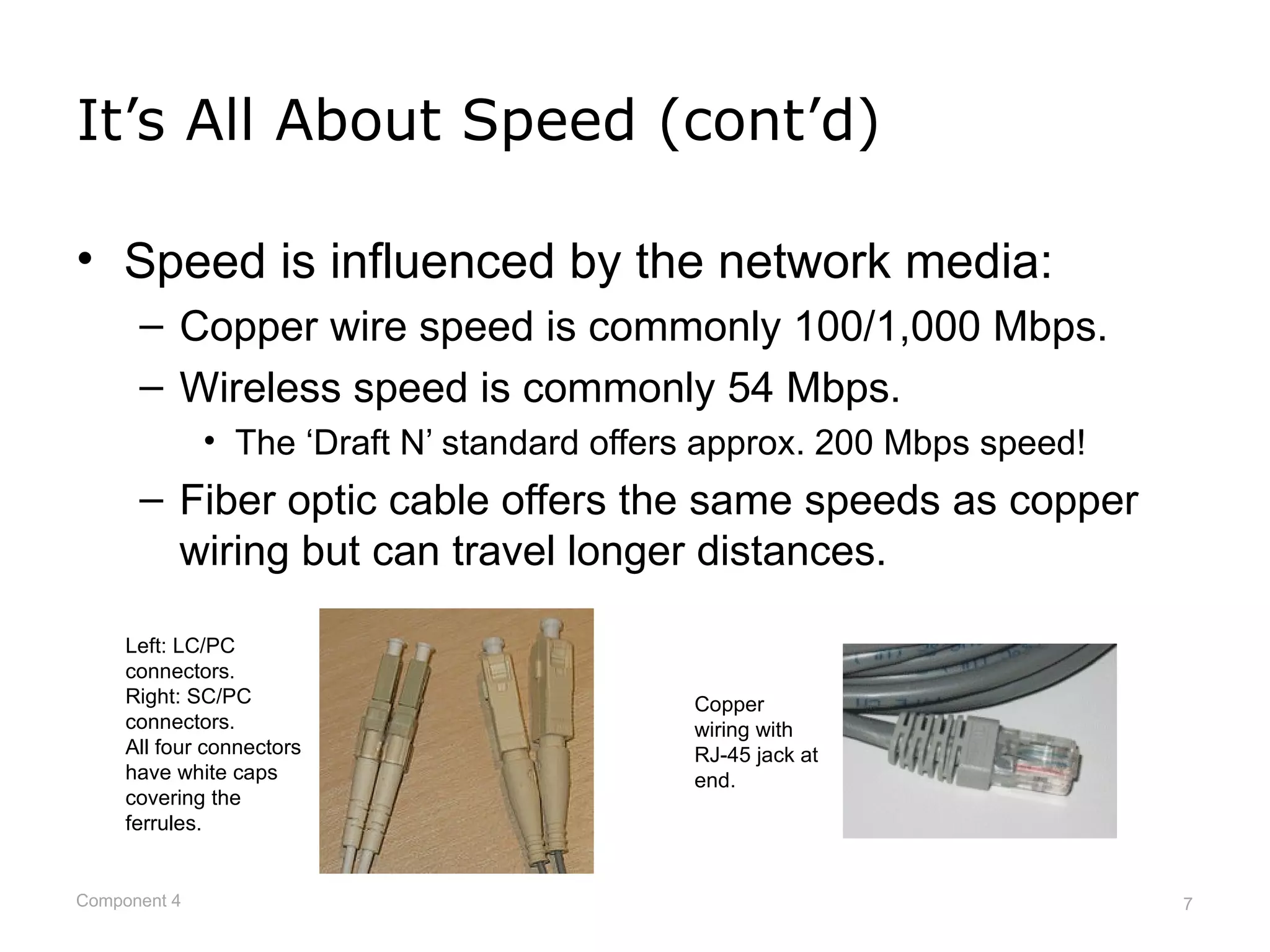

- 7. It’s All AboutSpeed (cont’d) • Speed is influenced by the network media: – Copper wire speed is commonly 100/1,000 Mbps. – Wireless speed is commonly 54 Mbps. • The ‘Draft N’ standard offers approx. 200 Mbps speed! – Fiber optic cable offers the same speeds as copper wiring but can travel longer distances. Left: LC/PC connectors. Right: SC/PC Copper connectors. wiring with All four connectors RJ-45 jack at have white caps end. covering the ferrules. Component 4 7

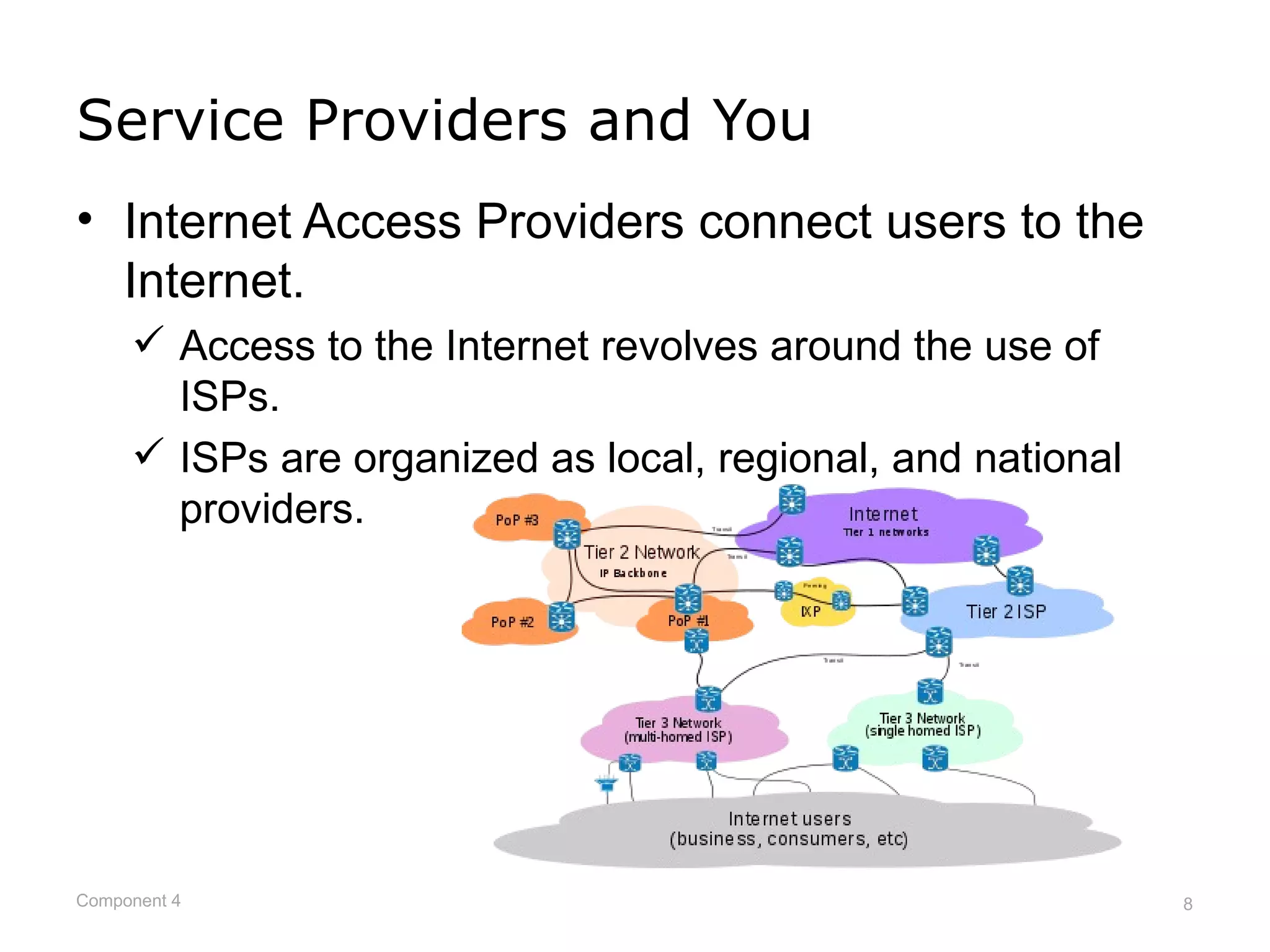

- 8. Service Providers andYou • Internet Access Providers connect users to the Internet. Access to the Internet revolves around the use of ISPs. ISPs are organized as local, regional, and national providers. Component 4 8

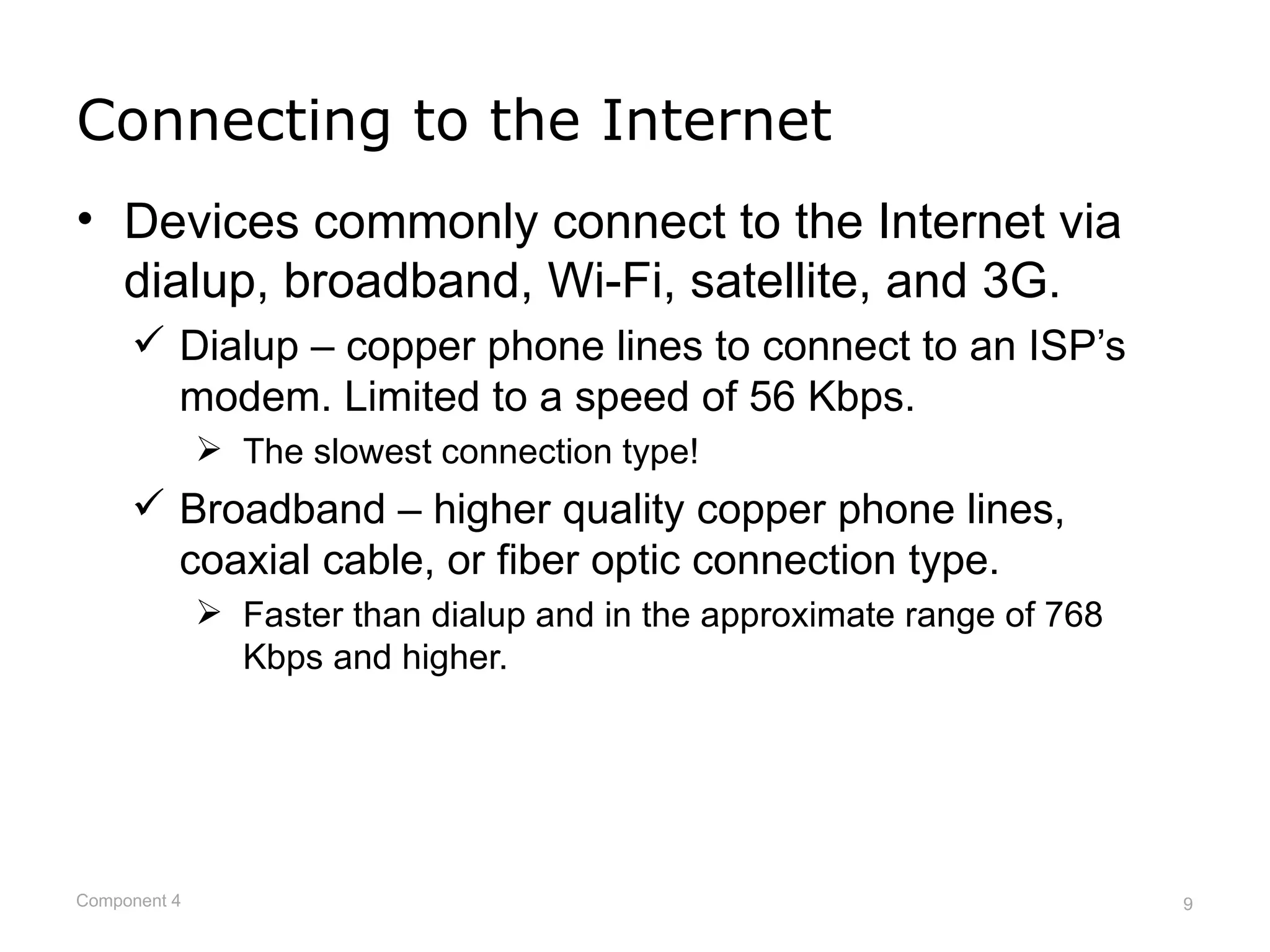

- 9. Connecting to theInternet • Devices commonly connect to the Internet via dialup, broadband, Wi-Fi, satellite, and 3G. Dialup – copper phone lines to connect to an ISP’s modem. Limited to a speed of 56 Kbps. The slowest connection type! Broadband – higher quality copper phone lines, coaxial cable, or fiber optic connection type. Faster than dialup and in the approximate range of 768 Kbps and higher. Component 4 9

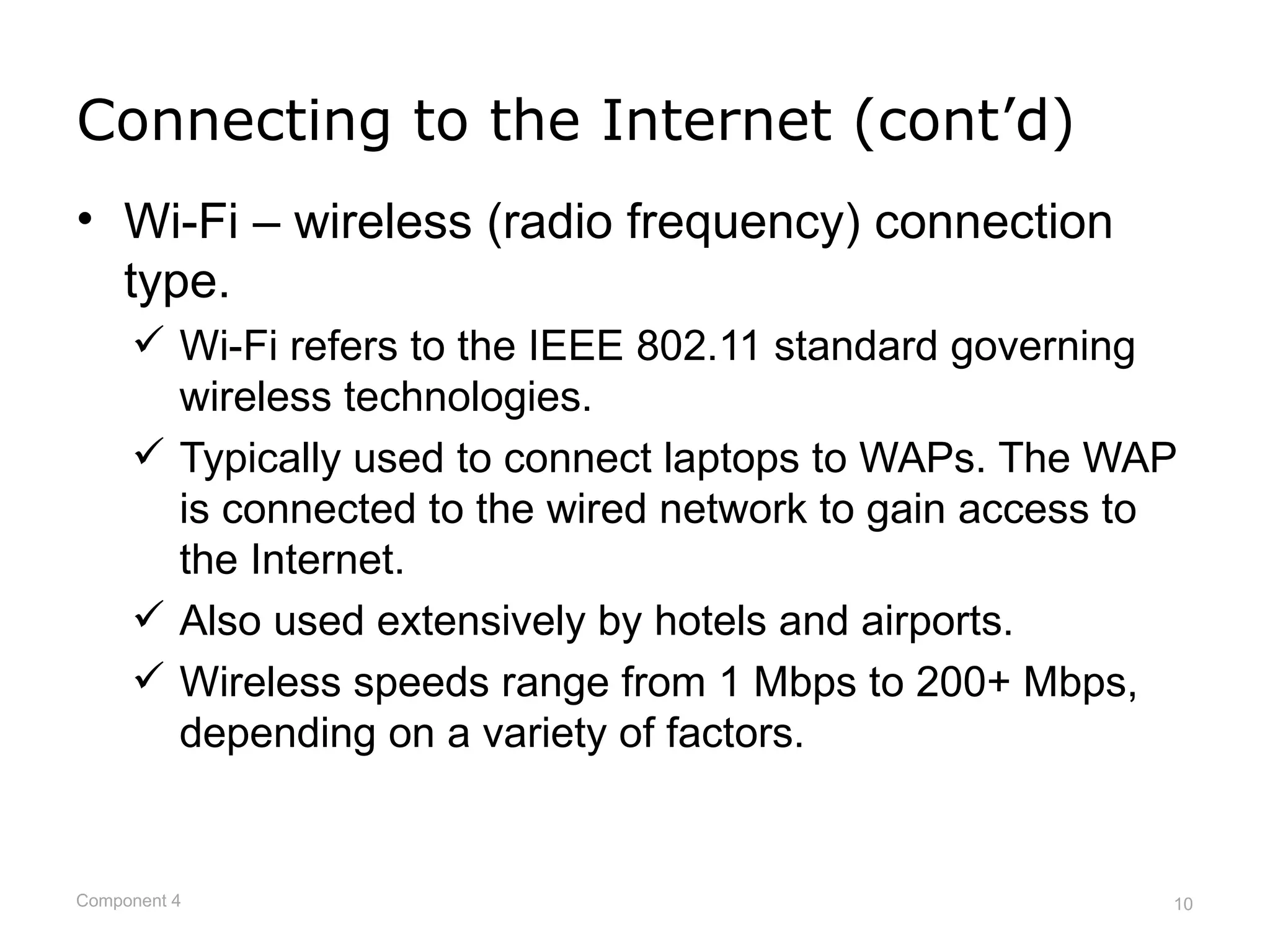

- 10. Connecting to theInternet (cont’d) • Wi-Fi – wireless (radio frequency) connection type. Wi-Fi refers to the IEEE 802.11 standard governing wireless technologies. Typically used to connect laptops to WAPs. The WAP is connected to the wired network to gain access to the Internet. Also used extensively by hotels and airports. Wireless speeds range from 1 Mbps to 200+ Mbps, depending on a variety of factors. Component 4 10

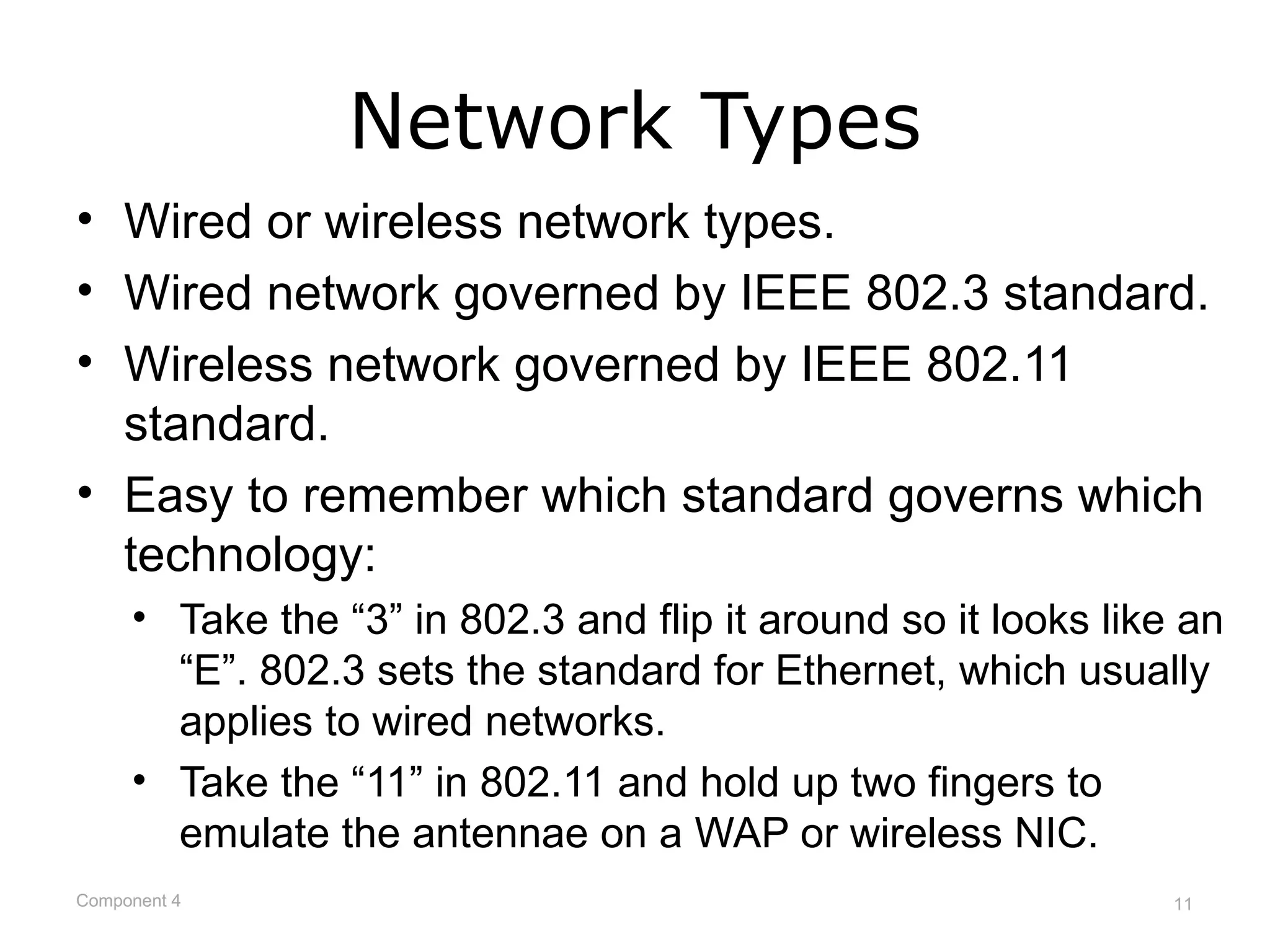

- 11. Network Types • Wiredor wireless network types. • Wired network governed by IEEE 802.3 standard. • Wireless network governed by IEEE 802.11 standard. • Easy to remember which standard governs which technology: • Take the “3” in 802.3 and flip it around so it looks like an “E”. 802.3 sets the standard for Ethernet, which usually applies to wired networks. • Take the “11” in 802.11 and hold up two fingers to emulate the antennae on a WAP or wireless NIC. Component 4 11

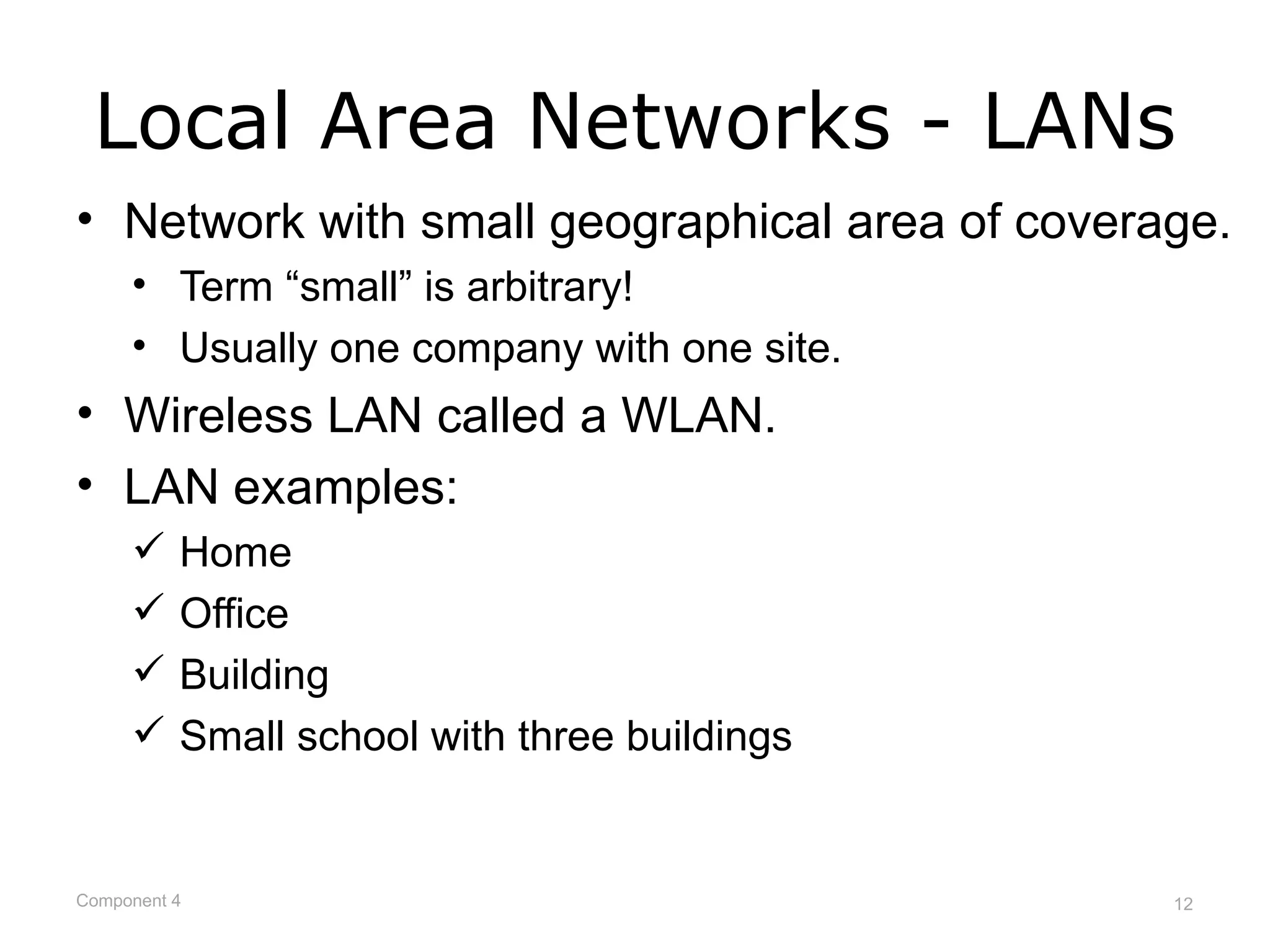

- 12. Local Area Networks- LANs • Network with small geographical area of coverage. • Term “small” is arbitrary! • Usually one company with one site. • Wireless LAN called a WLAN. • LAN examples: Home Office Building Small school with three buildings Component 4 12

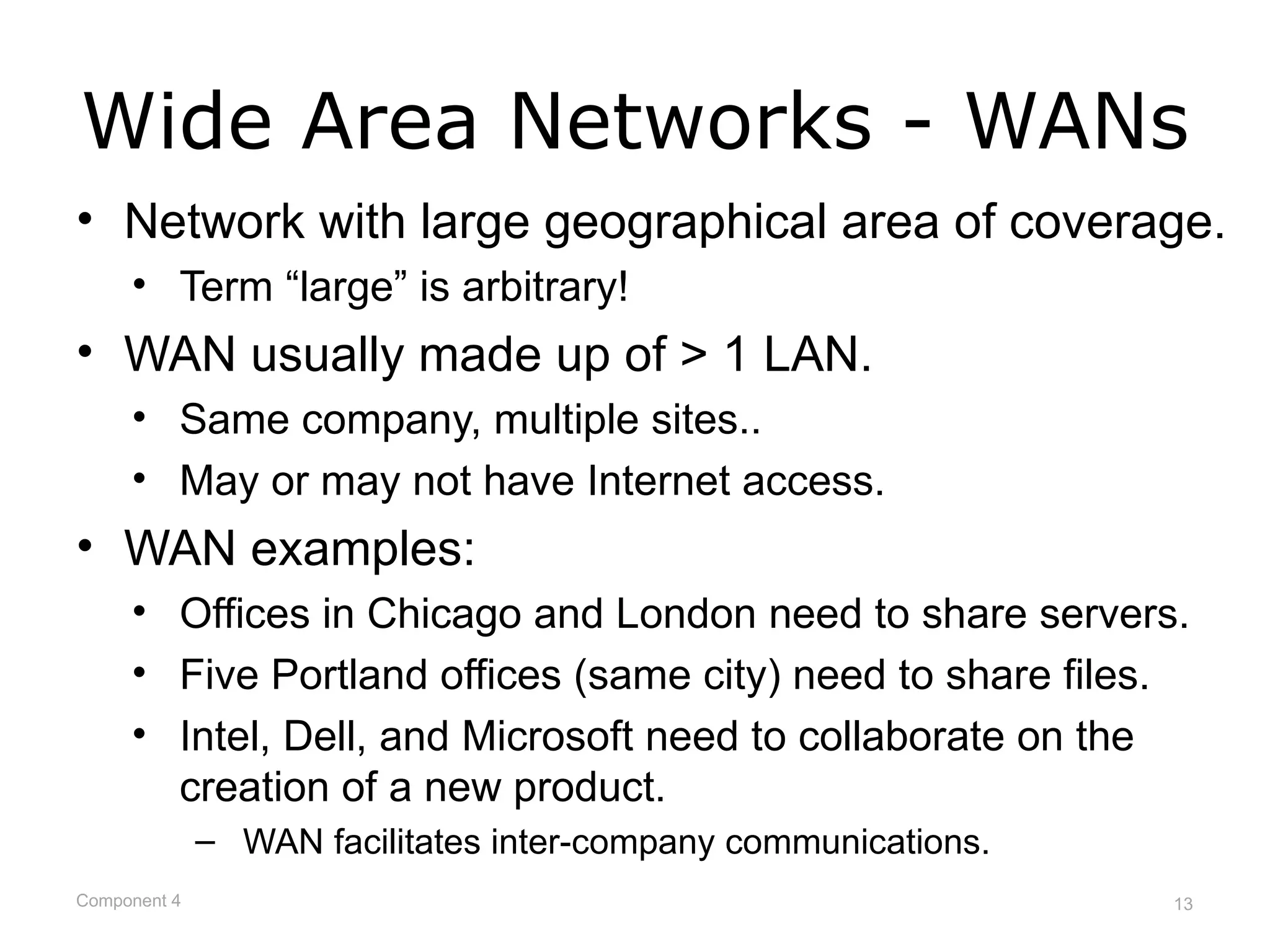

- 13. Wide Area Networks- WANs • Network with large geographical area of coverage. • Term “large” is arbitrary! • WAN usually made up of > 1 LAN. • Same company, multiple sites.. • May or may not have Internet access. • WAN examples: • Offices in Chicago and London need to share servers. • Five Portland offices (same city) need to share files. • Intel, Dell, and Microsoft need to collaborate on the creation of a new product. – WAN facilitates inter-company communications. Component 4 13

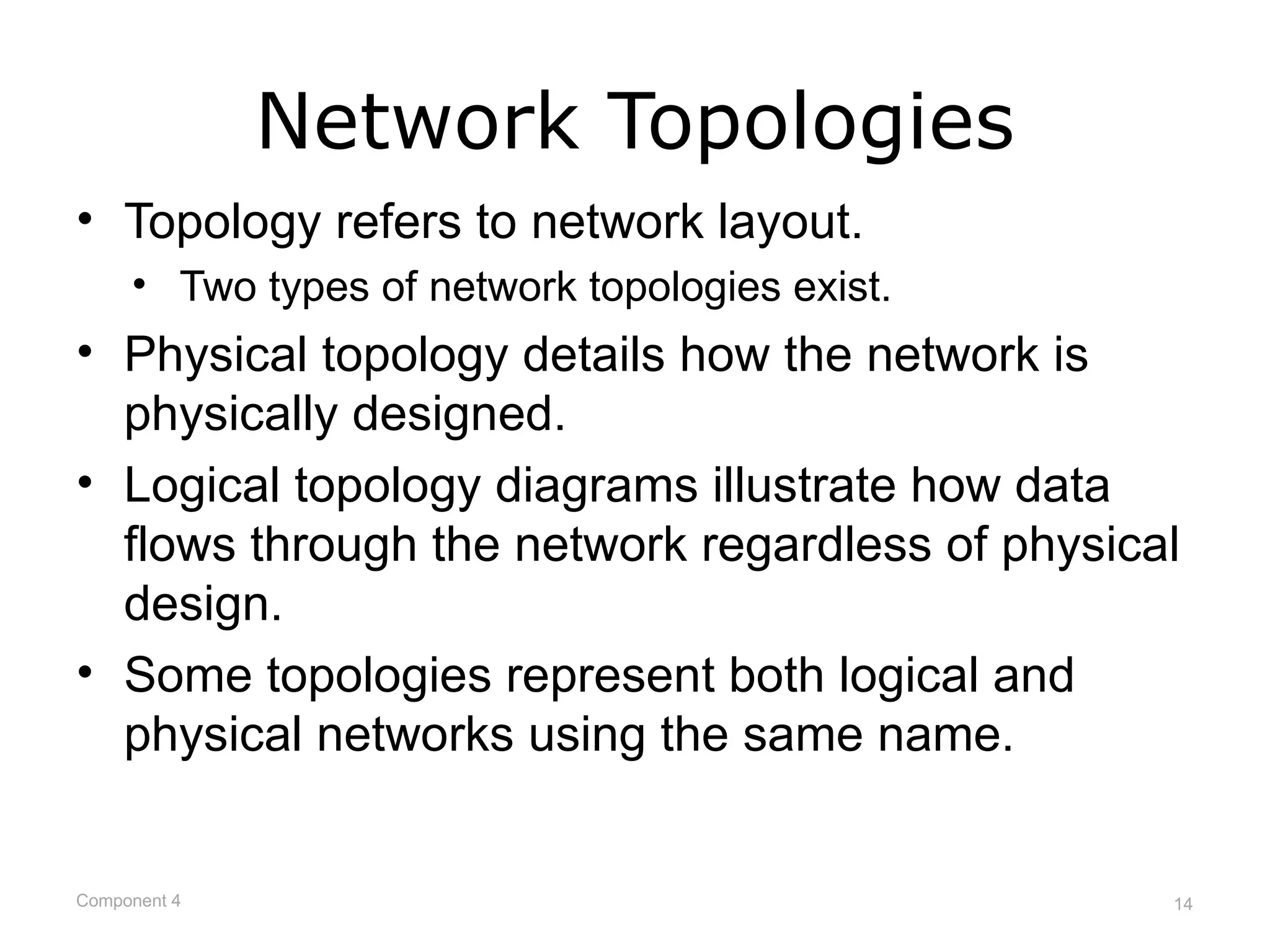

- 14. Network Topologies • Topologyrefers to network layout. • Two types of network topologies exist. • Physical topology details how the network is physically designed. • Logical topology diagrams illustrate how data flows through the network regardless of physical design. • Some topologies represent both logical and physical networks using the same name. Component 4 14

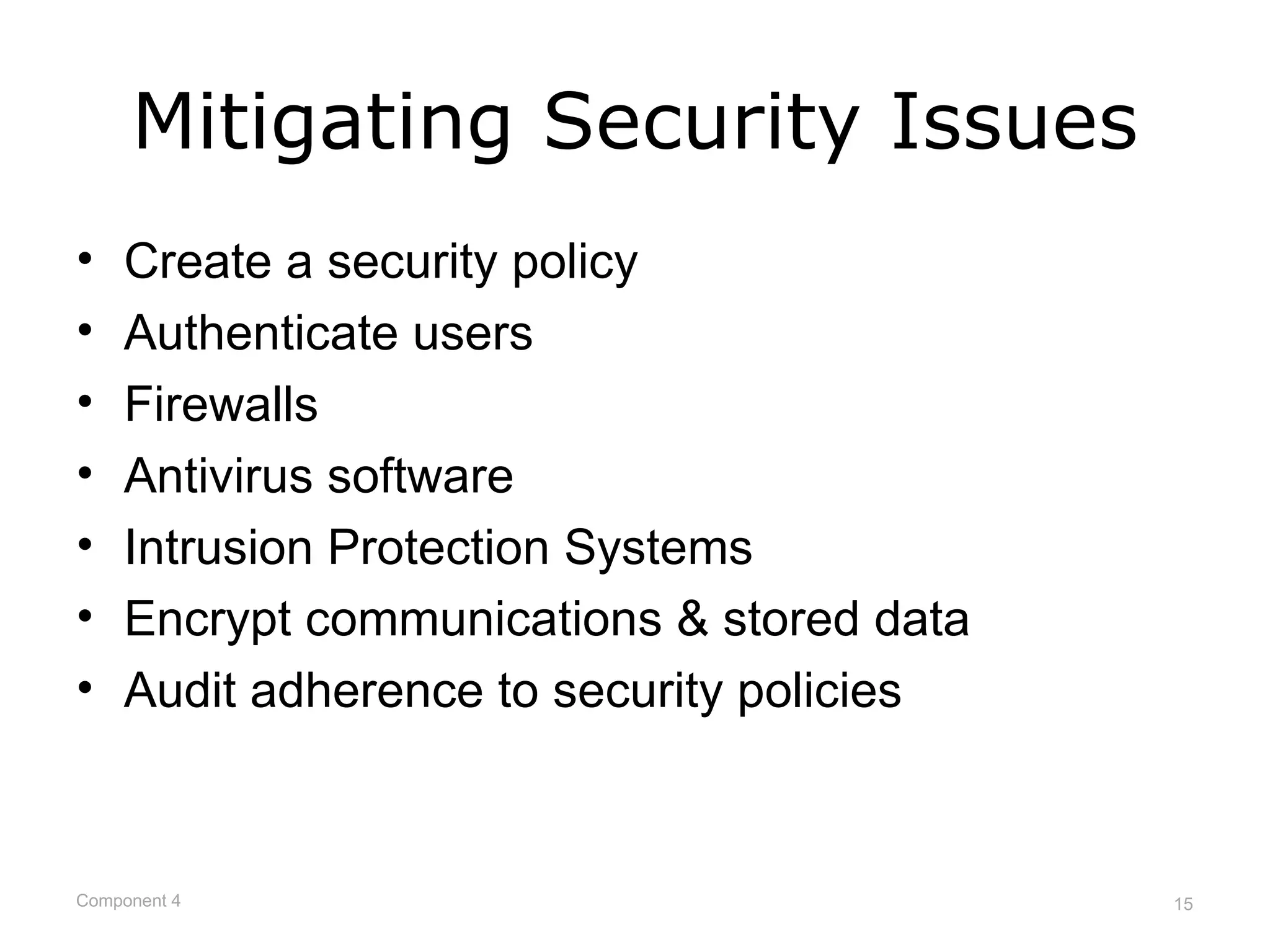

- 15. Mitigating Security Issues • Create a security policy • Authenticate users • Firewalls • Antivirus software • Intrusion Protection Systems • Encrypt communications & stored data • Audit adherence to security policies Component 4 15

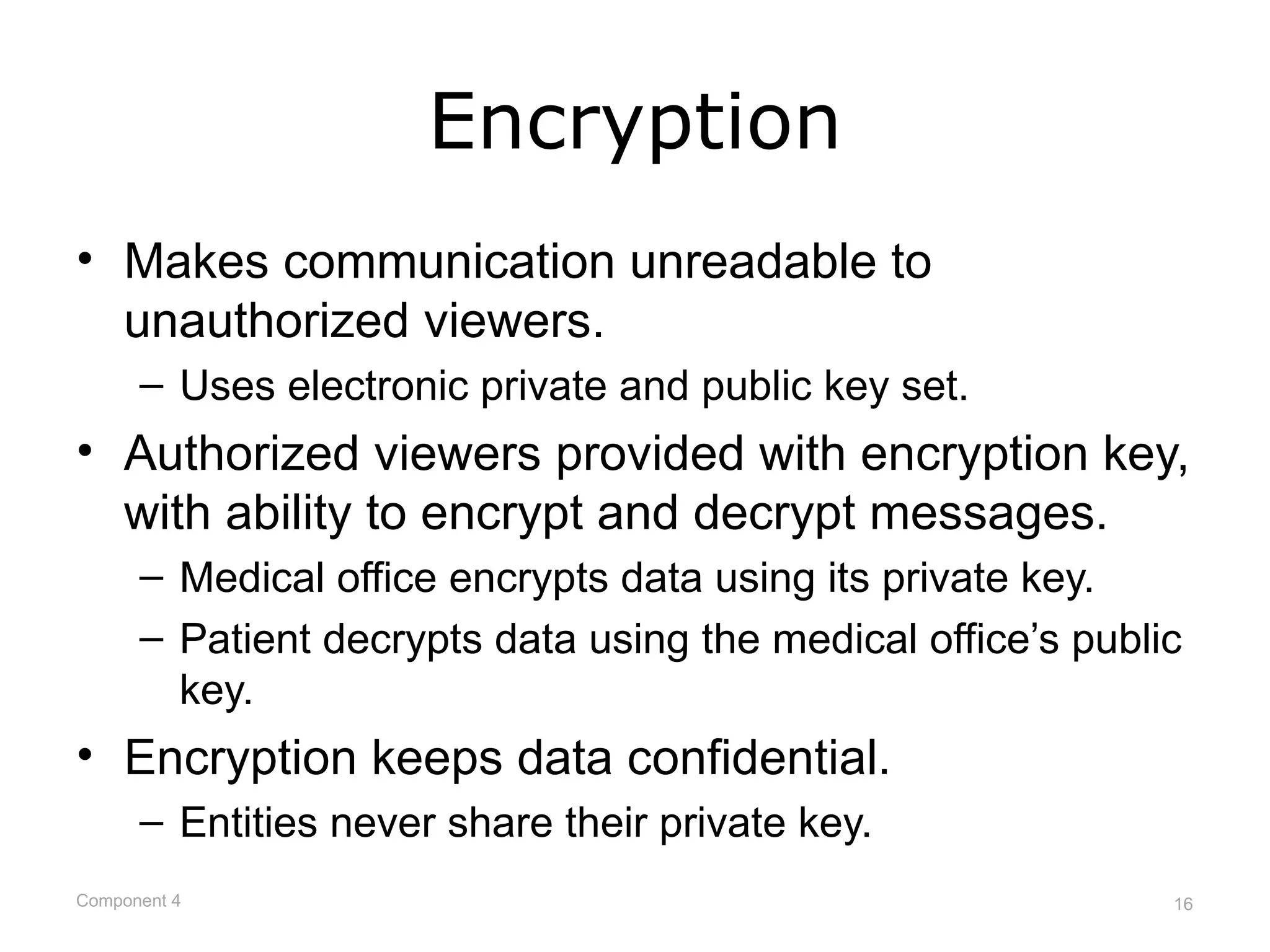

- 16. Encryption • Makes communicationunreadable to unauthorized viewers. – Uses electronic private and public key set. • Authorized viewers provided with encryption key, with ability to encrypt and decrypt messages. – Medical office encrypts data using its private key. – Patient decrypts data using the medical office’s public key. • Encryption keeps data confidential. – Entities never share their private key. Component 4 16

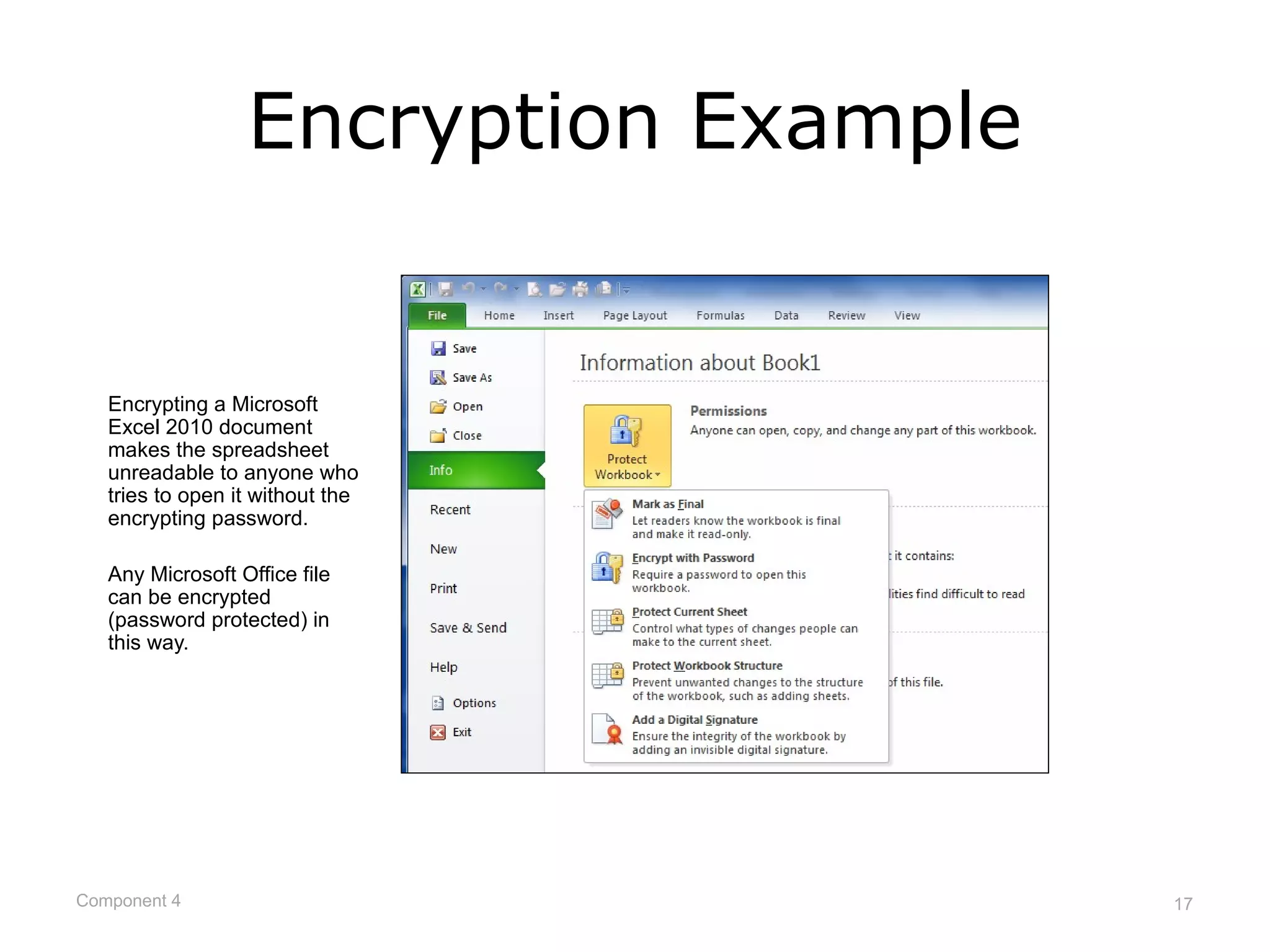

- 17. Encryption Example Encrypting a Microsoft Excel 2010 document makes the spreadsheet unreadable to anyone who tries to open it without the encrypting password. Any Microsoft Office file can be encrypted (password protected) in this way. Component 4 17

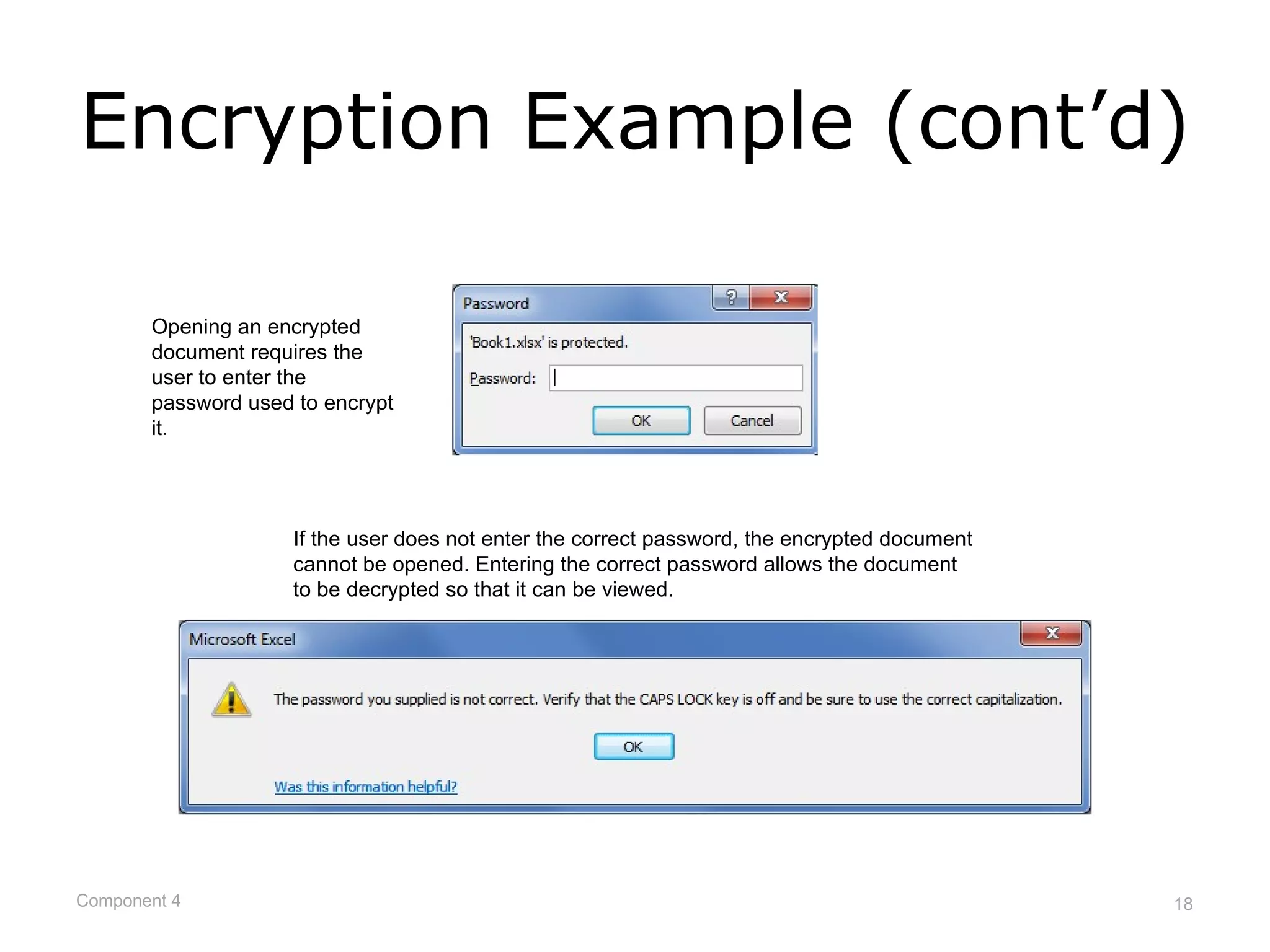

- 18. Encryption Example (cont’d) Opening an encrypted document requires the user to enter the password used to encrypt it. If the user does not enter the correct password, the encrypted document cannot be opened. Entering the correct password allows the document to be decrypted so that it can be viewed. Component 4 18

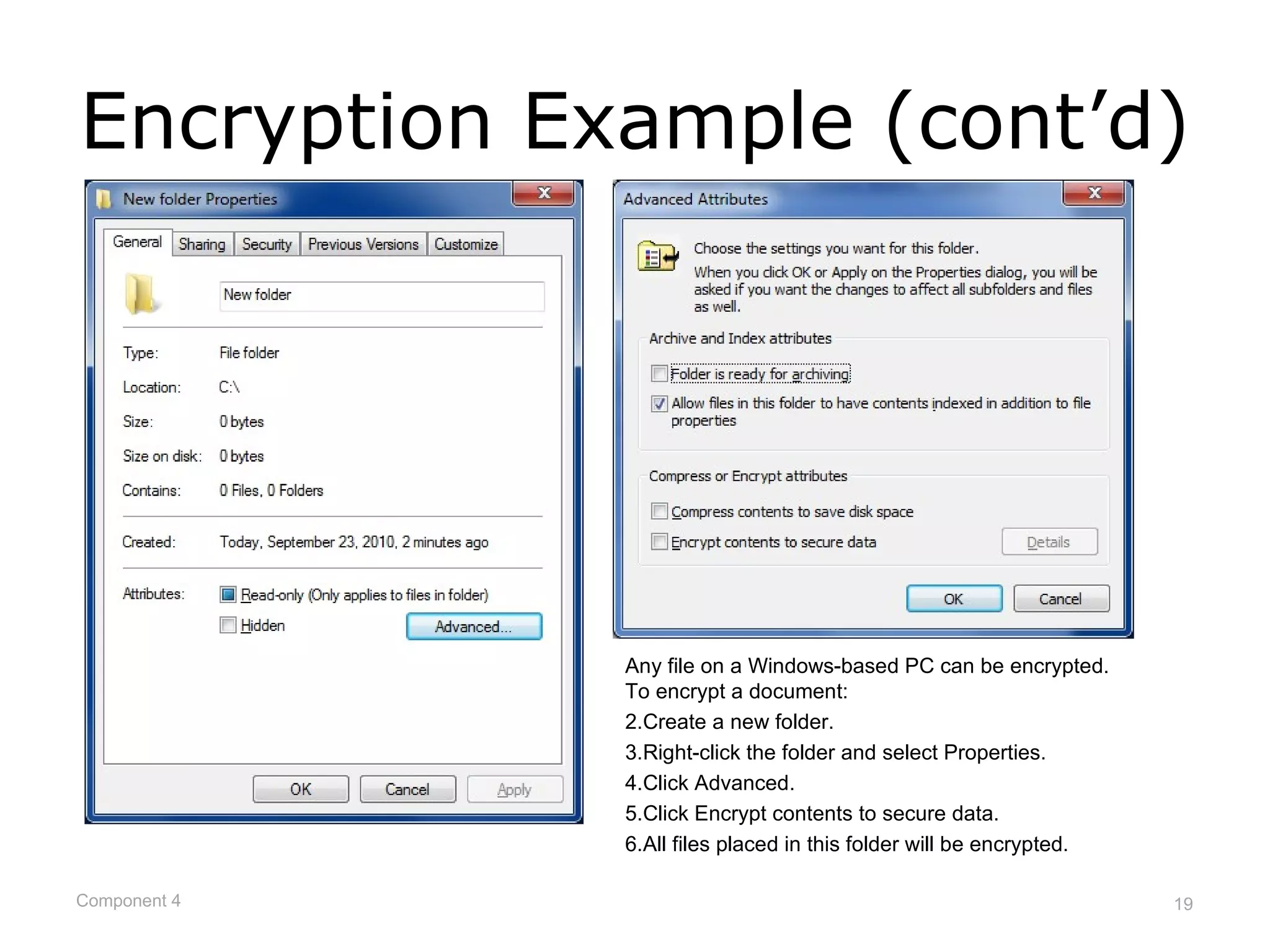

- 19. Encryption Example (cont’d) Any file on a Windows-based PC can be encrypted. To encrypt a document: 2.Create a new folder. 3.Right-click the folder and select Properties. 4.Click Advanced. 5.Click Encrypt contents to secure data. 6.All files placed in this folder will be encrypted. Component 4 19

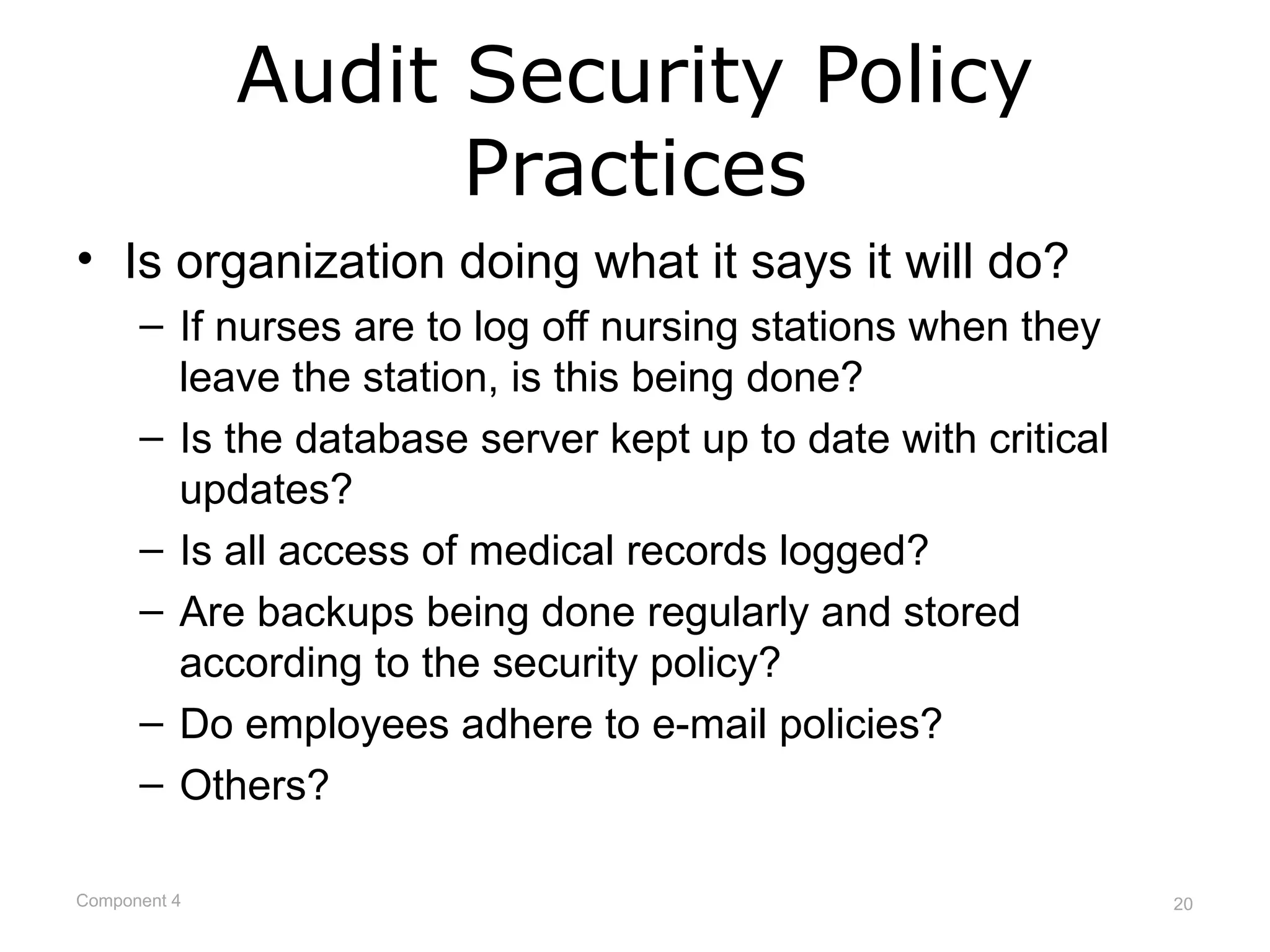

- 20. Audit Security Policy Practices • Is organization doing what it says it will do? – If nurses are to log off nursing stations when they leave the station, is this being done? – Is the database server kept up to date with critical updates? – Is all access of medical records logged? – Are backups being done regularly and stored according to the security policy? – Do employees adhere to e-mail policies? – Others? Component 4 20

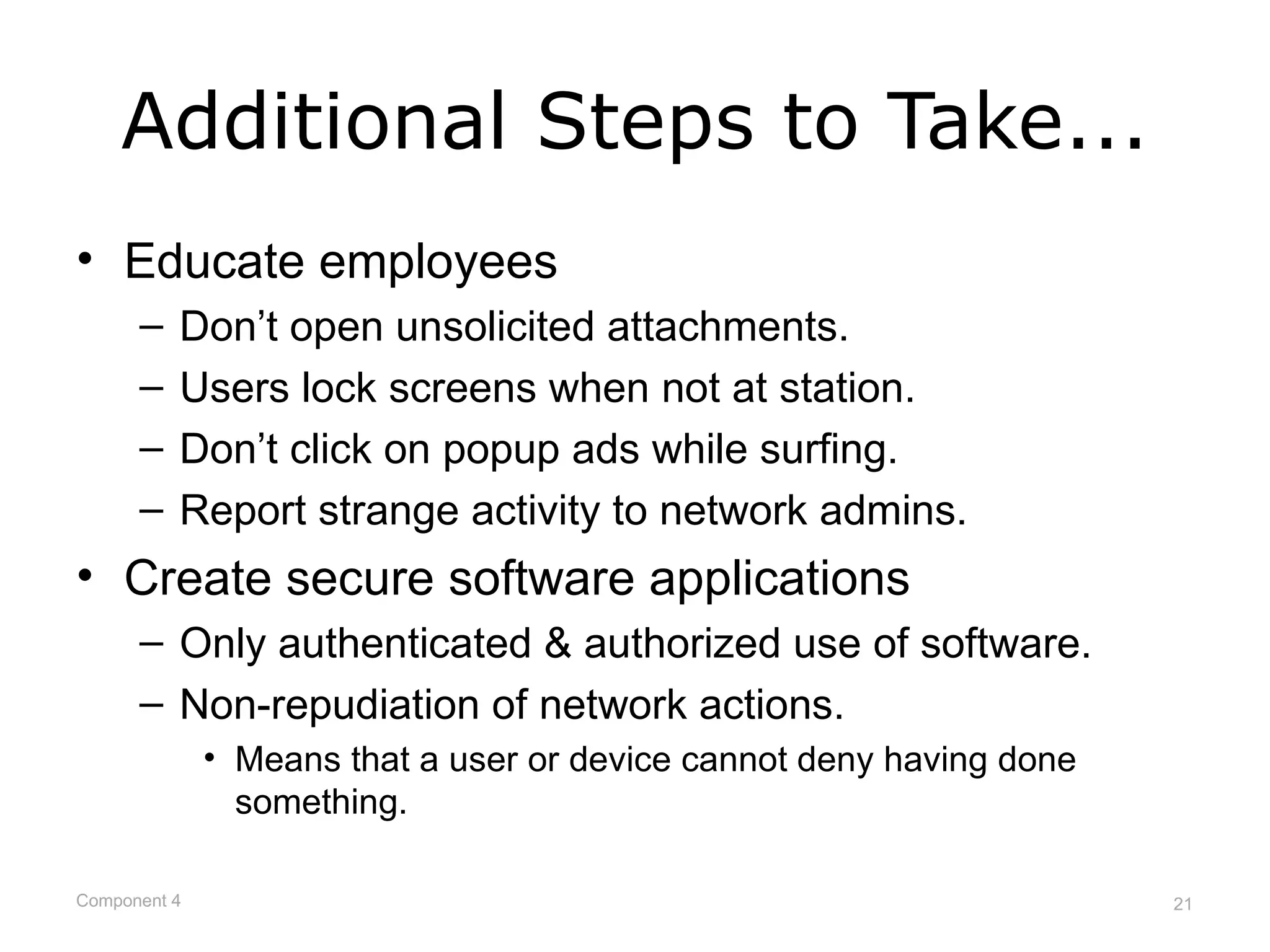

- 21. Additional Steps toTake... • Educate employees – Don’t open unsolicited attachments. – Users lock screens when not at station. – Don’t click on popup ads while surfing. – Report strange activity to network admins. • Create secure software applications – Only authenticated & authorized use of software. – Non-repudiation of network actions. • Means that a user or device cannot deny having done something. Component 4 21

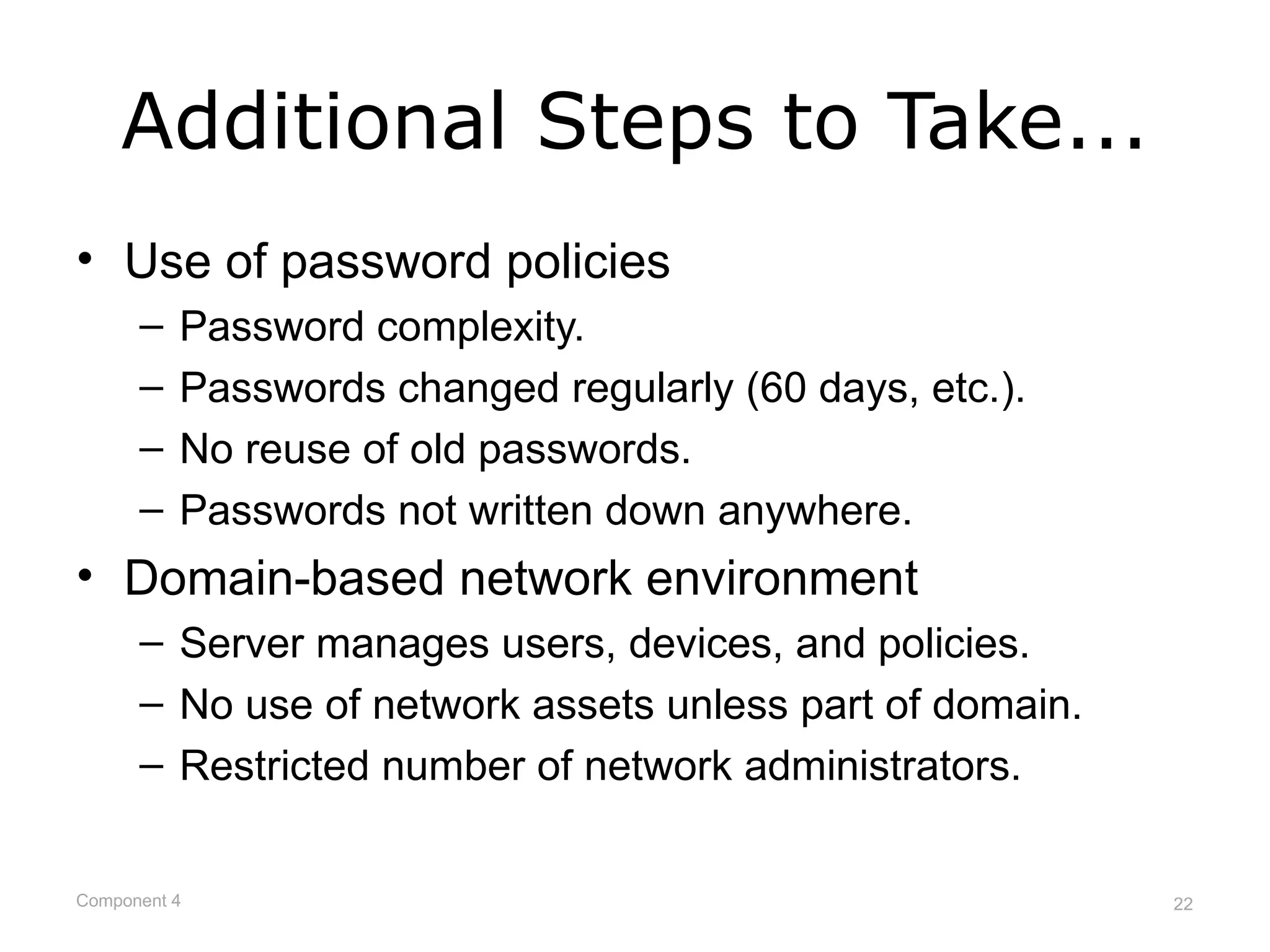

- 22. Additional Steps toTake... • Use of password policies – Password complexity. – Passwords changed regularly (60 days, etc.). – No reuse of old passwords. – Passwords not written down anywhere. • Domain-based network environment – Server manages users, devices, and policies. – No use of network assets unless part of domain. – Restricted number of network administrators. Component 4 22

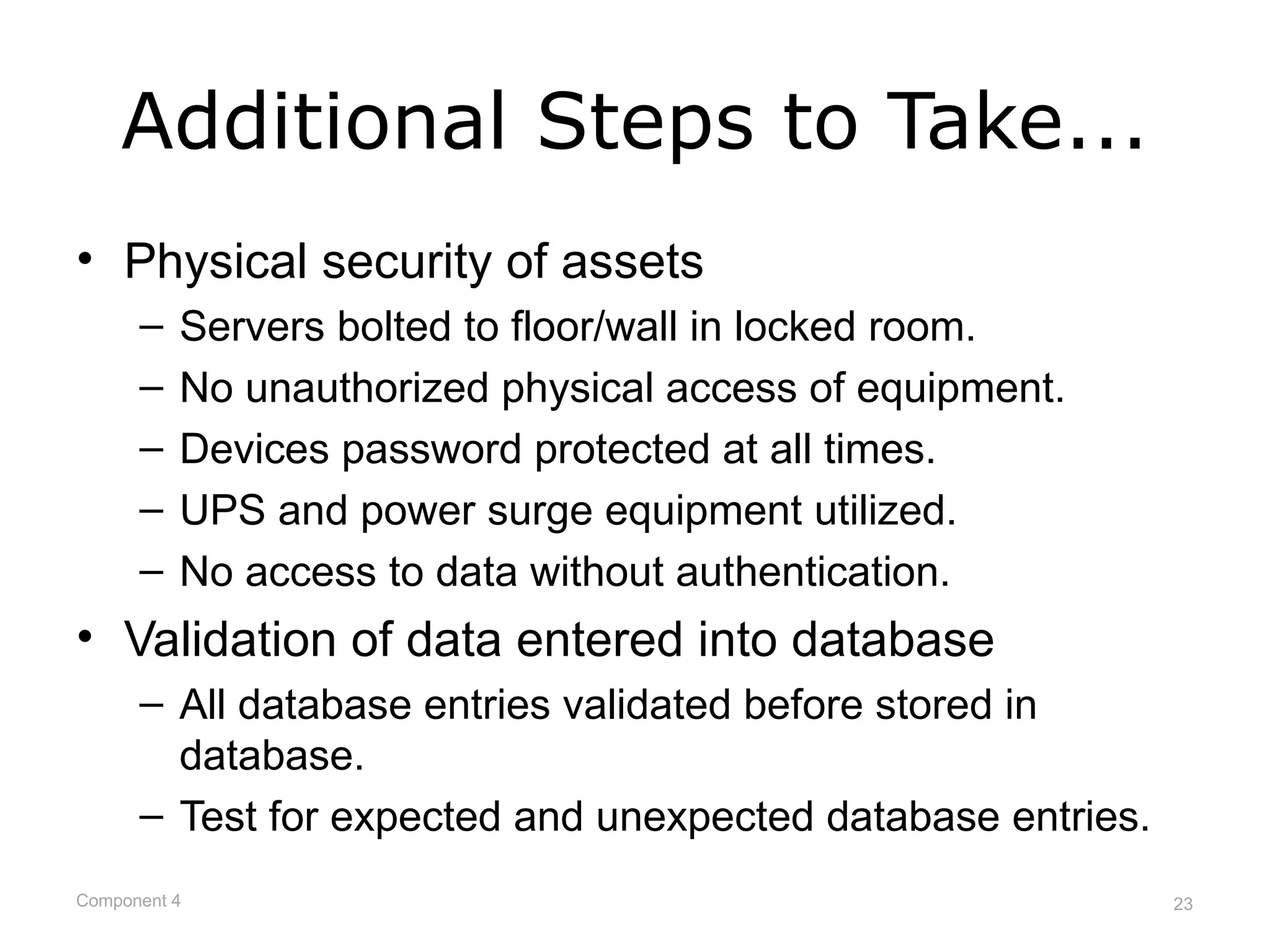

- 23. Additional Steps toTake... • Physical security of assets – Servers bolted to floor/wall in locked room. – No unauthorized physical access of equipment. – Devices password protected at all times. – UPS and power surge equipment utilized. – No access to data without authentication. • Validation of data entered into database – All database entries validated before stored in database. – Test for expected and unexpected database entries. Component 4 23

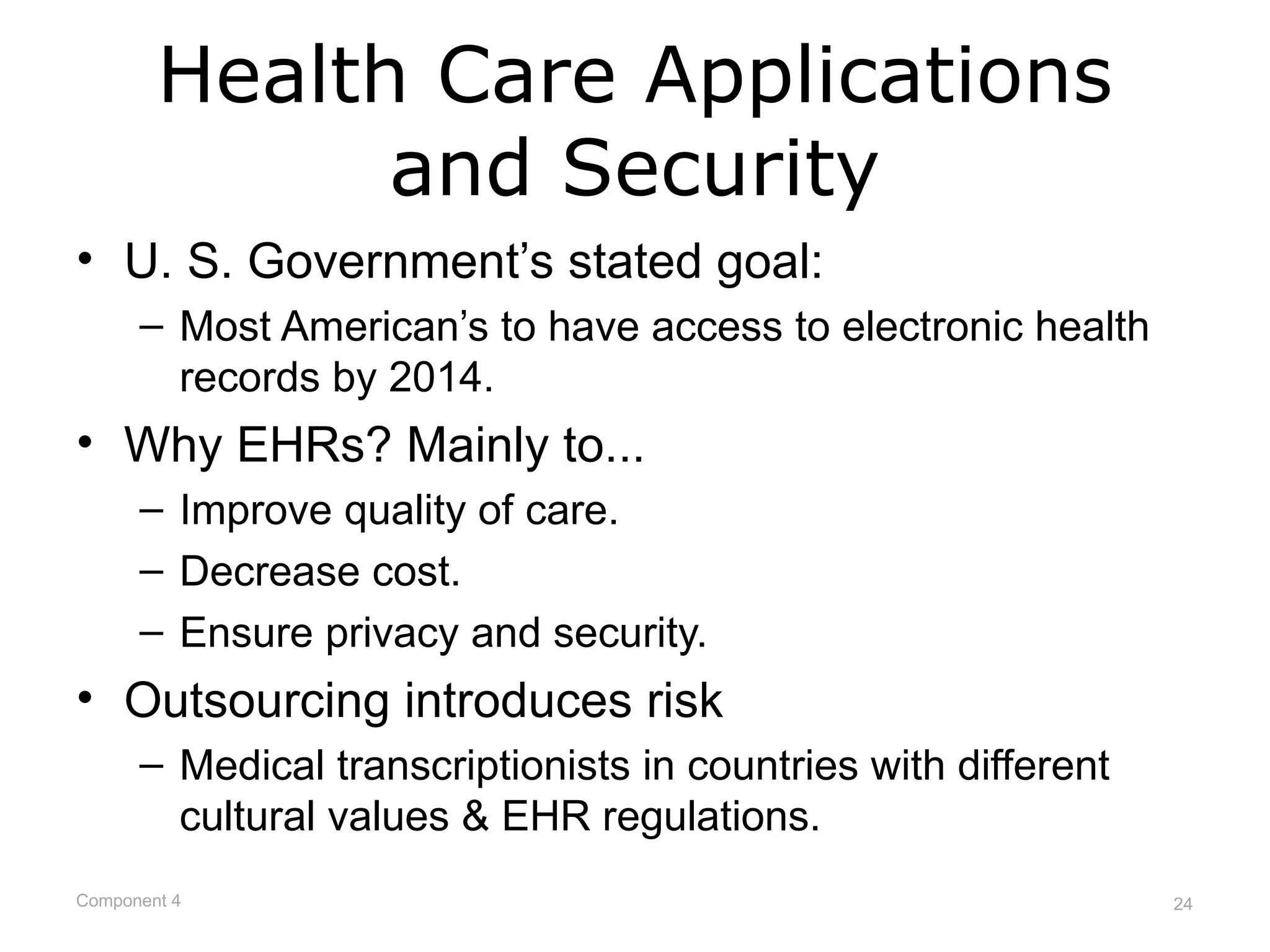

- 24. Health Care Applications and Security • U. S. Government’s stated goal: – Most American’s to have access to electronic health records by 2014. • Why EHRs? Mainly to... – Improve quality of care. – Decrease cost. – Ensure privacy and security. • Outsourcing introduces risk – Medical transcriptionists in countries with different cultural values & EHR regulations. Component 4 24

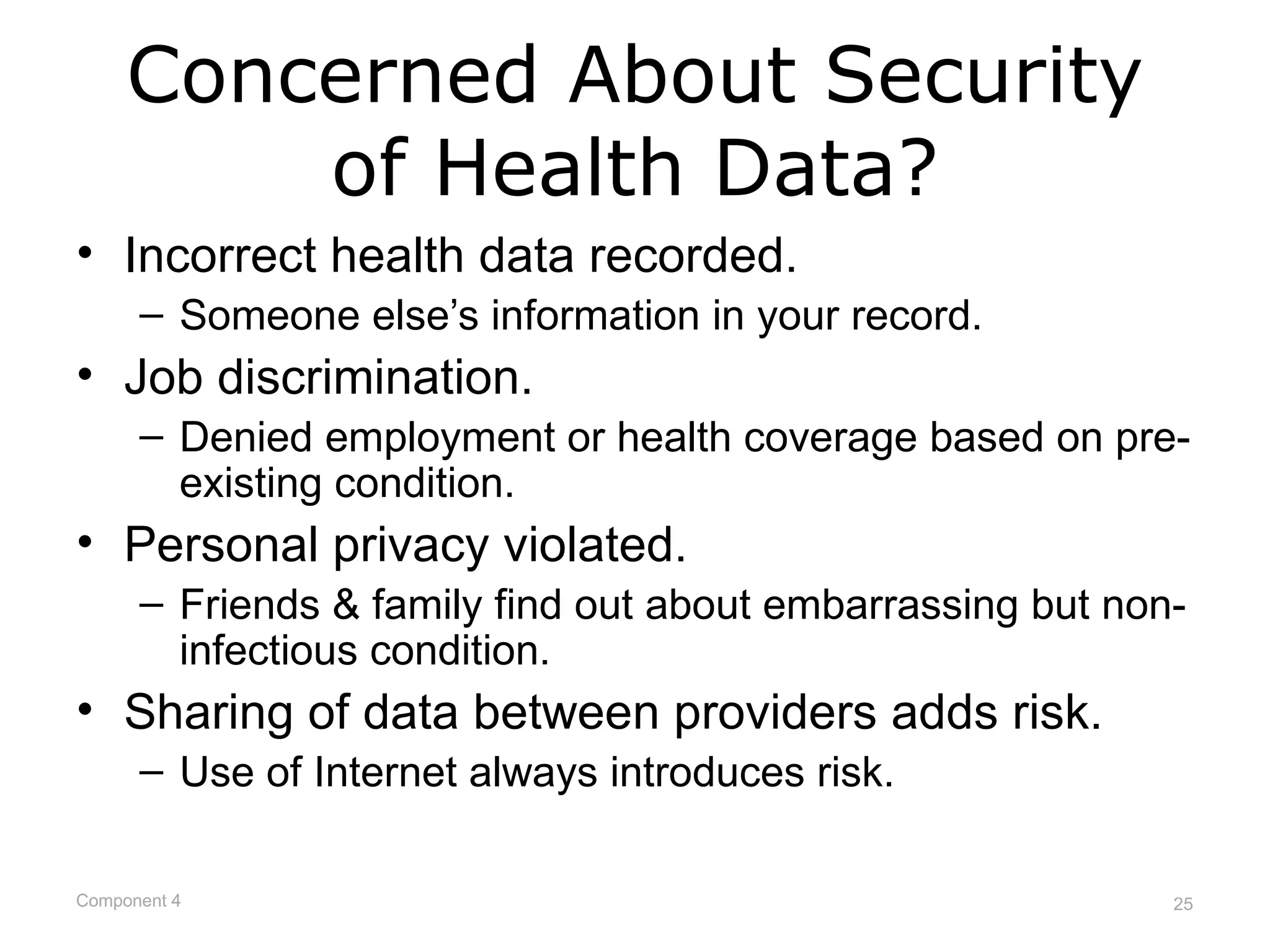

- 25. Concerned About Security of Health Data? • Incorrect health data recorded. – Someone else’s information in your record. • Job discrimination. – Denied employment or health coverage based on pre- existing condition. • Personal privacy violated. – Friends & family find out about embarrassing but non- infectious condition. • Sharing of data between providers adds risk. – Use of Internet always introduces risk. Component 4 25

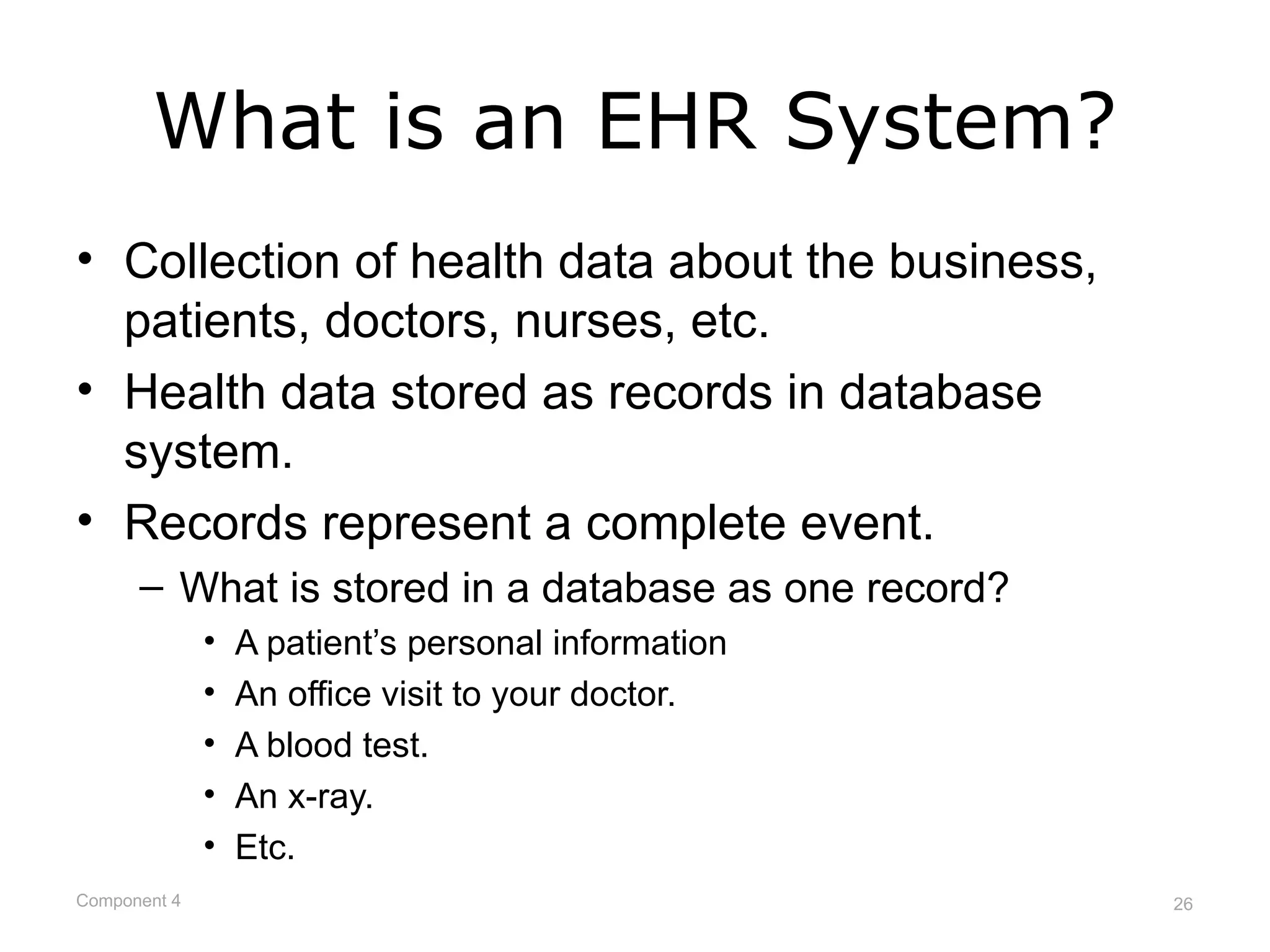

- 26. What is anEHR System? • Collection of health data about the business, patients, doctors, nurses, etc. • Health data stored as records in database system. • Records represent a complete event. – What is stored in a database as one record? • A patient’s personal information • An office visit to your doctor. • A blood test. • An x-ray. • Etc. Component 4 26

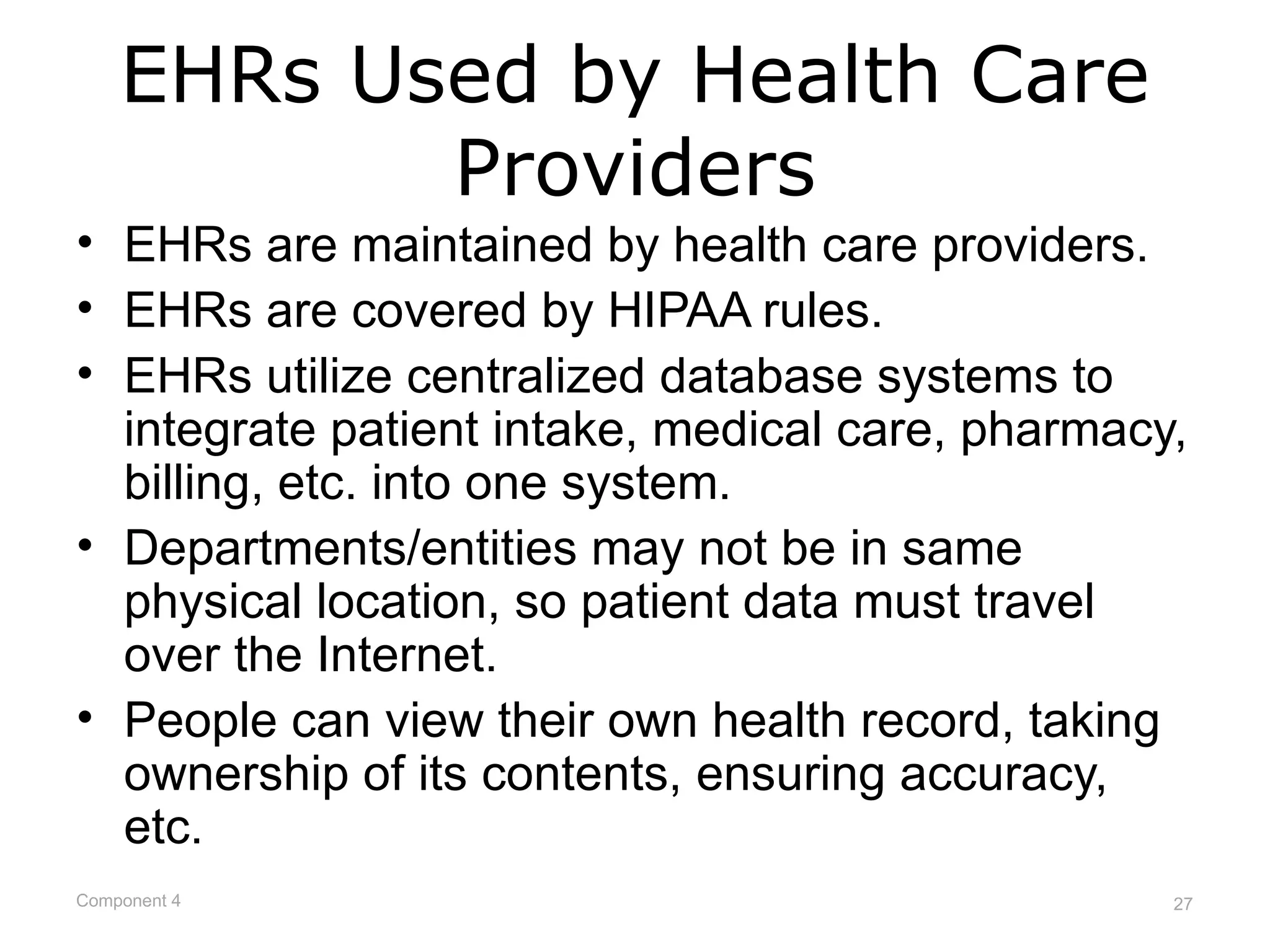

- 27. EHRs Used byHealth Care Providers • EHRs are maintained by health care providers. • EHRs are covered by HIPAA rules. • EHRs utilize centralized database systems to integrate patient intake, medical care, pharmacy, billing, etc. into one system. • Departments/entities may not be in same physical location, so patient data must travel over the Internet. • People can view their own health record, taking ownership of its contents, ensuring accuracy, etc. Component 4 27

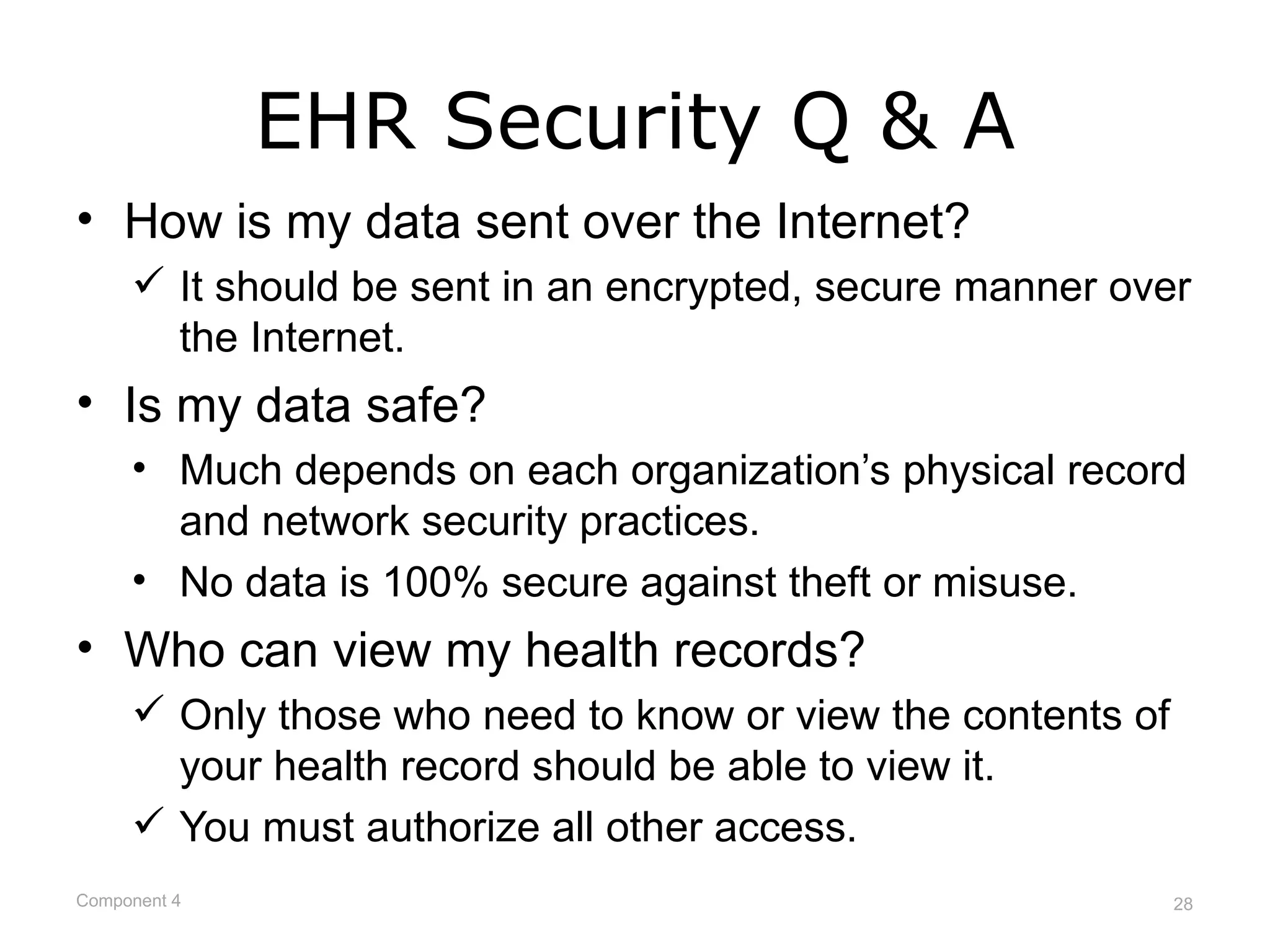

- 28. EHR Security Q& A • How is my data sent over the Internet? It should be sent in an encrypted, secure manner over the Internet. • Is my data safe? • Much depends on each organization’s physical record and network security practices. • No data is 100% secure against theft or misuse. • Who can view my health records? Only those who need to know or view the contents of your health record should be able to view it. You must authorize all other access. Component 4 28

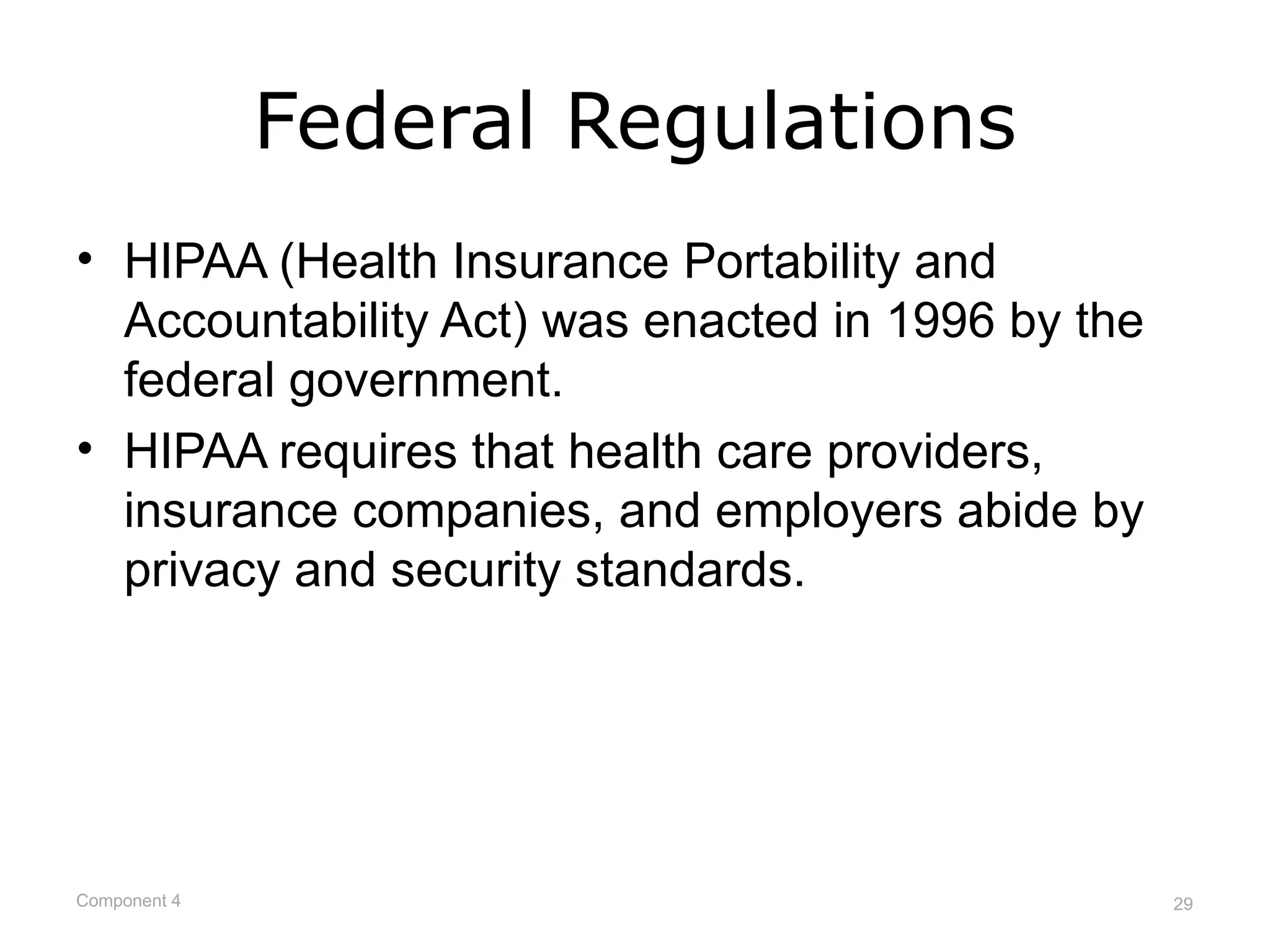

- 29. Federal Regulations • HIPAA(Health Insurance Portability and Accountability Act) was enacted in 1996 by the federal government. • HIPAA requires that health care providers, insurance companies, and employers abide by privacy and security standards. Component 4 29

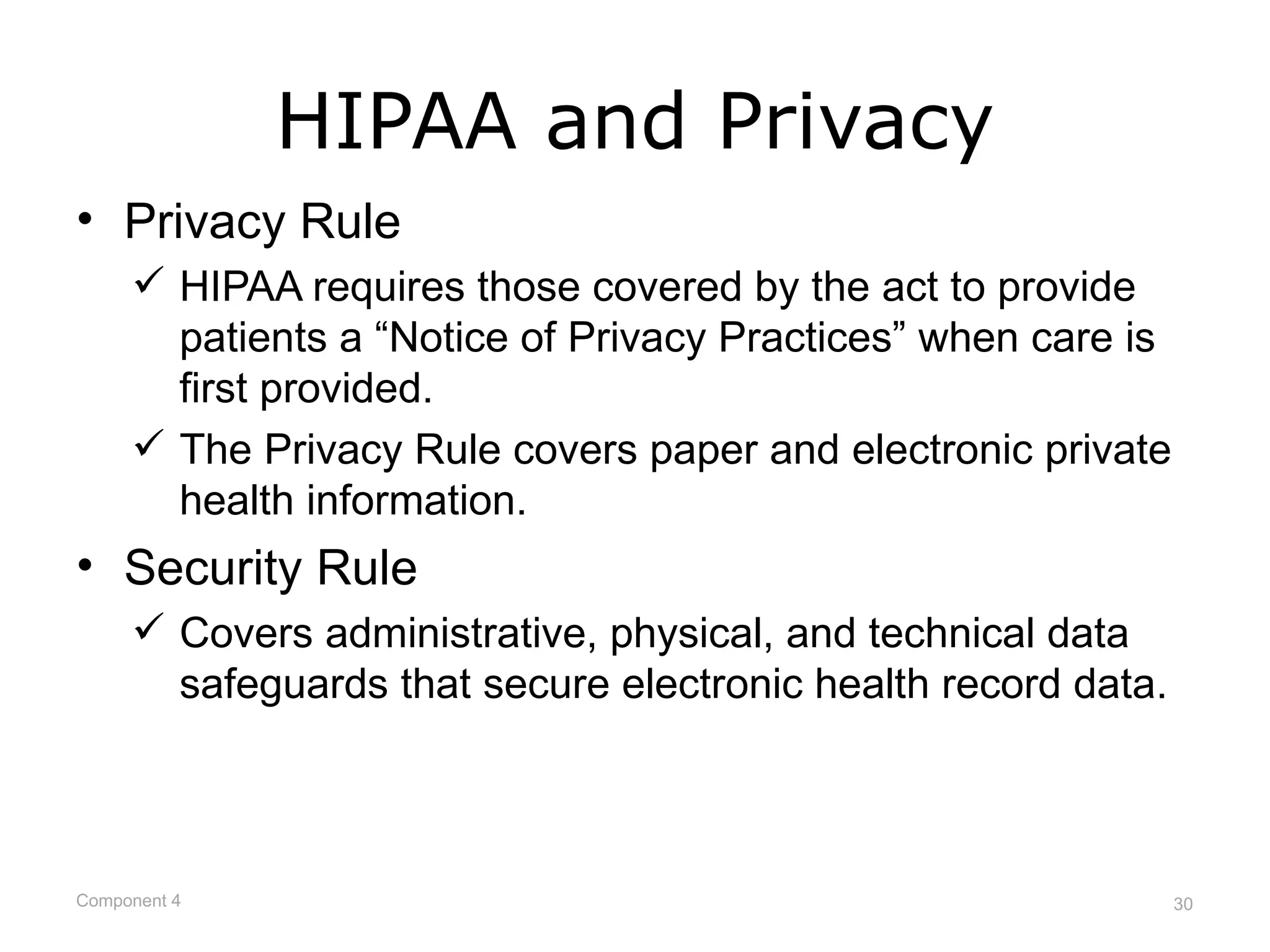

- 30. HIPAA and Privacy •Privacy Rule HIPAA requires those covered by the act to provide patients a “Notice of Privacy Practices” when care is first provided. The Privacy Rule covers paper and electronic private health information. • Security Rule Covers administrative, physical, and technical data safeguards that secure electronic health record data. Component 4 30

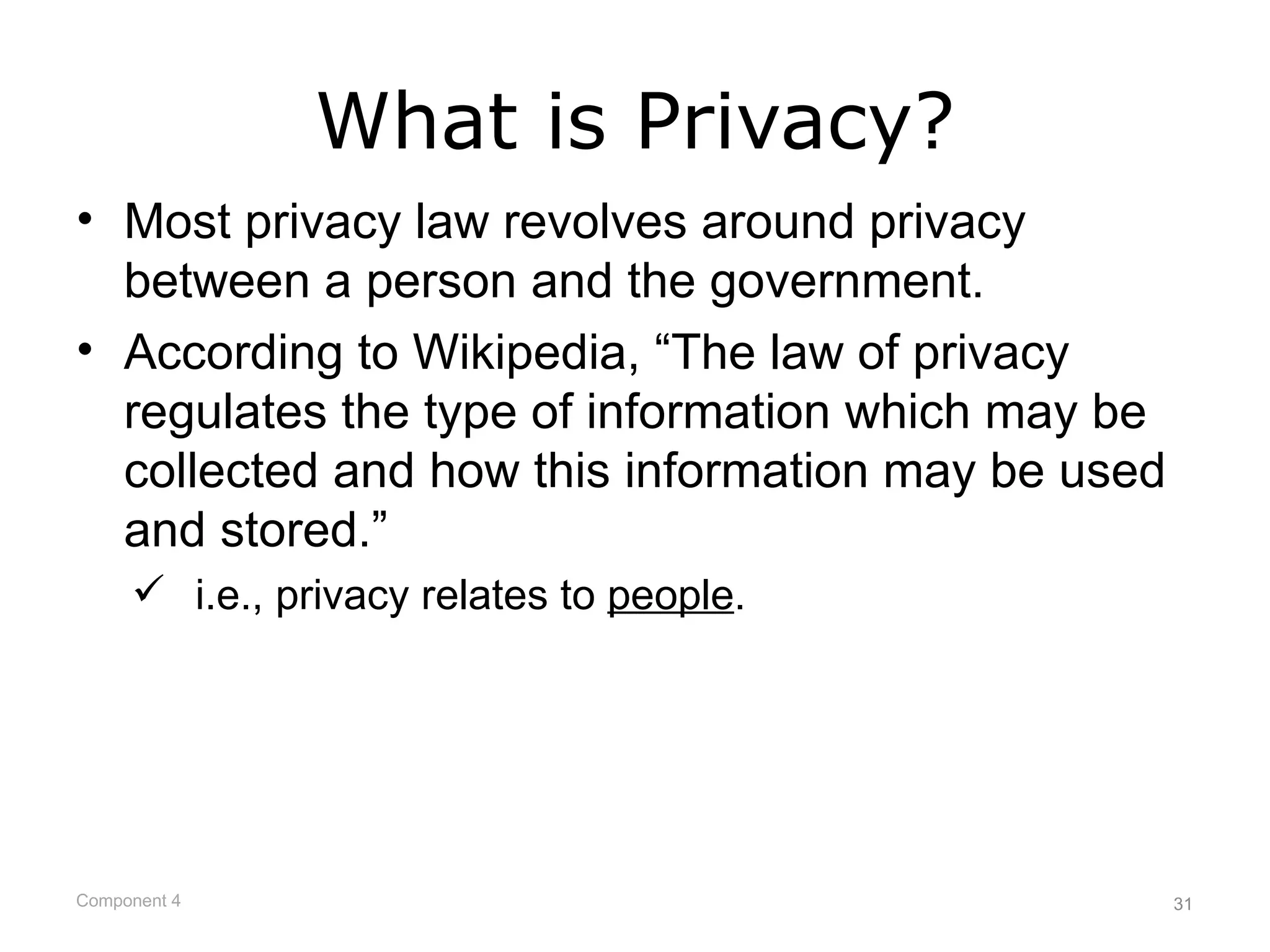

- 31. What is Privacy? •Most privacy law revolves around privacy between a person and the government. • According to Wikipedia, “The law of privacy regulates the type of information which may be collected and how this information may be used and stored.” i.e., privacy relates to people. Component 4 31

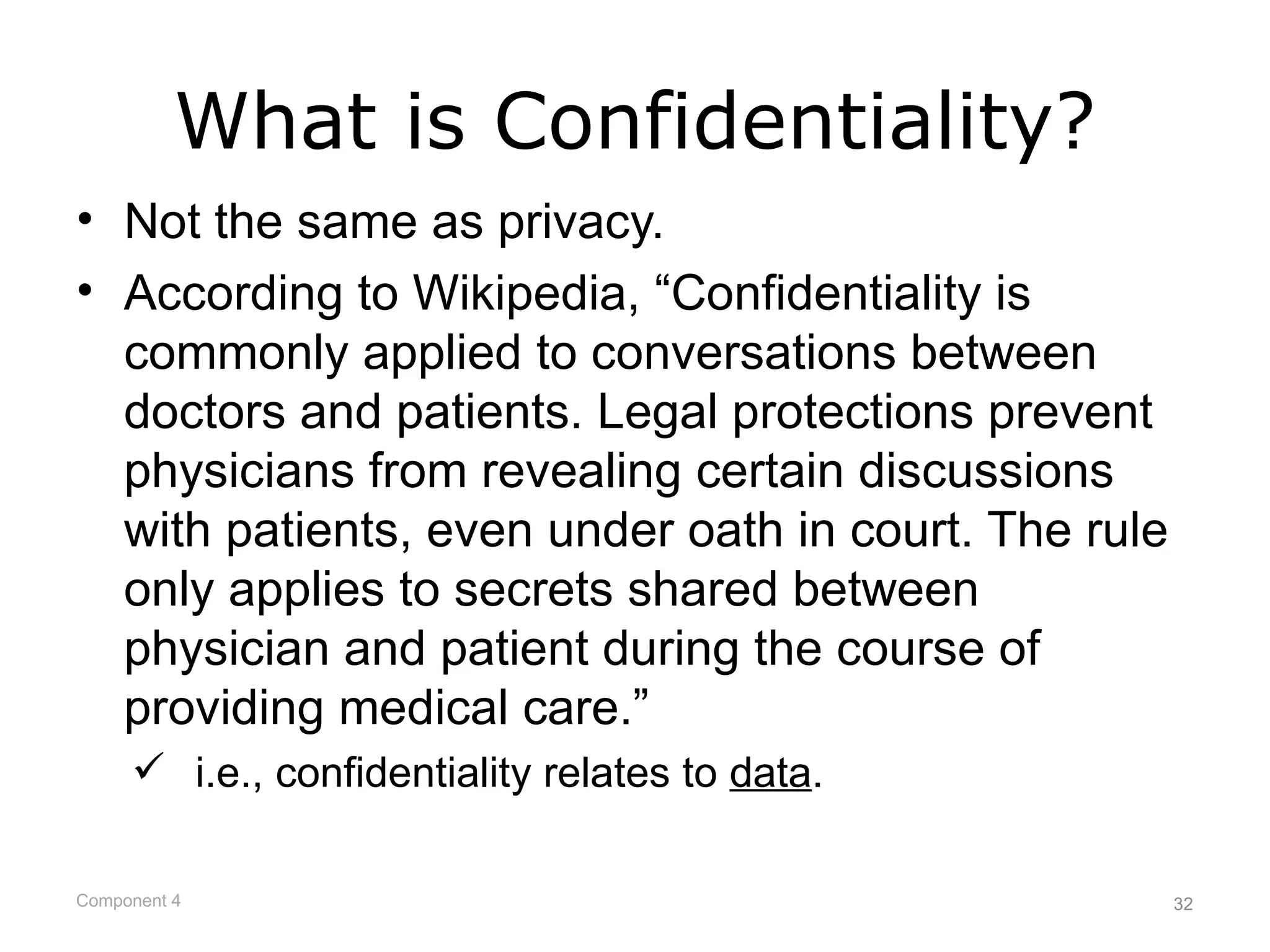

- 32. What is Confidentiality? •Not the same as privacy. • According to Wikipedia, “Confidentiality is commonly applied to conversations between doctors and patients. Legal protections prevent physicians from revealing certain discussions with patients, even under oath in court. The rule only applies to secrets shared between physician and patient during the course of providing medical care.” i.e., confidentiality relates to data. Component 4 32

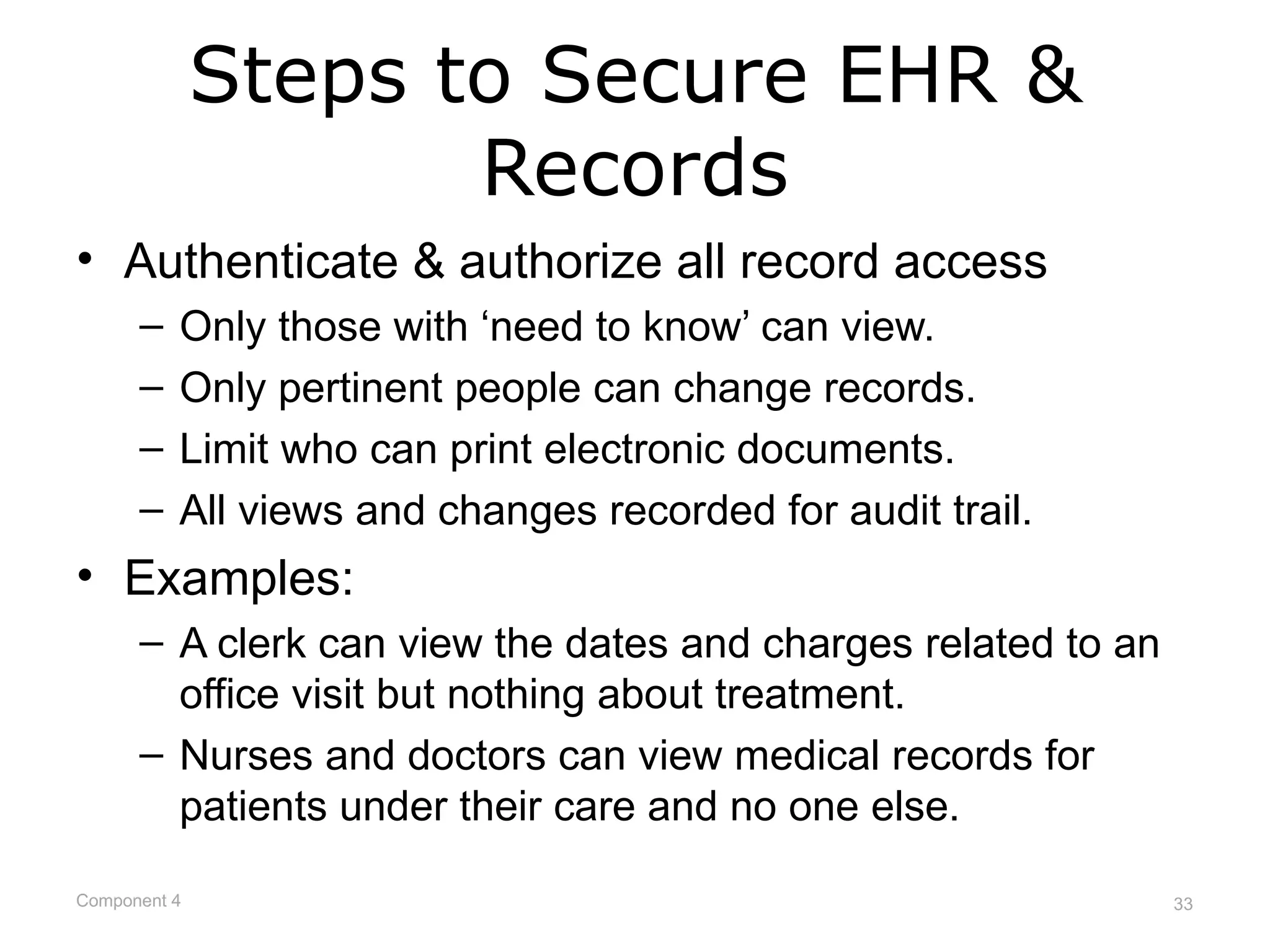

- 33. Steps to SecureEHR & Records • Authenticate & authorize all record access – Only those with ‘need to know’ can view. – Only pertinent people can change records. – Limit who can print electronic documents. – All views and changes recorded for audit trail. • Examples: – A clerk can view the dates and charges related to an office visit but nothing about treatment. – Nurses and doctors can view medical records for patients under their care and no one else. Component 4 33

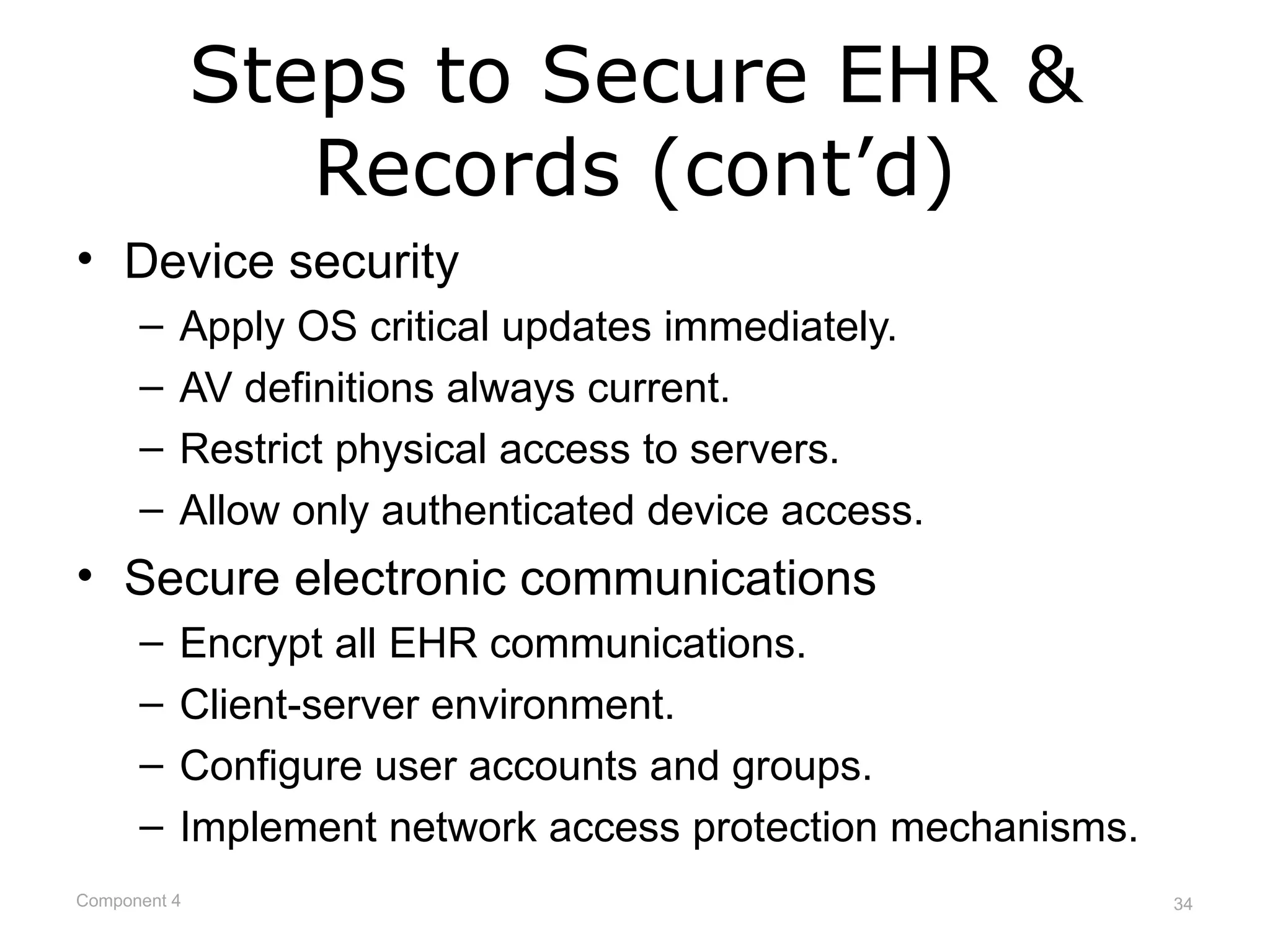

- 34. Steps to SecureEHR & Records (cont’d) • Device security – Apply OS critical updates immediately. – AV definitions always current. – Restrict physical access to servers. – Allow only authenticated device access. • Secure electronic communications – Encrypt all EHR communications. – Client-server environment. – Configure user accounts and groups. – Implement network access protection mechanisms. Component 4 34

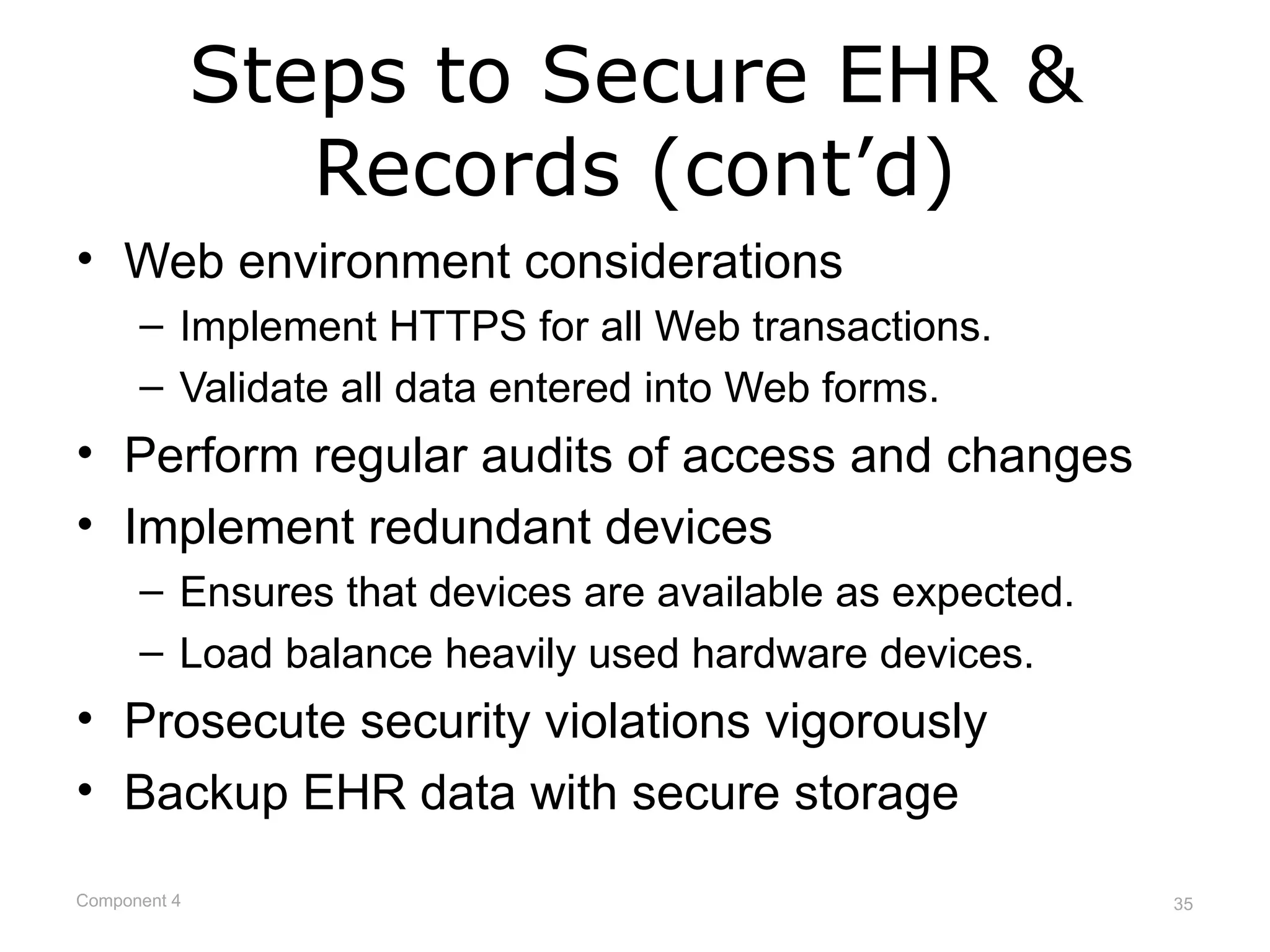

- 35. Steps to SecureEHR & Records (cont’d) • Web environment considerations – Implement HTTPS for all Web transactions. – Validate all data entered into Web forms. • Perform regular audits of access and changes • Implement redundant devices – Ensures that devices are available as expected. – Load balance heavily used hardware devices. • Prosecute security violations vigorously • Backup EHR data with secure storage Component 4 35

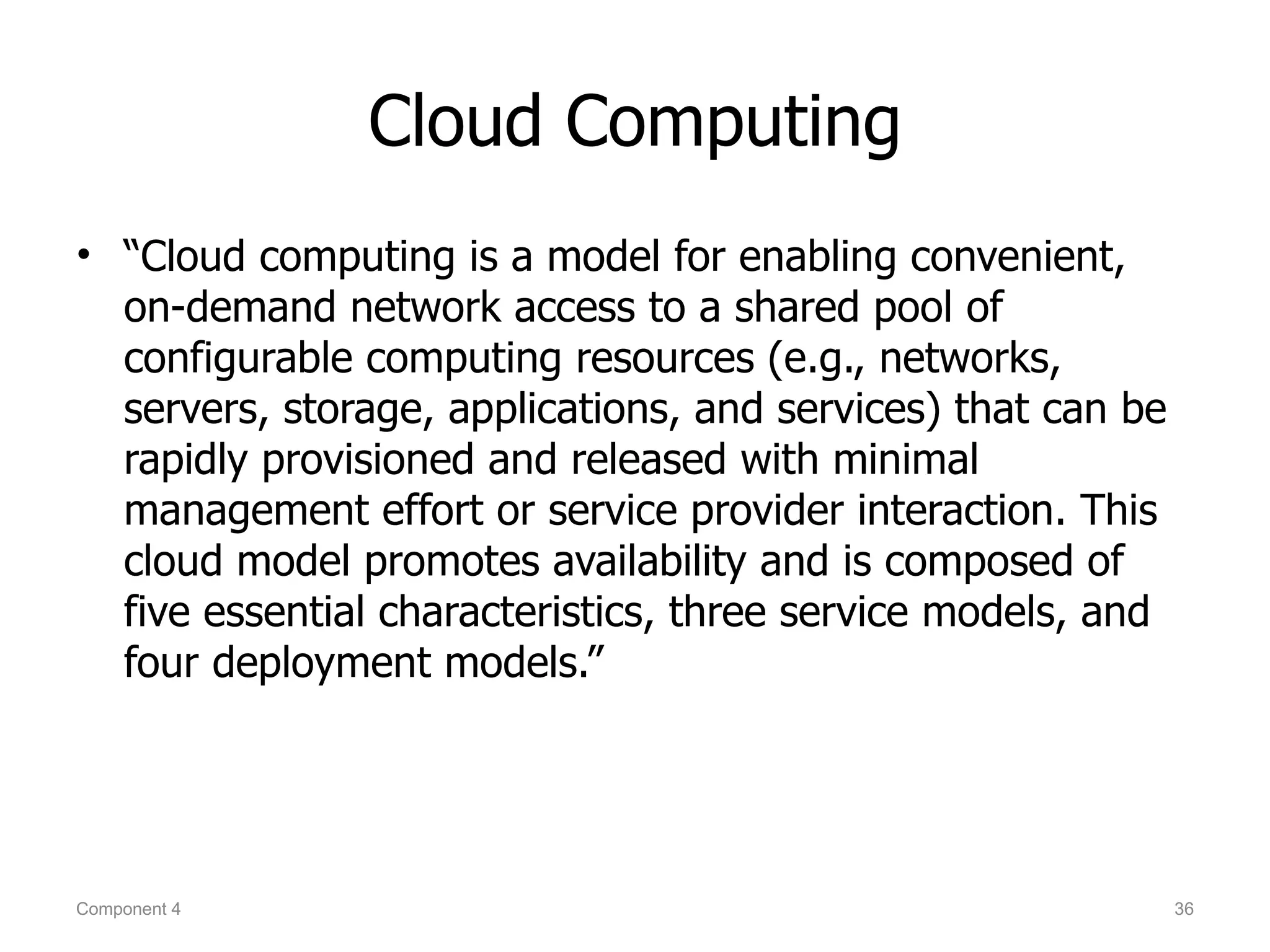

- 36. Cloud Computing • “Cloudcomputing is a model for enabling convenient, on-demand network access to a shared pool of configurable computing resources (e.g., networks, servers, storage, applications, and services) that can be rapidly provisioned and released with minimal management effort or service provider interaction. This cloud model promotes availability and is composed of five essential characteristics, three service models, and four deployment models.” Component 4 36

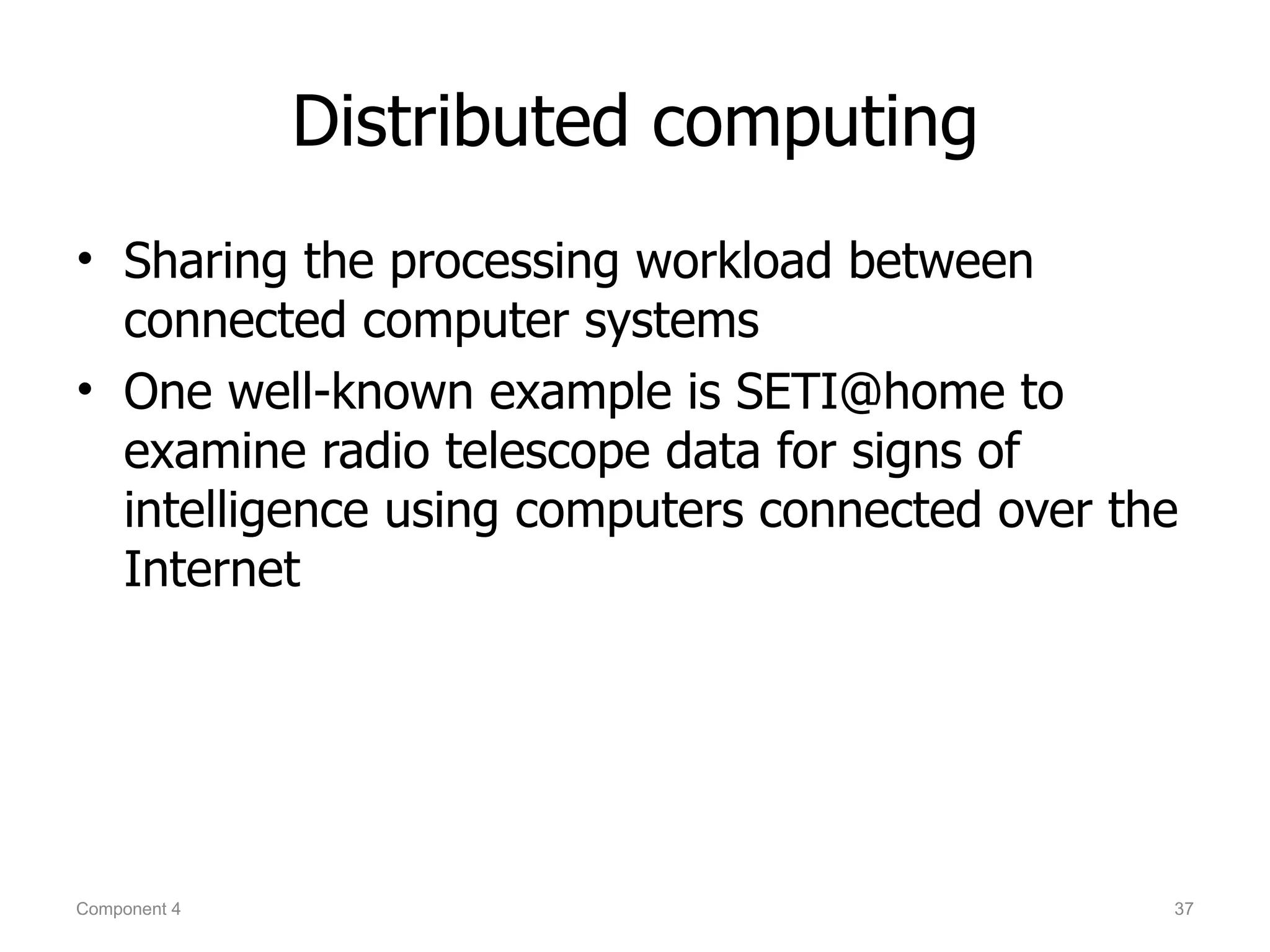

- 37. Distributed computing • Sharingthe processing workload between connected computer systems • One well-known example is SETI@home to examine radio telescope data for signs of intelligence using computers connected over the Internet Component 4 37

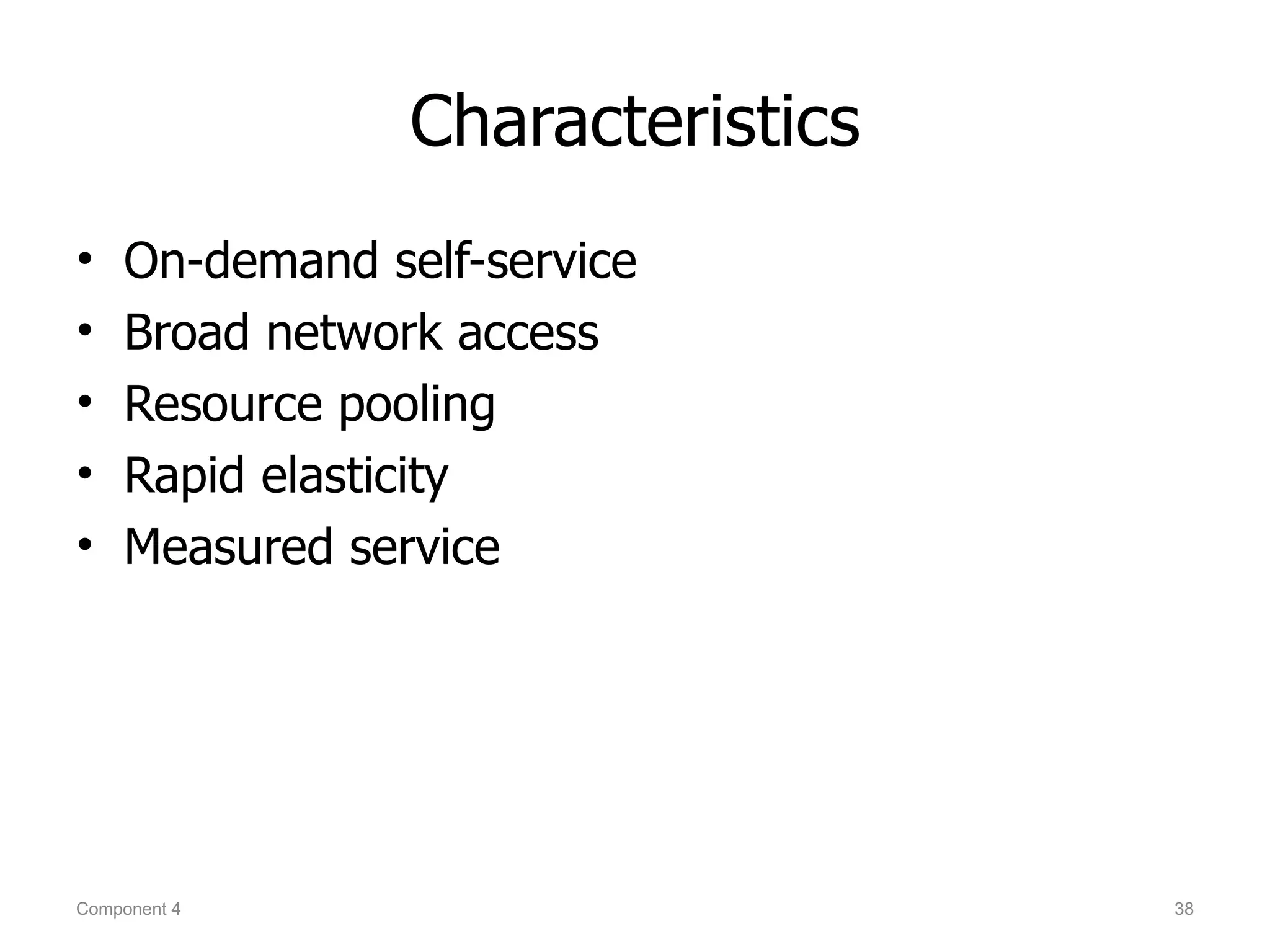

- 38. Characteristics • On-demand self-service • Broad network access • Resource pooling • Rapid elasticity • Measured service Component 4 38

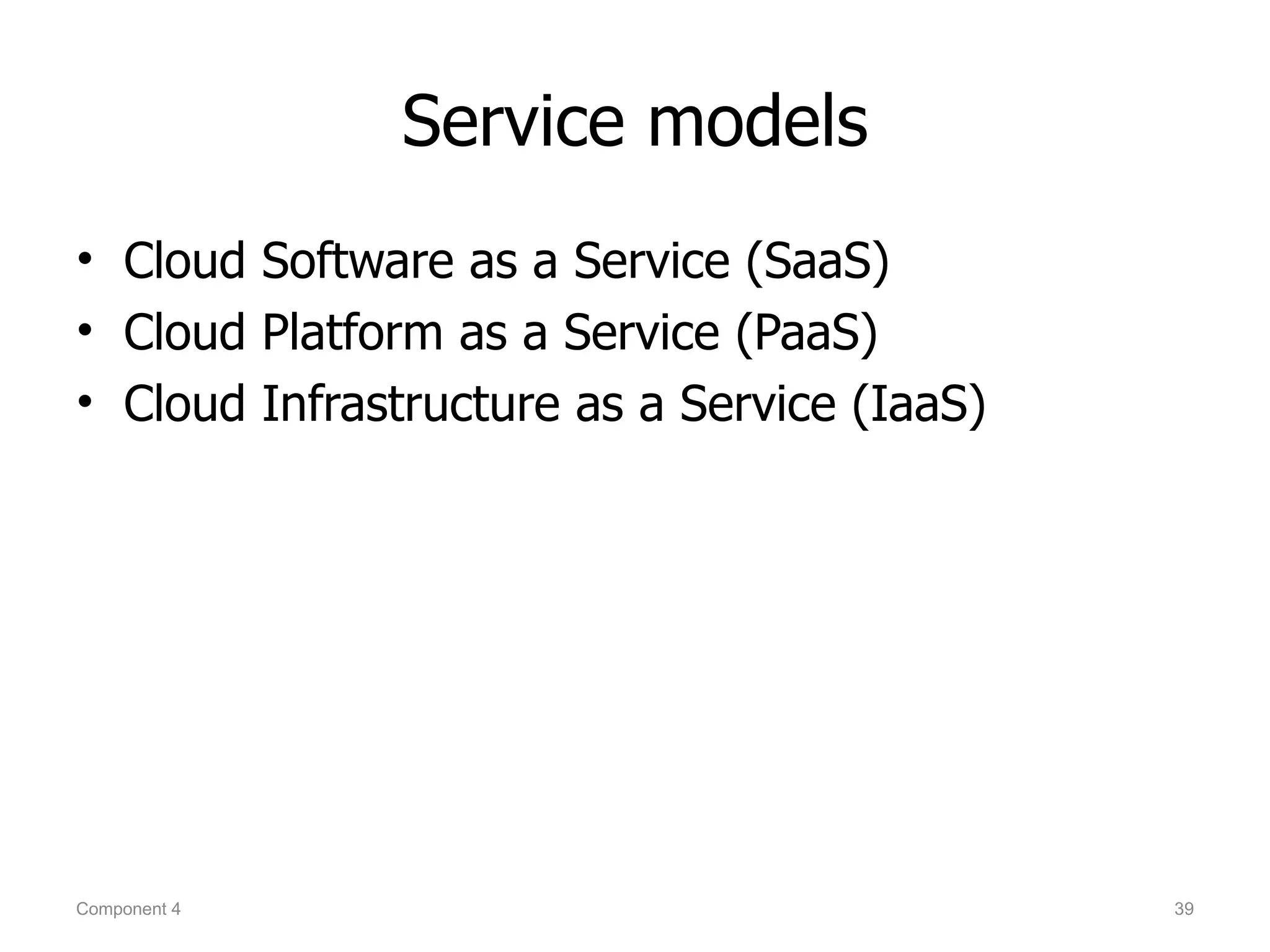

- 39. Service models • CloudSoftware as a Service (SaaS) • Cloud Platform as a Service (PaaS) • Cloud Infrastructure as a Service (IaaS) Component 4 39

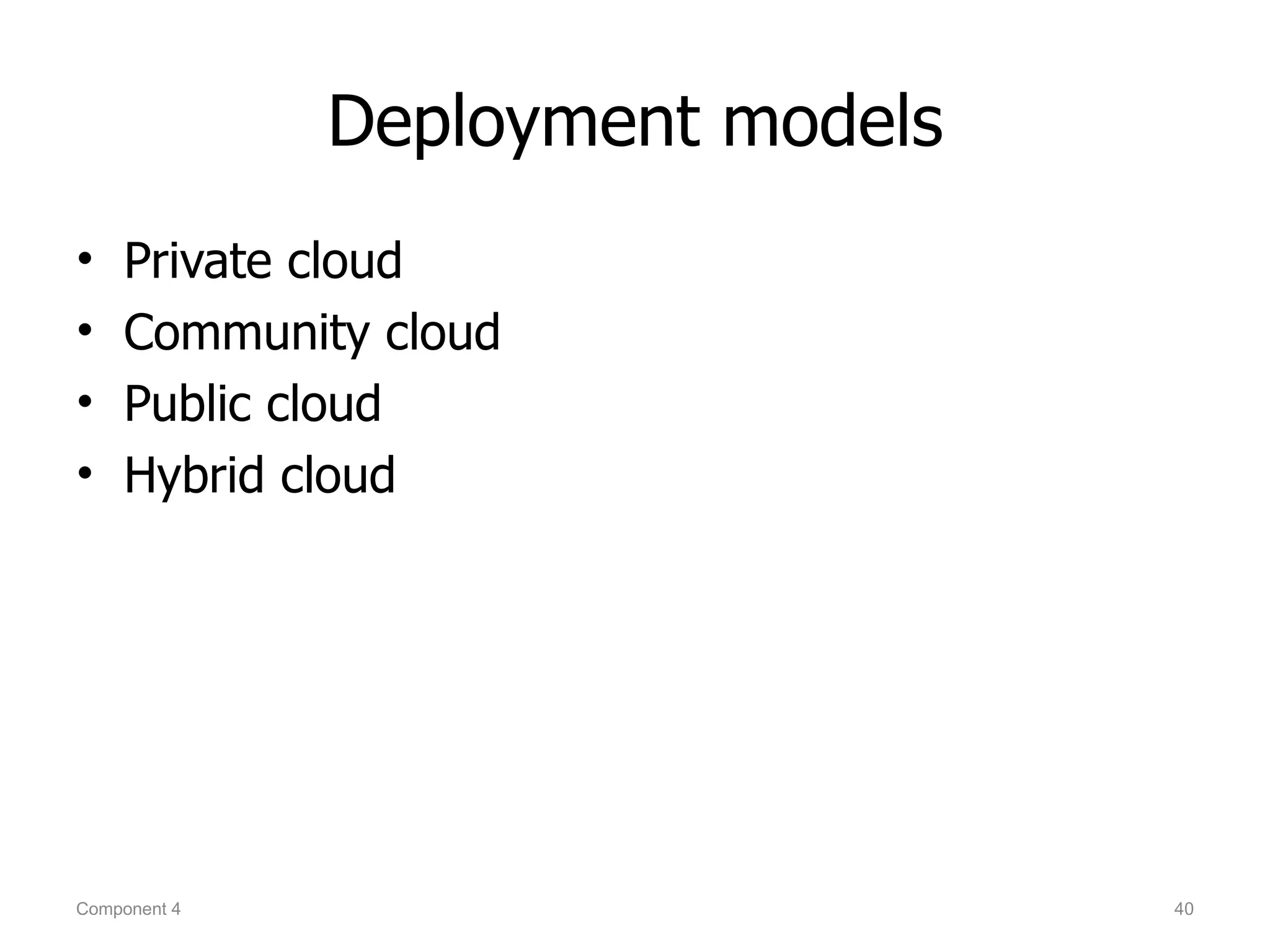

- 40. Deployment models • Private cloud • Community cloud • Public cloud • Hybrid cloud Component 4 40

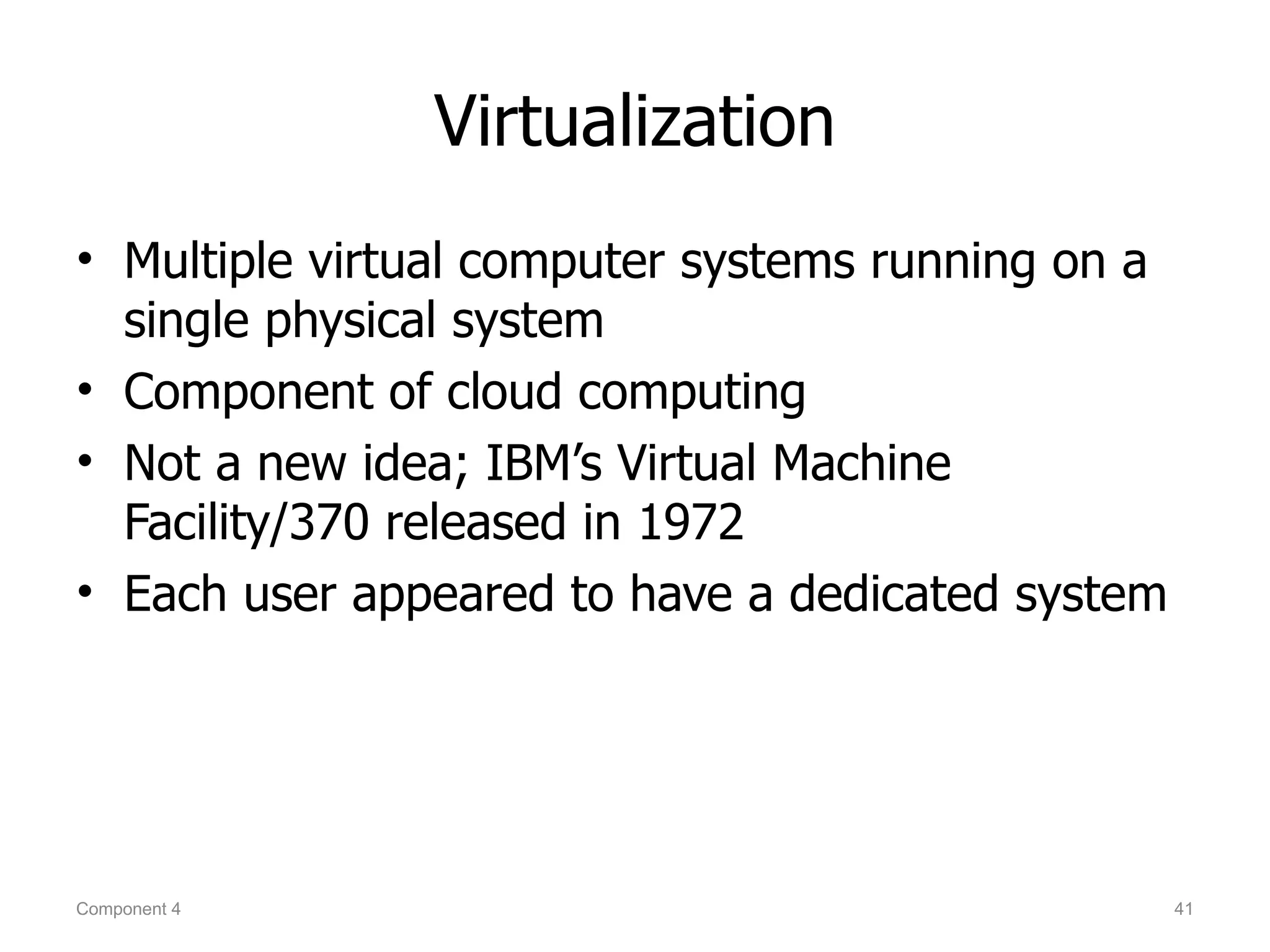

- 41. Virtualization • Multiple virtualcomputer systems running on a single physical system • Component of cloud computing • Not a new idea; IBM’s Virtual Machine Facility/370 released in 1972 • Each user appeared to have a dedicated system Component 4 41

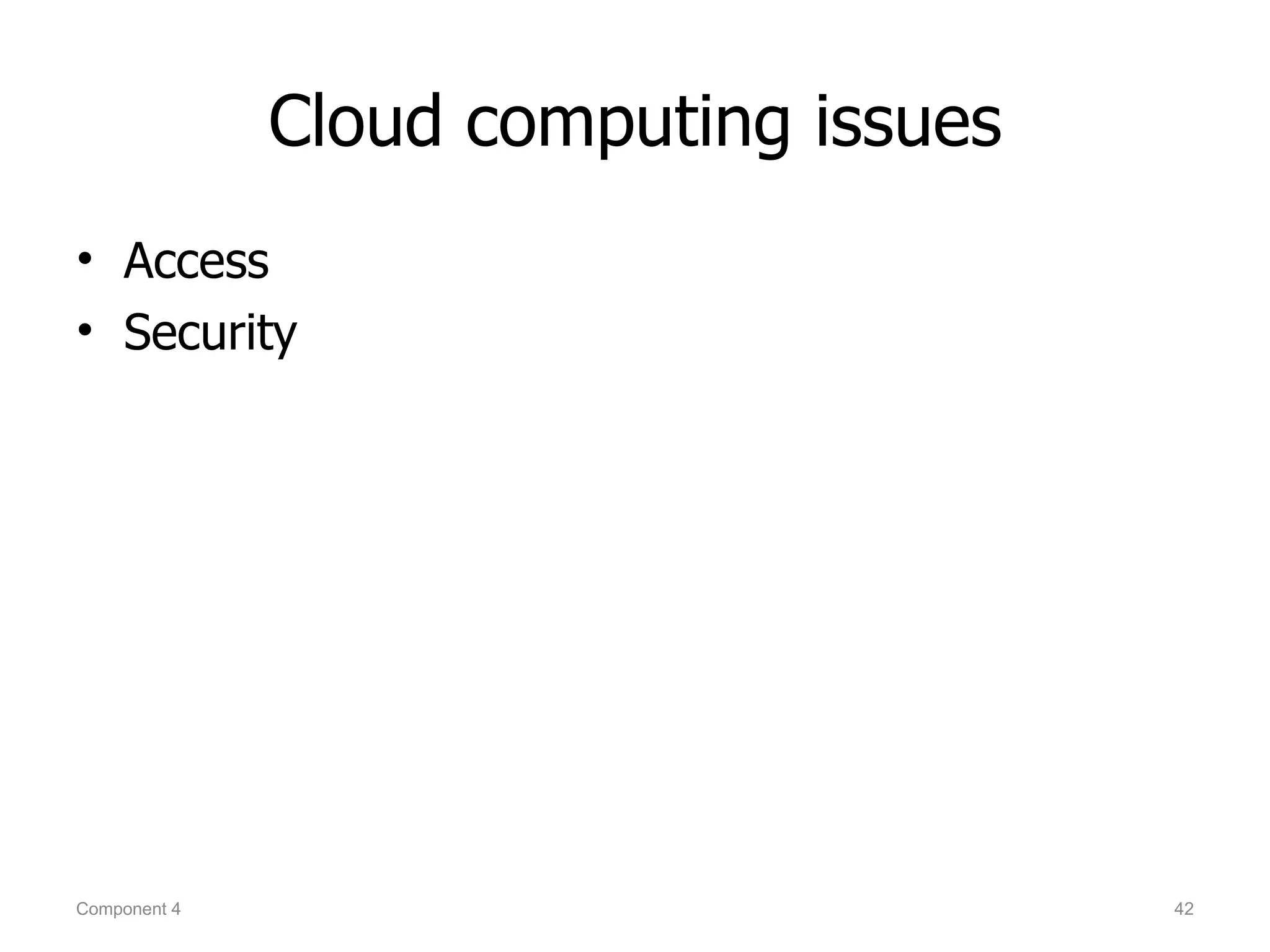

- 42. Cloud computing issues •Access • Security Component 4 42
