Basic Electronics 2 by Dr. Mathivanan Velumani
•Download as PPTX, PDF•
0 likes•578 views

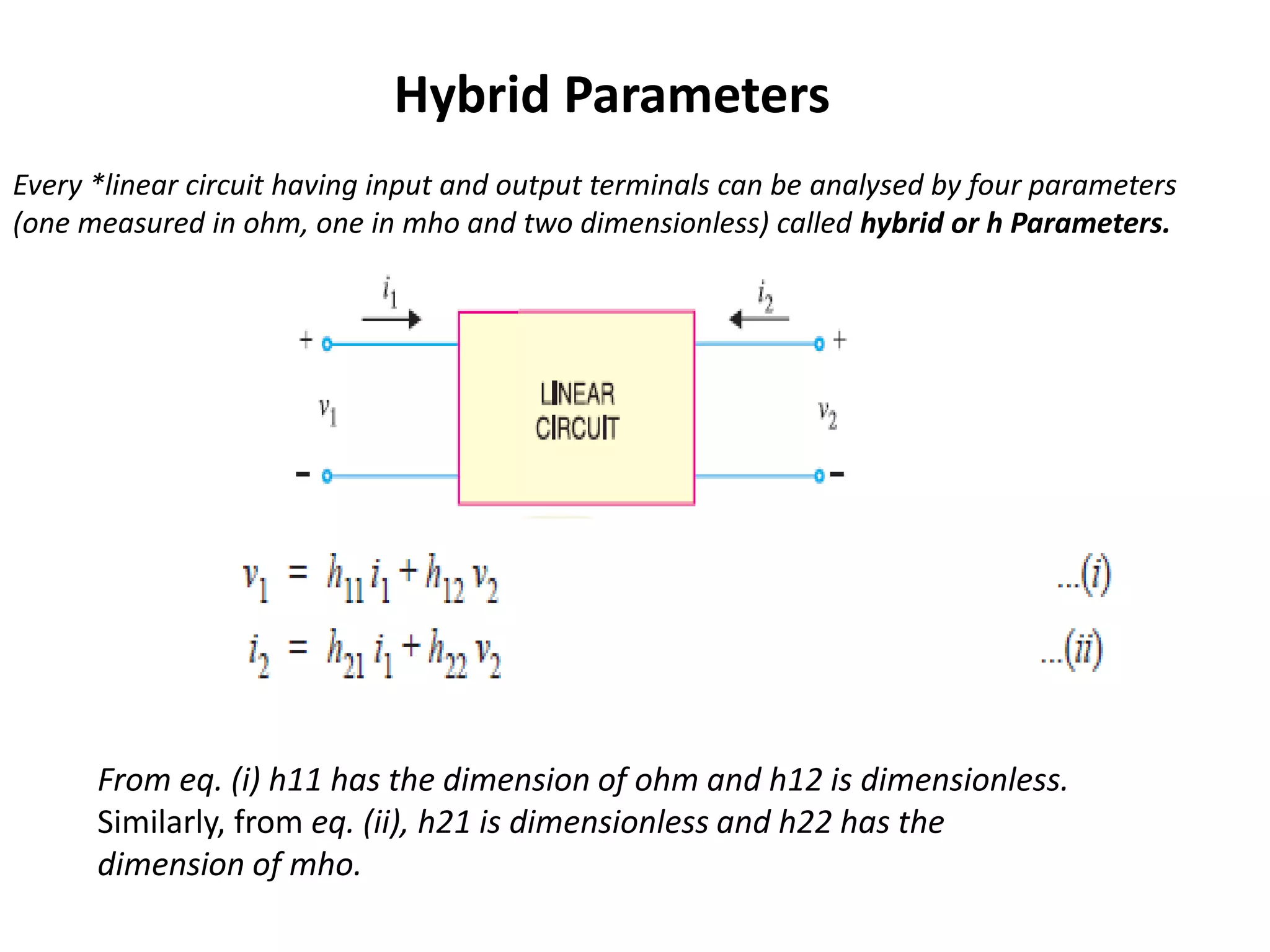

The document discusses h parameters, which are four hybrid or mixed parameters (one in ohms, one in mhos, two dimensionless) that can be used to analyze any linear circuit with input and output terminals. The h parameters are determined from two equations, with h11 having units of ohms, h12 and h21 being dimensionless, and h22 having units of mhos. The document also mentions that h parameters can be represented using an equivalent circuit model.
