Baking Docker Using Chef
This document discusses using Chef to manage Docker containers. It begins with introducing the speaker and their background in DevOps. It then provides an overview of Docker and how it compares to virtual machines. The rest of the document discusses how Chef can be used to build Docker images, manage Docker containers running on nodes, and provide a simple continuous delivery pipeline for Docker applications using Chef and tools like Jenkins. It also discusses challenges like managing configuration and credentials in containers and provides an example of using the docker Chef cookbook to build, push, and run Docker containers in different environments.
More Related Content
Similar to Baking Docker Using Chef
Baking Docker Using Chef
- 1. @muktaa Baking Docker usingChef Mukta Aphale Agile India Conf 2016, Bangalore +
- 2. @muktaa Who am I? •C, Ruby, Java developer turned into DevOps Architect • Contributed to Chef development • Chef azure extension • Knife plugins: knife-azure, knife-ec2, knife-openstack • Knife WinRM, knife windows listener • Worked extensively with Docker • Docker authorized consultant • Technology, innovation and the thirst to keep learning are what define me • Love to travel, read, write • Above all, I am a mother to two boys!
- 3. @muktaa Agenda •The Chef Journey •ContainerEra •Chef + Docker •Example •Docker cookbook •Example
- 4.
- 5. @muktaa Chef Journey • AdamJacob, Jessie Robbins, Barry Steinglass, Nathan Haneysmith, Joshua Timberman • Marionette • Opscode • First release: Jan 2009 • Ruby, Erlang • Facebook, Nordstorm, Disney, GE • Configuration Management • Cloud Management • Chef Delivery
- 6.
- 7. @muktaa Evolution • 2000: Jails,FreeBSD • 2001: Linux-Vserver • 2006: cgroups • 2008: LXC Containers • 2013: Docker • June 2014: Docker 1.0 • Today: Docker 1.10.3
- 8. @muktaa Docker • Learning curve •No need for huge investment at the early stage • “I wont use Chef for that small deployment” • “Now I have 100 servers. Makes sense to use Chef” • “Now I have 100 containers. How do I manage them?”
- 9.
- 10. @muktaa What is Docker? Linux Container 3 Components: Docker Engine Docker Hub Docker Images Benefits: Speed Portability Density Open Source “Can create lightweight, self sufficient containers from any application”
- 11. @muktaa Docker is nota VM Virtual Machine Docker
- 12. @muktaa FROM ubuntu:14.04 RUN apt-‐get update RUN apt-‐get install libfuse-‐ dev ADD dev.conf/etc/myapp-‐ config/ Dockerfiles • Codify your configuration • Set of bash commands • Example: • HelloScala • Dockerfile • dev.conf • Docker build HelloScala
- 13. @muktaa Use Cases ofDocker •Microservices •Lightweight Testing •Production •CaaS •PaaS
- 14.

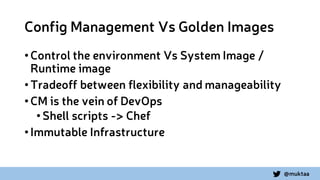

- 15. @muktaa Config Management VsGolden Images •Control the environment Vs System Image / Runtime image •Tradeoff between flexibility and manageability •CM is the vein of DevOps •Shell scripts -> Chef •Immutable Infrastructure
- 16. @muktaa Chef and Docker Replaces Human Tasks, Idempotence, Thick client -‐ thin servers, Order Matters, Huge Community Support An improved Robot, Fast, Easy, Relatively new in the market!
- 17. @muktaa Simple CD Pipeline Becausesimple things can bring the most happiness!
- 18. @muktaa Simple CI/CD Pipeline •git push •Triggers Build Code •Build tools have docker support •Build tools generate a docker image Build Process Save image Docker Image Unique tag Docker Registry •docker pull •docker stop •docker run Deploy using knife-‐ ssh or Push Jobs CI Server
- 19. @muktaa The Simple Steps •git push to https://github.com/muktaa/hello-nodejs • Triggers a build on your CI server • npm install, npm test • docker push muktaa/hello-nodejs • knifessh 'role:test''deploy.sh' -x ssh-user -i ssh-key-c knife.rb • Some build tools offer docker integration • Eg: Maven has docker-maven-plugin • https://github.com/spotify/docker-maven-plugin • mvn clean package docker:build -DpushImage

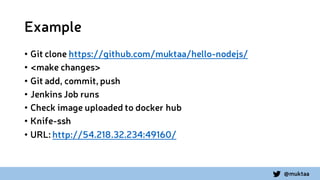

- 20. @muktaa Example • Git clonehttps://github.com/muktaa/hello-nodejs/ • <make changes> • Git add, commit, push • Jenkins Job runs • Check image uploaded to docker hub • Knife-ssh • URL: http://54.218.32.234:49160/
- 21. @muktaa When Reality Strikes… Ifonly applications were Hello World programs!

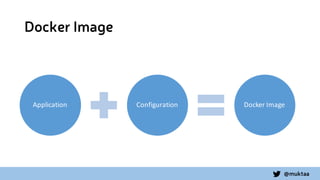

- 22. @muktaa Docker Image Application ConfigurationDocker Image
- 23. @muktaa What is Configuration? PackagesCustom SetupsCredentials Softwares Database Files Environment Specific Configuration Ports
- 24.
- 25. @muktaa Secure Credential Management •Credentialsinside docker containers •Hard codes •Set environment variables •Docker-compose.yml env_file: - .env SOME_USERNAME=myUser SOME_PWD_VAR=myPwd
- 26. @muktaa Provisioning Machines • Dockerengine • Ports • Security groups • User access • Eg: • Knife ec2 server create
- 27. @muktaa Docker Chef Cookbook Tomanage docker images and deployment
- 28. @muktaa Docker Cookbook • Availablein Supermarket: https://supermarket.chef.io/cookbooks/docker • Install docker • Build docker image • Pull image and run container • Push docker image to registry • LWRPs • Docker_container • Docker_image • Docker_registry • https://github.com/bflad/chef-docker/blob/master/README.md

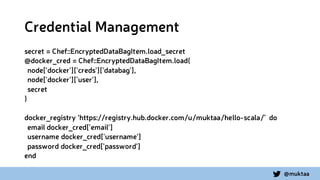

- 29. @muktaa Credential Management secret =Chef::EncryptedDataBagItem.load_secret @docker_cred = Chef::EncryptedDataBagItem.load( node['docker']['creds']['databag'], node['docker']['user'], secret ) docker_registry ‘https://registry.hub.docker.com/u/muktaa/hello-scala/’ do email docker_cred['email'] username docker_cred['username'] password docker_cred['password'] end

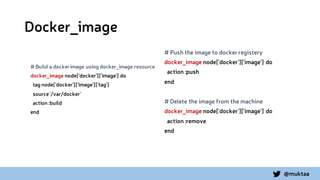

- 30. @muktaa Docker_image # Build adockerimage using docker_image resource docker_image node['docker']['image'] do tag node['docker']['image']['tag'] source'/var/docker' action :build end # Push the image to docker registery docker_image node['docker']['image'] do action :push end # Delete the image from the machine docker_image node['docker']['image'] do action :remove end

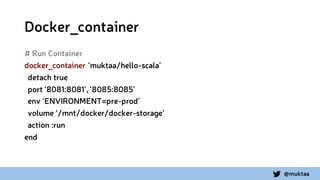

- 31. @muktaa Docker_container # Run Container docker_container‘muktaa/hello-scala’ detach true port ‘8081:8081’, ‘8085:8085’ env ‘ENVIRONMENT=pre-prod’ volume ‘/mnt/docker/docker-storage’ action :run end

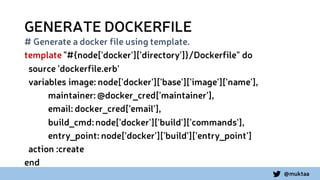

- 32. @muktaa GENERATE DOCKERFILE # Generatea docker file using template. template "#{node['docker']['directory']}/Dockerfile" do source 'dockerfile.erb' variables image: node['docker']['base']['image']['name'], maintainer:@docker_cred['maintainer'], email: docker_cred['email'], build_cmd:node['docker']['build']['commands'], entry_point: node['docker']['build']['entry_point'] action :create end

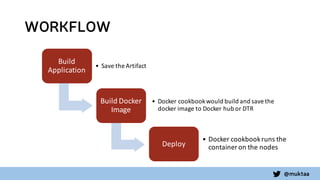

- 33. @muktaa WORKFLOW Build Application • Save the Artifact Build Docker Image • Docker cookbook would build and save the docker image to Docker hub or DTR Deploy • Docker cookbook runs the container on the nodes

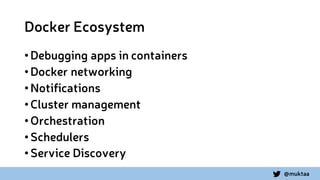

- 34. @muktaa Docker Ecosystem •Debugging appsin containers •Docker networking •Notifications •Cluster management •Orchestration •Schedulers •Service Discovery
- 35.
