This document summarizes baffle meshing techniques using cfMesh and snappyHexMesh in OpenFOAM. It discusses applying cfMesh to add thickness to baffle plates in a CAD model, comparing meshing results between the original and thickened baffles. The document also mentions upcoming work on meshing other parts like rotors and stators, setting up rotating zones, and running simulations.

1. オープンCAEコンサルタント
OCSE^2 代表 野村悦治
2015/7/4
1
baffle meshing by cfMesh
and application

2. CAD Model (FreeCAD)
2
20
10
40
https://www.dropbox.com/s/e5tnpkjp3gkas9b/baffleTestCase.tar.gz?dl=0

3. SHM (snappyHexMesh)
3
baseMesh size = 1
(blockMesh)
level (0 0) level (1 1)

4. cfMesh-v1.0.1
4
baseMesh size = 1
(maxCellSize)
bufflePlate
{
cellSize 0.5;
}

5. cfMesh-v1.1
5

6. checkMesh
6

7. another CAD Model
7
20
10
40

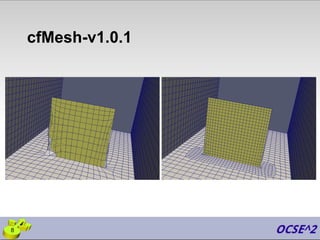

8. cfMesh-v1.0.1
8

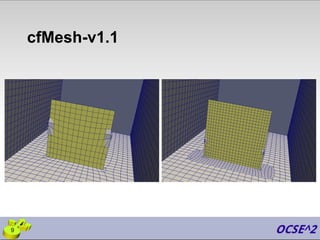

9. cfMesh-v1.1
9

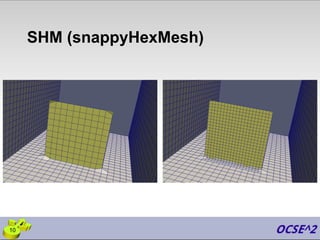

10. SHM (snappyHexMesh)
10

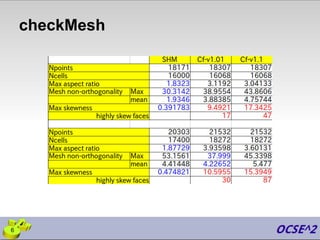

11. checkMesh
11

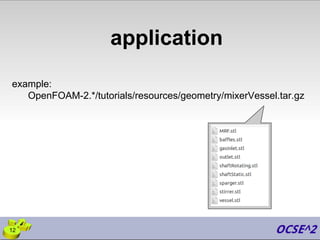

12. application
12
example:
OpenFOAM-2.*/tutorials/resources/geometry/mixerVessel.tar.gz

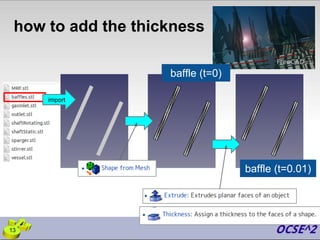

13. how to add the thickness
13
import
baffle (t=0)
baffle (t=0.01)

14. meshing result
14
SHM cfMesh-v1.1
baffle (t=0)
baffle (t=0.01)

15. continued using other parts
15
mergeMesh
stator meshing rotor meshing
topoSet ⇒
rotating cellZones
interDyMFoam

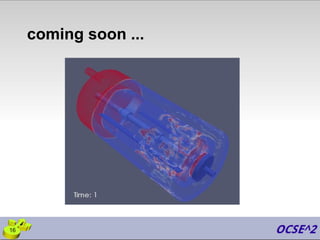

16. coming soon ...
16

17. Let’s smart OpenCAE
presented by17
