1. AWS re:Invent 2016
Scality’s Open Source AWS S3 Server
Giorgio Regni, CTO
@GiorgioRegni

2. Cloud Field Days #1 © Scality 20162

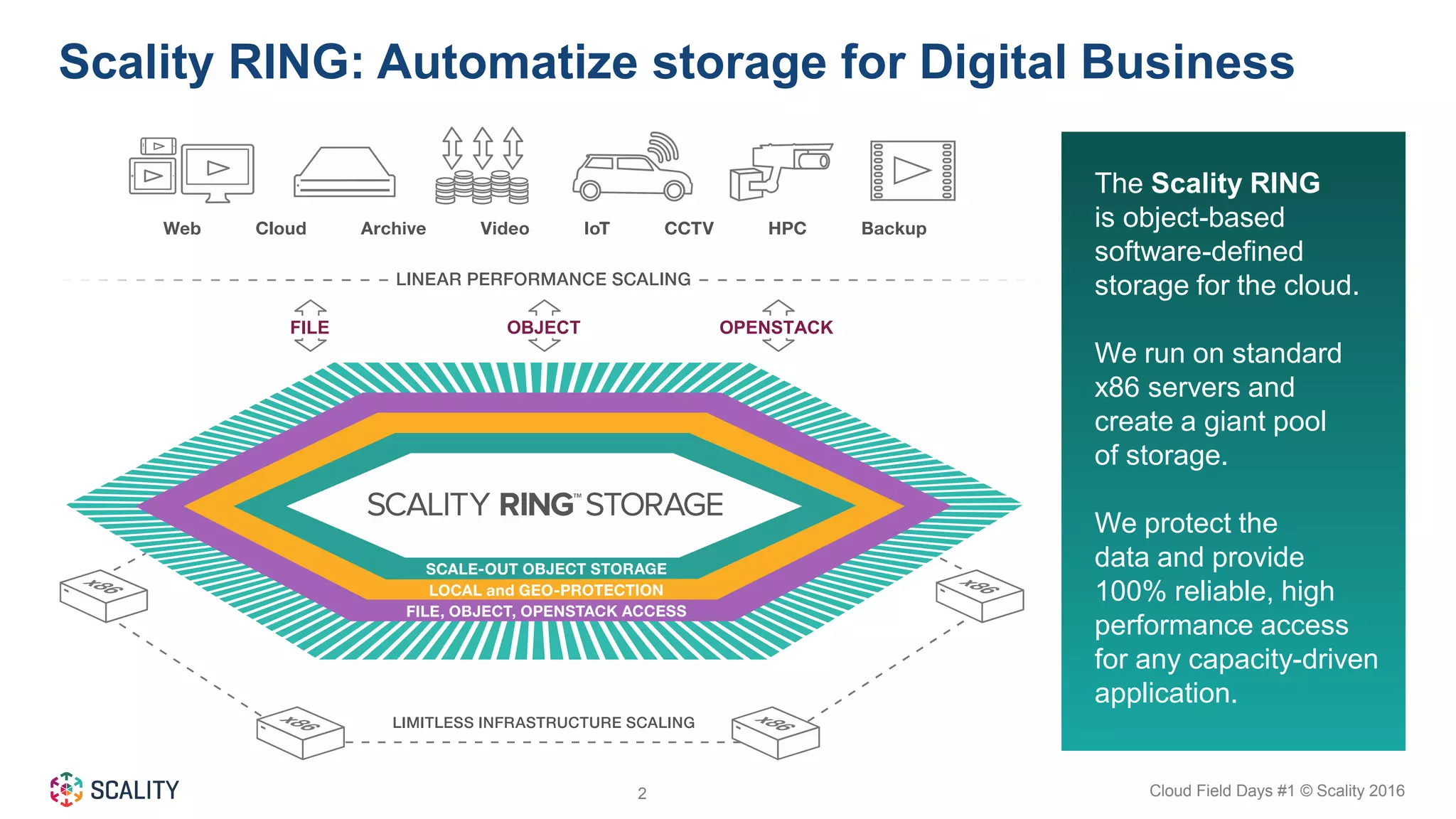

Scality RING: Automatize storage for Digital Business
The Scality RING
is object-based
software-defined
storage for the cloud.
We run on standard
x86 servers and
create a giant pool
of storage.
We protect the
data and provide
100% reliable, high
performance access
for any capacity-driven
application.
FILE OBJECT OPENSTACK

3. Disrupting storage – unlimited & everywhere

4. © Scality 20164
 Open source object storage server
https://github.com/scality/s3
 Written in Node.js
 Single instance running in a docker
container
 Uses docker volumes for persistent storage
 Same code as Scality’s RING S3 interface
What is Scality AWS S3 Server?

5. © Scality 20165
Scality AWS S3 server released under an Apache-2.0 license in July ->
>15K downloads on docker hub!
5

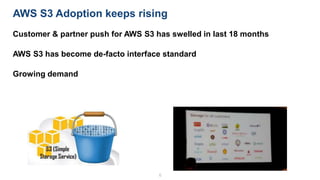

6. Customer & partner push for AWS S3 has swelled in last 18 months
AWS S3 has become de-facto interface standard
Growing demand
6
AWS S3 Adoption keeps rising

7. Why you should use AWS S3?

8. 8
Object vs File
Bucket 1
Object A
Object B
Object C
Bucket 2
Object A
Object B
Object C
Object/S3:
• Flat Data Model with collections called
“buckets”
• Objects are written and overwritten
not byte-wise modified
• Scales to billions of objects
File/Posix:
• Hierarchical Data Model
• Files are randomly writable in byte-
wise fashion
• Scales to hundreds of thousands
files

9. 9

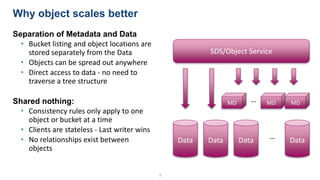

Why object scales better
Separation of Metadata and Data
• Bucket listing and object locations are
stored separately from the Data
• Objects can be spread out anywhere
• Direct access to data - no need to
traverse a tree structure
Shared nothing:
• Consistency rules only apply to one
object or bucket at a time
• Clients are stateless - Last writer wins
• No relationships exist between
objects
Data Data Data
MD MD MD
Data…
…
SDS/Object Service

10. © Scality 2016
Scality AWS S3 Server achitecture
Protocol Stack
Buckets, Objects, MPU (REST API)
AUTH BUCKETS DATA
LevelDB*
Scality RING v6
Kinetic IP drives
Docker Volume
* Persisted in Docker Volume
Scality RING v6Vault
LevelDB*
S3
API
S3 Server
Public Cloud

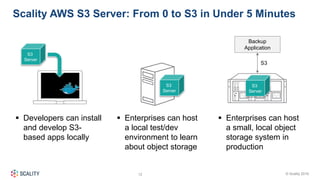

11. © Scality 201612
 Developers can install
and develop S3-
based apps locally
 Enterprises can host
a local test/dev
environment to learn
about object storage
 Enterprises can host
a small, local object
storage system in
production
Scality AWS S3 Server: From 0 to S3 in Under 5 Minutes
S3
Server
S3
Server
S3
Server
Backup
Application
S3

12. Steps:
1. Launch Kitematic UI to access Docker Hub
2. Pull the S3 Server container
3. Start the container
4. Use the Cyberduck UI to create Buckets, PUT, GET & DELETE Objects
Quick, Live AWS S3 Server Demo!

13. © Scality 201614
Why it matters
 Supports many simultaneous
clients to the same bucket,
even across sites
 Simplifies access
 Linear performance scaling
AWS S3 Server for RING - Scale-out & Performance
Scalable Bucket Namespace with simple access point
 Scales-out in simple uniform building blocks
 Optimized for low latency, high bandwidth, and fast listing
 Multi-site deployment preserves availability during site or
network failure (initial support for two sites)
Scalable S3 Bucket Namespace: any-to-any access
APP
A
APP
B
APP
D
APP
C

14. Challenges & how to overcome them

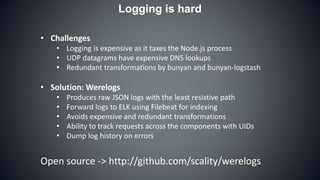

15. Logging is hard
• Challenges
• Logging is expensive as it taxes the Node.js process
• UDP datagrams have expensive DNS lookups
• Redundant transformations by bunyan and bunyan-logstash
• Solution: Werelogs
• Produces raw JSON logs with the least resistive path
• Forward logs to ELK using Filebeat for indexing
• Avoids expensive and redundant transformations
• Ability to track requests across the components with UIDs
• Dump log history on errors
Open source -> http://github.com/scality/werelogs

16. Performance, performance & performance

17. The performance cycle
Code, Benchmark, … Repeat
• Socket & Nagle algorithm on by default -> very high
latencies
• The event loop can get backed up quickly -> hunt for
all cpu intensive tasks in the main loop
• Buffers are much more efficient when writing server
response
• Micro optimizations: Date.now() > new Date()
• Beware of libraries doing way too many things for you
• ES6 support, Babel5 was killing performance -> Babel6

19. Download Scality AWS S3 Server!
http://s3.scality.com/

20. Customer use cases

21. © Scality 2016
VOD/Live Streaming: Deluxe
RING was deployed as an origin server to store and distribute all
of Deluxe OnDemand’s transcoded titles (including Theatrical and
TV) to large cable providers, retailers, and end consumers.
The initial deployment was 1.5PB, which the customer expects to
add 10-15PB for different applications.
Highest valued features:
• Performance – serves video to millions of users at 100Gb/s.
• Hardware-freedom – allows for competitive hardware pricing,
and utilization of newer disks and hardware over time to stay in
the sweet spot of cost.
• Scalability – meet 10X expansion with no data migration
About the customer:
Deluxe OnDemand is a cloud-based
multiscreen VOD catalog service that
simplifies the access and delivery of content
to any device.
What was the challenge?
Customer needed to transcode and store up
to 10TB of content daily. Needed a platform
that could scale to petabytes and remain
cost-effective.
Video Testimonial: https://vimeo.com/134065438

22. © Scality 2016
Web & Cloud: Daisy Group (fka Phoenix IT)
GEO-stretched RING across 3 UK-based data centers. Highly
resilient configuration. Running on HPE SL4540 servers with
DL360 servers used for connectors.
Highest valued features:
– Reliability – Reduce risk with data resiliency
– Scalability – Easily grow to 1 PB and beyond
– Application support – Integration with archiving app.
– Future proof – Can use the same platform to host other
services
Video Testimonial: https://vimeo.com/131127269
About the customer:
Leading provider of business
continuity and managed services in
the UK
What was the challenge?
Launching new Archive as a
Service. Needed the solution to be
significantly lower cost than
existing infrastructure

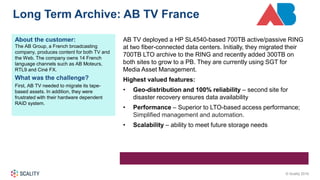

23. © Scality 2016
Long Term Archive: AB TV France
AB TV deployed a HP SL4540-based 700TB active/passive RING
at two fiber-connected data centers. Initially, they migrated their
700TB LTO archive to the RING and recently added 300TB on
both sites to grow to a PB. They are currently using SGT for
Media Asset Management.
Highest valued features:
• Geo-distribution and 100% reliability – second site for
disaster recovery ensures data availability
• Performance – Superior to LTO-based access performance;
Simplified management and automation.
• Scalability – ability to meet future storage needs
About the customer:
The AB Group, a French broadcasting
company, produces content for both TV and
the Web. The company owns 14 French
language channels such as AB Moteurs,
RTL9 and Ciné FX.
What was the challenge?
First, AB TV needed to migrate its tape-
based assets. In addition, they were
frustrated with their hardware dependent
RAID system.

24. Download Scality AWS S3 Server!
http://s3.scality.com/
