No matter what type of IoT devices you have, or what your use case is for them, you’re going to end up producing a lot of time series data. What you use to handle it is going to be as important to your success as the code you write yourself. This talk will evaluate the available open source tools for the collection, activation, transmission and visualization of time series data on the IoT Edge, and demonstrate how to use them, together with InfluxDB, to solve various use cases for the Internet of Things.

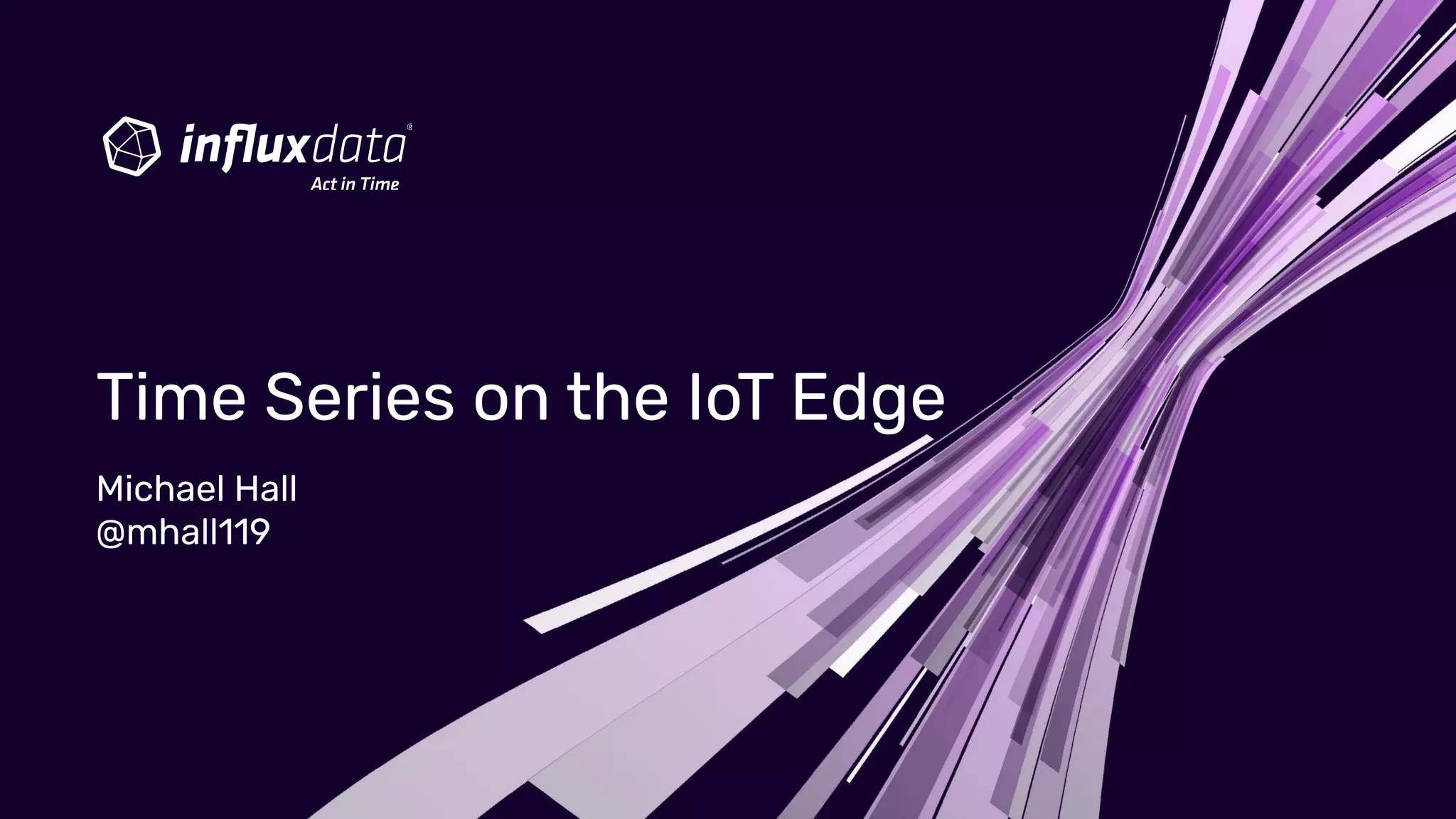

1. Michael Hall
@mhall119
Time Series on the IoT Edge

2. © 2021 InfluxData. All rights reserved.
2
Michael Hall - @mhall119

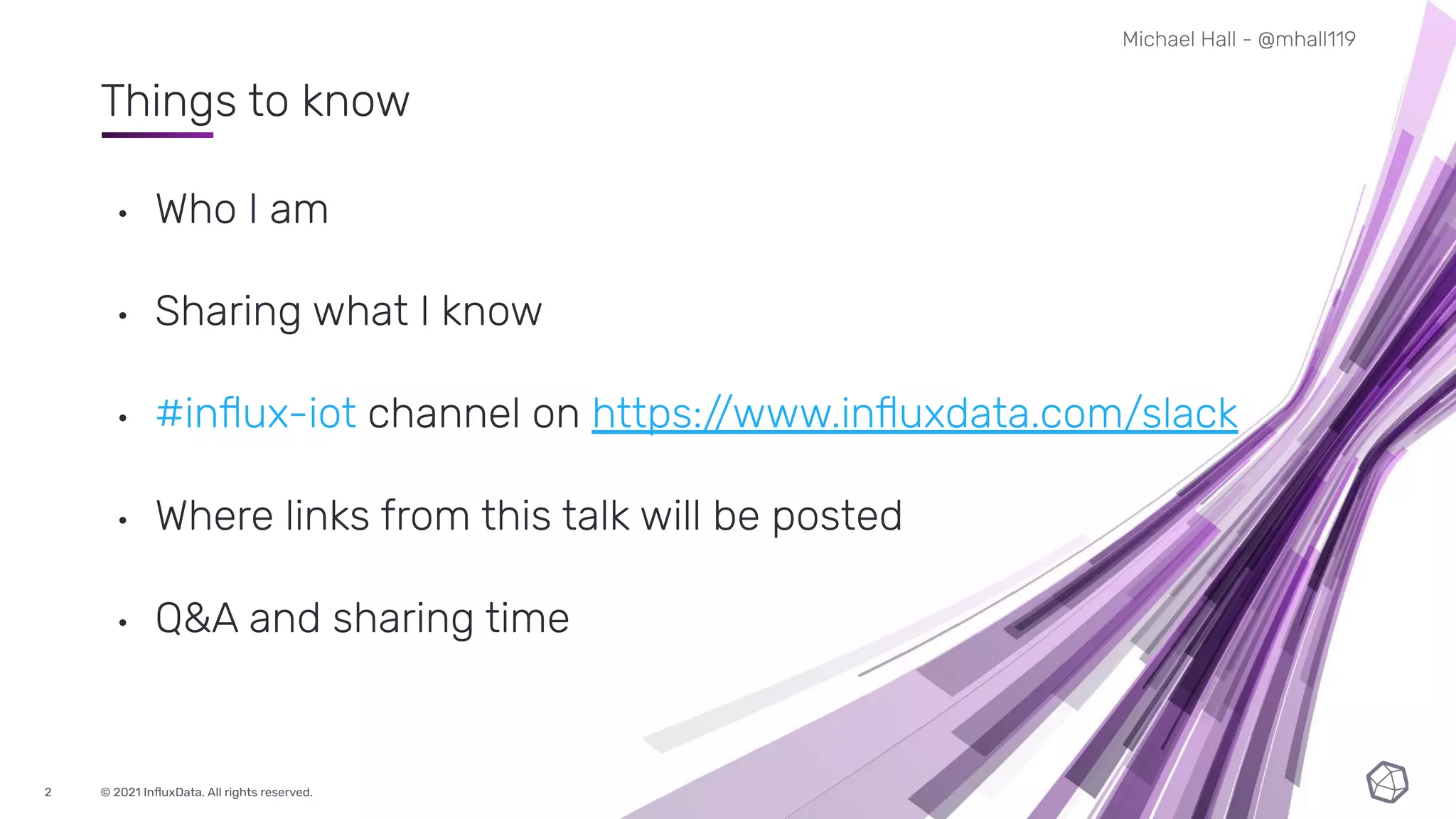

Things to know
• Who I am
• Sharing what I know
• #influx-iot channel on https://www.influxdata.com/slack
• Where links from this talk will be posted
• Q&A and sharing time

3. Open Source Time Series Platform
InfluxDB

4. © 2021 InfluxData. All rights reserved.
4
Michael Hall - @mhall119
What is InfluxDB?
• Founded in 2013
• Still Open Source
• Time Series Data Platform

5. © 2021 InfluxData. All rights reserved.
5
Michael Hall - @mhall119
Dashboard and UI Library

6. © 2021 InfluxData. All rights reserved.
6
Michael Hall - @mhall119
Flux: A time series domain language

7. © 2021 InfluxData. All rights reserved.
7
Michael Hall - @mhall119
Onboard alerting

8. © 2021 InfluxData. All rights reserved.
8
Michael Hall - @mhall119
Onboard compute

9. © 2021 InfluxData. All rights reserved.
9
Michael Hall - @mhall119
Client Libraries

10. © 2021 InfluxData. All rights reserved.
10
Michael Hall - @mhall119
Code editor extensions

11. © 2021 InfluxData. All rights reserved.
11
Michael Hall - @mhall119
APIs

12. © 2021 InfluxData. All rights reserved.
12

13. © 2021 InfluxData. All rights reserved.
13
Michael Hall - @mhall119
InfluxDB Templates

14. Open Source Data Collection
Telegraf

15. © 2021 InfluxData. All rights reserved.
15
Michael Hall - @mhall119
What is Telegraf?
• Started in 2015
• Open Source
• Source and destination agnostic
• Plugin based architecture

16. © 2021 InfluxData. All rights reserved.
16
Michael Hall - @mhall119
Input Plugins

17. © 2021 InfluxData. All rights reserved.
17
Michael Hall - @mhall119
Output plugins

18. © 2021 InfluxData. All rights reserved.
18
Michael Hall - @mhall119
Processor Plugins

19. Where does InfluxDB fit in?
Time Series Edge Stacks

20. © 2021 InfluxData. All rights reserved.
20
Michael Hall - @mhall119
3 Layers of IoT

21. © 2021 InfluxData. All rights reserved.
21
On Devices

22. © 2021 InfluxData. All rights reserved.
22
Michael Hall - @mhall119
The Environment
• Many instances
• Limited resources
• Mostly ARM64
• Binary or Distro Package
• Write > Read

23. © 2021 InfluxData. All rights reserved.
23
Michael Hall - @mhall119
The Time Series Use Case
• Local retention
• React to threshold crossing
• Perform anomaly detection

24. © 2021 InfluxData. All rights reserved.
24
Michael Hall - @mhall119
The Stacks
• Telegraf + InfluxDB
• Client Library + InfluxDB
• API + InfluxDB

25. © 2021 InfluxData. All rights reserved.
25
In the Cloud

26. © 2021 InfluxData. All rights reserved.
26
Michael Hall - @mhall119
The Environment
• Public/Private/on-prem
• One scalable instance
• x86_64 (but, some ARM64)
• Docker Container or Distro Package
• SaaS (InfluxDB Cloud)
• Read > Write

27. © 2021 InfluxData. All rights reserved.
27
Michael Hall - @mhall119
The Time Series Use Case
• Analyze data from everywhere (ML or AI)
• Integrate with adjacent services like BI
• Visualize & deliver data to users

28. © 2021 InfluxData. All rights reserved.
28
Michael Hall - @mhall119
The Stacks
• Inbound Stack:
– Foglamp/Fledge
– EdgeX Foundry
– Eclipse Ditto
– Telegraf
• Outbound Stack:
– Grafana
– Python + Pandas
– Node.js + React + Giraffe

29. © 2021 InfluxData. All rights reserved.
29
On the Edge

30. © 2021 InfluxData. All rights reserved.
30
Michael Hall - @mhall119
The Environment
• Handful of instances
• Equivalent of a small PC
• Intermittent connectivity
• Distro Package, Docker Container, Snaps, EVE
• Read == Write

31. © 2021 InfluxData. All rights reserved.
31
Michael Hall - @mhall119
The Time Series Use Case
• Collect & aggregate data from many devices
• Alert on device failure or threshold crossing
• Downsample
• Store & forward
• Local visualizations

32. © 2021 InfluxData. All rights reserved.
32
Michael Hall - @mhall119
The Stacks
• TIG
• TIGUITTO
• Client Library + InfluxDB
• EdgeX + InfluxDB + Grafana
• AWS Greengrass + InfluxDB + Grafana
• Azure IoT + InfluxDB + Grafana
