2. Welcome to the
S3 Server Hackathon!

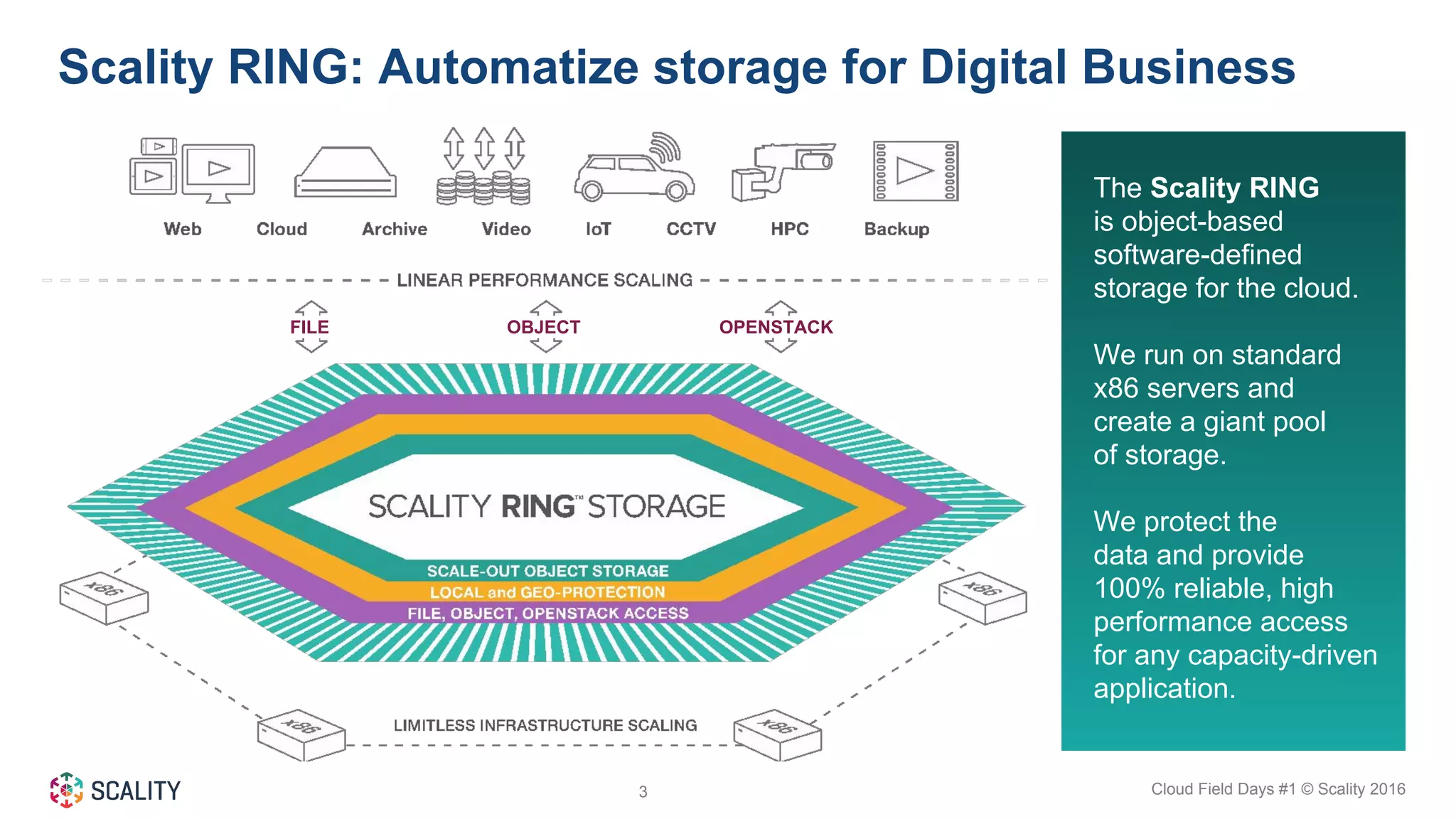

3. Cloud Field Days #1 © Scality 20163
Scality RING: Automatize storage for Digital Business
The Scality RING
is object-based
software-defined
storage for the cloud.
We run on standard
x86 servers and
create a giant pool
of storage.
We protect the
data and provide
100% reliable, high
performance access
for any capacity-driven
application.
FILE OBJECT OPENSTACK

4. Cloud Field Days #1 © Scality 20164

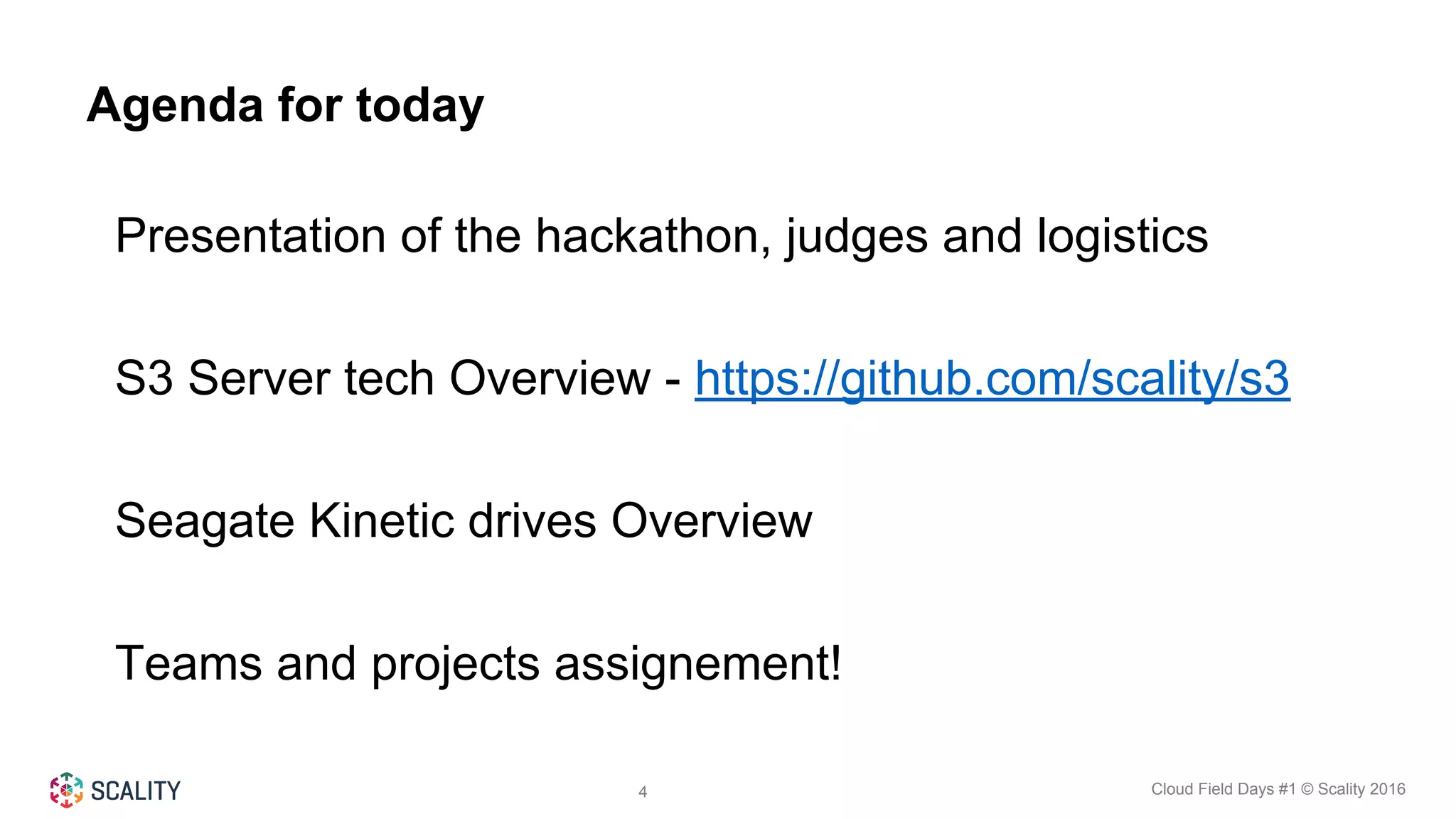

Agenda for today
Presentation of the hackathon, judges and logistics
S3 Server tech Overview - https://github.com/scality/s3
Seagate Kinetic drives Overview
Teams and projects assignement!

5. The Judges!

6. The Prizes!

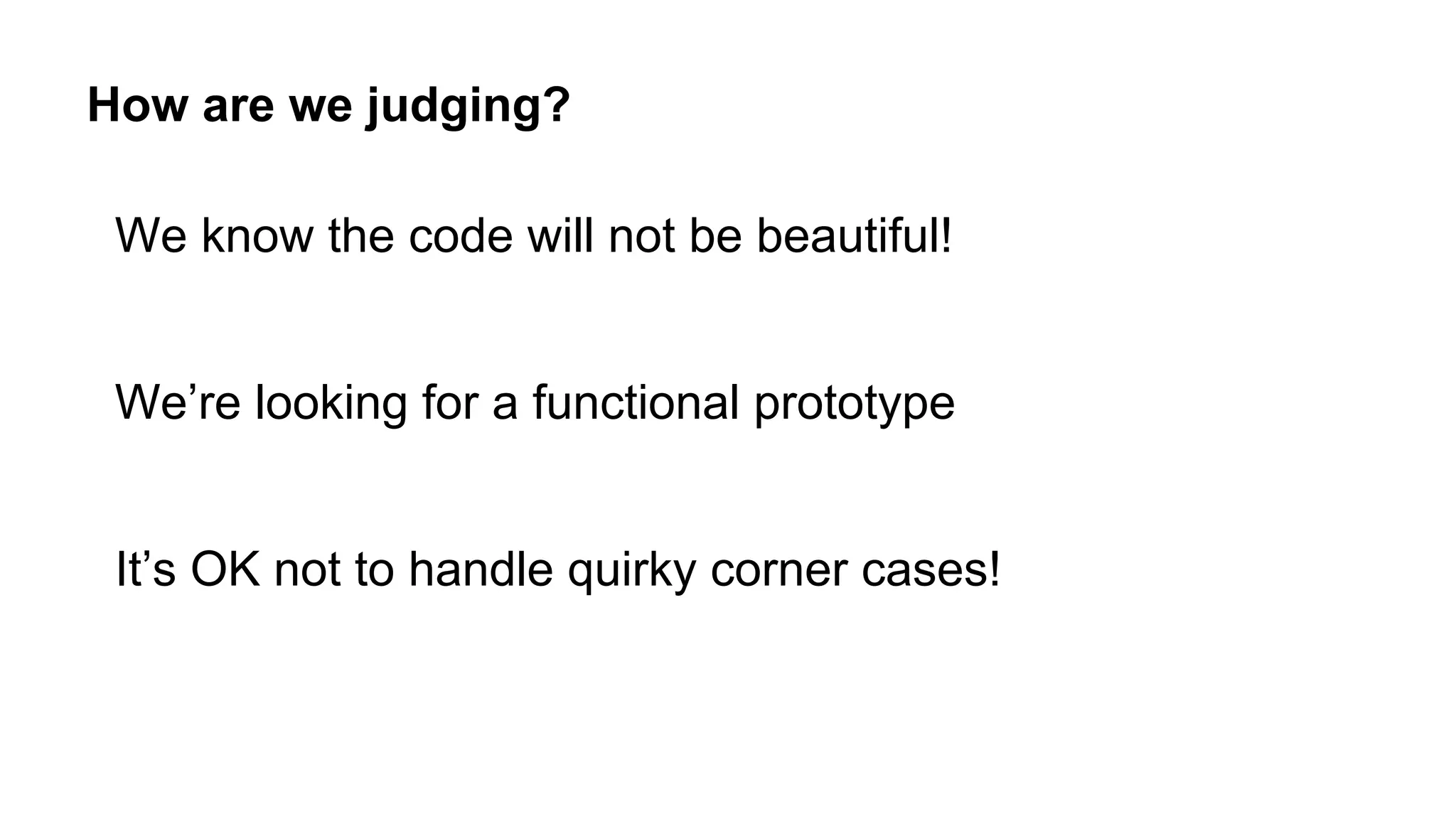

7. How are we judging?
We know the code will not be beautiful!
We’re looking for a functional prototype
It’s OK not to handle quirky corner cases!

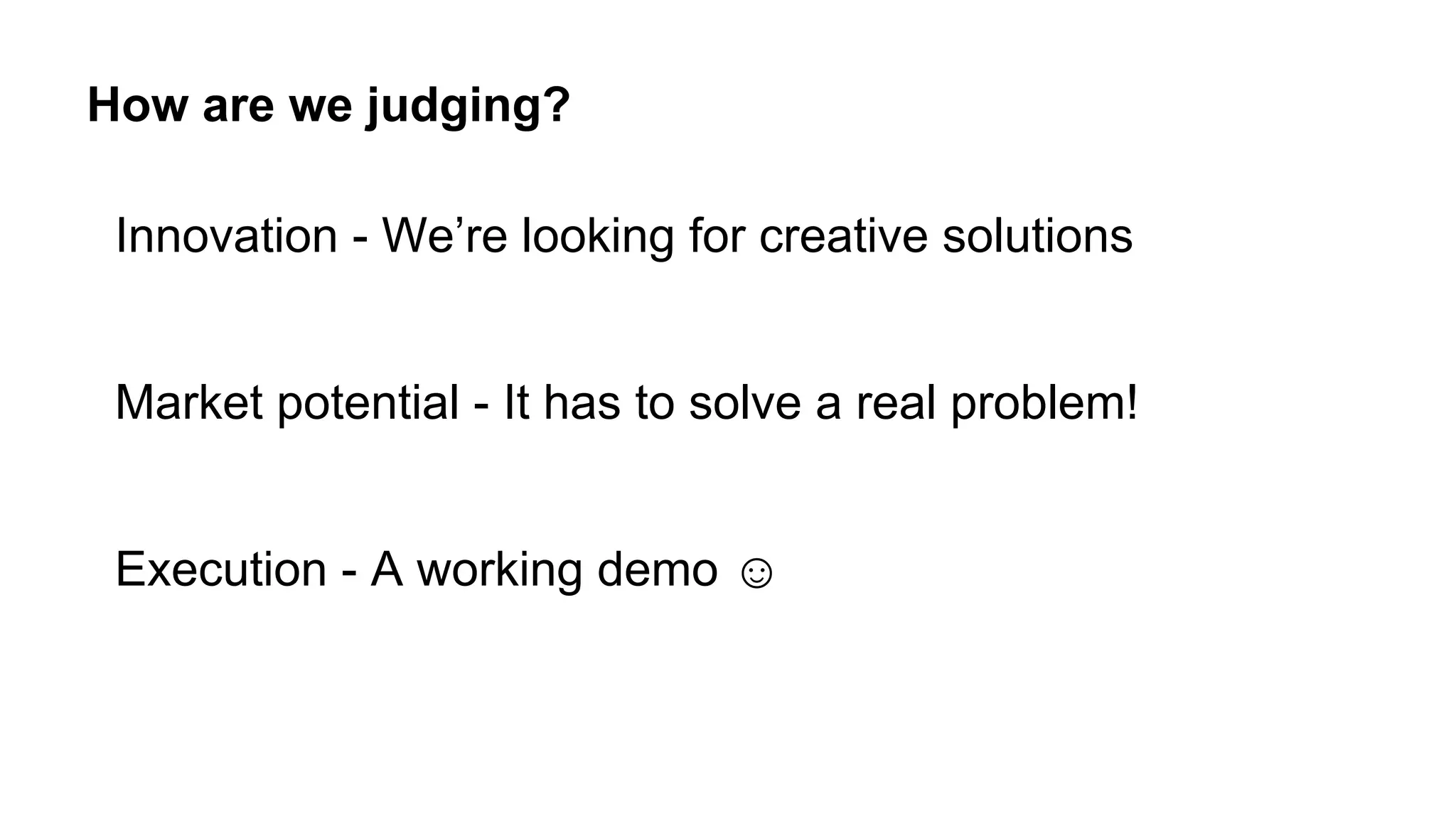

8. How are we judging?
Innovation - We’re looking for creative solutions
Market potential - It has to solve a real problem!
Execution - A working demo ☺

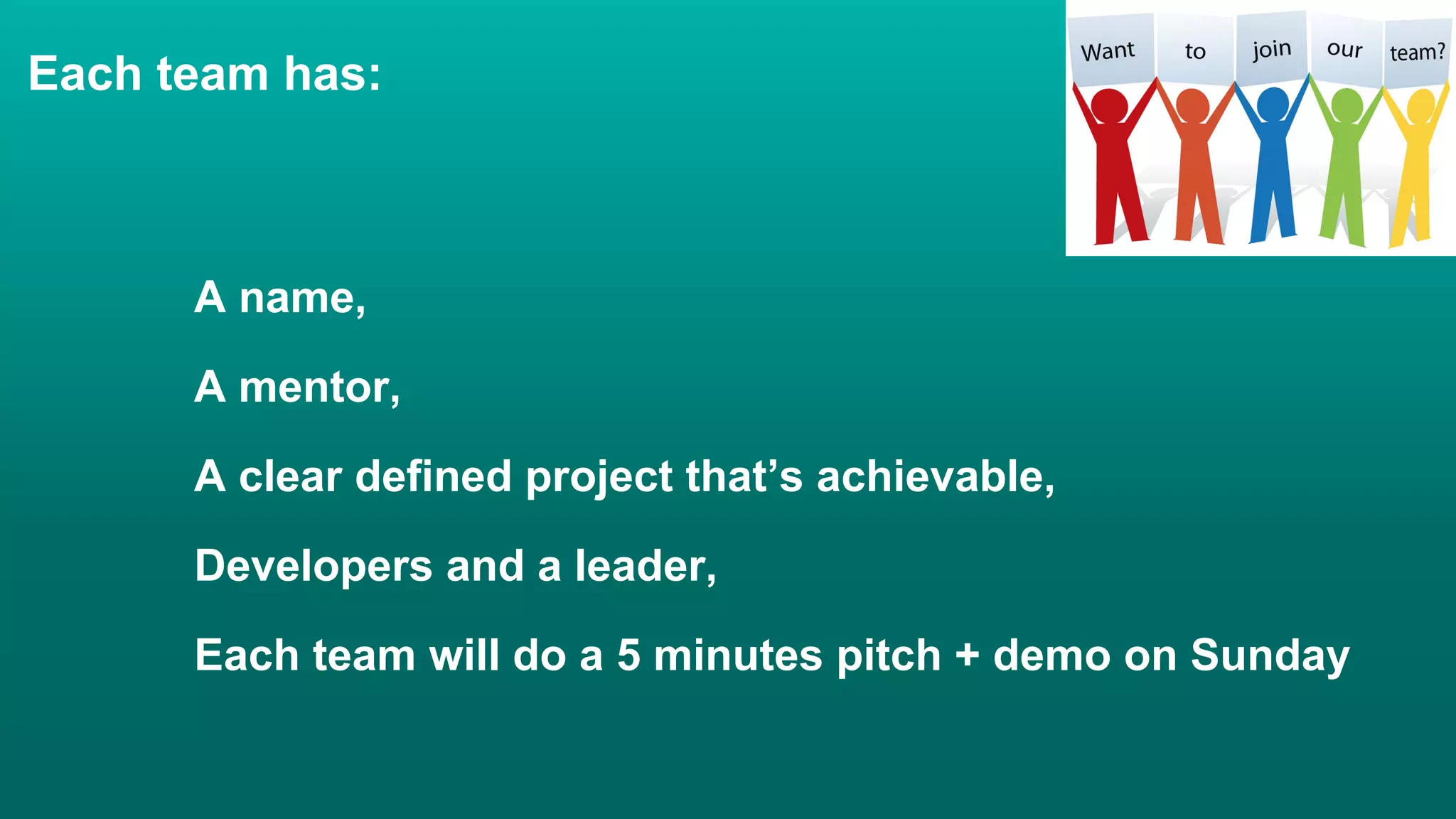

9. Each team has:
A name,
A mentor,
A clear defined project that’s achievable,
Developers and a leader,
Each team will do a 5 minutes pitch + demo on Sunday

10. Logistics!

11. –
–
–

12. Open source S3 Server!

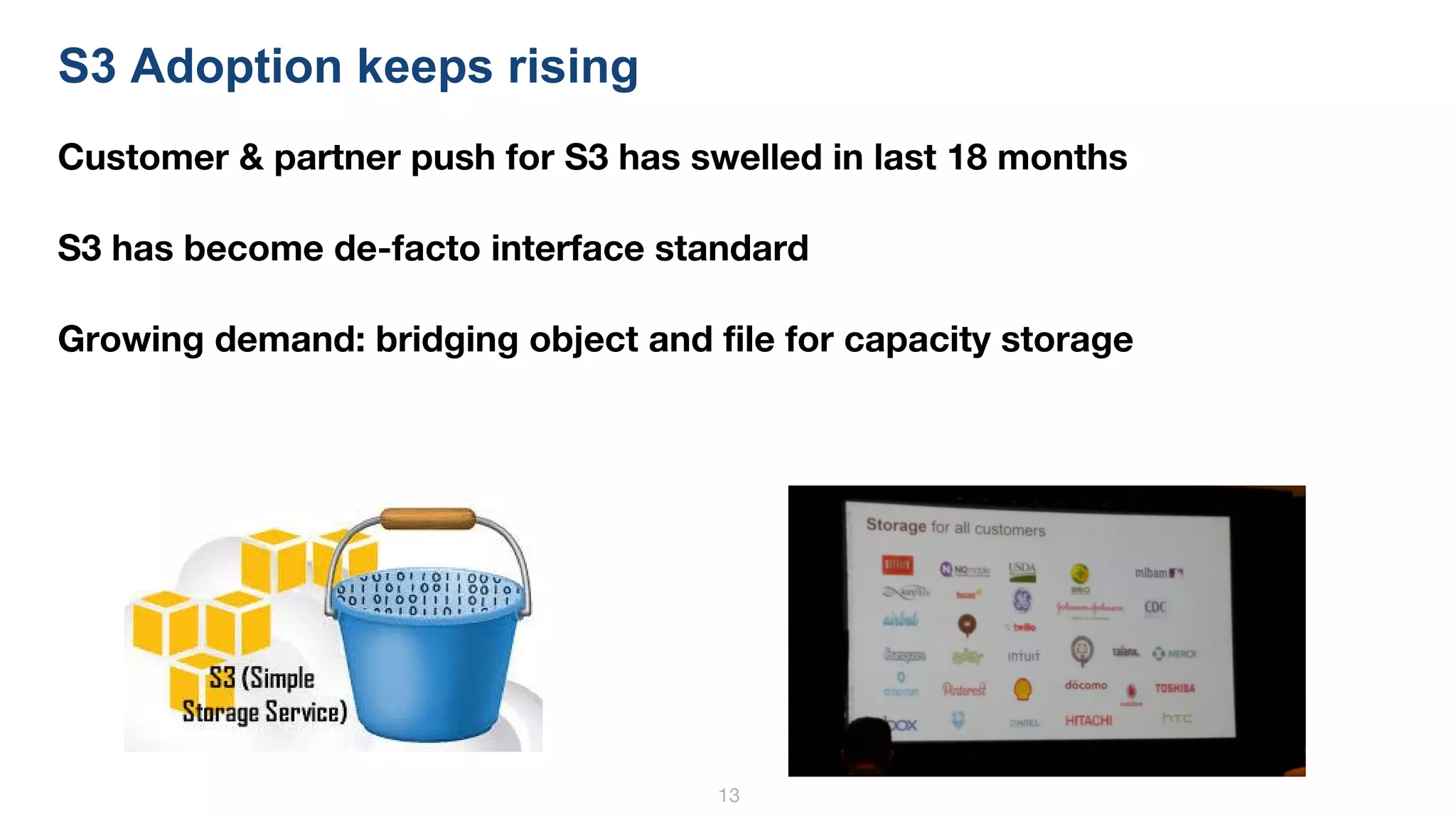

13. S3 Adoption keeps rising

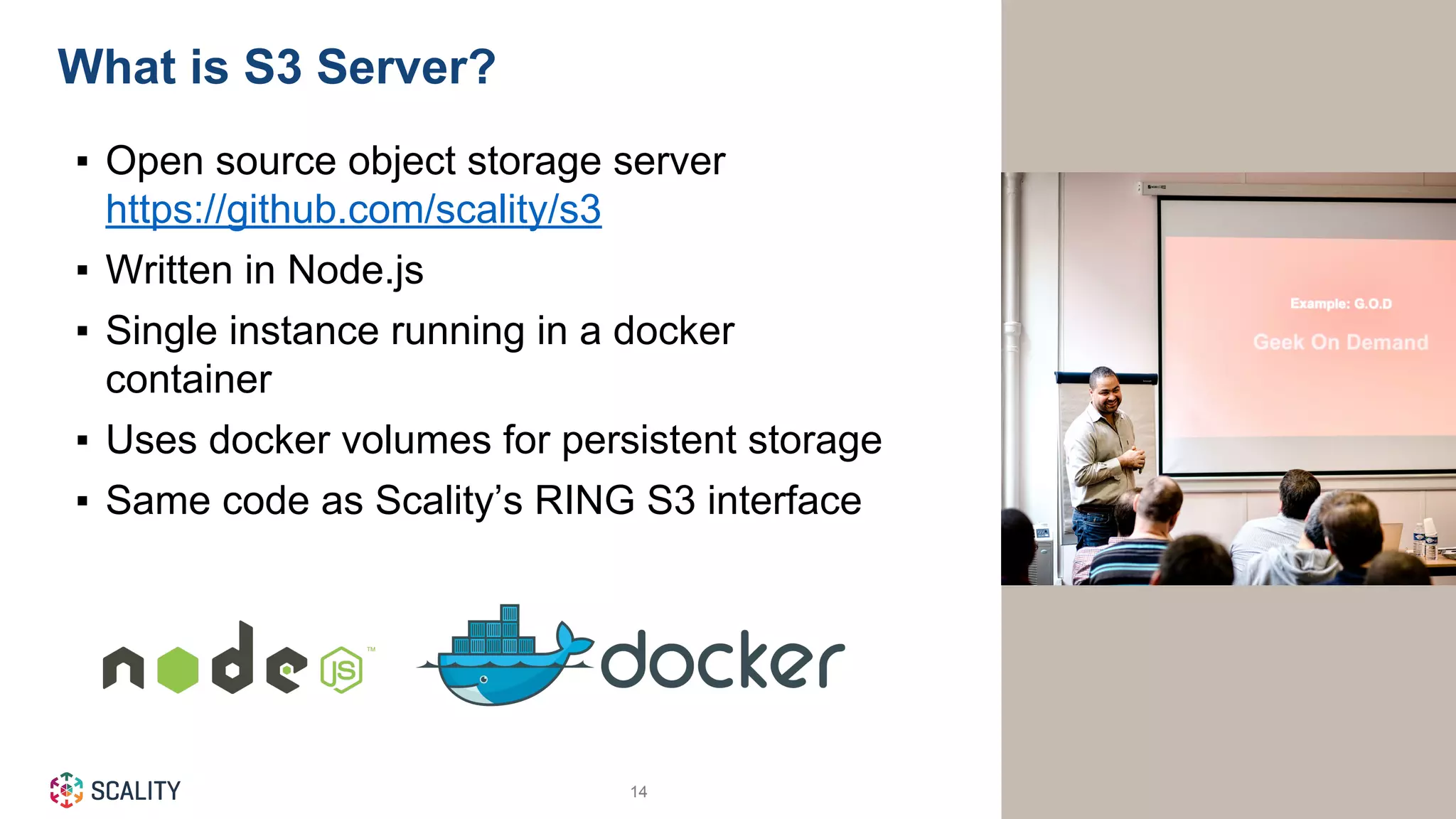

14. © Scality 201614
▪ Open source object storage server
https://github.com/scality/s3
▪ Written in Node.js
▪ Single instance running in a docker
container
▪ Uses docker volumes for persistent storage
▪ Same code as Scality’s RING S3 interface
What is S3 Server?

15. © Scality 201615

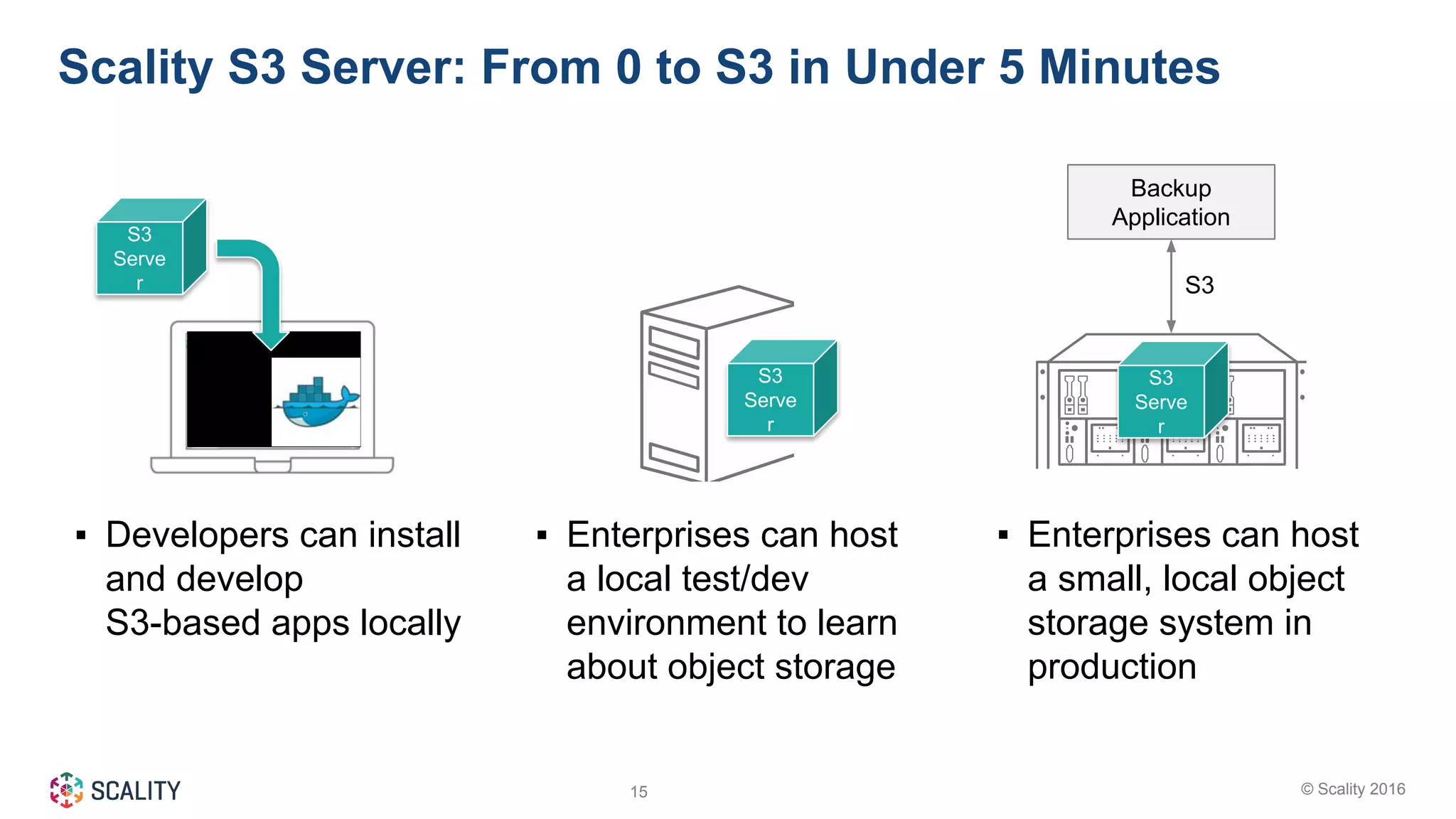

▪ Developers can install
and develop
S3-based apps locally
▪ Enterprises can host
a local test/dev
environment to learn
about object storage
▪ Enterprises can host
a small, local object
storage system in
production
Scality S3 Server: From 0 to S3 in Under 5 Minutes
S3
Serve
r
S3
Serve
r
S3
Serve
r
Backup
Application
S3

16. The team
SF & Paris

17. © Scality 2016

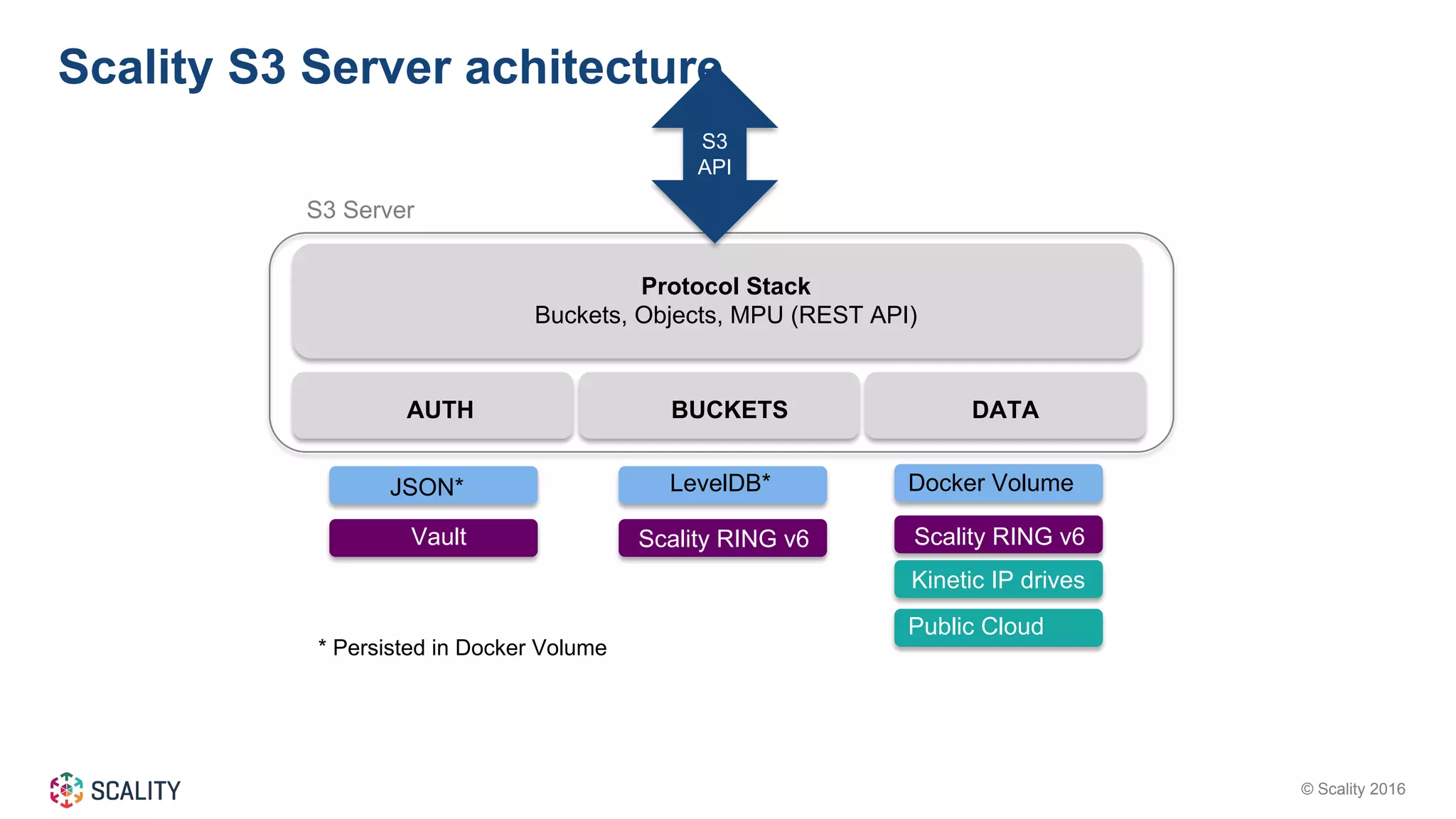

Scality S3 Server achitecture
Protocol Stack
Buckets, Objects, MPU (REST API)
AUTH BUCKETS DATA
LevelDB*
Scality RING v6
Kinetic IP drives
Docker Volume
* Persisted in Docker Volume
Scality RING v6Vault
JSON*
S3
API
S3 Server
Public Cloud

18. © Scality 201618

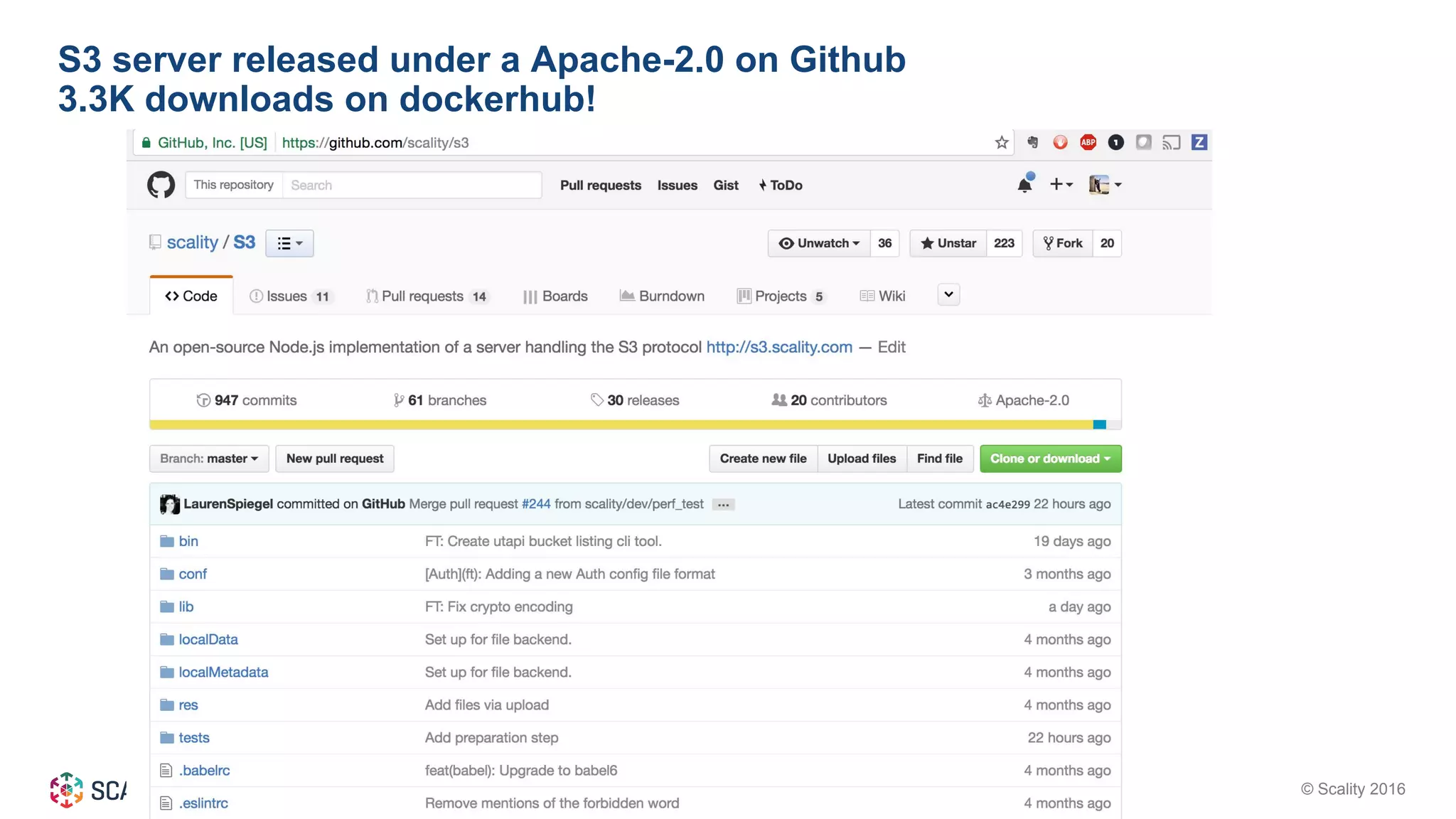

S3 server released under a Apache-2.0 on Github
3.3K downloads on dockerhub!
18

19. Seagate Kinetic
Kinetic development and the basics

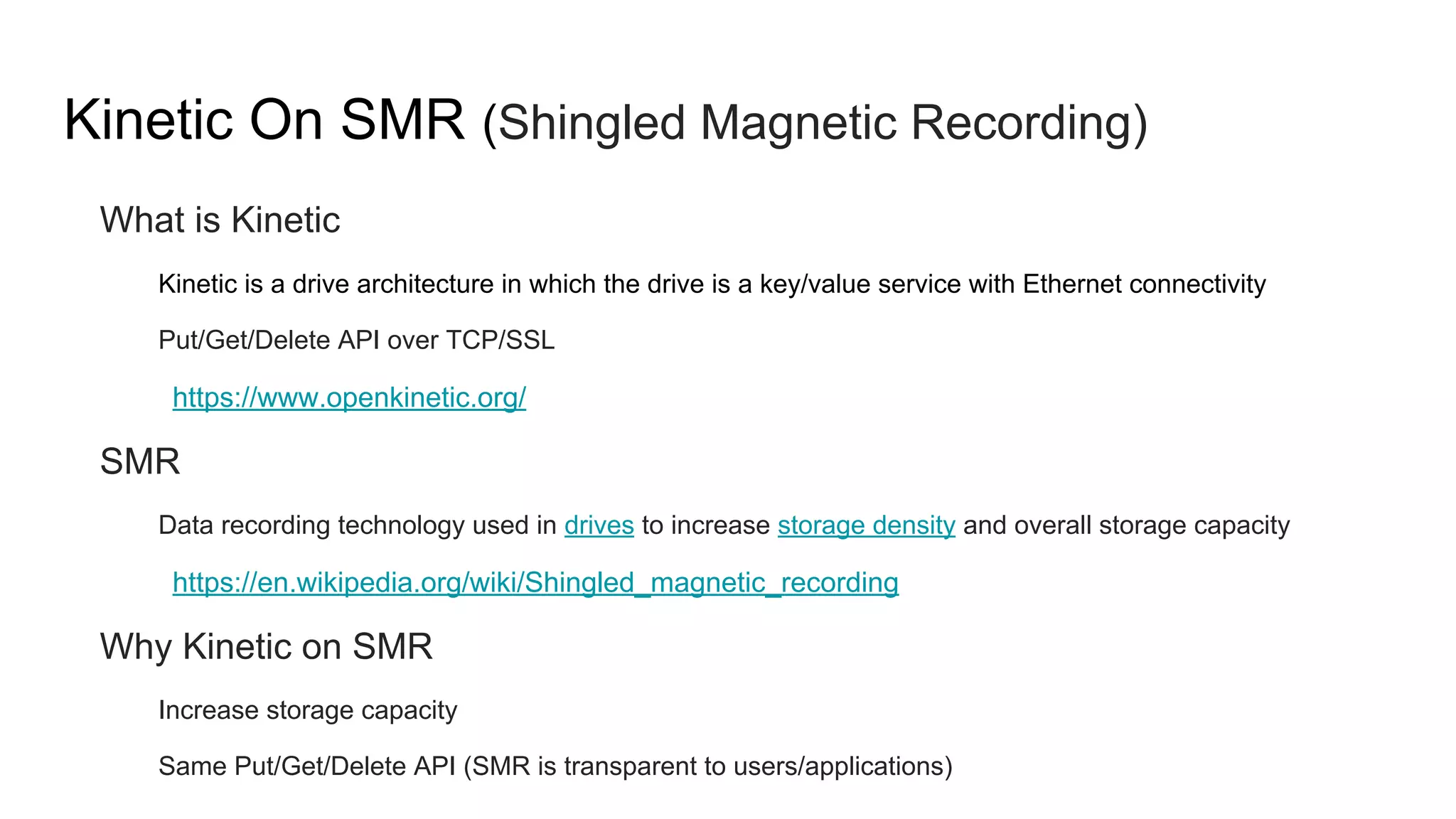

20. Kinetic On SMR (Shingled Magnetic Recording)
What is Kinetic
Kinetic is a drive architecture in which the drive is a key/value service with Ethernet connectivity
Put/Get/Delete API over TCP/SSL
https://www.openkinetic.org/
SMR
Data recording technology used in drives to increase storage density and overall storage capacity
https://en.wikipedia.org/wiki/Shingled_magnetic_recording
Why Kinetic on SMR
Increase storage capacity
Same Put/Get/Delete API (SMR is transparent to users/applications)

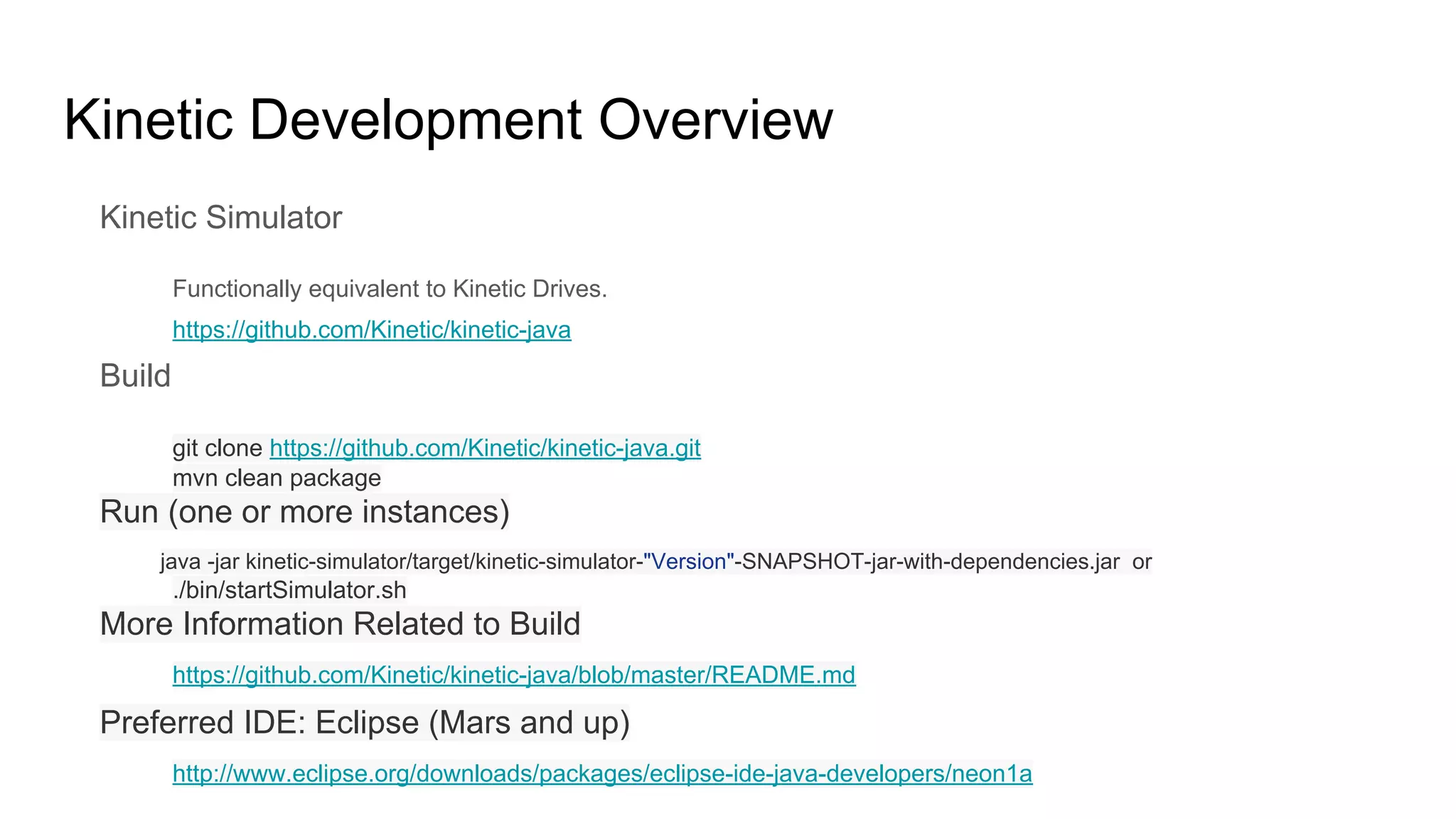

21. Kinetic Development Overview
Kinetic Simulator
Functionally equivalent to Kinetic Drives.
https://github.com/Kinetic/kinetic-java
Build
git clone https://github.com/Kinetic/kinetic-java.git
mvn clean package
Run (one or more instances)
java -jar kinetic-simulator/target/kinetic-simulator-"Version"-SNAPSHOT-jar-with-dependencies.jar or
./bin/startSimulator.sh
More Information Related to Build
https://github.com/Kinetic/kinetic-java/blob/master/README.md
Preferred IDE: Eclipse (Mars and up)
http://www.eclipse.org/downloads/packages/eclipse-ide-java-developers/neon1a

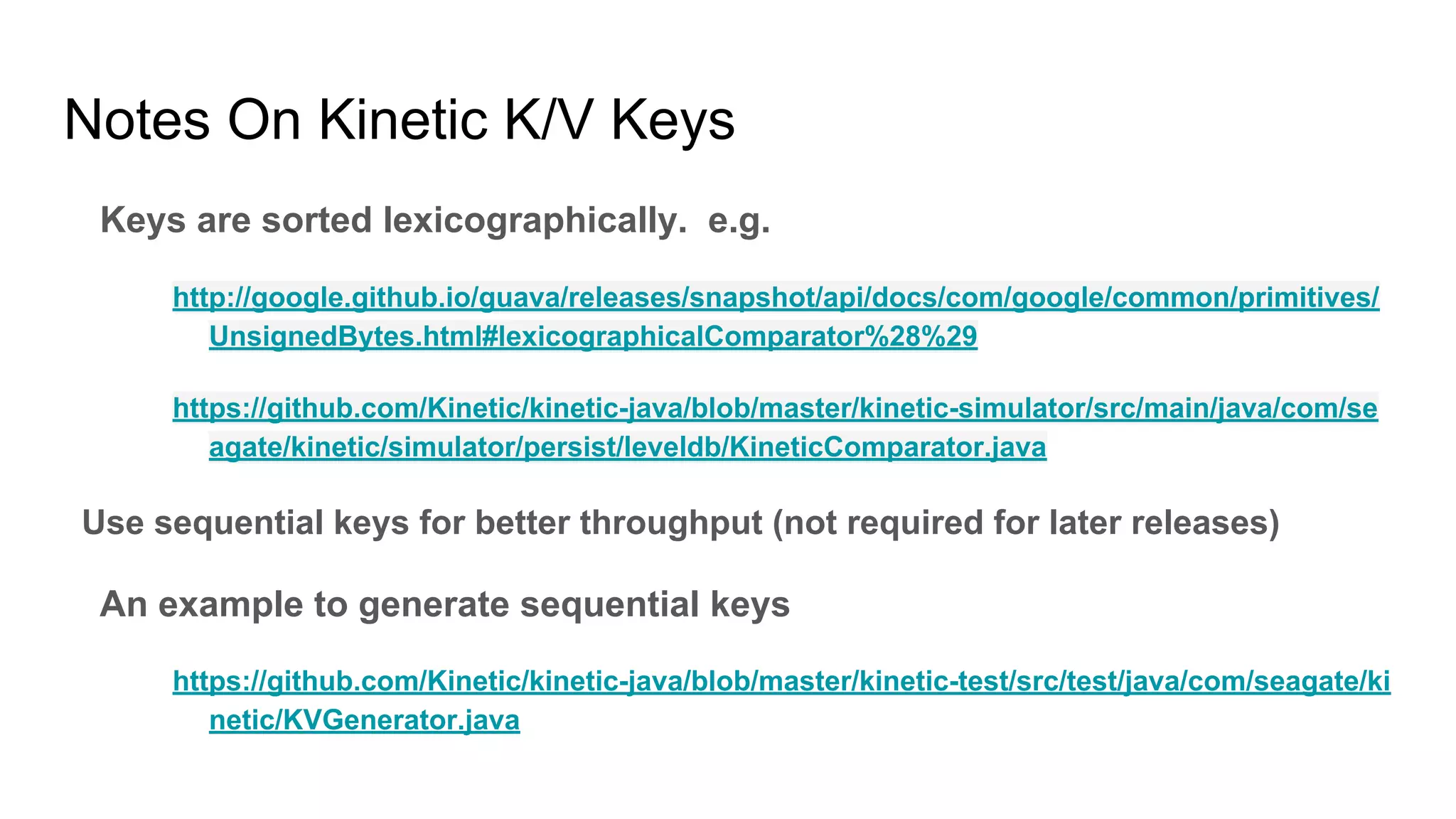

22. Notes On Kinetic K/V Keys
Keys are sorted lexicographically. e.g.
http://google.github.io/guava/releases/snapshot/api/docs/com/google/common/primitives/
UnsignedBytes.html#lexicographicalComparator%28%29
https://github.com/Kinetic/kinetic-java/blob/master/kinetic-simulator/src/main/java/com/se
agate/kinetic/simulator/persist/leveldb/KineticComparator.java
Use sequential keys for better throughput (not required for later releases)
An example to generate sequential keys
https://github.com/Kinetic/kinetic-java/blob/master/kinetic-test/src/test/java/com/seagate/ki
netic/KVGenerator.java

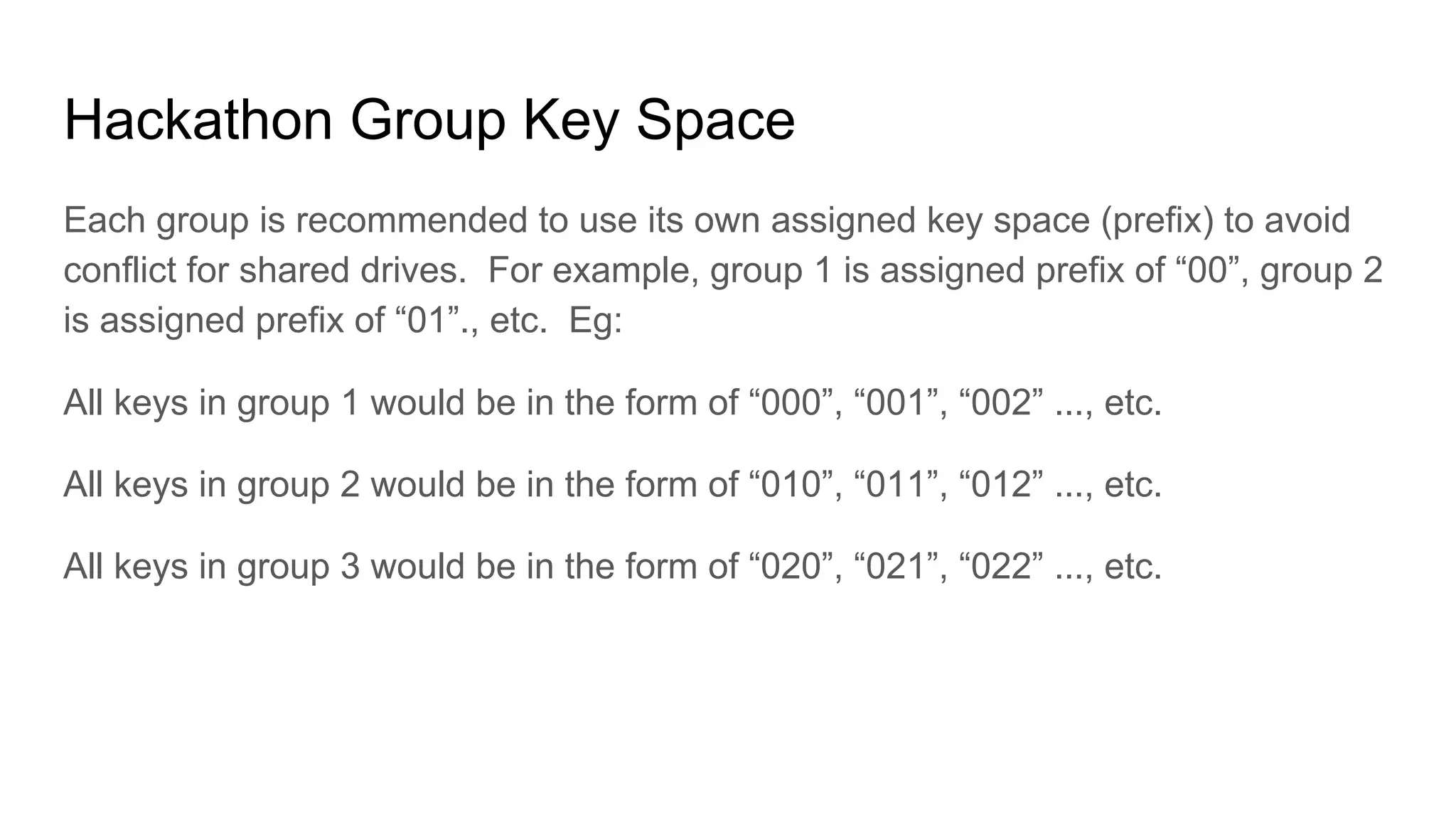

23. Hackathon Group Key Space
Each group is recommended to use its own assigned key space (prefix) to avoid
conflict for shared drives. For example, group 1 is assigned prefix of “00”, group 2
is assigned prefix of “01”., etc. Eg:
All keys in group 1 would be in the form of “000”, “001”, “002” ..., etc.
All keys in group 2 would be in the form of “010”, “011”, “012” ..., etc.
All keys in group 3 would be in the form of “020”, “021”, “022” ..., etc.

24. Scality/Kinetic Hackathon
Thank You!

25. Thank you!
