Autotools pratical training

Autotools introduction
The goal of this topic is to know how to well works with the autotools in a cross-
compilation environement

The autotools process

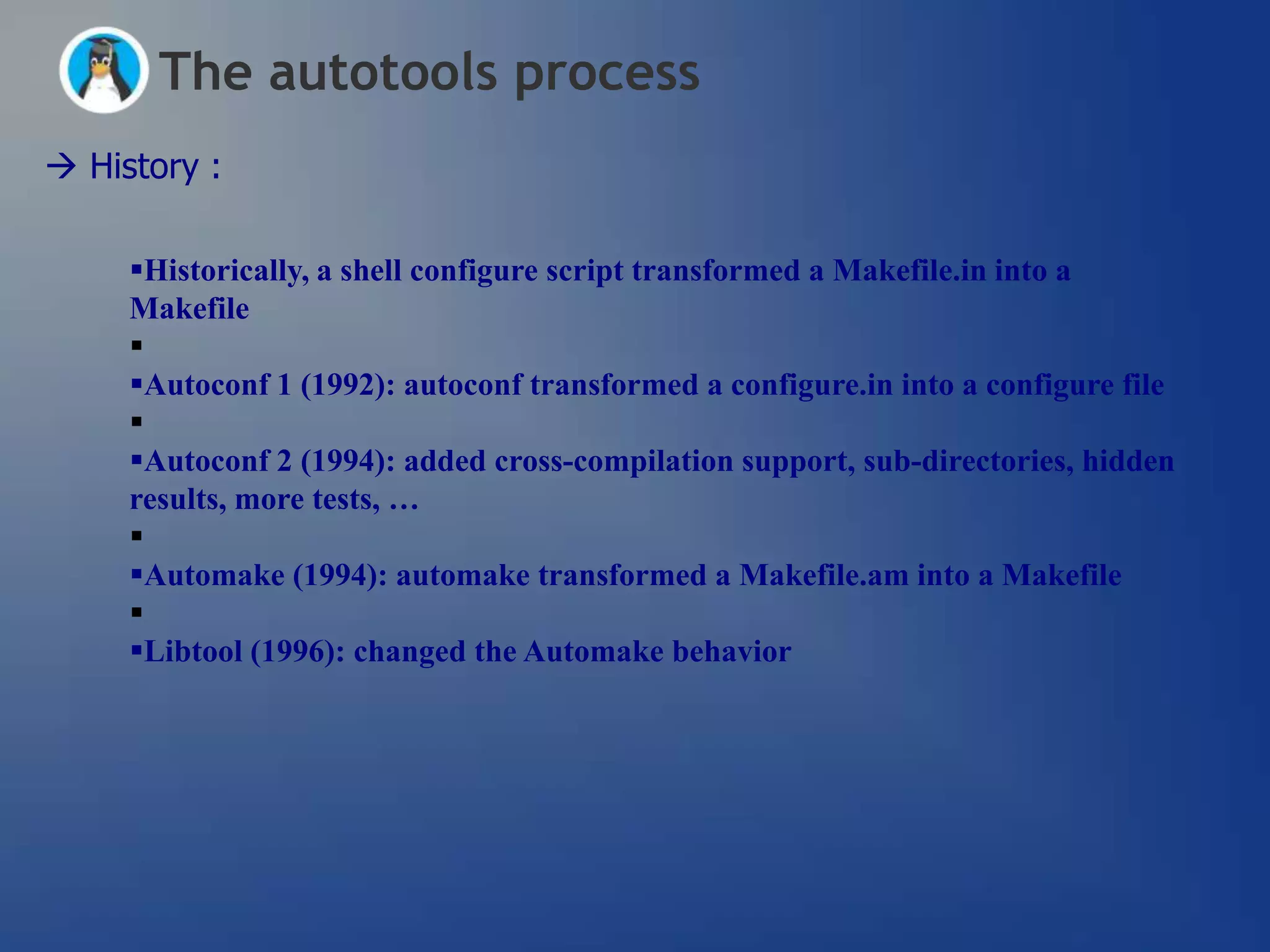

 History :

Historically, a shell configure script transformed a Makefile.in into a
Makefile

Autoconf 1 (1992): autoconf transformed a configure.in into a configure file

Autoconf 2 (1994): added cross-compilation support, sub-directories, hidden
results, more tests, …

Automake (1994): automake transformed a Makefile.am into a Makefile

Libtool (1996): changed the Automake behavior

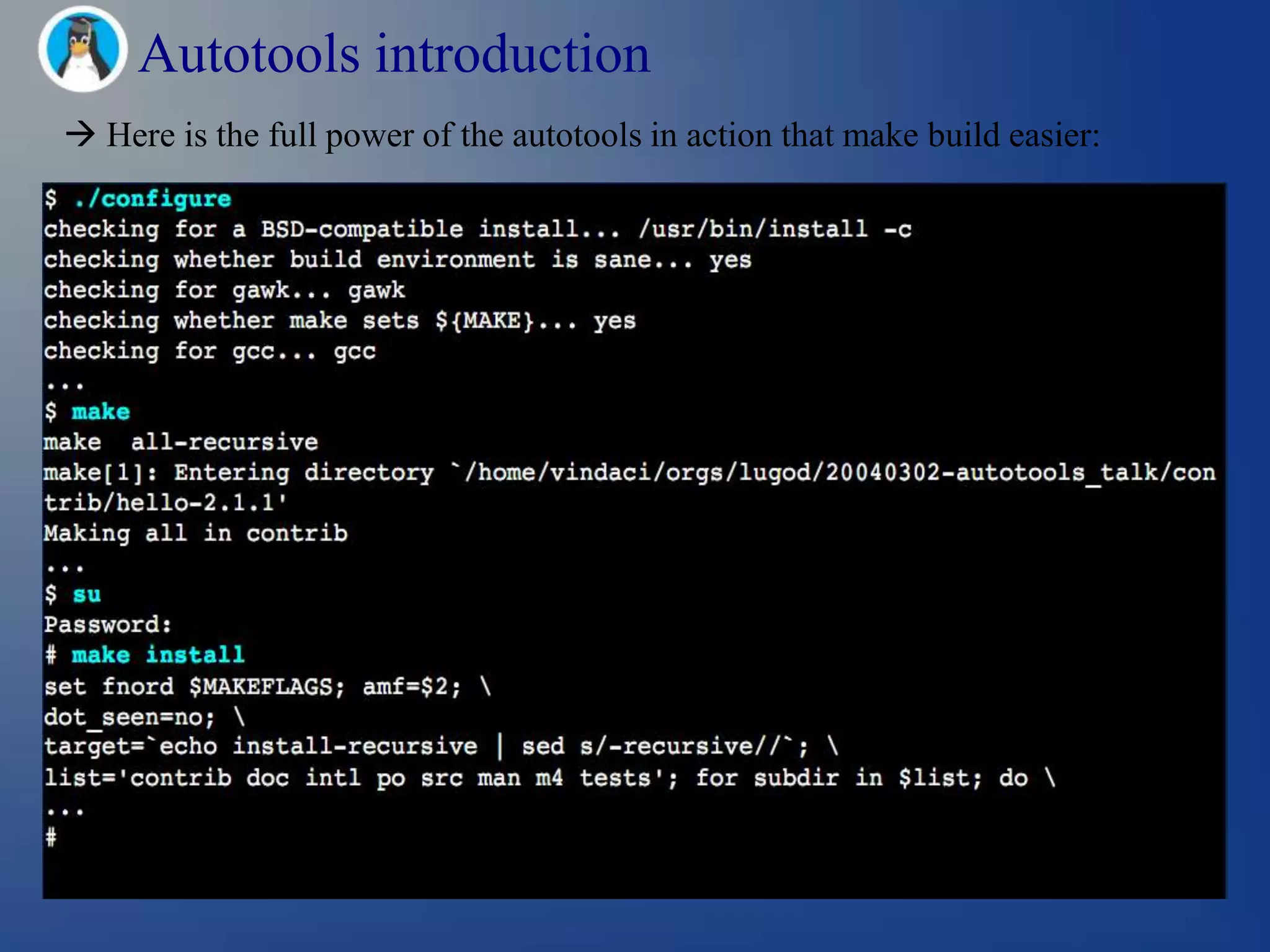

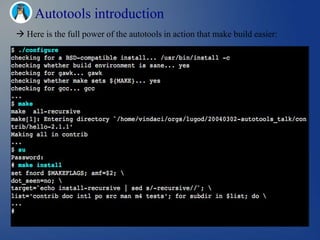

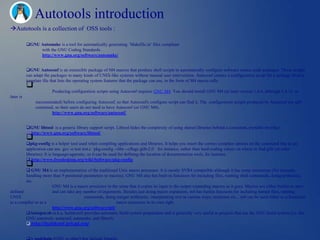

 Here is the full power of the autotools in action that make build easier:

Autotools is a collection of OSS tools :

GNU Automake is a tool for automatically generating `Makefile.in' files compliant
with the GNU Coding Standards.
http://www.gnu.org/software/automake/

GNU Autoconf is an extensible package of M4 macros that produce shell scripts to automatically configure software source code packages. These scripts
can adapt the packages to many kinds of UNIX-like systems without manual user intervention. Autoconf creates a configuration script for a package from a
template file that lists the operating system features that the package can use, in the form of M4 macro calls.

Producing configuration scripts using Autoconf requires GNU M4. You should install GNU M4 (at least version 1.4.6, although 1.4.13 or
later is
recommended) before configuring Autoconf, so that Autoconf's configure script can find it. The configuration scripts produced by Autoconf are self-
contained, so their users do not need to have Autoconf (or GNU M4).
http://www.gnu.org/software/autoconf/

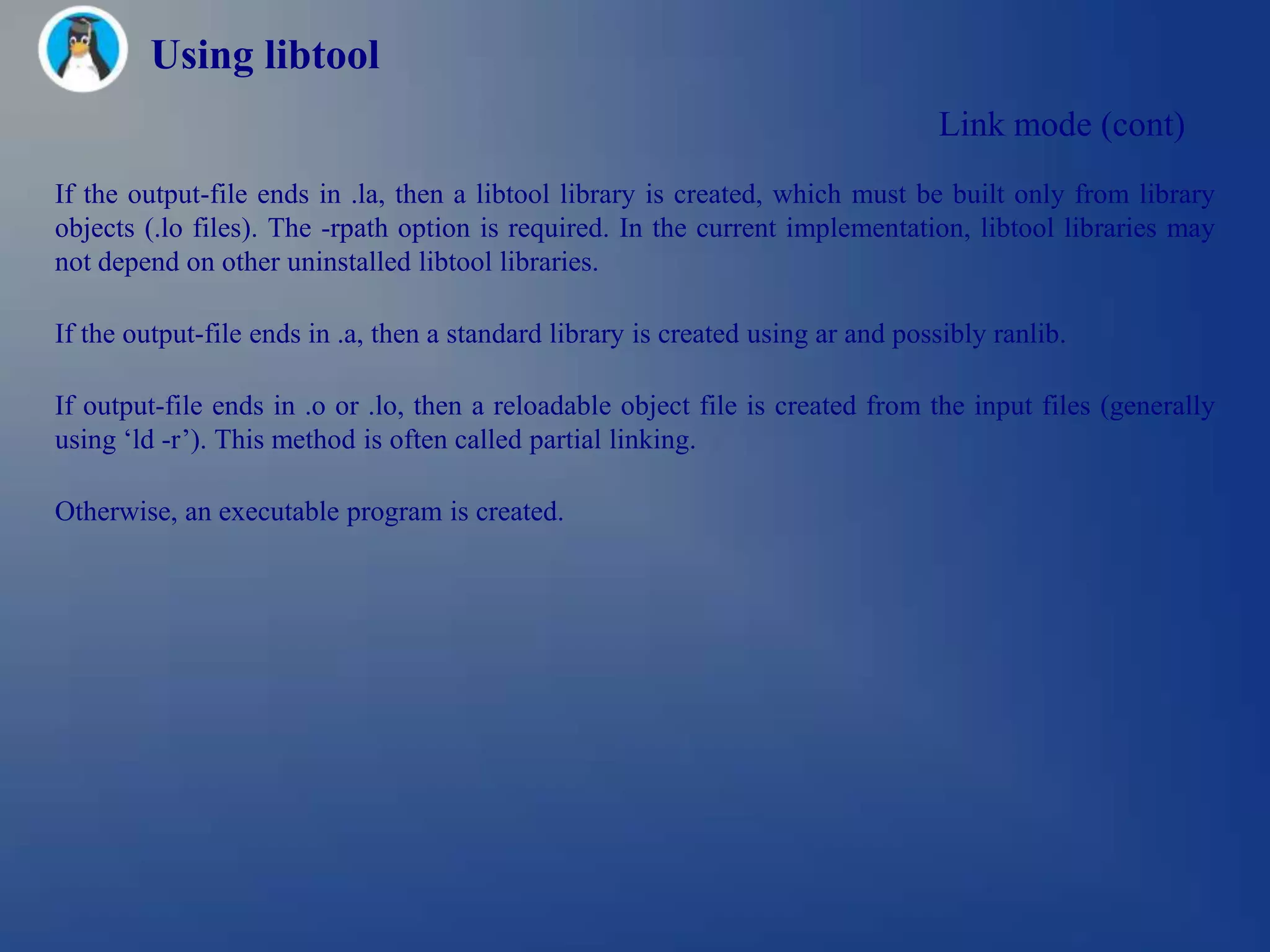

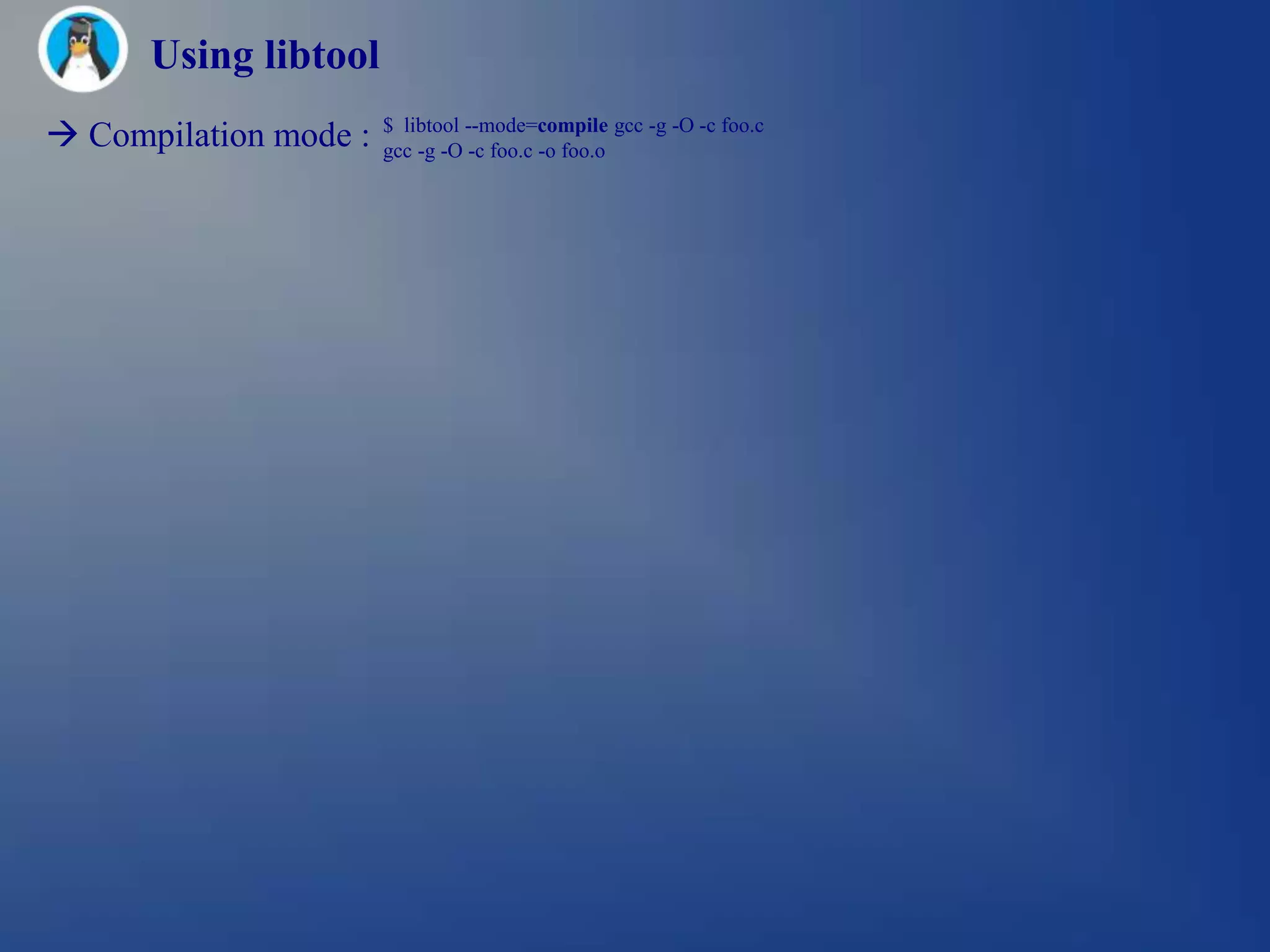

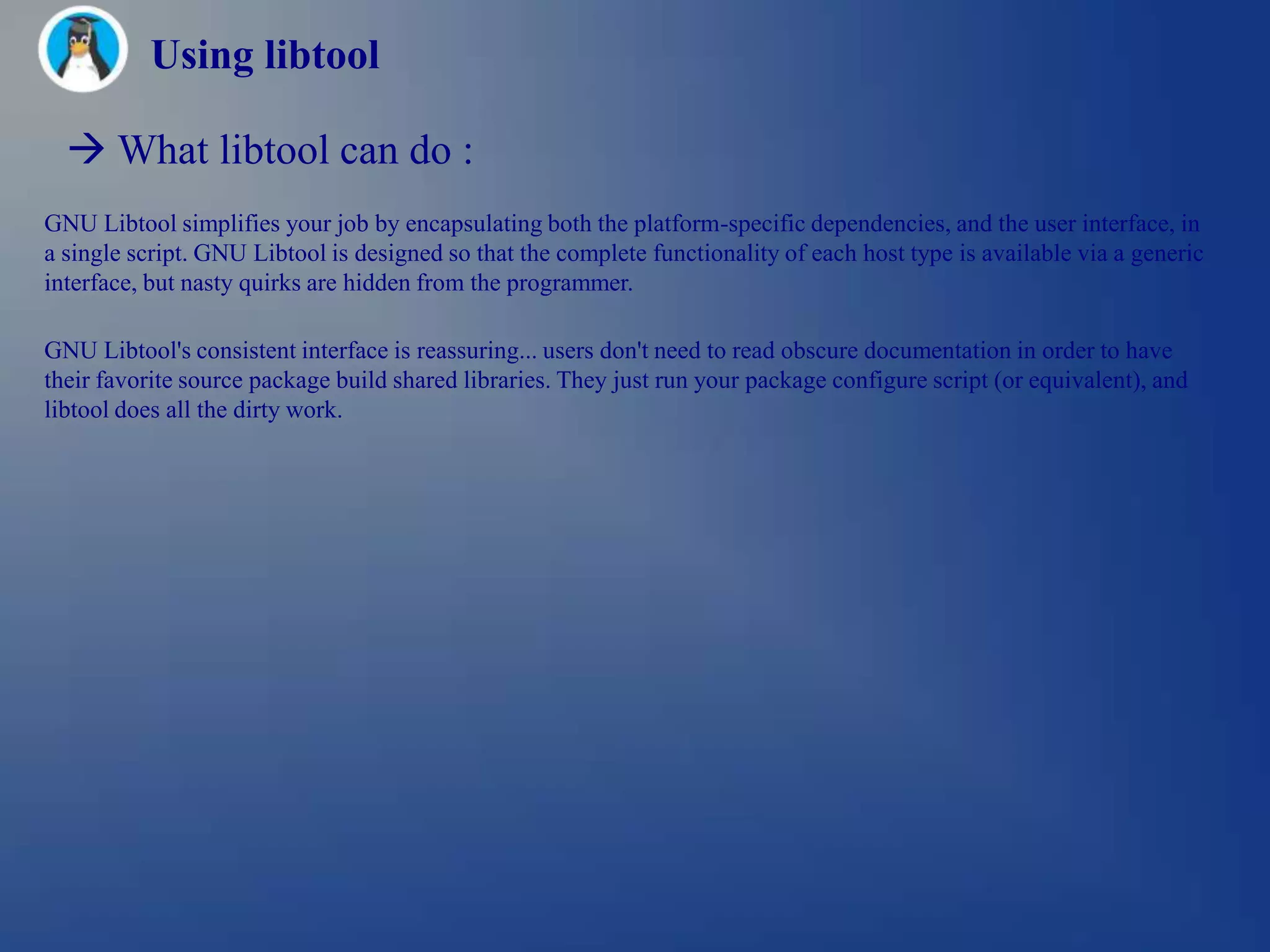

GNU libtool is a generic library support script. Libtool hides the complexity of using shared libraries behind a consistent, portable interface.
 http://www.gnu.org/software/libtool/


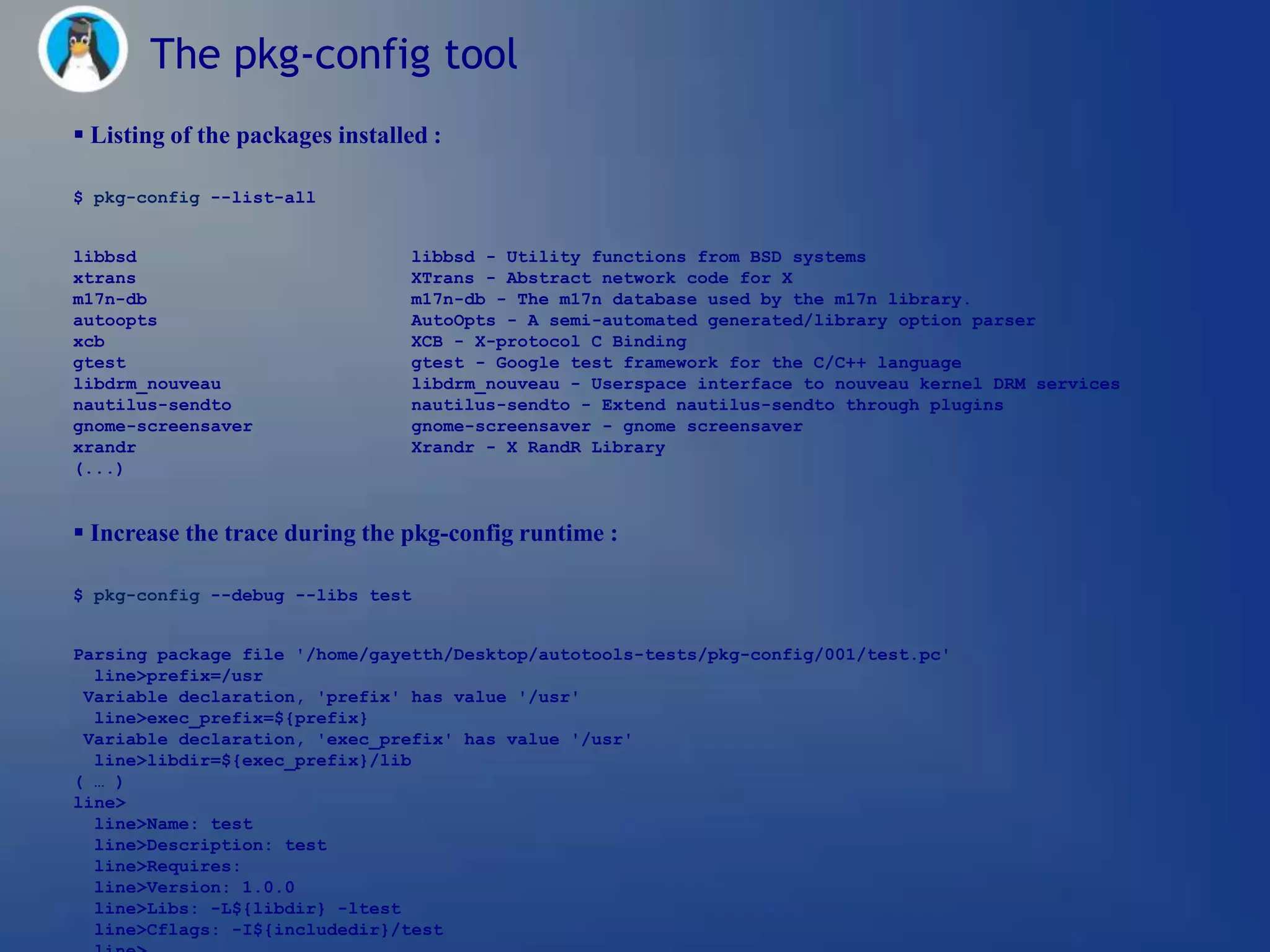

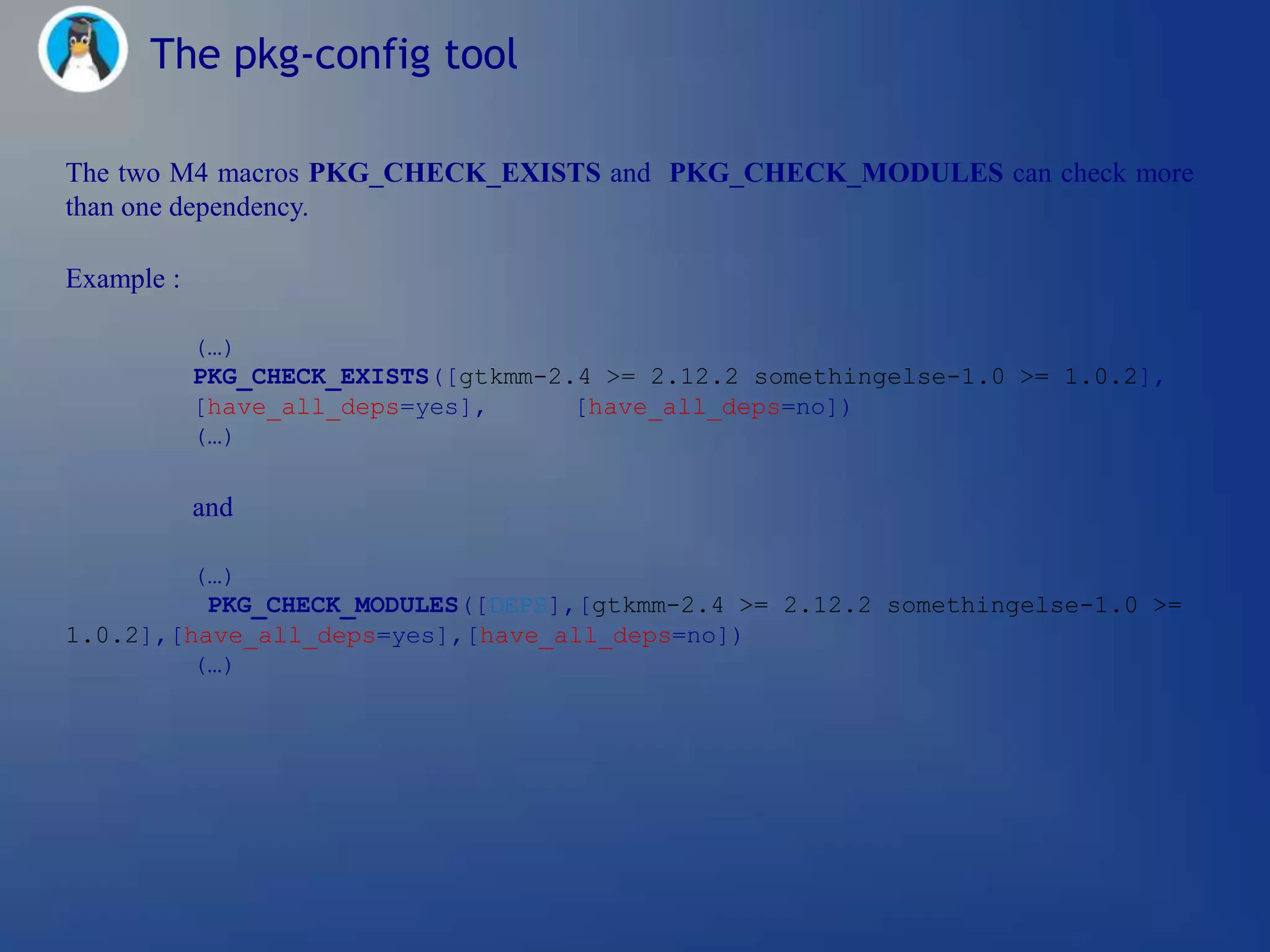

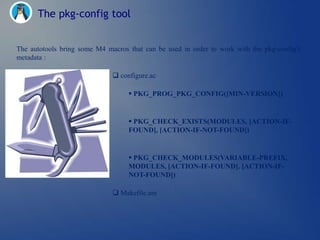

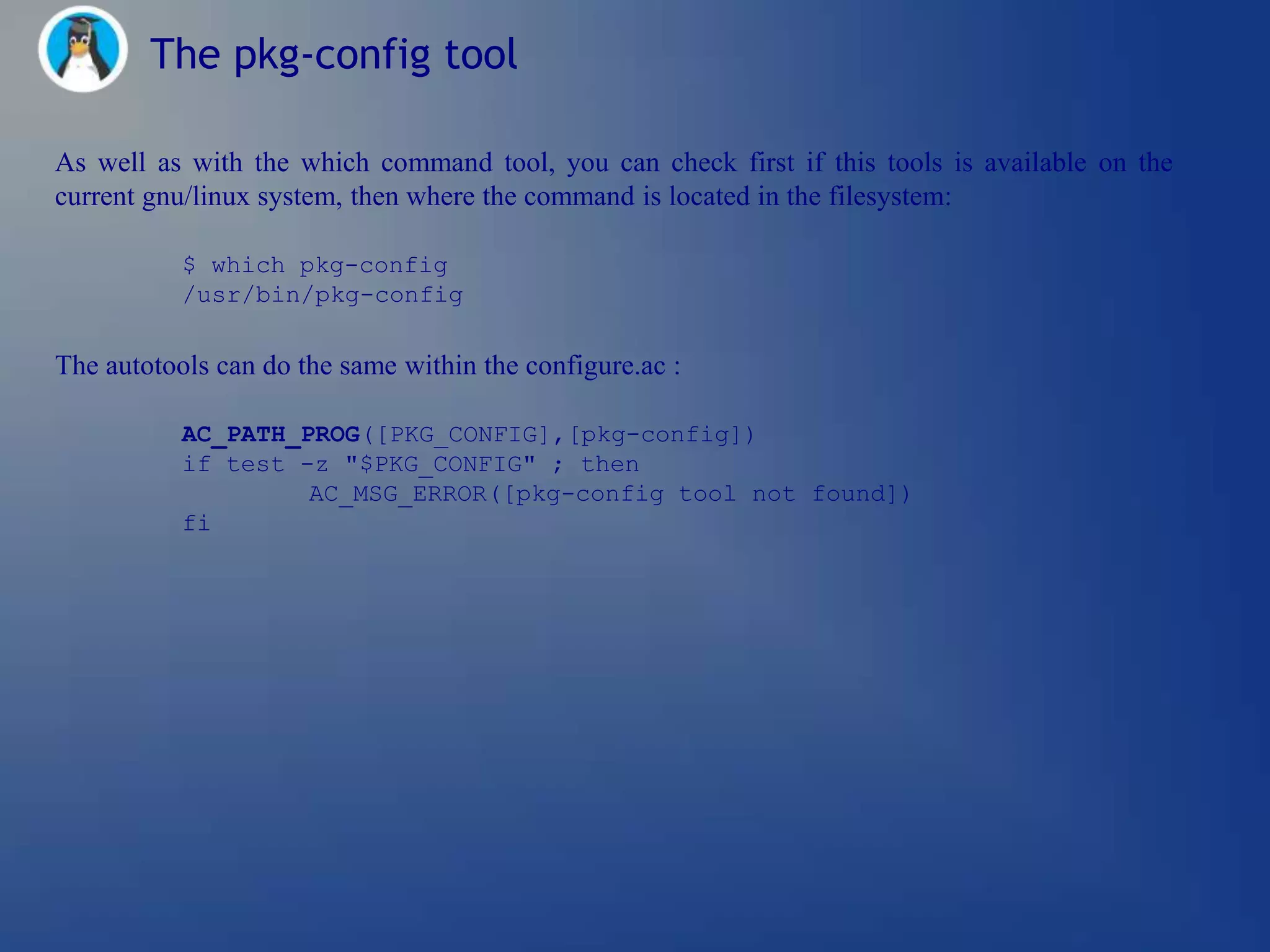

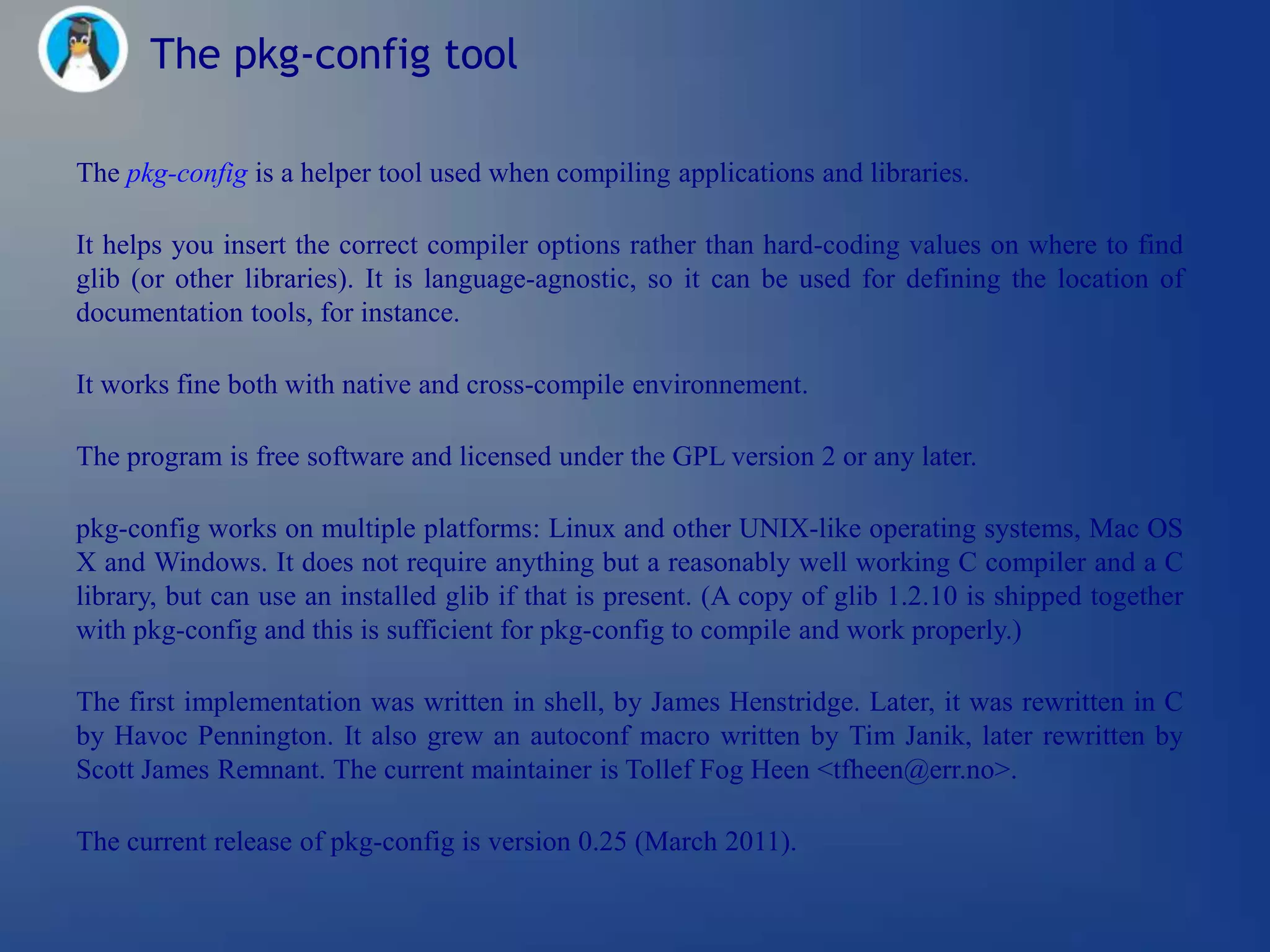

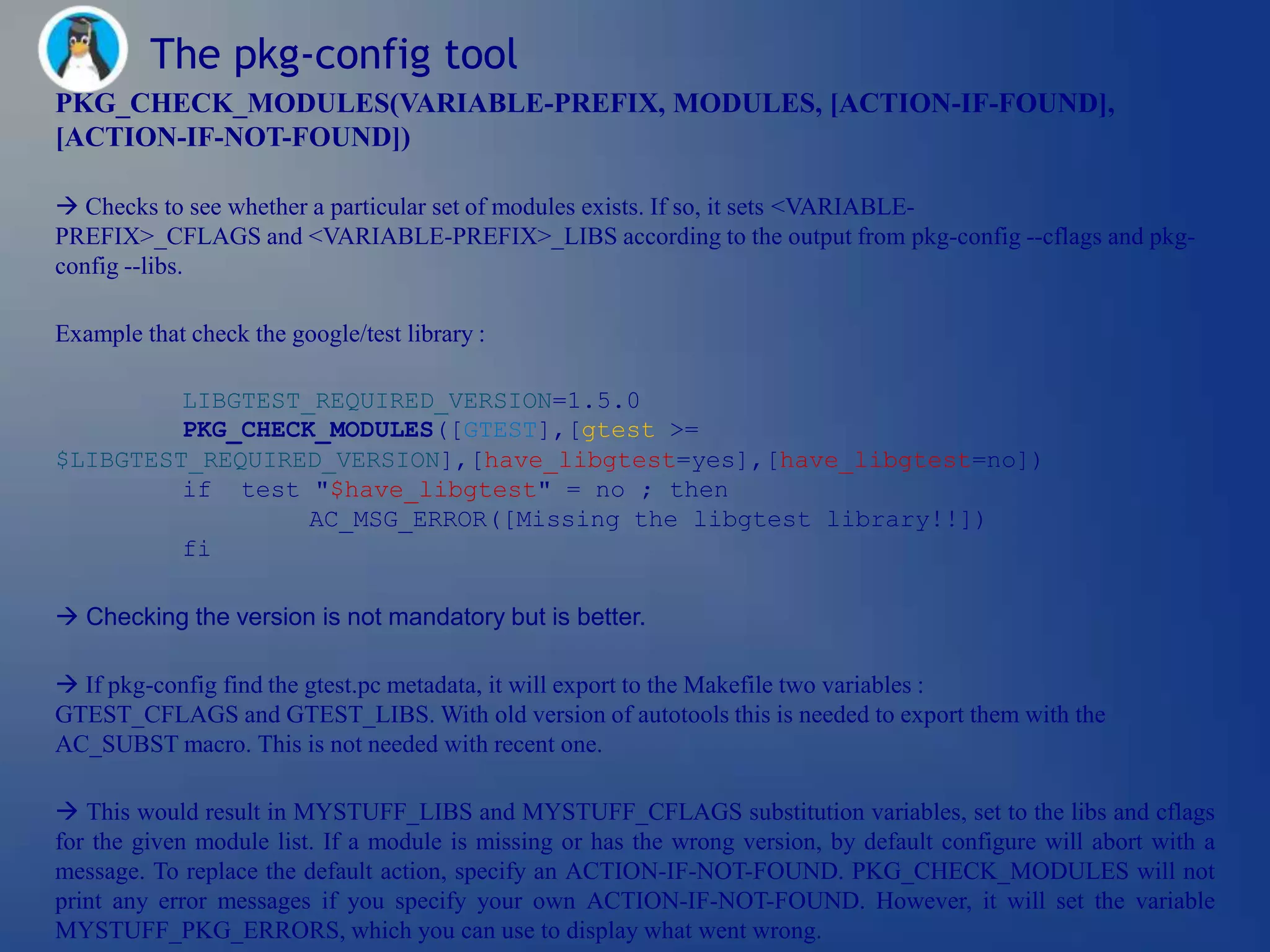

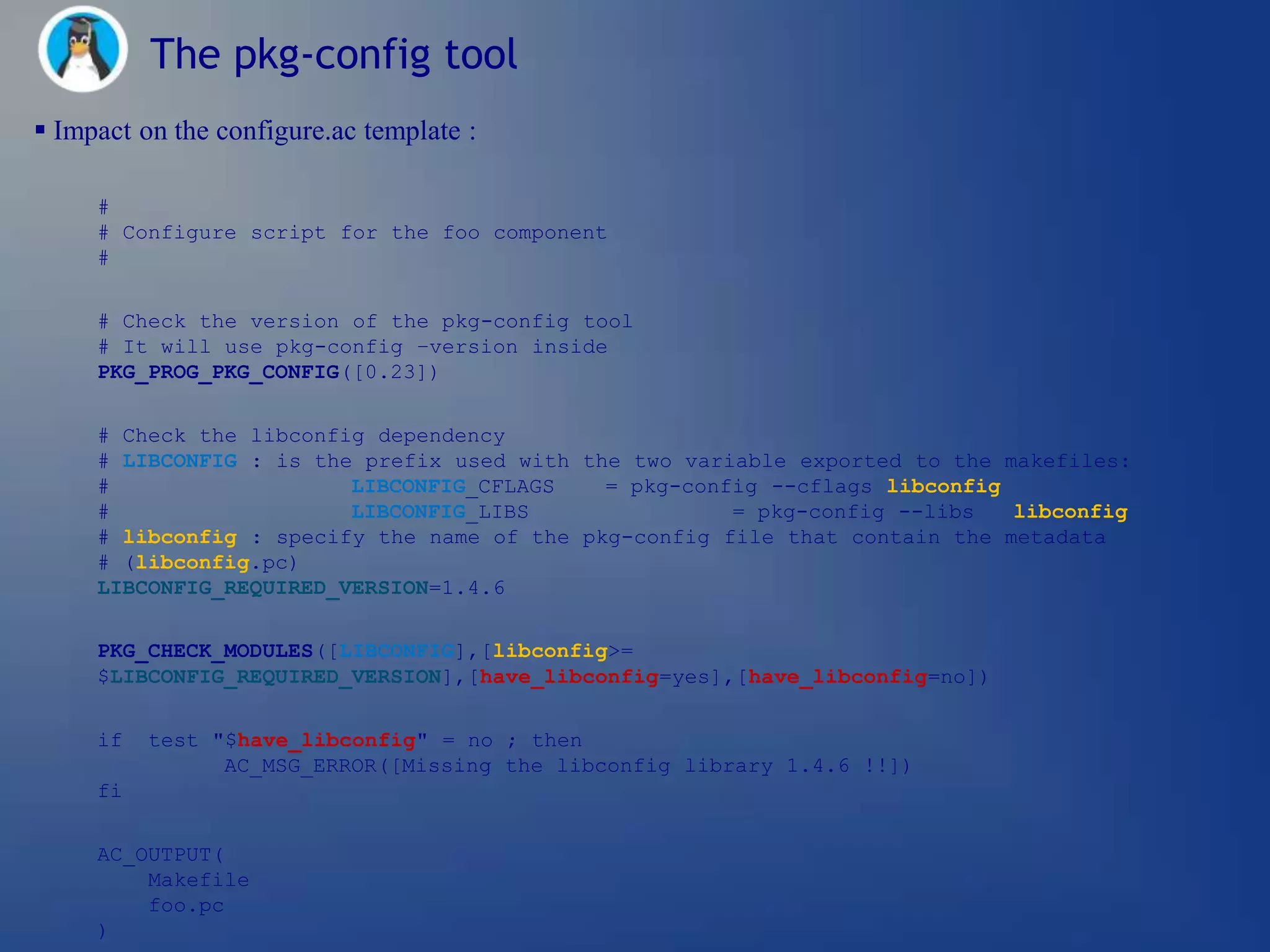

pkg-config is a helper tool used when compiling applications and libraries. It helps you insert the correct compiler options on the command line so an
application can use gcc -o test test.c `pkg-config --libs --cflags glib-2.0` for instance, rather than hard-coding values on where to find glib (or other
libraries). It is language-agnostic, so it can be used for defining the location of documentation tools, for instance.
 http://www.freedesktop.org/wiki/Software/pkg-config


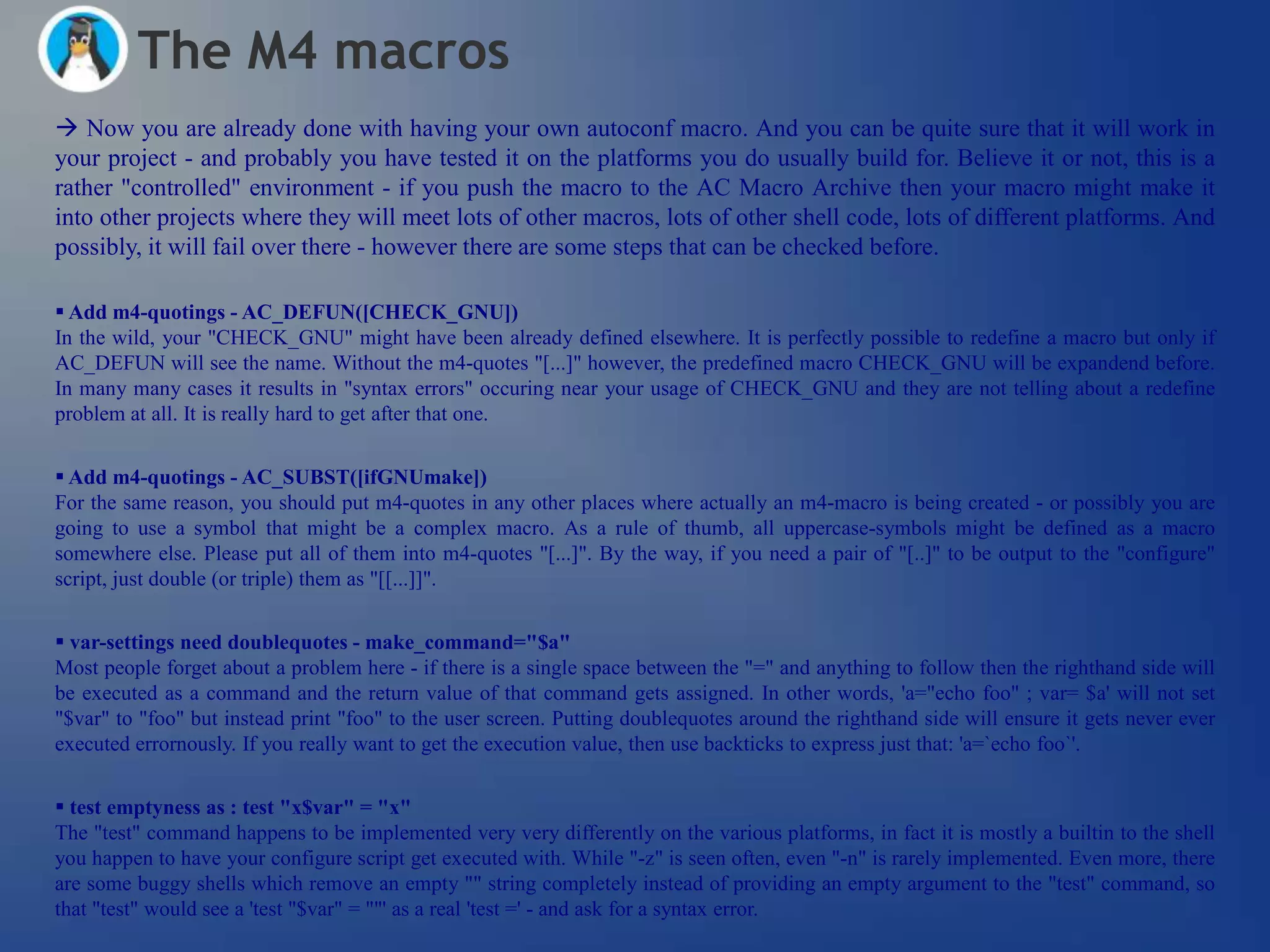

 GNU M4 is an implementation of the traditional Unix macro processor. It is mostly SVR4 compatible although it has some extensions (for example,
handling more than 9 positional parameters to macros). GNU M4 also has built-in functions for including files, running shell commands, doing arithmetic,
etc.
GNU M4 is a macro processor in the sense that it copies its input to the output expanding macros as it goes. Macros are either builtin or user-
defined and can take any number of arguments. Besides just doing macro expansion, m4 has builtin functions for including named files, running
UNIX commands, doing integer arithmetic, manipulating text in various ways, recursion etc... m4 can be used either as a front-end
to a compiler or as a macro processor in its own right.
http://www.gnu.org/software/m4/
Autogen.sh (a.k.a. buildconf) provides automatic build system preparation and is generally very useful to projects that use the GNU build system (i.e. the
GNU autotools: autoconf, automake, and libtool).
 http://buildconf.brlcad.org/

A toolchain (GNU or other) that include binutils.

 Initial preparation :
./autogen.sh

 Configuration :
./configure --prefix=/usr

 Compiling :
make

 Installation :
make DESTDIR=«stagingdir» install

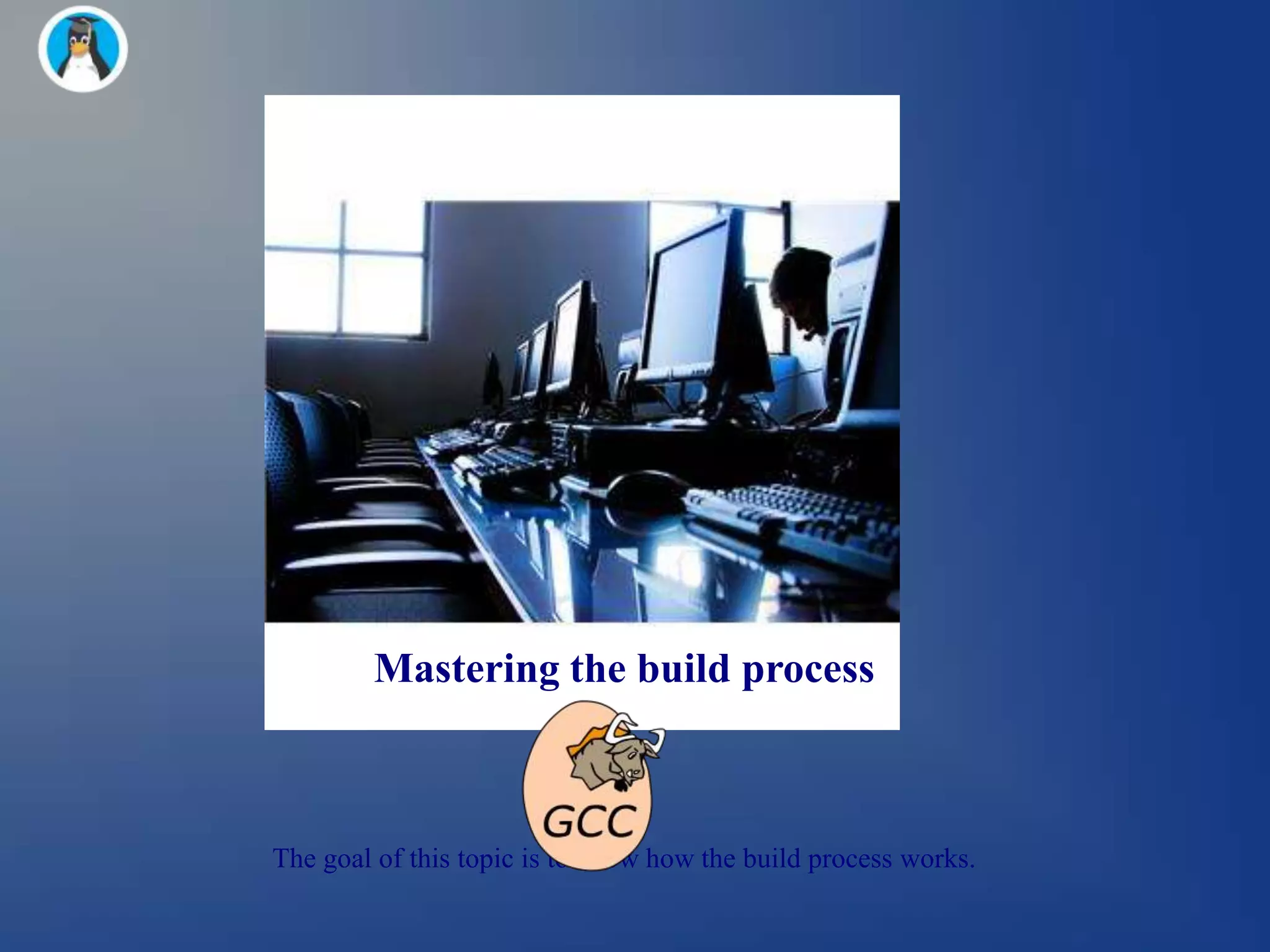

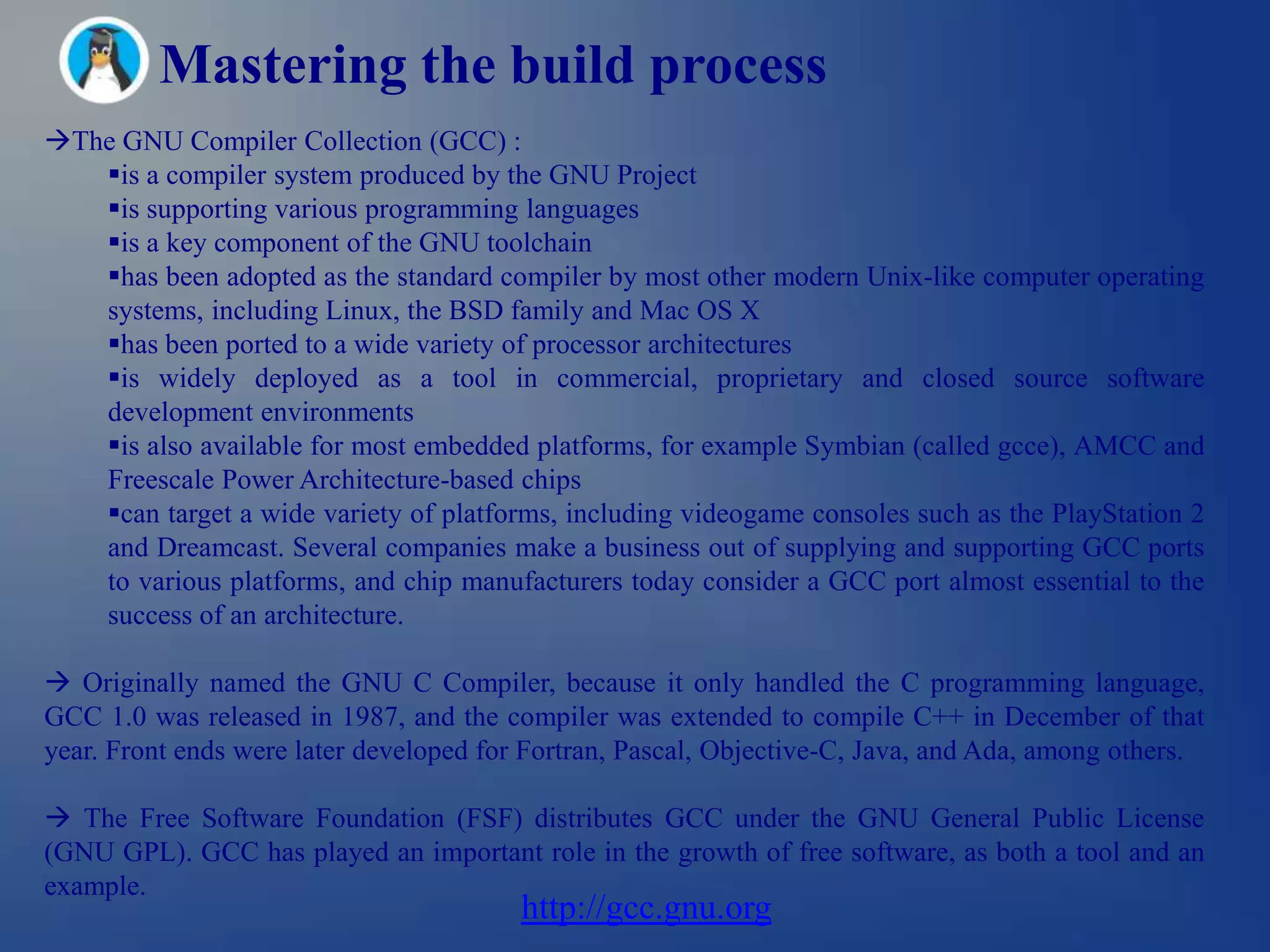

Mastering the build process

The goal of this topic is to know how the build process works.

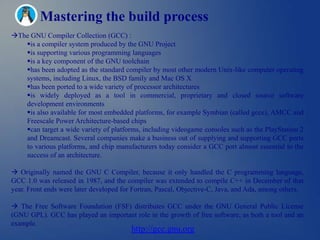

The GNU Compiler Collection (GCC) :
is a compiler system produced by the GNU Project
is supporting various programming languages
is a key component of the GNU toolchain
has been adopted as the standard compiler by most other modern Unix-like computer operating
systems, including Linux, the BSD family and Mac OS X
has been ported to a wide variety of processor architectures
is widely deployed as a tool in commercial, proprietary and closed source software
development environments
is also available for most embedded platforms, for example Symbian (called gcce), AMCC and
Freescale Power Architecture-based chips
can target a wide variety of platforms, including videogame consoles such as the PlayStation 2
and Dreamcast. Several companies make a business out of supplying and supporting GCC ports
to various platforms, and chip manufacturers today consider a GCC port almost essential to the
success of an architecture.

 Originally named the GNU C Compiler, because it only handled the C programming language,
GCC 1.0 was released in 1987, and the compiler was extended to compile C++ in December of that
year. Front ends were later developed for Fortran, Pascal, Objective-C, Java, and Ada, among others.

 The Free Software Foundation (FSF) distributes GCC under the GNU General Public License
(GNU GPL). GCC has played an important role in the growth of free software, as both a tool and an
example.
http://gcc.gnu.org

Linking : the compiler’s backend

•Generates assembly code for the final output.
•Generates ELF object (replace the old a.out one).
•Uses ld through the gcc.
•Can make:
Binary: adds a main entry to the intermediate code.
Dynamic library: if the -shared parameter has been given (cannot be
runable except for the libc).

Direct usage with the ld linker : $ ld -o mybinary /lib/crt0.o file.o –lc

crt0 (or crt0.o, gcrt0.o, mcrt0.o) is a set of execution start-up routines (usually part of
the C standard library) that are platform dependent, and is required in order to compile
using GCC and other GNU tools. crt stands for "C runtime".

-e entry
Use entry as the explicit symbol for beginning execution of the program, rather than the
default entry point (main). If there is no symbol named entry, the linker will try to parse
entry as a number, and use that as the entry address (the number will be interpreted in base
10; you may use a leading 0x for base 16, or a leading 0 for base 8).

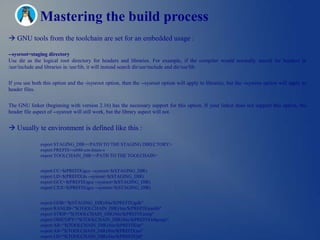

 GNU tools from the toolchain are set for an embedded usage :

--sysroot=staging directory
Use dir as the logical root directory for headers and libraries. For example, if the compiler would normally search for headers in
/usr/include and libraries in /usr/lib, it will instead search dir/usr/include and dir/usr/lib.

If you use both this option and the -isysroot option, then the --sysroot option will apply to libraries, but the -isysroot option will apply to
header files.

The GNU linker (beginning with version 2.16) has the necessary support for this option. If your linker does not support this option, the
header file aspect of --sysroot will still work, but the library aspect will not.

 Usually te environment is defined like this :

export STAGING_DIR=<PATH TO THE STAGING DIRECTORY>
export PREFIX=«i686-cm-linux-»
export TOOLCHAIN_DIR=<PATH TO THE TOOLCHAIN>

export CC=$(PREFIX)gcc --sysroot=$(STAGING_DIR)
export LD=$(PREFIX)ls --sysroot=$(STAGING_DIR)
export GCC=$(PREFIX)gcc --sysroot=$(STAGING_DIR)
export CXX=$(PREFIX)gcc --sysroot=$(STAGING_DIR)

export GDB="$(STAGING_DIR)/bin/$(PREFIX)gdb"
export RANLIB="$(TOOLCHAIN_DIR)/bin/$(PREFIX)ranlib"
export STRIP="$(TOOLCHAIN_DIR)/bin/$(PREFIX)strip"
export OBJCOPY="$(TOOLCHAIN_DIR)/bin/$(PREFIX)objcopy"
export AR="$(TOOLCHAIN_DIR)/bin/$(PREFIX)ar"
export AS="$(TOOLCHAIN_DIR)/bin/$(PREFIX)as"
export LD="$(TOOLCHAIN_DIR)/bin/$(PREFIX)ld"

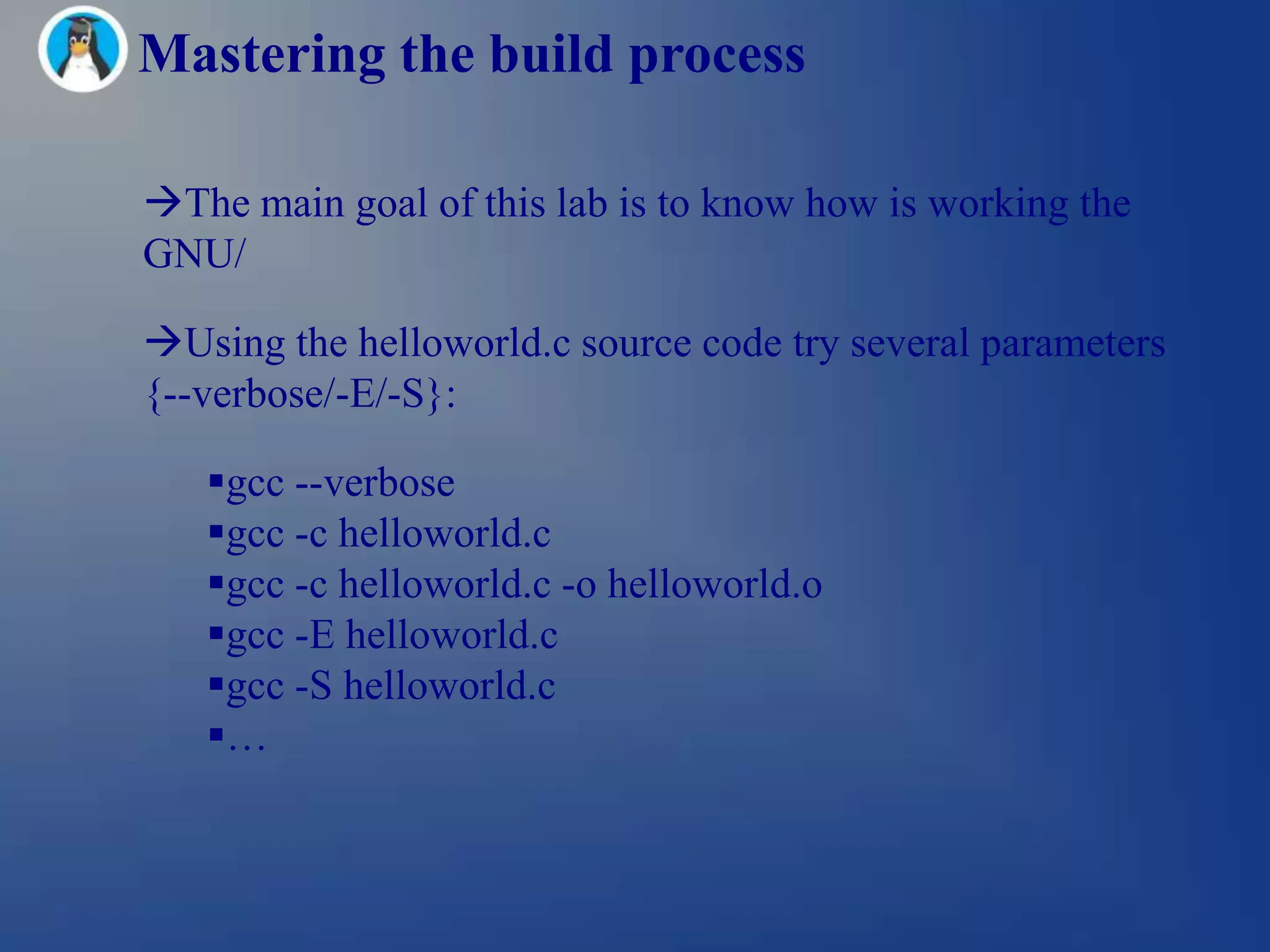

BUILD PORCESS LAB


The main goal of this lab is to know how is working the
GNU/

Using the helloworld.c source code try several parameters
{--verbose/-E/-S}:

gcc --verbose
gcc -c helloworld.c
gcc -c helloworld.c -o helloworld.o
gcc -E helloworld.c
gcc -S helloworld.c
…

Quick GNU/make reminder
The goal of this topic is to know how works common GNU/make

 The final files generated are gnu/make based.

 Most Makefile.am can be extend with gnu/make features that‘s why this is
important to know how makefiles are made.

 We will remain some basic makefile usage.

With GNU/Makefiles :

 No target is buildin ; everything should be written from scratch
each time ;
 Doesn‘t use generic templates for binaries, libraries, … ;
 Cross-compilation support should be manualy specified ;
 Pkg-config can be used (not by M4 macros) ;
 Can make ugly Makefile ;
 Makefile are often more static than dynamic

Everything done by gnu Makefile is automatically
natively supported by the Autotools  !


 Other make engine exists:

ocmake (http://www.cmake.org/)
oqmake (http://doc.qt.nokia.com/4.4/qmake-manual.html)
oand so on…

 For more information about the GNU/make:
http://oreilly.com/catalog/make3/book/index.csp
http://www.wanderinghorse.net/computing/make/book/ManagingProjectsWithG
NUMake-3.1.3.pdf
http://notendur.hi.is/~jonasson/software/make-book/
http://www.gnu.org/software/make/manual/make.pdf
http://en.wikipedia.org/wiki/Make_(software)#Modern_versions
http://ecee.colorado.edu/~mcclurel/gnu_make_overview.pdf
http://static.maemo.org/static/d/dcacc028fda611dd9062b3dd54505f765f76_gnu_
make_and_makefiles.pdf

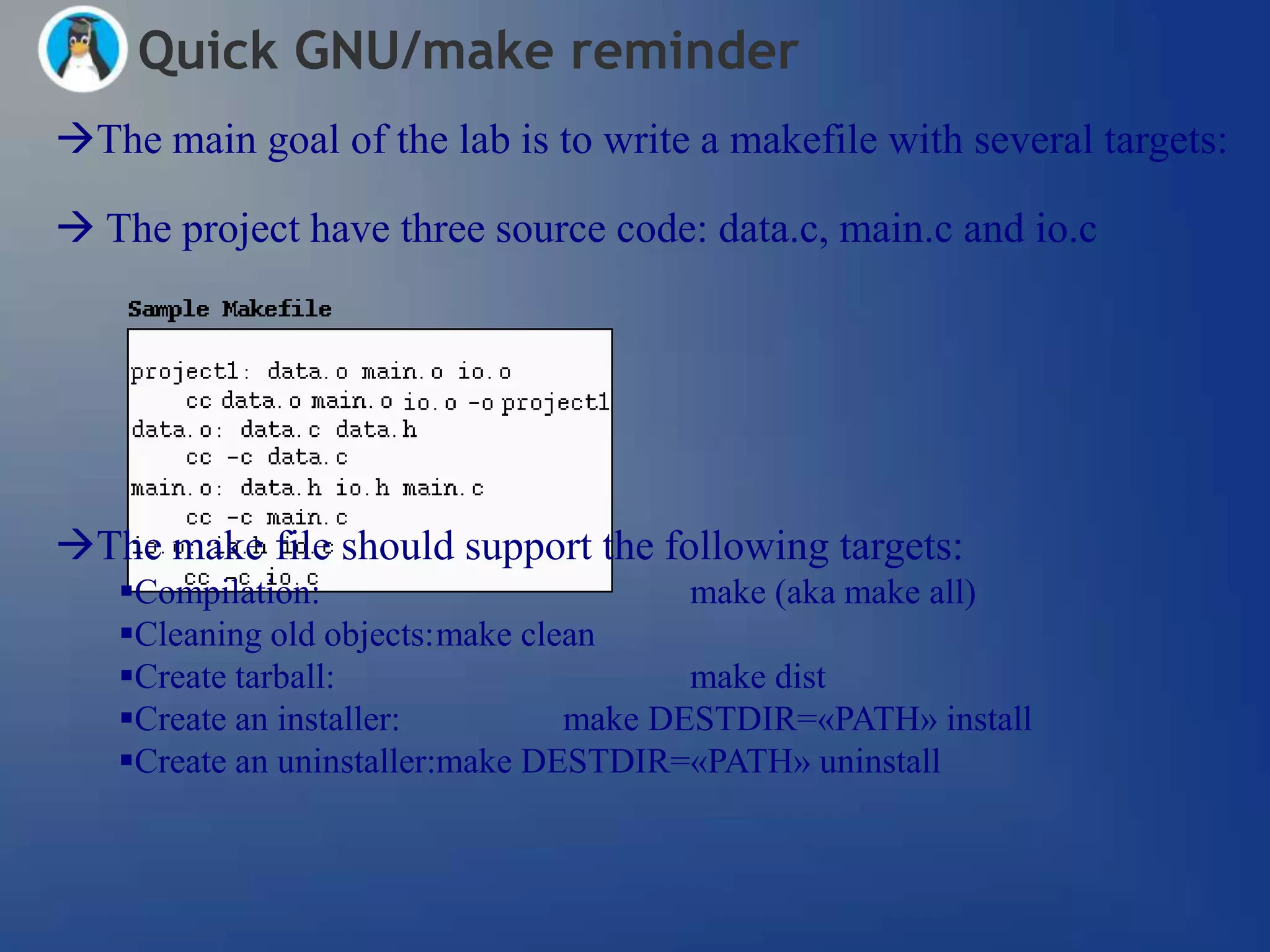

GNU/MAKE LAB

The main goal of the lab is to write a makefile with several targets:

 The project have three source code: data.c, main.c and io.c

The make file should support the following targets:
Compilation: make (aka make all)
Cleaning old objects:make clean
Create tarball: make dist
Create an installer: make DESTDIR=«PATH» install
Create an uninstaller:make DESTDIR=«PATH» uninstall


So, if we check the several Makefiles written,
no one will be identical,
that’s mean there is no uniformisation/no standard.
 That what the autotools provide.

The goal of this topic is to know how works the templates are written.

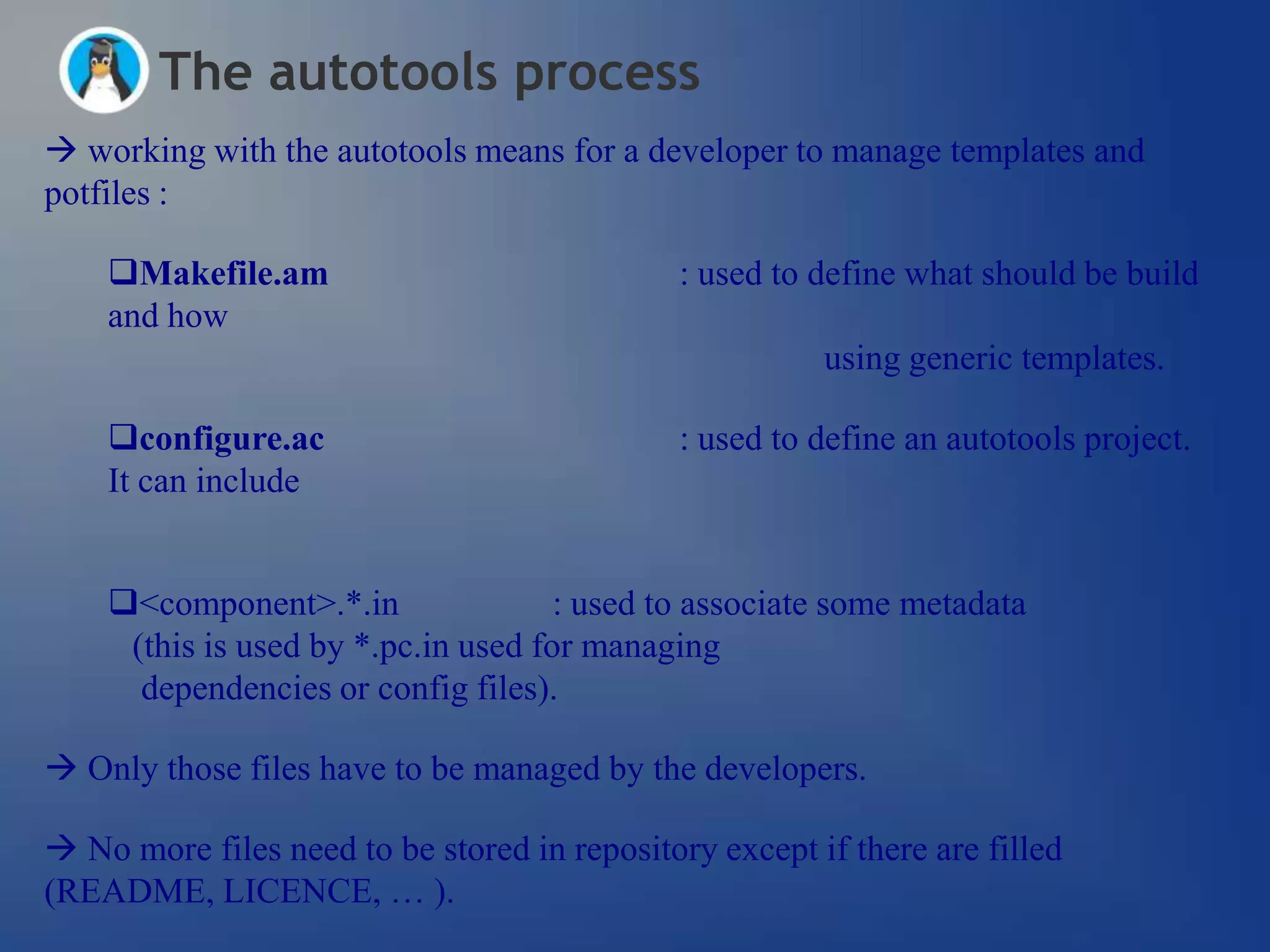

 working with the autotools means for a developer to manage templates and
potfiles :

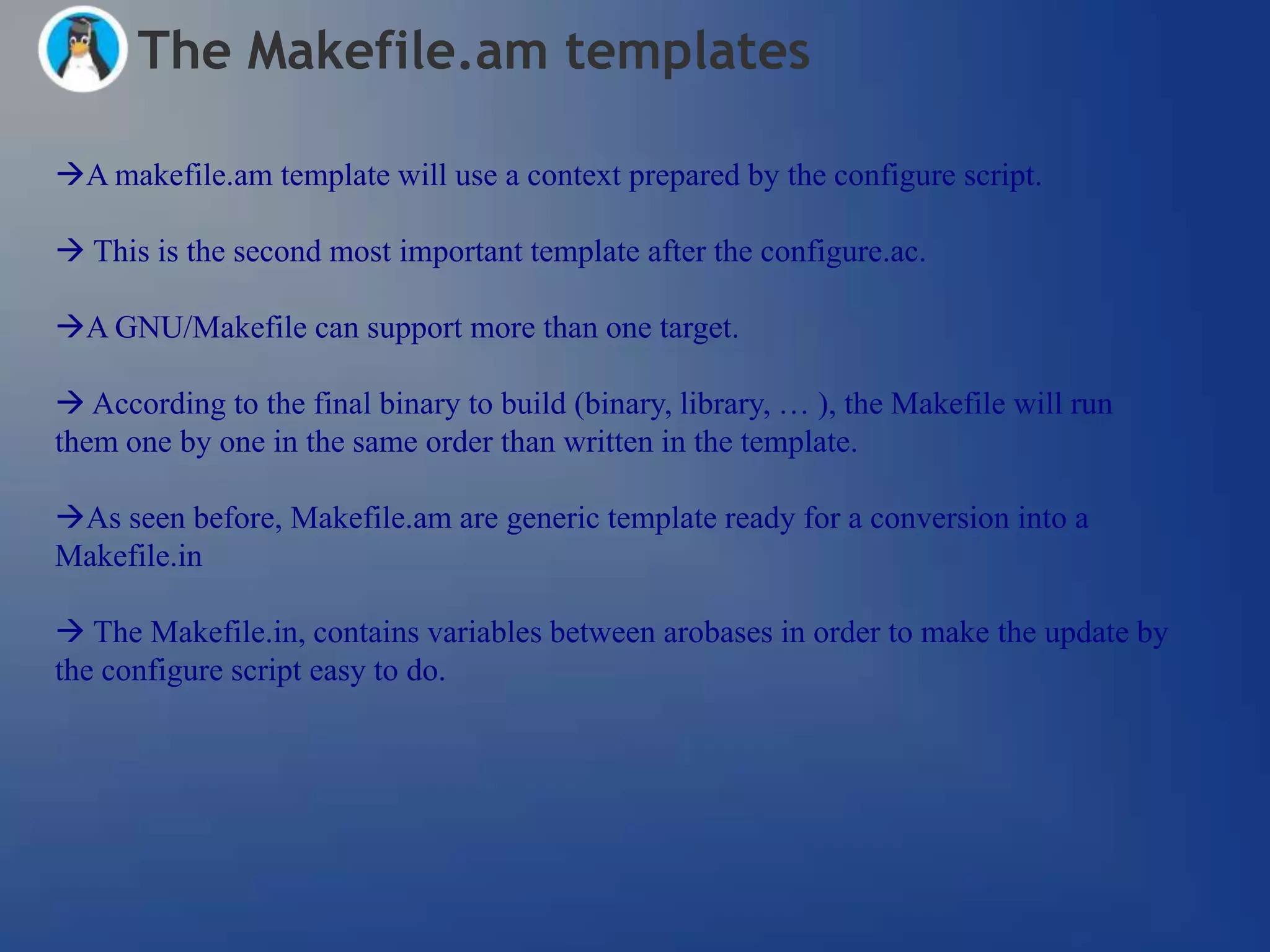

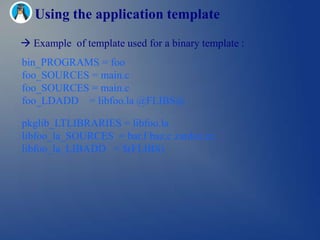

Makefile.am : used to define what should be build
and how
using generic templates.

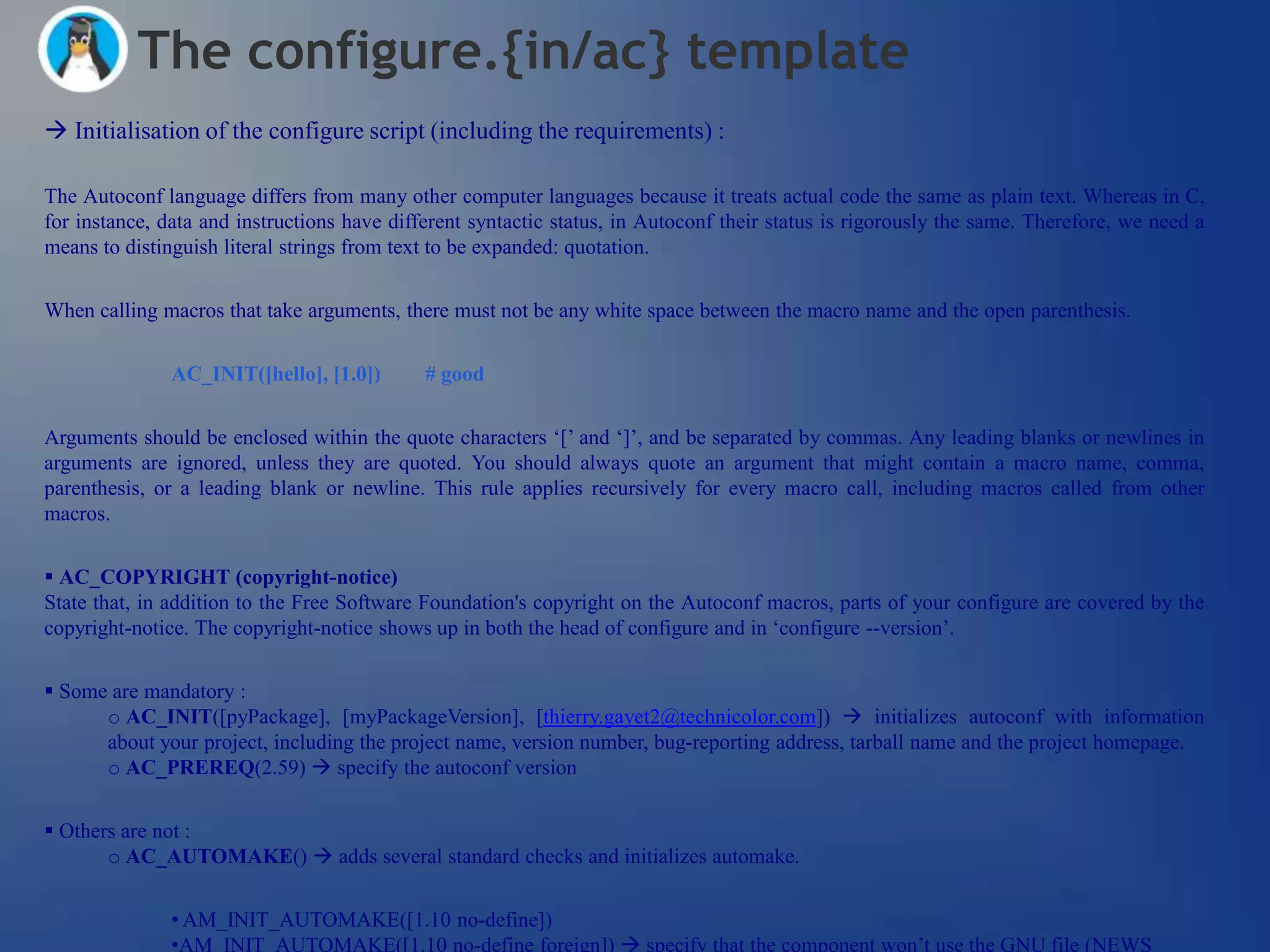

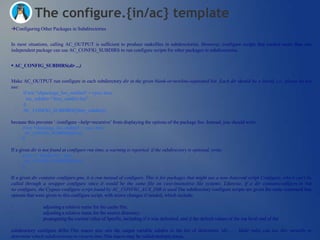

configure.ac : used to define an autotools project.
It can include

<component>.*.in : used to associate some metadata
(this is used by *.pc.in used for managing
dependencies or config files).

 Only those files have to be managed by the developers.

 No more files need to be stored in repository except if there are filled
(README, LICENCE, … ).

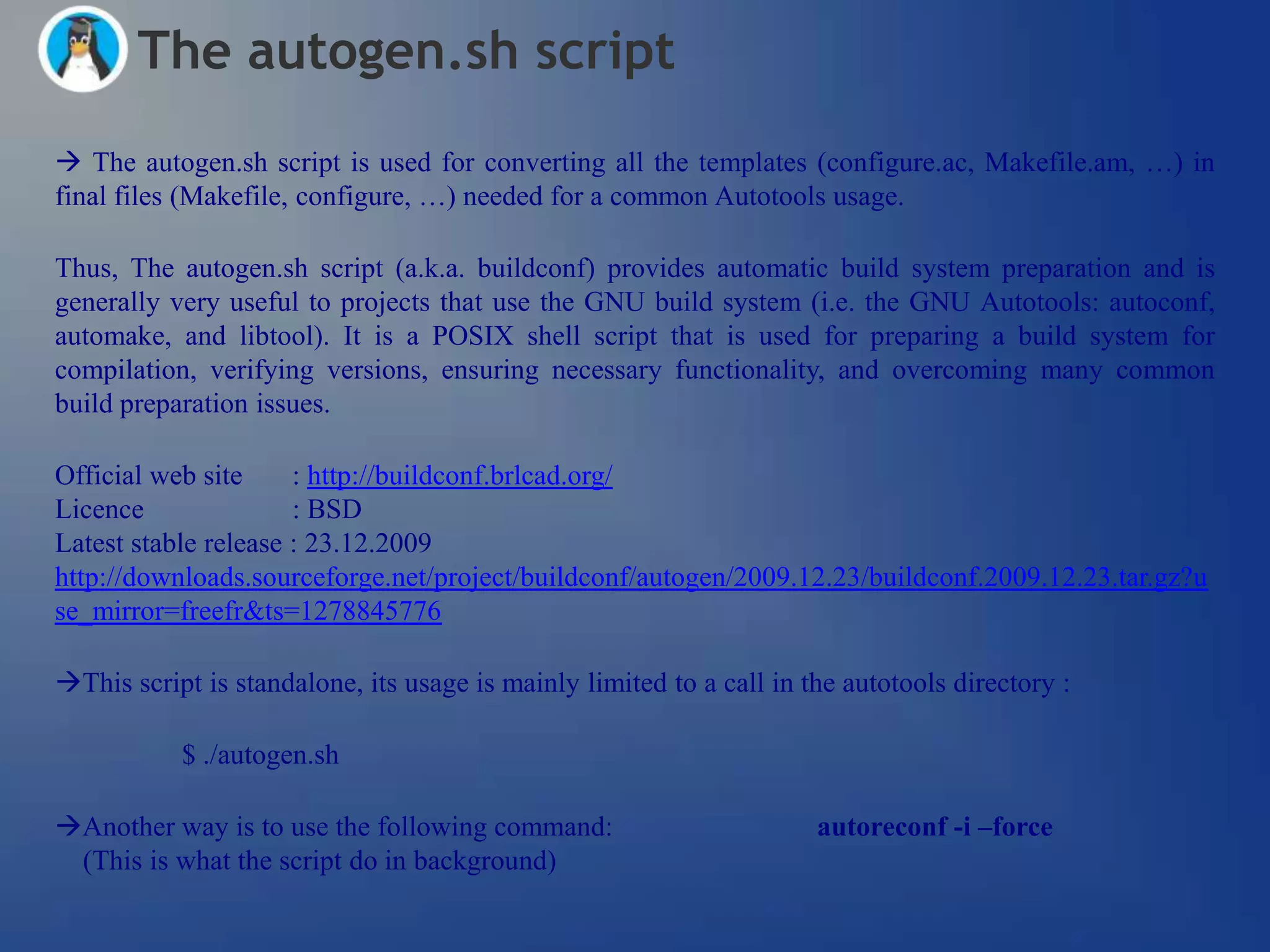

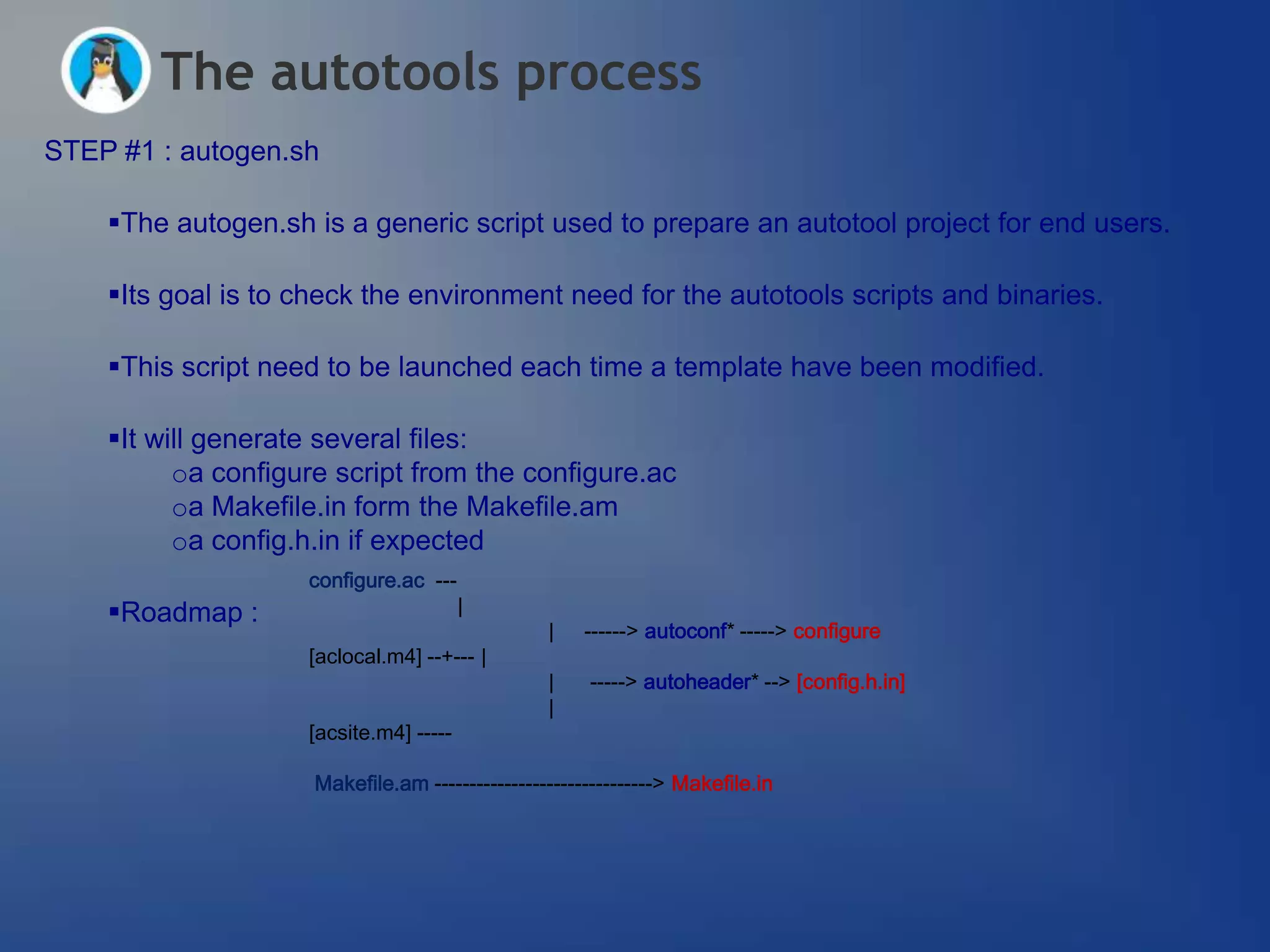

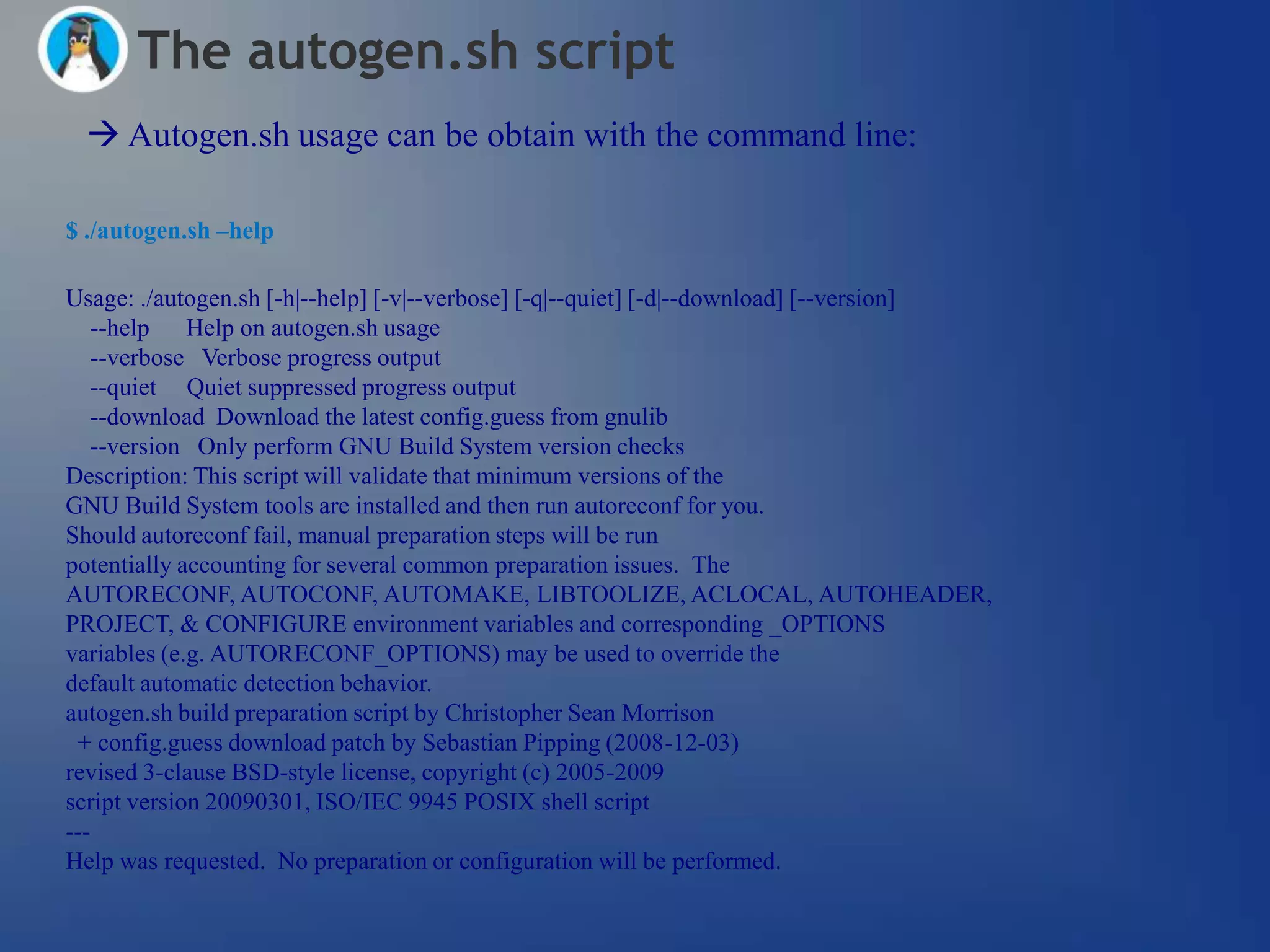

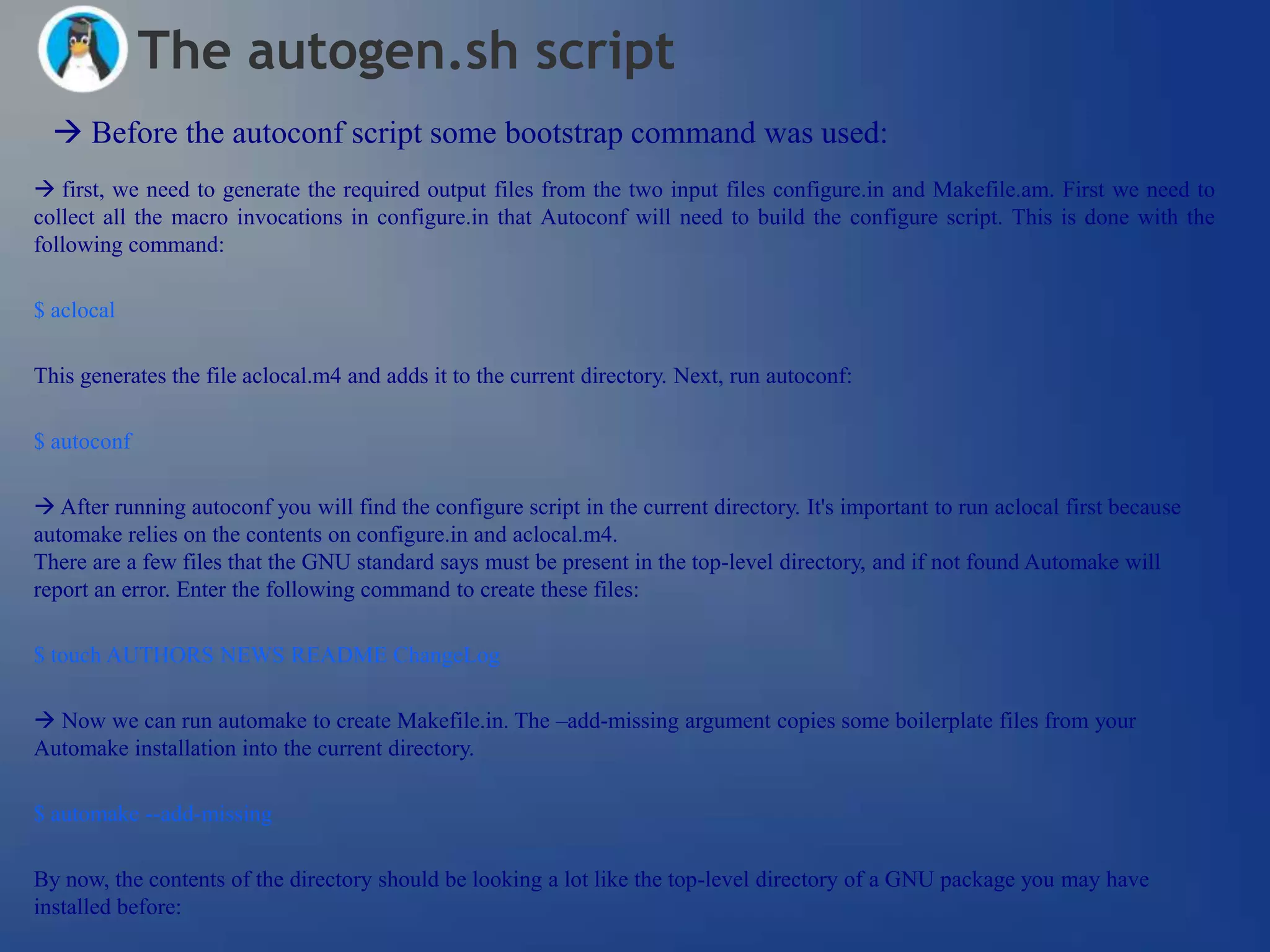

STEP #1 : autogen.sh

The autogen.sh is a generic script used to prepare an autotool project for end users.

Its goal is to check the environment need for the autotools scripts and binaries.

This script need to be launched each time a template have been modified.

It will generate several files:
oa configure script from the configure.ac
oa Makefile.in form the Makefile.am
oa config.h.in if expected
configure.ac ---
Roadmap : |
| ------> autoconf* -----> configure
[aclocal.m4] --+--- |
| -----> autoheader* --> [config.h.in]
|
[acsite.m4] -----

Makefile.am -------------------------------> Makefile.in

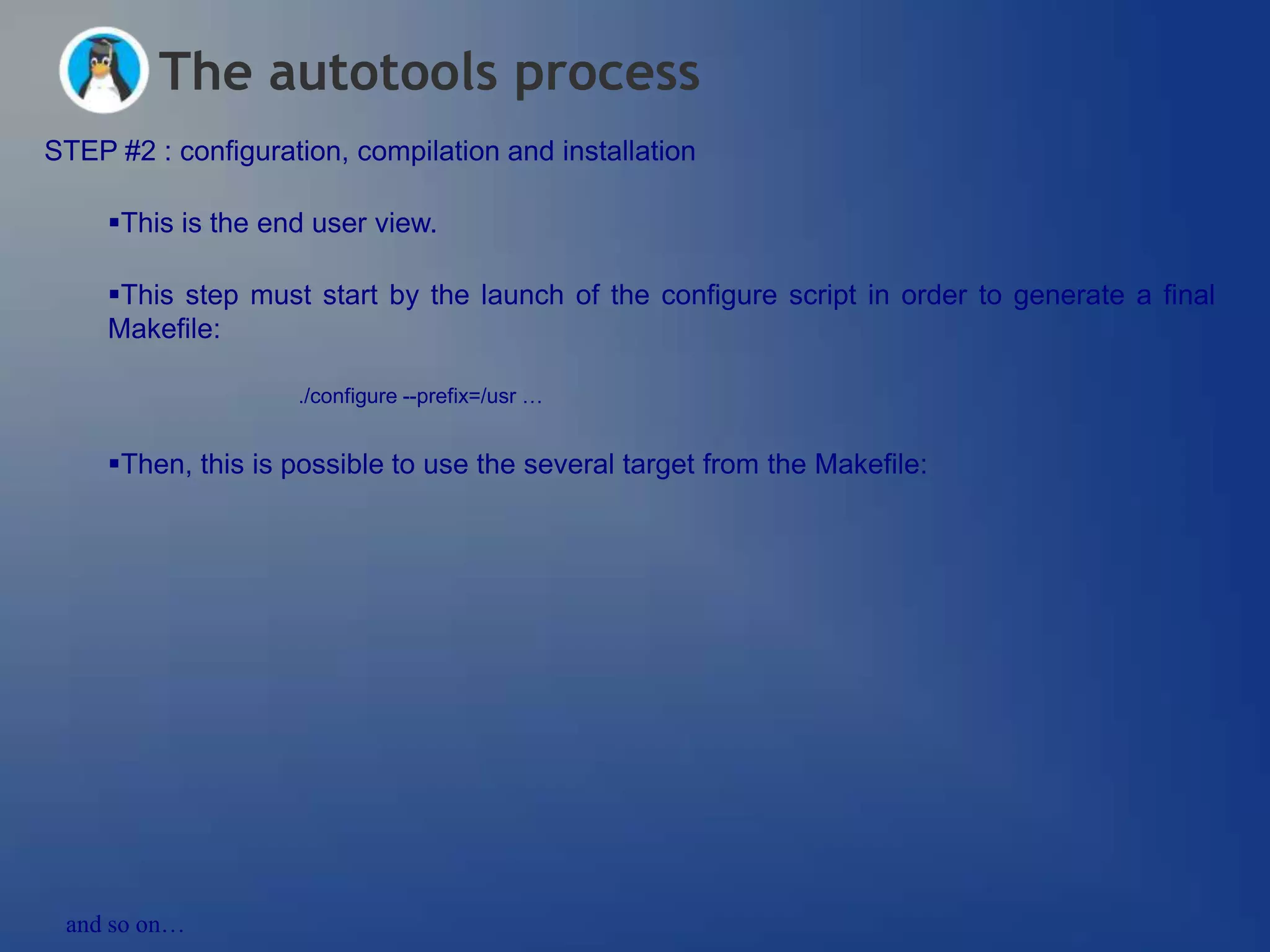

STEP #2 : configuration, compilation and installation

This is the end user view.

This step must start by the launch of the configure script in order to generate a final
Makefile:

./configure --prefix=/usr …

Then, this is possible to use the several target from the Makefile:

and so on…

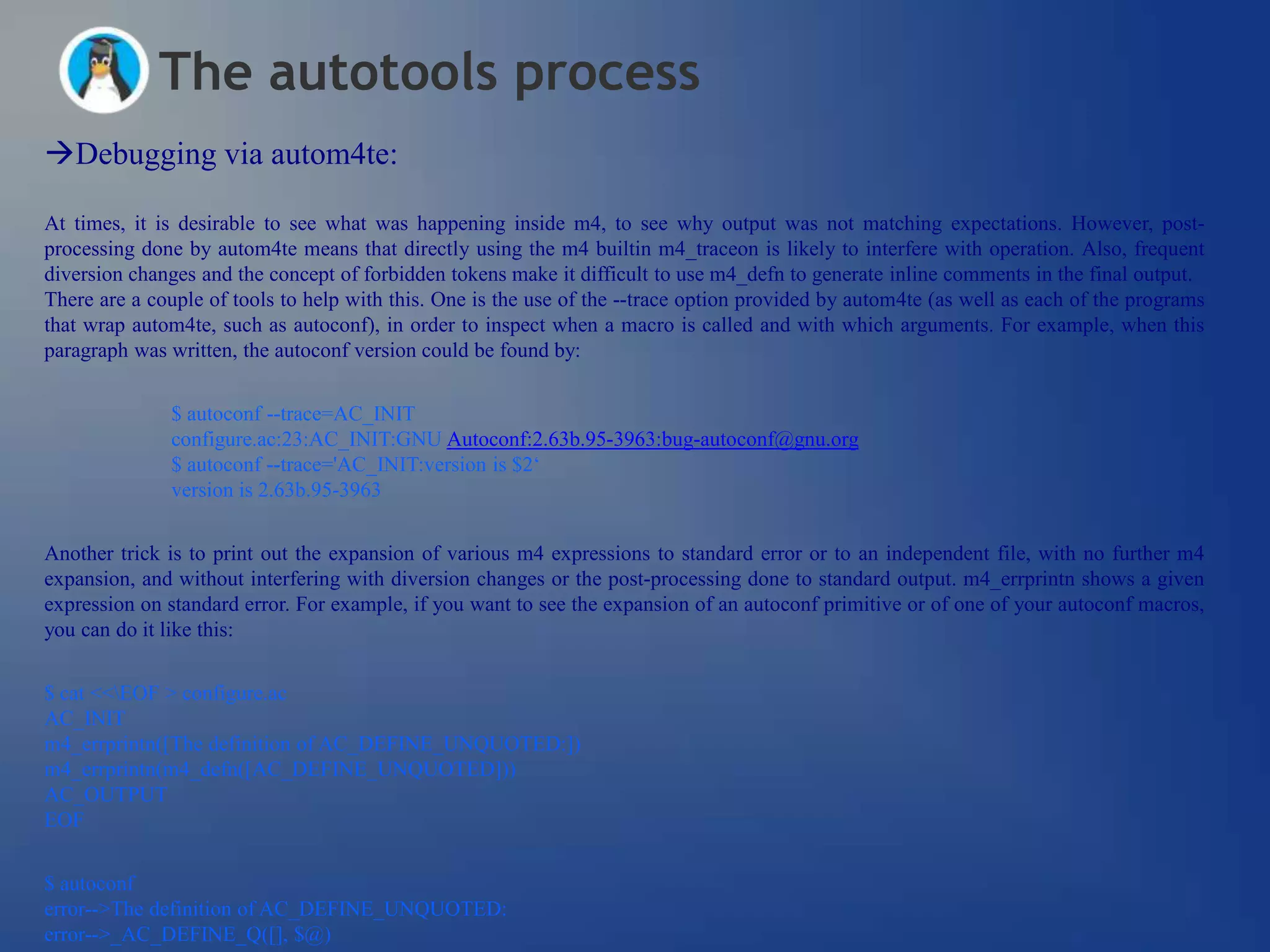

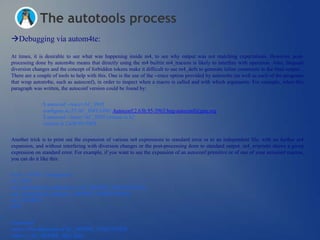

Debugging via autom4te:

At times, it is desirable to see what was happening inside m4, to see why output was not matching expectations. However, post-
processing done by autom4te means that directly using the m4 builtin m4_traceon is likely to interfere with operation. Also, frequent
diversion changes and the concept of forbidden tokens make it difficult to use m4_defn to generate inline comments in the final output.
There are a couple of tools to help with this. One is the use of the --trace option provided by autom4te (as well as each of the programs
that wrap autom4te, such as autoconf), in order to inspect when a macro is called and with which arguments. For example, when this
paragraph was written, the autoconf version could be found by:

$ autoconf --trace=AC_INIT
configure.ac:23:AC_INIT:GNU Autoconf:2.63b.95-3963:bug-autoconf@gnu.org
$ autoconf --trace='AC_INIT:version is $2‗
version is 2.63b.95-3963

Another trick is to print out the expansion of various m4 expressions to standard error or to an independent file, with no further m4
expansion, and without interfering with diversion changes or the post-processing done to standard output. m4_errprintn shows a given
expression on standard error. For example, if you want to see the expansion of an autoconf primitive or of one of your autoconf macros,
you can do it like this:

$ cat <<EOF > configure.ac
AC_INIT
m4_errprintn([The definition of AC_DEFINE_UNQUOTED:])
m4_errprintn(m4_defn([AC_DEFINE_UNQUOTED]))
AC_OUTPUT
EOF

$ autoconf
error-->The definition of AC_DEFINE_UNQUOTED:
error-->_AC_DEFINE_Q([], $@)

• The essential files:

The smallest project requires you provide only two files:

CONFIGURE.AC : an input file to autoconf that provides the macro invocations and shell code fragments
autoconf uses to build a configure script.

MAKEFILE.AM: an input file to automake that specifies a projects build requirements: what needs to be built,
and where it goes when installed.

The GNU Autotools will generate the rest of the files needed to build the project.

• The Directory Structure:

Before writing any code for a new project you need to decide on the directory structure the project will use ;
The top-level directory is used for configuration files, such as configure.in, and other sundry files like ChangeLog,
COPY (a copy of the project license) and README ;
Any unique library should have its own subdirectory containing all headers and sources, a Makefile.am, and any other
library specific files ;
The headers and sources for the main application should be in another subdirectory, typically called src ;
Other directories can include: config for intermediate files, doc for the project documentation and test for the project
self-test suite ;
The following steps will take you through creating and building the HelloWorld project. The top-level directory for
HelloWorld is <tests/project>. You will find the project's headers and sources in the src subdirectory. There are three
files: helloworld.cc, helloworld.h and main.cc ;


AUTOTOOLS LAB

The goal of this lab if to use an hello world autotools project.

Experiment the several steps :

Preparation: ./autogen.sh
See the files before and after.

Configuration: ./configure –prefix=/usr
 Read the config.log that detail the configuration step ; this is a good way to
debug a configure script.

Compilation: make

Installation: make DESTDIR=pwd install

Delivery: make dist

Using the autoscan tool
The goal of this topic is to know how to use the autoscan tool

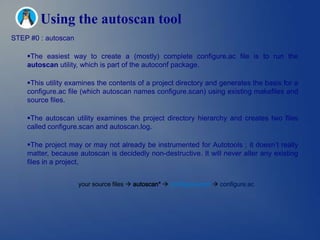

STEP #0 : autoscan

The easiest way to create a (mostly) complete configure.ac file is to run the
autoscan utility, which is part of the autoconf package.

This utility examines the contents of a project directory and generates the basis for a
configure.ac file (which autoscan names configure.scan) using existing makefiles and
source files.

The autoscan utility examines the project directory hierarchy and creates two files
called configure.scan and autoscan.log.

The project may or may not already be instrumented for Autotools ; it doesn’t really
matter, because autoscan is decidedly non-destructive. It will never alter any existing
files in a project.

your source files  autoscan*  configure.scan  configure.ac

First exampleof the autoscan tool, two files should appear in the current directory:
After the launch with an empty directory:
 autoscan.log
 configure.scan  should be renamed into a configure.ac file afterward

As we see, the contents of the generated configure.scan is similar to our hand-crafted
template:

# -*- Autoconf -*-
# Process this file with autoconf to produce a configure script.

AC_PREREQ(2.56)
AC_INIT(FULL-PACKAGE-NAME, VERSION, BUG-REPORT-ADDRESS)

# Checks for programs.

# Checks for libraries.

# Checks for header files.

# Checks for typedefs, structures, and compiler characteristics.

# Checks for library functions.

AC_OUTPUT

 As the name autoscan implies, you can guess that it can do other things as well, not only

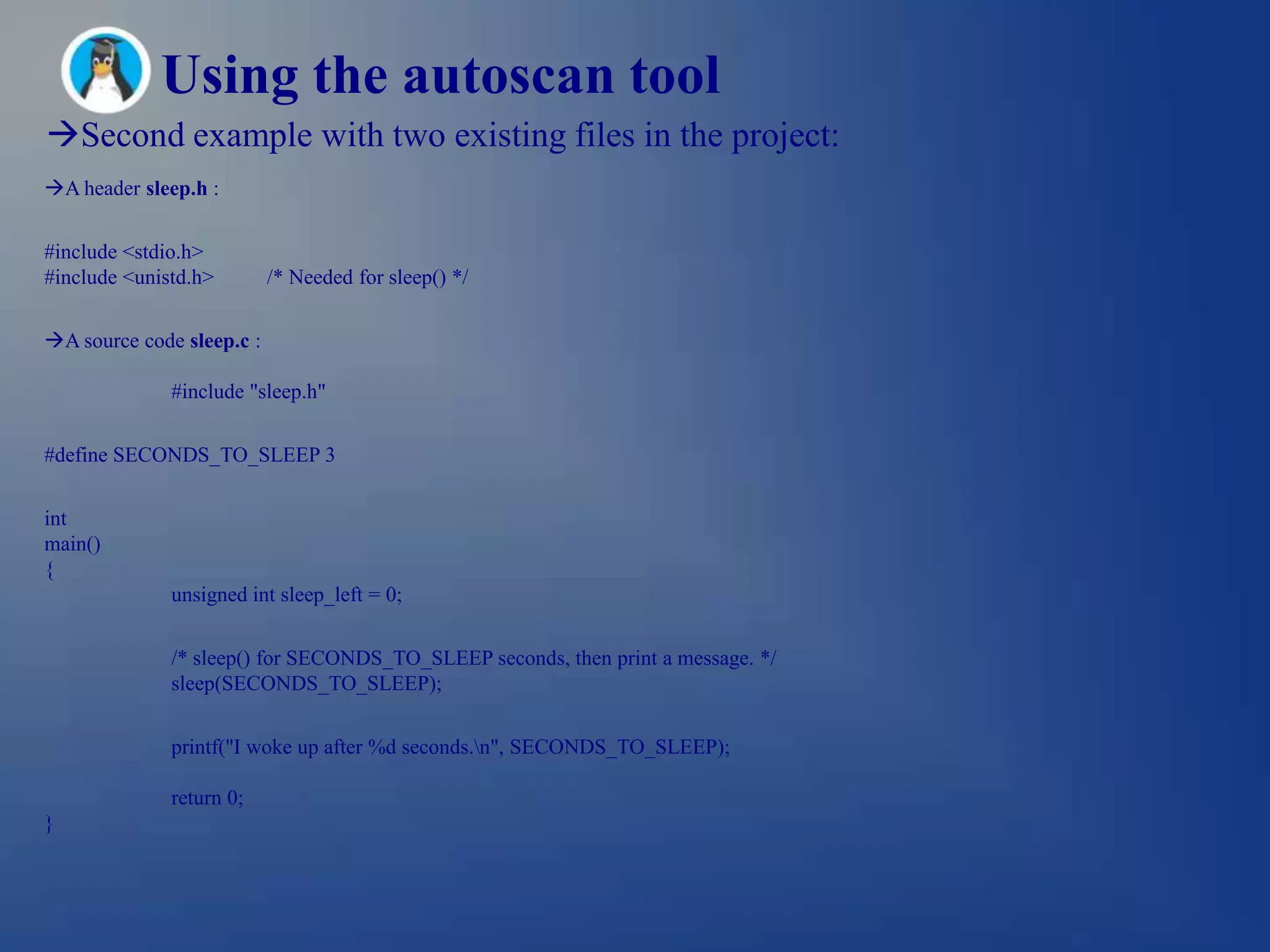

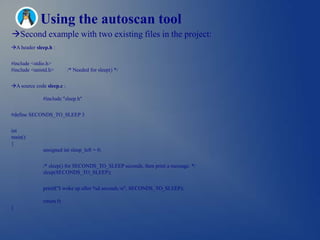

Second example with two existing files in the project:
A header sleep.h :

#include <stdio.h>
#include <unistd.h> /* Needed for sleep() */

A source code sleep.c :

#include "sleep.h"

#define SECONDS_TO_SLEEP 3

int
main()
{
unsigned int sleep_left = 0;

/* sleep() for SECONDS_TO_SLEEP seconds, then print a message. */
sleep(SECONDS_TO_SLEEP);

printf("I woke up after %d seconds.n", SECONDS_TO_SLEEP);

return 0;
}

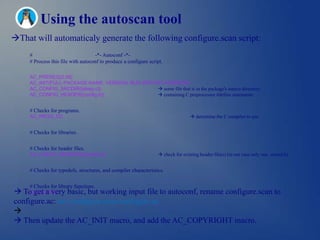

That will automaticaly generate the following configure.scan script:
# -*- Autoconf -*-
# Process this file with autoconf to produce a configure script.

AC_PREREQ(2.56)
AC_INIT(FULL-PACKAGE-NAME, VERSION, BUG-REPORT-ADDRESS)
AC_CONFIG_SRCDIR([sleep.c])  some file that is in the package's source directory.
AC_CONFIG_HEADER([config.h])  containing C preprocessor #define statements.

# Checks for programs.
AC_PROG_CC  determine the C compiler to use.

# Checks for libraries.

# Checks for header files.
AC_CHECK_HEADERS([unistd.h])  check for existing header file(s) (in our case only one, unistd.h).

# Checks for typedefs, structures, and compiler characteristics.

# Checks for library functions.
 To get a very basic, but working input file to autoconf, rename configure.scan to
AC_OUTPUT
configure.ac: mv configure.scan configure.ac

 Then update the AC_INIT macro, and add the AC_COPYRIGHT macro.

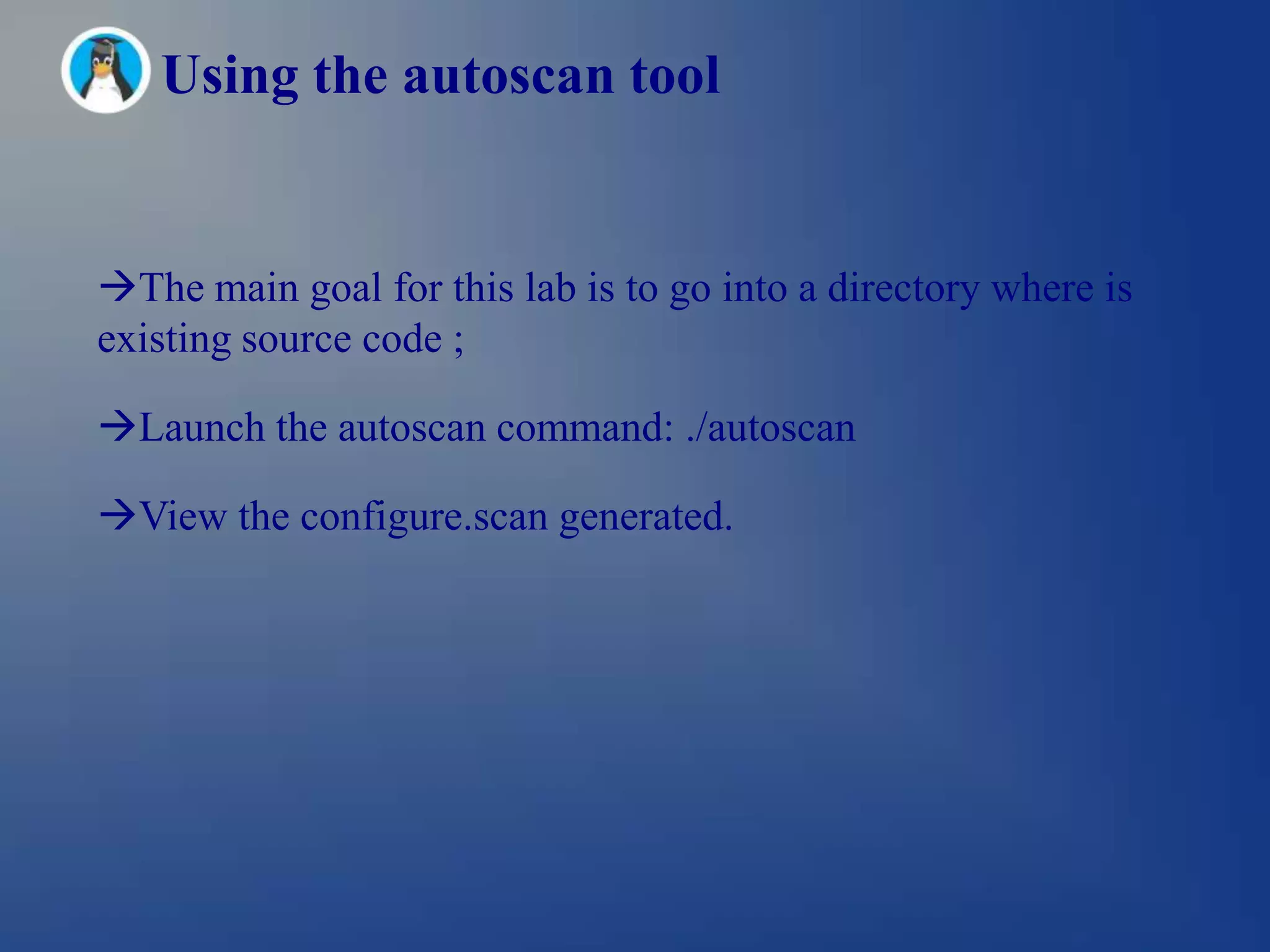

AUTOSCAN LAB


The main goal for this lab is to go into a directory where is
existing source code ;

Launch the autoscan command: ./autoscan

View the configure.scan generated.

The autogen.sh script
The goal of this topic is to know how works the autogen.sh script

 The autogen.sh script is used for converting all the templates (configure.ac, Makefile.am, …) in
final files (Makefile, configure, …) needed for a common Autotools usage.

Thus, The autogen.sh script (a.k.a. buildconf) provides automatic build system preparation and is
generally very useful to projects that use the GNU build system (i.e. the GNU Autotools: autoconf,
automake, and libtool). It is a POSIX shell script that is used for preparing a build system for
compilation, verifying versions, ensuring necessary functionality, and overcoming many common
build preparation issues.

Official web site : http://buildconf.brlcad.org/
Licence : BSD
Latest stable release : 23.12.2009
http://downloads.sourceforge.net/project/buildconf/autogen/2009.12.23/buildconf.2009.12.23.tar.gz?u
se_mirror=freefr&ts=1278845776

This script is standalone, its usage is mainly limited to a call in the autotools directory :

$ ./autogen.sh

Another way is to use the following command: autoreconf -i –force
(This is what the script do in background)

 Before the autoconf script some bootstrap command was used:
 first, we need to generate the required output files from the two input files configure.in and Makefile.am. First we need to
collect all the macro invocations in configure.in that Autoconf will need to build the configure script. This is done with the
following command:

$ aclocal

This generates the file aclocal.m4 and adds it to the current directory. Next, run autoconf:

$ autoconf

 After running autoconf you will find the configure script in the current directory. It's important to run aclocal first because
automake relies on the contents on configure.in and aclocal.m4.
There are a few files that the GNU standard says must be present in the top-level directory, and if not found Automake will
report an error. Enter the following command to create these files:

$ touch AUTHORS NEWS README ChangeLog

 Now we can run automake to create Makefile.in. The –add-missing argument copies some boilerplate files from your
Automake installation into the current directory.

$ automake --add-missing

By now, the contents of the directory should be looking a lot like the top-level directory of a GNU package you may have
installed before:

What the autogen.sh really do :

It tranforms the template into intermediate files:

Those files will complete the other files (component.pc.in), in order to be
ready for the configure script.

Note : configure.ac is by far the preferred naming for autoconf >= 2.50 while
configure.in is what was used by autoconf ⇐ 2.13 and was kept for *cough*
backward compatibility *cough*…

 Parameters used to control the autogen.sh script :

 There is two controversal parameters with the --quiet and --verbose that can be set in the same
time!! Indeed, the autogen.sh script will follow the last one provided at the launch.

 Check of the autotools components version:
$ ./autogen.sh –version
Identical as :
Preparing the toe build system...please wait ./autoconf --version
Found GNU Autoconf version 2.67
Found GNU Automake version 1.11.1 ./automake –version
Found GNU Libtool version 2.2.6b ./libtool --version
autogen.sh build preparation script by Christopher Sean Morrison
+ config.guess download patch by Sebastian Pipping (2008-12-03)
revised 3-clause BSD-style license, copyright (c) 2005-2009
script version 20090301, ISO/IEC 9945 POSIX shell script
---
Version requested. No preparation or configuration will be performed.

 Autogen.sh usage can be obtain with the command line:

$ ./autogen.sh –help

Usage: ./autogen.sh [-h|--help] [-v|--verbose] [-q|--quiet] [-d|--download] [--version]
--help Help on autogen.sh usage
--verbose Verbose progress output
--quiet Quiet suppressed progress output
--download Download the latest config.guess from gnulib
--version Only perform GNU Build System version checks
Description: This script will validate that minimum versions of the
GNU Build System tools are installed and then run autoreconf for you.
Should autoreconf fail, manual preparation steps will be run
potentially accounting for several common preparation issues. The
AUTORECONF, AUTOCONF, AUTOMAKE, LIBTOOLIZE, ACLOCAL, AUTOHEADER,
PROJECT, & CONFIGURE environment variables and corresponding _OPTIONS
variables (e.g. AUTORECONF_OPTIONS) may be used to override the
default automatic detection behavior.
autogen.sh build preparation script by Christopher Sean Morrison
+ config.guess download patch by Sebastian Pipping (2008-12-03)
revised 3-clause BSD-style license, copyright (c) 2005-2009
script version 20090301, ISO/IEC 9945 POSIX shell script
---
Help was requested. No preparation or configuration will be performed.

The autogen.sh script $ ./autogen.sh –verbose

 Silent launch (default): Verbose output enabled
Found a configure template: ./configure.ac
Preparing the toe build system...please wait
Checking autoreconf version: autoreconf --version
$ ./autogen.sh Checking autoconf version: autoconf --version

Preparing the toe build system...please wait
Found GNU Autoconf version 2.67
Checking if 2.67.0 is greater than 2.52.0
Checking automake version: automake --version
 Verbose launch
Found GNU Automake version 1.11.1
Checking if 1.11.1 is greater than 1.6.0
Found GNU Autoconf version 2.67 Checking libtoolize version: libtoolize --version
Found GNU Libtool version 2.2.6b
Found GNU Automake version 1.11.1 Checking if 2.2.6 is greater than 1.4.2
Found GNU Libtool version 2.2.6b Checking aclocal version: aclocal --version
Checking autoheader version: autoheader --version
Checking whether to only output version information
Automatically preparing build ... done Backing up COPYING in /home/gayetth/workspace/TOE
cp -p COPYING COPYING.25605.protect_from_automake.backup
Backing up INSTALL in /home/gayetth/workspace/TOE
cp -p INSTALL INSTALL.25605.protect_from_automake.backup
The toe build system is now prepared. To build here, run: Found an autom4te.cache directory, deleting it
./configure rm -rf autom4te.cache
make mv -f "./config.guess" "./config.guess.backup"
mv -f "./config.sub" "./config.sub.backup"
mv -f "./ltmain.sh" "./ltmain.sh.backup"
Automatically preparing build ... autoreconf -i -f
libtoolize: putting auxiliary files in `.'.
libtoolize: copying file `./config.guess'
libtoolize: copying file `./config.sub'
libtoolize: copying file `./install-sh'
libtoolize: copying file `./ltmain.sh'
libtoolize: Consider adding `AC_CONFIG_MACRO_DIR([m4])' to configure.ac and
libtoolize: rerunning libtoolize, to keep the correct libtool macros in-tree.
libtoolize: Consider adding `-I m4' to ACLOCAL_AMFLAGS in Makefile.am.
rm -f COPYING.25605.protect_from_automake.backup
Restoring INSTALL from backup (automake -f likely clobbered it)
rm -f INSTALL
mv INSTALL.25605.protect_from_automake.backup INSTALL
rm -f INSTALL.25605.protect_from_automake.backup
rm -f "./config.guess.backup"
rm -f "./config.sub.backup"
rm -f "./ltmain.sh.backup"
done
The toe build system is now prepared. To build here, run:
./configure
make
rm -f "./config.guess.backup"
rm -f "./config.sub.backup"
rm -f "./ltmain.sh.backup"

 Useful variables used to control the autogen.sh script :

To skip autoreconf and prepare manually: AUTORECONF=false
./autogen.sh

To verbosely try running with an older (unsupported) autoconf: AUTOCONF_VERSION=2.50 ./autogen.sh
--verbose

Impact on the autotools templates:

If we take the decision to use the autogen.sh script instead of the single autoreconf
command, this file is mandatorary to include in the tarball generated by the « make
dist » command.

EXTRA_DIST = $(top_builddir)/autogen.sh

The autogen.sh script should be within the files of the project.

If this file is not added the tarball will miss this file and won‘t be standalone!

The environment

AUTOGEN.SH LAB


Take an autotools project and check the differential before
and after the launch of the autogen.sh script.

 Check with: autoreconf –i –force

 Check with the autotools hierarchy poster provided.

Using libtool

The goal of this topic is to know how to uses libtool

Using libtool

 What libtool can do :
GNU Libtool simplifies your job by encapsulating both the platform-specific dependencies, and the user interface, in
a single script. GNU Libtool is designed so that the complete functionality of each host type is available via a generic
interface, but nasty quirks are hidden from the programmer.

GNU Libtool's consistent interface is reassuring... users don't need to read obscure documentation in order to have
their favorite source package build shared libraries. They just run your package configure script (or equivalent), and
libtool does all the dirty work.

Using libtool
 Libtool is a tool used:
The following issues need to be addressed in any reusable shared library system, specifically libtool:

The package installer should be able to control what sort of libraries are built.

It can be tricky to run dynamically linked programs whose libraries have not yet been installed. LD_LIBRARY_PATH must be set properly (if it is supported), or
programs fail to run.

The system must operate consistently even on hosts that don't support shared libraries.

The commands required to build shared libraries may differ wildly from host to host. These need to be determined at configure time in a consistent way. It is not
always obvious with what prefix or suffix a shared library should be installed. This makes it difficult for Makefile rules, since they generally assume that file names
are the same from host to host.

 Motivation for writing libtool :
The system needs a simple library version number abstraction, so that shared libraries can be upgraded in place. The programmer should be informed how to design
the interfaces to the library to maximize binary compatibility. The install Makefile target should warn the package installer to set the proper environment variables
(LD_LIBRARY_PATH or equivalent), or run ldconfig.
Since early 1995, several different GNU developers have recognized the importance of having shared library support for their packages. The primary motivation for
such a change is to encourage modularity and reuse of code (both conceptually and physically) in GNU programs.

Such a demand means that the way libraries are built in GNU packages needs to be general, to allow for any library type the package installer might want. The
problem is compounded by the absence of a standard procedure for creating shared libraries on different platforms.

The following sections outline the major issues facing shared library support in GNU, and how shared library support could be standardized with libtool.

The following specifications were used in developing and evaluating this system:

The system must be as elegant as possible.

The system must be fully integrated with the GNU Autoconf and Automake utilities, so that it will be easy for GNU maintainers to use. However, the system must not
require these tools, so that it can be used by non-GNU packages.

Using libtool
 Libtool is a tool used: libtool [OPTION]... [MODE-ARG]...

 Listing of the several modes available:

Using libtool
 TAGs available :

The same tags can be overwritten in the autotool context (this often do in a
cross-compilation mode):

CC=sh4-linux-gcc CXX=sh4-linux-g++ ./configure --prefix=/usr …

Using libtool
 Compilation mode : $ libtool --mode=compile gcc -g -O -c foo.c
gcc -g -O -c foo.c -o foo.o

Using libtool
 Link mode :
Link mode links together object files (including library objects) to form another library or to create an executable program.

mode-args consist of a command using the C compiler to create an output file (with the -o flag) from several object files. The following
components of mode-args are treated specially:

Using libtool
Link mode (cont)

Using libtool
Link mode (cont)
If the output-file ends in .la, then a libtool library is created, which must be built only from library
objects (.lo files). The -rpath option is required. In the current implementation, libtool libraries may
not depend on other uninstalled libtool libraries.

If the output-file ends in .a, then a standard library is created using ar and possibly ranlib.

If output-file ends in .o or .lo, then a reloadable object file is created from the input files (generally
using ‗ld -r‘). This method is often called partial linking.

Otherwise, an executable program is created.

Using libtool
 Execution mode :

For execute mode, the library path is automatically set, then a program is executed.

The first of the mode-args is treated as a program name, with the rest as arguments to that
program.

The following components of mode-args are treated specially:

If any of the args are libtool executable wrappers, then they are translated into the name of their
corresponding uninstalled binary, and any of their required library directories are added to the
library path.

Using libtool

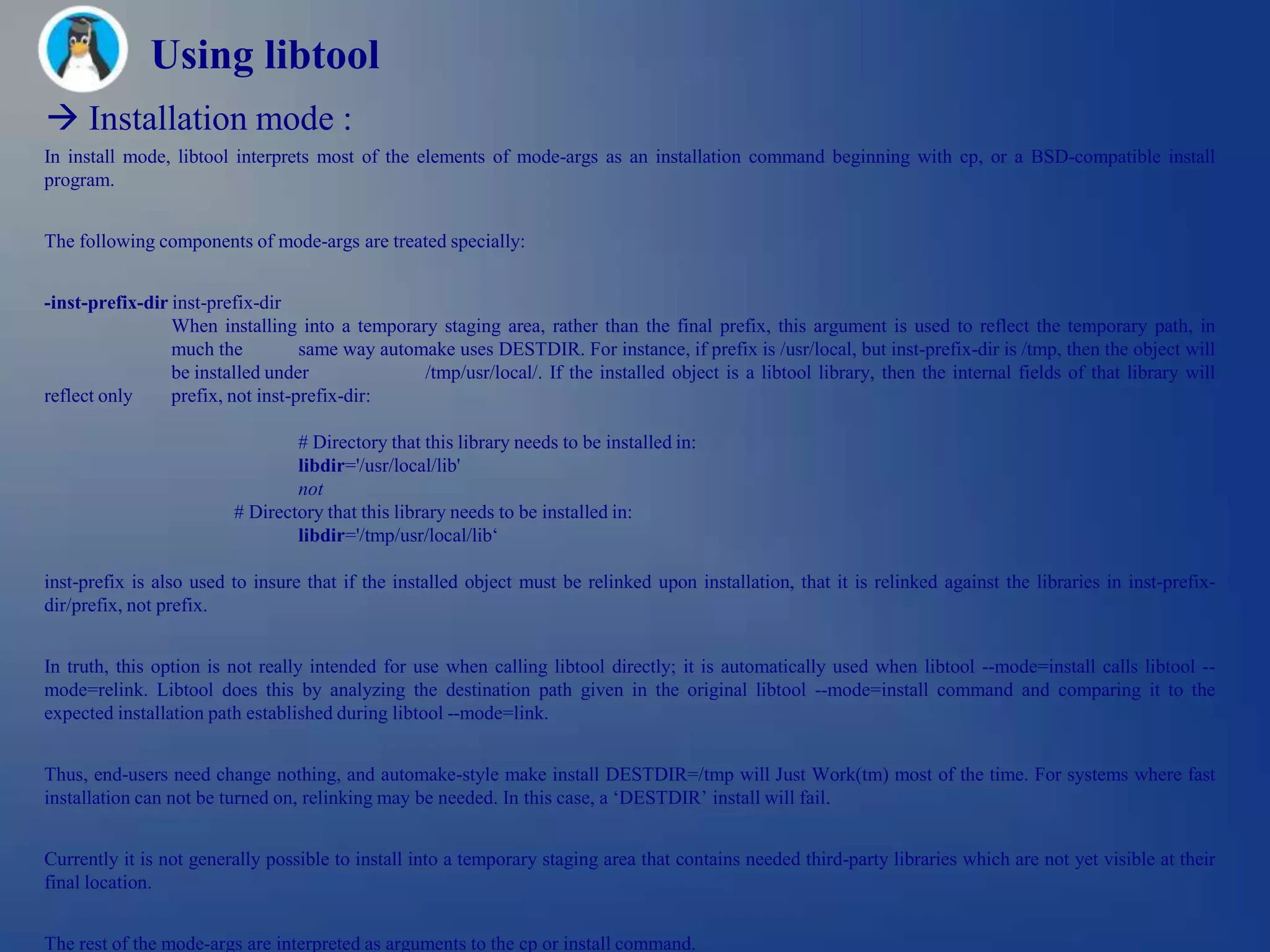

 Installation mode :
In install mode, libtool interprets most of the elements of mode-args as an installation command beginning with cp, or a BSD-compatible install
program.

The following components of mode-args are treated specially:

-inst-prefix-dir inst-prefix-dir
When installing into a temporary staging area, rather than the final prefix, this argument is used to reflect the temporary path, in
much the same way automake uses DESTDIR. For instance, if prefix is /usr/local, but inst-prefix-dir is /tmp, then the object will
be installed under /tmp/usr/local/. If the installed object is a libtool library, then the internal fields of that library will
reflect only prefix, not inst-prefix-dir:

# Directory that this library needs to be installed in:
libdir='/usr/local/lib'
not
# Directory that this library needs to be installed in:
libdir='/tmp/usr/local/lib‗

inst-prefix is also used to insure that if the installed object must be relinked upon installation, that it is relinked against the libraries in inst-prefix-
dir/prefix, not prefix.

In truth, this option is not really intended for use when calling libtool directly; it is automatically used when libtool --mode=install calls libtool --
mode=relink. Libtool does this by analyzing the destination path given in the original libtool --mode=install command and comparing it to the
expected installation path established during libtool --mode=link.

Thus, end-users need change nothing, and automake-style make install DESTDIR=/tmp will Just Work(tm) most of the time. For systems where fast
installation can not be turned on, relinking may be needed. In this case, a ‗DESTDIR‘ install will fail.

Currently it is not generally possible to install into a temporary staging area that contains needed third-party libraries which are not yet visible at their
final location.

The rest of the mode-args are interpreted as arguments to the cp or install command.

Using libtool
 Finish mode :
Finish mode has two functions. One is to help system administrators install libtool libraries so that
they can be located and linked into user programs.

To invoke this functionality, pass the name of a library directory as mode-arg:

The second is to facilitate transferring libtool libraries to a native compilation environment after
they were built in a cross-compilation environment. Cross-compilation environments may rely on
recent libtool features, and running libtool in finish mode will make it easier to work with older
versions of libtool. This task is performed whenever the mode-arg is a .la file.

Using libtool

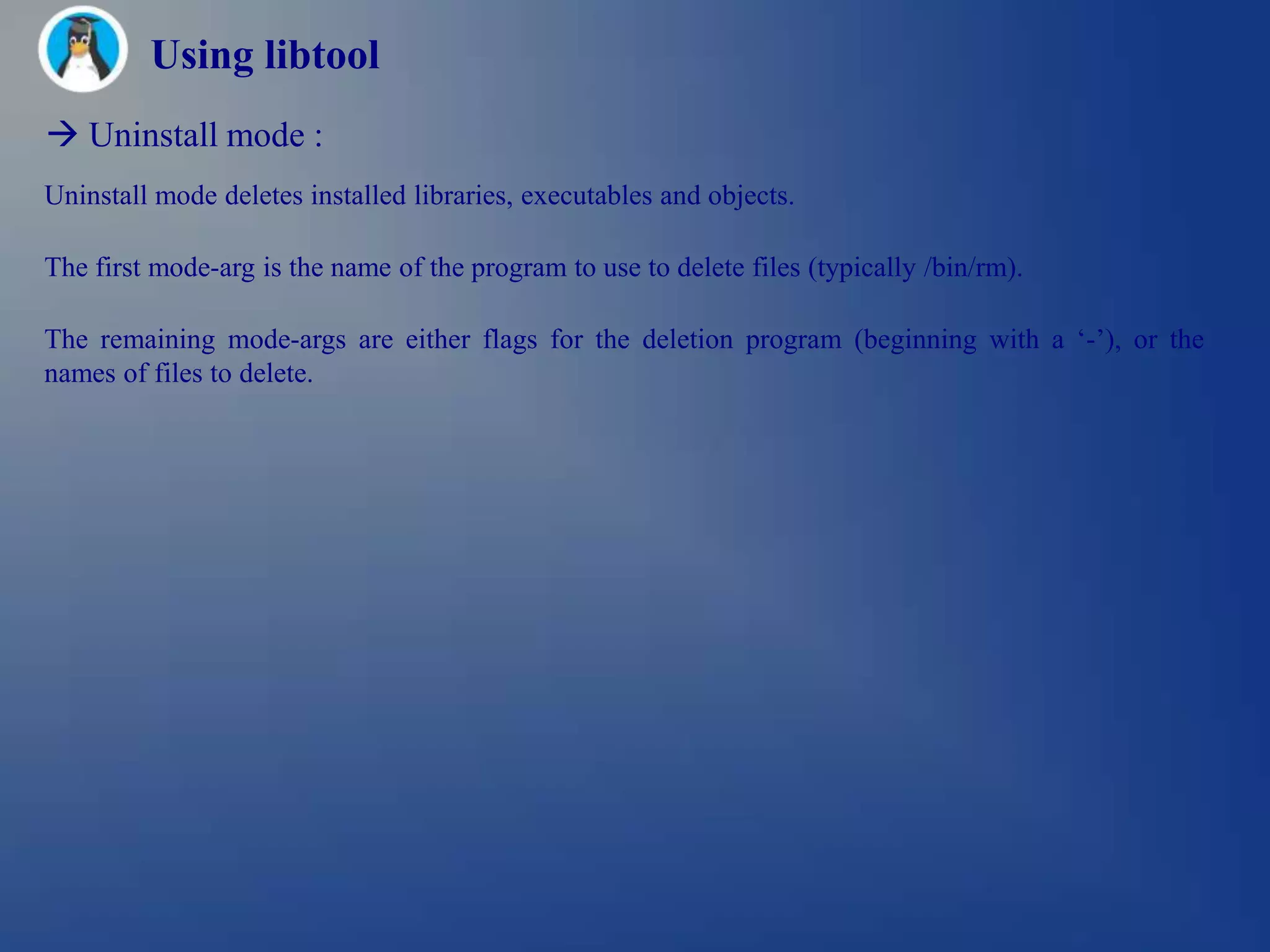

 Uninstall mode :
Uninstall mode deletes installed libraries, executables and objects.

The first mode-arg is the name of the program to use to delete files (typically /bin/rm).

The remaining mode-args are either flags for the deletion program (beginning with a ‗-‘), or the
names of files to delete.

Using libtool
 Clean mode :
Clean mode deletes uninstalled libraries, executables, objects and libtool's temporary files associated
with them.

The first mode-arg is the name of the program to use to delete files (typically /bin/rm).

The remaining mode-args are either flags for the deletion program (beginning with a ‗-‘), or the
names of files to delete.

Using libtool

LIBTOOL LAB

Using libtool

The goal of this lab is to understand what libtool is really working.

Try to compile a helloworld.c source code by the two way:

gcc –c helloworld.c –o helloworld.o
Libtool --mode=compile gcc -c helloworld.c

Same for the link step (should create a helloworld binary):

gcc helloworld.o –o helloworld
libtool --mode=link gcc –o helloworld helloworld.o

The configure.{ac/in} template
The goal of this topic is to know how to write a configure.ac template.

The configure.{in/ac} template

 A configure.ac is the template of the configure script that will be used by
the end user.

 A configure.ac is written using M4 macros while a configure script is a
shell script.

 The main goal of a configure script is to lead the configuration of a
component. The several flags provided to the configure script is like the ID
card of the build.

The configure.ac teamplate is equal to the configure.in that is the old
notation.

Those script are executed like shell script at the runtime (no compiled).

Can build libraries, binaries, … in the same files, by managing
dependencies.

 Preset Output Variables :

 Beware about all directories, because they can be override by configure options: ./configure –
prefix=/usr –srcdir=/tmp_srcdir …
If so, top_builddir can be different to top_srcdir and bring link problems, so be carefull !!

 Flags overriding :

http://www.gnu.org/software/hello/manual/autoconf/Preset-Output-Variables.html

 Tools overriding :

Examples:
./configure –prefix=/usrCC=gcc CFLAGS=-O3 LIBS=―-lposix‖ …
or
CC=sh4-linux-gcc AR=sha-linux-g++ ./configure –prefix=/usr …

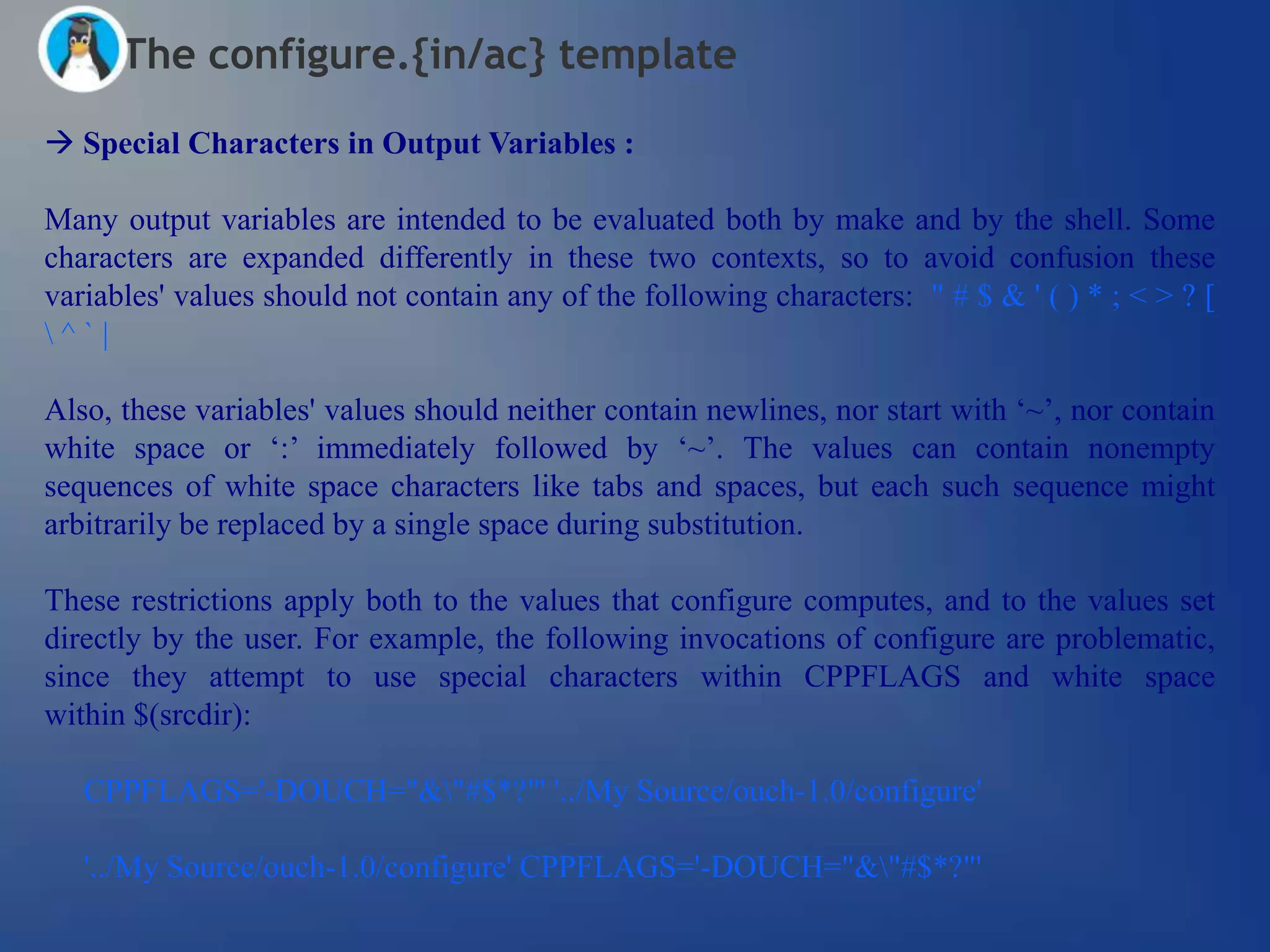

 Special Characters in Output Variables :

Many output variables are intended to be evaluated both by make and by the shell. Some
characters are expanded differently in these two contexts, so to avoid confusion these
variables' values should not contain any of the following characters: " # $ & ' ( ) * ; < > ? [
^`|

Also, these variables' values should neither contain newlines, nor start with ‗~‘, nor contain
white space or ‗:‘ immediately followed by ‗~‘. The values can contain nonempty
sequences of white space characters like tabs and spaces, but each such sequence might
arbitrarily be replaced by a single space during substitution.

These restrictions apply both to the values that configure computes, and to the values set
directly by the user. For example, the following invocations of configure are problematic,
since they attempt to use special characters within CPPFLAGS and white space
within $(srcdir):

CPPFLAGS='-DOUCH="&"#$*?"' '../My Source/ouch-1.0/configure'

'../My Source/ouch-1.0/configure' CPPFLAGS='-DOUCH="&"#$*?"'

 Some of the useful built-in M4 macros:

There are many others ; check the gnu/autoconf manual for more
Information (http://www.gnu.org/software/autoconf/manual/autoconf.pdf).

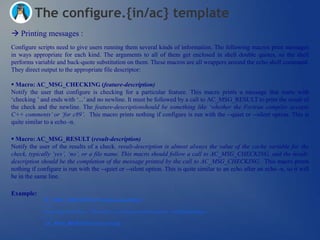

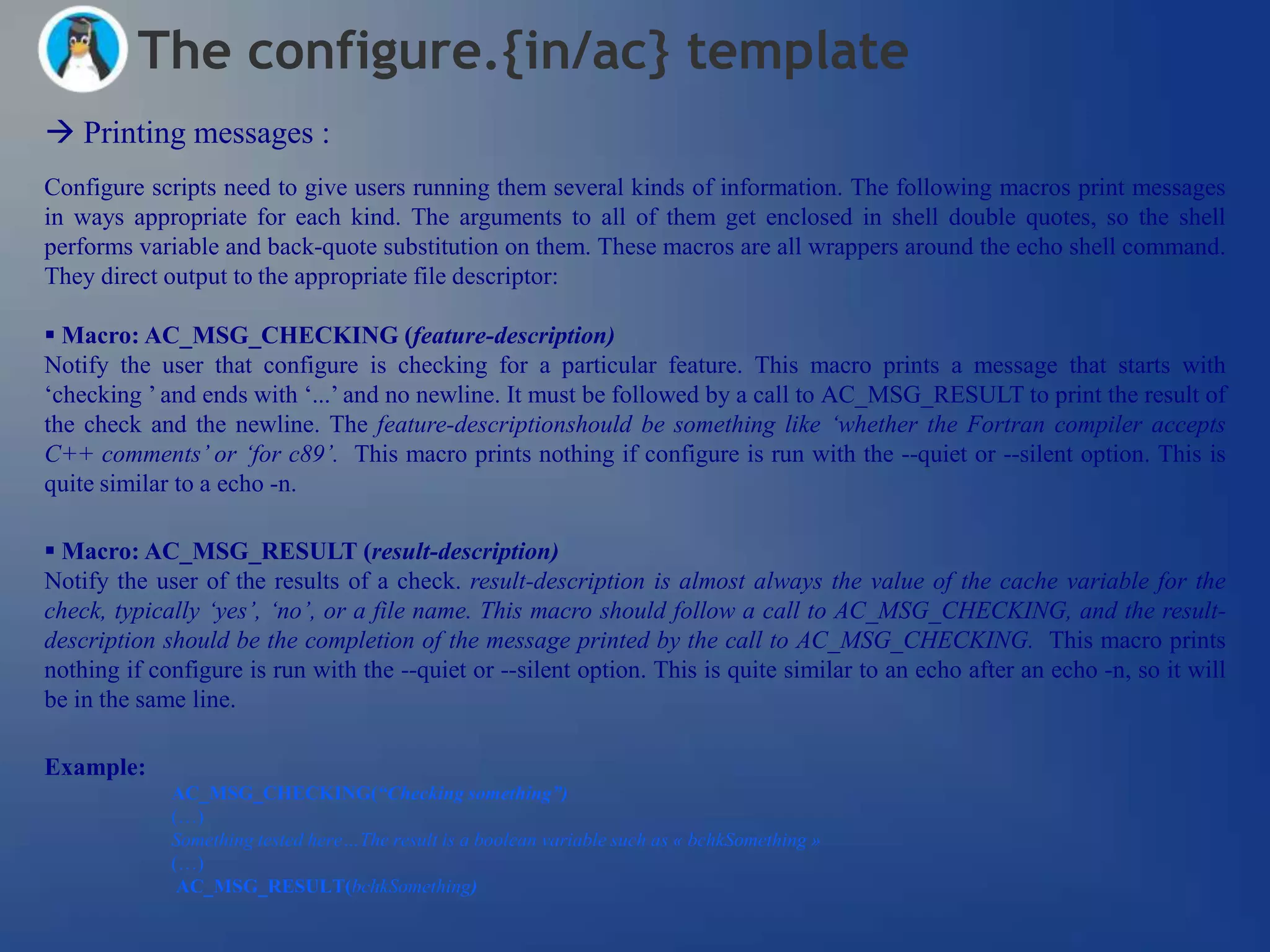

 Printing messages :
Configure scripts need to give users running them several kinds of information. The following macros print messages
in ways appropriate for each kind. The arguments to all of them get enclosed in shell double quotes, so the shell
performs variable and back-quote substitution on them. These macros are all wrappers around the echo shell command.
They direct output to the appropriate file descriptor:

 Macro: AC_MSG_CHECKING (feature-description)
Notify the user that configure is checking for a particular feature. This macro prints a message that starts with
‗checking ‘ and ends with ‗...‘ and no newline. It must be followed by a call to AC_MSG_RESULT to print the result of
the check and the newline. The feature-descriptionshould be something like „whether the Fortran compiler accepts
C++ comments‟ or „for c89‟. This macro prints nothing if configure is run with the --quiet or --silent option. This is
quite similar to a echo -n.

 Macro: AC_MSG_RESULT (result-description)
Notify the user of the results of a check. result-description is almost always the value of the cache variable for the
check, typically „yes‟, „no‟, or a file name. This macro should follow a call to AC_MSG_CHECKING, and the result-
description should be the completion of the message printed by the call to AC_MSG_CHECKING. This macro prints
nothing if configure is run with the --quiet or --silent option. This is quite similar to an echo after an echo -n, so it will
be in the same line.

Example:
AC_MSG_CHECKING(“Checking something”)
(…)
Something tested here…The result is a boolean variable such as « bchkSomething »
(…)
AC_MSG_RESULT(bchkSomething)


 Macros used for traces :

 Macro: AC_MSG_NOTICE (message)
Deliver the message to the user. It is useful mainly to print a general description of the overall purpose of a group
of feature checks, e.g., AC_MSG_NOTICE([checking if stack overflow is detectable]). This macro prints nothing
if configure is run with the --quiet or --silent option.

 Macro: AC_MSG_ERROR (error-description, [exit-status = „$?/1‟])
Notify the user of an error that prevents configure from completing. This macro prints an error message to the
standard error output and exits configure with exit-status („$?‟ by default, except that „0‟ is converted to „1‟). error-
description should be something like „invalid value $HOME for $HOME‟. The error-description should start with
a lower-case letter, and “cannot” is preferred to “can't”.

 Macro: AC_MSG_FAILURE (error-description, [exit-status])
This AC_MSG_ERROR wrapper notifies the user of an error that prevents configure from completing and that
additional details are provided in config.log. This is typically used when abnormal results are found during a
compilation.

Examples:
AC_MSG_NOTICE(“this is just a message”)

 Initialisation of the configure script (including the requirements) :

The Autoconf language differs from many other computer languages because it treats actual code the same as plain text. Whereas in C,
for instance, data and instructions have different syntactic status, in Autoconf their status is rigorously the same. Therefore, we need a
means to distinguish literal strings from text to be expanded: quotation.

When calling macros that take arguments, there must not be any white space between the macro name and the open parenthesis.

AC_INIT([hello], [1.0]) # good

Arguments should be enclosed within the quote characters ‗[‘ and ‗]‘, and be separated by commas. Any leading blanks or newlines in
arguments are ignored, unless they are quoted. You should always quote an argument that might contain a macro name, comma,
parenthesis, or a leading blank or newline. This rule applies recursively for every macro call, including macros called from other
macros.

 AC_COPYRIGHT (copyright-notice)
State that, in addition to the Free Software Foundation's copyright on the Autoconf macros, parts of your configure are covered by the
copyright-notice. The copyright-notice shows up in both the head of configure and in ‗configure --version‘.

 Some are mandatory :
o AC_INIT([pyPackage], [myPackageVersion], [thierry.gayet2@technicolor.com])  initializes autoconf with information
about your project, including the project name, version number, bug-reporting address, tarball name and the project homepage.
o AC_PREREQ(2.59)  specify the autoconf version

 Others are not :
o AC_AUTOMAKE()  adds several standard checks and initializes automake.

• AM_INIT_AUTOMAKE([1.10 no-define])
•AM_INIT_AUTOMAKE([1.10 no-define foreign])  specify that the component won‘t use the GNU file (NEWS

 PATH and source code definition :
AC_CONFIG_SRCDIR(unique-file-in-source-dir)
unique-file-in-source-dir is some file that is in the package's source directory; configure checks for this file's existence to make sure that
the directory that it is told contains the source code in fact does. Occasionally people accidentally specify the wrong directory with --
srcdir; this is a safety check. Packages that do manual configuration or use the install program might need to tell configure where to find
some other shell scripts by calling AC_CONFIG_AUX_DIR, though the default places it looks are correct for most cases.

AC_CONFIG_AUX_DIR(dir)
Use the auxiliary build tools (e.g., install-sh, config.sub, config.guess, Cygnus configure, Automake and Libtool scripts, etc.) that are in
directory dir. These are auxiliary files used in configuration. dir can be either absolute or relative to srcdir. The default is srcdir or srcdir/..
or srcdir/../.., whichever is the first that contains install-sh. The other files are not checked for, so that using AC_PROG_INSTALL does
not automatically require distributing the other auxiliary files. It checks for install.sh also, but that name is obsolete because some make
have a rule that creates install from it if there is no makefile. The auxiliary directory is commonly named build-aux. If you need
portability to DOS variants, do not name the auxiliary directory aux.

AC_REQUIRE_AUX_FILE(file)
Declares that file is expected in the directory defined above. In Autoconf proper, this macro does nothing: its sole purpose is to be traced
by third-party tools to produce a list of expected auxiliary files. For instance it is called by macros like AC_PROG_INSTALL (see
Particular Programs) or AC_CANONICAL_BUILD (see Canonicalizing) to register the auxiliary files they need. Similarly, packages that
use aclocal should declare where local macros can be found using AC_CONFIG_MACRO_DIR.

AC_CONFIG_MACRO_DIR(dir)
Specify dir as the location of additional local Autoconf macros. This macro is intended for use by future versions of commands like
autoreconf that trace macro calls. It should be called directly from configure.ac so that tools that install macros for aclocal can find the
macros' declarations. Note that if you use aclocal from Automake to generate aclocal.m4, you must also set ACLOCAL_AMFLAGS = -I
dir in your top-level Makefile.am. Due to a limitation in the Autoconf implementation of autoreconf, these include directives currently
must be set on a single line in Makefile.am, without any backslash-newlines.

 Checking for specific headers:

 AC_CHECK_HEADERS([unistd.h])
Then you could have code like the following in conf.h.in. The conf.h created by configure defines ‗HAVE_UNISTD_H‘ to 1, if and
only if the system has unistd.h.

/* Define as 1 if you have unistd.h. */ #undef HAVE_UNISTD_H

The format of the template file is stricter than what the C preprocessor is required to accept. A directive line should contain only
whitespace, ‗#undef‘, and ‗HAVE_UNISTD_H‘. The use of ‗#define‘ instead of ‗#undef‘, or of comments on the same line as
‗#undef‘, is strongly discouraged. Each hook should only be listed once. Other preprocessor lines, such as ‗#ifdef‘ or ‗#include‘, are
copied verbatim from the template into the generated header.

 Default prefix :
By default, configure sets the prefix for files it installs to /usr/local. The user of configure can select a different prefix using the --
prefix and --exec-prefix options. There are two ways to change the default: when creating configure, and when running it. Some software
packages might want to install in a directory other than /usr/local by default. To accomplish that, use the AC_PREFIX_DEFAULT macro.

 AC_PREFIX_DEFAULT(prefix)
Set the default installation prefix to prefix instead of /usr/local.
It may be convenient for users to have configure guess the installation prefix from the location of a related program that they have
already installed. If you wish to do that, you can call AC_PREFIX_PROGRAM.

 AC_PREFIX_PROGRAM(program)
If the user did not specify an installation prefix (using the --prefix option), guess a value for it by looking for program in PATH, the way
the shell does. If program is found, set the prefix to the parent of the directory containing program, else default the prefix as described
above (/usr/local or AC_PREFIX_DEFAULT). For example, if program is gcc and the PATH contains /usr/local/gnu/bin/gcc, set the
prefix to /usr/local/gnu.

For example, if the AC_PREFIX_DEFAULT(/usr) is defined within a configure.ac, it won‘t be mandatory to specify the prefix at the
configure launch.

If not we should mantadory specify the prefix: ./configure --prefix=/usr

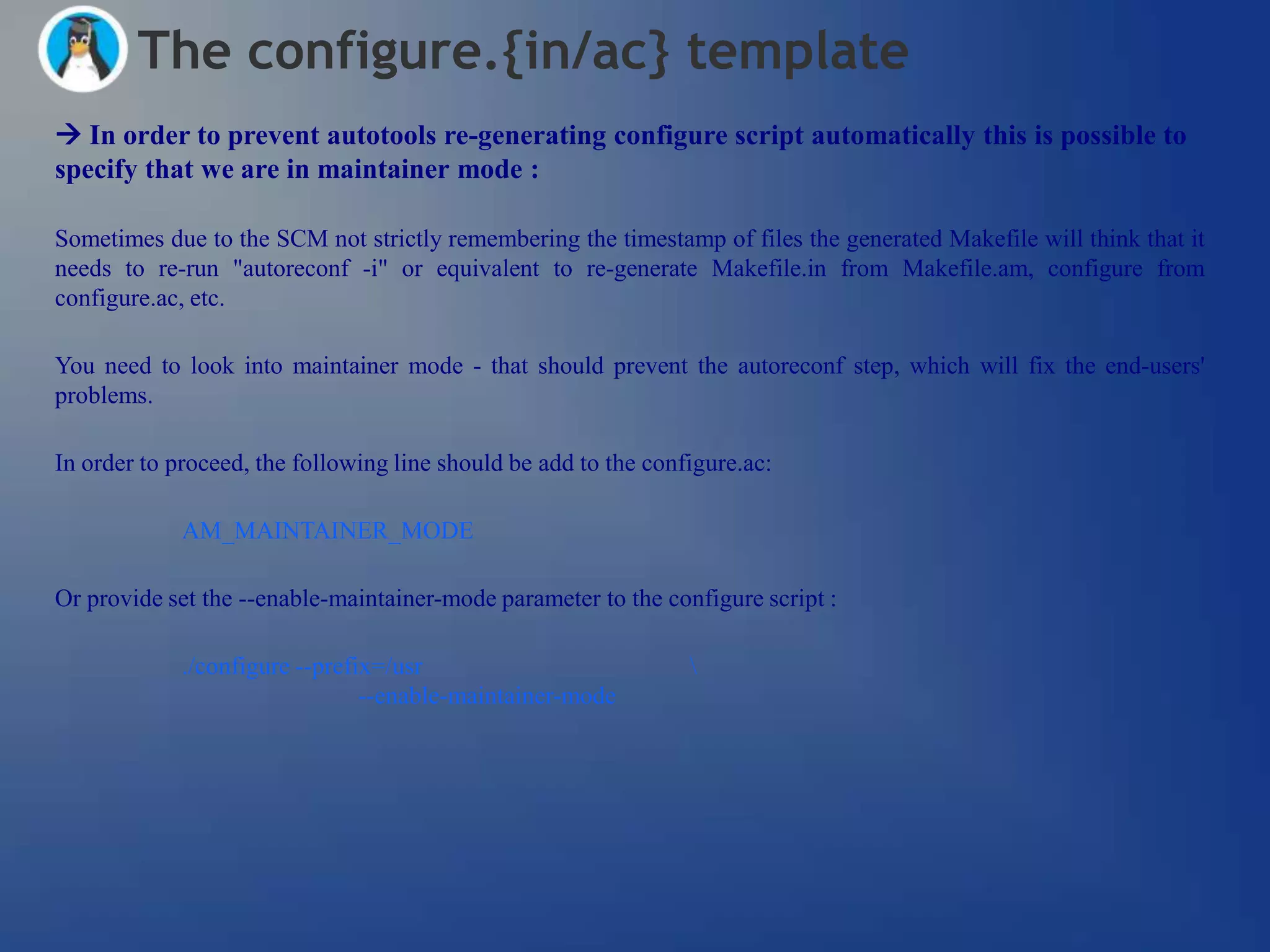

 In order to prevent autotools re-generating configure script automatically this is possible to
specify that we are in maintainer mode :

Sometimes due to the SCM not strictly remembering the timestamp of files the generated Makefile will think that it
needs to re-run "autoreconf -i" or equivalent to re-generate Makefile.in from Makefile.am, configure from
configure.ac, etc.

You need to look into maintainer mode - that should prevent the autoreconf step, which will fix the end-users'
problems.

In order to proceed, the following line should be add to the configure.ac:

AM_MAINTAINER_MODE

Or provide set the --enable-maintainer-mode parameter to the configure script :

--enable-maintainer-mode

The version scheme used by Libtool tracks interfaces, where an interface is the set of exported entry
points into the library.

All Libtool libraries start with `-version-info' set to `0:0:0' -- this will be the default version number if
you don't explicitly set it on the Libtool link command line.

The meaning of these numbers (from left to right) is as follows:

 Beware, this can generate a warning if you want to generate a static library.

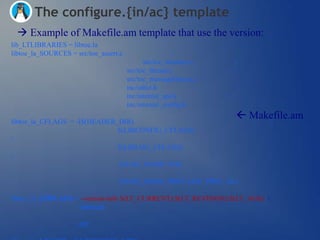

 Example of Makefile.am template that use the version:
lib_LTLIBRARIES = libtoe.la
libtoe_la_SOURCES = src/toe_assert.c
src/toe_memory.c
src/toe_thread.c
src/toe_messageQueue.c
inc/utlist.h
inc/internal_api.h
inc/internal_config.h

libtoe_la_CFLAGS = -I$(HEADER_DIR)
 Makefile.am

$(LIBCONFIG_CFLAGS)

$(LIBLOG_CFLAGS)

-DLOG_NAME=TOE

-DLOG_MASK_PRIO=LOG_PRIO_ALL

libtoe_la_LDFLAGS = -version-info $(LT_CURRENT):$(LT_REVISION):$(LT_AGE)
-lpthread

-lrt

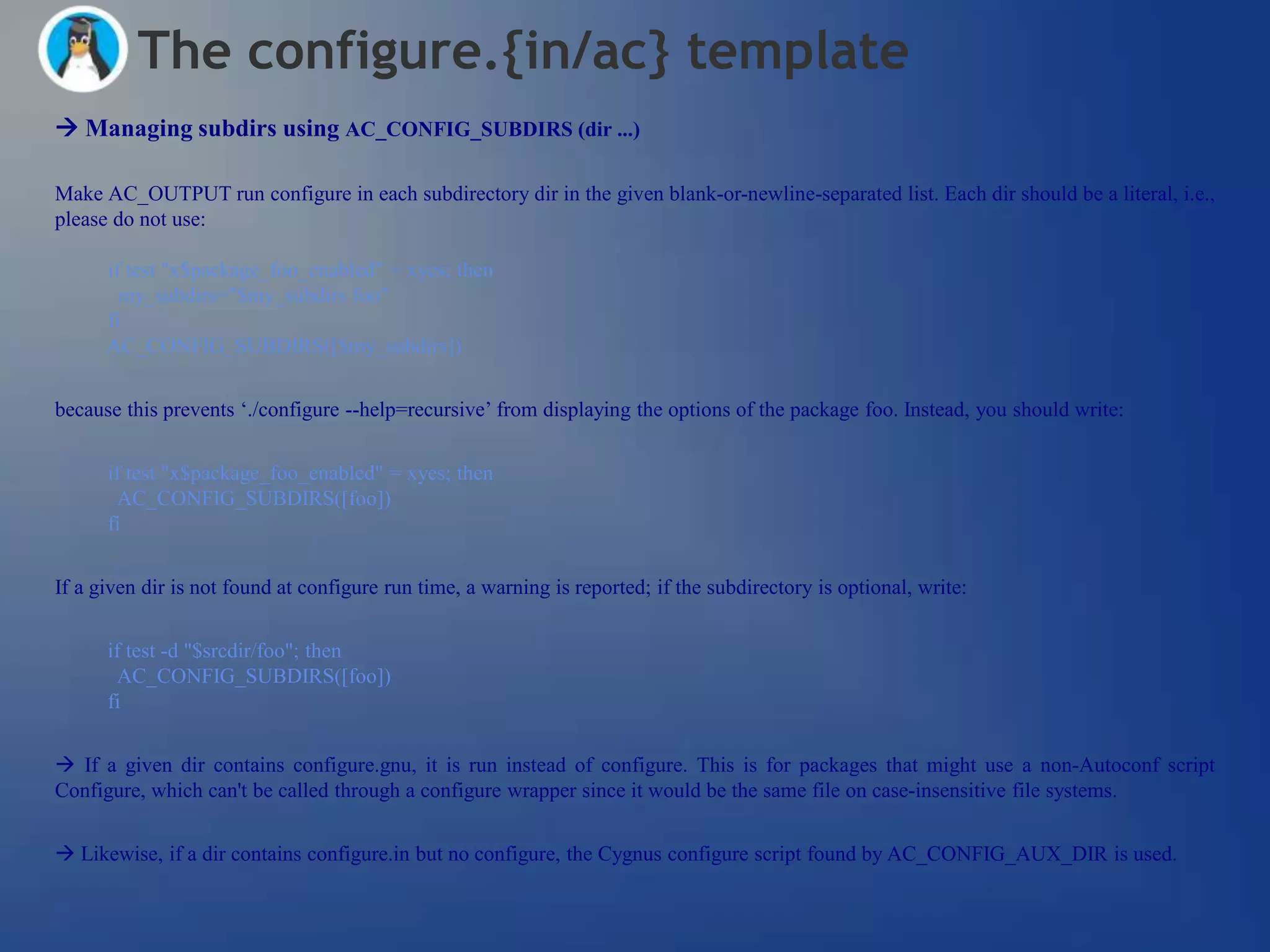

 Managing subdirs using AC_CONFIG_SUBDIRS (dir ...)

Make AC_OUTPUT run configure in each subdirectory dir in the given blank-or-newline-separated list. Each dir should be a literal, i.e.,
please do not use:

if test "x$package_foo_enabled" = xyes; then
my_subdirs="$my_subdirs foo"
fi
AC_CONFIG_SUBDIRS([$my_subdirs])

because this prevents ‗./configure --help=recursive‘ from displaying the options of the package foo. Instead, you should write:

AC_CONFIG_SUBDIRS([foo])
fi

If a given dir is not found at configure run time, a warning is reported; if the subdirectory is optional, write:

if test -d "$srcdir/foo"; then
fi

 If a given dir contains configure.gnu, it is run instead of configure. This is for packages that might use a non-Autoconf script
Configure, which can't be called through a configure wrapper since it would be the same file on case-insensitive file systems.

 Likewise, if a dir contains configure.in but no configure, the Cygnus configure script found by AC_CONFIG_AUX_DIR is used.

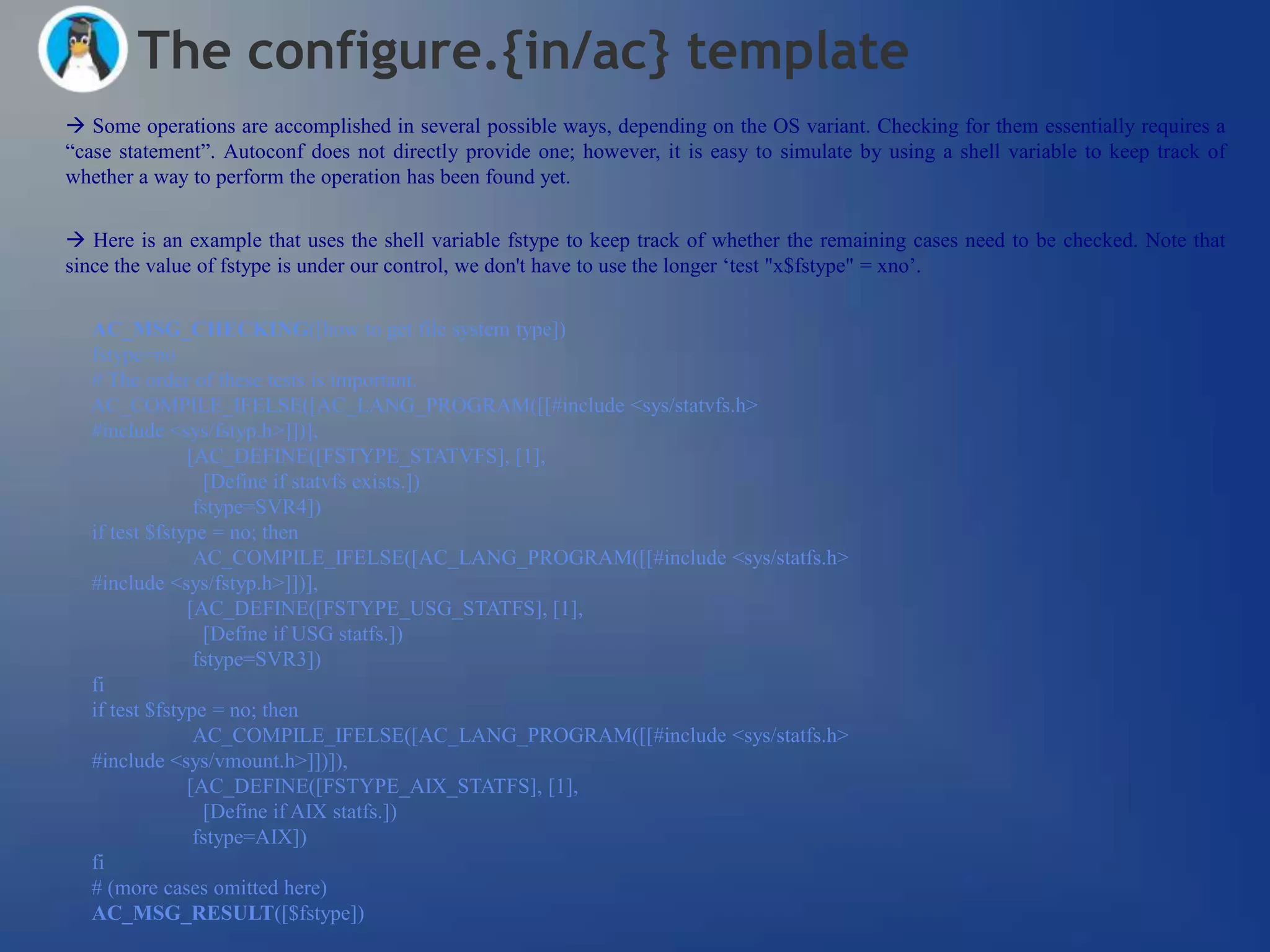

 Some operations are accomplished in several possible ways, depending on the OS variant. Checking for them essentially requires a
―case statement‖. Autoconf does not directly provide one; however, it is easy to simulate by using a shell variable to keep track of
whether a way to perform the operation has been found yet.

 Here is an example that uses the shell variable fstype to keep track of whether the remaining cases need to be checked. Note that
since the value of fstype is under our control, we don't have to use the longer ‗test "x$fstype" = xno‘.

AC_MSG_CHECKING([how to get file system type])
fstype=no
# The order of these tests is important.
AC_COMPILE_IFELSE([AC_LANG_PROGRAM([[#include <sys/statvfs.h>
#include <sys/fstyp.h>]])],
[AC_DEFINE([FSTYPE_STATVFS], [1],
[Define if statvfs exists.])
fstype=SVR4])
if test $fstype = no; then
AC_COMPILE_IFELSE([AC_LANG_PROGRAM([[#include <sys/statfs.h>
#include <sys/fstyp.h>]])],
[AC_DEFINE([FSTYPE_USG_STATFS], [1],
[Define if USG statfs.])
fstype=SVR3])
fi
if test $fstype = no; then
AC_COMPILE_IFELSE([AC_LANG_PROGRAM([[#include <sys/statfs.h>
#include <sys/vmount.h>]])]),
[AC_DEFINE([FSTYPE_AIX_STATFS], [1],
[Define if AIX statfs.])
fstype=AIX])
fi
# (more cases omitted here)
AC_MSG_RESULT([$fstype])

 Creating variables exported to the Makefiles :
AC_DEFINE (variable, value, [description])
AC_DEFINE (variable)

Define variable to value (verbatim), by defining a C preprocessor macro for variable. variable should be a C identifier, optionally suffixed
by a parenthesized argument list to define a C preprocessor macro with arguments. The macro argument list, if present, should be a
comma-separated list of C identifiers, possibly terminated by an ellipsis ‗...‘ if C99 syntax is employed. variable should not contain
comments, white space, trigraphs, backslash-newlines, universal character names, or non-ASCII characters.

value may contain backslash-escaped newlines, which will be preserved if you use AC_CONFIG_HEADERS but flattened if passed via
@DEFS@ (with no effect on the compilation, since the preprocessor sees only one line in the first place). value should not contain raw
newlines. If you are not using AC_CONFIG_HEADERS, value should not contain any ‗#‘ characters, as make tends to eat them. To use a
shell variable, use AC_DEFINE_UNQUOTED instead.

description is only useful if you are using AC_CONFIG_HEADERS. In this case, description is put into the generated config.h.in as the
comment before the macro define. The following example defines the C preprocessor variable EQUATION to be the string constant ‗"$a
> $b"‘:

AC_DEFINE([EQUATION], ["$a > $b"], [Equation string.])

If neither value nor description are given, then value defaults to 1 instead of to the empty string. This is for backwards compatibility with
older versions of Autoconf, but this usage is obsolescent and may be withdrawn in future versions of Autoconf.

If the variable is a literal string, it is passed to m4_pattern_allow.

If multiple AC_DEFINE statements are executed for the same variable name (not counting any parenthesized argument list), the last one
wins.

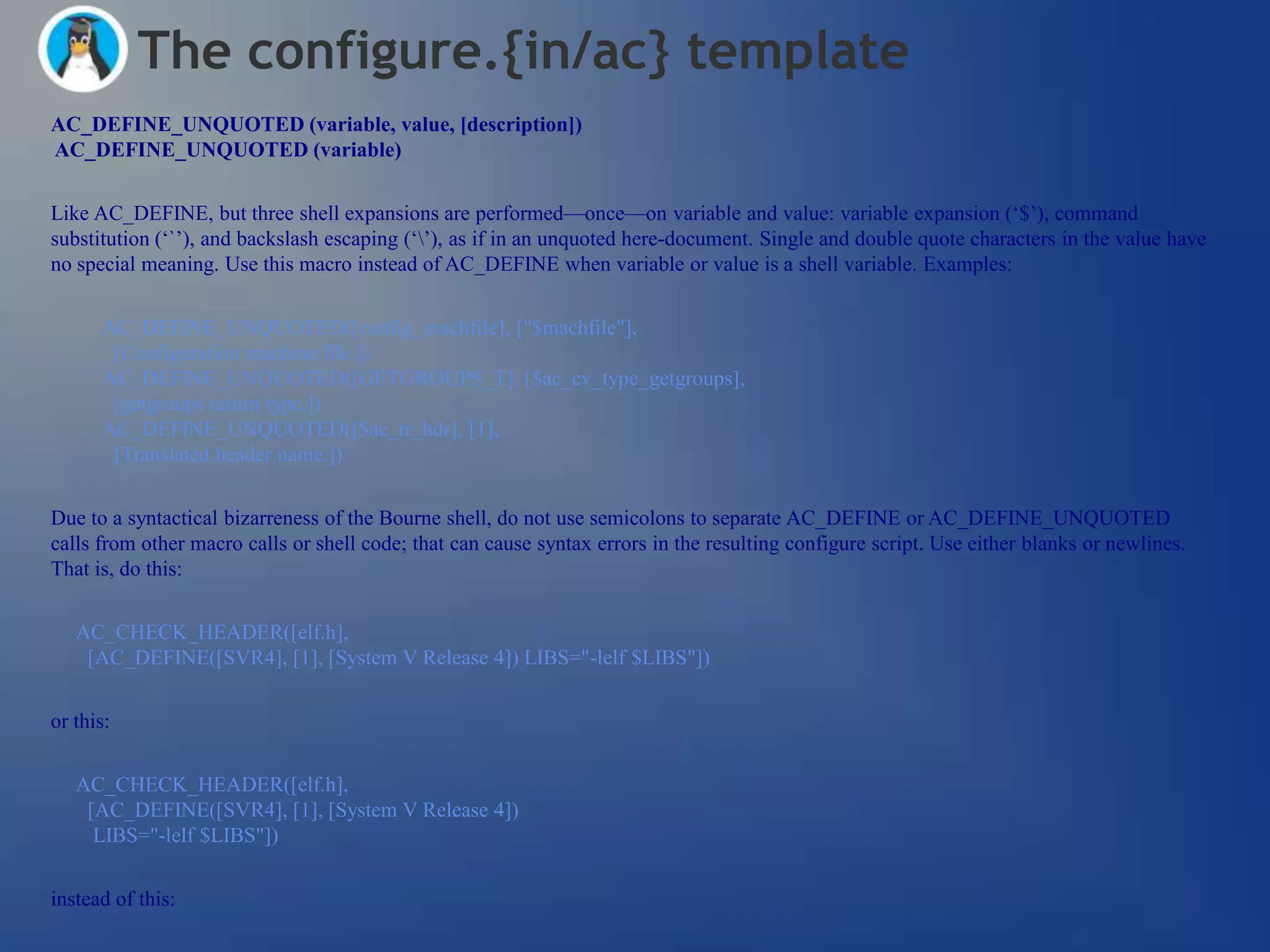

AC_DEFINE_UNQUOTED (variable, value, [description])
AC_DEFINE_UNQUOTED (variable)

Like AC_DEFINE, but three shell expansions are performed—once—on variable and value: variable expansion (‗$‘), command
substitution (‗`‘), and backslash escaping (‗‘), as if in an unquoted here-document. Single and double quote characters in the value have
no special meaning. Use this macro instead of AC_DEFINE when variable or value is a shell variable. Examples:

AC_DEFINE_UNQUOTED([config_machfile], ["$machfile"],
[Configuration machine file.])
AC_DEFINE_UNQUOTED([GETGROUPS_T], [$ac_cv_type_getgroups],
[getgroups return type.])
AC_DEFINE_UNQUOTED([$ac_tr_hdr], [1],
[Translated header name.])

Due to a syntactical bizarreness of the Bourne shell, do not use semicolons to separate AC_DEFINE or AC_DEFINE_UNQUOTED
calls from other macro calls or shell code; that can cause syntax errors in the resulting configure script. Use either blanks or newlines.
That is, do this:

AC_CHECK_HEADER([elf.h],
[AC_DEFINE([SVR4], [1], [System V Release 4]) LIBS="-lelf $LIBS"])

or this:

AC_CHECK_HEADER([elf.h],
[AC_DEFINE([SVR4], [1], [System V Release 4])
LIBS="-lelf $LIBS"])

instead of this:

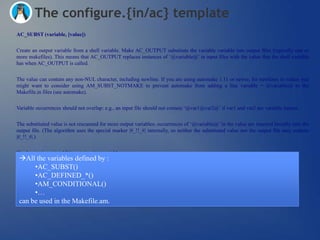

AC_SUBST (variable, [value])

Create an output variable from a shell variable. Make AC_OUTPUT substitute the variable variable into output files (typically one or
more makefiles). This means that AC_OUTPUT replaces instances of ‗@variable@‘ in input files with the value that the shell variable
has when AC_OUTPUT is called.

The value can contain any non-NUL character, including newline. If you are using automake 1.11 or newer, for newlines in values you
might want to consider using AM_SUBST_NOTMAKE to prevent automake from adding a line variable = @variable@ to the
Makefile.in files (see automake).

Variable occurrences should not overlap: e.g., an input file should not contain ‗@var1@var2@‘ if var1 and var2 are variable names.

The substituted value is not rescanned for more output variables; occurrences of ‗@variable@‘ in the value are inserted literally into the
output file. (The algorithm uses the special marker |#_!!_#| internally, so neither the substituted value nor the output file may contain
|#_!!_#|.)

If value is given, in addition assign it to variable.
All the variables defined by :
•AC_SUBST()
•AC_DEFINED_*()
•AM_CONDITIONAL()
•…
can be used in the Makefile.am.

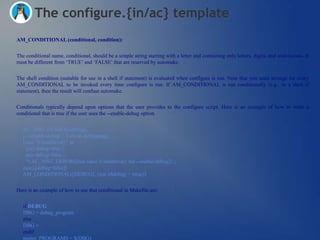

AM_CONDITIONAL (conditional, condition):

The conditional name, conditional, should be a simple string starting with a letter and containing only letters, digits, and underscores. It
must be different from ‗TRUE‘ and ‗FALSE‘ that are reserved by automake.

The shell condition (suitable for use in a shell if statement) is evaluated when configure is run. Note that you must arrange for every
AM_CONDITIONAL to be invoked every time configure is run. If AM_CONDITIONAL is run conditionally (e.g., in a shell if
statement), then the result will confuse automake.

Conditionals typically depend upon options that the user provides to the configure script. Here is an example of how to write a
conditional that is true if the user uses the --enable-debug option.

AC_ARG_ENABLE([debug],
[ --enable-debug Turn on debugging],
[case "${enableval}" in
yes) debug=true ;;
no) debug=false ;;
*) AC_MSG_ERROR([bad value ${enableval} for --enable-debug]) ;;
esac],[debug=false])
AM_CONDITIONAL([DEBUG], [test x$debug = xtrue])

Here is an example of how to use that conditional in Makefile.am:

if DEBUG
DBG = debug_program
else
DBG =
endif
noinst_PROGRAMS = $(DBG)

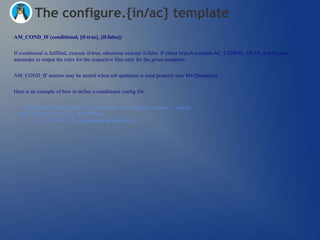

AM_COND_IF (conditional, [if-true], [if-false])

If conditional is fulfilled, execute if-true, otherwise execute if-false. If either branch contains AC_CONFIG_FILES, it will cause
automake to output the rules for the respective files only for the given condition.

AM_COND_IF macros may be nested when m4 quotation is used properly (see M4 Quotation).

Here is an example of how to define a conditional config file:

AM_CONDITIONAL([SHELL_WRAPPER], [test "x$with_wrapper" = xtrue])
AM_COND_IF([SHELL_WRAPPER],
[AC_CONFIG_FILES([wrapper:wrapper.in])])

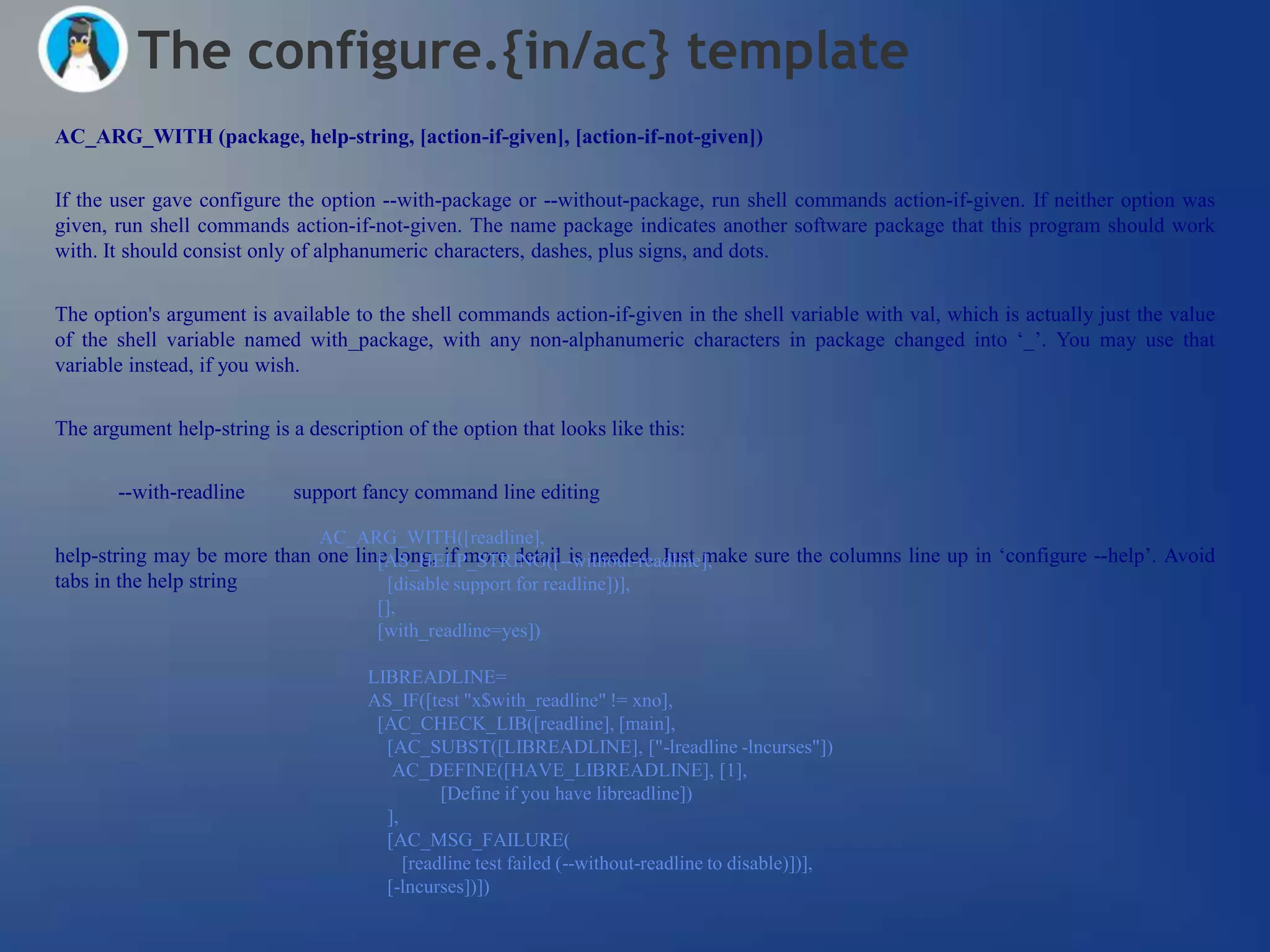

AC_ARG_WITH (package, help-string, [action-if-given], [action-if-not-given])

If the user gave configure the option --with-package or --without-package, run shell commands action-if-given. If neither option was
given, run shell commands action-if-not-given. The name package indicates another software package that this program should work
with. It should consist only of alphanumeric characters, dashes, plus signs, and dots.

The option's argument is available to the shell commands action-if-given in the shell variable with val, which is actually just the value
of the shell variable named with_package, with any non-alphanumeric characters in package changed into ‗_‘. You may use that
variable instead, if you wish.

The argument help-string is a description of the option that looks like this:

--with-readline support fancy command line editing

AC_ARG_WITH([readline],
help-string may be more than one line long, if more detail is needed. Just make sure the columns line up in ‗configure --help‘. Avoid
[AS_HELP_STRING([--without-readline],
tabs in the help string [disable support for readline])],
[],
[with_readline=yes])

LIBREADLINE=
AS_IF([test "x$with_readline" != xno],
[AC_CHECK_LIB([readline], [main],
[AC_SUBST([LIBREADLINE], ["-lreadline -lncurses"])
AC_DEFINE([HAVE_LIBREADLINE], [1],
[Define if you have libreadline])
],
[AC_MSG_FAILURE(
[readline test failed (--without-readline to disable)])],
[-lncurses])])

Configuring Other Packages in Subdirectories

In most situations, calling AC_OUTPUT is sufficient to produce makefiles in subdirectories. However, configure scripts that control more than one
independent package can use AC_CONFIG_SUBDIRS to run configure scripts for other packages in subdirectories.

 AC_CONFIG_SUBDIRS(dir ...)

Make AC_OUTPUT run configure in each subdirectory dir in the given blank-or-newline-separated list. Each dir should be a literal, i.e., please do not
use:
my_subdirs="$my_subdirs foo"
fi
AC_CONFIG_SUBDIRS([$my_subdirs])

because this prevents ‗./configure --help=recursive‘ from displaying the options of the package foo. Instead, you should write:
fi

If a given dir is not found at configure run time, a warning is reported; if the subdirectory is optional, write:
if test -d "$srcdir/foo"; then
fi

If a given dir contains configure.gnu, it is run instead of configure. This is for packages that might use a non-Autoconf script Configure, which can't be
called through a wrapper configure since it would be the same file on case-insensitive file systems. Likewise, if a dir containsconfigure.in but
no configure, the Cygnus configure script found by AC_CONFIG_AUX_DIR is used.The subdirectory configure scripts are given the same command line
options that were given to this configure script, with minor changes if needed, which include:

· adjusting a relative name for the cache file;
· adjusting a relative name for the source directory;
· propagating the current value of $prefix, including if it was defaulted, and if the default values of the top level and of the

subdirectory configure differ.This macro also sets the output variable subdirs to the list of directories ‗dir ...‟. Make rules can use this variable to
determine which subdirectories to recurse into.This macro may be called multiple times.

Generating final files :

It can be Makefiles, .pc files, config.h headers and so on :

AC_CONFIG_FILES([
Makefile
src/Makefile  New format
foo.pc
])
AC_OUTPUT
It can be Makefiles, .pc files, config.h headers and so on :

AC_OUTPUT([
Makefile
src/Makefile  Old deprecated format
foo.pc
])

 Both format are functional.

The first one is the best format. It is the new one with new being relative because it has been that way for a while.

The last one is the old format from way long ago.


CONFIGURE LAB


The main goal for this lab is to write a basic configure that :

Check the C compiler
Check Some standard headers
Generate a Makefile in output

In case of problems with configure, you can consult the
―config.log‖ file that may provide more information about an
Autotools problem.

Read the ./configure --help to know all the parameters that
can be used by this script.

The Makefile.am template
The goal of this topic is to know how to write a Makefile.am template.

The Makefile.am templates

A makefile.am template will use a context prepared by the configure script.

 This is the second most important template after the configure.ac.

A GNU/Makefile can support more than one target.

 According to the final binary to build (binary, library, … ), the Makefile will run
them one by one in the same order than written in the template.

As seen before, Makefile.am are generic template ready for a conversion into a
Makefile.in

 The Makefile.in, contains variables between arobases in order to make the update by
the configure script easy to do.

 Template definition for binaries and libraries :

 Variables used when building a program :

Occasionally it is useful to know which `Makefile' variables Automake uses for compilations; for instance you
might need to do your own compilation in some special cases. Some variables are inherited from Autoconf; these
are CC, CFLAGS, CPPFLAGS, DEFS, LDFLAGS, and LIBS.

 There are some global additional variables which Automake itself defines:

 This impact all components from the Makefile.am (binary, libarry, … )


MAKEFILE.AM LAB


The main goal for this lab is to :

1.Write a Makefile.am that will call another Makefile located
into a src directory

1.In this second Makefile.am, just generate a binary from
a helloworld.c.

1.Managed them using a single configure.ac

Using the library template
The goal of this topic is to know how to generate static/dynamic libraries.


 Autotools template make the makefile standard and portable.

Writting a library is quite identical as a binary.

A library either static or dynamic should also export its public api:
<STAGINGDIR>/<PREFIX>/include/  public headers
<STAGINGDIR>/<PREFIX>/include/prefix/  metadata (.pc files)
<STAGINGDIR>/<PREFIX>/lib/  static and/o

By default, the configure script generate both a static and dynamic library:

This is possible so specify just one type:
./configure --disable-static : generate only a dynamic one
./configure –disable-dynamic : force to generate only a static one

 Linking with a mix of shared and static libraries
By default, the linker will link against the shared libraries if they are available. If the -static flag is
given, the linker will try to use static libraries instead of dynamic one. But -Bdynamic and -Bstatic
provides finer control of which library, shared or static should searched for each library specified for
the linker. The library search option is toggled by each -Bdynamic or -Bstatic:

ld ... -Bstatic -lfoo -Bdynamic -lbar ....

This command tells the linker to search the static library for libfoo, and search the shared version for
libbar and any libraries after it until a -Bstatic is seen.

To pass the -Bdynamic and -Bstatic options to the linker, one needs to do

gcc -o main main.o -Wl,-Bstatic -lfoo -Wl,-Bdynamic –lbar

Since the gcc driver calls the linker with some default libraries,

gcc -o main main.o -Wl,-Bstatic

tells the linker to use the static versions for all default libraries like libc and etc.
http://gcc.gnu.org/onlinedocs/gcc/Link-Options.html
http://www.yolinux.com/TUTORIALS/LibraryArchives-StaticAndDynamic.html

 Memory slicing with dynamic libraries :
Dynamic libraries are mapped by the dynamic linker in the process address
space, CODE
BSS
All processes share the same dynamic library code segment, HEAP

CODE
LIB 1
Each dynamic library data segment is of course per process, DATA

CODE
 Each dynamic library data size must be counted in the process memory LIB 2
consumption. DATA

Stack


Now with
the autotools 

This is possible to force the generation of a static library in case of a Makefile that generate
a static one before to link with :

noinst_lib_LTLIBRARIES = libfoo.la

The binary will be link using the internal LDFALGS.

Nb : the noinst prefix say that the library won‘t be install by the make install command.

The following prefix are accepted :

check_LTLIBRARIES : generate a library for unitary tests
noinst_LTLIBRARIES : generate a library for local usage (won‘t be installed)


LIBRARY LAB


 The main goal of this lab is to generate a library.

The library have two source code lib01.c and lib02.c located into
a src directory.

 The configure script should managed the version.

A single Makefile should be able to compile either a static or a
dynamic one.

Using the application template
The goal of this topic is to know how to generate binaries.

As well as for the library, binaries can accept some prefix :
check_PROGRAM : generate a binary for the unitary tests
noinst_PROGRAM : generate a binary for local usage (won‘t be installed)
 Internal link flags should be given to the LDFLAGS one. That‘s include internal
static library.

 External link flags should be given to the LDADD one. That‘s include all dependencies
checked by the PKG_CHECK_MODULE M4 macro

 Example of template used for a binary template :
bin_PROGRAMS = foo
foo_SOURCES = main.c
foo_SOURCES = main.c
foo_LDADD = libfoo.la @FLIBS@

pkglib_LTLIBRARIES = libfoo.la
libfoo_la_SOURCES = bar.f baz.c zardoz.cc
libfoo_la_LIBADD = $(FLIBS)

 From Executable Binary to Process Memory Map :
0x0 Elf Header
0x400000
Code
Code size
Code

0x10000000
Padding
Initialized
Data Size Data (not 0)
Initialized
Data Data set to
0 (BSS)
Statically Linked
Heap
Dyn Lib info Mono-thread
DWARF
EOF Debug Info Simple Case Process
Stack
Executable file Not loaded
Memory Map
in memory

 The header is not load in memory as defined in this picture because it gives information about the binary format;
for instance it say at which memory address the code must be loaded.

 The multi-threaded case :
 Multiple threads share the entire process address space CODE

 Each thread has its own user space stack that is allocated when doing DATA
pthread_create system call. If stack size is not given, a default value is used.
BSS

Be Careful: on x86 and NPTL POSIX thread implementation this means 8 Mb. This is the HEAP
same value for default process stack size. Thread #1
Stack
Always specify the stack size, .
.
.
 Try to kill the system created initial thread after creating your own init thread,
Thread #1
Stack


Example of result for a process
with threads 

 Stack per thread.


APPLICATION LAB


The main goal for this lab is to:

1.First, generate a foobin binary from a foobin.c source code.
You will have to write a configure.ac and a Makefile.am.

1.Second, generate a library foolib from a foolib.c source code.
You will have to write a configure.ac and a Makefile.am

1.Third, merge the two configure.ac and Makefile.am
The library should compile first as a static library then link with
the binary.

The config.h support
The goal of this topic is to know how works the global config.h configuration header

The config.h header
 Impact on the configure.ac template :
The AC_CONFIG_HEADERS([config.h]) M4 macro indicates that we will use a config.h header file.

The generated header is included by your source code to pick up the results of the various configuration
tests in the form of C preprocessor macro definitions. Every variable exported by the configure script
through M4 macro (PKG_CHECK_MODULES(), AC_DEFINE(), AC_SUBST(), … ) will be set inside.

The template file config.h.in can also be generated automatically by
the autoheader tool. autoreconf will invoke autoheader when AC_CONFIG_HEADERS is used
in configure.ac. If multiple configuration headers are used, autoheader will always only generate the
template for the first one in the list.

Example of usage in a configure.ac template
(…)

dnl ---------------------------------------
dnl Specify the internal toe_config.h
dnl ---------------------------------------
AC_CONFIG_HEADERS([inc/internal_config.h])

(..)
That will generate a header called « internal_config.h » in the « inc » directory.

Its content will include both all the boolean result of the internal check and also the custom checks made by
Component itself.

The config.h header
 Impact on the Makefile.am template :
lib_LTLIBRARIES = libtoe.la

libtoe_la_SOURCES = src/toe_assert.c

src/toe_memory.c

src/toe_thread.c

src/toe_messageQueue.c

inc/utlist.h

inc/internal_api.h

inc/internal_config.h

libtoe_la_CFLAGS = -I$(HEADER_DIR)

$(LIBCONFIG_CFLAGS)

$(LIBLOG_CFLAGS)

-DLOG_NAME=TOE

 Even if the config.h (here internal_config.h) is well include by the source code, this is important
-DLOG_MASK_PRIO=LOG_PRIO_ALL

libtoe_la_LDFLAGS the Makefile in = -version-info $(LT_CURRENT):$(LT_REVISION):$(LT_AGE)
to specify it in order to include this dynamic file in the tarball generated by a make dist.

-lpthread

The config.h header
 Config.h or not config.h that is the question…

Without config.h : With config.h :
 Every flags will be provided to the compiler  The command line is more silent.
over the command line (can be quite huge)
 The config.h is the ID card of the build because
 Easy to manage with existent component it defines all the activator, values, used during the
(don‘t need any modification for the header compilation.
Import).
 That need to import this header in all source
 The development process can check the code (.c, .cpp, .cxx, …) or within a top header. The
variables either in this config.h header or inclusion should be secured like this :
through the command line.
#ifdef HAVE_CONFIG_H
#include "config.h"
#endif /* HAVE_CONFIG_H */

The config.h header

GNU/MAKE LAB

The config.h header

The main goal of this lab is to write one autotool project
without any config.h and another with that support.

Compare the command line for the two build using « make v=1»

The config.h header
 More help about :
http://www.gnu.org/software/automake/manual/html_node/Optional.ht
ml#index-AC_005fCONFIG_005fHEADERS-219

The silent/verbose support
The goal of this topic is to know how works to manage the silent/verbose support

Managing silent/verbose support
When a big build is launch it can be nice to do not have too much traces
In the console screen.

The autotools can control the silent/verbose mode.

If the silent mode is selected, no build or warning traces won‘t be written to
stdio (err/out).

 Only errors will be displayed in detail and will stop the build process.

Once the silent/verbose mode have been choosen by the configure script, this
Is possible to override it thanks to the « V » parameter:

 Silent mode selected by the configure script:

o Silent mode : make

o Verbose mode : make V=1

 Verbose mode selected by the configure script:

o Silent mode : make V=0

o Verbose mode : make

 This is possible to tune more the silent/verbose mode:

$ export LIBTOOLFLAGS "--silent“
$ make –s


SILENT/VERBOSE LAB


The main goal of this lab is to add a verbose
support by adding the –enable-verbose.

 The default state must be silent.

Managing dependencies with the pkg-config tool
The goal of this topic is to know how a pkgconfig file (.pc) are managed and how to use
the pkg-config tool.

The pkg-config tool

The PKG-
CONFIG tool

(aka
PaCKage CONFIGgurator)

The pkg-config tool

The pkg-config is a helper tool used when compiling applications and libraries.

It helps you insert the correct compiler options rather than hard-coding values on where to find
glib (or other libraries). It is language-agnostic, so it can be used for defining the location of
documentation tools, for instance.

It works fine both with native and cross-compile environnement.

The program is free software and licensed under the GPL version 2 or any later.

pkg-config works on multiple platforms: Linux and other UNIX-like operating systems, Mac OS
X and Windows. It does not require anything but a reasonably well working C compiler and a C
library, but can use an installed glib if that is present. (A copy of glib 1.2.10 is shipped together
with pkg-config and this is sufficient for pkg-config to compile and work properly.)

The first implementation was written in shell, by James Henstridge. Later, it was rewritten in C
by Havoc Pennington. It also grew an autoconf macro written by Tim Janik, later rewritten by
Scott James Remnant. The current maintainer is Tollef Fog Heen <tfheen@err.no>.

The current release of pkg-config is version 0.25 (March 2011).

The pkg-config tool
 Variables for Installation Directories :

For more information : http://www.gnu.org/prep/standards/standards.pdf

The pkg-config tool
 The autootols can make a fine tuning of the installation directories :

--bindir=DIR user executables [EPREFIX/bin]
--sbindir=DIR system admin executables [EPREFIX/sbin]
--libexecdir=DIR program executables [EPREFIX/libexec]
--sysconfdir=DIR read-only single-machine data [PREFIX/etc]
--sharedstatedir=DIR modifiable architecture-independent data [PREFIX/com]
--localstatedir=DIR modifiable single-machine data [PREFIX/var]
--libdir=DIR object code libraries [EPREFIX/lib]
--includedir=DIR C header files [PREFIX/include]
--oldincludedir=DIR C header files for non-gcc [/usr/include]
--datarootdir=DIR read-only arch.-independent data root [PREFIX/share]
--datadir=DIR read-only architecture-independent data [DATAROOTDIR]
--infodir=DIR info documentation [DATAROOTDIR/info]
--localedir=DIR locale-dependent data [DATAROOTDIR/locale]
--mandir=DIR man documentation [DATAROOTDIR/man]
--docdir=DIR documentation root [DATAROOTDIR/doc/toe]
--htmldir=DIR html documentation [DOCDIR]
--dvidir=DIR dvi documentation [DOCDIR]
--pdfdir=DIR pdf documentation [DOCDIR]
--psdir=DIR ps documentation [DOCDIR]
--srcdir=DIR find the sources in DIR [configure dir or `..']

Example : ./configure --prefix=/usr
--srcdir=/tmp/tmp232123

The pkg-config tool
 Recent pkg-config tool version use several environment variables:

The pkg-config tool
$ pkg-config –help  Usage provided by pkg-config
Usage: pkg-config [OPTION...]
--version output version of pkg-config
--modversion output version for package
--atleast-pkgconfig-version=VERSION require given version of pkg-config
--libs output all linker flags
--static output linker flags for static linking
--short-errors print short errors
--libs-only-l output -l flags
--libs-only-other output other libs (e.g. -pthread)
--libs-only-L output -L flags
--cflags output all pre-processor and compiler flags
--cflags-only-I output -I flags
--cflags-only-other output cflags not covered by the cflags-only-I option
--variable=NAME get the value of variable named NAME
--define-variable=NAME=VALUE set variable NAME to VALUE
--exists return 0 if the module(s) exist
--print-variables output list of variables defined by the module
--uninstalled return 0 if the uninstalled version of one or more module(s) or their
dependencies will be used
--atleast-version=VERSION return 0 if the module is at least version VERSION
--exact-version=VERSION return 0 if the module is at exactly version VERSION
--max-version=VERSION return 0 if the module is at no newer than version VERSION
--list-all list all known packages
--debug show verbose debug information
--print-errors show verbose information about missing or conflicting packages,default if --
cflags or --libs
given on the command line
--silence-errors be silent about errors (default unless --cflags or --libsgiven on the command
line)
--errors-to-stdout print errors from --print-errors to stdout not stderr

The pkg-config tool
 Ask for the LDFLAGS for a static link :
Example of metadata for bar.pc :
$ pkg-config --libs bar
prefix=/usr –lbar
exec_prefix=${prefix}
includedir=${prefix}/include  Ask for the LDFLAGS for a dynamic link:
libdir=${exec_prefix}/lib
fooname= Autotools are great :-) $ pkg-config --libs --static bar
-lbar
Name: bar
Description: The bar library  ask for the LDFLAGS following a specific version :
Version: 2.1.2
Requires.private: foo >= 0.7 $ pkg-config --libs "bar >= 2.7―
Cflags: -I${includedir} Requested 'bar >= 2.7' but version of bar is 2.1.2
Libs: -L${libdir} –lbar
 Ask for the CFLAGS :

 Check the component exists : $ pkg-config --cflags bar
-I/usr/include/foo
$ pkg-config --exists --print-errors bar
$ echo $?  Ask for the value of a specific name :
0
$ pkg-config –variable=fooname bar
 Check the version : Autotools are great :-)

$ pkg-config --modversion bar  Multiple request for the CFLAGS & LDFLAGS :
2.1.2

The pkg-config tool
 Listing of the packages installed :

$ pkg-config --list-all

libbsd libbsd - Utility functions from BSD systems
xtrans XTrans - Abstract network code for X
m17n-db m17n-db - The m17n database used by the m17n library.
autoopts AutoOpts - A semi-automated generated/library option parser
xcb XCB - X-protocol C Binding
gtest gtest - Google test framework for the C/C++ language
libdrm_nouveau libdrm_nouveau - Userspace interface to nouveau kernel DRM services
nautilus-sendto nautilus-sendto - Extend nautilus-sendto through plugins
gnome-screensaver gnome-screensaver - gnome screensaver
xrandr Xrandr - X RandR Library
(...)

 Increase the trace during the pkg-config runtime :

$ pkg-config --debug --libs test

Parsing package file '/home/gayetth/Desktop/autotools-tests/pkg-config/001/test.pc'
line>prefix=/usr
Variable declaration, 'prefix' has value '/usr'
line>exec_prefix=${prefix}
Variable declaration, 'exec_prefix' has value '/usr'
line>libdir=${exec_prefix}/lib
( … )
line>
line>Name: test
line>Description: test
line>Requires:
line>Version: 1.0.0
line>Libs: -L${libdir} -ltest
line>Cflags: -I${includedir}/test

The pkg-config tool

The PKG-
CONFIG metadata files

The pkg-config tool

Pkgconfig files are metadata provided by a specific component (eg: static/dynamic libray) for other
component that will work with:

CFLAGS : flags need for compiling with (-I<LIBPATH)>

LDFLAGS : flags need for linking with (-L<LIBPATH> -l<LIBNAME>)

VERSION : version of the package ; can be used to identify the public API

The pkg-config tool

Example of a pkg-config file used for the libglib-2.0:

# This is a comment
prefix=/home/hp/unst # this defines a variable Partie haute
exec_prefix=${prefix} # defining another variable in terms of Invariante
the first
« NAME »
libdir=${exec_prefix}/lib
includedir=${prefix}/include

Name: Gobject # human-readable name
Description: Object/type system for GLib # human-readable description
Version: 1.3.1 Partie basse
URL: http://www.gtk.org customisable
Requires: glib-2.0 = 1.3.1
Conflicts: foobar <= 4.5 Libs: -L${libdir} -lgobject-1.3
Libs.private: -lm Cflags: -I${includedir}/glib-2.0 -I${libdir}/glib/include

The pkg-config tool
Description of a pkg-config generic pattern that contain the metadata :

The pkg-config tool

This is possible to manage all the metadata within the configure.ac template :

dnl Variables declaration
PKG_DEFINITION=”Description: Thin OS Extension for native developments”
PKG_DEPEND=””

dnl For each PKG_CHECK_MODULE, upgrade the PKG_DEPEND variable.

dnl Export to the Makefile.am
AC_SUBST(PCK_DEFINITION)
AC_SUBST(PKG_DEPEND)

 Thus we can obtain the following toe.pc.in :

prefix=@prefix@
exec_prefix=@exec_prefix@
libdir=@libdir@
includedir=@includedir@

Name: @PACKAGE_NAME@
Description: @PCK_DEFINITION@
Requires: @PKG_DEPEND@
Version: @VERSION@
Libs: -L${libdir} -l@PACKAGE_NAME@
Cflags: -I${includedir}/@PACKAGE_NAME@/

 At the end, the pc.in template is really generic and dynamic.

The pkg-config tool

The autotools bring some M4 macros that can be used in order to work with the pkg-config‘s
metadata :

 configure.ac

 PKG_PROG_PKG_CONFIG([MIN-VERSION])

 PKG_CHECK_EXISTS(MODULES, [ACTION-IF-
FOUND], [ACTION-IF-NOT-FOUND])

 PKG_CHECK_MODULES(VARIABLE-PREFIX,
MODULES, [ACTION-IF-FOUND], [ACTION-IF-
NOT-FOUND])

 Makefile.am

The pkg-config tool

PKG_PROG_PKG_CONFIG([MIN-VERSION])

 It locates the pkg-config tool on the system and checks its version for compatibility.

If you want to know which version is using :

$ pkg-config --version
0.25

Example of checking from a configure.ac file:

(…)
PKG_PROG_PKG_CONFIG([0.23])
(…)

Output
(…)
checking pkg-config is at least version 0.23... Yes
(…)

 If the version checked is not equal or above to the one expected, no other macro will work. So
beware is the result of this macro !!

The pkg-config tool

As well as with the which command tool, you can check first if this tools is available on the
current gnu/linux system, then where the command is located in the filesystem:

$ which pkg-config
/usr/bin/pkg-config

The autotools can do the same within the configure.ac :

AC_PATH_PROG([PKG_CONFIG],[pkg-config])
if test -z "$PKG_CONFIG" ; then
AC_MSG_ERROR([pkg-config tool not found])
fi

The pkg-config tool
PKG_CHECK_EXISTS(MODULES, [ACTION-IF-FOUND], [ACTION-IF-
NOT-FOUND])

Verify if whether a particular library exist and check its version.
Check to see whether a particular set of modules exists. Similar to
PKG_CHECK_MODULES(), but does not set variables or print errors.

Example:

(…)
POLKIT_REQUIRED=3.2.1
PKG_CHECK_EXISTS([polkit-dbus >= $POLKIT_REQUIRED],
[have_polkit=yes], [have_polkit=no])
(…)

The name polkit-dbus should follow the name of the pkg-config file (polkit-dbus.pc).

The pkg-config tool
PKG_CHECK_MODULES(VARIABLE-PREFIX, MODULES, [ACTION-IF-FOUND],
[ACTION-IF-NOT-FOUND])

 Checks to see whether a particular set of modules exists. If so, it sets <VARIABLE-
PREFIX>_CFLAGS and <VARIABLE-PREFIX>_LIBS according to the output from pkg-config --cflags and pkg-
config --libs.

Example that check the google/test library :

LIBGTEST_REQUIRED_VERSION=1.5.0
PKG_CHECK_MODULES([GTEST],[gtest >=
$LIBGTEST_REQUIRED_VERSION],[have_libgtest=yes],[have_libgtest=no])
if test "$have_libgtest" = no ; then
AC_MSG_ERROR([Missing the libgtest library!!])
fi

 Checking the version is not mandatory but is better.

 If pkg-config find the gtest.pc metadata, it will export to the Makefile two variables :
GTEST_CFLAGS and GTEST_LIBS. With old version of autotools this is needed to export them with the
AC_SUBST macro. This is not needed with recent one.

 This would result in MYSTUFF_LIBS and MYSTUFF_CFLAGS substitution variables, set to the libs and cflags
for the given module list. If a module is missing or has the wrong version, by default configure will abort with a
message. To replace the default action, specify an ACTION-IF-NOT-FOUND. PKG_CHECK_MODULES will not
print any error messages if you specify your own ACTION-IF-NOT-FOUND. However, it will set the variable
MYSTUFF_PKG_ERRORS, which you can use to display what went wrong.

The pkg-config tool

The two M4 macros PKG_CHECK_EXISTS and PKG_CHECK_MODULES can check more
than one dependency.

Example :

(…)
PKG_CHECK_EXISTS([gtkmm-2.4 >= 2.12.2 somethingelse-1.0 >= 1.0.2],
[have_all_deps=yes], [have_all_deps=no])
(…)

and

(…)
PKG_CHECK_MODULES([DEPS],[gtkmm-2.4 >= 2.12.2 somethingelse-1.0 >=
1.0.2],[have_all_deps=yes],[have_all_deps=no])
(…)

The pkg-config tool
 Impact on the configure.ac template :

#
# Configure script for the foo component
#

# Check the version of the pkg-config tool
# It will use pkg-config –version inside
PKG_PROG_PKG_CONFIG([0.23])

# Check the libconfig dependency
# LIBCONFIG : is the prefix used with the two variable exported to the makefiles:
# LIBCONFIG_CFLAGS = pkg-config --cflags libconfig
# LIBCONFIG_LIBS = pkg-config --libs libconfig
# libconfig : specify the name of the pkg-config file that contain the metadata
# (libconfig.pc)
LIBCONFIG_REQUIRED_VERSION=1.4.6

PKG_CHECK_MODULES([LIBCONFIG],[libconfig>=
$LIBCONFIG_REQUIRED_VERSION],[have_libconfig=yes],[have_libconfig=no])

if test "$have_libconfig" = no ; then
AC_MSG_ERROR([Missing the libconfig library 1.4.6 !!])
fi

AC_OUTPUT(
Makefile
foo.pc
)

The pkg-config tool
 Impact on the Makefile.am template :

EXTRA_DIST = $(top_srcdir)/autogen.sh

HEADER_DIR = $(top_srcdir)/inc

lib_includedir = $(includedir)/foo
lib_include_HEADERS = $(HEADER_DIR)/foo/foo.h

pkgconfigdir = $(libdir)/pkgconfig
pkgconfig_DATA = foo.pc

lib_LTLIBRARIES = libfoo.la

libfoo_la_SOURCES = src/foo.c
inc/config.h

libfoo_la_CFLAGS = -I$(HEADER_DIR)
$(LIBCONFIG_CFLAGS)

libfoo_la_LDFLAGS = -version-info $(LT_CURRENT):$(LT_REVISION):$(LT_AGE)
-lpthread

-lrt

libfoo_la_LIBADD = $(LIBCONFIG_LIBS)
Note: external dependencies must be set to the _LIBADD variable. Internal/local one, should be
associated to _LDFLAGS.
# EOF

The pkg-config tool

PKG-CONFIG LAB

The pkg-config tool TP_PKG_CONFIG

 The goal of this lab is to manage

DEPFOO1 DEPFOO3
2.5.6 1.3
FOO
DEPFOO2
1.4.2

The foo component will have two direct dependencies depfoo1 et depfoo2 and another one
depfoo3 pushed by depfoo1.

Workflow :
1.Fill the content of the files from the depfoo3 component
4.Fill the content of the files from the foo component

 In order to launch your TP, run the ./run_tp.sh script.

The pkg-config tool TP_PKG_CONFIG

You should have after the installation :

/sdk/x86/
lib/
libdepfoo1.so + libdepfoo1.a
pkgconfig/
depfoo1.pc
depfoo2.pc
depfoo3.pc
include/
depfoo1/depfoo1.h
depfoo2/depfoo2.h
depfoo3/depfoo3.h
bin/
foo
More help: http://linux.die.net/man/1/pkg-config OR man pkgconfig

Generating a documentation
The goal of this topic is to know how to generate automatically a doxygen
documentation in a html format

Doxygen documentation in html format

Generating a
default doxygen

documentation


 This feature will impact the two autotools templates :

 configure.ac
This script will simply check that we have the doxygen file
in the current path.

 Makefile.am
This file will manage the documentation generation using the
doxygen tool.


 Impact of the configure.ac template :
dnl ---------------------------------------------------
dnl Check for doxygen support
dnl ---------------------------------------------------
AC_PATH_PROG([DOXYGEN], [doxygen])

dnl Export the boolean value of the doxygen check
AM_CONDITIONAL(HAVE_DOXYGEN, test $DOXYGEN)

dnl Display a warning in case the doxygen tool is not found
dnl If not found, it will just display a warning.
if test –z ―$DOXYGEN‖ then
AC_MSG_WARN([doxygen tool not found])
fi

 This script will first test if the doxygen, then will export the result of this test to the other
makefile templates.


 Impact on the Makefile.am template :

In order to add the doxygen setting file in the tarball generated with make dist, we must
specify it explicitely:

# Extra files to add in the archive
EXTRA_DIST = $(top_builddir)/autogen.sh

$(top_builddir)/default-
The doxyfile should be define :
Doxyfile

DOXYFILE ?= $(top_builddir)/default-Doxyfile

Then for the two targets we will :

Make a directory that will be used for the html extraction
Make a local copy of the default-Doxyfile
Upgrade of the Doxyfile with data from the composant :
oExtraction directory (HTML_OUTPUT)
oIts name (PROJECT_NAME)
oIts version (PROJECT_NUMBER)
oThe path of the source code to parse (INPUT)
Launch of the documentation by invoquing the doxygen tool
Remove the temporarily Doxyfile


Editing a
default doxygen

configuration


Doxywizard is a GUI front-end used for configuring and running doxygen. In our case we will just use it
for generating a config file.

When you start doxywizard it will display the main window (the actual look depends on the OS used).


The doxywizard tool (also known as doxygen-gui) can be used in order to generate a default doxygen
configuration. The project‘s name and its relative version will update the file afterwards.

 This GUI can be also used to edit an existing setting.

 The configuration should be save into a default-Doxyfile file.


DOCUMENTATION LAB

Launching unitary test with covering support
The goal of this topic is to know how to automaticaly launch unitary tests with covering
support using gcov for PKI data.

Launching a unitary test with covering support

 Adaptations needed :

 configure.ac :

 Add the --enable-test support that will exports HAVE_TEST to the
Makefiles.

Add the --enable-covering support for adding the gcov flags
to the build process.

 Makefile.am :

Add the make check support to make the unit tests automatic

Add the make covering support to make the lcov analysis automatic.


 test flag for enabling the unit tests:

Name : --enable-test

Mandatory : no

Default’s state : enable

If this flags is not set, the unit test binaries are not built. Thus, the “make check”
command doesn’t do anything at all.


 Adaptations needed :

dnl ---------------------------------------------------
dnl Check for lcov support
dnl ---------------------------------------------------
AC_PATH_PROG([LCOV], [lcov])
configure.ac  AC_PATH_PROG([GENHTML], [genhtml])

(first part) dnl Export the boolean value of the lcov check
AM_CONDITIONAL(HAVE_LCOV, test $LCOV)

dnl Display a warning in case the lcov tool is not found
dnl If not found, it will just display a warning.
if test –z ―$LCOV‖ then
AC_MSG_WARN([lcov/genhtml tools not found])
fi

 This initial test will check both if the lcov and genhtml tools are available in the current system.

 Thus we can be sure the make covering will be runable.

dnl --------------------------------------------
dnl Brief : enable or disable the unitary test
dnl Mandatory : no
dnl Values : none (just enable the tests if set)
dnl Default's value : disable
dnl --------------------------------------------
AC_ARG_ENABLE(test,
AS_HELP_STRING([--enable-test], [Enable the test unitary support [default=no]]),
yes) have_test=true ;;
configure.ac  no) have_test=false ;;
*) AC_MSG_ERROR(bad value ${enableval} for --enable-test) ;;
esac],
[have_test=false])
(second part) dnl --------------------------------------------
dnl Export the conditional HAVE_TEST variable to the Makefiles
dnl --------------------------------------------
AM_CONDITIONAL(HAVE_TEST, $have_test)
dnl --------------------------------------------
dnl Test the have_test variable and if equal to true
dnl --------------------------------------------
AC_MSG_CHECKING(Checking the test support)
if test "$have_test" != "false" ; then
dnl --------------------------------------------
dnl Display the result of the test ... yes
dnl --------------------------------------------
AC_MSG_RESULT([yes])

PKG_CHECK_MODULES([GTEST],[gtest >=
$LIBGTEST_REQUIRED_VERSION],[have_libgtest=yes],[have_libgtest=no])
AC_MSG_ERROR([Missing libgtest library (http://code.google.com/p/googletest/) !!])
fi
LIBGMOCK_REQUIRED_VERSION=1.5.0
PKG_CHECK_MODULES([GMOCK],[gmock >=
$LIBGMOCK_REQUIRED_VERSION],[have_libgmock=yes],[have_libgmock=no])
if test "$have_libgmock" = no ; then
AC_MSG_ERROR([Missing libgmock library !!])
fi
else
dnl --------------------------------------------
dnl Display the result of the test ... no
dnl --------------------------------------------
AC_MSG_RESULT([no])
If you are not using the Google test/mock you can avoid this step. If you need to check both the gtest and gmock
fi

dependencies.

 Checking the dependencies :

 Check the Google test library : configure.ac
dnl --------------------------------------------
dnl Test if the libgtest is well available in the stagingdir
dnl If so get the cflags and ldflag from the .pc file
dnl --------------------------------------------
PKG_CHECK_MODULES([GTEST],[gtest >= $LIBGTEST_REQUIRED_VERSION],[have_libgtest=yes],[have_libgtest=no])
AC_MSG_ERROR([Missing libgtest library (http://code.google.com/p/googletest/) !!])
fi

 Check the Google mock library : configure.ac

dnl --------------------------------------------
dnl Test if the libgmock is well available in the stagingdir
dnl If so get the cflags and ldflag from the .pc file
dnl --------------------------------------------
LIBGMOCK_REQUIRED_VERSION=1.5.0
PKG_CHECK_MODULES([GMOCK],[gmock >= $LIBGMOCK_REQUIRED_VERSION],[have_libgmock=yes],[have_libgmock=no])
if test "$have_libgmock" = no ; then
AC_MSG_ERROR([Missing libgmock (http://code.google.com/p/googlemock/) library !!])
fi

Dependencies are not mandatory. Indeed this is possible to use a single main in order to test our
development.


 Unit test definition :

TESTS = myUnitTestExecutable

# Definition of the unit test :
check_PROGRAMS = myUnitTestExecutable
myUnitTestExecutable_SOURCES = test1.cpp
myUnitTestExecutable_CPPFLAGS =
myUnitTestExecutable_LDFLAGS =
myUnitTestExecutable_LDADD =

By specifying the unit test executable as check_PROGRAMS instead of using
something like bin_PROGRAMS or noinst_PROGRAMS, it generates the
makefiles such that the files will only be built when you run ―make check‖.

The same can be done for libraries as well. You can use check_LIBRARIES
instead of lib_LIBRARIES to specify libraries that should only be built for unit
tests.


 Impact for the covering target in the configure.ac template :
dnl --------------------------------------------
dnl Brief : enable or disable the buildin covering mode
dnl Mandatory : no
dnl Values : none (just enable the covering mode if set)
dnl --------------------------------------------
AC_ARG_ENABLE(covering,
AS_HELP_STRING([--enable-covering], [Enable the building covering (gnu/gcov) support [default=no]]),
yes) have_covering=true ;;
no) have_covering=false ;;
*) AC_MSG_ERROR(bad value ${enableval} for --enable-covering) ;;
esac],
[have_covering=false])
dnl --------------------------------------------
dnl Test the have_covering variable and if equal to true
dnl --------------------------------------------
AC_MSG_CHECKING([Checking the covering support])
if test "$have_covering" = "true" ; then
dnl --------------------------------------------
dnl Display the result of the test ... yes
dnl --------------------------------------------  configure.ac
AC_MSG_RESULT([yes])

dnl --------------------------------------------
dnl Update the CFLAGS and CPPFLAGS with gcov options for gcc
dnl --------------------------------------------
CFLAGS=" $CFLAGS -fprofile-arcs -ftest-coverage "
CPPFLAGS=" $CPPFLAGS -fprofile-arcs -ftest-coverage "
LDFLAGS=" $LDFLAGS -fprofile-arcs "
else
dnl --------------------------------------------
dnl Display the result of the test ... no
dnl --------------------------------------------
AC_MSG_RESULT([no])
fi


Detail of the unit test covering for the current component by files:


The html export details the real lines used by the unitary test at the runtime :


Another detail from the html export :


 Summary :

The more the unitary tests (based on Google test/mock) will test
functions, the more the KPI will give good data.

The main goal is to target 100% but because some tests can
be difficult to check (exception, interraction with the system, … )

The tests should be runable on Hudson.

Actually each component provides the following data:

oNumber of lines (wc –l sloccount)
o% of lines tested
o% of functions tested
o% of branches tested


UNIT TEST & COVERING LAB


The goal of this lab is to add a covering support to your component.

For this check you have lcov in your path. In the wrong case you can download
the runtime package here: http://downloads.sourceforge.net/ltp/lcov-1.9.tar.gz

Immagine how to integrate the slocount tool in the same way :
•Sloccount command to launch : sloccount `pwd`
•Download : http://www.dwheeler.com/sloccount/sloccount-2.26.tar.gz
•http://www.dwheeler.com/sloccount/sloccount.html
•http://www.dwheeler.com/sloccount/
•Nb: don‘t forget to check the avaibility og the tool !


 More help about :

http://www.gnu.org/software/automake/
http://www.gnu.org/software/autoconf/
http://www.gnu.org/software/hello/manual/automake/Tests.html
http://www.crsr.net/Notes/CheckAndAutotools.html
http://gcc.gnu.org/onlinedocs/gcc/Gcov.html
http://ltp.sourceforge.net/coverage/lcov.php
http://codingfreak.blogspot.com/2009/02/gcov-analyzing-code-produced-
with-gcc.html
http://www.cmi.univ-
mrs.fr/~contensi/coursC/index.php?section=env&page=test

Managing the debug mode
The goal of this topic is to know how to select a debug/release mode relative to a build

 The main goal is to provide parameters to the GCC compiler and to the LD linker in order to
have a build usable with a debug mode.

 Gcc have a set of parameters that can be used for customizing the debug mode :

 For more detail : http://gcc.gnu.org/onlinedocs/gcc/Debugging-Options.html


DEBUG MODE LAB

The goal of this lab is to add a debug support to your
Autotools projet.

 Test a build using this one and another build without and check
the debug flags are well provided to gcc through the CFLAGS.

 Check the final ELF library have well the debug symbols :

file ELFfile
nm -gC ELFLib.so
objdump -h ELFfile
objdump -TC ELFLib
readelf -Ws /usr/lib/libexample.so
readelf -Ws /usr/lib/libstdc++.so.6 |
grep '^([[:space:]]+[^[:space:]]+){6}[[:space:]]+[[:digit:]]+‘
readelf -Ws /usr/lib/libstdc++.so.6 | awk '{print $8}';

Manage the optimization level
The goal of this topic is to know how to select an optimization level relative to a build


OPTIMIZATION LAB


The goal of this lab is to update an autotools component
with an optimization level support by adding a
--with-optim-level=3 parameter.

Test a build using this one and another build without and
check the flags -Ox is well provided to gcc according to the
level expected.

Manage the profiling mode
The goal of this topic is to know how to select a debug/release mode relative to a build

 Cohabitation problems between gnu prof (aka gprof) and the pthread :

gprof is the GNU Profiler, a tool used when tracking which functions are eating CPU in your program. Anyway, you
should already be familiar with it if you got interested in this page.

One problem with gprof under certain kernels (such as Linux) is that it doesn‘t behave correctly with multithreaded
applications. It actually only profiles the main thread, which is quite useless.

 Workaround

There is an easy, but surprisingly not very widespread fix for this annoying gprof behaviour. Basically, gprof uses the
internalITIMER_PROF timer which makes the kernel deliver a signal to the application whenever it expires. So we just
need to pass this timer data to all spawned threads.

 Example

It wouldn‘t be too hard to put a call to setitimer in each function spawned by a thread, but I thought it would be more
elegant to implement a wrapper for pthread_create.

Daniel Jönsson enhanced my code so that it could be used in a preload library without having to modify the program. It
can also be very useful for libraries that spawn threads without warning, such as libSDL.

The result code is shown below and can be downloaded here: http://sam.zoy.org/writings/programming/gprof-helper.c

 more detail: http://sam.zoy.org/writings/programming/gprof.html


PROFILING LAB


The goal of this lab is to update an autotools component
with the profiling support by adding a –enable-profiling
parameter.

Test a build using this one and another build without
and check the flags -pg is well provided to gcc.

The cross-compilation
The goal of this topic is to know how cross-compile.

 Example of cross-compilation in action :

./configure --build i686-pc-linux-gnu --host i586-mingw32msvc

checking for a BSD-compatible install... /usr/bin/install -c
checking whether build environment is sane... yes
checking for gawk... gawk
checking whether make sets $(MAKE)... yes
checking for i586-mingw32msvc-strip... i586-mingw32msvc-strip
checking for i586-mingw32msvc-gcc... i586-mingw32msvc-gcc
checking for C compiler default output file name... a.exe
checking whether the C compiler works... yes
checking whether we are cross compiling... yes
checking for suffix of executables... .exe
checking for suffix of object files... o
checking whether we are using the GNU C compiler... yes
checking whether i586-mingw32msvc-gcc accepts -g... yes
checking for i586-mingw32msvc-gcc option to accept ANSI C
etc ...

One of the main advantage of the autotools is to be portable to an architecture to another one.
The configure script have some parameters where we can specify the local and final architecture :

By default, the `configure' script will assume that the target is the same as the host. This is the more common case
; for example, it leads to a native compiler rather than a cross compiler.

The --host and --build options are usually all we need for cross-compiling. The only exception is if the package
being built is itself a cross-compiler: we need a third option to specify its target architecture.

 Native compiling (for the host):
./configure –prefix=/usr --host=i386-linux-gnu …
./ configure –prefix=/usr …

 Cross-compiling :
./configure –prefix=/usr –host=i386-linux-gnu –build=mips-elf …

 Using the Host type :

In almost all cases the host system is the system on which you run the `configure' script, and on which
you build the tools (for the case when they differ, see section Canadian Cross).

If your configure script needs to know the configuration name of the host system, and the package is not
a cross compilation tool and therefore does not have a target, put `AC_CANONICAL_HOST' in
`configure.in'. This macro will arrange to define a few shell variables when the `configure' script is run.

host
The canonical configuration name of the host. This will normally be determined by running
the `config.guess' shell script, although the user is permitted to override this by using an explicit
`-- host' option.

host_alias
In the unusual case that the user used an explicit `--host' option, this will be the argument to `-
- host'. In the normal case, this will be the same as the `host' variable.

host_cpu
host_vendor
host_os
The first three parts of the canonical configuration name.

 Using the Target type :

If you want to build a cross compilation tool, you must specify the target explicitly by using the `--target' option when you run
`configure'. The argument to `--target' is the configuration name of the system for which you wish to generate code. See
section Configuration Names.

For example, to build tools which generate code for a MIPS ELF embedded system, you would use `--target mips-elf'.

When writing `configure.in' for a cross compilation tool, you will need to use information about the target. To do this, put
ÀC_CANONICAL_SYSTEM' in `configure.in'.

ÀC_CANONICAL_SYSTEM' will look for a `--target' option and canonicalize it using the `config.sub' shell script. It will
also run ÀC_CANONICAL_HOST' (see section Using the Host Type).

The target type will be recorded in the following shell variables. Note that the host versions of these variables will also be
defined by ÀC_CANONICAL_HOST'.

 target
The canonical configuration name of the target.

 target_alias
The argument to the `--target' option. If the user did not specify a `--target' option, this will be the same as
host_alias

 target_cpu
 target_vendor
 target_os

 This is a string of the form cpu-manufacturer-operating_system. In some cases, this is extended to a four part
form:
cpu-manufacturer-kernel-operating_system
(eg: i686-cm-linux)

 When using a configuration name in a configure option, it is normally not necessary to specify an entire name. In
particular, the manufacturer field is often omitted, leading to strings such as `i386-linux' or `sparc-sunos'. The shell
script `config.sub' will translate these shortened strings into the canonical form. autoconf will arrange for `config.sub'
to be run automatically when it is needed.

 The shell script `config.guess' will normally print the correct configuration name for the system on which it is run.
It does by running `uname' and by examining other characteristics of the system. Because `config.guess' can normally
determine the configuration name for a machine, it is normally only necessary to specify a configuration name when
building a cross-compiler or when building using a cross-compiler.

 This should be synchronize with the toolchain‘s prefix.

The configure script can detect the host system thanks to the
―AC_CANONICAL_HOST‖ or ‖AC_CANONICAL_SYSTEM‖ m4 macros:

AC_CANONICAL_HOST

case "${host}" in
i[3456]86-*-linux-gnu*) do something ;; Example of action that depend
sparc*-sun-solaris2.[56789]*) do something ;; on the host type.
sparc*-sun-solaris*) do something ;;
mips*-*-elf*) do something ;;
esac

In cross-compilation mode, binaries will be generate with a prefix that will follow the one
provide to the target argument.

In other word, native build will generate : mybinary

And with a target equal to i686-cm-linux prefix the binary will become : i686-cm-linux-
mybinary

 This is possible to do not add the prefix in cross-compilation mode if the following parameter is set
to the configure script:

--program-transform-name=""

 Thus the final name won‘t have any impact and won‘t change.


CROSS-COMPILATIONLAB

The main goal of this lab is to compile a helloworld binary in
three times:

For the host: ./configure --prefix=/usr

For a target: ./configure --prefix=/usr

--host=i386-linux-gnu

--build=mips-elf

For a target: ./configure --prefix=/usr

--host=i386-linux-gnu

--build=mips-elf

Check the autotools for hudson
SPECIFIC TECHNICOLOR
The goal of this topic is to be sure the autotools will work with hudson.


Hudson make the autotools usage more difficult to use.

 Objets are not generated in the top_srcdir path but in top_builddir

So because top_srcdir != top_builddir, developers should valide their
autotools template before to apply a baseline on clearcase.


HUDSON LAB


The main goal of this lab if to valid your autotools by
Following the previous steps.

 After the « make dist », the extraction, and the configuring,
we should be able to compile and link.

If you have time, you can write a bash script for automating
This checking.

The M4 macros
The goal of this topic is to know how M4 macros are written.

The M4 macros
Autoconf modifies the M4 environment in a few ways. First, as mentioned earlier, it changes the
default quote characters from the backtick and single quote characters to the open and close square
bracket characters. In addition, it configures M4 built-in macros such that most are prefixed with m4_,
thereby creating a unique namespace for M4 macros. Thus, the M4 define macro becomes m4_define,
and so on.

Autoconf provides its own version of m4_define called AC_DEFUN. You should use AC_DEFUN
instead of m4_define because it ensures that certain environmental constraints important to Autoconf
are in place when your macro is called!!

The AC_DEFUN macro supports a prerequisite framework, so you can specify which macros are
required to have been called before your macro may be called.

This framework is accessed by using the AC_REQUIRE macro to indicate your macro‘s requirements
at the beginning of your macro definition, like so:

# Test for option A
AC_DEFUN([TEST_A],
[AC_REQUIRE([TEST_B])dnl
test " $A" = "yes" && options=" $options A"])

The M4 macros
This is possible to write a custom m4 macro :
There are two ways to organize custom macros in a package:

 The first possibility (the historical practice) is to list all your macros in acinclude.m4. This file
will be included in aclocal.m4 when you run aclocal, and its macro(s) will henceforth be visible
toautoconf. However if it contains numerous macros, it will rapidly become difficult to maintain,
and it will be almost impossible to share macros between packages.

 The second possibility, which we do recommend, is to write each macro in its own file and
gather all these files in a directory. This directory is usually called m4/. To build aclocal.m4, one
should therefore instruct aclocal to scan m4/. From the command line, this is done with ‗aclocal -I
m4‘. The top-level Makefile.am should also be updated to define:

ACLOCAL_AMFLAGS = -I m4

 ACLOCAL_AMFLAGS contains options to pass to aclocal when aclocal.m4 is to be rebuilt
by make.

This line is also used by autoreconf.

The M4 macros
 Example:

AC_DEFUN([TRAVOLTA],
[test "$body_temperature_in_celsius" -gt "38" && dance_floor=occupied])

AC_DEFUN([NEWTON_JOHN],
[test "$hair_style" = "curly" && dance_floor=occupied]) my_macros.m4
AC_DEFUN([RESERVE_DANCE_FLOOR],
[if date | grep '^Sat.*pm' >/dev/null 2>&1; then
AC_REQUIRE([TRAVOLTA])
AC_REQUIRE([NEWTON_JOHN])
fi])

With this configure.ac :

AC_INIT
sinclude(my_macro.m4)
RESERVE_DANCE_FLOOR configure.ac
if test "$dance_floor" = occupied; then
AC_MSG_ERROR([cannot pick up here, let's move])
fi

The M4 macros
 If you have somme command you often use in your configure.ac :
make_command="―  We suppose you have written a small
for a in "$MAKE" make gmake gnumake check already used in your "configure" script
do test -z "$a" && continue
if ( sh -c "$a --version" 2>/dev/null | grep GNU >/dev/null )
- which is actually a bourne shell script that
then make_command=$a ; break; calls other tools and possibly sets an
fi AC_SUBST variable to be replaced in your
done Makefile.in. It may look like the following
if test -z $make_command check for a "gnu make" in the build
then ifGNUmake="―
else ifGNUmake="#―
environment.
fi
AC_SUBST(ifGNUmake)

 In the first step, one would extract that part from the "configure" script and put it into its own file. For a first test, please use the
"acinclude.m4" file. The next call of `aclocal && autoconf` will copy the new macro to "aclocal.m4" and from there to "configure". So,
now you have an extra file "acinclude.m4" reading:
AC_DEFUN(CHECK_GNU,[
make_command=""
for a in "$MAKE" make gmake gnumake
do test -z "$a" && continue
then make_command=$a ; break;
fi
done
if test -n $make_command
then ifGNUmake=""
else ifGNUmake="#"
fi
AC_SUBST(ifGNUmake)
])

....
CHECK_GNU
...

The M4 macros
 Now you are already done with having your own autoconf macro. And you can be quite sure that it will work in
your project - and probably you have tested it on the platforms you do usually build for. Believe it or not, this is a
rather "controlled" environment - if you push the macro to the AC Macro Archive then your macro might make it
into other projects where they will meet lots of other macros, lots of other shell code, lots of different platforms. And
possibly, it will fail over there - however there are some steps that can be checked before.

 Add m4-quotings - AC_DEFUN([CHECK_GNU])
In the wild, your "CHECK_GNU" might have been already defined elsewhere. It is perfectly possible to redefine a macro but only if
AC_DEFUN will see the name. Without the m4-quotes "[...]" however, the predefined macro CHECK_GNU will be expandend before.
In many many cases it results in "syntax errors" occuring near your usage of CHECK_GNU and they are not telling about a redefine
problem at all. It is really hard to get after that one.

 Add m4-quotings - AC_SUBST([ifGNUmake])
For the same reason, you should put m4-quotes in any other places where actually an m4-macro is being created - or possibly you are
going to use a symbol that might be a complex macro. As a rule of thumb, all uppercase-symbols might be defined as a macro
somewhere else. Please put all of them into m4-quotes "[...]". By the way, if you need a pair of "[..]" to be output to the "configure"
script, just double (or triple) them as "[[...]]".

 var-settings need doublequotes - make_command="$a"
Most people forget about a problem here - if there is a single space between the "=" and anything to follow then the righthand side will
be executed as a command and the return value of that command gets assigned. In other words, 'a="echo foo" ; var= $a' will not set
"$var" to "foo" but instead print "foo" to the user screen. Putting doublequotes around the righthand side will ensure it gets never ever
executed errornously. If you really want to get the execution value, then use backticks to express just that: 'a=`echo foo`'.

 test emptyness as : test "x$var" = "x"
The "test" command happens to be implemented very very differently on the various platforms, in fact it is mostly a builtin to the shell
you happen to have your configure script get executed with. While "-z" is seen often, even "-n" is rarely implemented. Even more, there
are some buggy shells which remove an empty "" string completely instead of providing an empty argument to the "test" command, so
that "test" would see a 'test "$var" = ""' as a real 'test =' - and ask for a syntax error.

The M4 macros
 Use cache variables - _cv_make_command
Your macro might be used by other macros which get each expanded into the final "configure" script. That will make your
check code to be executed multiple times. Not necessary, and for a compile-and-run test it would be very time consuming.
Also, the cache-variables allow a packager guru to pre-set the check-result, yielding faster "configure" and allows to handle
problems with cross-compile setups. The configure script will automatically save-to-cache all shell variables containing a
"_cv_" in the name.

 Use AC_MSG_RESULT - after AC_MSG_CHECKING / AC_CACHE_CHECK
Inform the user when the "configure" script enters your macro and when it leaves your macro. If there are problems, they can
be identified faster - remember that an extra autoconf macro file is in a distant place perhaps and the original "configure.ac"
has only a macro name, and possibly not even your macro name but a different one that happens to use your macro in its
definition. At best, inform the user of the result - and try to avoid terminology that is not helpful to a non-coder.

 Don't be afraid of long names - use AS_VAR_PUSHDEF / POPDEF
You should avoid to destroy shell variable values possibly used somewhere else - or the ones of the other macro calling your
macro. As for short-lived variables that do not span over other macros, just use very short names - for the other ones use a long
prefix that resembles the name of your macro check.

 Use a specific prefix - do not use AC_ or AM_
Many macro names might be defined under the same name elsewhere. Usually, you would use a project prefix to avoid double
defines, i.e. MYPROJECT_CHECK_GNU. Do never use AC_CHECK_GNU since all AC_ names are reserved - even if you
know there is no such macro in the "autoconf" package then it might still be added later. If you intend to submit your macro the
AC Macro Archive then you can use the AX_ prefix - we take all macros and we will ensure all macros in the archive are
unique. Always and forever.

The M4 macros
 After applying all these guideline, the macro might now look like this:

AC_DEFUN([AX_CHECK_GNU_MAKE],[
AC_CACHE_CHECK([for GNU make],ax_cv_gnu_make_command,[
AS_VAR_PUSHEDEF([_make_command],ax_cv_gnu_make_command)dnl
_make_command="―
for a in "$MAKE" make gmake gnumake
do test "x$a" = "x" && continue
then _make_command="$a" ; break;
fi
done
if test "x$_make_command" != "x"
then ifGNUmake=""
AC_MSG_RESULT([$_make_command])
else ifGNUmake="#"
AC_MSG_RESULT([nothing found])
fi
AC_SUBST([ifGNUmake])
AS_VAR_POPDEF([_make_command])dnl
]])

The M4 macros
 Adding some action : ACTION-IF-TRUE / ACTION-IF-FALSE

If you have a look around then you will notice that most "CHECK" macros have additional and optional arguments.
Those may contain shell-code (or other autoconf macros) that should be executed when the autodection fails (or
additionally when it succeeds). Autoconf macros are numbered, and the first argument is generally reserved for sub-
specifications - e.g. additional "make" program names to check for

dnl -------------------------------------------------------------------------------------------------------------------
dnl AX_CHECK_GNU_MAKE([make names],[ACTION-IF-FOUND],[ACTION-IF-NOT])
dnl -------------------------------------------------------------------------------------------------------------------
AC_DEFUN([AX_CHECK_GNU_MAKE],[
AC_CACHE_CHECK([for GNU make],ax_cv_gnu_make_command,[
AS_VAR_PUSHEDEF([_make_command],ax_cv_gnu_make_command)dnl
_make_command=""
for a in "$MAKE" $1 make gmake gnumake
do test "x$a" = "x" && continue
then _make_command="$a" ; break;
fi
done
if test "x$_make_command" != "x"
then ifGNUmake=""
AC_MSG_RESULT([$_make_command])
$2
else ifGNUmake="#"
AC_MSG_RESULT([nothing found])
$3
fi
AC_SUBST([ifGNUmake])
AS_VAR_POPDEF([_make_command])
]])

The M4 macros
 Using a custom m4 functions is done by including

Automake supports an include directive which can be used to include other `Makefile' fragments when automake is
run. Note that these fragments are read and interpreted by automake, not by make. As with conditionals,make has no
idea that include is in use.

There are two forms of include:

include $(srcdir)/file
include a fragment which is found relative to the current source directory.

include $(top_srcdir)/file
include a fragment which is found relative to the top source directory. Note that if a fragment is included
inside a conditional, then the condition applies to the entire contents of that fragment.

Example of m4 macro include:
include(pkg.m4)
sinclude(pkg.m4)

The M4 macros

M4 MACROS LAB

The M4 macros
The main goal for this lab is to create a file called mymacros.m4
that will contains custom m4 macros for the autotools.

In this file create a new M4 macro called :
AX_CHECK_GNU_LINUX_KERNEL_VERSION used for testing the
gnu/linux kernel version. We are expecting a 2.6.X not bellow.

The current version can be obtain by several way:
uname –a or uname –r

cat /proc/version
Linux version 2.6.35-28-generic (buildd@rothera) (gcc version 4.4.5 (Ubuntu/Linaro 4.4.4-14ubuntu5) ) #50-
Ubuntu SMP Fri Mar 18 19:00:26 UTC 2011

cat /proc/sys/kernel/osrelease
2.6.35-28-generic

Then, test the new macro in your configure.ac script.

Links 1/2
• OFFICIAL GNU MANUALS:
•
 GNU Make manual : http://www.gnu.org/software/make/manual/
 GNU M4 macros manual : http://www.gnu.org/software/m4/manual/index.html
 GNU libtools manual : http://www.gnu.org/software/libtool/manual/
 GNU autoconf manual : http://www.gnu.org/software/autoconf/
 GNU automake manual : http://www.gnu.org/software/automake/manual/
 Old book on the Autotools : http://sources.redhat.com/autobook/

 Other GNU manuals : http://www.gnu.org/manual/manual.html

Some application notes have been uploaded into Sharepoint about the Autotools usage:

http://systems.thomnet.com/km/STB/HybridSTB/Revolution/ProjectDocuments/application%20note%20-
%20doxygen%20documentation%20with%20the%20autotools.docx

%20integration%20of%20the%20debug%20mode%20in%20autotools.docx

%20int%C3%A9gration%20of%20the%20tests%20in%20autotools.docx

%20pkgconfig%20with%20the%20autotools.docx

%20version%20management%20in%20autotools.docx

Links 2/2 : other useful links
http://www.murrayc.com/learning/linux/automake/automake.shtml
http://www.murrayc.com/learning/linux/using_libraries/using_libraries.shtml
http://www.murrayc.com/learning/linux/building_libraries/building_libraries.shtml
http://www.gnu.org/software/libtool/
http://www.gnu.org/software/make/
http://www.gnu.org/software/m4/m4.html
http://www.gnu.org/software/m4/manual/m4.html
http://www.developingprogrammers.com/index.php/2006/01/05/autotools-tutorial/
http://www.cppfrance.com/tutoriaux/AUTOTOOLS-AUTOCONF-AUTOMAKE-LIBTOOL_876.aspx
http://www.lrde.epita.fr/~adl/autotools.html
http://inti.sourceforge.net/tutorial/libinti/autotoolsproject.html
http://www.cs.wmich.edu/~kkaugars/projects/Automake.html
http://www.st-andrews.ac.uk/~iam/docs/tutorial.html
http://autotoolset.sourceforge.net/tutorial.html
http://www.linuxselfhelp.com/gnu/autoconf/html_chapter/autoconf_toc.html
http://media.vodka-pomme.net/autotools/autotools.pdf
http://www-igm.univ-mlv.fr/~dr/XPOSE/Breugnot/
http://irt.enseeiht.fr/boyer/Automake-Autoconf/Automake.htm
http://ymettier.free.fr/articles_lmag/lmag75/lmag75.html
http://sourceware.org/autobook/autobook/autobook_toc.html#SEC_Contents
http://developer.kde.org/documentation/other/makefile_am_howto/en/index.html
http://git.ademar.org/gitweb.cgi?p=autotools.git;a=summary
http://www.flameeyes.eu/autotools-mythbuster/
http://www-igm.univ-mlv.fr/~dr/XPOSE/Breugnot/
http://www.gnu.org/software/gnuradio/doc/howto-write-a-block.html
http://www.seul.org/docs/autotut/
http://www-lil.univ-littoral.fr/~quesnel/download/autotools.pdf

Thanks for your attention

06/17/10

Autotools pratical training

More Related Content

What's hot

Viewers also liked

Similar to Autotools pratical training

Recently uploaded

Autotools pratical training
