1. (ATS6-PLAT04) Query Service
Jon Hurley
Senior Manager
Platform R&D
Jon.Hurley@accelrys.com

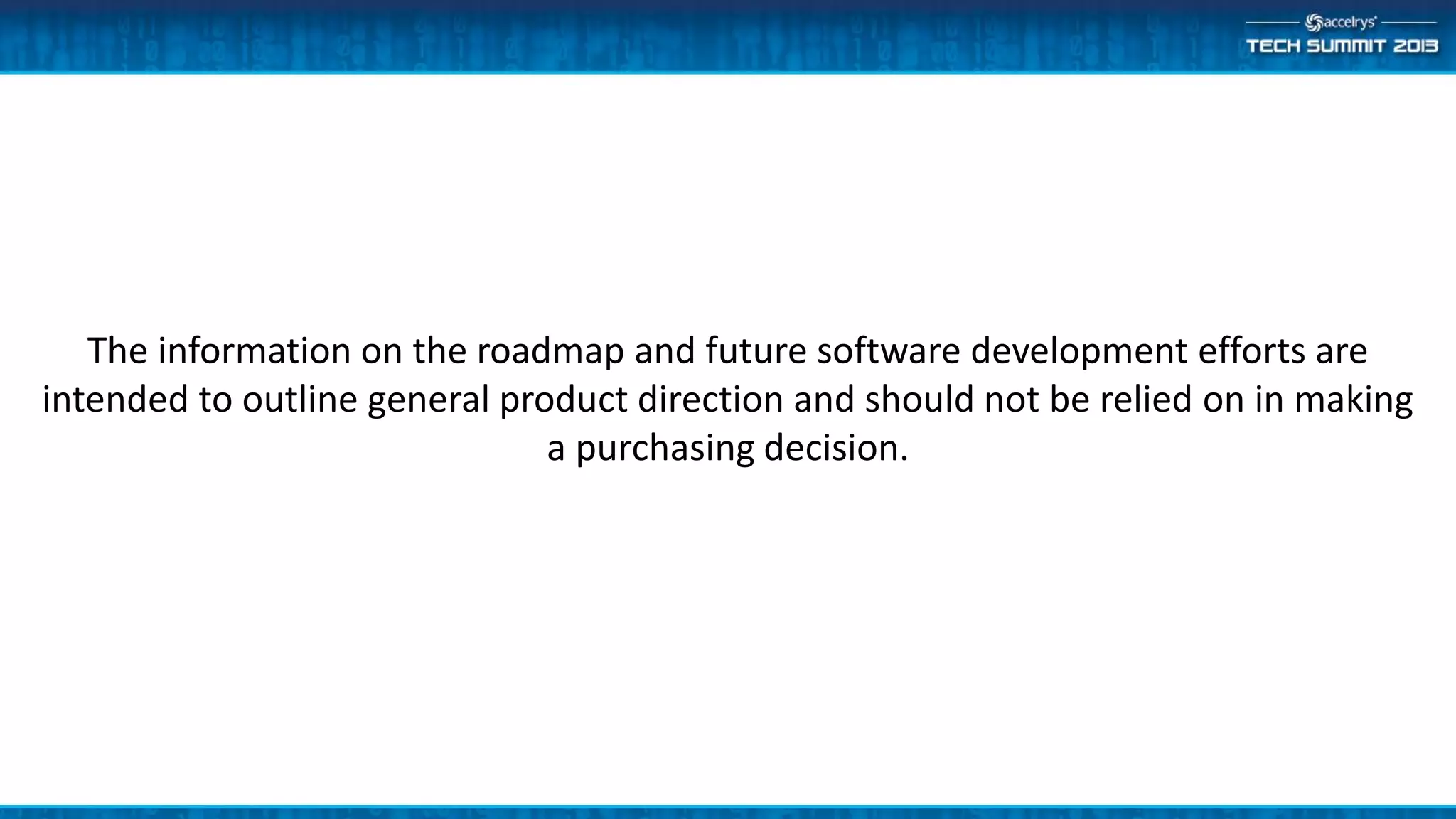

2. The information on the roadmap and future software development efforts are
intended to outline general product direction and should not be relied on in making
a purchasing decision.

3. • Introduction
• Administrator
– Installation
– Configuring data sources
• Application Developer
– RESTful API
• Protocol Author
– Pipeline Pilot Component Collection
• Conclusion
Content

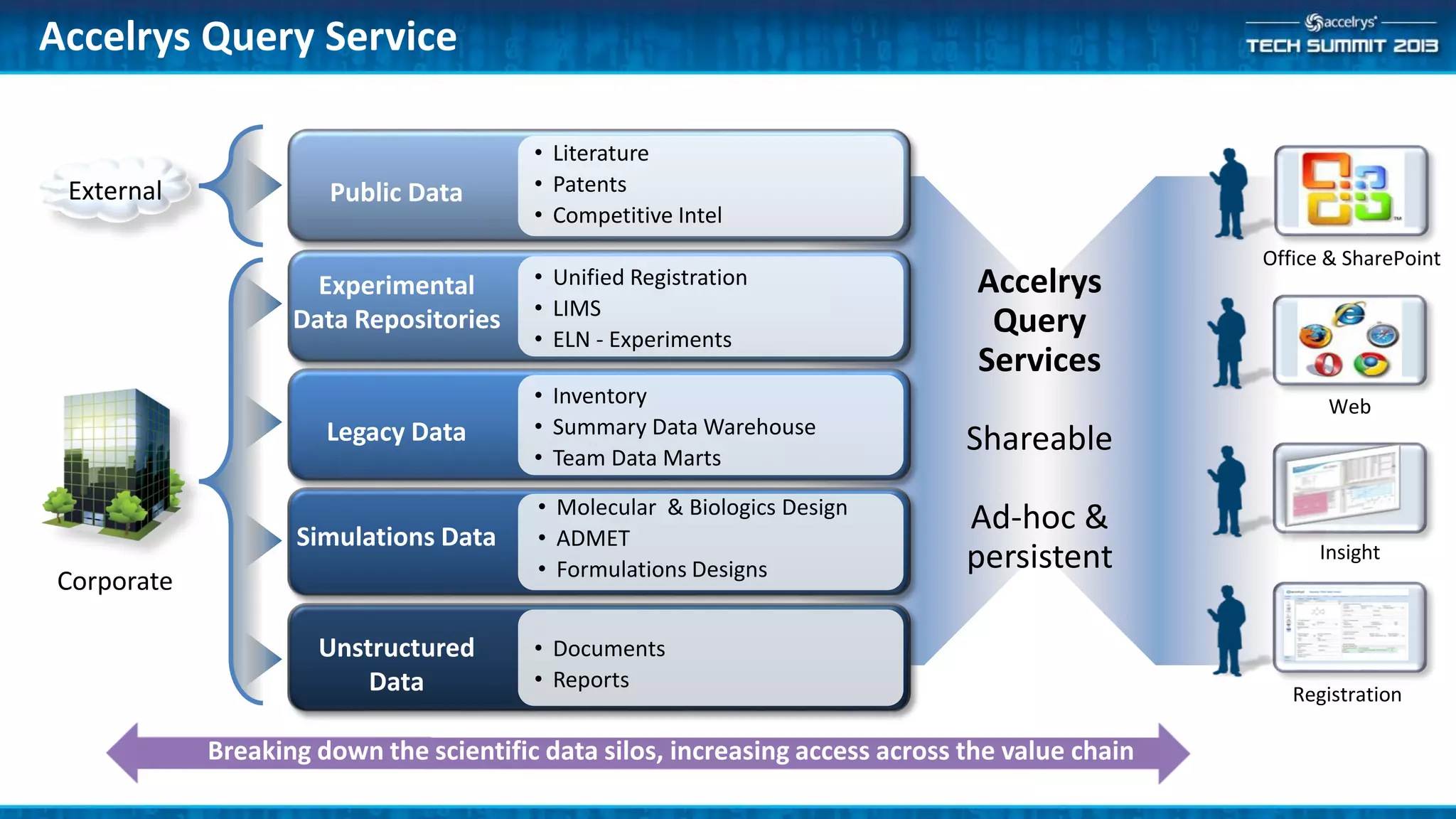

4. Accelrys Query Service
Accelrys
Query
Services
Shareable
Ad-hoc &
persistent
Public Data
• Literature
• Patents
• Competitive Intel
Experimental
Data Repositories
• Unified Registration
• LIMS
• ELN - Experiments
Legacy Data
• Inventory
• Summary Data Warehouse
• Team Data Marts
Simulations Data
• Molecular & Biologics Design
• ADMET
• Formulations Designs
Unstructured
Data
• Documents
• Reports
Office & SharePoint
Web
Insight
Registration
Breaking down the scientific data silos, increasing access across the value chain
Corporate
External

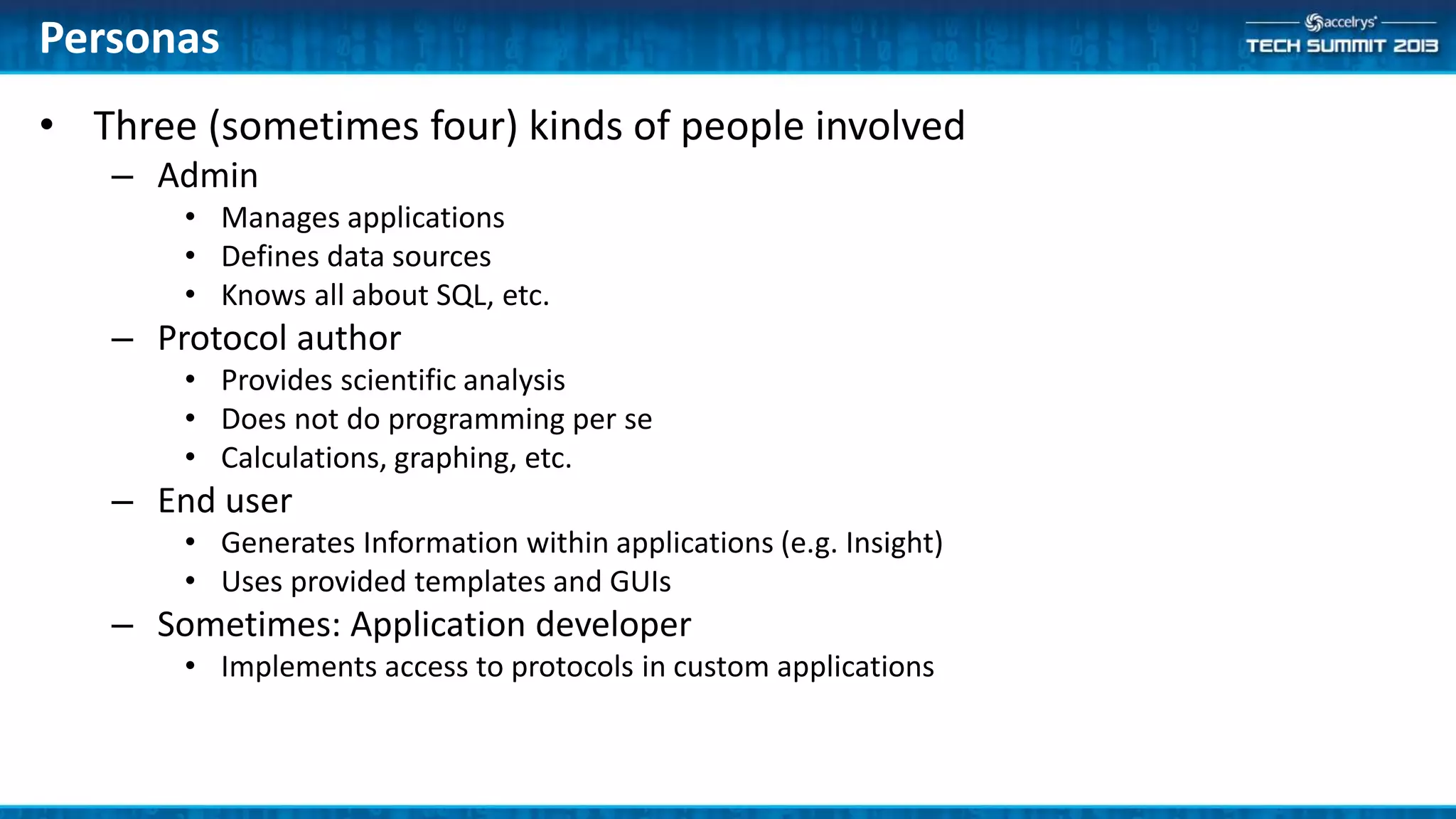

5. • Three (sometimes four) kinds of people involved
– Admin
• Manages applications
• Defines data sources
• Knows all about SQL, etc.
– Protocol author
• Provides scientific analysis
• Does not do programming per se
• Calculations, graphing, etc.
– End user
• Generates Information within applications (e.g. Insight)
• Uses provided templates and GUIs
– Sometimes: Application developer
• Implements access to protocols in custom applications
Personas

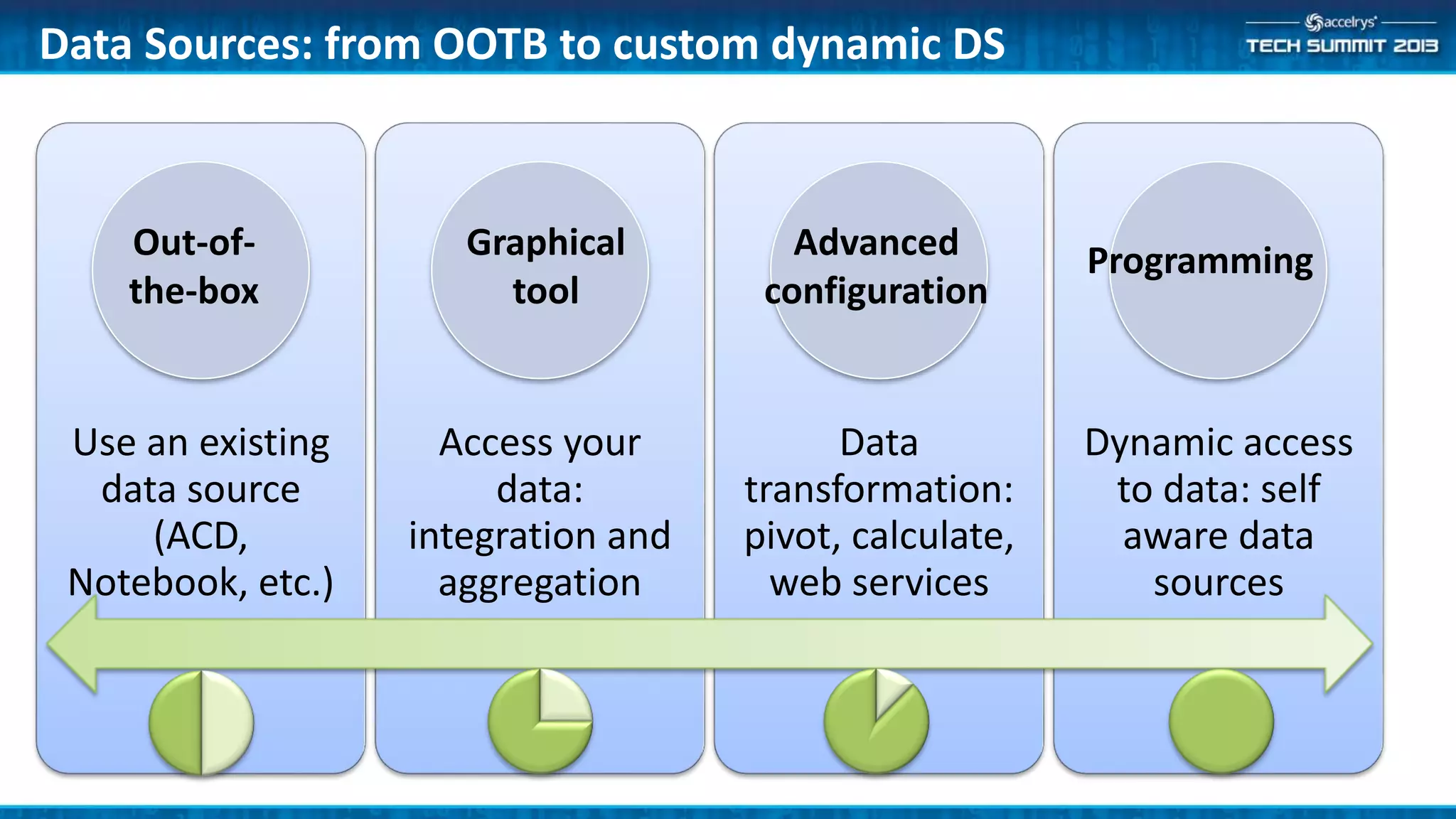

6. Use an existing
data source
(ACD,
Notebook, etc.)
Access your
data:
integration and
aggregation
Data
transformation:
pivot, calculate,
web services
Dynamic access
to data: self
aware data
sources
Data Sources: from OOTB to custom dynamic DS
Out-of-
the-box
Graphical
tool
Advanced
configuration
Programming

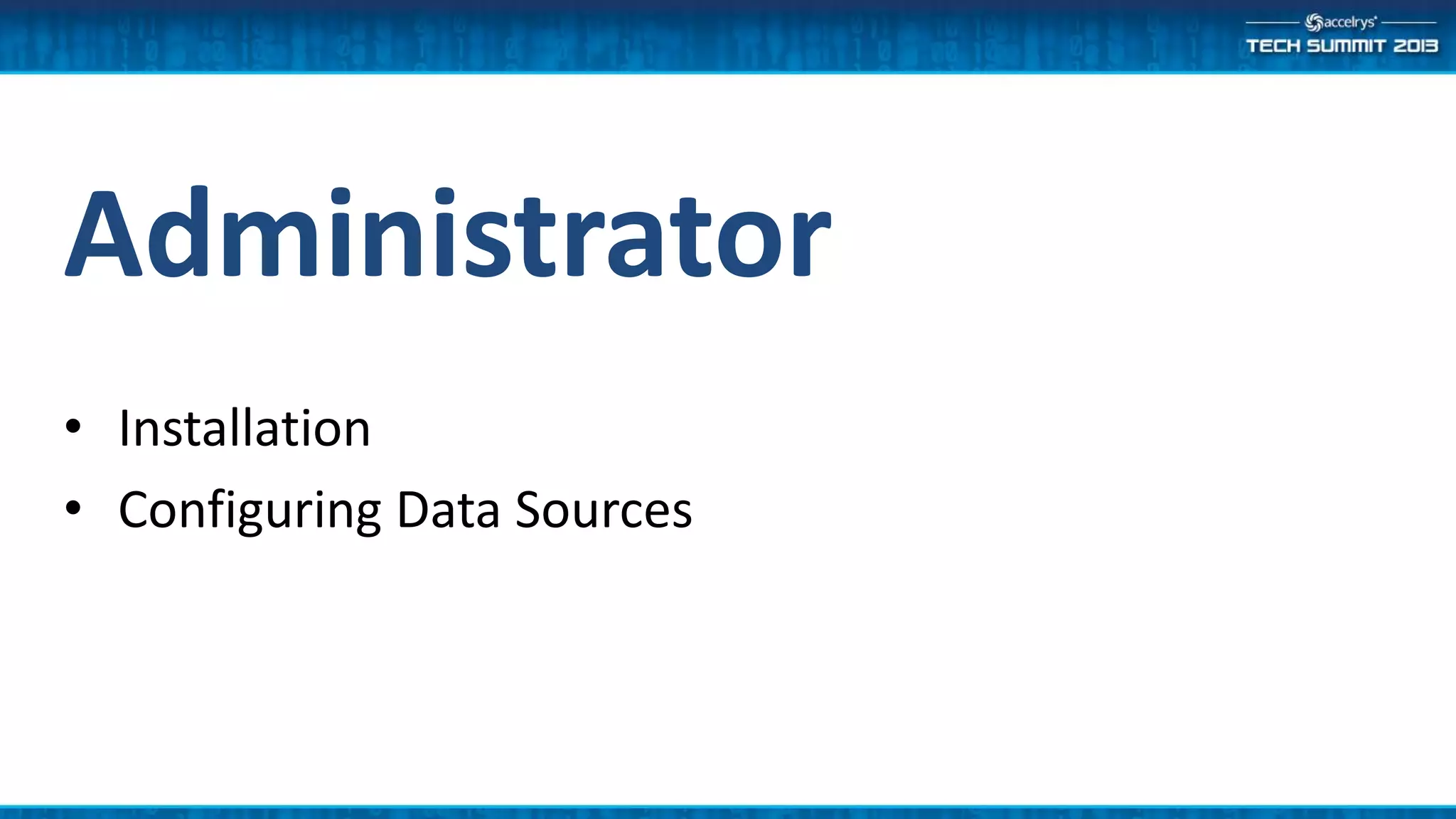

7. Administrator
• Installation
• Configuring Data Sources

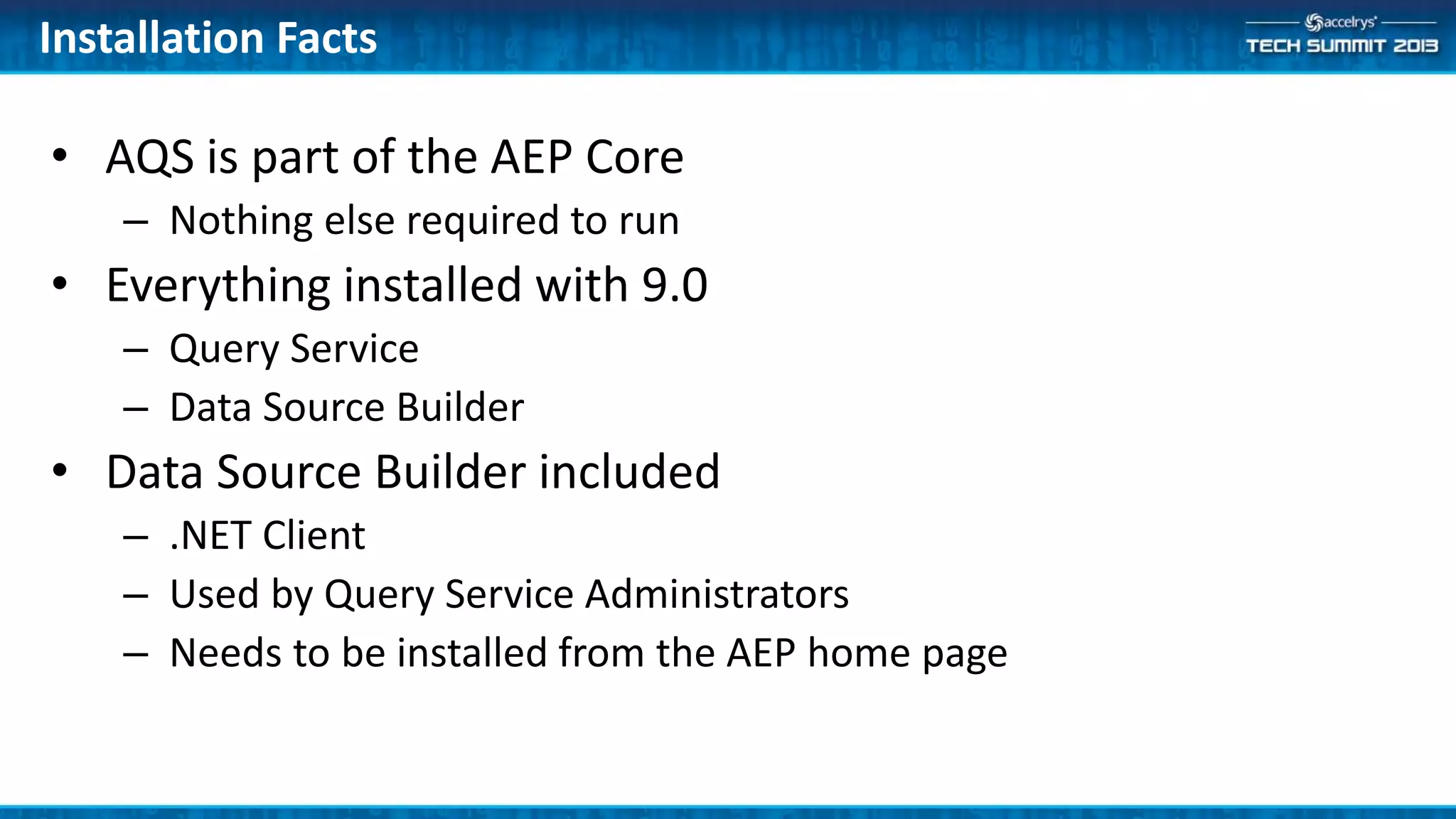

8. • AQS is part of the AEP Core
– Nothing else required to run
• Everything installed with 9.0
– Query Service
– Data Source Builder
• Data Source Builder included
– .NET Client
– Used by Query Service Administrators
– Needs to be installed from the AEP home page
Installation Facts

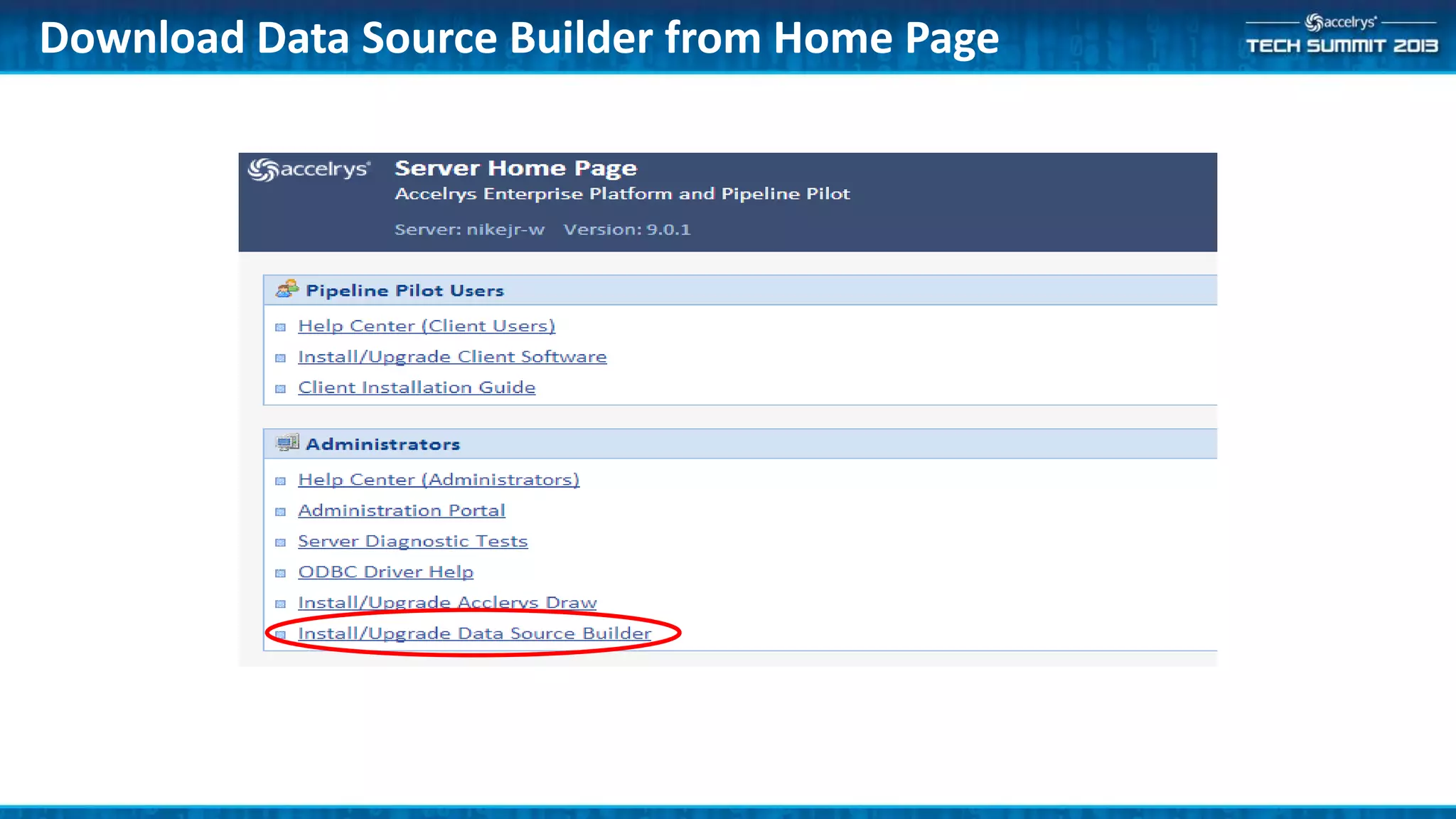

9. Download Data Source Builder from Home Page

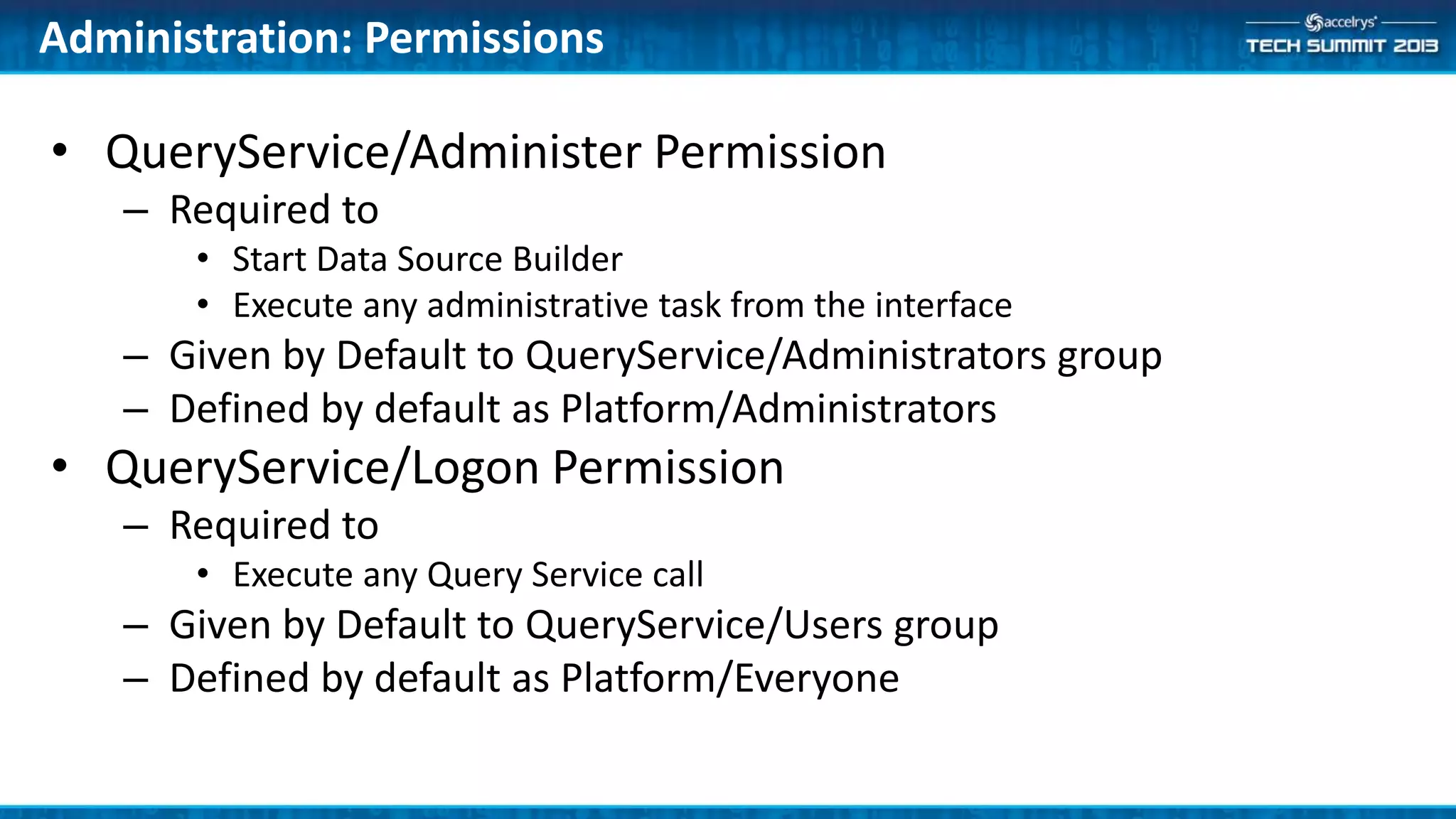

10. • QueryService/Administer Permission
– Required to
• Start Data Source Builder
• Execute any administrative task from the interface
– Given by Default to QueryService/Administrators group
– Defined by default as Platform/Administrators
• QueryService/Logon Permission
– Required to
• Execute any Query Service call
– Given by Default to QueryService/Users group
– Defined by default as Platform/Everyone
Administration: Permissions

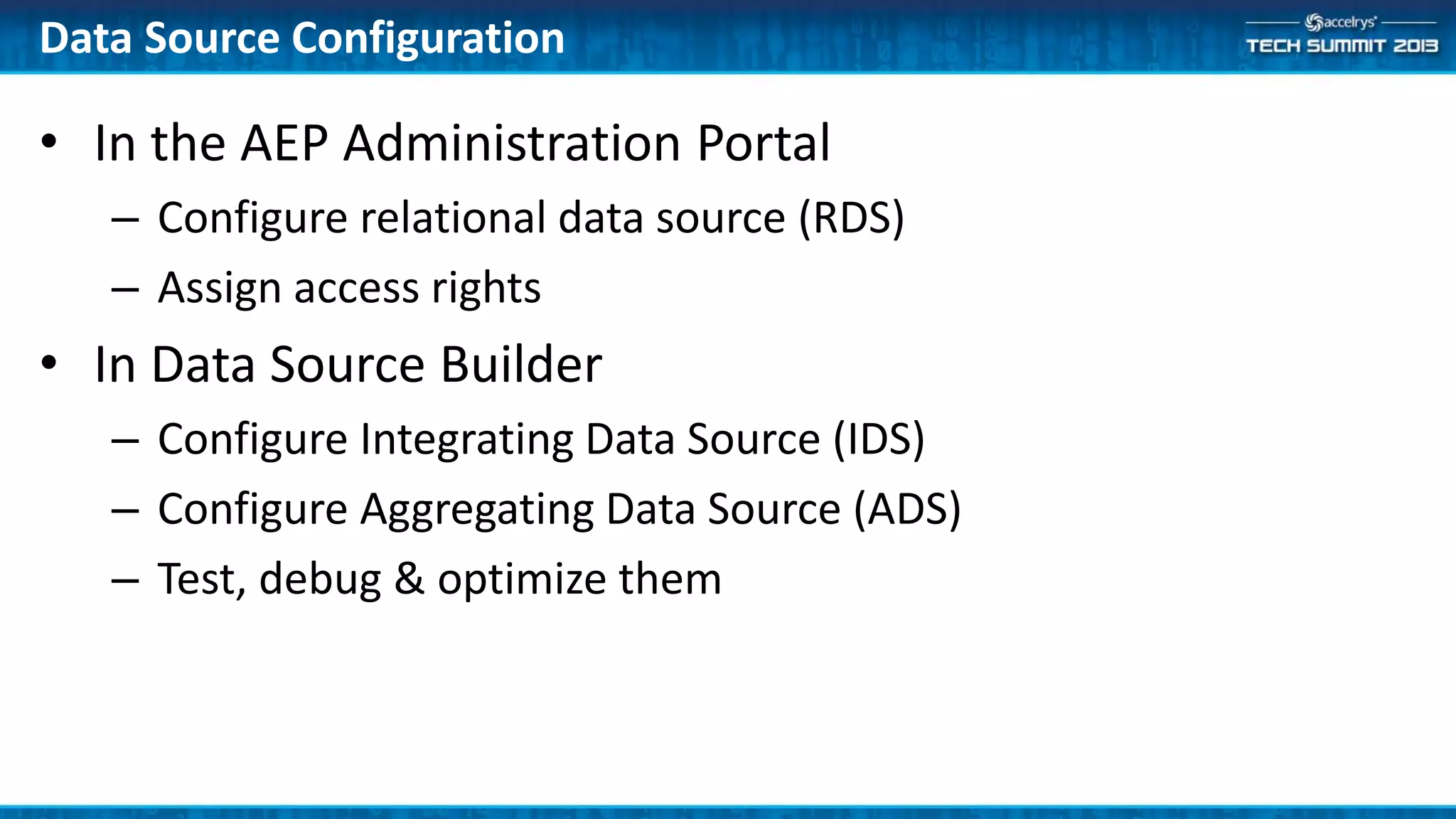

11. • In the AEP Administration Portal
– Configure relational data source (RDS)
– Assign access rights
• In Data Source Builder
– Configure Integrating Data Source (IDS)
– Configure Aggregating Data Source (ADS)
– Test, debug & optimize them
Data Source Configuration

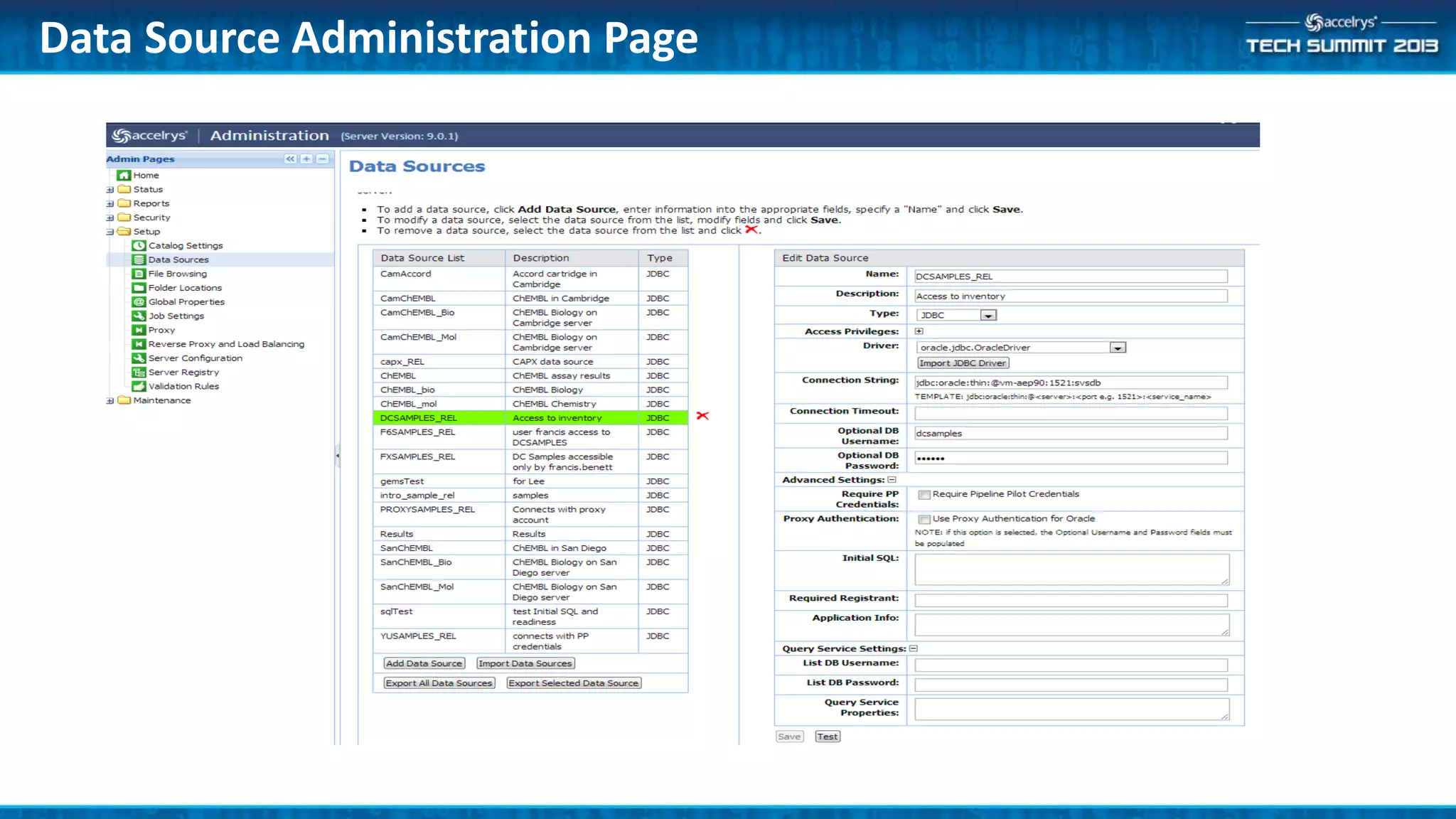

12. Data Source Administration Page

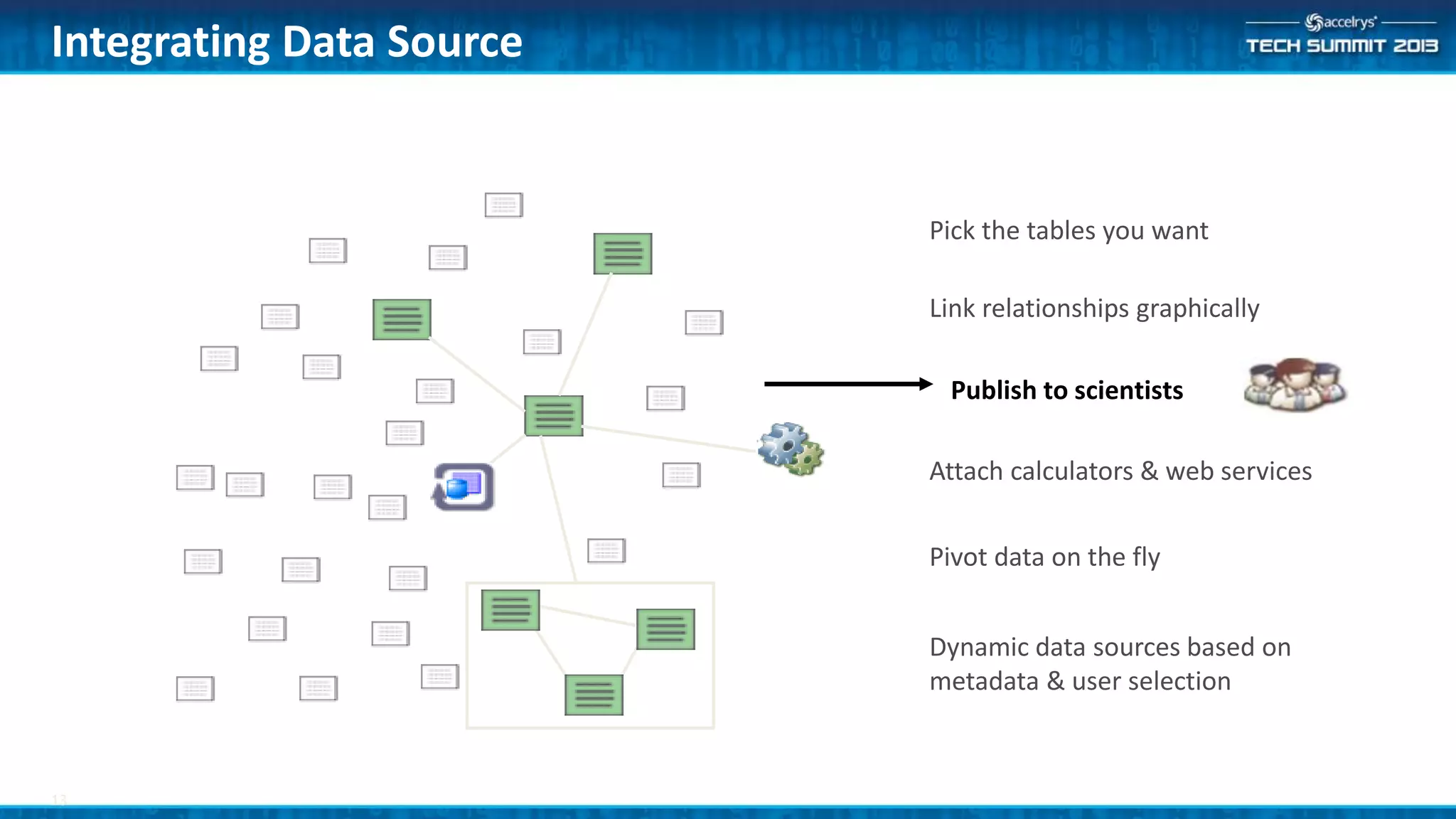

13. 13
Integrating Data Source
Link relationships graphically
Attach calculators & web services
Dynamic data sources based on
metadata & user selection
Publish to scientists
Pivot data on the fly
Pick the tables you want

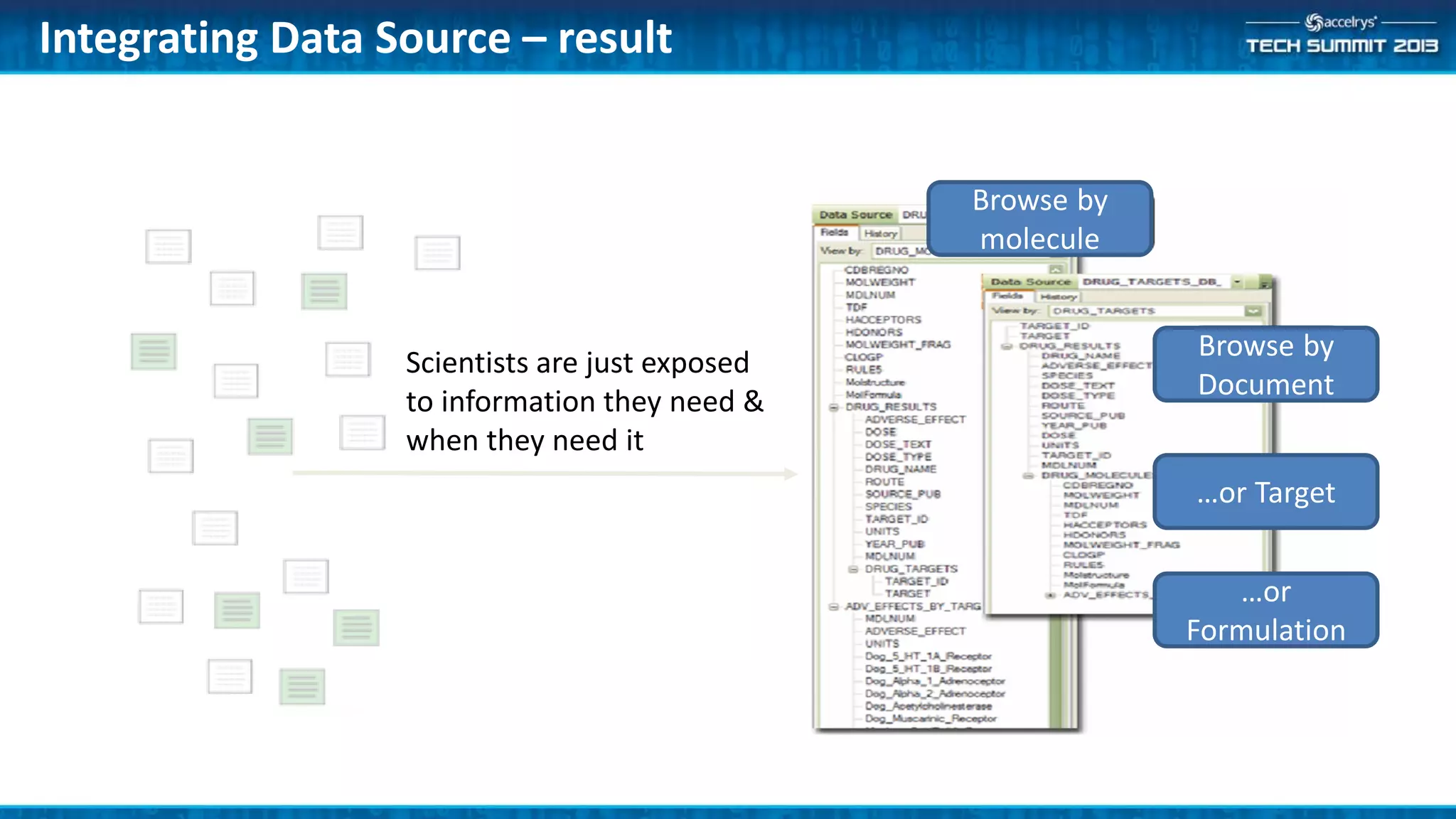

14. Integrating Data Source – result
Scientists are just exposed
to information they need &
when they need it
Browse by
molecule
Browse by
Document
…or Target
…or
Formulation

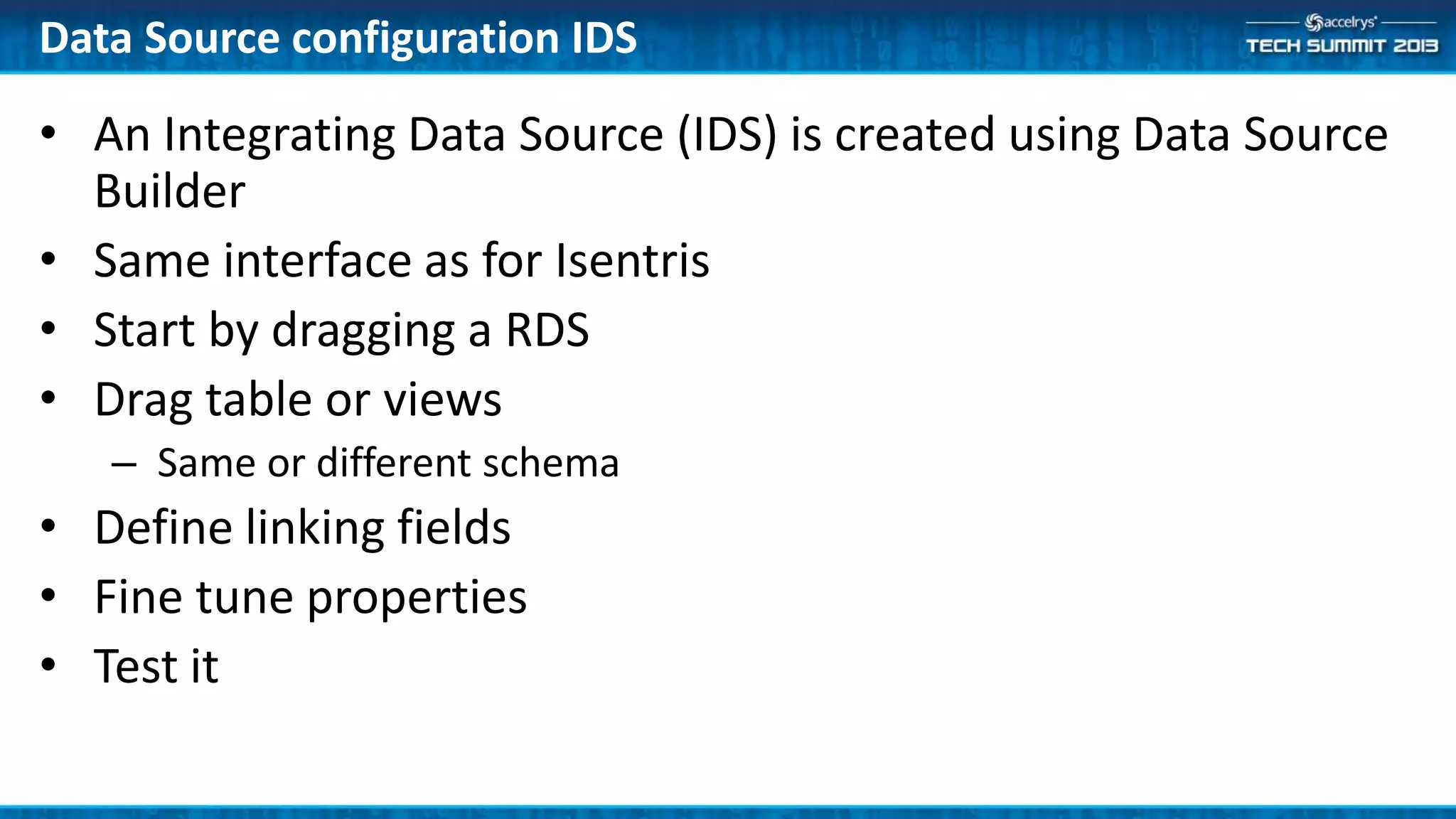

15. • An Integrating Data Source (IDS) is created using Data Source
Builder
• Same interface as for Isentris
• Start by dragging a RDS
• Drag table or views
– Same or different schema
• Define linking fields
• Fine tune properties
• Test it
Data Source configuration IDS

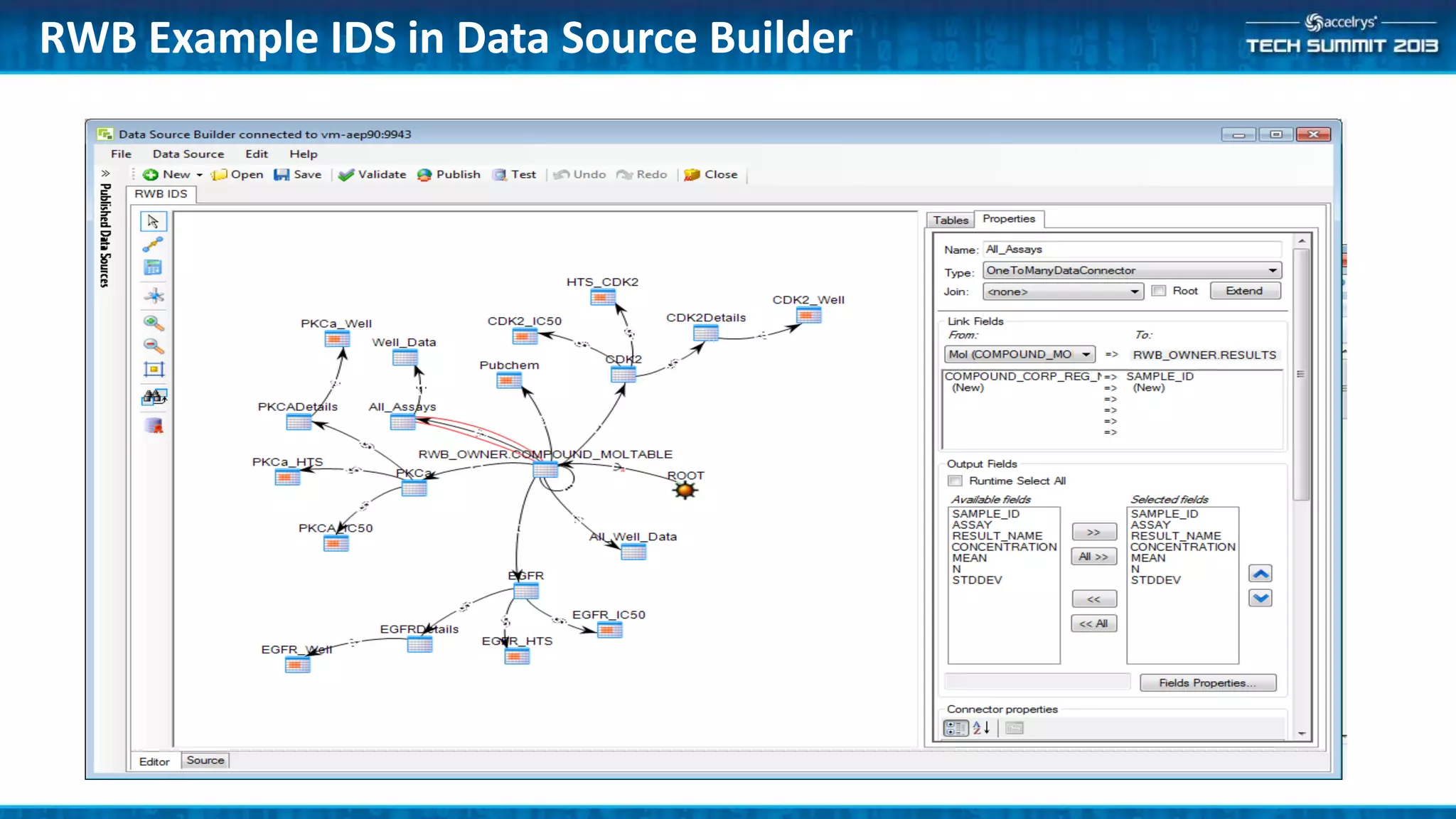

16. RWB Example IDS in Data Source Builder

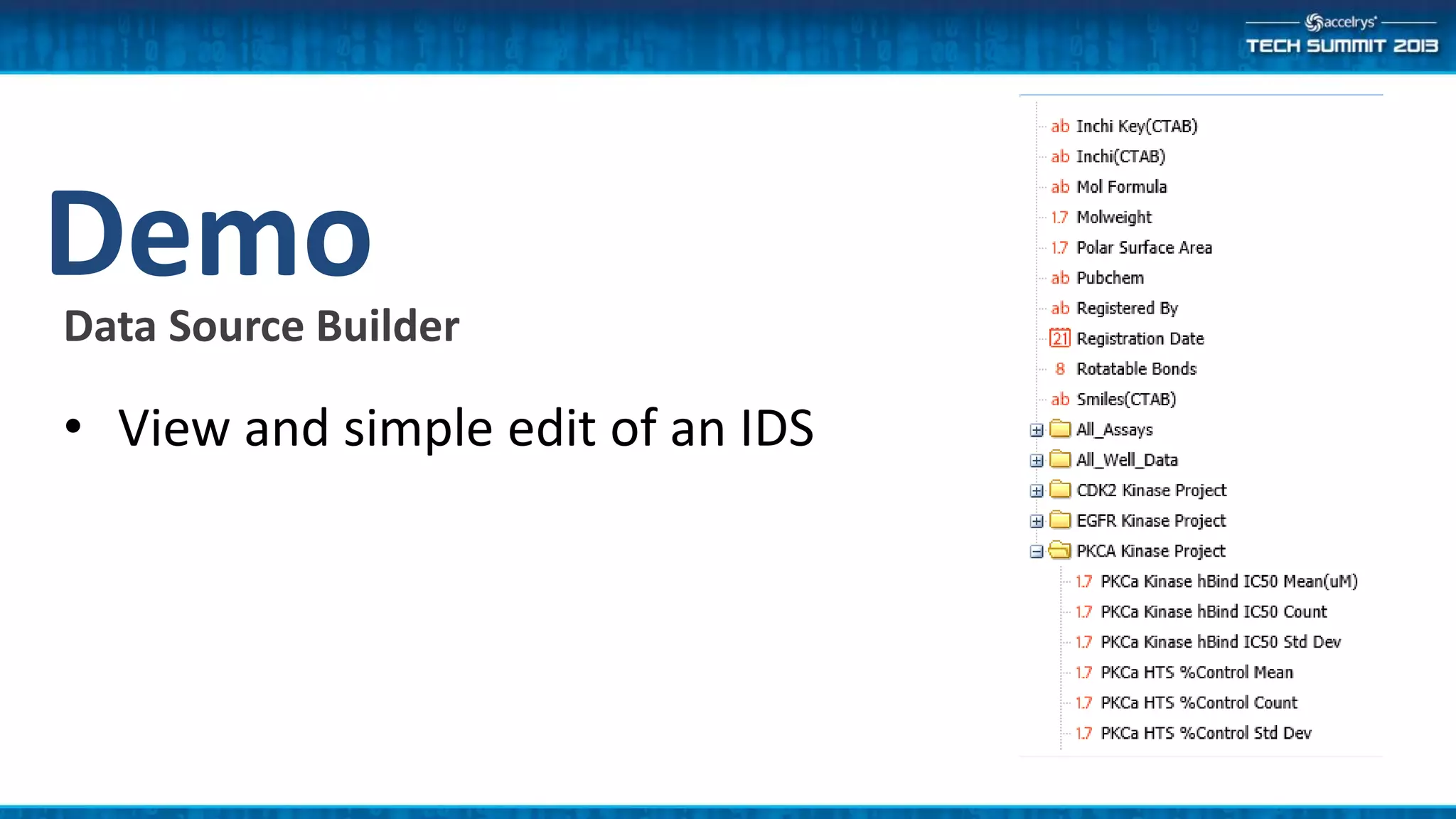

17. DemoData Source Builder
• View and simple edit of an IDS

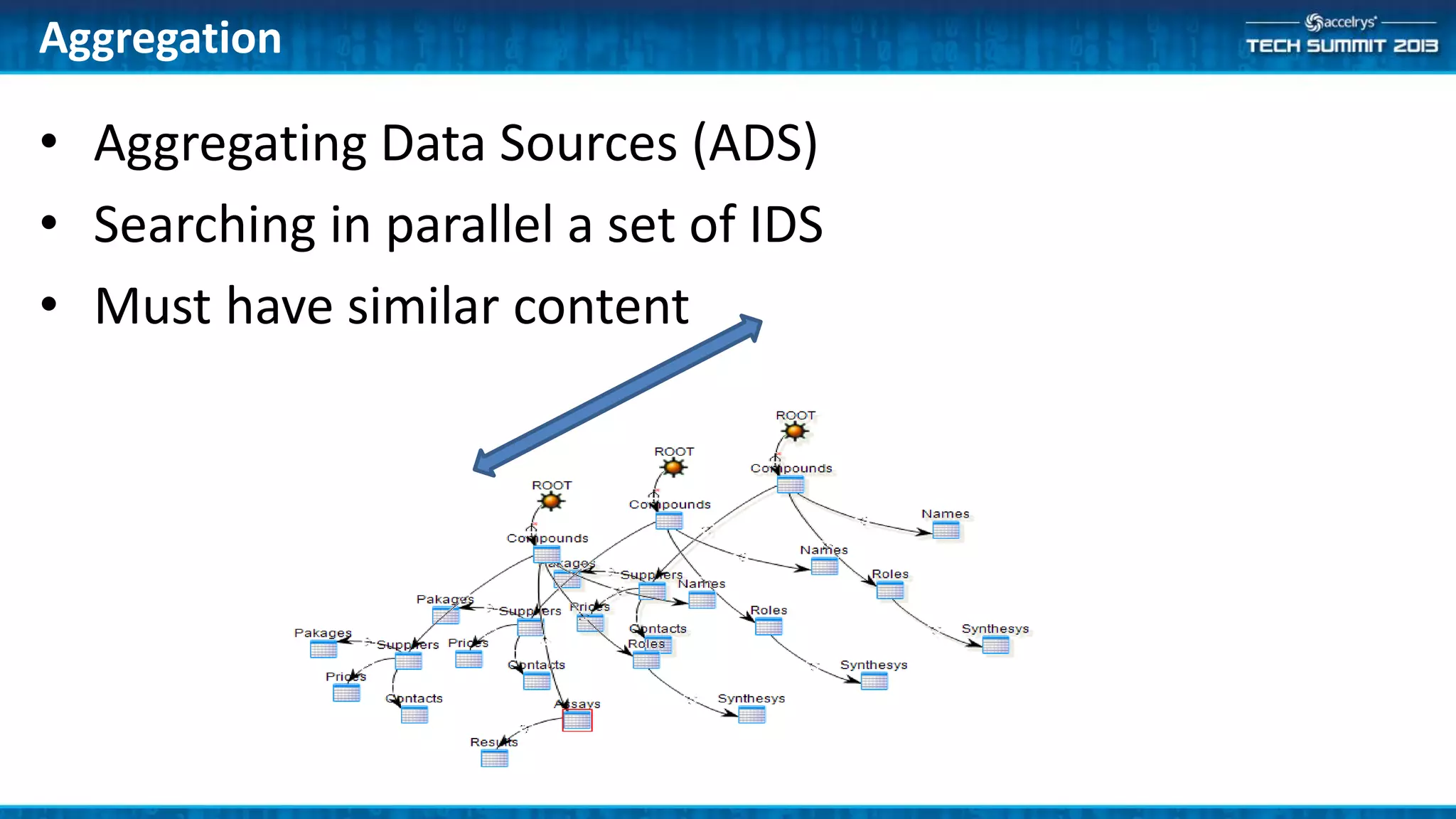

18. • Aggregating Data Sources (ADS)
• Searching in parallel a set of IDS
• Must have similar content
Aggregation

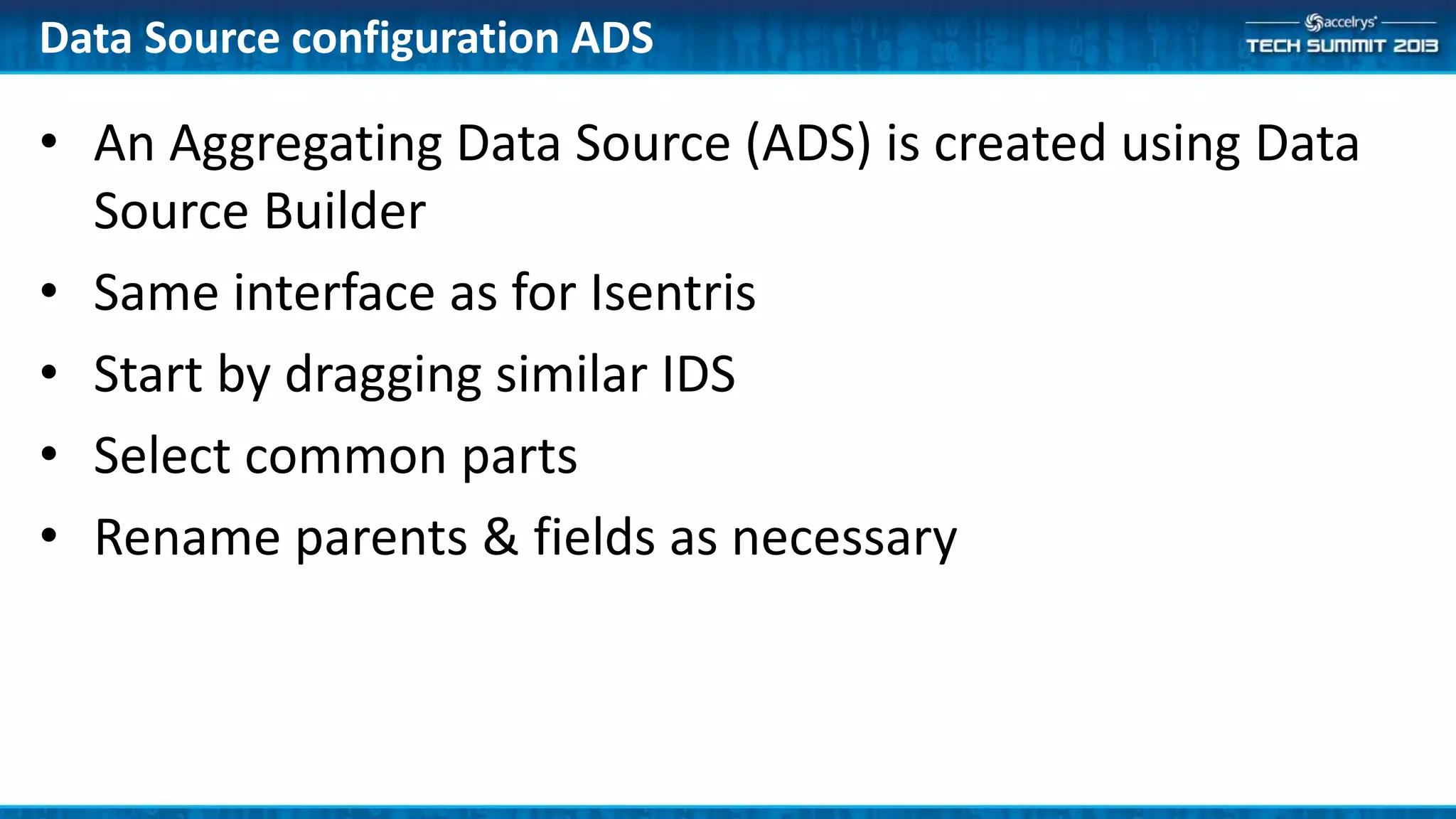

19. • An Aggregating Data Source (ADS) is created using Data
Source Builder
• Same interface as for Isentris
• Start by dragging similar IDS
• Select common parts
• Rename parents & fields as necessary
Data Source configuration ADS

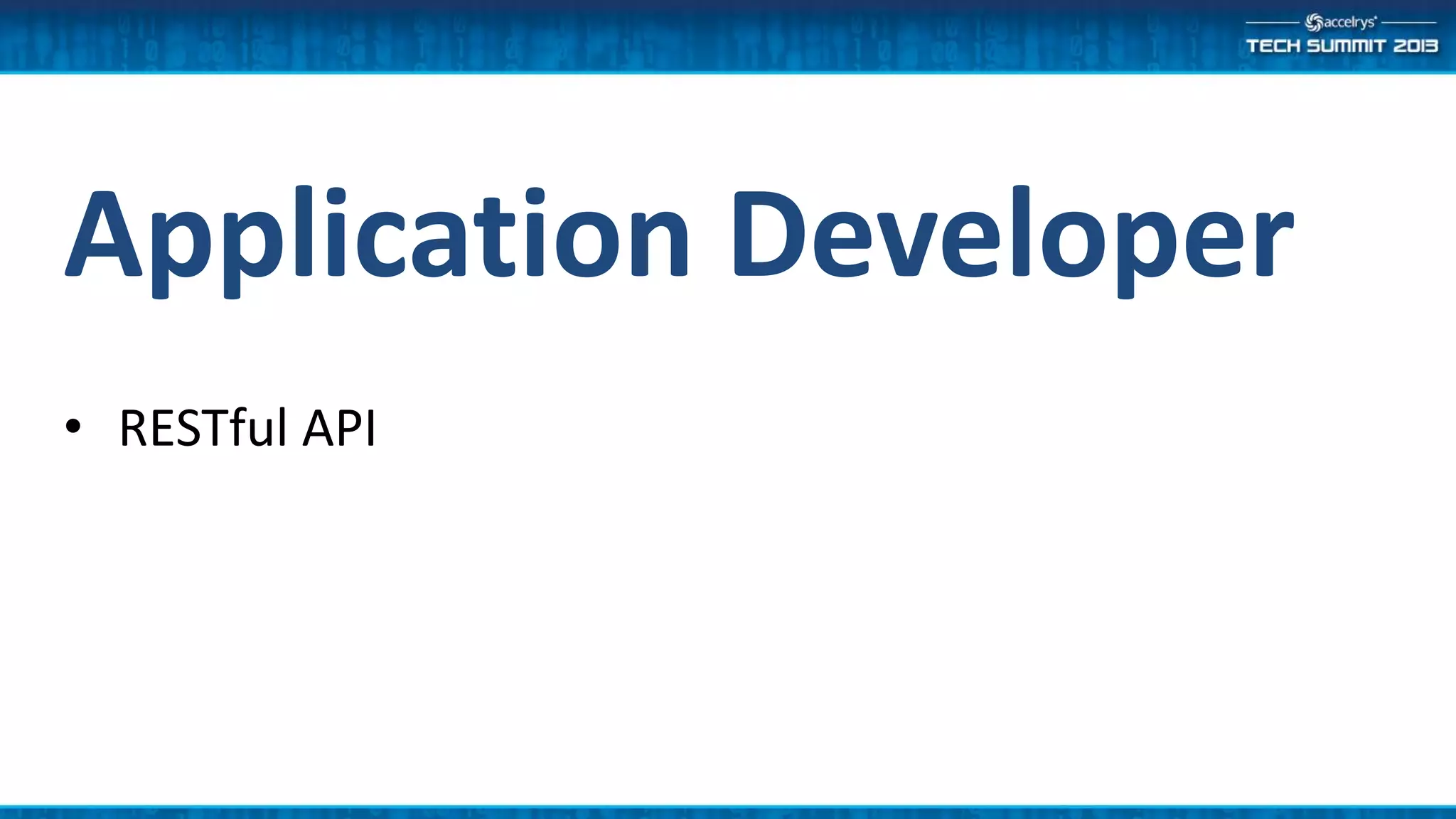

20. Application Developer
• RESTful API

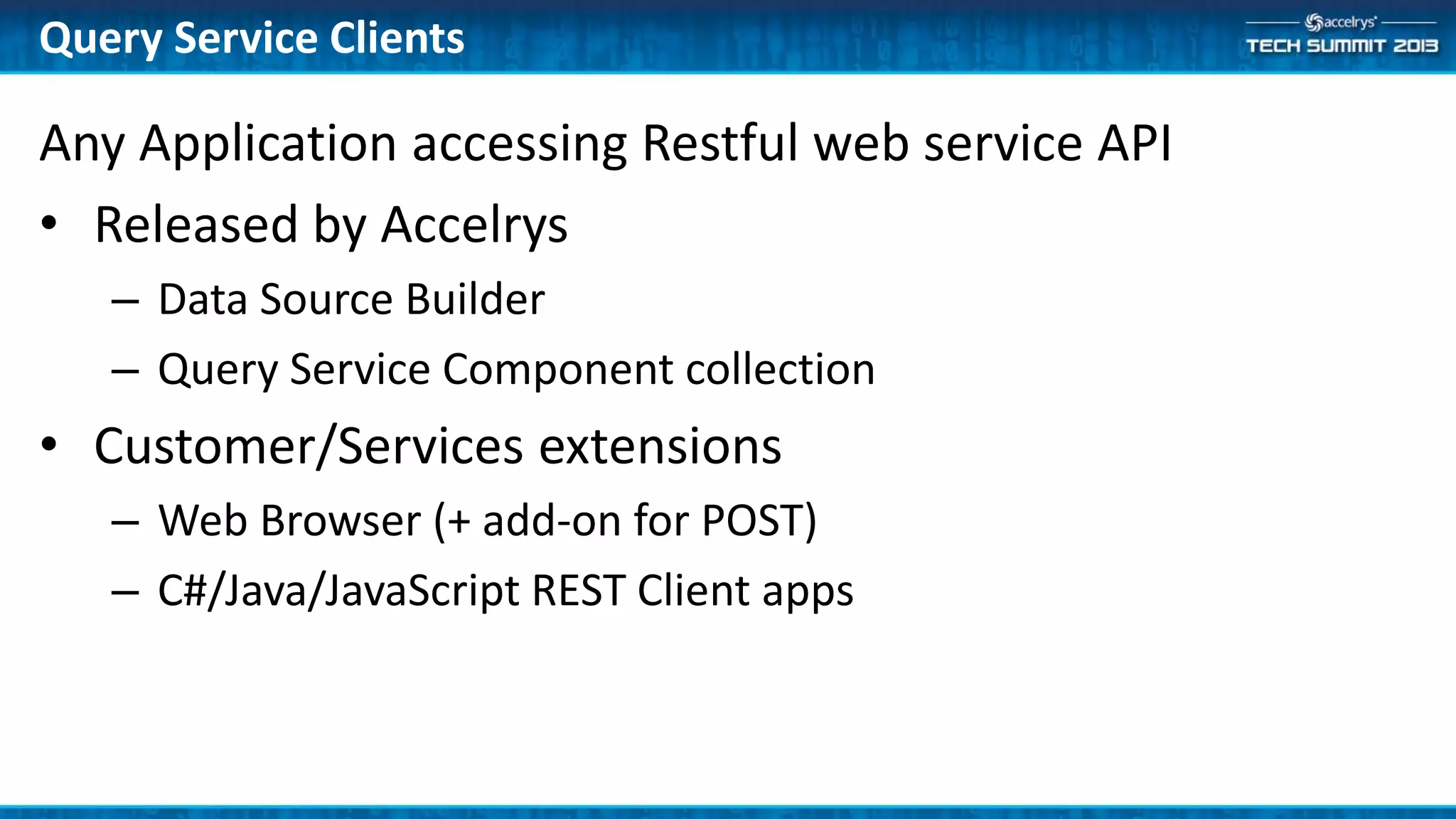

21. Any Application accessing Restful web service API
• Released by Accelrys
– Data Source Builder
– Query Service Component collection
• Customer/Services extensions
– Web Browser (+ add-on for POST)
– C#/Java/JavaScript REST Client apps
Query Service Clients

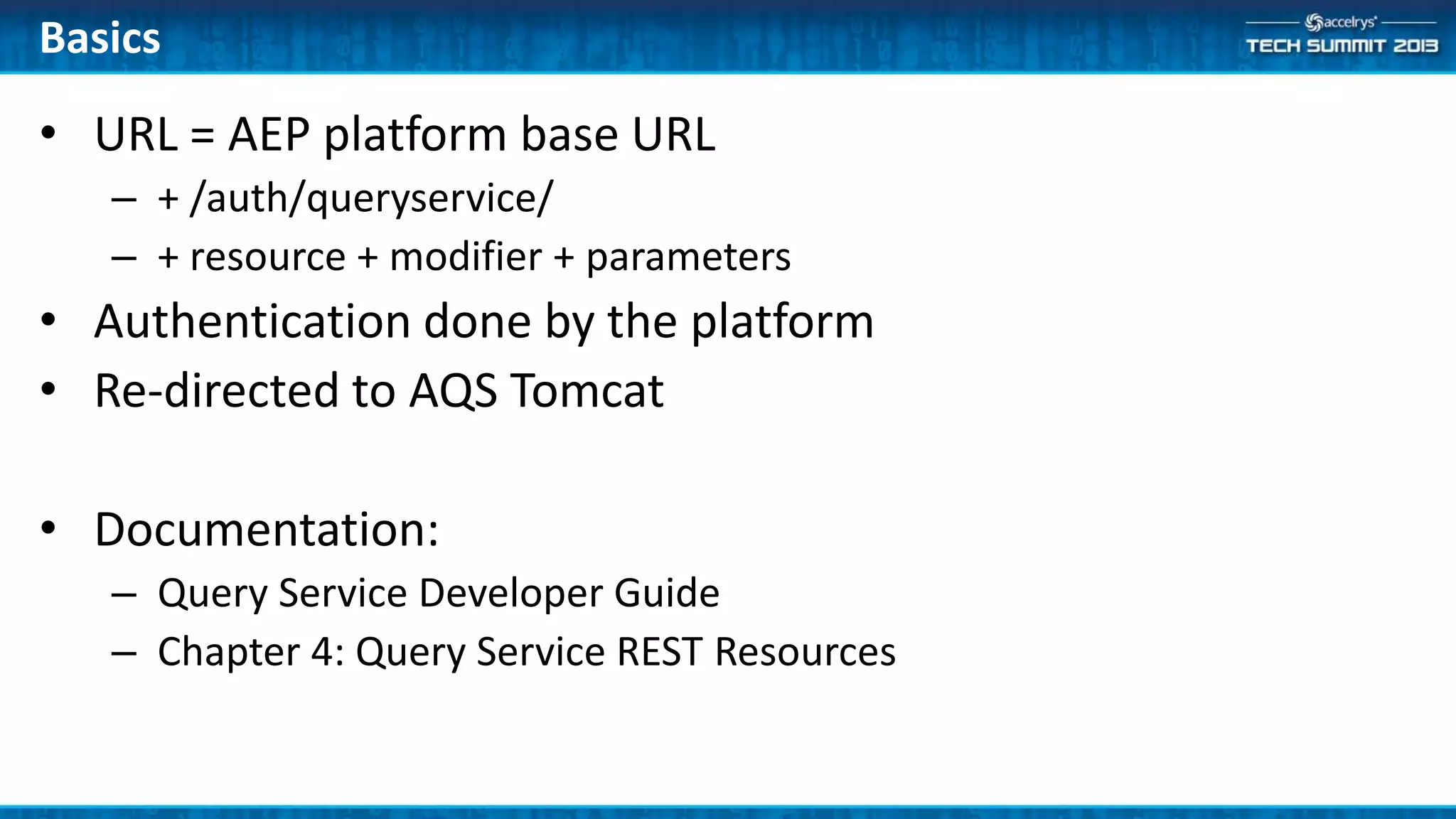

22. • URL = AEP platform base URL
– + /auth/queryservice/
– + resource + modifier + parameters
• Authentication done by the platform
• Re-directed to AQS Tomcat
• Documentation:
– Query Service Developer Guide
– Chapter 4: Query Service REST Resources
Basics

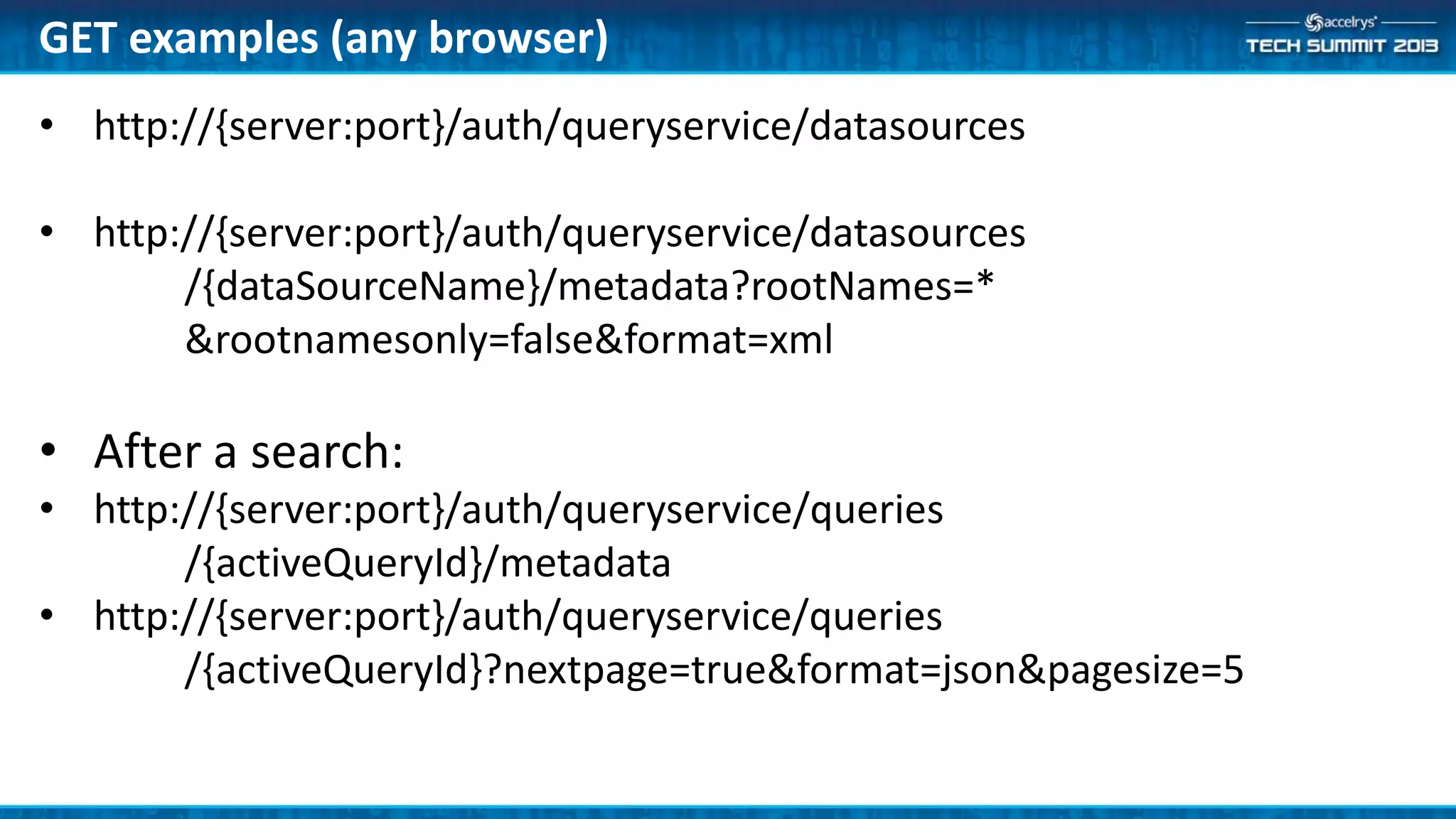

23. • http://{server:port}/auth/queryservice/datasources
• http://{server:port}/auth/queryservice/datasources
/{dataSourceName}/metadata?rootNames=*
&rootnamesonly=false&format=xml
• After a search:
• http://{server:port}/auth/queryservice/queries
/{activeQueryId}/metadata
• http://{server:port}/auth/queryservice/queries
/{activeQueryId}?nextpage=true&format=json&pagesize=5
GET examples (any browser)

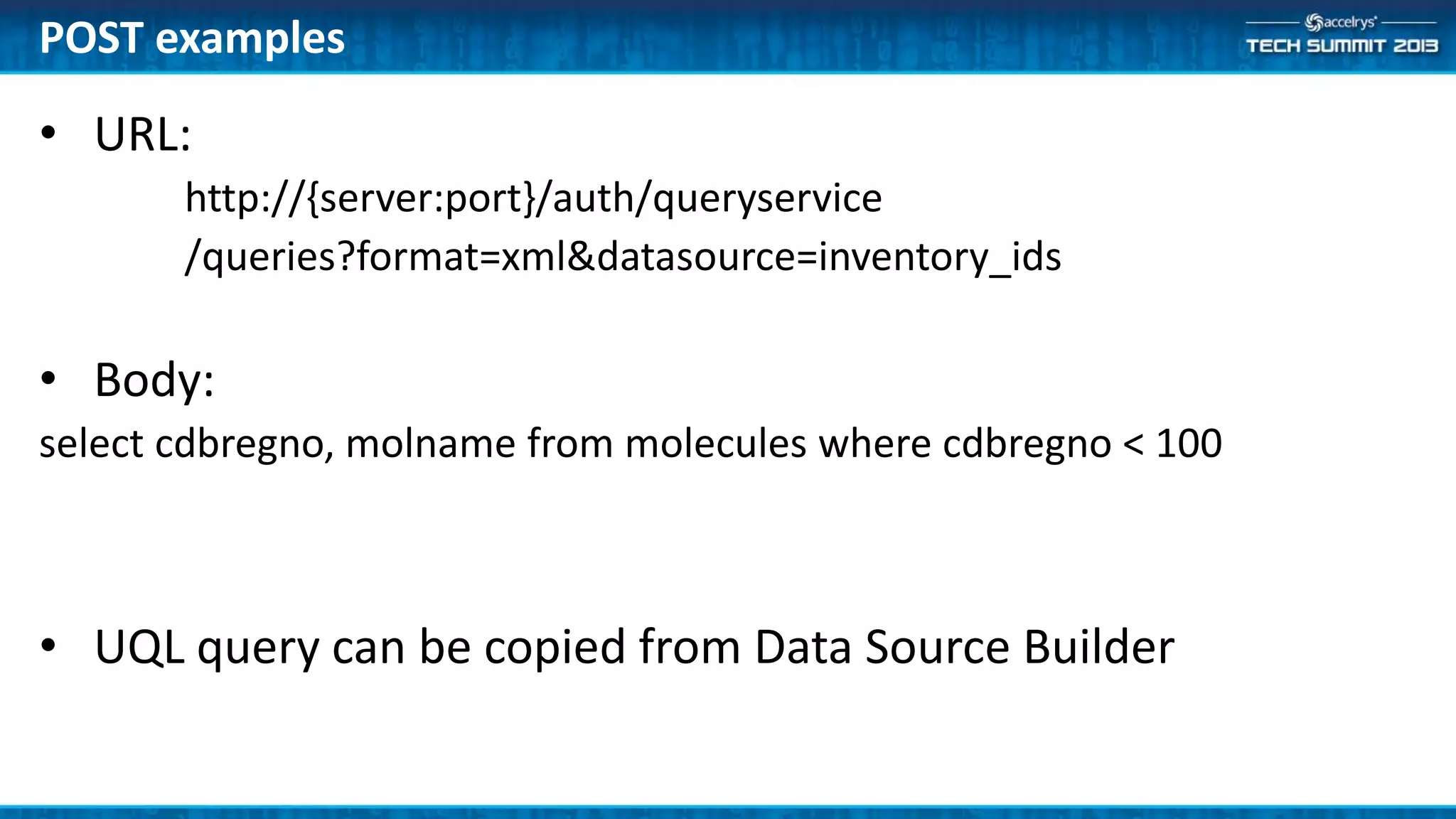

24. • URL:
http://{server:port}/auth/queryservice
/queries?format=xml&datasource=inventory_ids
• Body:
select cdbregno, molname from molecules where cdbregno < 100
• UQL query can be copied from Data Source Builder
POST examples

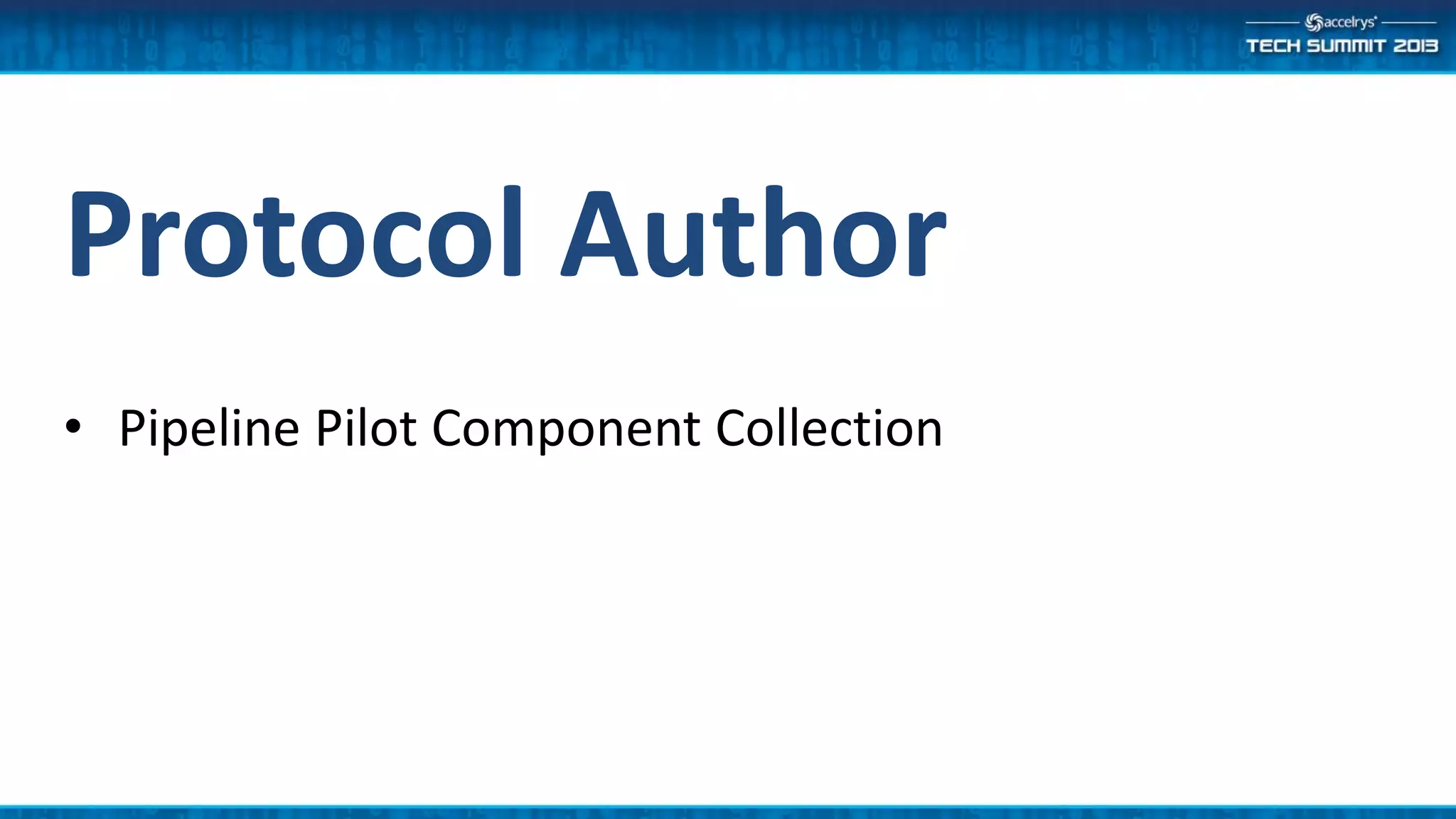

25. Protocol Author
• Pipeline Pilot Component Collection

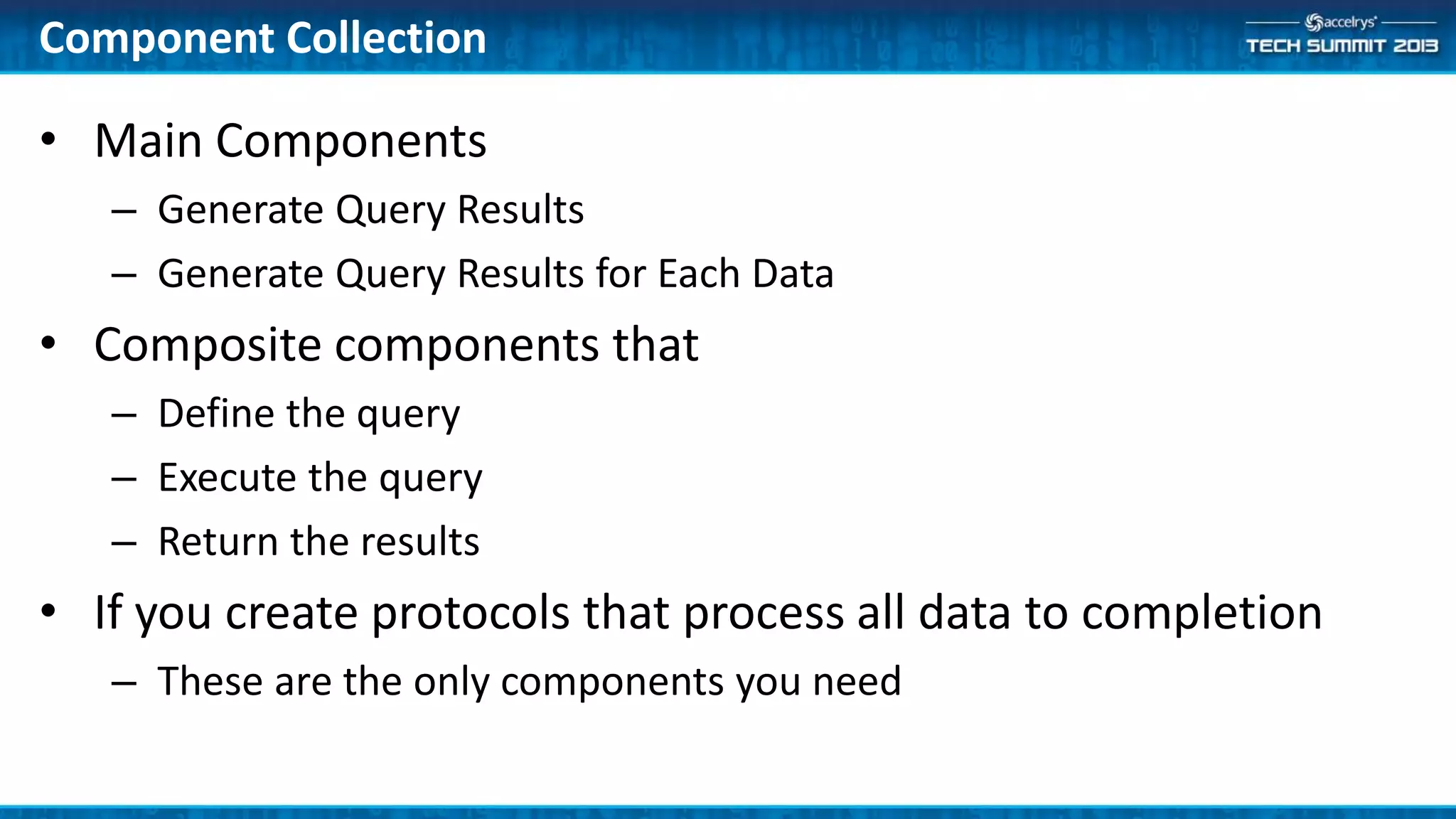

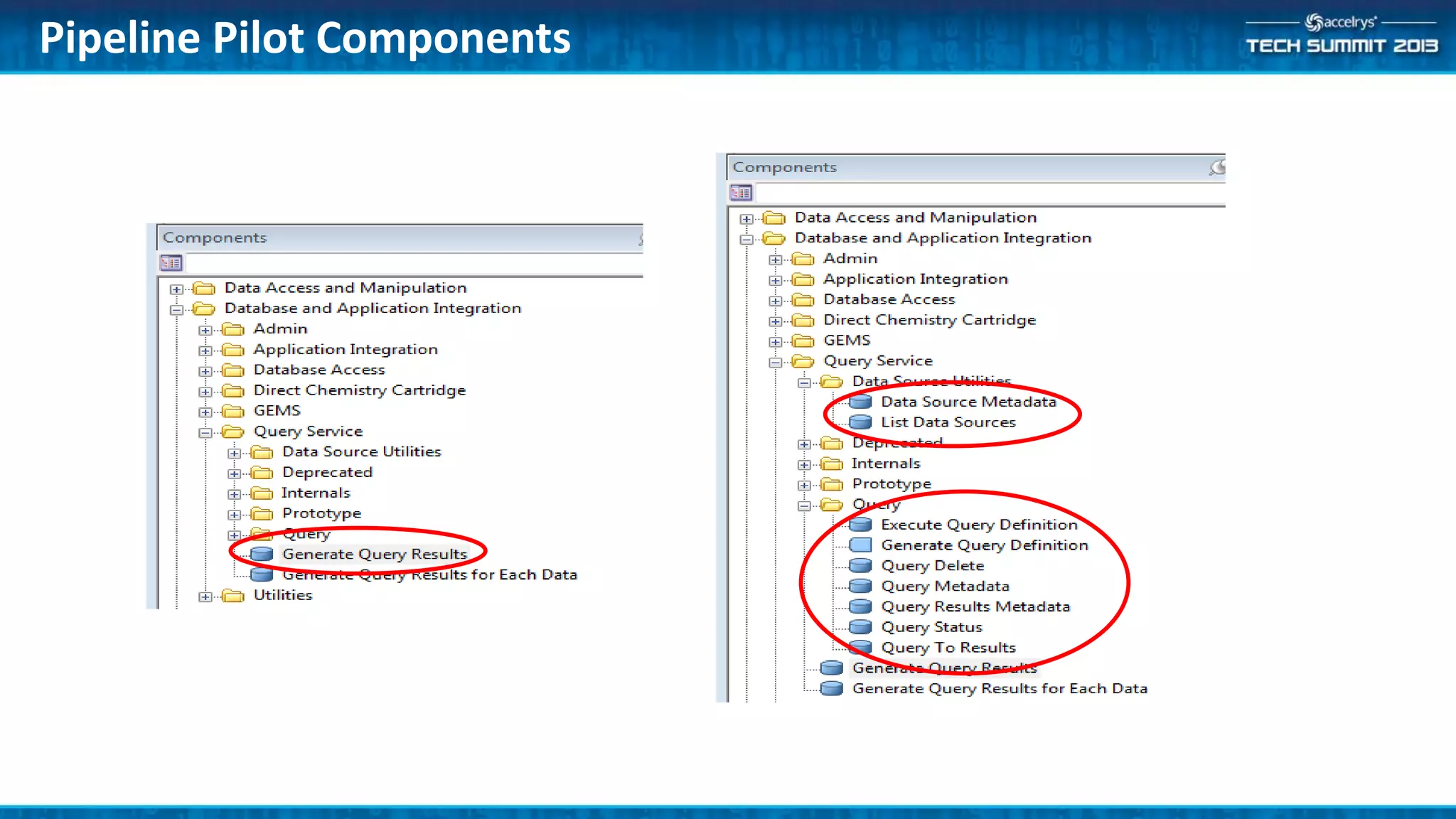

26. Pipeline Pilot Components

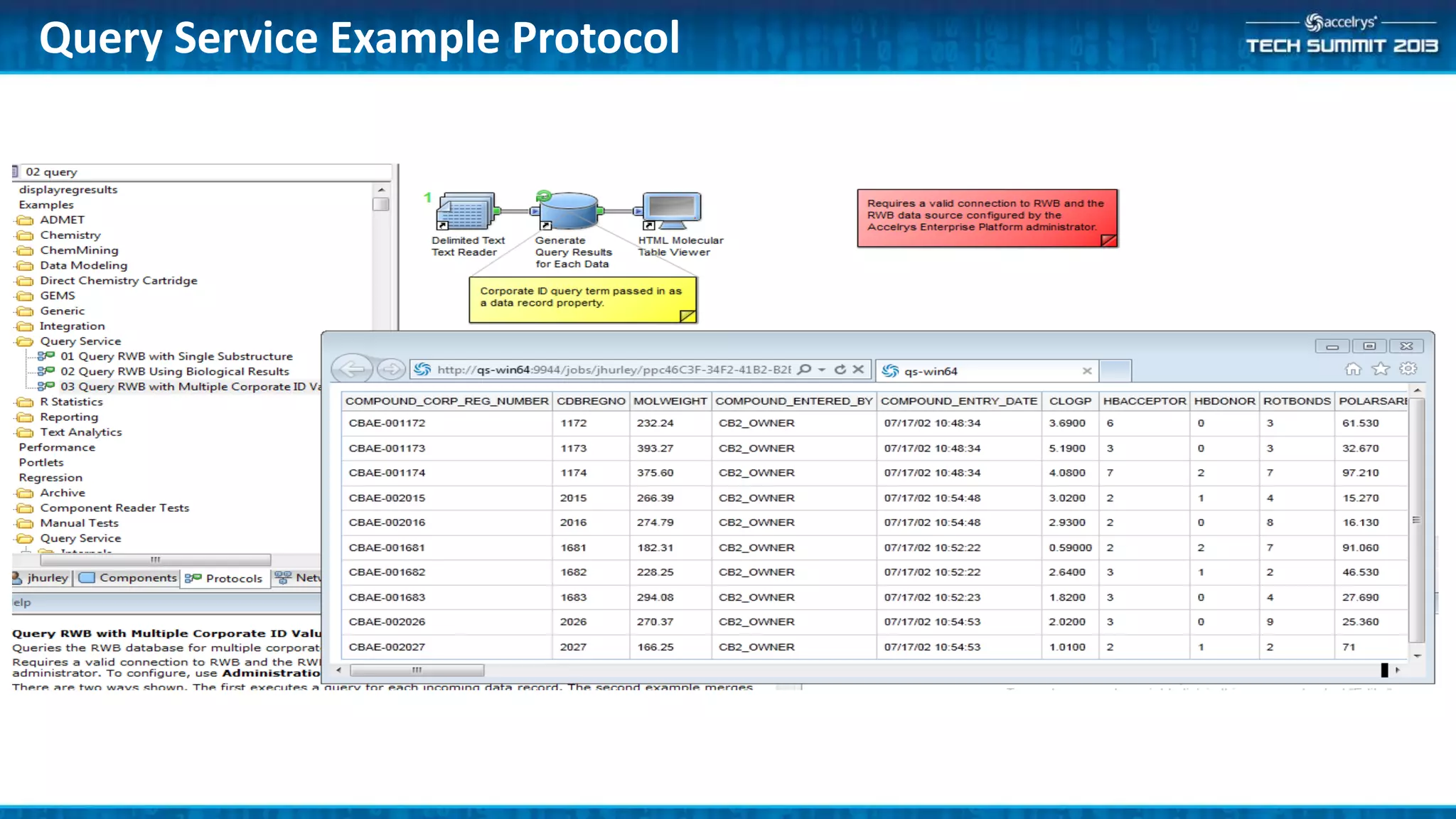

27. Query Service Example Protocol

28. • Main Components
– Generate Query Results
– Generate Query Results for Each Data
• Composite components that
– Define the query
– Execute the query
– Return the results
• If you create protocols that process all data to completion
– These are the only components you need
Component Collection

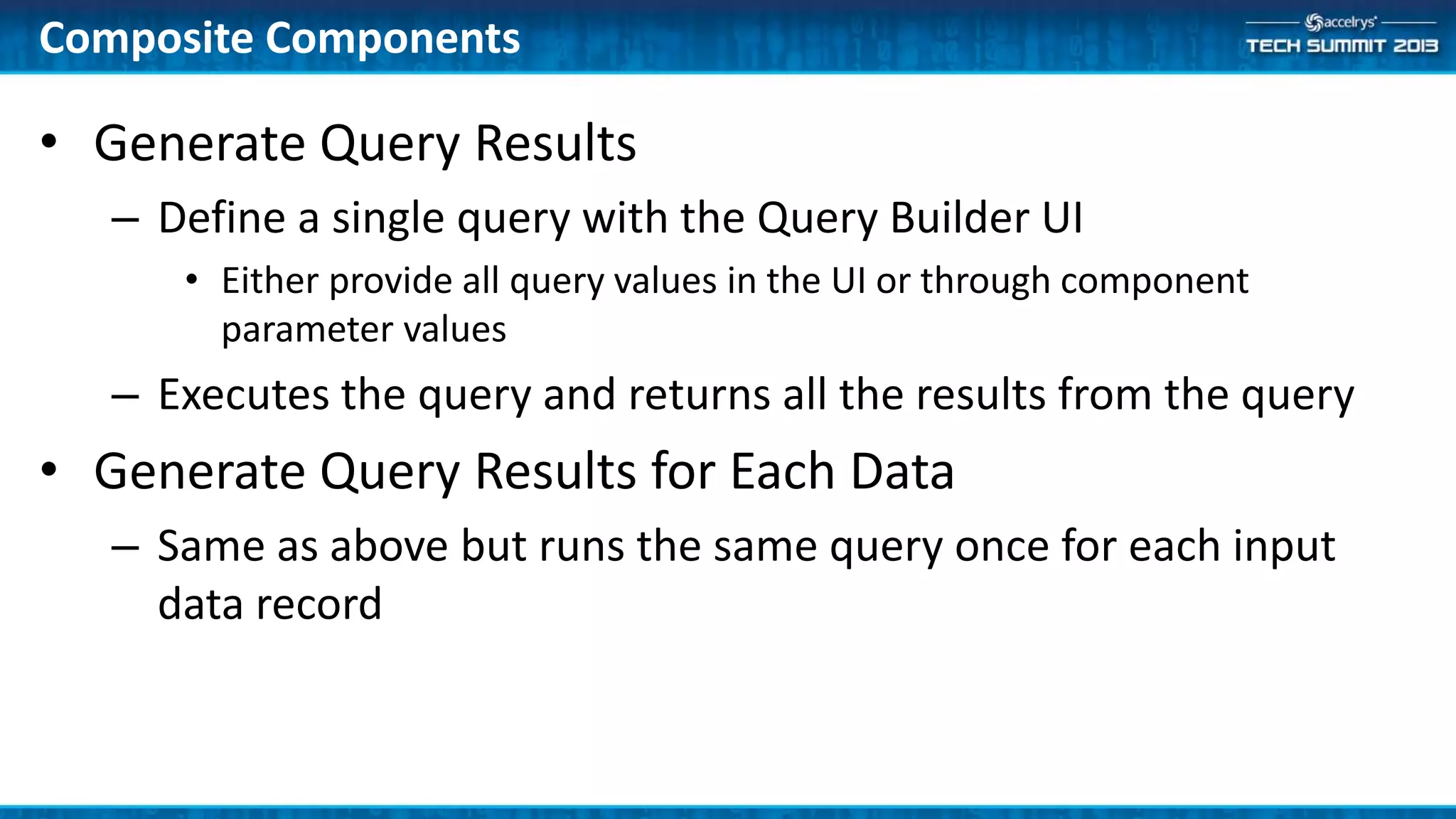

29. • Generate Query Results
– Define a single query with the Query Builder UI
• Either provide all query values in the UI or through component
parameter values
– Executes the query and returns all the results from the query
• Generate Query Results for Each Data
– Same as above but runs the same query once for each input
data record
Composite Components

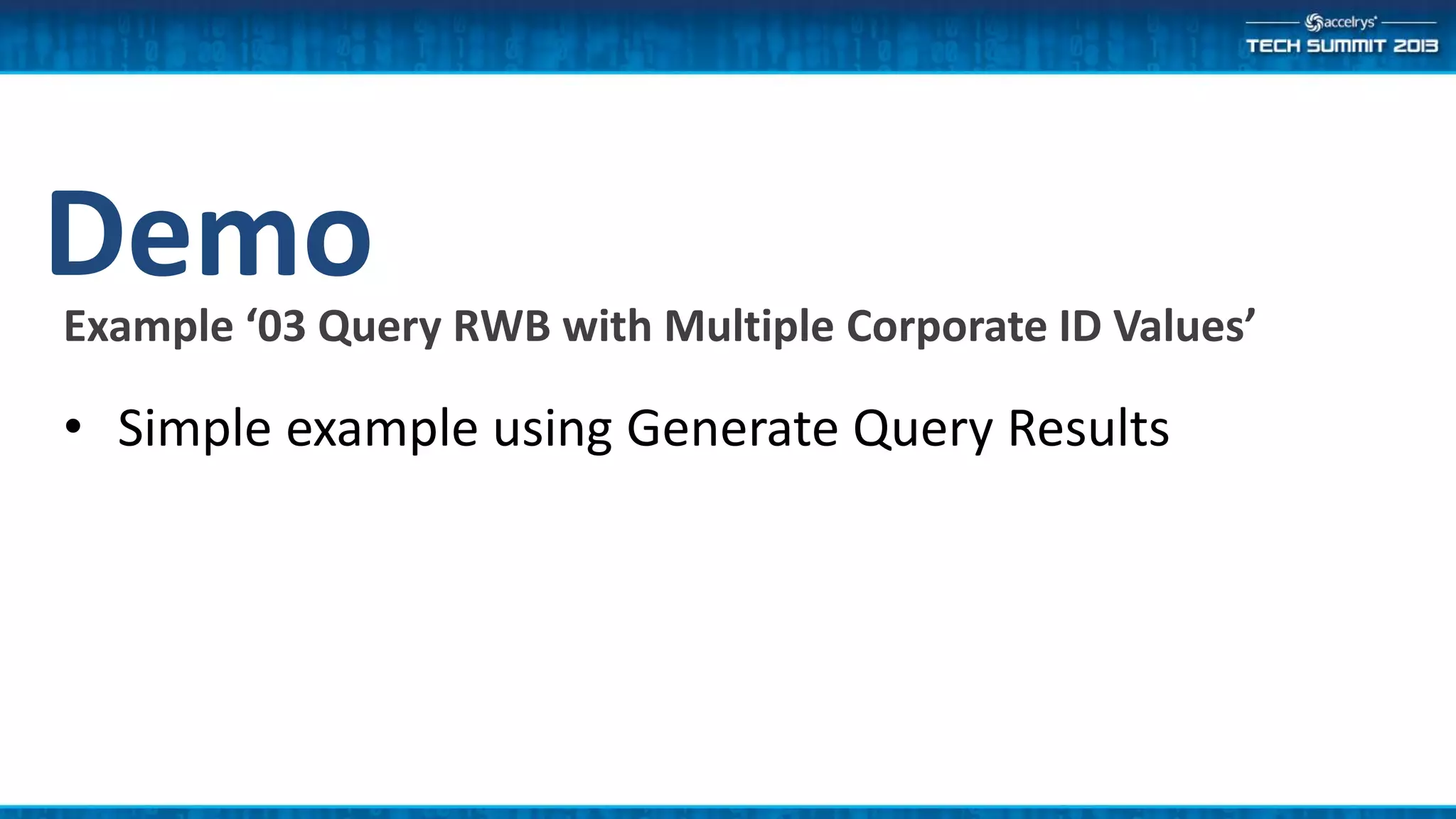

30. DemoExample ‘03 Query RWB with Multiple Corporate ID Values’
• Simple example using Generate Query Results

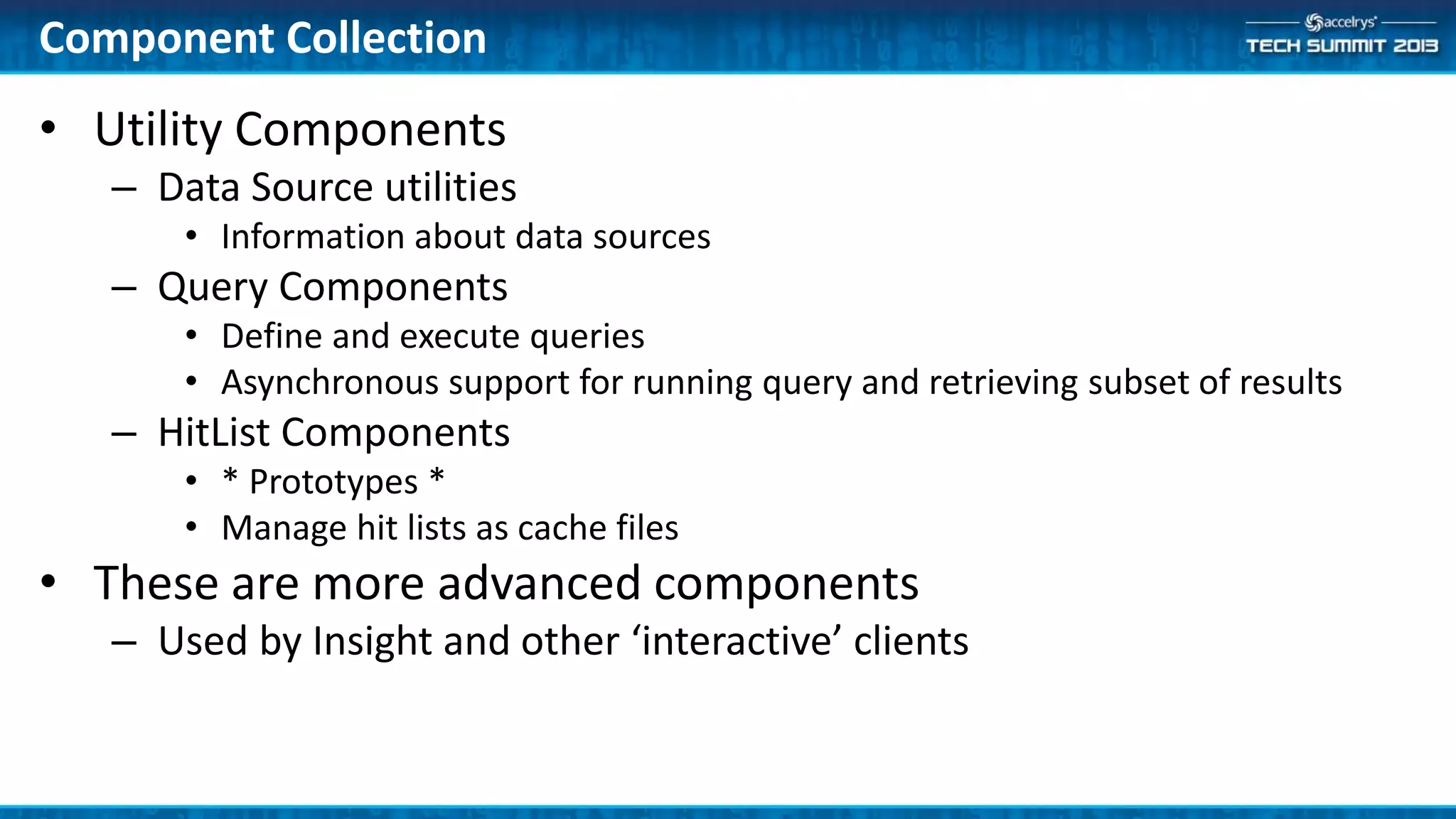

31. • Utility Components
– Data Source utilities
• Information about data sources
– Query Components
• Define and execute queries
• Asynchronous support for running query and retrieving subset of results
– HitList Components
• * Prototypes *
• Manage hit lists as cache files
• These are more advanced components
– Used by Insight and other ‘interactive’ clients
Component Collection

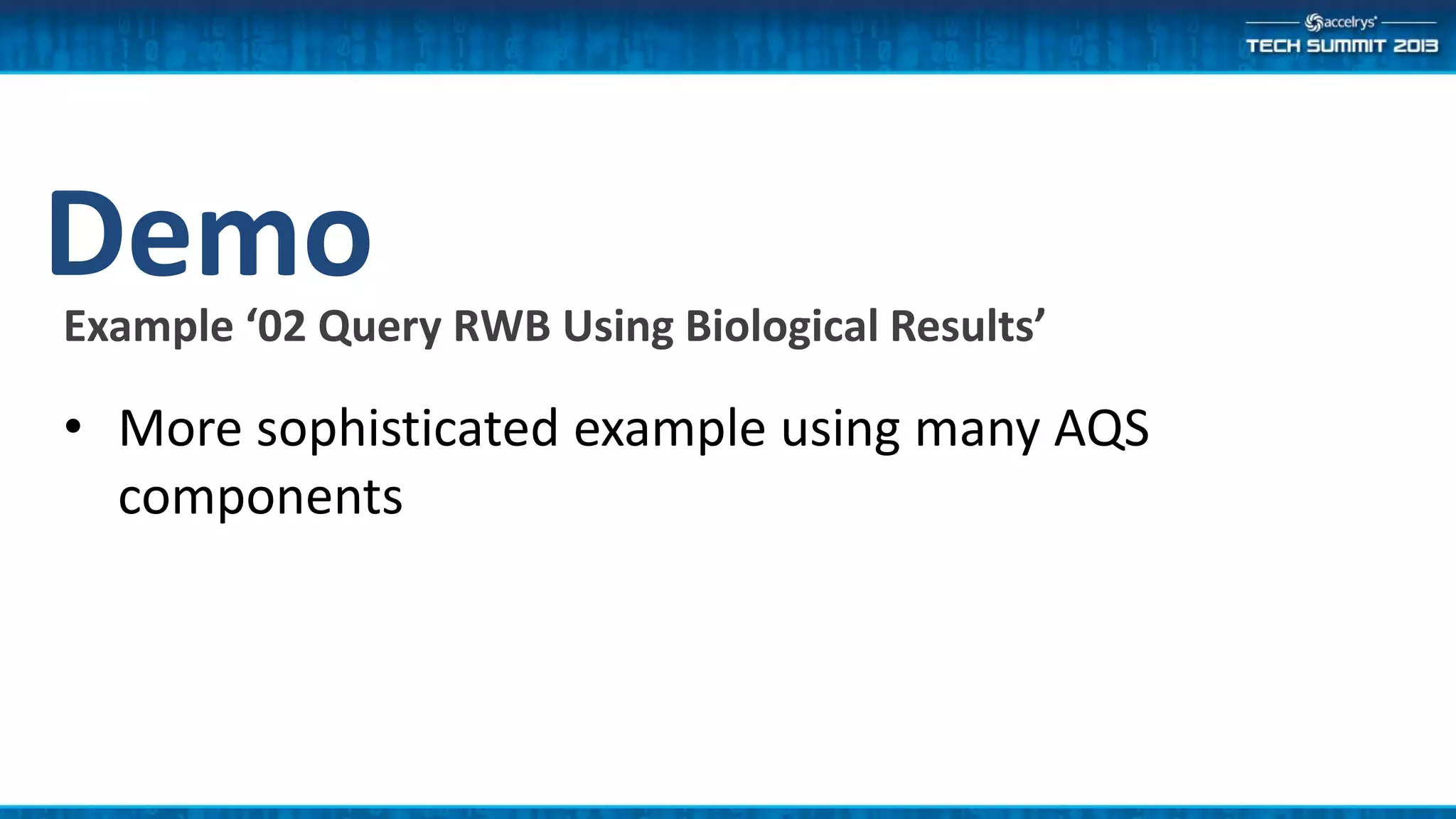

32. DemoExample ‘02 Query RWB Using Biological Results’
• More sophisticated example using many AQS
components

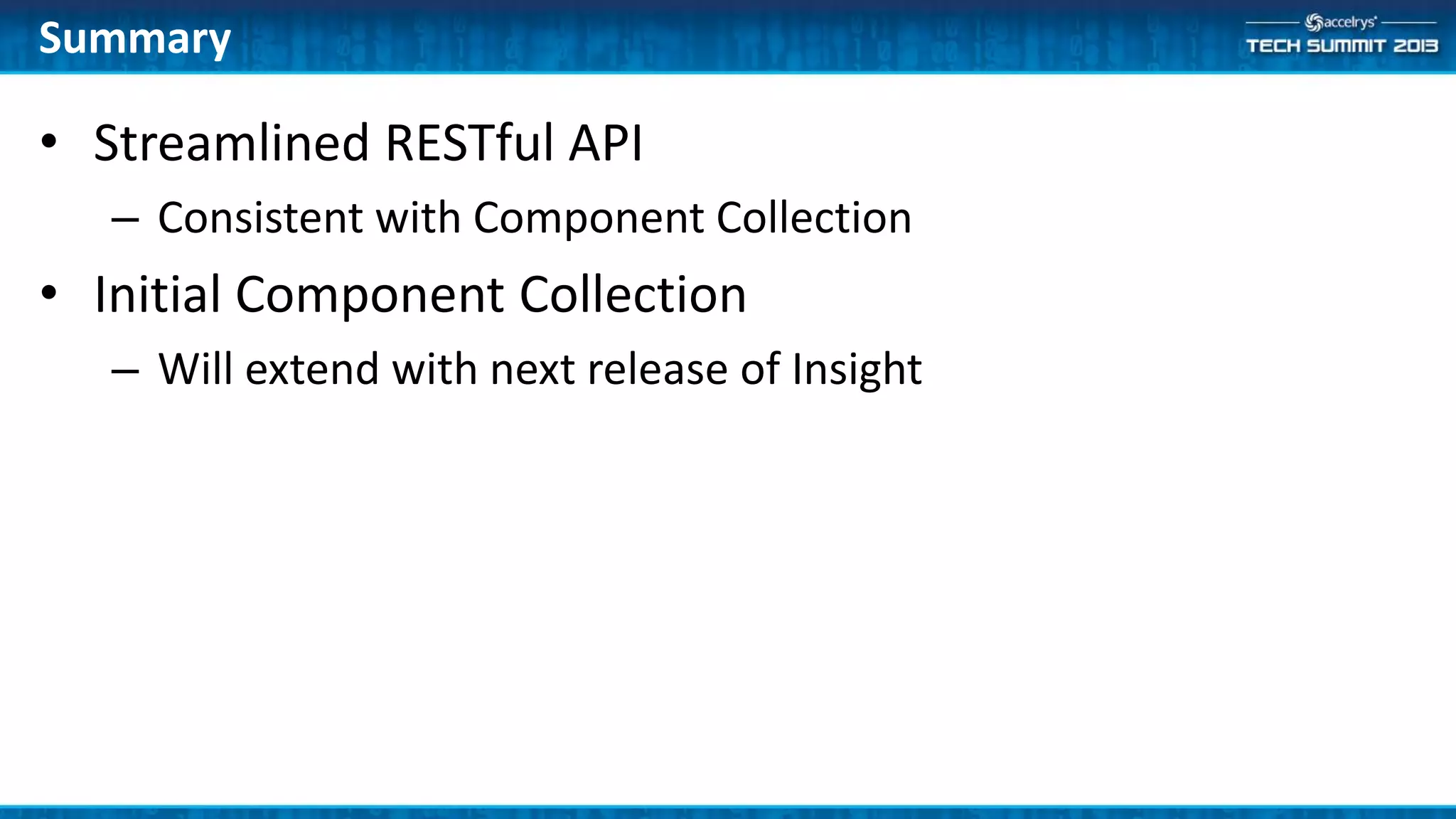

33. • Streamlined RESTful API
– Consistent with Component Collection
• Initial Component Collection
– Will extend with next release of Insight
Summary

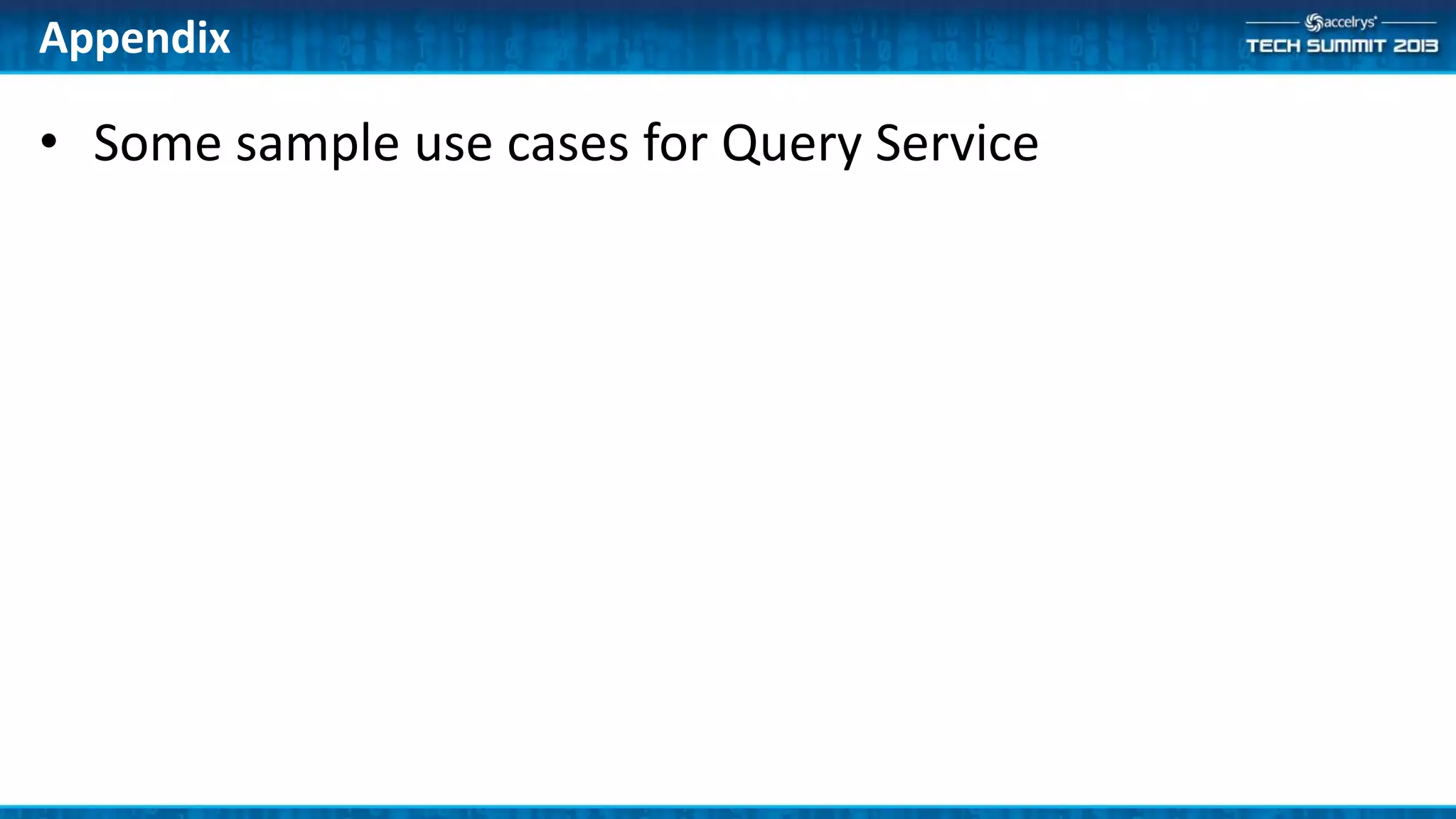

35. • Some sample use cases for Query Service
Appendix

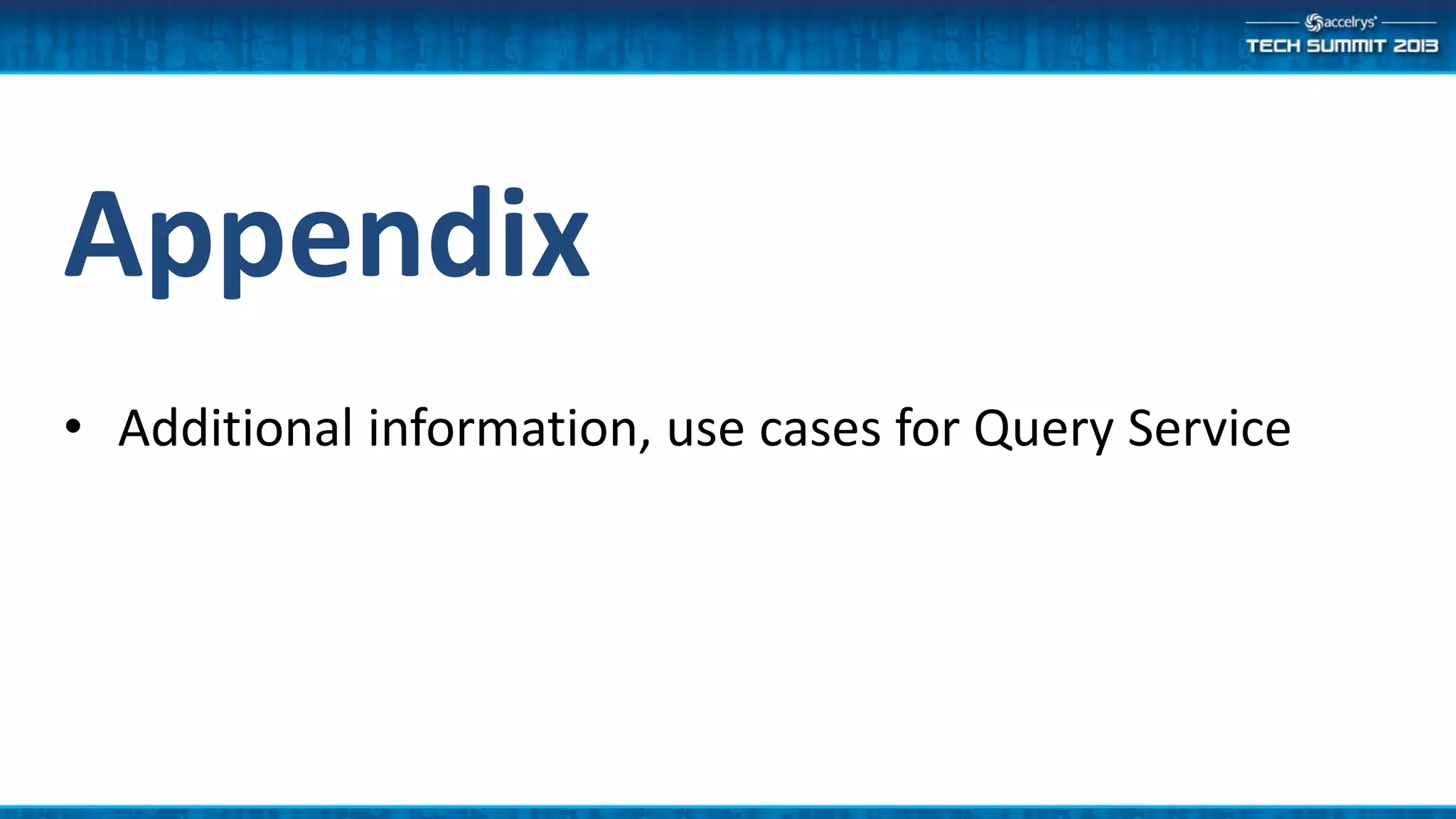

36. Appendix
• Additional information, use cases for Query Service

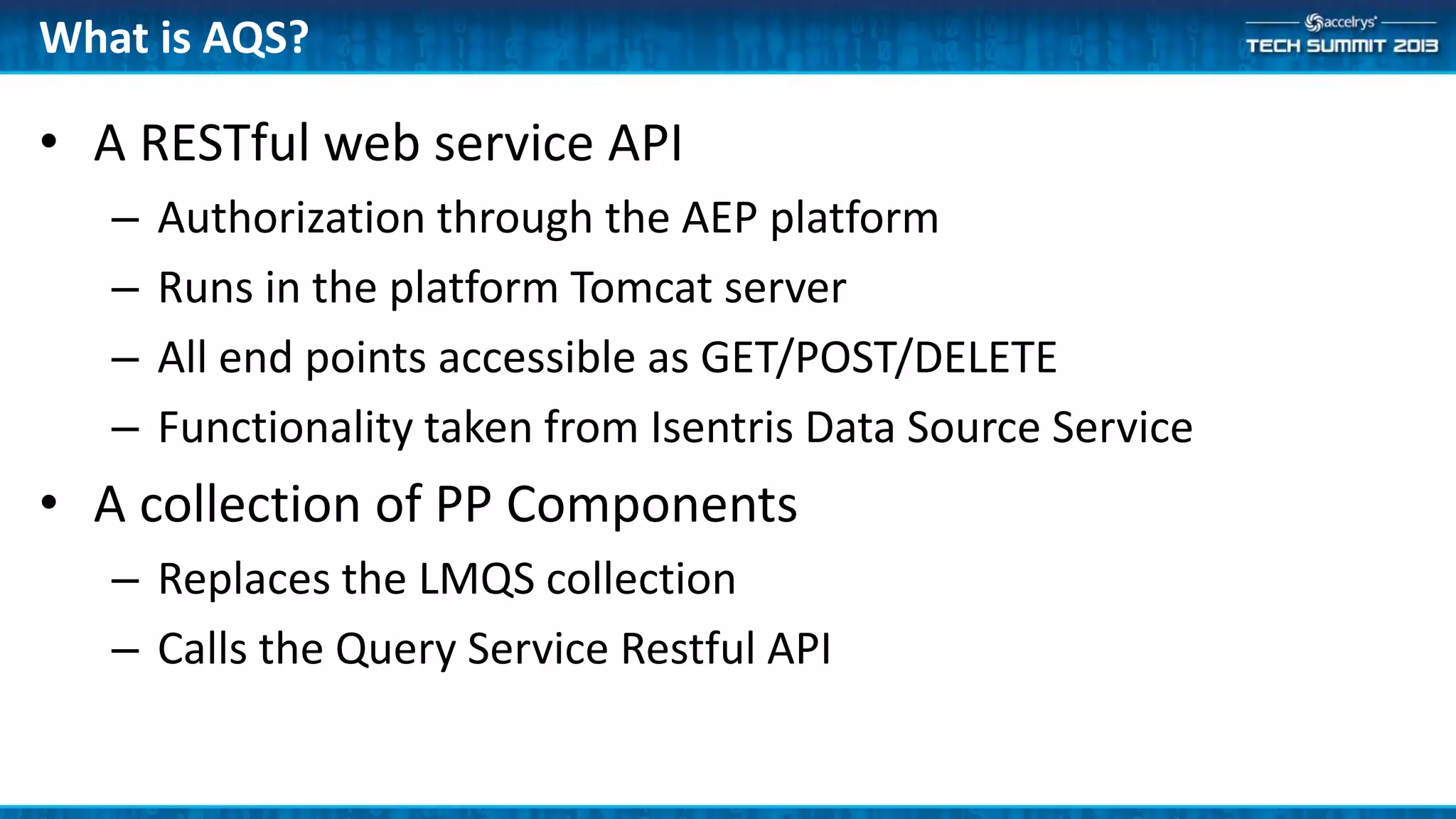

37. • A RESTful web service API
– Authorization through the AEP platform
– Runs in the platform Tomcat server
– All end points accessible as GET/POST/DELETE
– Functionality taken from Isentris Data Source Service
• A collection of PP Components
– Replaces the LMQS collection
– Calls the Query Service Restful API
What is AQS?

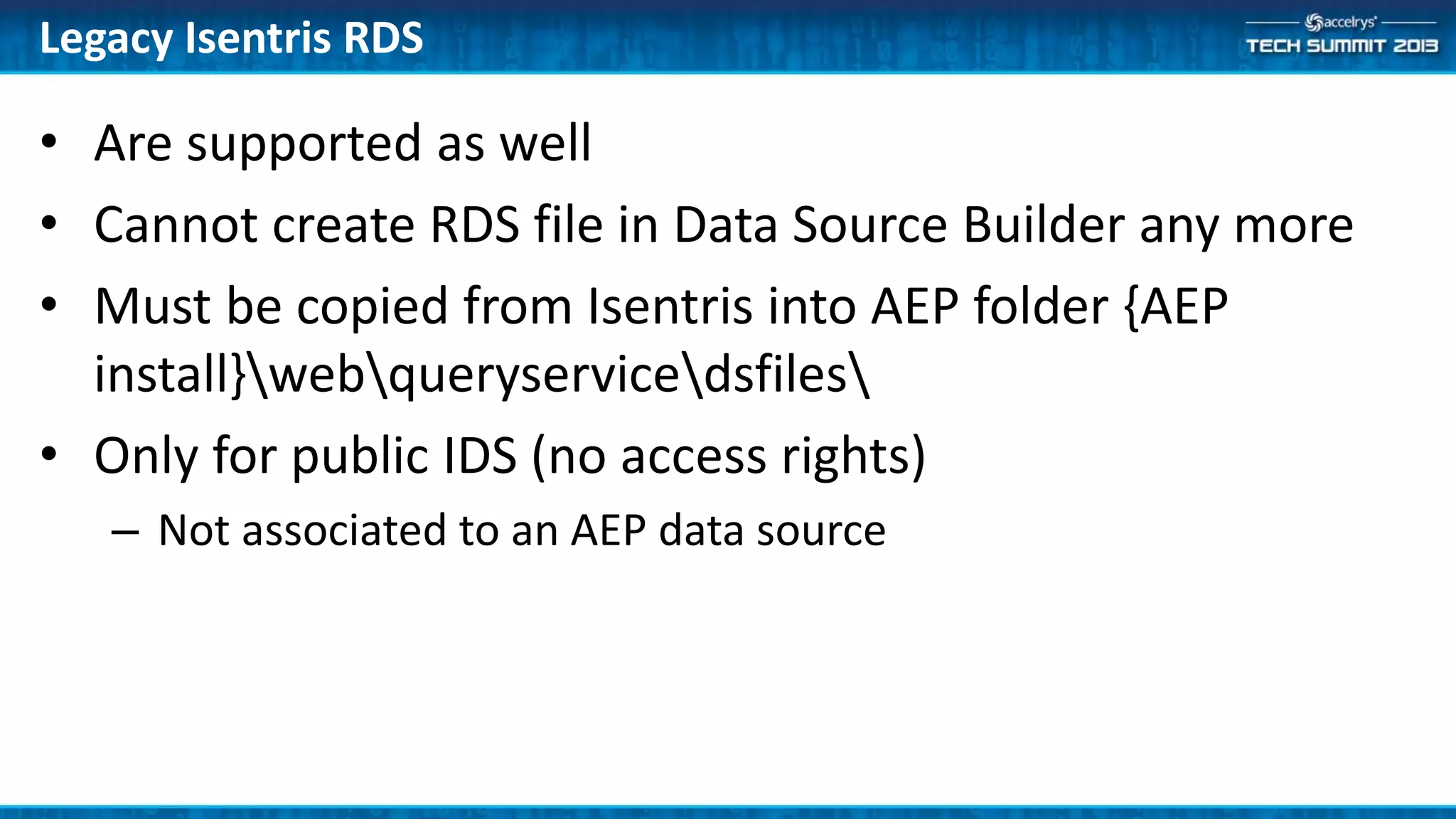

38. • Are supported as well
• Cannot create RDS file in Data Source Builder any more
• Must be copied from Isentris into AEP folder {AEP
install}webqueryservicedsfiles
• Only for public IDS (no access rights)
– Not associated to an AEP data source
Legacy Isentris RDS

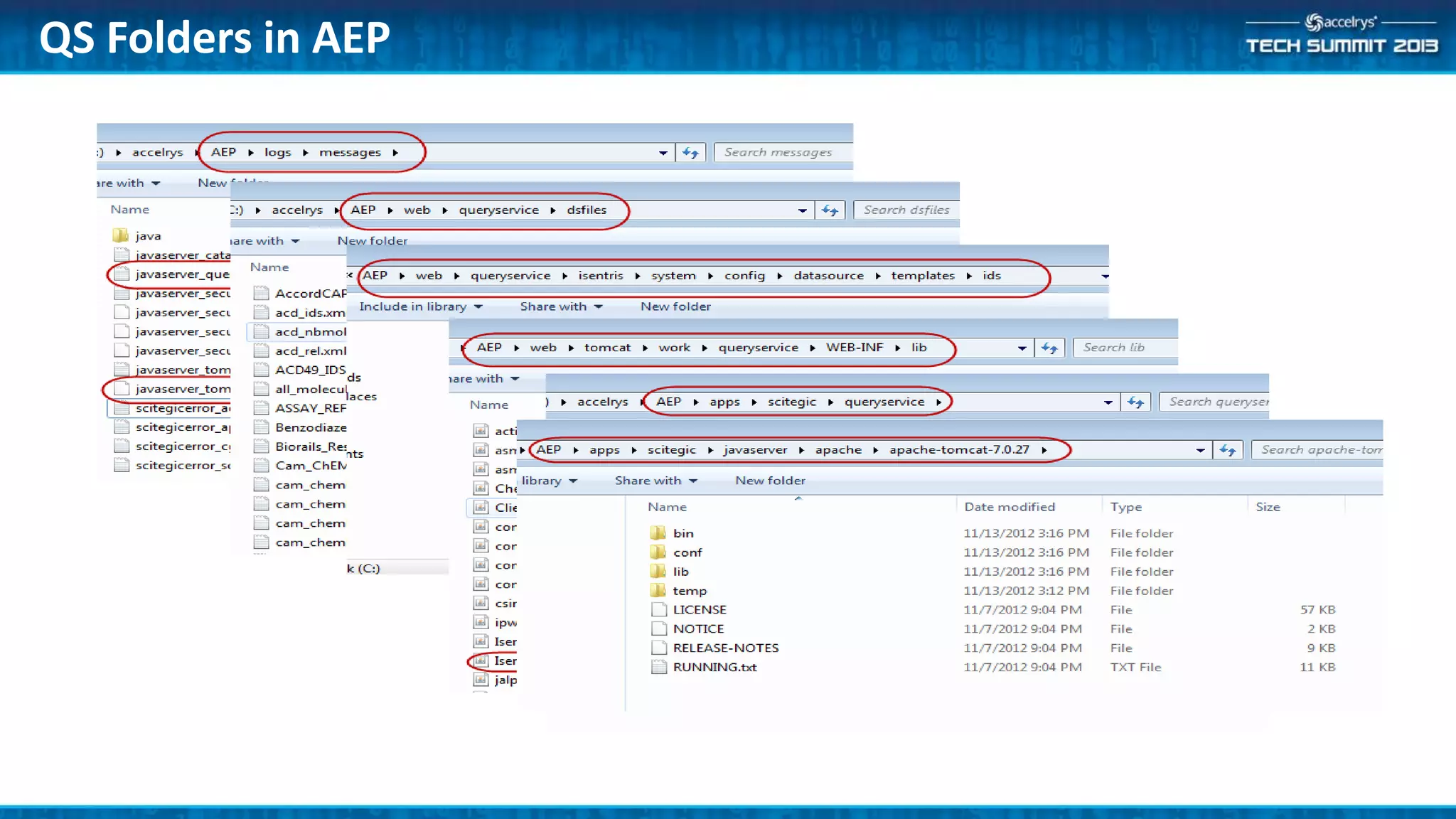

39. QS Folders in AEP

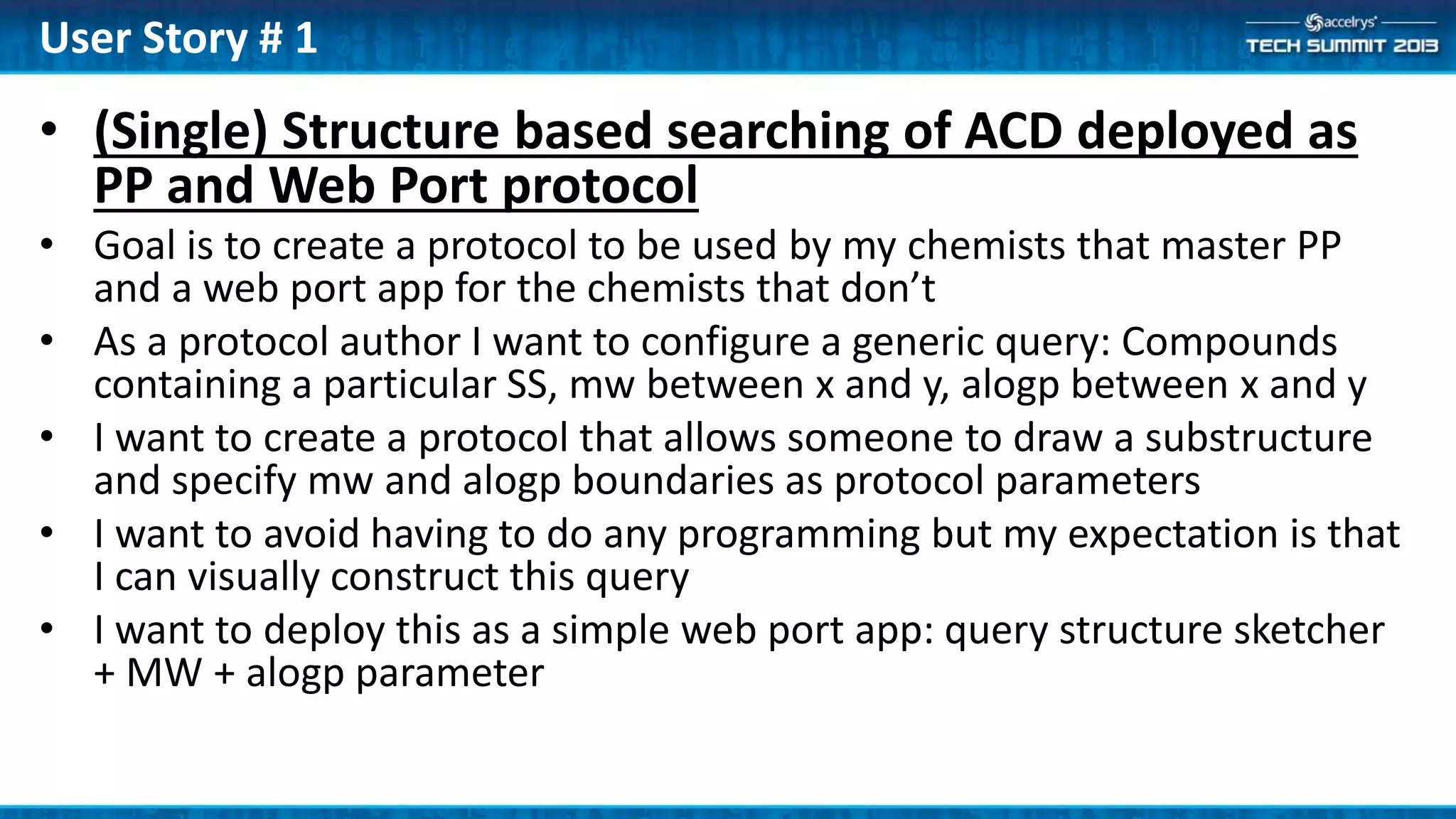

40. • (Single) Structure based searching of ACD deployed as
PP and Web Port protocol
• Goal is to create a protocol to be used by my chemists that master PP
and a web port app for the chemists that don’t
• As a protocol author I want to configure a generic query: Compounds
containing a particular SS, mw between x and y, alogp between x and y
• I want to create a protocol that allows someone to draw a substructure
and specify mw and alogp boundaries as protocol parameters
• I want to avoid having to do any programming but my expectation is that
I can visually construct this query
• I want to deploy this as a simple web port app: query structure sketcher
+ MW + alogp parameter
User Story # 1

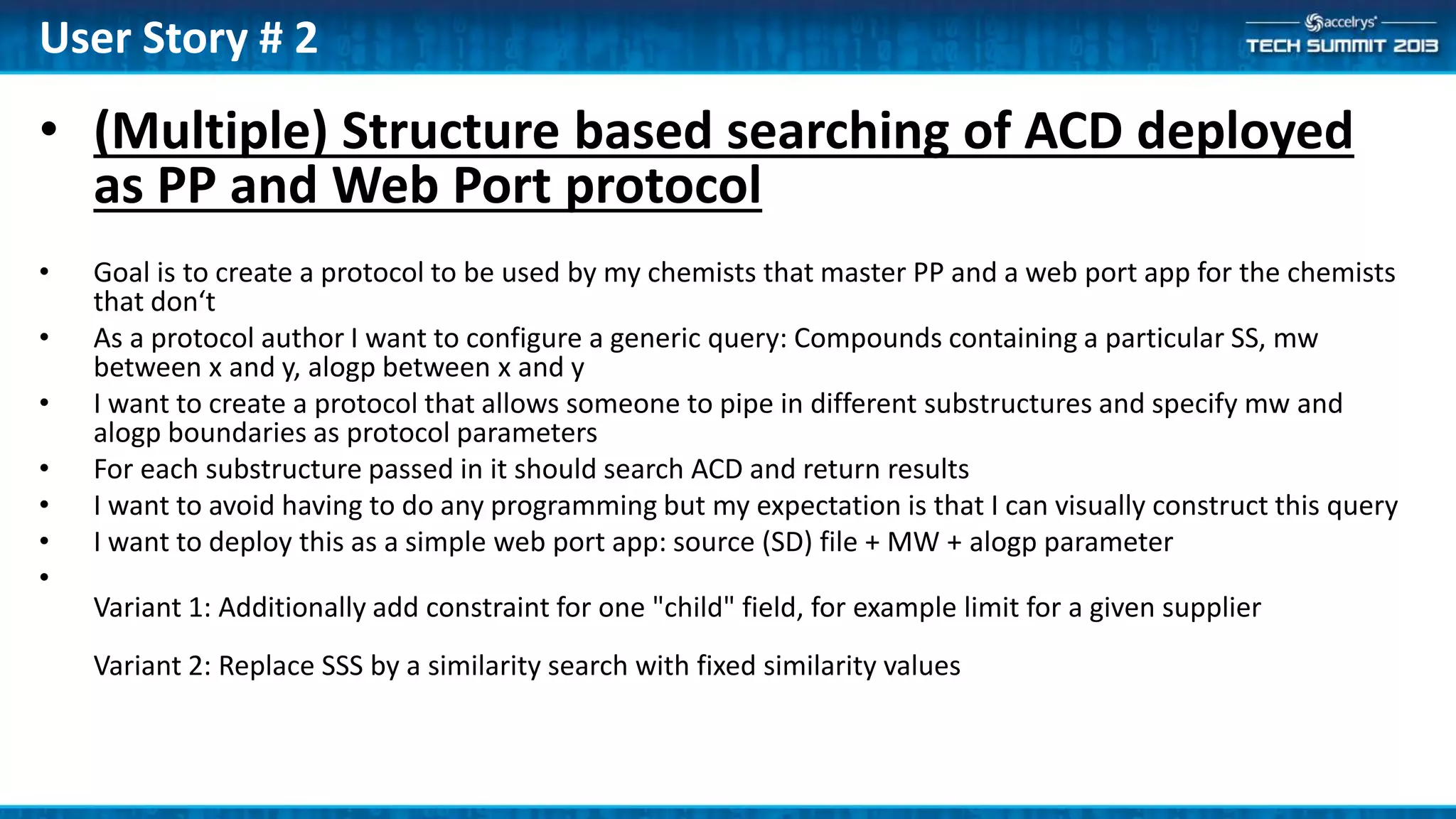

41. • (Multiple) Structure based searching of ACD deployed
as PP and Web Port protocol
• Goal is to create a protocol to be used by my chemists that master PP and a web port app for the chemists
that don‘t
• As a protocol author I want to configure a generic query: Compounds containing a particular SS, mw
between x and y, alogp between x and y
• I want to create a protocol that allows someone to pipe in different substructures and specify mw and
alogp boundaries as protocol parameters
• For each substructure passed in it should search ACD and return results
• I want to avoid having to do any programming but my expectation is that I can visually construct this query
• I want to deploy this as a simple web port app: source (SD) file + MW + alogp parameter
•
Variant 1: Additionally add constraint for one "child" field, for example limit for a given supplier
Variant 2: Replace SSS by a similarity search with fixed similarity values
User Story # 2

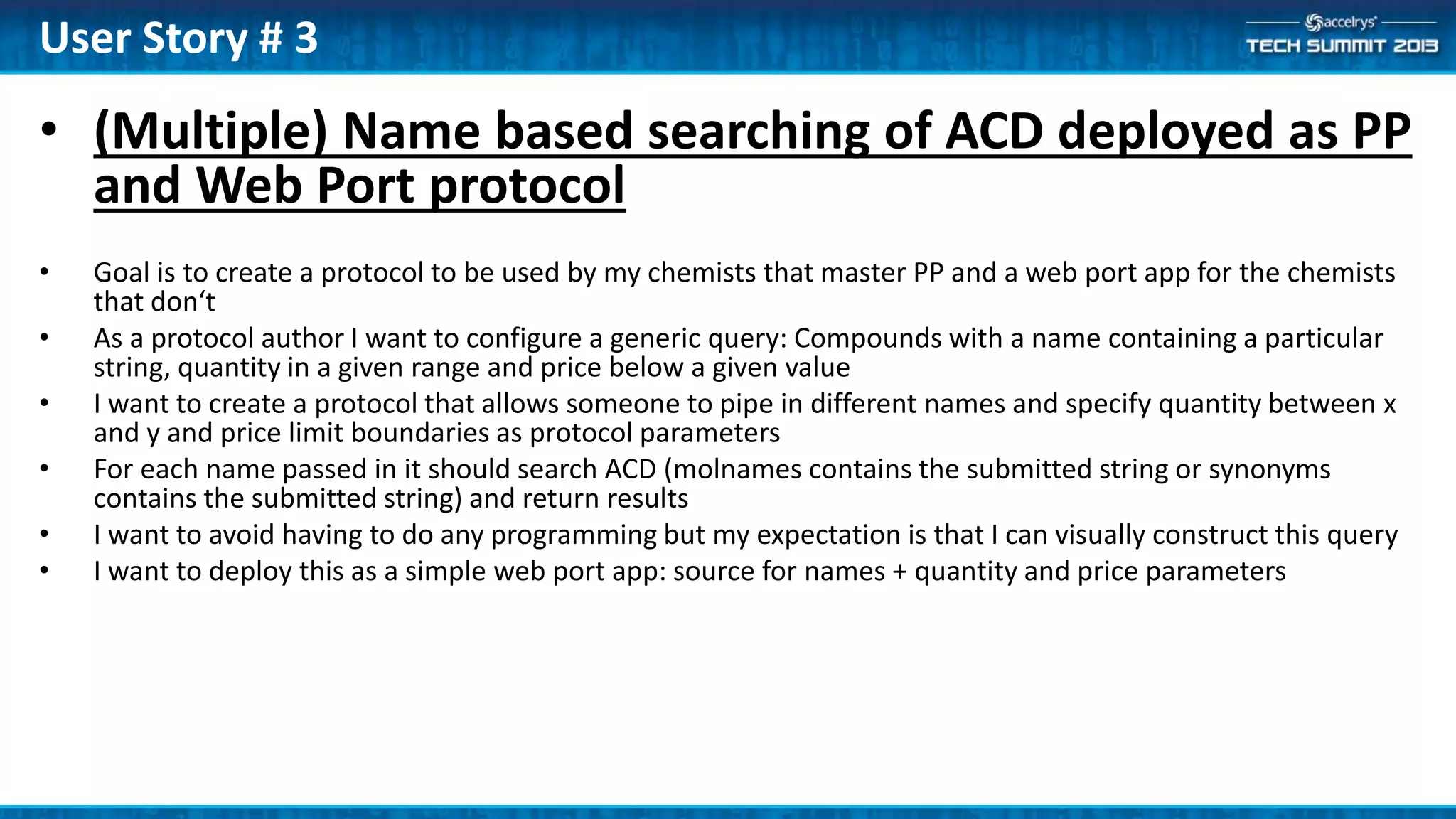

42. • (Multiple) Name based searching of ACD deployed as PP
and Web Port protocol
• Goal is to create a protocol to be used by my chemists that master PP and a web port app for the chemists
that don‘t
• As a protocol author I want to configure a generic query: Compounds with a name containing a particular
string, quantity in a given range and price below a given value
• I want to create a protocol that allows someone to pipe in different names and specify quantity between x
and y and price limit boundaries as protocol parameters
• For each name passed in it should search ACD (molnames contains the submitted string or synonyms
contains the submitted string) and return results
• I want to avoid having to do any programming but my expectation is that I can visually construct this query
• I want to deploy this as a simple web port app: source for names + quantity and price parameters
User Story # 3

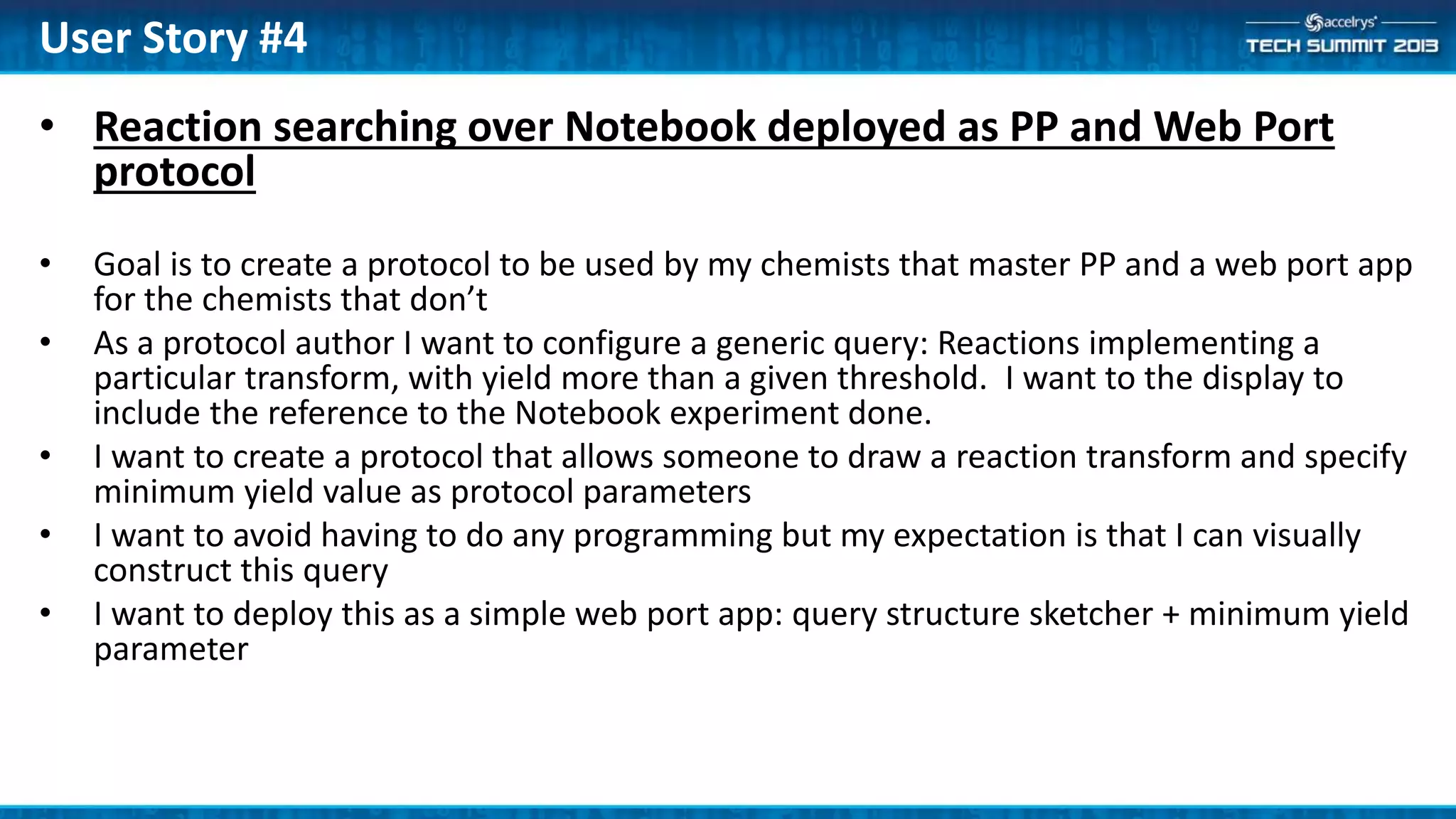

43. • Reaction searching over Notebook deployed as PP and Web Port
protocol
• Goal is to create a protocol to be used by my chemists that master PP and a web port app
for the chemists that don’t
• As a protocol author I want to configure a generic query: Reactions implementing a
particular transform, with yield more than a given threshold. I want to the display to
include the reference to the Notebook experiment done.
• I want to create a protocol that allows someone to draw a reaction transform and specify
minimum yield value as protocol parameters
• I want to avoid having to do any programming but my expectation is that I can visually
construct this query
• I want to deploy this as a simple web port app: query structure sketcher + minimum yield
parameter
User Story #4

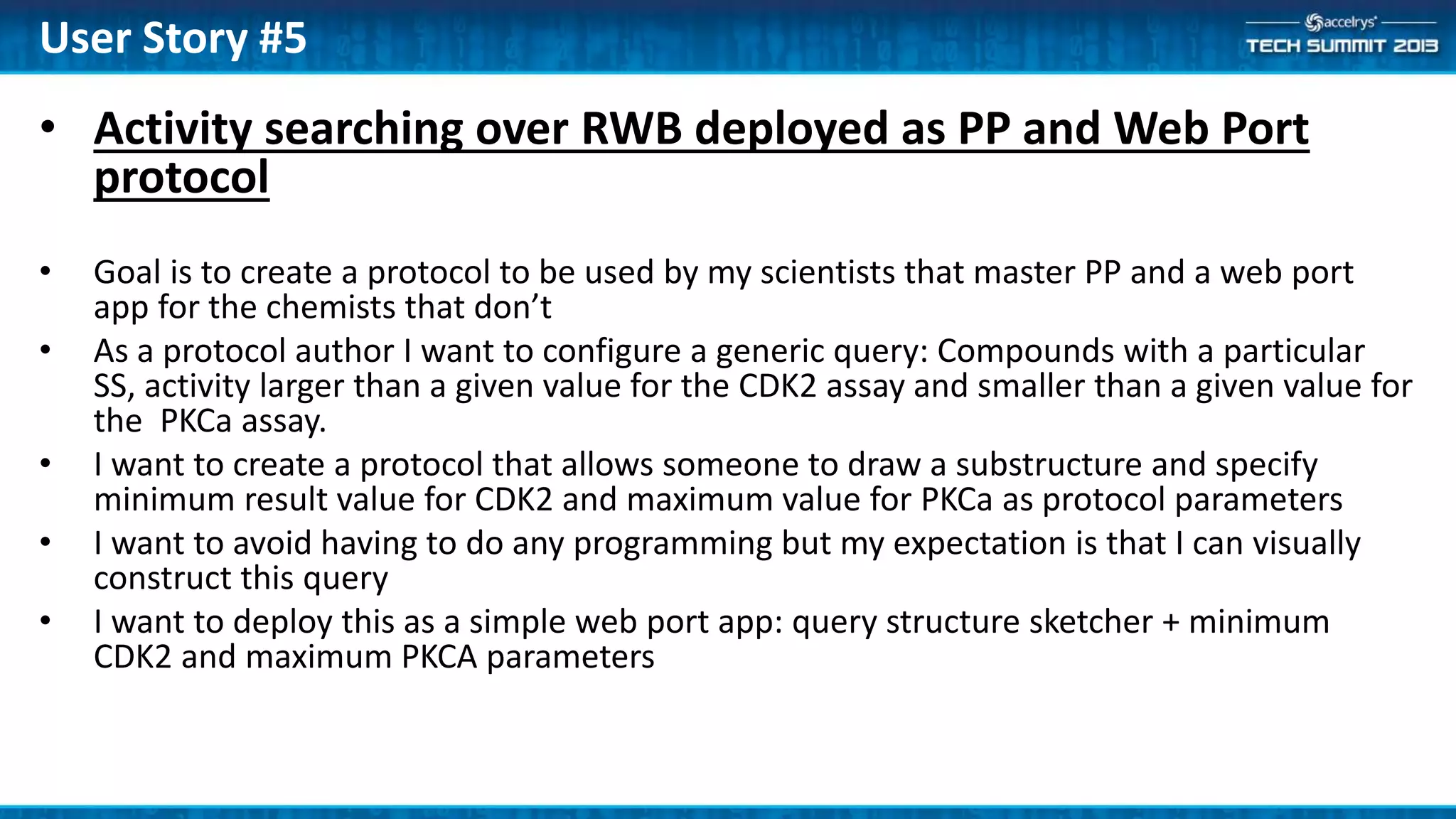

44. • Activity searching over RWB deployed as PP and Web Port
protocol
• Goal is to create a protocol to be used by my scientists that master PP and a web port
app for the chemists that don’t
• As a protocol author I want to configure a generic query: Compounds with a particular
SS, activity larger than a given value for the CDK2 assay and smaller than a given value for
the PKCa assay.
• I want to create a protocol that allows someone to draw a substructure and specify
minimum result value for CDK2 and maximum value for PKCa as protocol parameters
• I want to avoid having to do any programming but my expectation is that I can visually
construct this query
• I want to deploy this as a simple web port app: query structure sketcher + minimum
CDK2 and maximum PKCA parameters
User Story #5
