1. (ATS6-DEV01) What’s new for
Protocol and Component
Developers in AEP 9.0 Steven Bush
R&D, AEP Core Infrastructure
steven.bush@accelrys.com

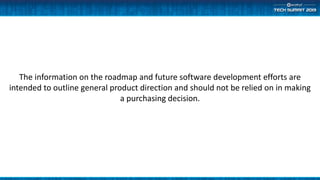

2. The information on the roadmap and future software development efforts are
intended to outline general product direction and should not be relied on in making
a purchasing decision.

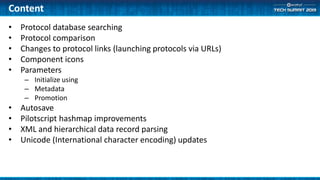

3. Content
• Protocol database searching
• Protocol comparison
• Changes to protocol links (launching protocols via URLs)
• Component icons
• Parameters
– Initialize using
– Metadata
– Promotion
• Autosave
• Pilotscript hashmap improvements
• XML and hierarchical data record parsing
• Unicode (International character encoding) updates

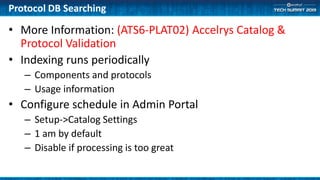

4. Protocol DB Searching
• More Information: (ATS6-PLAT02) Accelrys Catalog &
Protocol Validation
• Indexing runs periodically
– Components and protocols
– Usage information
• Configure schedule in Admin Portal
– Setup->Catalog Settings
– 1 am by default
– Disable if processing is too great

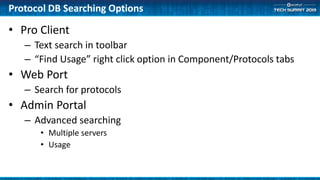

5. Protocol DB Searching Options
• Pro Client
– Text search in toolbar
– “Find Usage” right click option in Component/Protocols tabs
• Web Port
– Search for protocols
• Admin Portal
– Advanced searching
• Multiple servers
• Usage

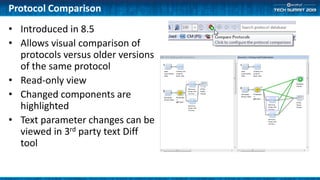

6. Protocol Comparison
• Introduced in 8.5
• Allows visual comparison of
protocols versus older versions
of the same protocol
• Read-only view
• Changed components are
highlighted
• Text parameter changes can be
viewed in 3rd party text Diff
tool

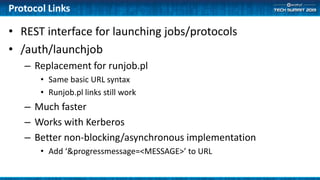

7. Protocol Links
• REST interface for launching jobs/protocols
• /auth/launchjob
– Replacement for runjob.pl
• Same basic URL syntax
• Runjob.pl links still work
– Much faster
– Works with Kerberos
– Better non-blocking/asynchronous implementation
• Add ‘&progressmessage=<MESSAGE>’ to URL

8. Protocol Links: Streaming Data
• Stream data back without redirecting
– Allows bookmarking a query instead of the result
– ‘&_streamfile=<VALUE>‘
• Return a result file
• <VALUE>
– Empty or ‘?’: return first file found
– Specific filename: return the matching file
– Regular expression ‘/<REGEX>/’: return the first file matching the regex
– ‘&_streamdata=<VALUE>‘
• Return a set of result properties
• <VALUE>
– Empty or ‘?’: return only the first result property
– ‘*’: return all result properties
– Property name: return that property
– Regular Expression ‘/<REGEX>/’: return properties whose names match
• Optionally add &_format=<xml | json | html | text>

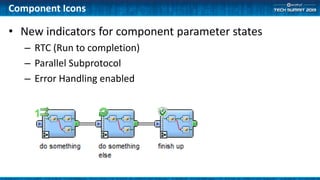

9. Component Icons
• New indicators for component parameter states
– RTC (Run to completion)
– Parallel Subprotocol
– Error Handling enabled

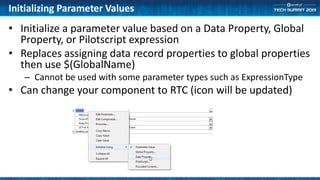

10. Initializing Parameter Values
• Initialize a parameter value based on a Data Property, Global
Property, or Pilotscript expression
• Replaces assigning data record properties to global properties
then use $(GlobalName)
– Cannot be used with some parameter types such as ExpressionType
• Can change your component to RTC (icon will be updated)

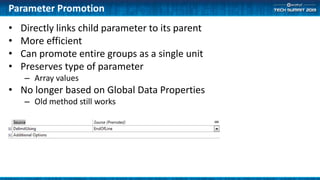

11. Parameter Promotion
• Directly links child parameter to its parent
• More efficient
• Can promote entire groups as a single unit
• Preserves type of parameter
– Array values
• No longer based on Global Data Properties
– Old method still works

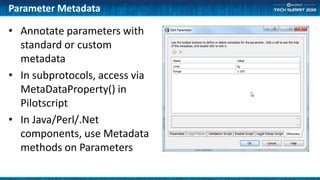

12. Parameter Metadata
• Annotate parameters with
standard or custom
metadata
• In subprotocols, access via
MetaDataProperty() in
Pilotscript
• In Java/Perl/.Net
components, use Metadata
methods on Parameters

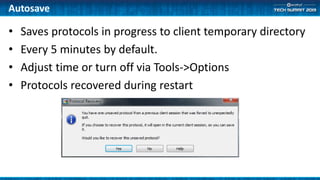

13. Autosave
• Saves protocols in progress to client temporary directory
• Every 5 minutes by default.
• Adjust time or turn off via Tools->Options
• Protocols recovered during restart

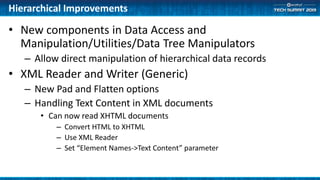

14. Hierarchical Improvements
• New components in Data Access and
Manipulation/Utilities/Data Tree Manipulators
– Allow direct manipulation of hierarchical data records
• XML Reader and Writer (Generic)
– New Pad and Flatten options
– Handling Text Content in XML documents
• Can now read XHTML documents
– Convert HTML to XHTML
– Use XML Reader
– Set “Element Names->Text Content” parameter

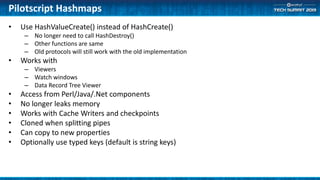

15. Pilotscript Hashmaps
• Use HashValueCreate() instead of HashCreate()
– No longer need to call HashDestroy()
– Other functions are same
– Old protocols will still work with the old implementation
• Works with
– Viewers
– Watch windows
– Data Record Tree Viewer
• Access from Perl/Java/.Net components
• No longer leaks memory
• Works with Cache Writers and checkpoints
• Cloned when splitting pipes
• Can copy to new properties
• Optionally use typed keys (default is string keys)

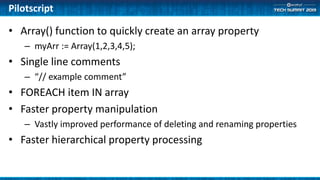

16. Pilotscript
• Array() function to quickly create an array property
– myArr := Array(1,2,3,4,5);
• Single line comments
– “// example comment”
• FOREACH item IN array
• Faster property manipulation
– Vastly improved performance of deleting and renaming properties
• Faster hierarchical property processing

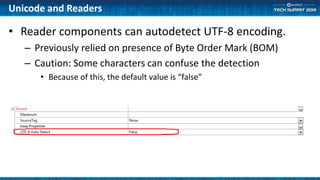

17. Unicode and Readers
• Reader components can autodetect UTF-8 encoding.
– Previously relied on presence of Byte Order Mark (BOM)
– Caution: Some characters can confuse the detection
• Because of this, the default value is “false”

18. Unicode and HTTP
• HTTP Connector and Readers can pick up character encoding
from HTTP headers (Content-Type)
– From the body of the message for XML and HTML documents
– “Detect Character Encodings” in HTTP Connector
• Defaults to “True”
– UTF-8 Autodetect in other readers
• Defaults to “False”, can always switch on for HTTP URLs

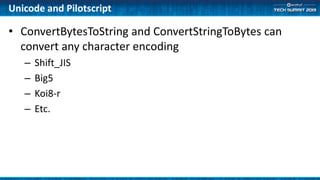

19. Unicode and Pilotscript
• ConvertBytesToString and ConvertStringToBytes can
convert any character encoding
– Shift_JIS
– Big5
– Koi8-r
– Etc.

20. Summary
• New features in 9.0
– Making the platform the best that we possibly can
• Please tell us your suggestions
– We are as much users as we are developers
