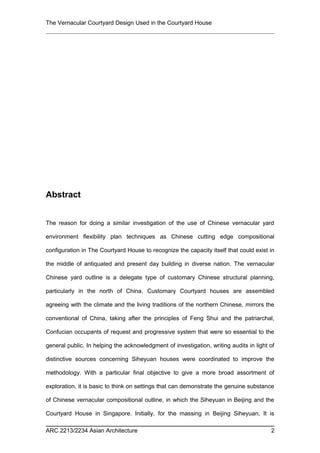

Abstract
The reason for doing a similar investigation of the use of Chinese vernacular yard
environment flexibility plan techniques as Chinese cutting edge compositional
configuration in The Courtyard House to recognize the capacity itself that could exist in
the middle of antiquated and present day building in diverse nation. The vernacular
Chinese yard outline is a delegate type of customary Chinese structural planning,
particularly in the north of China. Customary Courtyard houses are assembled
agreeing with the climate and the living traditions of the northern Chinese, mirrors the
conventional of China, taking after the principles of Feng Shui and the patriarchal,
Confucian occupants of request and progressive system that were so essential to the
general public. In helping the acknowledgment of investigation, writing audits in light of
distinctive sources concerning Siheyuan houses were coordinated to improve the
methodology. With a particular final objective to give a more broad assortment of
exploration, it is basic to think on settings that can demonstrate the genuine substance
of Chinese vernacular compositional outline, in which the Siheyuan in Beijing and the
Courtyard House in Singapore. Initially, for the massing in Beijing Siheyuan, It is
ARC 2213/2234 Asian Architecture 2
The Vernacular Courtyard Design Used in the Courtyard House

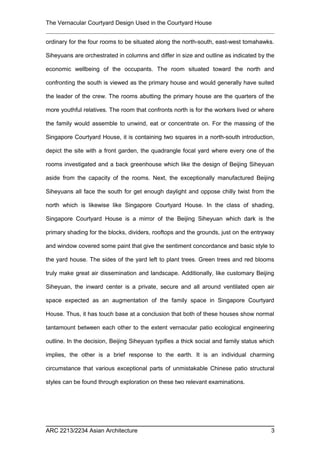

ordinary for the four rooms to be situated along the north-south, east-west tomahawks.
Siheyuans are orchestrated in columns and differ in size and outline as indicated by the
economic wellbeing of the occupants. The room situated toward the north and
confronting the south is viewed as the primary house and would generally have suited
the leader of the crew. The rooms abutting the primary house are the quarters of the
more youthful relatives. The room that confronts north is for the workers lived or where
the family would assemble to unwind, eat or concentrate on. For the massing of the
Singapore Courtyard House, it is containing two squares in a north-south introduction,
depict the site with a front garden, the quadrangle focal yard where every one of the
rooms investigated and a back greenhouse which like the design of Beijing Siheyuan
aside from the capacity of the rooms. Next, the exceptionally manufactured Beijing
Siheyuans all face the south for get enough daylight and oppose chilly twist from the
north which is likewise like Singapore Courtyard House. In the class of shading,
Singapore Courtyard House is a mirror of the Beijing Siheyuan which dark is the
primary shading for the blocks, dividers, rooftops and the grounds, just on the entryway
and window covered some paint that give the sentiment concordance and basic style to
the yard house. The sides of the yard left to plant trees. Green trees and red blooms
truly make great air dissemination and landscape. Additionally, like customary Beijing
Siheyuan, the inward center is a private, secure and all around ventilated open air
space expected as an augmentation of the family space in Singapore Courtyard
House. Thus, it has touch base at a conclusion that both of these houses show normal
tantamount between each other to the extent vernacular patio ecological engineering
outline. In the decision, Beijing Siheyuan typifies a thick social and family status which
implies, the other is a brief response to the earth. It is an individual charming
circumstance that various exceptional parts of unmistakable Chinese patio structural
styles can be found through exploration on these two relevant examinations.
ARC 2213/2234 Asian Architecture 3
The Vernacular Courtyard Design Used in the Courtyard House
Introduction
The courtyard House is one of the building inspired by the Sihyuan courtyard house,
the project readapt the northern legale of China’s vernacular typology, to a detached
house typology in an urbanized tropical context.
This paper will investigate the vernacular courtyard design and climatic design used in
Siheyuan and The Courtyard House by responding to the following research questions:
QI: What is Siheyuan?
Q2: What are similarities of spatial layout of Siheyuan and The Courtyard House?
Q3: What are the vernacular courtyard design and climatic design used in the
Courtyard House similar to Siheyuan?
Q4: Is it the wind environment in variants Spatial Layout of courtyard in Siheyuan is
same?
ARC 2213/2234 Asian Architecture 4
The Vernacular Courtyard Design Used in the Courtyard House

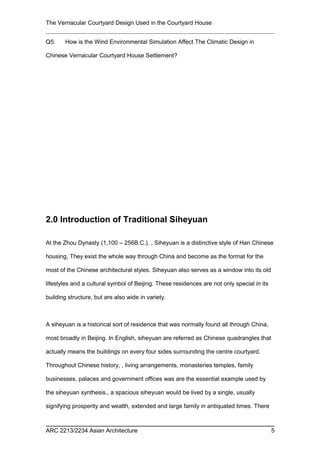

Q5: How is the Wind Environmental Simulation Affect The Climatic Design in
Chinese Vernacular Courtyard House Settlement?
2.0 Introduction of Traditional Siheyuan
At the Zhou Dynasty (1,100 – 256B.C.). , Siheyuan is a distinctive style of Han Chinese
housing, They exist the whole way through China and become as the format for the
most of the Chinese architectural styles. Siheyuan also serves as a window into its old
lifestyles and a cultural symbol of Beijing. These residences are not only special in its
building structure, but are also wide in variety.
A siheyuan is a historical sort of residence that was normally found all through China,
most broadly in Beijing. In English, siheyuan are referred as Chinese quadrangles that
actually means the buildings on every four sides surrounding the centre courtyard.
Throughout Chinese history, , living arrangements, monasteries temples, family
businesses, palaces and government offices was are the essential example used by
the siheyuan synthesis., a spacious siheyuan would be lived by a single, usually
signifying prosperity and wealth, extended and large family in antiquated times. There
ARC 2213/2234 Asian Architecture 5
The Vernacular Courtyard Design Used in the Courtyard House

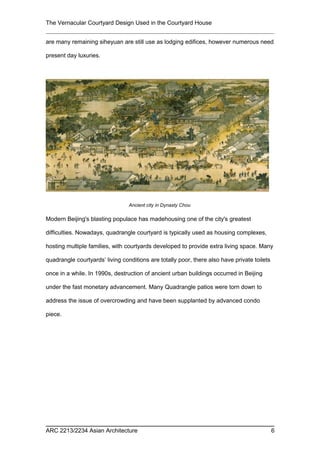

are many remaining siheyuan are still use as lodging edifices, however numerous need
present day luxuries.
Modern Beijing's blasting populace has madehousing one of the city's greatest
difficulties. Nowadays, quadrangle courtyard is typically used as housing complexes,
hosting multiple families, with courtyards developed to provide extra living space. Many
quadrangle courtyards’ living conditions are totally poor, there also have private toilets
once in a while. In 1990s, destruction of ancient urban buildings occurred in Beijing
under the fast monetary advancement. Many Quadrangle patios were torn down to
address the issue of overcrowding and have been supplanted by advanced condo
piece.
ARC 2213/2234 Asian Architecture 6
Ancient city in Dynasty Chou
The Vernacular Courtyard Design Used in the Courtyard House
3.0 Spatial Layout of Traditional Siheyuan
The four structures of a Quadrangle yard are ordinarily situated along the north-south
and east-west tomahawks. The building situated toward the north and confronting the
south is viewed as the fundamental house. Side houses is the structures that
connecting the primary house and confronting east and west. The northern, eastern
and western structures are associated by flawlessly embellished pathways. These
entries serve as sanctuaries from the daylight amid the day, and give a cool spot to
welcome the perspective of the yard around evening time. The building that confronts
north is known as the inverse house. Behind the northern building, there would
regularly be a different rear building, the main spot where two-story structures are
permitted to be developed for the customary Quadrangle patio.
ARC 2213/2234 Asian Architecture 7

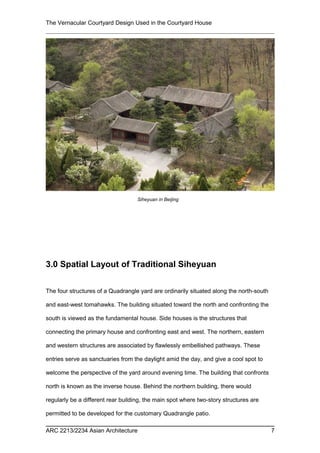

Siheyuan in Beijing
The Vernacular Courtyard Design Used in the Courtyard House
A detailed Confucian request was followed in old China. The principle house in the
north was allotted to the eldest individual from the family, i.e. the leader of the family,
as a rule grandparents. On the off chance that the fundamental house had enough
rooms, a focal room would serve as a holy place for hereditary love. At the point when
the leader of the family unit had mistresses, the wife would live in the space toward the
eastern end of the fundamental house, while the courtesans would dwell in the space
toward the western end of the principle house. The eldest child of the family and his
wife would live in the western side house, while the more youthful child and his wife
would dwell in the eastern side house. In the event that a grandson was completely
developed, he would live in the inverse house in the south. Unmarried little girls would
dependably live in the posterior building behind the primary house.
The fundamental door of the house would be put at the south-eastern corner of the
house. In understanding to standards of feng shui and the Eight Trigrams, this is
viewed as the most propitious bearing and could convey riches to the family. Toward
the north of the front yard is the second and internal entryway of the compound, which
ARC 2213/2234 Asian Architecture 8
General Spatial Layout of Siheyuan
The Vernacular Courtyard Design Used in the Courtyard House

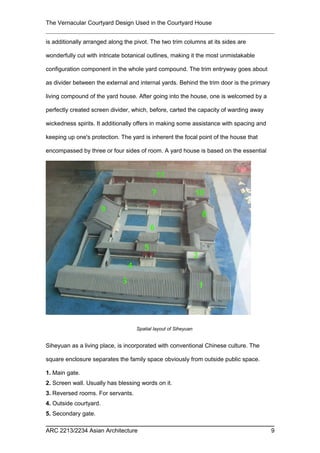

is additionally arranged along the pivot. The two trim columns at its sides are
wonderfully cut with intricate botanical outlines, making it the most unmistakable
configuration component in the whole yard compound. The trim entryway goes about
as divider between the external and internal yards. Behind the trim door is the primary
living compound of the yard house. After going into the house, one is welcomed by a
perfectly created screen divider, which, before, carted the capacity of warding away
wickedness spirits. It additionally offers in making some assistance with spacing and
keeping up one's protection. The yard is inherent the focal point of the house that
encompassed by three or four sides of room. A yard house is based on the essential
Siheyuan as a living place, is incorporated with conventional Chinese culture. The
square enclosure separates the family space obviously from outside public space.
1. Main gate.
2. Screen wall. Usually has blessing words on it.
3. Reversed rooms. For servants.
4. Outside courtyard.
5. Secondary gate.
ARC 2213/2234 Asian Architecture 9
Spatial layout of Siheyuan
The Vernacular Courtyard Design Used in the Courtyard House

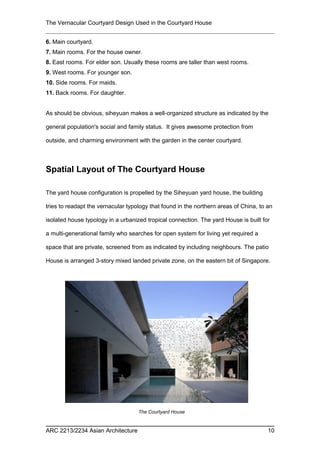

6. Main courtyard.
7. Main rooms. For the house owner.
8. East rooms. For elder son. Usually these rooms are taller than west rooms.
9. West rooms. For younger son.
10. Side rooms. For maids.
11. Back rooms. For daughter.
As should be obvious, siheyuan makes a well-organized structure as indicated by the
general population's social and family status. It gives awesome protection from
outside, and charming environment with the garden in the center courtyard.
Spatial Layout of The Courtyard House
The yard house configuration is propelled by the Siheyuan yard house, the building
tries to readapt the vernacular typology that found in the northern areas of China, to an
isolated house typology in a urbanized tropical connection. The yard House is built for
a multi-generational family who searches for open system for living yet required a
space that are private, screened from as indicated by including neighbours. The patio
House is arranged 3-story mixed landed private zone, on the eastern bit of Singapore.
ARC 2213/2234 Asian Architecture 10
The Courtyard House
The Vernacular Courtyard Design Used in the Courtyard House
The massing of The Courtyard House is comparable with the Siheyuan that trading off
of two pieces in a north-south introduction. It depict the site with a front garden, the
center patio where each one of the rooms examined and a back greenery fenced in
area. Individuals when all is said in done and private areas are layered in a spatial
parade from the street. Course inside of the house circumambulate the yard on all
floors which allude to the conventional Courtyard house plan.
ARC 2213/2234 Asian Architecture 11
The Vernacular Courtyard Design Used in the Courtyard House

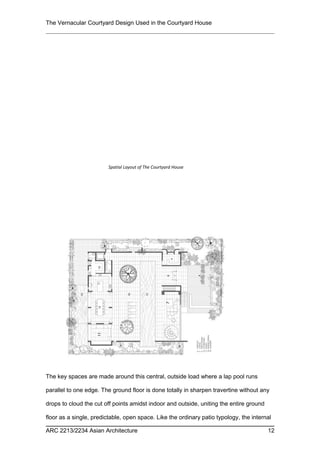

The key spaces are made around this central, outside load where a lap pool runs
parallel to one edge. The ground floor is done totally in sharpen travertine without any
drops to cloud the cut off points amidst indoor and outside, uniting the entire ground
floor as a single, predictable, open space. Like the ordinary patio typology, the internal
ARC 2213/2234 Asian Architecture 12
Spatial Layout of The Courtyard House
The Vernacular Courtyard Design Used in the Courtyard House
focus is a private, secure and all that much ventilated outside space expected as an
augmentation of the family space.
4.0 The Similarities of Vernacular Courtyard Design in
Siheyuan and The Courtyard House.
Exterior Thick Wall
ARC 2213/2234 Asian Architecture 13
The ground Floor of Courtyard House
Section of the Courtyard House
Section of Siheyuan
The Vernacular Courtyard Design Used in the Courtyard House

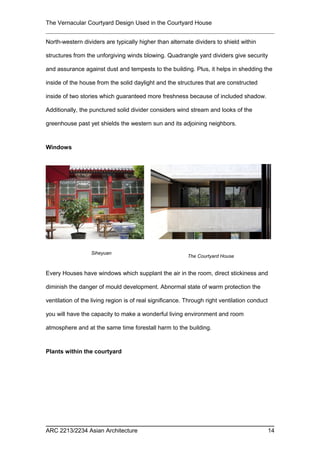

North-western dividers are typically higher than alternate dividers to shield within
structures from the unforgiving winds blowing. Quadrangle yard dividers give security
and assurance against dust and tempests to the building. Plus, it helps in shedding the
inside of the house from the solid daylight and the structures that are constructed
inside of two stories which guaranteed more freshness because of included shadow.
Additionally, the punctured solid divider considers wind stream and looks of the
greenhouse past yet shields the western sun and its adjoining neighbors.
Windows
Every Houses have windows which supplant the air in the room, direct stickiness and
diminish the danger of mould development. Abnormal state of warm protection the
ventilation of the living region is of real significance. Through right ventilation conduct
you will have the capacity to make a wonderful living environment and room
atmosphere and at the same time forestall harm to the building.
Plants within the courtyard
ARC 2213/2234 Asian Architecture 14
Siheyuan
The Courtyard House
The Vernacular Courtyard Design Used in the Courtyard House

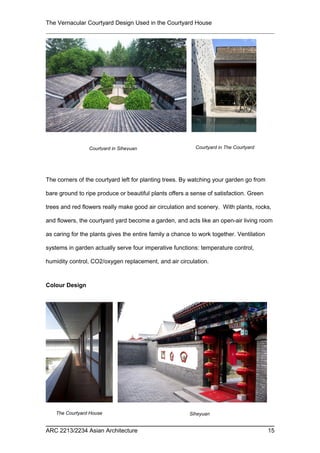

The corners of the courtyard left for planting trees. By watching your garden go from
bare ground to ripe produce or beautiful plants offers a sense of satisfaction. Green
trees and red flowers really make good air circulation and scenery. With plants, rocks,
and flowers, the courtyard yard become a garden, and acts like an open-air living room
as caring for the plants gives the entire family a chance to work together. Ventilation
systems in garden actually serve four imperative functions: temperature control,
humidity control, CO2/oxygen replacement, and air circulation.
Colour Design
ARC 2213/2234 Asian Architecture 15
Courtyard in Siheyuan Courtyard in The Courtyard
House
SiheyuanThe Courtyard House
The Vernacular Courtyard Design Used in the Courtyard House
Grey is the overwhelming shading for the blocks, dividers, rooftops and the grounds,
just on the entryway and window covered some paint, all of which convey concordance
and straightforward style to the yard house. Roof bend descending, with the goal that
water will stream along the bend instead of dropping straight down. The housetop is
furrowed to give shade in the late spring while holding warmth in the winter.
Courtyard
In both of Siheyuan and The Courtyard house design, there is a quadrangle courtyard
located at the center of the building surrounded by all sides of the rooms. For the
courtyard house design, the connection with nature is expressed through the centrally
located courtyard. It maintains the well-being of the inhabitants by bringing in natural
light and providing ventilation to the building. Besides, Family members talked with
each other here, creating a cordial atmosphere.
ARC 2213/2234 Asian Architecture 16
The Courtyard House
Siheyuan
The Vernacular Courtyard Design Used in the Courtyard House
5.0 Wind Environment in variants Spatial Layout of
courtyard in Siheyuan
While most Beijing yard houses are manufactured to take after the basic plan that the
general acquaintance along north with south and four unique structures of a yard
houses are arranged nearby the east-west or north-south heading and essential
passageway are arranged at the southeast, there are still particular varieties of patio
house (MA, 1999). Beneath demonstrated the most by and large seen assortment is
the congruity of the principal passageway range. A few most conventionally seen
varieties kind of Beijing yard house. The major organization doesn't change, however
the zone of the essential passageway are particular.
Using the same setting through above amusement, there are four unmistakable
varieties of the patio house with differing way range are repeated. Figure beneath
ARC 2213/2234 Asian Architecture 17
Variant types of Courtyard House
The Vernacular Courtyard Design Used in the Courtyard House

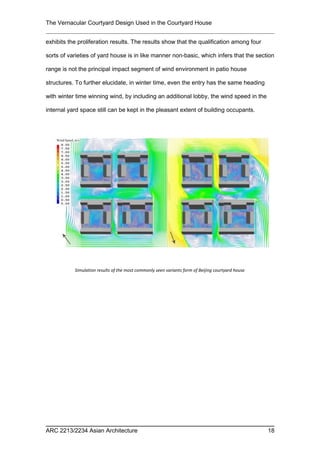

exhibits the proliferation results. The results show that the qualification among four
sorts of varieties of yard house is in like manner non-basic, which infers that the section
range is not the principal impact segment of wind environment in patio house
structures. To further elucidate, in winter time, even the entry has the same heading
with winter time winning wind, by including an additional lobby, the wind speed in the
internal yard space still can be kept in the pleasant extent of building occupants.
ARC 2213/2234 Asian Architecture 18
Simulation results of the most commonly seen variants form of Beijing courtyard house
The Vernacular Courtyard Design Used in the Courtyard House

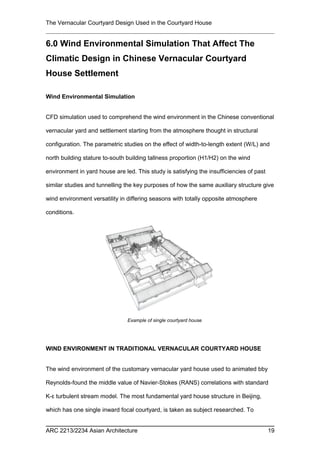

6.0 Wind Environmental Simulation That Affect The
Climatic Design in Chinese Vernacular Courtyard
House Settlement
Wind Environmental Simulation
CFD simulation used to comprehend the wind environment in the Chinese conventional
vernacular yard and settlement starting from the atmosphere thought in structural
configuration. The parametric studies on the effect of width-to-length extent (W/L) and
north building stature to-south building tallness proportion (H1/H2) on the wind
environment in yard house are led. This study is satisfying the insufficiencies of past
similar studies and tunnelling the key purposes of how the same auxiliary structure give
wind environment versatility in differing seasons with totally opposite atmosphere
conditions.
WIND ENVIRONMENT IN TRADITIONAL VERNACULAR COURTYARD HOUSE
The wind environment of the customary vernacular yard house used to animated bby
Reynolds-found the middle value of Navier-Stokes (RANS) correlations with standard
K-ε turbulent stream model. The most fundamental yard house structure in Beijing,
which has one single inward focal courtyard, is taken as subject researched. To
ARC 2213/2234 Asian Architecture 19
Example of single courtyard house
The Vernacular Courtyard Design Used in the Courtyard House

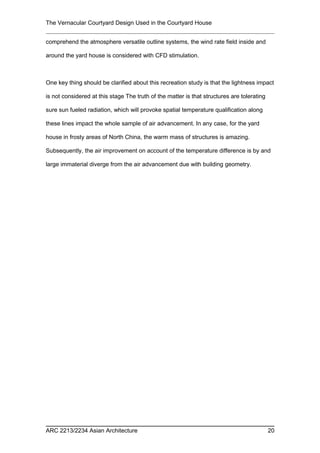

comprehend the atmosphere versatile outline systems, the wind rate field inside and
around the yard house is considered with CFD stimulation.
One key thing should be clarified about this recreation study is that the lightness impact
is not considered at this stage The truth of the matter is that structures are tolerating
sure sun fueled radiation, which will provoke spatial temperature qualification along
these lines impact the whole sample of air advancement. In any case, for the yard
house in frosty areas of North China, the warm mass of structures is amazing.
Subsequently, the air improvement on account of the temperature difference is by and
large immaterial diverge from the air advancement due with building geometry.
ARC 2213/2234 Asian Architecture 20
The Vernacular Courtyard Design Used in the Courtyard House

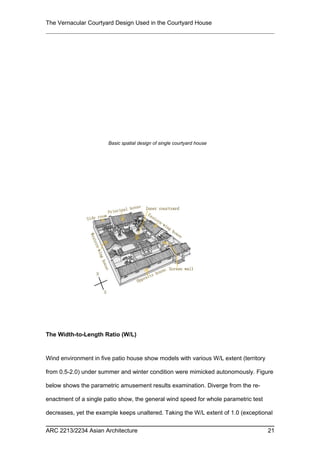

The Width-to-Length Ratio (W/L)
Wind environment in five patio house show models with various W/L extent (territory
from 0.5-2.0) under summer and winter condition were mimicked autonomously. Figure
below shows the parametric amusement results examination. Diverge from the re-
enactment of a single patio show, the general wind speed for whole parametric test
decreases, yet the example keeps unaltered. Taking the W/L extent of 1.0 (exceptional
ARC 2213/2234 Asian Architecture 21
Basic spatial design of single courtyard house
The Vernacular Courtyard Design Used in the Courtyard House

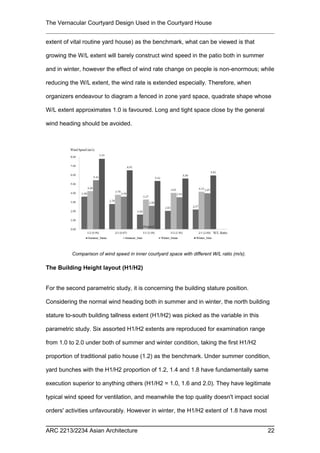

extent of vital routine yard house) as the benchmark, what can be viewed is that
growing the W/L extent will barely construct wind speed in the patio both in summer
and in winter, however the effect of wind rate change on people is non-enormous; while
reducing the W/L extent, the wind rate is extended especially. Therefore, when
organizers endeavour to diagram a fenced in zone yard space, quadrate shape whose
W/L extent approximates 1.0 is favoured. Long and tight space close by the general
wind heading should be avoided.
The Building Height layout (H1/H2)
For the second parametric study, it is concerning the building stature position.
Considering the normal wind heading both in summer and in winter, the north building
stature to-south building tallness extent (H1/H2) was picked as the variable in this
parametric study. Six assorted H1/H2 extents are reproduced for examination range
from 1.0 to 2.0 under both of summer and winter condition, taking the first H1/H2
proportion of traditional patio house (1.2) as the benchmark. Under summer condition,
yard bunches with the H1/H2 proportion of 1.2, 1.4 and 1.8 have fundamentally same
execution superior to anything others (H1/H2 = 1.0, 1.6 and 2.0). They have legitimate
typical wind speed for ventilation, and meanwhile the top quality doesn't impact social
orders' activities unfavourably. However in winter, the H1/H2 extent of 1.8 have most
ARC 2213/2234 Asian Architecture 22
Comparison of wind speed in inner courtyard space with different W/L ratio (m/s).
The Vernacular Courtyard Design Used in the Courtyard House
great estimation of wind rate which will lessen the warm comfort level and grow the
warming imperativeness usage. Thusly, the H1/H2 extent from 1.2 to 1.4 is the
favoured choices for planning patio space.
In perspective on the reproduction concentrate on, the enhanced yard shape should
have the width to length proportion (W/L) of 1.0 and the north building tallness to-south
building stature proportion (H1/H2) of 1.2-1.4. By understanding the key impact
segments of wind environment in the yard house building structure, modellers can
apply this vernacular construction modelling structure and its climatic flexibility into the
natural building diagram honest to goodness and shrewdly. This study focus on the
effect of the building geometry, thusly, more future works will be driven on the warm
viewpoints for broad understanding of vernacular building climatic outline systems.
ARC 2213/2234 Asian Architecture 23
Comparison of wind speed in inner courtyard space with different H1/H2 ratio (m/s).
The Vernacular Courtyard Design Used in the Courtyard House

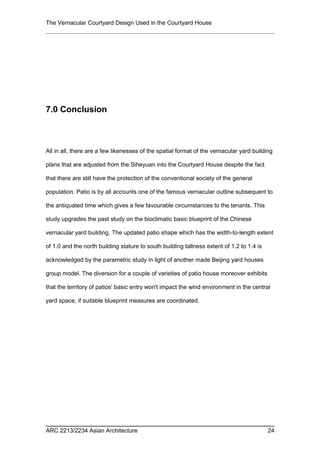

7.0 Conclusion
All in all, there are a few likenesses of the spatial format of the vernacular yard building
plans that are adjusted from the Siheyuan into the Courtyard House despite the fact
that there are still have the protection of the conventional society of the general
population. Patio is by all accounts one of the famous vernacular outline subsequent to
the antiquated time which gives a few favourable circumstances to the tenants. This
study upgrades the past study on the bioclimatic basic blueprint of the Chinese
vernacular yard building. The updated patio shape which has the width-to-length extent
of 1.0 and the north building stature to south building tallness extent of 1.2 to 1.4 is
acknowledged by the parametric study in light of another made Beijing yard houses
group model. The diversion for a couple of varieties of patio house moreover exhibits
that the territory of patios' basic entry won't impact the wind environment in the central
yard space, if suitable blueprint measures are coordinated.
ARC 2213/2234 Asian Architecture 24
The Vernacular Courtyard Design Used in the Courtyard House

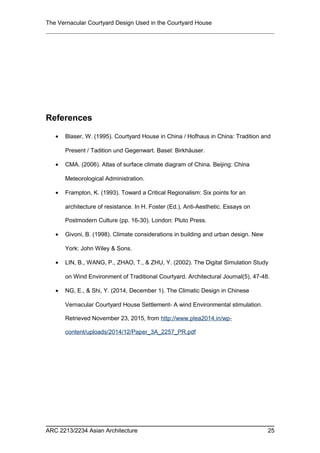

References
• Blaser, W. (1995). Courtyard House in China / Hofhaus in China: Tradition and
Present / Tadition und Gegenwart. Basel: Birkhäuser.
• CMA. (2006). Atlas of surface climate diagram of China. Beijing: China
Meteorological Administration.
• Frampton, K. (1993). Toward a Critical Regionalism: Six points for an
architecture of resistance. In H. Foster (Ed.), Anti-Aesthetic. Essays on
Postmodern Culture (pp. 16-30). London: Pluto Press.
• Givoni, B. (1998). Climate considerations in building and urban design. New
York: John Wiley & Sons.
• LIN, B., WANG, P., ZHAO, T., & ZHU, Y. (2002). The Digital Simulation Study
on Wind Environment of Traditional Courtyard. Architectural Journal(5), 47-48.
• NG, E., & Shi, Y. (2014, December 1). The Climatic Design in Chinese
Vernacular Courtyard House Settlement- A wind Environmental stimulation.
Retrieved November 23, 2015, from http://www.plea2014.in/wp-
content/uploads/2014/12/Paper_3A_2257_PR.pdf
ARC 2213/2234 Asian Architecture 25

More Related Content

What's hot

Geoffrey bawa
Geoffrey bawaGeoffrey bawa
Geoffrey bawa
uzmakhan01

Chinese courtyard
Chinese courtyardChinese courtyard
Chinese courtyard
Hwei Ying Saw

Geoffrey bawa..
Geoffrey bawa..Geoffrey bawa..
Geoffrey bawa..
Mohammed Sami

ASIAN ARCHITECTURE - THREE COURTYARD COMMUNITY CENTRE CASE STUDY /
ASIAN ARCHITECTURE - THREE COURTYARD COMMUNITY CENTRE CASE STUDY /ASIAN ARCHITECTURE - THREE COURTYARD COMMUNITY CENTRE CASE STUDY /
ASIAN ARCHITECTURE - THREE COURTYARD COMMUNITY CENTRE CASE STUDY /
Lovie Tey

geoffrey bawa
geoffrey bawageoffrey bawa
geoffrey bawa
Abhiram Bathina

Vernacular Study : AKIL SAMI HOUSE ,by Ar.HASSAN FATHY
Vernacular Study : AKIL SAMI HOUSE ,by Ar.HASSAN FATHY Vernacular Study : AKIL SAMI HOUSE ,by Ar.HASSAN FATHY
Vernacular Study : AKIL SAMI HOUSE ,by Ar.HASSAN FATHY
Siddiq Salim

Works of Geoffrey Bawa
Works of Geoffrey BawaWorks of Geoffrey Bawa
Works of Geoffrey Bawa
aashish gupta

Works of Joseph Allen Stein
Works of Joseph Allen SteinWorks of Joseph Allen Stein
Works of Joseph Allen Stein
Shivika Gulati

Hassan fathy
Hassan fathyHassan fathy
Hassan fathy
SOUMYA KHANDELWAL

Vernacular architecture of bohra houses
Vernacular architecture of bohra housesVernacular architecture of bohra houses
Vernacular architecture of bohra houses
Bala Hari Krishnan S

Seema malaka, Colombo, Sri Lanka.
Seema malaka, Colombo, Sri Lanka.Seema malaka, Colombo, Sri Lanka.
Seema malaka, Colombo, Sri Lanka.
Mayur Waghulde

Thirty third lane house.
Thirty third lane house.Thirty third lane house.
Thirty third lane house.
Mayur Waghulde

CONTEMPORARY ARCHITECTURE - FOREIGN
CONTEMPORARY ARCHITECTURE - FOREIGN  CONTEMPORARY ARCHITECTURE - FOREIGN
CONTEMPORARY ARCHITECTURE - FOREIGN
Kaushal joshi

Ancient Egyptian Houses, and influence on Hassan Fathy
Ancient Egyptian Houses, and influence on Hassan FathyAncient Egyptian Houses, and influence on Hassan Fathy
Ancient Egyptian Houses, and influence on Hassan Fathy
Hanady14

Eugene pandala
Eugene pandalaEugene pandala
Eugene pandala
Shivangi Shankar

Geoffrey bawa house
Geoffrey bawa houseGeoffrey bawa house
Geoffrey bawa house
Yatharth Thakkar

Geoffrey bawa
Geoffrey bawaGeoffrey bawa
Geoffrey bawa
Amal Sridar

Hassan fathy
Hassan fathyHassan fathy
Hassan fathy
Abhinaina Bhatia

Hasan fathy...construction
Hasan fathy...constructionHasan fathy...construction
Hasan fathy...construction
Satish Badrinadh

Asian Architecture Report
Asian Architecture Report Asian Architecture Report
Asian Architecture Report
En Huey


What's hot (20)

Geoffrey bawa
Geoffrey bawaGeoffrey bawa
Geoffrey bawa

Chinese courtyard
Chinese courtyardChinese courtyard
Chinese courtyard

Geoffrey bawa..
Geoffrey bawa..Geoffrey bawa..
Geoffrey bawa..

ASIAN ARCHITECTURE - THREE COURTYARD COMMUNITY CENTRE CASE STUDY /
ASIAN ARCHITECTURE - THREE COURTYARD COMMUNITY CENTRE CASE STUDY /ASIAN ARCHITECTURE - THREE COURTYARD COMMUNITY CENTRE CASE STUDY /
ASIAN ARCHITECTURE - THREE COURTYARD COMMUNITY CENTRE CASE STUDY /

geoffrey bawa
geoffrey bawageoffrey bawa
geoffrey bawa

Vernacular Study : AKIL SAMI HOUSE ,by Ar.HASSAN FATHY
Vernacular Study : AKIL SAMI HOUSE ,by Ar.HASSAN FATHY Vernacular Study : AKIL SAMI HOUSE ,by Ar.HASSAN FATHY
Vernacular Study : AKIL SAMI HOUSE ,by Ar.HASSAN FATHY

Works of Geoffrey Bawa
Works of Geoffrey BawaWorks of Geoffrey Bawa
Works of Geoffrey Bawa

Works of Joseph Allen Stein
Works of Joseph Allen SteinWorks of Joseph Allen Stein
Works of Joseph Allen Stein

Hassan fathy
Hassan fathyHassan fathy
Hassan fathy

Vernacular architecture of bohra houses
Vernacular architecture of bohra housesVernacular architecture of bohra houses
Vernacular architecture of bohra houses

Seema malaka, Colombo, Sri Lanka.
Seema malaka, Colombo, Sri Lanka.Seema malaka, Colombo, Sri Lanka.
Seema malaka, Colombo, Sri Lanka.

Thirty third lane house.
Thirty third lane house.Thirty third lane house.
Thirty third lane house.

CONTEMPORARY ARCHITECTURE - FOREIGN
CONTEMPORARY ARCHITECTURE - FOREIGN  CONTEMPORARY ARCHITECTURE - FOREIGN
CONTEMPORARY ARCHITECTURE - FOREIGN

Ancient Egyptian Houses, and influence on Hassan Fathy
Ancient Egyptian Houses, and influence on Hassan FathyAncient Egyptian Houses, and influence on Hassan Fathy
Ancient Egyptian Houses, and influence on Hassan Fathy

Eugene pandala
Eugene pandalaEugene pandala
Eugene pandala

Geoffrey bawa house
Geoffrey bawa houseGeoffrey bawa house
Geoffrey bawa house

Geoffrey bawa
Geoffrey bawaGeoffrey bawa
Geoffrey bawa

Hassan fathy
Hassan fathyHassan fathy
Hassan fathy

Hasan fathy...construction
Hasan fathy...constructionHasan fathy...construction
Hasan fathy...construction

Asian Architecture Report
Asian Architecture Report Asian Architecture Report
Asian Architecture Report


Viewers also liked

Cts.project one brief fnbe 04.13
Cts.project one brief fnbe 04.13Cts.project one brief fnbe 04.13
Cts.project one brief fnbe 04.13
Anthony Chew

Project2 brief
Project2 briefProject2 brief
Project2 brief
Anthony Chew

Ici p1 0413
Ici p1 0413Ici p1 0413
Ici p1 0413
Anthony Chew

Synopsis 4
Synopsis 4Synopsis 4
Synopsis 4
Anthony Chew

Project 1 brief precedent studies
Project 1 brief precedent studiesProject 1 brief precedent studies
Project 1 brief precedent studies
Anthony Chew

Studio 4 arc60206 module outline (august 2015)
Studio 4 arc60206 module outline (august 2015)Studio 4 arc60206 module outline (august 2015)
Studio 4 arc60206 module outline (august 2015)
Anthony Chew

Module outline building science1 aug 2014
Module outline building science1 aug 2014Module outline building science1 aug 2014
Module outline building science1 aug 2014
Anthony Chew

Dv project one a
Dv project one aDv project one a
Dv project one a
Anthony Chew

Enbe powerpoint
Enbe powerpointEnbe powerpoint
Enbe powerpoint
Anthony Chew

Enbe.project one 04.13
Enbe.project one 04.13Enbe.project one 04.13
Enbe.project one 04.13
Anthony Chew

Project2 brief web book
Project2 brief web bookProject2 brief web book
Project2 brief web book
Anthony Chew

Project brief 3 architecture studio 3 s1 2015 (4)
Project brief 3 architecture studio 3 s1 2015 (4)Project brief 3 architecture studio 3 s1 2015 (4)
Project brief 3 architecture studio 3 s1 2015 (4)
Anthony Chew

Design communication (degree) april 2014-assignment 2a
Design communication (degree) april 2014-assignment 2aDesign communication (degree) april 2014-assignment 2a
Design communication (degree) april 2014-assignment 2a
Anthony Chew

B sc (hons)(arch) asian architecture arc60403 outline aug 2015 (2)
B sc (hons)(arch)  asian architecture arc60403 outline aug 2015 (2)B sc (hons)(arch)  asian architecture arc60403 outline aug 2015 (2)
B sc (hons)(arch) asian architecture arc60403 outline aug 2015 (2)
Anthony Chew

Project one site visit instructions
Project one   site visit instructionsProject one   site visit instructions
Project one site visit instructions
Anthony Chew

Project 1 brief
Project 1 briefProject 1 brief
Project 1 brief
Anthony Chew

Sypnosis 3
Sypnosis 3Sypnosis 3
Sypnosis 3
Anthony Chew

Course outline culture and history
Course outline culture and historyCourse outline culture and history
Course outline culture and history
Anthony Chew


Viewers also liked (20)

Cts.project one brief fnbe 04.13
Cts.project one brief fnbe 04.13Cts.project one brief fnbe 04.13
Cts.project one brief fnbe 04.13

Project2 brief
Project2 briefProject2 brief
Project2 brief

Ici p1 0413
Ici p1 0413Ici p1 0413
Ici p1 0413

Synopsis 4
Synopsis 4Synopsis 4
Synopsis 4

Project 1 brief precedent studies
Project 1 brief precedent studiesProject 1 brief precedent studies
Project 1 brief precedent studies

Studio 4 arc60206 module outline (august 2015)
Studio 4 arc60206 module outline (august 2015)Studio 4 arc60206 module outline (august 2015)
Studio 4 arc60206 module outline (august 2015)

Module outline building science1 aug 2014
Module outline building science1 aug 2014Module outline building science1 aug 2014
Module outline building science1 aug 2014

Dv project one a
Dv project one aDv project one a
Dv project one a

Enbe powerpoint
Enbe powerpointEnbe powerpoint
Enbe powerpoint

Enbe.project one 04.13
Enbe.project one 04.13Enbe.project one 04.13
Enbe.project one 04.13

Project2 brief web book
Project2 brief web bookProject2 brief web book
Project2 brief web book

Project brief 3 architecture studio 3 s1 2015 (4)
Project brief 3 architecture studio 3 s1 2015 (4)Project brief 3 architecture studio 3 s1 2015 (4)
Project brief 3 architecture studio 3 s1 2015 (4)

Design communication (degree) april 2014-assignment 2a
Design communication (degree) april 2014-assignment 2aDesign communication (degree) april 2014-assignment 2a
Design communication (degree) april 2014-assignment 2a

B sc (hons)(arch) asian architecture arc60403 outline aug 2015 (2)
B sc (hons)(arch)  asian architecture arc60403 outline aug 2015 (2)B sc (hons)(arch)  asian architecture arc60403 outline aug 2015 (2)
B sc (hons)(arch) asian architecture arc60403 outline aug 2015 (2)

Building process
Building processBuilding process
Building process

Idj 03
Idj 03Idj 03
Idj 03

Project one site visit instructions
Project one   site visit instructionsProject one   site visit instructions
Project one site visit instructions

Project 1 brief
Project 1 briefProject 1 brief
Project 1 brief

Sypnosis 3
Sypnosis 3Sypnosis 3
Sypnosis 3

Course outline culture and history
Course outline culture and historyCourse outline culture and history
Course outline culture and history


Similar to Asian architecture

BSC (H) ARCHITECTURE DEGREE SEM 4 ASIAN ARCHITECTURE CASE STUDY PAPER
BSC (H) ARCHITECTURE DEGREE SEM 4 ASIAN ARCHITECTURE CASE STUDY PAPER BSC (H) ARCHITECTURE DEGREE SEM 4 ASIAN ARCHITECTURE CASE STUDY PAPER
BSC (H) ARCHITECTURE DEGREE SEM 4 ASIAN ARCHITECTURE CASE STUDY PAPER
jolynnTJL

Asian architecture paper
Asian architecture paperAsian architecture paper
Asian architecture paper
AaronMing93

The fusionoftraditionaltaiwanesecourtyarddwellingsandmodernbioclimatictechnol...
The fusionoftraditionaltaiwanesecourtyarddwellingsandmodernbioclimatictechnol...The fusionoftraditionaltaiwanesecourtyarddwellingsandmodernbioclimatictechnol...
The fusionoftraditionaltaiwanesecourtyarddwellingsandmodernbioclimatictechnol...
Schani B

Asian architecture-case-study-paper
Asian architecture-case-study-paperAsian architecture-case-study-paper
Asian architecture-case-study-paper
jiahui331

Suzhou Museum Analysis
Suzhou Museum AnalysisSuzhou Museum Analysis
Suzhou Museum Analysis
Tay Jit Ying

Case study paper 1
Case study paper 1Case study paper 1
Case study paper 1
Yvonne Chin

THE NEW MALAYSIAN HOUSE: THE APPLICATION OF MATERIALS
THE NEW MALAYSIAN HOUSE: THE APPLICATION OF MATERIALSTHE NEW MALAYSIAN HOUSE: THE APPLICATION OF MATERIALS
THE NEW MALAYSIAN HOUSE: THE APPLICATION OF MATERIALS
HafizMasri

Building construction (assignment 1)
Building construction (assignment 1)Building construction (assignment 1)
Building construction (assignment 1)
Rosabella Zuntivai Mobijohn

Chinese Architecture Report
Chinese Architecture ReportChinese Architecture Report
Chinese Architecture Report
khaikeat16

Comparing Architects
Comparing ArchitectsComparing Architects
Comparing Architects
Khaled Almusa

final AA report
final AA reportfinal AA report
final AA report
Megan Chung

Shigeru Ban Architects(Tokyo, Japan)
Shigeru Ban Architects(Tokyo, Japan)Shigeru Ban Architects(Tokyo, Japan)
Shigeru Ban Architects(Tokyo, Japan)
Damian-111093

[Asian Architecture] Vernacular as an Essence in Contemporary Design : A Stud...
[Asian Architecture] Vernacular as an Essence in Contemporary Design : A Stud...[Asian Architecture] Vernacular as an Essence in Contemporary Design : A Stud...
[Asian Architecture] Vernacular as an Essence in Contemporary Design : A Stud...
Patricia Kong

Asian architecture case study
Asian architecture case study Asian architecture case study
Asian architecture case study
Pinkie95

Gcg4
Gcg4Gcg4
Chinese gen arch. characteristics
Chinese gen arch. characteristicsChinese gen arch. characteristics
Chinese gen arch. characteristics
benazirmohamedkhan

BSC (H) ARCHITECTURE DEGREE SEM 4 ASIAN ARCHITECTURE CASE STUDY PAPER KHX
BSC (H) ARCHITECTURE DEGREE SEM 4 ASIAN ARCHITECTURE CASE STUDY PAPER KHXBSC (H) ARCHITECTURE DEGREE SEM 4 ASIAN ARCHITECTURE CASE STUDY PAPER KHX
BSC (H) ARCHITECTURE DEGREE SEM 4 ASIAN ARCHITECTURE CASE STUDY PAPER KHX
jolynnTJL

Merged document 2
Merged document 2Merged document 2
Merged document 2
WC Yan

Yap kar juen aa project 2 report
Yap kar juen aa project 2 reportYap kar juen aa project 2 report
Yap kar juen aa project 2 report
Jason Juen

Houses and Feng Shui in China
Houses and Feng Shui in ChinaHouses and Feng Shui in China
Houses and Feng Shui in China
Joanne Chen


Similar to Asian architecture (20)

BSC (H) ARCHITECTURE DEGREE SEM 4 ASIAN ARCHITECTURE CASE STUDY PAPER
BSC (H) ARCHITECTURE DEGREE SEM 4 ASIAN ARCHITECTURE CASE STUDY PAPER BSC (H) ARCHITECTURE DEGREE SEM 4 ASIAN ARCHITECTURE CASE STUDY PAPER
BSC (H) ARCHITECTURE DEGREE SEM 4 ASIAN ARCHITECTURE CASE STUDY PAPER

Asian architecture paper
Asian architecture paperAsian architecture paper
Asian architecture paper

The fusionoftraditionaltaiwanesecourtyarddwellingsandmodernbioclimatictechnol...
The fusionoftraditionaltaiwanesecourtyarddwellingsandmodernbioclimatictechnol...The fusionoftraditionaltaiwanesecourtyarddwellingsandmodernbioclimatictechnol...
The fusionoftraditionaltaiwanesecourtyarddwellingsandmodernbioclimatictechnol...

Asian architecture-case-study-paper
Asian architecture-case-study-paperAsian architecture-case-study-paper
Asian architecture-case-study-paper

Suzhou Museum Analysis
Suzhou Museum AnalysisSuzhou Museum Analysis
Suzhou Museum Analysis

Case study paper 1
Case study paper 1Case study paper 1
Case study paper 1

THE NEW MALAYSIAN HOUSE: THE APPLICATION OF MATERIALS
THE NEW MALAYSIAN HOUSE: THE APPLICATION OF MATERIALSTHE NEW MALAYSIAN HOUSE: THE APPLICATION OF MATERIALS
THE NEW MALAYSIAN HOUSE: THE APPLICATION OF MATERIALS

Building construction (assignment 1)
Building construction (assignment 1)Building construction (assignment 1)
Building construction (assignment 1)

Chinese Architecture Report
Chinese Architecture ReportChinese Architecture Report
Chinese Architecture Report

Comparing Architects
Comparing ArchitectsComparing Architects
Comparing Architects

final AA report
final AA reportfinal AA report
final AA report

Shigeru Ban Architects(Tokyo, Japan)
Shigeru Ban Architects(Tokyo, Japan)Shigeru Ban Architects(Tokyo, Japan)
Shigeru Ban Architects(Tokyo, Japan)

[Asian Architecture] Vernacular as an Essence in Contemporary Design : A Stud...
[Asian Architecture] Vernacular as an Essence in Contemporary Design : A Stud...[Asian Architecture] Vernacular as an Essence in Contemporary Design : A Stud...
[Asian Architecture] Vernacular as an Essence in Contemporary Design : A Stud...

Asian architecture case study
Asian architecture case study Asian architecture case study
Asian architecture case study

Gcg4
Gcg4Gcg4
Gcg4

Chinese gen arch. characteristics
Chinese gen arch. characteristicsChinese gen arch. characteristics
Chinese gen arch. characteristics

BSC (H) ARCHITECTURE DEGREE SEM 4 ASIAN ARCHITECTURE CASE STUDY PAPER KHX
BSC (H) ARCHITECTURE DEGREE SEM 4 ASIAN ARCHITECTURE CASE STUDY PAPER KHXBSC (H) ARCHITECTURE DEGREE SEM 4 ASIAN ARCHITECTURE CASE STUDY PAPER KHX
BSC (H) ARCHITECTURE DEGREE SEM 4 ASIAN ARCHITECTURE CASE STUDY PAPER KHX

Merged document 2
Merged document 2Merged document 2
Merged document 2

Yap kar juen aa project 2 report
Yap kar juen aa project 2 reportYap kar juen aa project 2 report
Yap kar juen aa project 2 report

Houses and Feng Shui in China
Houses and Feng Shui in ChinaHouses and Feng Shui in China
Houses and Feng Shui in China


More from Anthony Chew

Project 1-performance-evaluation-2
Project 1-performance-evaluation-2Project 1-performance-evaluation-2
Project 1-performance-evaluation-2
Anthony Chew

Bscience report ff
Bscience report ffBscience report ff
Bscience report ff
Anthony Chew

Project 2 integration (1)
Project 2  integration (1)Project 2  integration (1)
Project 2 integration (1)
Anthony Chew

Theories report
Theories reportTheories report
Theories report
Anthony Chew

Synopsis 2
Synopsis 2Synopsis 2
Synopsis 2
Anthony Chew

Synopsis 1
Synopsis 1Synopsis 1
Synopsis 1
Anthony Chew

B sc (hons)(arch) tau arc61301 project mac 2016 (2)
B sc (hons)(arch)  tau arc61301 project mac 2016 (2)B sc (hons)(arch)  tau arc61301 project mac 2016 (2)
B sc (hons)(arch) tau arc61301 project mac 2016 (2)
Anthony Chew

B sc (hons)(arch) tau arc61301 synopsis mac 2016
B sc (hons)(arch)  tau arc61301 synopsis mac 2016B sc (hons)(arch)  tau arc61301 synopsis mac 2016
B sc (hons)(arch) tau arc61301 synopsis mac 2016
Anthony Chew

Tau march 2016
Tau march 2016Tau march 2016
Tau march 2016
Anthony Chew

Sunshading device studies 1 05-02-16
Sunshading device studies 1   05-02-16Sunshading device studies 1   05-02-16
Sunshading device studies 1 05-02-16
Anthony Chew

Building structure (1) (1)
Building structure (1) (1)Building structure (1) (1)
Building structure (1) (1)
Anthony Chew

B. structure project 2 brief august 2015 (1)
B. structure project 2 brief august 2015 (1)B. structure project 2 brief august 2015 (1)
B. structure project 2 brief august 2015 (1)
Anthony Chew

Building structure report xoxoxo
Building structure report xoxoxoBuilding structure report xoxoxo
Building structure report xoxoxo
Anthony Chew

B. structure project 1 brief august 2015
B. structure project 1 brief august 2015B. structure project 1 brief august 2015
B. structure project 1 brief august 2015
Anthony Chew

Abstract ( asian architecture )
Abstract ( asian architecture )Abstract ( asian architecture )
Abstract ( asian architecture )
Anthony Chew

Topic issue proposal 2014
Topic  issue proposal 2014Topic  issue proposal 2014
Topic issue proposal 2014
Anthony Chew

B sc (hons)(arch) asian architecture arc60403 project aug 2015 (4)
B sc (hons)(arch)  asian architecture arc60403 project aug 2015 (4)B sc (hons)(arch)  asian architecture arc60403 project aug 2015 (4)
B sc (hons)(arch) asian architecture arc60403 project aug 2015 (4)
Anthony Chew

Module intro aug 2015
Module intro aug 2015Module intro aug 2015
Module intro aug 2015
Anthony Chew

Service ready to print (1)
Service ready to print  (1)Service ready to print  (1)
Service ready to print (1)
Anthony Chew

Project 2 brief b services aug 2015
Project 2 brief b services aug 2015Project 2 brief b services aug 2015
Project 2 brief b services aug 2015
Anthony Chew


More from Anthony Chew (20)

Project 1-performance-evaluation-2
Project 1-performance-evaluation-2Project 1-performance-evaluation-2
Project 1-performance-evaluation-2

Bscience report ff
Bscience report ffBscience report ff
Bscience report ff

Project 2 integration (1)
Project 2  integration (1)Project 2  integration (1)
Project 2 integration (1)

Theories report
Theories reportTheories report
Theories report

Synopsis 2
Synopsis 2Synopsis 2
Synopsis 2

Synopsis 1
Synopsis 1Synopsis 1
Synopsis 1

B sc (hons)(arch) tau arc61301 project mac 2016 (2)
B sc (hons)(arch)  tau arc61301 project mac 2016 (2)B sc (hons)(arch)  tau arc61301 project mac 2016 (2)
B sc (hons)(arch) tau arc61301 project mac 2016 (2)

B sc (hons)(arch) tau arc61301 synopsis mac 2016
B sc (hons)(arch)  tau arc61301 synopsis mac 2016B sc (hons)(arch)  tau arc61301 synopsis mac 2016
B sc (hons)(arch) tau arc61301 synopsis mac 2016

Tau march 2016
Tau march 2016Tau march 2016
Tau march 2016

Sunshading device studies 1 05-02-16
Sunshading device studies 1   05-02-16Sunshading device studies 1   05-02-16
Sunshading device studies 1 05-02-16

Building structure (1) (1)
Building structure (1) (1)Building structure (1) (1)
Building structure (1) (1)

B. structure project 2 brief august 2015 (1)
B. structure project 2 brief august 2015 (1)B. structure project 2 brief august 2015 (1)
B. structure project 2 brief august 2015 (1)

Building structure report xoxoxo
Building structure report xoxoxoBuilding structure report xoxoxo
Building structure report xoxoxo

B. structure project 1 brief august 2015
B. structure project 1 brief august 2015B. structure project 1 brief august 2015
B. structure project 1 brief august 2015

Abstract ( asian architecture )
Abstract ( asian architecture )Abstract ( asian architecture )
Abstract ( asian architecture )

Topic issue proposal 2014
Topic  issue proposal 2014Topic  issue proposal 2014
Topic issue proposal 2014

B sc (hons)(arch) asian architecture arc60403 project aug 2015 (4)
B sc (hons)(arch)  asian architecture arc60403 project aug 2015 (4)B sc (hons)(arch)  asian architecture arc60403 project aug 2015 (4)
B sc (hons)(arch) asian architecture arc60403 project aug 2015 (4)

Module intro aug 2015
Module intro aug 2015Module intro aug 2015
Module intro aug 2015

Service ready to print (1)
Service ready to print  (1)Service ready to print  (1)
Service ready to print (1)

Project 2 brief b services aug 2015
Project 2 brief b services aug 2015Project 2 brief b services aug 2015
Project 2 brief b services aug 2015


Recently uploaded

Walmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdfWalmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdf
TechSoup

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT
Jyoti Chand

LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UPLAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
RAHUL

Nutrition Inc FY 2024, 4 - Hour Training
Nutrition Inc FY 2024, 4 - Hour TrainingNutrition Inc FY 2024, 4 - Hour Training
Nutrition Inc FY 2024, 4 - Hour Training
melliereed

Pharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brubPharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brub
danielkiash986

Film vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movieFilm vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movie
Nicholas Montgomery

NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptxNEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
iammrhaywood

Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDFLifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Vivekanand Anglo Vedic Academy

The History of Stoke Newington Street Names
The History of Stoke Newington Street NamesThe History of Stoke Newington Street Names
The History of Stoke Newington Street Names
History of Stoke Newington

Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
National Information Standards Organization (NISO)

UGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching AptitudeUGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching Aptitude
S. Raj Kumar

Chapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptxChapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptx
Denish Jangid

A Visual Guide to 1 Samuel | A Tale of Two Hearts
A Visual Guide to 1 Samuel | A Tale of Two HeartsA Visual Guide to 1 Samuel | A Tale of Two Hearts
A Visual Guide to 1 Samuel | A Tale of Two Hearts
Steve Thomason

Gender and Mental Health - Counselling and Family Therapy Applications and In...
Gender and Mental Health - Counselling and Family Therapy Applications and In...Gender and Mental Health - Counselling and Family Therapy Applications and In...
Gender and Mental Health - Counselling and Family Therapy Applications and In...
PsychoTech Services

BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
Nguyen Thanh Tu Collection

BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
Nguyen Thanh Tu Collection

math operations ued in python and all used
math operations ued in python and all usedmath operations ued in python and all used
math operations ued in python and all used
ssuser13ffe4

RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem studentsRHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
Himanshu Rai

Stack Memory Organization of 8086 Microprocessor
Stack Memory Organization of 8086 MicroprocessorStack Memory Organization of 8086 Microprocessor
Stack Memory Organization of 8086 Microprocessor
JomonJoseph58

Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) CurriculumPhilippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
MJDuyan


Recently uploaded (20)

Walmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdfWalmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdf

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT

LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UPLAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP

Nutrition Inc FY 2024, 4 - Hour Training
Nutrition Inc FY 2024, 4 - Hour TrainingNutrition Inc FY 2024, 4 - Hour Training
Nutrition Inc FY 2024, 4 - Hour Training

Pharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brubPharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brub

Film vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movieFilm vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movie

NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptxNEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx

Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDFLifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF

The History of Stoke Newington Street Names
The History of Stoke Newington Street NamesThe History of Stoke Newington Street Names
The History of Stoke Newington Street Names

Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"

UGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching AptitudeUGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching Aptitude

Chapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptxChapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptx

A Visual Guide to 1 Samuel | A Tale of Two Hearts
A Visual Guide to 1 Samuel | A Tale of Two HeartsA Visual Guide to 1 Samuel | A Tale of Two Hearts
A Visual Guide to 1 Samuel | A Tale of Two Hearts

Gender and Mental Health - Counselling and Family Therapy Applications and In...
Gender and Mental Health - Counselling and Family Therapy Applications and In...Gender and Mental Health - Counselling and Family Therapy Applications and In...
Gender and Mental Health - Counselling and Family Therapy Applications and In...

BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...

BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...

math operations ued in python and all used
math operations ued in python and all usedmath operations ued in python and all used
math operations ued in python and all used

RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem studentsRHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students

Stack Memory Organization of 8086 Microprocessor
Stack Memory Organization of 8086 MicroprocessorStack Memory Organization of 8086 Microprocessor
Stack Memory Organization of 8086 Microprocessor

Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) CurriculumPhilippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum


Asian architecture

  • 1. Asian Architecture [ARC 2213/2234] PROJECT 1: CASE STUDY The Vernacular Courtyard Design and Climatic Design Used In The Courtyard House NAME: Chew Ung Heng STUDENT ID: 0315397 LECTURER: Ms. Shahrianne SUBMISSION DATE: 24 Nov 2015 Table of Contents Page Abstract..........................................................................................................................2 And Climatic Design
  • 2. The Vernacular Courtyard Design Used in the Courtyard House Abstract The reason for doing a similar investigation of the use of Chinese vernacular yard environment flexibility plan techniques as Chinese cutting edge compositional configuration in The Courtyard House to recognize the capacity itself that could exist in the middle of antiquated and present day building in diverse nation. The vernacular Chinese yard outline is a delegate type of customary Chinese structural planning, particularly in the north of China. Customary Courtyard houses are assembled agreeing with the climate and the living traditions of the northern Chinese, mirrors the conventional of China, taking after the principles of Feng Shui and the patriarchal, Confucian occupants of request and progressive system that were so essential to the general public. In helping the acknowledgment of investigation, writing audits in light of distinctive sources concerning Siheyuan houses were coordinated to improve the methodology. With a particular final objective to give a more broad assortment of exploration, it is basic to think on settings that can demonstrate the genuine substance of Chinese vernacular compositional outline, in which the Siheyuan in Beijing and the Courtyard House in Singapore. Initially, for the massing in Beijing Siheyuan, It is ARC 2213/2234 Asian Architecture 2
  • 3. The Vernacular Courtyard Design Used in the Courtyard House ordinary for the four rooms to be situated along the north-south, east-west tomahawks. Siheyuans are orchestrated in columns and differ in size and outline as indicated by the economic wellbeing of the occupants. The room situated toward the north and confronting the south is viewed as the primary house and would generally have suited the leader of the crew. The rooms abutting the primary house are the quarters of the more youthful relatives. The room that confronts north is for the workers lived or where the family would assemble to unwind, eat or concentrate on. For the massing of the Singapore Courtyard House, it is containing two squares in a north-south introduction, depict the site with a front garden, the quadrangle focal yard where every one of the rooms investigated and a back greenhouse which like the design of Beijing Siheyuan aside from the capacity of the rooms. Next, the exceptionally manufactured Beijing Siheyuans all face the south for get enough daylight and oppose chilly twist from the north which is likewise like Singapore Courtyard House. In the class of shading, Singapore Courtyard House is a mirror of the Beijing Siheyuan which dark is the primary shading for the blocks, dividers, rooftops and the grounds, just on the entryway and window covered some paint that give the sentiment concordance and basic style to the yard house. The sides of the yard left to plant trees. Green trees and red blooms truly make great air dissemination and landscape. Additionally, like customary Beijing Siheyuan, the inward center is a private, secure and all around ventilated open air space expected as an augmentation of the family space in Singapore Courtyard House. Thus, it has touch base at a conclusion that both of these houses show normal tantamount between each other to the extent vernacular patio ecological engineering outline. In the decision, Beijing Siheyuan typifies a thick social and family status which implies, the other is a brief response to the earth. It is an individual charming circumstance that various exceptional parts of unmistakable Chinese patio structural styles can be found through exploration on these two relevant examinations. ARC 2213/2234 Asian Architecture 3
  • 4. The Vernacular Courtyard Design Used in the Courtyard House Introduction The courtyard House is one of the building inspired by the Sihyuan courtyard house, the project readapt the northern legale of China’s vernacular typology, to a detached house typology in an urbanized tropical context. This paper will investigate the vernacular courtyard design and climatic design used in Siheyuan and The Courtyard House by responding to the following research questions: QI: What is Siheyuan? Q2: What are similarities of spatial layout of Siheyuan and The Courtyard House? Q3: What are the vernacular courtyard design and climatic design used in the Courtyard House similar to Siheyuan? Q4: Is it the wind environment in variants Spatial Layout of courtyard in Siheyuan is same? ARC 2213/2234 Asian Architecture 4
  • 5. The Vernacular Courtyard Design Used in the Courtyard House Q5: How is the Wind Environmental Simulation Affect The Climatic Design in Chinese Vernacular Courtyard House Settlement? 2.0 Introduction of Traditional Siheyuan At the Zhou Dynasty (1,100 – 256B.C.). , Siheyuan is a distinctive style of Han Chinese housing, They exist the whole way through China and become as the format for the most of the Chinese architectural styles. Siheyuan also serves as a window into its old lifestyles and a cultural symbol of Beijing. These residences are not only special in its building structure, but are also wide in variety. A siheyuan is a historical sort of residence that was normally found all through China, most broadly in Beijing. In English, siheyuan are referred as Chinese quadrangles that actually means the buildings on every four sides surrounding the centre courtyard. Throughout Chinese history, , living arrangements, monasteries temples, family businesses, palaces and government offices was are the essential example used by the siheyuan synthesis., a spacious siheyuan would be lived by a single, usually signifying prosperity and wealth, extended and large family in antiquated times. There ARC 2213/2234 Asian Architecture 5
  • 6. The Vernacular Courtyard Design Used in the Courtyard House are many remaining siheyuan are still use as lodging edifices, however numerous need present day luxuries. Modern Beijing's blasting populace has madehousing one of the city's greatest difficulties. Nowadays, quadrangle courtyard is typically used as housing complexes, hosting multiple families, with courtyards developed to provide extra living space. Many quadrangle courtyards’ living conditions are totally poor, there also have private toilets once in a while. In 1990s, destruction of ancient urban buildings occurred in Beijing under the fast monetary advancement. Many Quadrangle patios were torn down to address the issue of overcrowding and have been supplanted by advanced condo piece. ARC 2213/2234 Asian Architecture 6 Ancient city in Dynasty Chou
  • 7. The Vernacular Courtyard Design Used in the Courtyard House 3.0 Spatial Layout of Traditional Siheyuan The four structures of a Quadrangle yard are ordinarily situated along the north-south and east-west tomahawks. The building situated toward the north and confronting the south is viewed as the fundamental house. Side houses is the structures that connecting the primary house and confronting east and west. The northern, eastern and western structures are associated by flawlessly embellished pathways. These entries serve as sanctuaries from the daylight amid the day, and give a cool spot to welcome the perspective of the yard around evening time. The building that confronts north is known as the inverse house. Behind the northern building, there would regularly be a different rear building, the main spot where two-story structures are permitted to be developed for the customary Quadrangle patio. ARC 2213/2234 Asian Architecture 7 Siheyuan in Beijing
  • 8. The Vernacular Courtyard Design Used in the Courtyard House A detailed Confucian request was followed in old China. The principle house in the north was allotted to the eldest individual from the family, i.e. the leader of the family, as a rule grandparents. On the off chance that the fundamental house had enough rooms, a focal room would serve as a holy place for hereditary love. At the point when the leader of the family unit had mistresses, the wife would live in the space toward the eastern end of the fundamental house, while the courtesans would dwell in the space toward the western end of the principle house. The eldest child of the family and his wife would live in the western side house, while the more youthful child and his wife would dwell in the eastern side house. In the event that a grandson was completely developed, he would live in the inverse house in the south. Unmarried little girls would dependably live in the posterior building behind the primary house. The fundamental door of the house would be put at the south-eastern corner of the house. In understanding to standards of feng shui and the Eight Trigrams, this is viewed as the most propitious bearing and could convey riches to the family. Toward the north of the front yard is the second and internal entryway of the compound, which ARC 2213/2234 Asian Architecture 8 General Spatial Layout of Siheyuan
  • 9. The Vernacular Courtyard Design Used in the Courtyard House is additionally arranged along the pivot. The two trim columns at its sides are wonderfully cut with intricate botanical outlines, making it the most unmistakable configuration component in the whole yard compound. The trim entryway goes about as divider between the external and internal yards. Behind the trim door is the primary living compound of the yard house. After going into the house, one is welcomed by a perfectly created screen divider, which, before, carted the capacity of warding away wickedness spirits. It additionally offers in making some assistance with spacing and keeping up one's protection. The yard is inherent the focal point of the house that encompassed by three or four sides of room. A yard house is based on the essential Siheyuan as a living place, is incorporated with conventional Chinese culture. The square enclosure separates the family space obviously from outside public space. 1. Main gate. 2. Screen wall. Usually has blessing words on it. 3. Reversed rooms. For servants. 4. Outside courtyard. 5. Secondary gate. ARC 2213/2234 Asian Architecture 9 Spatial layout of Siheyuan
  • 10. The Vernacular Courtyard Design Used in the Courtyard House 6. Main courtyard. 7. Main rooms. For the house owner. 8. East rooms. For elder son. Usually these rooms are taller than west rooms. 9. West rooms. For younger son. 10. Side rooms. For maids. 11. Back rooms. For daughter. As should be obvious, siheyuan makes a well-organized structure as indicated by the general population's social and family status. It gives awesome protection from outside, and charming environment with the garden in the center courtyard. Spatial Layout of The Courtyard House The yard house configuration is propelled by the Siheyuan yard house, the building tries to readapt the vernacular typology that found in the northern areas of China, to an isolated house typology in a urbanized tropical connection. The yard House is built for a multi-generational family who searches for open system for living yet required a space that are private, screened from as indicated by including neighbours. The patio House is arranged 3-story mixed landed private zone, on the eastern bit of Singapore. ARC 2213/2234 Asian Architecture 10 The Courtyard House
  • 11. The Vernacular Courtyard Design Used in the Courtyard House The massing of The Courtyard House is comparable with the Siheyuan that trading off of two pieces in a north-south introduction. It depict the site with a front garden, the center patio where each one of the rooms examined and a back greenery fenced in area. Individuals when all is said in done and private areas are layered in a spatial parade from the street. Course inside of the house circumambulate the yard on all floors which allude to the conventional Courtyard house plan. ARC 2213/2234 Asian Architecture 11
  • 12. The Vernacular Courtyard Design Used in the Courtyard House The key spaces are made around this central, outside load where a lap pool runs parallel to one edge. The ground floor is done totally in sharpen travertine without any drops to cloud the cut off points amidst indoor and outside, uniting the entire ground floor as a single, predictable, open space. Like the ordinary patio typology, the internal ARC 2213/2234 Asian Architecture 12 Spatial Layout of The Courtyard House
  • 13. The Vernacular Courtyard Design Used in the Courtyard House focus is a private, secure and all that much ventilated outside space expected as an augmentation of the family space. 4.0 The Similarities of Vernacular Courtyard Design in Siheyuan and The Courtyard House. Exterior Thick Wall ARC 2213/2234 Asian Architecture 13 The ground Floor of Courtyard House Section of the Courtyard House Section of Siheyuan
  • 14. The Vernacular Courtyard Design Used in the Courtyard House North-western dividers are typically higher than alternate dividers to shield within structures from the unforgiving winds blowing. Quadrangle yard dividers give security and assurance against dust and tempests to the building. Plus, it helps in shedding the inside of the house from the solid daylight and the structures that are constructed inside of two stories which guaranteed more freshness because of included shadow. Additionally, the punctured solid divider considers wind stream and looks of the greenhouse past yet shields the western sun and its adjoining neighbors. Windows Every Houses have windows which supplant the air in the room, direct stickiness and diminish the danger of mould development. Abnormal state of warm protection the ventilation of the living region is of real significance. Through right ventilation conduct you will have the capacity to make a wonderful living environment and room atmosphere and at the same time forestall harm to the building. Plants within the courtyard ARC 2213/2234 Asian Architecture 14 Siheyuan The Courtyard House
  • 15. The Vernacular Courtyard Design Used in the Courtyard House The corners of the courtyard left for planting trees. By watching your garden go from bare ground to ripe produce or beautiful plants offers a sense of satisfaction. Green trees and red flowers really make good air circulation and scenery. With plants, rocks, and flowers, the courtyard yard become a garden, and acts like an open-air living room as caring for the plants gives the entire family a chance to work together. Ventilation systems in garden actually serve four imperative functions: temperature control, humidity control, CO2/oxygen replacement, and air circulation. Colour Design ARC 2213/2234 Asian Architecture 15 Courtyard in Siheyuan Courtyard in The Courtyard House SiheyuanThe Courtyard House
  • 16. The Vernacular Courtyard Design Used in the Courtyard House Grey is the overwhelming shading for the blocks, dividers, rooftops and the grounds, just on the entryway and window covered some paint, all of which convey concordance and straightforward style to the yard house. Roof bend descending, with the goal that water will stream along the bend instead of dropping straight down. The housetop is furrowed to give shade in the late spring while holding warmth in the winter. Courtyard In both of Siheyuan and The Courtyard house design, there is a quadrangle courtyard located at the center of the building surrounded by all sides of the rooms. For the courtyard house design, the connection with nature is expressed through the centrally located courtyard. It maintains the well-being of the inhabitants by bringing in natural light and providing ventilation to the building. Besides, Family members talked with each other here, creating a cordial atmosphere. ARC 2213/2234 Asian Architecture 16 The Courtyard House Siheyuan
  • 17. The Vernacular Courtyard Design Used in the Courtyard House 5.0 Wind Environment in variants Spatial Layout of courtyard in Siheyuan While most Beijing yard houses are manufactured to take after the basic plan that the general acquaintance along north with south and four unique structures of a yard houses are arranged nearby the east-west or north-south heading and essential passageway are arranged at the southeast, there are still particular varieties of patio house (MA, 1999). Beneath demonstrated the most by and large seen assortment is the congruity of the principal passageway range. A few most conventionally seen varieties kind of Beijing yard house. The major organization doesn't change, however the zone of the essential passageway are particular. Using the same setting through above amusement, there are four unmistakable varieties of the patio house with differing way range are repeated. Figure beneath ARC 2213/2234 Asian Architecture 17 Variant types of Courtyard House
  • 18. The Vernacular Courtyard Design Used in the Courtyard House exhibits the proliferation results. The results show that the qualification among four sorts of varieties of yard house is in like manner non-basic, which infers that the section range is not the principal impact segment of wind environment in patio house structures. To further elucidate, in winter time, even the entry has the same heading with winter time winning wind, by including an additional lobby, the wind speed in the internal yard space still can be kept in the pleasant extent of building occupants. ARC 2213/2234 Asian Architecture 18 Simulation results of the most commonly seen variants form of Beijing courtyard house
  • 19. The Vernacular Courtyard Design Used in the Courtyard House 6.0 Wind Environmental Simulation That Affect The Climatic Design in Chinese Vernacular Courtyard House Settlement Wind Environmental Simulation CFD simulation used to comprehend the wind environment in the Chinese conventional vernacular yard and settlement starting from the atmosphere thought in structural configuration. The parametric studies on the effect of width-to-length extent (W/L) and north building stature to-south building tallness proportion (H1/H2) on the wind environment in yard house are led. This study is satisfying the insufficiencies of past similar studies and tunnelling the key purposes of how the same auxiliary structure give wind environment versatility in differing seasons with totally opposite atmosphere conditions. WIND ENVIRONMENT IN TRADITIONAL VERNACULAR COURTYARD HOUSE The wind environment of the customary vernacular yard house used to animated bby Reynolds-found the middle value of Navier-Stokes (RANS) correlations with standard K-ε turbulent stream model. The most fundamental yard house structure in Beijing, which has one single inward focal courtyard, is taken as subject researched. To ARC 2213/2234 Asian Architecture 19 Example of single courtyard house
  • 20. The Vernacular Courtyard Design Used in the Courtyard House comprehend the atmosphere versatile outline systems, the wind rate field inside and around the yard house is considered with CFD stimulation. One key thing should be clarified about this recreation study is that the lightness impact is not considered at this stage The truth of the matter is that structures are tolerating sure sun fueled radiation, which will provoke spatial temperature qualification along these lines impact the whole sample of air advancement. In any case, for the yard house in frosty areas of North China, the warm mass of structures is amazing. Subsequently, the air improvement on account of the temperature difference is by and large immaterial diverge from the air advancement due with building geometry. ARC 2213/2234 Asian Architecture 20
  • 21. The Vernacular Courtyard Design Used in the Courtyard House The Width-to-Length Ratio (W/L) Wind environment in five patio house show models with various W/L extent (territory from 0.5-2.0) under summer and winter condition were mimicked autonomously. Figure below shows the parametric amusement results examination. Diverge from the re- enactment of a single patio show, the general wind speed for whole parametric test decreases, yet the example keeps unaltered. Taking the W/L extent of 1.0 (exceptional ARC 2213/2234 Asian Architecture 21 Basic spatial design of single courtyard house
  • 22. The Vernacular Courtyard Design Used in the Courtyard House extent of vital routine yard house) as the benchmark, what can be viewed is that growing the W/L extent will barely construct wind speed in the patio both in summer and in winter, however the effect of wind rate change on people is non-enormous; while reducing the W/L extent, the wind rate is extended especially. Therefore, when organizers endeavour to diagram a fenced in zone yard space, quadrate shape whose W/L extent approximates 1.0 is favoured. Long and tight space close by the general wind heading should be avoided. The Building Height layout (H1/H2) For the second parametric study, it is concerning the building stature position. Considering the normal wind heading both in summer and in winter, the north building stature to-south building tallness extent (H1/H2) was picked as the variable in this parametric study. Six assorted H1/H2 extents are reproduced for examination range from 1.0 to 2.0 under both of summer and winter condition, taking the first H1/H2 proportion of traditional patio house (1.2) as the benchmark. Under summer condition, yard bunches with the H1/H2 proportion of 1.2, 1.4 and 1.8 have fundamentally same execution superior to anything others (H1/H2 = 1.0, 1.6 and 2.0). They have legitimate typical wind speed for ventilation, and meanwhile the top quality doesn't impact social orders' activities unfavourably. However in winter, the H1/H2 extent of 1.8 have most ARC 2213/2234 Asian Architecture 22 Comparison of wind speed in inner courtyard space with different W/L ratio (m/s).
  • 23. The Vernacular Courtyard Design Used in the Courtyard House great estimation of wind rate which will lessen the warm comfort level and grow the warming imperativeness usage. Thusly, the H1/H2 extent from 1.2 to 1.4 is the favoured choices for planning patio space. In perspective on the reproduction concentrate on, the enhanced yard shape should have the width to length proportion (W/L) of 1.0 and the north building tallness to-south building stature proportion (H1/H2) of 1.2-1.4. By understanding the key impact segments of wind environment in the yard house building structure, modellers can apply this vernacular construction modelling structure and its climatic flexibility into the natural building diagram honest to goodness and shrewdly. This study focus on the effect of the building geometry, thusly, more future works will be driven on the warm viewpoints for broad understanding of vernacular building climatic outline systems. ARC 2213/2234 Asian Architecture 23 Comparison of wind speed in inner courtyard space with different H1/H2 ratio (m/s).
  • 24. The Vernacular Courtyard Design Used in the Courtyard House 7.0 Conclusion All in all, there are a few likenesses of the spatial format of the vernacular yard building plans that are adjusted from the Siheyuan into the Courtyard House despite the fact that there are still have the protection of the conventional society of the general population. Patio is by all accounts one of the famous vernacular outline subsequent to the antiquated time which gives a few favourable circumstances to the tenants. This study upgrades the past study on the bioclimatic basic blueprint of the Chinese vernacular yard building. The updated patio shape which has the width-to-length extent of 1.0 and the north building stature to south building tallness extent of 1.2 to 1.4 is acknowledged by the parametric study in light of another made Beijing yard houses group model. The diversion for a couple of varieties of patio house moreover exhibits that the territory of patios' basic entry won't impact the wind environment in the central yard space, if suitable blueprint measures are coordinated. ARC 2213/2234 Asian Architecture 24
  • 25. The Vernacular Courtyard Design Used in the Courtyard House References • Blaser, W. (1995). Courtyard House in China / Hofhaus in China: Tradition and Present / Tadition und Gegenwart. Basel: Birkhäuser. • CMA. (2006). Atlas of surface climate diagram of China. Beijing: China Meteorological Administration. • Frampton, K. (1993). Toward a Critical Regionalism: Six points for an architecture of resistance. In H. Foster (Ed.), Anti-Aesthetic. Essays on Postmodern Culture (pp. 16-30). London: Pluto Press. • Givoni, B. (1998). Climate considerations in building and urban design. New York: John Wiley & Sons. • LIN, B., WANG, P., ZHAO, T., & ZHU, Y. (2002). The Digital Simulation Study on Wind Environment of Traditional Courtyard. Architectural Journal(5), 47-48. • NG, E., & Shi, Y. (2014, December 1). The Climatic Design in Chinese Vernacular Courtyard House Settlement- A wind Environmental stimulation. Retrieved November 23, 2015, from http://www.plea2014.in/wp- content/uploads/2014/12/Paper_3A_2257_PR.pdf ARC 2213/2234 Asian Architecture 25
