Aruba Data Center operates a network of large, modern data centers in Italy and the Czech Republic, with high capacity and advanced security measures to support various business needs. The facilities comply with Tier IV standards, ensuring maximum uptime, redundancy, and energy efficiency through dynamic free cooling systems and dual power supply configurations. They offer a wide range of services including dedicated servers, cloud computing, and colocation, all backed by qualified technical support.

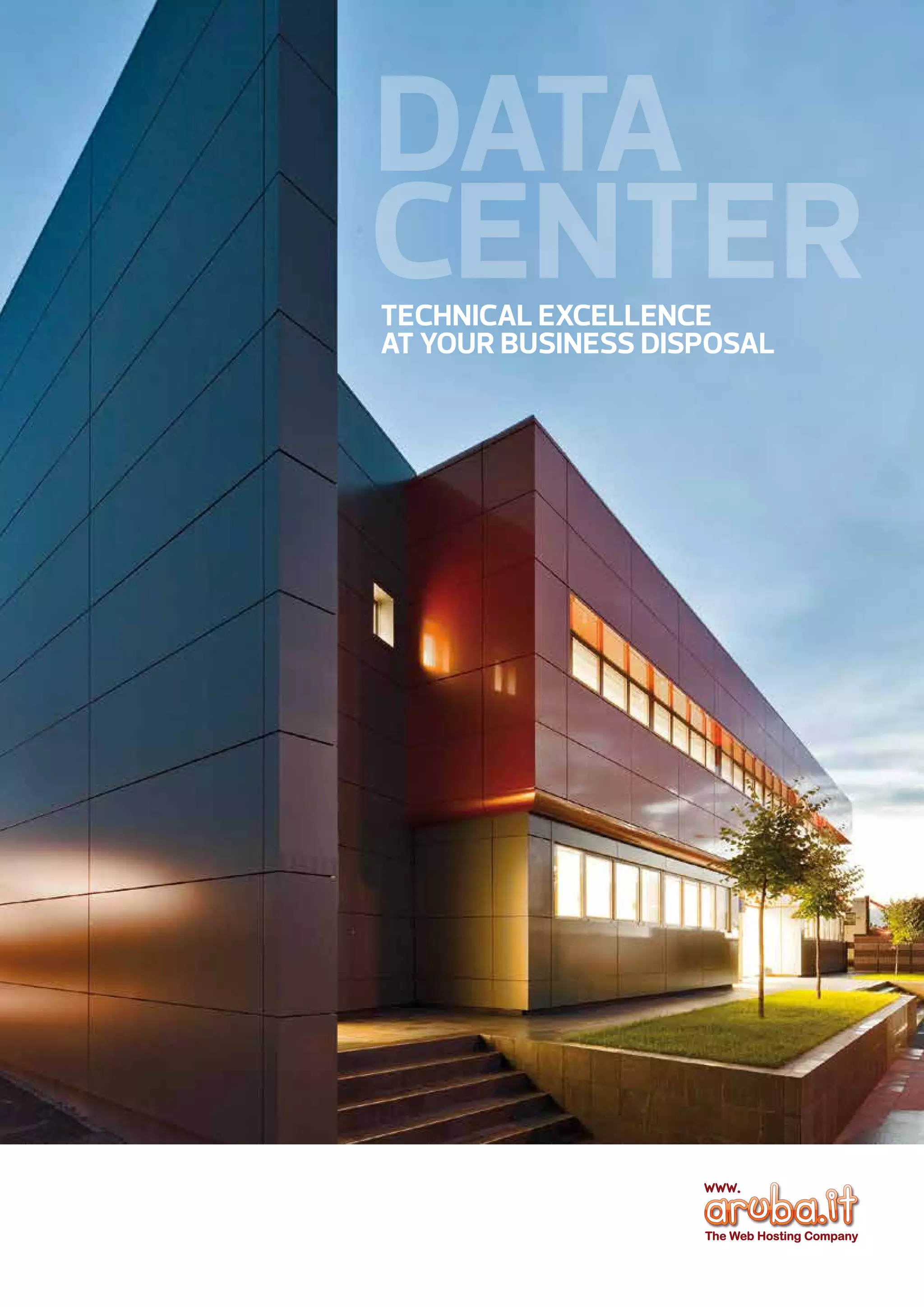

1. DATA
CENTER
TECHNICAL EXCELLENCE
AT YOUR BUSINESS DISPOSAL

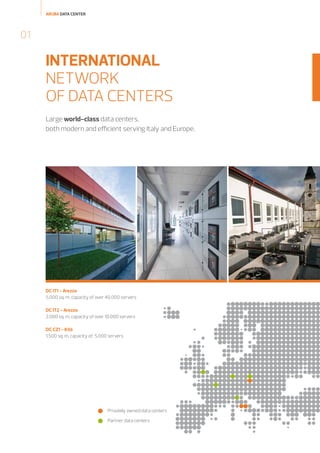

2. ARUBA DATA CENTER
01
INTERNATIONAL
NETWORK
OF DATA CENTERS
Large world-class data centers,
both modern and efficient serving Italy and Europe.
DC IT1 - Arezzo
5.000 sq. m, capacity of over 40.000 servers
DC IT2 - Arezzo
2.000 sq. m, capacity of over 10.000 servers
DC CZ1 - Ktiš
1.500 sq. m, capacity of 5.000 servers
Privately owned data centers
Partner data centers

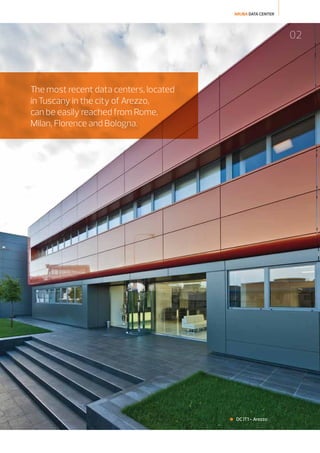

3. ARUBA DATA CENTER
02
The most recent data centers, located
in Tuscany in the city of Arezzo,
can be easily reached from Rome,
Milan, Florence and Bologna.
DC IT1 - Arezzo

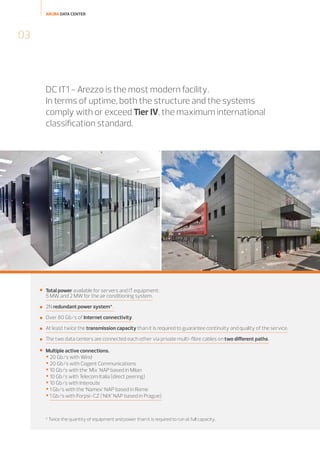

4. ARUBA DATA CENTER
03
DC IT1 - Arezzo is the most modern facility.
In terms of uptime, both the structure and the systems
comply with or exceed Tier IV, the maximum international
classification standard.

Total power available for servers and IT equipment:
5 MW, and 2 MW for the air conditioning system.

2N redundant power system*.

Over 80 Gb/s of Internet connectivity.

At least twice the transmission capacity than it is required to guarantee continuity and quality of the service.

The two data centers are connected each other via private multi-fibre cables on two different paths.

Multiple active connections.
 20 Gb/s with Wind
 20 Gb/s with Cogent Communications
 10 Gb/s with the 'Mix' NAP based in Milan
 10 Gb/s with Telecom Italia (direct peering)
 10 Gb/s with Interoute
 1 Gb/s with the ‘Namex’ NAP based in Rome
 1 Gb/s with Forpsi-CZ (‘NIX’ NAP based in Prague)
* Twice the quantity of equipment and power than it is required to run at full capacity.

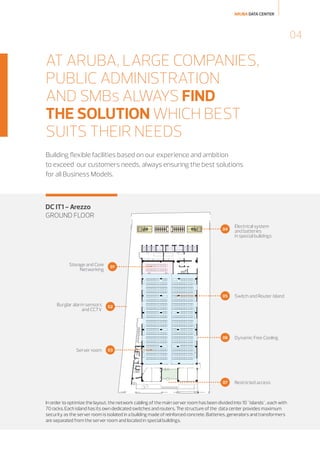

5. ARUBA DATA CENTER
04
AT ARUBA, LARGE COMPANIES,
PUBLIC ADMINISTRATION
AND SMBs ALWAYS FIND
THE SOLUTION WHICH BEST
SUITS THEIR NEEDS
Building flexible facilities based on our experience and ambition
to exceed our customers needs, always ensuring the best solutions
for all Business Models.
DC IT1 - Arezzo
GROUND FLOOR
04
05
Server room
Dynamic Free Cooling
07
Burglar alarm sensors
and CCTV
Switch and Router island
06
Storage and Core
Networking
Electrical system
and batteries
in special buildings
Restricted access
01
02
03
In order to optimize the layout, the network cabling of the main server room has been divided into 10 "islands", each with
70 racks. Each island has its own dedicated switches and routers. The structure of the data center provides maximum
security as the server room is isolated in a building made of reinforced concrete. Batteries, generators and transformers
are separated from the server room and located in special buildings.

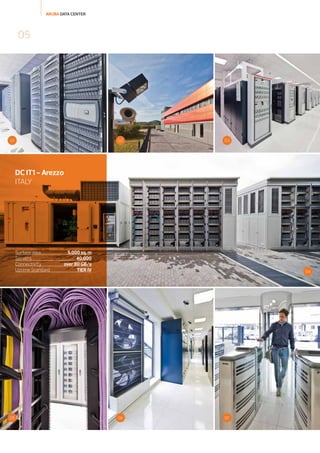

6. ARUBA DATA CENTER
05
01
02
03
DC IT1 - Arezzo
ITAL
Y
Surface area
5.000 sq. m
Servers
40.000
Connectivity 80 GB/s
over
Uptime Standard
TIER IV
05
04
06
07

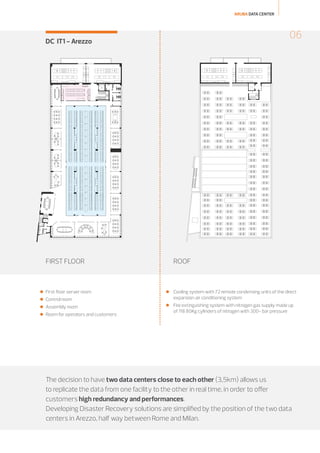

7. ARUBA DATA CENTER
06
DC IT1 - Arezzo
FIRST FLOOR
 First floor server room
 Control room
 Assembly room
 Room for operators and customers
ROOF
 Cooling system with 72 remote condensing units of the direct
expansion air conditioning system
 Fire extinguishing system with nitrogen gas supply made up
of 118 80Kg cylinders of nitrogen with 300- bar pressure
The decision to have two data centers close to each other (3,5km) allows us
to replicate the data from one facility to the other in real time, in order to offer
customers high redundancy and performances.
Developing Disaster Recovery solutions are simplified by the position of the two data
centers in Arezzo, half way between Rome and Milan.

8. ARUBA DATA CENTER
07
DC IT2 - Arezzo
ITAL
Y
Surface area
2.000 sq. m
Servers
10.000
Connectivity over 80 GB/s
DC CZ1 - Ktiš
CZECH REPUBLIC
Surface area
1.550 sq.m.
Servers
5.000
Connectivity 12 GB/s
over

9. ARUBA DATA CENTER
08
MAXIMUM STANDARDS
OF RELIABILITY
AND VAST MANAGEMENT
EXPERIENCE
The redundancy of all the systems and the professionalism of our experts
make us the best partner.

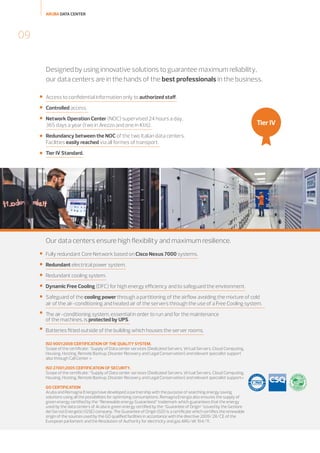

10. ARUBA DATA CENTER
09
Designed by using innovative solutions to guarantee maximum reliability,
our data centers are in the hands of the best professionals in the business.

Access to confidential information only to authorized staff.

Controlled access.

Network Operation Center (NOC) supervised 24 hours a day,
365 days a year (two in Arezzo and one in Ktiš).

Redundancy between the NOC of the two Italian data centers.
Facilities easily reached via all formes of transport.

Tier IV Standard.
Tier IV
Our data centers ensure high flexibility and maximum resilience.

Fully redundant Core Network based on Cisco Nexus 7000 systems.

Redundant electrical power system.

Redundant cooling system.

Dynamic Free Cooling (DFC) for high energy efficiency and to safeguard the environment.

Safeguard of the cooling power through a partitioning of the airflow avoiding the mixture of cold
air of the air-conditioning and heated air of the servers through the use of a Free Cooling system.

The air-conditioning system, essential in order to run and for the maintenance
of the machines, is protected by UPS.

Batteries fitted outside of the building which houses the server rooms.
ISO 9001:2008 CERTIFICATION OF THE QUALITY SYSTEM.
Scope of the certificate: "Supply of Data center services (Dedicated Servers, Virtual Servers, Cloud Computing,
Housing, Hosting, Remote Backup, Disaster Recovery and Legal Conservation) and relevant specialist support
also through Call Center »
ISO 27001:2005 CERTIFICATION OF SECURITY.
Scope of the certificate: “Supply of Data center services (Dedicated Servers, Virtual Servers, Cloud Computing,
Housing, Hosting, Remote Backup, Disaster Recovery and Legal Conservation) and relevant specialist support»
GO CERTIFICATION
Aruba and Romagna Energia have developed a partnership with the purpose of searching energy saving
solutions using all the possibilities for optimizing consumptions. Romagna Energia also ensures the supply of
green energy certified by the “Renewable energy Guaranteed” trademark which guarantees that the energy
used by the data centers of Aruba is green energy certified by the “Guarantee of Origin” issued by the Gestore
dei Servizi Energetici (GSE) company. The Guarantee of Origin (GO) is a certificate which certifies the renewable
origin of the sources used by the GO qualified facilities in accordance with the directive 2009/28/CE of the
European parliament and the Resolution of Authority for electricity and gas ARG/elt 104/11.

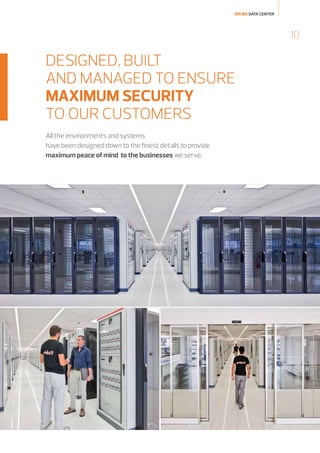

11. ARUBA DATA CENTER
10
DESIGNED, BUILT
AND MANAGED TO ENSURE
MAXIMUM SECURITY
TO OUR CUSTOMERS
All the environments and systems
have been designed down to the finest details to provide
maximum peace of mind to the businesses we serve.

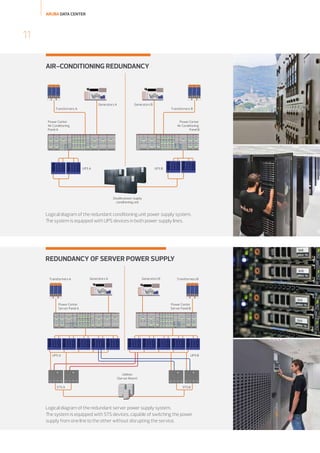

12. ARUBA DATA CENTER
11
AIR-CONDITIONING REDUNDANCY
Generators A
Generators B
Transformers A
Transformers B
Power Center
Air Conditioning
Panel A
Power Center
Air Conditioning
Panel B
UPS A
UPS B
Double power supply
conditioning unit
Logical diagram of the redundant conditioning unit power supply system.
The system is equipped with UPS devices in both power supply lines.
REDUNDANCY OF SERVER POWER SUPPLY
Transformers A
Generators A
Generators B
Power Center
Server Panel A
Transformers B
Power Center
Server Panel B
UPS A
UPS B
Utilities
(Server Room)
STS A
STS B
Logical diagram of the redundant server power supply system.
The system is equipped with STS devices, capable of switching the power
supply from one line to the other without disrupting the service.

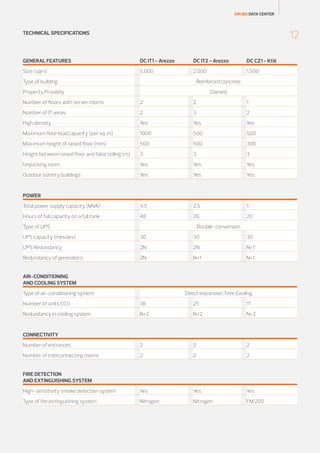

13. ARUBA DATA CENTER
12
TECHNICAL SPECIFICATIONS
GENERAL FEATURES
DC IT1 - Arezzo
DC IT2 - Arezzo
DC CZ1 - Ktiš
Size (sqm)
5.000
2.000
1.500
Type of building
Reinforced concrete
Property Privately
Owned
Number of floors with server rooms
2
2
1
Number of IT areas
2
3
2
High density
Yes
Yes
Yes
Maximum floor load capacity (per sq. m)
1000
500
500
Maximum height of raised floor (mm)
500
500
300
Height between raised floor and false ceiling (m)
3
3
3
Unpacking room
Yes
Yes
Yes
Outdoor battery buildings
Yes
Yes
Yes
Total power supply capacity (MVA)
4,5
2,5
1
Hours of full capacity on a full tank
48
20
20
POWER
Type of UPS
Double-conversion
UPS capacity (minutes)
30
30
30
UPS Redundancy
2N
2N
N+1
Redundancy of generators
2N
N+1
N+1
AIR-CONDITIONING
AND COOLING SYSTEM
Type of air-conditioning system
Direct expansion, Free Cooling
Number of units CCU
36
25
11
Redundancy in cooling system
N+2
N+2
N+2
Number of entrances
2
2
2
Number of interconnecting rooms
2
2
2
High-sensitivity smoke detection system
Yes
Yes
Yes
Type of fire extinguishing system
Nitrogen
Nitrogen
FM 200
CONNECTIVITY
FIRE DETECTION
AND EXTINGUISHING SYSTEM

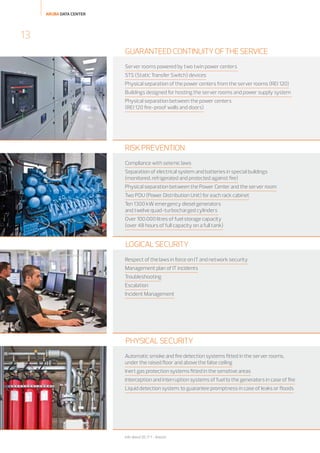

14. ARUBA DATA CENTER
13
GUARANTEED CONTINUITY OF THE SERVICE
Server rooms powered by two twin power centers
STS (Static Transfer Switch) devices
Physical separation of the power centers from the server rooms (REI 120)
Buildings designed for hosting the server rooms and power supply system
Physical separation between the power centers
(REI 120 fire-proof walls and doors)
RISK PREVENTION
Compliance with seismic laws
Separation of electrical system and batteries in special buildings
(monitored, refrigerated and protected against fire)
Physical separation between the Power Center and the server room
Two PDU (Power Distribution Unit) for each rack cabinet
Ten 1300 kW emergency diesel generators
and twelve quad-turbocharged cylinders
Over 100.000 litres of fuel storage capacity
(over 48 hours of full capacity on a full tank)
LOGICAL SECURITY
Respect of the laws in force on IT and network security
Management plan of IT incidents
Troubleshooting
Escalation
Incident Management
PHYSICAL SECURITY
Automatic smoke and fire detection systems fitted in the server rooms,
under the raised floor and above the false ceiling
Inert gas protection systems fitted in the sensitive areas
Interception and interruption systems of fuel to the generators in case of fire
Liquid detection system: to guarantee promptness in case of leaks or floods
Info about DC IT 1 - Arezzo

15. ARUBA DATA CENTER
14
ENERGY EFFICIENCY
AND PRICE COMPETITIVENESS
Facilities and systems designed to reduce our carbon footprint
and be competitive in the current market.
With the low temperatures, the Dynamic Free Cooling (DFC) saves energy by using
the outdoor air to cool the server room, allowing the cooling system through the
compressor to come into action only when required.
A
I
R
C
O
N
D
I
T
I
O
N
I
N
G
STANDARD SYSTEM
O
U
T
D
O
O
R
FREE COOLING SYSTEM
The Dynamic Free Cooling system provides
high energy savings, as such a system can
operate up to outside temperatures of 1618°C, condition which is monitored often in
the locations of our Italian data centers.
In the air-conditioning system an element of special importance is represented by the extraction system
of the exhaust air coming out of the devices which has been designed to avoid one of the typical critical
situations of server rooms: the formation of hot-spots in places which are not easily reached by the air
distribution system.
Therefore, the air extraction system provides air extractors in the immediate vicinity of the devices in order to avoid mixing the hot air produced by the devices and the cold air coming from outside.
This process allows for further optimization aimed at maximizing energy efficiency, so that all the cooling
power is only and exclusively used to cool down the servers.

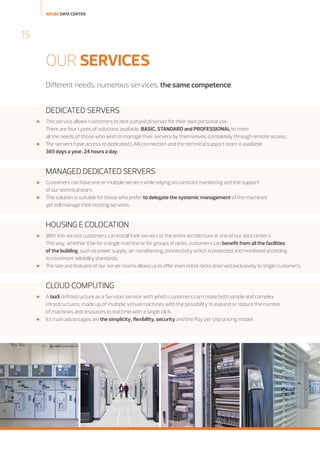

16. ARUBA DATA CENTER
15
OUR SERVICES
Different needs, numerous services, the same competence.
DEDICATED SERVERS


This service allows customers to rent a physical server for their own personal use.
There are four types of solutions available, BASIC, STANDARD and PROFESSIONAL to meet
all the needs of those who wish to manage their servers by themselves, completely through remote access.
The servers have access to dedicated LAN connection and the technical support team is available
365 days a year, 24 hours a day.
MANAGED DEDICATED SERVERS


Customers can have one or multiple servers while relying on constant monitoring and the support
of our technical team.
This solution is suitable for those who prefer to delegate the systemic management of the machines
yet still manage their hosting services.
HOUSING E COLOCATION


With this service customers can install their servers or the entire architecture at one of our data centers.
This way, whether it be for a single machine or for groups of racks, customers can benefit from all the facilities
of the building, such as power supply, air-conditioning, connectivity which is protected and monitored according
to maximum reliability standards.
The size and features of our server rooms allows us to offer even entire racks reserved exclusively to single customers.
CLOUD COMPUTING


A IaaS (Infrastructure as a Service) service with which customers can create both simple and complex
infrastructures, made up of multiple virtual machines with the possibility to expand or reduce the number
of machines and resources in real time with a single click.
Its main advantages are the simplicity, flexibility, security and the Pay per Use pricing model.

17. ARUBA DATA CENTER
16
PASSION AND
PROFESSIONALISM
TO MEET THE NEEDS
OF OUR CUSTOMERS
A vision of the market oriented towards technical innovation,
in a company that is in continuous evolution with reliability and flexibility
as its distinguishing features.
“
Whatever project you may
wish to develop, Aruba can
provide you with the most
suitable solution through
a vast range of IT services
backed by a high quality
technical support service.
The prerogative of Aruba, the characteristic which makes it standing
out from other leading companies of this field is in fact to offer a flexible
service based on understanding the needs of customers and on first-hand
experience in managing web services of various nature. We put
our data centers management experience at our customers disposal.
One more distinctive feature is that we work by relying on
privately-owned facilities which gives us greater freedom
of action in order to implement innovative solutions achieved
through ad hoc developments within maximum quality
and security standards.
”
Stefano Cecconi
Aruba S.p.A. Managing Director

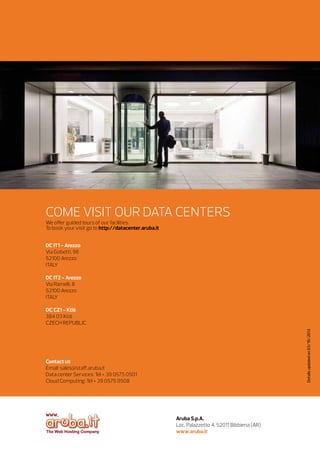

18. COME VISIT OUR DATA CENTERS
We offer guided tours of our facilities.
To book your visit go to http://datacenter.aruba.it
DC IT1 - Arezzo
Via Gobetti, 96
52100 Arezzo
ITAL
Y
DC IT2 - Arezzo
Via Ramelli, 8
52100 Arezzo
ITAL
Y
Details updated on 03/10/2013
DC CZ1 - Ktiš
384 03 Ktiš
CZECH REPUBLIC
Contact us
Email: sales@staff.aruba.it
Data center Services: Tel + 39 0575 0501
Cloud Computing: Tel + 39 0575 0508
Aruba S.p.A.
Loc. Palazzetto 4, 52011 Bibbiena (AR)
www.aruba.it
