- 1. BY:OPTOM NIMRA MURTAZA TOPICS: 1)ARTERIAL SYSTEM OF HUMAN 2) VENOUS DRAINAGE 3) LYMPHATIC SYSTEM ANATOMY September 23rd , 2022

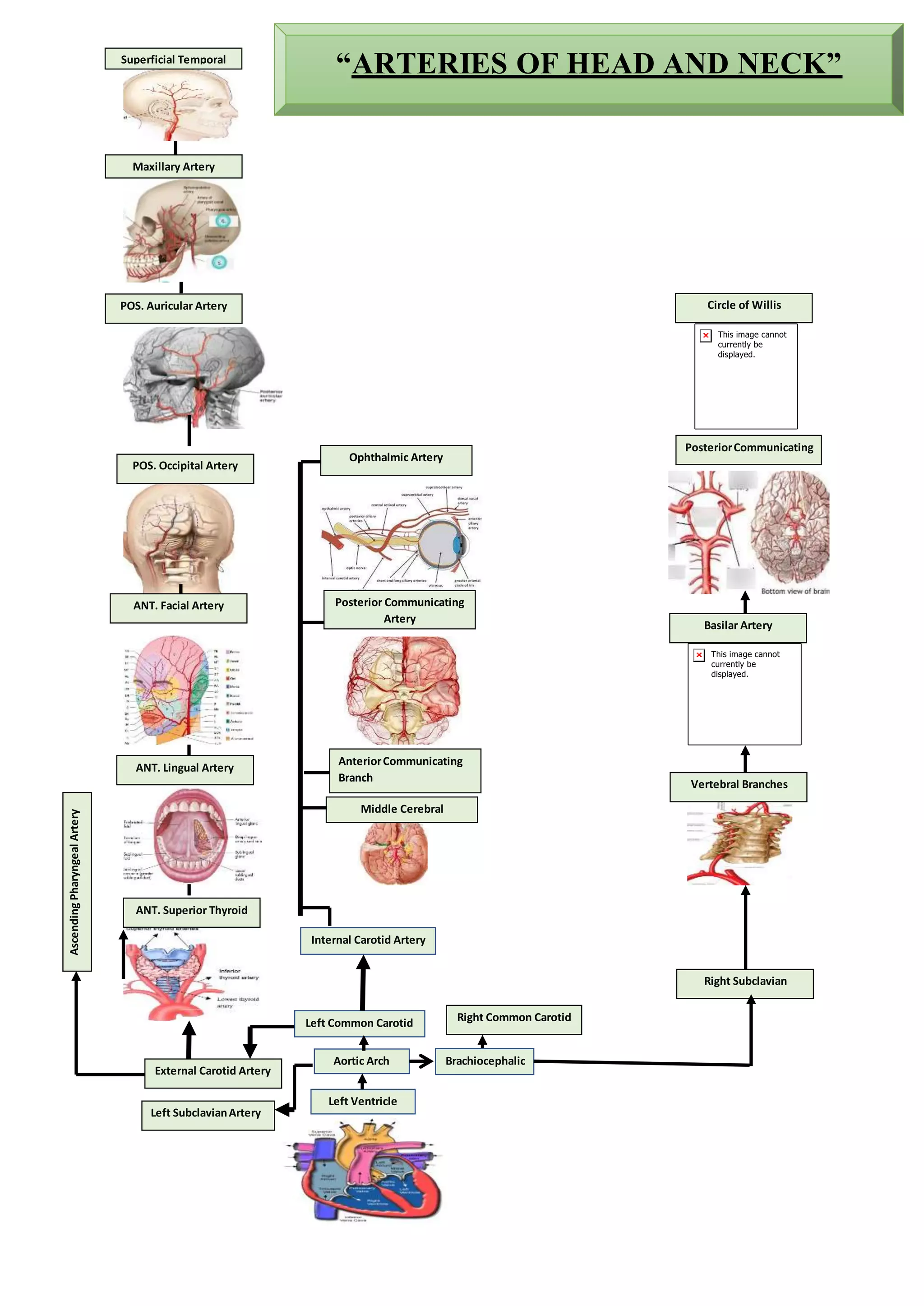

- 2. Left Ventricle Aortic Arch LeftCommon Carotid Internal Carotid Artery Brachiocephalic Middle Cerebral Right Common Carotid Posterior Communicating Artery Ophthalmic Artery AnteriorCommunicating Branch External Carotid Artery ANT. Superior Thyroid ANT. Lingual Artery Maxillary Artery ANT. Facial Artery POS. Occipital Artery Superficial Temporal Right Subclavian Vertebral Branches Basilar Artery PosteriorCommunicating Circle of Willis Left SubclavianArtery POS. Auricular Artery Ascending Pharyngeal Artery “ARTERIES OF HEAD AND NECK”

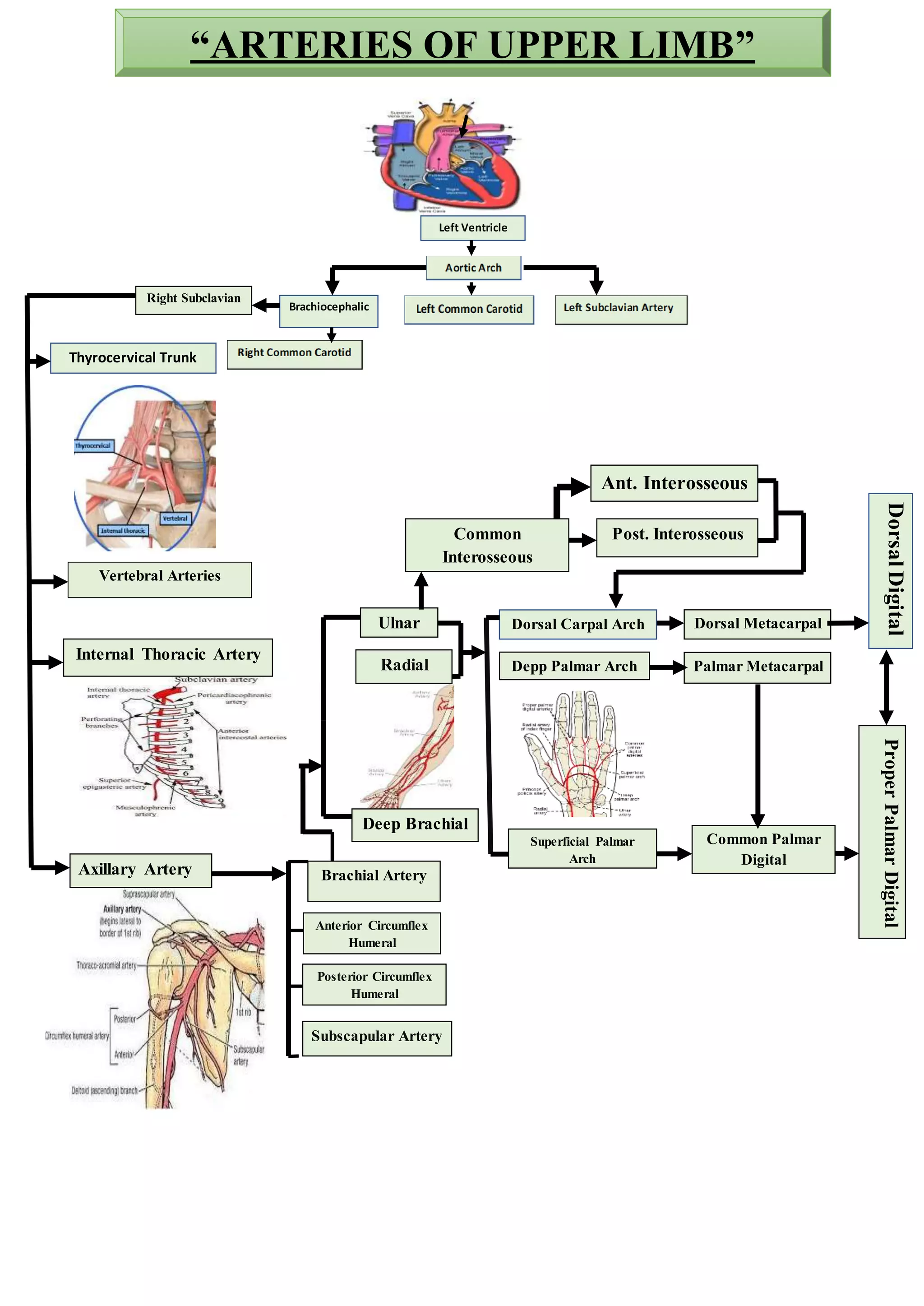

- 3. “ARTERIES OF UPPERLIMB” Left Ventricle Brachiocephalic Thyrocervical Trunk Vertebral Arteries Internal Thoracic Artery Axillary Artery Subscapular Artery Posterior Circumflex Humeral Anterior Circumflex Humeral Brachial Artery Ulnar Radial Deep Brachial Dorsal Carpal Arch Depp Palmar Arch Superficial Palmar Arch Dorsal Metacarpal Palmar Metacarpal Common Palmar Digital Common Interosseous Post. Interosseous Ant. Interosseous Dorsal Digital Proper Palmar Digital Right Subclavian

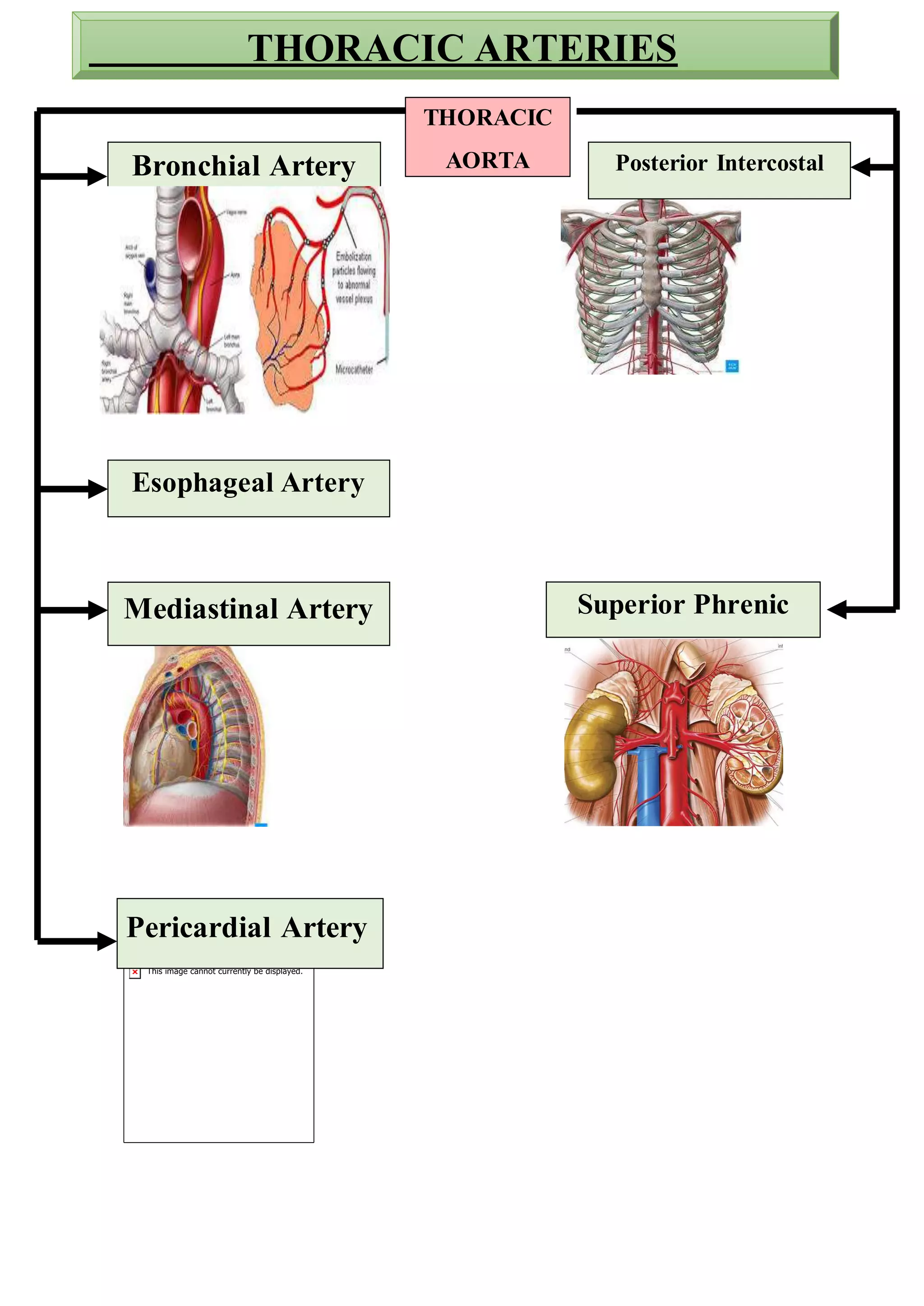

- 4. THORACIC ARTERIES THORACIC AORTA Bronchial Artery EsophagealArtery Mediastinal Artery Pericardial Artery Superior Phrenic Posterior Intercostal

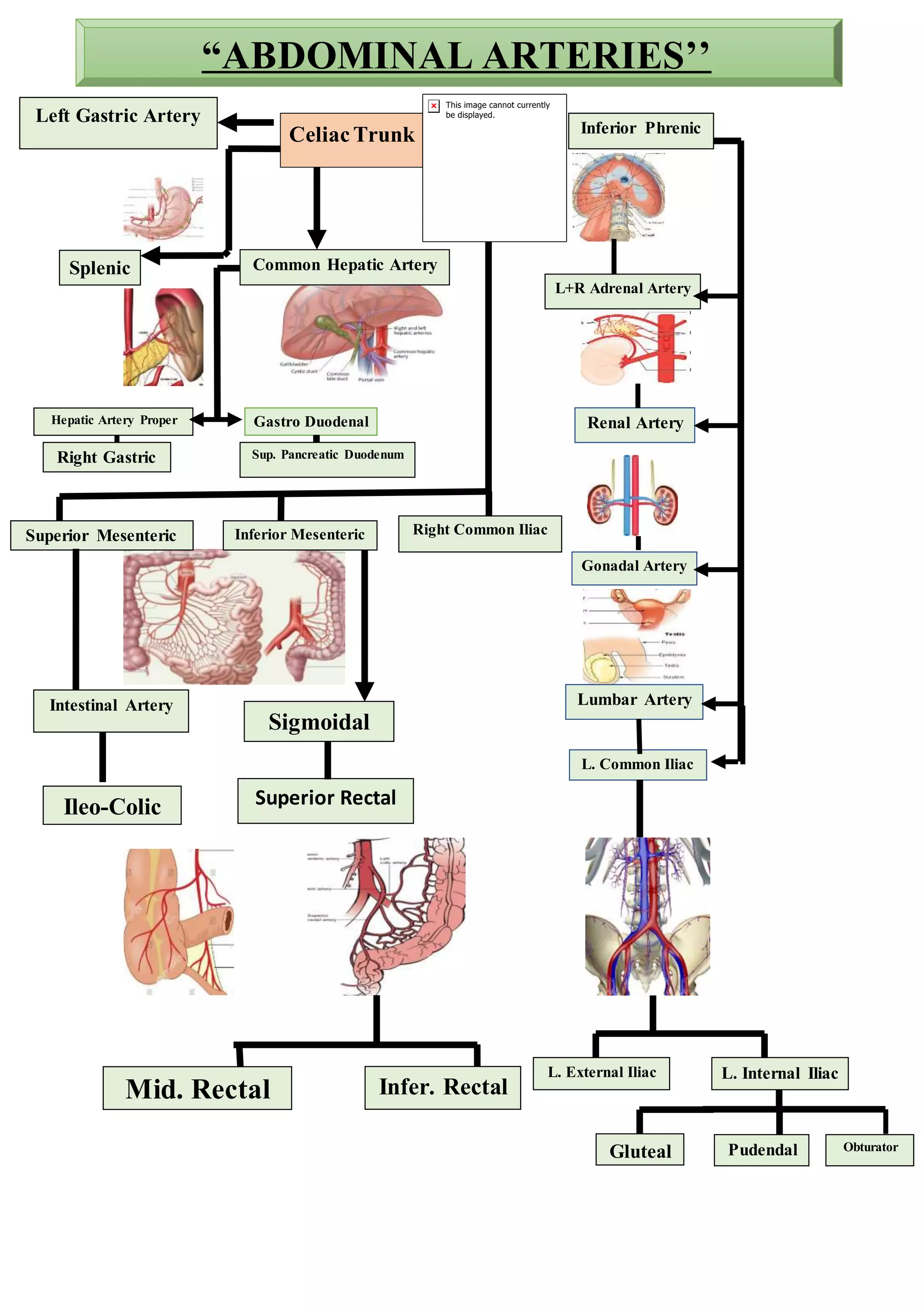

- 5. “ABDOMINAL ARTERIES’’ CeliacTrunk Left GastricArtery Inferior Phrenic Common Hepatic Artery Hepatic Artery Proper Gastro Duodenal L+R Adrenal Artery Renal Artery Gonadal Artery Lumbar Artery L. Common Iliac Splenic Superior Mesenteric Inferior Mesenteric Right Common Iliac L. External Iliac L. Internal Iliac Gluteal Pudendal Obturator Right Gastric Sup. Pancreatic Duodenum Intestinal Artery Ileo-Colic Sigmoidal Superior Rectal Mid. Rectal Infer. Rectal

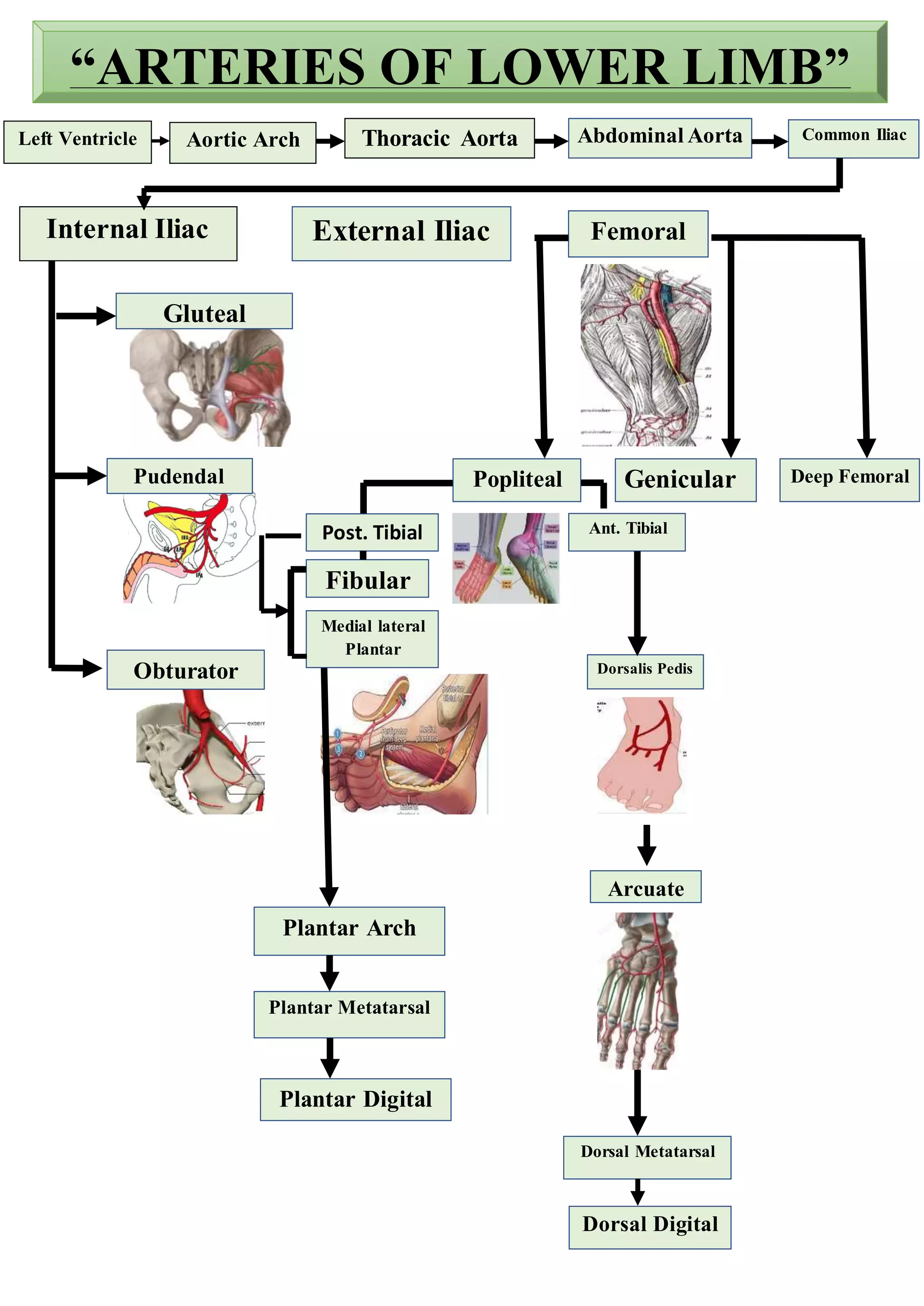

- 6. “ARTERIES OF LOWERLIMB” Left Ventricle Aortic Arch Thoracic Aorta Abdominal Aorta Common Iliac Internal Iliac External Iliac Femoral Popliteal Genicular Deep Femoral Fibular Ant. Tibial Medial lateral Plantar Post. Tibial Dorsalis Pedis Arcuate Dorsal Metatarsal Dorsal Digital Plantar Arch Plantar Metatarsal Plantar Digital Gluteal Pudendal Obturator

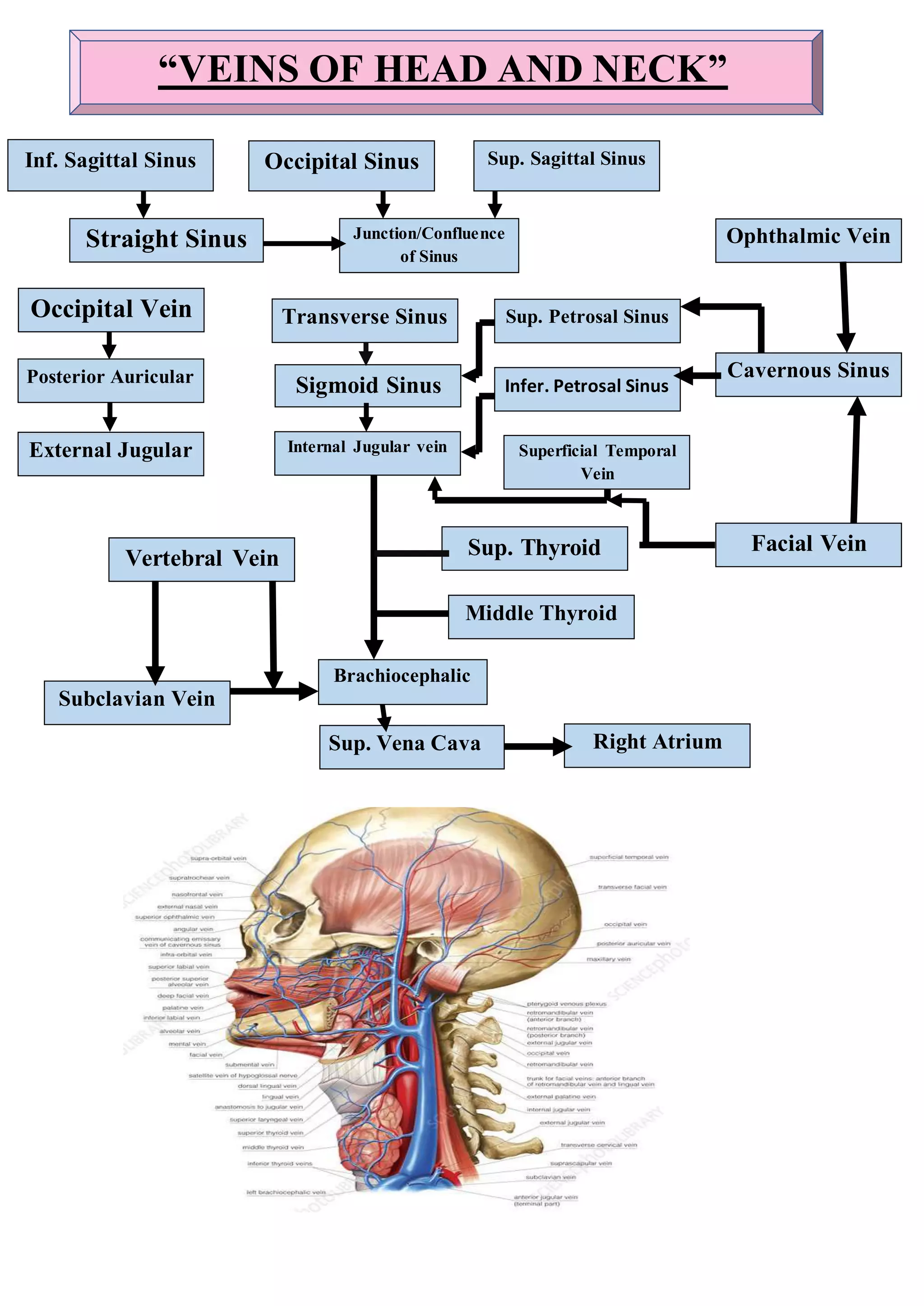

- 7. “VEINS OF HEADAND NECK” Inf. Sagittal Sinus Sup. Sagittal Sinus Occipital Sinus Straight Sinus Transverse Sinus Junction/Confluence of Sinus Sigmoid Sinus Internal Jugular vein Superficial Temporal Vein Sup. Thyroid Infer. Petrosal Sinus Sup. Petrosal Sinus Middle Thyroid Occipital Vein Posterior Auricular External Jugular Vertebral Vein Subclavian Vein Brachiocephalic Sup. Vena Cava Right Atrium Cavernous Sinus Ophthalmic Vein Facial Vein

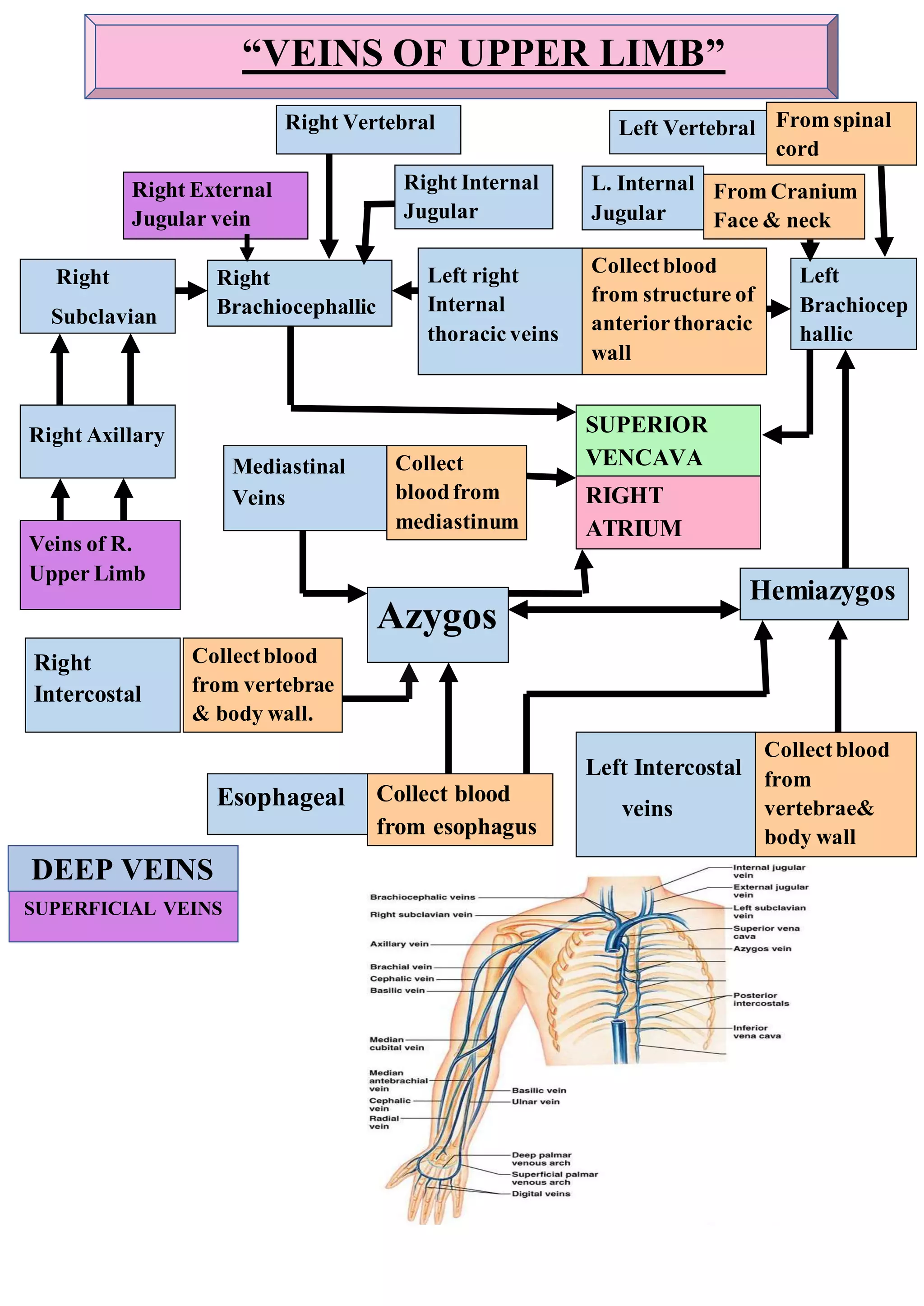

- 8. “VEINS OF UPPERLIMB” Right Subclavian Right Axillary Right Intercostal Veins of R. Upper Limb Right Brachiocephallic Right Vertebral Right Internal Jugular Right External Jugular vein Left right Internal thoracic veins Collectblood from structure of anteriorthoracic wall Left Brachiocep hallic Left Vertebral L. Internal Jugular Hemiazygos Collectblood from vertebrae& body wall Left Intercostal veins Mediastinal Veins Collect bloodfrom mediastinum Azygos ns SUPERIOR VENCAVA RIGHT ATRIUM Esophageal Collect blood from esophagus Collectblood from vertebrae & body wall. From Cranium Face & neck From spinal cord DEEP VEINS SUPERFICIAL VEINS

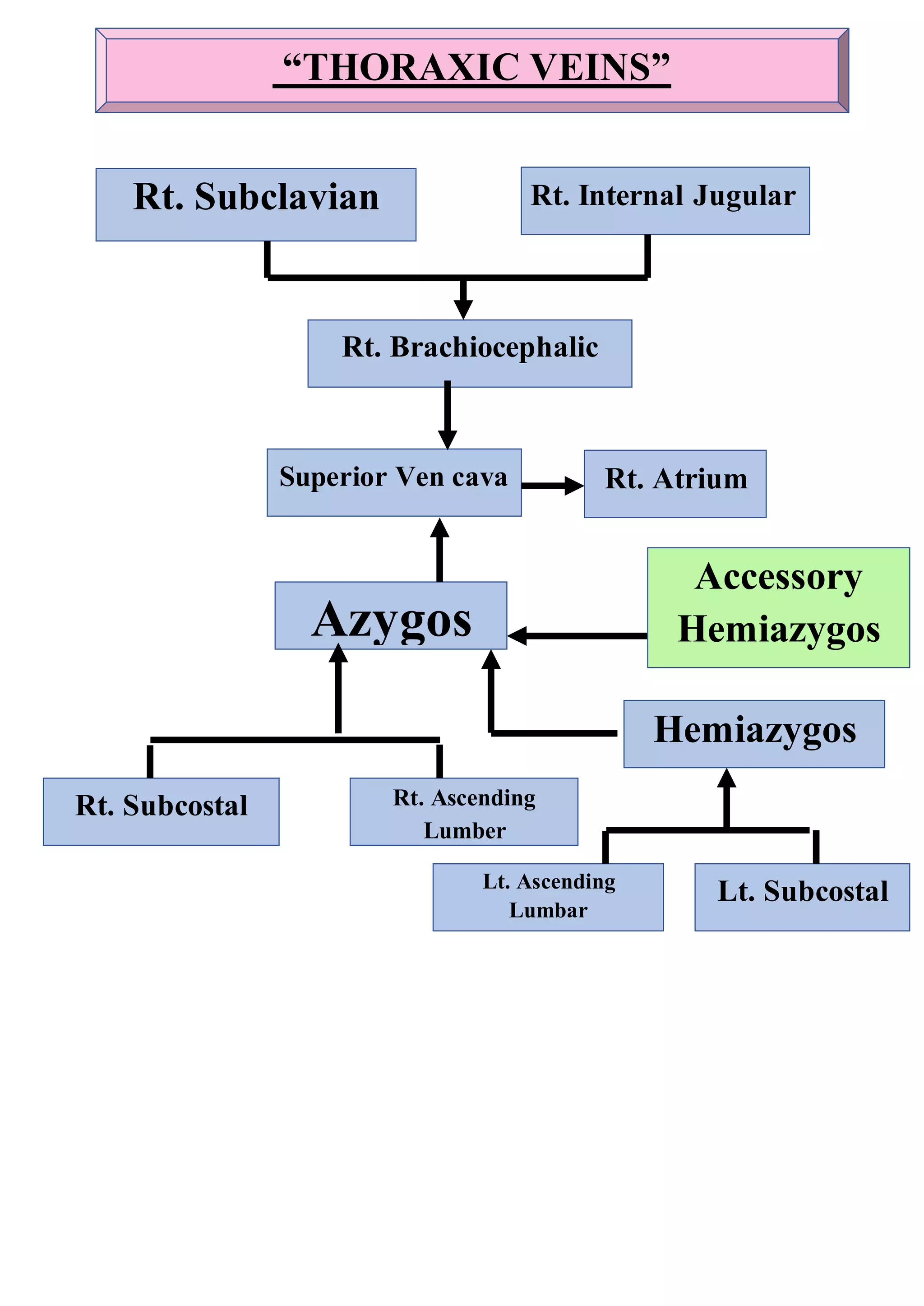

- 9. “THORAXIC VEINS” Rt. SubclavianRt. Internal Jugular Rt. Brachiocephalic Superior Ven cava Rt. Atrium Accessory Hemiazygos Azygos Hemiazygos Rt. Subcostal Rt. Ascending Lumber Lt. Ascending Lumbar Lt. Subcostal

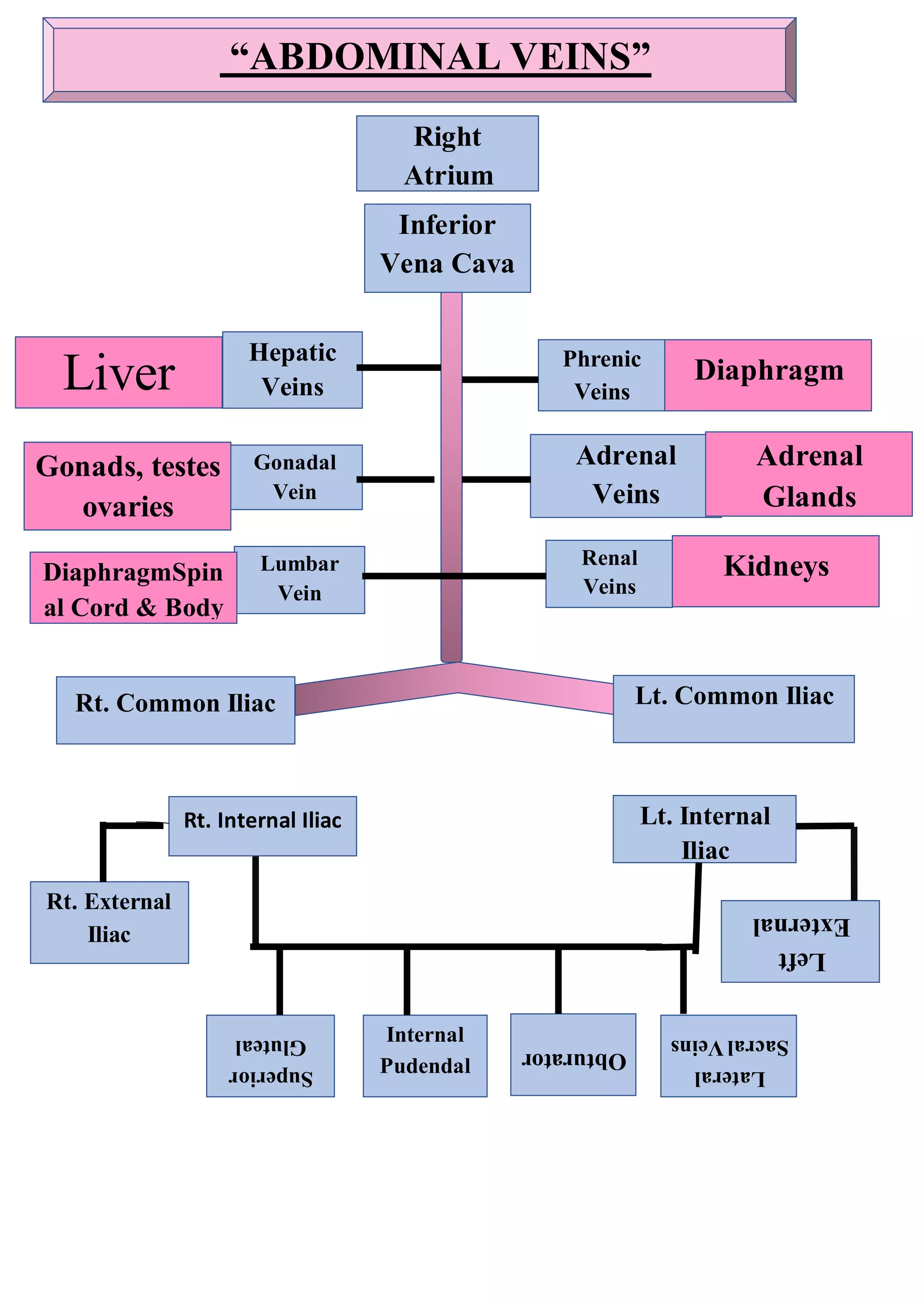

- 10. Gonadal Vein Lumbar Vein Hepatic Veins Renal Veins Phrenic Veins Right Atrium Left External Iliac Rt. Internal Iliac Adrenal Veins Rt.Common Iliac Lt. Common Iliac Lt. Internal Iliac Inferior Vena Cava “ABDOMINAL VEINS” Diaphragm Adrenal Glands Kidneys Rt. External Iliac Superior Gluteal Internal Pudendal Obturator Lateral Sacral Veins Liver Gonads, testes ovaries Gonads DiaphragmSpin al Cord & Body Wall

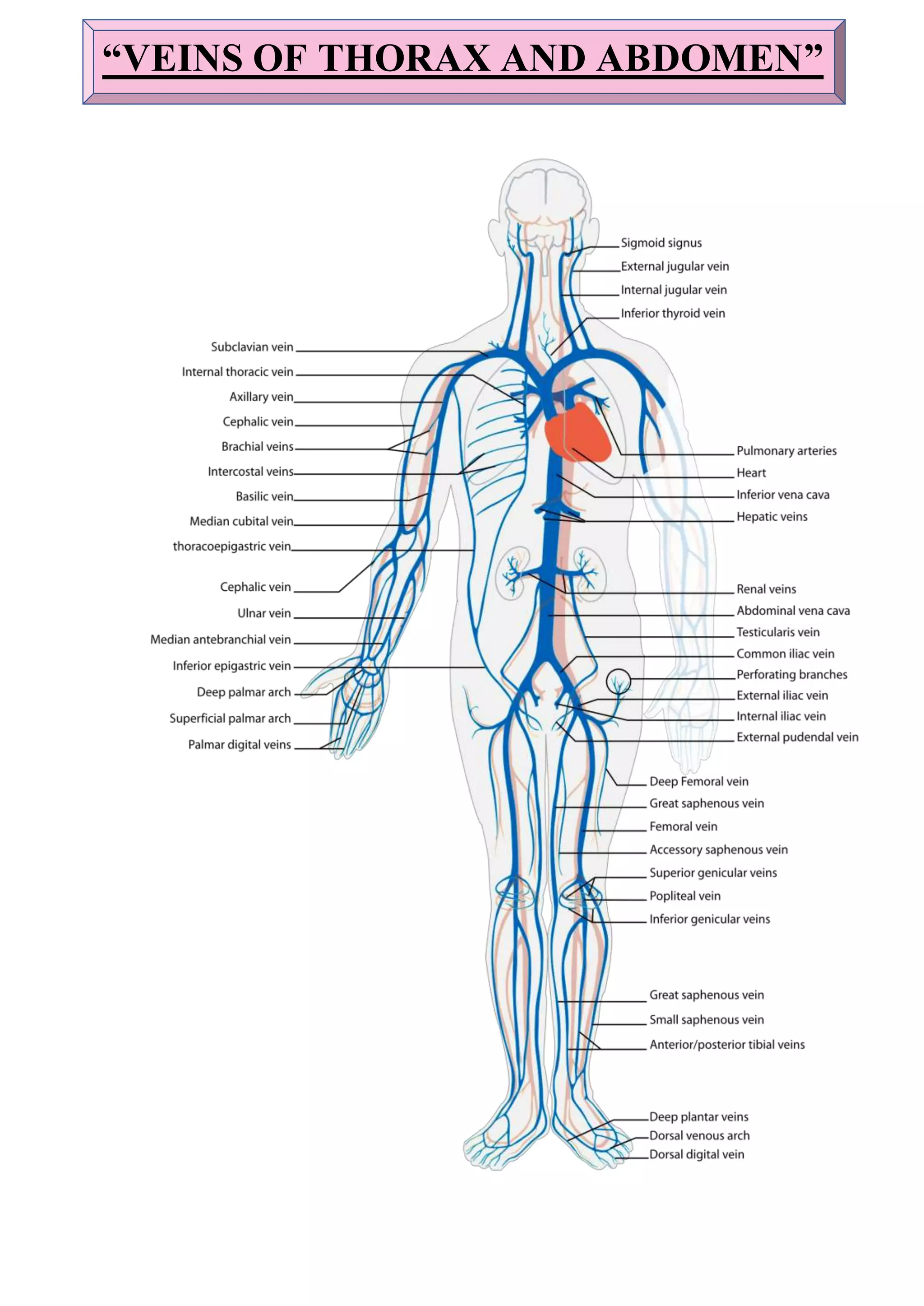

- 11. “VEINS OF THORAXAND ABDOMEN”

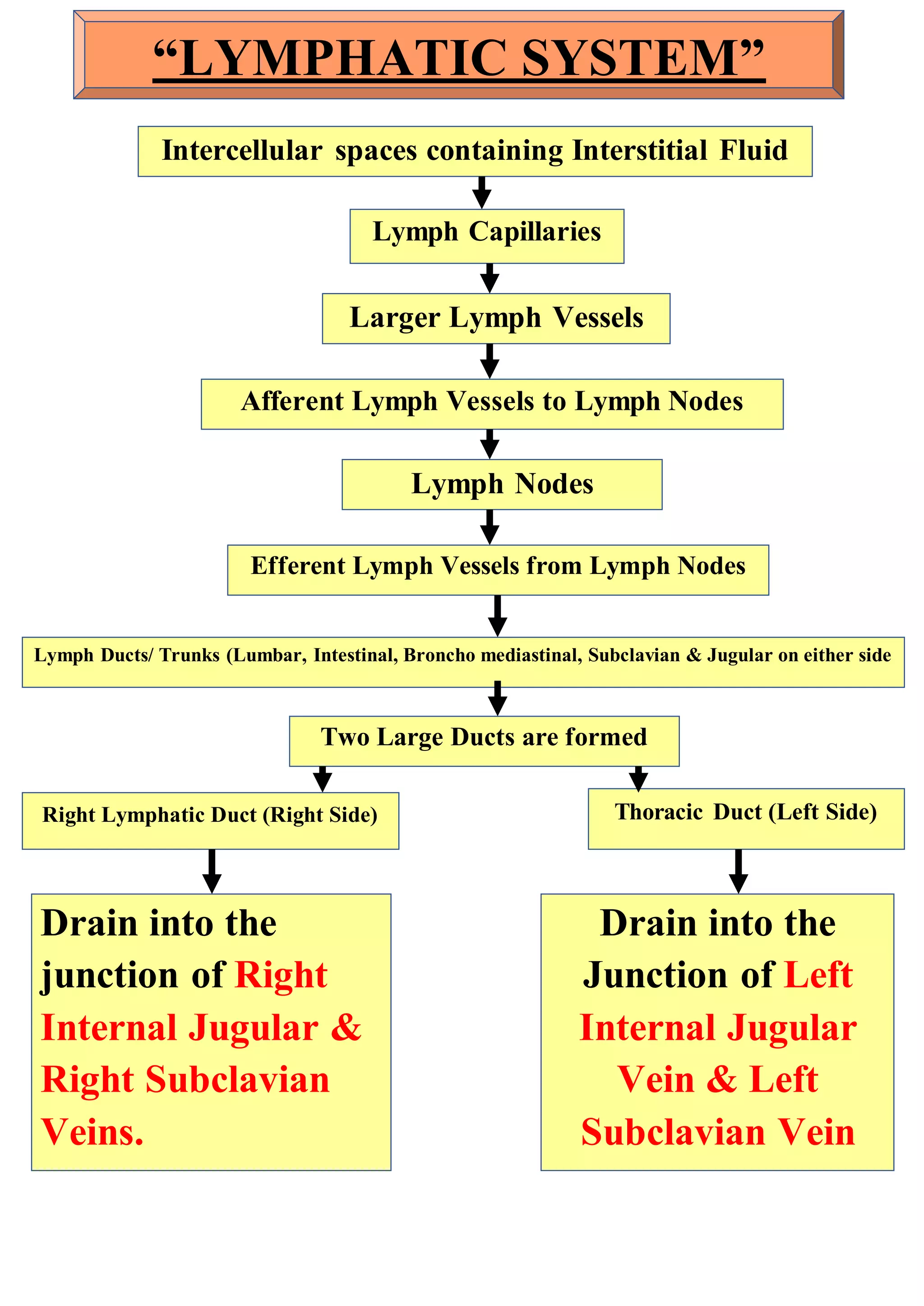

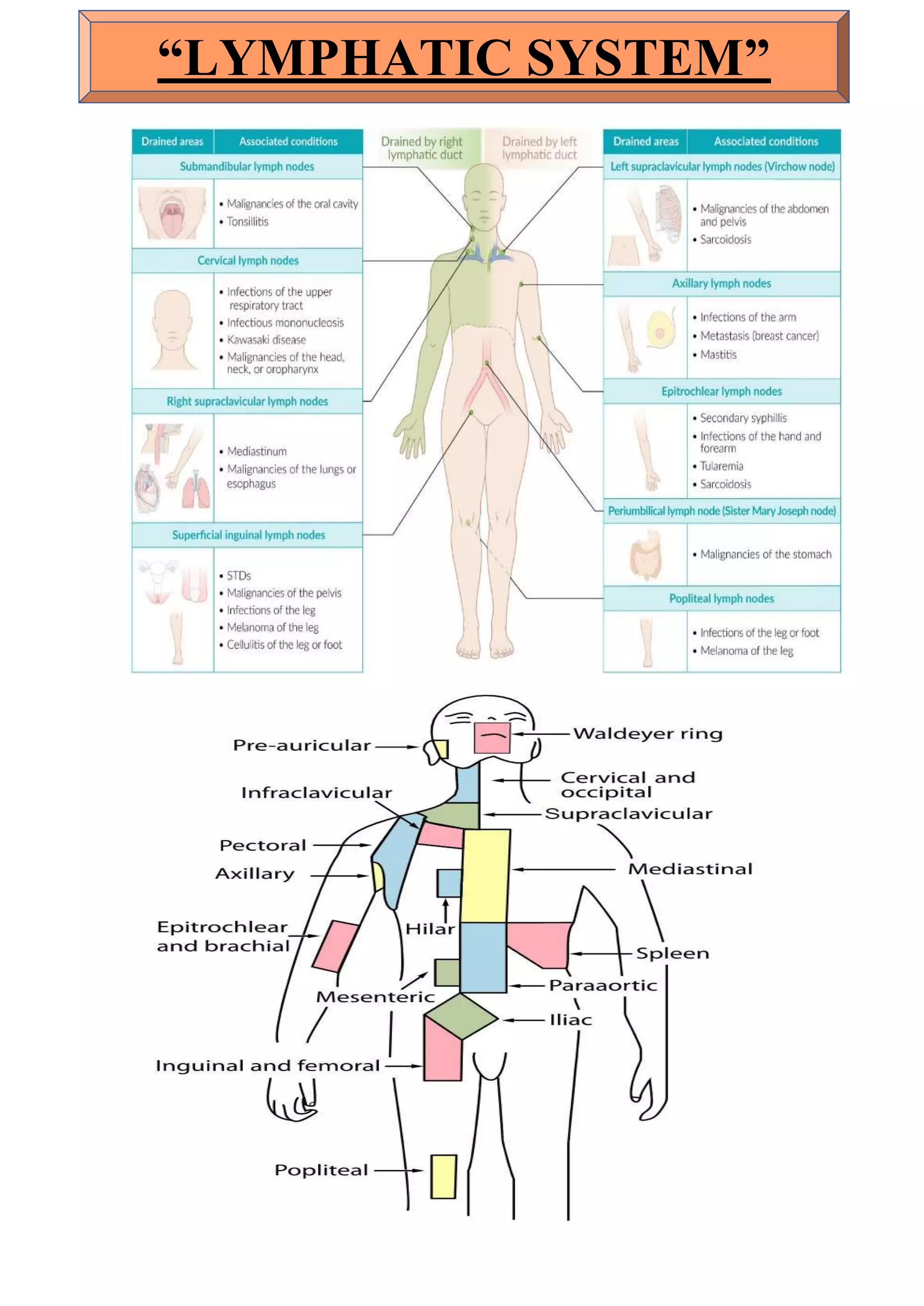

- 12. “LYMPHATIC SYSTEM” Intercellular spacescontaining Interstitial Fluid Lymph Capillaries Larger Lymph Vessels Afferent Lymph Vessels to Lymph Nodes Lymph Nodes Efferent Lymph Vessels from Lymph Nodes Lymph Ducts/ Trunks (Lumbar, Intestinal, Broncho mediastinal, Subclavian & Jugular on either side Two Large Ducts are formed Right Lymphatic Duct (Right Side) Drain into the junction of Right Internal Jugular & Right Subclavian Veins. Thoracic Duct (Left Side) Drain into the Junction of Left Internal Jugular Vein & Left Subclavian Vein
