Arm device tree and device
driver initialization
Houcheng Lin
CCMA, ITRI

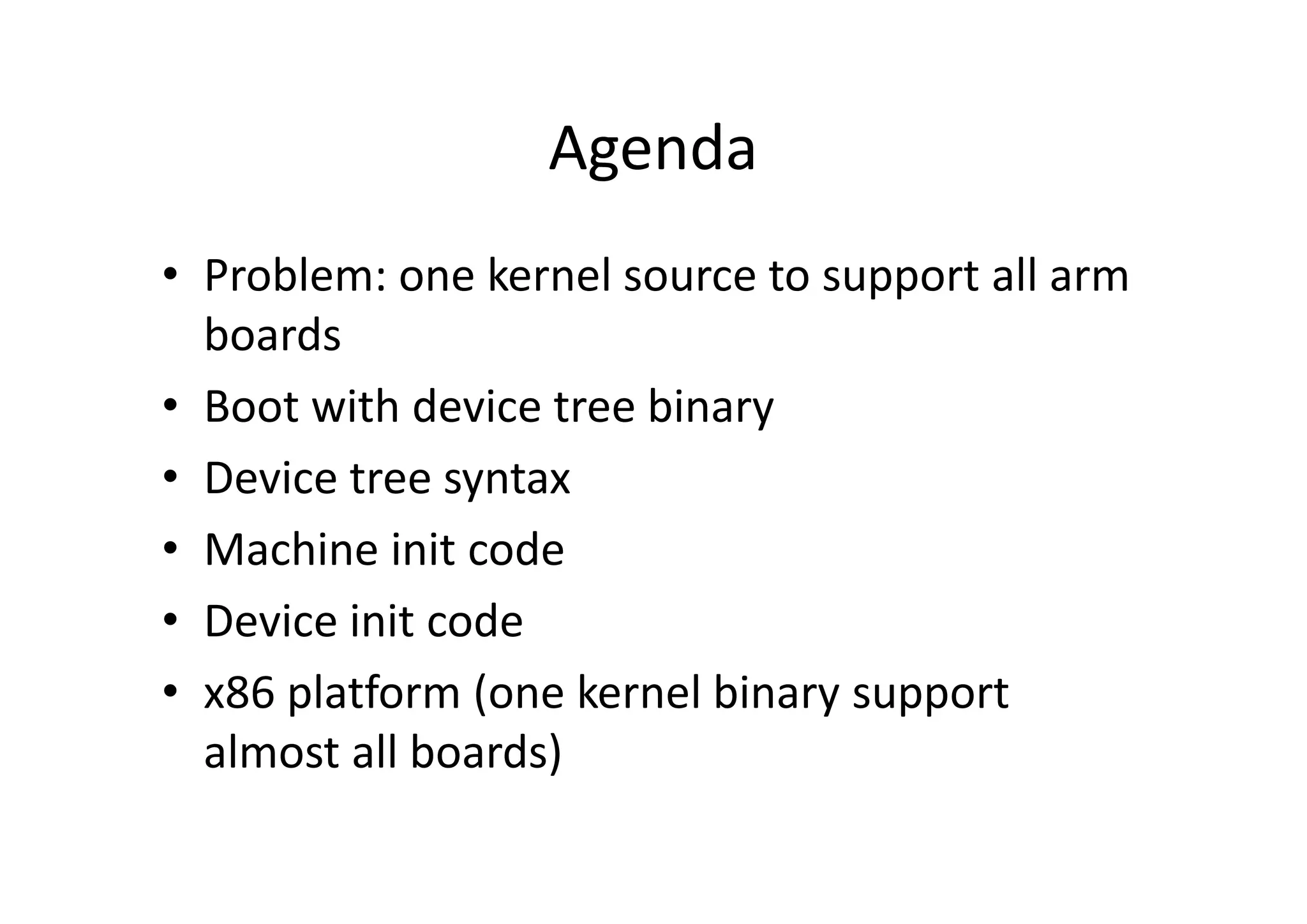

Agenda
• Problem: one kernel source to support all arm
boards
• Boot with device tree binary
• Device tree syntax
• Machine init code
• Device init code
• x86 platform (one kernel binary support
almost all boards)
Problem:
One kernel source to support all arm boards
OS kernel
memory,
mmu
timer Block
device
net
device
CPU,
cache
Hardware HAL
hardware board
Kernel
source
build
select board
Kernel startup code have to
initialize these hardware
• Startup code initialize following hardware
– CPU, cache, MMU (usually comes with feature reg)
– exception table, GDT, then perform mode switching
and enable MMU
– Interrupt controller, bridge chip
– timers, RTC, flash
– IO, block, network and optional devices
• Its purpose is kernel want to use them to
– enable some kernel feature
– convert into usable kernel resources
arch
machine
board
One kernel source support all boards,
a solution
• Horizontal and vertical divide these
code
– arch specific include and source
– machine specific include and source
– board specific include and source
• Pick one board
– Header and Makefile links defines
and objects
– One board header file that links
arch/ machine specific headers
– One board Makefile that links arch/
machine specific sources’ objects
• Kernel config file
– Generate header file and Makefile
include for needed kernel feature or
drivers
arm
exynos tegra
ve eb aa bb
An example
#include <arm.h>
#include <enynos.h>
#define UART0 0x00100c
#define TIMER0 0x00200c
#define UART_INT 23
#define UART_INT 8
board header file
ARCH := arm
MACH := vexpress
ARCH_LIB := (ARCH)_lib.a
MACH_OBJ = (MACH)_lib.a
BOARD_OBJ := vexpress.o
rtos.elf:
$(LD) $(LDFLAGS) $(KERNEL_OBJ)
$(ARCH_LIB) $(MACH_OBJ) $(BOARD_OBJ)
board Makefile
arch/arm/*.c *.h Makefile
arch/arm/machine/<machine-name>/*.c *.h Makefile
arch/arm/board/<board-name>/*.c *.h Makefile
Source directory
Linux arm community’s initial work
• As hardware more powerful and support MMU,
Linux add support to arm
• Linux ARM community starts to write codes and
use this approach to support all arm boards
• Some problem when lots of arm boards’ code
committed into kenrel:
– huge number of #defines in headers
– code is hard to maintain
• redundant code
• stepping on each others toes (guys uses different names)
• merge conflicts
Linus comment on 2001
I don't know who to "blame". I don't care. It really
doesn't matter.
you guys need to push back on the people sending
you crap
Gaah. Guys, this whole ARM thing is a f*cking pain
in the ass
steping on others toes
That usb_musb_init() thing in
arch/arm/mach-omap2/usb-musb.c
also seems to be totally insane.
Note: the layered and division approach can’t not
handle various arm hardware and corresponding, existing sources
stop the crazy
renaming already!
crap
ARM vendors do crazy shit
ARM device tree
• Device tree is a data structure for describing hardware
• It extract board level detail from kernel source code to
device tree script (dts)
• Each board has one dts file
• Benefit
– moved hardware relevant #defines to dts
– keep driver or init code one one copied; describe
variations in dts file. EX: memory mapped address,
interrupt number, active-low, output pin number, pefered
phy interface, etc
– Now, single kernel binary can support multiple similar
boards
Example DTS:
vexpress-v2p-ca15.dts
/ {
model = "V2P-CA15";
arm,hbi = <0x237>;
arm,vexpress,site = <0xf>;
compatible = "arm,vexpress,v2p-ca15,tc1",
"arm,vexpress,v2p-ca15",
"arm,vexpress";
cpu { … }
memory { …. }
timer {
compatible = "arm,armv7-timer";
interrupts = <1 13 0xf08>,
<1 14 0xf08>,
<1 11 0xf08>,
<1 10 0xf08>;
}
…..
/include/ "vexpress-v2m-rs1.dtsi"
};
vexpress-v2p-ca15-tc1.dts
motherboard {
model = "V2P-P1";
arm,hbi = <0x237>;
arm,vexpress,site = <0xf>;
compatible = "arm,vexpress,v2m-p1“,
"simple-bus";
#address-cells = <2>;
/* SMB chip-select number and offset */
flash@2,0000 { …. };
ethernet@3,02000 {
compatible = "smsc,lan9118";
reg = <3 0x02000000 0x10000>;
interrupts = <15>;
phy-mode = "mii";
smsc,irq-active-high;
vdd33a-supply=<&v2m_fixed_3v3>;
....
};
};
vexpress-v2m-rs1.dti
Device tree work flow
reference [2]
Device Tree Binary pass to kernel
• A device tree is passed to the kernel at boot
time, kernel reference it during initialization
r0: 0
r1: architecture ID
r2: pointer to DTB
reference [1]
machine-init code with device tree
1. kernel run compatible machine-init()
via compatible string match
2. Machine-init() create devices under
system bus. Bus is also match by
compatible string.
…..
……
static void __init v2m_dt_init(void)
{
l2x0_of_init(0x00400000, 0xfe0fffff);
of_platform_populate(NULL, v2m_dt_bus_match, NULL, NULL);
}
static const char * const v2m_dt_match[] __initconst = {
"arm,vexpress",
NULL,
};
DT_MACHINE_START(VEXPRESS_DT, "ARM-Versatile Express")
.dt_compat = v2m_dt_match,
.smp = smp_ops(vexpress_smp_ops),
.smp_init = smp_init_ops(vexpress_smp_init_ops),
.map_io = v2m_dt_map_io,
.init_early = v2m_dt_init_early,
.init_machine= v2m_dt_init,
MACHINE_END
arch/arm/mach-vexpress/v2m.c
arch/arm/mach-ooo/v3m.c
…..
……
It creates devices
under this
compatible bus
struct of_device_id v2m_dt_bus_match[] = {
{ .compatible = "simple-bus", },
{ .compatible = "arm,amba-bus", },
{ .compatible = "arm,vexpress,config-bus", },
{}
};
1.
2.
Device-init code with device tree
1. Kernel runs all modules’ module-init
function
2. The module-init function register
platfrom driver
3. For every created platform device, it
call its platform driver’s probe
function
4. In probe, can access properties in
device tree node and create a Linux
kernel device object with private data
#ifdef CONFIG_OF
static const struct of_device_id gdr_match[] = {
{ .compatible = "defer-reset" },
};
MODULE_DEVICE_TABLE(of, gdr_match);
#endif
static struct platform_driver gdr_driver = {
.probe = gdr_probe,
.driver = {
.name = DRIVER_NAME,
.owner = THIS_MODULE,
.of_match_table = of_match_ptr(gdr_match),
}
};
static int __init gdr_init(void)
{
….
platform_driver_register(&gdr_driver);
}
module_init(gdr_init);
int gdr_probe(struct platform_device *pdev_gdr) {
…..
of_property_read_u32(of_node, “duration”, &duration);
…..
}
1.
2.
3.
4.
How x86 platform works ?
• In x86, one single kernel binary can support all hardware
platforms. How can do it ?
• BIOS hides the low level hardware detail
– BIOS initialize low level (memory, cpu, clock, voltage, current, … )
– BIOS provide memory size and hard disk information to Linux
boot-loader
• Smart bus enumerate optional devices
(PCI bridge or USB root hub )
– enumerate devices to Linux kernel
– get device identity and resource requirement
– optional device’s driver may encapsulated as module and
initialized in ramdisk stage
• PC industry is much more standardized than arm hardware
$$
$$
X86 Platform boot, real mode
(boot-loader)
(compressed kernel)
loaded by boot-loader
http://duartes.org/gustavo/blog/post/kernel-boot-process/
Access >1MB in real mode
The shuffling of the kernel back and forth in memory is to overcome
limitations of the PC BIOS memory addressability (640k), and free up several
hundred kilobytes of system memory (the actual amount freed is reported by
the system). The 4k is used for handling virtual memory. The special load
instructions (trampoline) are required to 'cheat' the system, as the
instructions load part of the kernel into memory locations beyond the 640k
barrier that the (then currently running "real mode") system knows about. In
the process of shuffling the kernel around, the memory originally written to
by the BIOS, and also where the setup and system programs were loaded are
overwritten by the kernel image, hence the need for moving them to a safe
place, beyond where the uncompressed kernel image is loaded. The actual
load is slightly more complicated on x86 systems as not all BIOSs report their
memory on the same registers, report information in different ways, or map
their memory/system resources in unconventional ways. Also, some BIOSs
must be prodded for information several times or have A20 Gate problems.
http://en.wikibooks.org/wiki/The_Linux_Kernel/Booting
Mode switch
reference [1]
Reference
[1] http://duartes.org/gustavo/blog/post/kernel-boot-process/
[2] http://www.slideshare.net/softpapa/device-tree-support-on-arm-linux-8930303
[3] http://en.wikibooks.org/wiki/The_Linux_Kernel/Booting
[4] Linux kernel source, vexpress board
[5] Linux kernel documentation, Platform Devices and Drivers

More Related Content

What's hot

Vmlinux: anatomy of bzimage and how x86 64 processor is booted
Vmlinux: anatomy of bzimage and how x86 64 processor is bootedVmlinux: anatomy of bzimage and how x86 64 processor is booted
Vmlinux: anatomy of bzimage and how x86 64 processor is booted
Adrian Huang

linux device driver
linux device driverlinux device driver
linux device driver
Rahul Batra

U Boot or Universal Bootloader
U Boot or Universal BootloaderU Boot or Universal Bootloader
U Boot or Universal Bootloader
Satpal Parmar

Embedded Linux BSP Training (Intro)
Embedded Linux BSP Training (Intro)Embedded Linux BSP Training (Intro)
Embedded Linux BSP Training (Intro)
RuggedBoardGroup

Device Tree for Dummies (ELC 2014)
Device Tree for Dummies (ELC 2014)Device Tree for Dummies (ELC 2014)
Device Tree for Dummies (ELC 2014)
Thomas Petazzoni

Linux device drivers
Linux device drivers Linux device drivers
BeagleBone Black Bootloaders
BeagleBone Black BootloadersBeagleBone Black Bootloaders
BeagleBone Black Bootloaders
SysPlay eLearning Academy for You

U-Boot Porting on New Hardware
U-Boot Porting on New HardwareU-Boot Porting on New Hardware
U-Boot Porting on New Hardware
RuggedBoardGroup

HKG15-505: Power Management interactions with OP-TEE and Trusted Firmware
HKG15-505: Power Management interactions with OP-TEE and Trusted FirmwareHKG15-505: Power Management interactions with OP-TEE and Trusted Firmware
HKG15-505: Power Management interactions with OP-TEE and Trusted Firmware
Linaro

Bootstrap process of u boot (NDS32 RISC CPU)
Bootstrap process of u boot (NDS32 RISC CPU)Bootstrap process of u boot (NDS32 RISC CPU)
Bootstrap process of u boot (NDS32 RISC CPU)
Macpaul Lin

U-Boot presentation 2013
U-Boot presentation  2013U-Boot presentation  2013
U-Boot presentation 2013
Wave Digitech

HKG15-107: ACPI Power Management on ARM64 Servers (v2)
HKG15-107: ACPI Power Management on ARM64 Servers (v2)HKG15-107: ACPI Power Management on ARM64 Servers (v2)
HKG15-107: ACPI Power Management on ARM64 Servers (v2)
Linaro

Embedded linux network device driver development
Embedded linux network device driver developmentEmbedded linux network device driver development
Embedded linux network device driver development
Amr Ali (ISTQB CTAL Full, CSM, ITIL Foundation)

Basic Linux Internals
Basic Linux InternalsBasic Linux Internals
Basic Linux Internals
mukul bhardwaj

Embedded_Linux_Booting
Embedded_Linux_BootingEmbedded_Linux_Booting
Embedded_Linux_Booting
Rashila Rr

Launch the First Process in Linux System
Launch the First Process in Linux SystemLaunch the First Process in Linux System
Launch the First Process in Linux System
Jian-Hong Pan

Linux Kernel MMC Storage driver Overview
Linux Kernel MMC Storage driver OverviewLinux Kernel MMC Storage driver Overview
Linux Kernel MMC Storage driver Overview
RajKumar Rampelli

The Linux Block Layer - Built for Fast Storage
The Linux Block Layer - Built for Fast StorageThe Linux Block Layer - Built for Fast Storage
The Linux Block Layer - Built for Fast Storage
Kernel TLV

Network Drivers
Network DriversNetwork Drivers
Network Drivers
Anil Kumar Pugalia

Decompressed vmlinux: linux kernel initialization from page table configurati...
Decompressed vmlinux: linux kernel initialization from page table configurati...Decompressed vmlinux: linux kernel initialization from page table configurati...
Decompressed vmlinux: linux kernel initialization from page table configurati...
Adrian Huang


What's hot (20)

Vmlinux: anatomy of bzimage and how x86 64 processor is booted
Vmlinux: anatomy of bzimage and how x86 64 processor is bootedVmlinux: anatomy of bzimage and how x86 64 processor is booted
Vmlinux: anatomy of bzimage and how x86 64 processor is booted

linux device driver
linux device driverlinux device driver
linux device driver

U Boot or Universal Bootloader
U Boot or Universal BootloaderU Boot or Universal Bootloader
U Boot or Universal Bootloader

Embedded Linux BSP Training (Intro)
Embedded Linux BSP Training (Intro)Embedded Linux BSP Training (Intro)
Embedded Linux BSP Training (Intro)

Device Tree for Dummies (ELC 2014)
Device Tree for Dummies (ELC 2014)Device Tree for Dummies (ELC 2014)
Device Tree for Dummies (ELC 2014)

Linux device drivers
Linux device drivers Linux device drivers
Linux device drivers

BeagleBone Black Bootloaders
BeagleBone Black BootloadersBeagleBone Black Bootloaders
BeagleBone Black Bootloaders

U-Boot Porting on New Hardware
U-Boot Porting on New HardwareU-Boot Porting on New Hardware
U-Boot Porting on New Hardware

HKG15-505: Power Management interactions with OP-TEE and Trusted Firmware
HKG15-505: Power Management interactions with OP-TEE and Trusted FirmwareHKG15-505: Power Management interactions with OP-TEE and Trusted Firmware
HKG15-505: Power Management interactions with OP-TEE and Trusted Firmware

Bootstrap process of u boot (NDS32 RISC CPU)
Bootstrap process of u boot (NDS32 RISC CPU)Bootstrap process of u boot (NDS32 RISC CPU)
Bootstrap process of u boot (NDS32 RISC CPU)

U-Boot presentation 2013
U-Boot presentation  2013U-Boot presentation  2013
U-Boot presentation 2013

HKG15-107: ACPI Power Management on ARM64 Servers (v2)
HKG15-107: ACPI Power Management on ARM64 Servers (v2)HKG15-107: ACPI Power Management on ARM64 Servers (v2)
HKG15-107: ACPI Power Management on ARM64 Servers (v2)

Embedded linux network device driver development
Embedded linux network device driver developmentEmbedded linux network device driver development
Embedded linux network device driver development

Basic Linux Internals
Basic Linux InternalsBasic Linux Internals
Basic Linux Internals

Embedded_Linux_Booting
Embedded_Linux_BootingEmbedded_Linux_Booting
Embedded_Linux_Booting

Launch the First Process in Linux System
Launch the First Process in Linux SystemLaunch the First Process in Linux System
Launch the First Process in Linux System

Linux Kernel MMC Storage driver Overview
Linux Kernel MMC Storage driver OverviewLinux Kernel MMC Storage driver Overview
Linux Kernel MMC Storage driver Overview

The Linux Block Layer - Built for Fast Storage
The Linux Block Layer - Built for Fast StorageThe Linux Block Layer - Built for Fast Storage
The Linux Block Layer - Built for Fast Storage

Network Drivers
Network DriversNetwork Drivers
Network Drivers

Decompressed vmlinux: linux kernel initialization from page table configurati...
Decompressed vmlinux: linux kernel initialization from page table configurati...Decompressed vmlinux: linux kernel initialization from page table configurati...
Decompressed vmlinux: linux kernel initialization from page table configurati...


Viewers also liked

Linux Porting to a Custom Board
Linux Porting to a Custom BoardLinux Porting to a Custom Board
Linux Porting to a Custom Board
Patrick Bellasi

Device tree
Device treeDevice tree
Device tree
Rouyun Pan

Device tree support on arm linux
Device tree support on arm linuxDevice tree support on arm linux
Device tree support on arm linux
Chih-Min Chao

Linux Crash Dump Capture and Analysis
Linux Crash Dump Capture and AnalysisLinux Crash Dump Capture and Analysis
Linux Crash Dump Capture and Analysis
Paul V. Novarese

Kernel Recipes 2013 - ARM support in the Linux kernel
Kernel Recipes 2013 - ARM support in the Linux kernelKernel Recipes 2013 - ARM support in the Linux kernel
Kernel Recipes 2013 - ARM support in the Linux kernel
Anne Nicolas

Building Embedded Linux Full Tutorial for ARM
Building Embedded Linux Full Tutorial for ARMBuilding Embedded Linux Full Tutorial for ARM
Building Embedded Linux Full Tutorial for ARM
Sherif Mousa


Viewers also liked (6)

Linux Porting to a Custom Board
Linux Porting to a Custom BoardLinux Porting to a Custom Board
Linux Porting to a Custom Board

Device tree
Device treeDevice tree
Device tree

Device tree support on arm linux
Device tree support on arm linuxDevice tree support on arm linux
Device tree support on arm linux

Linux Crash Dump Capture and Analysis
Linux Crash Dump Capture and AnalysisLinux Crash Dump Capture and Analysis
Linux Crash Dump Capture and Analysis

Kernel Recipes 2013 - ARM support in the Linux kernel
Kernel Recipes 2013 - ARM support in the Linux kernelKernel Recipes 2013 - ARM support in the Linux kernel
Kernel Recipes 2013 - ARM support in the Linux kernel

Building Embedded Linux Full Tutorial for ARM
Building Embedded Linux Full Tutorial for ARMBuilding Embedded Linux Full Tutorial for ARM
Building Embedded Linux Full Tutorial for ARM


Similar to Arm device tree and linux device drivers

BSP.pptx
BSP.pptxBSP.pptx
BSP.pptx
taruian

Linux device drivers
Linux device driversLinux device drivers
Linux device drivers
Abhishek Sagar

Introduction to Linux Kernel by Quontra Solutions
Introduction to Linux Kernel by Quontra SolutionsIntroduction to Linux Kernel by Quontra Solutions
Introduction to Linux Kernel by Quontra Solutions
QUONTRASOLUTIONS

Device Drivers
Device DriversDevice Drivers
Device Drivers
Kushal Modi

Operating Systems 1 (5/12) - Architectures (Unix)
Operating Systems 1 (5/12) - Architectures (Unix)Operating Systems 1 (5/12) - Architectures (Unix)
Operating Systems 1 (5/12) - Architectures (Unix)
Peter Tröger

[Defcon] Hardware backdooring is practical
[Defcon] Hardware backdooring is practical[Defcon] Hardware backdooring is practical
[Defcon] Hardware backdooring is practical
Moabi.com

System Device Tree and Lopper: Concrete Examples - ELC NA 2022
System Device Tree and Lopper: Concrete Examples - ELC NA 2022System Device Tree and Lopper: Concrete Examples - ELC NA 2022
System Device Tree and Lopper: Concrete Examples - ELC NA 2022
Stefano Stabellini

Board support package_on_linux
Board support package_on_linuxBoard support package_on_linux
Board support package_on_linux
Vandana Salve

LINUX Device Drivers
LINUX Device DriversLINUX Device Drivers
LINUX Device Drivers
Partha Bhattacharya

Introduction To Linux Kernel Modules
Introduction To Linux Kernel ModulesIntroduction To Linux Kernel Modules
Introduction To Linux Kernel Modules
dibyajyotig

Window ce
Window ceWindow ce
Linux Kernel Tour
Linux Kernel TourLinux Kernel Tour
Linux Kernel Tour
samrat das

NXP IMX6 Processor - Embedded Linux
NXP IMX6 Processor - Embedded LinuxNXP IMX6 Processor - Embedded Linux
NXP IMX6 Processor - Embedded Linux
NEEVEE Technologies

Embedded system - embedded system programming
Embedded system - embedded system programmingEmbedded system - embedded system programming
Embedded system - embedded system programming
Vibrant Technologies & Computers

108week2
108week2108week2
108week2
karan saini

Hardware backdooring is practical : slides
Hardware backdooring is practical : slidesHardware backdooring is practical : slides
Hardware backdooring is practical : slides
Moabi.com

TMS320DM8148 Embedded Linux
TMS320DM8148 Embedded LinuxTMS320DM8148 Embedded Linux
TMS320DM8148 Embedded Linux
NEEVEE Technologies

Ganesh naik linux_kernel_internals
Ganesh naik linux_kernel_internalsGanesh naik linux_kernel_internals
Ganesh naik linux_kernel_internals
Ganesh Naik

Ganesh naik linux_kernel_internals
Ganesh naik linux_kernel_internalsGanesh naik linux_kernel_internals
Ganesh naik linux_kernel_internals
nullowaspmumbai

Unix fundamentals
Unix fundamentalsUnix fundamentals
Unix fundamentals
Bimal Jain


Similar to Arm device tree and linux device drivers (20)

BSP.pptx
BSP.pptxBSP.pptx
BSP.pptx

Linux device drivers
Linux device driversLinux device drivers
Linux device drivers

Introduction to Linux Kernel by Quontra Solutions
Introduction to Linux Kernel by Quontra SolutionsIntroduction to Linux Kernel by Quontra Solutions
Introduction to Linux Kernel by Quontra Solutions

Device Drivers
Device DriversDevice Drivers
Device Drivers

Operating Systems 1 (5/12) - Architectures (Unix)
Operating Systems 1 (5/12) - Architectures (Unix)Operating Systems 1 (5/12) - Architectures (Unix)
Operating Systems 1 (5/12) - Architectures (Unix)

[Defcon] Hardware backdooring is practical
[Defcon] Hardware backdooring is practical[Defcon] Hardware backdooring is practical
[Defcon] Hardware backdooring is practical

System Device Tree and Lopper: Concrete Examples - ELC NA 2022
System Device Tree and Lopper: Concrete Examples - ELC NA 2022System Device Tree and Lopper: Concrete Examples - ELC NA 2022
System Device Tree and Lopper: Concrete Examples - ELC NA 2022

Board support package_on_linux
Board support package_on_linuxBoard support package_on_linux
Board support package_on_linux

LINUX Device Drivers
LINUX Device DriversLINUX Device Drivers
LINUX Device Drivers

Introduction To Linux Kernel Modules
Introduction To Linux Kernel ModulesIntroduction To Linux Kernel Modules
Introduction To Linux Kernel Modules

Window ce
Window ceWindow ce
Window ce

Linux Kernel Tour
Linux Kernel TourLinux Kernel Tour
Linux Kernel Tour

NXP IMX6 Processor - Embedded Linux
NXP IMX6 Processor - Embedded LinuxNXP IMX6 Processor - Embedded Linux
NXP IMX6 Processor - Embedded Linux

Embedded system - embedded system programming
Embedded system - embedded system programmingEmbedded system - embedded system programming
Embedded system - embedded system programming

108week2
108week2108week2
108week2

Hardware backdooring is practical : slides
Hardware backdooring is practical : slidesHardware backdooring is practical : slides
Hardware backdooring is practical : slides

TMS320DM8148 Embedded Linux
TMS320DM8148 Embedded LinuxTMS320DM8148 Embedded Linux
TMS320DM8148 Embedded Linux

Ganesh naik linux_kernel_internals
Ganesh naik linux_kernel_internalsGanesh naik linux_kernel_internals
Ganesh naik linux_kernel_internals

Ganesh naik linux_kernel_internals
Ganesh naik linux_kernel_internalsGanesh naik linux_kernel_internals
Ganesh naik linux_kernel_internals

Unix fundamentals
Unix fundamentalsUnix fundamentals
Unix fundamentals


Recently uploaded

AI INTRODUCTION Artificial intelligence.ppt
AI INTRODUCTION Artificial intelligence.pptAI INTRODUCTION Artificial intelligence.ppt
AI INTRODUCTION Artificial intelligence.ppt
GeethaAL

1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
AsiimweJulius2

Sustainable construction is the use of renewable and recyclable materials in ...
Sustainable construction is the use of renewable and recyclable materials in ...Sustainable construction is the use of renewable and recyclable materials in ...
Sustainable construction is the use of renewable and recyclable materials in ...
RohitGhulanavar2

,*$/?!~00971508021841^(سعر حبوب الإجهاض في دبي
,*$/?!~00971508021841^(سعر حبوب الإجهاض في دبي,*$/?!~00971508021841^(سعر حبوب الإجهاض في دبي
,*$/?!~00971508021841^(سعر حبوب الإجهاض في دبي
nafizanafzal

3.DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
3.DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf3.DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
3.DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
AsiimweJulius2

Modified O-RAN 5G Edge Reference Architecture using RNN
Modified O-RAN 5G Edge Reference Architecture using RNNModified O-RAN 5G Edge Reference Architecture using RNN
Modified O-RAN 5G Edge Reference Architecture using RNN
ijwmn

Machine Learning- Perceptron_Backpropogation_Module 3.pdf
Machine Learning- Perceptron_Backpropogation_Module 3.pdfMachine Learning- Perceptron_Backpropogation_Module 3.pdf
Machine Learning- Perceptron_Backpropogation_Module 3.pdf
Dr. Shivashankar

Basic information about the indian constitutions and professional ethics
Basic information about the indian constitutions and professional ethicsBasic information about the indian constitutions and professional ethics
Basic information about the indian constitutions and professional ethics
mpa7083

FIRE OUTBREAK EMERGENCY FINAL REPORT.pdf
FIRE OUTBREAK EMERGENCY FINAL REPORT.pdfFIRE OUTBREAK EMERGENCY FINAL REPORT.pdf
FIRE OUTBREAK EMERGENCY FINAL REPORT.pdf
Dar es Salaam, Tanzania

Digital Image Processing - Module 4 Chapter 2
Digital Image Processing - Module 4 Chapter 2Digital Image Processing - Module 4 Chapter 2
Digital Image Processing - Module 4 Chapter 2
821priyankaj

REVOLUTIONISING TRANSLATION TECHNOLOGY: A COMPARATIVE STUDY OF VARIANT TRANSF...
REVOLUTIONISING TRANSLATION TECHNOLOGY: A COMPARATIVE STUDY OF VARIANT TRANSF...REVOLUTIONISING TRANSLATION TECHNOLOGY: A COMPARATIVE STUDY OF VARIANT TRANSF...
REVOLUTIONISING TRANSLATION TECHNOLOGY: A COMPARATIVE STUDY OF VARIANT TRANSF...
CSEIJJournal

System Analysis and Design in a changing world 5th edition
System Analysis and Design in a changing world 5th editionSystem Analysis and Design in a changing world 5th edition
System Analysis and Design in a changing world 5th edition
mnassar75g

# Smart Parking Management System.pptx using IOT
# Smart Parking Management System.pptx using IOT# Smart Parking Management System.pptx using IOT
# Smart Parking Management System.pptx using IOT
Yesh20

Concepts of Automatic Block Signalling.ppt
Concepts of Automatic Block Signalling.pptConcepts of Automatic Block Signalling.ppt
Concepts of Automatic Block Signalling.ppt
princeshah76

LOCAL-BUDGET-CIRCULAR-NO-158-DATED-JULY-11-2024.pdf
LOCAL-BUDGET-CIRCULAR-NO-158-DATED-JULY-11-2024.pdfLOCAL-BUDGET-CIRCULAR-NO-158-DATED-JULY-11-2024.pdf
LOCAL-BUDGET-CIRCULAR-NO-158-DATED-JULY-11-2024.pdf
jellyjm

Protect YugabyteDB with Hashicorp Vault.pdf
Protect YugabyteDB with Hashicorp Vault.pdfProtect YugabyteDB with Hashicorp Vault.pdf
Protect YugabyteDB with Hashicorp Vault.pdf
Gwenn Etourneau

Red Hat Enterprise Linux Administration 9.0 RH124 pdf
Red Hat Enterprise Linux Administration 9.0 RH124 pdfRed Hat Enterprise Linux Administration 9.0 RH124 pdf
Red Hat Enterprise Linux Administration 9.0 RH124 pdf
mdfkobir

Smart Irrigation Systems - Enhancing Agriculture Through Automation
Smart Irrigation  Systems - Enhancing Agriculture Through AutomationSmart Irrigation  Systems - Enhancing Agriculture Through Automation
Smart Irrigation Systems - Enhancing Agriculture Through Automation
indrajithgoswami

sensor networks unit wise 4 ppt units ppt
sensor networks unit wise 4  ppt units pptsensor networks unit wise 4  ppt units ppt
sensor networks unit wise 4 ppt units ppt
sarikasatya

Aiml ppt pdf.pdf on music recommendation system
Aiml ppt pdf.pdf on music recommendation systemAiml ppt pdf.pdf on music recommendation system
Aiml ppt pdf.pdf on music recommendation system
UdhavGupta6


Recently uploaded (20)

AI INTRODUCTION Artificial intelligence.ppt
AI INTRODUCTION Artificial intelligence.pptAI INTRODUCTION Artificial intelligence.ppt
AI INTRODUCTION Artificial intelligence.ppt

1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf

Sustainable construction is the use of renewable and recyclable materials in ...
Sustainable construction is the use of renewable and recyclable materials in ...Sustainable construction is the use of renewable and recyclable materials in ...
Sustainable construction is the use of renewable and recyclable materials in ...

,*$/?!~00971508021841^(سعر حبوب الإجهاض في دبي
,*$/?!~00971508021841^(سعر حبوب الإجهاض في دبي,*$/?!~00971508021841^(سعر حبوب الإجهاض في دبي
,*$/?!~00971508021841^(سعر حبوب الإجهاض في دبي

3.DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
3.DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf3.DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
3.DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf

Modified O-RAN 5G Edge Reference Architecture using RNN
Modified O-RAN 5G Edge Reference Architecture using RNNModified O-RAN 5G Edge Reference Architecture using RNN
Modified O-RAN 5G Edge Reference Architecture using RNN

Machine Learning- Perceptron_Backpropogation_Module 3.pdf
Machine Learning- Perceptron_Backpropogation_Module 3.pdfMachine Learning- Perceptron_Backpropogation_Module 3.pdf
Machine Learning- Perceptron_Backpropogation_Module 3.pdf

Basic information about the indian constitutions and professional ethics
Basic information about the indian constitutions and professional ethicsBasic information about the indian constitutions and professional ethics
Basic information about the indian constitutions and professional ethics

FIRE OUTBREAK EMERGENCY FINAL REPORT.pdf
FIRE OUTBREAK EMERGENCY FINAL REPORT.pdfFIRE OUTBREAK EMERGENCY FINAL REPORT.pdf
FIRE OUTBREAK EMERGENCY FINAL REPORT.pdf

Digital Image Processing - Module 4 Chapter 2
Digital Image Processing - Module 4 Chapter 2Digital Image Processing - Module 4 Chapter 2
Digital Image Processing - Module 4 Chapter 2

REVOLUTIONISING TRANSLATION TECHNOLOGY: A COMPARATIVE STUDY OF VARIANT TRANSF...
REVOLUTIONISING TRANSLATION TECHNOLOGY: A COMPARATIVE STUDY OF VARIANT TRANSF...REVOLUTIONISING TRANSLATION TECHNOLOGY: A COMPARATIVE STUDY OF VARIANT TRANSF...
REVOLUTIONISING TRANSLATION TECHNOLOGY: A COMPARATIVE STUDY OF VARIANT TRANSF...

System Analysis and Design in a changing world 5th edition
System Analysis and Design in a changing world 5th editionSystem Analysis and Design in a changing world 5th edition
System Analysis and Design in a changing world 5th edition

# Smart Parking Management System.pptx using IOT
# Smart Parking Management System.pptx using IOT# Smart Parking Management System.pptx using IOT
# Smart Parking Management System.pptx using IOT

Concepts of Automatic Block Signalling.ppt
Concepts of Automatic Block Signalling.pptConcepts of Automatic Block Signalling.ppt
Concepts of Automatic Block Signalling.ppt

LOCAL-BUDGET-CIRCULAR-NO-158-DATED-JULY-11-2024.pdf
LOCAL-BUDGET-CIRCULAR-NO-158-DATED-JULY-11-2024.pdfLOCAL-BUDGET-CIRCULAR-NO-158-DATED-JULY-11-2024.pdf
LOCAL-BUDGET-CIRCULAR-NO-158-DATED-JULY-11-2024.pdf

Protect YugabyteDB with Hashicorp Vault.pdf
Protect YugabyteDB with Hashicorp Vault.pdfProtect YugabyteDB with Hashicorp Vault.pdf
Protect YugabyteDB with Hashicorp Vault.pdf

Red Hat Enterprise Linux Administration 9.0 RH124 pdf
Red Hat Enterprise Linux Administration 9.0 RH124 pdfRed Hat Enterprise Linux Administration 9.0 RH124 pdf
Red Hat Enterprise Linux Administration 9.0 RH124 pdf

Smart Irrigation Systems - Enhancing Agriculture Through Automation
Smart Irrigation  Systems - Enhancing Agriculture Through AutomationSmart Irrigation  Systems - Enhancing Agriculture Through Automation
Smart Irrigation Systems - Enhancing Agriculture Through Automation

sensor networks unit wise 4 ppt units ppt
sensor networks unit wise 4  ppt units pptsensor networks unit wise 4  ppt units ppt
sensor networks unit wise 4 ppt units ppt

Aiml ppt pdf.pdf on music recommendation system
Aiml ppt pdf.pdf on music recommendation systemAiml ppt pdf.pdf on music recommendation system
Aiml ppt pdf.pdf on music recommendation system


Arm device tree and linux device drivers

  • 1. Arm device tree and device driver initialization Houcheng Lin CCMA, ITRI
  • 2. Agenda • Problem: one kernel source to support all arm boards • Boot with device tree binary • Device tree syntax • Machine init code • Device init code • x86 platform (one kernel binary support almost all boards)
  • 3. Problem: One kernel source to support all arm boards OS kernel memory, mmu timer Block device net device CPU, cache Hardware HAL hardware board Kernel source build select board
  • 4. Kernel startup code have to initialize these hardware • Startup code initialize following hardware – CPU, cache, MMU (usually comes with feature reg) – exception table, GDT, then perform mode switching and enable MMU – Interrupt controller, bridge chip – timers, RTC, flash – IO, block, network and optional devices • Its purpose is kernel want to use them to – enable some kernel feature – convert into usable kernel resources arch machine board
  • 5. One kernel source support all boards, a solution • Horizontal and vertical divide these code – arch specific include and source – machine specific include and source – board specific include and source • Pick one board – Header and Makefile links defines and objects – One board header file that links arch/ machine specific headers – One board Makefile that links arch/ machine specific sources’ objects • Kernel config file – Generate header file and Makefile include for needed kernel feature or drivers arm exynos tegra ve eb aa bb
  • 6. An example #include <arm.h> #include <enynos.h> #define UART0 0x00100c #define TIMER0 0x00200c #define UART_INT 23 #define UART_INT 8 board header file ARCH := arm MACH := vexpress ARCH_LIB := (ARCH)_lib.a MACH_OBJ = (MACH)_lib.a BOARD_OBJ := vexpress.o rtos.elf: $(LD) $(LDFLAGS) $(KERNEL_OBJ) $(ARCH_LIB) $(MACH_OBJ) $(BOARD_OBJ) board Makefile arch/arm/*.c *.h Makefile arch/arm/machine/<machine-name>/*.c *.h Makefile arch/arm/board/<board-name>/*.c *.h Makefile Source directory
  • 7. Linux arm community’s initial work • As hardware more powerful and support MMU, Linux add support to arm • Linux ARM community starts to write codes and use this approach to support all arm boards • Some problem when lots of arm boards’ code committed into kenrel: – huge number of #defines in headers – code is hard to maintain • redundant code • stepping on each others toes (guys uses different names) • merge conflicts
  • 8. Linus comment on 2001 I don't know who to "blame". I don't care. It really doesn't matter. you guys need to push back on the people sending you crap Gaah. Guys, this whole ARM thing is a f*cking pain in the ass steping on others toes That usb_musb_init() thing in arch/arm/mach-omap2/usb-musb.c also seems to be totally insane. Note: the layered and division approach can’t not handle various arm hardware and corresponding, existing sources stop the crazy renaming already! crap ARM vendors do crazy shit
  • 9. ARM device tree • Device tree is a data structure for describing hardware • It extract board level detail from kernel source code to device tree script (dts) • Each board has one dts file • Benefit – moved hardware relevant #defines to dts – keep driver or init code one one copied; describe variations in dts file. EX: memory mapped address, interrupt number, active-low, output pin number, pefered phy interface, etc – Now, single kernel binary can support multiple similar boards
  • 10. Example DTS: vexpress-v2p-ca15.dts / { model = "V2P-CA15"; arm,hbi = <0x237>; arm,vexpress,site = <0xf>; compatible = "arm,vexpress,v2p-ca15,tc1", "arm,vexpress,v2p-ca15", "arm,vexpress"; cpu { … } memory { …. } timer { compatible = "arm,armv7-timer"; interrupts = <1 13 0xf08>, <1 14 0xf08>, <1 11 0xf08>, <1 10 0xf08>; } ….. /include/ "vexpress-v2m-rs1.dtsi" }; vexpress-v2p-ca15-tc1.dts motherboard { model = "V2P-P1"; arm,hbi = <0x237>; arm,vexpress,site = <0xf>; compatible = "arm,vexpress,v2m-p1“, "simple-bus"; #address-cells = <2>; /* SMB chip-select number and offset */ flash@2,0000 { …. }; ethernet@3,02000 { compatible = "smsc,lan9118"; reg = <3 0x02000000 0x10000>; interrupts = <15>; phy-mode = "mii"; smsc,irq-active-high; vdd33a-supply=<&v2m_fixed_3v3>; .... }; }; vexpress-v2m-rs1.dti
  • 11. Device tree work flow reference [2]
  • 12. Device Tree Binary pass to kernel • A device tree is passed to the kernel at boot time, kernel reference it during initialization r0: 0 r1: architecture ID r2: pointer to DTB reference [1]
  • 13. machine-init code with device tree 1. kernel run compatible machine-init() via compatible string match 2. Machine-init() create devices under system bus. Bus is also match by compatible string. ….. …… static void __init v2m_dt_init(void) { l2x0_of_init(0x00400000, 0xfe0fffff); of_platform_populate(NULL, v2m_dt_bus_match, NULL, NULL); } static const char * const v2m_dt_match[] __initconst = { "arm,vexpress", NULL, }; DT_MACHINE_START(VEXPRESS_DT, "ARM-Versatile Express") .dt_compat = v2m_dt_match, .smp = smp_ops(vexpress_smp_ops), .smp_init = smp_init_ops(vexpress_smp_init_ops), .map_io = v2m_dt_map_io, .init_early = v2m_dt_init_early, .init_machine= v2m_dt_init, MACHINE_END arch/arm/mach-vexpress/v2m.c arch/arm/mach-ooo/v3m.c ….. …… It creates devices under this compatible bus struct of_device_id v2m_dt_bus_match[] = { { .compatible = "simple-bus", }, { .compatible = "arm,amba-bus", }, { .compatible = "arm,vexpress,config-bus", }, {} }; 1. 2.
  • 14. Device-init code with device tree 1. Kernel runs all modules’ module-init function 2. The module-init function register platfrom driver 3. For every created platform device, it call its platform driver’s probe function 4. In probe, can access properties in device tree node and create a Linux kernel device object with private data #ifdef CONFIG_OF static const struct of_device_id gdr_match[] = { { .compatible = "defer-reset" }, }; MODULE_DEVICE_TABLE(of, gdr_match); #endif static struct platform_driver gdr_driver = { .probe = gdr_probe, .driver = { .name = DRIVER_NAME, .owner = THIS_MODULE, .of_match_table = of_match_ptr(gdr_match), } }; static int __init gdr_init(void) { …. platform_driver_register(&gdr_driver); } module_init(gdr_init); int gdr_probe(struct platform_device *pdev_gdr) { ….. of_property_read_u32(of_node, “duration”, &duration); ….. } 1. 2. 3. 4.
  • 15. How x86 platform works ? • In x86, one single kernel binary can support all hardware platforms. How can do it ? • BIOS hides the low level hardware detail – BIOS initialize low level (memory, cpu, clock, voltage, current, … ) – BIOS provide memory size and hard disk information to Linux boot-loader • Smart bus enumerate optional devices (PCI bridge or USB root hub ) – enumerate devices to Linux kernel – get device identity and resource requirement – optional device’s driver may encapsulated as module and initialized in ramdisk stage • PC industry is much more standardized than arm hardware $$ $$
  • 16. X86 Platform boot, real mode (boot-loader) (compressed kernel) loaded by boot-loader http://duartes.org/gustavo/blog/post/kernel-boot-process/
  • 17. Access >1MB in real mode The shuffling of the kernel back and forth in memory is to overcome limitations of the PC BIOS memory addressability (640k), and free up several hundred kilobytes of system memory (the actual amount freed is reported by the system). The 4k is used for handling virtual memory. The special load instructions (trampoline) are required to 'cheat' the system, as the instructions load part of the kernel into memory locations beyond the 640k barrier that the (then currently running "real mode") system knows about. In the process of shuffling the kernel around, the memory originally written to by the BIOS, and also where the setup and system programs were loaded are overwritten by the kernel image, hence the need for moving them to a safe place, beyond where the uncompressed kernel image is loaded. The actual load is slightly more complicated on x86 systems as not all BIOSs report their memory on the same registers, report information in different ways, or map their memory/system resources in unconventional ways. Also, some BIOSs must be prodded for information several times or have A20 Gate problems. http://en.wikibooks.org/wiki/The_Linux_Kernel/Booting
  • 19. Reference [1] http://duartes.org/gustavo/blog/post/kernel-boot-process/ [2] http://www.slideshare.net/softpapa/device-tree-support-on-arm-linux-8930303 [3] http://en.wikibooks.org/wiki/The_Linux_Kernel/Booting [4] Linux kernel source, vexpress board [5] Linux kernel documentation, Platform Devices and Drivers
