The Arduino Uno is a microcontroller board based on the ATmega328P chip. It has 32KB of flash memory, 2KB of SRAM, and 1KB of EEPROM. The board has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter to get started.

1. http://aicra.ac.in
ARDUINO
UNO

2. ARDUINO | UNO Overview
 Arduino Uno is a microcontroller board based on the ATmega328P.
 Power:
 Input Voltage : 6-20V
 DC Current : 40mA
 Memory:
 Flash Memory space of Arduino Uno : 32KB
 Boot-Loader chunk of code space occupied 0.5KB
 SRAM 2KB & EEPROM 1 KB of space available

3. http://aicra.ac.in
ARDUINO | UNO BOARD

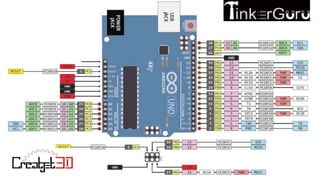

4. http://aicra.ac.in

5. http://aicra.ac.in
ARDUINO |Features
 Programming Methodologies:
 Arduino Uno has in-built circuitry to convert USB-to-Serial for programming. Having features
of both type of programming USB as well ICSP.
 UNO features the Atmega16U2 programmed as chunk of code for USB-to-serial converter.
 Another ICSP, you require external programmer e.g
AVR ISP MKII Programmer, AVR ISP, and astonishing
is even Arduino board can itself used as programmer.
Serial to USB Circuitry

6. http://aicra.ac.in

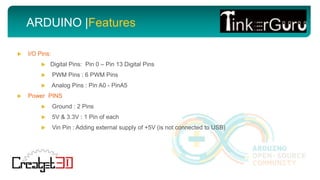

ARDUINO |Features
 I/O Pins:
 Digital Pins: Pin 0 – Pin 13 Digital Pins
 PWM Pins : 6 PWM Pins
 Analog Pins : Pin A0 - PinA5
 Power PINS
 Ground : 2 Pins
 5V & 3.3V : 1 Pin of each
 Vin Pin : Adding external supply of +5V (is not connected to USB)

7. http://aicra.ac.in
ARDUINO |Features
 ADC Pins:
 Digital Pins: Pin 0 – Pin 13 Digital Pins
 PWM Pins : 6 PWM Pins
 Analog Pins : Pin A0 - PinA5
 Power PINS
 Ground : 2 Pins
 5V & 3.3V : 1 Pin of each
 Vin Pin : Adding external supply of +5V (is not connected to USB)
