This document provides an overview of the ArangoDB query language (AQL). It discusses how AQL was created to fit the document-oriented data model of ArangoDB better than SQL. Key features of AQL covered include: using FOR loops to iterate over documents in collections, applying FILTER conditions to restrict results, and using RETURN to select the output fields. Scopes are also explained, with AQL using FILTER in place of SQL's ON and WHERE clauses through consistent scoping.

1. © 2013 triAGENS GmbH | 2013-06-06 1
ArangoDB
query language
(AQL)

2. © 2013 triAGENS GmbH | 2013-06-06 2

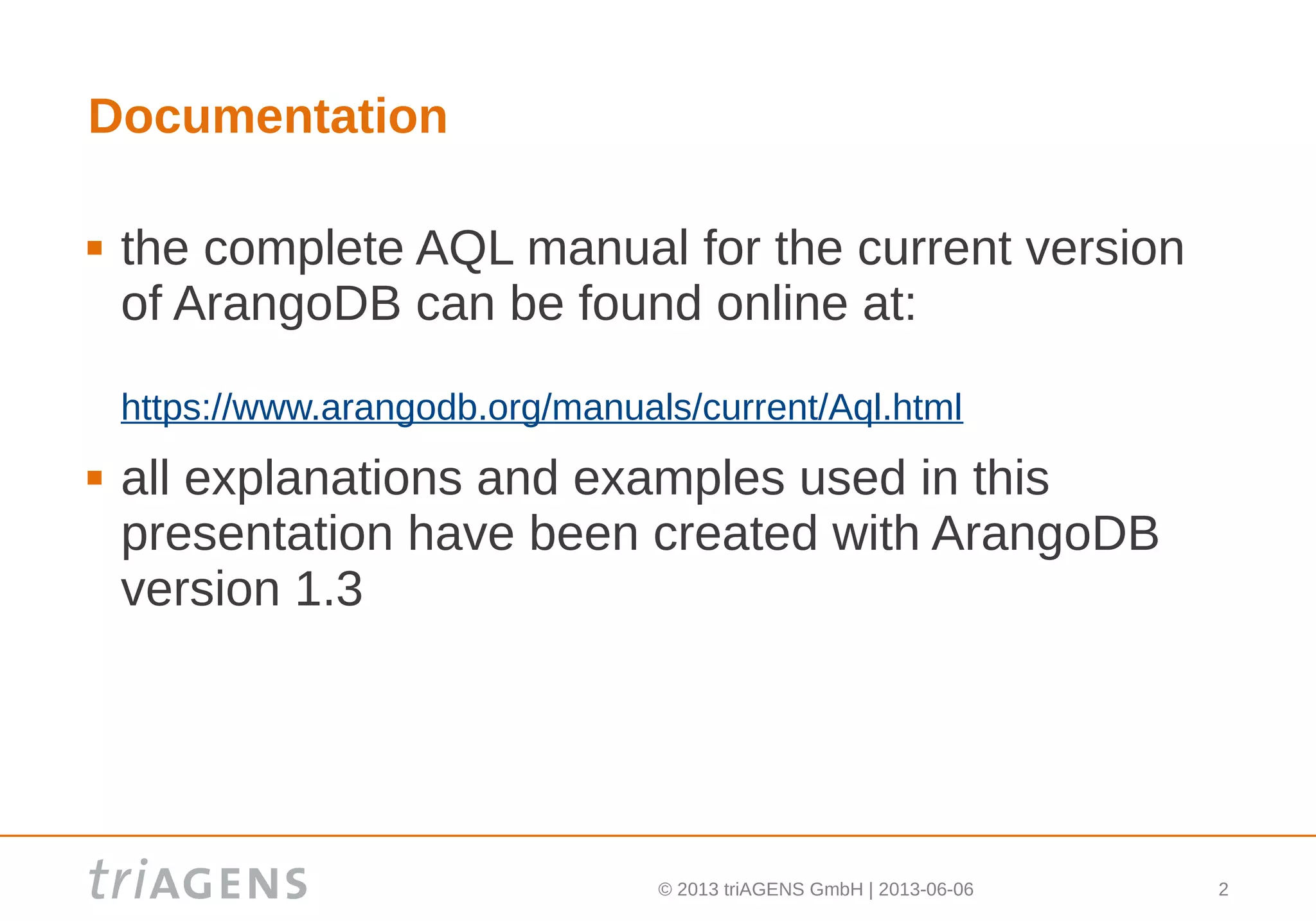

Documentation
 the complete AQL manual for the current version
of ArangoDB can be found online at:
https://www.arangodb.org/manuals/current/Aql.html
 all explanations and examples used in this
presentation have been created with ArangoDB
version 1.3

3. © 2013 triAGENS GmbH | 2013-06-06 3

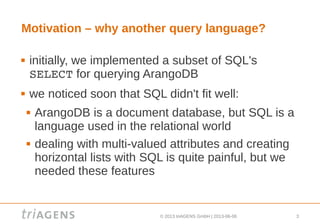

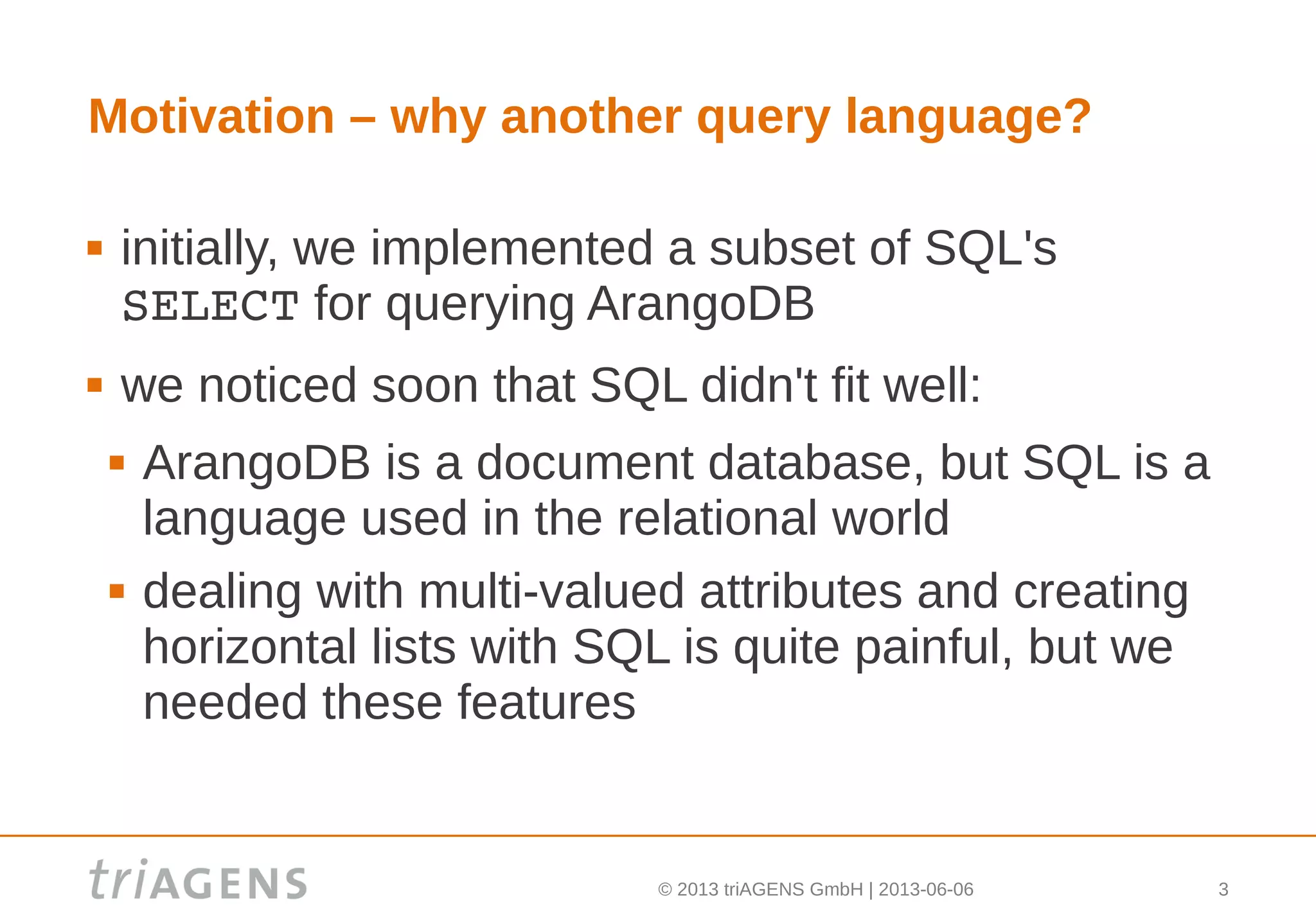

Motivation – why another query language?
 initially, we implemented a subset of SQL's
SELECT for querying ArangoDB
 we noticed soon that SQL didn't fit well:
 ArangoDB is a document database, but SQL is a
language used in the relational world
 dealing with multi-valued attributes and creating
horizontal lists with SQL is quite painful, but we
needed these features

4. © 2013 triAGENS GmbH | 2013-06-06 4

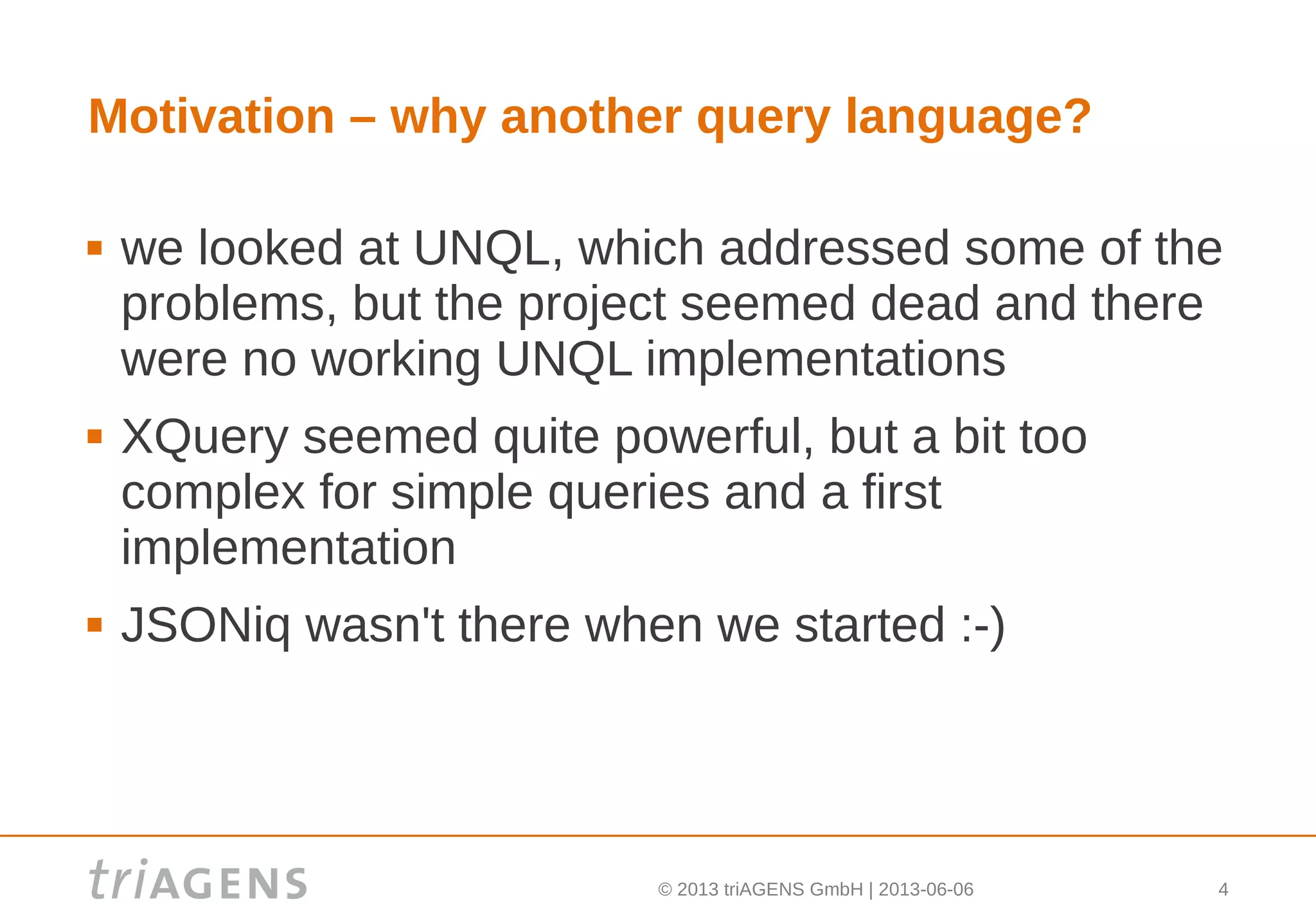

Motivation – why another query language?
 we looked at UNQL, which addressed some of the
problems, but the project seemed dead and there
were no working UNQL implementations
 XQuery seemed quite powerful, but a bit too
complex for simple queries and a first
implementation
 JSONiq wasn't there when we started :-)

5. © 2013 triAGENS GmbH | 2013-06-06 5

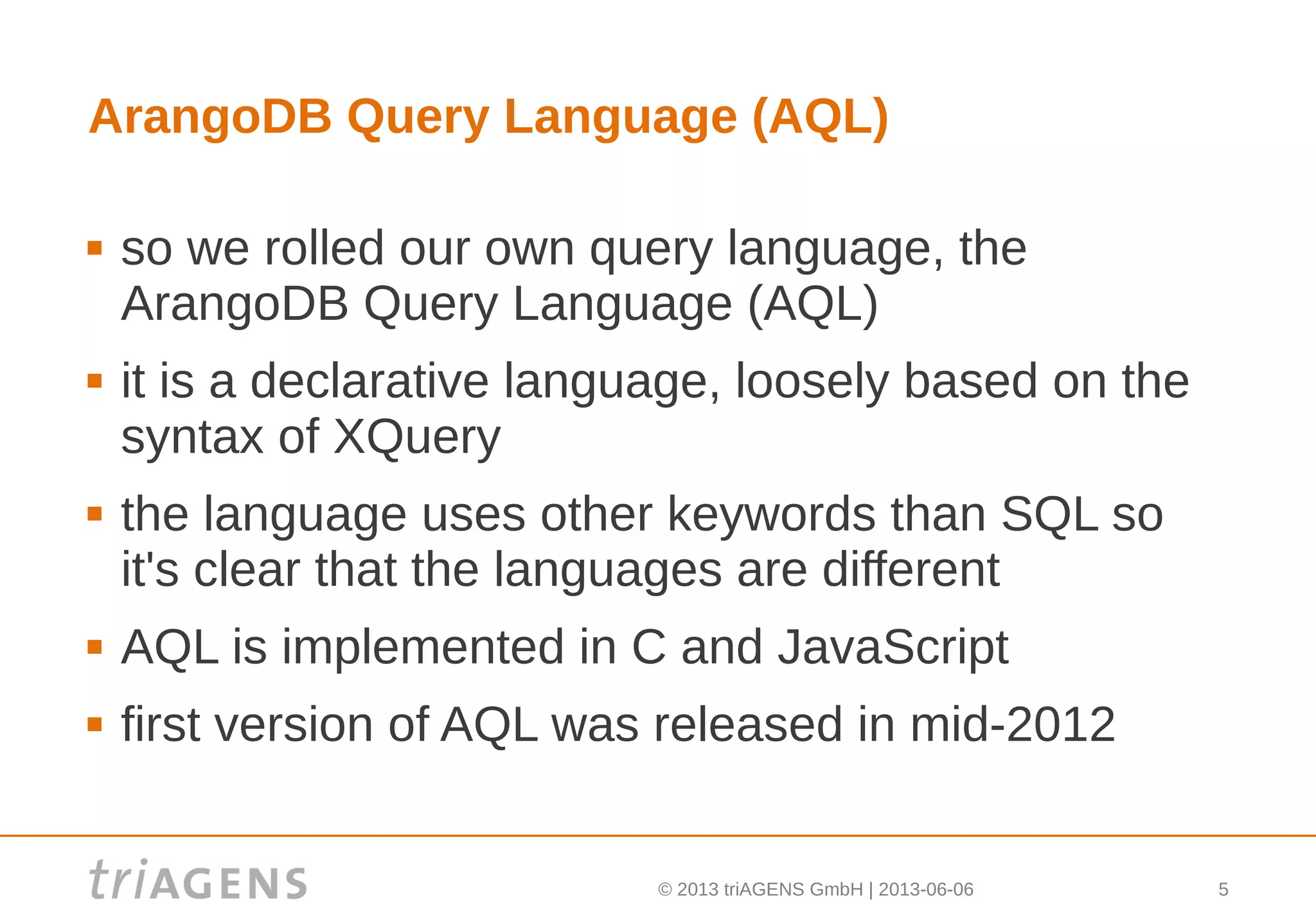

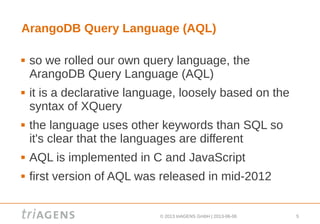

ArangoDB Query Language (AQL)
 so we rolled our own query language, the
ArangoDB Query Language (AQL)
 it is a declarative language, loosely based on the
syntax of XQuery
 the language uses other keywords than SQL so
it's clear that the languages are different
 AQL is implemented in C and JavaScript
 first version of AQL was released in mid-2012

6. © 2013 triAGENS GmbH | 2013-06-06 6

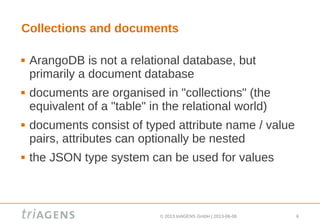

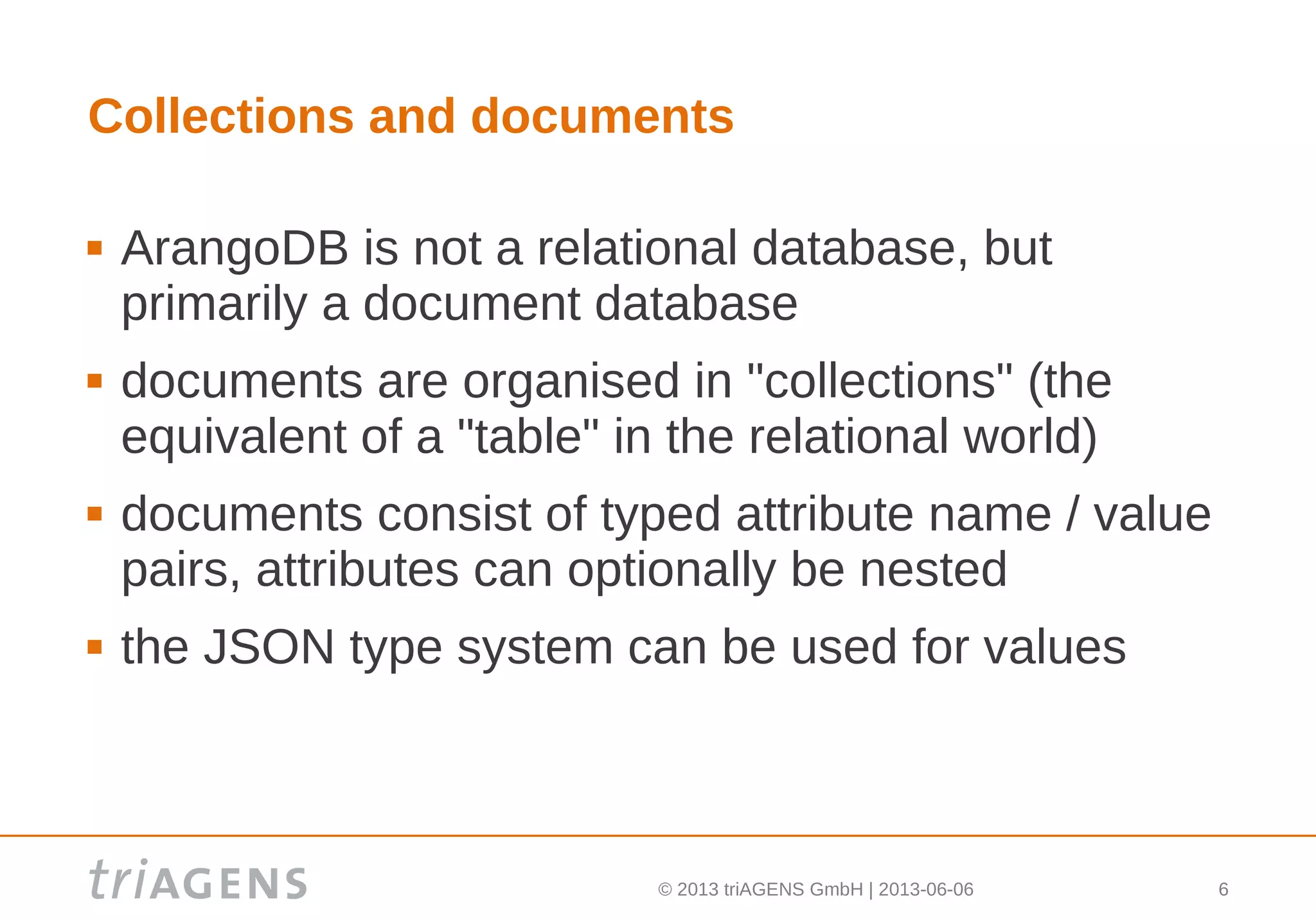

Collections and documents
 ArangoDB is not a relational database, but
primarily a document database
 documents are organised in "collections" (the
equivalent of a "table" in the relational world)
 documents consist of typed attribute name / value
pairs, attributes can optionally be nested
 the JSON type system can be used for values

7. © 2013 triAGENS GmbH | 2013-06-06 7

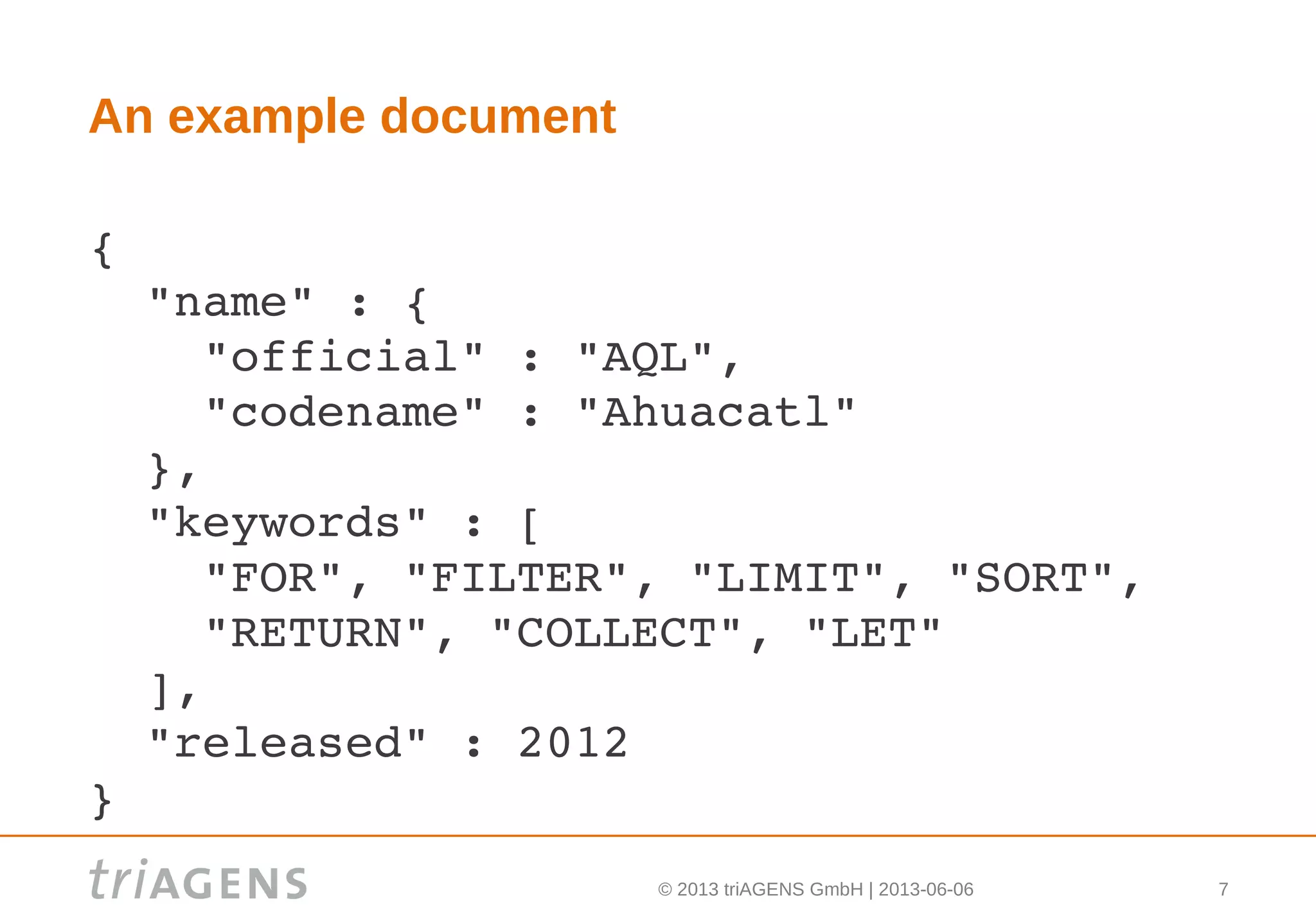

An example document
{
"name" : {
"official" : "AQL",
"codename" : "Ahuacatl"
},
"keywords" : [
"FOR", "FILTER", "LIMIT", "SORT",
"RETURN", "COLLECT", "LET"
],
"released" : 2012
}

8. © 2013 triAGENS GmbH | 2013-06-06 8

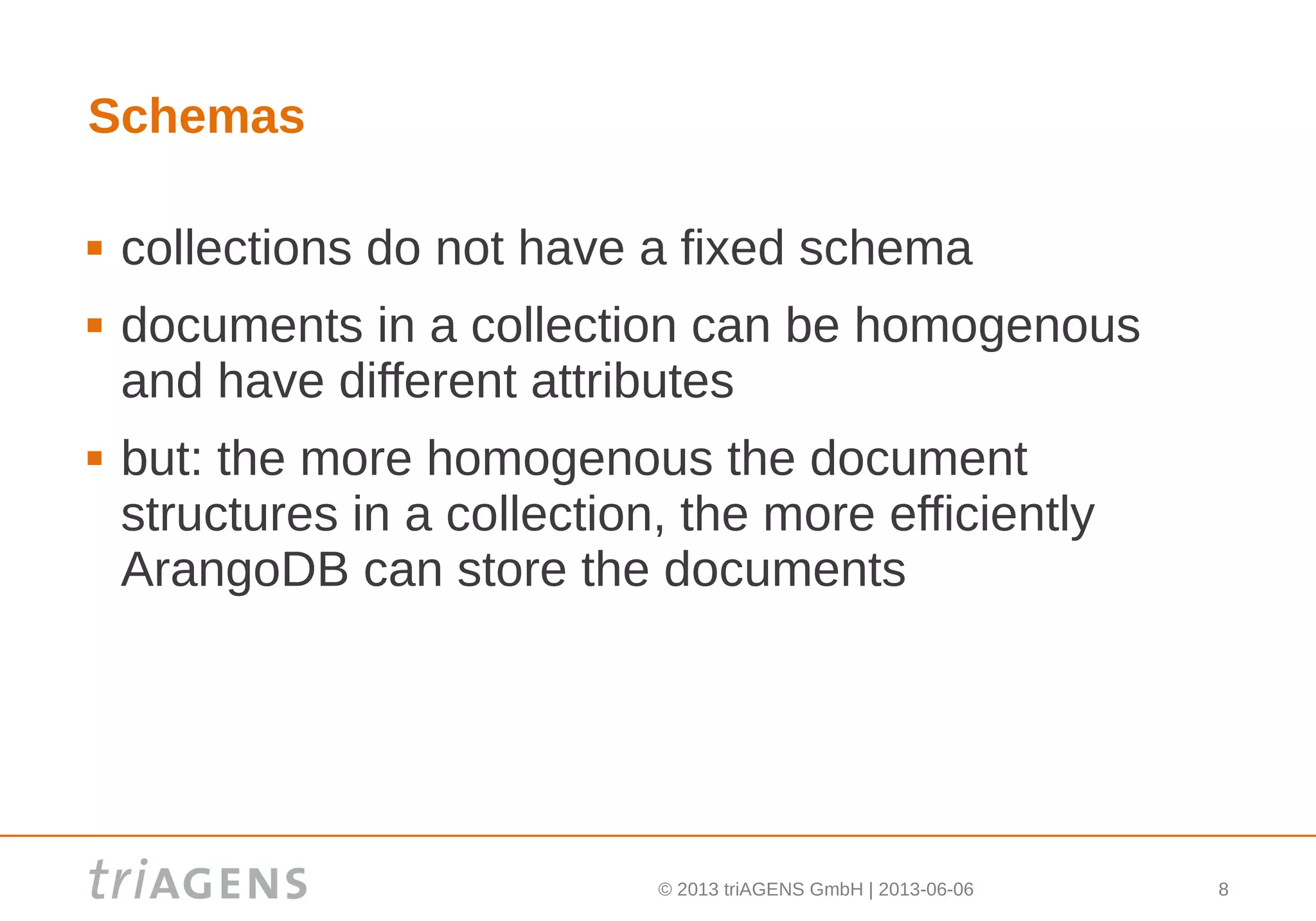

Schemas
 collections do not have a fixed schema
 documents in a collection can be homogenous
and have different attributes
 but: the more homogenous the document
structures in a collection, the more efficiently
ArangoDB can store the documents

9. © 2013 triAGENS GmbH | 2013-06-06 9

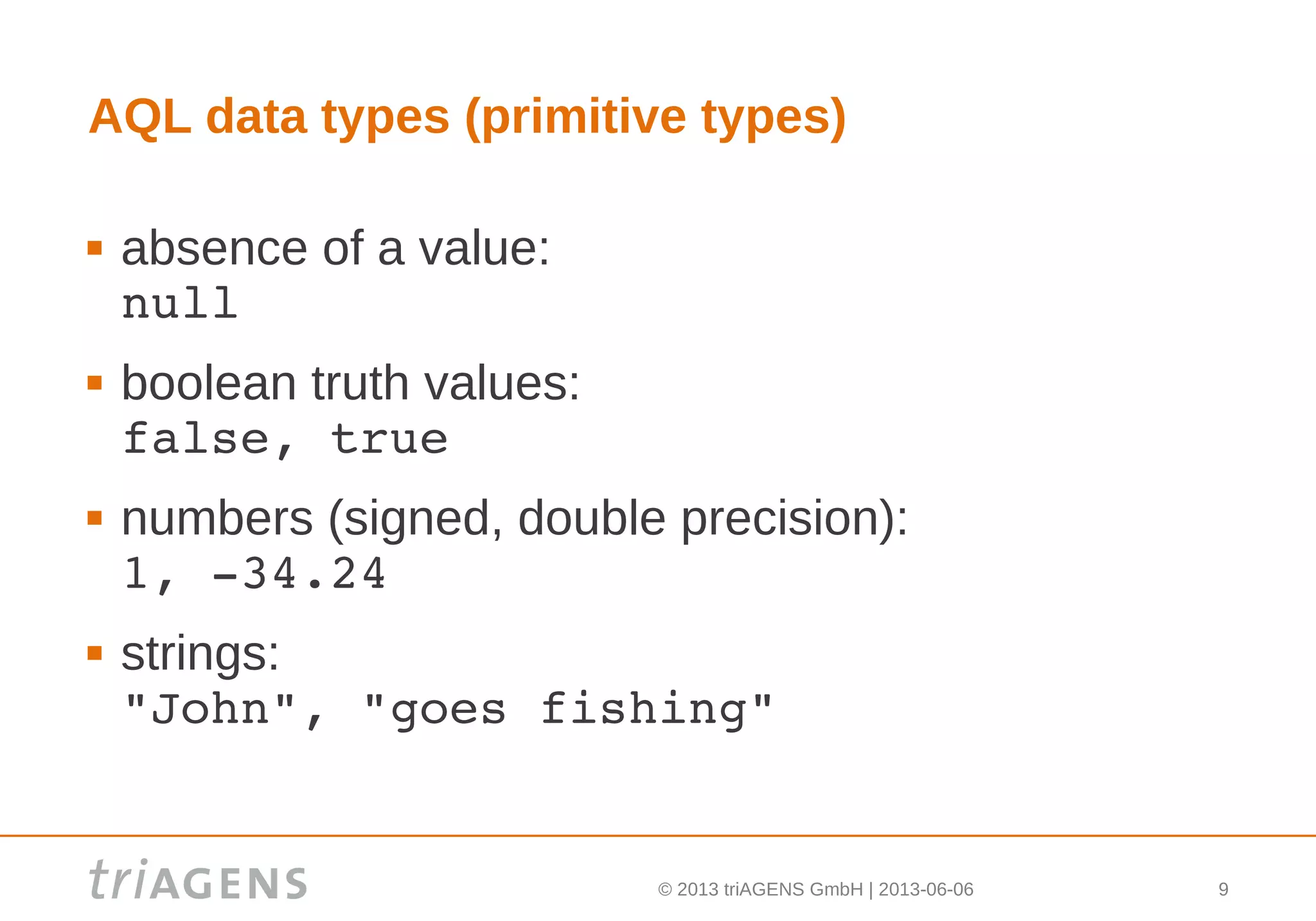

AQL data types (primitive types)
 absence of a value:
null
 boolean truth values:
false, true
 numbers (signed, double precision):
1, ­34.24
 strings:
"John", "goes fishing"

10. © 2013 triAGENS GmbH | 2013-06-06 10

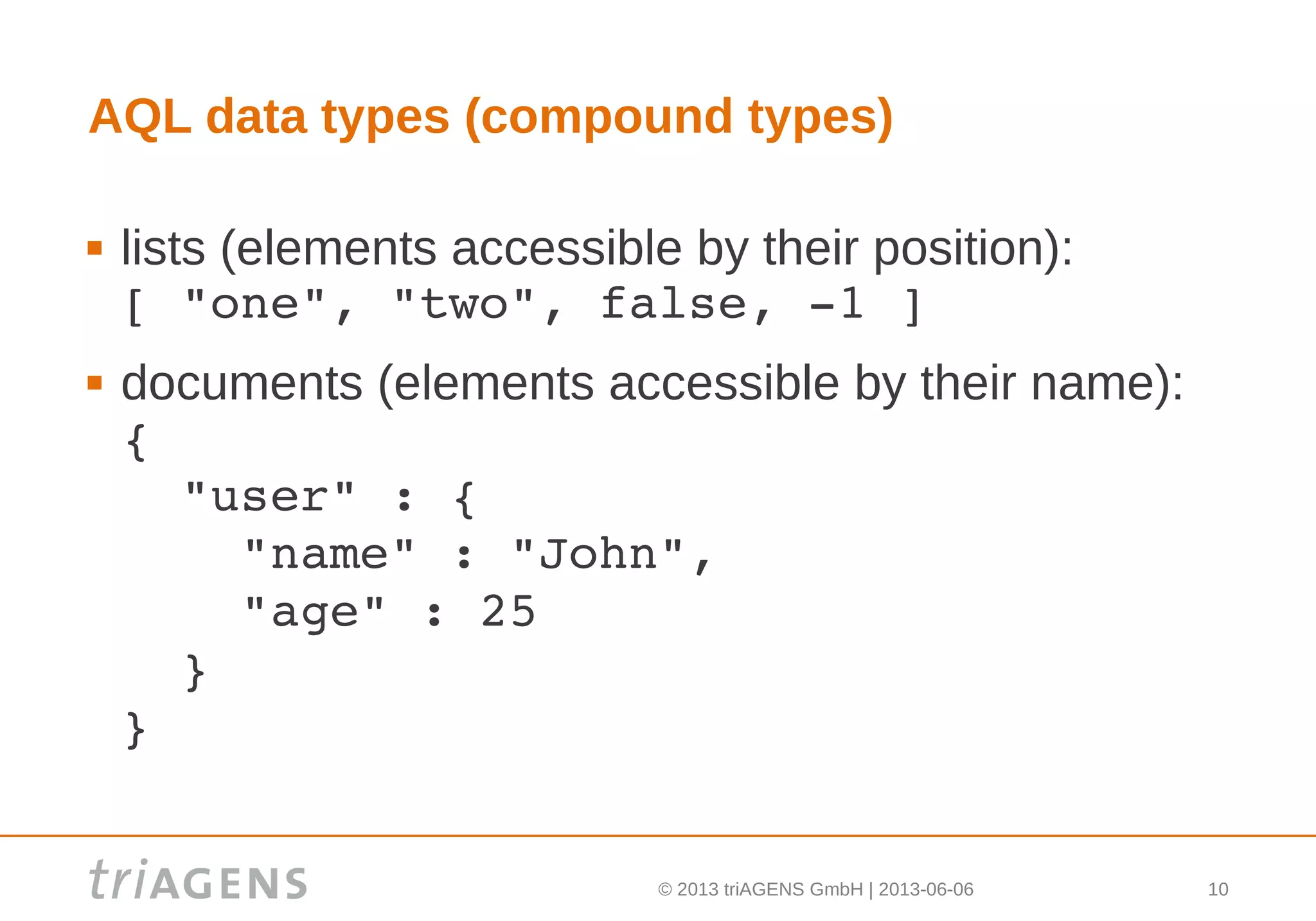

AQL data types (compound types)
 lists (elements accessible by their position):
[ "one", "two", false, ­1 ]
 documents (elements accessible by their name):
{
"user" : {
"name" : "John",
"age" : 25
}
}

11. © 2013 triAGENS GmbH | 2013-06-06 11

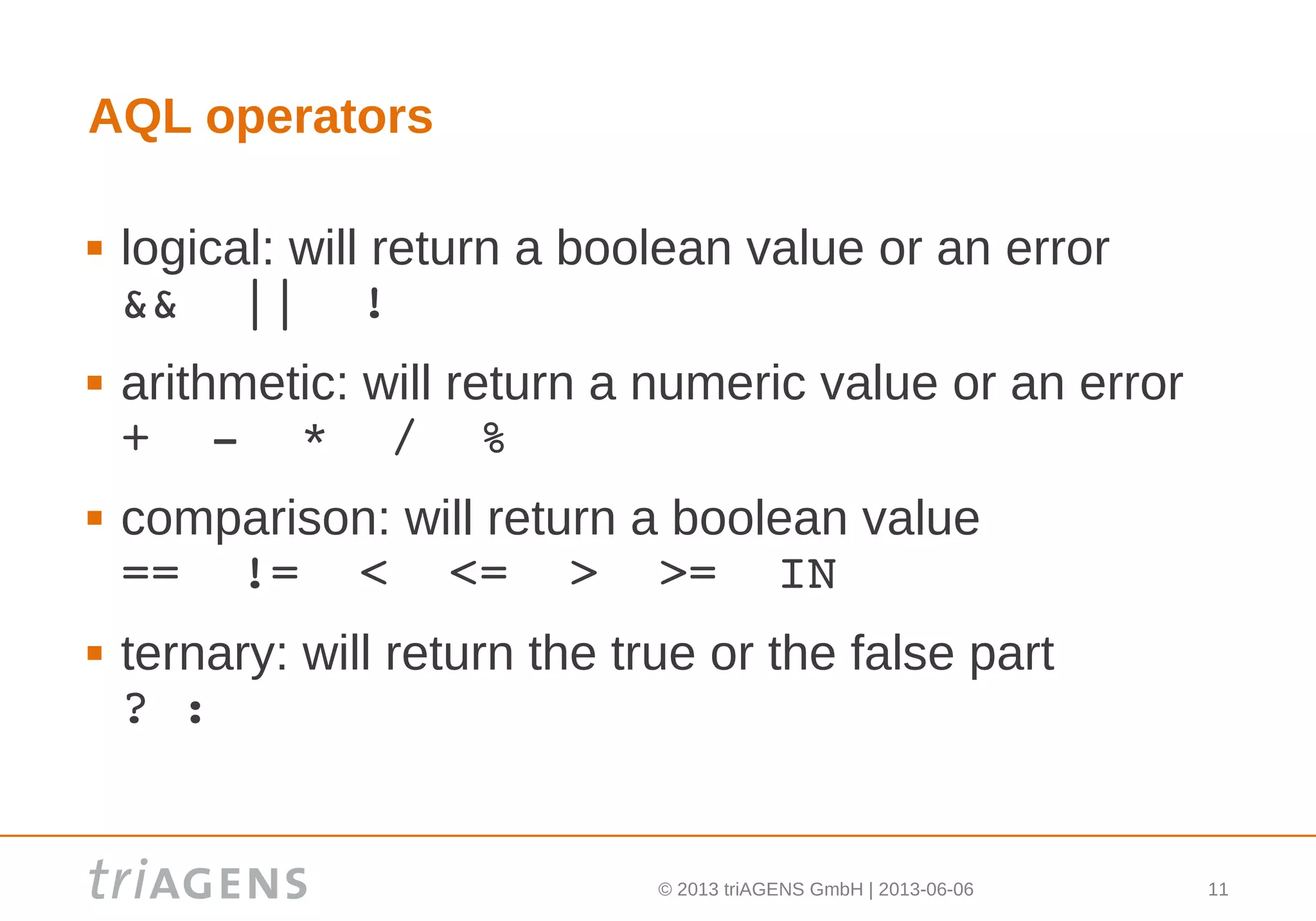

AQL operators
 logical: will return a boolean value or an error
&& || !
 arithmetic: will return a numeric value or an error
+ ­ * / %
 comparison: will return a boolean value
== != < <= > >= IN
 ternary: will return the true or the false part
? :

12. © 2013 triAGENS GmbH | 2013-06-06 12

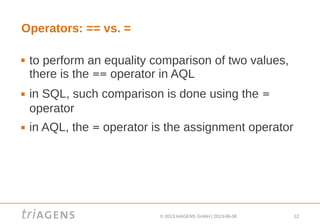

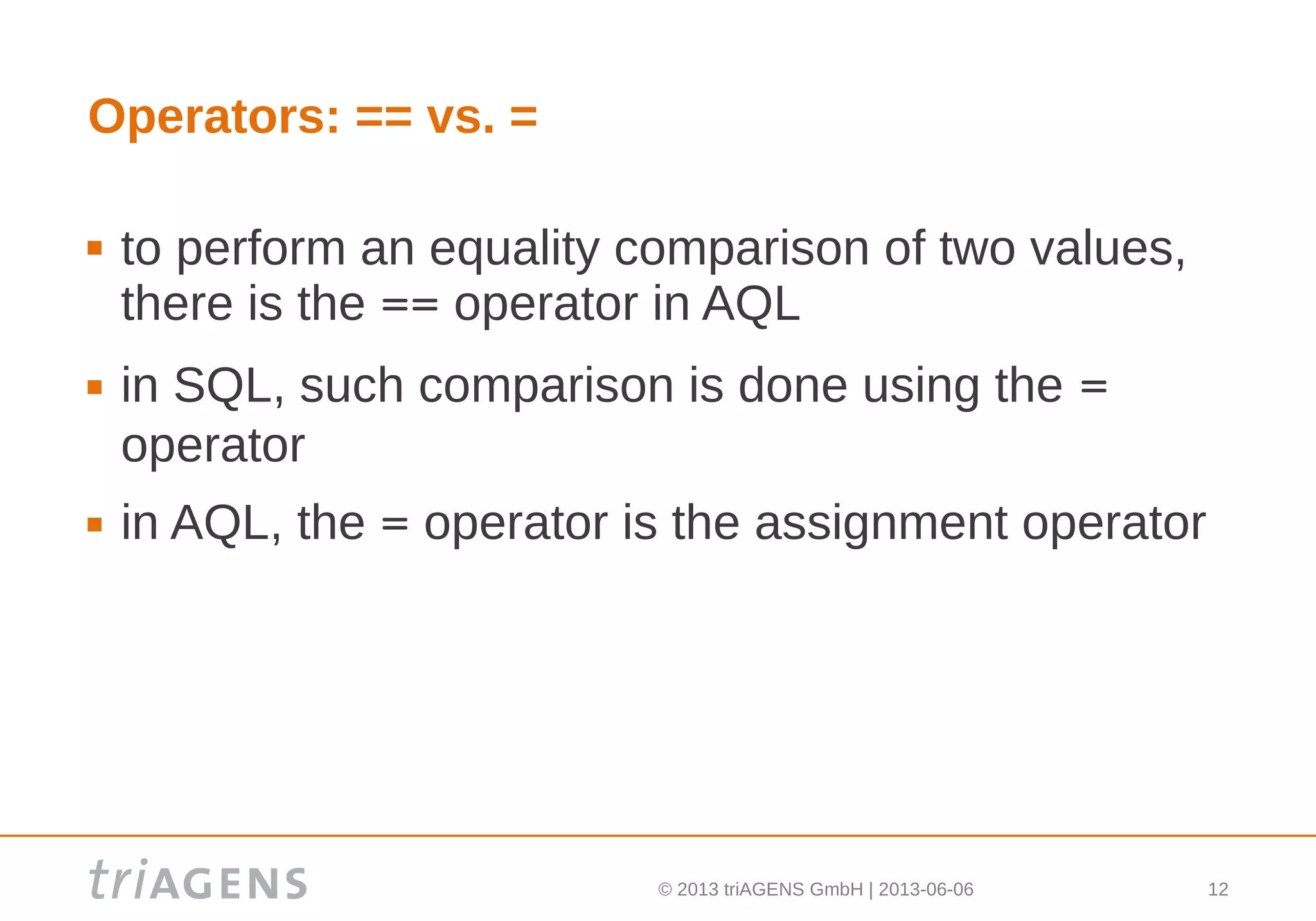

Operators: == vs. =
 to perform an equality comparison of two values,
there is the == operator in AQL
 in SQL, such comparison is done using the =
operator
 in AQL, the = operator is the assignment operator

13. © 2013 triAGENS GmbH | 2013-06-06 13

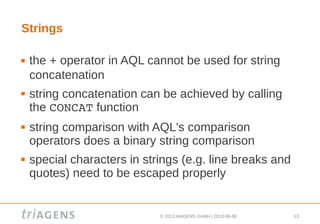

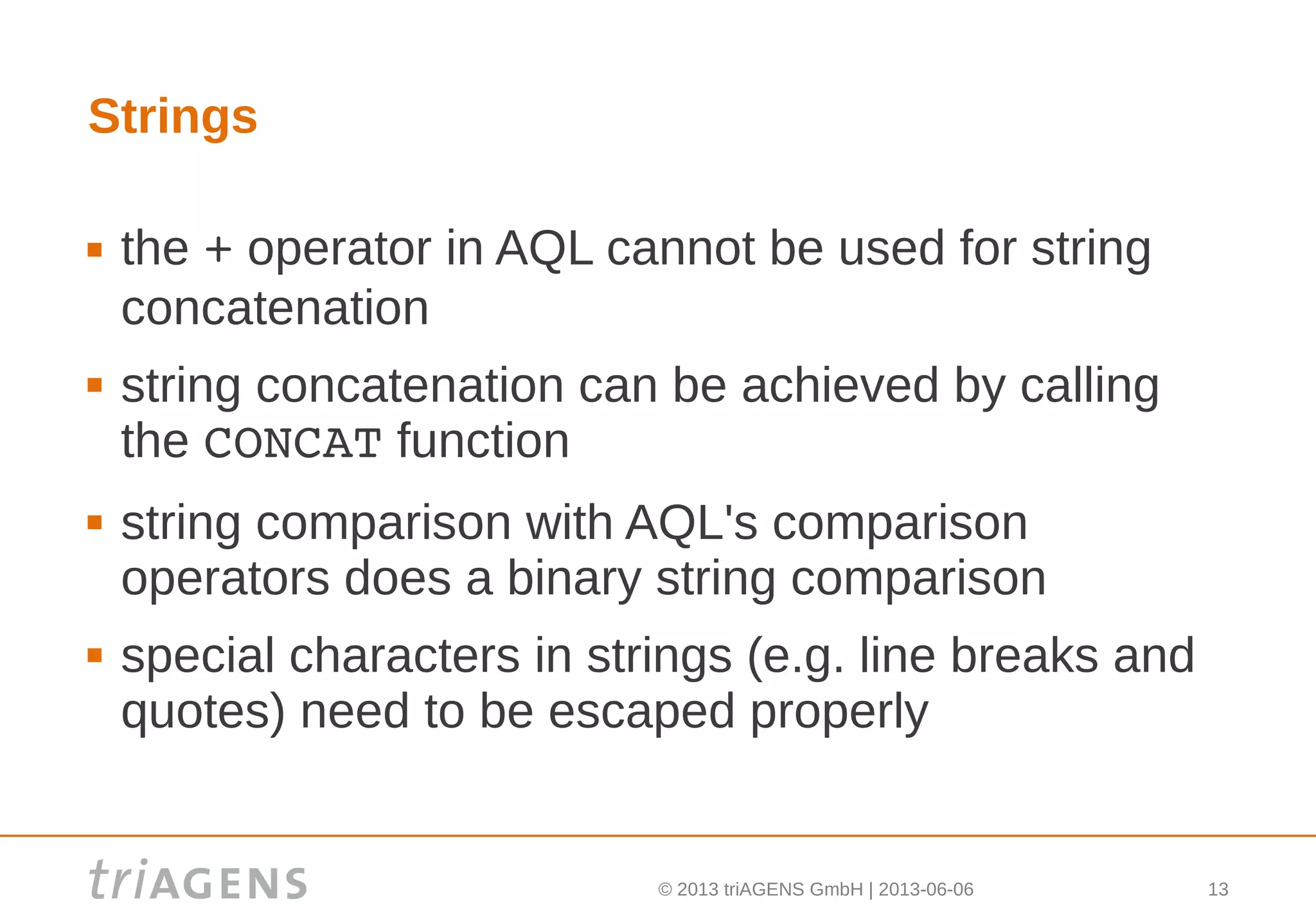

Strings
 the + operator in AQL cannot be used for string
concatenation
 string concatenation can be achieved by calling
the CONCAT function
 string comparison with AQL's comparison
operators does a binary string comparison
 special characters in strings (e.g. line breaks and
quotes) need to be escaped properly

14. © 2013 triAGENS GmbH | 2013-06-06 14

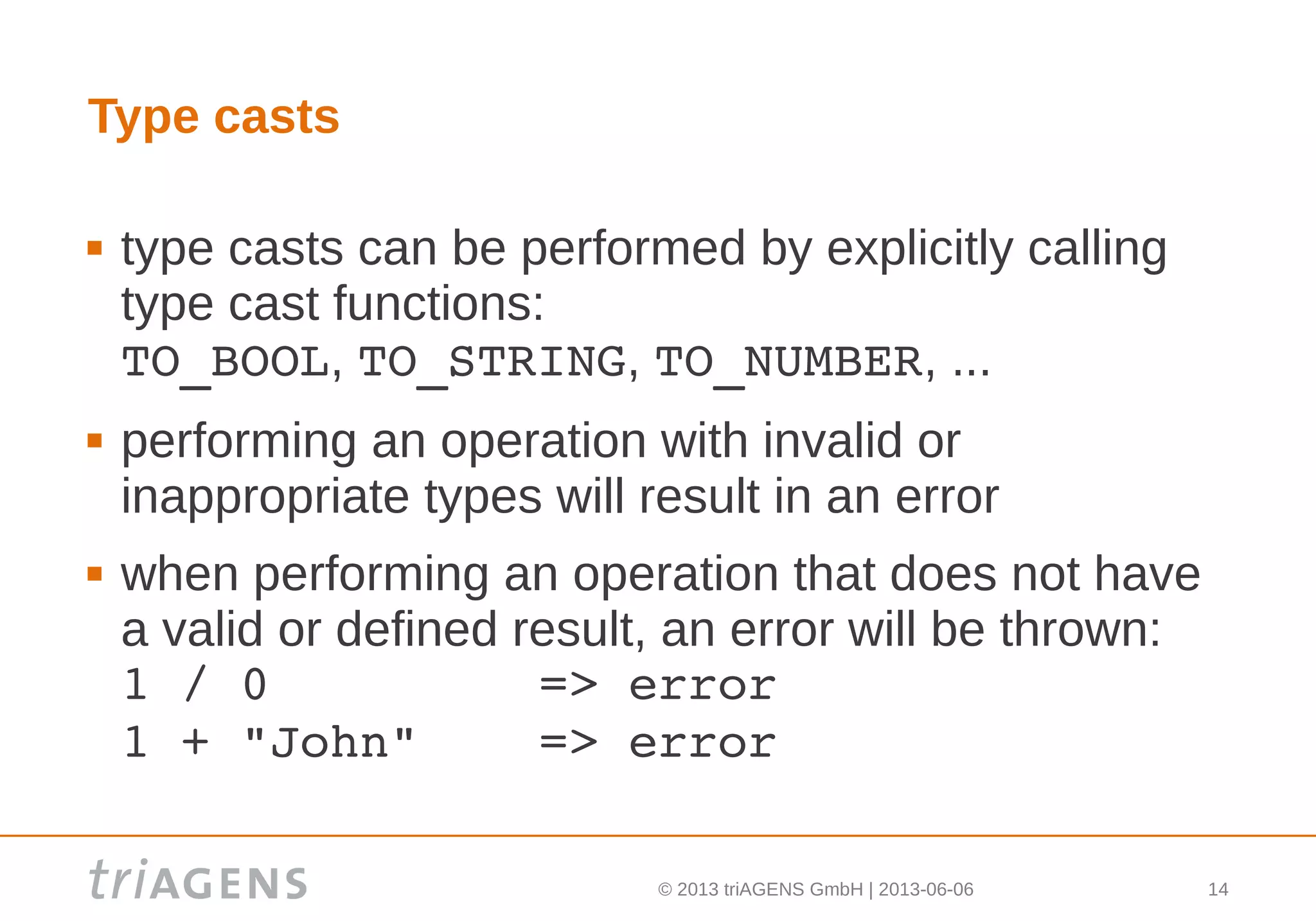

Type casts
 type casts can be performed by explicitly calling
type cast functions:
TO_BOOL, TO_STRING, TO_NUMBER, ...
 performing an operation with invalid or
inappropriate types will result in an error
 when performing an operation that does not have
a valid or defined result, an error will be thrown:
1 / 0 => error
1 + "John" => error

15. © 2013 triAGENS GmbH | 2013-06-06 15
Null
 when referring to something non-existing (e.g. a
non-existing attribute of a document), the result
will be null:
users.nammme => null
 using the comparison operators, null can be
compared to other values and also null itself
 the result of such comparison will be a boolean
(not null as in SQL)

16. © 2013 triAGENS GmbH | 2013-06-06 16

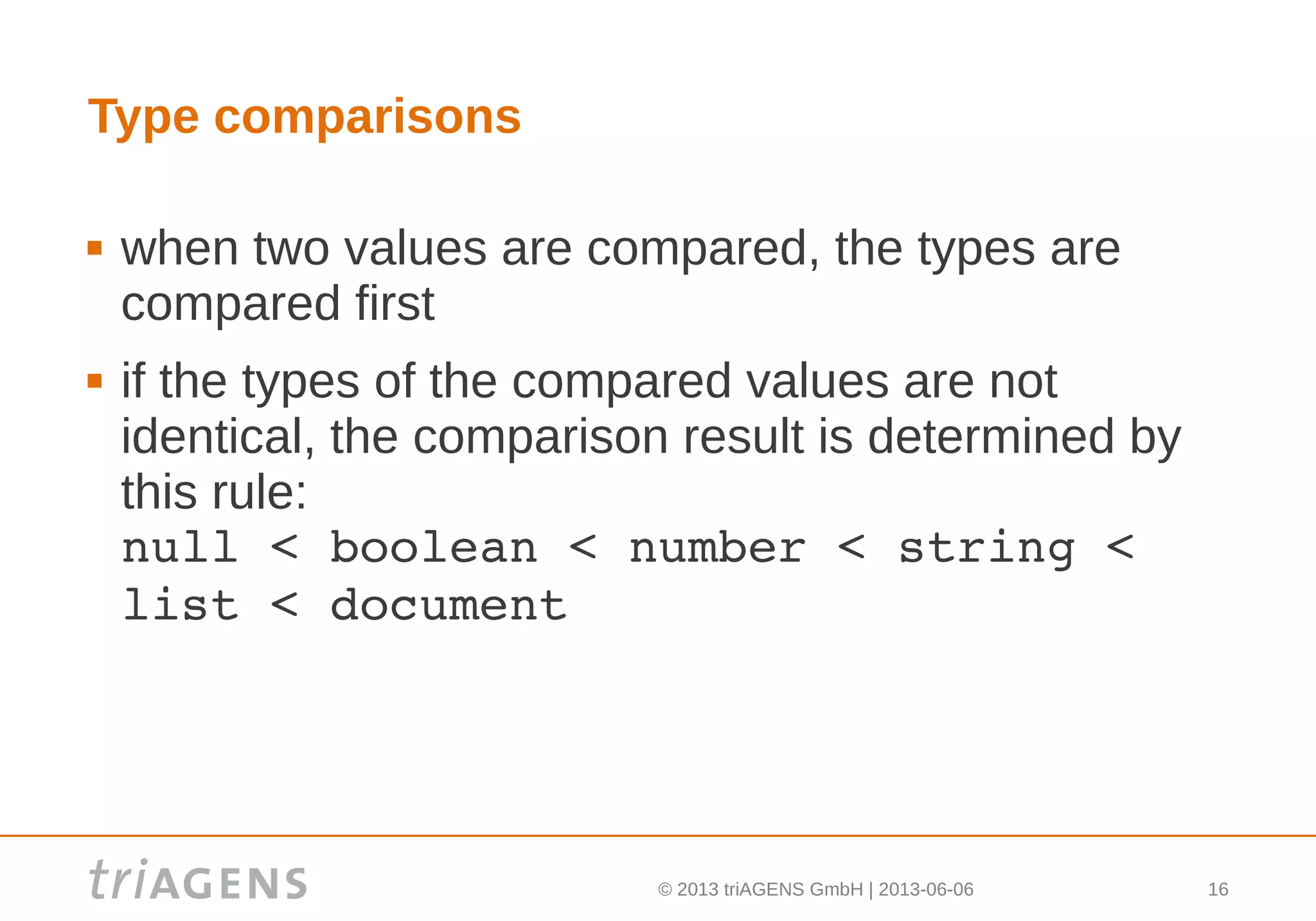

Type comparisons
 when two values are compared, the types are
compared first
 if the types of the compared values are not
identical, the comparison result is determined by
this rule:
null < boolean < number < string <
list < document

17. © 2013 triAGENS GmbH | 2013-06-06 17

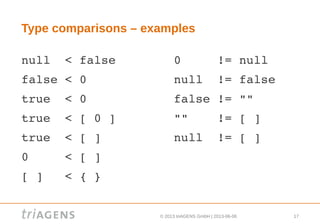

Type comparisons – examples
null < false 0 != null
false < 0 null != false
true < 0 false != ""
true < [ 0 ] "" != [ ]
true < [ ] null != [ ]
0 < [ ]
[ ] < { }

18. © 2013 triAGENS GmbH | 2013-06-06 18
Type comparisons – primitive types
 if the types of two compared values are equal, the
values are compared
 for boolean values, the order is:
false < true
 for numeric values, the order is determined by the
numeric value
 for string values, the order is determined by
bytewise comparison of the strings' characters

19. © 2013 triAGENS GmbH | 2013-06-06 19
Type comparisons – lists
 for list values, the elements from both lists are
compared at each position
 for each list element value, a type and value
comparison will be performed using the described
rules

20. © 2013 triAGENS GmbH | 2013-06-06 20

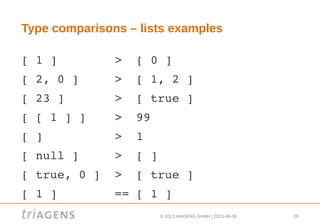

Type comparisons – lists examples
[ 1 ] > [ 0 ]
[ 2, 0 ] > [ 1, 2 ]
[ 23 ] > [ true ]
[ [ 1 ] ] > 99
[ ] > 1
[ null ] > [ ]
[ true, 0 ] > [ true ]
[ 1 ] == [ 1 ]

21. © 2013 triAGENS GmbH | 2013-06-06 21

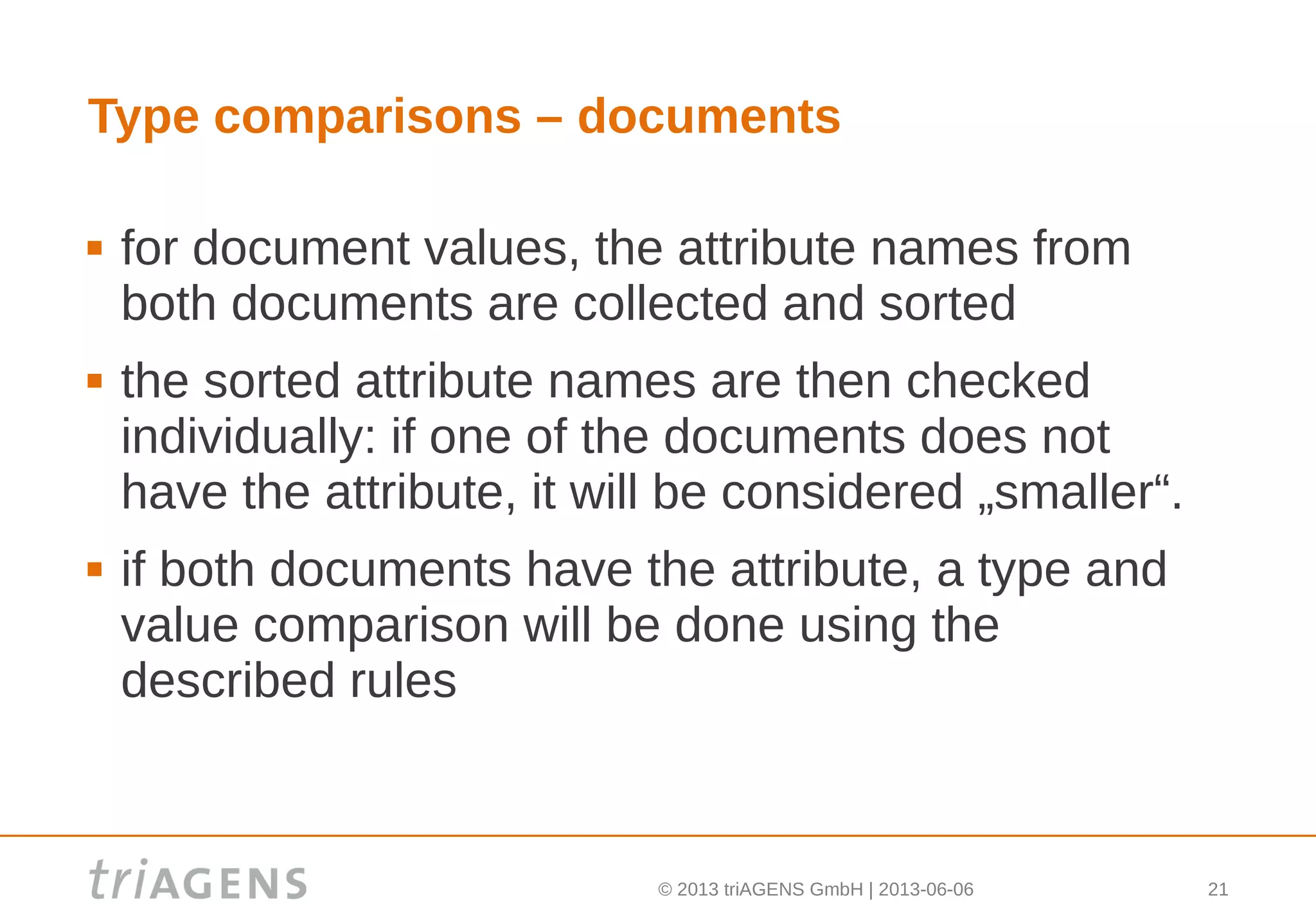

Type comparisons – documents
 for document values, the attribute names from
both documents are collected and sorted
 the sorted attribute names are then checked
individually: if one of the documents does not
have the attribute, it will be considered „smaller“.
 if both documents have the attribute, a type and
value comparison will be done using the
described rules

22. © 2013 triAGENS GmbH | 2013-06-06 22
Type comparisons – documents examples
{ } < { "age": 25 }
{ "age": 25 } < { "age": 26 }
{ "age": 25 } > { "name": "John" }
{ {
"name": "John", == "age": 25,
"age": 25 "name": "John"
} }
{ "age": 25 } < {
"age": 25,
"name": "John"
}

23. © 2013 triAGENS GmbH | 2013-06-06 23

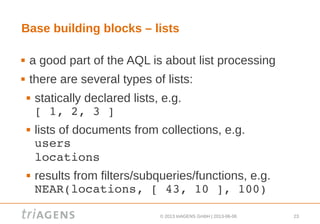

Base building blocks – lists
 a good part of the AQL is about list processing
 there are several types of lists:
 statically declared lists, e.g.
[ 1, 2, 3 ]
 lists of documents from collections, e.g.
users
locations
 results from filters/subqueries/functions, e.g.
NEAR(locations, [ 43, 10 ], 100)

24. © 2013 triAGENS GmbH | 2013-06-06 24

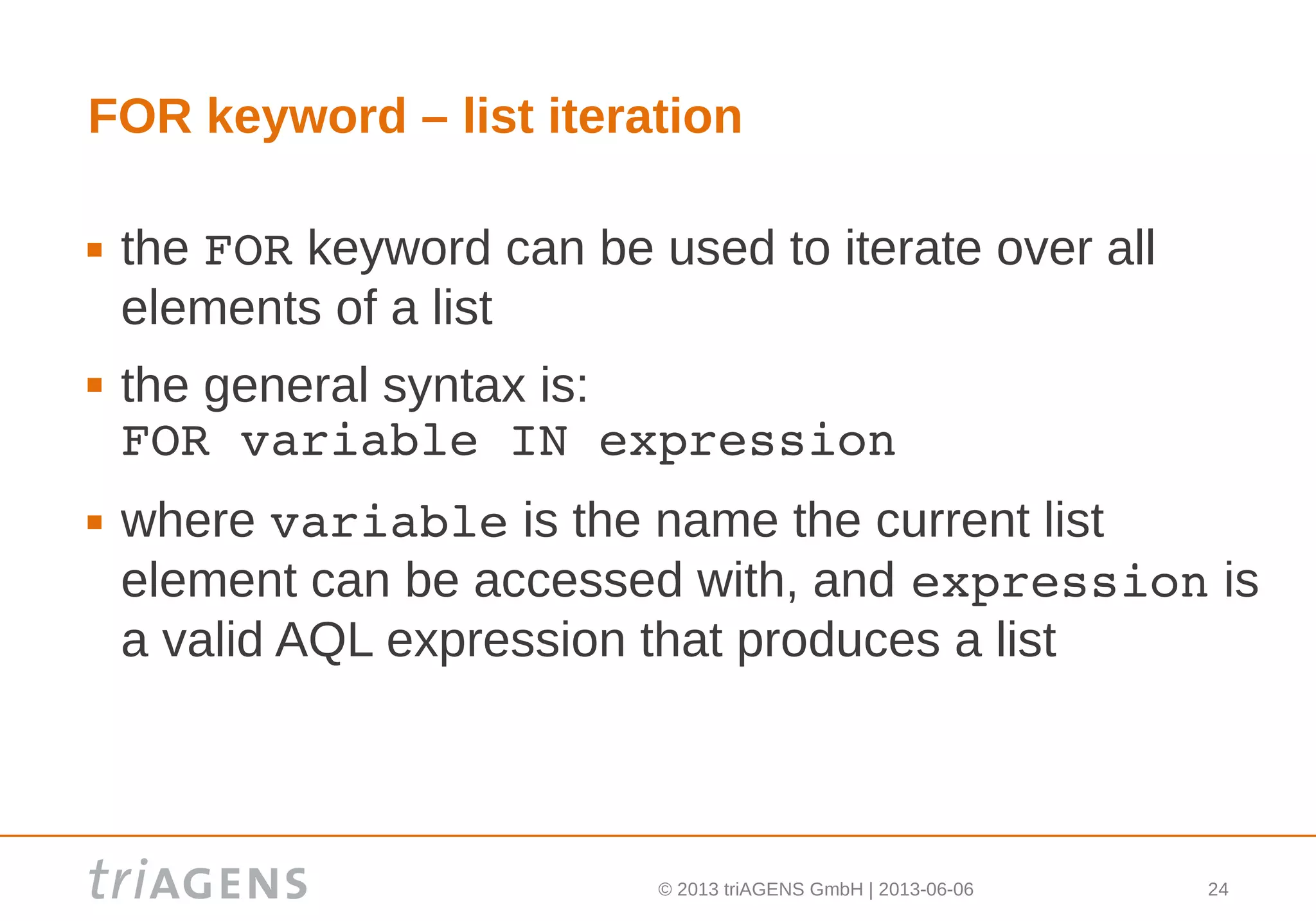

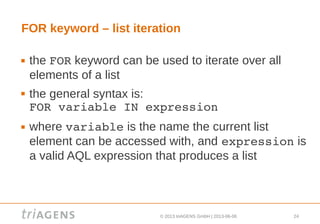

FOR keyword – list iteration
 the FOR keyword can be used to iterate over all
elements of a list
 the general syntax is:
FOR variable IN expression
 where variable is the name the current list
element can be accessed with, and expression is
a valid AQL expression that produces a list

25. © 2013 triAGENS GmbH | 2013-06-06 25

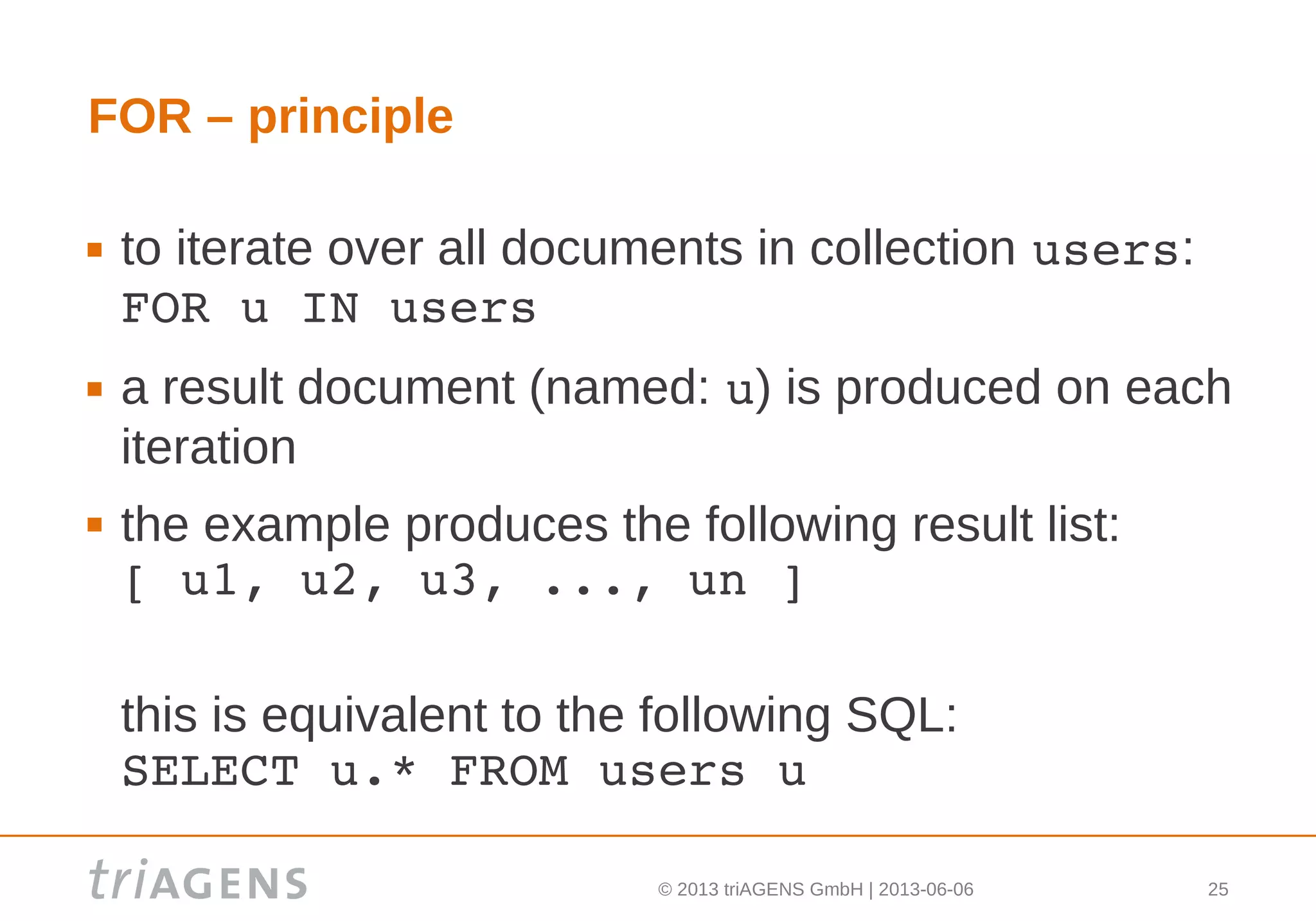

FOR – principle
 to iterate over all documents in collection users:
FOR u IN users
 a result document (named: u) is produced on each
iteration
 the example produces the following result list:
[ u1, u2, u3, ..., un ]
this is equivalent to the following SQL:
SELECT u.* FROM users u

26. © 2013 triAGENS GmbH | 2013-06-06 26

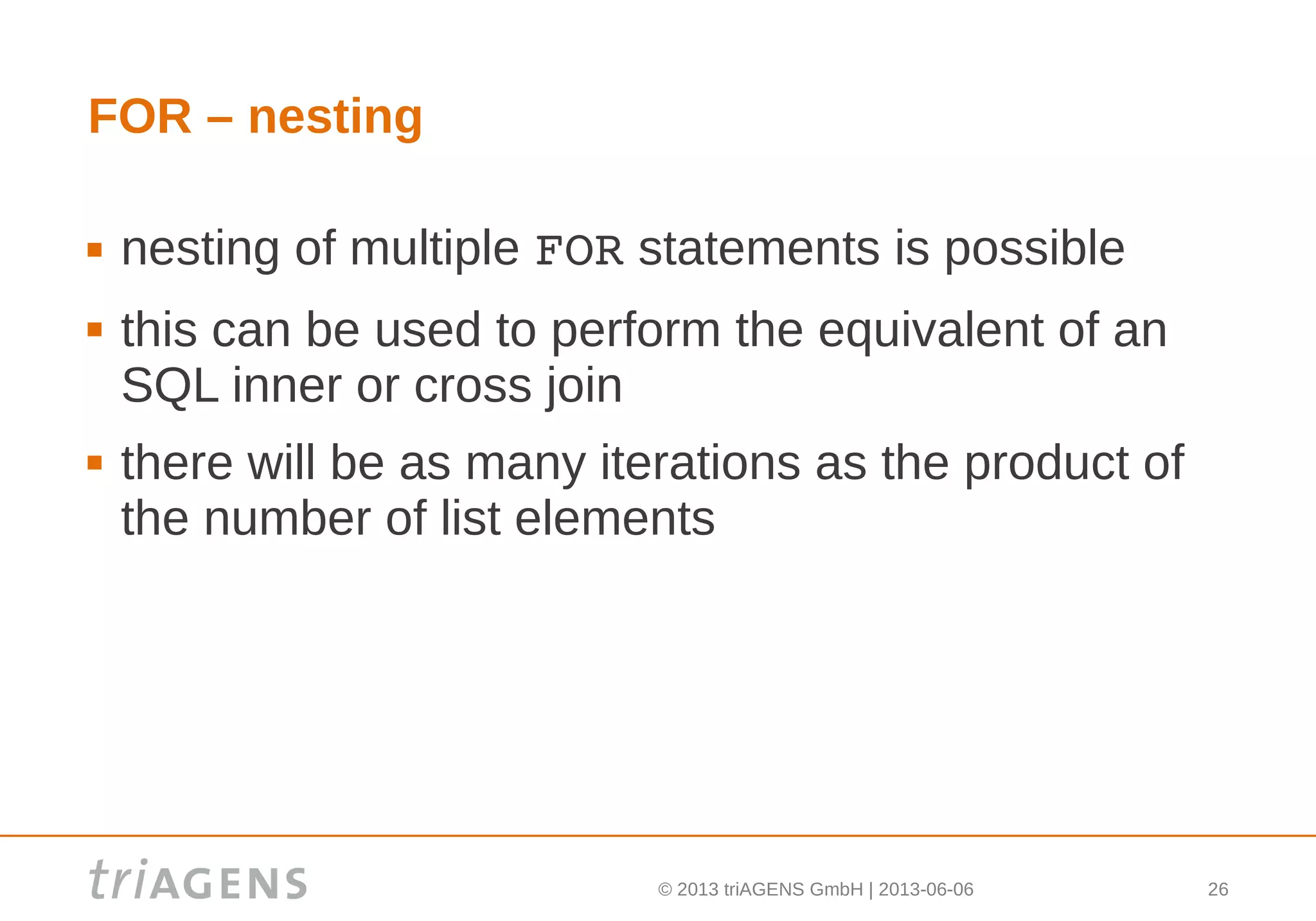

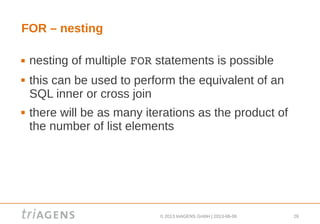

FOR – nesting
 nesting of multiple FOR statements is possible
 this can be used to perform the equivalent of an
SQL inner or cross join
 there will be as many iterations as the product of
the number of list elements

27. © 2013 triAGENS GmbH | 2013-06-06 27

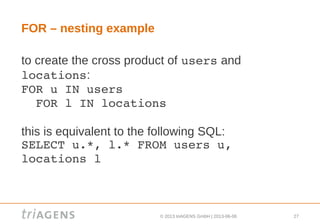

FOR – nesting example
to create the cross product of users and
locations:
FOR u IN users
FOR l IN locations
this is equivalent to the following SQL:
SELECT u.*, l.* FROM users u,
locations l

28. © 2013 triAGENS GmbH | 2013-06-06 28

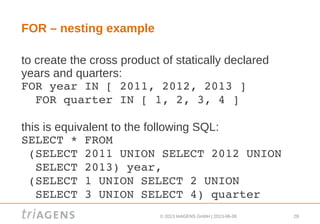

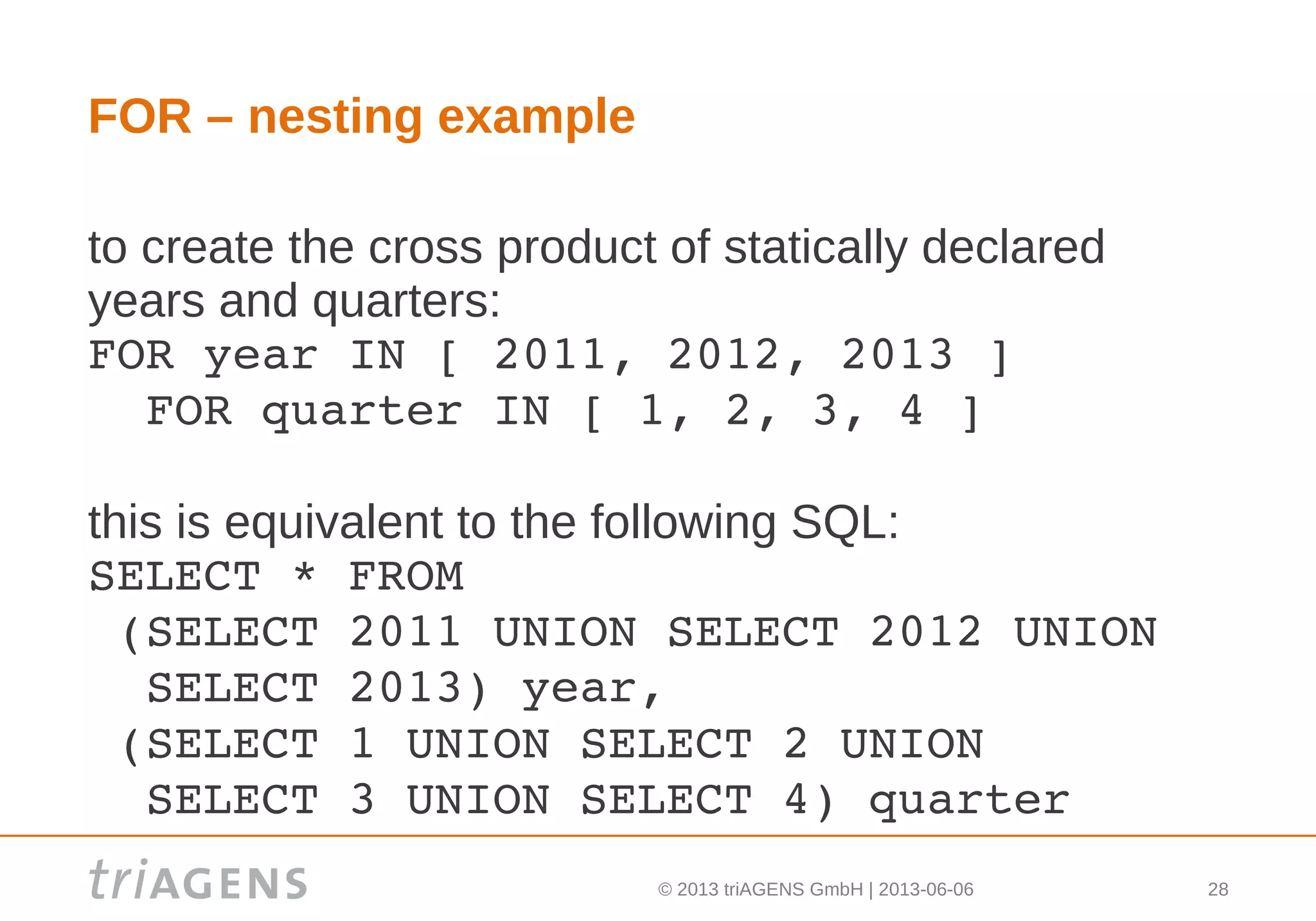

FOR – nesting example
to create the cross product of statically declared
years and quarters:
FOR year IN [ 2011, 2012, 2013 ]
FOR quarter IN [ 1, 2, 3, 4 ]
this is equivalent to the following SQL:
SELECT * FROM
(SELECT 2011 UNION SELECT 2012 UNION
SELECT 2013) year,
(SELECT 1 UNION SELECT 2 UNION
SELECT 3 UNION SELECT 4) quarter

29. © 2013 triAGENS GmbH | 2013-06-06 29

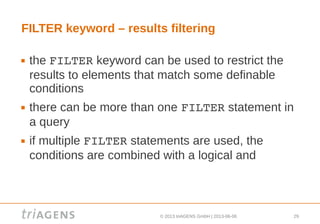

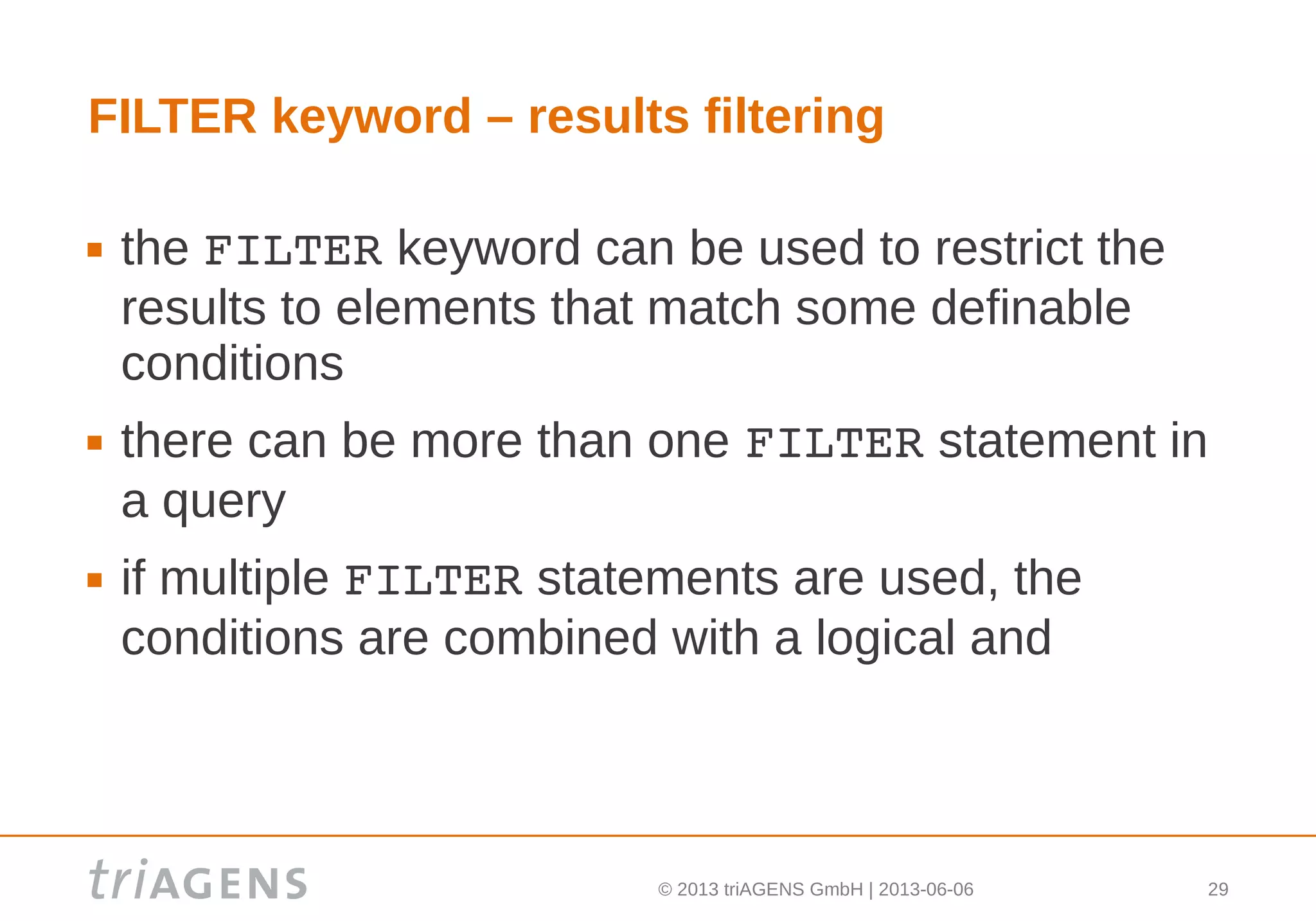

FILTER keyword – results filtering
 the FILTER keyword can be used to restrict the
results to elements that match some definable
conditions
 there can be more than one FILTER statement in
a query
 if multiple FILTER statements are used, the
conditions are combined with a logical and

30. © 2013 triAGENS GmbH | 2013-06-06 30

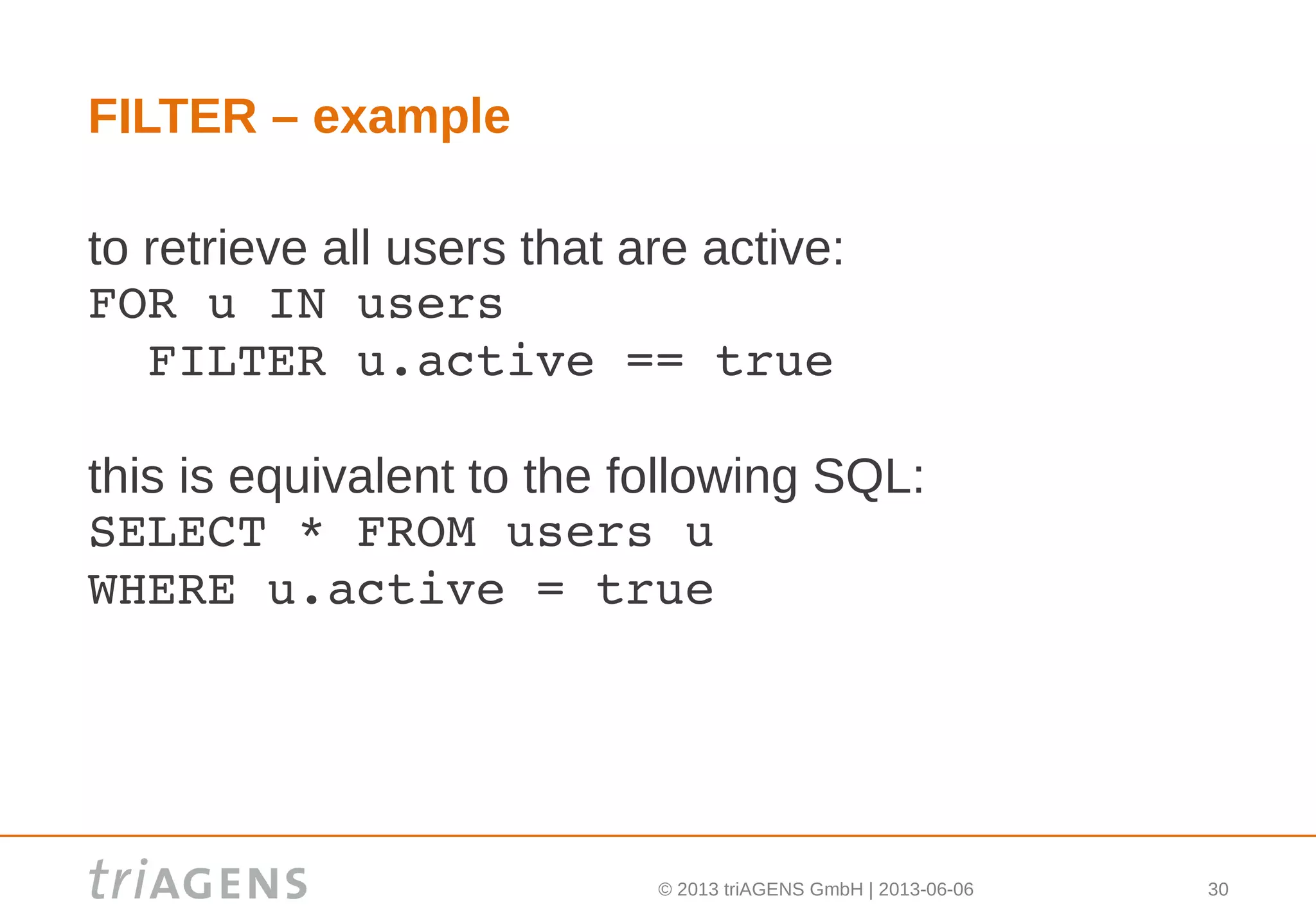

FILTER – example
to retrieve all users that are active:
FOR u IN users
FILTER u.active == true
this is equivalent to the following SQL:
SELECT * FROM users u
WHERE u.active = true

31. © 2013 triAGENS GmbH | 2013-06-06 31

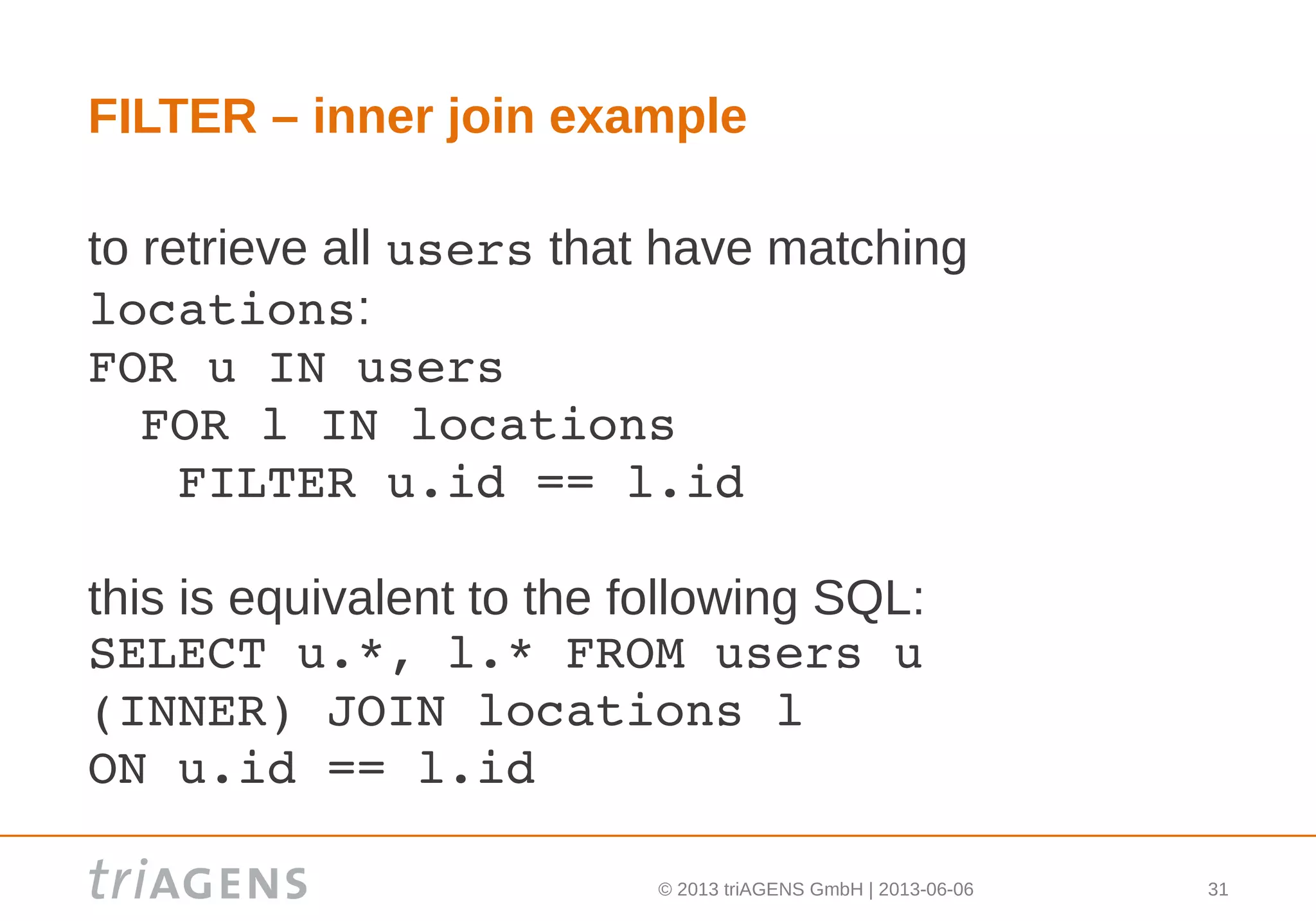

FILTER – inner join example
to retrieve all users that have matching
locations:
FOR u IN users
FOR l IN locations
FILTER u.id == l.id
this is equivalent to the following SQL:
SELECT u.*, l.* FROM users u
(INNER) JOIN locations l
ON u.id == l.id

32. © 2013 triAGENS GmbH | 2013-06-06 32

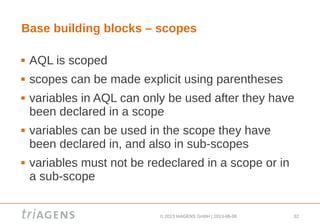

Base building blocks – scopes
 AQL is scoped
 scopes can be made explicit using parentheses
 variables in AQL can only be used after they have
been declared in a scope
 variables can be used in the scope they have
been declared in, and also in sub-scopes
 variables must not be redeclared in a scope or in
a sub-scope

33. © 2013 triAGENS GmbH | 2013-06-06 33

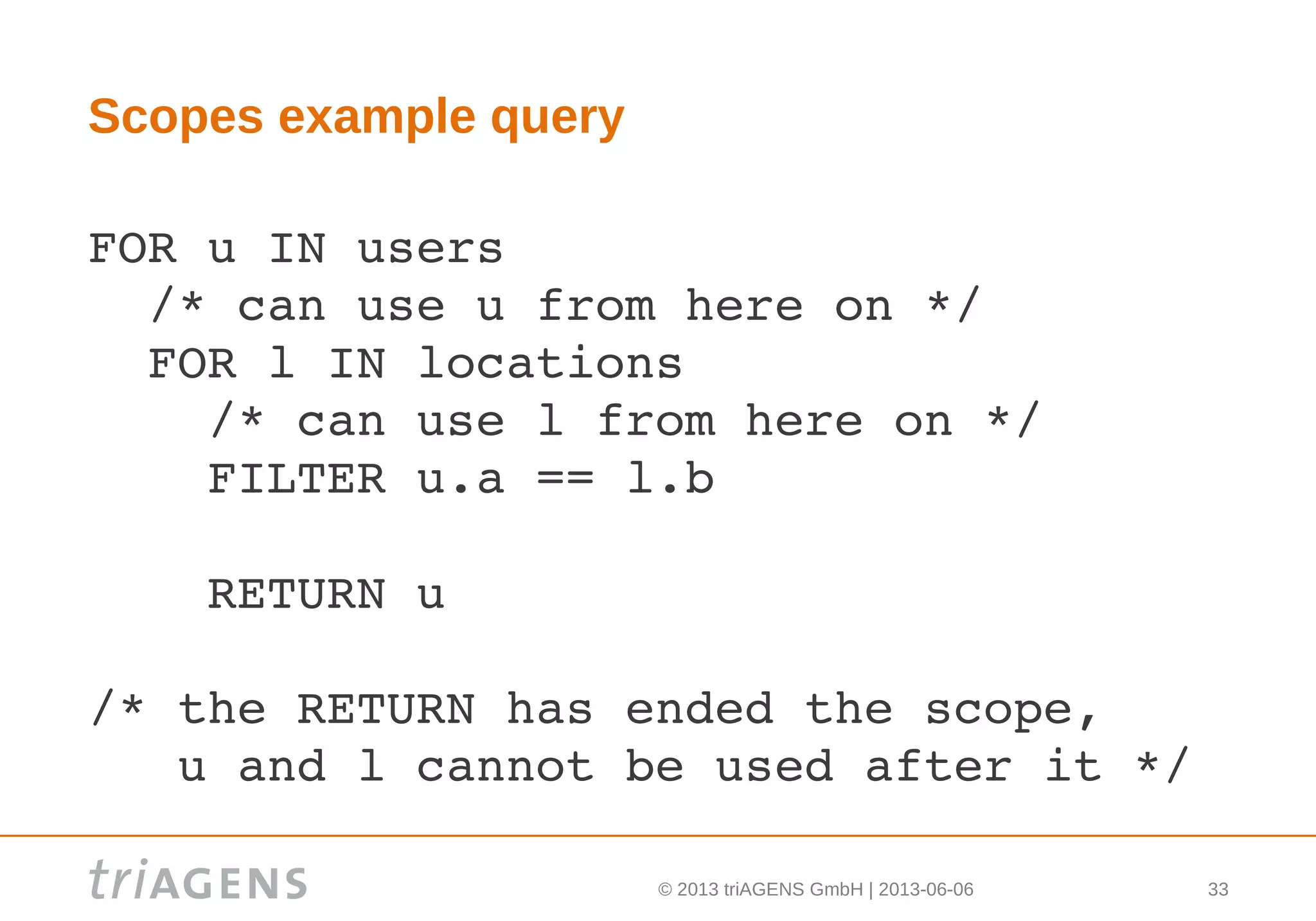

Scopes example query
FOR u IN users
/* can use u from here on */
FOR l IN locations
/* can use l from here on */
FILTER u.a == l.b
RETURN u
/* the RETURN has ended the scope,
u and l cannot be used after it */

34. © 2013 triAGENS GmbH | 2013-06-06 34

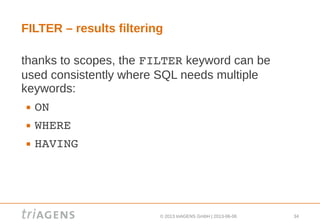

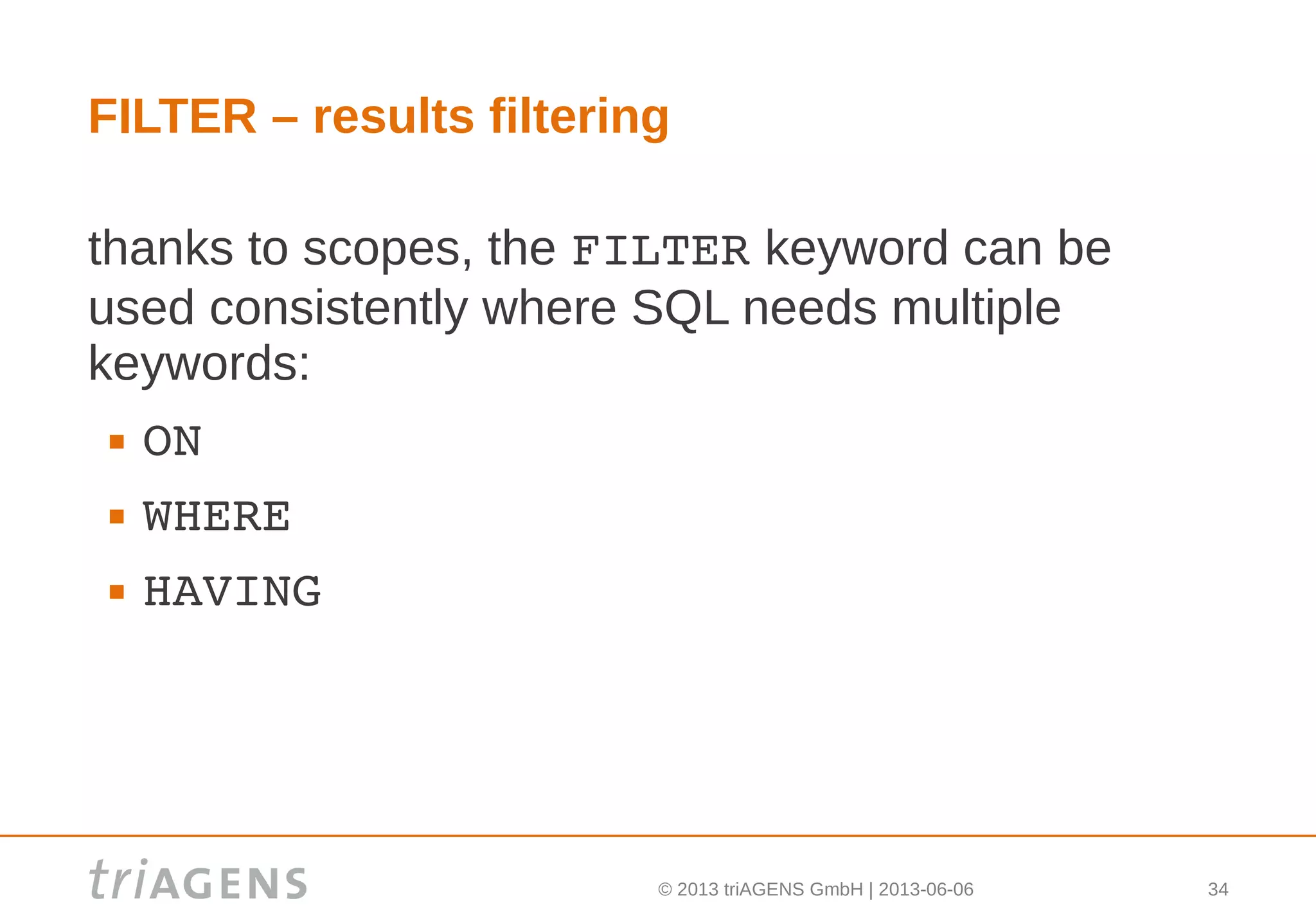

FILTER – results filtering
thanks to scopes, the FILTER keyword can be
used consistently where SQL needs multiple
keywords:
 ON
 WHERE
 HAVING

35. © 2013 triAGENS GmbH | 2013-06-06 35

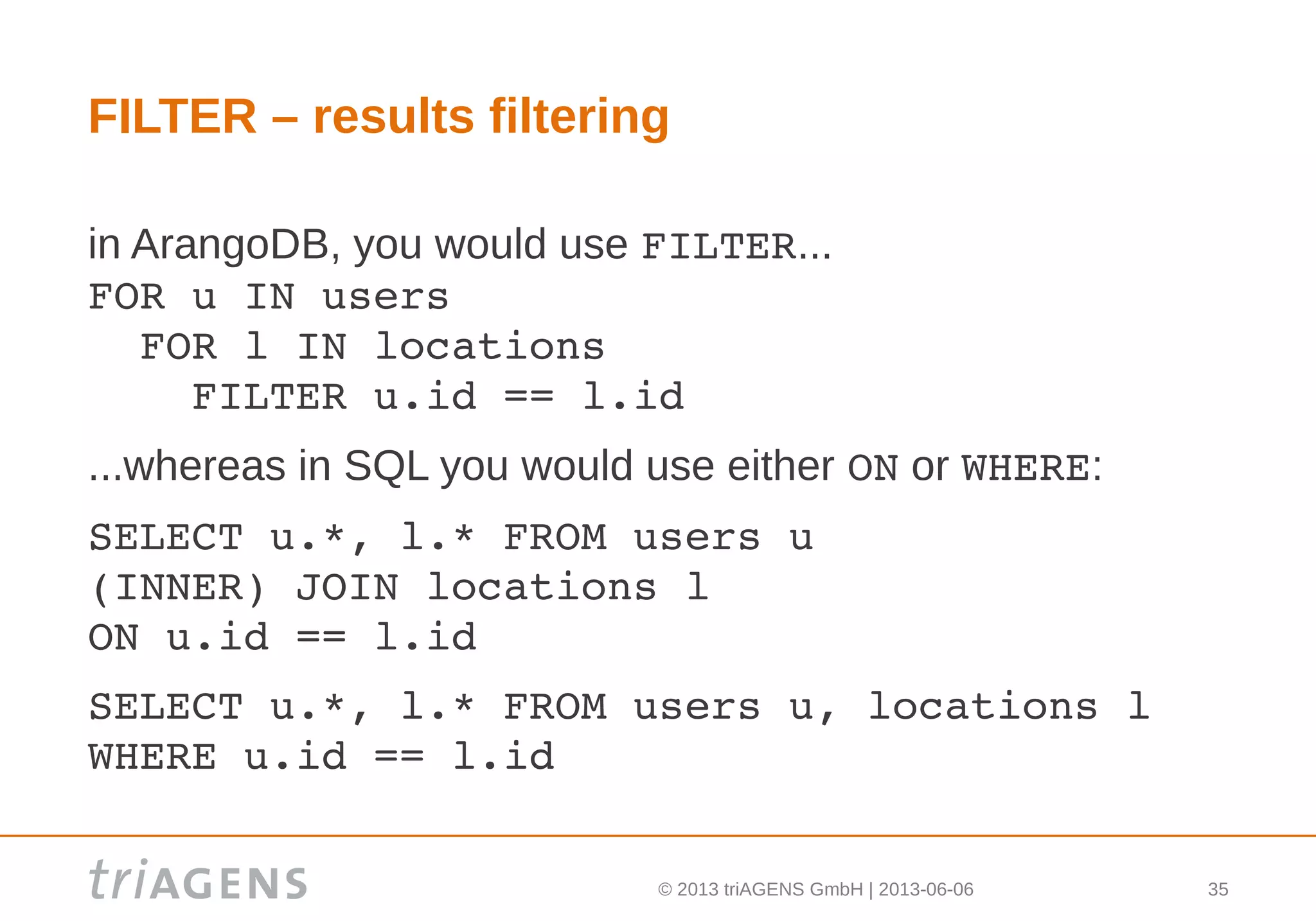

FILTER – results filtering
in ArangoDB, you would use FILTER...
FOR u IN users
FOR l IN locations
FILTER u.id == l.id
...whereas in SQL you would use either ON or WHERE:
SELECT u.*, l.* FROM users u
(INNER) JOIN locations l
ON u.id == l.id
SELECT u.*, l.* FROM users u, locations l
WHERE u.id == l.id

36. © 2013 triAGENS GmbH | 2013-06-06 36

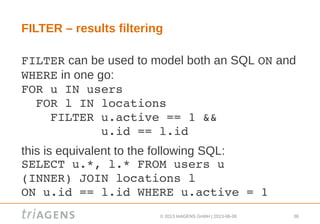

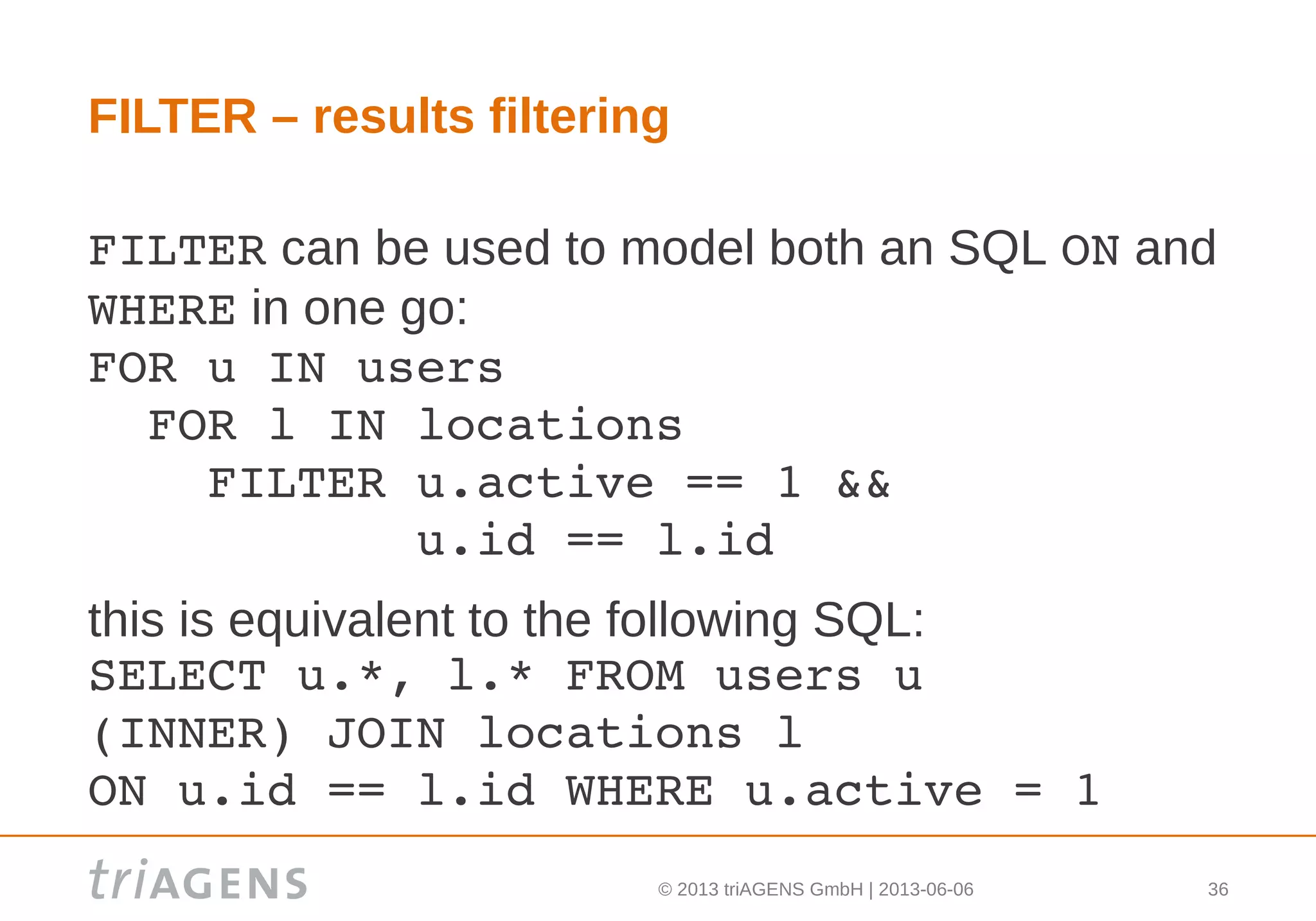

FILTER – results filtering
FILTER can be used to model both an SQL ON and
WHERE in one go:
FOR u IN users
FOR l IN locations
FILTER u.active == 1 &&
u.id == l.id
this is equivalent to the following SQL:
SELECT u.*, l.* FROM users u
(INNER) JOIN locations l
ON u.id == l.id WHERE u.active = 1

37. © 2013 triAGENS GmbH | 2013-06-06 37

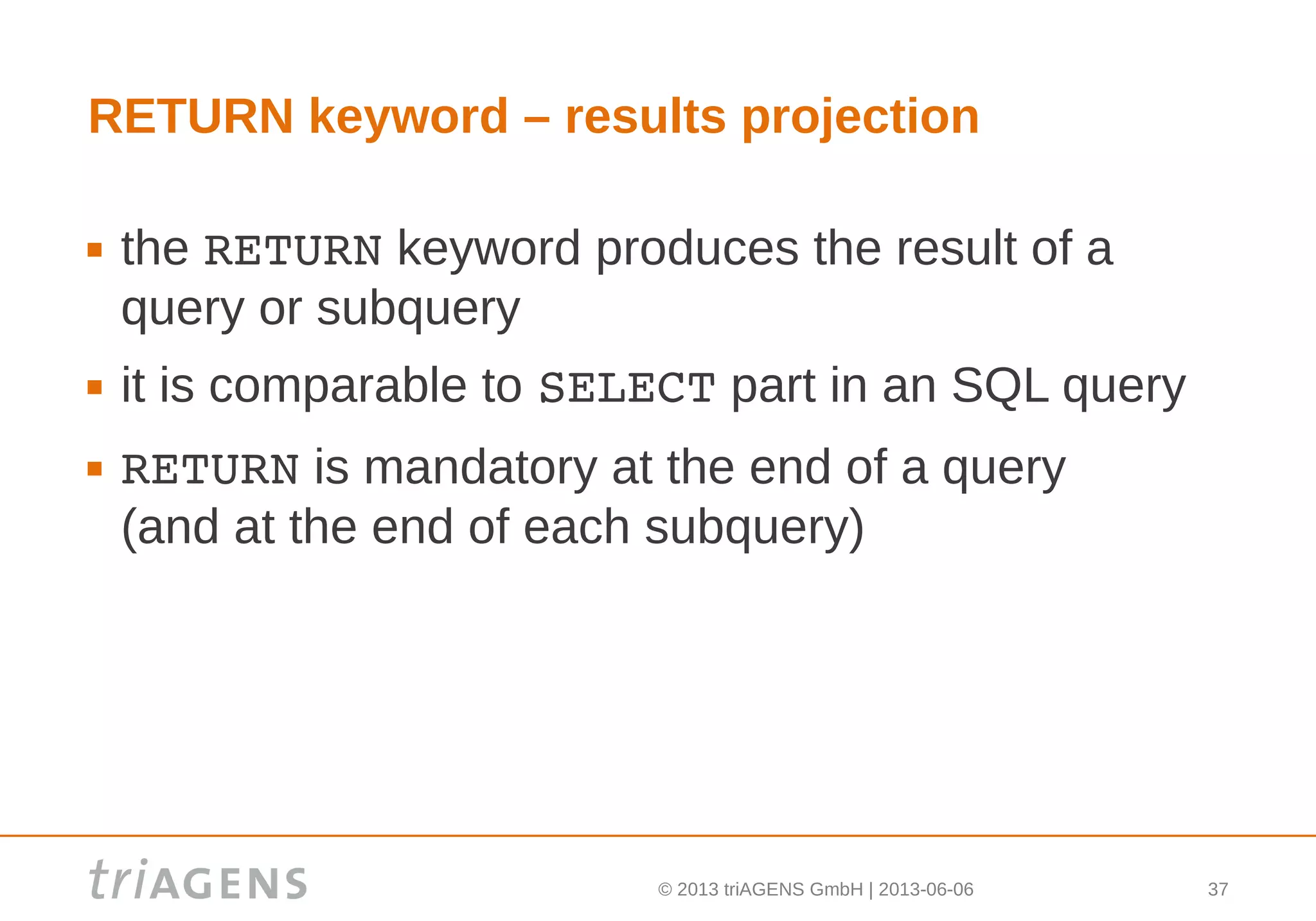

RETURN keyword – results projection
 the RETURN keyword produces the result of a
query or subquery
 it is comparable to SELECT part in an SQL query
 RETURN is mandatory at the end of a query
(and at the end of each subquery)

38. © 2013 triAGENS GmbH | 2013-06-06 38

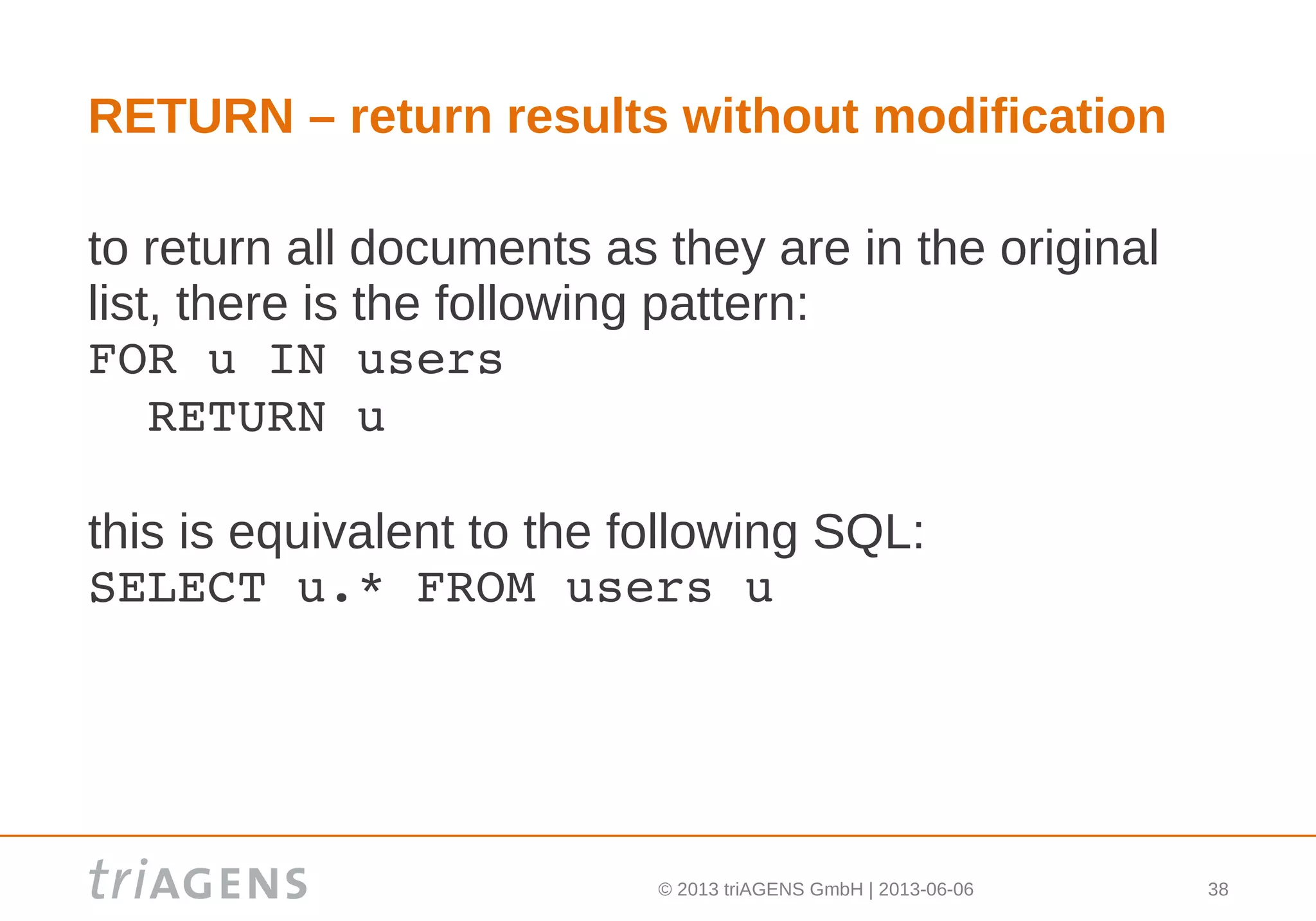

RETURN – return results without modification
to return all documents as they are in the original
list, there is the following pattern:
FOR u IN users
RETURN u
this is equivalent to the following SQL:
SELECT u.* FROM users u

39. © 2013 triAGENS GmbH | 2013-06-06 39

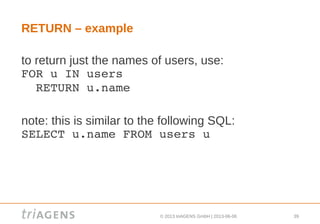

RETURN – example
to return just the names of users, use:
FOR u IN users
RETURN u.name
note: this is similar to the following SQL:
SELECT u.name FROM users u

40. © 2013 triAGENS GmbH | 2013-06-06 40

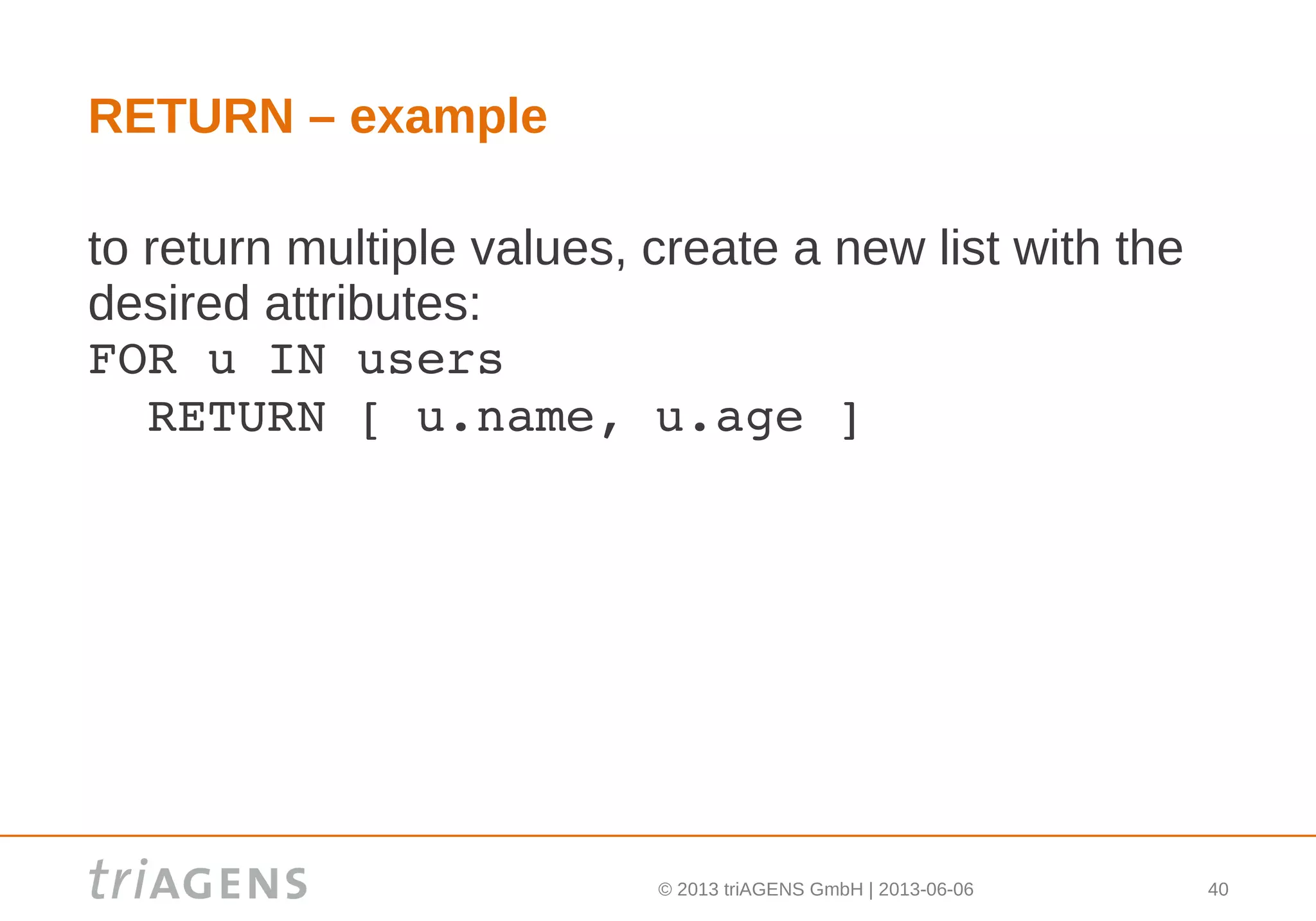

RETURN – example
to return multiple values, create a new list with the
desired attributes:
FOR u IN users
RETURN [ u.name, u.age ]

41. © 2013 triAGENS GmbH | 2013-06-06 41

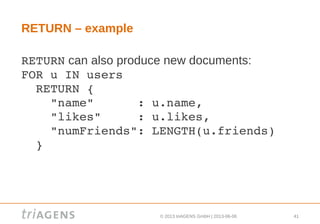

RETURN – example
RETURN can also produce new documents:
FOR u IN users
RETURN {
"name" : u.name,
"likes" : u.likes,
"numFriends": LENGTH(u.friends)
}

42. © 2013 triAGENS GmbH | 2013-06-06 42

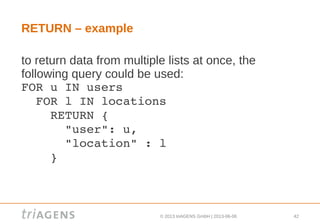

RETURN – example
to return data from multiple lists at once, the
following query could be used:
FOR u IN users
FOR l IN locations
RETURN {
"user": u,
"location" : l
}

43. © 2013 triAGENS GmbH | 2013-06-06 43

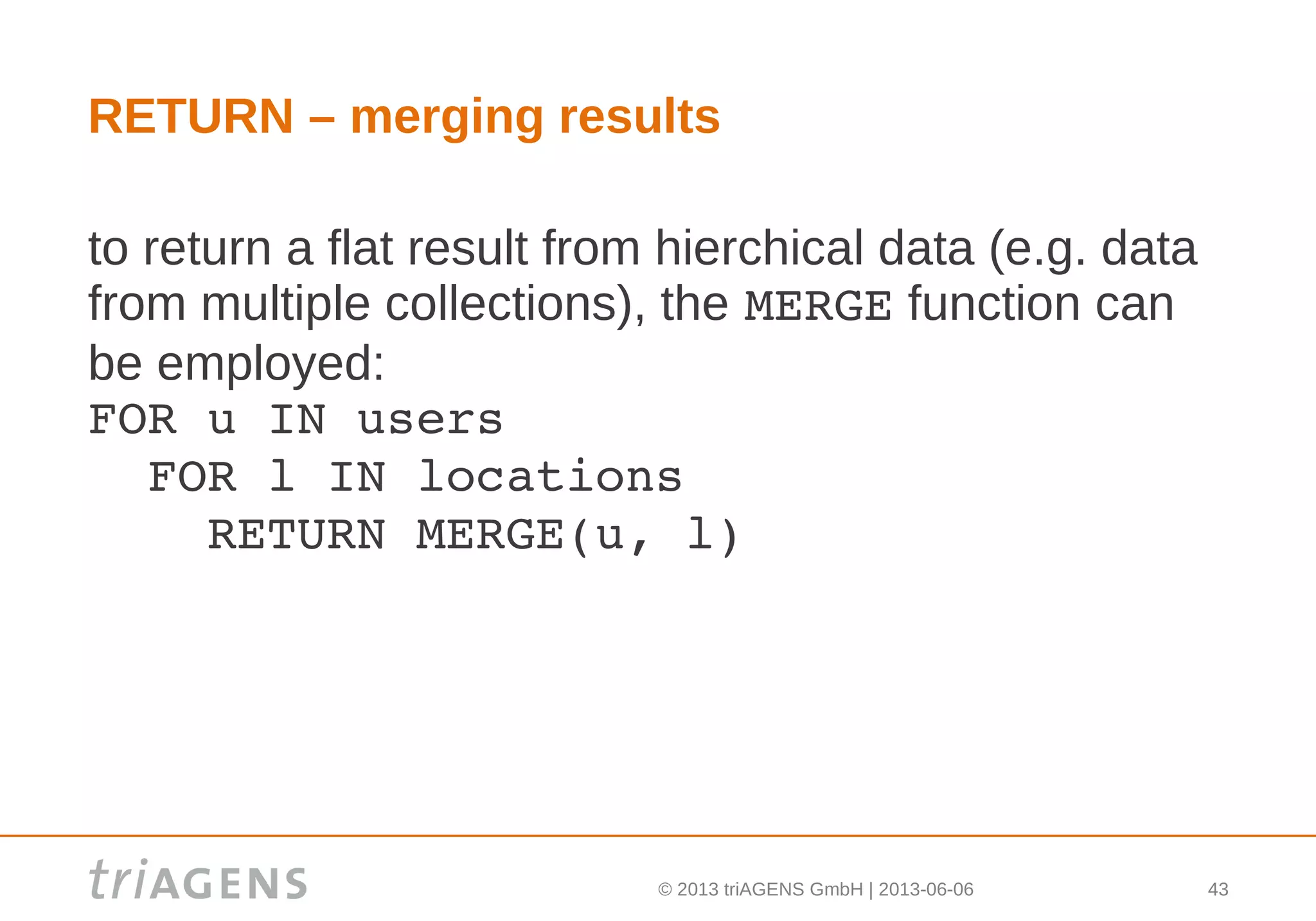

RETURN – merging results
to return a flat result from hierchical data (e.g. data
from multiple collections), the MERGE function can
be employed:
FOR u IN users
FOR l IN locations
RETURN MERGE(u, l)

44. © 2013 triAGENS GmbH | 2013-06-06 44

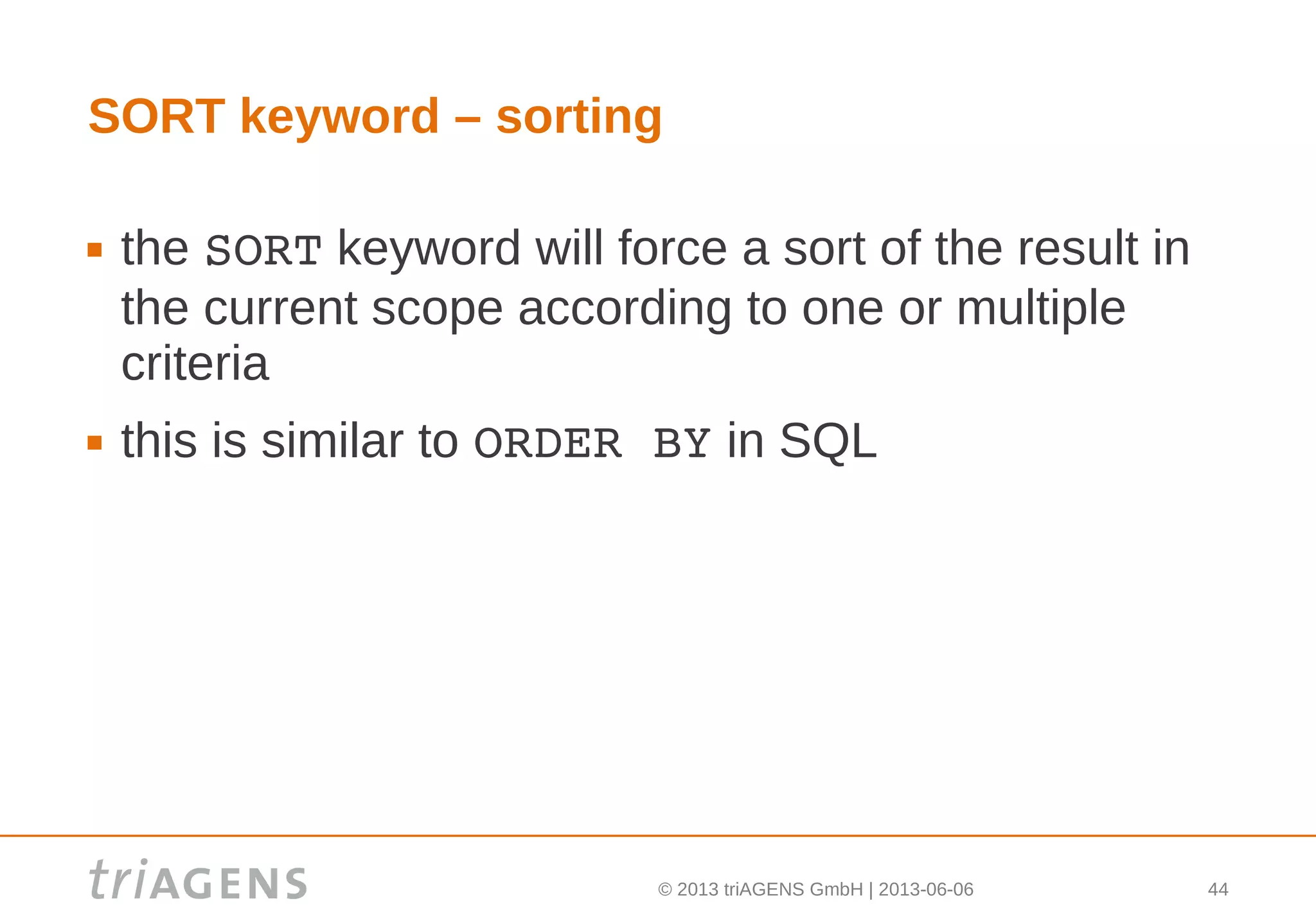

SORT keyword – sorting
 the SORT keyword will force a sort of the result in
the current scope according to one or multiple
criteria
 this is similar to ORDER BY in SQL

45. © 2013 triAGENS GmbH | 2013-06-06 45

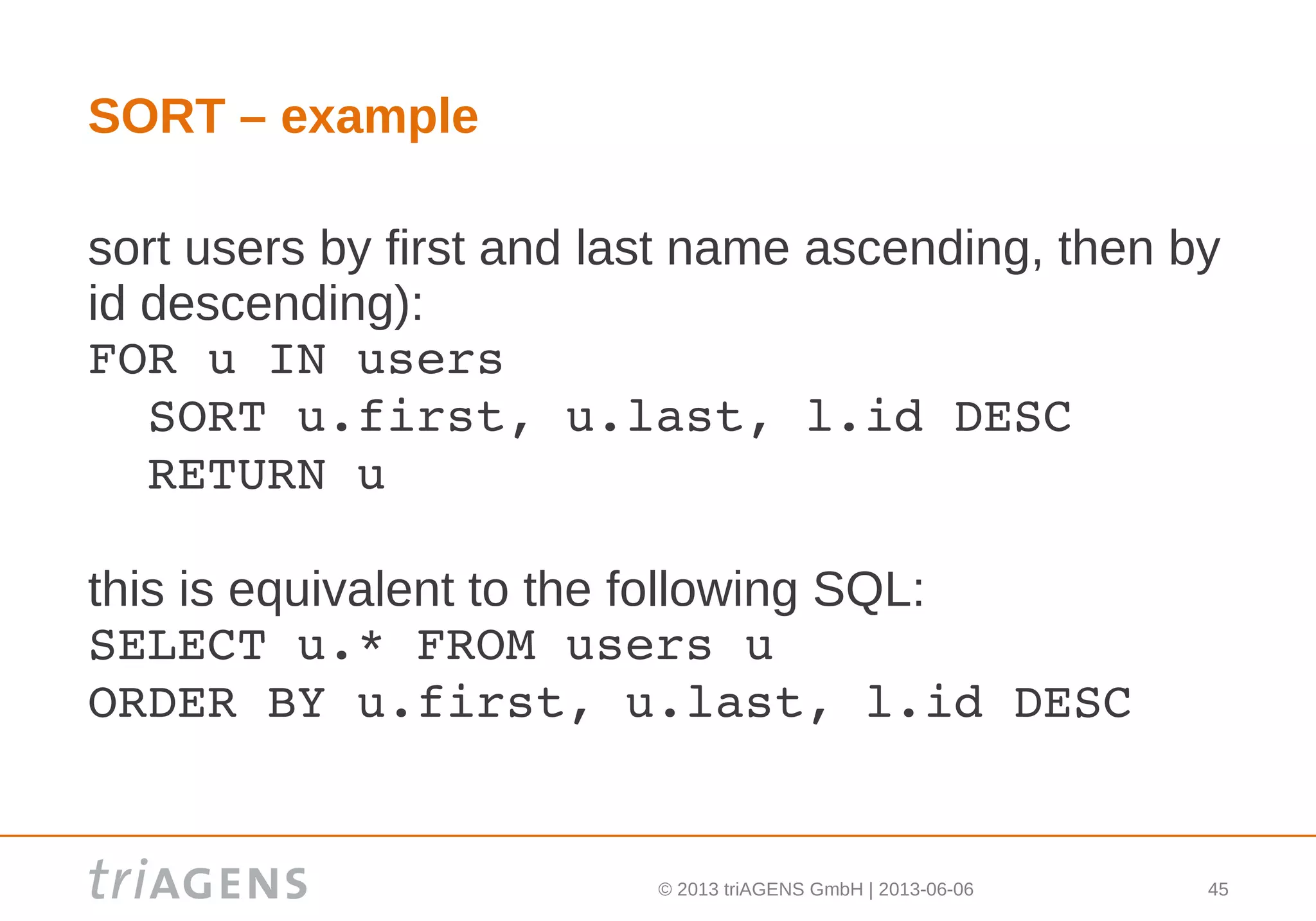

SORT – example
sort users by first and last name ascending, then by
id descending):
FOR u IN users
SORT u.first, u.last, l.id DESC
RETURN u
this is equivalent to the following SQL:
SELECT u.* FROM users u
ORDER BY u.first, u.last, l.id DESC

46. © 2013 triAGENS GmbH | 2013-06-06 46

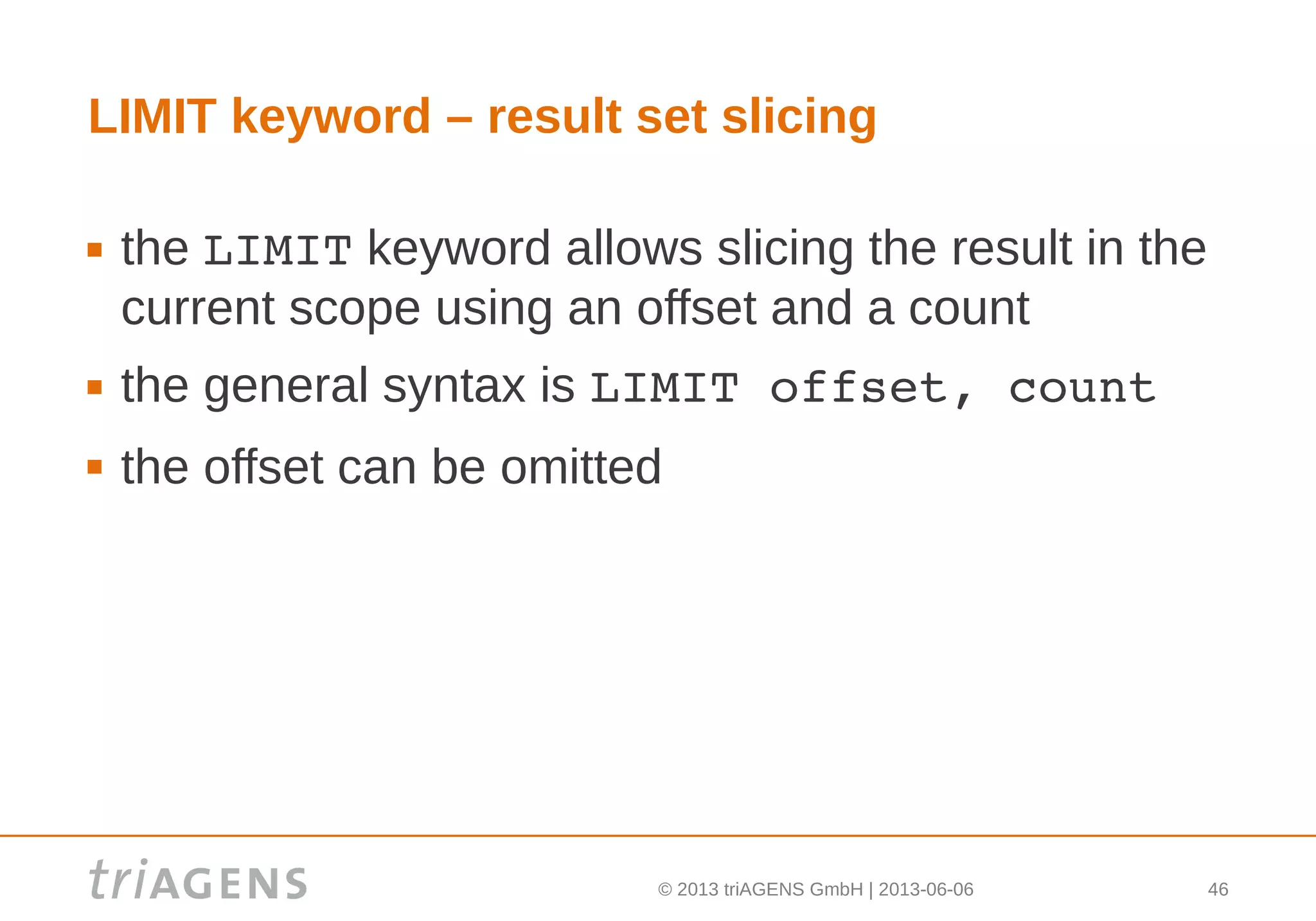

LIMIT keyword – result set slicing
 the LIMIT keyword allows slicing the result in the
current scope using an offset and a count
 the general syntax is LIMIT offset, count
 the offset can be omitted

47. © 2013 triAGENS GmbH | 2013-06-06 47

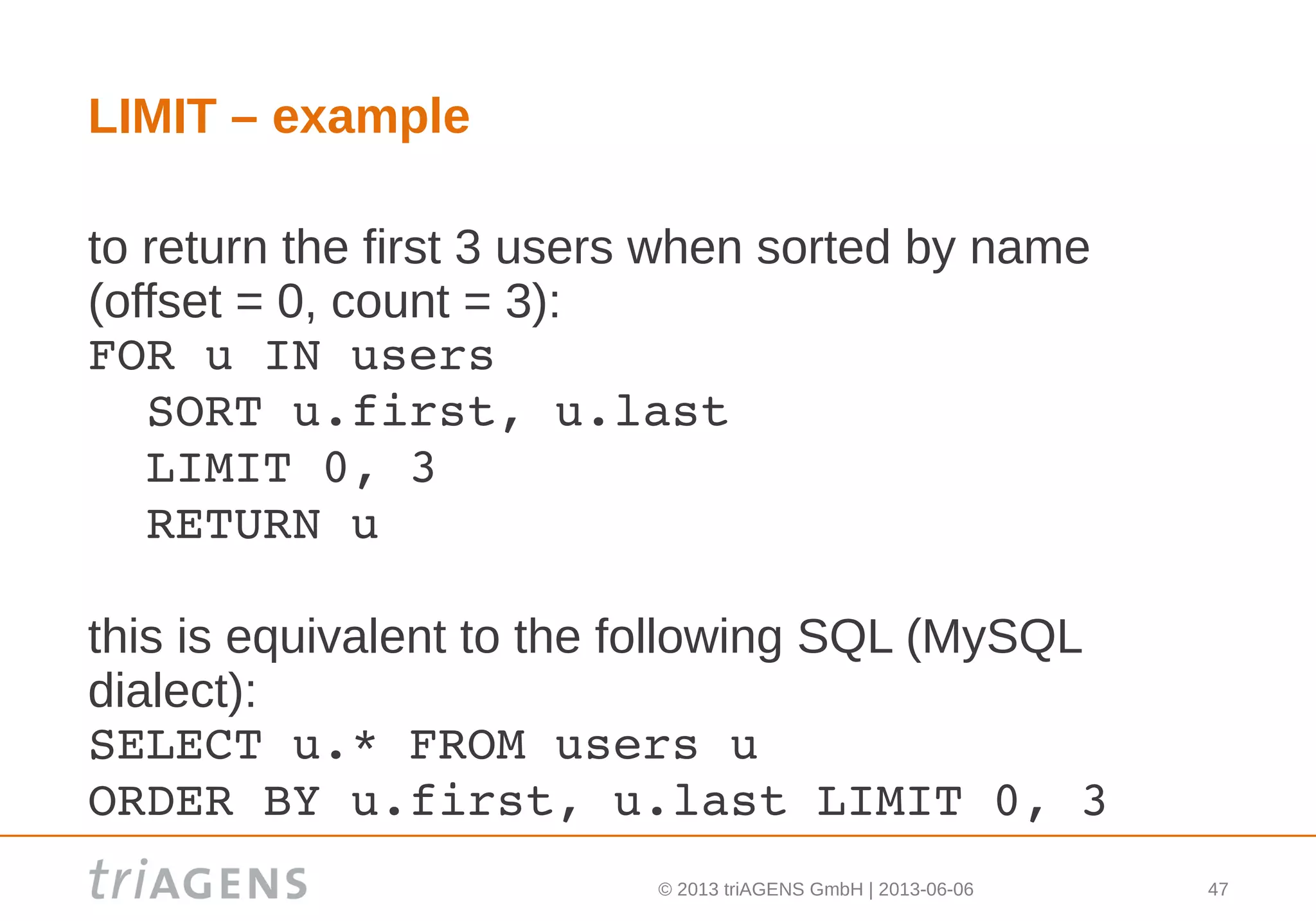

LIMIT – example
to return the first 3 users when sorted by name
(offset = 0, count = 3):
FOR u IN users
SORT u.first, u.last
LIMIT 0, 3
RETURN u
this is equivalent to the following SQL (MySQL
dialect):
SELECT u.* FROM users u
ORDER BY u.first, u.last LIMIT 0, 3

48. © 2013 triAGENS GmbH | 2013-06-06 48

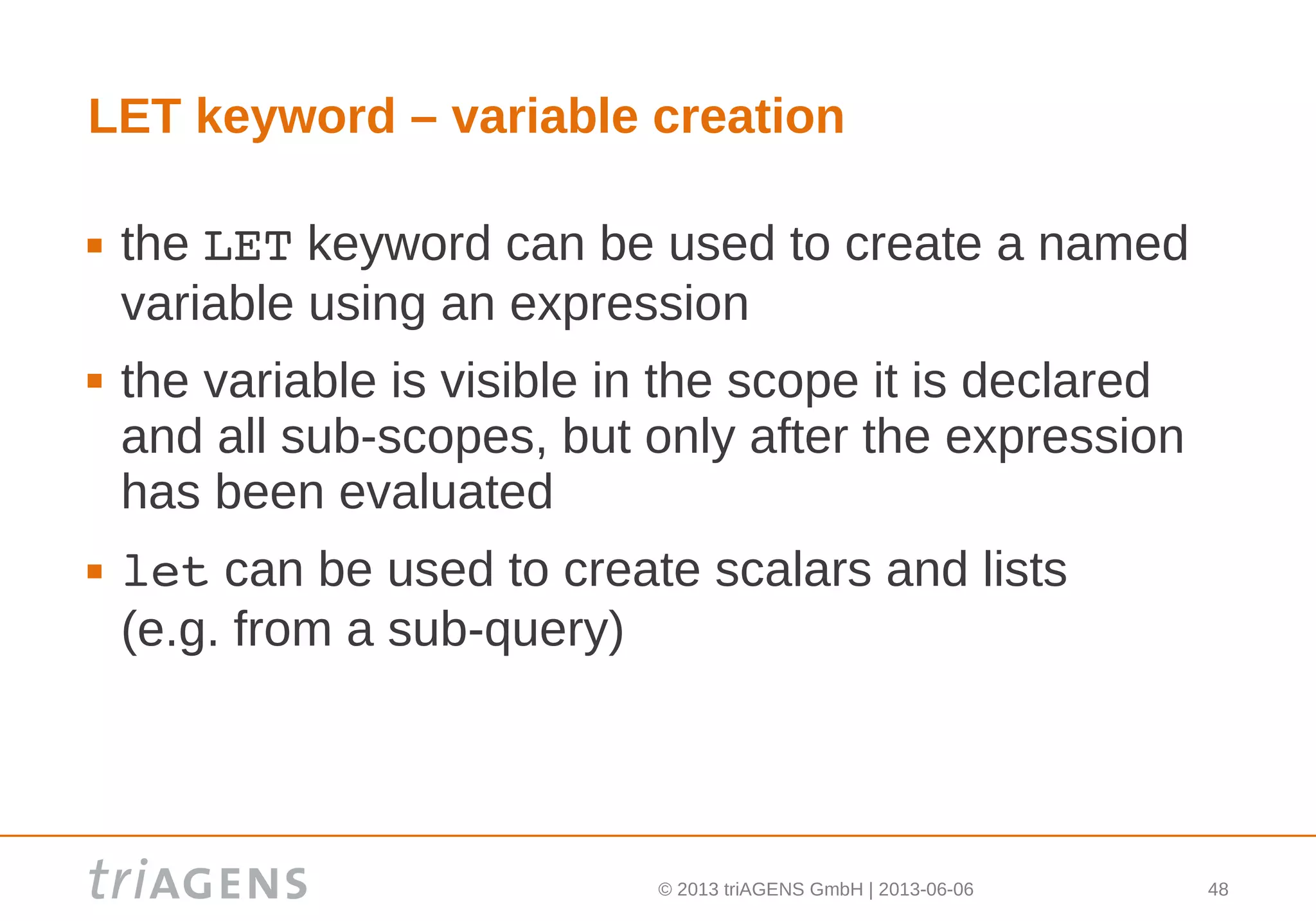

LET keyword – variable creation
 the LET keyword can be used to create a named
variable using an expression
 the variable is visible in the scope it is declared
and all sub-scopes, but only after the expression
has been evaluated
 let can be used to create scalars and lists
(e.g. from a sub-query)

49. © 2013 triAGENS GmbH | 2013-06-06 49

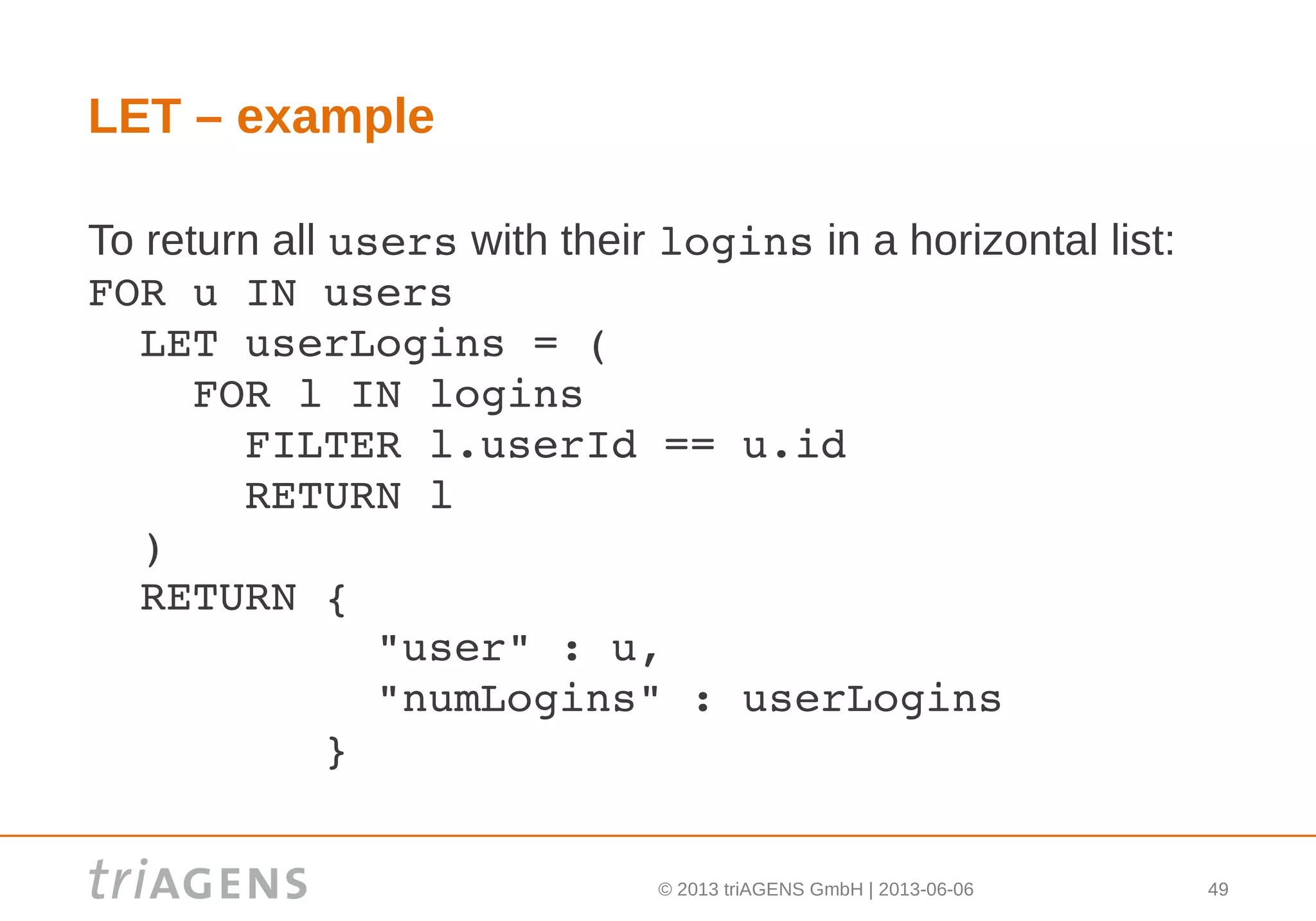

LET – example
To return all users with their logins in a horizontal list:
FOR u IN users
LET userLogins = (
FOR l IN logins
FILTER l.userId == u.id
RETURN l
)
RETURN {
"user" : u,
"numLogins" : userLogins
}

50. © 2013 triAGENS GmbH | 2013-06-06 50

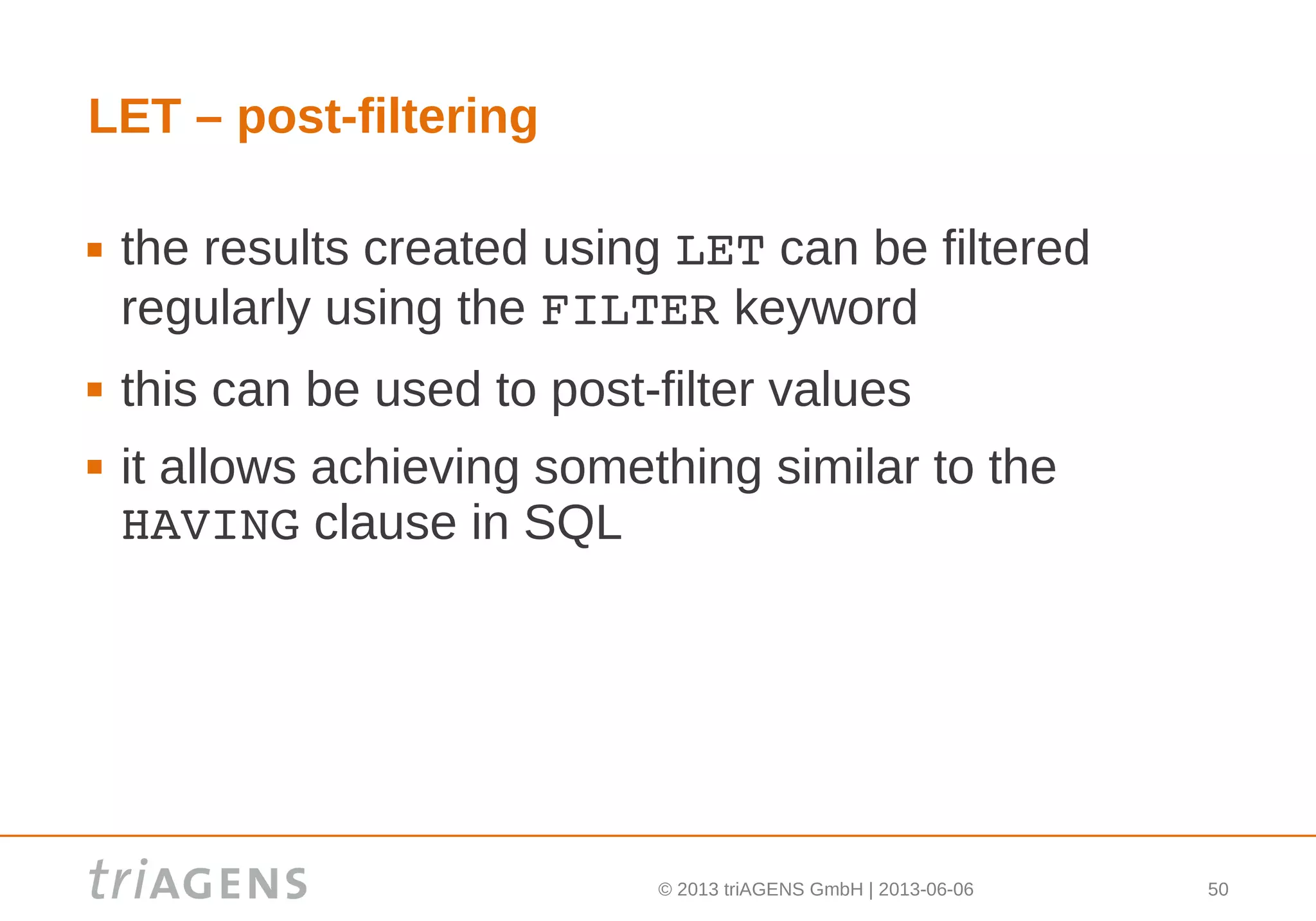

LET – post-filtering
 the results created using LET can be filtered
regularly using the FILTER keyword
 this can be used to post-filter values
 it allows achieving something similar to the
HAVING clause in SQL

51. © 2013 triAGENS GmbH | 2013-06-06 51

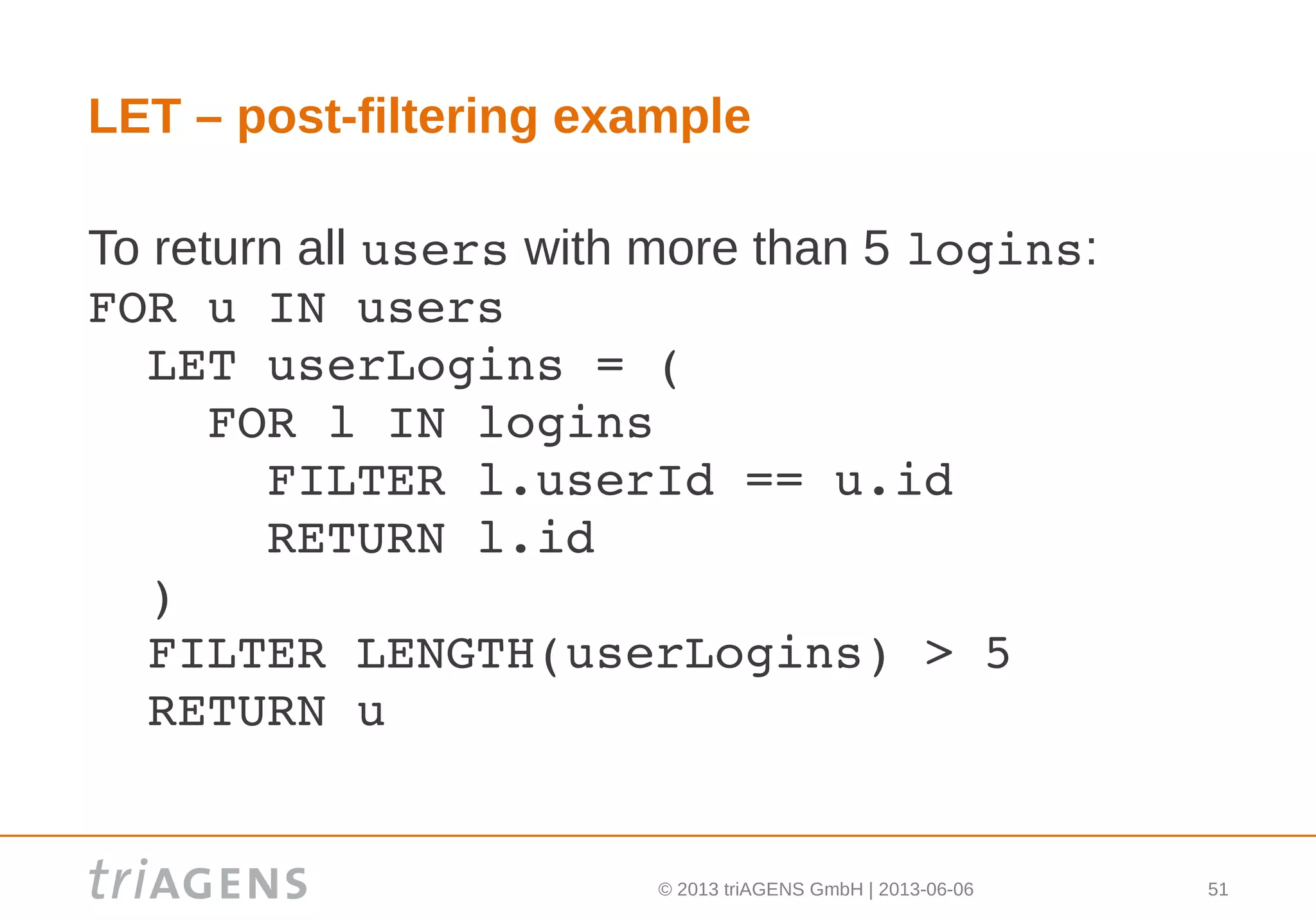

LET – post-filtering example
To return all users with more than 5 logins:
FOR u IN users
LET userLogins = (
FOR l IN logins
FILTER l.userId == u.id
RETURN l.id
)
FILTER LENGTH(userLogins) > 5
RETURN u

52. © 2013 triAGENS GmbH | 2013-06-06 52

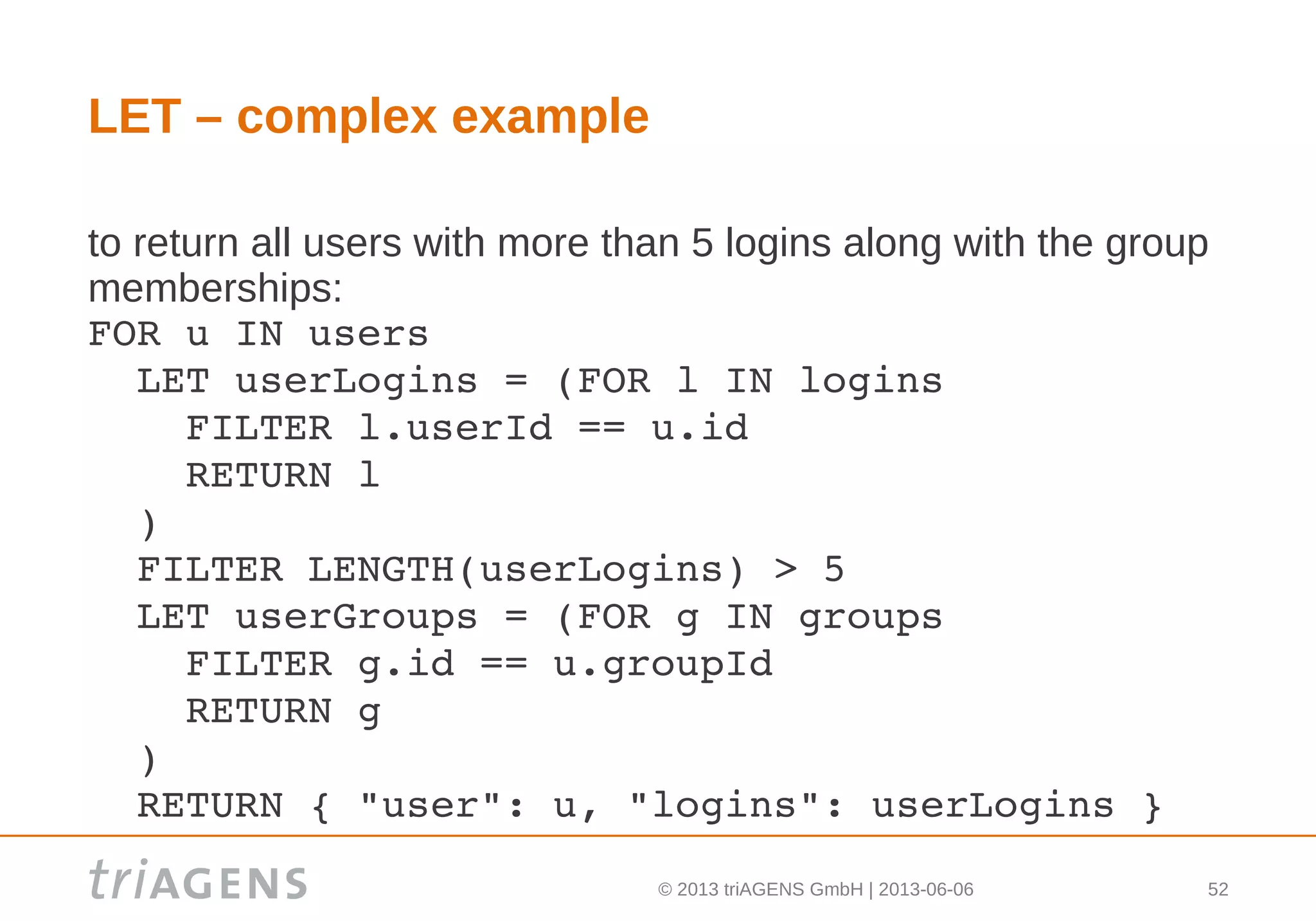

LET – complex example
to return all users with more than 5 logins along with the group
memberships:
FOR u IN users
LET userLogins = (FOR l IN logins
FILTER l.userId == u.id
RETURN l
)
FILTER LENGTH(userLogins) > 5
LET userGroups = (FOR g IN groups
FILTER g.id == u.groupId
RETURN g
)
RETURN { "user": u, "logins": userLogins }

53. © 2013 triAGENS GmbH | 2013-06-06 53

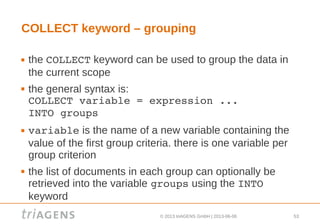

COLLECT keyword – grouping
 the COLLECT keyword can be used to group the data in
the current scope
 the general syntax is:
COLLECT variable = expression ...
INTO groups
 variable is the name of a new variable containing the
value of the first group criteria. there is one variable per
group criterion
 the list of documents in each group can optionally be
retrieved into the variable groups using the INTO
keyword

54. © 2013 triAGENS GmbH | 2013-06-06 54

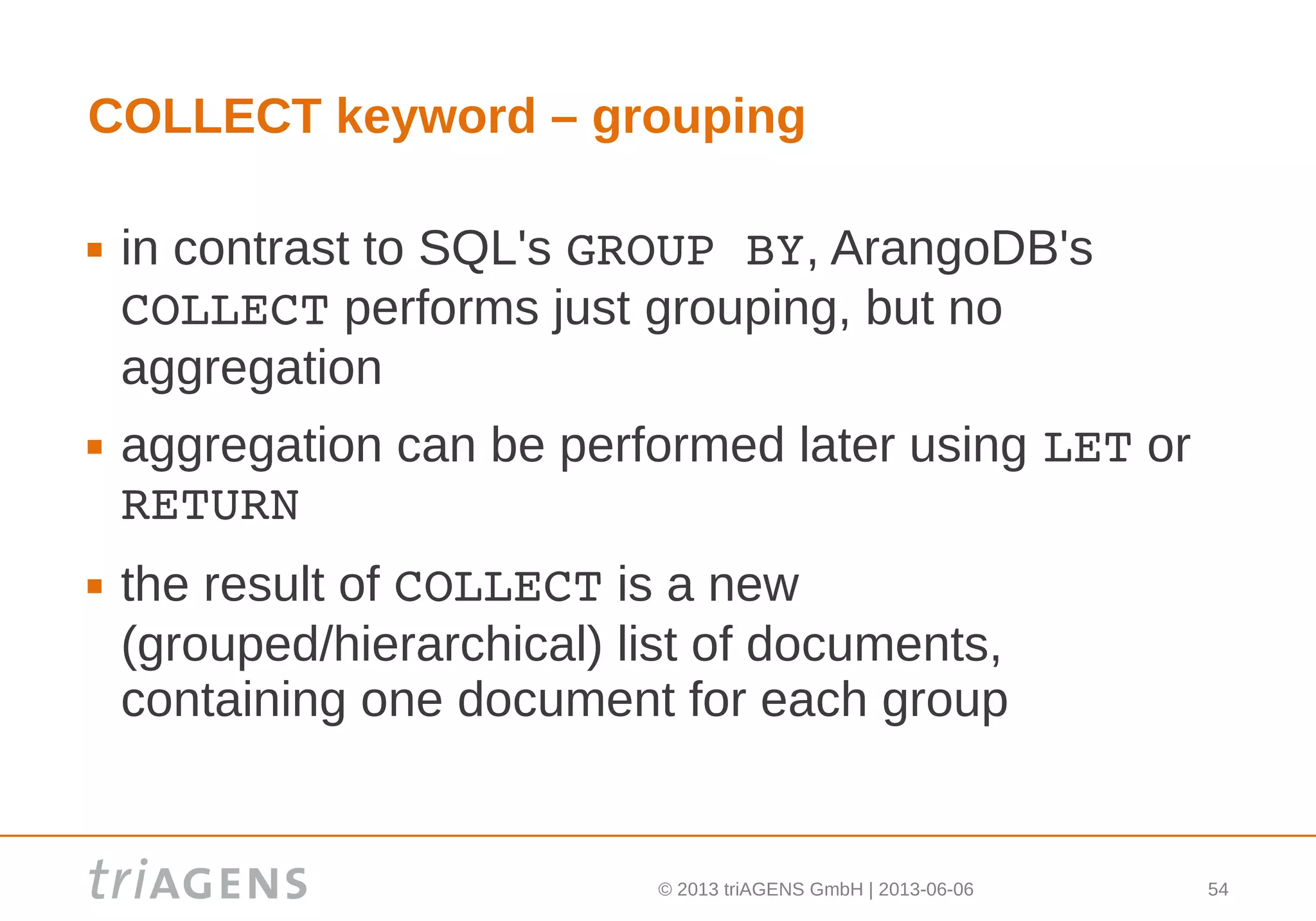

COLLECT keyword – grouping
 in contrast to SQL's GROUP BY, ArangoDB's
COLLECT performs just grouping, but no
aggregation
 aggregation can be performed later using LET or
RETURN
 the result of COLLECT is a new
(grouped/hierarchical) list of documents,
containing one document for each group

55. © 2013 triAGENS GmbH | 2013-06-06 55

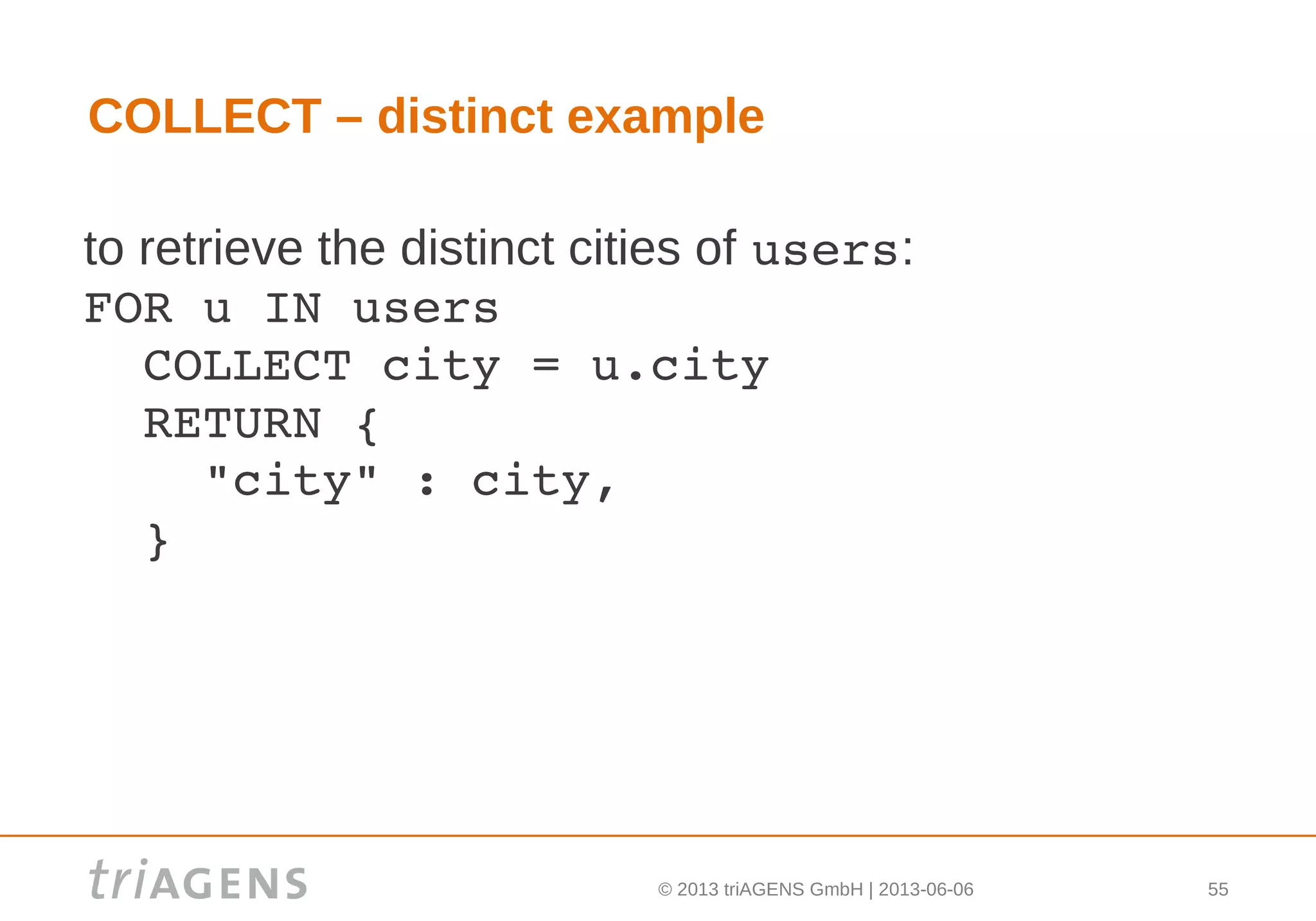

COLLECT – distinct example
to retrieve the distinct cities of users:
FOR u IN users
COLLECT city = u.city
RETURN {
"city" : city,
}

56. © 2013 triAGENS GmbH | 2013-06-06 56

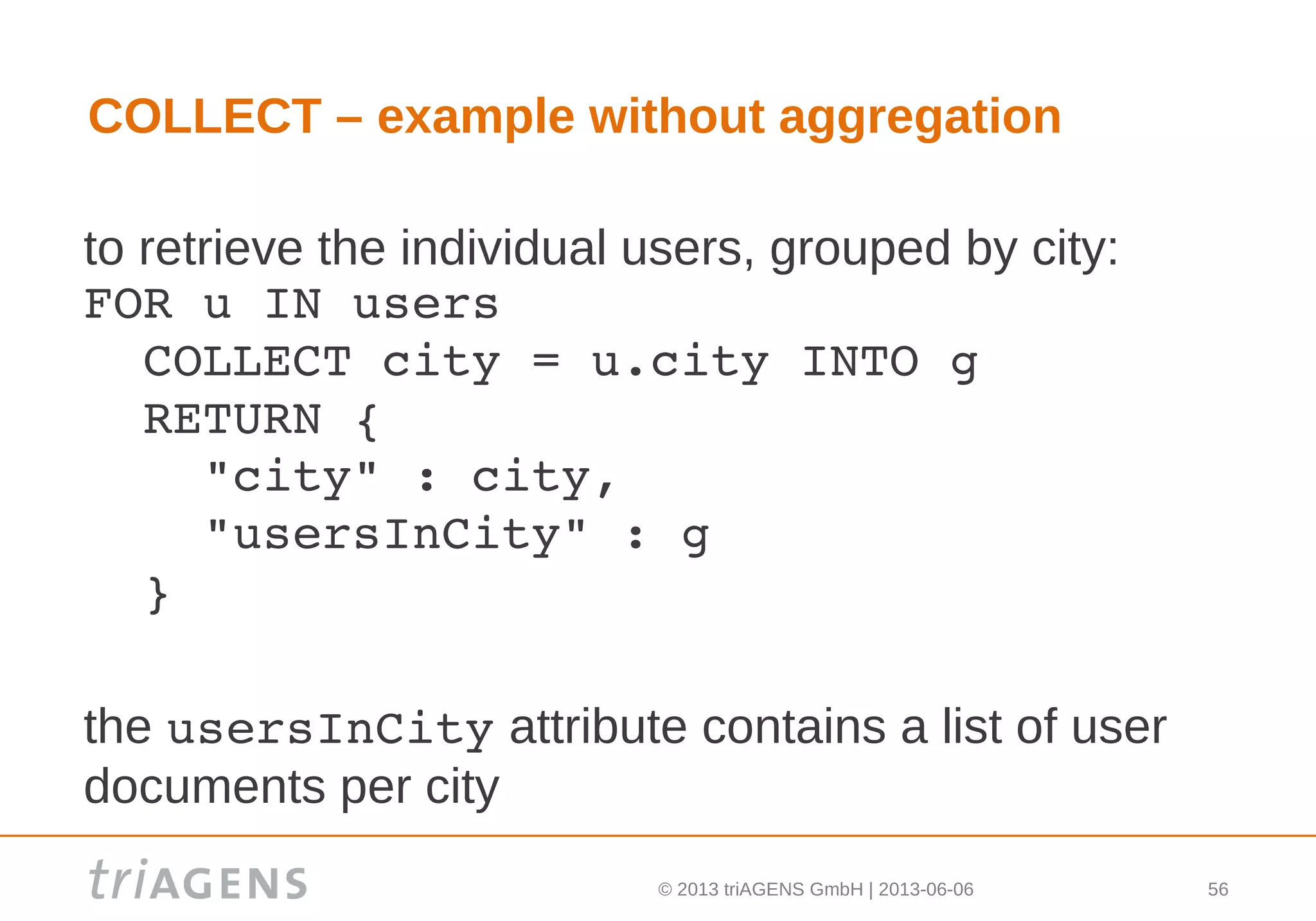

COLLECT – example without aggregation
to retrieve the individual users, grouped by city:
FOR u IN users
COLLECT city = u.city INTO g
RETURN {
"city" : city,
"usersInCity" : g
}
the usersInCity attribute contains a list of user
documents per city

57. © 2013 triAGENS GmbH | 2013-06-06 57
COLLECT – example with aggregation
to retrieve the cities with the number of users in
each:
FOR u IN users
COLLECT city = u.city INTO g
RETURN {
"city" : city,
"numUsersInCity": LENGTH(g)
}

58. © 2013 triAGENS GmbH | 2013-06-06 58

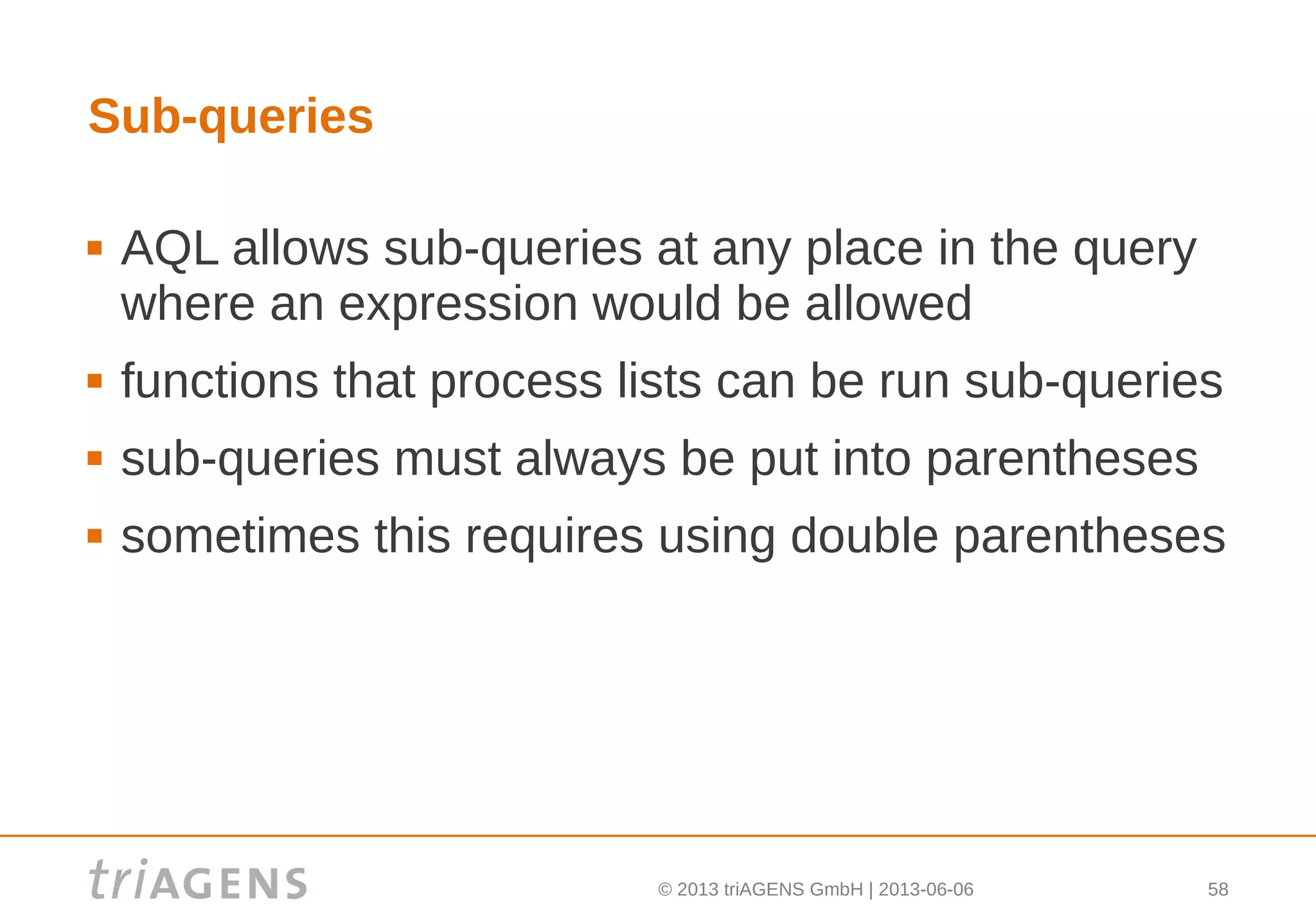

Sub-queries
 AQL allows sub-queries at any place in the query
where an expression would be allowed
 functions that process lists can be run sub-queries
 sub-queries must always be put into parentheses
 sometimes this requires using double parentheses

59. © 2013 triAGENS GmbH | 2013-06-06 59

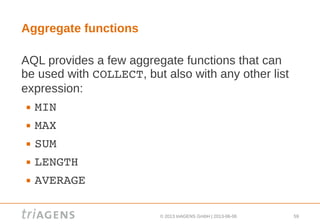

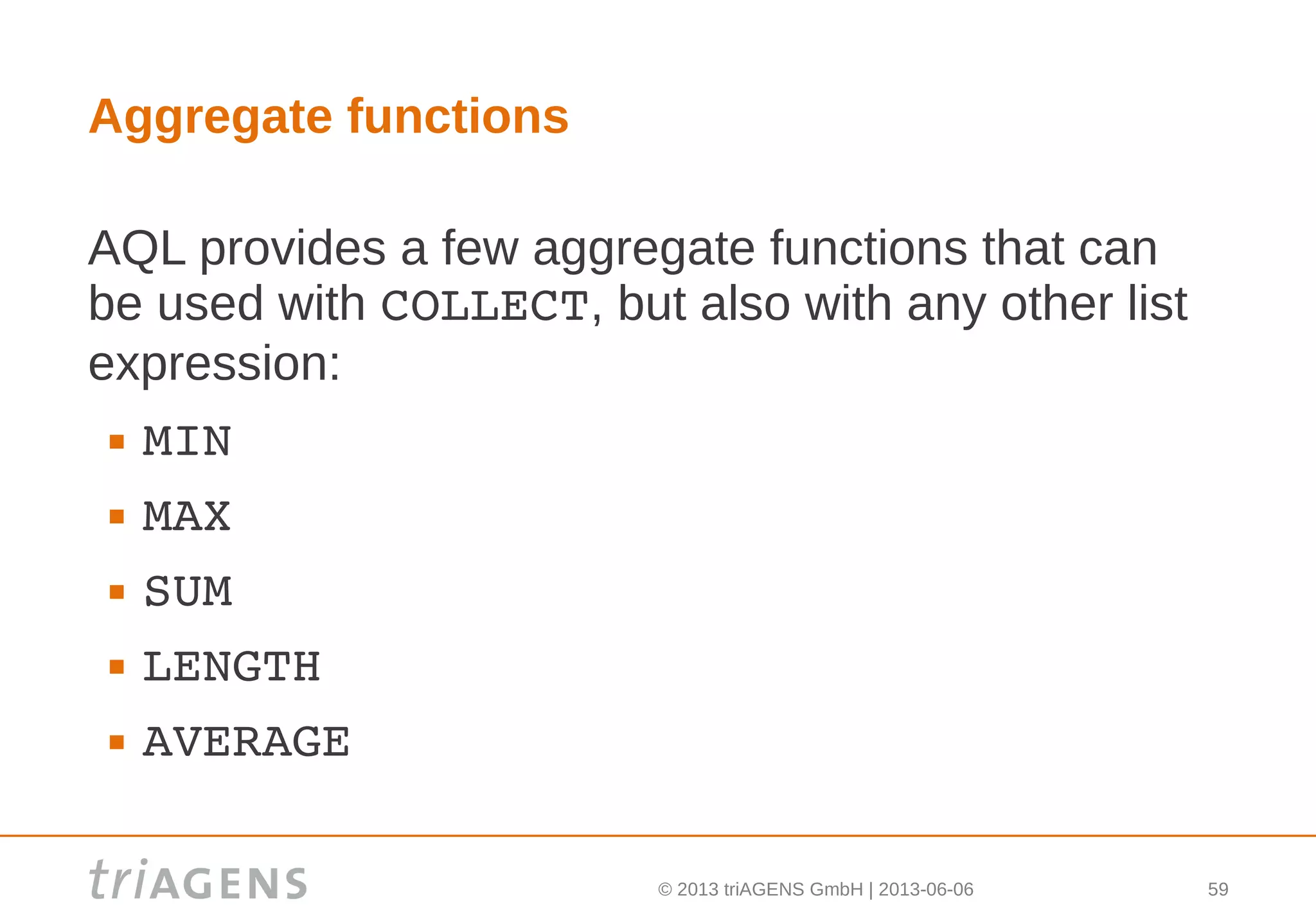

Aggregate functions
AQL provides a few aggregate functions that can
be used with COLLECT, but also with any other list
expression:
 MIN
 MAX
 SUM
 LENGTH
 AVERAGE

60. © 2013 triAGENS GmbH | 2013-06-06 60

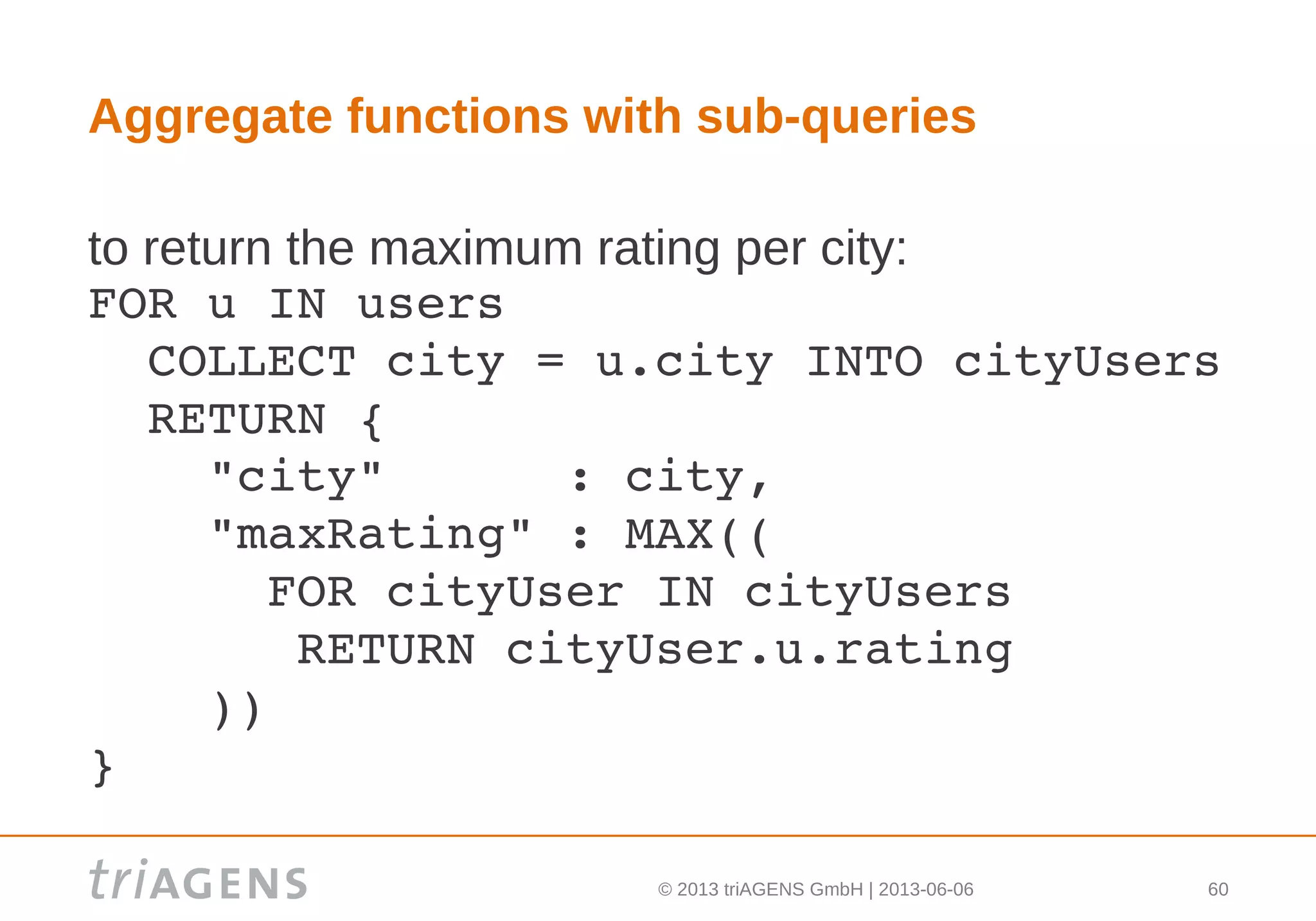

Aggregate functions with sub-queries
to return the maximum rating per city:
FOR u IN users
COLLECT city = u.city INTO cityUsers
RETURN {
"city" : city,
"maxRating" : MAX((
FOR cityUser IN cityUsers
RETURN cityUser.u.rating
))
}

61. © 2013 triAGENS GmbH | 2013-06-06 61

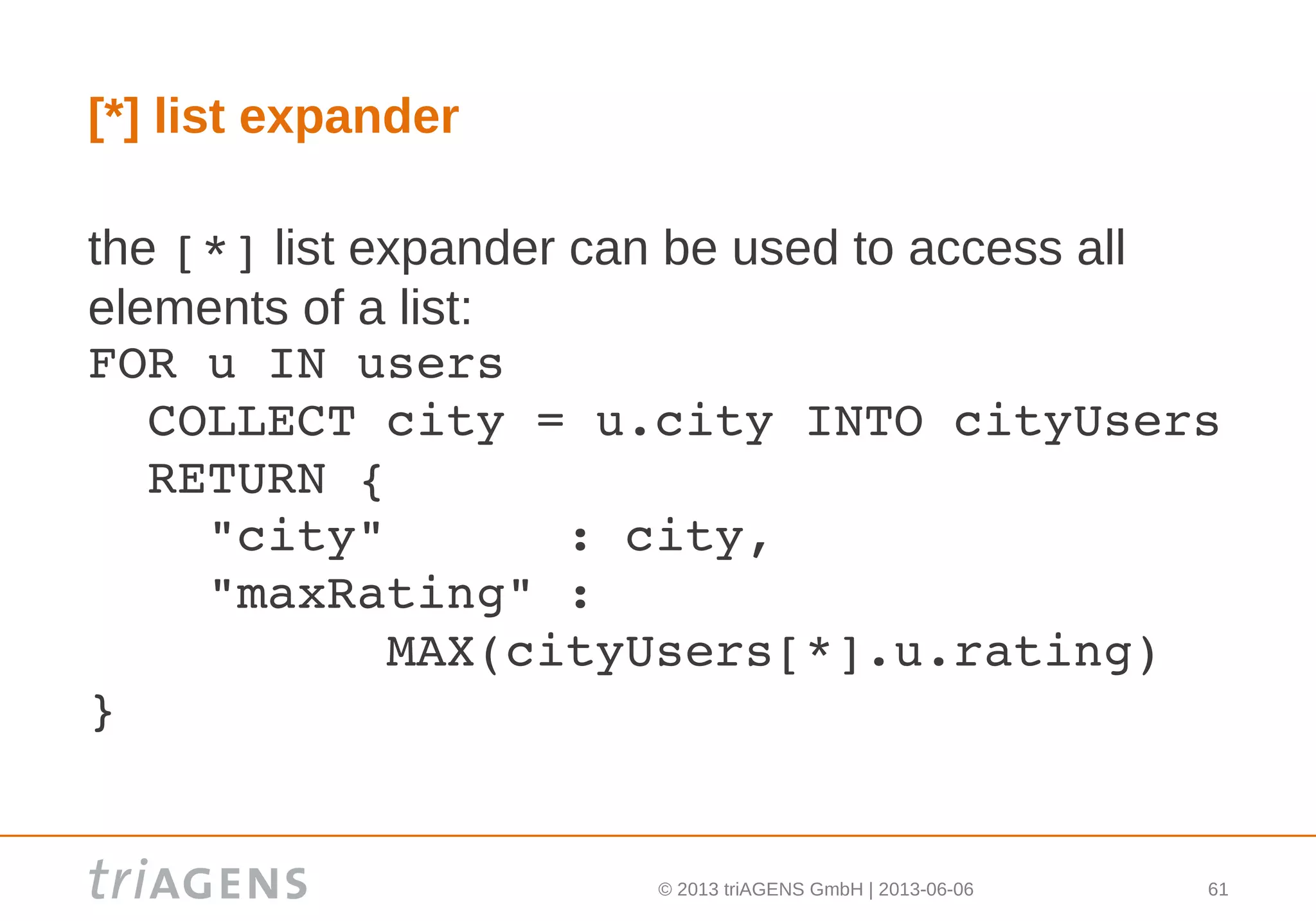

[*] list expander
the [*] list expander can be used to access all
elements of a list:
FOR u IN users
COLLECT city = u.city INTO cityUsers
RETURN {
"city" : city,
"maxRating" :
MAX(cityUsers[*].u.rating)
}

62. © 2013 triAGENS GmbH | 2013-06-06 62

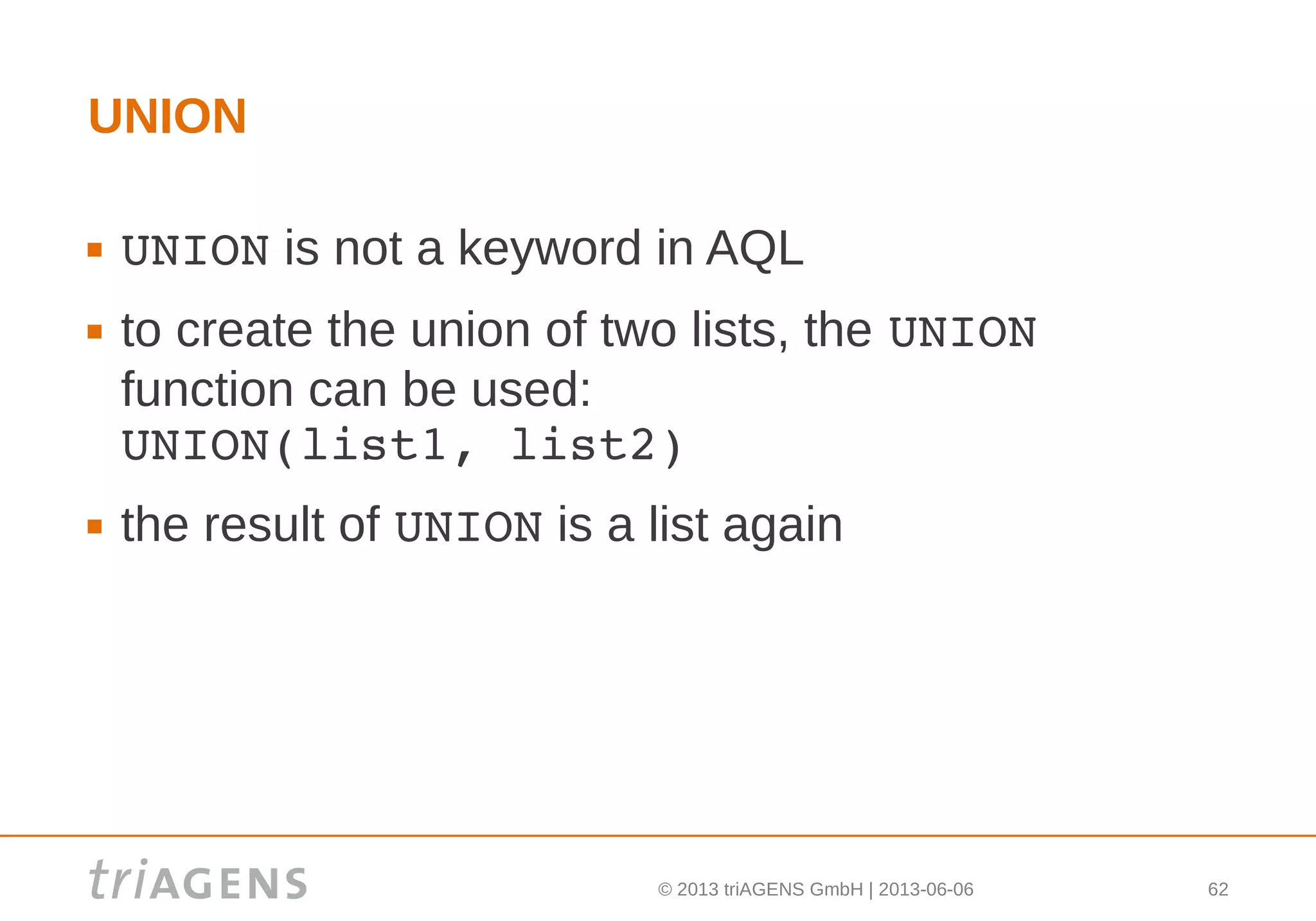

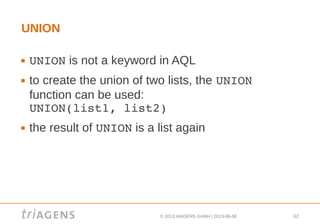

UNION
 UNION is not a keyword in AQL
 to create the union of two lists, the UNION
function can be used:
UNION(list1, list2)
 the result of UNION is a list again

63. © 2013 triAGENS GmbH | 2013-06-06 63

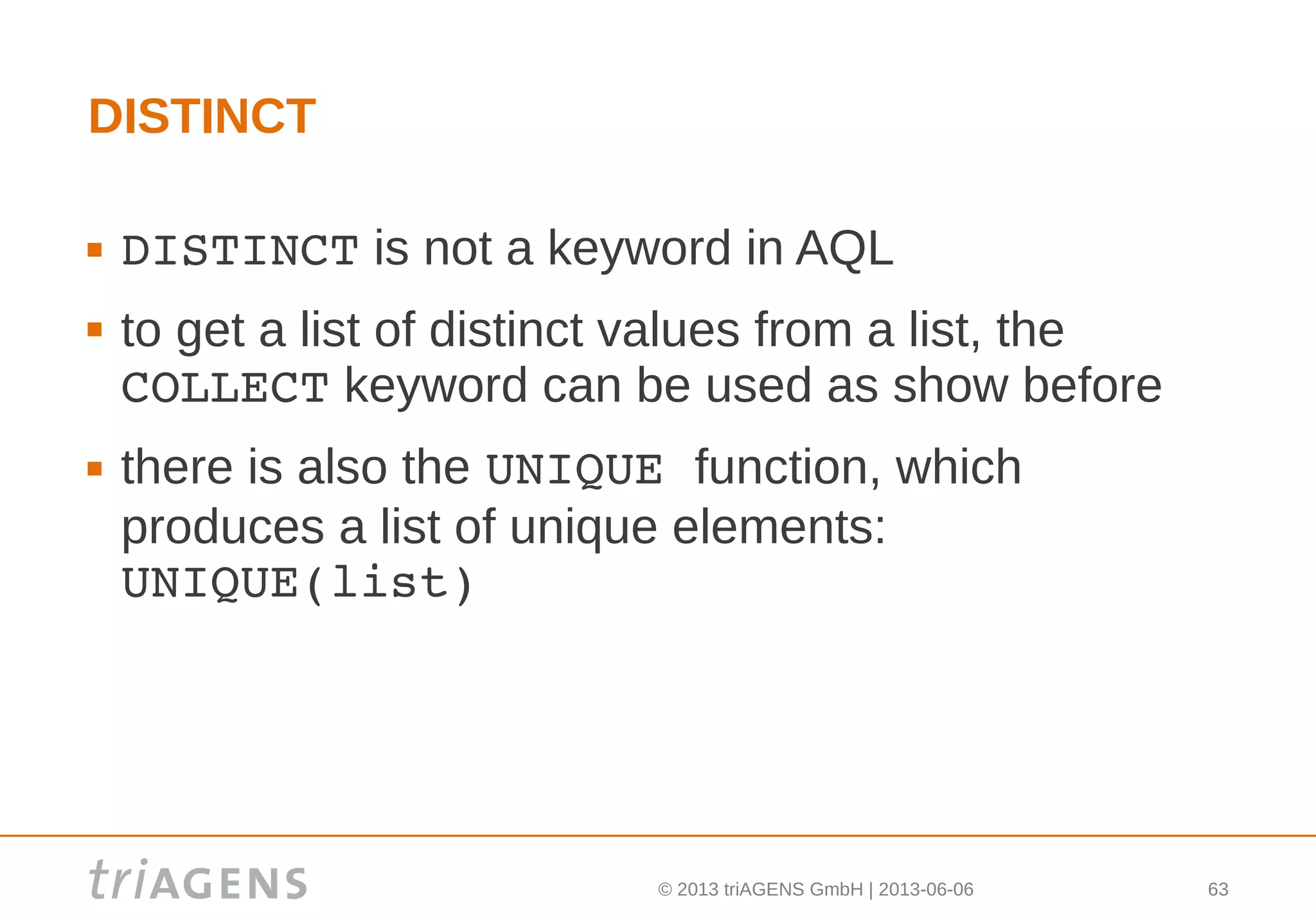

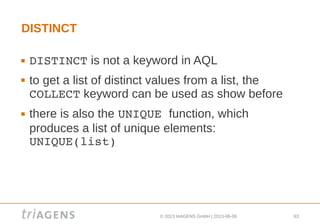

DISTINCT
 DISTINCT is not a keyword in AQL
 to get a list of distinct values from a list, the
COLLECT keyword can be used as show before
 there is also the UNIQUE function, which
produces a list of unique elements:
UNIQUE(list)

64. © 2013 triAGENS GmbH | 2013-06-06 64

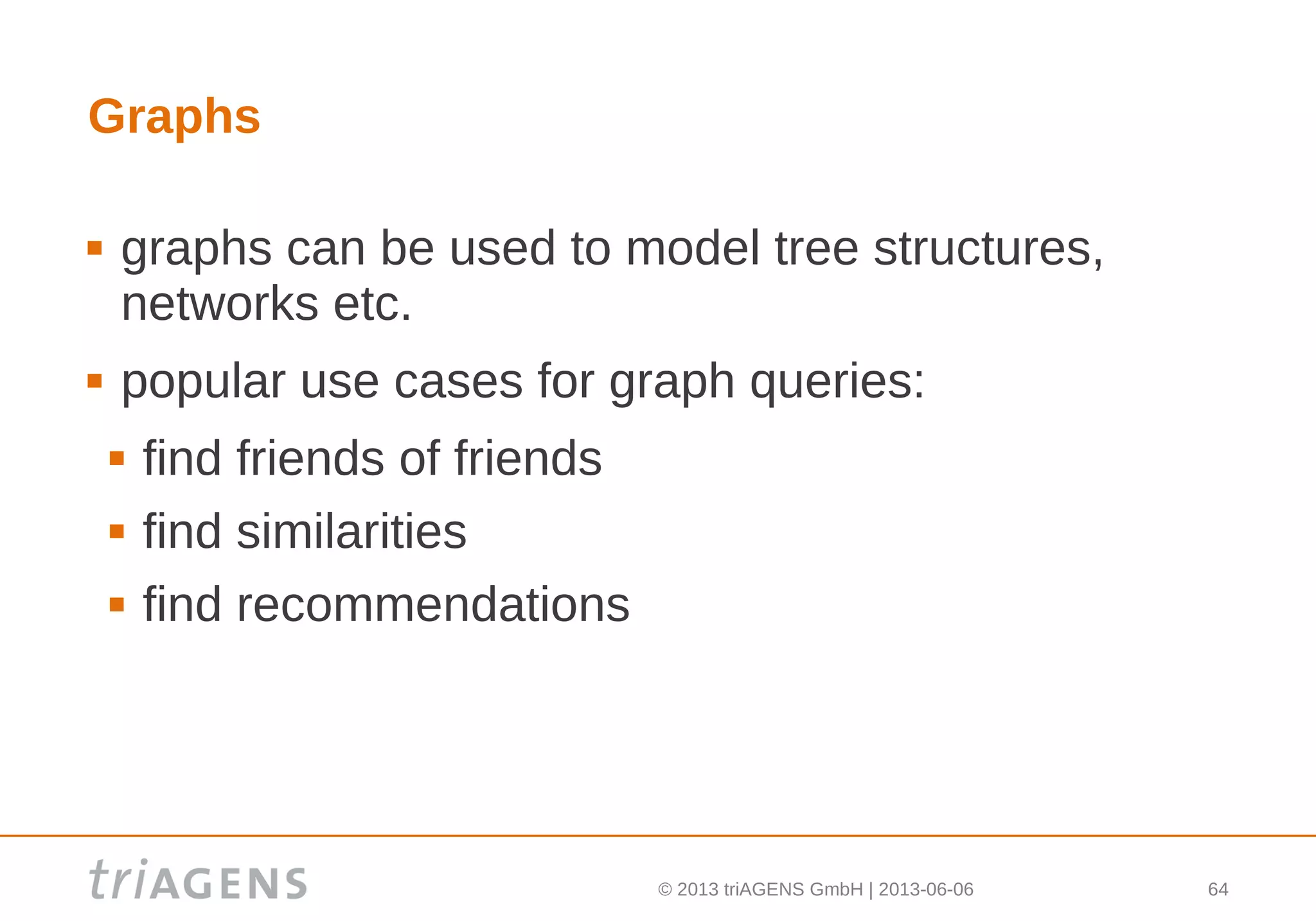

Graphs
 graphs can be used to model tree structures,
networks etc.
 popular use cases for graph queries:
 find friends of friends
 find similarities
 find recommendations

65. © 2013 triAGENS GmbH | 2013-06-06 65

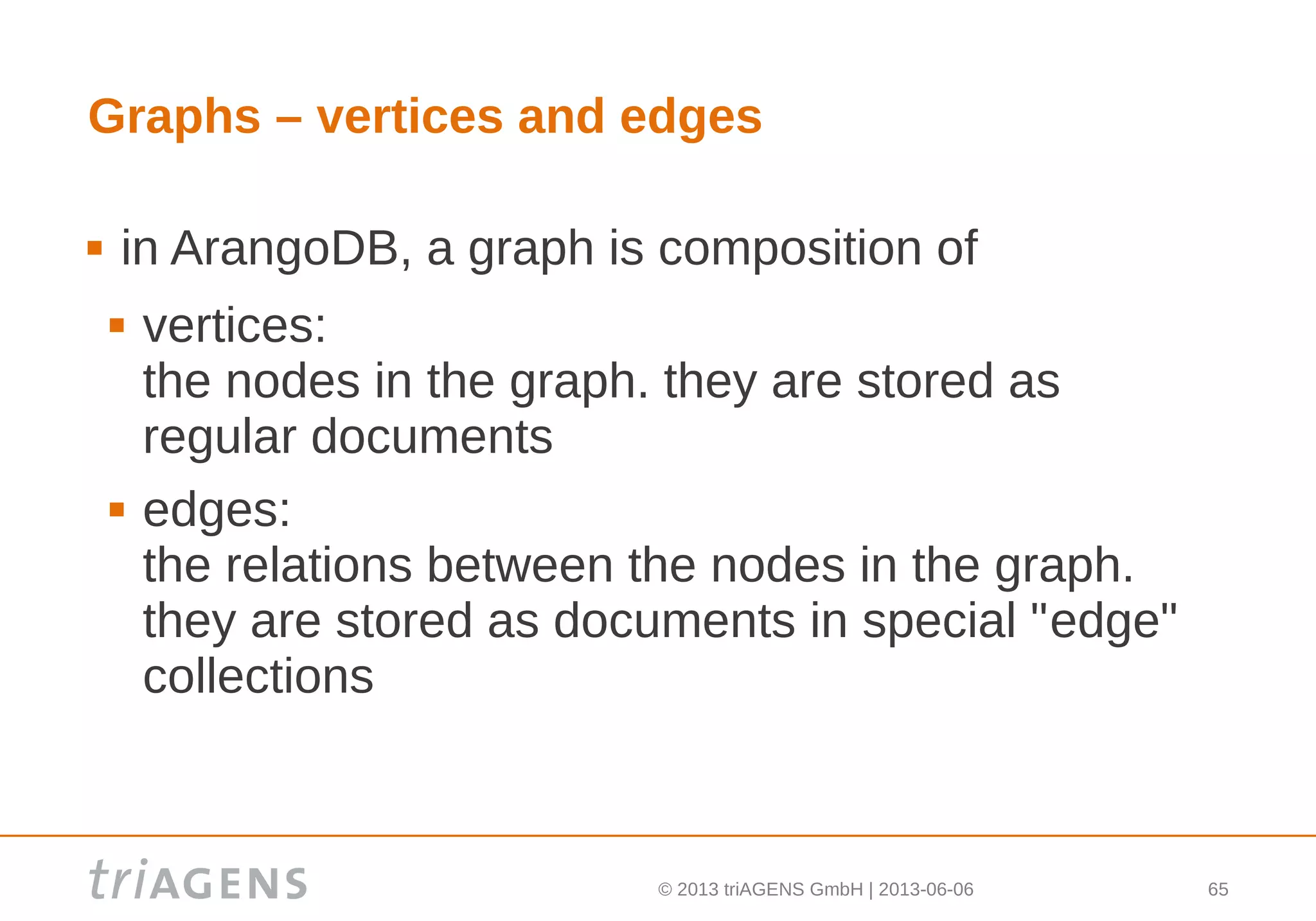

Graphs – vertices and edges
 in ArangoDB, a graph is composition of
 vertices:
the nodes in the graph. they are stored as
regular documents
 edges:
the relations between the nodes in the graph.
they are stored as documents in special "edge"
collections

66. © 2013 triAGENS GmbH | 2013-06-06 66

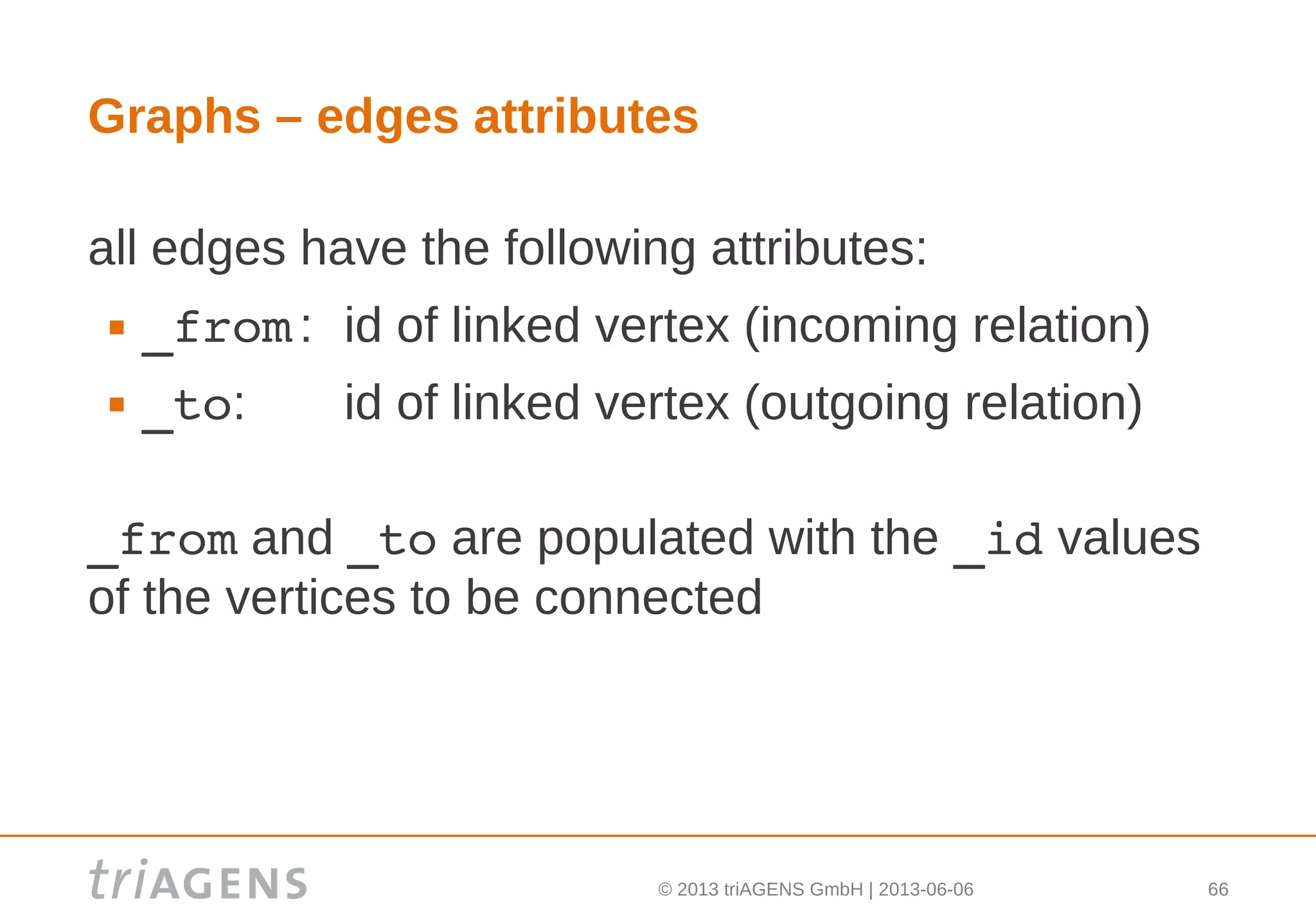

Graphs – edges attributes
all edges have the following attributes:
 _from: id of linked vertex (incoming relation)
 _to: id of linked vertex (outgoing relation)
_from and _to are populated with the _id values
of the vertices to be connected

67. © 2013 triAGENS GmbH | 2013-06-06 67

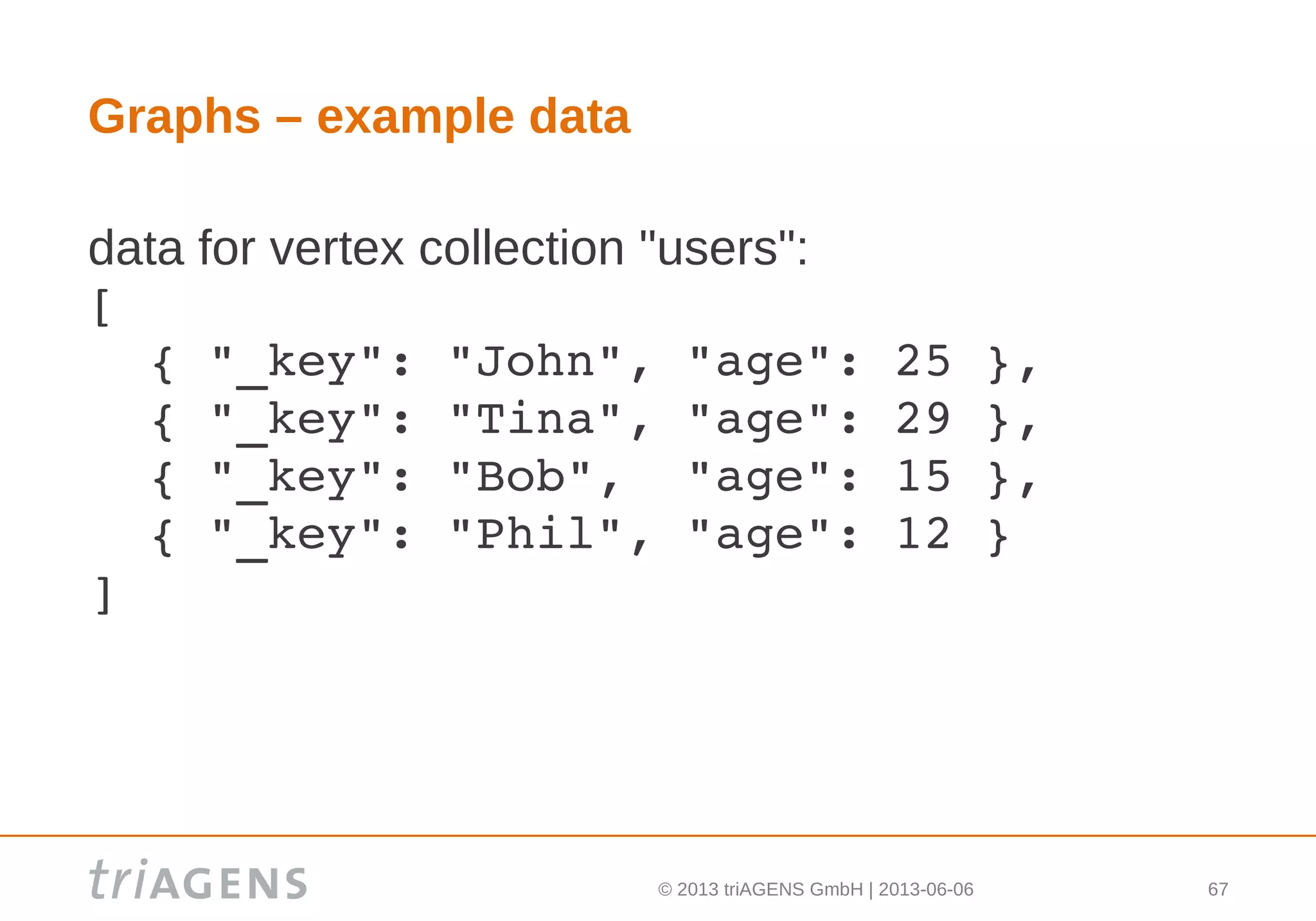

Graphs – example data
data for vertex collection "users":
[
{ "_key": "John", "age": 25 },
{ "_key": "Tina", "age": 29 },
{ "_key": "Bob", "age": 15 },
{ "_key": "Phil", "age": 12 }
]

68. © 2013 triAGENS GmbH | 2013-06-06 68

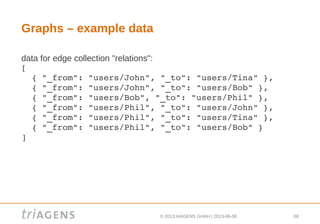

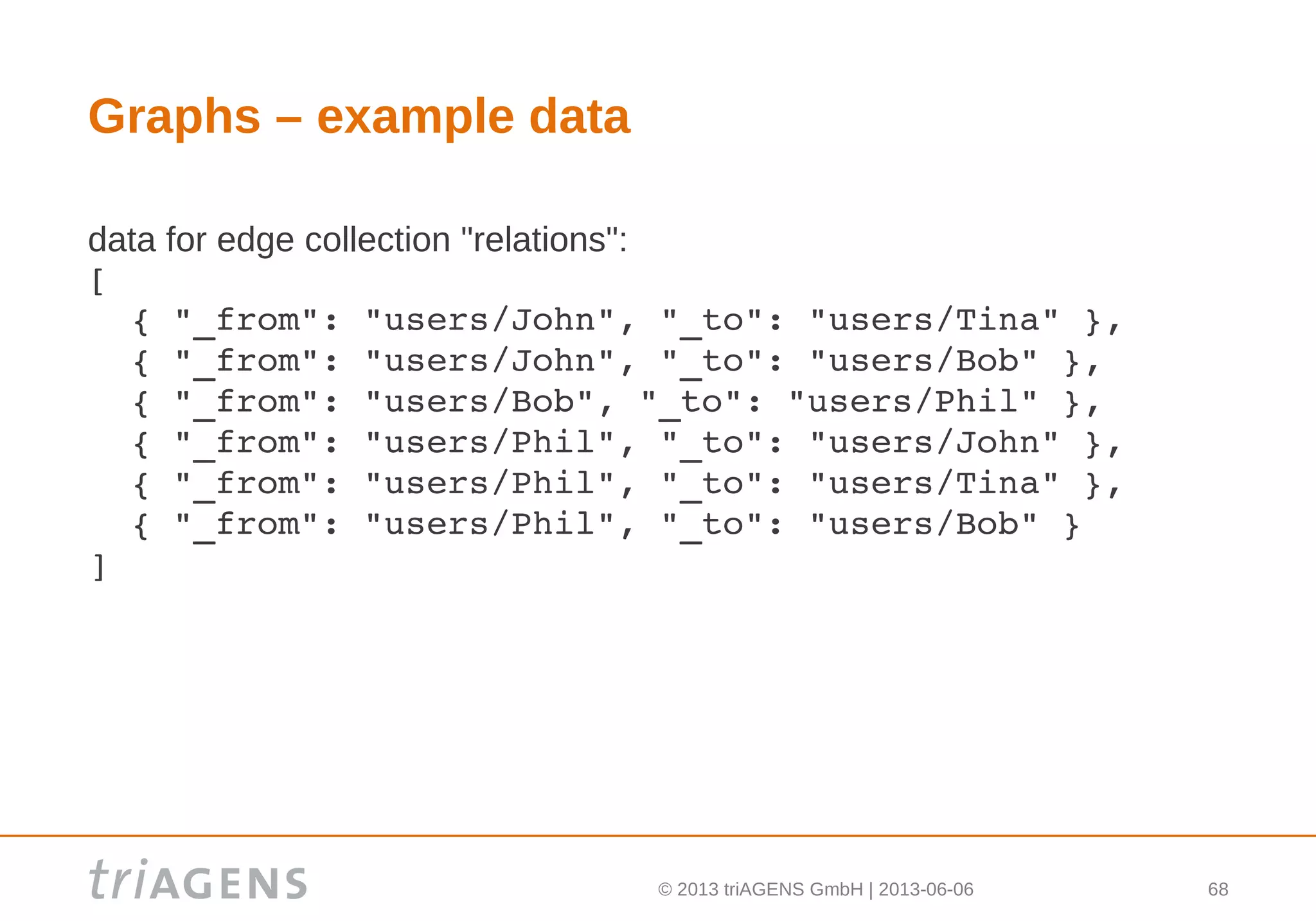

Graphs – example data
data for edge collection "relations":
[
{ "_from": "users/John", "_to": "users/Tina" },
{ "_from": "users/John", "_to": "users/Bob" },
{ "_from": "users/Bob", "_to": "users/Phil" },
{ "_from": "users/Phil", "_to": "users/John" },
{ "_from": "users/Phil", "_to": "users/Tina" },
{ "_from": "users/Phil", "_to": "users/Bob" }
]

69. © 2013 triAGENS GmbH | 2013-06-06 69

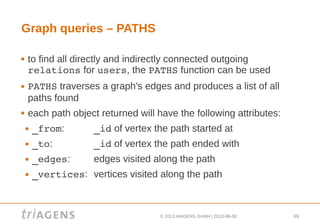

Graph queries – PATHS
 to find all directly and indirectly connected outgoing
relations for users, the PATHS function can be used
 PATHS traverses a graph's edges and produces a list of all
paths found
 each path object returned will have the following attributes:
 _from: _id of vertex the path started at
 _to: _id of vertex the path ended with
 _edges: edges visited along the path
 _vertices: vertices visited along the path

70. © 2013 triAGENS GmbH | 2013-06-06 70

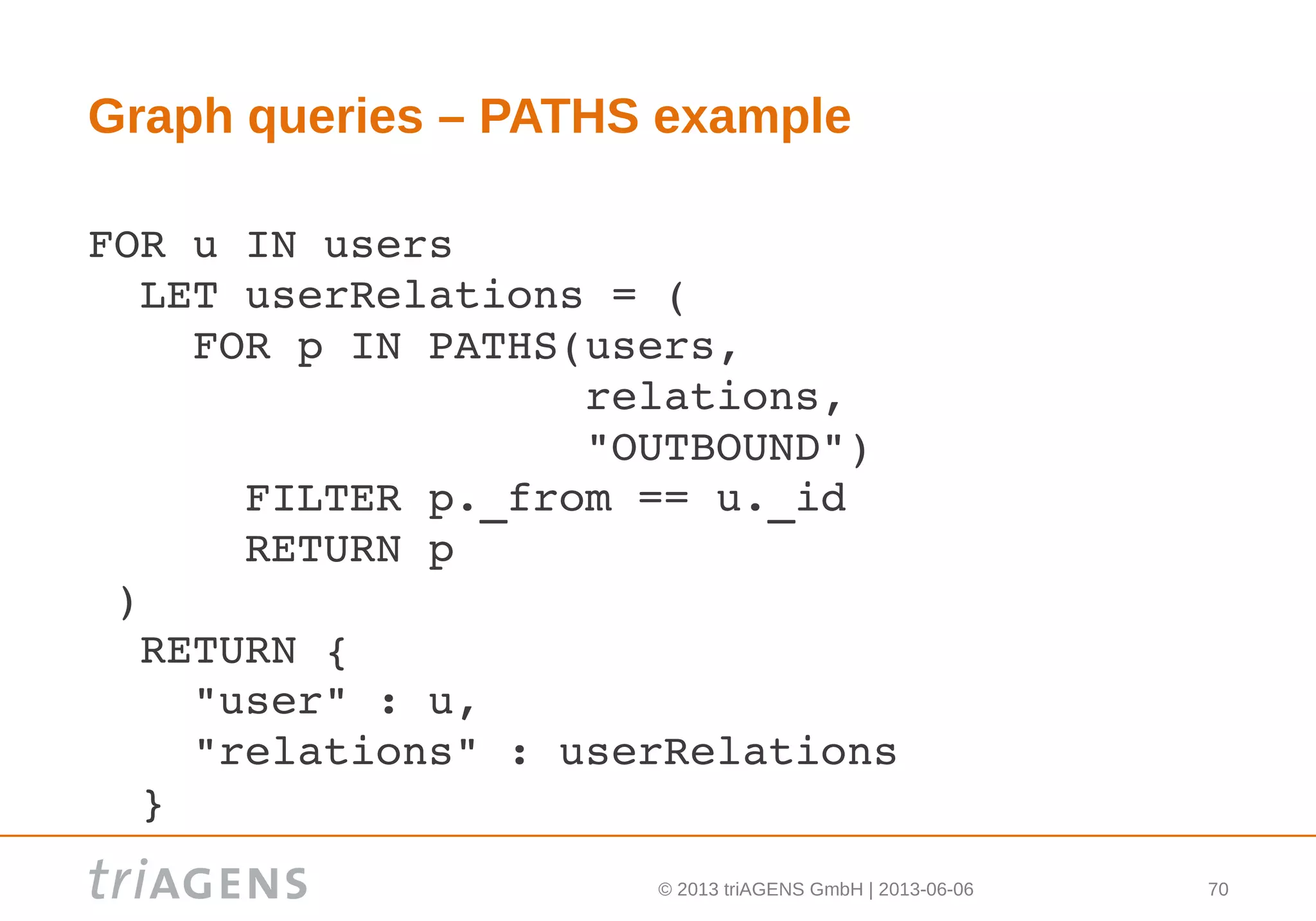

Graph queries – PATHS example
FOR u IN users
LET userRelations = (
FOR p IN PATHS(users,
relations,
"OUTBOUND")
FILTER p._from == u._id
RETURN p
)
RETURN {
"user" : u,
"relations" : userRelations
}

71. © 2013 triAGENS GmbH | 2013-06-06 71

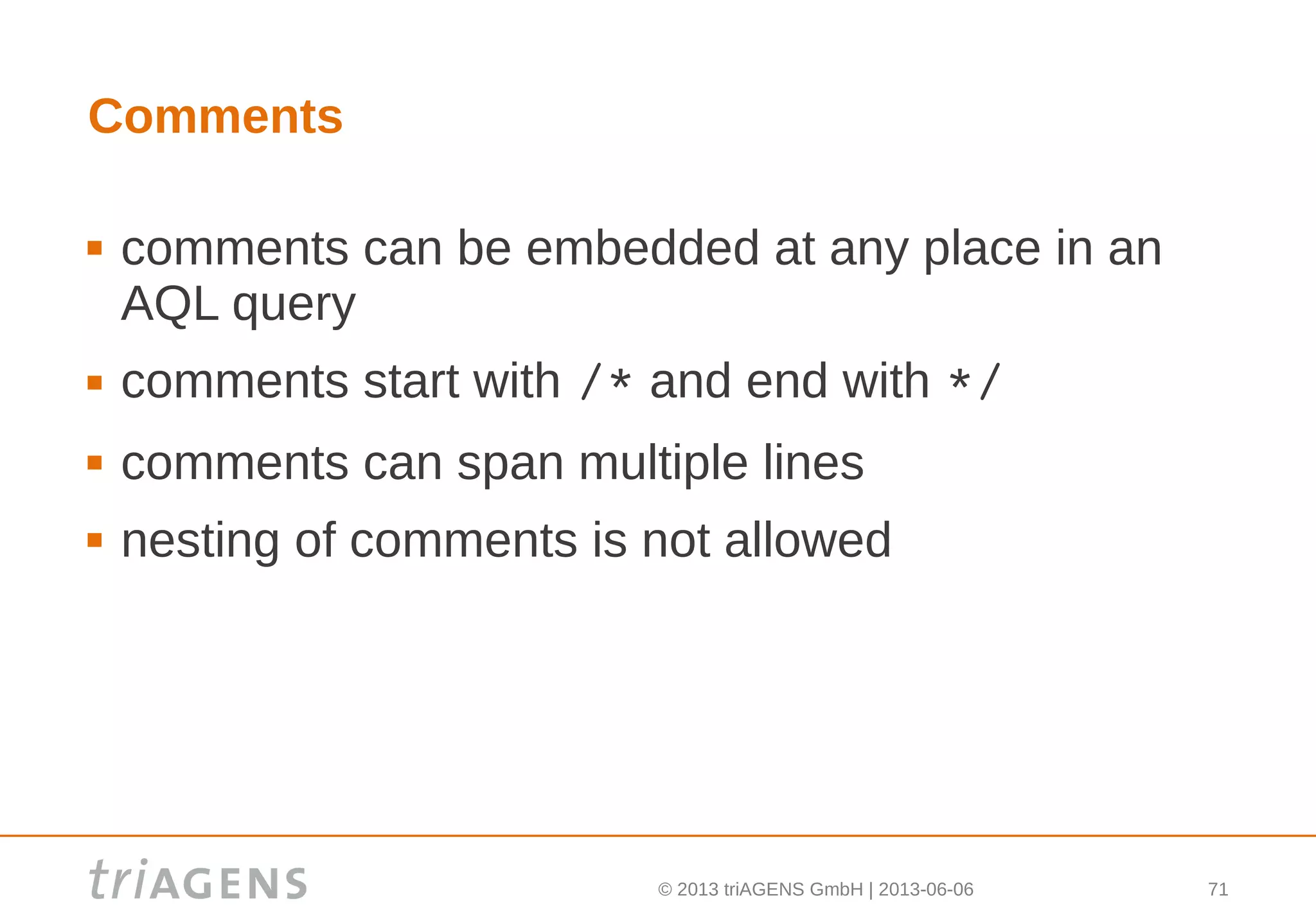

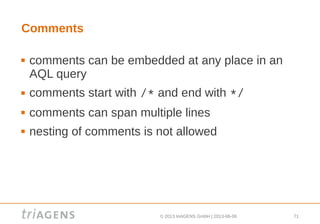

Comments
 comments can be embedded at any place in an
AQL query
 comments start with /* and end with */
 comments can span multiple lines
 nesting of comments is not allowed

72. © 2013 triAGENS GmbH | 2013-06-06 72
Attribute names
 attribute names can be used quoted or non-
quoted
 when used unquoted, the attribute names must
only consist of letters and digits
 to maximise compatibility with JSON, attribute
names should be quoted in AQL queries, too
 own attribute names should not start with an
underscore to avoid conflicts with ArangoDB's
system attributes

73. © 2013 triAGENS GmbH | 2013-06-06 73

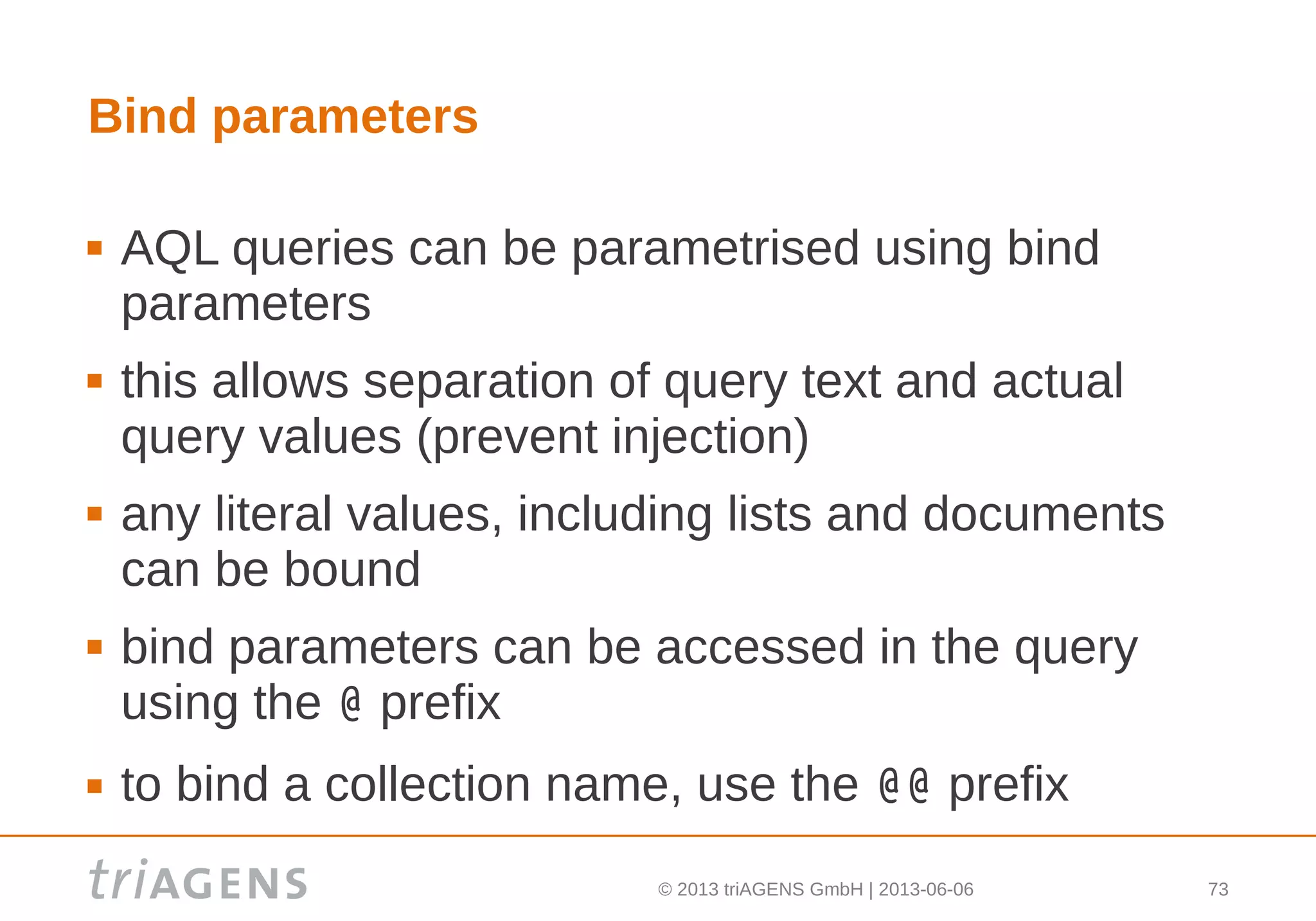

Bind parameters
 AQL queries can be parametrised using bind
parameters
 this allows separation of query text and actual
query values (prevent injection)
 any literal values, including lists and documents
can be bound
 bind parameters can be accessed in the query
using the @ prefix
 to bind a collection name, use the @@ prefix

74. © 2013 triAGENS GmbH | 2013-06-06 74

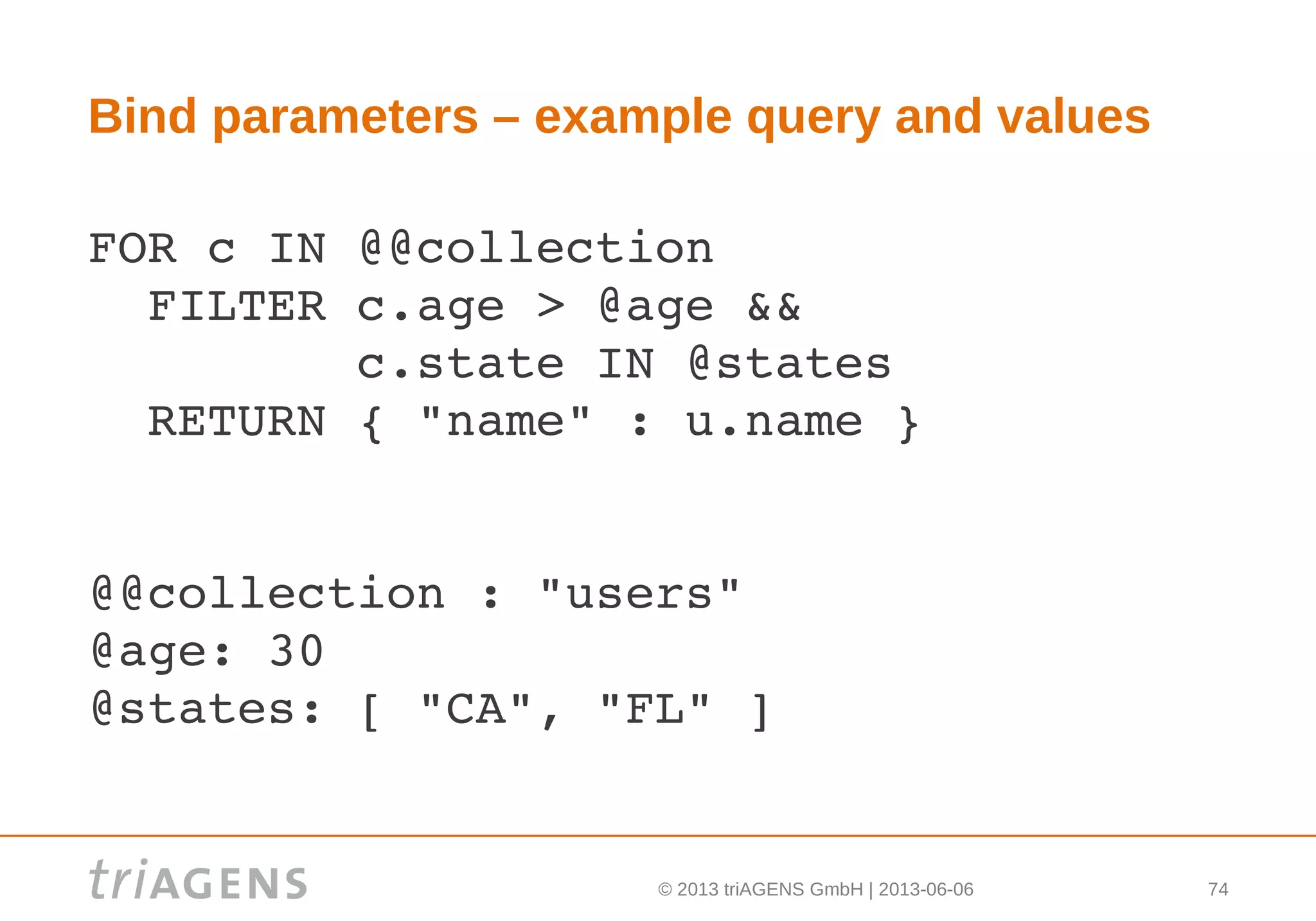

Bind parameters – example query and values
FOR c IN @@collection
FILTER c.age > @age &&
c.state IN @states
RETURN { "name" : u.name }
@@collection : "users"
@age: 30
@states: [ "CA", "FL" ]

75. © 2013 triAGENS GmbH | 2013-06-06 75

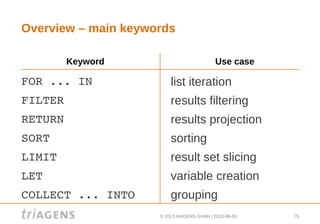

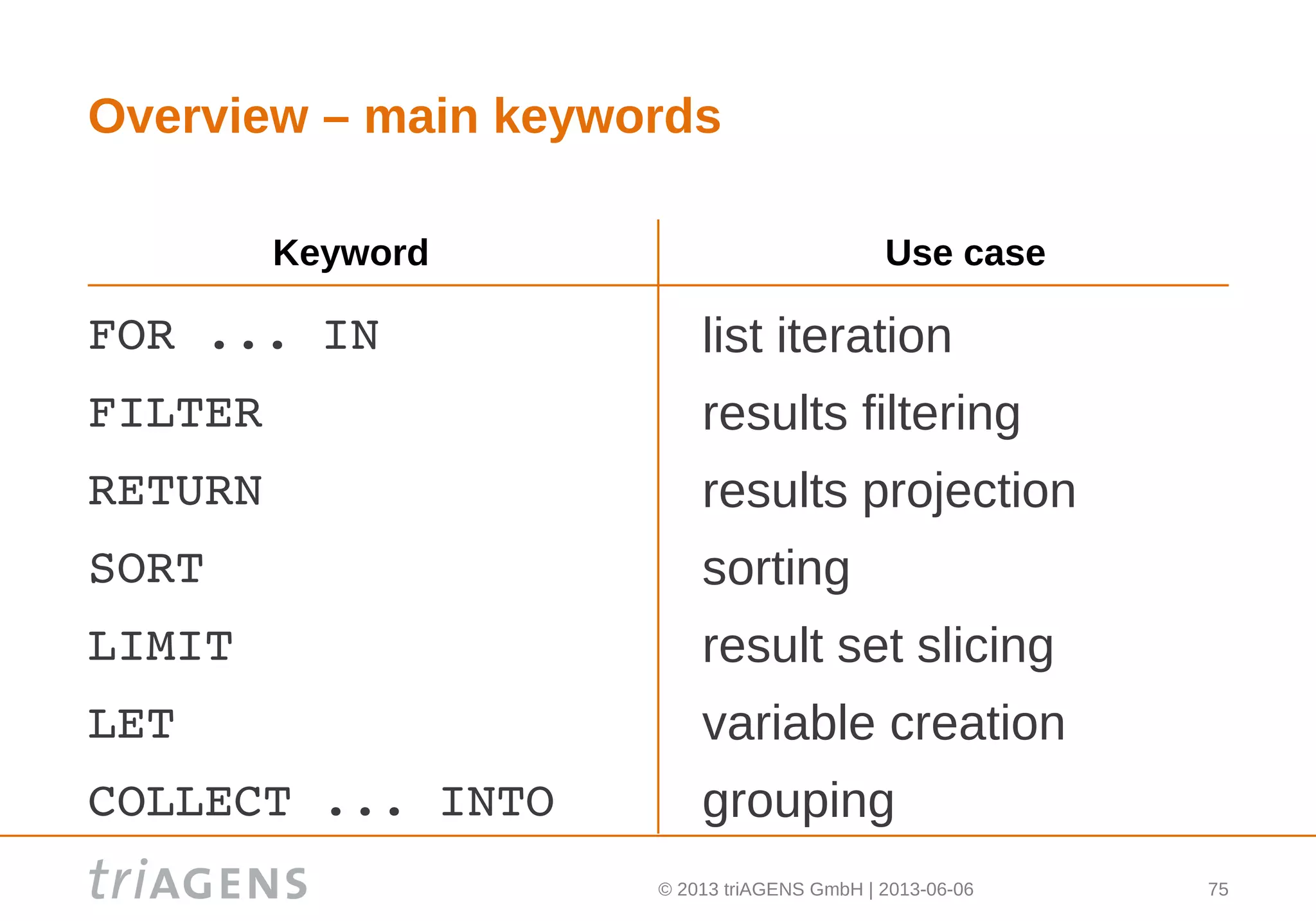

Overview – main keywords
FOR ... IN
FILTER
RETURN
SORT
LIMIT
LET
COLLECT ... INTO
list iteration
results filtering
results projection
sorting
result set slicing
variable creation
grouping
Keyword Use case

76. © 2013 triAGENS GmbH | 2013-06-05
Thank you!
Stay in touch:
Fork me on github
Google group: ArangoDB
Twitter: @steemann @arangodb
www.arangodb.org
Foxx – Javascript application
framework for ArangoDB
