Query Languages for Document Stores
The document discusses query languages for document stores. It notes that while document stores today provide different proprietary querying mechanisms, there is no standard query language like SQL for relational databases. It presents ArangoDB's AQL and JSONiq as two query languages designed for querying JSON documents that support features like joins and aggregation. The document encourages trying these languages and providing feedback to help advance querying in document stores.
More Related Content
Similar to Query Languages for Document Stores
Query Languages for Document Stores
- 1. © 2013 triAGENSGmbH | 2013-06-18 Query Languages for Document Stores 2013-06-18 Jan Steemann

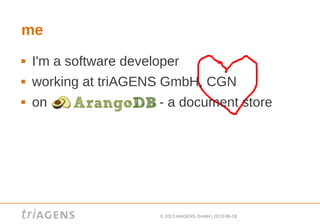

- 2. © 2013 triAGENSGmbH | 2013-06-18 me I'm a software developer working at triAGENS GmbH, CGN on - a document store

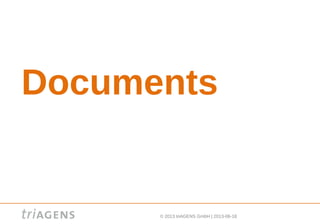

- 3. © 2013 triAGENSGmbH | 2013-06-18 Documents

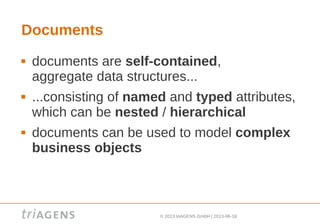

- 4. © 2013 triAGENSGmbH | 2013-06-18 Documents documents are self-contained, aggregate data structures... ...consisting of named and typed attributes, which can be nested / hierarchical documents can be used to model complex business objects

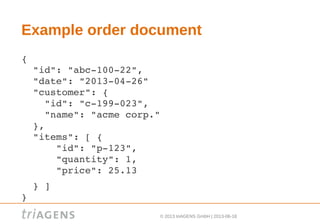

- 5. © 2013 triAGENSGmbH | 2013-06-18 Example order document { "id": "abc10022", "date": "20130426" "customer": { "id": "c199023", "name": "acme corp." }, "items": [ { "id": "p123", "quantity": 1, "price": 25.13 } ] }

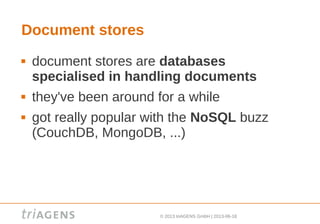

- 6. © 2013 triAGENSGmbH | 2013-06-18 Document stores document stores are databases specialised in handling documents they've been around for a while got really popular with the NoSQL buzz (CouchDB, MongoDB, ...)

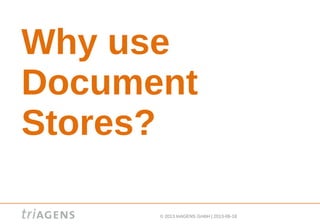

- 7. © 2013 triAGENSGmbH | 2013-06-18 Why use Document Stores?

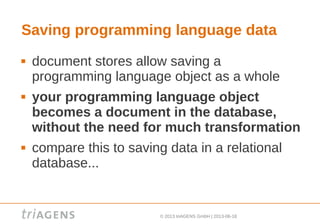

- 8. © 2013 triAGENSGmbH | 2013-06-18 Saving programming language data document stores allow saving a programming language object as a whole your programming language object becomes a document in the database, without the need for much transformation compare this to saving data in a relational database...

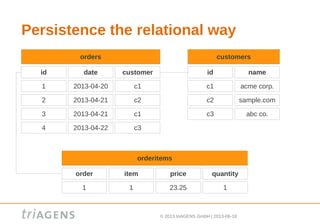

- 9. © 2013 triAGENSGmbH | 2013-06-18 Persistence the relational way orders id date 1 2013-04-20 2 2013-04-21 3 2013-04-21 4 2013-04-22 customers customer c1 c2 c1 c3 id name c1 c2 c3 acme corp. sample.com abc co. orderitems 1 order item 1 price quantity 23.25 1
- 10. © 2013 triAGENSGmbH | 2013-06-18 Benefits of document stores no impedance mismatch, no complex object-relational mapping, no normalisation requirements querying documents is often easier and faster than querying highly normalised relational data

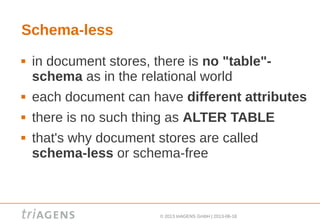

- 11. © 2013 triAGENSGmbH | 2013-06-18 Schema-less in document stores, there is no "table"- schema as in the relational world each document can have different attributes there is no such thing as ALTER TABLE that's why document stores are called schema-less or schema-free
- 12. © 2013 triAGENSGmbH | 2013-06-18 Querying Document Stores

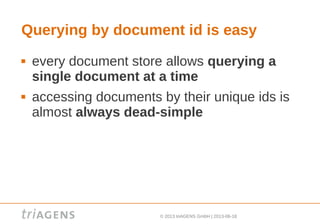

- 13. © 2013 triAGENSGmbH | 2013-06-18 Querying by document id is easy every document store allows querying a single document at a time accessing documents by their unique ids is almost always dead-simple

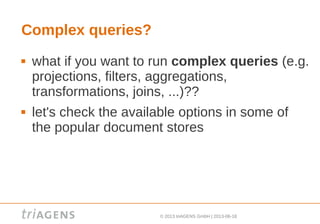

- 14. © 2013 triAGENSGmbH | 2013-06-18 Complex queries? what if you want to run complex queries (e.g. projections, filters, aggregations, transformations, joins, ...)?? let's check the available options in some of the popular document stores

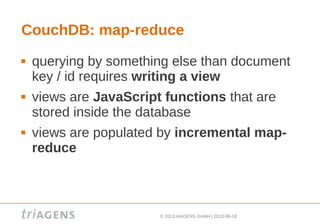

- 15. © 2013 triAGENSGmbH | 2013-06-18 CouchDB: map-reduce querying by something else than document key / id requires writing a view views are JavaScript functions that are stored inside the database views are populated by incremental map- reduce

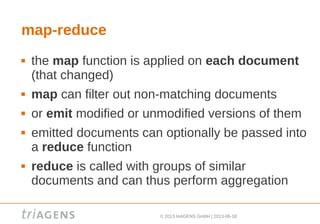

- 16. © 2013 triAGENSGmbH | 2013-06-18 map-reduce the map function is applied on each document (that changed) map can filter out non-matching documents or emit modified or unmodified versions of them emitted documents can optionally be passed into a reduce function reduce is called with groups of similar documents and can thus perform aggregation

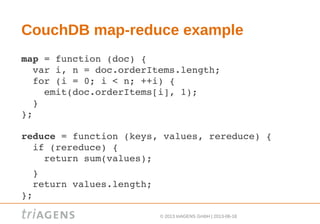

- 17. © 2013 triAGENSGmbH | 2013-06-18 CouchDB map-reduce example map = function (doc) { var i, n = doc.orderItems.length; for (i = 0; i < n; ++i) { emit(doc.orderItems[i], 1); } }; reduce = function (keys, values, rereduce) { if (rereduce) { return sum(values); } return values.length; };
- 18. © 2013 triAGENSGmbH | 2013-06-18 map-reduce map-reduce is generic and powerful provides a programming language need to create views for everything that is queried access to a single "table" at a time (no cross-"table" views) a bit clumsy for ad-hoc exploratory queries

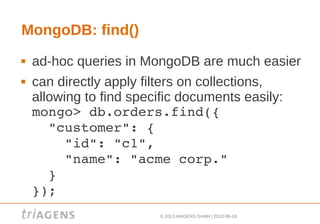

- 19. © 2013 triAGENSGmbH | 2013-06-18 MongoDB: find() ad-hoc queries in MongoDB are much easier can directly apply filters on collections, allowing to find specific documents easily: mongo> db.orders.find({ "customer": { "id": "c1", "name": "acme corp." } });

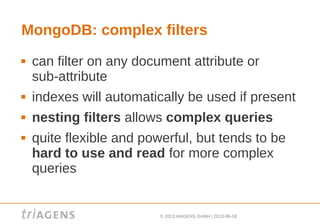

- 20. © 2013 triAGENSGmbH | 2013-06-18 MongoDB: complex filters can filter on any document attribute or sub-attribute indexes will automatically be used if present nesting filters allows complex queries quite flexible and powerful, but tends to be hard to use and read for more complex queries

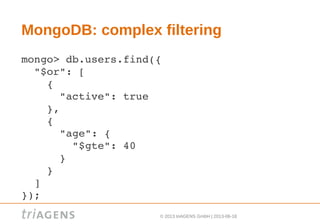

- 21. © 2013 triAGENSGmbH | 2013-06-18 MongoDB: complex filtering mongo> db.users.find({ "$or": [ { "active": true }, { "age": { "$gte": 40 } } ] });

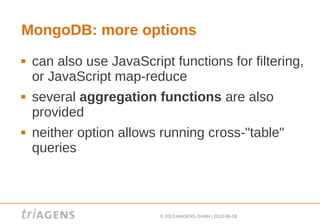

- 22. © 2013 triAGENSGmbH | 2013-06-18 MongoDB: more options can also use JavaScript functions for filtering, or JavaScript map-reduce several aggregation functions are also provided neither option allows running cross-"table" queries
- 23. © 2013 triAGENSGmbH | 2013-06-18 Why not use a Query Language?
- 24. © 2013 triAGENSGmbH | 2013-06-18 Query languages a good query language should allow writing both simple and complex queries, without having to switch the methodology provide the required features for filtering, aggregation, joining etc. hide the database internals

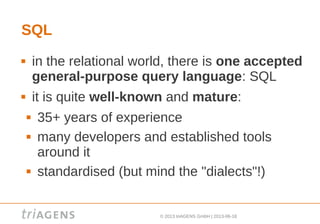

- 25. © 2013 triAGENSGmbH | 2013-06-18 SQL in the relational world, there is one accepted general-purpose query language: SQL it is quite well-known and mature: 35+ years of experience many developers and established tools around it standardised (but mind the "dialects"!)
- 26. © 2013 triAGENSGmbH | 2013-06-18 SQL in document stores? SQL is good at handling relational data not good at handling multi-valued or hierchical attributes, which are common in documents (too) powerful: SQL provides features many document stores intentionally lack (e.g. joins, transactions) SQL has not been adopted by document stores yet

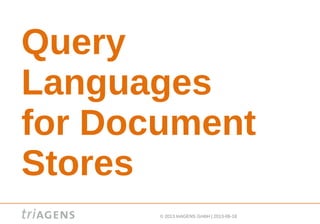

- 27. © 2013 triAGENSGmbH | 2013-06-18 Query Languages for Document Stores

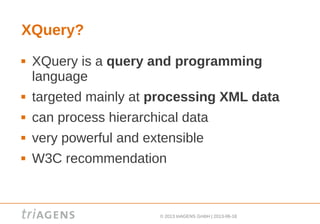

- 28. © 2013 triAGENSGmbH | 2013-06-18 XQuery? XQuery is a query and programming language targeted mainly at processing XML data can process hierarchical data very powerful and extensible W3C recommendation

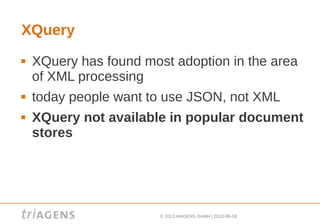

- 29. © 2013 triAGENSGmbH | 2013-06-18 XQuery XQuery has found most adoption in the area of XML processing today people want to use JSON, not XML XQuery not available in popular document stores

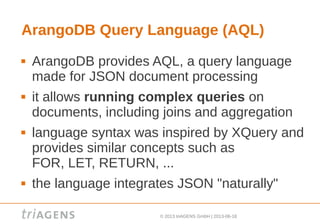

- 30. © 2013 triAGENSGmbH | 2013-06-18 ArangoDB Query Language (AQL) ArangoDB provides AQL, a query language made for JSON document processing it allows running complex queries on documents, including joins and aggregation language syntax was inspired by XQuery and provides similar concepts such as FOR, LET, RETURN, ... the language integrates JSON "naturally"
- 31. © 2013 triAGENSGmbH | 2013-06-18 AQL example FOR order IN orders FILTER order.status == "processed" LET itemsValue = SUM(( FOR item IN order.items FILTER item.status == "confirmed" RETURN item.price * item.quantity )) FILTER itemsValue >= 500 RETURN { "items" : order.items, "itemsValue" : itemsValue, "itemsCount" : LENGTH(order.items) }
- 32. © 2013 triAGENSGmbH | 2013-06-18 AQL: some features queries can combine data from multiple "tables" this allows joins using any document attributes or sub-attributes indexes will be used if present

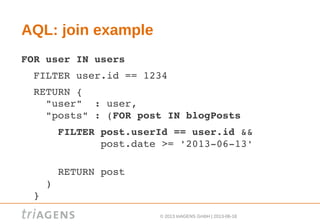

- 33. © 2013 triAGENSGmbH | 2013-06-18 AQL: join example FOR user IN users FILTER user.id == 1234 RETURN { "user" : user, "posts" : (FOR post IN blogPosts FILTER post.userId == user.id && post.date >= '20130613' RETURN post ) }

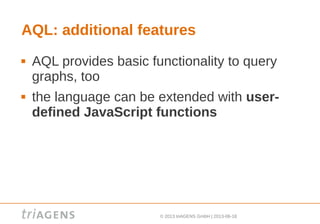

- 34. © 2013 triAGENSGmbH | 2013-06-18 AQL: additional features AQL provides basic functionality to query graphs, too the language can be extended with user- defined JavaScript functions

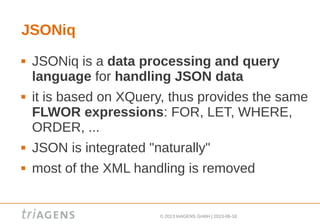

- 35. © 2013 triAGENSGmbH | 2013-06-18 JSONiq JSONiq is a data processing and query language for handling JSON data it is based on XQuery, thus provides the same FLWOR expressions: FOR, LET, WHERE, ORDER, ... JSON is integrated "naturally" most of the XML handling is removed
- 36. © 2013 triAGENSGmbH | 2013-06-18 JSONiq: example for $order in collection("orders") where $order.customer.id eq "abc123" return { customer : $order.customer, items : $order.items }

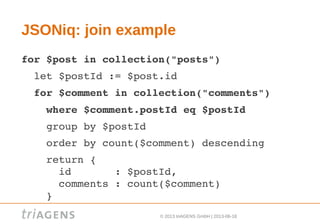

- 37. © 2013 triAGENSGmbH | 2013-06-18 JSONiq: join example for $post in collection("posts") let $postId := $post.id for $comment in collection("comments") where $comment.postId eq $postId group by $postId order by count($comment) descending return { id : $postId, comments : count($comment) }
- 38. © 2013 triAGENSGmbH | 2013-06-18 JSONiq JSONiq is a generic, database-agnostic language it can be extended with user-defined XQuery functions JSONiq is currently not implemented inside any document database...

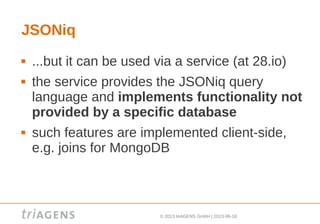

- 39. © 2013 triAGENSGmbH | 2013-06-18 JSONiq ...but it can be used via a service (at 28.io) the service provides the JSONiq query language and implements functionality not provided by a specific database such features are implemented client-side, e.g. joins for MongoDB

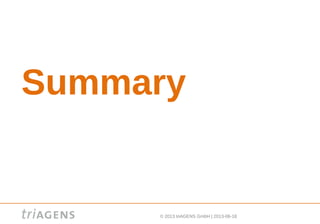

- 40. © 2013 triAGENSGmbH | 2013-06-18 Summary

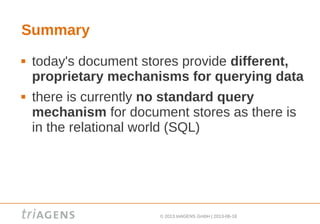

- 41. © 2013 triAGENSGmbH | 2013-06-18 Summary today's document stores provide different, proprietary mechanisms for querying data there is currently no standard query mechanism for document stores as there is in the relational world (SQL)

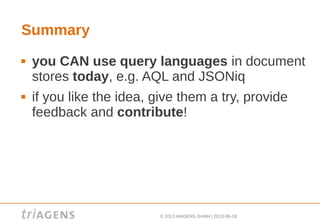

- 42. © 2013 triAGENSGmbH | 2013-06-18 Summary you CAN use query languages in document stores today, e.g. AQL and JSONiq if you like the idea, give them a try, provide feedback and contribute!
