This document describes the design of a vision-based autonomous mobile robot. It includes: - The goal of building a low-cost, lightweight robot that can navigate autonomously using computer vision to avoid obstacles. - An overview of the robot's components, which include a Raspberry Pi computer, Arduino microcontroller, webcam, motors, and battery. - Descriptions of optical flow and how it will be used for motion estimation, obstacle avoidance, and navigation. The robot will track features, compute optical flow from video frames, and use this to steer safely. - Details on communicating steering signals from the Raspberry Pi to the Arduino controller over a serial TTY connection.

2. To build a vision based autonomous mobile robot
that can navigate to a desired destination avoiding
obstacle on its path
Goal/Objective
2

3. Features of our Robot
 Low cost
 Light weight
 Low power consuming
 Vision based
 Autonomous navigation capability
 Equipped with a single onboard computer
Raspberry Pi for its computation and Arduino Uno
to drive the motors of our robot
 Two wheeled robot platform
 Comparatively small in size
3

4. Figure 1: Design of our Robot Platform
Our Designed Robot Platform
(Credit: Rezwan-Al-Islam Khan)
4
1
2
3
4
1
2
3
4
1. Webcam
2. Raspberry Pi
3. Arduino Uno and Adafruit Motor Shield
4. Battery Pack

5. What is Optical Flow
 Optical flow is the relation of the motion field: the 2D projection of the
physical movement of points relative to the observer to 2D displacement of
pixel patches on the image plane.
 Common assumption:
The appearance of the image patches do not change (brightness constancy)
5
( , ) ( , 1)i i iI P t I P v t  

Figure 2: Optical Flow Illustration

6. My Optical Flow program
6
Figure 3: Car in motion (Derivation of optical flow from sequence of frames)

7. Optical Flow and Motion
 We are interested in finding the movement of scene
objects from time-varying images (videos)
 Lots of uses:
 Motion detection
 Track objects
 Correct for camera jitter (stabilization)
 Align images (mosaics)
 3D shape reconstruction
 Special effects
 Games: Optical Flow Game
 User Interfaces: Optical Flow Tracking Test 1
 Video compression
7

8. Definition of optical flow
 OPTICAL FLOW = apparent motion of
brightness patterns
 Ideally, the optical flow is the projection of the
three-dimensional velocity vectors on the image
8

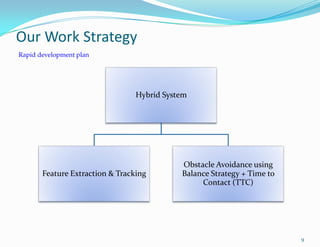

9. Hybrid System
Feature Extraction & Tracking
Obstacle Avoidance using
Balance Strategy + Time to
Contact (TTC)
Rapid development plan
Our Work Strategy
9

10. Grab Frame
Detect Features
User Input
Grab Frame
Track Features
Calc/Draw Optical Flow
Calc Steer Signal
Not enough
features?
Steer
Detect
Features
Steer Sig >
Threshold
RS 232
RS 232Yes
No
Flow Chart
10

11. How it works?
 First the robot extracts and tracks good features using
OpenCV’s goodFeaturesToTrack() method.
 When the robot is in motion, the onboard Raspberry
Pi computes optical flow from successive frame
capture of the webcam using OpenCV’s robust API
such as calcOpticalFlowPyrLK() method
 Then we measure motion estimation using Balanced
Strategy and avoid collisions by calculating Time To
Collision (TTC)
 Then the robot is steered via Arduino Uno’s control
signal obtained from these informations.
11

12. Communication Protocol (TTY)
12
 TTY is a communication protocol for serial communication.
 Using node-serialport is pretty easy because it is pretty
basic. It provides you with the building block to make great
things.
 Installation:
 Desktop (Debian/Ubuntu) Linux:
sudo apt-get install build-essential
npm install serialport

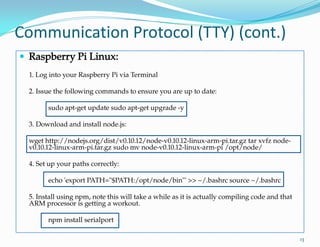

13. Communication Protocol (TTY) (cont.)
13
 Raspberry Pi Linux:
1. Log into your Raspberry Pi via Terminal
2. Issue the following commands to ensure you are up to date:
sudo apt-get update sudo apt-get upgrade -y
3. Download and install node.js:
wget http://nodejs.org/dist/v0.10.12/node-v0.10.12-linux-arm-pi.tar.gz tar xvfz node-
v0.10.12-linux-arm-pi.tar.gz sudo mv node-v0.10.12-linux-arm-pi /opt/node/
4. Set up your paths correctly:
echo 'export PATH="$PATH:/opt/node/bin"' >> ~/.bashrc source ~/.bashrc
5. Install using npm, note this will take a while as it is actually compiling code and that
ARM processor is getting a workout.
npm install serialport

14. Communication Protocol (TTY)
 To Use
 Opening a serial port:
var SerialPort = require("serialport").SerialPort
var serialPort = new SerialPort("/dev/tty-usbserial1", {
baudrate: 57600
});
 For more details visit:
 https://github.com/voodootikigod/node-serialport
14

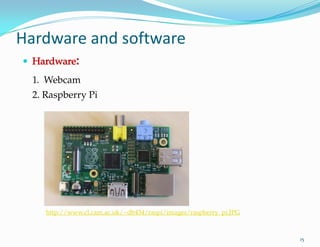

15. http://www.cl.cam.ac.uk/~db434/raspi/images/raspberry_pi.JPG
 Hardware:
1. Webcam
2. Raspberry Pi
15
Hardware and software

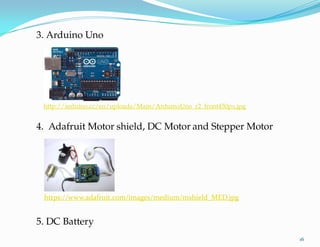

16. 5. DC Battery
3. Arduino Uno
http://arduino.cc/en/uploads/Main/ArduinoUno_r2_front450px.jpg
4. Adafruit Motor- shield, DC Motor and Stepper Motor
16
https://www.adafruit.com/images/medium/mshield_MED.jpg

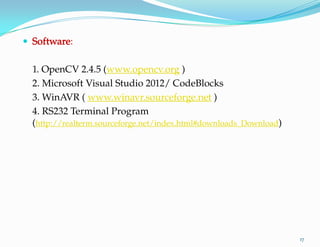

17. 17
 Software:
1. OpenCV 2.4.5 (www.opencv.org )
2. Microsoft Visual Studio 2012/ CodeBlocks
3. WinAVR ( www.winavr.sourceforge.net )
4. RS232 Terminal Program
(http://realterm.sourceforge.net/index.html#downloads_Download)

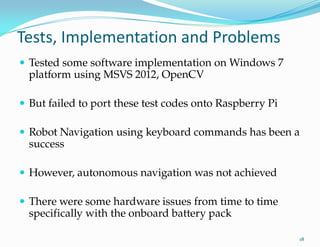

18. Tests, Implementation and Problems
 Tested some software implementation on Windows 7
platform using MSVS 2012, OpenCV
 But failed to port these test codes onto Raspberry Pi
 Robot Navigation using keyboard commands has been a
success
 However, autonomous navigation was not achieved
 There were some hardware issues from time to time
specifically with the onboard battery pack
18
