Application Development
Overview on Android OS
Kanak & Pankaj

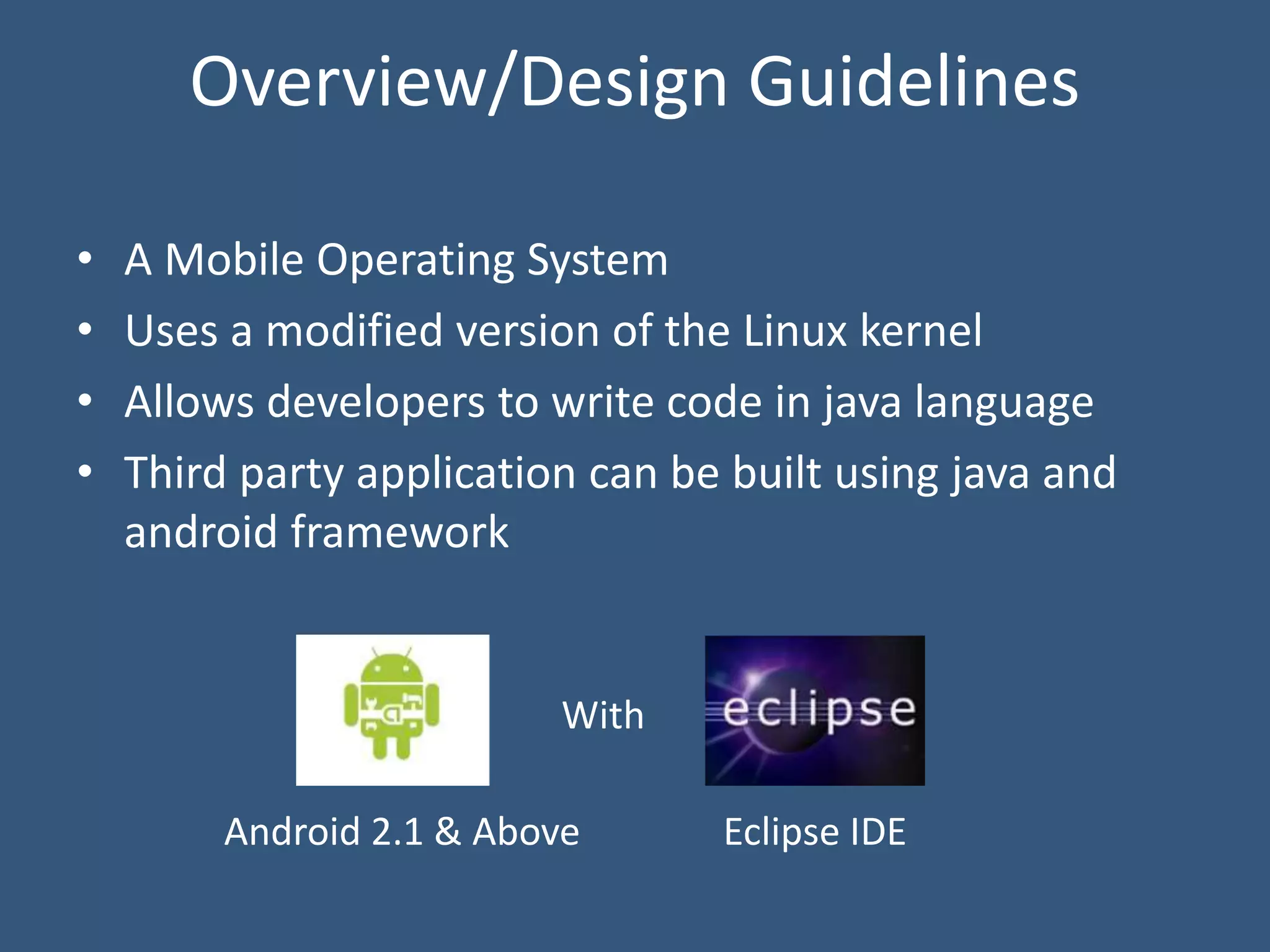

Overview/Design Guidelines
• A Mobile Operating System
• Uses a modified version of the Linux kernel
• Allows developers to write code in java language
• Third party application can be built using java and
android framework
Android 2.1 & Above
With
Eclipse IDE

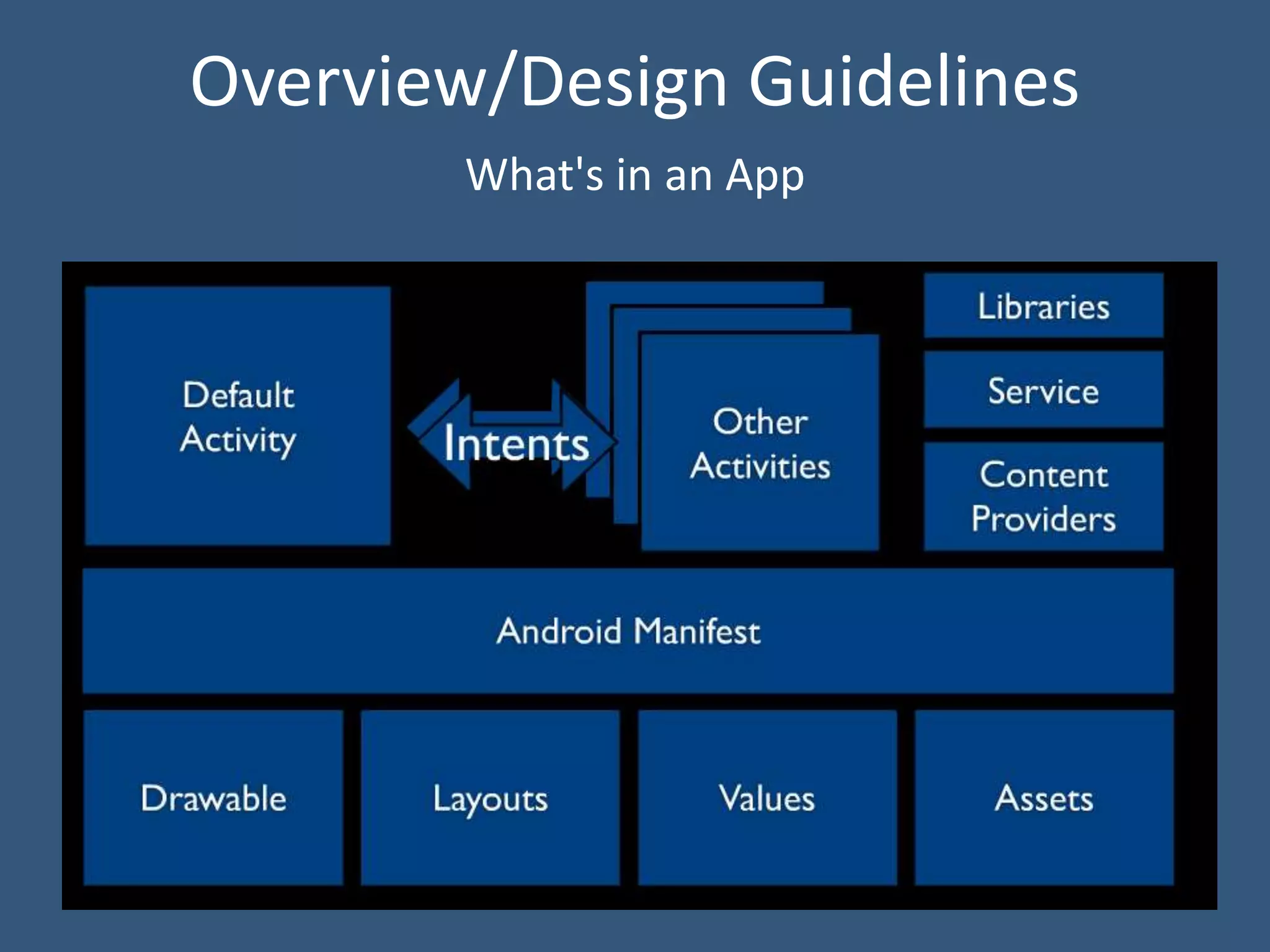

Overview/Design Guidelines
What's in an App

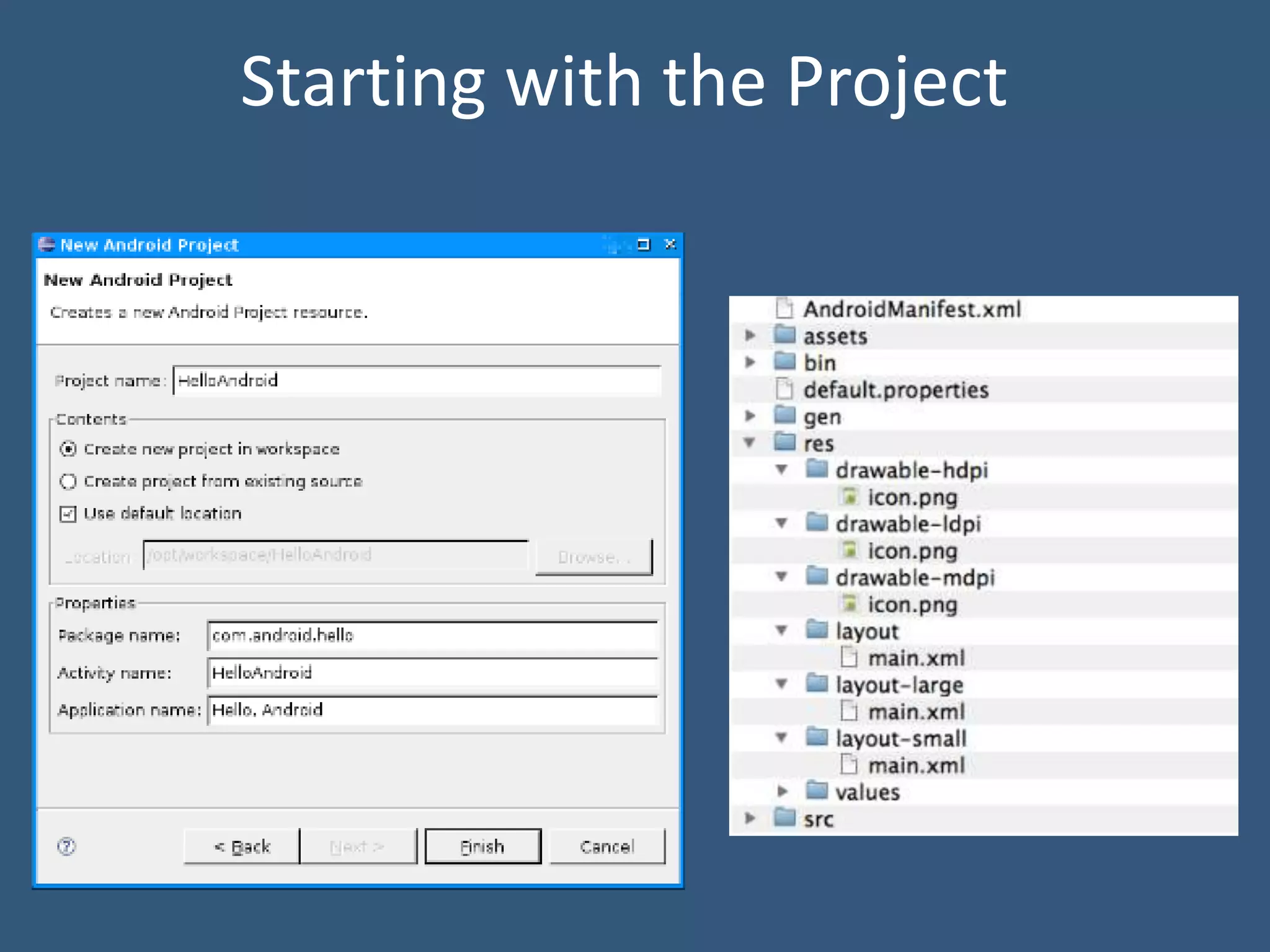

Starting with the Project

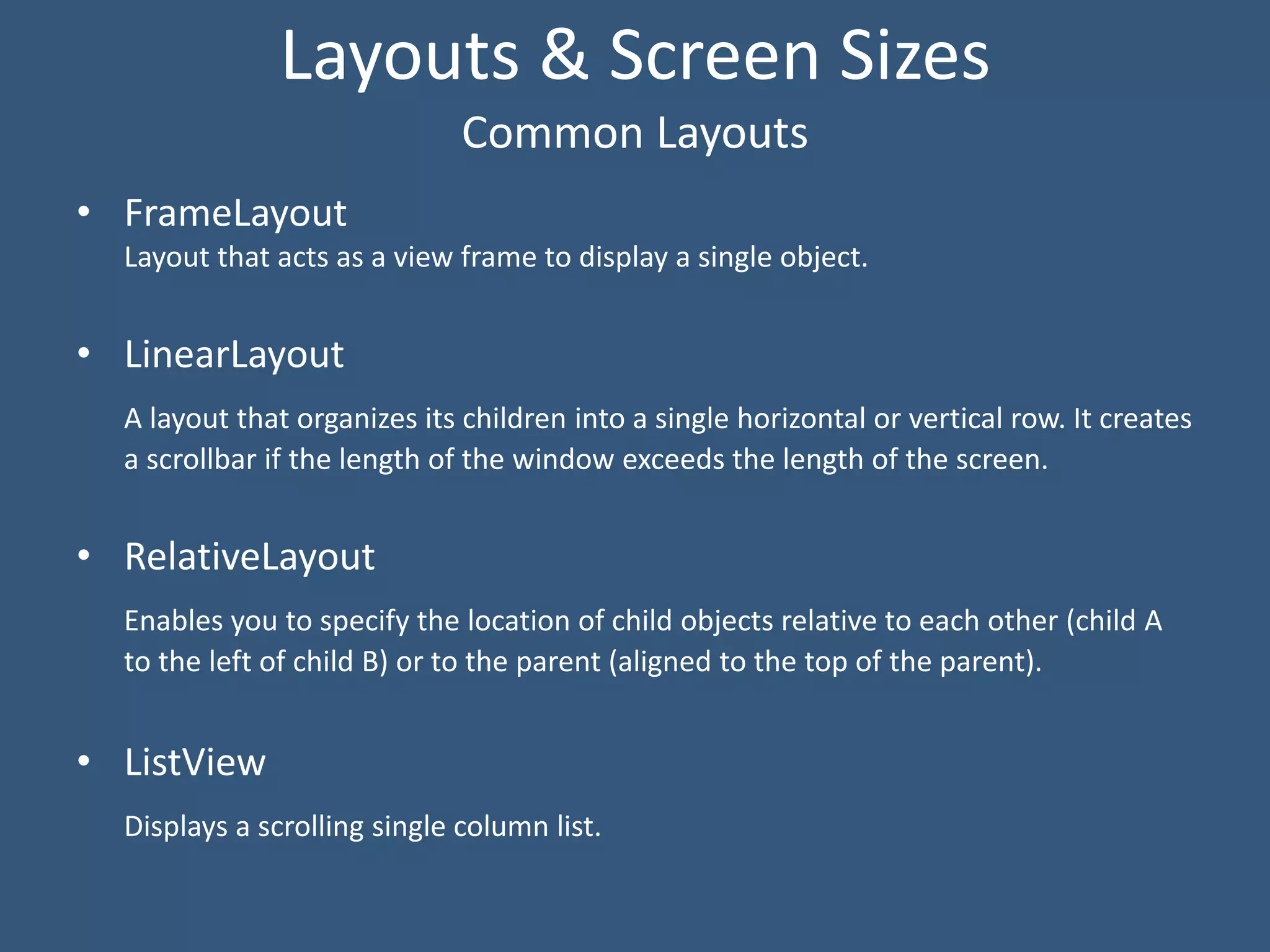

Layouts & Screen Sizes
• FrameLayout
Layout that acts as a view frame to display a single object.
• LinearLayout
A layout that organizes its children into a single horizontal or vertical row. It creates
a scrollbar if the length of the window exceeds the length of the screen.
• RelativeLayout
Enables you to specify the location of child objects relative to each other (child A
to the left of child B) or to the parent (aligned to the top of the parent).
• ListView
Displays a scrolling single column list.
Common Layouts

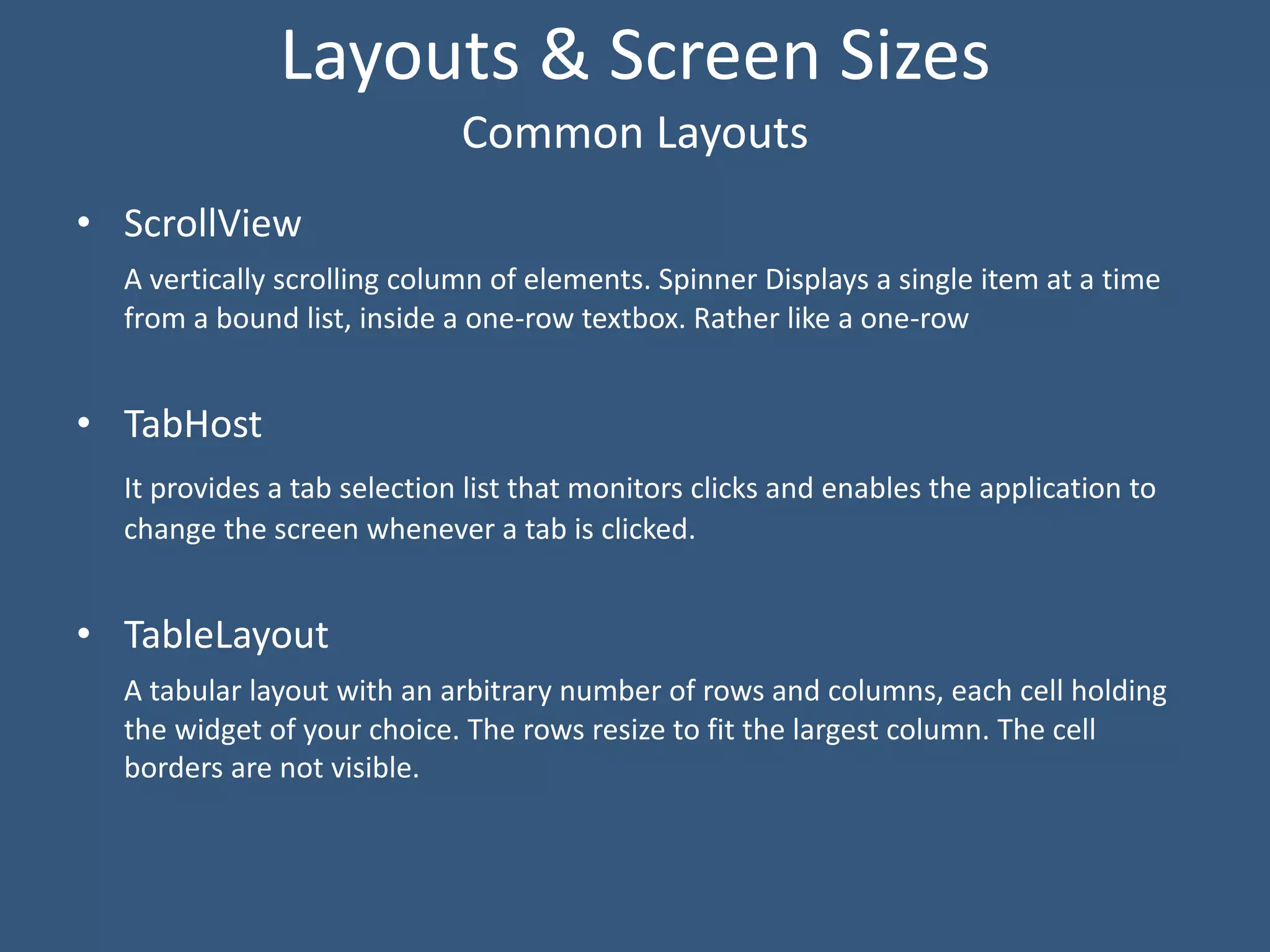

• ScrollView
A vertically scrolling column of elements. Spinner Displays a single item at a time
from a bound list, inside a one-row textbox. Rather like a one-row
• TabHost
It provides a tab selection list that monitors clicks and enables the application to
change the screen whenever a tab is clicked.
• TableLayout
A tabular layout with an arbitrary number of rows and columns, each cell holding
the widget of your choice. The rows resize to fit the largest column. The cell
borders are not visible.
Layouts & Screen Sizes
Common Layouts
Layouts & Screen Sizes

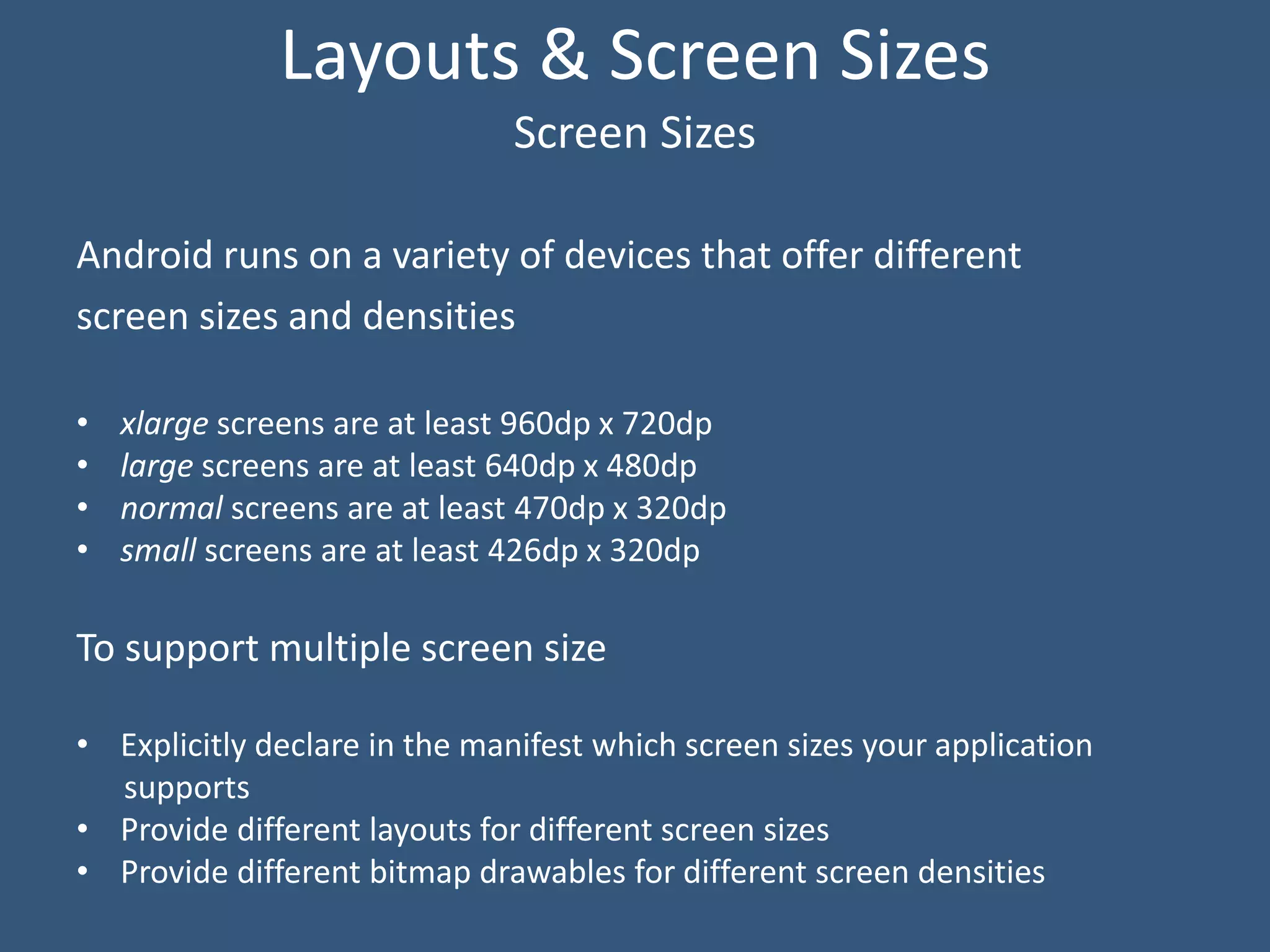

Screen Sizes
Android runs on a variety of devices that offer different
screen sizes and densities
• xlarge screens are at least 960dp x 720dp
• large screens are at least 640dp x 480dp
• normal screens are at least 470dp x 320dp
• small screens are at least 426dp x 320dp
To support multiple screen size
• Explicitly declare in the manifest which screen sizes your application
supports
• Provide different layouts for different screen sizes
• Provide different bitmap drawables for different screen densities

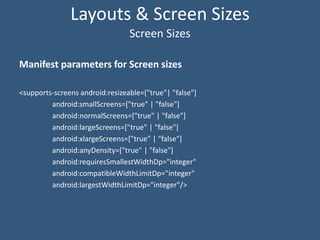

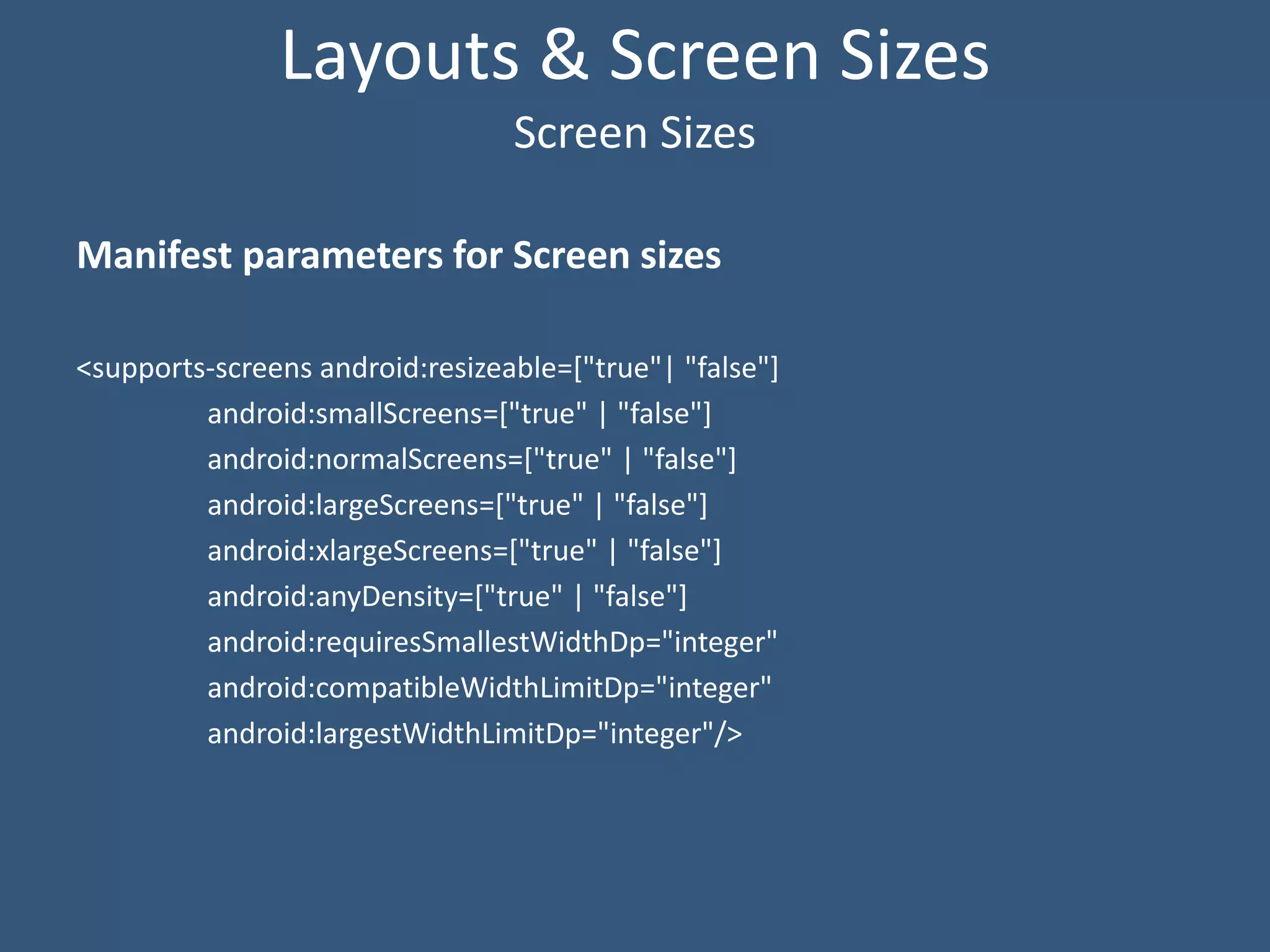

Layouts & Screen Sizes
Screen Sizes
Manifest parameters for Screen sizes
<supports-screens android:resizeable=["true"| "false"]
android:smallScreens=["true" | "false"]
android:normalScreens=["true" | "false"]
android:largeScreens=["true" | "false"]
android:xlargeScreens=["true" | "false"]
android:anyDensity=["true" | "false"]
android:requiresSmallestWidthDp="integer"
android:compatibleWidthLimitDp="integer"
android:largestWidthLimitDp="integer"/>

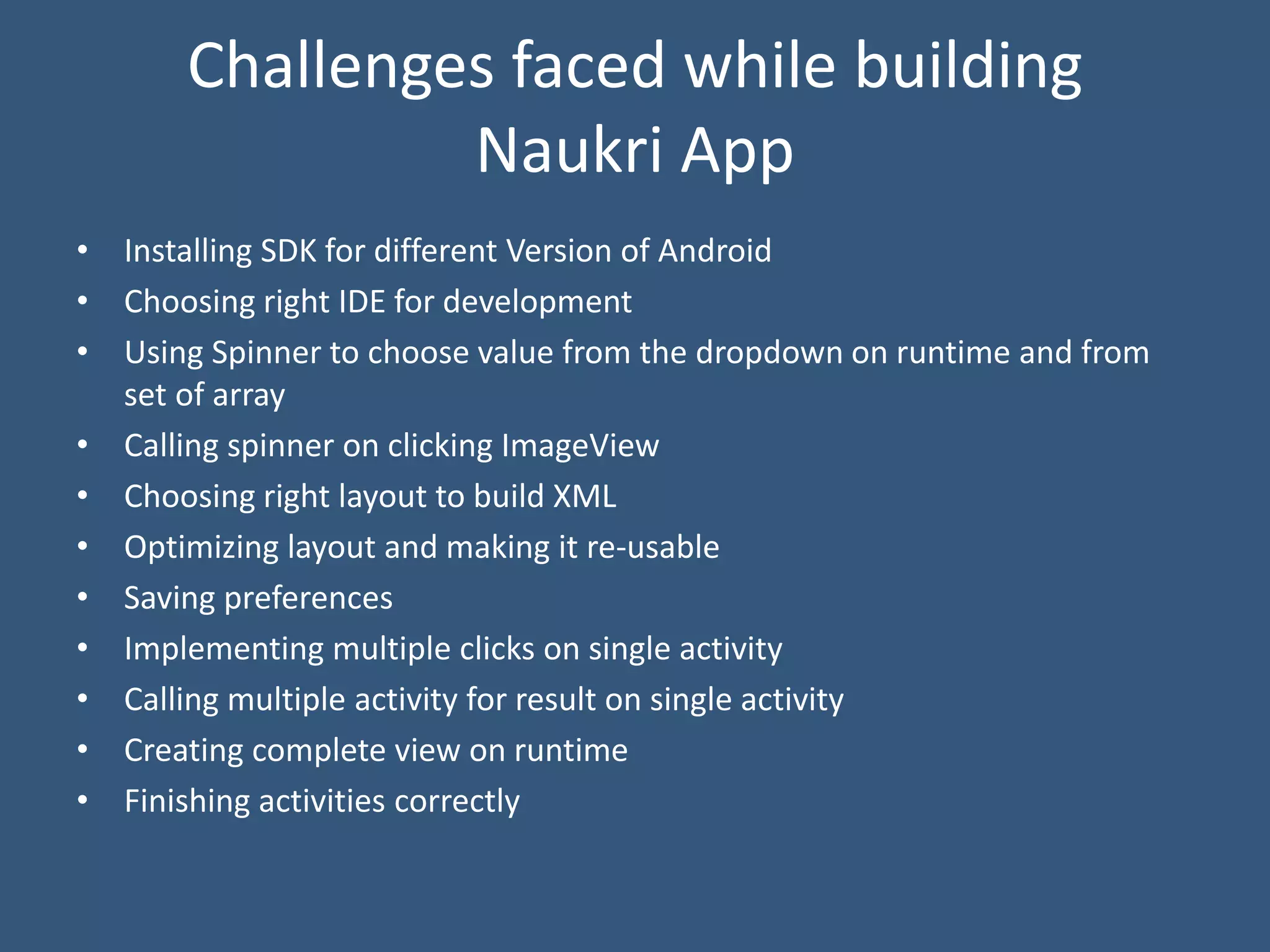

Challenges faced while building
Naukri App
• Installing SDK for different Version of Android
• Choosing right IDE for development
• Using Spinner to choose value from the dropdown on runtime and from
set of array
• Calling spinner on clicking ImageView
• Choosing right layout to build XML
• Optimizing layout and making it re-usable
• Saving preferences
• Implementing multiple clicks on single activity
• Calling multiple activity for result on single activity
• Creating complete view on runtime
• Finishing activities correctly

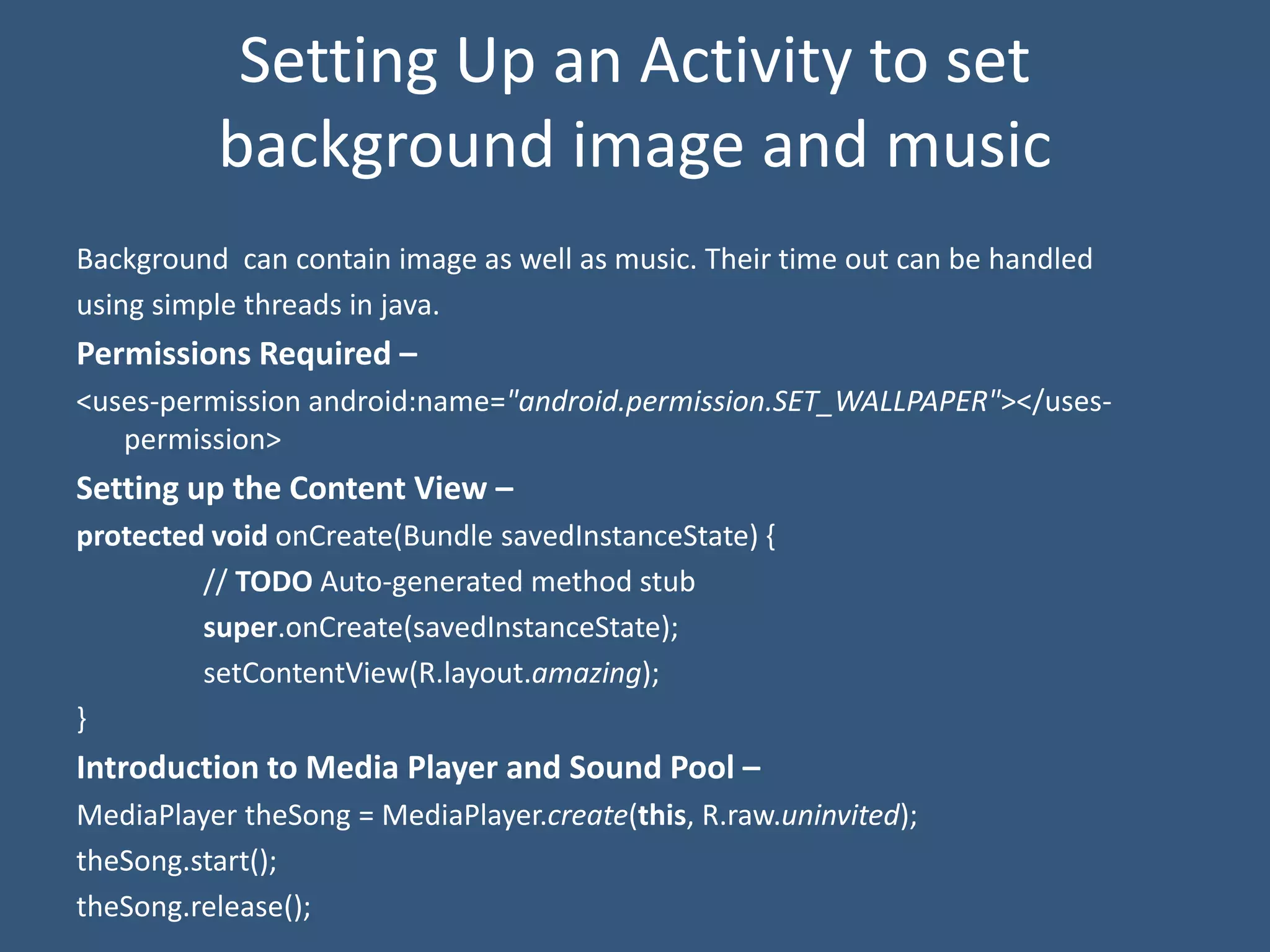

Setting Up an Activity to set
background image and music
Background can contain image as well as music. Their time out can be handled
using simple threads in java.
Permissions Required –
<uses-permission android:name="android.permission.SET_WALLPAPER"></uses-
permission>
Setting up the Content View –
protected void onCreate(Bundle savedInstanceState) {
// TODO Auto-generated method stub
super.onCreate(savedInstanceState);
setContentView(R.layout.amazing);
}
Introduction to Media Player and Sound Pool –
MediaPlayer theSong = MediaPlayer.create(this, R.raw.uninvited);
theSong.start();
theSong.release();

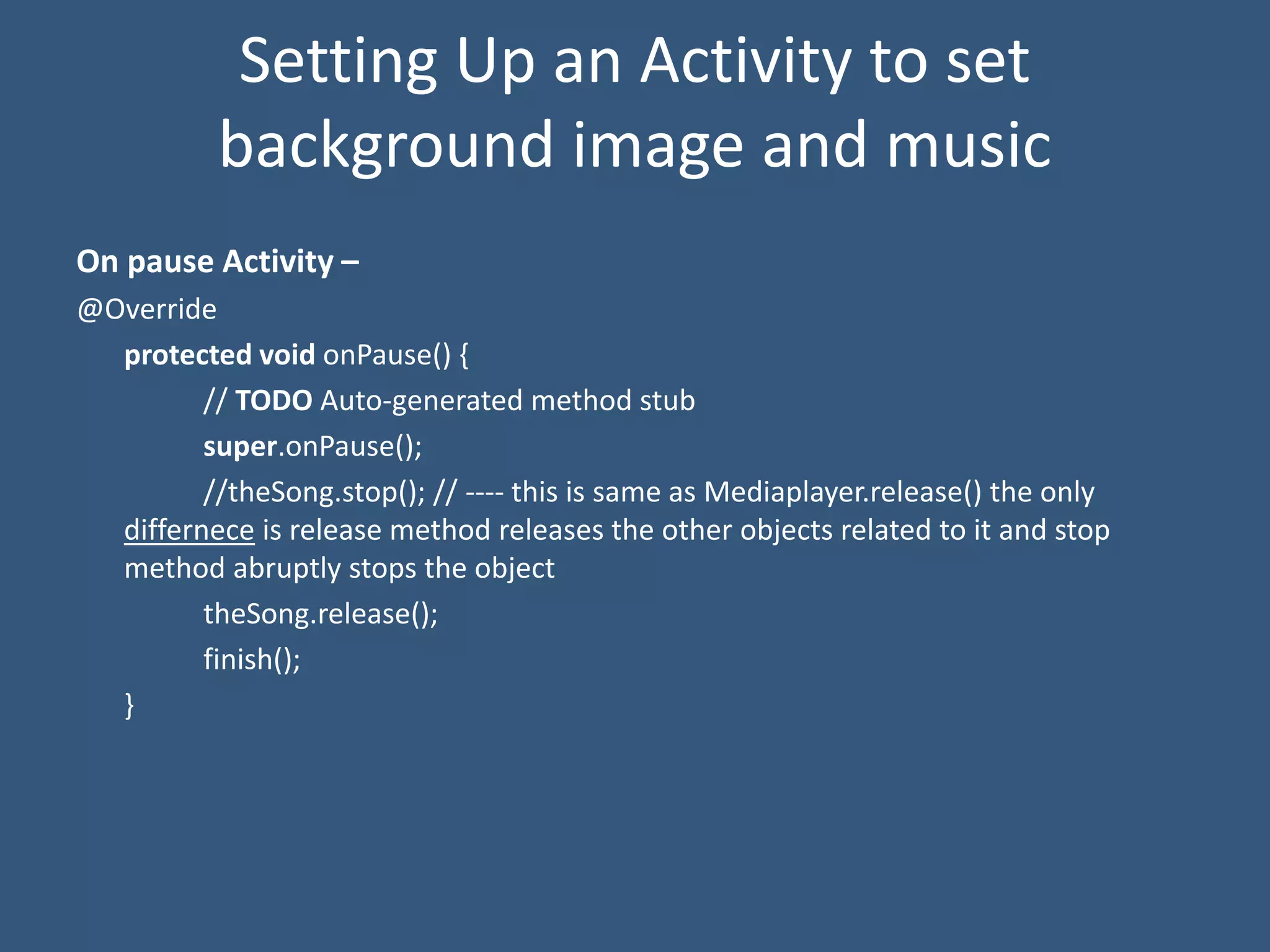

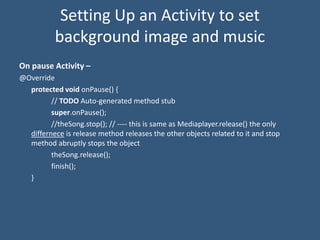

Setting Up an Activity to set
background image and music
On pause Activity –
@Override
protected void onPause() {
// TODO Auto-generated method stub
super.onPause();
//theSong.stop(); // ---- this is same as Mediaplayer.release() the only
differnece is release method releases the other objects related to it and stop
method abruptly stops the object
theSong.release();
finish();
}

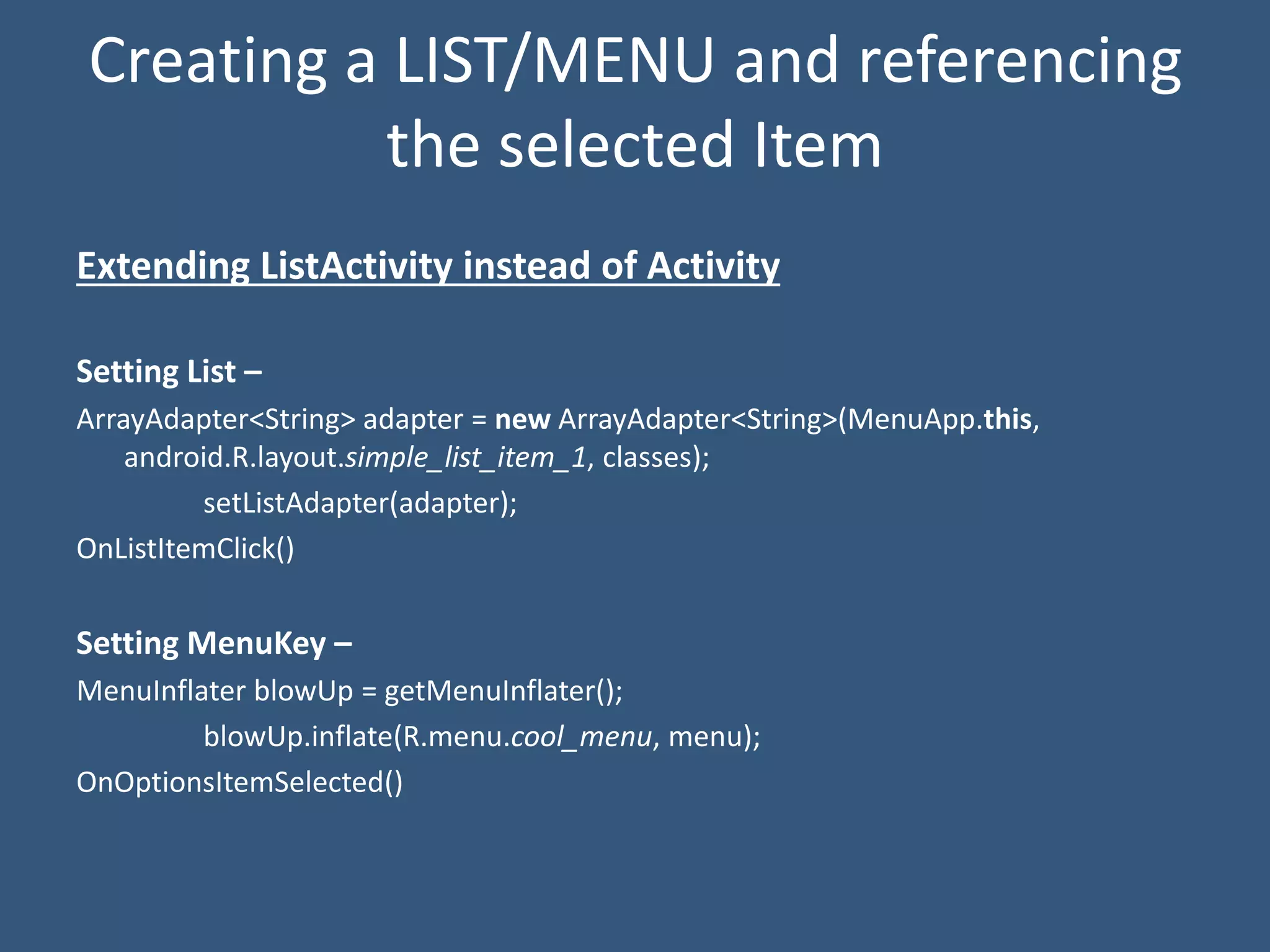

Creating a LIST/MENU and referencing
the selected Item
Extending ListActivity instead of Activity
Setting List –
ArrayAdapter<String> adapter = new ArrayAdapter<String>(MenuApp.this,
android.R.layout.simple_list_item_1, classes);
setListAdapter(adapter);
OnListItemClick()
Setting MenuKey –
MenuInflater blowUp = getMenuInflater();
blowUp.inflate(R.menu.cool_menu, menu);
OnOptionsItemSelected()

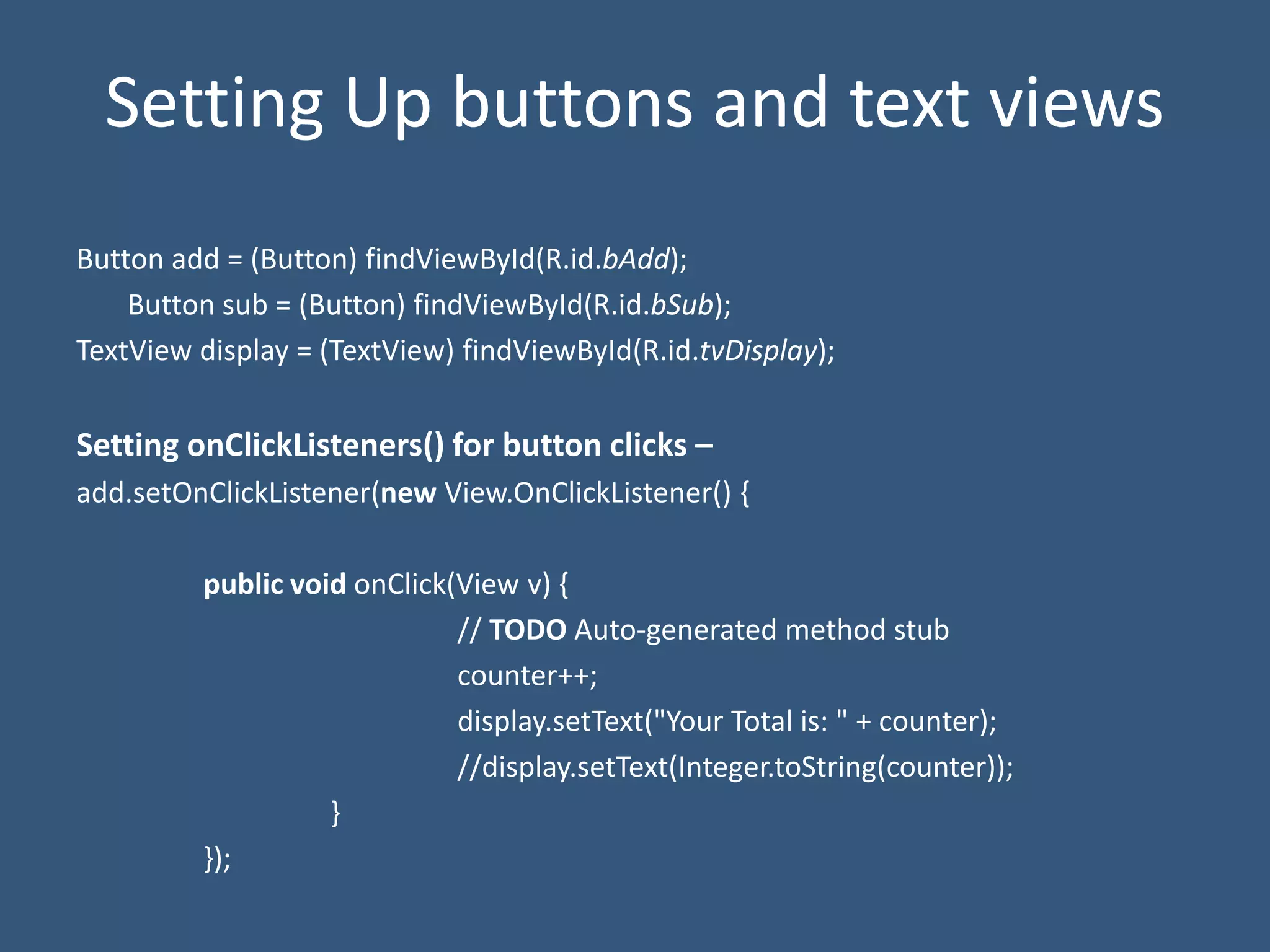

Setting Up buttons and text views
Button add = (Button) findViewById(R.id.bAdd);
Button sub = (Button) findViewById(R.id.bSub);
TextView display = (TextView) findViewById(R.id.tvDisplay);
Setting onClickListeners() for button clicks –
add.setOnClickListener(new View.OnClickListener() {
public void onClick(View v) {
// TODO Auto-generated method stub
counter++;
display.setText("Your Total is: " + counter);
//display.setText(Integer.toString(counter));
}
});

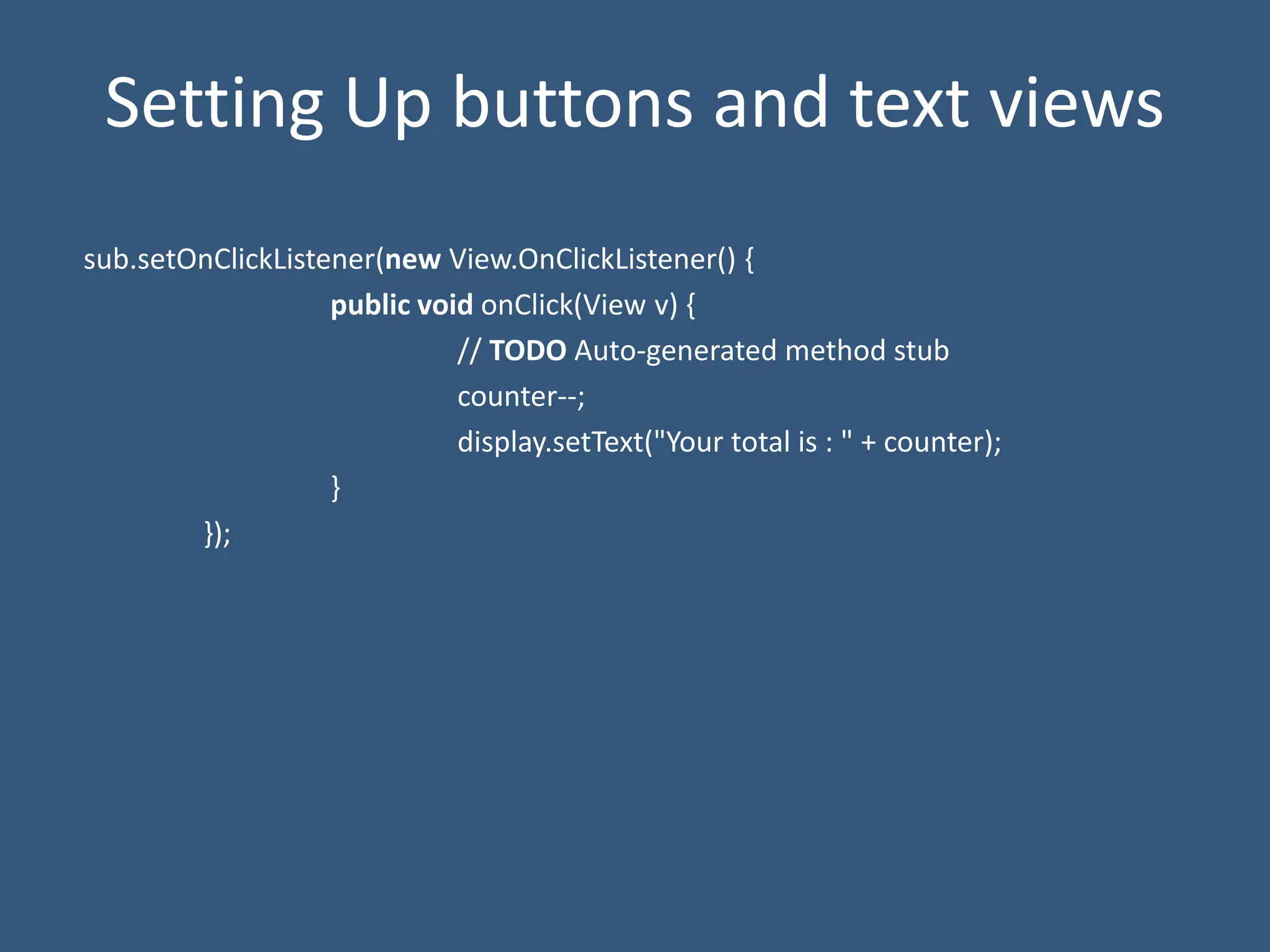

Setting Up buttons and text views
sub.setOnClickListener(new View.OnClickListener() {
public void onClick(View v) {
// TODO Auto-generated method stub
counter--;
display.setText("Your total is : " + counter);
}
});

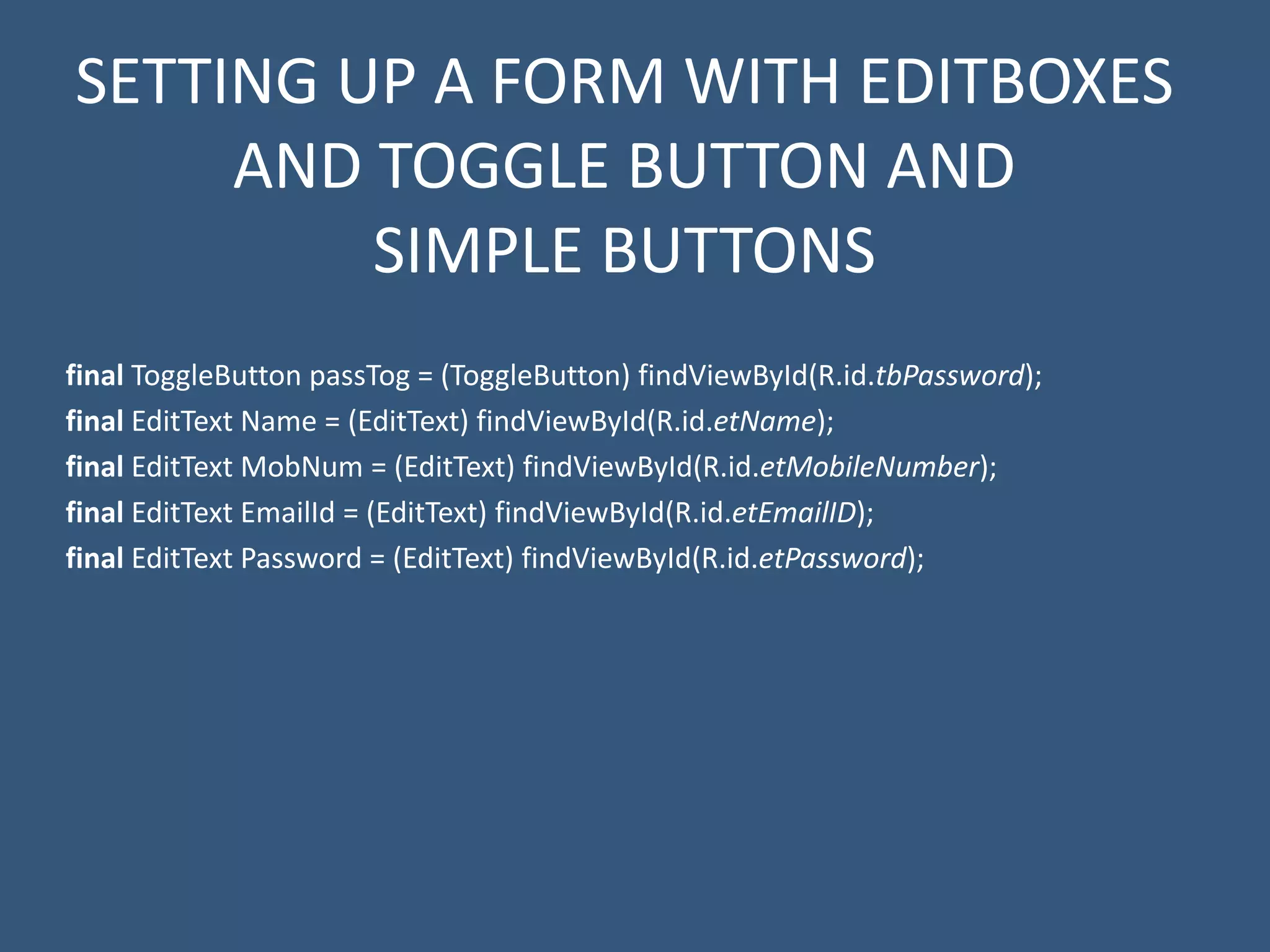

SETTING UP A FORM WITH EDITBOXES
AND TOGGLE BUTTON AND
SIMPLE BUTTONS
final ToggleButton passTog = (ToggleButton) findViewById(R.id.tbPassword);
final EditText Name = (EditText) findViewById(R.id.etName);
final EditText MobNum = (EditText) findViewById(R.id.etMobileNumber);
final EditText EmailId = (EditText) findViewById(R.id.etEmailID);
final EditText Password = (EditText) findViewById(R.id.etPassword);

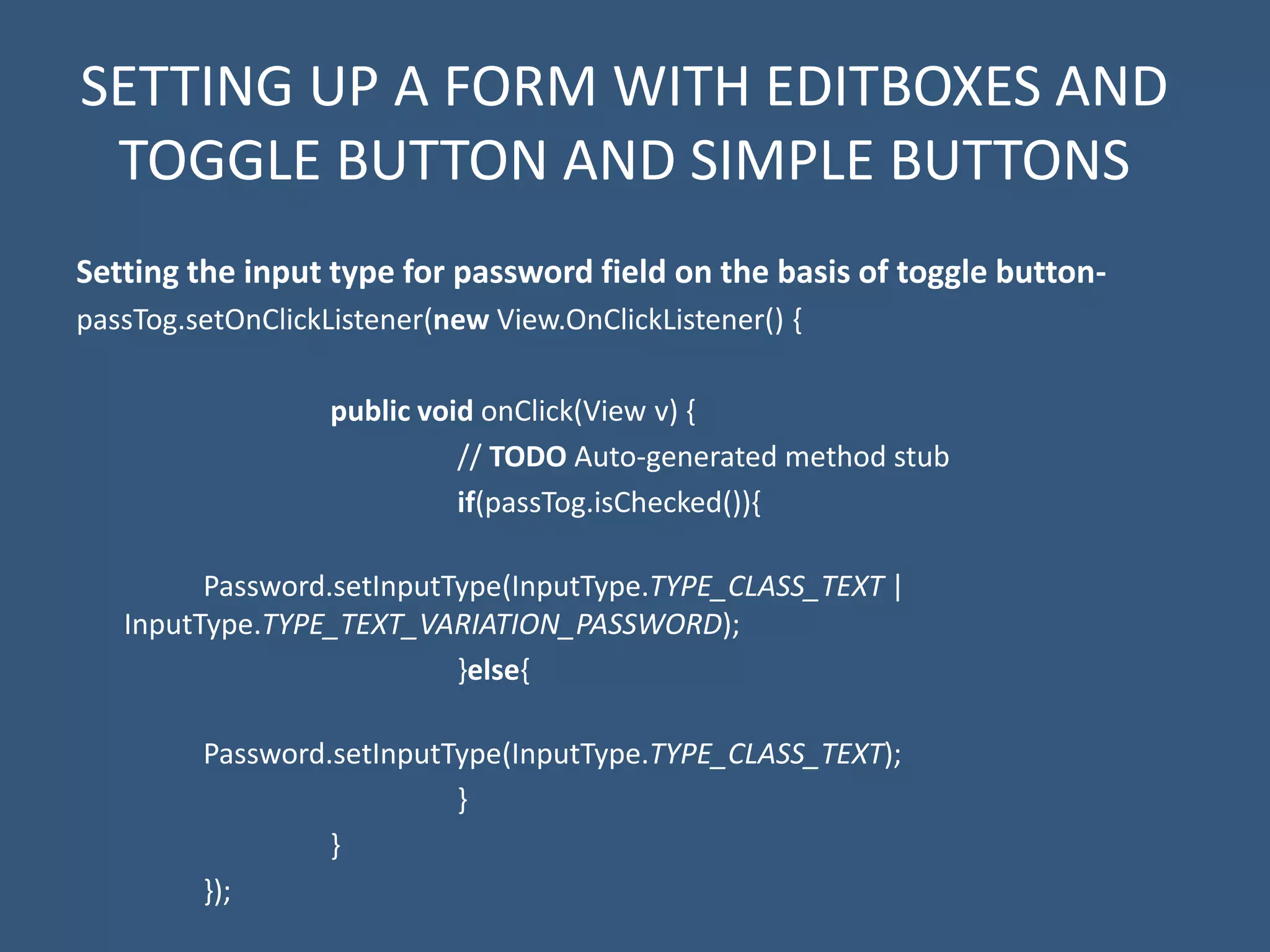

SETTING UP A FORM WITH EDITBOXES AND
TOGGLE BUTTON AND SIMPLE BUTTONS
Setting the input type for password field on the basis of toggle button-
passTog.setOnClickListener(new View.OnClickListener() {
public void onClick(View v) {
// TODO Auto-generated method stub
if(passTog.isChecked()){
Password.setInputType(InputType.TYPE_CLASS_TEXT |
InputType.TYPE_TEXT_VARIATION_PASSWORD);
}else{
Password.setInputType(InputType.TYPE_CLASS_TEXT);
}
}
});

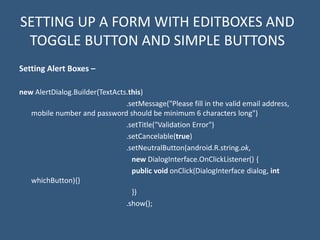

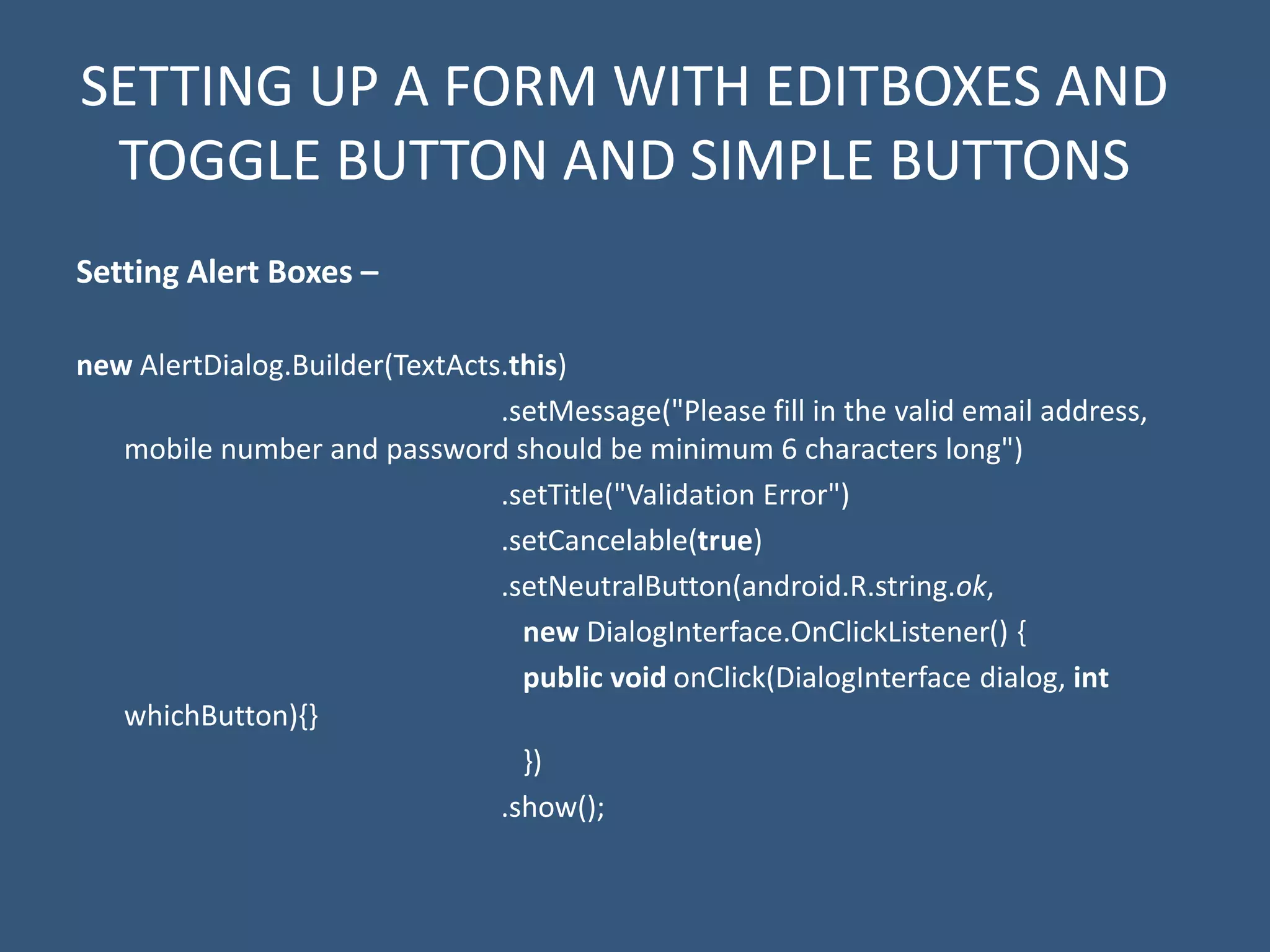

SETTING UP A FORM WITH EDITBOXES AND
TOGGLE BUTTON AND SIMPLE BUTTONS
Setting Alert Boxes –
new AlertDialog.Builder(TextActs.this)
.setMessage("Please fill in the valid email address,
mobile number and password should be minimum 6 characters long")
.setTitle("Validation Error")
.setCancelable(true)
.setNeutralButton(android.R.string.ok,
new DialogInterface.OnClickListener() {
public void onClick(DialogInterface dialog, int
whichButton){}
})
.show();

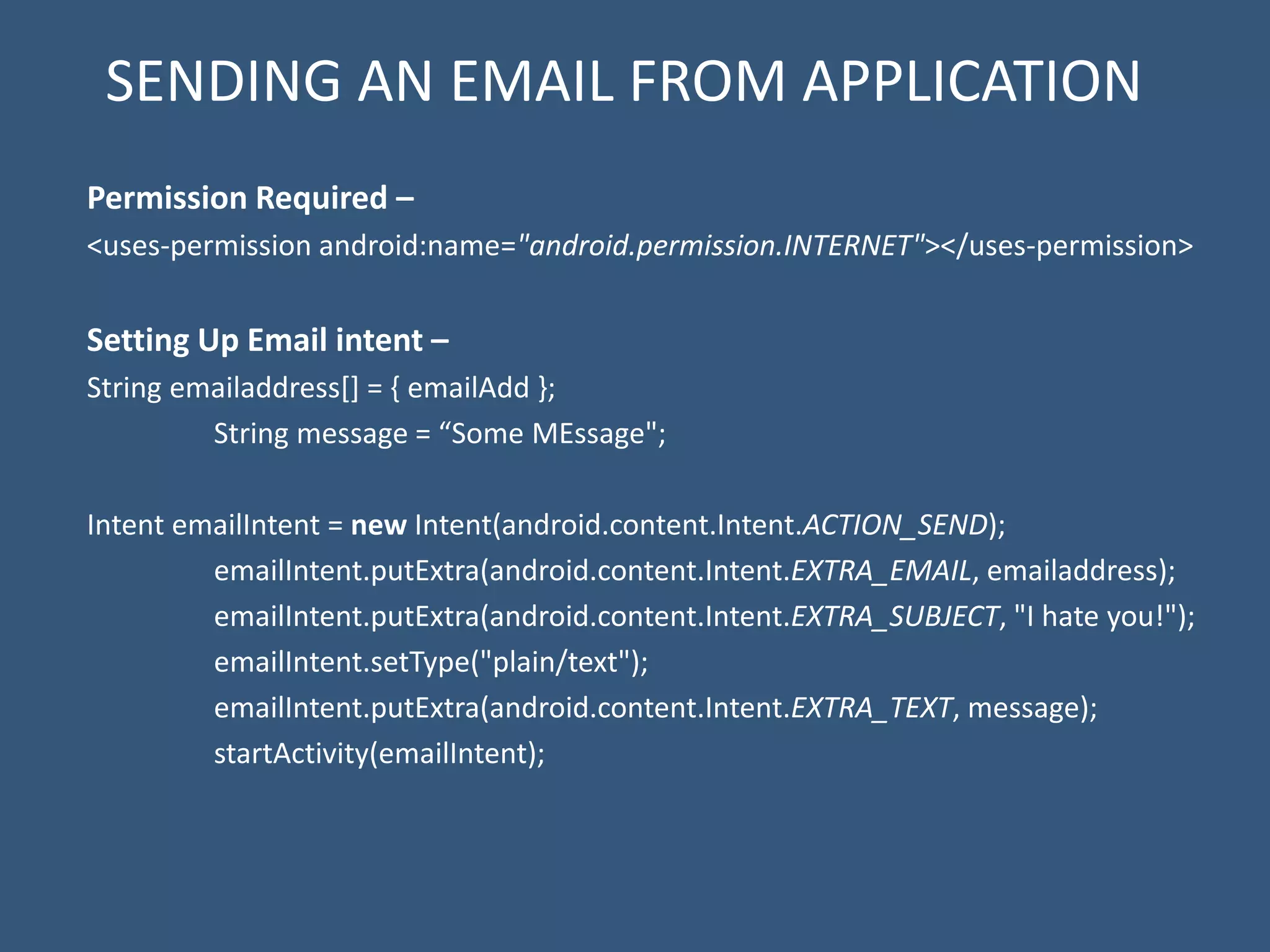

SENDING AN EMAIL FROM APPLICATION
Permission Required –
<uses-permission android:name="android.permission.INTERNET"></uses-permission>
Setting Up Email intent –
String emailaddress[] = { emailAdd };
String message = “Some MEssage";
Intent emailIntent = new Intent(android.content.Intent.ACTION_SEND);
emailIntent.putExtra(android.content.Intent.EXTRA_EMAIL, emailaddress);
emailIntent.putExtra(android.content.Intent.EXTRA_SUBJECT, "I hate you!");
emailIntent.setType("plain/text");
emailIntent.putExtra(android.content.Intent.EXTRA_TEXT, message);
startActivity(emailIntent);

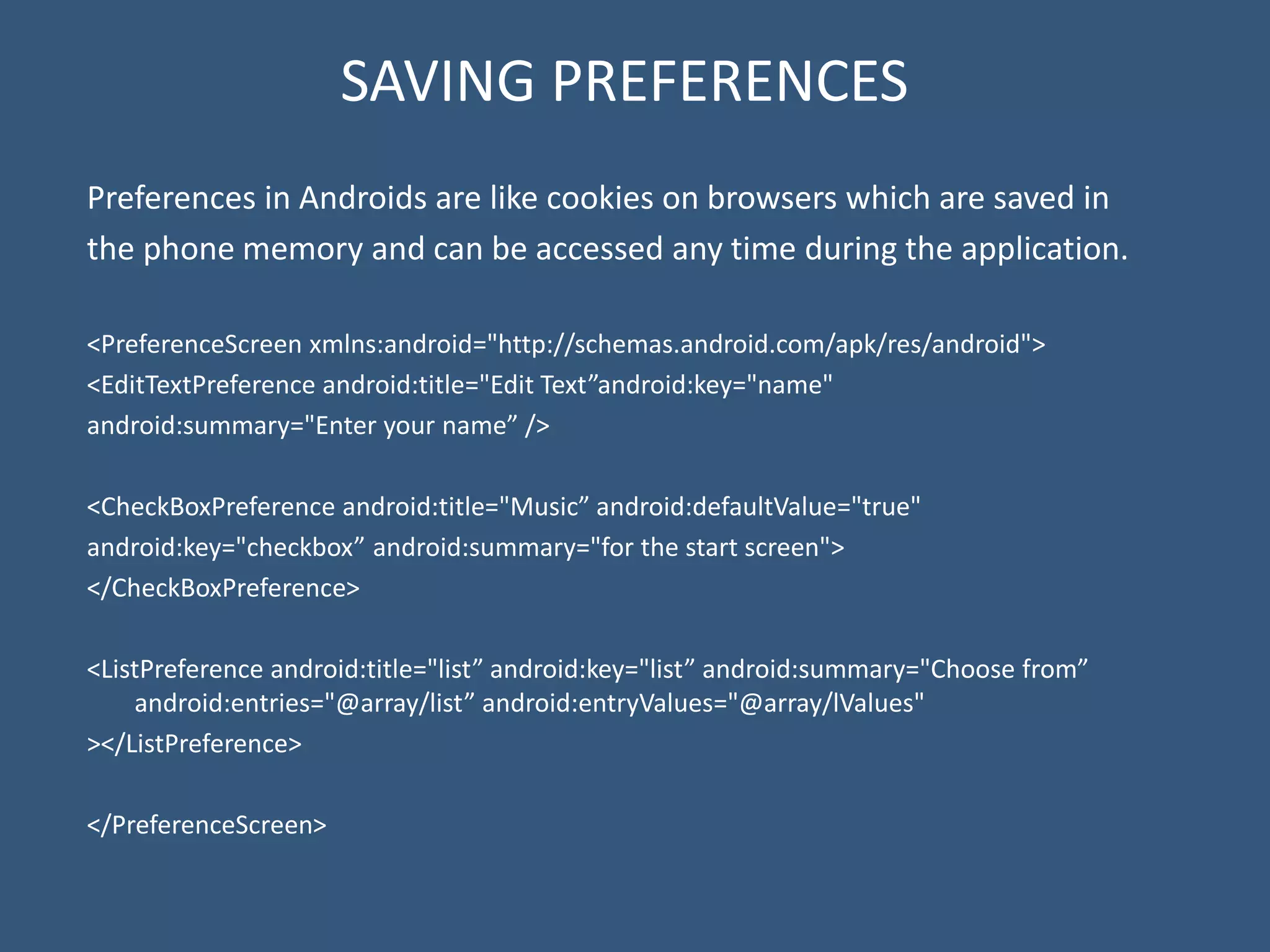

SAVING PREFERENCES
Preferences in Androids are like cookies on browsers which are saved in
the phone memory and can be accessed any time during the application.
<PreferenceScreen xmlns:android="http://schemas.android.com/apk/res/android">
<EditTextPreference android:title="Edit Text”android:key="name"
android:summary="Enter your name” />
<CheckBoxPreference android:title="Music” android:defaultValue="true"
android:key="checkbox” android:summary="for the start screen">
</CheckBoxPreference>
<ListPreference android:title="list” android:key="list” android:summary="Choose from”
android:entries="@array/list” android:entryValues="@array/lValues"
></ListPreference>
</PreferenceScreen>
Questions/Comments
?
