1. Android Worshop
Marc Mc Loughlin
14/12/2010

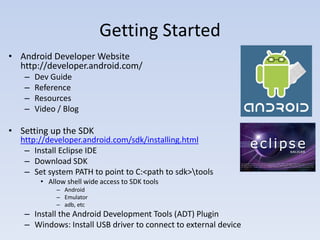

2. Getting Started
• Android Developer Website
http://developer.android.com/
– Dev Guide
– Reference
– Resources
– Video / Blog
• Setting up the SDK
http://developer.android.com/sdk/installing.html
– Install Eclipse IDE
– Download SDK
– Set system PATH to point to C:<path to sdk>tools
• Allow shell wide access to SDK tools
– Android
– Emulator
– adb, etc
– Install the Android Development Tools (ADT) Plugin
– Windows: Install USB driver to connect to external device

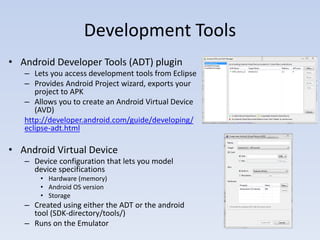

3. Development Tools
• Android Developer Tools (ADT) plugin
– Lets you access development tools from Eclipse
– Provides Android Project wizard, exports your
project to APK
– Allows you to create an Android Virtual Device
(AVD)
http://developer.android.com/guide/developing/
eclipse-adt.html
• Android Virtual Device
– Device configuration that lets you model
device specifications
• Hardware (memory)
• Android OS version
• Storage
– Created using either the ADT or the android
tool (SDK-directory/tools/)
– Runs on the Emulator

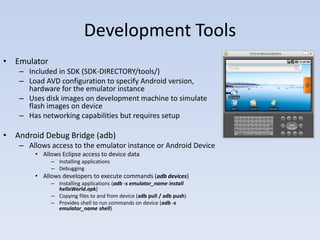

4. Development Tools
• Emulator
– Included in SDK (SDK-DIRECTORY/tools/)
– Load AVD configuration to specify Android version,
hardware for the emulator instance
– Uses disk images on development machine to simulate
flash images on device
– Has networking capabilities but requires setup
• Android Debug Bridge (adb)
– Allows access to the emulator instance or Android Device
• Allows Eclipse access to device data
– Installing applications
– Debugging
• Allows developers to execute commands (adb devices)
– Installing applications (adb -s emulator_name install
helloWorld.apk)
– Copying files to and from device (adb pull / adb push)
– Provides shell to run commands on device (adb -s
emulator_name shell)

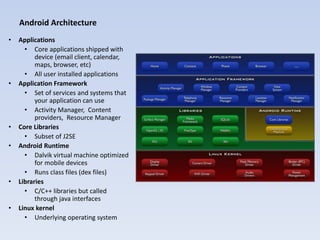

5. Android Architecture
• Applications
• Core applications shipped with
device (email client, calendar,
maps, browser, etc)
• All user installed applications
• Application Framework
• Set of services and systems that
your application can use
• Activity Manager, Content
providers, Resource Manager
• Core Libraries
• Subset of J2SE
• Android Runtime
• Dalvik virtual machine optimized
for mobile devices
• Runs class files (dex files)
• Libraries
• C/C++ libraries but called
through java interfaces
• Linux kernel
• Underlying operating system

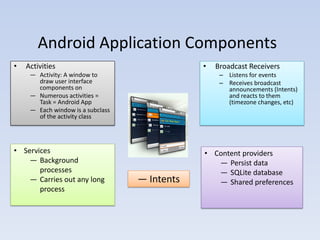

6. Android Application Components
• Activities • Broadcast Receivers
— Activity: A window to – Listens for events
draw user interface – Receives broadcast
components on announcements (Intents)
— Numerous activities = and reacts to them
Task = Android App (timezone changes, etc)
— Each window is a subclass
of the activity class
• Services • Content providers
— Background — Persist data
processes — SQLite database
— Carries out any long ― Intents — Shared preferences
process

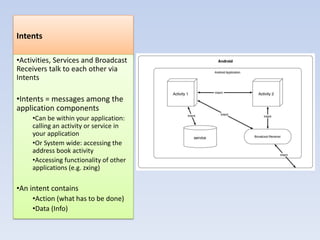

7. Intents
•Activities, Services and Broadcast
Receivers talk to each other via
Intents
•Intents = messages among the
application components
•Can be within your application:
calling an activity or service in
your application
•Or System wide: accessing the
address book activity
•Accessing functionality of other
applications (e.g. zxing)
•An intent contains
•Action (what has to be done)
•Data (Info)

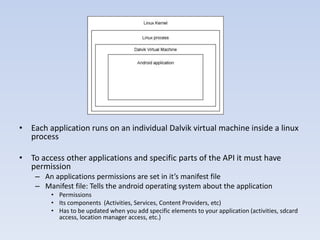

8. Manifest file
• Each application runs on an individual Dalvik virtual machine inside a linux
process
• To access other applications and specific parts of the API it must have
permission
– An applications permissions are set in it’s manifest file
– Manifest file: Tells the android operating system about the application
• Permissions
• Its components (Activities, Services, Content Providers, etc)
• Has to be updated when you add specific elements to your application (activities, sdcard
access, location manager access, etc.)

9. Building your User Interface (UI)

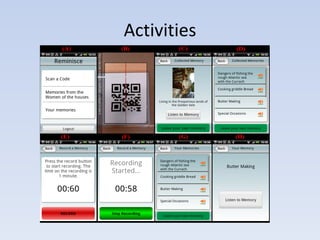

10. Activities

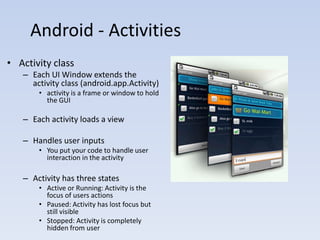

11. Android - Activities
• Activity class
– Each UI Window extends the
activity class (android.app.Activity)
• activity is a frame or window to hold
the GUI
– Each activity loads a view
– Handles user inputs
• You put your code to handle user
interaction in the activity
– Activity has three states
• Active or Running: Activity is the
focus of users actions
• Paused: Activity has lost focus but
still visible
• Stopped: Activity is completely
hidden from user

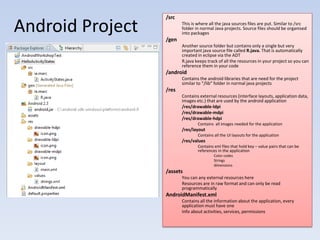

12. /src
Android Project /gen
This is where all the java sources files are put. Similar to /src
folder in normal Java projects. Source files should be organised
into packages
Another source folder but contains only a single but very
important java source file called R.java. That is automatically
created in eclipse via the ADT
R.java keeps track of all the resources in your project so you can
reference them in your code
/android
Contains the android libraries that are need for the project
similar to “/lib” folder in normal java projects
/res
Contains external resources (interface layouts, application data,
images etc.) that are used by the android application
/res/drawable-ldpi
/res/drawable-mdpi
/res/drawable-hdpi
Contains all images needed for the application
/res/layout
Contains all the UI layouts for the application
/res/values
Contains xml files that hold key – value pairs that can be
references in the application
Color codes
Strings
dimensions
/assets
You can any external resources here
Resources are in raw format and can only be read
programmatically
AndroidManifest.xml
Contains all the information about the application, every
application must have one
Info about activities, services, permissions

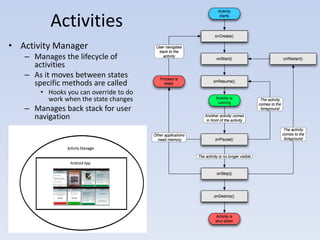

13. Activities
• Activity Manager
– Manages the lifecycle of
activities
– As it moves between states
specific methods are called
• Hooks you can override to do
work when the state changes
– Manages back stack for user
navigation

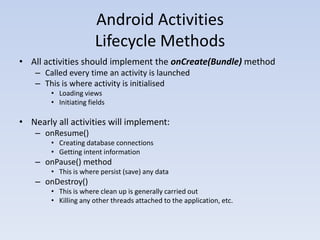

14. Android Activities
Lifecycle Methods
• All activities should implement the onCreate(Bundle) method
– Called every time an activity is launched
– This is where activity is initialised
• Loading views
• Initiating fields
• Nearly all activities will implement:
– onResume()
• Creating database connections
• Getting intent information
– onPause() method
• This is where persist (save) any data
– onDestroy()
• This is where clean up is generally carried out
• Killing any other threads attached to the application, etc.

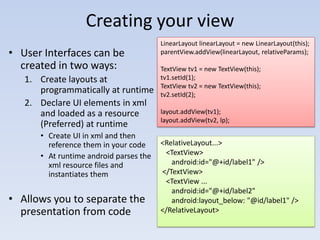

15. Creating your view
LinearLayout linearLayout = new LinearLayout(this);
• User Interfaces can be parentView.addView(linearLayout, relativeParams);
created in two ways: TextView tv1 = new TextView(this);
1. Create layouts at tv1.setId(1);
TextView tv2 = new TextView(this);
programmatically at runtime tv2.setId(2);
2. Declare UI elements in xml
and loaded as a resource layout.addView(tv1);
layout.addView(tv2, lp);
(Preferred) at runtime
• Create UI in xml and then
reference them in your code <RelativeLayout...>
• At runtime android parses the <TextView>
xml resource files and android:id="@+id/label1" />
instantiates them </TextView>
<TextView ...
android:id="@+id/label2"
• Allows you to separate the android:layout_below: "@id/label1" />
presentation from code </RelativeLayout>

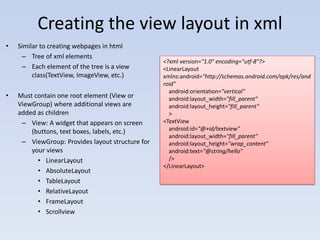

16. Creating the view layout in xml
• Similar to creating webpages in html
– Tree of xml elements
<?xml version="1.0" encoding="utf-8"?>
– Each element of the tree is a view <LinearLayout
class(TextView, ImageView, etc.) xmlns:android="http://schemas.android.com/apk/res/and
roid"
android:orientation="vertical"
• Must contain one root element (View or android:layout_width="fill_parent"
ViewGroup) where additional views are android:layout_height="fill_parent"
added as children >
– View: A widget that appears on screen <TextView
(buttons, text boxes, labels, etc.) android:id="@+id/textview"
android:layout_width="fill_parent"
– ViewGroup: Provides layout structure for android:layout_height="wrap_content"
your views android:text="@string/hello"
• LinearLayout />
</LinearLayout>
• AbsoluteLayout
• TableLayout
• RelativeLayout
• FrameLayout
• Scrollview

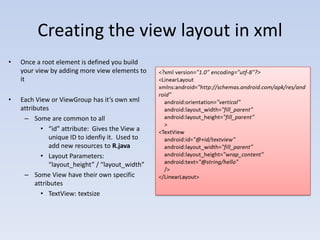

17. Creating the view layout in xml
• Once a root element is defined you build
your view by adding more view elements to
it
• Each View or ViewGroup has it’s own xml
attributes
– Some are common to all
• “id” attribute: Gives the View a
unique ID to idenfiy it. Used to
add new resources to R.java
• Layout Parameters:
“layout_height” / “layout_width”
– Some View have their own specific
attributes
• TextView: textsize

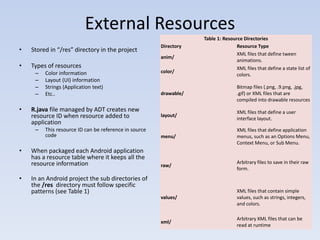

18. External Resources
Table 1: Resource Directories
Directory Resource Type
• Stored in “/res” directory in the project
XML files that define tween
anim/
animations.
• Types of resources XML files that define a state list of
– Color information color/
colors.
– Layout (UI) information
– Strings (Application text) Bitmap files (.png, .9.png, .jpg,
– Etc.. drawable/ .gif) or XML files that are
compiled into drawable resources
• R.java file managed by ADT creates new XML files that define a user
resource ID when resource added to layout/
interface layout.
application
– This resource ID can be reference in source XML files that define application
code menu/ menus, such as an Options Menu,
Context Menu, or Sub Menu.
• When packaged each Android application
has a resource table where it keeps all the
resource information Arbitrary files to save in their raw
raw/
form.
• In an Android project the sub directories of
the /res directory must follow specific
patterns (see Table 1) XML files that contain simple
values/ values, such as strings, integers,
and colors.
Arbitrary XML files that can be
xml/
read at runtime

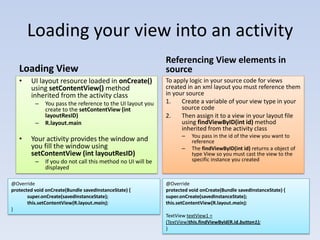

19. Loading your view into an activity
Referencing View elements in
Loading View source
• UI layout resource loaded in onCreate() To apply logic in your source code for views
using setContentView() method created in an xml layout you must reference them
inherited from the activity class in your source
– You pass the reference to the UI layout you 1. Create a variable of your view type in your
create to the setContentView (int source code
layoutResID) 2. Then assign it to a view in your layout file
– R.layout.main using findViewByID(int id) method
inherited from the activity class
– You pass in the id of the view you want to
• Your activity provides the window and reference
you fill the window using – The findViewByID(int id) returns a object of
setContentView (int layoutResID) type View so you must cast the view to the
– If you do not call this method no UI will be specific instance you created
displayed
@Override @Override
protected void onCreate(Bundle savedInstanceState) { protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState); super.onCreate(savedInstanceState);
this.setContentView(R.layout.main); this.setContentView(R.layout.main);
}
TextView textView1 =
(TextView)this.findViewById(R.id.button1);
}

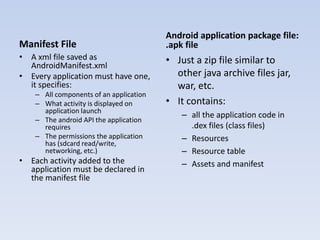

20. Android application package file:
Manifest File .apk file
• A xml file saved as • Just a zip file similar to
AndroidManifest.xml
• Every application must have one, other java archive files jar,
it specifies: war, etc.
– All components of an application
– What activity is displayed on • It contains:
application launch
– all the application code in
– The android API the application
requires .dex files (class files)
– The permissions the application – Resources
has (sdcard read/write,
networking, etc.) – Resource table
• Each activity added to the – Assets and manifest
application must be declared in
the manifest file

21. User Interaction

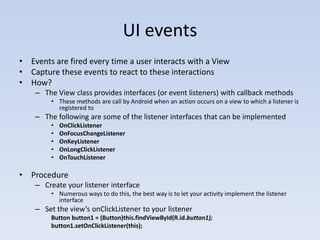

22. UI events
• Events are fired every time a user interacts with a View
• Capture these events to react to these interactions
• How?
– The View class provides interfaces (or event listeners) with callback methods
• These methods are call by Android when an action occurs on a view to which a listener is
registered to
– The following are some of the listener interfaces that can be implemented
• OnClickListener
• OnFocusChangeListener
• OnKeyListener
• OnLongClickListener
• OnTouchListener
• Procedure
– Create your listener interface
• Numerous ways to do this, the best way is to let your activity implement the listener
interface
– Set the view’s onClickListener to your listener
Button button1 = (Button)this.findViewById(R.id.button1);
button1.setOnClickListener(this);

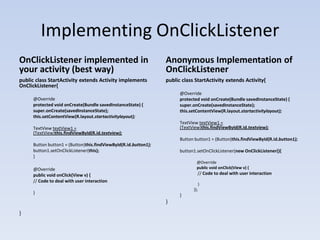

23. Implementing OnClickListener
OnClickListener implemented in Anonymous Implementation of
your activity (best way) OnClickListener
public class StartActivity extends Activity implements public class StartActivity extends Activity{
OnClickListener{
@Override
@Override protected void onCreate(Bundle savedInstanceState) {
protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState);
super.onCreate(savedInstanceState); this.setContentView(R.layout.startactivitylayout);
this.setContentView(R.layout.startactivitylayout);
TextView textView1 =
TextView textView1 = (TextView)this.findViewById(R.id.textview);
(TextView)this.findViewById(R.id.textview);
Button button1 = (Button)this.findViewById(R.id.button1);
Button button1 = (Button)this.findViewById(R.id.button1);
button1.setOnClickListener(this); button1.setOnClickListener(new OnClickListener(){
}
@Override
@Override public void onClick(View v) {
public void onClick(View v) { // Code to deal with user interaction
// Code to deal with user interaction
}
});
}
}
}
}

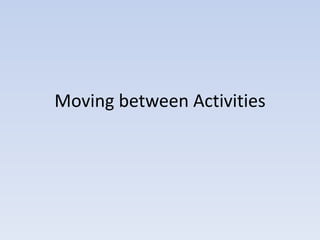

24. Moving between Activities

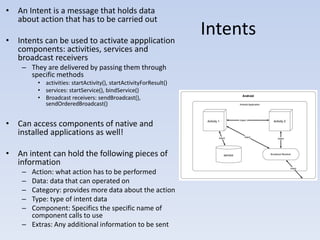

25. • An Intent is a message that holds data
about action that has to be carried out
• Intents can be used to activate appplication
Intents
components: activities, services and
broadcast receivers
– They are delivered by passing them through
specific methods
• activities: startActivity(), startActivityForResult()
• services: startService(), bindService()
• Broadcast receivers: sendBroadcast(),
sendOrderedBroadcast()
• Can access components of native and
installed applications as well!
• An intent can hold the following pieces of
information
– Action: what action has to be performed
– Data: data that can operated on
– Category: provides more data about the action
– Type: type of intent data
– Component: Specifics the specific name of
component calls to use
– Extras: Any additional information to be sent

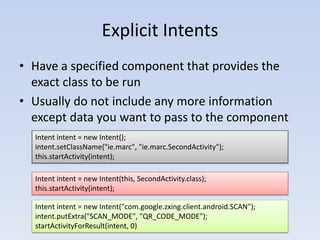

26. Explicit Intents
• Have a specified component that provides the
exact class to be run
• Usually do not include any more information
except data you want to pass to the component
Intent intent = new Intent();
intent.setClassName("ie.marc", "ie.marc.SecondActivity");
this.startActivity(intent);
Intent intent = new Intent(this, SecondActivity.class);
this.startActivity(intent);
Intent intent = new Intent("com.google.zxing.client.android.SCAN");
intent.putExtra("SCAN_MODE", "QR_CODE_MODE");
startActivityForResult(intent, 0)

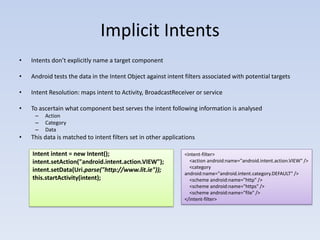

27. Implicit Intents
• Intents don’t explicitly name a target component
• Android tests the data in the Intent Object against intent filters associated with potential targets
• Intent Resolution: maps intent to Activity, BroadcastReceiver or service
• To ascertain what component best serves the intent following information is analysed
– Action
– Category
– Data
• This data is matched to intent filters set in other applications
Intent intent = new Intent(); <intent-filter>
intent.setAction("android.intent.action.VIEW"); <action android:name="android.intent.action.VIEW" />
<category
intent.setData(Uri.parse("http://www.lit.ie"));
android:name="android.intent.category.DEFAULT" />
this.startActivity(intent); <scheme android:name="http" />
<scheme android:name="https" />
<scheme android:name="file" />
</intent-filter>

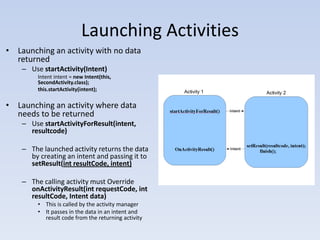

28. Launching Activities
• Launching an activity with no data
returned
– Use startActivity(Intent)
Intent intent = new Intent(this,
SecondActivity.class);
this.startActivity(intent);
• Launching an activity where data
needs to be returned
– Use startActivityForResult(intent,
resultcode)
– The launched activity returns the data
by creating an intent and passing it to
setResult(int resultCode, intent)
– The calling activity must Override
onActivityResult(int requestCode, int
resultCode, Intent data)
• This is called by the activity manager
• It passes in the data in an intent and
result code from the returning activity

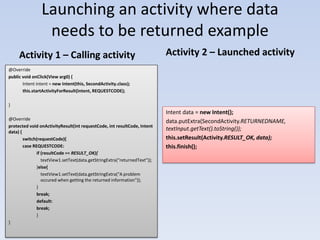

29. Launching an activity where data
needs to be returned example
Activity 1 – Calling activity Activity 2 – Launched activity
@Override
public void onClick(View arg0) {
Intent intent = new Intent(this, SecondActivity.class);
this.startActivityForResult(intent, REQUESTCODE);
}
Intent data = new Intent();
@Override
data.putExtra(SecondActivity.RETURNEDNAME,
protected void onActivityResult(int requestCode, int resultCode, Intent
data) {
textInput.getText().toString());
switch(requestCode){ this.setResult(Activity.RESULT_OK, data);
case REQUESTCODE: this.finish();
if (resultCode == RESULT_OK){
textView1.setText(data.getStringExtra("returnedText"));
}else{
textView1.setText(data.getStringExtra("A problem
occured when getting the returned information"));
}
break;
default:
break;
}
}

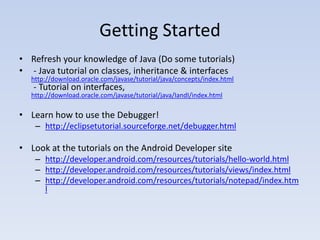

30. Getting Started
• Refresh your knowledge of Java (Do some tutorials)
• - Java tutorial on classes, inheritance & interfaces
http://download.oracle.com/javase/tutorial/java/concepts/index.html
- Tutorial on interfaces,
http://download.oracle.com/javase/tutorial/java/IandI/index.html
• Learn how to use the Debugger!
– http://eclipsetutorial.sourceforge.net/debugger.html
• Look at the tutorials on the Android Developer site
– http://developer.android.com/resources/tutorials/hello-world.html
– http://developer.android.com/resources/tutorials/views/index.html
– http://developer.android.com/resources/tutorials/notepad/index.htm
l
