This document provides an overview of Apache Spark, an open-source unified analytics engine for large-scale data processing. It discusses Spark's core APIs including RDDs and transformations/actions. It also covers Spark SQL, Spark Streaming, MLlib, and GraphX. Spark provides a fast and general engine for big data processing, with explicit operations for streaming, SQL, machine learning, and graph processing. The document includes installation instructions and examples of using various Spark components.

1. Walaa Assy
Giza Systems
Software
Developer
SPARK
LIGHTNING-FAST UNIFIED ANALYTICS
ENGINE

2. HOW DO WE HANDLE
EVER GROWING DATA
THAT HAS BECOME BIG
DATA?

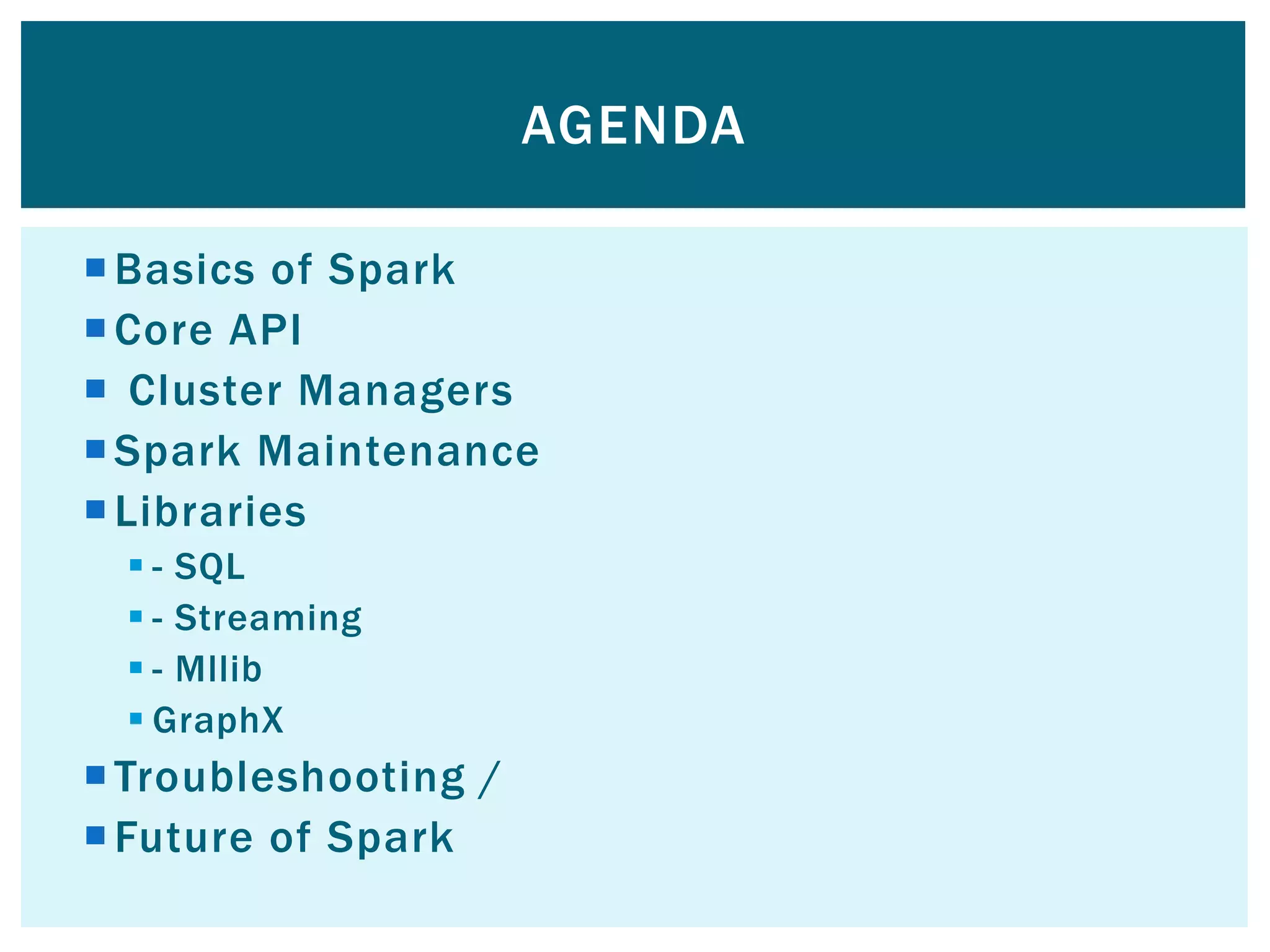

3. Basics of Spark
Core API
 Cluster Managers
Spark Maintenance
Libraries
 - SQL
 - Streaming
 - Mllib
 GraphX
Troubleshooting /
Future of Spark
AGENDA

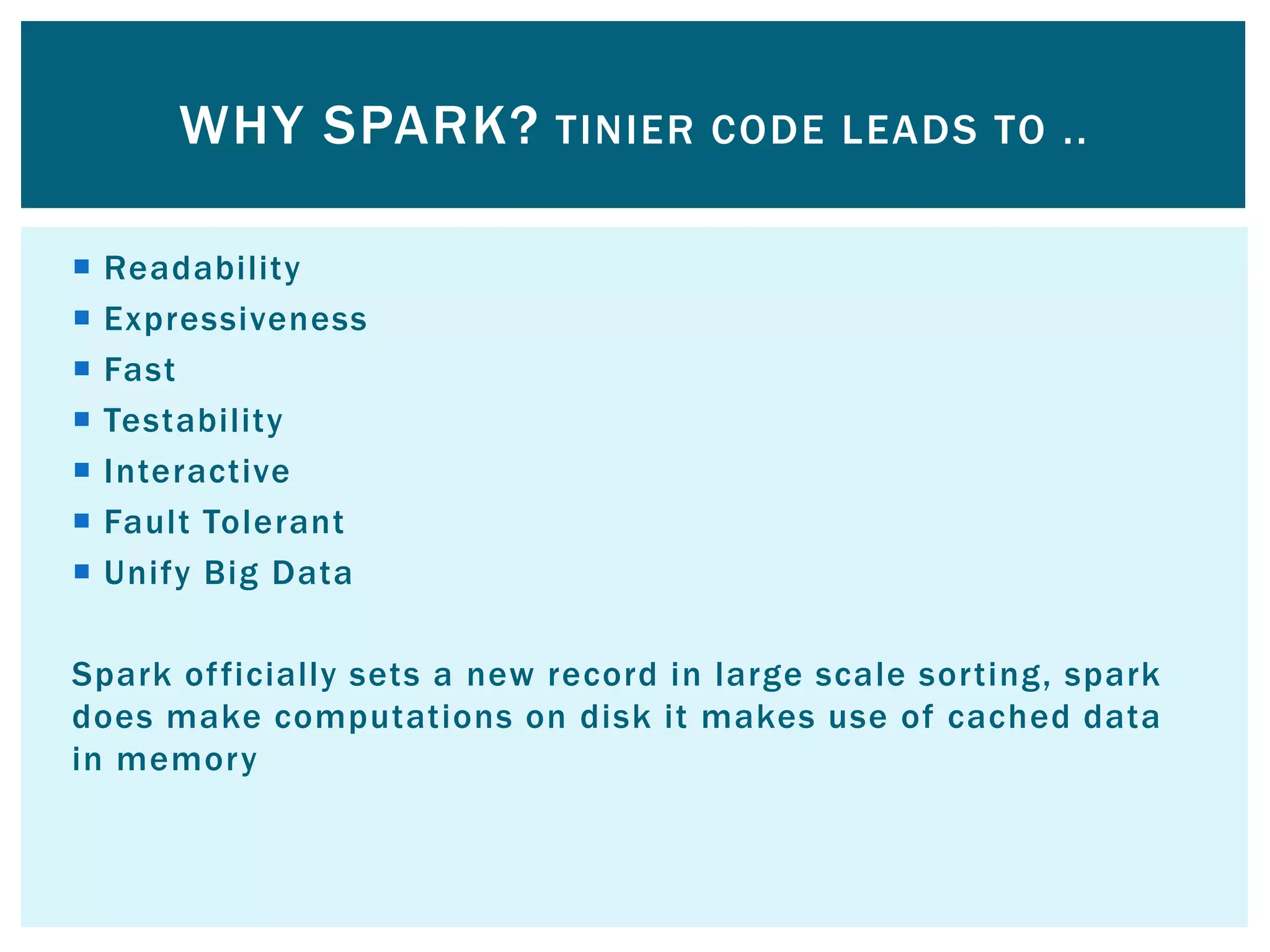

5.  Readability
 Expressiveness
 Fast
 Testability
 Interactive
 Fault Tolerant
 Unify Big Data
Spark officially sets a new record in large scale sorting, spark
does make computations on disk it makes use of cached data
in memory

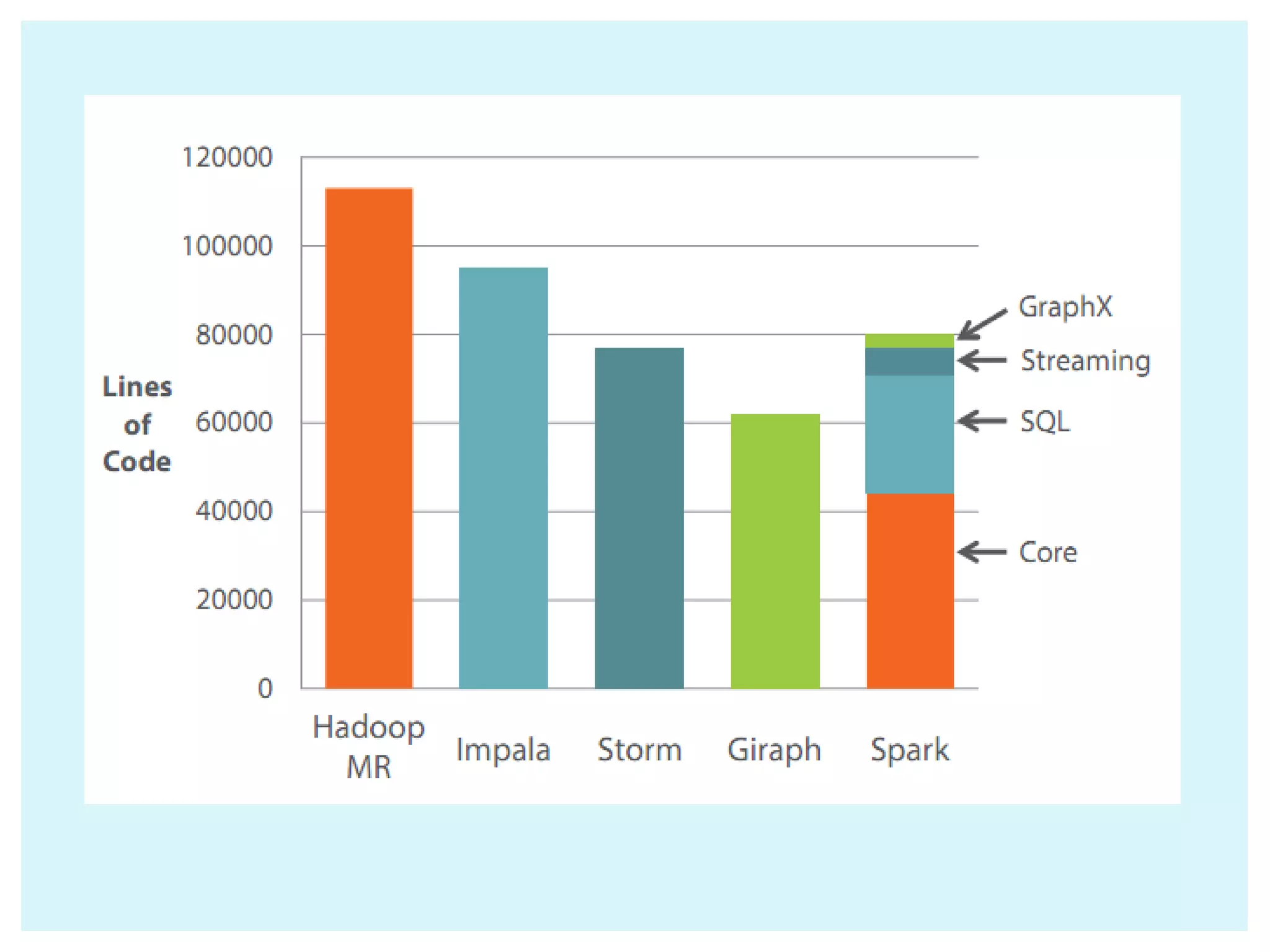

WHY SPARK? TINIER CODE LEADS TO ..

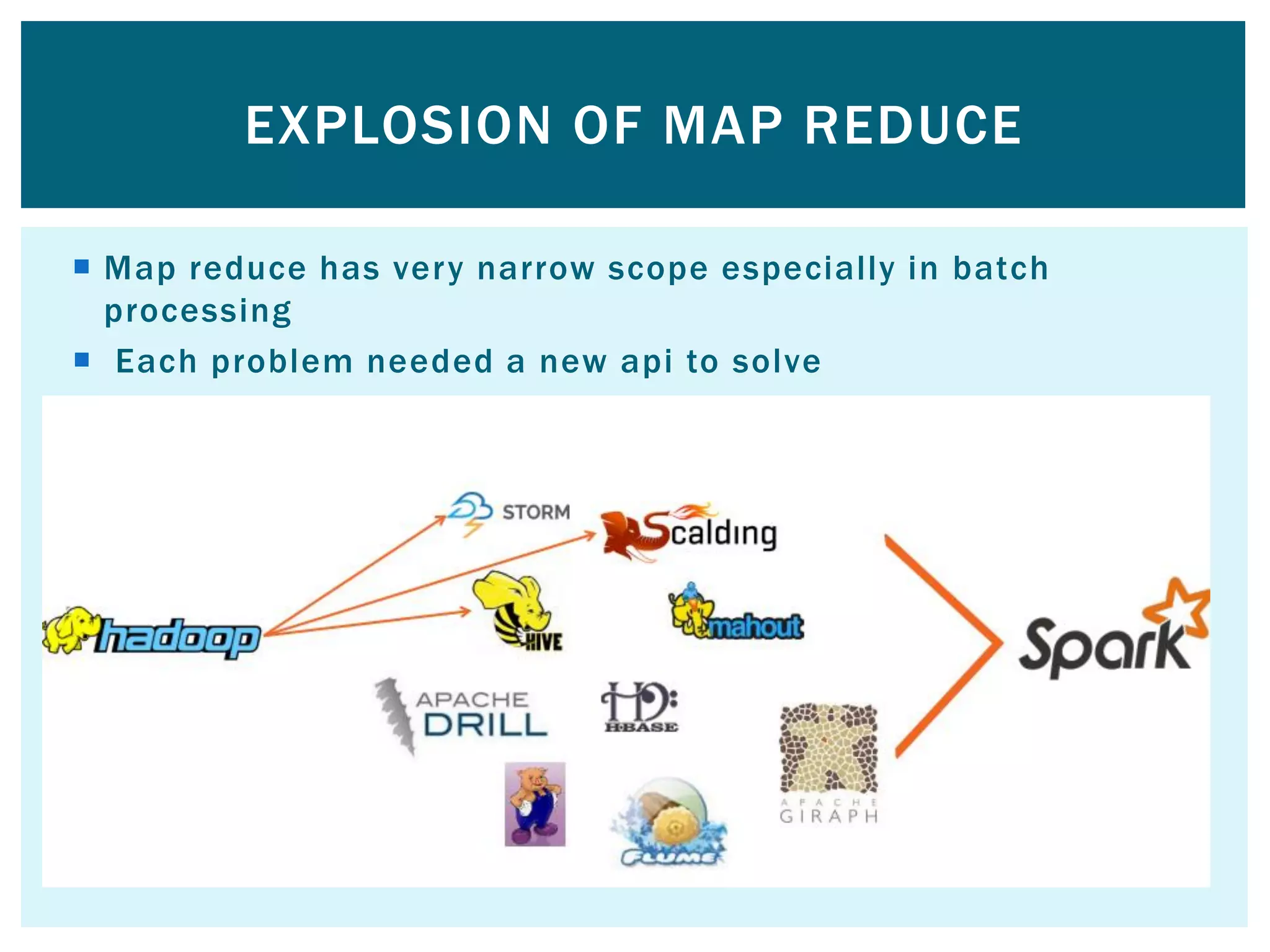

6.  Map reduce has very narrow scope especially in batch
processing
 Each problem needed a new api to solve
EXPLOSION OF MAP REDUCE

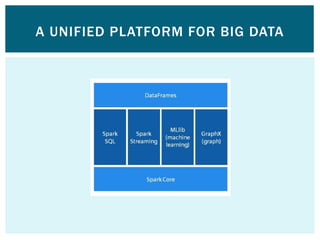

8. A UNIFIED PLATFORM FOR BIG DATA

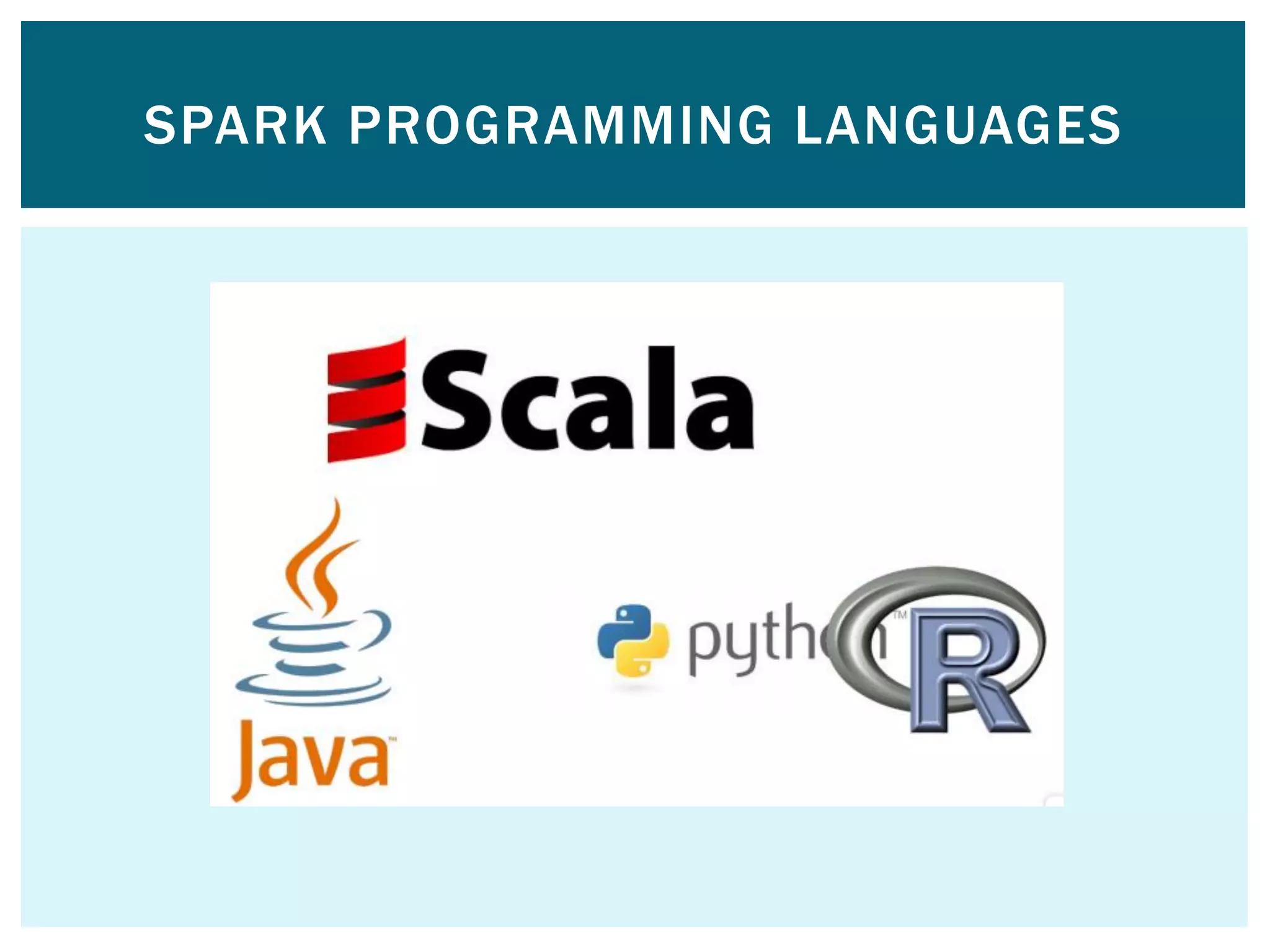

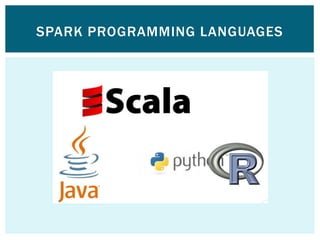

9. SPARK PROGRAMMING LANGUAGES

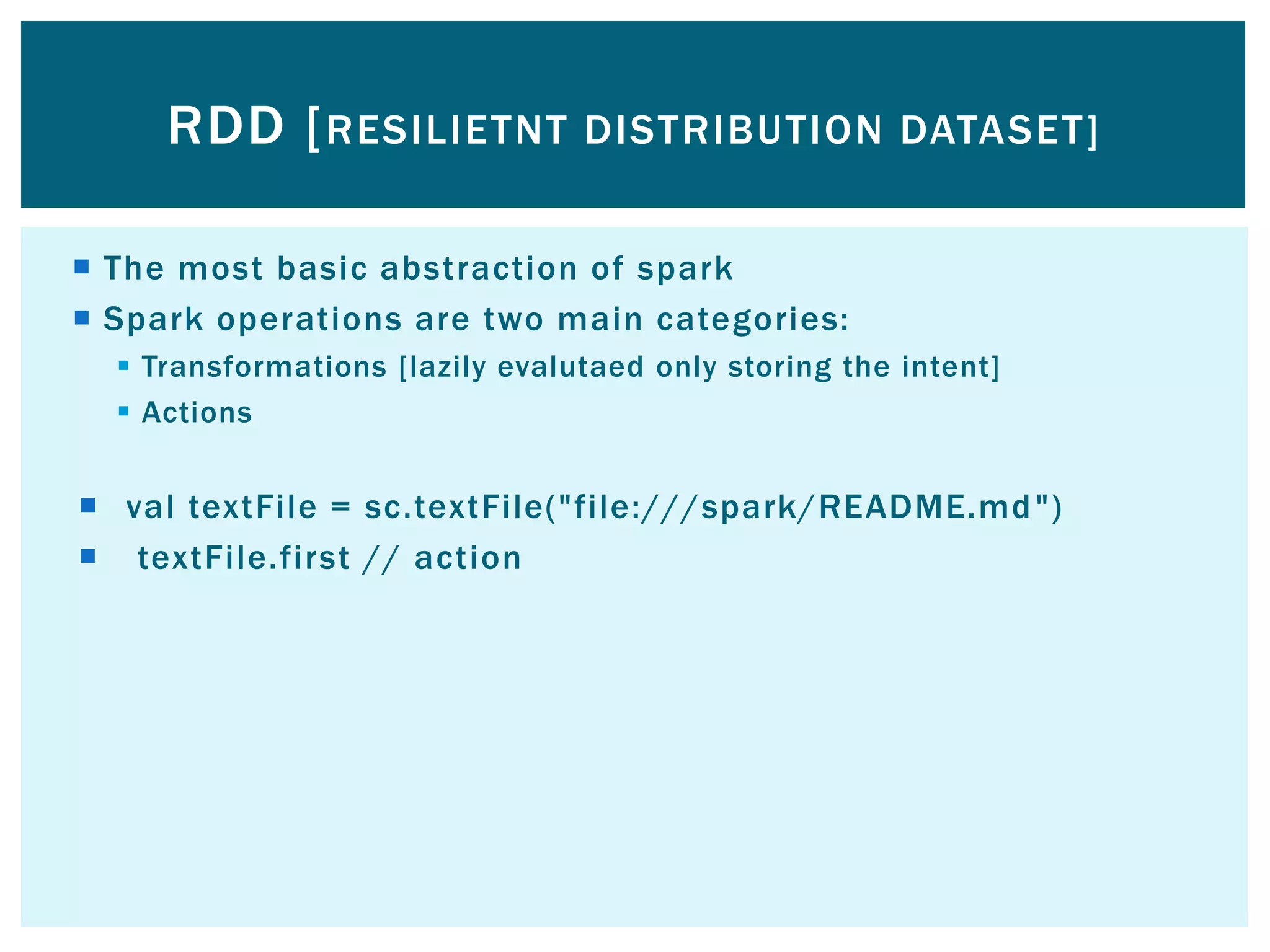

10.  The most basic abstraction of spark
 Spark operations are two main categories:
 Transformations [lazily evalutaed only storing the intent]
 Actions
 val textFile = sc.textFile("file:///spark/README.md")
 textFile.first // action
RDD [RESILIETNT DISTRIBUTION DATASET]

11. HELLO BIG DATA

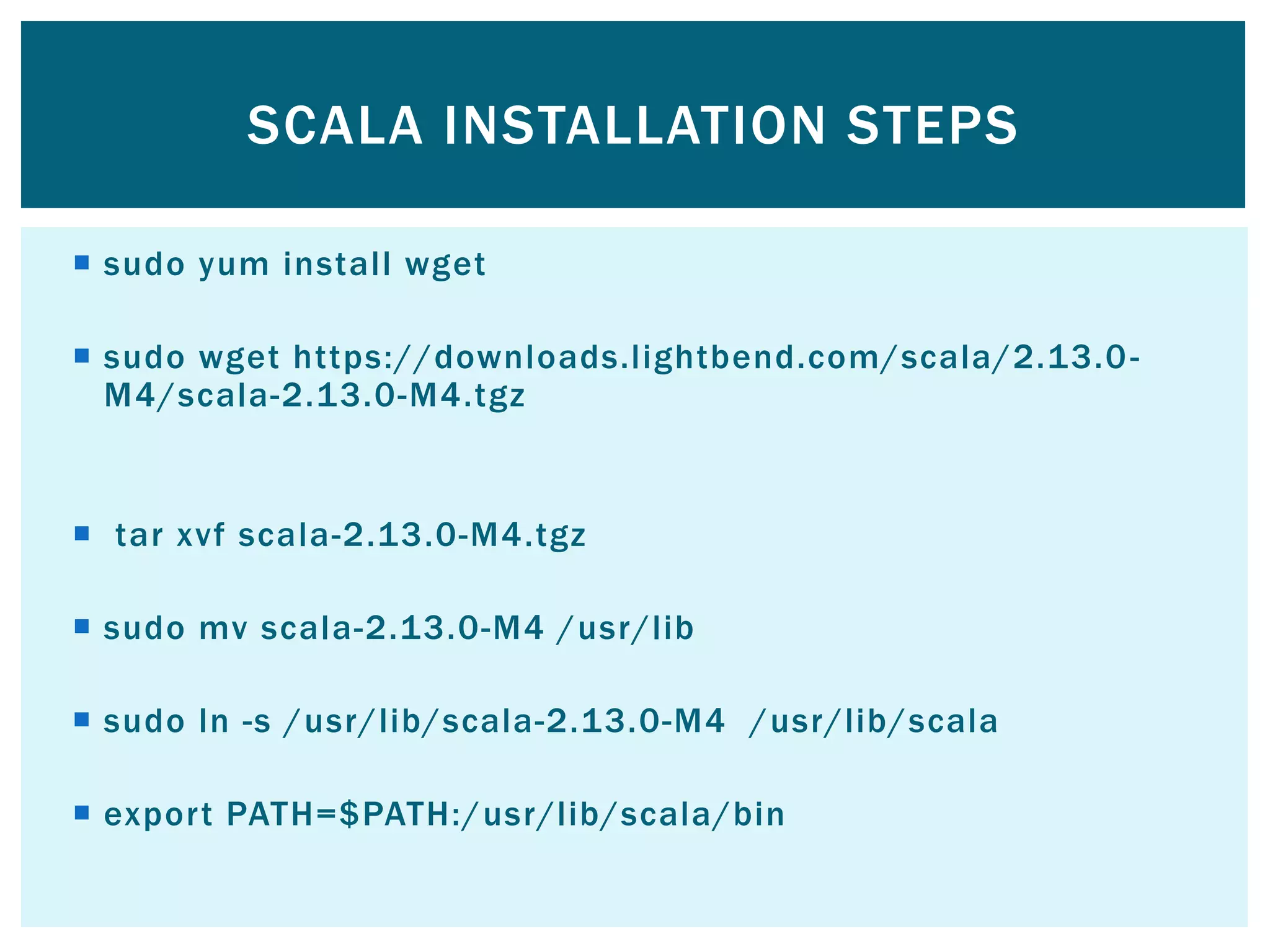

12.  sudo yum install wget
 sudo wget https://downloads.lightbend.com/scala/2.13.0-
M4/scala-2.13.0-M4.tgz
 tar xvf scala-2.13.0-M4.tgz
 sudo mv scala-2.13.0-M4 /usr/lib
 sudo ln -s /usr/lib/scala-2.13.0-M4 /usr/lib/scala
 export PATH=$PATH:/usr/lib/scala/bin
SCALA INSTALLATION STEPS

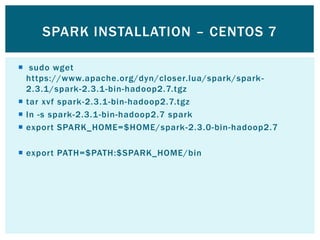

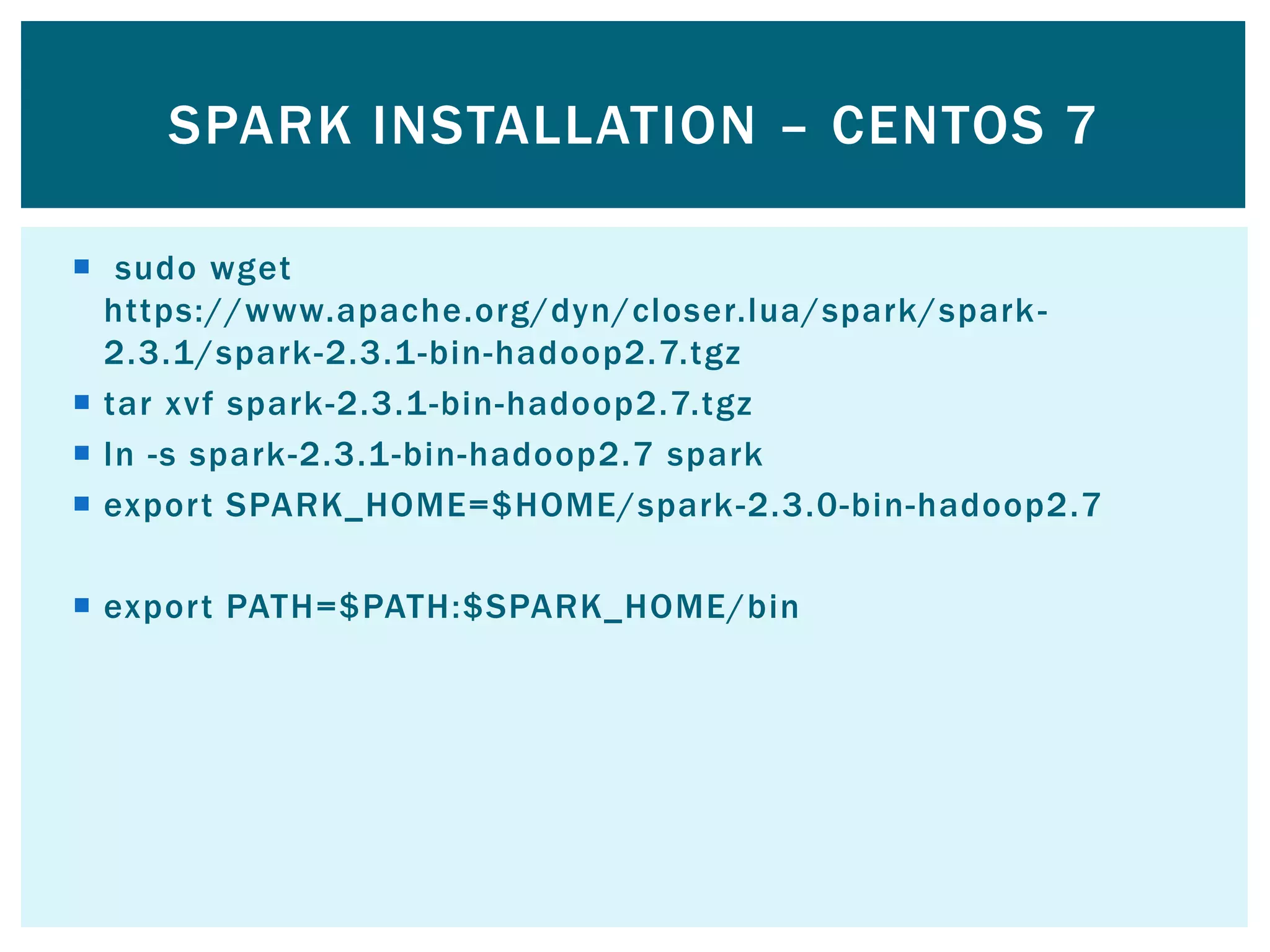

13.  sudo wget
https://www.apache.org/dyn/closer.lua/spark/spark-
2.3.1/spark-2.3.1-bin-hadoop2.7.tgz
 tar xvf spark-2.3.1-bin-hadoop2.7.tgz
 ln -s spark-2.3.1-bin-hadoop2.7 spark
 export SPARK_HOME=$HOME/spark-2.3.0-bin-hadoop2.7
 export PATH=$PATH:$SPARK_HOME/bin
SPARK INSTALLATION – CENTOS 7

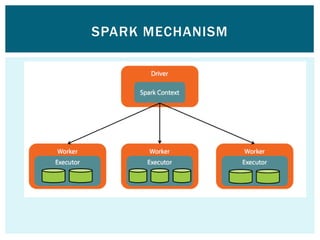

14. SPARK MECHANISM

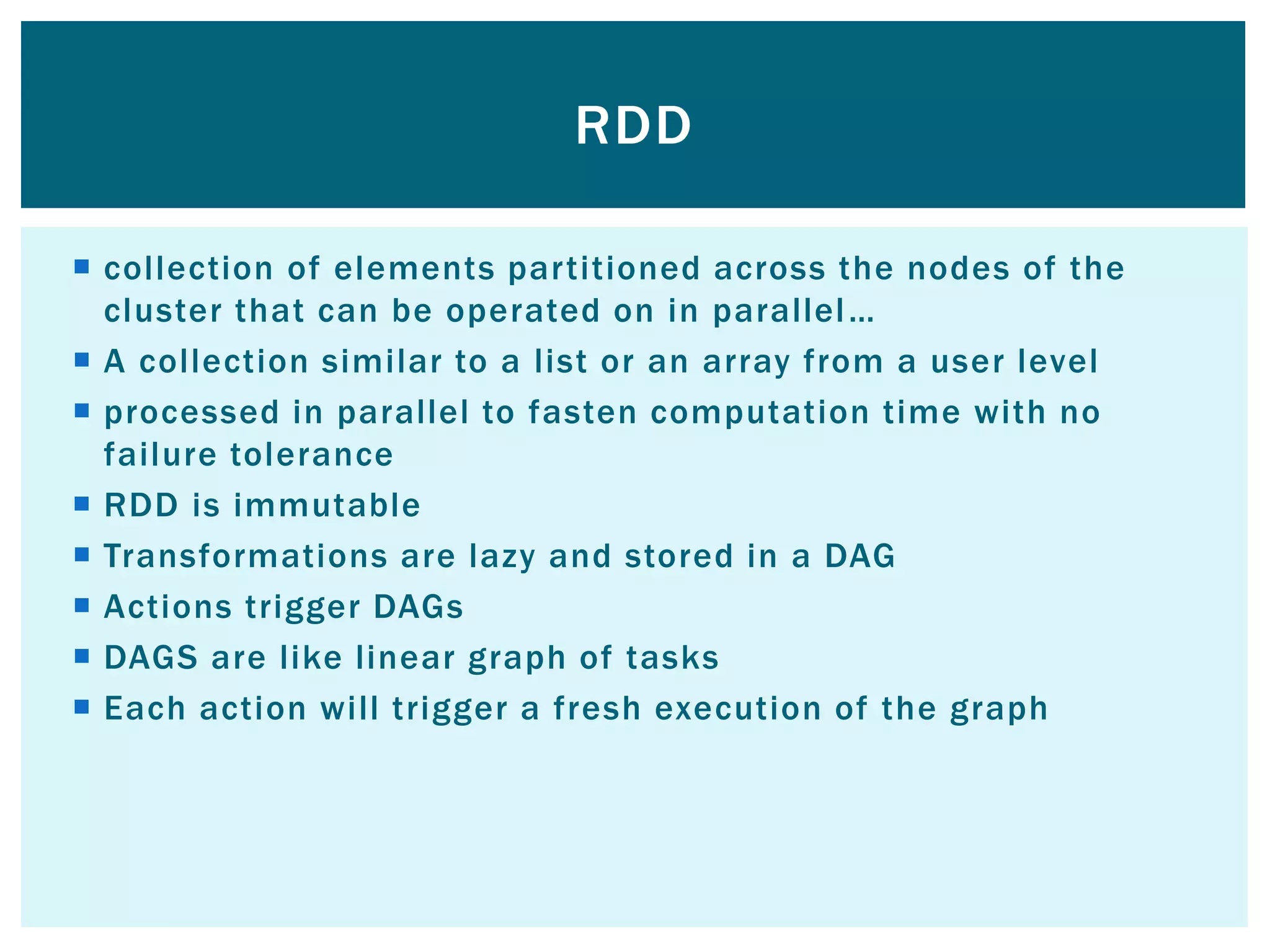

15.  collection of elements partitioned across the nodes of the
cluster that can be operated on in parallel…
 A collection similar to a list or an array from a user level
 processed in parallel to fasten computation time with no
failure tolerance
 RDD is immutable
 Transformations are lazy and stored in a DAG
 Actions trigger DAGs
 DAGS are like linear graph of tasks
 Each action will trigger a fresh execution of the graph
RDD

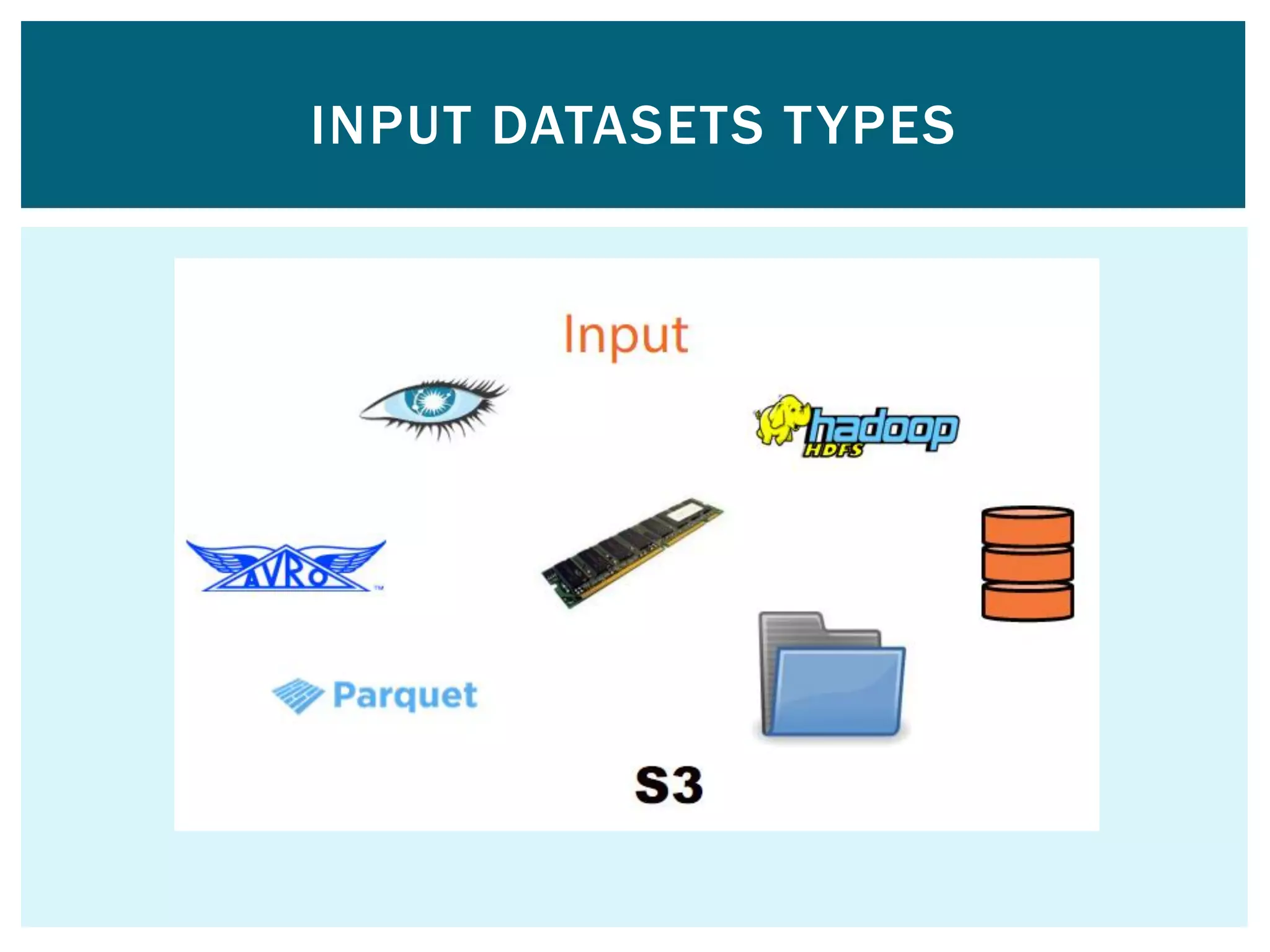

16. INPUT DATASETS TYPES

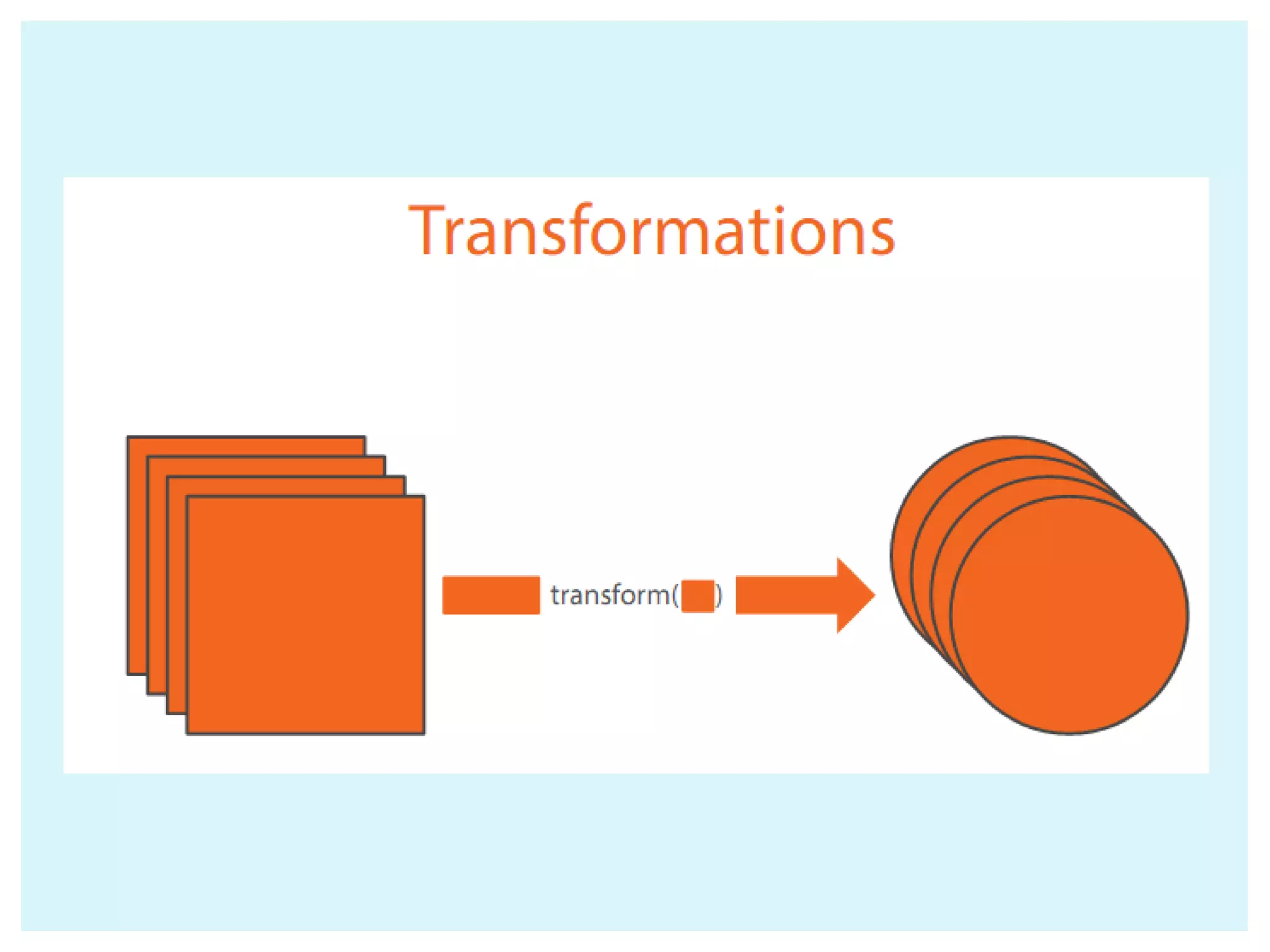

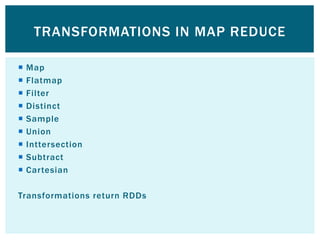

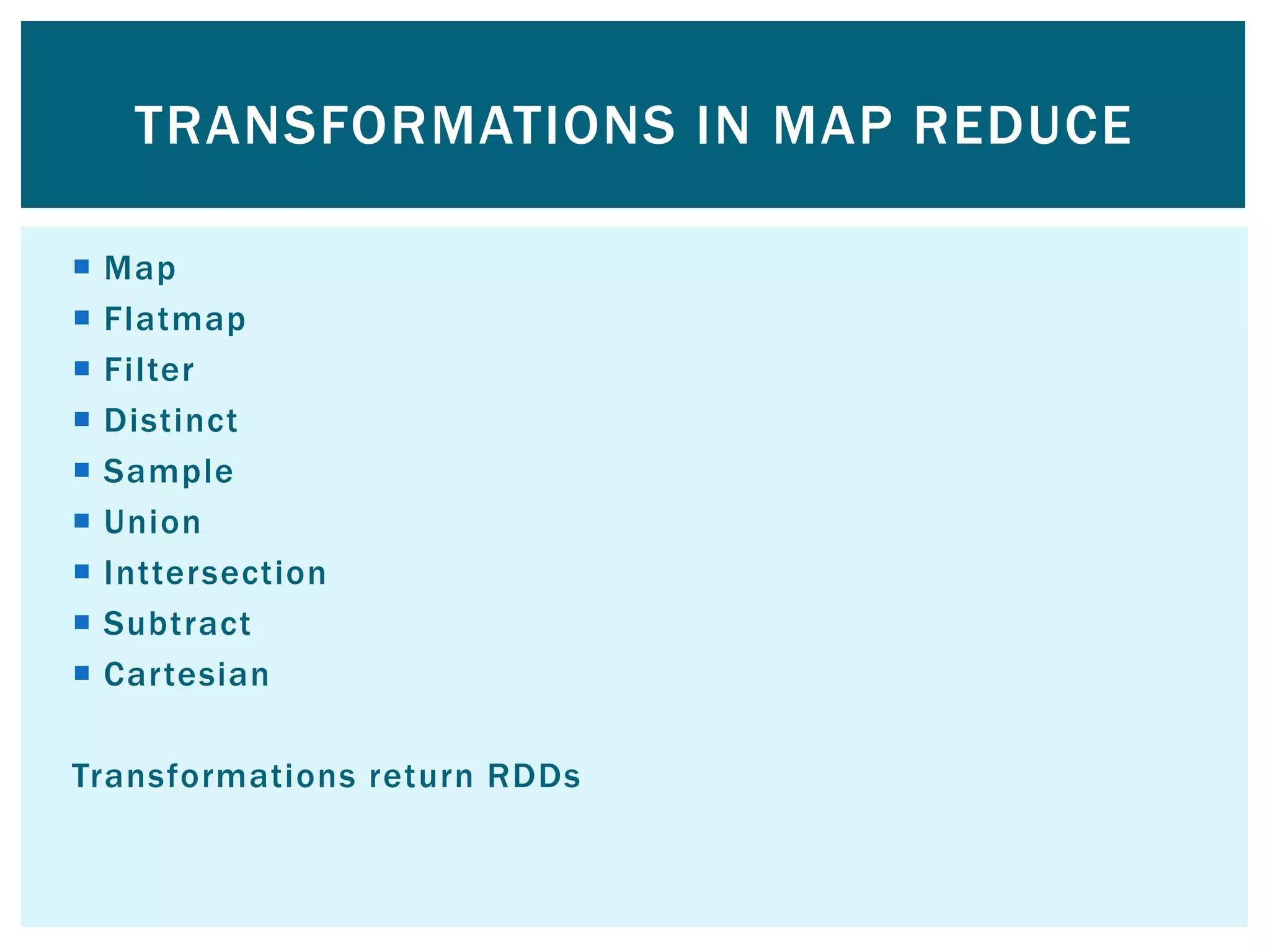

18.  Map
 Flatmap
 Filter
 Distinct
 Sample

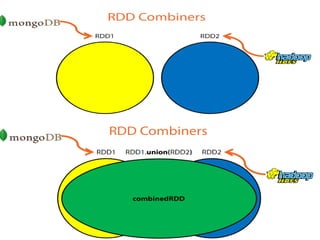

 Union

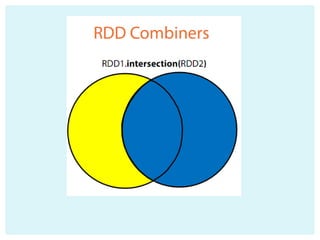

 Inttersection

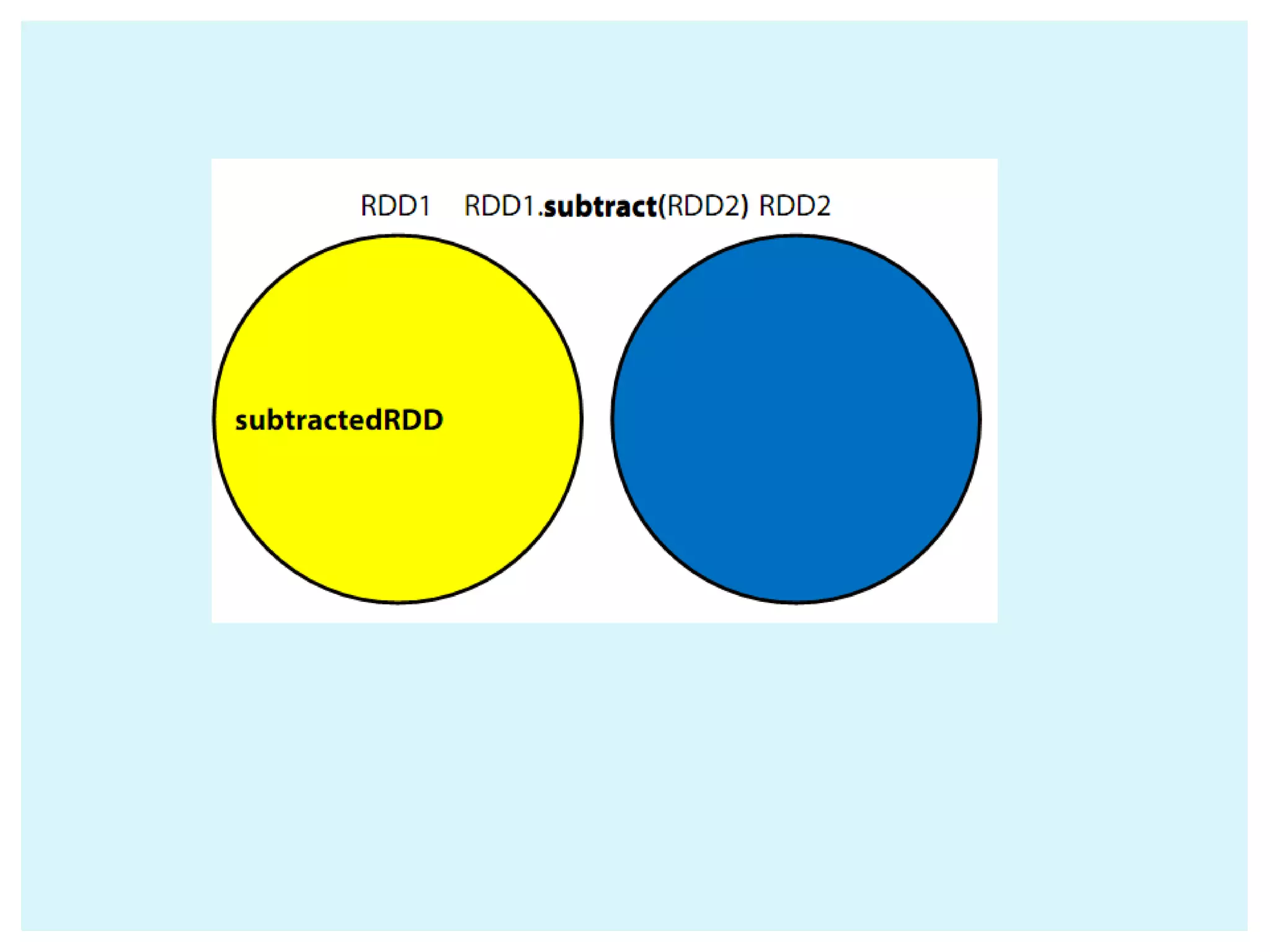

 Subtract
 Cartesian
Transformations return RDDs
TRANSFORMATIONS IN MAP REDUCE

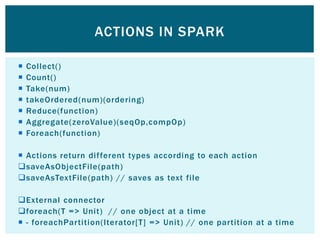

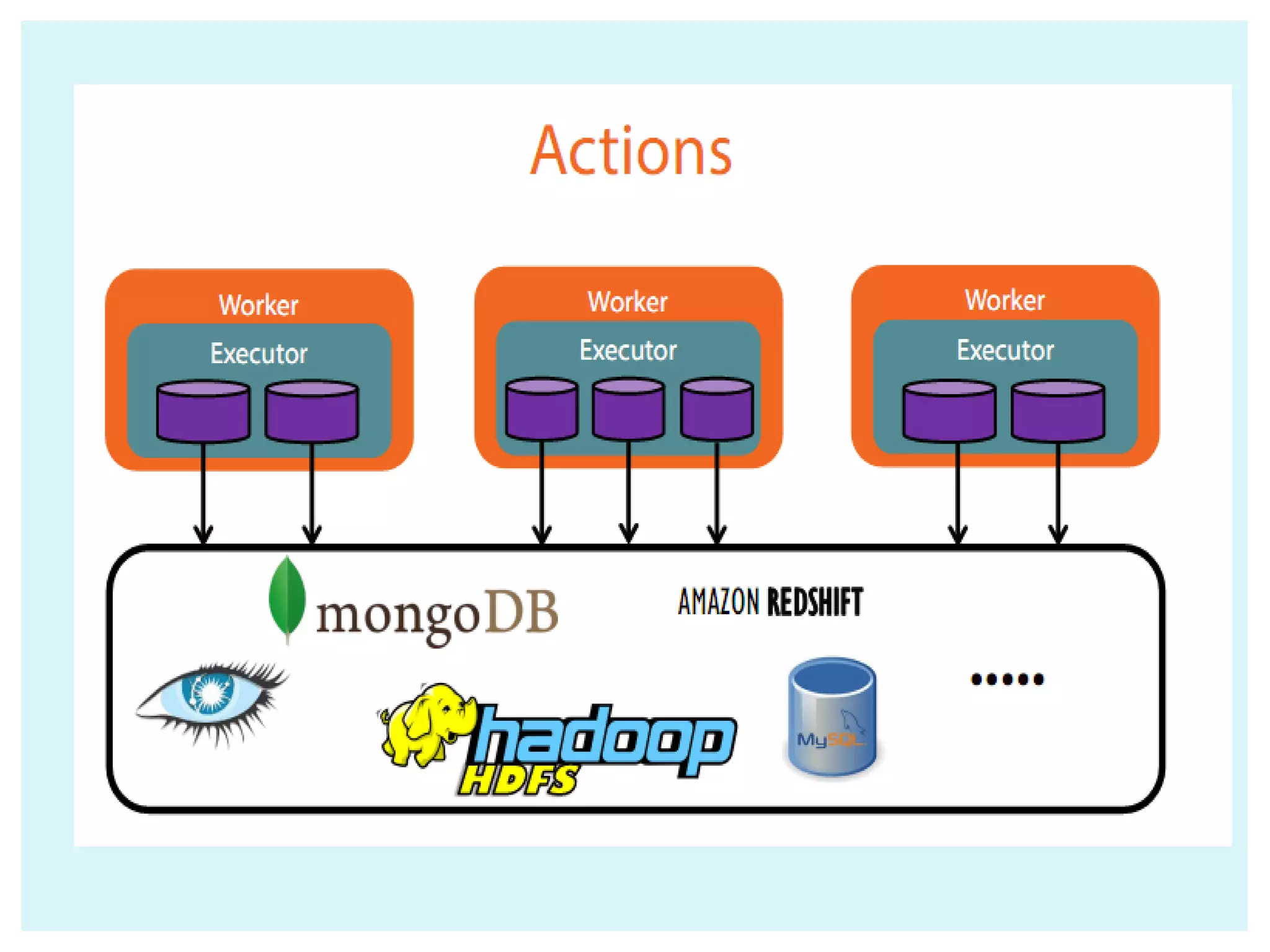

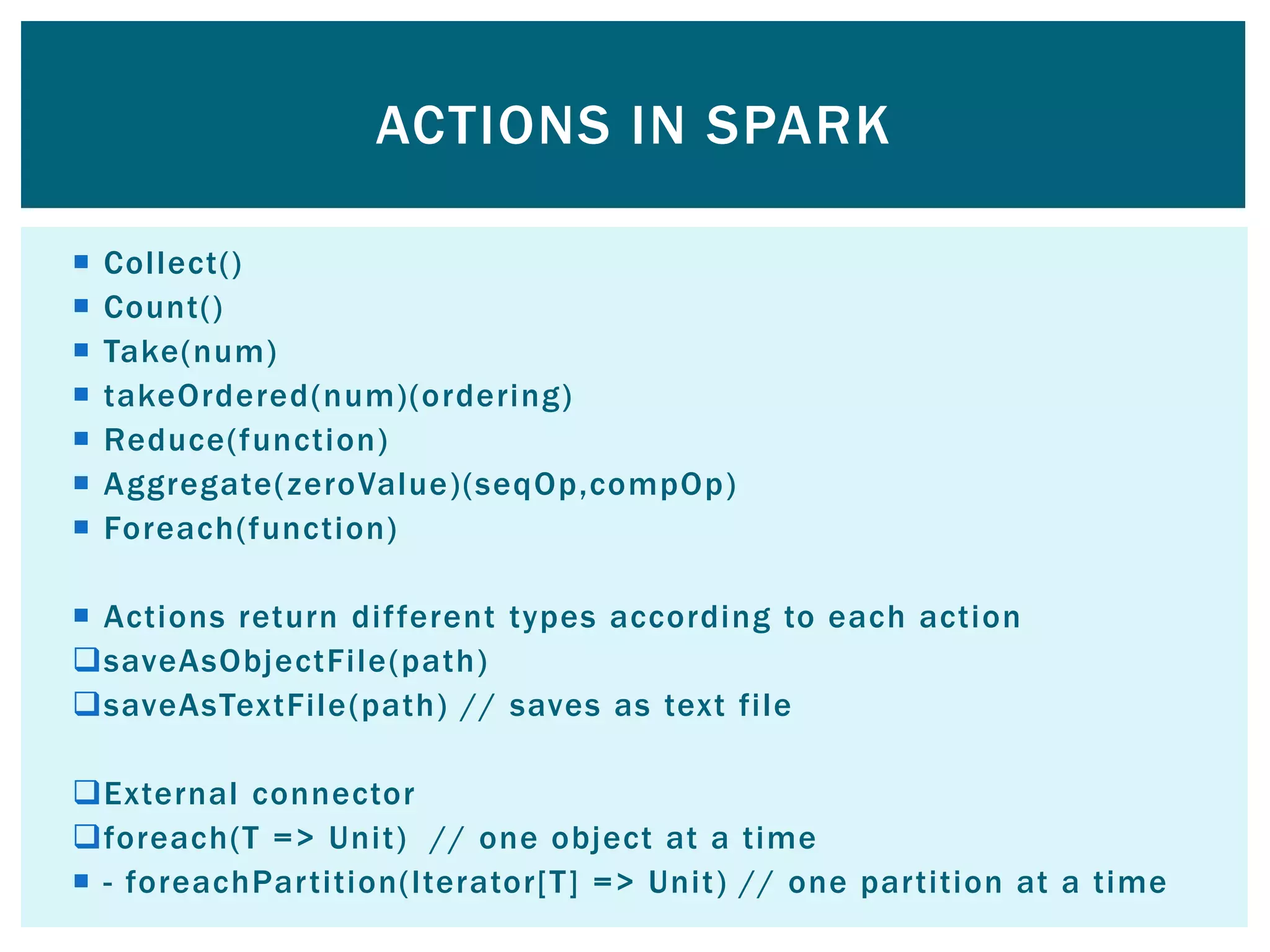

24.  Collect()
 Count()
 Take(num)
 takeOrdered(num)(ordering)
 Reduce(function)
 Aggregate(zeroValue)(seqOp,compOp)
 Foreach(function)
 Actions return different types according to each action
saveAsObjectFile(path)
saveAsTextFile(path) // saves as text file
External connector
foreach(T => Unit) // one object at a time
 - foreachPartition(Iterator[T] => Unit) // one partition at a time

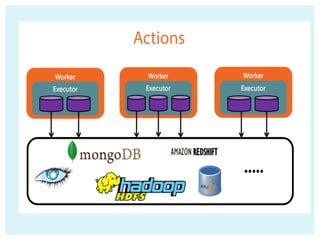

ACTIONS IN SPARK

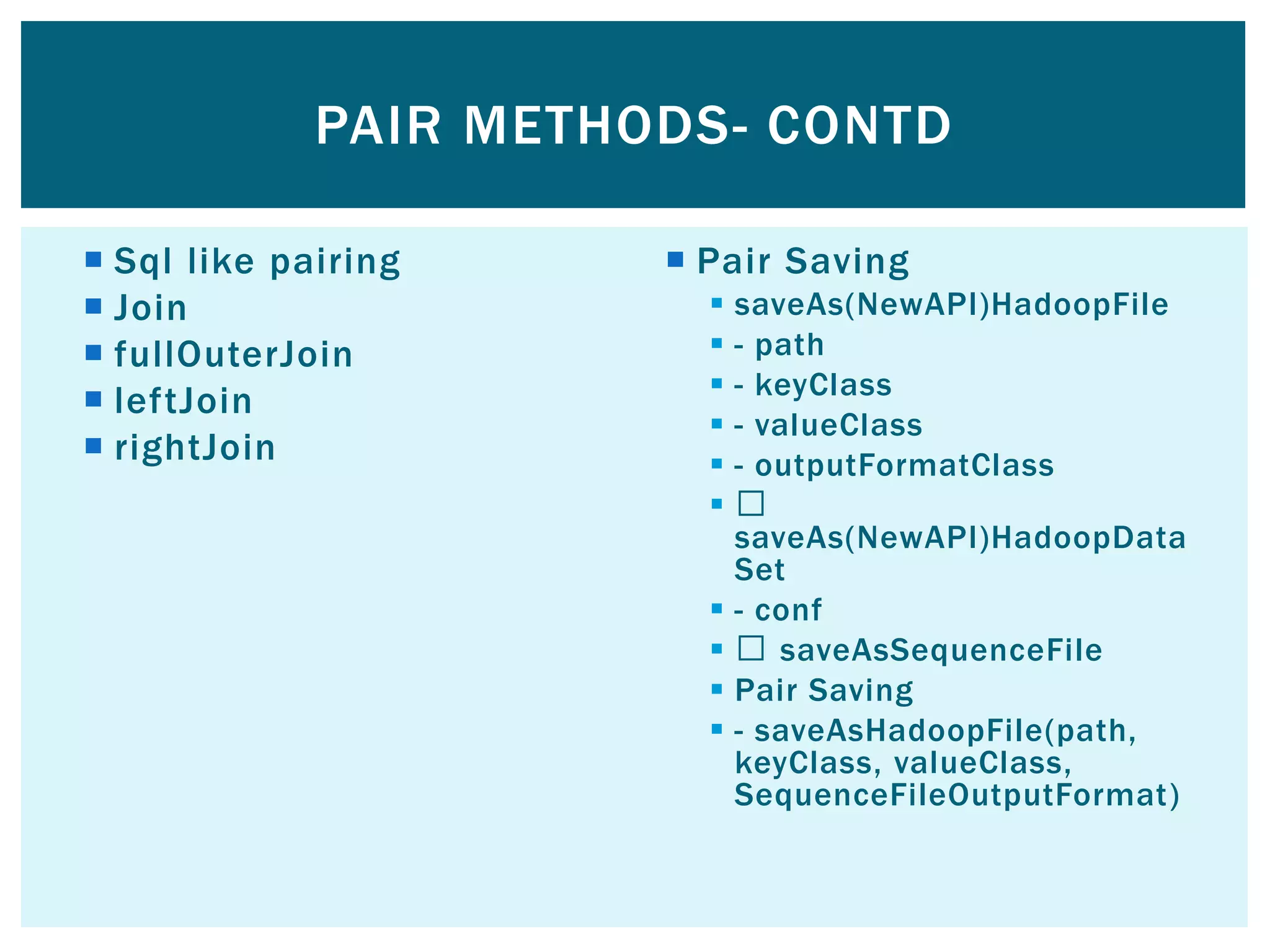

28.  Sql like pairing
 Join
 fullOuterJoin
 leftJoin
 rightJoin
 Pair Saving
 saveAs(NewAPI)HadoopFile
 - path
 - keyClass
 - valueClass
 - outputFormatClass

saveAs(NewAPI)HadoopData
Set
 - conf
 saveAsSequenceFile
 Pair Saving
 - saveAsHadoopFile(path,
keyClass, valueClass,
SequenceFileOutputFormat)
PAIR METHODS- CONTD

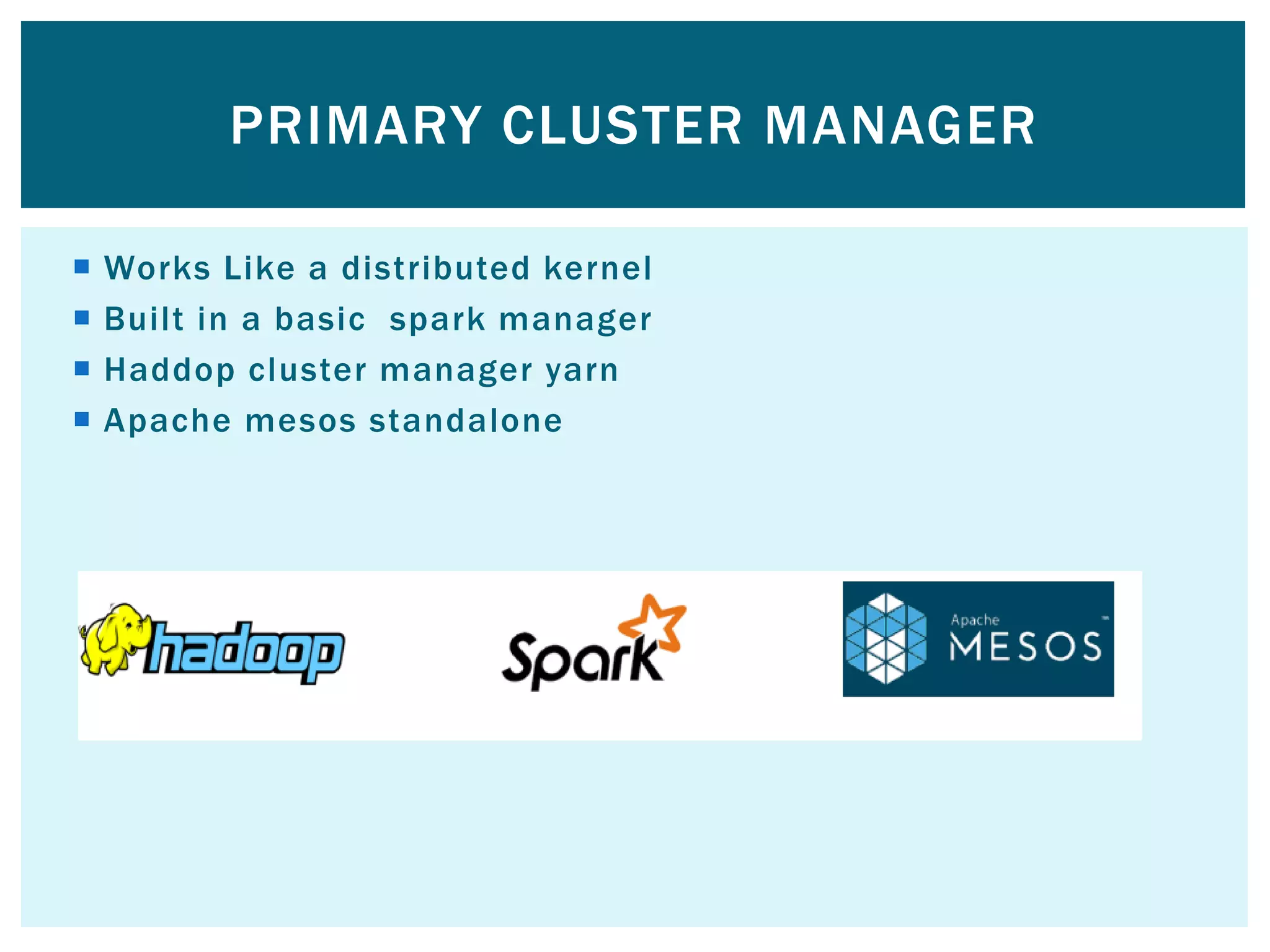

29.  Works Like a distributed kernel
 Built in a basic spark manager
 Haddop cluster manager yarn
 Apache mesos standalone
PRIMARY CLUSTER MANAGER

30. SPARK-SUBMIT DEMO

31. SPARK SQL

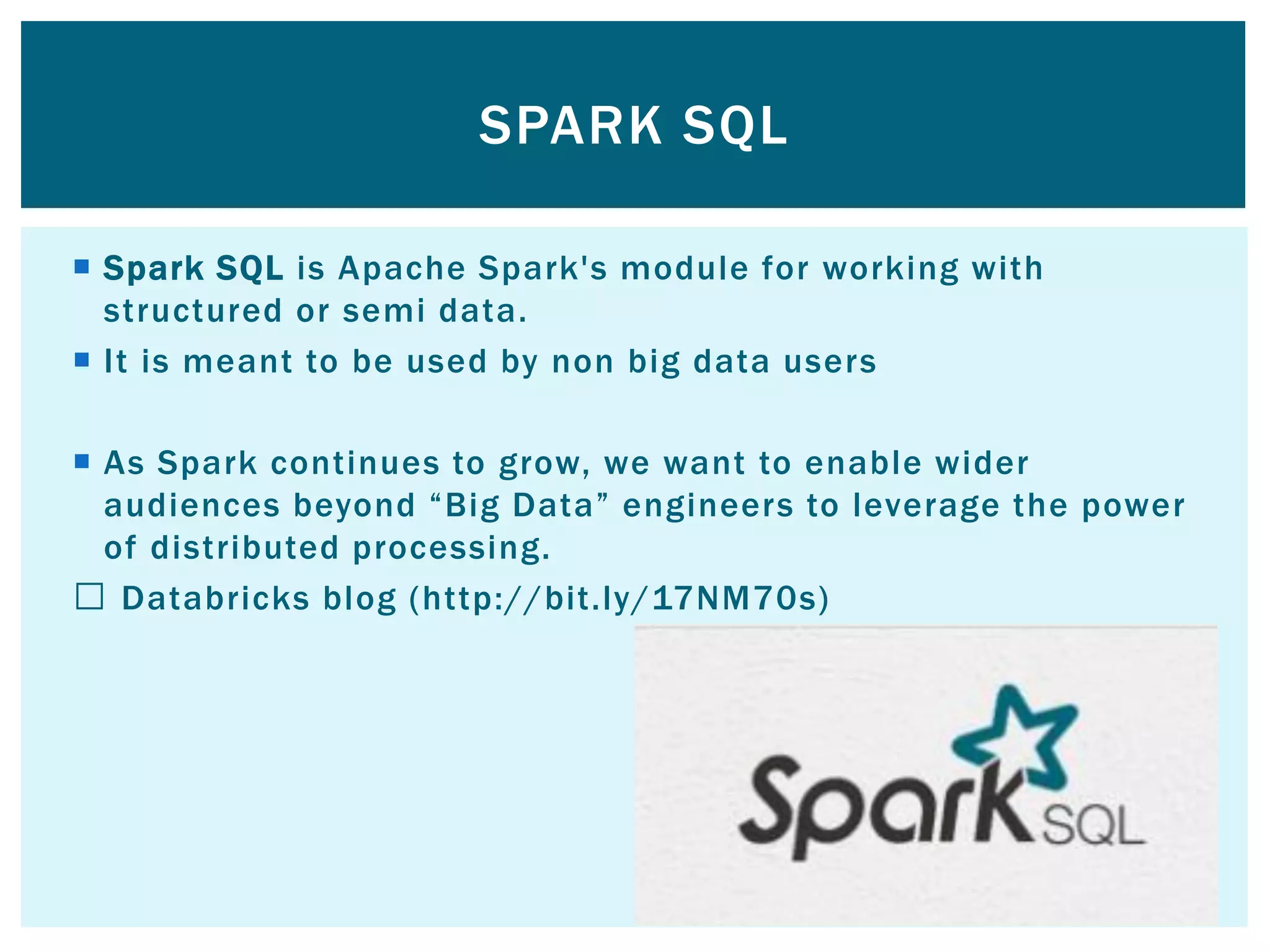

32.  Spark SQL is Apache Spark's module for working with
structured or semi data.
 It is meant to be used by non big data users
 As Spark continues to grow, we want to enable wider
audiences beyond “Big Data” engineers to leverage the power
of distributed processing.
Databricks blog (http://bit.ly/17NM70s)
SPARK SQL

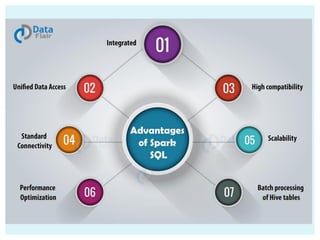

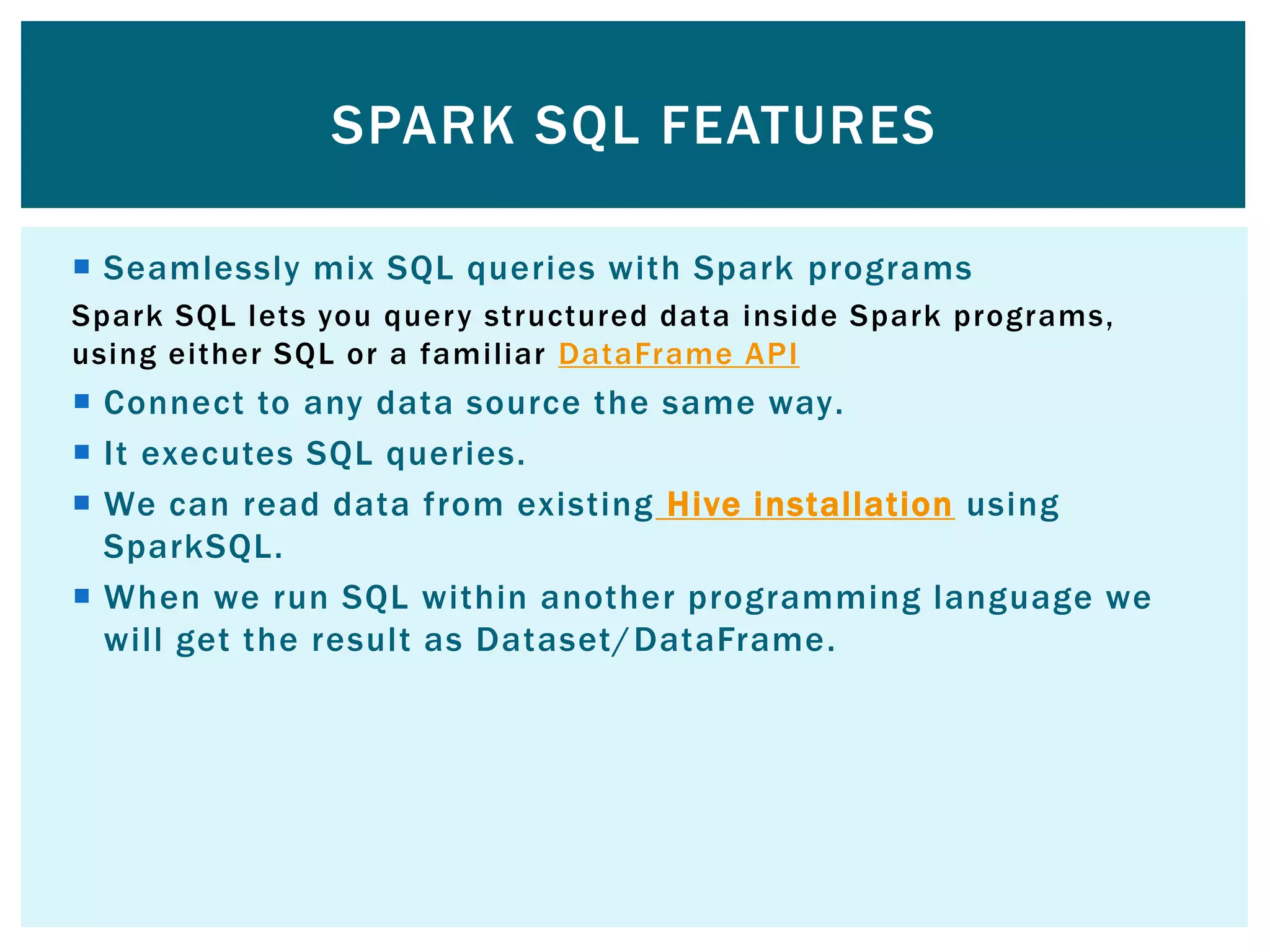

33.  Seamlessly mix SQL queries with Spark programs
Spark SQL lets you query structured data inside Spark programs,
using either SQL or a familiar DataFrame API
 Connect to any data source the same way.
 It executes SQL queries.
 We can read data from existing Hive installation using
SparkSQL.
 When we run SQL within another programming language we
will get the result as Dataset/DataFrame.
SPARK SQL FEATURES

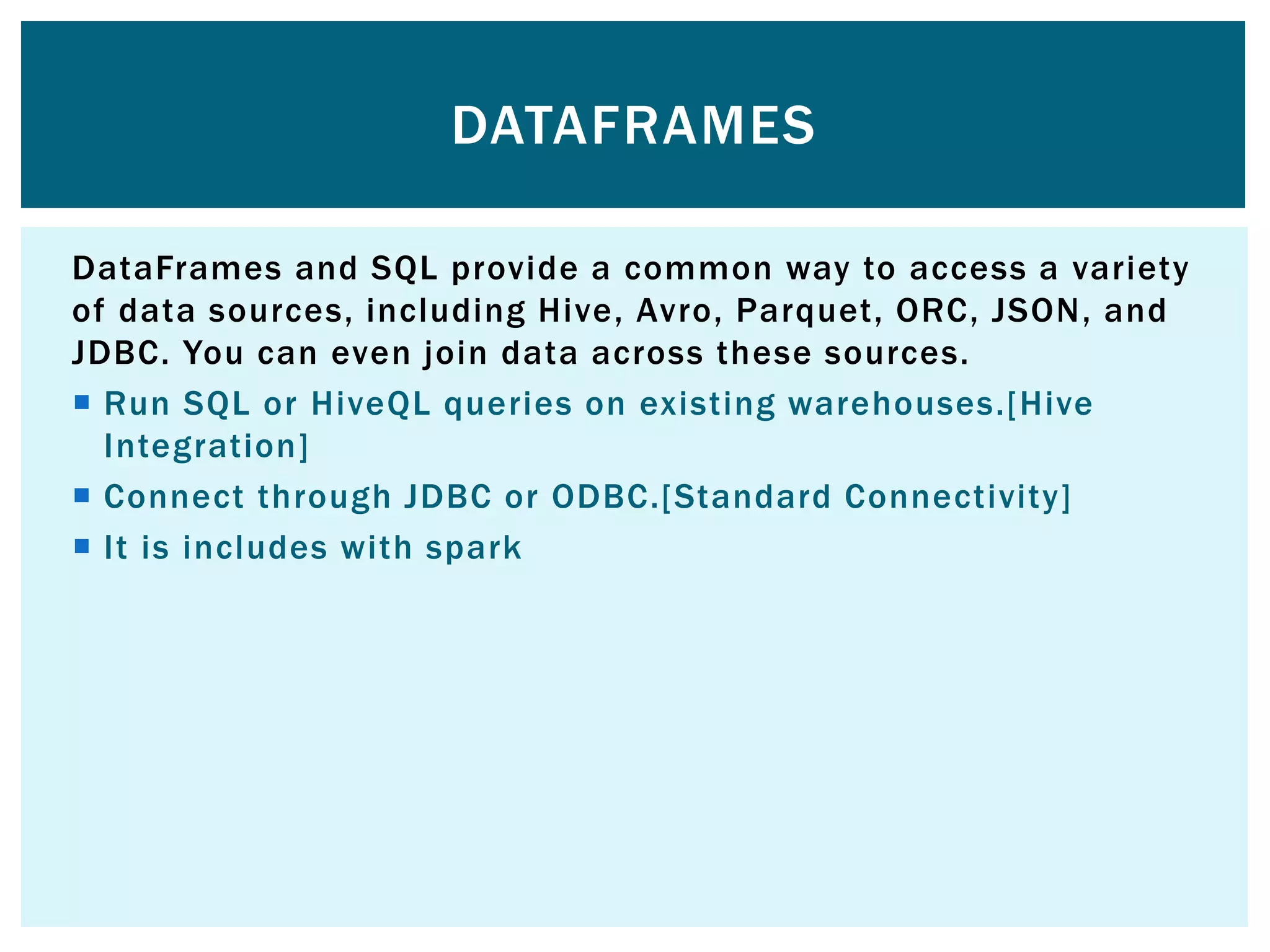

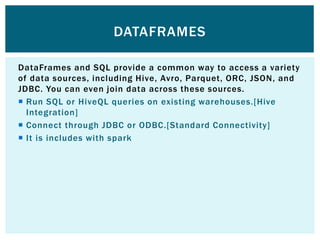

35. DataFrames and SQL provide a common way to access a variety
of data sources, including Hive, Avro, Parquet, ORC, JSON, and
JDBC. You can even join data across these sources.
 Run SQL or HiveQL queries on existing warehouses.[Hive
Integration]
 Connect through JDBC or ODBC.[Standard Connectivity]
 It is includes with spark
DATAFRAMES

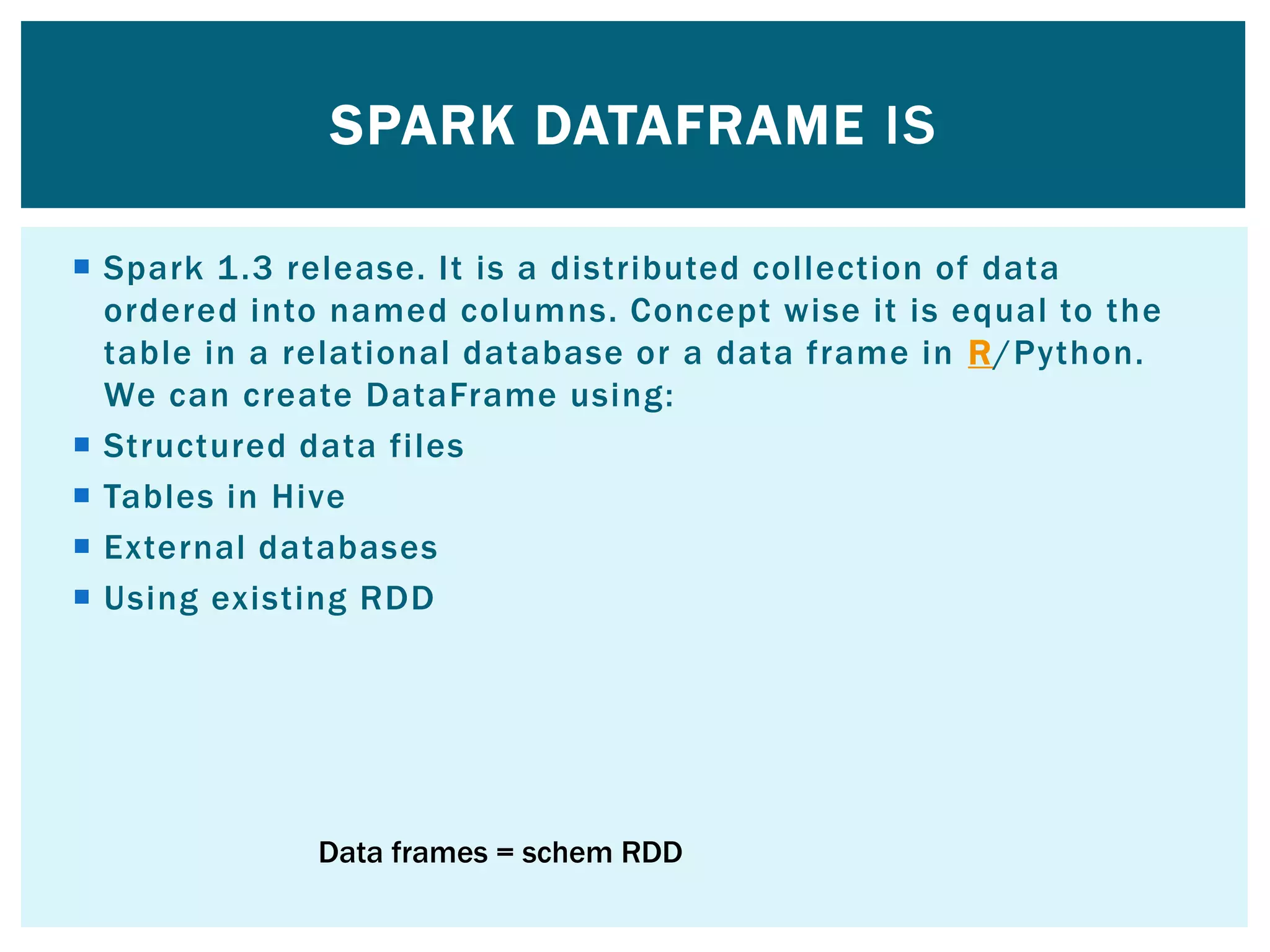

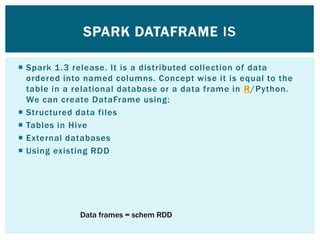

36.  Spark 1.3 release. It is a distributed collection of data
ordered into named columns. Concept wise it is equal to the
table in a relational database or a data frame in R/Python.
We can create DataFrame using:
 Structured data files
 Tables in Hive
 External databases
 Using existing RDD
SPARK DATAFRAME IS
Data frames = schem RDD

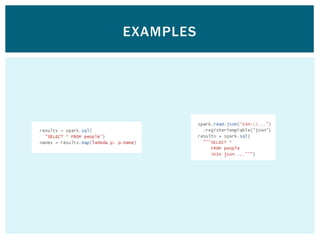

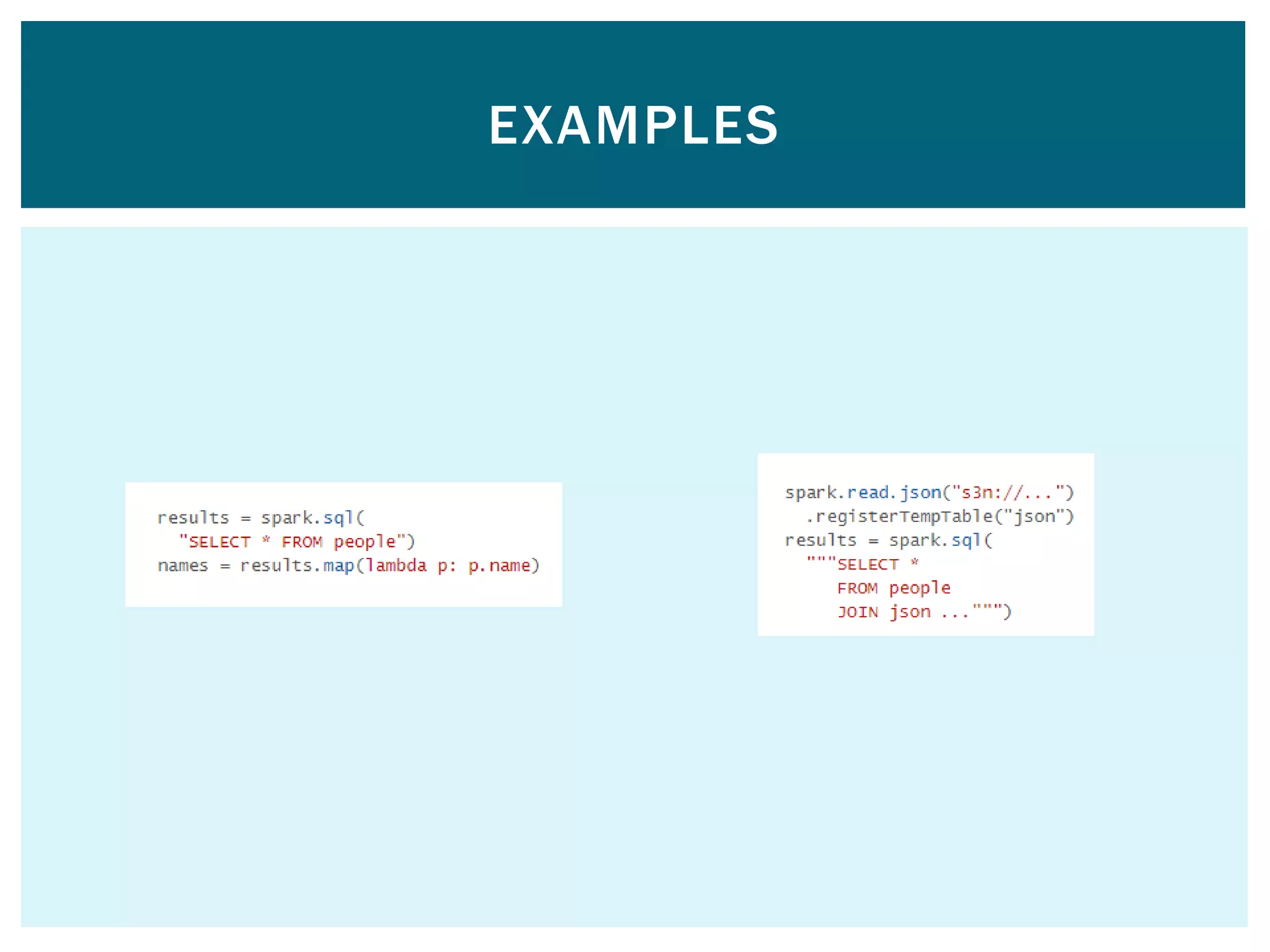

37. EXAMPLES

38. SPARK SQL COMPETITION

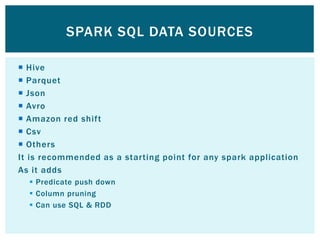

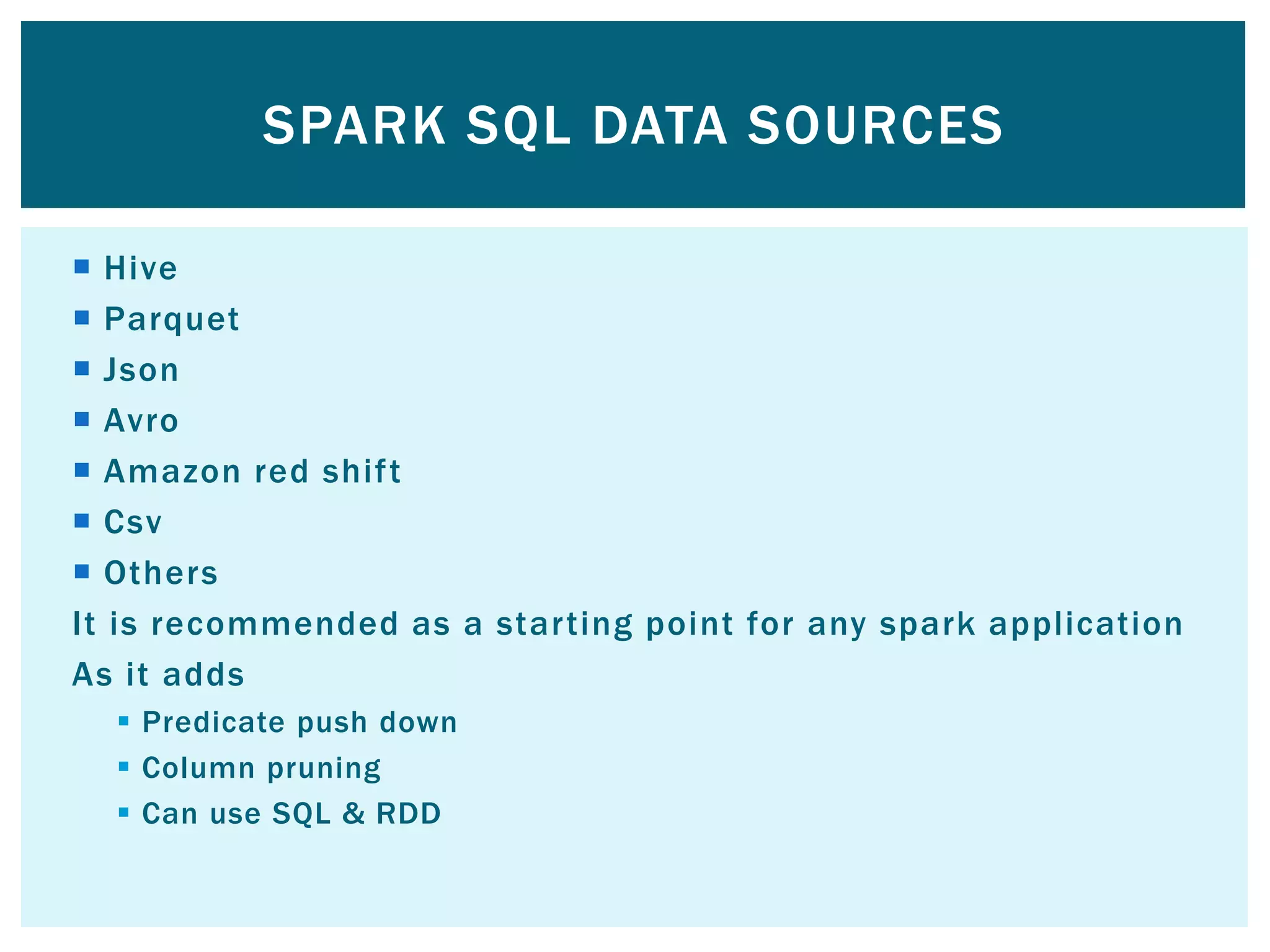

39.  Hive
 Parquet
 Json
 Avro
 Amazon red shift
 Csv
 Others
It is recommended as a starting point for any spark application
As it adds
 Predicate push down
 Column pruning
 Can use SQL & RDD
SPARK SQL DATA SOURCES

40. SPARK STREAMING

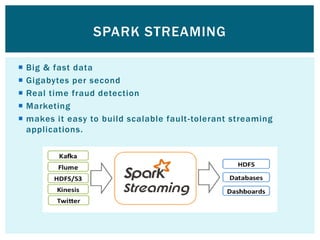

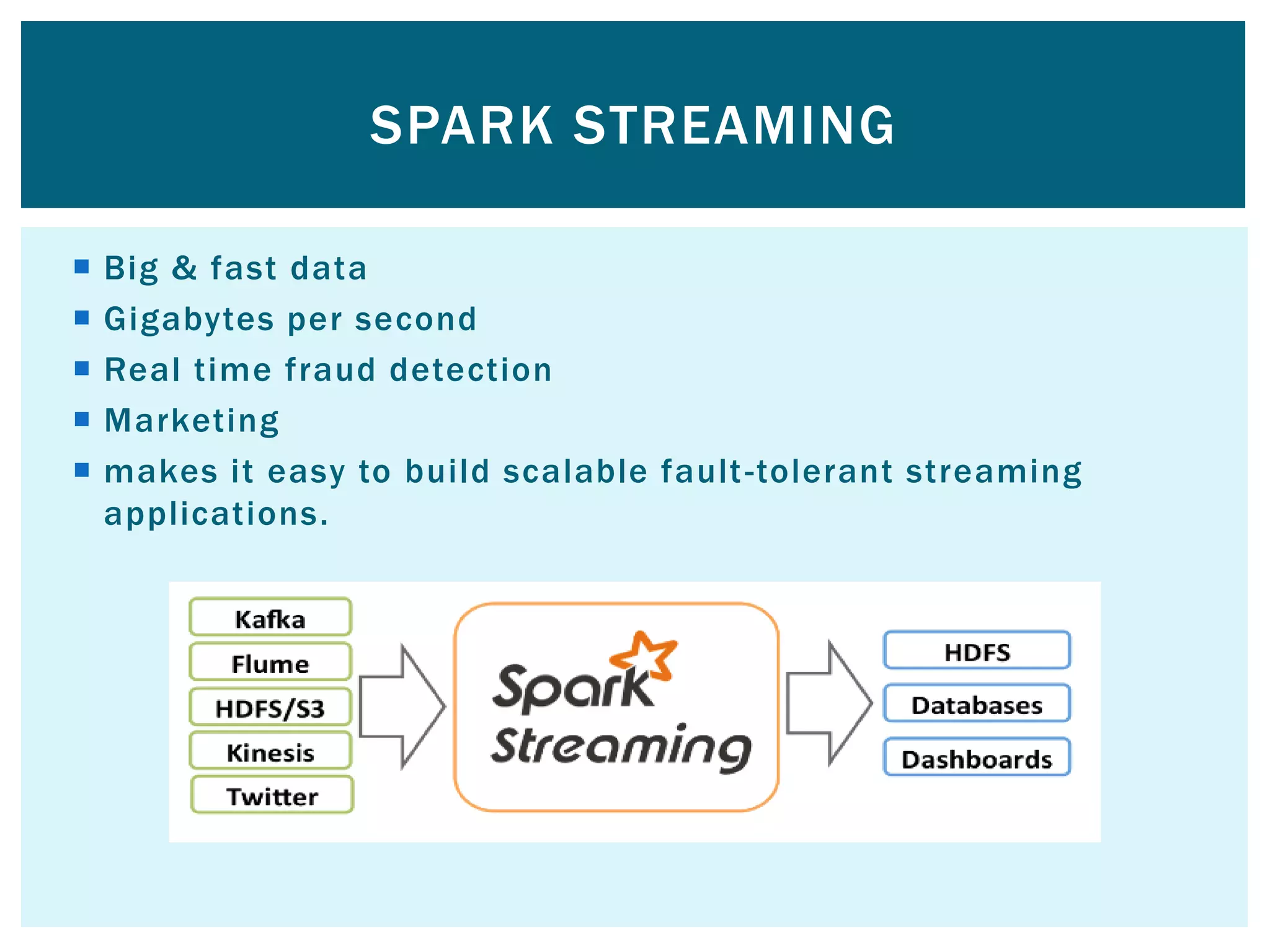

41.  Big & fast data
 Gigabytes per second
 Real time fraud detection
 Marketing
 makes it easy to build scalable fault-tolerant streaming
applications.
SPARK STREAMING

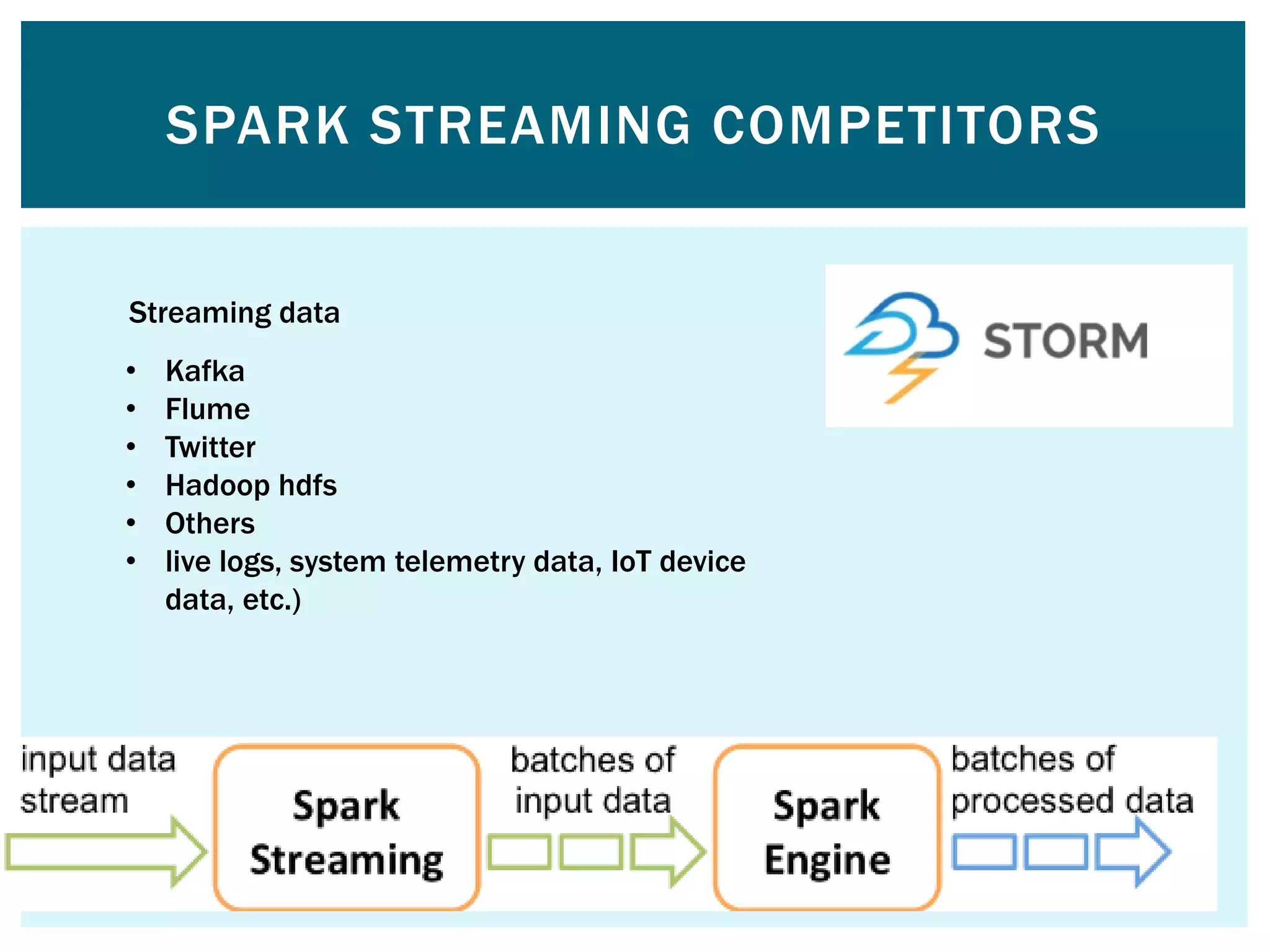

42. SPARK STREAMING COMPETITORS
Streaming data
• Kafka
• Flume
• Twitter
• Hadoop hdfs
• Others
• live logs, system telemetry data, IoT device
data, etc.)

43. SPARK MLIB

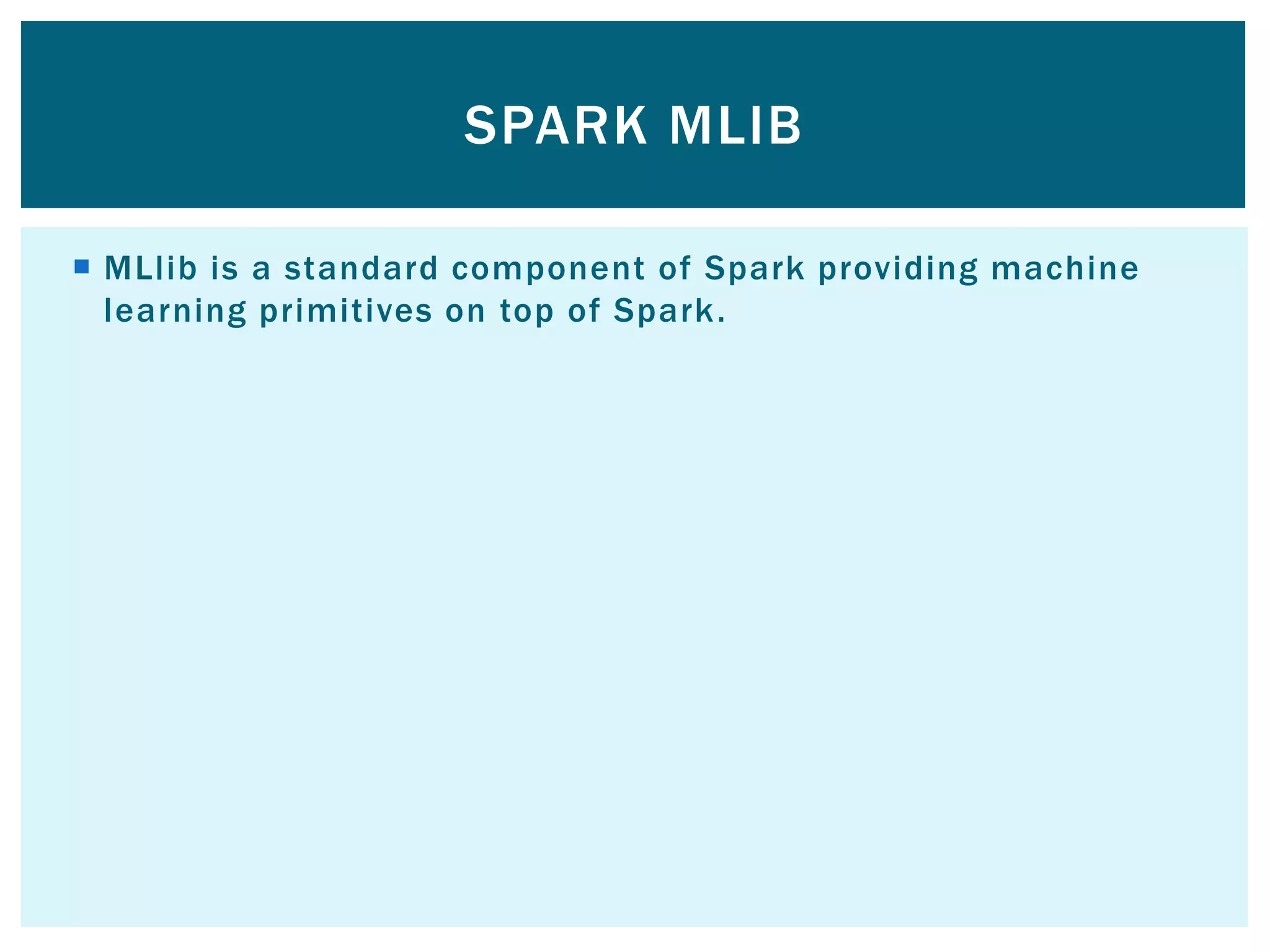

44.  MLlib is a standard component of Spark providing machine
learning primitives on top of Spark.
SPARK MLIB

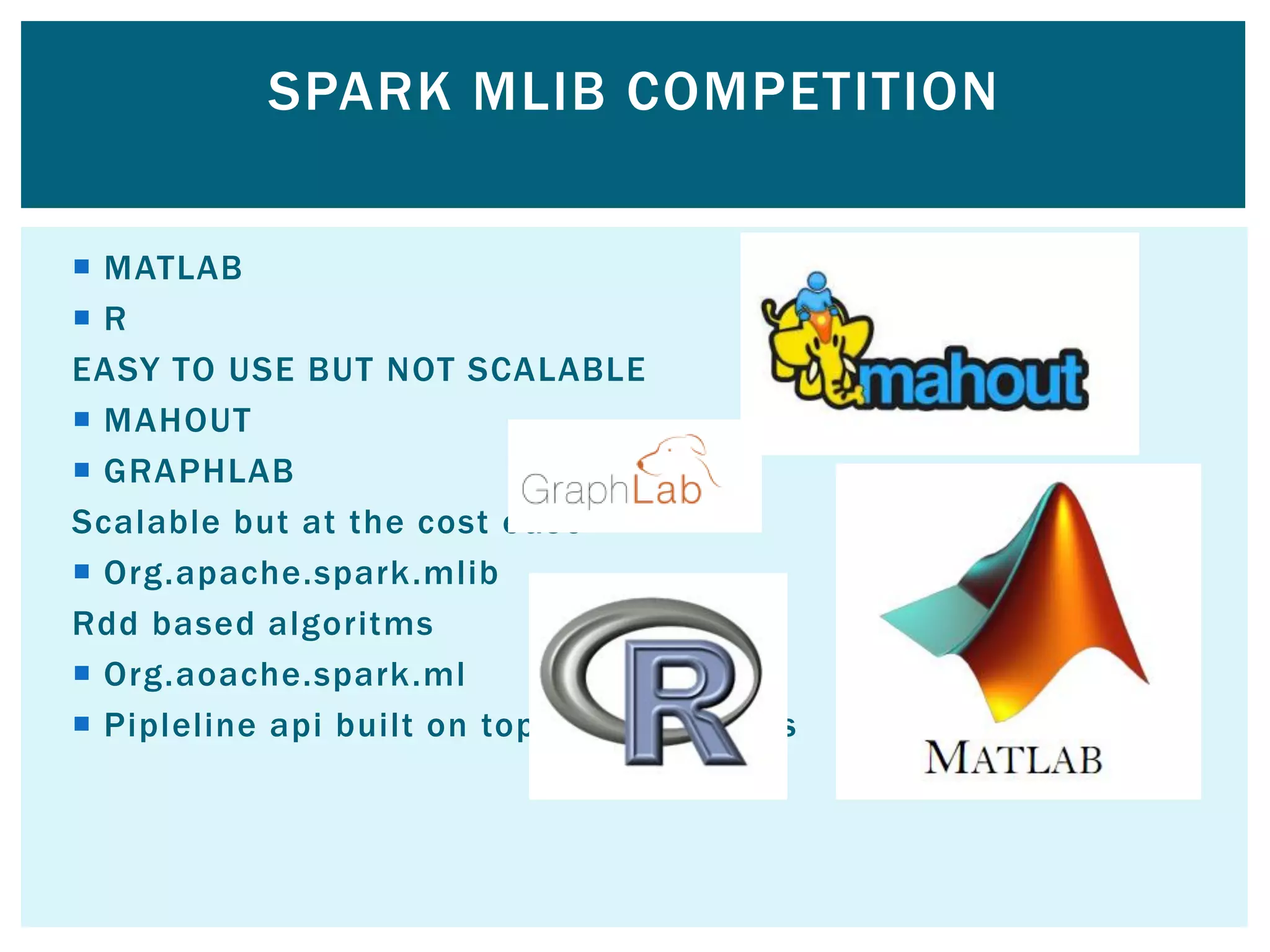

45.  MATLAB
 R
EASY TO USE BUT NOT SCALABLE
 MAHOUT
 GRAPHLAB
Scalable but at the cost ease
 Org.apache.spark.mlib
Rdd based algoritms
 Org.aoache.spark.ml
 Pipleline api built on top of dataframes
SPARK MLIB COMPETITION

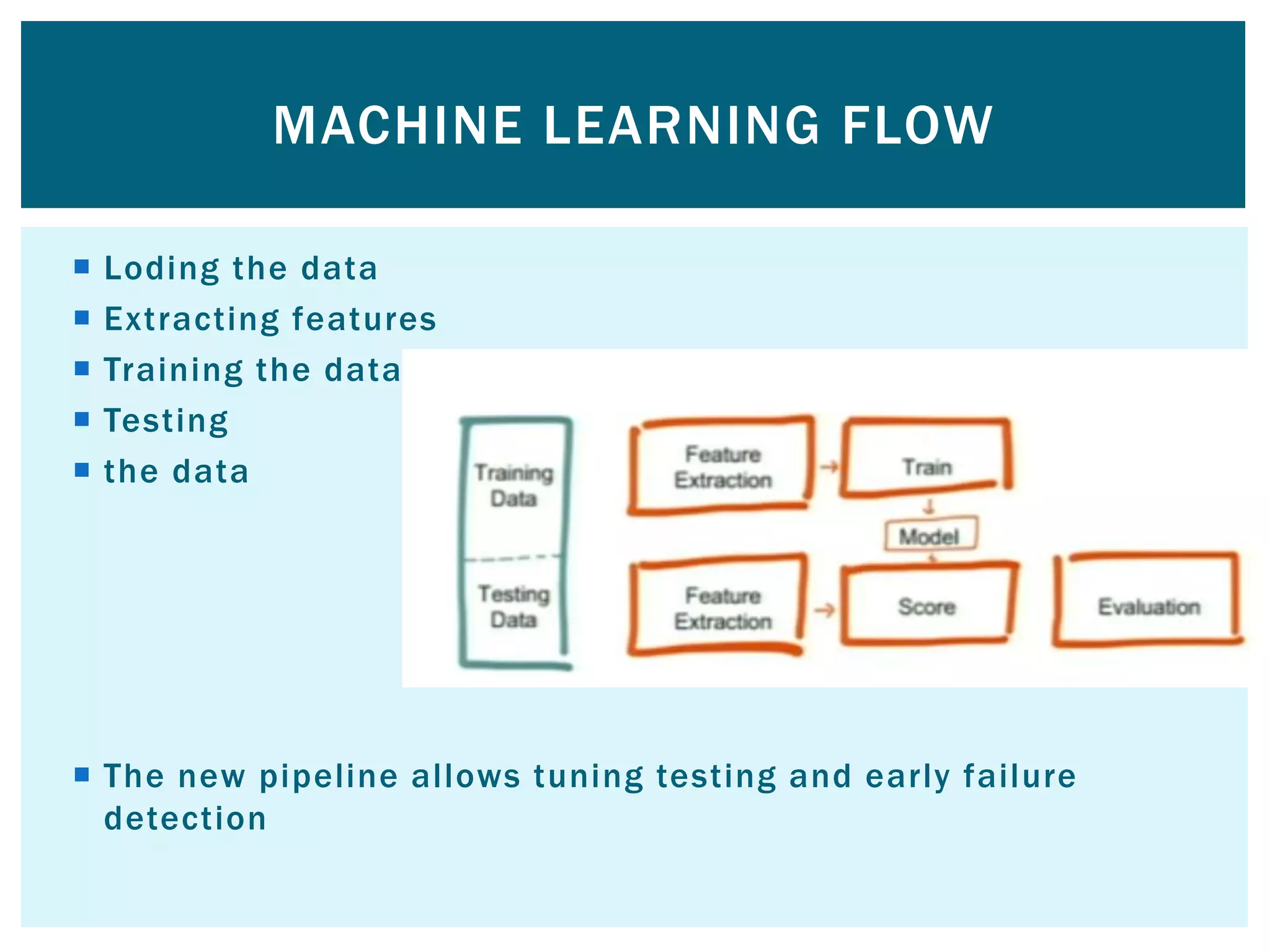

46.  Loding the data
 Extracting features
 Training the data
 Testing
 the data
 The new pipeline allows tuning testing and early failure
detection
MACHINE LEARNING FLOW

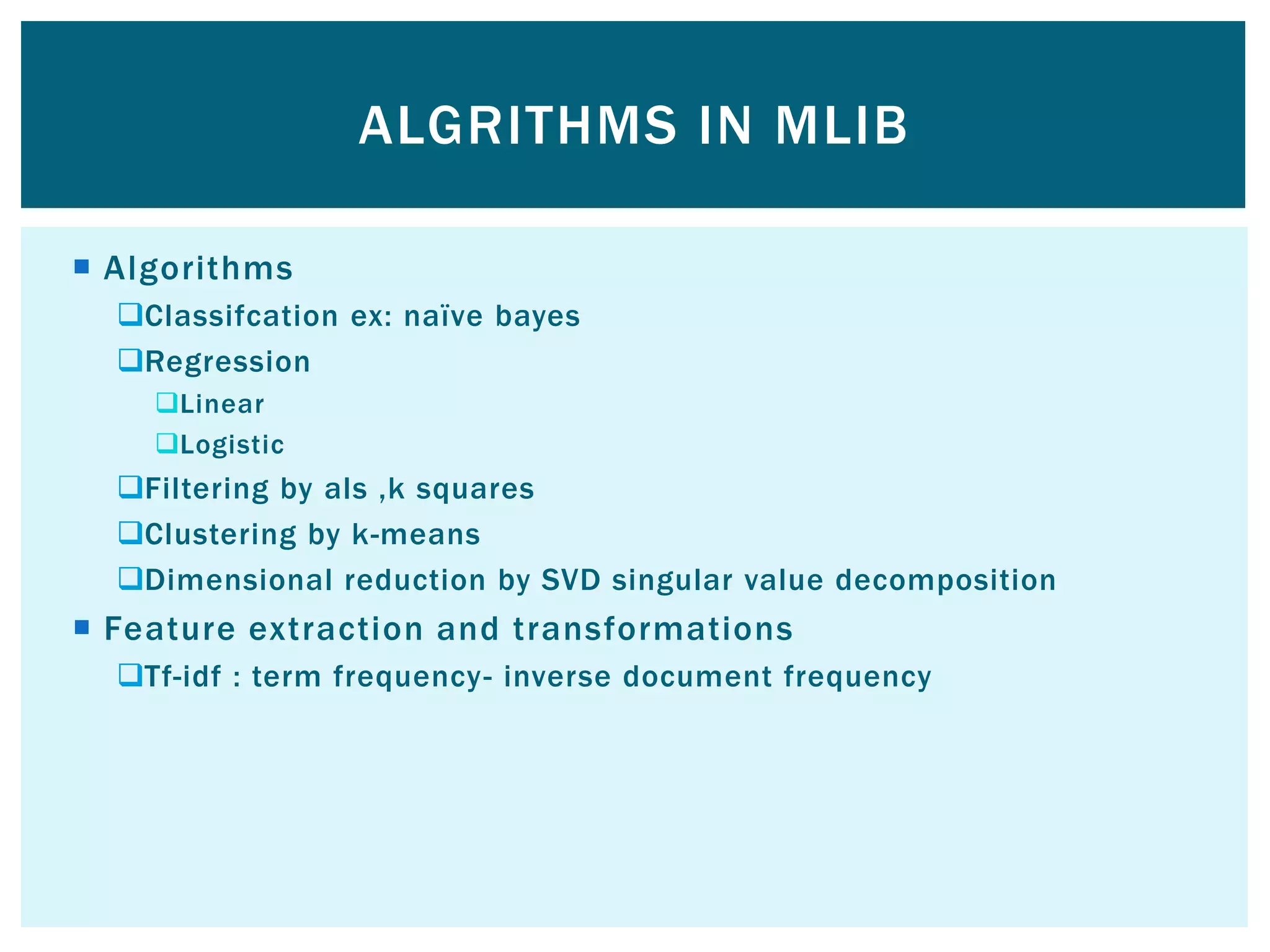

47.  Algorithms
Classifcation ex: naïve bayes
Regression
Linear
Logistic
Filtering by als ,k squares
Clustering by k-means
Dimensional reduction by SVD singular value decomposition
 Feature extraction and transformations
Tf-idf : term frequency- inverse document frequency
ALGRITHMS IN MLIB

48.  Spam filtering
 Fraud detection
 Recommendation analysis
 Speech recognition
PRACTICAL USE

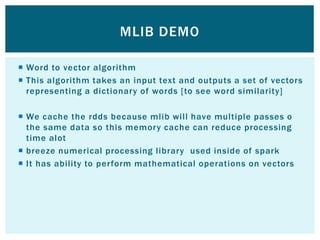

49.  Word to vector algorithm
 This algorithm takes an input text and outputs a set of vectors
representing a dictionary of words [to see word similarity]
 We cache the rdds because mlib will have multiple passes o
the same data so this memory cache can reduce processing
time alot
 breeze numerical processing library used inside of spark
 It has ability to perform mathematical operations on vectors
MLIB DEMO

50. SPARK GRAPHX

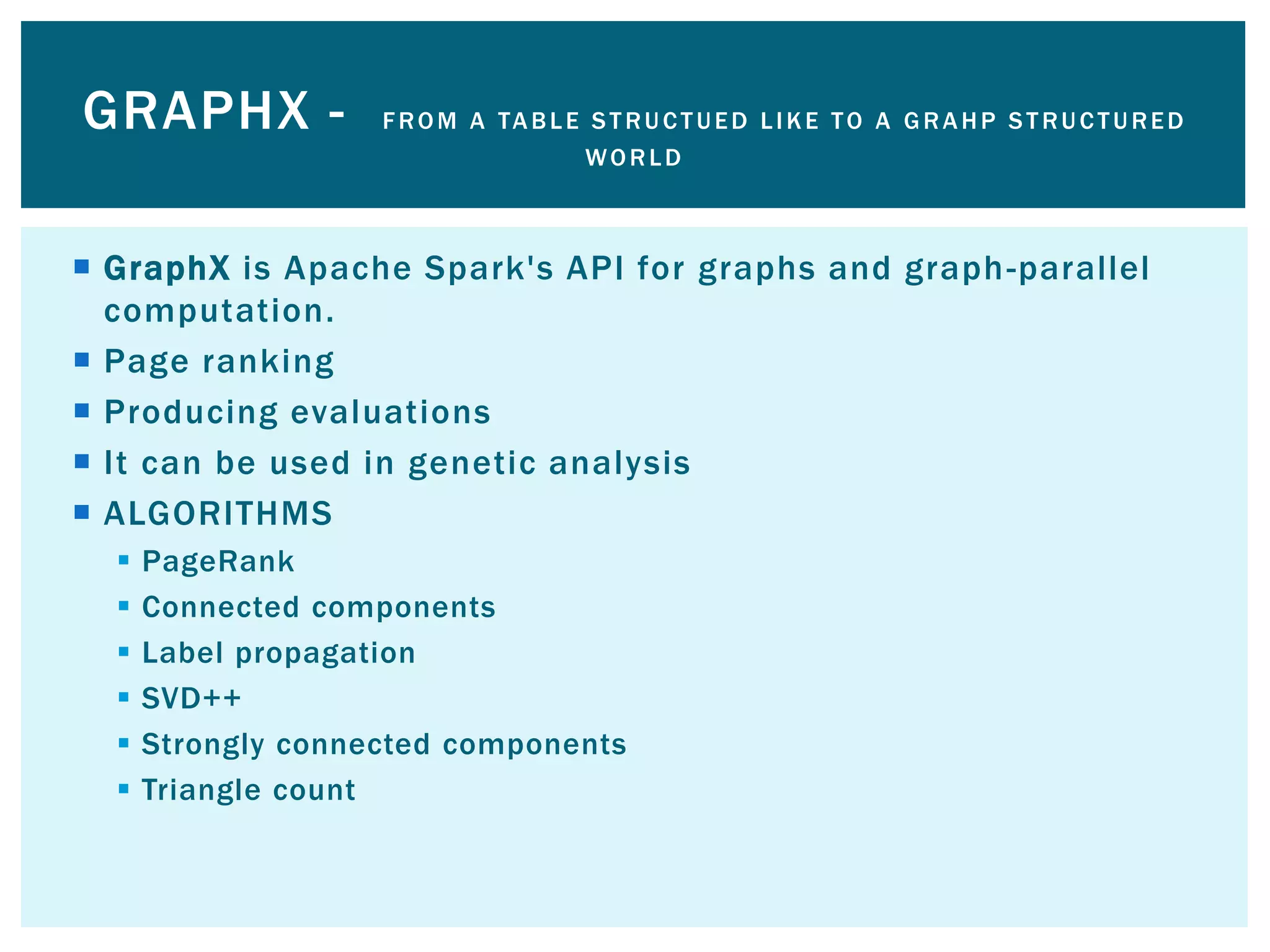

51.  GraphX is Apache Spark's API for graphs and graph-parallel
computation.
 Page ranking
 Producing evaluations
 It can be used in genetic analysis
 ALGORITHMS
 PageRank
 Connected components
 Label propagation
 SVD++
 Strongly connected components
 Triangle count
GRAPHX - FROM A TABLE STRUCTUED LIKE TO A GRAHP STRUCTURED
WORLD

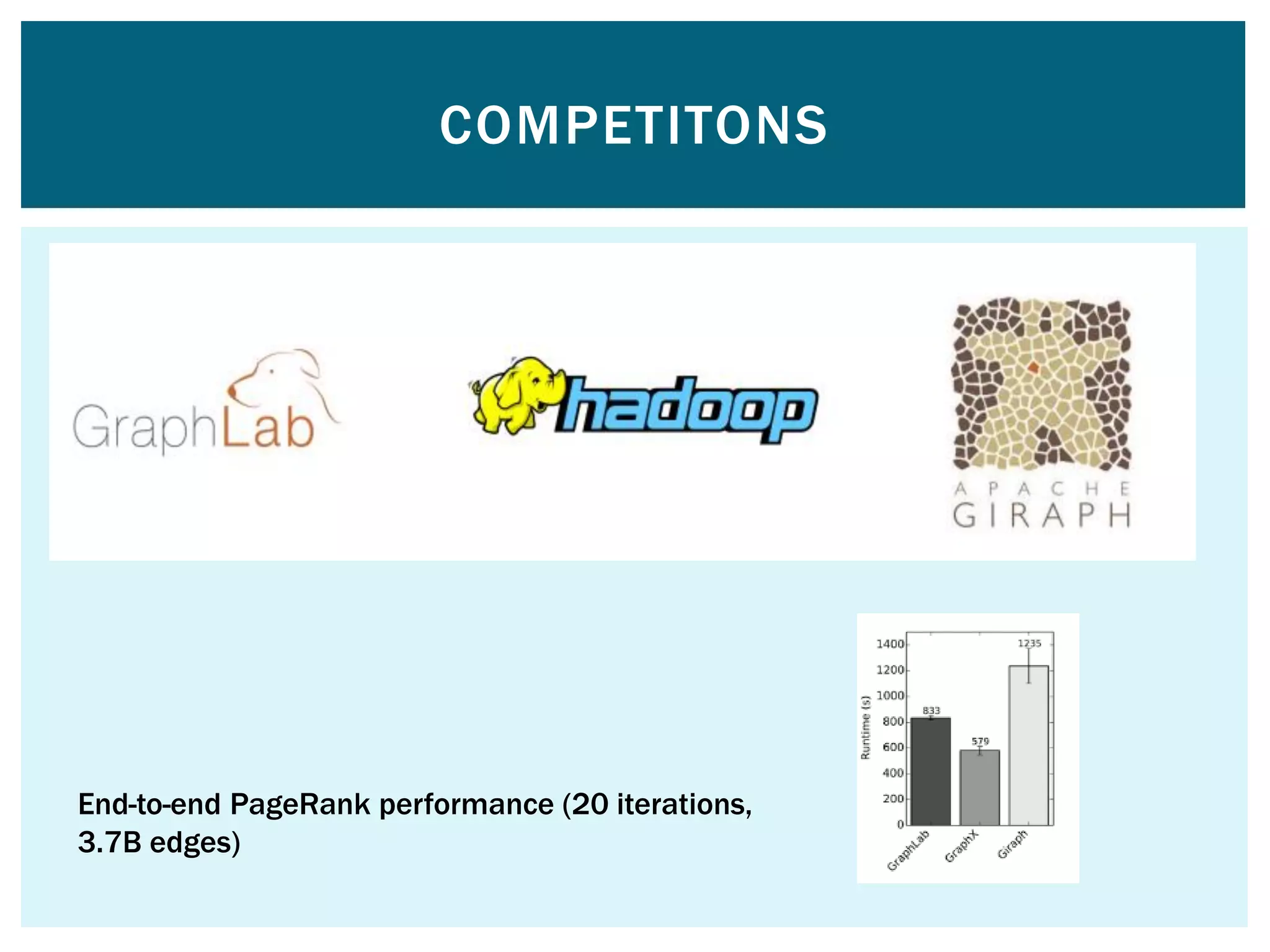

52. COMPETITONS
End-to-end PageRank performance (20 iterations,
3.7B edges)

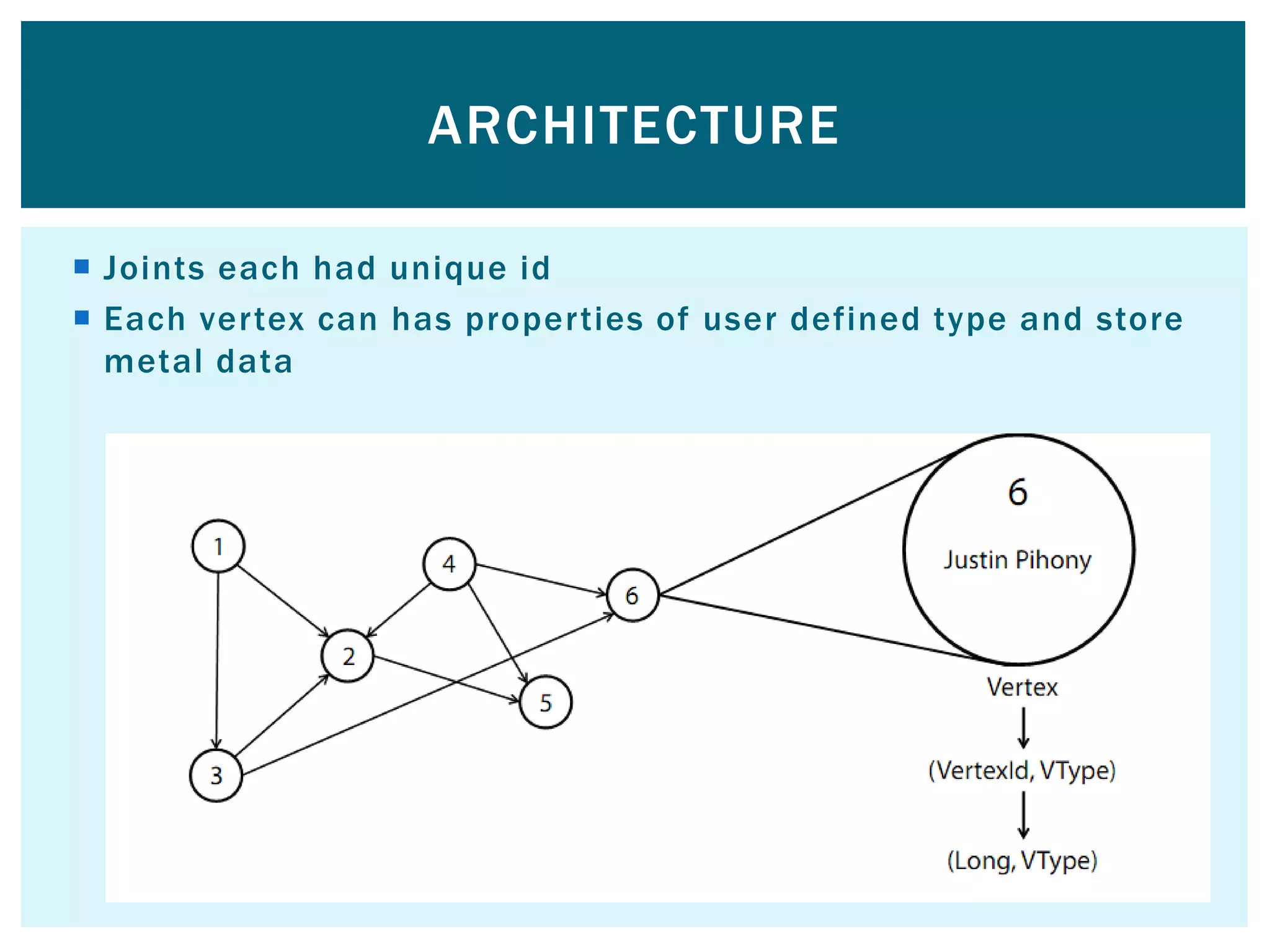

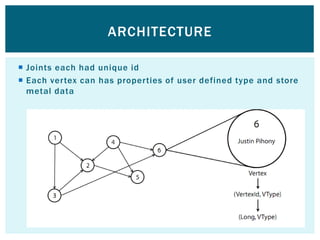

53.  Joints each had unique id
 Each vertex can has properties of user defined type and store
metal data
ARCHITECTURE

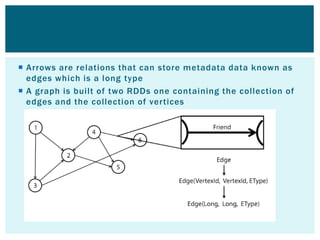

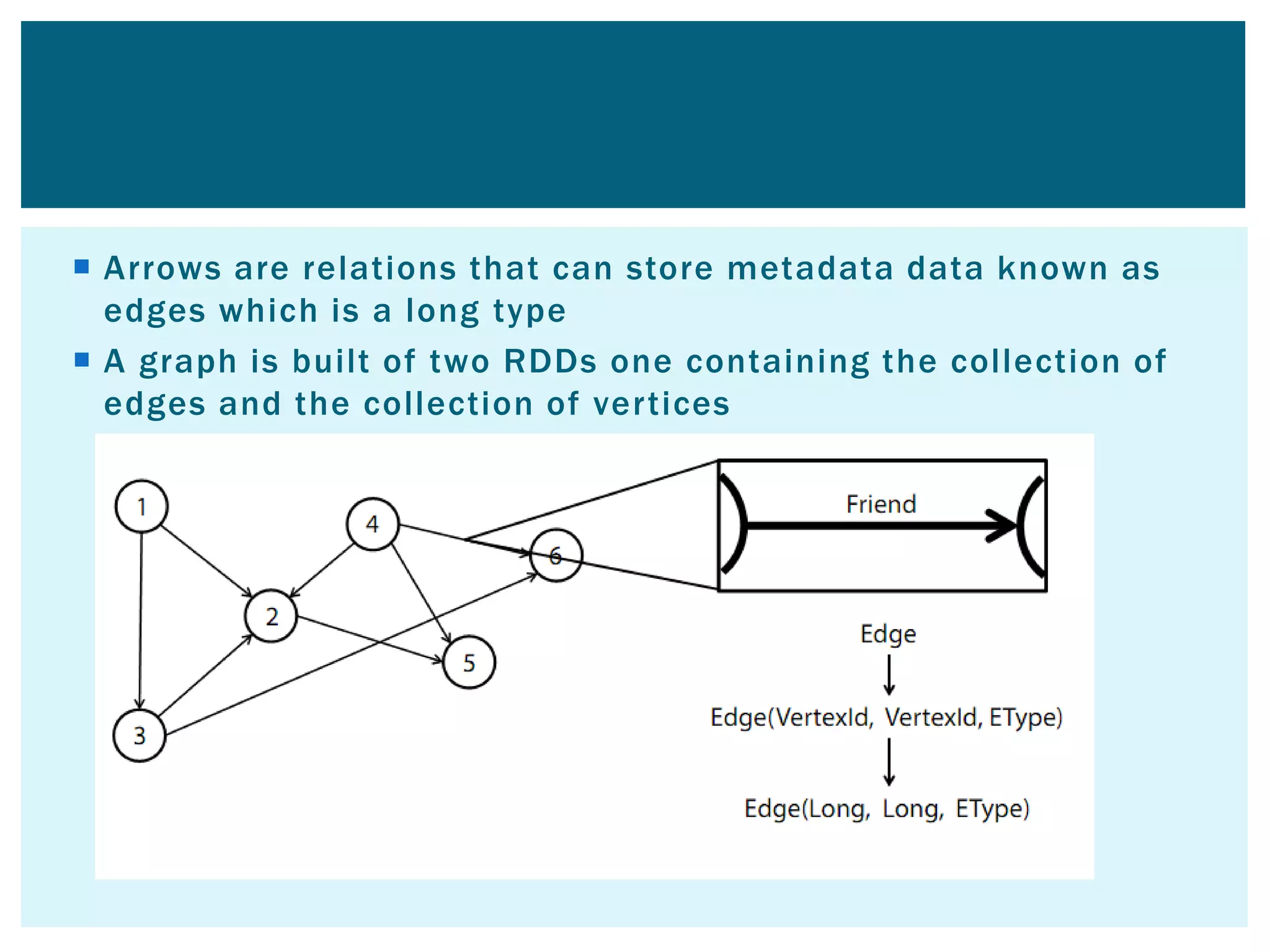

54.  Arrows are relations that can store metadata data known as
edges which is a long type
 A graph is built of two RDDs one containing the collection of
edges and the collection of vertices

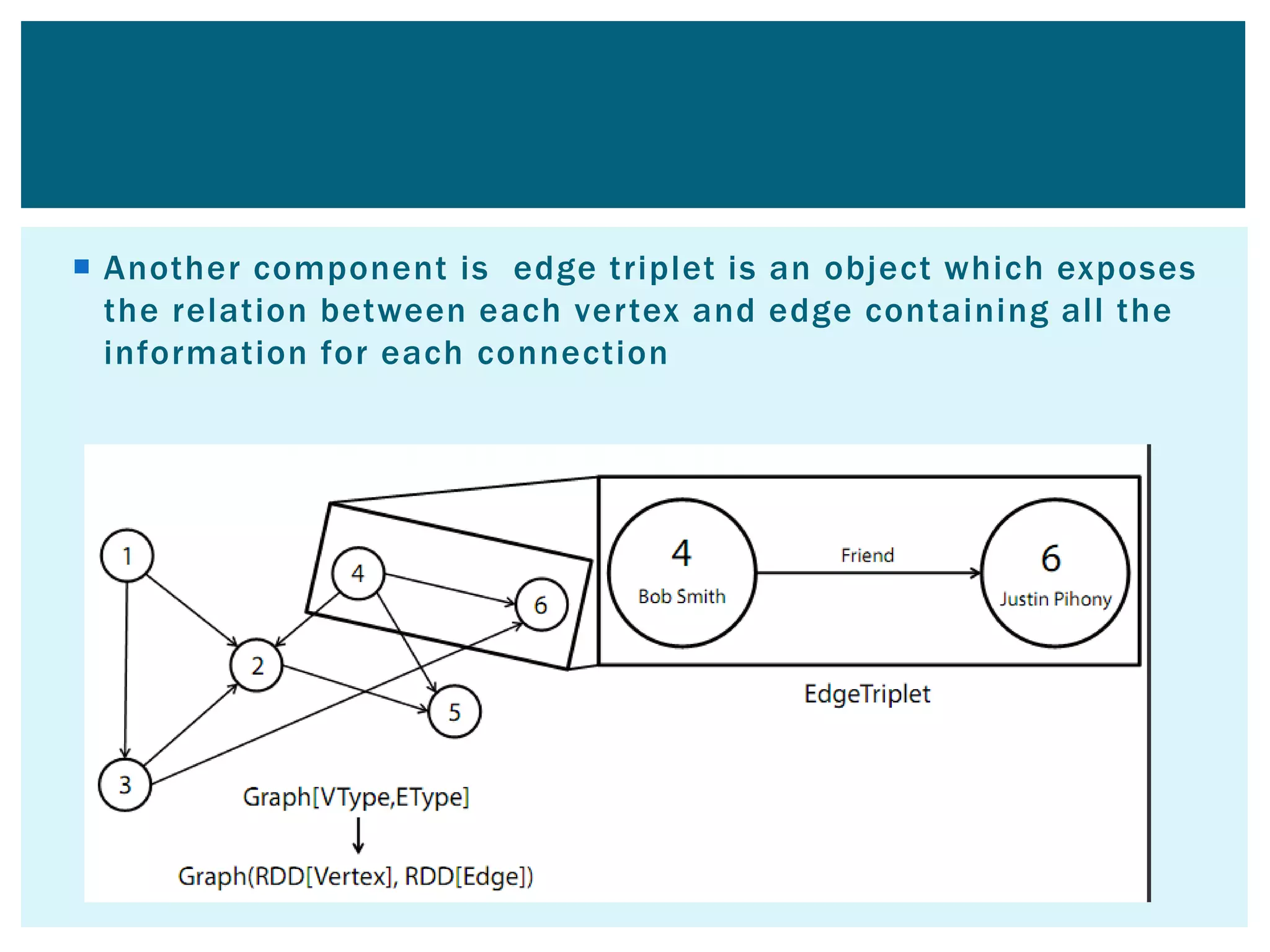

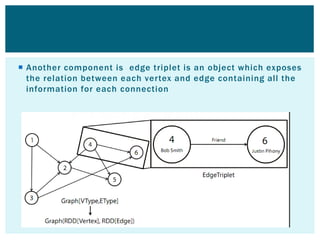

55.  Another component is edge triplet is an object which exposes
the relation between each vertex and edge containing all the
information for each connection

56. WHO IS USING SPARK?

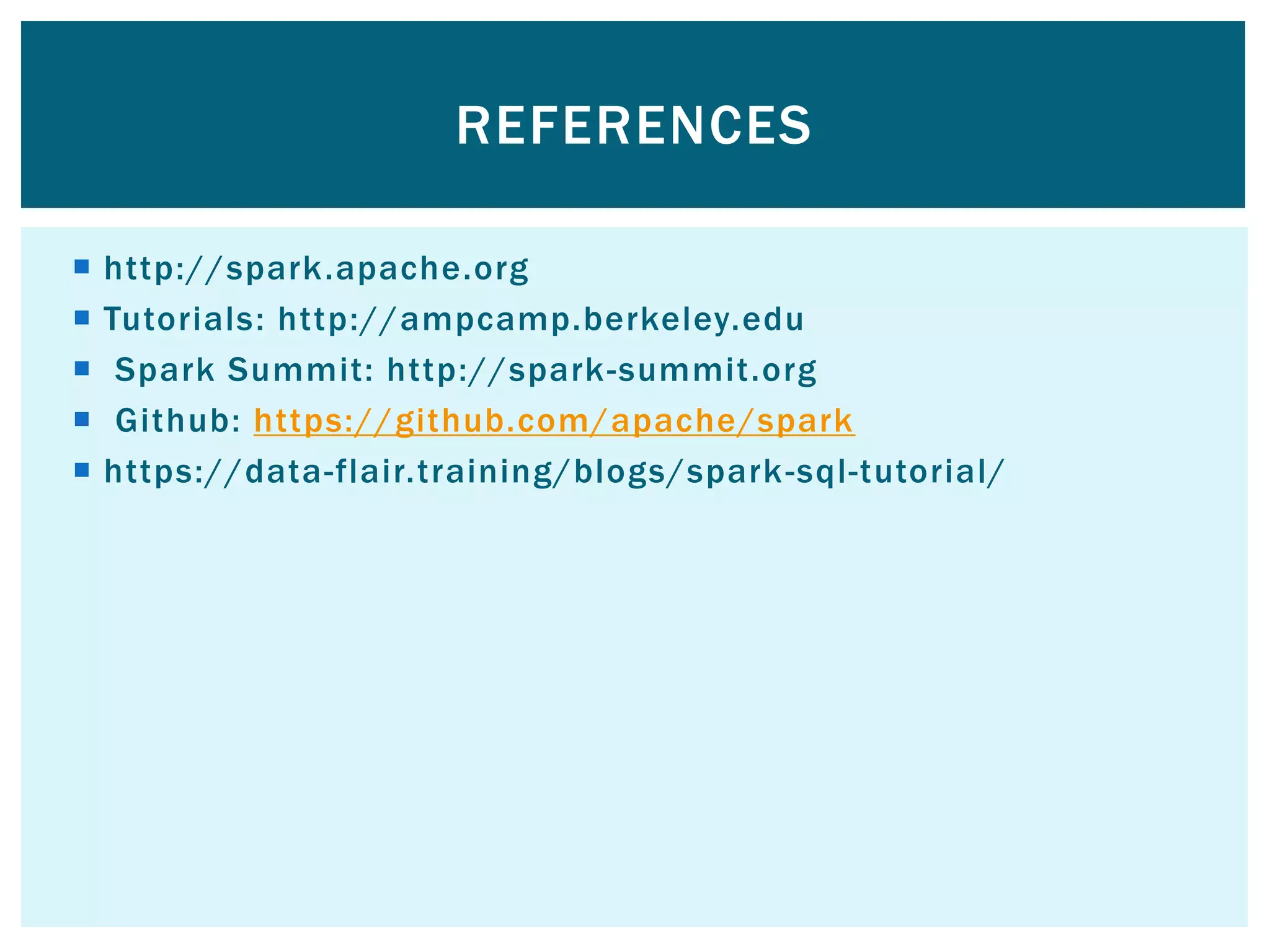

58.  http://spark.apache.org
 Tutorials: http://ampcamp.berkeley.edu
 Spark Summit: http://spark-summit.org
 Github: https://github.com/apache/spark
 https://data-flair.training/blogs/spark-sql-tutorial/
REFERENCES
