- 2. Module 5: DroolsBLiP Architectural Overview Drools5 Community Training version: 1.0-SNAPSHOT Release Date: 03/16/2011 Under The Creative Common License
- 3. Module 5: DroolsBLiP Architectural Overview Drools5 Community Training Course by Mauricio "Salaboy" Salatino and Esteban Aliverti is licensed under a Creative Commons Attribution 3.0 Unported License. Based on a work at salaboy.wordpress. com. Permissions beyond the scope of this license may be available at http: //salaboy.wordpress.com/.
- 4. Agenda ● Drools Overview ●Core Components ○ Drools Main Modules ● Possible Architectures ● Demos
- 5. Drools Overview ● Itwas born as an Inference Engine ● More functionality was added on top of it ● A Platform was created to create applications ● The declarative approach provided helps us to share the knowledge with non technical roles ● A Knowledge Driven Development Approach was proposed to build applications on top of the platform
- 6. The Drools Project ●Open Source ● Apache Licensed ● Free to use ● Innovative approach ● Community Support

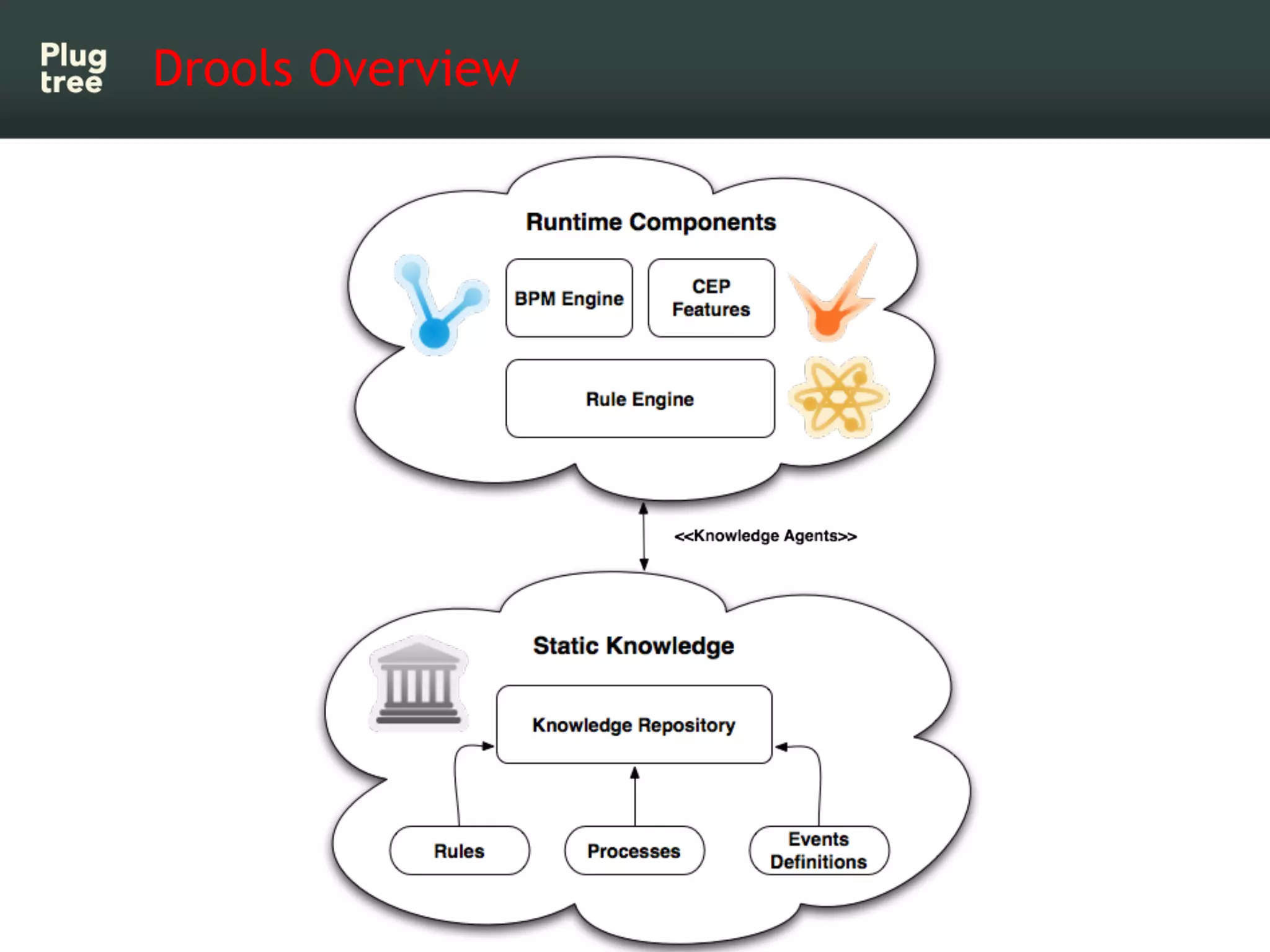

- 7. Drools Overview ● DroolsExpert (Rule Engine) ● Drools Flow == jBPM5 ● Drools Fusion ● Drools Guvnor
- 8.
- 9. Drools Expert ● DroolsExpert ○ Contains the Inference Engine ○ Pure Java ○ Provides a language to write declarative rules ○ Provides the APIs to interact with it ○ Environmental Agnostic (JSE, JEE, Spring) ○ Lightweight
- 10. jBPM5 == DroolsFlow ● jBPM5 == Drools Flow ○ Provides Business Process Management features ○ Runs on top of the Rule Engine ○ Enable us with dynamic and declarative capabilities to create smarter processes
- 11. Drools Fusion ● DroolsFusion ○ Enables the notion of time to the Rule Engine ○ Let us define our meaningful events in our domain ○ Defines 13 temporal operators to correlate and aggregate stream of events ○ It operates in near real-time allowing us to react on immediately to an ongoing situation ○ Takes advantage of the inference capabilities of the Rule Engine
- 12. Drools Guvnor ● DroolsGuvnor ○ Its a centralized Knowledge Repository ○ Allow us to store and manage our business knowledge ○ Tag, Categorize and Version our knowledge assets ○ Provides some UIs to manage our knowledge assets
- 13. Drools Artifacts ● DroolsArtifacts ○ Lightweight Java Library ○ Gives us the flexibility to use it no matter the environment ○ Allows us to define the best architecture for each specific situation
- 14. Drools Architectural Goals ●Drools was designed and conceived for: ○ Express business knowledge declaratively ○ Integrate different solutions/applications using a declarative approach ○ To provide an unified and knowledge driven development approach ○ To provide a link of communication between business people and technical people ○ To be non-intrusive

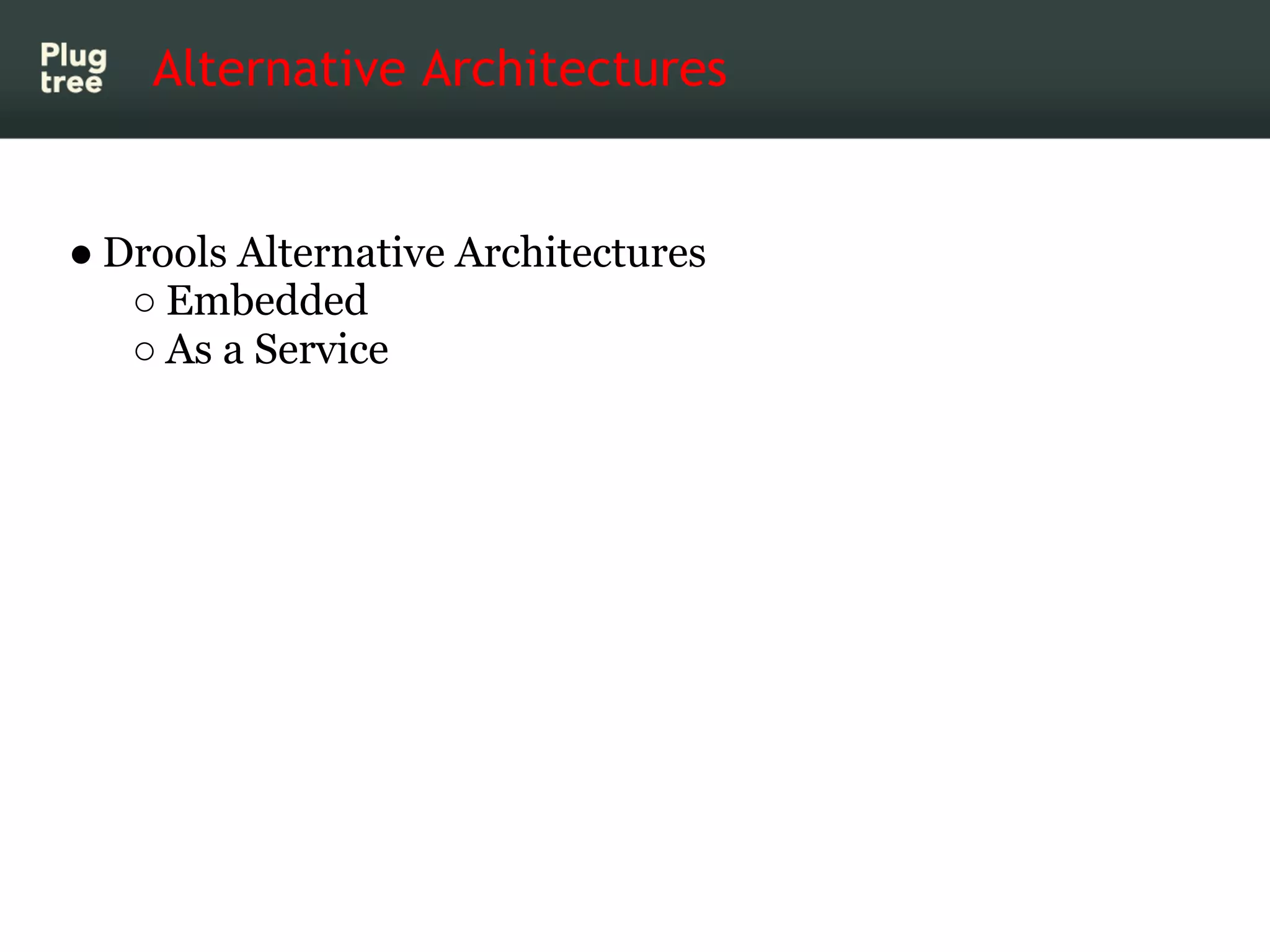

- 15. Alternative Architectures ● DroolsAlternative Architectures ○ Embedded ○ As a Service
- 16. Embedded ● Drools EmbeddedArchitecture
- 17. Embedded -> CentralizedKnowledge ● Drools Embedded Architecture, centralized Knowledge
- 18. As A Service(Centralized) ● Drools As A Service (Centralized) Architecture
- 19. As A Service(Centralized) ● Drools As A Service (Centralized) Architecture
- 20. Stateful vs StatelessServices ● Stateful vs Stateless Services ○ You need to define the nature of your problems ○ Stateless situations are easy to manage ■ Replicate services in different nodes becomes trivial ■ Caches for data access can be used ○ Stateful situations give us more rich set of features ■ Require session data replication in different nodes ■ We need to analyze what happen if a session breaks and how it affects to the overall application
- 21. Stateful Knowledge Services ●Stateful Knowledge Services ○ Enable us to have long running execution ○ We will be able to maintain contextual information to work on ○ The inference process will much more richer ○ Business Processes can run without any problem ○ Events require a stateful environment to work ○ We need to use some kind of persistence mechanism if we want to have fault tolerance
- 22. Stateful Knowledge Serviceswith Events ● Stateful Knowledge Services with Events
- 23. Demos ● Demos ○ Emergency Service Application ○ Dynamic Content Selection PoC
- 24. Emergency Service Application ●Emergency Service Application ○ Simulate a real world situation ○ Demonstrate the advantages of using business processes, business rules and event processing all together ○ Download and Play: ■ https://github.com/Salaboy/emergency-service- drools-app
- 25.
- 26. Dynamic Content Selection ●Dynamic Content Selection Application ○ Proof of Concept to show Drools features ○ Demonstrate the information that we can capture from the user interaction with different visual components ○ Demonstrate how we can create a simple to enable non technical roles to define/validate what the application needs to do in different situations ○ Demonstrate how we can react on different identified situations ○ Download and Test: ■ https://github.com/Salaboy/smart-content-selection
- 27.
- 28. Dynamic Content Selection ●Dynamic Content Selection Application ○ Drools will keep track of the status of our visual components for each use ○ Drools will be listening events that will be generated during the user interaction ○ Temporal rules will be defined to correlate the streams of events generated by one or multiple users
- 29. Dynamic Content Selection ●Events Correlation for a Single User ○ Behavioral Event Stream ■ Navigation Events ■ Browsing Events ■ Component Interaction Events ○ Shopping Cart Event Stream
- 30. Dynamic Content Selection ●Events Correlation for a Multiple Users ○ Trends Analysis ■ More than X users selecting interacting with a Product in the last 2 minutes ■ More than X users with similar products in their shopping carts ■ More than X searches for a specific topic
- 31. Dynamic Content Selection ●Behavioral Event Stream ○ Page Navigation Events ■ Links Clicks, Search Events ○ Browsing Information Events ■ Analyzing a component information (Focus, Scrolling, Resizing, etc) ■ Multi Focus Analysis (selection patterns) ○ Component Interaction Events ■ Changing the component state (submitting a form, select a value that changes the state of the component)
- 32. Dynamic Content Selection ●Shopping Cart Event Stream ○ Add Product To Cart ○ Remove Product From Cart ○ Checkout Products ○ Empty Cart
- 33. Dynamic Content Selection ●Use Cases for Single User ○ Single Focus Interest Period ■ Offer Discount ○ Multi Focus / Pattern Selection ■ Related Product Suggestion ○ Abandoned Shopping Cart ■ Warning ○ Checkout Shopping Cart Quickly ■ Related Product Offer
- 34. Dynamic Content Selection ●Single Focus Interest Period ○ Offer Discount
- 35. Dynamic Content Selection ●Multi Focus / Pattern Selection ○ Related Product Suggestion
- 36. Dynamic Content Selection ●Abandoned Shopping Cart ○ Warning
- 37. Dynamic Content Selection ●Checkout Shopping Cart Quickly ○ 10% Discount Voucher for future shops
- 38. Related Links ● Youcan find more information, examples, tutorials and more in: ○ Salaboy Blog ■ http://salaboy.wordpress.com ○ Esteban Blog ■ http://ilesteban.wordpress.com ○ Plug Tree Blog ■ http://www.plugtree.com
- 39.
- 40. Enjoy! Questions andFeedback are always appreciated!
