AOEcon17: Searchperience - The journey from PHP and Solr to Scala and Elasticsearch

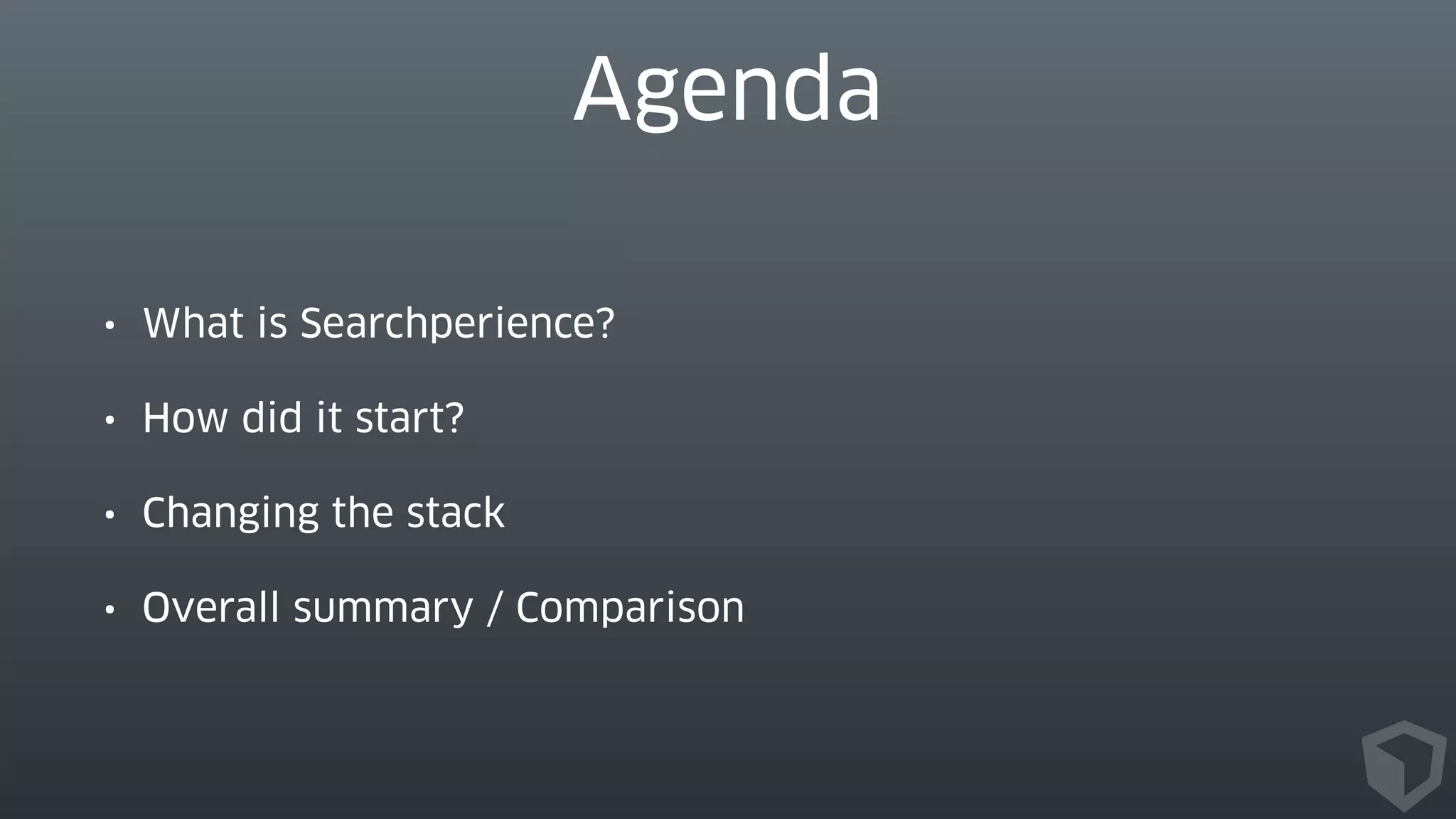

- 3. Agenda • What is Searchperience? • How did it start? • Changing the stack • Overall summary / Comparison

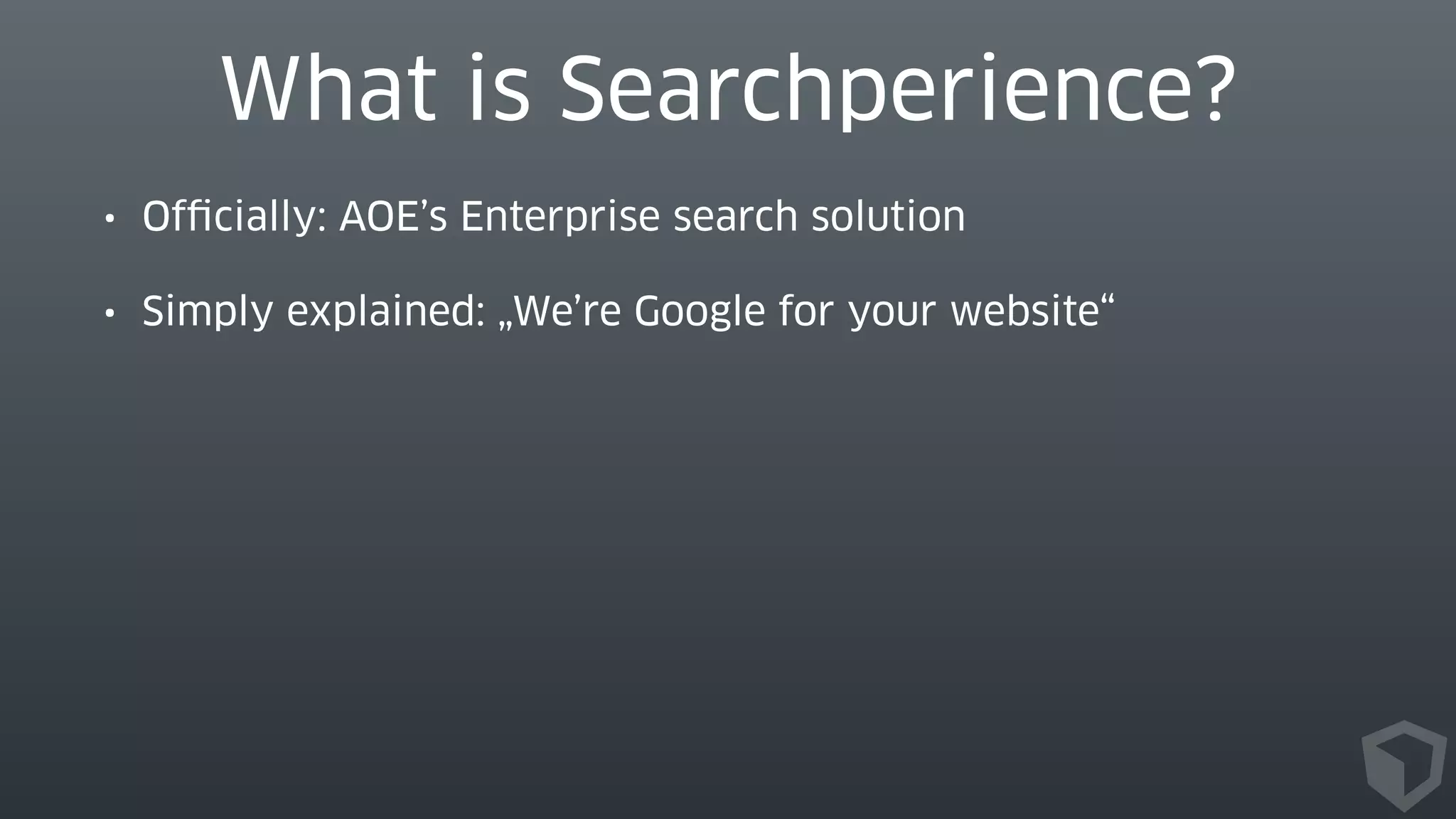

- 4. What is Searchperience? • Officially: AOE’s Enterprise search solution • Simply explained: „We’re Google for your website“
- 6. Clients

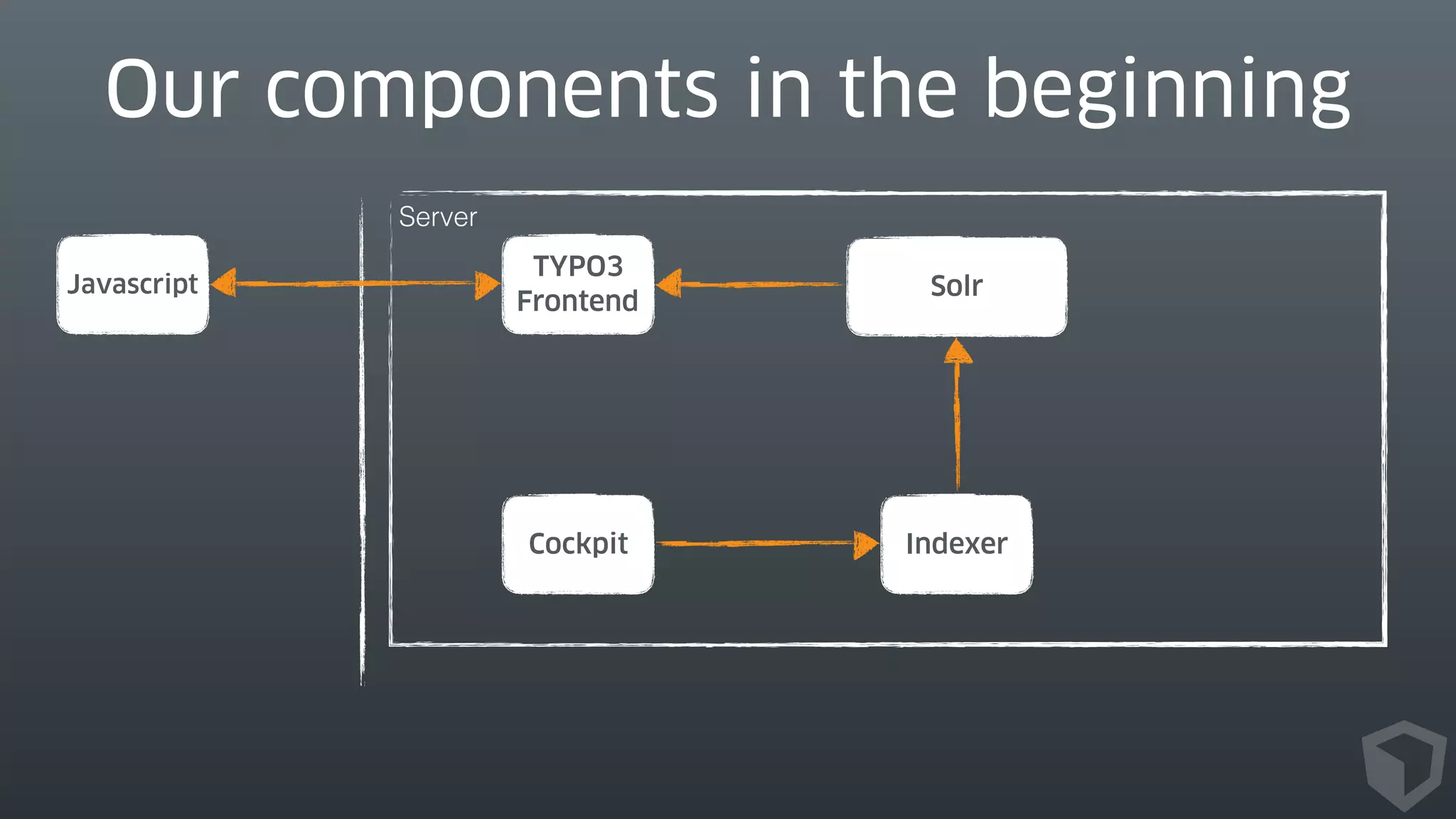

- 7. Server Our components in the beginning Indexer TYPO3 Frontend SolrJavascript Cockpit

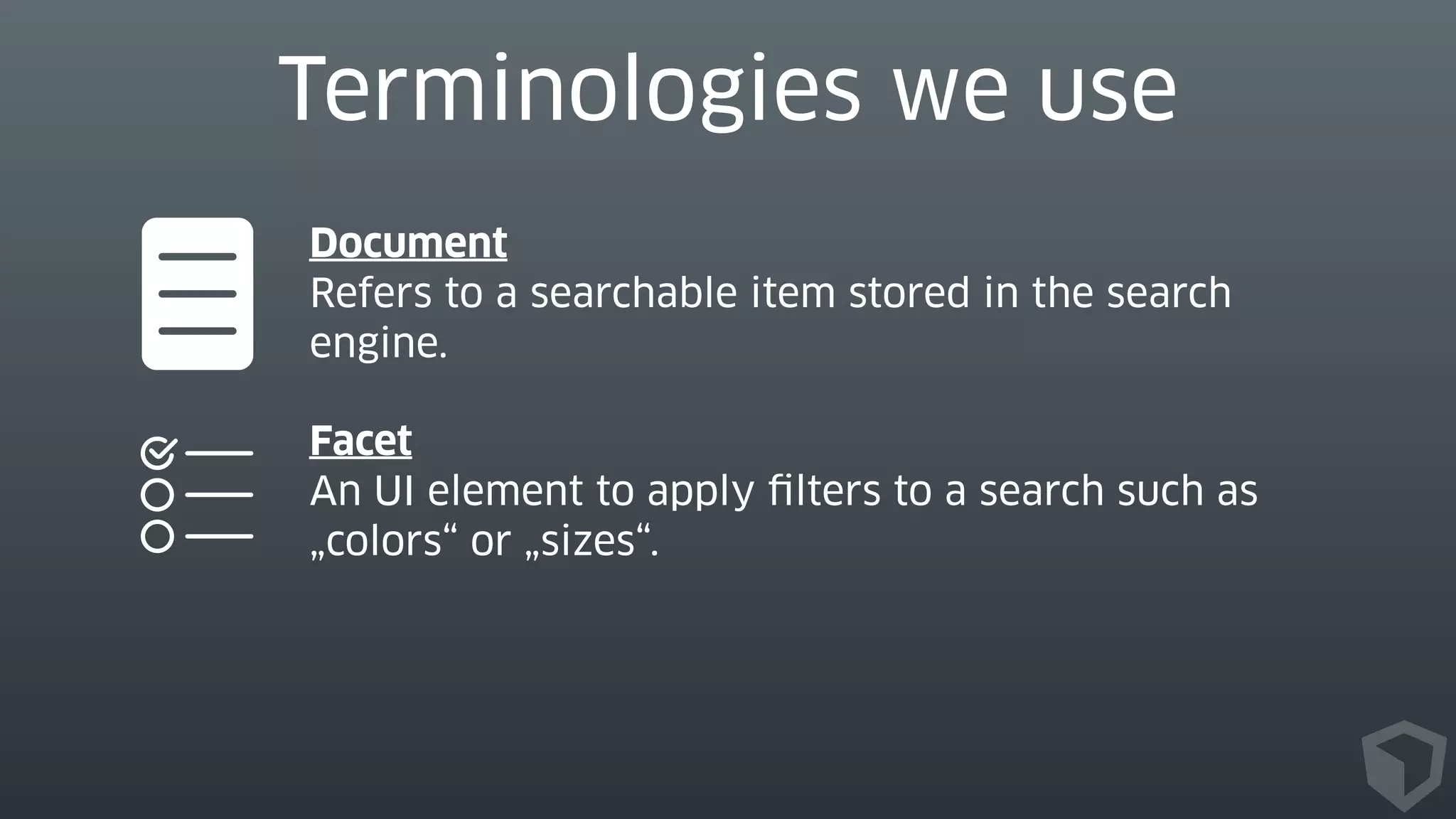

- 9. Document Refers to a searchable item stored in the search engine. Terminologies we use Facet An UI element to apply filters to a search such as „colors“ or „sizes“.
- 10. How did it start?

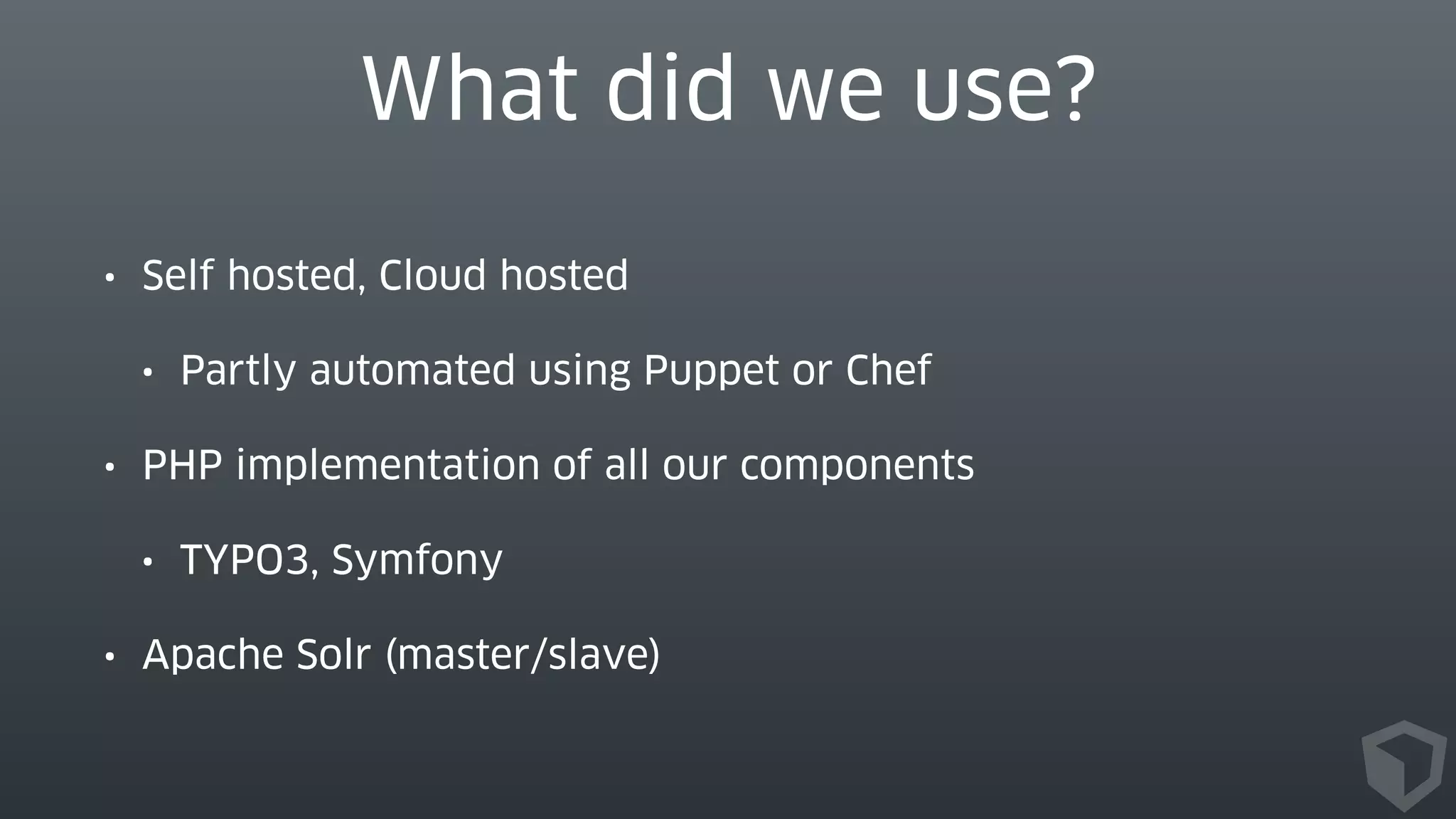

- 12. What did we use? • Self hosted, Cloud hosted • Partly automated using Puppet or Chef • PHP implementation of all our components • TYPO3, Symfony • Apache Solr (master/slave)

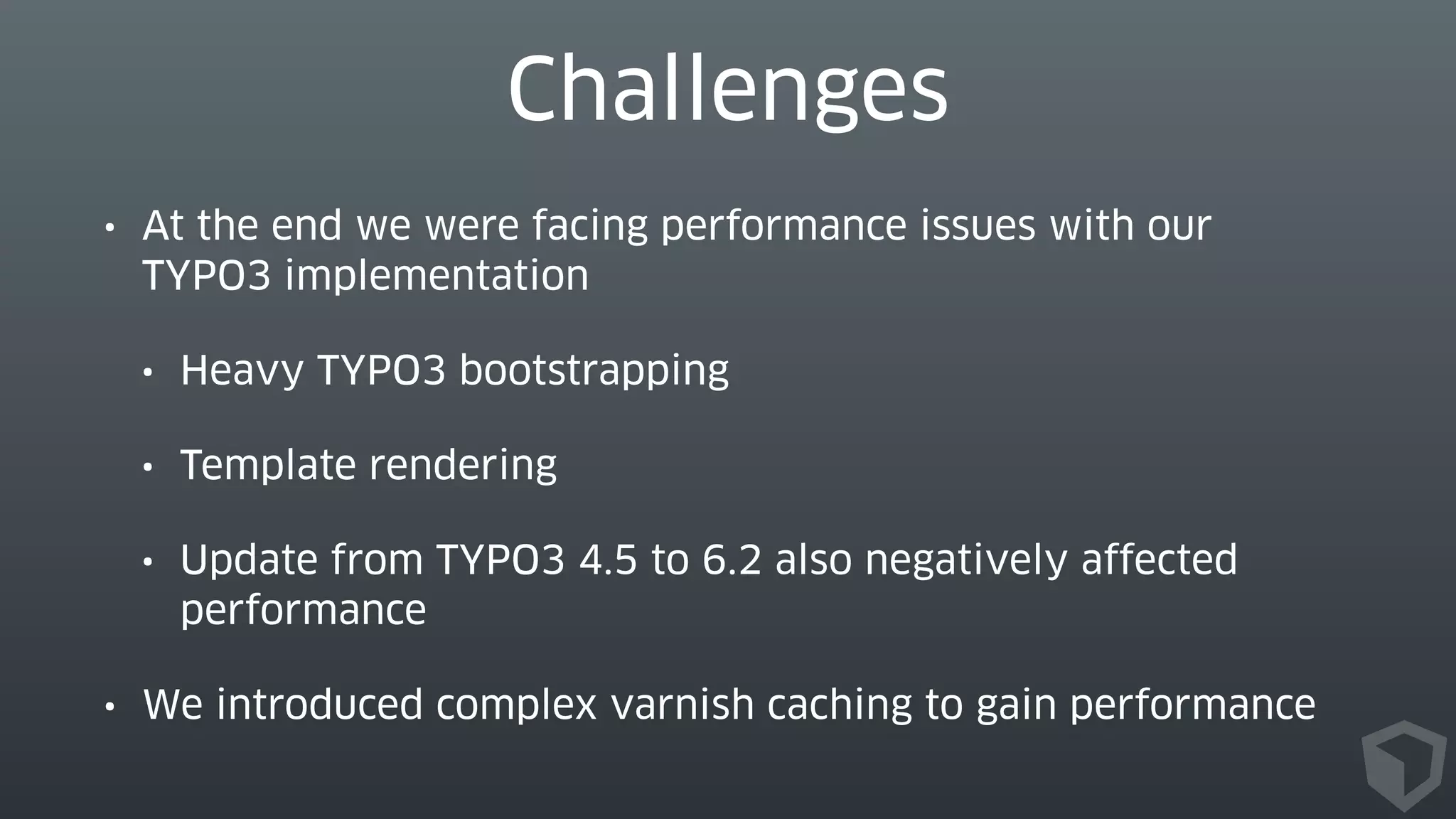

- 13. Challenges • At the end we were facing performance issues with our TYPO3 implementation • Heavy TYPO3 bootstrapping • Template rendering • Update from TYPO3 4.5 to 6.2 also negatively affected performance • We introduced complex varnish caching to gain performance
- 14. Changing the stack from PHP and Solr to Scala and Elasticsearch

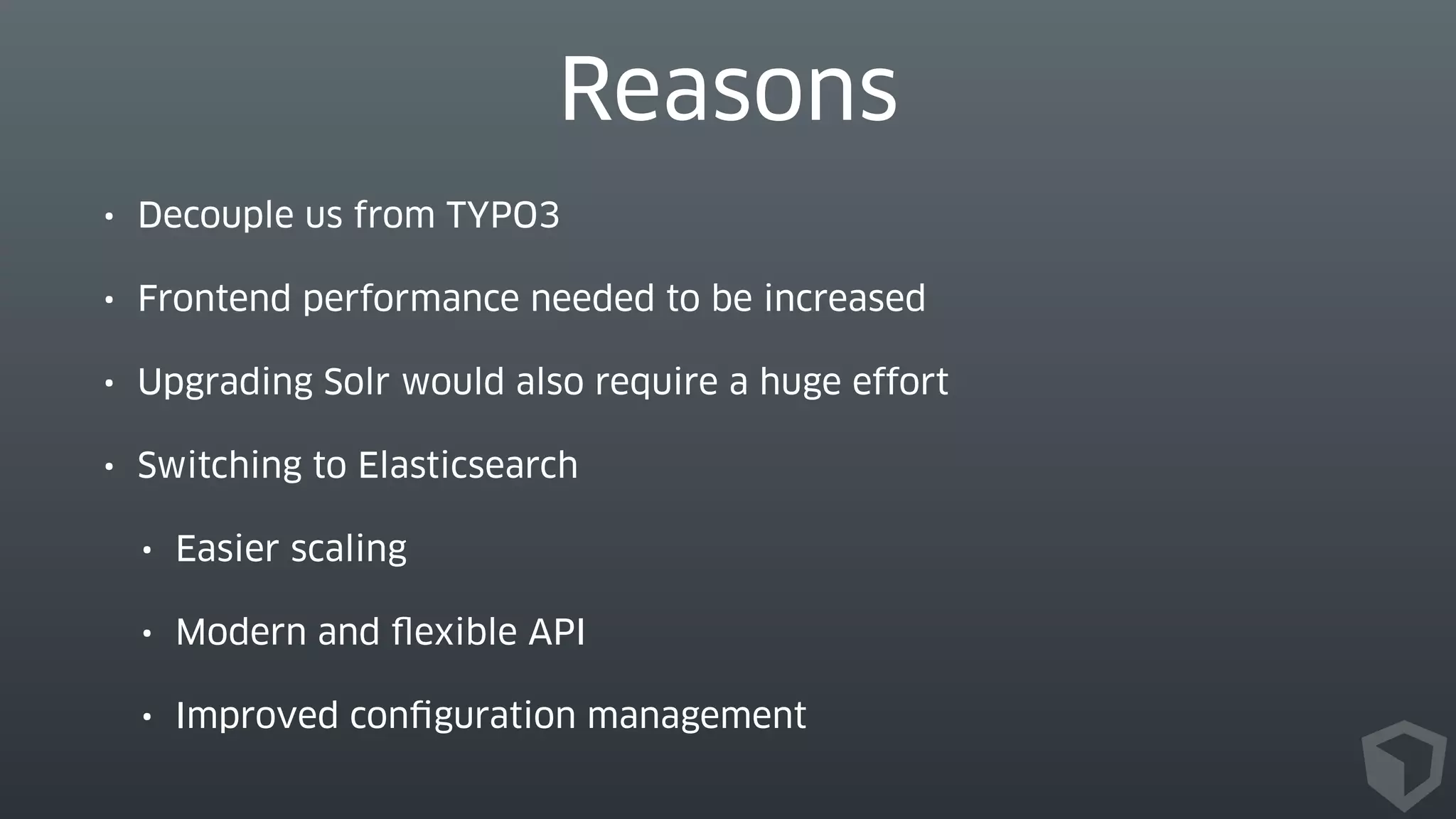

- 15. Reasons • Decouple us from TYPO3 • Frontend performance needed to be increased • Upgrading Solr would also require a huge effort • Switching to Elasticsearch • Easier scaling • Modern and flexible API • Improved configuration management

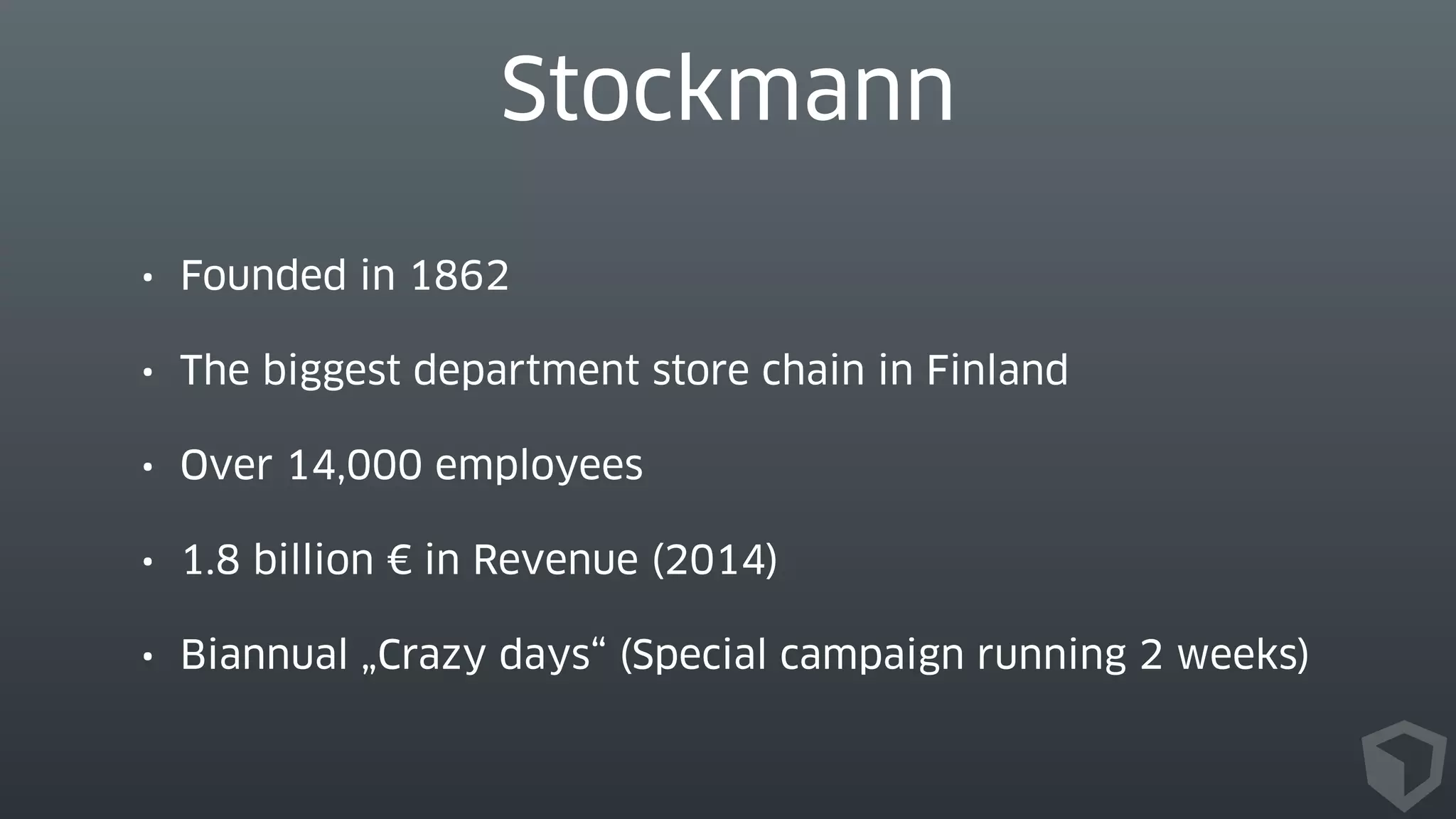

- 17. Stockmann • Founded in 1862 • The biggest department store chain in Finland • Over 14,000 employees • 1.8 billion € in Revenue (2014) • Biannual „Crazy days“ (Special campaign running 2 weeks)

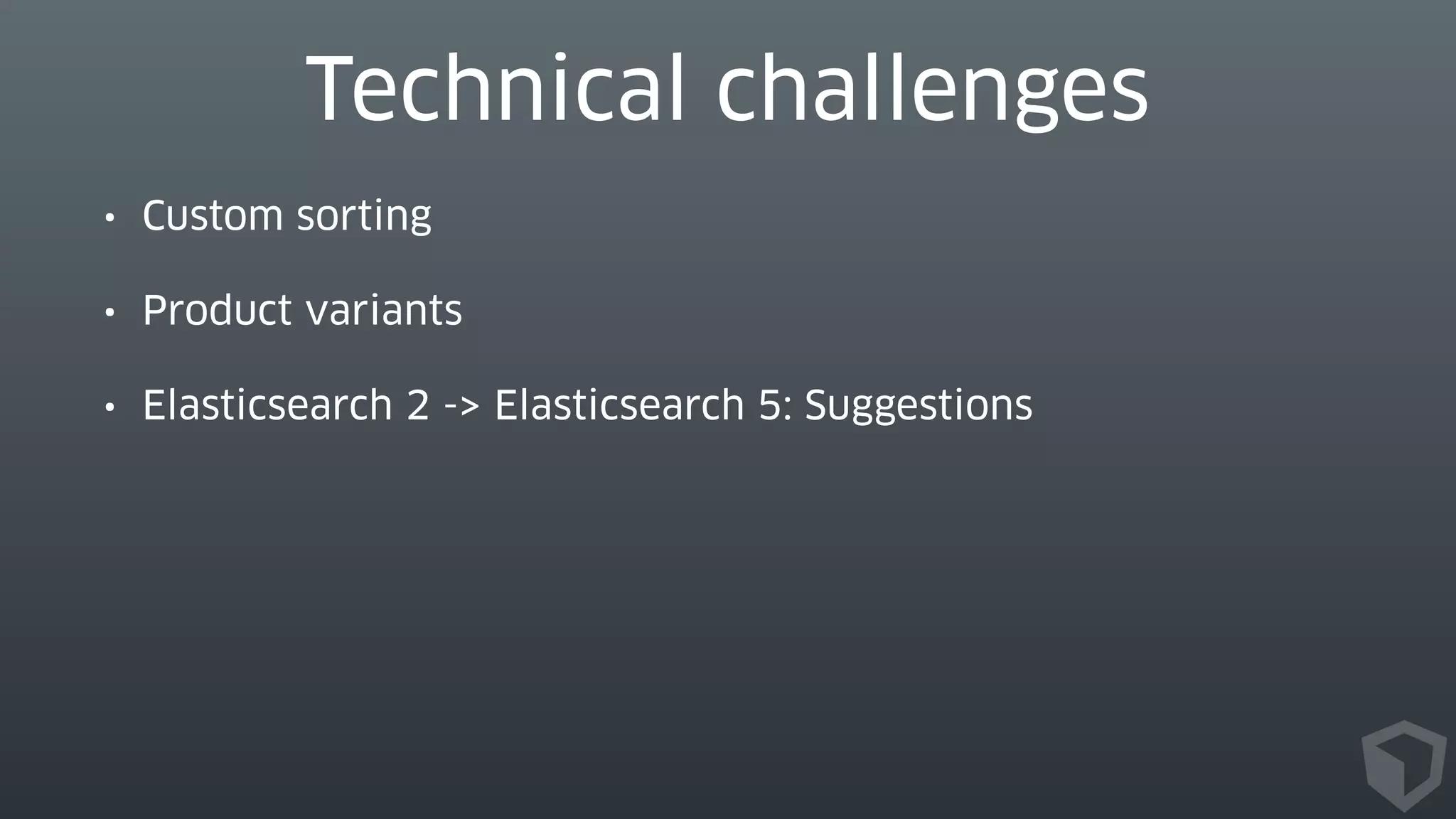

- 18. Technical challenges • Custom sorting • Product variants • Elasticsearch 2 -> Elasticsearch 5: Suggestions

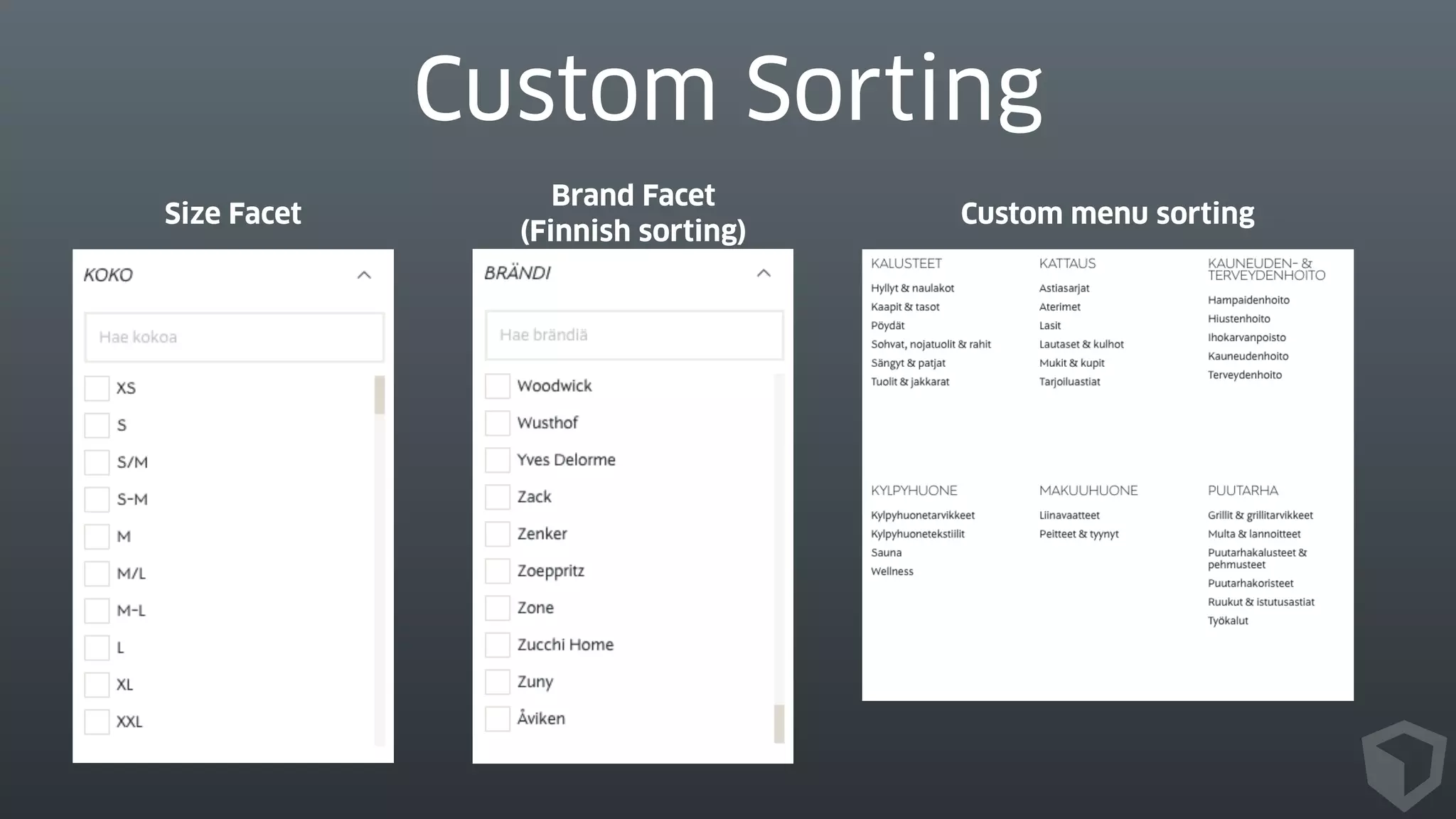

- 19. Custom Sorting Size Facet Brand Facet (Finnish sorting) Custom menu sorting

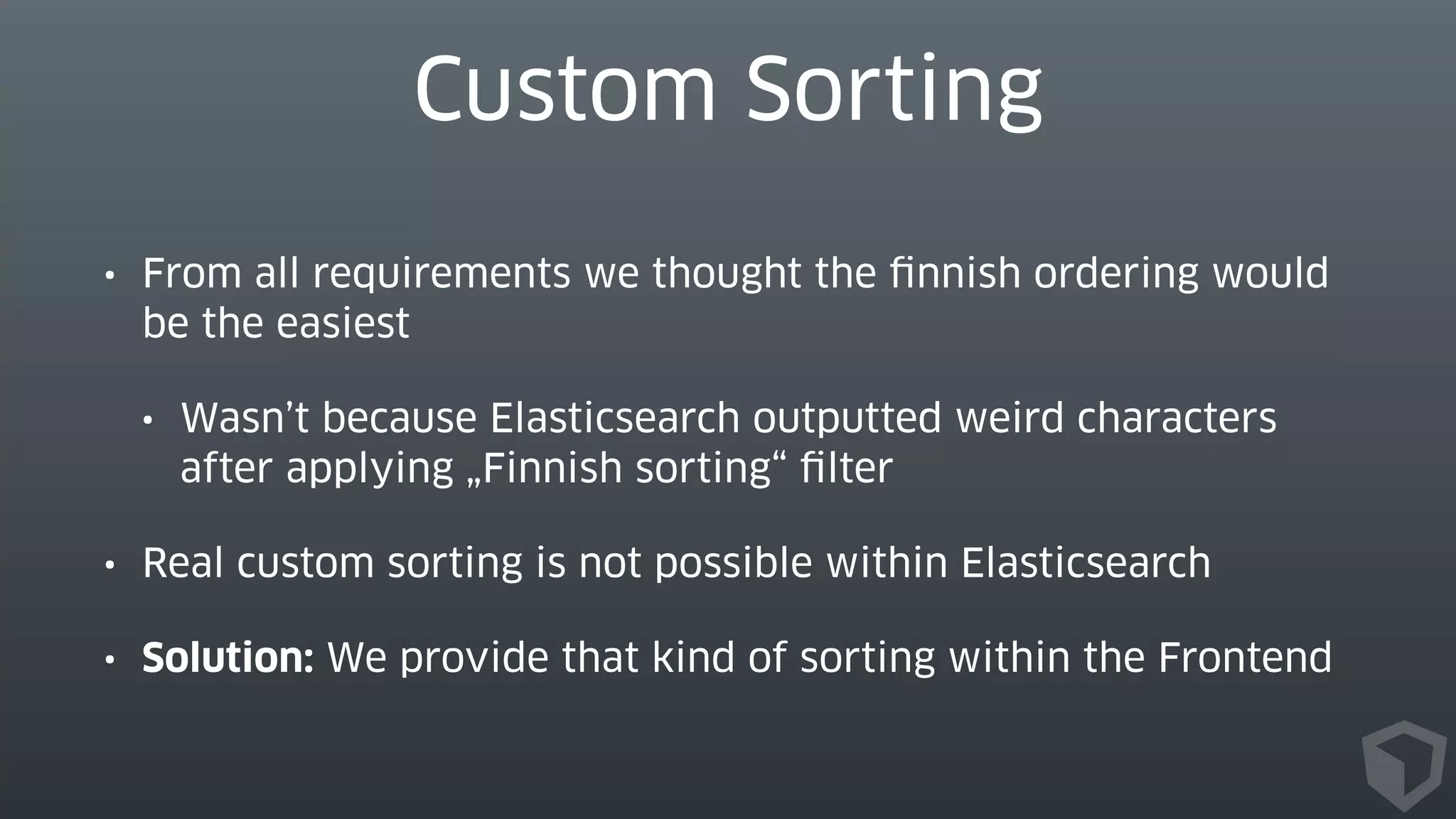

- 20. Custom Sorting • From all requirements we thought the finnish ordering would be the easiest • Wasn’t because Elasticsearch outputted weird characters after applying „Finnish sorting“ filter • Real custom sorting is not possible within Elasticsearch • Solution: We provide that kind of sorting within the Frontend

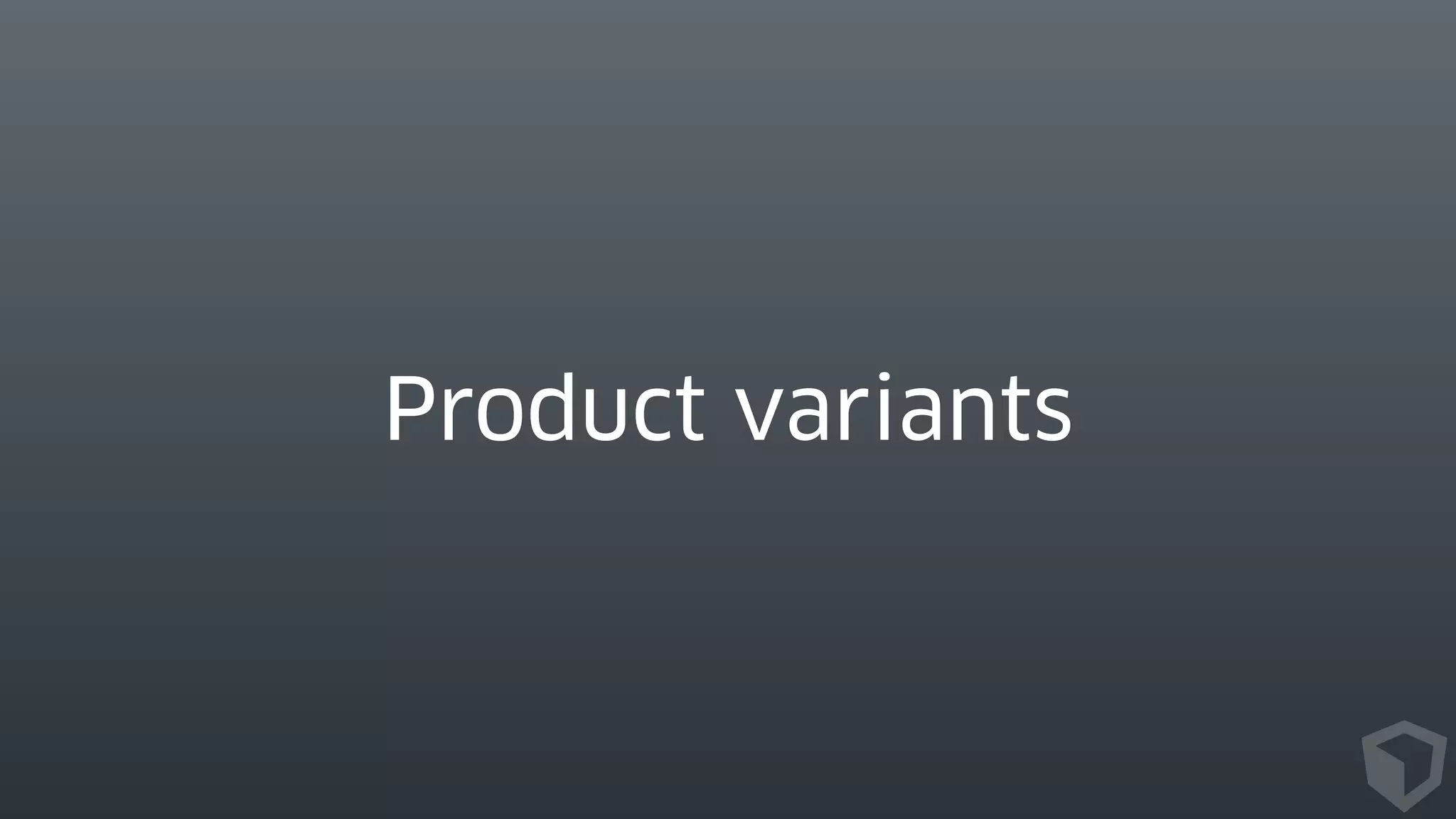

- 21. Product variants
- 22. A customer walks into a store to buy a shirt

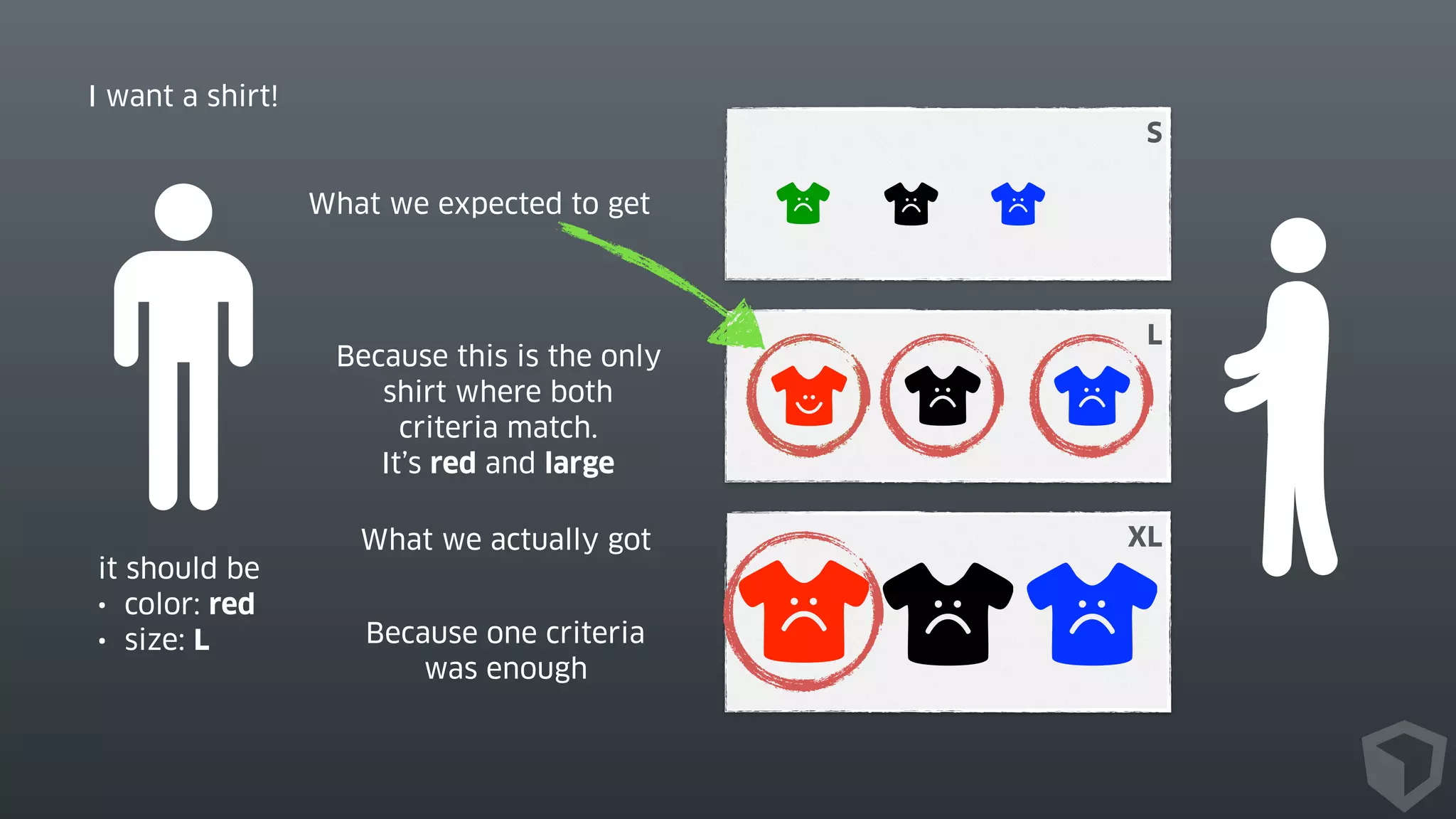

- 23. I want a shirt! it should be • color: red • size: L S XL L What we expected to get Because this is the only shirt where both criteria match. It’s red and large What we actually got Because one criteria was enough

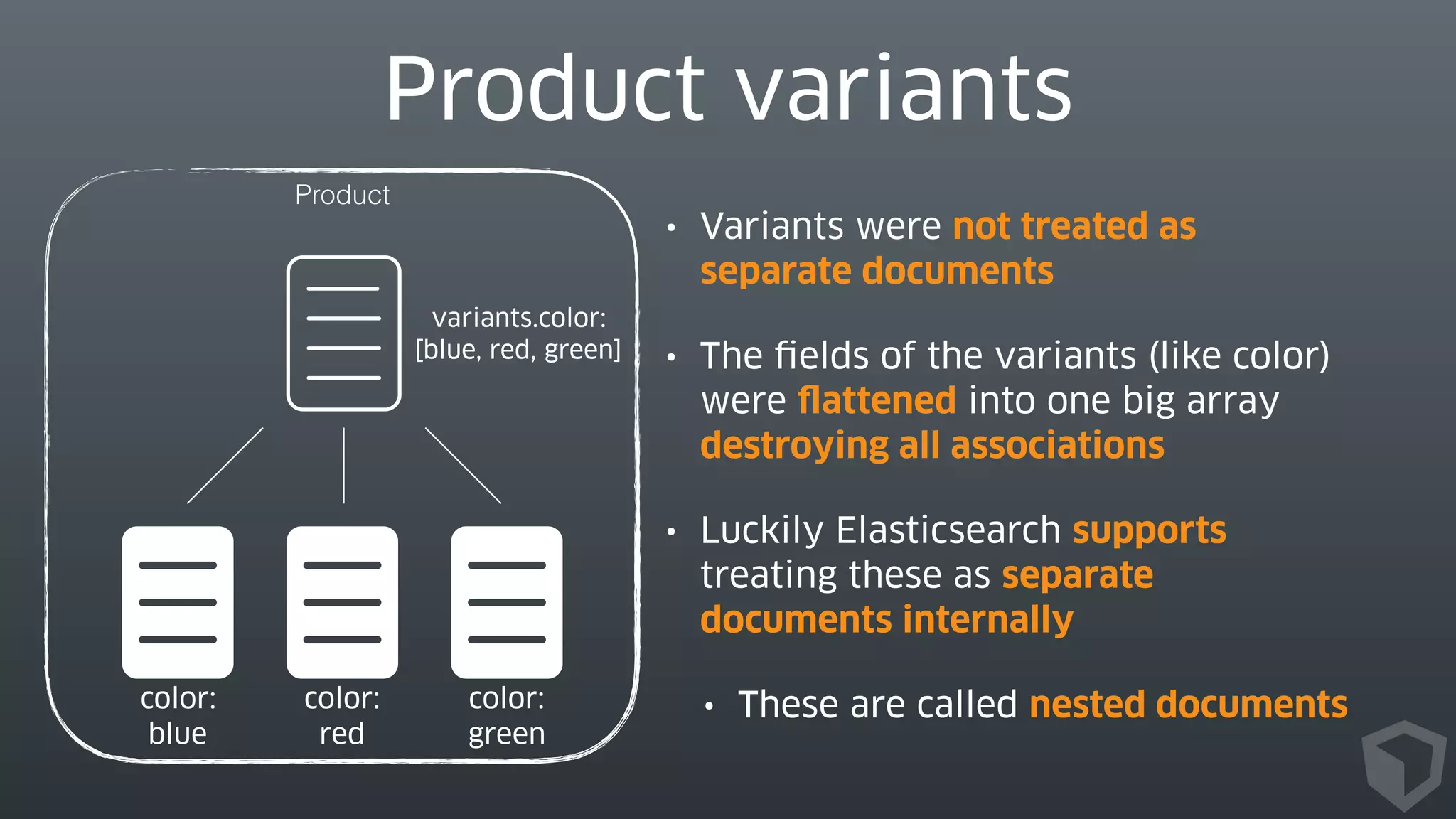

- 24. Product Product variants • Variants were not treated as separate documents • The fields of the variants (like color) were flattened into one big array destroying all associations • Luckily Elasticsearch supports treating these as separate documents internally • These are called nested documentscolor: blue color: red color: green variants.color: [blue, red, green]

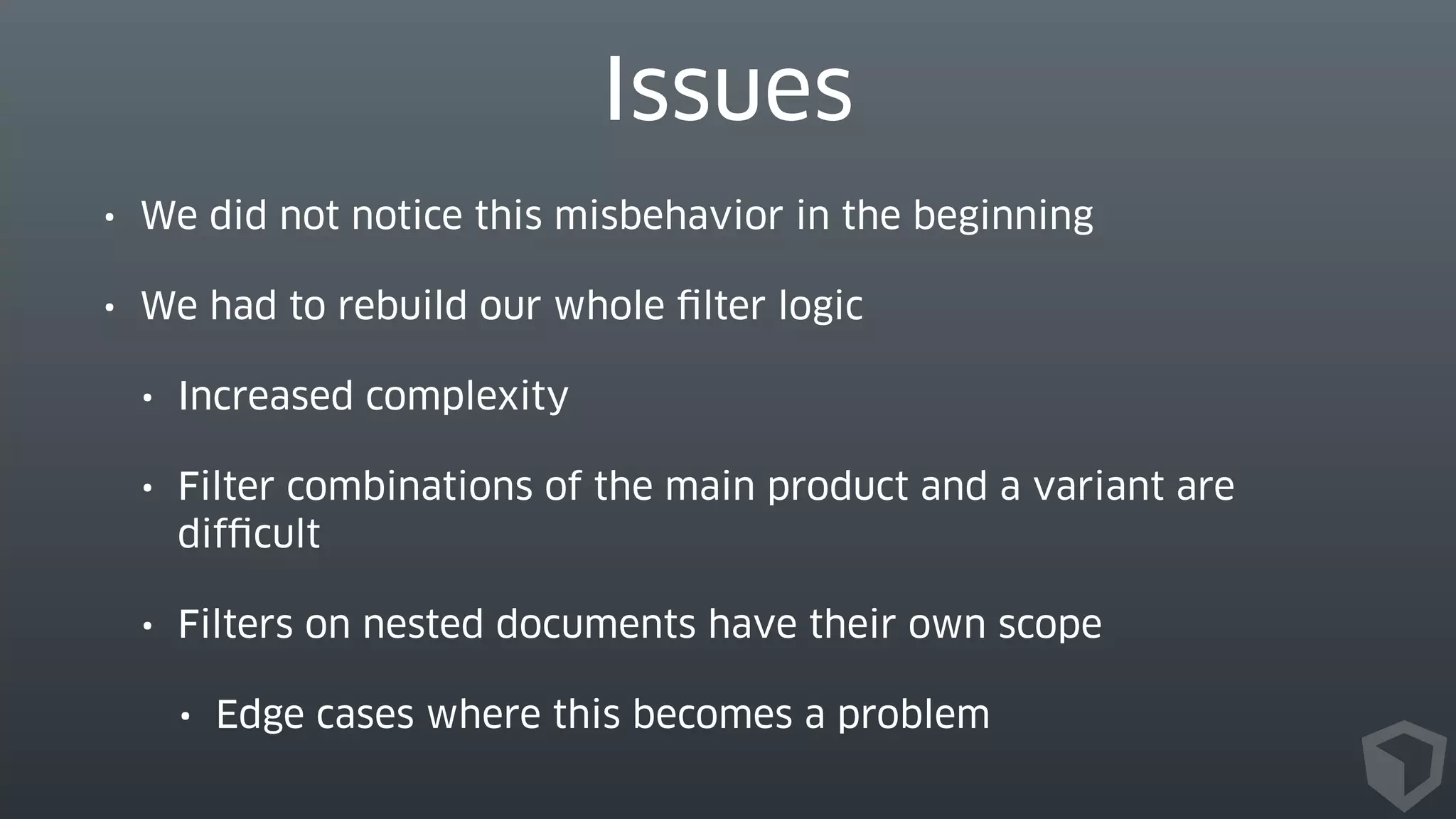

- 25. Issues • We did not notice this misbehavior in the beginning • We had to rebuild our whole filter logic • Increased complexity • Filter combinations of the main product and a variant are difficult • Filters on nested documents have their own scope • Edge cases where this becomes a problem

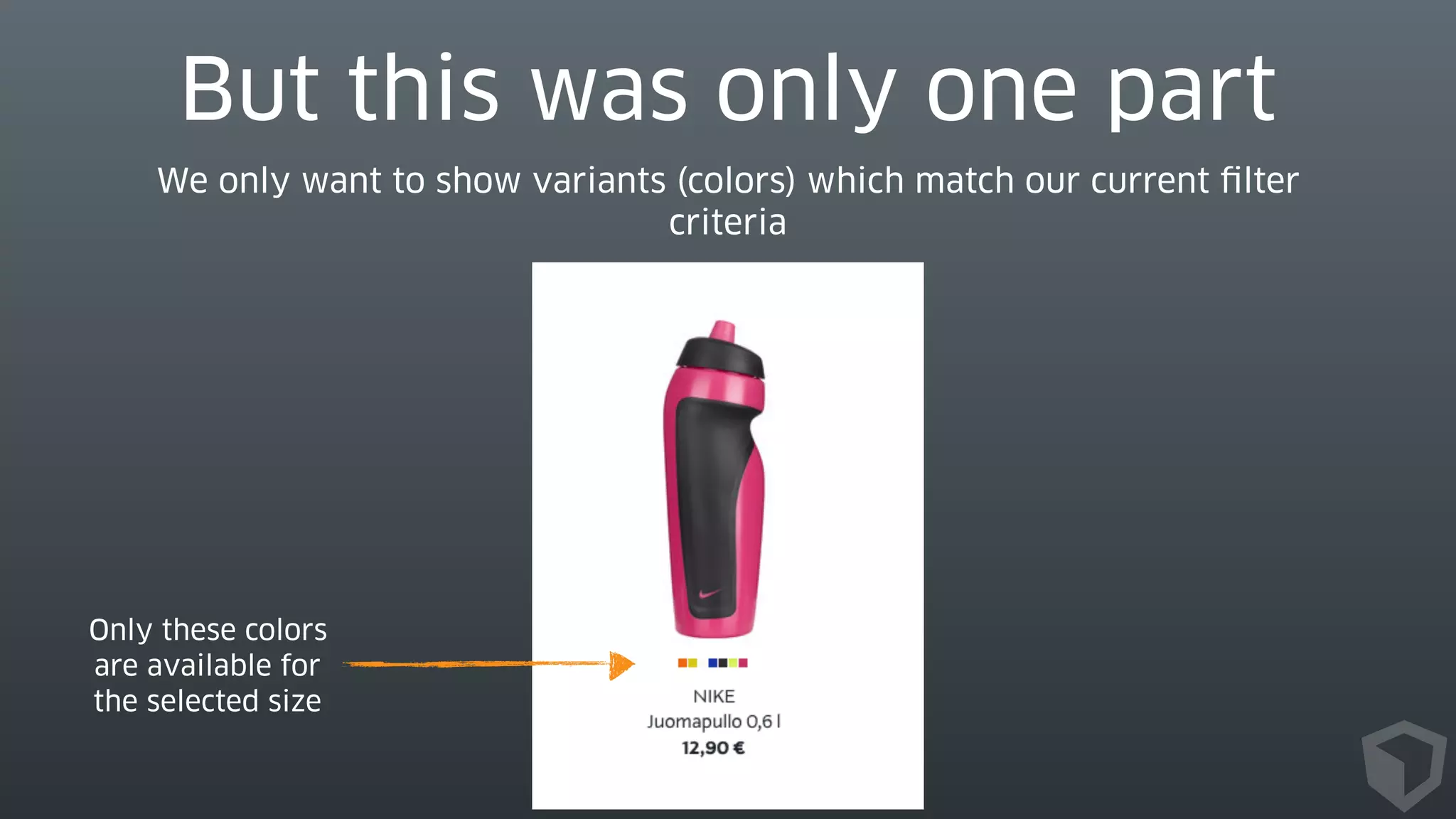

- 26. But this was only one part We only want to show variants (colors) which match our current filter criteria Only these colors are available for the selected size

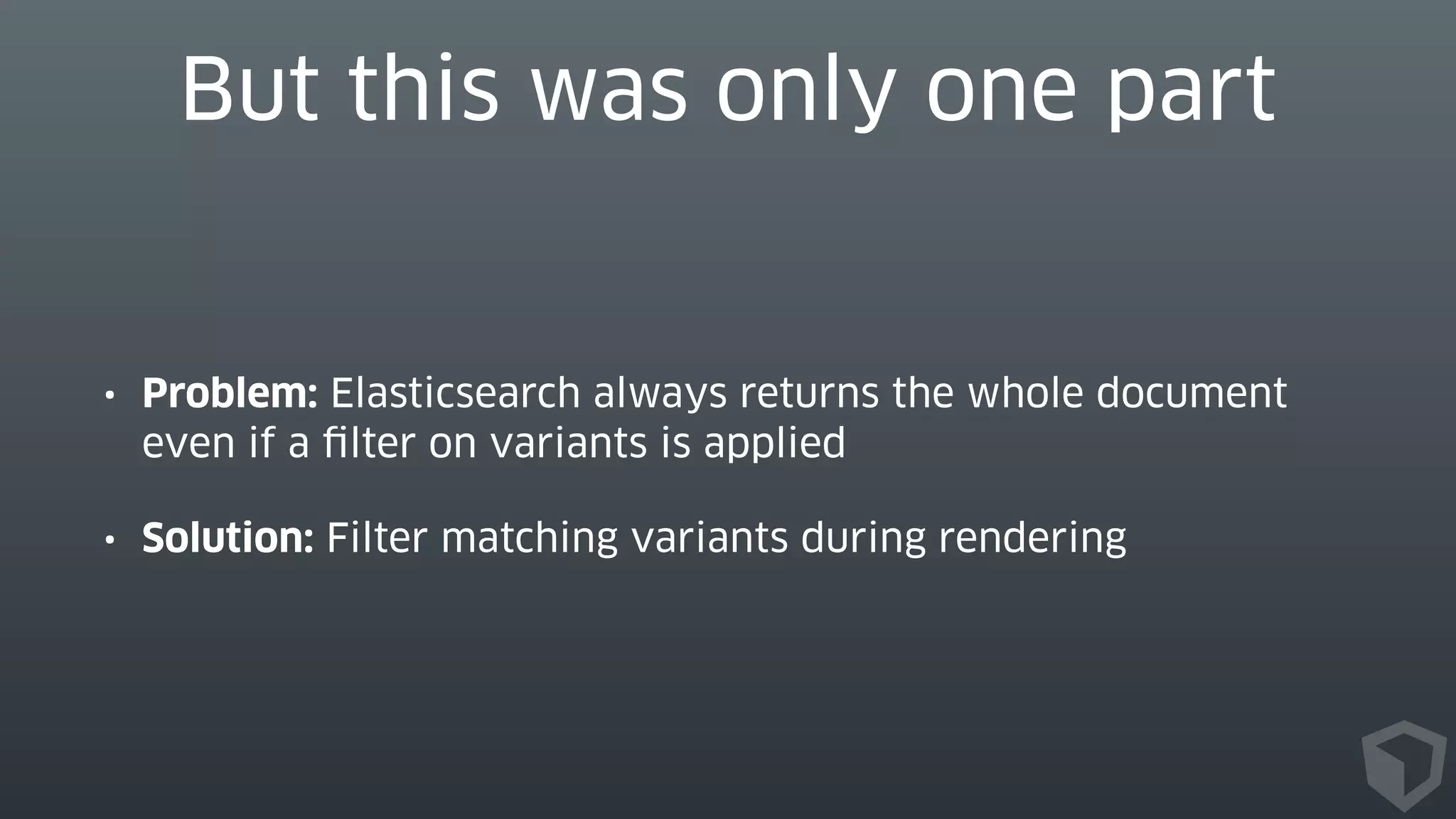

- 27. • Problem: Elasticsearch always returns the whole document even if a filter on variants is applied • Solution: Filter matching variants during rendering But this was only one part
- 28. Suggestions Based on what you typed we suggest you words you might want to search for, known as suggestions

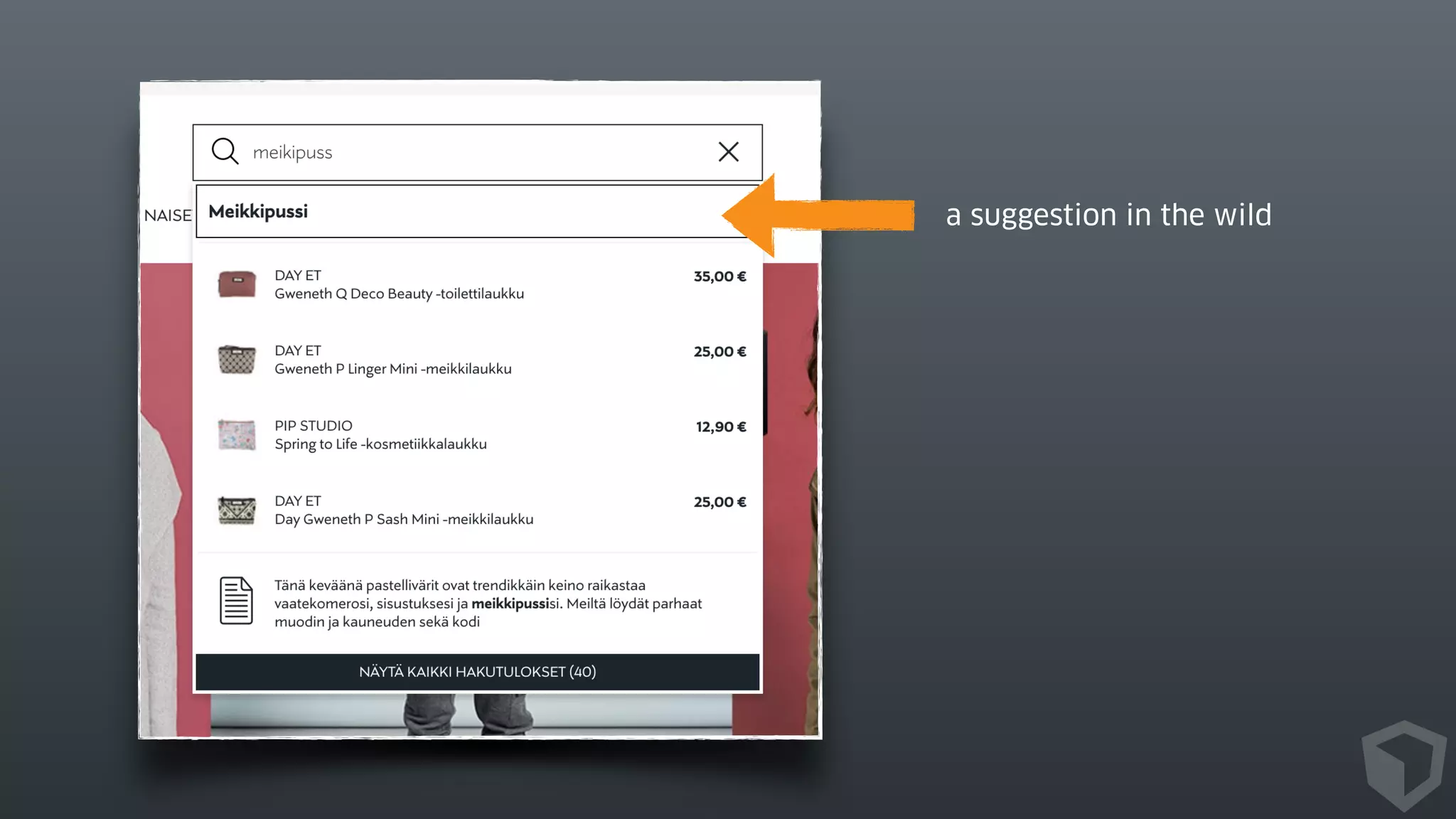

- 29. a suggestion in the wild

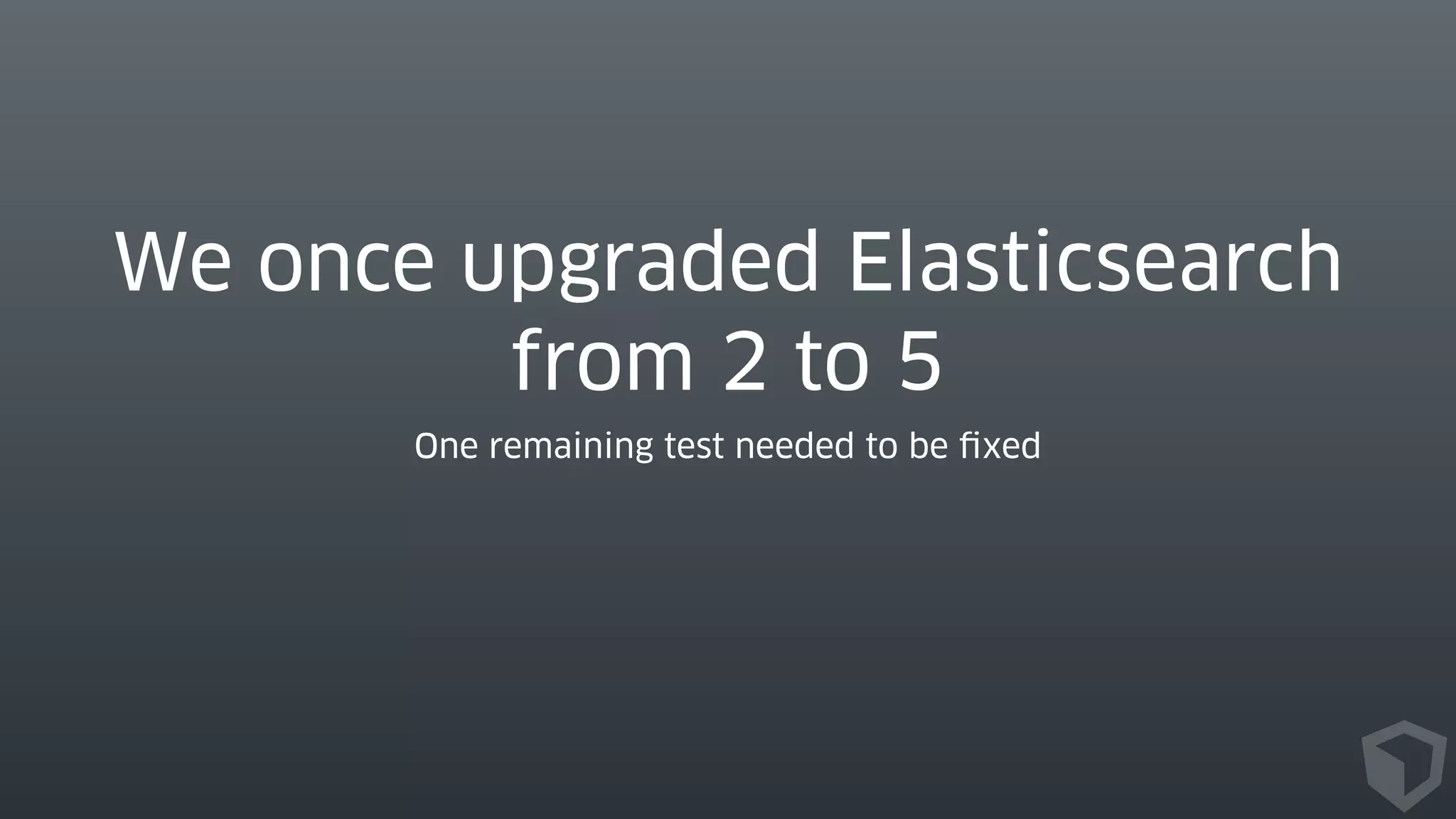

- 30. We once upgraded Elasticsearch from 2 to 5 One remaining test needed to be fixed

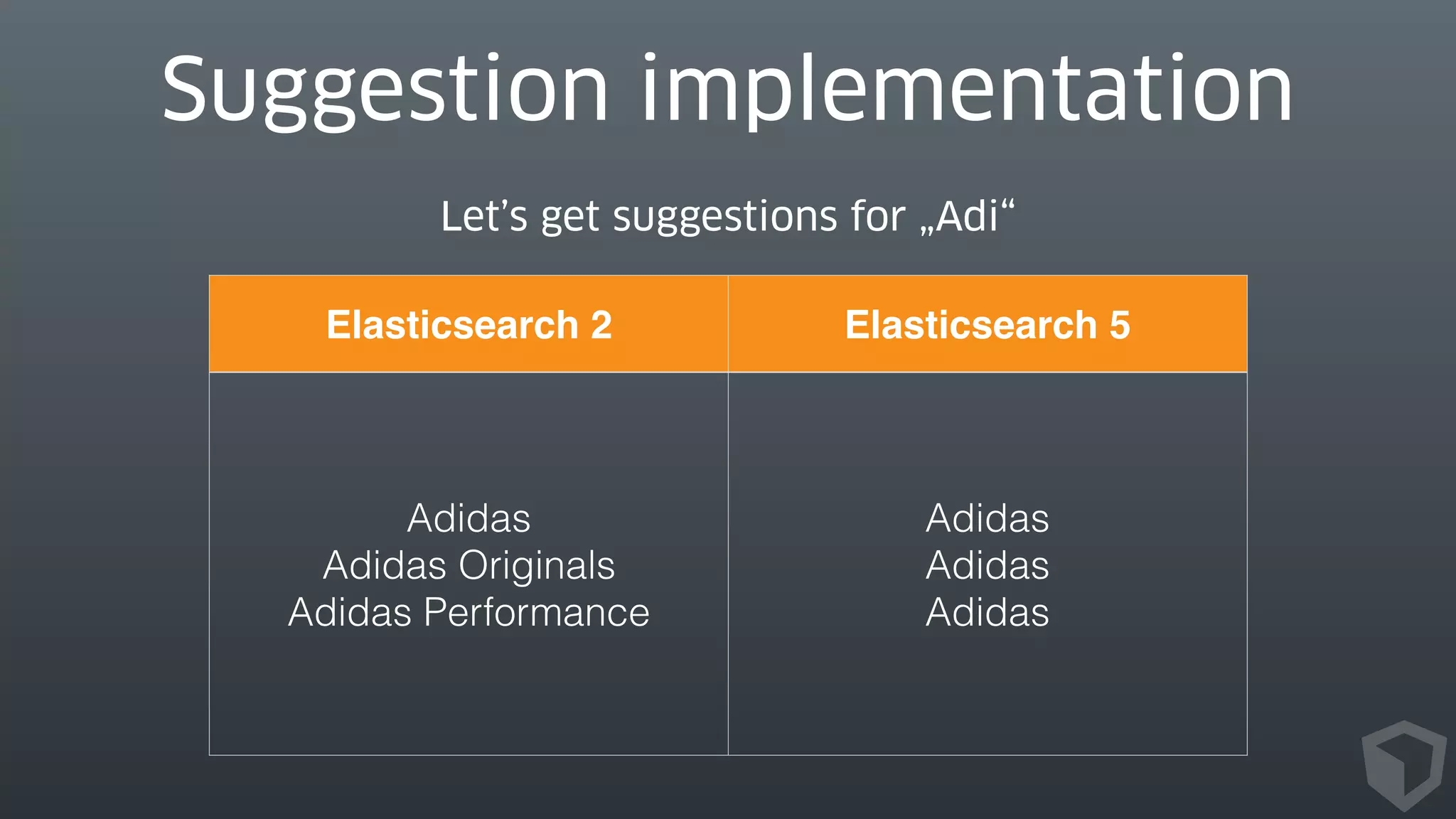

- 31. Suggestion implementation Let’s get suggestions for „Adi“ Elasticsearch 2 Elasticsearch 5 Adidas Adidas Originals Adidas Performance Adidas Adidas Adidas

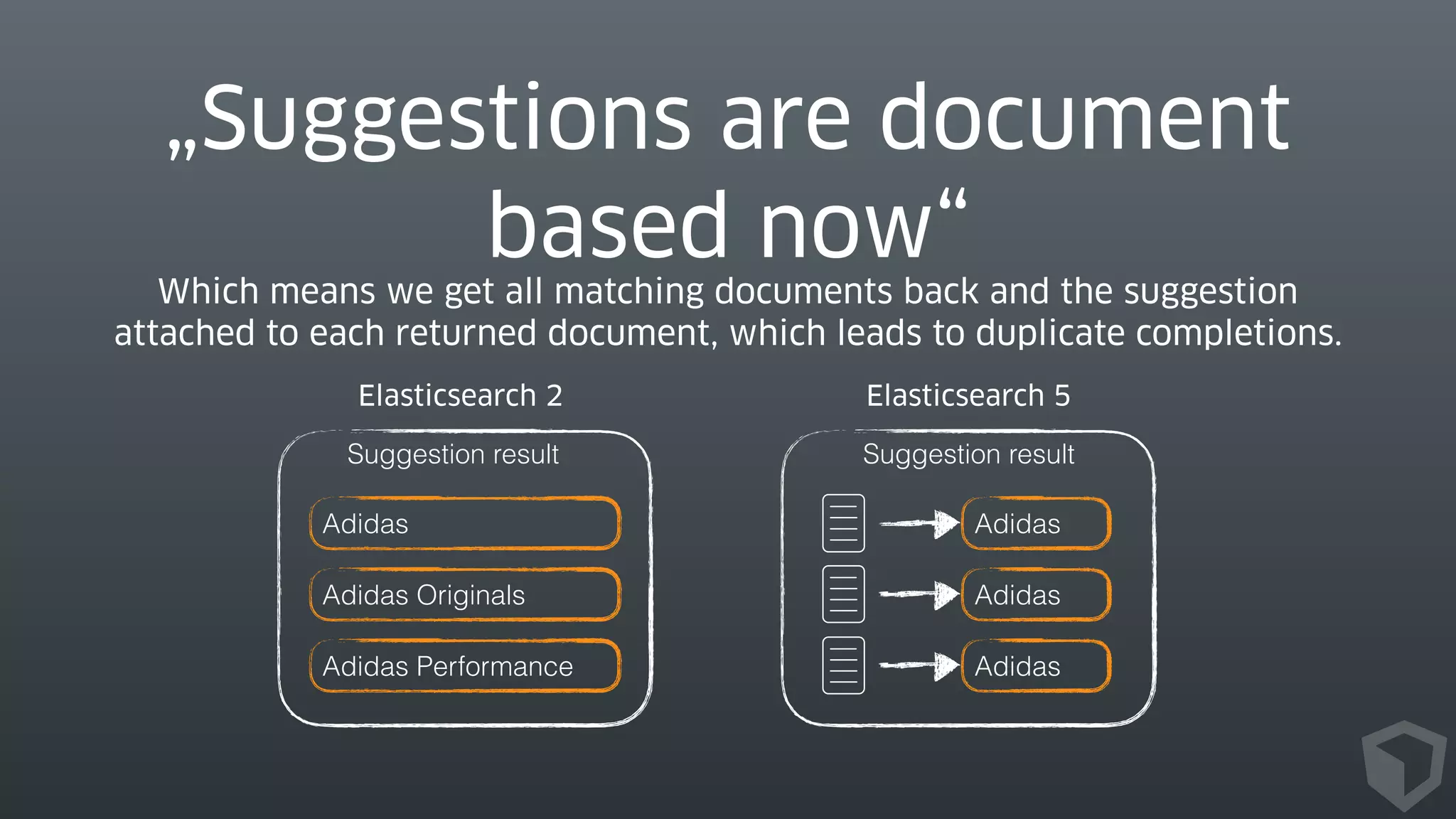

- 32. „Suggestions are document based now“ Which means we get all matching documents back and the suggestion attached to each returned document, which leads to duplicate completions. Suggestion result Adidas Adidas Originals Adidas Performance Elasticsearch 2 Suggestion result Adidas Adidas Adidas Elasticsearch 5

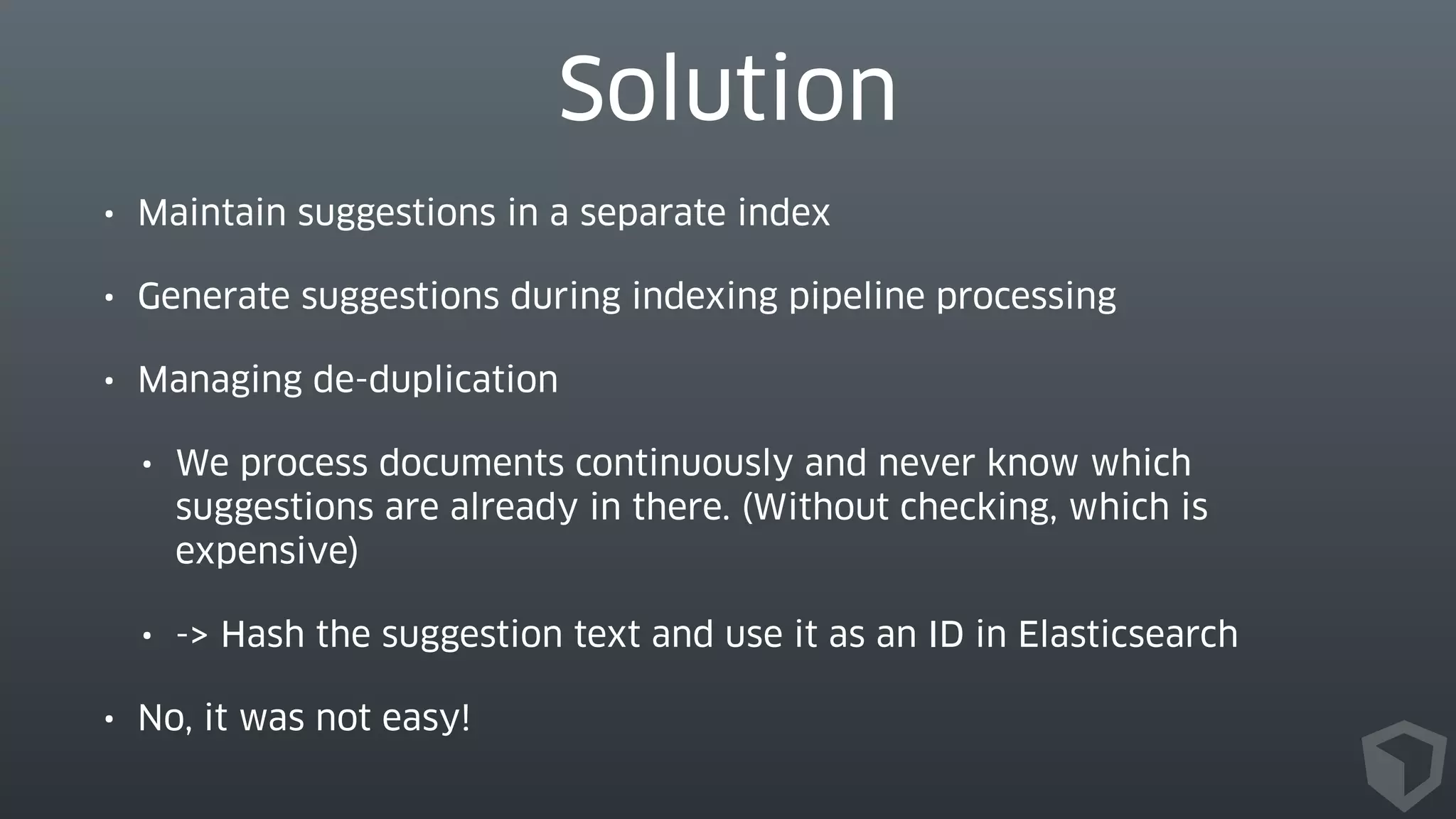

- 33. Solution • Maintain suggestions in a separate index • Generate suggestions during indexing pipeline processing • Managing de-duplication • We process documents continuously and never know which suggestions are already in there. (Without checking, which is expensive) • -> Hash the suggestion text and use it as an ID in Elasticsearch • No, it was not easy!

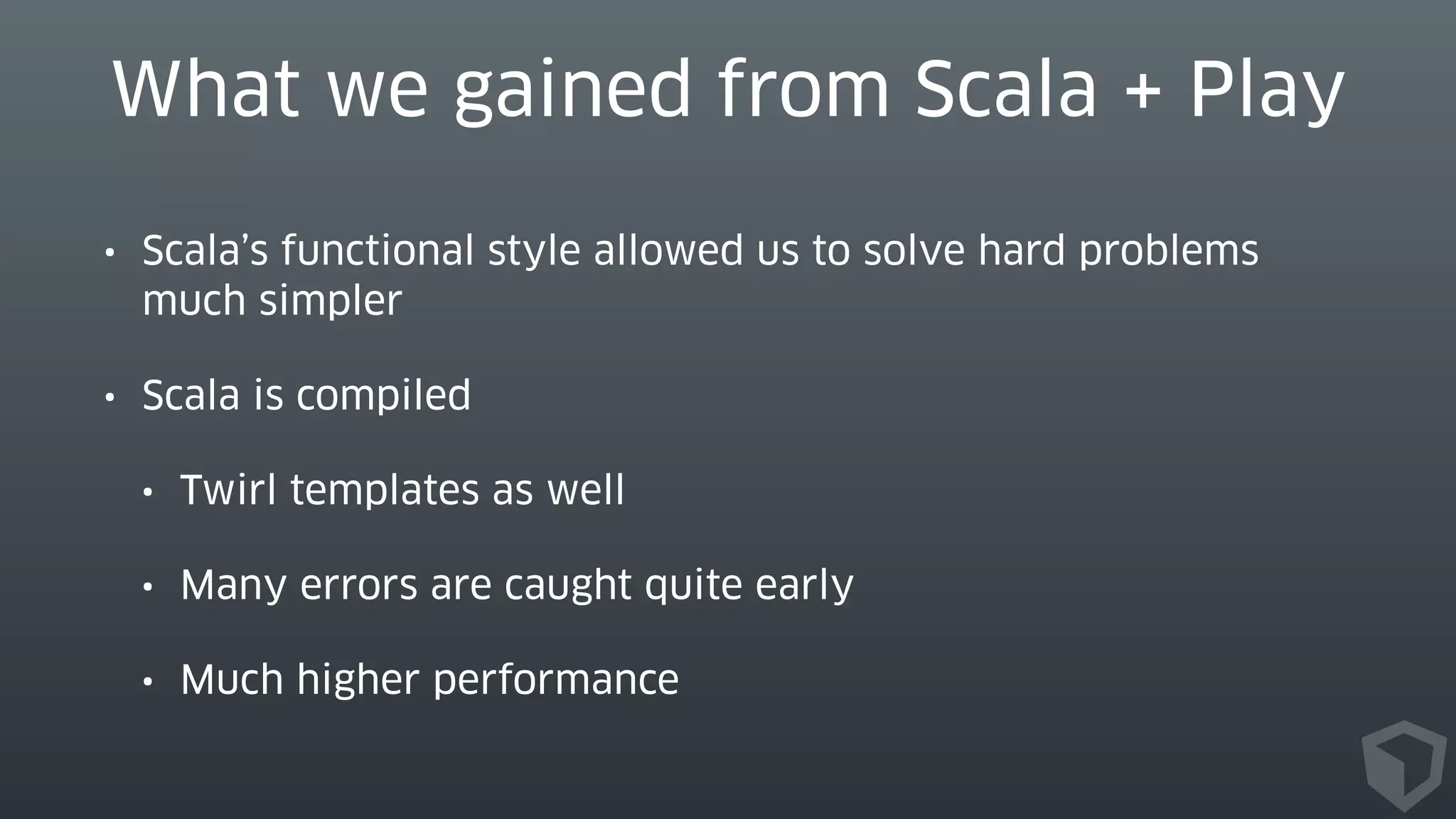

- 34. What we gained from Scala + Play • Scala’s functional style allowed us to solve hard problems much simpler • Scala is compiled • Twirl templates as well • Many errors are caught quite early • Much higher performance

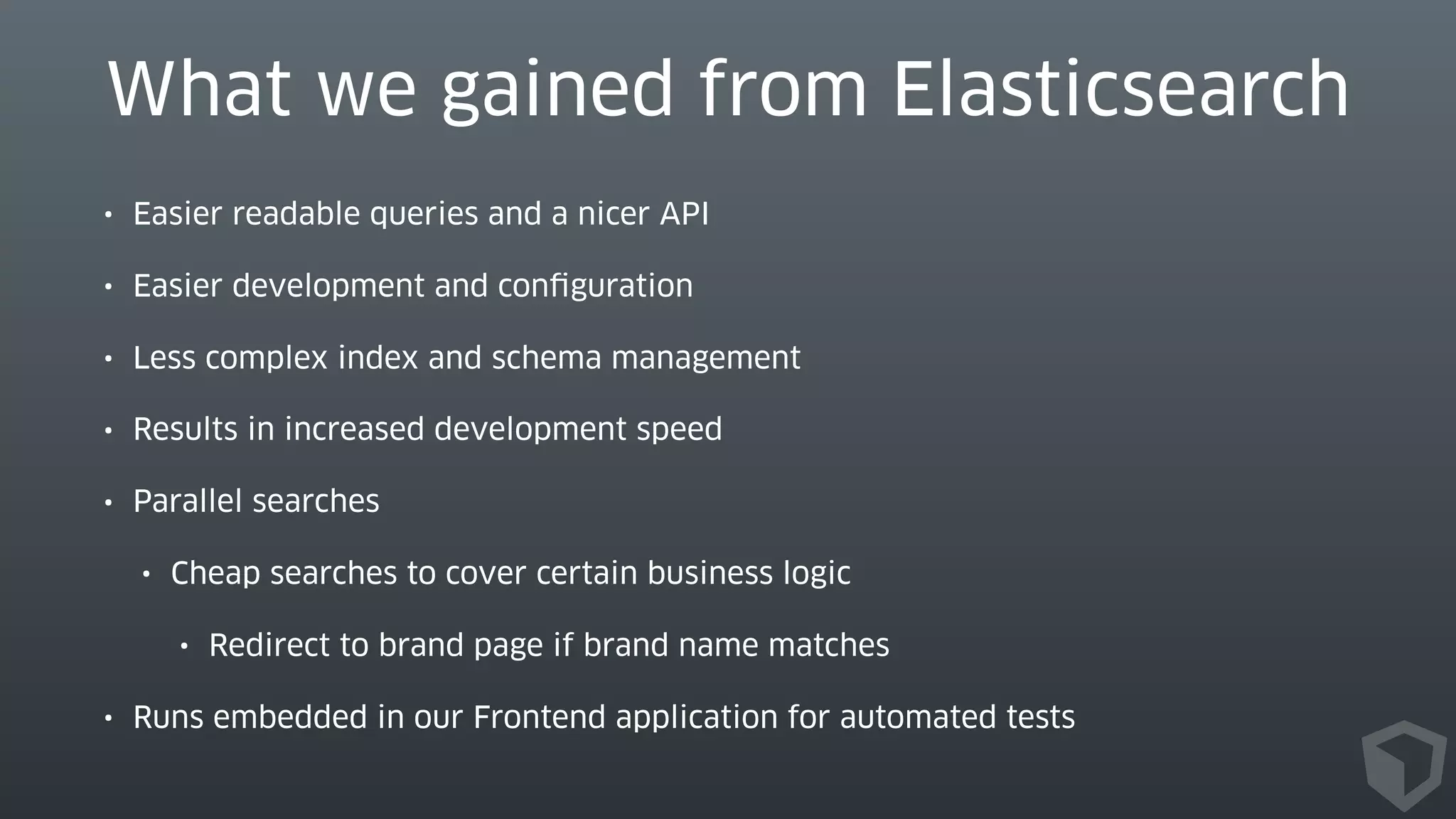

- 35. What we gained from Elasticsearch • Easier readable queries and a nicer API • Easier development and configuration • Less complex index and schema management • Results in increased development speed • Parallel searches • Cheap searches to cover certain business logic • Redirect to brand page if brand name matches • Runs embedded in our Frontend application for automated tests

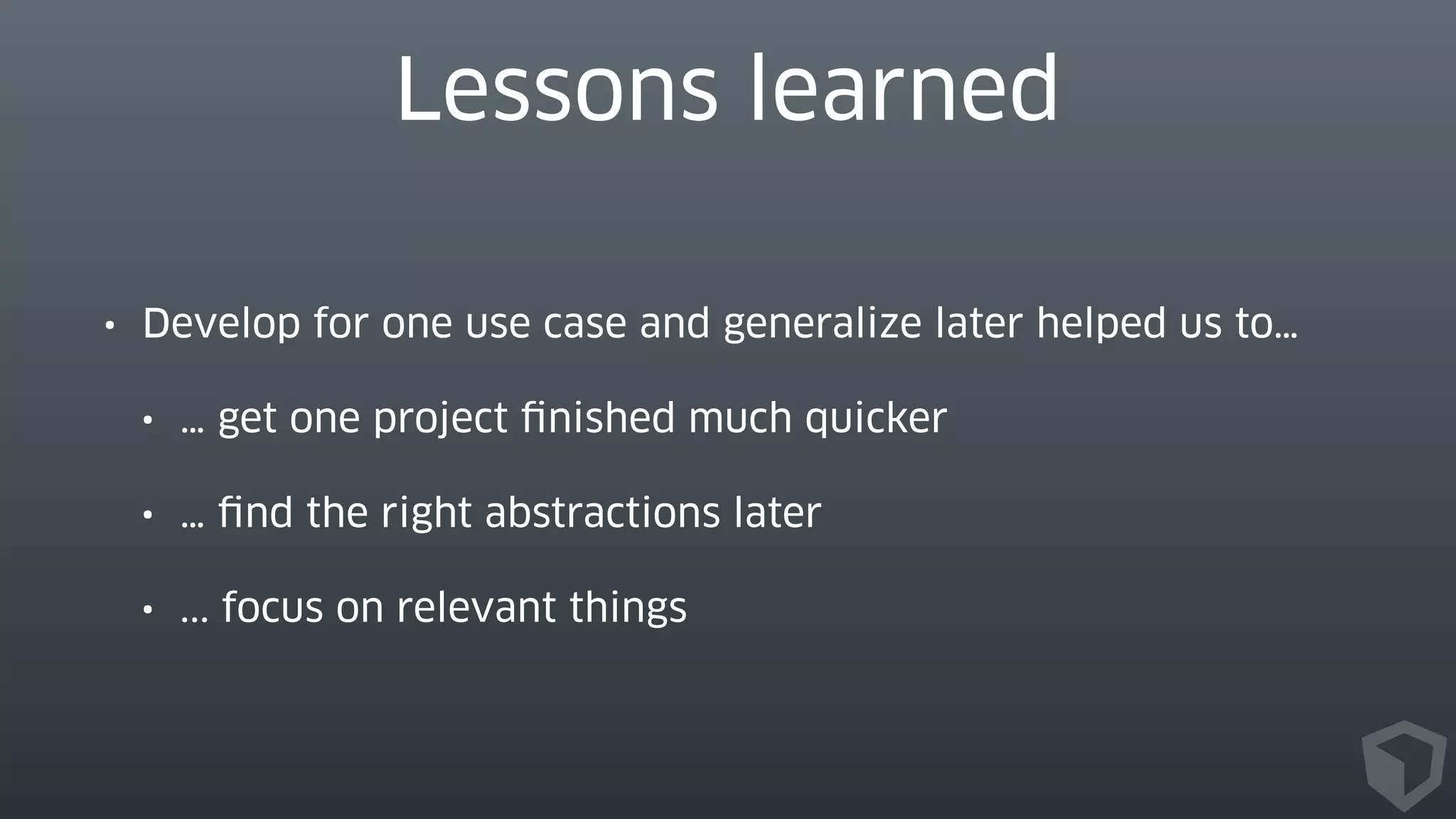

- 36. Lessons learned • Develop for one use case and generalize later helped us to… • … get one project finished much quicker • … find the right abstractions later • ... focus on relevant things

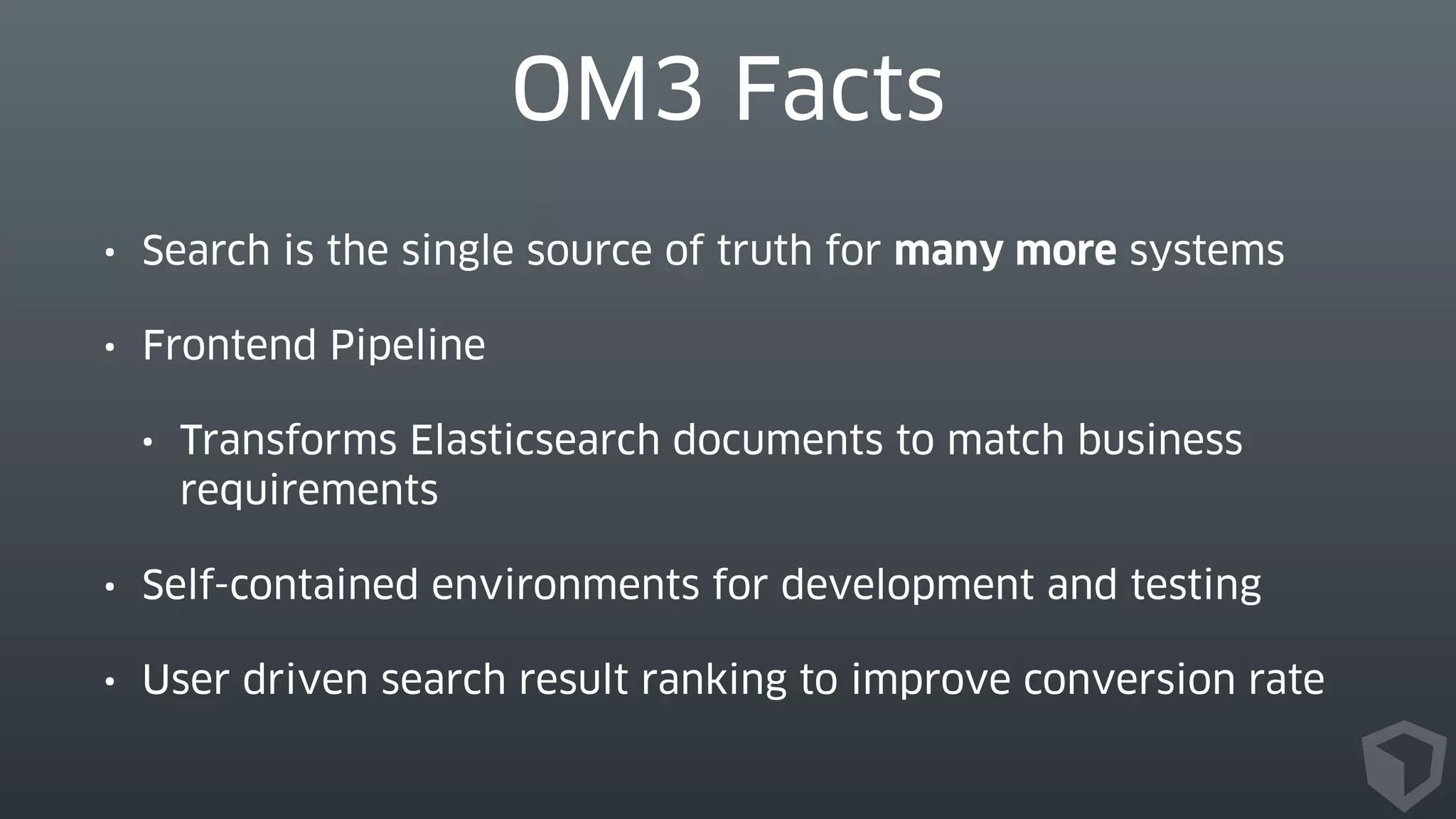

- 38. OM3 Facts • Search is the single source of truth for many more systems • Frontend Pipeline • Transforms Elasticsearch documents to match business requirements • Self-contained environments for development and testing • User driven search result ranking to improve conversion rate

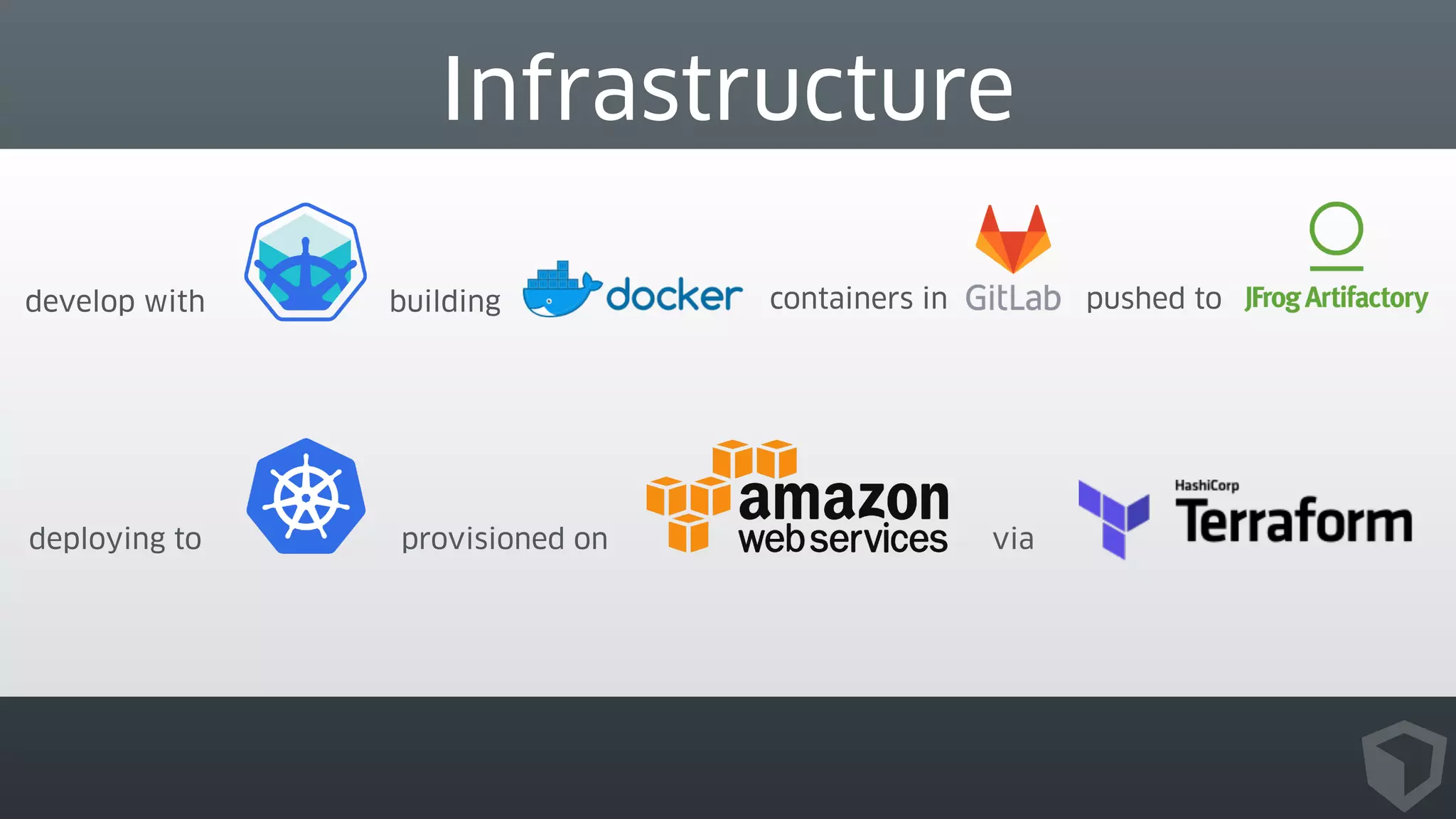

- 39. Infrastructure buildingdevelop with containers in deploying to provisioned on via pushed to
- 41. Overall summary

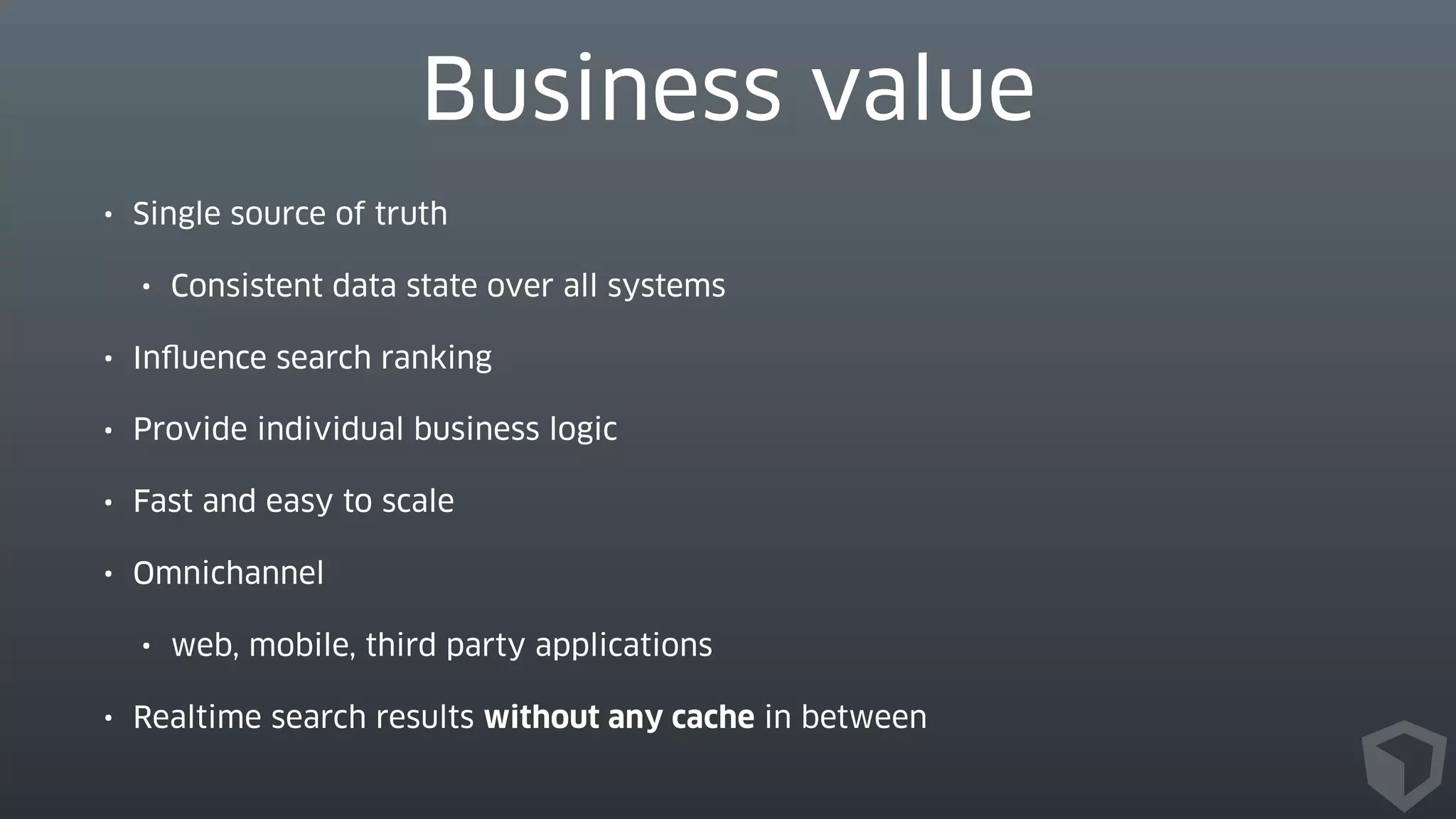

- 42. Business value • Single source of truth • Consistent data state over all systems • Influence search ranking • Provide individual business logic • Fast and easy to scale • Omnichannel • web, mobile, third party applications • Realtime search results without any cache in between
- 44. Technologies now

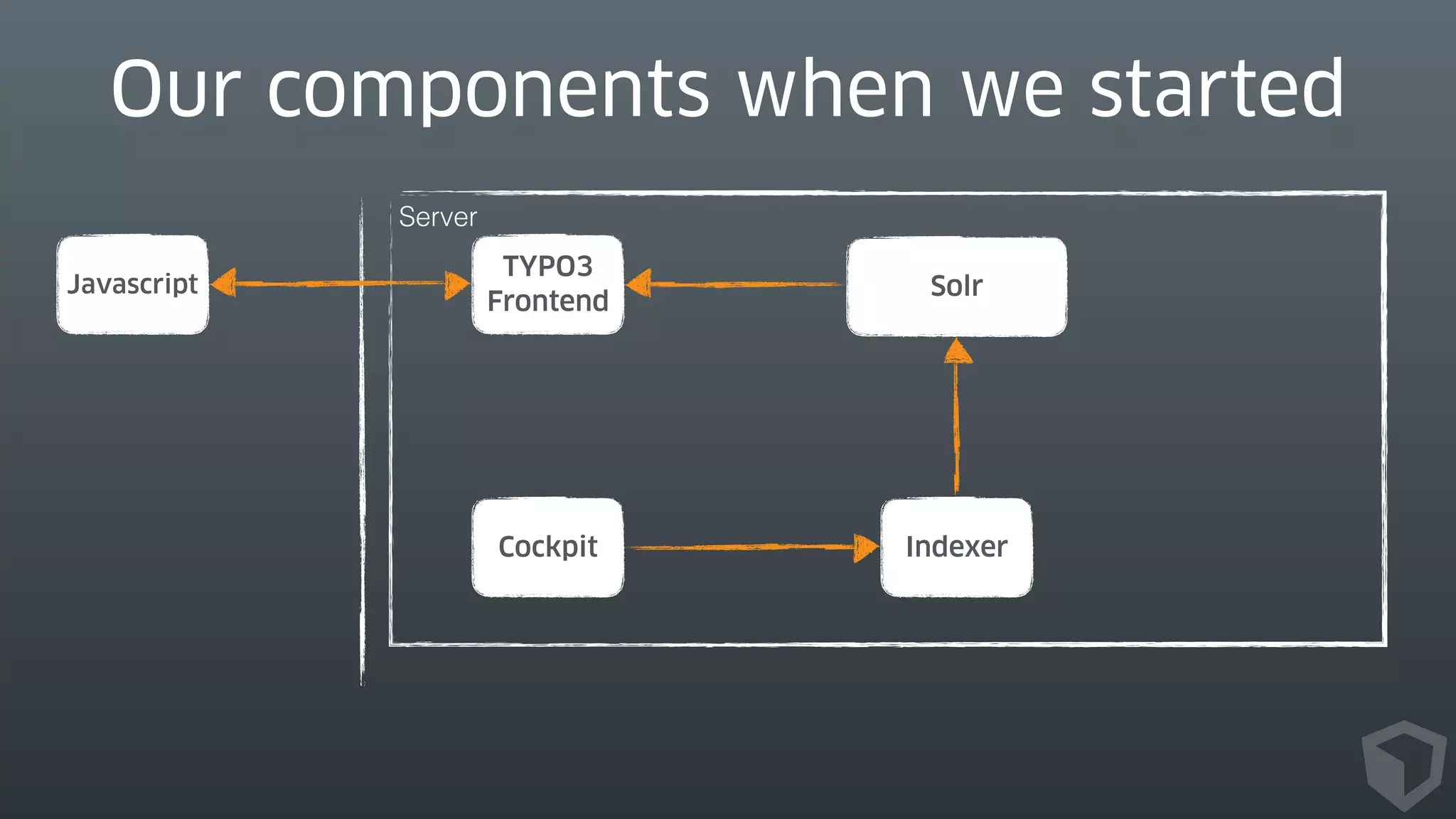

- 45. Server Our components when we started Indexer TYPO3 Frontend SolrJavascript Cockpit
- 46. ServerServer ServerServer Our components: second generation Indexer TYPO3 Frontend SolrJavascript CockpitWidgets

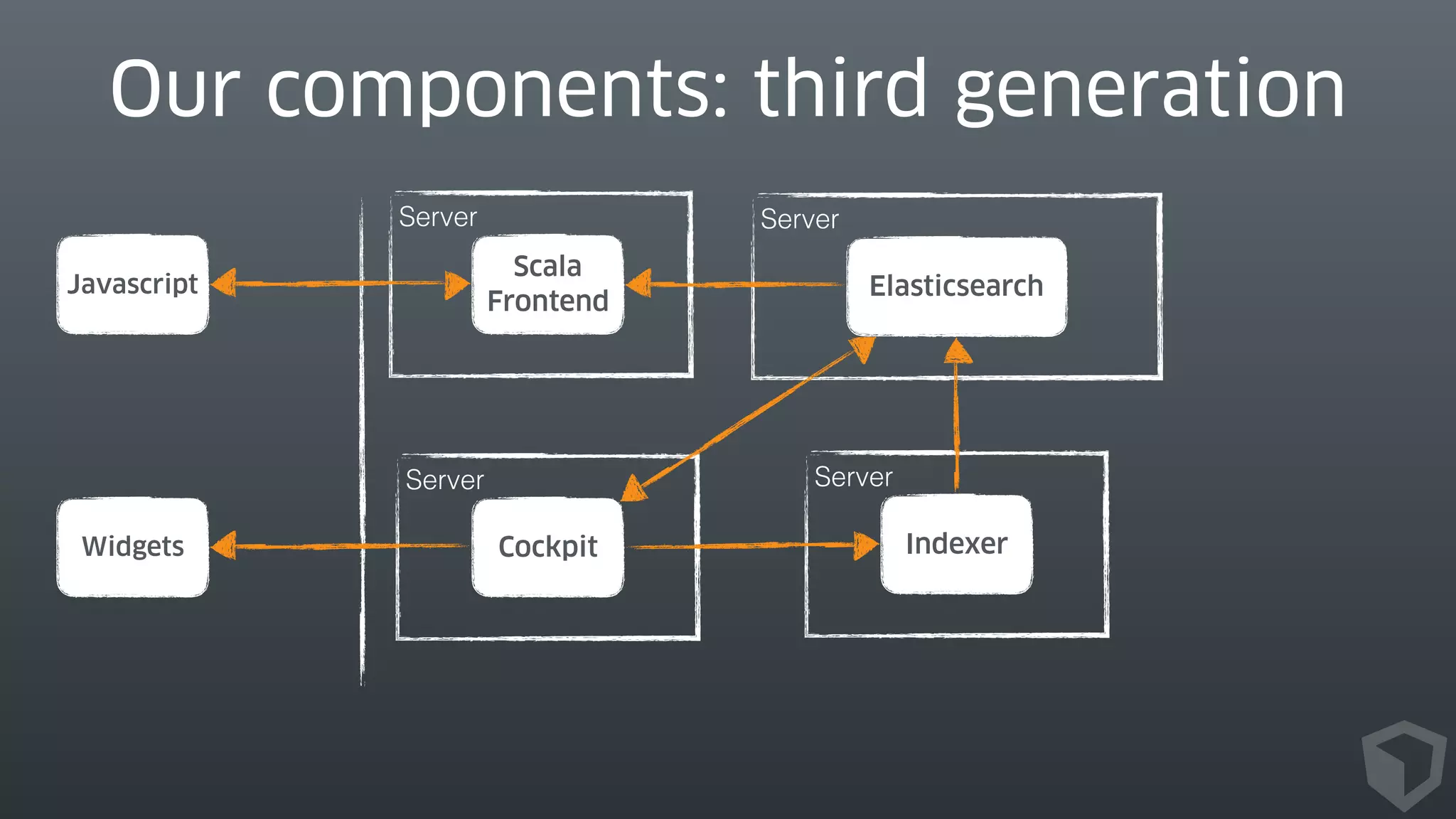

- 47. ServerServer ServerServer Our components: third generation Indexer Scala Frontend ElasticsearchJavascript CockpitWidgets

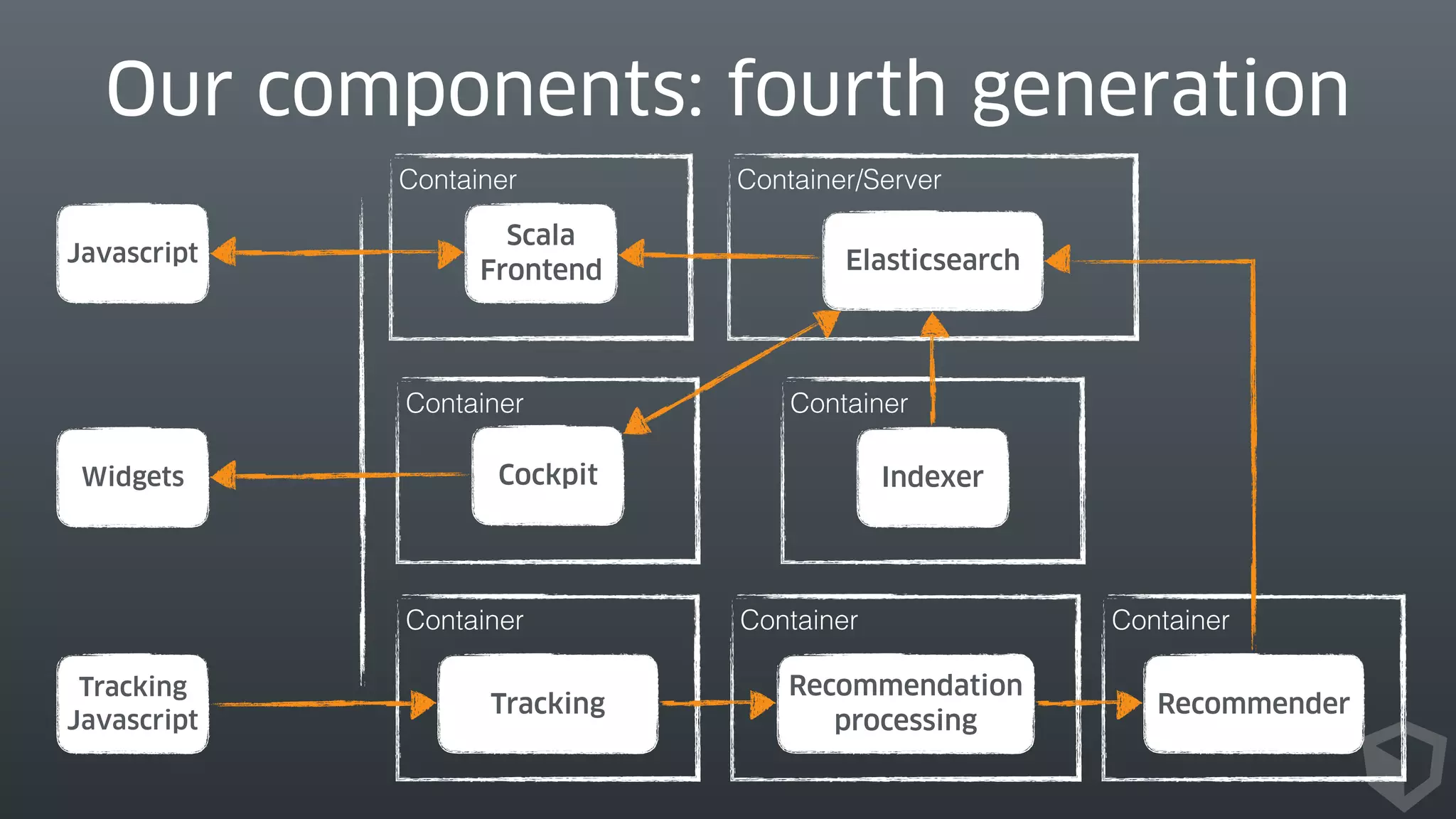

- 48. ContainerContainer Container/ServerContainer Our components: fourth generation Indexer Scala Frontend ElasticsearchJavascript CockpitWidgets Container Recommender Container Tracking Container Recommendation processing Tracking Javascript

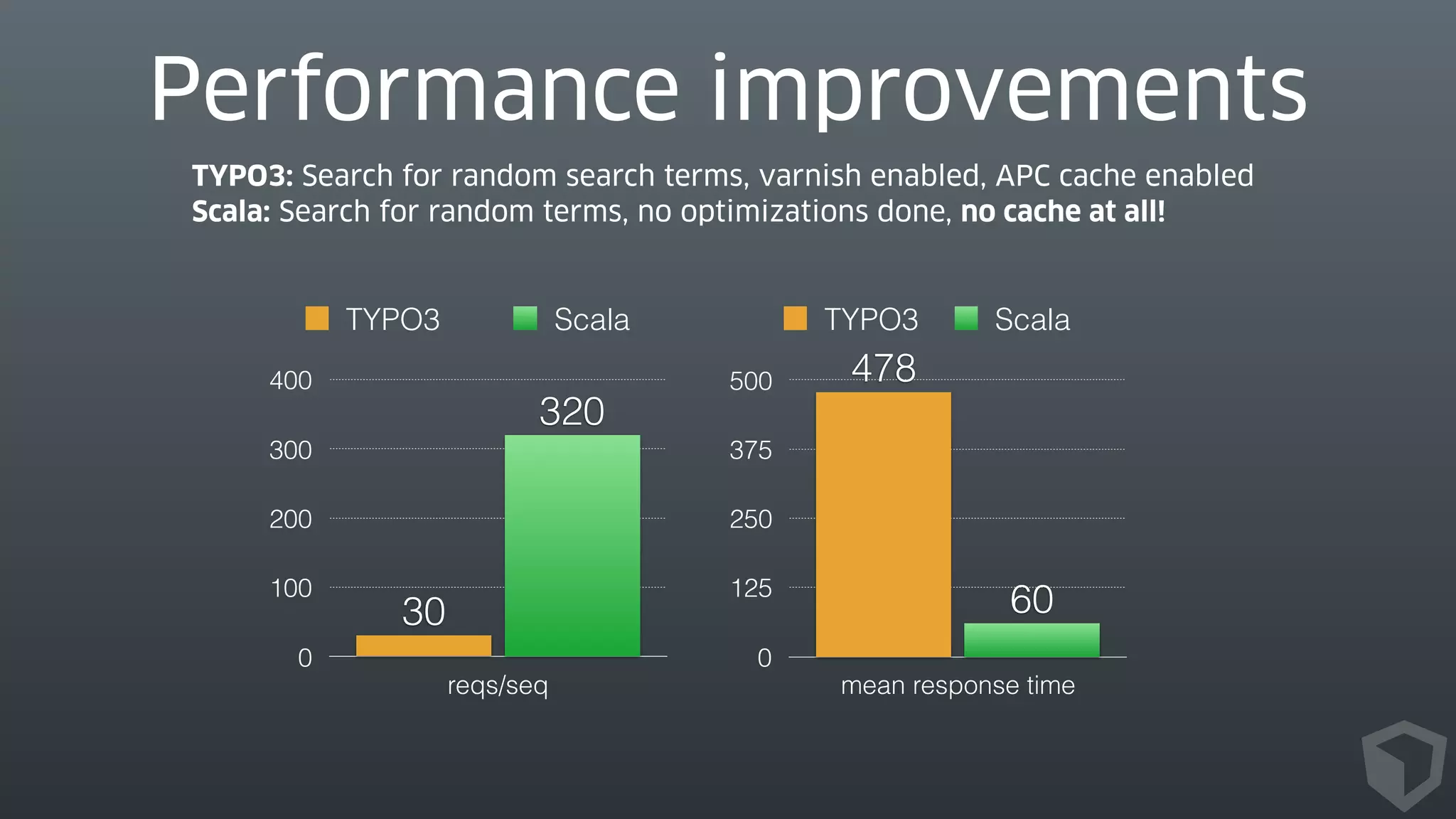

- 49. Performance improvements 0 100 200 300 400 reqs/seq 320 30 TYPO3 Scala 0 125 250 375 500 mean response time 60 478 TYPO3 Scala TYPO3: Search for random search terms, varnish enabled, APC cache enabled Scala: Search for random terms, no optimizations done, no cache at all!
- 50. The core team
- 51. More than just a search
