In this Integration Monday session, Mike discussed the challenges and approaches for some of the common testing scenarios when delivering integration solutions with Microsoft Azure.

1. Testing for Logic App
Solutions
Michael Stephenson

2. About Me
• Work
• FreelanceCloud& IntegrationConsultant
• Realworldprojectsw/Azurefor10+years
• Community
• MicrosoftMVP = 12years
• Twitter = @michael_stephen
https://www.integration-playbook.io/
-
-
http://www.integrationusergroup.com/

3. Agenda
• Real-world Project
• History of Logic App Testing
• Hello World
• Real-world Developer Example
• Integration Account Testing
• Logic App Unit Testing
• System Testing
• Manual
• Automated
• Common Real-world Challenges

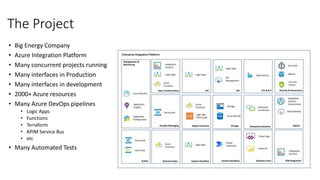

4. The Project
• Big Energy Company
• Azure Integration Platform
• Many concurrent projects running
• Many interfaces in Production
• Many interfaces in development
• 2000+ Azure resources
• Many Azure DevOps pipelines
• Logic Apps
• Functions
• Terraform
• APIM Service Bus
• etc
• Many Automated Tests

5. History
Apr. 2017
Integration Monday Session where took a look at how you might do
Integration Testing
http://www.integrationusergroup.com/automated-testing-logic-apps-
specflow/
Nov. 2017
Shankar Chandrasekar created Logic App Unit Test Manager on
GitHub/NuGet
https://github.com/shankarmaha/LogicAppUnitTestManager
2019
Kent Weare talked about using Mock Data feature in Logic Apps to help
https://www.serverless360.com/blog/testing-azure-logic-apps-with-
mock-data

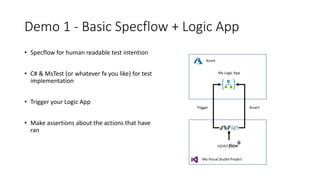

6. Demo 1 - Basic Specflow + Logic App
• Specflow for human readable test intention
• C# & MsTest (or whatever fx you like) for test
implementation
• Trigger your Logic App
• Make assertions about the actions that have
ran
Azure
My Logic App
My Visual Studio Project
Trigger Assert

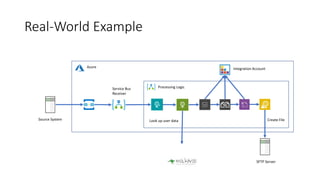

7. Real-World Example
Azure Integration Account
SFTP Server
Source System
Service Bus
Receiver
Processing Logic
Look up user data Create File

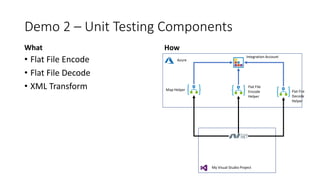

8. Demo 2 – Unit Testing Components
What
• Flat File Encode
• Flat File Decode
• XML Transform
How
Azure
Integration Account
My Visual Studio Project
Map Helper Flat File
Decode
Helper
Flat File
Encode
Helper

9. Demo 3 - Complex Logic App Unit Testing
What
• Specflow to describe behavior
• .net to implement test
How
Azure
My Logic App
My Visual Studio Project
Trigger Assert
Integration Account
SFTP Server

10. Demo 4 – Using Power Platform
& BAM for Manual Testing
Azure Integration Account
SFTP Server
Source System
Service Bus
Receiver
Processing Logic
Look up user data Create File
BAM Events
Assert
PrepareTrigger
Assert

11. Demo 5 – Automating the System Test
Can I automate some of the previous Test?
How can I handle the challenge of not knowing which Logic App run
is for my test?

12. Demo 5 – Automating the
System Test
Azure
Integration Account
SFTP Server
Source System
Service Bus
Receiver
Processing Logic
Look up user data Create File
BAM Events
Assert
Trigger
Assert
My Visual Studio Project

13. Real world Challenges

14. Static Result
+ Positives - Negatives
• You cant really support multiple responses for
an action
• It’s a bit fiddly to turn on/off static result
• Hard to change between which action is static
and which isnt
• Good for simple scenarios
• Supports many connectors
• Great for LOB connectors
• Good for working on interfaces which are “In
Progress”
Verdict: Good for POC but we don’t really use it

15. Stub API
+ Positives - Negatives
• Not easy to use for non HTTP based
connectors
• More components to maintain
• 3rd Party Solutions (eg Mockaroo)
• Build Custom (logic app/functions/APIM)
• Quite easy to do
• Helps with complex scenarios
Verdict: We use this quite a bit but in the right places

16. Helper Logic Apps Patterns
+ Positives - Negatives
• Performance trade off• Lowers overall maintenance and less code
• Rely on a tested reusable unit
• Simplify your logic apps  make easier to
test
• Can “swap” logic app call at deployment time
Verdict: We use this quite a bit
Data Services
Business Interfaces

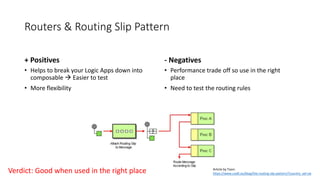

17. Routers & Routing Slip Pattern
+ Positives - Negatives
• Performance trade off so use in the right
place
• Need to test the routing rules
• Helps to break your Logic Apps down into
composable  Easier to test
• More flexibility
Verdict: Good when used in the right place Article by Toon:
https://www.codit.eu/blog/the-routing-slip-pattern/?country_sel=uk

18. Logic App Testing Summary
Now
• Capability
• Approach is solid
• Maintenance overhead is minimal
• Benefits
• Lowers risk
• Fewer defects
• Self documenting
• Gaps
• There are some
• There are trade offs for coupling of
connectors to logic
Next
• How will this work with Logic Apps
on Functions Runtime?
• Run locally on function host?
• Will the management api change?
• How will integration accounts work?

19. Future Sessions
We have done some Terraform Would anyone like to see
More Terraform (APIM, Service Bus, etc)
Logic Apps + DevOps
Functions + DevOps
Testing Integrated with DevOps
Other?

20. Questions
