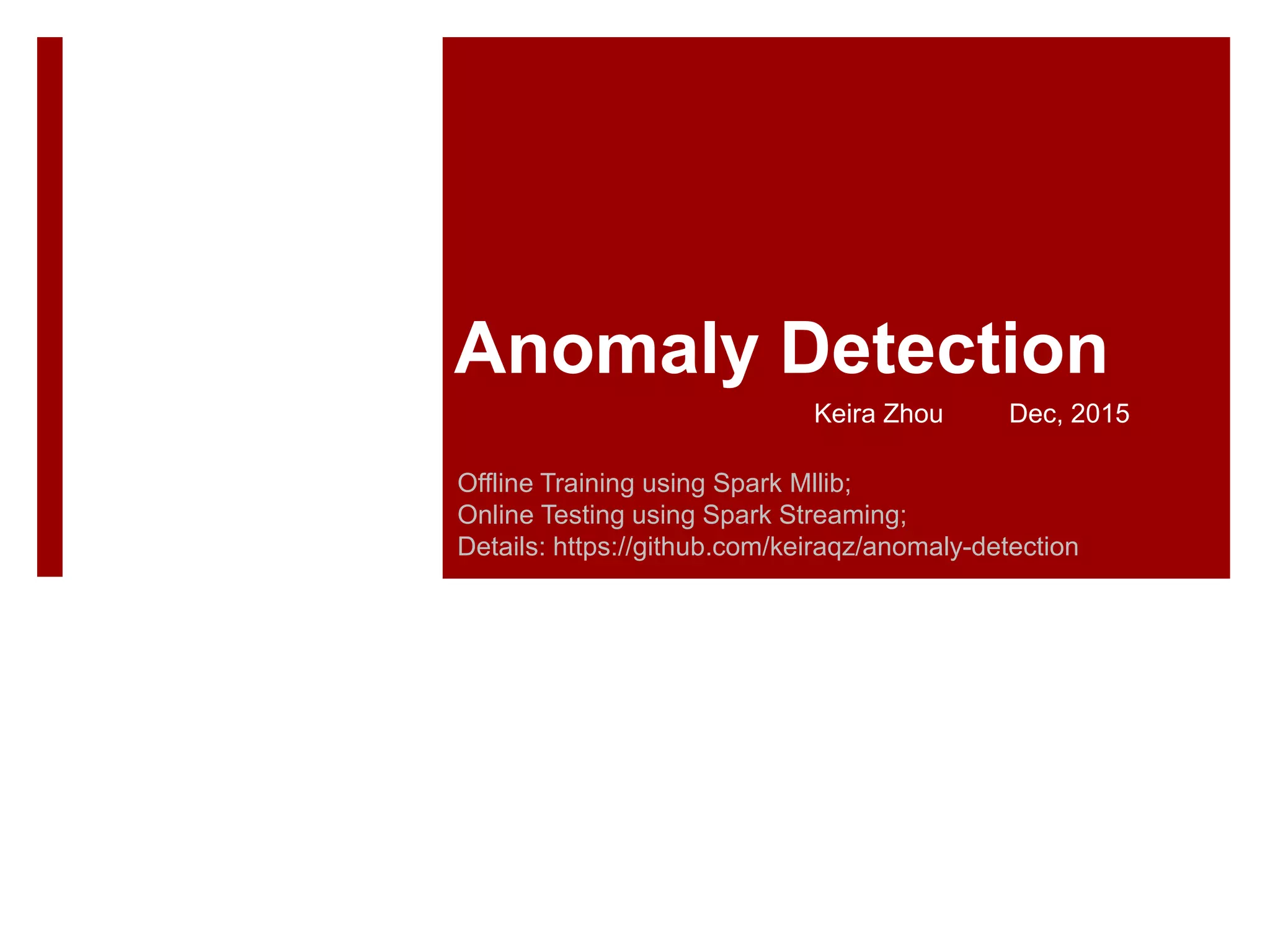

An Anomaly Detection example using Spark MLlib for offline training and Spark Streaming for online testing.

1. Anomaly Detection
Offline Training using Spark Mllib;
Online Testing using Spark Streaming;
Details: https://github.com/keiraqz/anomaly-detection
Keira Zhou Dec, 2015

2. The Model
 Model is trained using KMeans(Spark MLlib K-means)
approach
 Trained on "normal" dataset only
 After the model is trained, the centroid of the "normal"
dataset will be returned as well as a threshold
 During the validation stage, any data points that are
further than the threshold from the centroid are
considered as "anomalies".

3. Dataset
 The dataset is downloaded from KDD Cup 1999 Data
for Anomaly Detection [1]
 Training Set: The training set is separated from the
whole dataset with the data points that are labeled as
"normal" only
 Validation Set: The validation set is using the whole
dataset. All data points that are NOT labeled as
"normal" are considered as "anomalies”
[1] KDD Cup 1999 Data: http://kdd.ics.uci.edu/databases/kddcup99/kddcup99.html

4. Offline Training
 The majority of the training code mainly follows the
tutorial from Sean Owen, Cloudera:
 Video: https://www.youtube.com/watch?v=TC5cKYBZAeI
 Slides-1: http://www.slideshare.net/CIGTR/anomaly-detection-with-
apache-spark
 Slides-2: http://www.slideshare.net/cloudera/anomaly-detection-with-
apache-spark-2
 Couple of modifications have been made to fit
personal interest:
 Instead of training multiple clusters, the code only trains on "normal"
data points
 Only one cluster center is recorded and threshold is set to the last of
the furthest 2000 data points
 During later validating stage, all points that are further than the
threshold is labeled as "anomaly"

5. Online Testing
 Validation is run as a streaming job using Spark
Streaming
 Currently the application reads the input data from a
local file
 In an ideal situation, the program will read the data from
some ingestion tools such as Kafka
 Also, the trained model (centroid and threshold) is
also saved in a local file
 In production, the information should be saved into a
database

6.  Spark Streaming context: process every 3 seconds
 Load the trained model:
 Load from local file and put into a queueStream
 The streaming task: Calculate the distance between the data point
and the centroid, then compare to the threshold

7. Notes
 Currently the application reads the input data from a
local file
 In an ideal situation, the program will read the data from
some ingestion tools such as Kafka
 Also, the trained model (centroid and threshold) is
also saved in a local file
 In production, the information should be saved into a
database
 The output of the testing can be saved into a
database for visualization

8. More Details
 https://github.com/keiraqz/anomaly-detection
