Monitor Apache Spark 3
on Kubernetes using
Metrics and Plugins
Luca Canali
Data Engineer, CERN

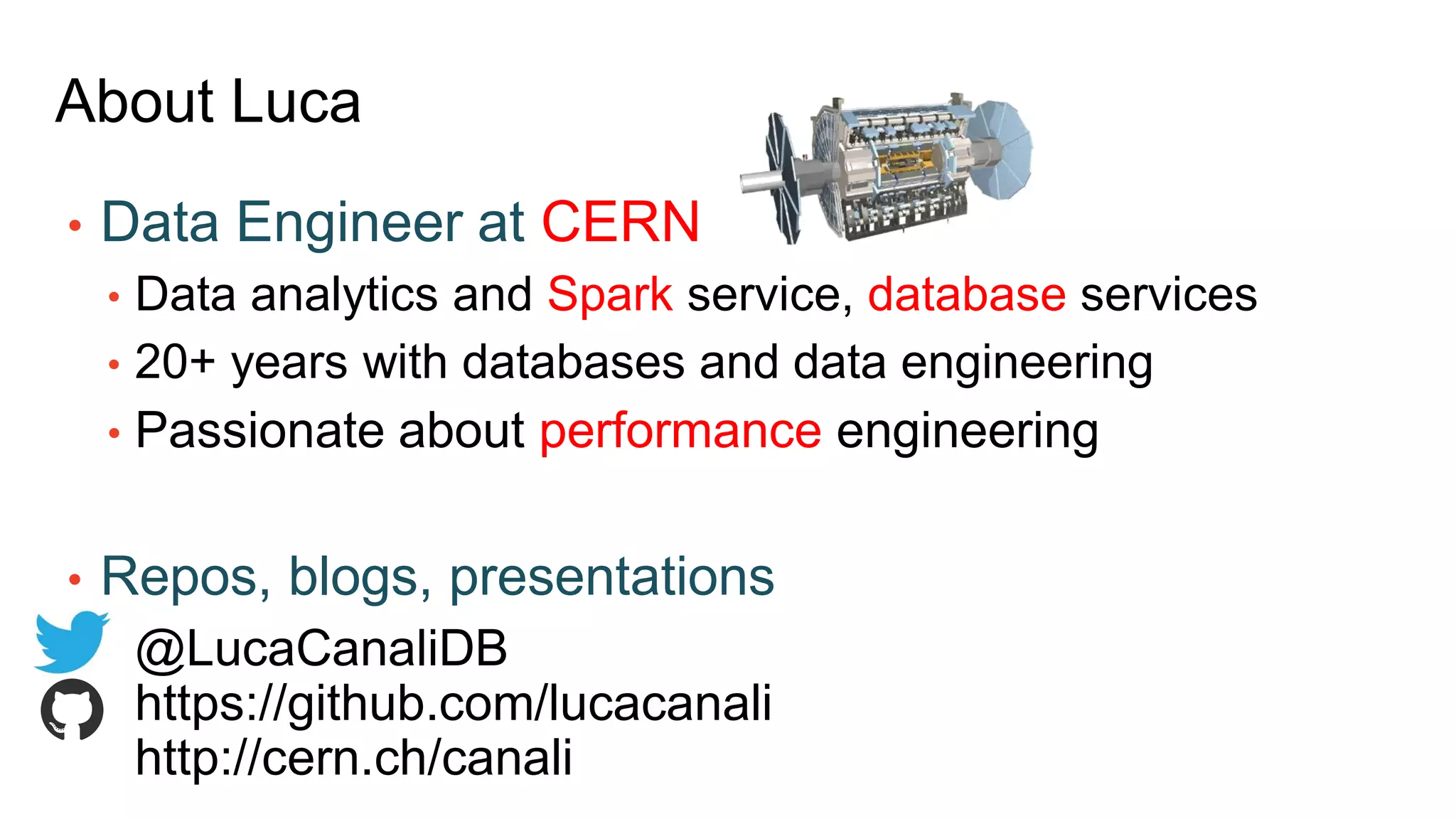

About Luca
• Data Engineer at CERN
• Data analytics and Spark service, database services
• 20+ years with databases and data engineering
• Passionate about performance engineering
• Repos, blogs, presentations
• @LucaCanaliDB
https://github.com/lucacanali
http://cern.ch/canali

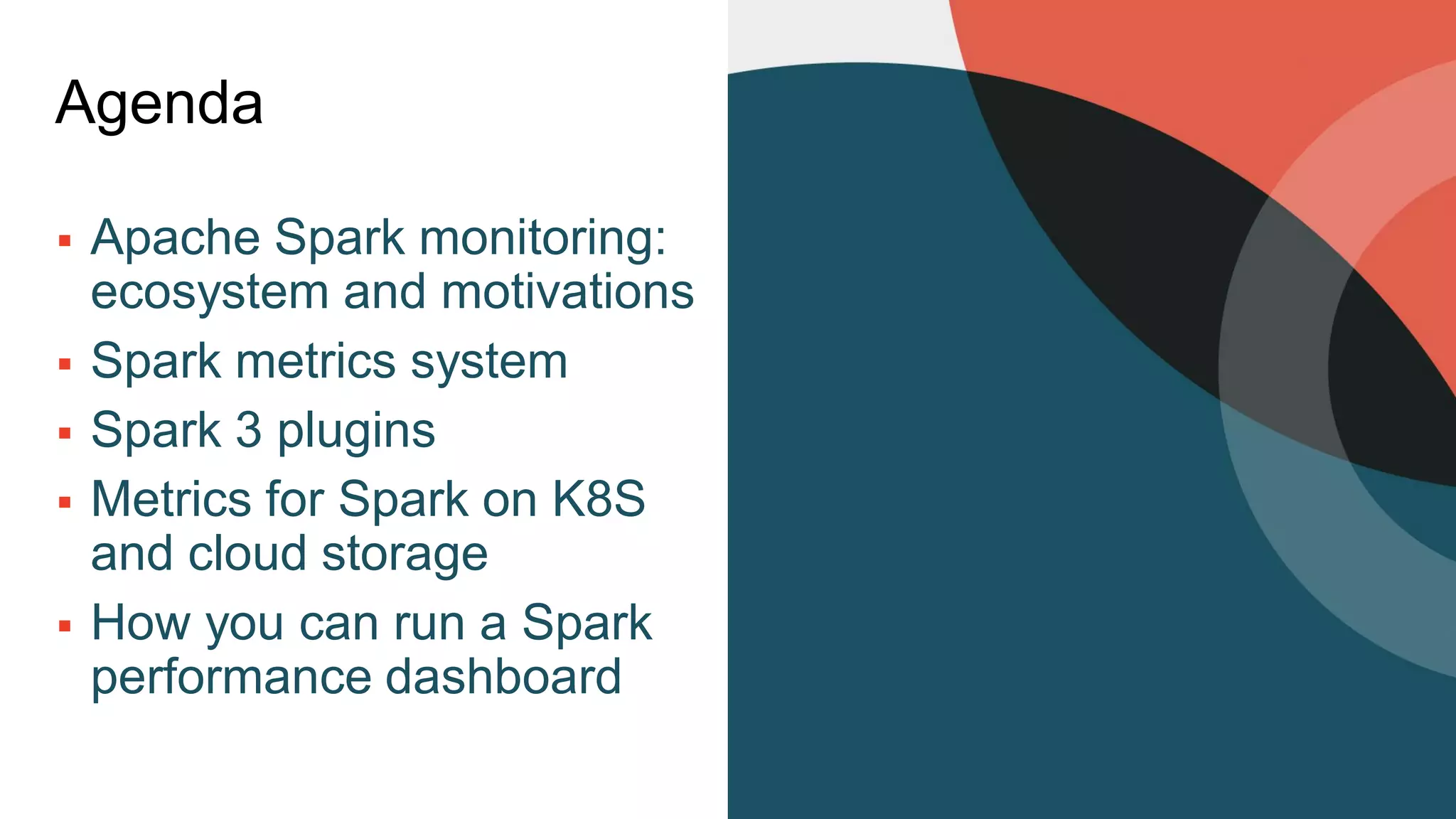

Agenda
 Apache Spark monitoring:
ecosystem and motivations
 Spark metrics system
 Spark 3 plugins
 Metrics for Spark on K8S
and cloud storage
 How you can run a Spark
performance dashboard

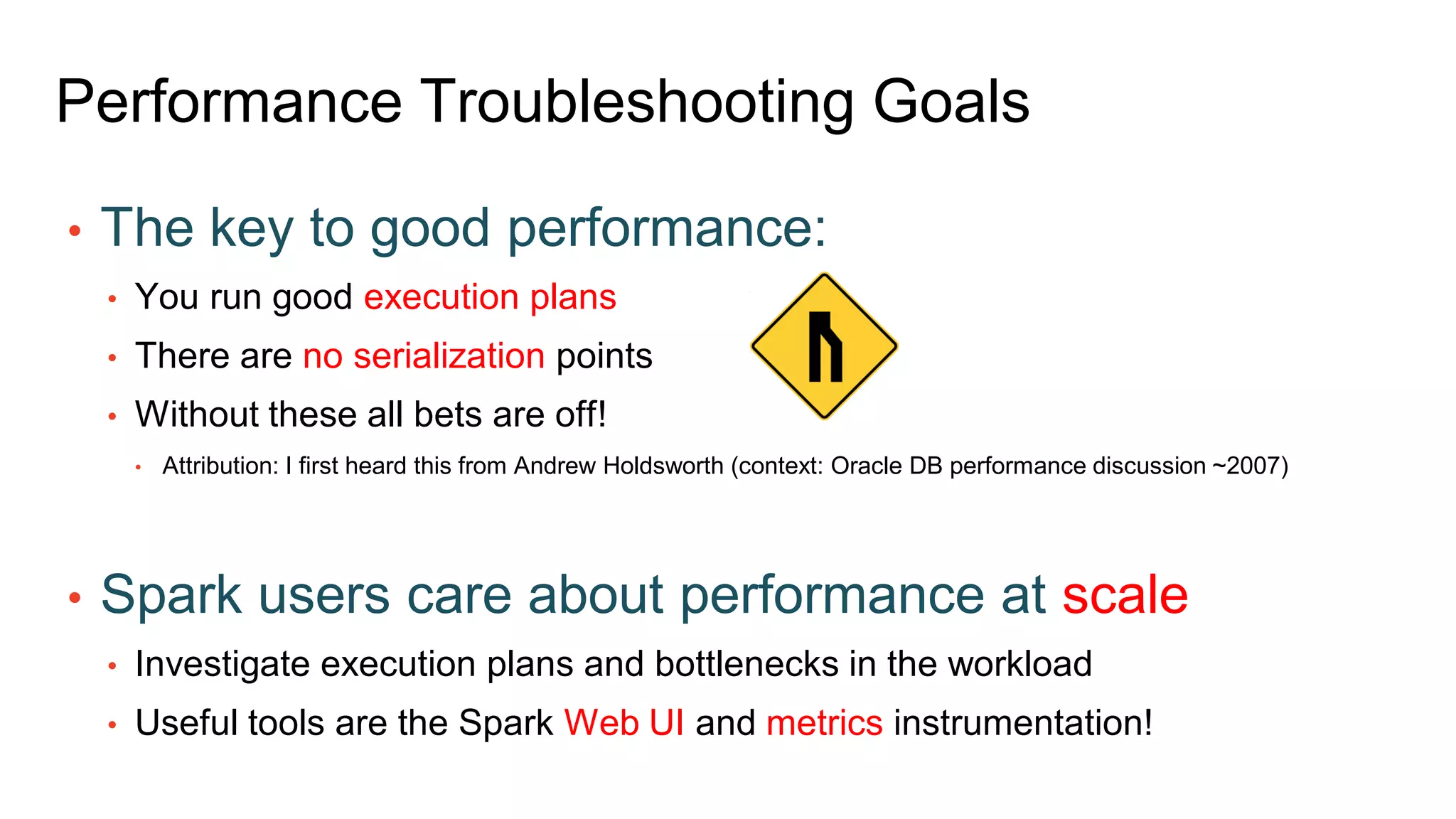

Performance Troubleshooting Goals
• The key to good performance:
• You run good execution plans
• There are no serialization points
• Without these all bets are off!
• Attribution: I first heard this from Andrew Holdsworth (context: Oracle DB performance discussion ~2007)
• Spark users care about performance at scale
• Investigate execution plans and bottlenecks in the workload
• Useful tools are the Spark Web UI and metrics instrumentation!
Apache Spark Monitoring Ecosystem
• Web UI
• Details on jobs, stages, tasks, SQL, streaming, etc
• Default URL: http://driver:4040
• https://spark.apache.org/docs/latest/web-ui.html
• Spark REST API + Spark Listener @Developer API
• Exposes task metrics and executor metrics
• https://spark.apache.org/docs/latest/monitoring.html
• Spark Metrics System
• Implemented using the Dropwizard metrics library

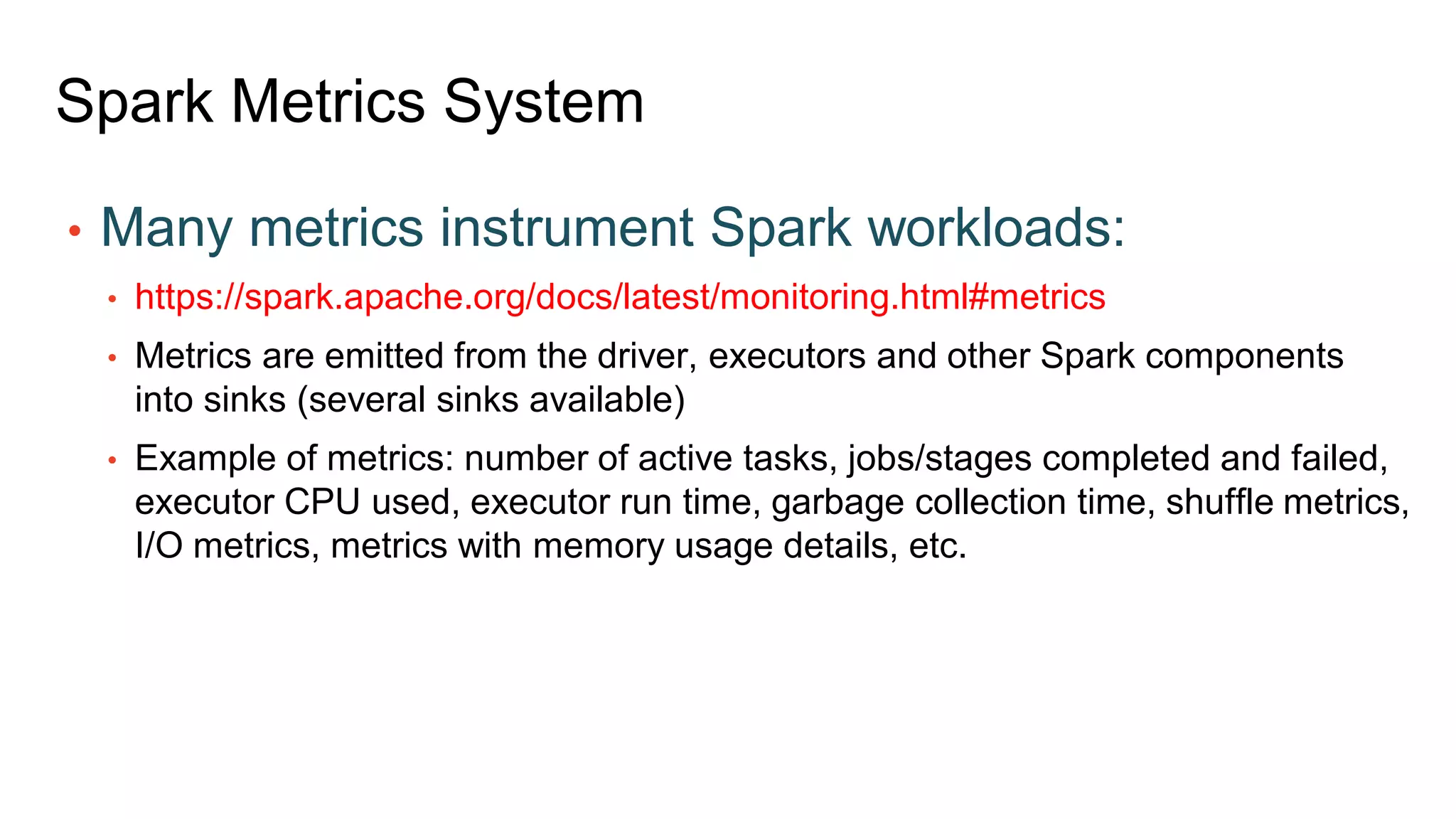

Spark Metrics System
• Many metrics instrument Spark workloads:
• https://spark.apache.org/docs/latest/monitoring.html#metrics
• Metrics are emitted from the driver, executors and other Spark components
into sinks (several sinks available)
• Example of metrics: number of active tasks, jobs/stages completed and failed,
executor CPU used, executor run time, garbage collection time, shuffle metrics,
I/O metrics, metrics with memory usage details, etc.
Explore Spark Metrics
• Web UI Servlet Sink
• Metrics from the driver + executor (executor metrics available only if Spark is in local mode)
• By default: metrics are exposed using the metrics servlet on the WebUI
http://driver_host:4040/metrics/json
• Prometheus sink for the driver and for spark standalone, exposes metrics on the Web UI too
• *.sink.prometheusServlet.class=org.apache.spark.metrics.sink.PrometheusServlet
• *.sink.prometheusServlet.path=/metrics/prometheus
• Jmx Sink
• Use jmx sink and explore metrics using jconsole
• Configuration: *.sink.jmx.class=org.apache.spark.metrics.sink.JmxSink

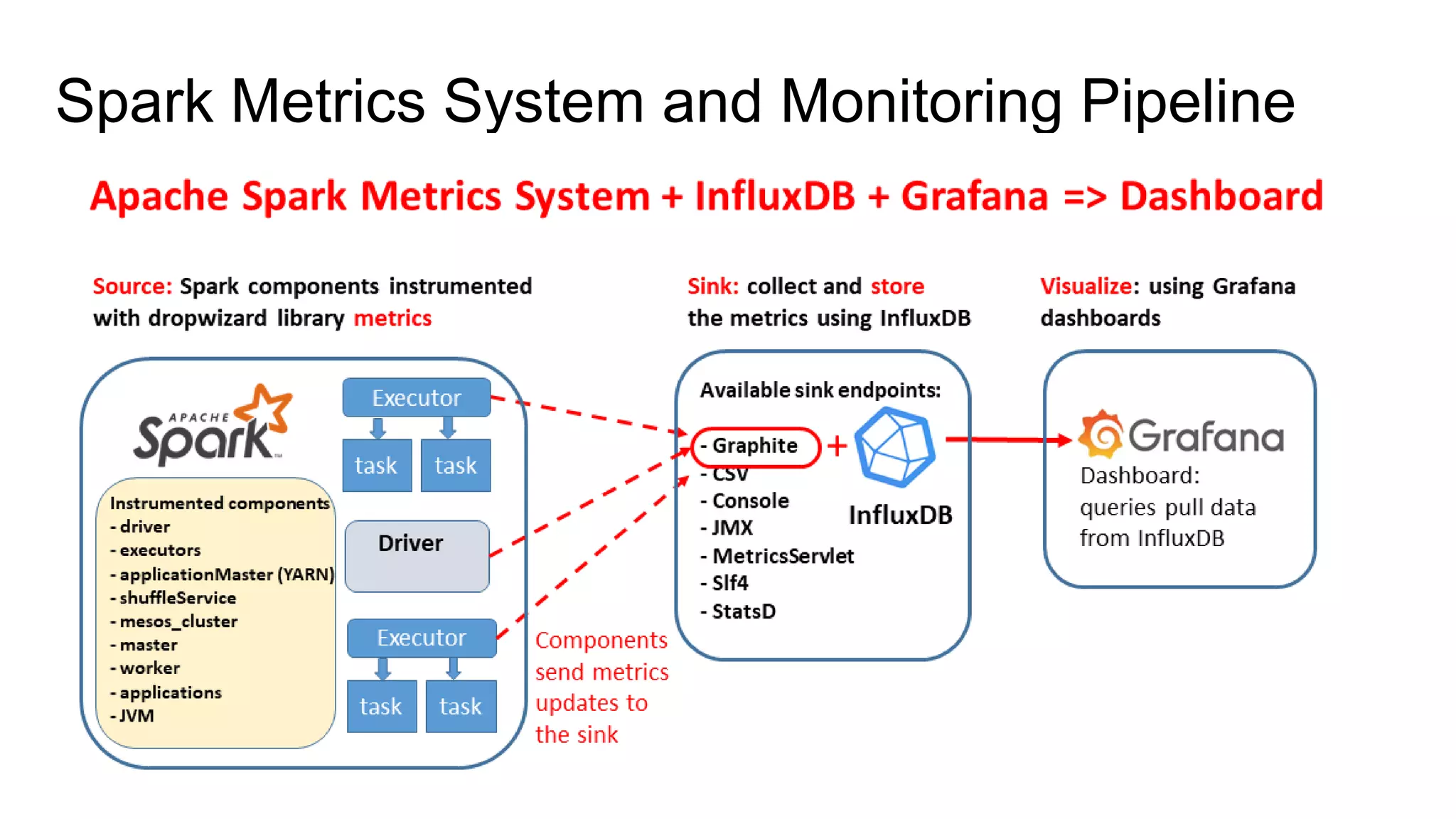

Spark Metrics System and Monitoring Pipeline

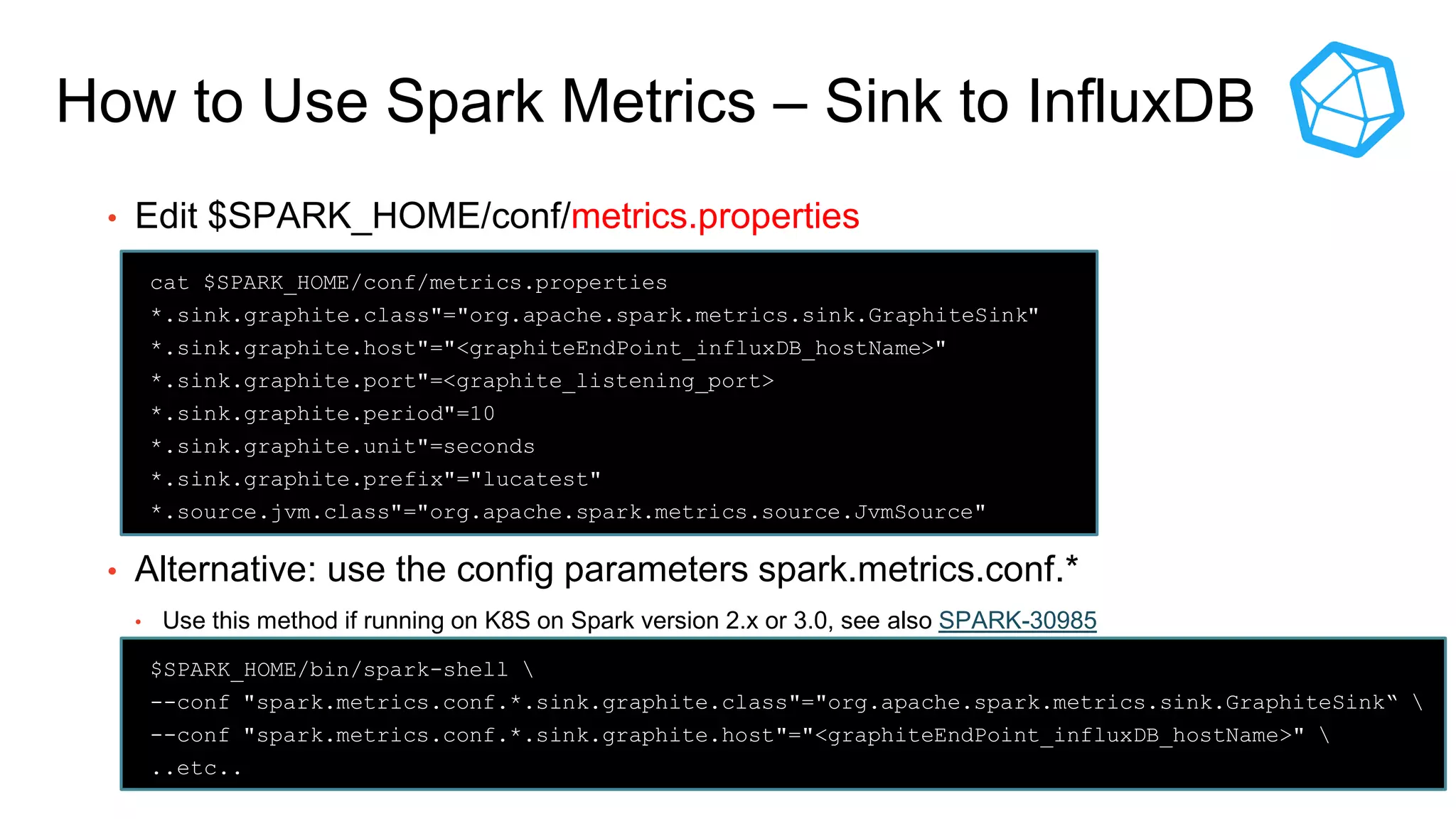

How to Use Spark Metrics – Sink to InfluxDB
• Edit $SPARK_HOME/conf/metrics.properties
• Alternative: use the config parameters spark.metrics.conf.*
• Use this method if running on K8S on Spark version 2.x or 3.0, see also SPARK-30985
cat $SPARK_HOME/conf/metrics.properties
*.sink.graphite.class"="org.apache.spark.metrics.sink.GraphiteSink"
*.sink.graphite.host"="<graphiteEndPoint_influxDB_hostName>"
*.sink.graphite.port"=<graphite_listening_port>
*.sink.graphite.period"=10
*.sink.graphite.unit"=seconds
*.sink.graphite.prefix"="lucatest"
*.source.jvm.class"="org.apache.spark.metrics.source.JvmSource"
$SPARK_HOME/bin/spark-shell
--conf "spark.metrics.conf.*.sink.graphite.class"="org.apache.spark.metrics.sink.GraphiteSink“
--conf "spark.metrics.conf.*.sink.graphite.host"="<graphiteEndPoint_influxDB_hostName>"
..etc..
Metrics Visualization with Grafana
• Metrics visualized as time series
• Metrics values visualized vs. time and detailed per executor
Number of Active Tasks Executor JVM CPU Usage

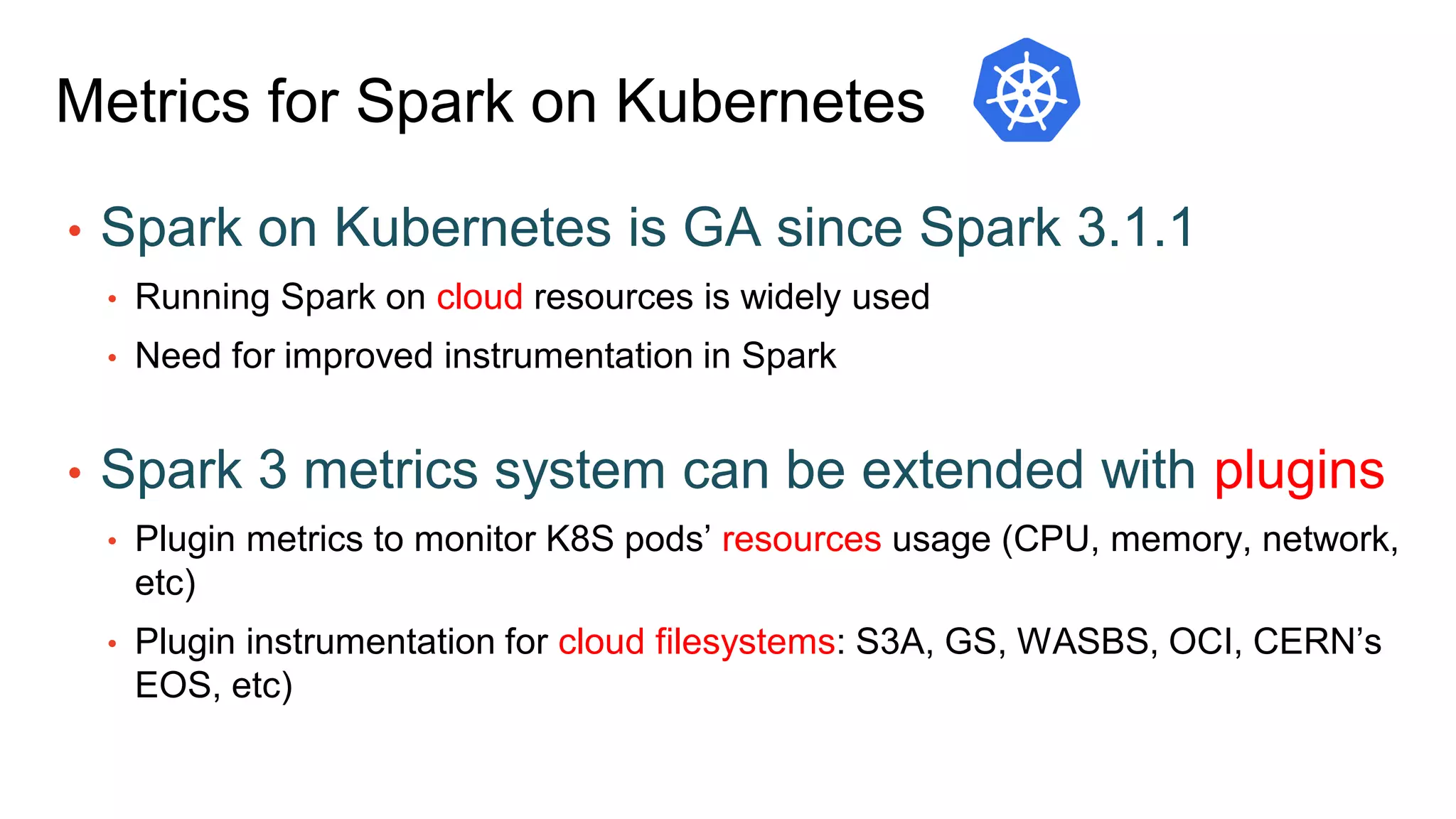

Metrics for Spark on Kubernetes
• Spark on Kubernetes is GA since Spark 3.1.1
• Running Spark on cloud resources is widely used
• Need for improved instrumentation in Spark
• Spark 3 metrics system can be extended with plugins
• Plugin metrics to monitor K8S pods’ resources usage (CPU, memory, network,
etc)
• Plugin instrumentation for cloud filesystems: S3A, GS, WASBS, OCI, CERN’s
EOS, etc)
Spark Plugins and
Custom Extensions to the Metrics System
• Plugin interface introduced in Spark 3
• Plugins are user-provided code run at the start of the executors (and of the driver)
• Plugins allow to extend Spark metrics with custom code and instrumentation

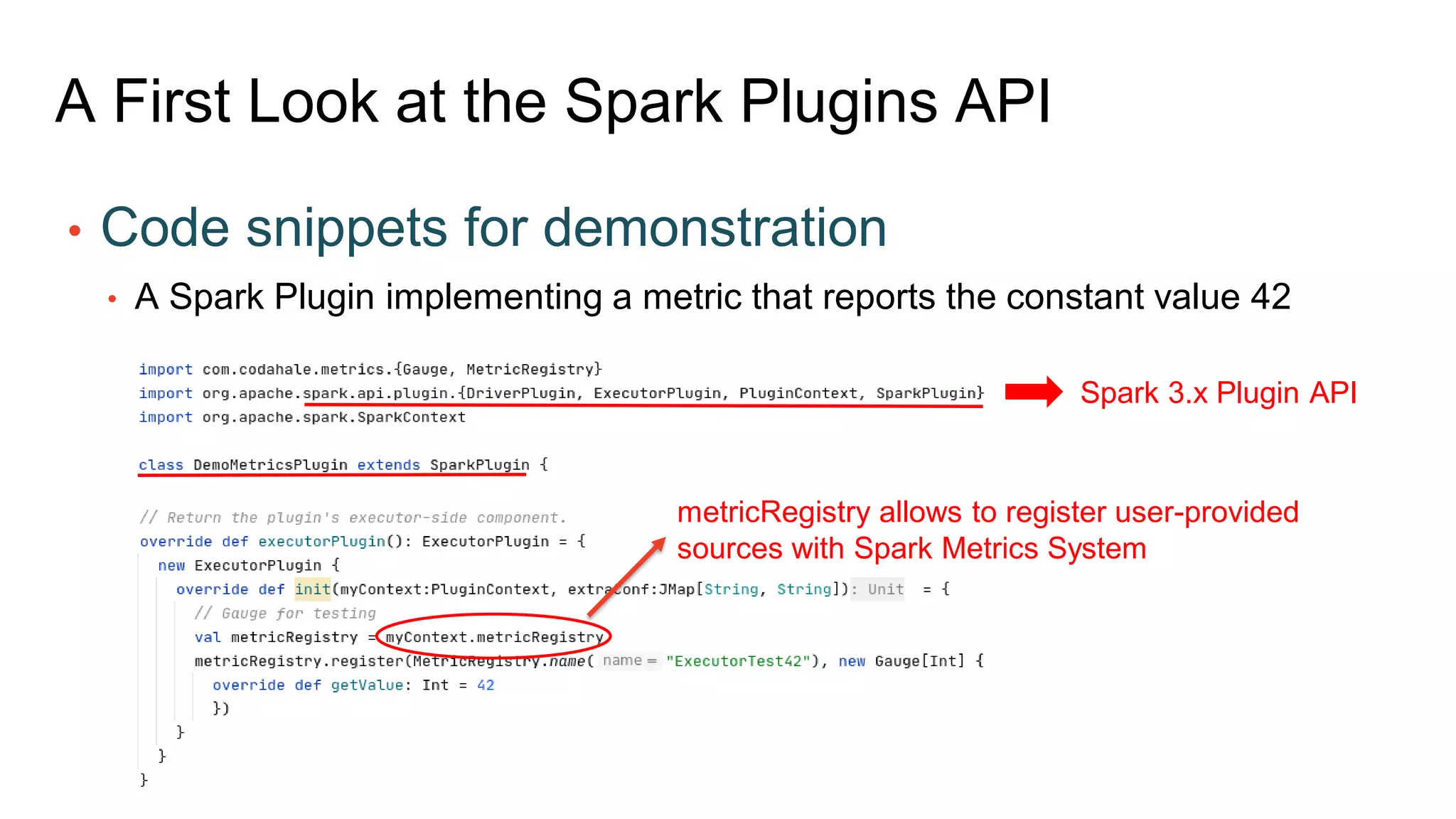

A First Look at the Spark Plugins API
• Code snippets for demonstration
• A Spark Plugin implementing a metric that reports the constant value 42
Spark 3.x Plugin API
metricRegistry allows to register user-provided
sources with Spark Metrics System

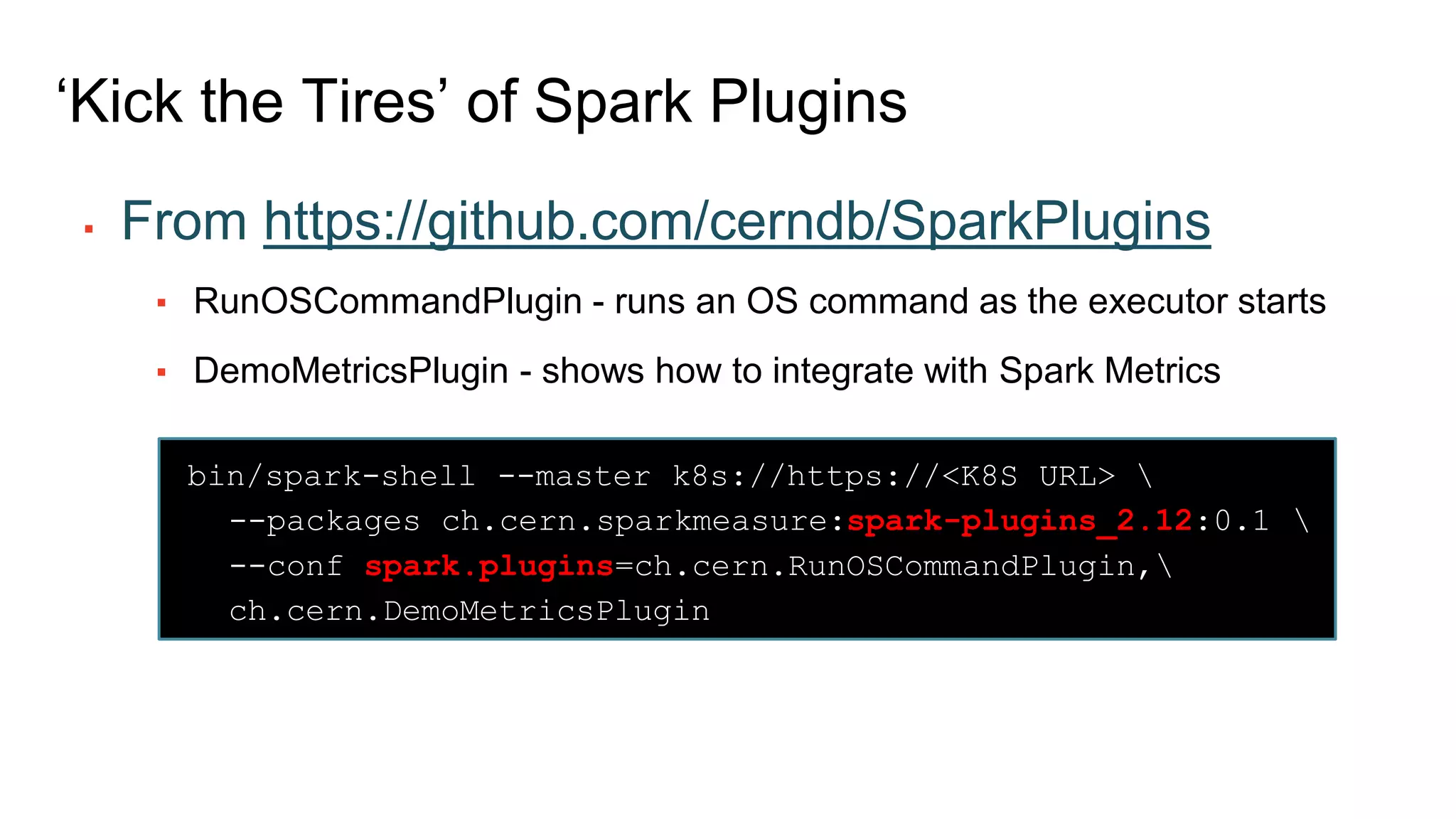

‘Kick the Tires’ of Spark Plugins
▪ From https://github.com/cerndb/SparkPlugins
▪ RunOSCommandPlugin - runs an OS command as the executor starts
▪ DemoMetricsPlugin - shows how to integrate with Spark Metrics
bin/spark-shell --master k8s://https://<K8S URL>
• --packages ch.cern.sparkmeasure:spark-plugins_2.12:0.1
• --conf spark.plugins=ch.cern.RunOSCommandPlugin,
• ch.cern.DemoMetricsPlugin

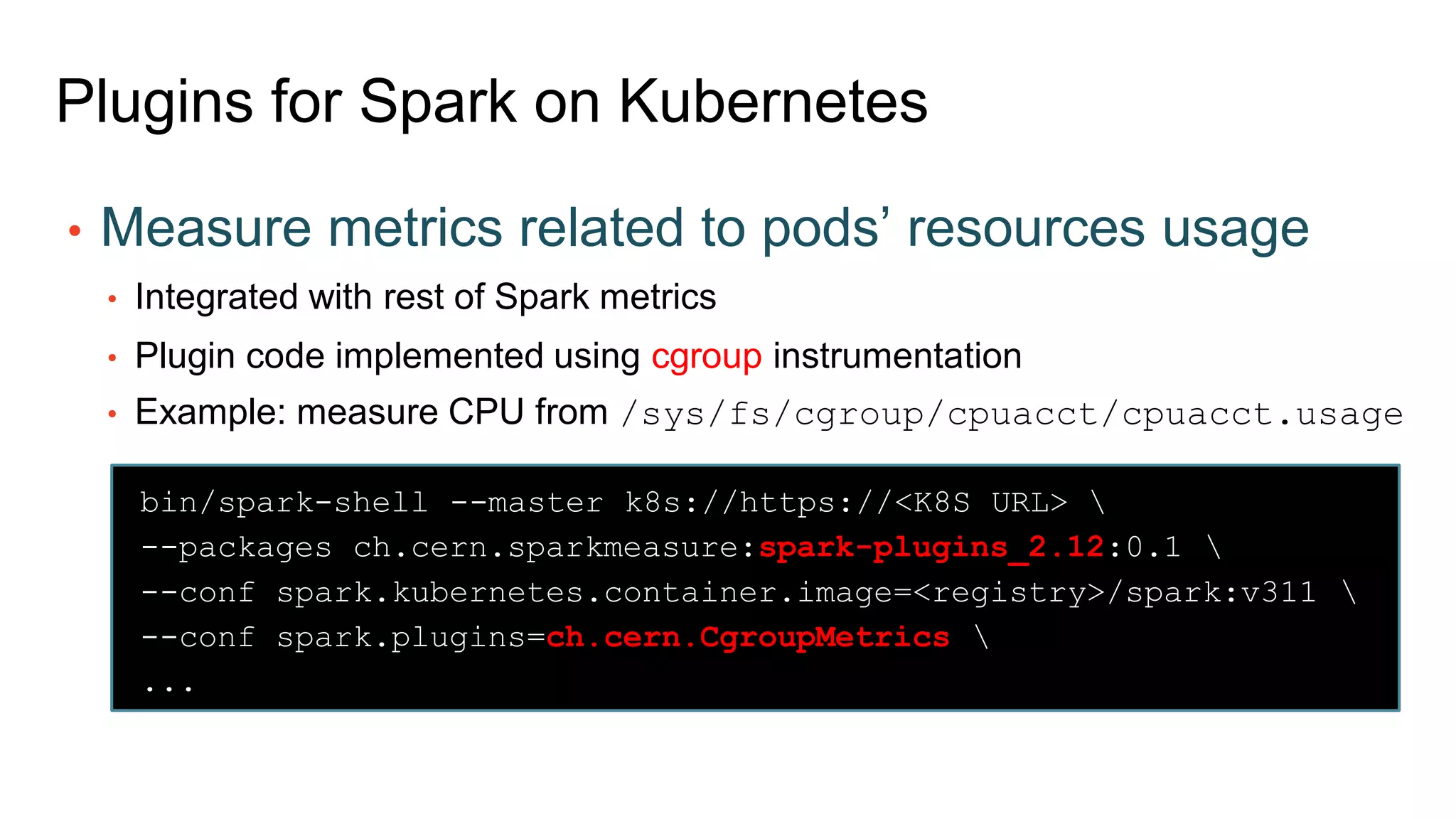

Plugins for Spark on Kubernetes
• Measure metrics related to pods’ resources usage
• Integrated with rest of Spark metrics
• Plugin code implemented using cgroup instrumentation
• Example: measure CPU from /sys/fs/cgroup/cpuacct/cpuacct.usage
bin/spark-shell --master k8s://https://<K8S URL>
--packages ch.cern.sparkmeasure:spark-plugins_2.12:0.1
--conf spark.kubernetes.container.image=<registry>/spark:v311
--conf spark.plugins=ch.cern.CgroupMetrics
...
CgroupMetrics Plugin
▪ Metrics (gauges), in ch.cern.CgroupMetrics plugin:
▪ CPUTimeNanosec: CPU time used by the processes in the cgroup
▪ this includes CPU used by Python processes (PySpark UDF)
▪ MemoryRss: number of bytes of anonymous and swap cache memory.
▪ MemorySwap: number of bytes of swap usage.
▪ MemoryCache: number of bytes of page cache memory.
▪ NetworkBytesIn: network traffic inbound.
▪ NetworkBytesOut: network traffic outbound.

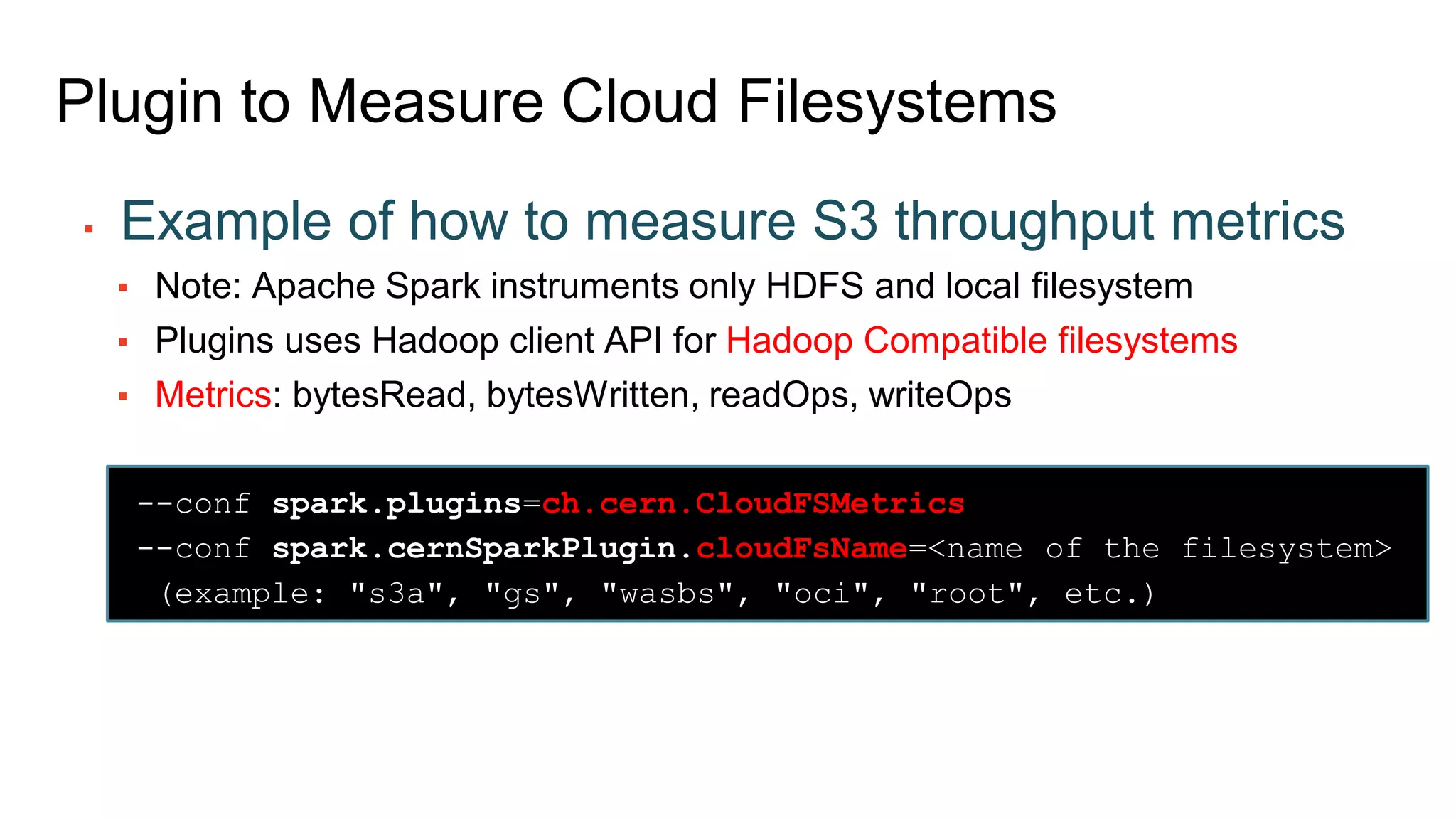

Plugin to Measure Cloud Filesystems
▪ Example of how to measure S3 throughput metrics
▪ Note: Apache Spark instruments only HDFS and local filesystem
▪ Plugins uses Hadoop client API for Hadoop Compatible filesystems
▪ Metrics: bytesRead, bytesWritten, readOps, writeOps
--conf spark.plugins=ch.cern.CloudFSMetrics
--conf spark.cernSparkPlugin.cloudFsName=<name of the filesystem>
(example: "s3a", "gs", "wasbs", "oci", "root", etc.)
• Code and examples to get started:
• https://github.com/cerndb/spark-dashboard
• It simplifies the configuration of InfluxDB as a sink for Spark metrics
• Grafana dashboards with pre-built panels, graphs, and queries
• Option 1: Dockerfile
• Use this for testing locally
• From dockerhub: lucacanali/spark-dashboard:v01
• Option 2: Helm Chart
• Use for testing on Kubernetes

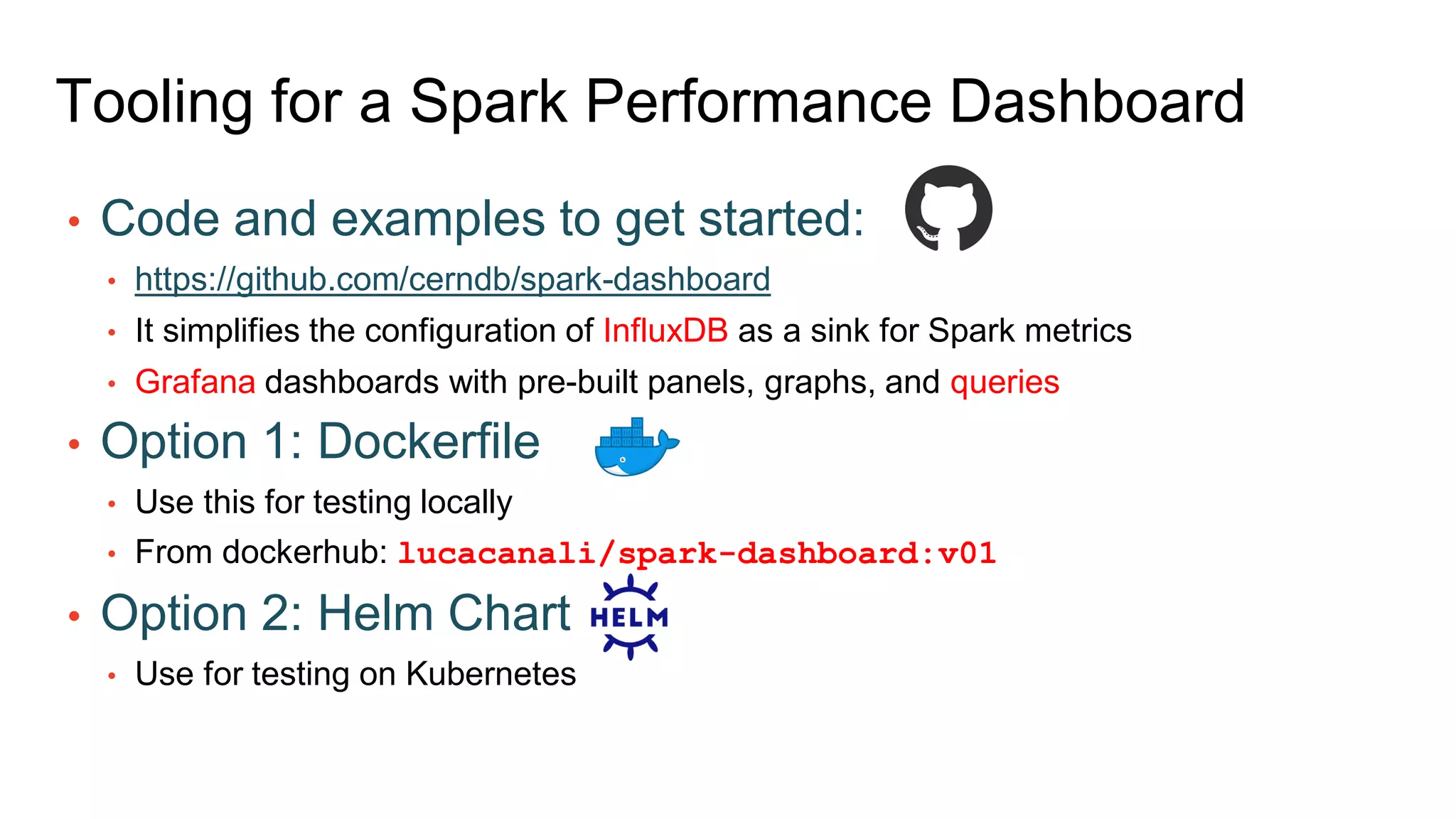

Tooling for a Spark Performance Dashboard
Tooling for Spark Plugins
• Code and examples to get started:
• https://github.com/cerndb/SparkPlugins
• --packages ch.cern.sparkmeasure:spark-plugins_2.12:0.1
• Plugins for OS metrics (Spark on K8S)
• --conf spark.plugins=ch.cern.CgroupMetrics
• Plugins for measuring cloud storage
• Hadoop Compatible Filesystems: s3a, gs, wasbs, oci, root, etc..
• --conf spark.plugins=ch.cern.CloudFSMetrics
• --conf spark.cernSparkPlugin.cloudFsName=<filesystem name>
How to Deploy the Dashboard - Example
docker run --network=host -d lucacanali/spark-dashboard:v01
INFLUXDB_ENDPOINT=`hostname`
bin/spark-shell --master k8s://https://<K8S URL>
• --packages ch.cern.sparkmeasure:spark-plugins_2.12:0.1
• --conf spark.plugins=ch.cern.CgroupMetrics
• --conf "spark.metrics.conf.*.sink.graphite.class"=
• "org.apache.spark.metrics.sink.GraphiteSink"
• --conf "spark.metrics.conf.*.sink.graphite.host"=$INFLUXDB_ENDPOINT
• --conf "spark.metrics.conf.*.sink.graphite.port"=2003
• --conf "spark.metrics.conf.*.sink.graphite.period"=10
• --conf "spark.metrics.conf.*.sink.graphite.unit"=seconds
• --conf "spark.metrics.conf.*.sink.graphite.prefix"="luca“
• --conf spark.metrics.appStatusSource.enabled=true
...
Spark Performance Dashboard
• Visualize Spark metrics
• Real-time + historical data
• Summaries and time series of key metrics
• Data for root-cause analysis

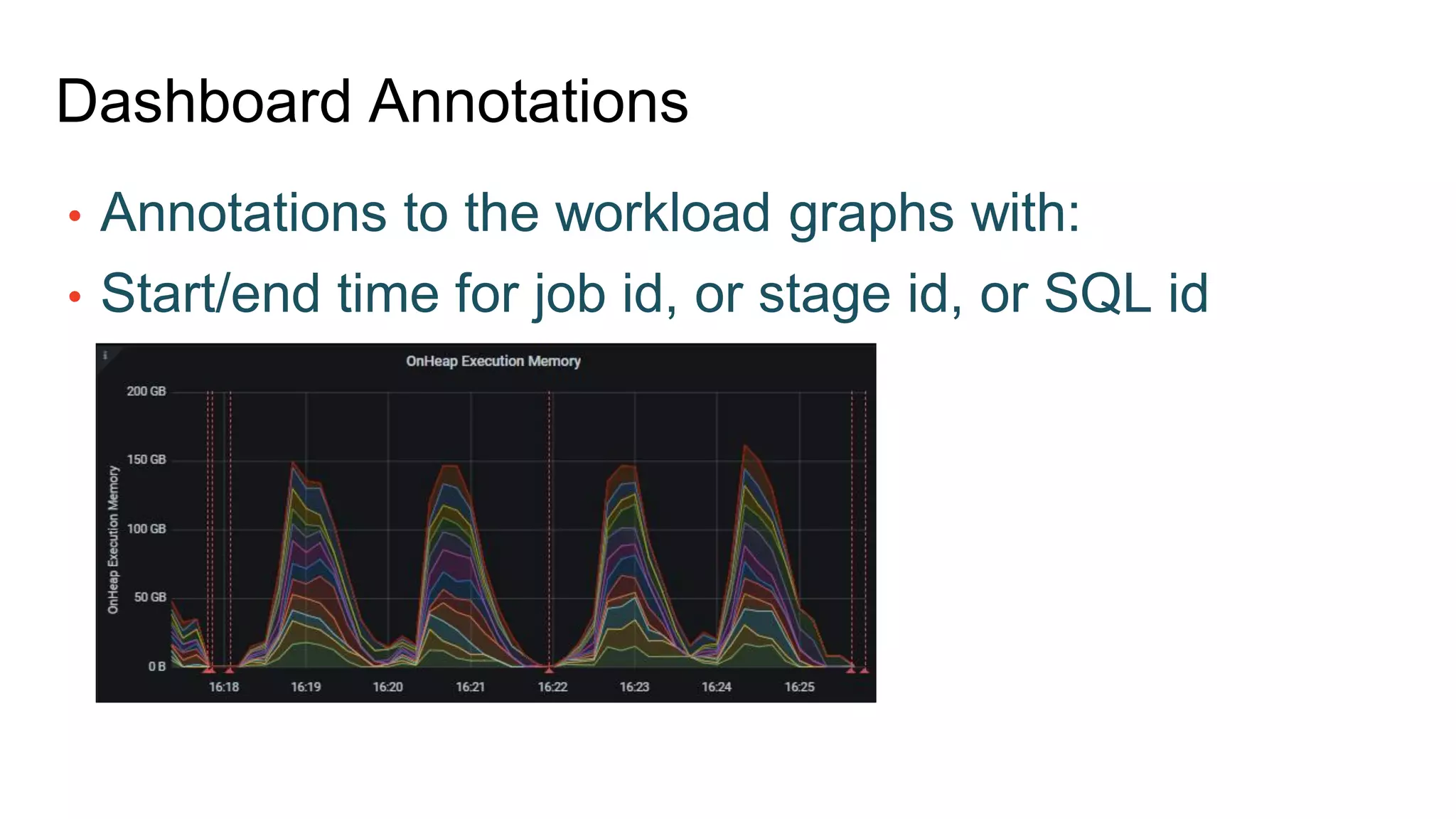

Dashboard Annotations
• Annotations to the workload graphs with:
• Start/end time for job id, or stage id, or SQL id

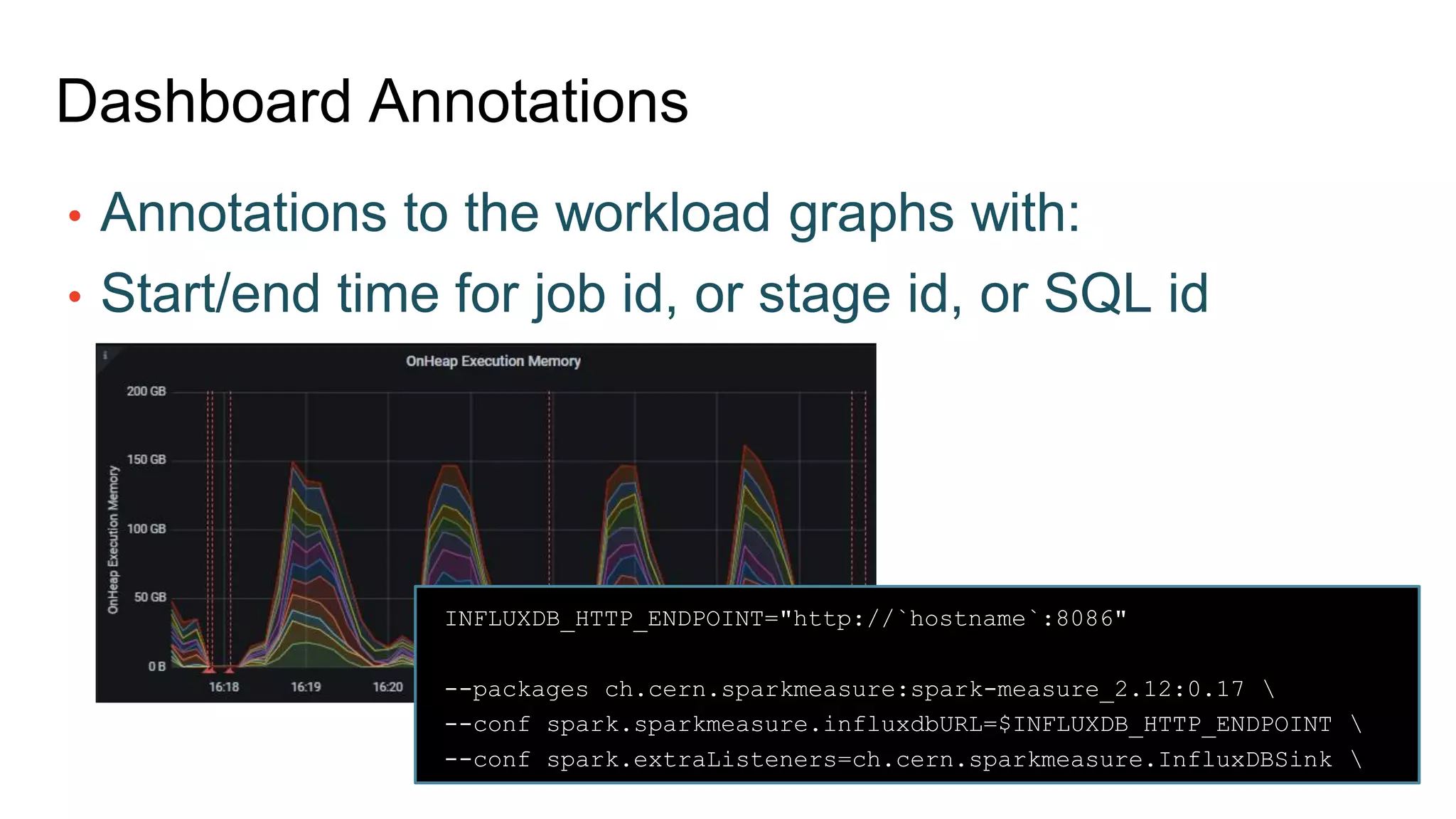

Dashboard Annotations
• Annotations to the workload graphs with:
• Start/end time for job id, or stage id, or SQL id
INFLUXDB_HTTP_ENDPOINT="http://`hostname`:8086"
--packages ch.cern.sparkmeasure:spark-measure_2.12:0.17
--conf spark.sparkmeasure.influxdbURL=$INFLUXDB_HTTP_ENDPOINT
--conf spark.extraListeners=ch.cern.sparkmeasure.InfluxDBSink

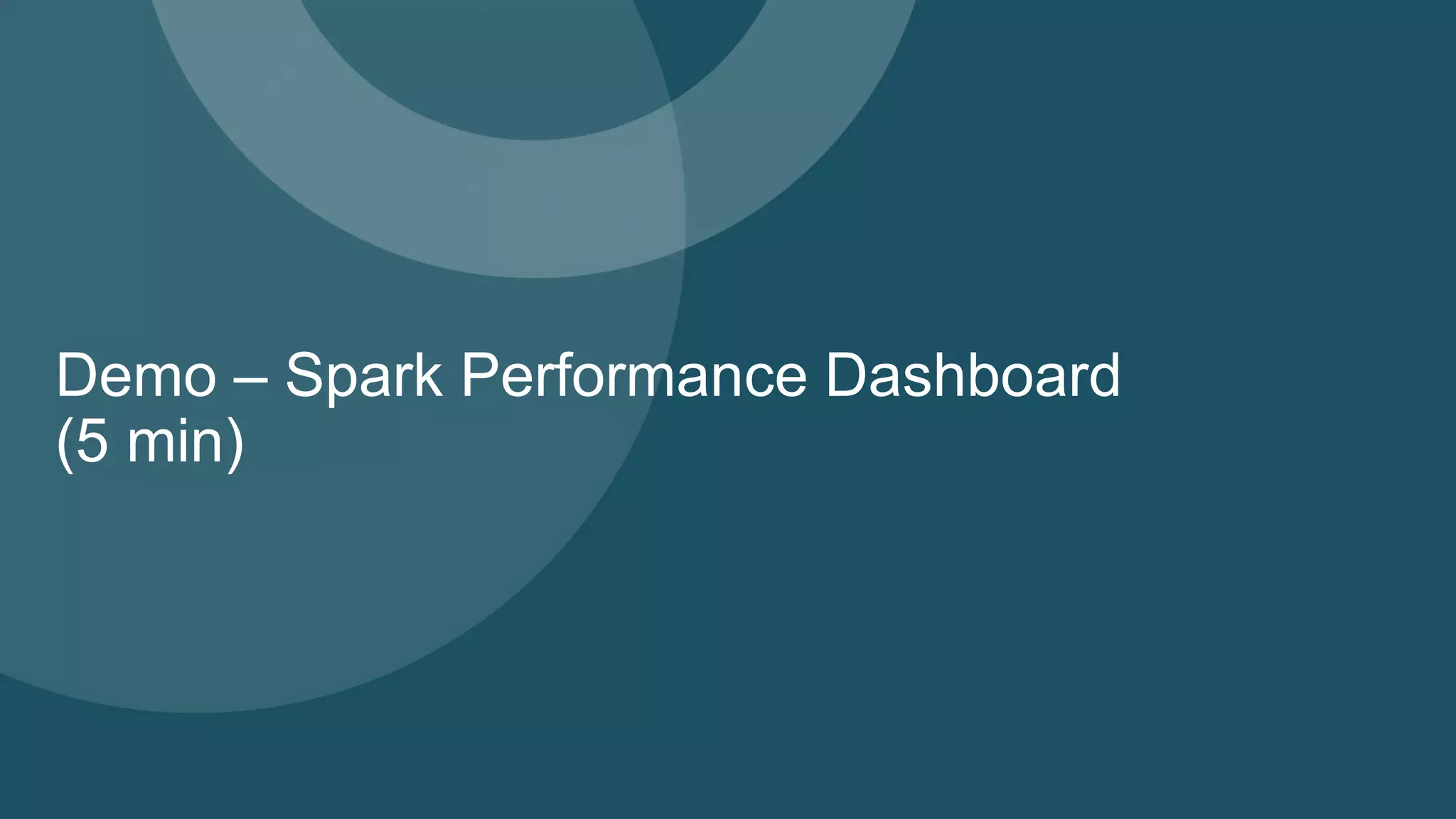

Demo – Spark Performance Dashboard
(5 min)
Use Plugins to Instrument Custom Libraries
• Augment Spark metrics with metrics from custom code
• Example: experimental way to measure I/O time with metrics
• Measure read time, seek time and CPU time during read operations for HDFS, S3A, etc.
▪ Custom S3A jar with time instrumentation (for Hadoop 3.2.0, use with Spark 3.0 and 3.1):
https://github.com/LucaCanali/hadoop/tree/s3aAndHDFSTimeInstrumentation
▪ Metrics: S3AReadTimeMuSec, S3ASeekTimeMuSec, S3AGetObjectMetadataMuSec
▪ Spark metrics with custom Spark plugin:
▪ --packages ch.cern.sparkmeasure:spark-plugins_2.12:0.1
▪ --conf spark.plugins=ch.cern.experimental.S3ATimeInstrumentation

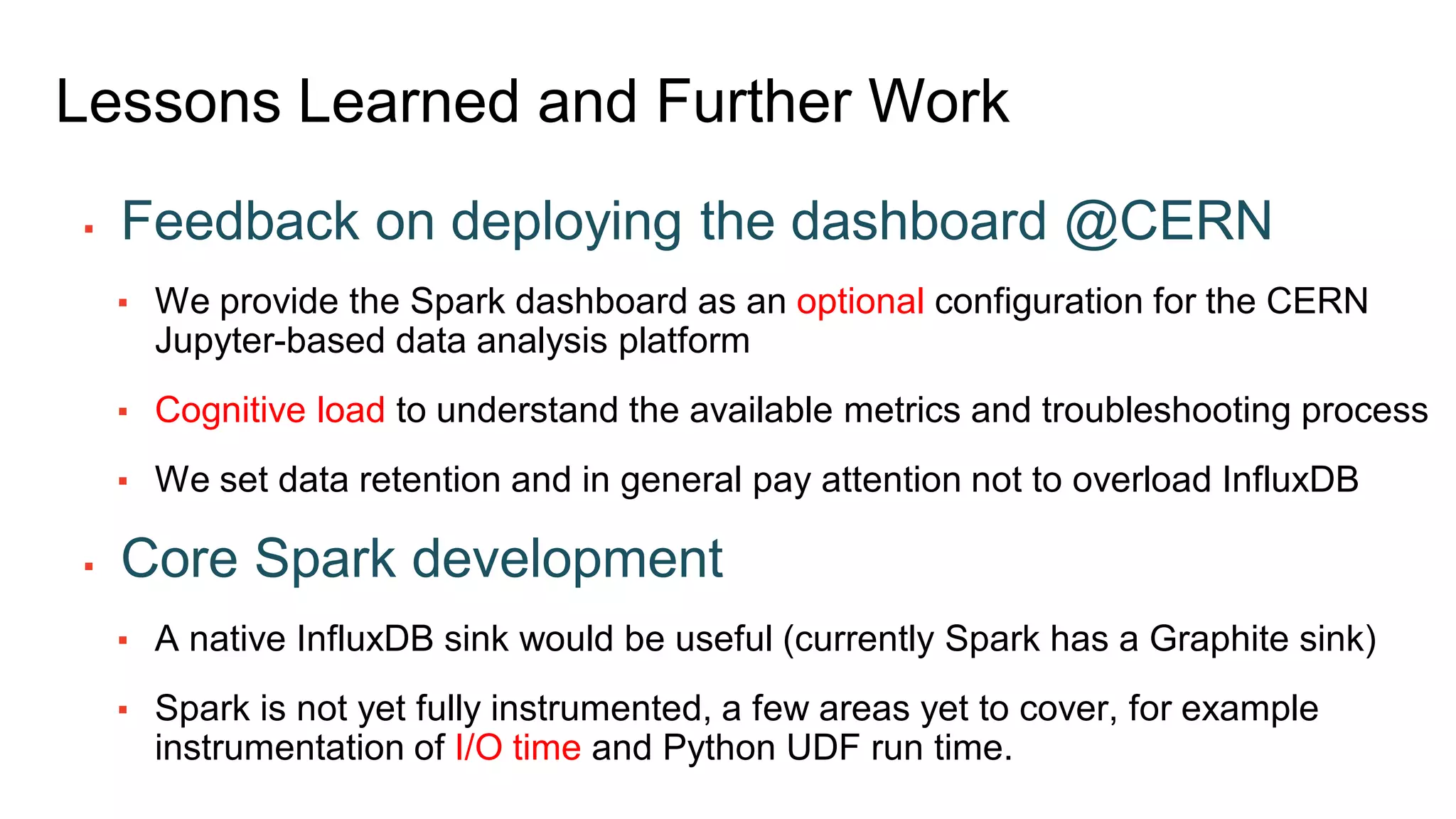

Lessons Learned and Further Work
▪ Feedback on deploying the dashboard @CERN
▪ We provide the Spark dashboard as an optional configuration for the CERN
Jupyter-based data analysis platform
▪ Cognitive load to understand the available metrics and troubleshooting process
▪ We set data retention and in general pay attention not to overload InfluxDB
▪ Core Spark development
▪ A native InfluxDB sink would be useful (currently Spark has a Graphite sink)
▪ Spark is not yet fully instrumented, a few areas yet to cover, for example
instrumentation of I/O time and Python UDF run time.

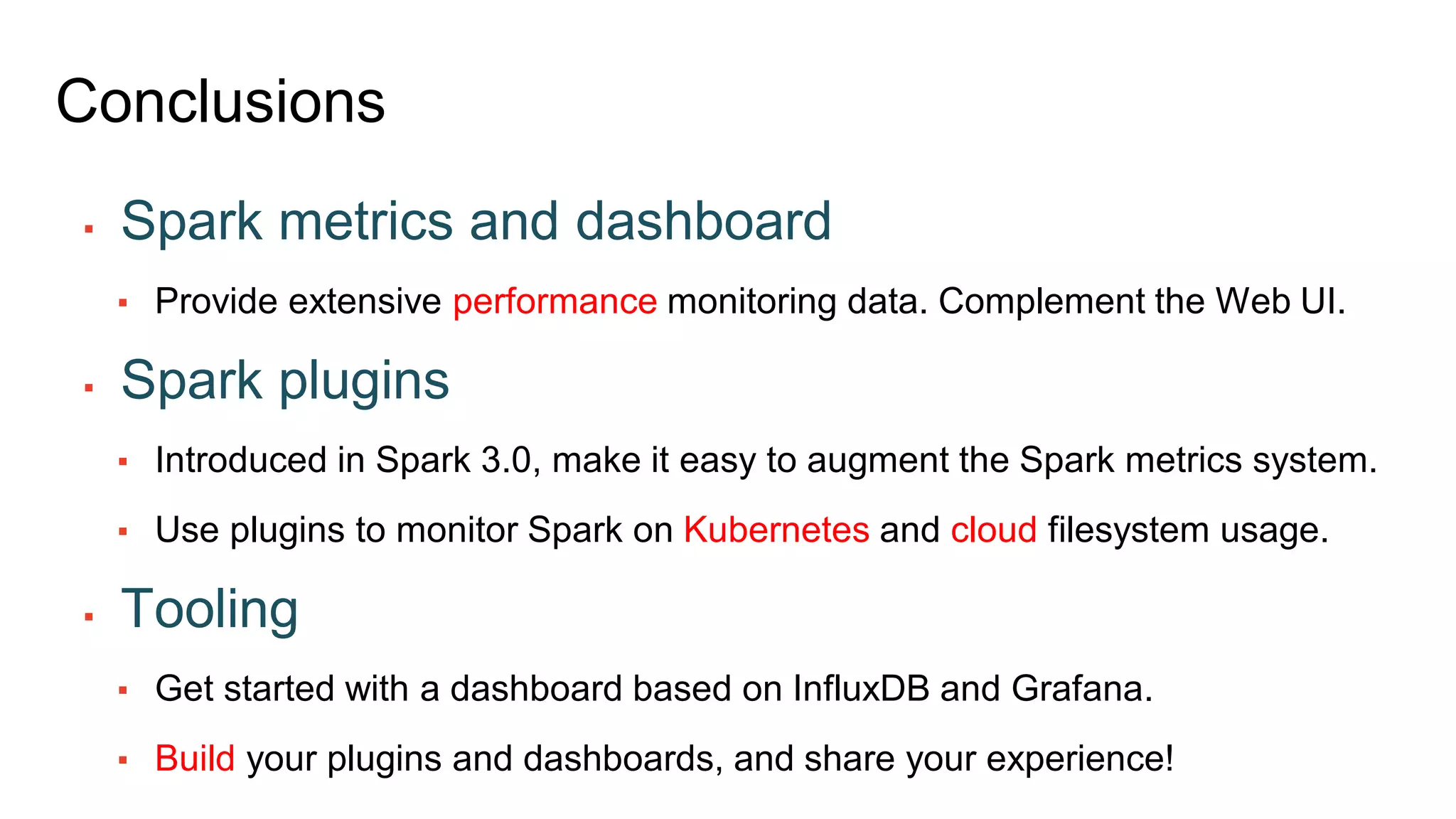

Conclusions
▪ Spark metrics and dashboard
▪ Provide extensive performance monitoring data. Complement the Web UI.
▪ Spark plugins
▪ Introduced in Spark 3.0, make it easy to augment the Spark metrics system.
▪ Use plugins to monitor Spark on Kubernetes and cloud filesystem usage.
▪ Tooling
▪ Get started with a dashboard based on InfluxDB and Grafana.
▪ Build your plugins and dashboards, and share your experience!
Acknowledgments and Links
▪ Thanks to CERN data analytics and Spark service team
▪ Thanks to Apache Spark committers and Spark community
▪ For their help with PRs: SPARK-22190, SPARK-25170, SPARK-25228, SPARK-
26928, SPARK-27189, SPARK-28091, SPARK-29654, SPARK-30041, SPARK-
30775, SPARK-31711
▪ Links:
• https://github.com/cerndb/SparkPlugins
• https://github.com/cerndb/spark-dashboard
• https://db-blog.web.cern.ch/blog/luca-canali/2019-02-performance-dashboard-
apache-spark
• https://github.com/LucaCanali/sparkMeasure

More Related Content

What's hot

Deep Dive: Memory Management in Apache Spark
Deep Dive: Memory Management in Apache SparkDeep Dive: Memory Management in Apache Spark
Deep Dive: Memory Management in Apache Spark
Databricks

Apache Spark in Depth: Core Concepts, Architecture & Internals
Apache Spark in Depth: Core Concepts, Architecture & InternalsApache Spark in Depth: Core Concepts, Architecture & Internals
Apache Spark in Depth: Core Concepts, Architecture & Internals
Anton Kirillov

Optimizing Apache Spark SQL Joins
Optimizing Apache Spark SQL JoinsOptimizing Apache Spark SQL Joins
Optimizing Apache Spark SQL Joins
Databricks

Apache Iceberg Presentation for the St. Louis Big Data IDEA
Apache Iceberg Presentation for the St. Louis Big Data IDEAApache Iceberg Presentation for the St. Louis Big Data IDEA
Apache Iceberg Presentation for the St. Louis Big Data IDEA
Adam Doyle

Why your Spark Job is Failing
Why your Spark Job is FailingWhy your Spark Job is Failing
Why your Spark Job is Failing
DataWorks Summit

Native Support of Prometheus Monitoring in Apache Spark 3.0
Native Support of Prometheus Monitoring in Apache Spark 3.0Native Support of Prometheus Monitoring in Apache Spark 3.0
Native Support of Prometheus Monitoring in Apache Spark 3.0
Databricks

Data Engineer's Lunch #83: Strategies for Migration to Apache Iceberg
Data Engineer's Lunch #83: Strategies for Migration to Apache IcebergData Engineer's Lunch #83: Strategies for Migration to Apache Iceberg
Data Engineer's Lunch #83: Strategies for Migration to Apache Iceberg
Anant Corporation

Apache Iceberg - A Table Format for Hige Analytic Datasets
Apache Iceberg - A Table Format for Hige Analytic DatasetsApache Iceberg - A Table Format for Hige Analytic Datasets
Apache Iceberg - A Table Format for Hige Analytic Datasets
Alluxio, Inc.

Physical Plans in Spark SQL
Physical Plans in Spark SQLPhysical Plans in Spark SQL
Physical Plans in Spark SQL
Databricks

Dynamic Partition Pruning in Apache Spark
Dynamic Partition Pruning in Apache SparkDynamic Partition Pruning in Apache Spark
Dynamic Partition Pruning in Apache Spark
Databricks

Parquet performance tuning: the missing guide
Parquet performance tuning: the missing guideParquet performance tuning: the missing guide
Parquet performance tuning: the missing guide
Ryan Blue

Optimizing Delta/Parquet Data Lakes for Apache Spark
Optimizing Delta/Parquet Data Lakes for Apache SparkOptimizing Delta/Parquet Data Lakes for Apache Spark
Optimizing Delta/Parquet Data Lakes for Apache Spark
Databricks

Apache Spark on K8S Best Practice and Performance in the Cloud
Apache Spark on K8S Best Practice and Performance in the CloudApache Spark on K8S Best Practice and Performance in the Cloud
Apache Spark on K8S Best Practice and Performance in the Cloud
Databricks

Productizing Structured Streaming Jobs
Productizing Structured Streaming JobsProductizing Structured Streaming Jobs
Productizing Structured Streaming Jobs
Databricks

Making Apache Spark Better with Delta Lake
Making Apache Spark Better with Delta LakeMaking Apache Spark Better with Delta Lake
Making Apache Spark Better with Delta Lake
Databricks

The columnar roadmap: Apache Parquet and Apache Arrow
The columnar roadmap: Apache Parquet and Apache ArrowThe columnar roadmap: Apache Parquet and Apache Arrow
The columnar roadmap: Apache Parquet and Apache Arrow
Julien Le Dem

Batch Processing at Scale with Flink & Iceberg
Batch Processing at Scale with Flink & IcebergBatch Processing at Scale with Flink & Iceberg
Batch Processing at Scale with Flink & Iceberg
Flink Forward

Radical Speed for SQL Queries on Databricks: Photon Under the Hood
Radical Speed for SQL Queries on Databricks: Photon Under the HoodRadical Speed for SQL Queries on Databricks: Photon Under the Hood
Radical Speed for SQL Queries on Databricks: Photon Under the Hood
Databricks

Apache Spark Core – Practical Optimization
Apache Spark Core – Practical OptimizationApache Spark Core – Practical Optimization
Apache Spark Core – Practical Optimization
Databricks

Tame the small files problem and optimize data layout for streaming ingestion...
Tame the small files problem and optimize data layout for streaming ingestion...Tame the small files problem and optimize data layout for streaming ingestion...
Tame the small files problem and optimize data layout for streaming ingestion...
Flink Forward


What's hot (20)

Deep Dive: Memory Management in Apache Spark
Deep Dive: Memory Management in Apache SparkDeep Dive: Memory Management in Apache Spark
Deep Dive: Memory Management in Apache Spark

Apache Spark in Depth: Core Concepts, Architecture & Internals
Apache Spark in Depth: Core Concepts, Architecture & InternalsApache Spark in Depth: Core Concepts, Architecture & Internals
Apache Spark in Depth: Core Concepts, Architecture & Internals

Optimizing Apache Spark SQL Joins
Optimizing Apache Spark SQL JoinsOptimizing Apache Spark SQL Joins
Optimizing Apache Spark SQL Joins

Apache Iceberg Presentation for the St. Louis Big Data IDEA
Apache Iceberg Presentation for the St. Louis Big Data IDEAApache Iceberg Presentation for the St. Louis Big Data IDEA
Apache Iceberg Presentation for the St. Louis Big Data IDEA

Why your Spark Job is Failing
Why your Spark Job is FailingWhy your Spark Job is Failing
Why your Spark Job is Failing

Native Support of Prometheus Monitoring in Apache Spark 3.0
Native Support of Prometheus Monitoring in Apache Spark 3.0Native Support of Prometheus Monitoring in Apache Spark 3.0
Native Support of Prometheus Monitoring in Apache Spark 3.0

Data Engineer's Lunch #83: Strategies for Migration to Apache Iceberg
Data Engineer's Lunch #83: Strategies for Migration to Apache IcebergData Engineer's Lunch #83: Strategies for Migration to Apache Iceberg
Data Engineer's Lunch #83: Strategies for Migration to Apache Iceberg

Apache Iceberg - A Table Format for Hige Analytic Datasets
Apache Iceberg - A Table Format for Hige Analytic DatasetsApache Iceberg - A Table Format for Hige Analytic Datasets
Apache Iceberg - A Table Format for Hige Analytic Datasets

Physical Plans in Spark SQL
Physical Plans in Spark SQLPhysical Plans in Spark SQL
Physical Plans in Spark SQL

Dynamic Partition Pruning in Apache Spark
Dynamic Partition Pruning in Apache SparkDynamic Partition Pruning in Apache Spark
Dynamic Partition Pruning in Apache Spark

Parquet performance tuning: the missing guide
Parquet performance tuning: the missing guideParquet performance tuning: the missing guide
Parquet performance tuning: the missing guide

Optimizing Delta/Parquet Data Lakes for Apache Spark
Optimizing Delta/Parquet Data Lakes for Apache SparkOptimizing Delta/Parquet Data Lakes for Apache Spark
Optimizing Delta/Parquet Data Lakes for Apache Spark

Apache Spark on K8S Best Practice and Performance in the Cloud
Apache Spark on K8S Best Practice and Performance in the CloudApache Spark on K8S Best Practice and Performance in the Cloud
Apache Spark on K8S Best Practice and Performance in the Cloud

Productizing Structured Streaming Jobs
Productizing Structured Streaming JobsProductizing Structured Streaming Jobs
Productizing Structured Streaming Jobs

Making Apache Spark Better with Delta Lake
Making Apache Spark Better with Delta LakeMaking Apache Spark Better with Delta Lake
Making Apache Spark Better with Delta Lake

The columnar roadmap: Apache Parquet and Apache Arrow
The columnar roadmap: Apache Parquet and Apache ArrowThe columnar roadmap: Apache Parquet and Apache Arrow
The columnar roadmap: Apache Parquet and Apache Arrow

Batch Processing at Scale with Flink & Iceberg
Batch Processing at Scale with Flink & IcebergBatch Processing at Scale with Flink & Iceberg
Batch Processing at Scale with Flink & Iceberg

Radical Speed for SQL Queries on Databricks: Photon Under the Hood
Radical Speed for SQL Queries on Databricks: Photon Under the HoodRadical Speed for SQL Queries on Databricks: Photon Under the Hood
Radical Speed for SQL Queries on Databricks: Photon Under the Hood

Apache Spark Core – Practical Optimization
Apache Spark Core – Practical OptimizationApache Spark Core – Practical Optimization
Apache Spark Core – Practical Optimization

Tame the small files problem and optimize data layout for streaming ingestion...
Tame the small files problem and optimize data layout for streaming ingestion...Tame the small files problem and optimize data layout for streaming ingestion...
Tame the small files problem and optimize data layout for streaming ingestion...


Similar to Monitor Apache Spark 3 on Kubernetes using Metrics and Plugins

Spark Summit EU talk by Luca Canali
Spark Summit EU talk by Luca CanaliSpark Summit EU talk by Luca Canali
Spark Summit EU talk by Luca Canali
Spark Summit

Native support of Prometheus monitoring in Apache Spark 3
Native support of Prometheus monitoring in Apache Spark 3Native support of Prometheus monitoring in Apache Spark 3
Native support of Prometheus monitoring in Apache Spark 3
Dongjoon Hyun

Apache Spark for RDBMS Practitioners: How I Learned to Stop Worrying and Lov...
 Apache Spark for RDBMS Practitioners: How I Learned to Stop Worrying and Lov... Apache Spark for RDBMS Practitioners: How I Learned to Stop Worrying and Lov...
Apache Spark for RDBMS Practitioners: How I Learned to Stop Worrying and Lov...
Databricks

Teaching Apache Spark: Demonstrations on the Databricks Cloud Platform
Teaching Apache Spark: Demonstrations on the Databricks Cloud PlatformTeaching Apache Spark: Demonstrations on the Databricks Cloud Platform
Teaching Apache Spark: Demonstrations on the Databricks Cloud Platform
Yao Yao

Apache Spark Performance Troubleshooting at Scale, Challenges, Tools, and Met...
Apache Spark Performance Troubleshooting at Scale, Challenges, Tools, and Met...Apache Spark Performance Troubleshooting at Scale, Challenges, Tools, and Met...
Apache Spark Performance Troubleshooting at Scale, Challenges, Tools, and Met...
Databricks

Performance Troubleshooting Using Apache Spark Metrics
Performance Troubleshooting Using Apache Spark MetricsPerformance Troubleshooting Using Apache Spark Metrics
Performance Troubleshooting Using Apache Spark Metrics
Databricks

Apache Spark - A High Level overview
Apache Spark - A High Level overviewApache Spark - A High Level overview
Apache Spark - A High Level overview
Karan Alang

Typesafe spark- Zalando meetup
Typesafe spark- Zalando meetupTypesafe spark- Zalando meetup
Typesafe spark- Zalando meetup
Stavros Kontopoulos

Conquering Hadoop and Apache Spark with Operational Intelligence with Akshay Rai
Conquering Hadoop and Apache Spark with Operational Intelligence with Akshay RaiConquering Hadoop and Apache Spark with Operational Intelligence with Akshay Rai
Conquering Hadoop and Apache Spark with Operational Intelligence with Akshay Rai
Databricks

Headaches and Breakthroughs in Building Continuous Applications
Headaches and Breakthroughs in Building Continuous ApplicationsHeadaches and Breakthroughs in Building Continuous Applications
Headaches and Breakthroughs in Building Continuous Applications
Databricks

Spark Saturday: Spark SQL & DataFrame Workshop with Apache Spark 2.3
Spark Saturday: Spark SQL & DataFrame Workshop with Apache Spark 2.3Spark Saturday: Spark SQL & DataFrame Workshop with Apache Spark 2.3
Spark Saturday: Spark SQL & DataFrame Workshop with Apache Spark 2.3
Databricks

Operational Tips For Deploying Apache Spark
Operational Tips For Deploying Apache SparkOperational Tips For Deploying Apache Spark
Operational Tips For Deploying Apache Spark
Databricks

Spark + AI Summit 2019: Headaches and Breakthroughs in Building Continuous Ap...
Spark + AI Summit 2019: Headaches and Breakthroughs in Building Continuous Ap...Spark + AI Summit 2019: Headaches and Breakthroughs in Building Continuous Ap...
Spark + AI Summit 2019: Headaches and Breakthroughs in Building Continuous Ap...
Landon Robinson

Architectures, Frameworks and Infrastructure
Architectures, Frameworks and InfrastructureArchitectures, Frameworks and Infrastructure
Architectures, Frameworks and Infrastructure
harendra_pathak

Productionizing Spark and the REST Job Server- Evan Chan
Productionizing Spark and the REST Job Server- Evan ChanProductionizing Spark and the REST Job Server- Evan Chan
Productionizing Spark and the REST Job Server- Evan Chan
Spark Summit

Productionizing Spark and the Spark Job Server
Productionizing Spark and the Spark Job ServerProductionizing Spark and the Spark Job Server
Productionizing Spark and the Spark Job Server
Evan Chan

Data Science at Scale with Apache Spark and Zeppelin Notebook
Data Science at Scale with Apache Spark and Zeppelin NotebookData Science at Scale with Apache Spark and Zeppelin Notebook
Data Science at Scale with Apache Spark and Zeppelin Notebook
Carolyn Duby

Real-Time Log Analysis with Apache Mesos, Kafka and Cassandra
Real-Time Log Analysis with Apache Mesos, Kafka and CassandraReal-Time Log Analysis with Apache Mesos, Kafka and Cassandra
Real-Time Log Analysis with Apache Mesos, Kafka and Cassandra
Joe Stein

Apache Spark Tutorial
Apache Spark TutorialApache Spark Tutorial
Apache Spark Tutorial
Ahmet Bulut

End-to-End Data Pipelines with Apache Spark
End-to-End Data Pipelines with Apache SparkEnd-to-End Data Pipelines with Apache Spark
End-to-End Data Pipelines with Apache Spark
Burak Yavuz


Similar to Monitor Apache Spark 3 on Kubernetes using Metrics and Plugins (20)

Spark Summit EU talk by Luca Canali
Spark Summit EU talk by Luca CanaliSpark Summit EU talk by Luca Canali
Spark Summit EU talk by Luca Canali

Native support of Prometheus monitoring in Apache Spark 3
Native support of Prometheus monitoring in Apache Spark 3Native support of Prometheus monitoring in Apache Spark 3
Native support of Prometheus monitoring in Apache Spark 3

Apache Spark for RDBMS Practitioners: How I Learned to Stop Worrying and Lov...
 Apache Spark for RDBMS Practitioners: How I Learned to Stop Worrying and Lov... Apache Spark for RDBMS Practitioners: How I Learned to Stop Worrying and Lov...
Apache Spark for RDBMS Practitioners: How I Learned to Stop Worrying and Lov...

Teaching Apache Spark: Demonstrations on the Databricks Cloud Platform
Teaching Apache Spark: Demonstrations on the Databricks Cloud PlatformTeaching Apache Spark: Demonstrations on the Databricks Cloud Platform
Teaching Apache Spark: Demonstrations on the Databricks Cloud Platform

Apache Spark Performance Troubleshooting at Scale, Challenges, Tools, and Met...
Apache Spark Performance Troubleshooting at Scale, Challenges, Tools, and Met...Apache Spark Performance Troubleshooting at Scale, Challenges, Tools, and Met...
Apache Spark Performance Troubleshooting at Scale, Challenges, Tools, and Met...

Performance Troubleshooting Using Apache Spark Metrics
Performance Troubleshooting Using Apache Spark MetricsPerformance Troubleshooting Using Apache Spark Metrics
Performance Troubleshooting Using Apache Spark Metrics

Apache Spark - A High Level overview
Apache Spark - A High Level overviewApache Spark - A High Level overview
Apache Spark - A High Level overview

Typesafe spark- Zalando meetup
Typesafe spark- Zalando meetupTypesafe spark- Zalando meetup
Typesafe spark- Zalando meetup

Conquering Hadoop and Apache Spark with Operational Intelligence with Akshay Rai
Conquering Hadoop and Apache Spark with Operational Intelligence with Akshay RaiConquering Hadoop and Apache Spark with Operational Intelligence with Akshay Rai
Conquering Hadoop and Apache Spark with Operational Intelligence with Akshay Rai

Headaches and Breakthroughs in Building Continuous Applications
Headaches and Breakthroughs in Building Continuous ApplicationsHeadaches and Breakthroughs in Building Continuous Applications
Headaches and Breakthroughs in Building Continuous Applications

Spark Saturday: Spark SQL & DataFrame Workshop with Apache Spark 2.3
Spark Saturday: Spark SQL & DataFrame Workshop with Apache Spark 2.3Spark Saturday: Spark SQL & DataFrame Workshop with Apache Spark 2.3
Spark Saturday: Spark SQL & DataFrame Workshop with Apache Spark 2.3

Operational Tips For Deploying Apache Spark
Operational Tips For Deploying Apache SparkOperational Tips For Deploying Apache Spark
Operational Tips For Deploying Apache Spark

Spark + AI Summit 2019: Headaches and Breakthroughs in Building Continuous Ap...
Spark + AI Summit 2019: Headaches and Breakthroughs in Building Continuous Ap...Spark + AI Summit 2019: Headaches and Breakthroughs in Building Continuous Ap...
Spark + AI Summit 2019: Headaches and Breakthroughs in Building Continuous Ap...

Architectures, Frameworks and Infrastructure
Architectures, Frameworks and InfrastructureArchitectures, Frameworks and Infrastructure
Architectures, Frameworks and Infrastructure

Productionizing Spark and the REST Job Server- Evan Chan
Productionizing Spark and the REST Job Server- Evan ChanProductionizing Spark and the REST Job Server- Evan Chan
Productionizing Spark and the REST Job Server- Evan Chan

Productionizing Spark and the Spark Job Server
Productionizing Spark and the Spark Job ServerProductionizing Spark and the Spark Job Server
Productionizing Spark and the Spark Job Server

Data Science at Scale with Apache Spark and Zeppelin Notebook
Data Science at Scale with Apache Spark and Zeppelin NotebookData Science at Scale with Apache Spark and Zeppelin Notebook
Data Science at Scale with Apache Spark and Zeppelin Notebook

Real-Time Log Analysis with Apache Mesos, Kafka and Cassandra
Real-Time Log Analysis with Apache Mesos, Kafka and CassandraReal-Time Log Analysis with Apache Mesos, Kafka and Cassandra
Real-Time Log Analysis with Apache Mesos, Kafka and Cassandra

Apache Spark Tutorial
Apache Spark TutorialApache Spark Tutorial
Apache Spark Tutorial

End-to-End Data Pipelines with Apache Spark
End-to-End Data Pipelines with Apache SparkEnd-to-End Data Pipelines with Apache Spark
End-to-End Data Pipelines with Apache Spark


More from Databricks

DW Migration Webinar-March 2022.pptx
DW Migration Webinar-March 2022.pptxDW Migration Webinar-March 2022.pptx
DW Migration Webinar-March 2022.pptx
Databricks

Data Lakehouse Symposium | Day 1 | Part 1
Data Lakehouse Symposium | Day 1 | Part 1Data Lakehouse Symposium | Day 1 | Part 1
Data Lakehouse Symposium | Day 1 | Part 1
Databricks

Data Lakehouse Symposium | Day 1 | Part 2
Data Lakehouse Symposium | Day 1 | Part 2Data Lakehouse Symposium | Day 1 | Part 2
Data Lakehouse Symposium | Day 1 | Part 2
Databricks

Data Lakehouse Symposium | Day 2
Data Lakehouse Symposium | Day 2Data Lakehouse Symposium | Day 2
Data Lakehouse Symposium | Day 2
Databricks

Data Lakehouse Symposium | Day 4
Data Lakehouse Symposium | Day 4Data Lakehouse Symposium | Day 4
Data Lakehouse Symposium | Day 4
Databricks

5 Critical Steps to Clean Your Data Swamp When Migrating Off of Hadoop
5 Critical Steps to Clean Your Data Swamp When Migrating Off of Hadoop5 Critical Steps to Clean Your Data Swamp When Migrating Off of Hadoop
5 Critical Steps to Clean Your Data Swamp When Migrating Off of Hadoop
Databricks

Democratizing Data Quality Through a Centralized Platform
Democratizing Data Quality Through a Centralized PlatformDemocratizing Data Quality Through a Centralized Platform
Democratizing Data Quality Through a Centralized Platform
Databricks

Learn to Use Databricks for Data Science
Learn to Use Databricks for Data ScienceLearn to Use Databricks for Data Science
Learn to Use Databricks for Data Science
Databricks

Why APM Is Not the Same As ML Monitoring
Why APM Is Not the Same As ML MonitoringWhy APM Is Not the Same As ML Monitoring
Why APM Is Not the Same As ML Monitoring
Databricks

The Function, the Context, and the Data—Enabling ML Ops at Stitch Fix
The Function, the Context, and the Data—Enabling ML Ops at Stitch FixThe Function, the Context, and the Data—Enabling ML Ops at Stitch Fix
The Function, the Context, and the Data—Enabling ML Ops at Stitch Fix
Databricks

Stage Level Scheduling Improving Big Data and AI Integration
Stage Level Scheduling Improving Big Data and AI IntegrationStage Level Scheduling Improving Big Data and AI Integration
Stage Level Scheduling Improving Big Data and AI Integration
Databricks

Simplify Data Conversion from Spark to TensorFlow and PyTorch
Simplify Data Conversion from Spark to TensorFlow and PyTorchSimplify Data Conversion from Spark to TensorFlow and PyTorch
Simplify Data Conversion from Spark to TensorFlow and PyTorch
Databricks

Scaling your Data Pipelines with Apache Spark on Kubernetes
Scaling your Data Pipelines with Apache Spark on KubernetesScaling your Data Pipelines with Apache Spark on Kubernetes
Scaling your Data Pipelines with Apache Spark on Kubernetes
Databricks

Scaling and Unifying SciKit Learn and Apache Spark Pipelines
Scaling and Unifying SciKit Learn and Apache Spark PipelinesScaling and Unifying SciKit Learn and Apache Spark Pipelines
Scaling and Unifying SciKit Learn and Apache Spark Pipelines
Databricks

Sawtooth Windows for Feature Aggregations
Sawtooth Windows for Feature AggregationsSawtooth Windows for Feature Aggregations
Sawtooth Windows for Feature Aggregations
Databricks

Redis + Apache Spark = Swiss Army Knife Meets Kitchen Sink
Redis + Apache Spark = Swiss Army Knife Meets Kitchen SinkRedis + Apache Spark = Swiss Army Knife Meets Kitchen Sink
Redis + Apache Spark = Swiss Army Knife Meets Kitchen Sink
Databricks

Re-imagine Data Monitoring with whylogs and Spark
Re-imagine Data Monitoring with whylogs and SparkRe-imagine Data Monitoring with whylogs and Spark
Re-imagine Data Monitoring with whylogs and Spark
Databricks

Raven: End-to-end Optimization of ML Prediction Queries
Raven: End-to-end Optimization of ML Prediction QueriesRaven: End-to-end Optimization of ML Prediction Queries
Raven: End-to-end Optimization of ML Prediction Queries
Databricks

Processing Large Datasets for ADAS Applications using Apache Spark
Processing Large Datasets for ADAS Applications using Apache SparkProcessing Large Datasets for ADAS Applications using Apache Spark
Processing Large Datasets for ADAS Applications using Apache Spark
Databricks

Massive Data Processing in Adobe Using Delta Lake
Massive Data Processing in Adobe Using Delta LakeMassive Data Processing in Adobe Using Delta Lake
Massive Data Processing in Adobe Using Delta Lake
Databricks


More from Databricks (20)

DW Migration Webinar-March 2022.pptx
DW Migration Webinar-March 2022.pptxDW Migration Webinar-March 2022.pptx
DW Migration Webinar-March 2022.pptx

Data Lakehouse Symposium | Day 1 | Part 1
Data Lakehouse Symposium | Day 1 | Part 1Data Lakehouse Symposium | Day 1 | Part 1
Data Lakehouse Symposium | Day 1 | Part 1

Data Lakehouse Symposium | Day 1 | Part 2
Data Lakehouse Symposium | Day 1 | Part 2Data Lakehouse Symposium | Day 1 | Part 2
Data Lakehouse Symposium | Day 1 | Part 2

Data Lakehouse Symposium | Day 2
Data Lakehouse Symposium | Day 2Data Lakehouse Symposium | Day 2
Data Lakehouse Symposium | Day 2

Data Lakehouse Symposium | Day 4
Data Lakehouse Symposium | Day 4Data Lakehouse Symposium | Day 4
Data Lakehouse Symposium | Day 4

5 Critical Steps to Clean Your Data Swamp When Migrating Off of Hadoop
5 Critical Steps to Clean Your Data Swamp When Migrating Off of Hadoop5 Critical Steps to Clean Your Data Swamp When Migrating Off of Hadoop
5 Critical Steps to Clean Your Data Swamp When Migrating Off of Hadoop

Democratizing Data Quality Through a Centralized Platform
Democratizing Data Quality Through a Centralized PlatformDemocratizing Data Quality Through a Centralized Platform
Democratizing Data Quality Through a Centralized Platform

Learn to Use Databricks for Data Science
Learn to Use Databricks for Data ScienceLearn to Use Databricks for Data Science
Learn to Use Databricks for Data Science

Why APM Is Not the Same As ML Monitoring
Why APM Is Not the Same As ML MonitoringWhy APM Is Not the Same As ML Monitoring
Why APM Is Not the Same As ML Monitoring

The Function, the Context, and the Data—Enabling ML Ops at Stitch Fix
The Function, the Context, and the Data—Enabling ML Ops at Stitch FixThe Function, the Context, and the Data—Enabling ML Ops at Stitch Fix
The Function, the Context, and the Data—Enabling ML Ops at Stitch Fix

Stage Level Scheduling Improving Big Data and AI Integration
Stage Level Scheduling Improving Big Data and AI IntegrationStage Level Scheduling Improving Big Data and AI Integration
Stage Level Scheduling Improving Big Data and AI Integration

Simplify Data Conversion from Spark to TensorFlow and PyTorch
Simplify Data Conversion from Spark to TensorFlow and PyTorchSimplify Data Conversion from Spark to TensorFlow and PyTorch
Simplify Data Conversion from Spark to TensorFlow and PyTorch

Scaling your Data Pipelines with Apache Spark on Kubernetes
Scaling your Data Pipelines with Apache Spark on KubernetesScaling your Data Pipelines with Apache Spark on Kubernetes
Scaling your Data Pipelines with Apache Spark on Kubernetes

Scaling and Unifying SciKit Learn and Apache Spark Pipelines
Scaling and Unifying SciKit Learn and Apache Spark PipelinesScaling and Unifying SciKit Learn and Apache Spark Pipelines
Scaling and Unifying SciKit Learn and Apache Spark Pipelines

Sawtooth Windows for Feature Aggregations
Sawtooth Windows for Feature AggregationsSawtooth Windows for Feature Aggregations
Sawtooth Windows for Feature Aggregations

Redis + Apache Spark = Swiss Army Knife Meets Kitchen Sink
Redis + Apache Spark = Swiss Army Knife Meets Kitchen SinkRedis + Apache Spark = Swiss Army Knife Meets Kitchen Sink
Redis + Apache Spark = Swiss Army Knife Meets Kitchen Sink

Re-imagine Data Monitoring with whylogs and Spark
Re-imagine Data Monitoring with whylogs and SparkRe-imagine Data Monitoring with whylogs and Spark
Re-imagine Data Monitoring with whylogs and Spark

Raven: End-to-end Optimization of ML Prediction Queries
Raven: End-to-end Optimization of ML Prediction QueriesRaven: End-to-end Optimization of ML Prediction Queries
Raven: End-to-end Optimization of ML Prediction Queries

Processing Large Datasets for ADAS Applications using Apache Spark
Processing Large Datasets for ADAS Applications using Apache SparkProcessing Large Datasets for ADAS Applications using Apache Spark
Processing Large Datasets for ADAS Applications using Apache Spark

Massive Data Processing in Adobe Using Delta Lake
Massive Data Processing in Adobe Using Delta LakeMassive Data Processing in Adobe Using Delta Lake
Massive Data Processing in Adobe Using Delta Lake


Recently uploaded

🚂🚘 Premium Girls Call Bangalore 🛵🚡000XX00000 💃 Choose Best And Top Girl Serv...
🚂🚘 Premium Girls Call Bangalore  🛵🚡000XX00000 💃 Choose Best And Top Girl Serv...🚂🚘 Premium Girls Call Bangalore  🛵🚡000XX00000 💃 Choose Best And Top Girl Serv...
🚂🚘 Premium Girls Call Bangalore 🛵🚡000XX00000 💃 Choose Best And Top Girl Serv...
bhupeshkumar0889

Noida Girls Call Noida 9873940964 Unlimited Short Providing Girls Service Ava...
Noida Girls Call Noida 9873940964 Unlimited Short Providing Girls Service Ava...Noida Girls Call Noida 9873940964 Unlimited Short Providing Girls Service Ava...
Noida Girls Call Noida 9873940964 Unlimited Short Providing Girls Service Ava...
kinni singh$A17

OpenMetadata Spotlight - OpenMetadata @ Aspire by Vinol Joy Dsouza
OpenMetadata Spotlight - OpenMetadata @ Aspire by Vinol Joy DsouzaOpenMetadata Spotlight - OpenMetadata @ Aspire by Vinol Joy Dsouza
OpenMetadata Spotlight - OpenMetadata @ Aspire by Vinol Joy Dsouza
OpenMetadata

potential usefulness of multi-agent maze-solving in general
potential usefulness of multi-agent maze-solving in generalpotential usefulness of multi-agent maze-solving in general
potential usefulness of multi-agent maze-solving in general
huseindihon

Female Service Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Se...
Female Service Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Se...Female Service Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Se...
Female Service Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Se...
dizzycaye

Girls call in Hyderabad 000XX00000 Provide Best And Top Girl Service And No1 ...
Girls call in Hyderabad 000XX00000 Provide Best And Top Girl Service And No1 ...Girls call in Hyderabad 000XX00000 Provide Best And Top Girl Service And No1 ...
Girls call in Hyderabad 000XX00000 Provide Best And Top Girl Service And No1 ...
avanikakapoor

🚂🚘 Premium Girls Call Guwahati 🛵🚡000XX00000 💃 Choose Best And Top Girl Servi...
🚂🚘 Premium Girls Call Guwahati  🛵🚡000XX00000 💃 Choose Best And Top Girl Servi...🚂🚘 Premium Girls Call Guwahati  🛵🚡000XX00000 💃 Choose Best And Top Girl Servi...
🚂🚘 Premium Girls Call Guwahati 🛵🚡000XX00000 💃 Choose Best And Top Girl Servi...
kuldeepsharmaks8120

Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in CityGirls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in City
solankikamal004

Celebrity Girls Call Noida 9873940964 Unlimited Short Providing Girls Service...
Celebrity Girls Call Noida 9873940964 Unlimited Short Providing Girls Service...Celebrity Girls Call Noida 9873940964 Unlimited Short Providing Girls Service...
Celebrity Girls Call Noida 9873940964 Unlimited Short Providing Girls Service...
ginni singh$A17

Beautiful Girls Call Pune 000XX00000 Provide Best And Top Girl Service And No...
Beautiful Girls Call Pune 000XX00000 Provide Best And Top Girl Service And No...Beautiful Girls Call Pune 000XX00000 Provide Best And Top Girl Service And No...
Beautiful Girls Call Pune 000XX00000 Provide Best And Top Girl Service And No...
birajmohan012

Best Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Service And ...
Best Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Service And ...Best Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Service And ...
Best Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Service And ...
sharonblush

Lucknow Girls Call Indira Nagar Lucknow 08630512678 Provide Best And Top Girl...
Lucknow Girls Call Indira Nagar Lucknow 08630512678 Provide Best And Top Girl...Lucknow Girls Call Indira Nagar Lucknow 08630512678 Provide Best And Top Girl...
Lucknow Girls Call Indira Nagar Lucknow 08630512678 Provide Best And Top Girl...
bangaloreakshitakaus

Experience, Excellence & Commitment are the characteristics that describe Fla...
Experience, Excellence & Commitment are the characteristics that describe Fla...Experience, Excellence & Commitment are the characteristics that describe Fla...
Experience, Excellence & Commitment are the characteristics that describe Fla...
kittycrispy617

CHAPTER-1-Introduction-to-Marketing.pptx
CHAPTER-1-Introduction-to-Marketing.pptxCHAPTER-1-Introduction-to-Marketing.pptx
CHAPTER-1-Introduction-to-Marketing.pptx
girewiy968

the potential of the development of the Ford–Fulkerson algorithm to solve the...
the potential of the development of the Ford–Fulkerson algorithm to solve the...the potential of the development of the Ford–Fulkerson algorithm to solve the...
the potential of the development of the Ford–Fulkerson algorithm to solve the...
huseindihon

Celonis Busniess Analyst Virtual Internship.pptx
Celonis Busniess Analyst Virtual Internship.pptxCelonis Busniess Analyst Virtual Internship.pptx
Celonis Busniess Analyst Virtual Internship.pptx
AnujaGaikwad28

🚂🚘 Premium Girls Call Nashik 🛵🚡000XX00000 💃 Choose Best And Top Girl Service...
🚂🚘 Premium Girls Call Nashik  🛵🚡000XX00000 💃 Choose Best And Top Girl Service...🚂🚘 Premium Girls Call Nashik  🛵🚡000XX00000 💃 Choose Best And Top Girl Service...
🚂🚘 Premium Girls Call Nashik 🛵🚡000XX00000 💃 Choose Best And Top Girl Service...
kuldeepsharmaks8120

Beautiful Girls Call 9711199171 9711199171 Provide Best And Top Girl Service ...
Beautiful Girls Call 9711199171 9711199171 Provide Best And Top Girl Service ...Beautiful Girls Call 9711199171 9711199171 Provide Best And Top Girl Service ...
Beautiful Girls Call 9711199171 9711199171 Provide Best And Top Girl Service ...
janvikumar4133

VIP Kolkata Girls Call Kolkata 0X0000000X Doorstep High-Profile Girl Service ...
VIP Kolkata Girls Call Kolkata 0X0000000X Doorstep High-Profile Girl Service ...VIP Kolkata Girls Call Kolkata 0X0000000X Doorstep High-Profile Girl Service ...
VIP Kolkata Girls Call Kolkata 0X0000000X Doorstep High-Profile Girl Service ...
sukaniyasunnu

DU degree offer diploma Transcript
DU degree offer diploma TranscriptDU degree offer diploma Transcript
DU degree offer diploma Transcript
uapta


Recently uploaded (20)

🚂🚘 Premium Girls Call Bangalore 🛵🚡000XX00000 💃 Choose Best And Top Girl Serv...
🚂🚘 Premium Girls Call Bangalore  🛵🚡000XX00000 💃 Choose Best And Top Girl Serv...🚂🚘 Premium Girls Call Bangalore  🛵🚡000XX00000 💃 Choose Best And Top Girl Serv...
🚂🚘 Premium Girls Call Bangalore 🛵🚡000XX00000 💃 Choose Best And Top Girl Serv...

Noida Girls Call Noida 9873940964 Unlimited Short Providing Girls Service Ava...
Noida Girls Call Noida 9873940964 Unlimited Short Providing Girls Service Ava...Noida Girls Call Noida 9873940964 Unlimited Short Providing Girls Service Ava...
Noida Girls Call Noida 9873940964 Unlimited Short Providing Girls Service Ava...

OpenMetadata Spotlight - OpenMetadata @ Aspire by Vinol Joy Dsouza
OpenMetadata Spotlight - OpenMetadata @ Aspire by Vinol Joy DsouzaOpenMetadata Spotlight - OpenMetadata @ Aspire by Vinol Joy Dsouza
OpenMetadata Spotlight - OpenMetadata @ Aspire by Vinol Joy Dsouza

potential usefulness of multi-agent maze-solving in general
potential usefulness of multi-agent maze-solving in generalpotential usefulness of multi-agent maze-solving in general
potential usefulness of multi-agent maze-solving in general

Female Service Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Se...
Female Service Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Se...Female Service Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Se...
Female Service Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Se...

Girls call in Hyderabad 000XX00000 Provide Best And Top Girl Service And No1 ...
Girls call in Hyderabad 000XX00000 Provide Best And Top Girl Service And No1 ...Girls call in Hyderabad 000XX00000 Provide Best And Top Girl Service And No1 ...
Girls call in Hyderabad 000XX00000 Provide Best And Top Girl Service And No1 ...

🚂🚘 Premium Girls Call Guwahati 🛵🚡000XX00000 💃 Choose Best And Top Girl Servi...
🚂🚘 Premium Girls Call Guwahati  🛵🚡000XX00000 💃 Choose Best And Top Girl Servi...🚂🚘 Premium Girls Call Guwahati  🛵🚡000XX00000 💃 Choose Best And Top Girl Servi...
🚂🚘 Premium Girls Call Guwahati 🛵🚡000XX00000 💃 Choose Best And Top Girl Servi...

Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in CityGirls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in City

Celebrity Girls Call Noida 9873940964 Unlimited Short Providing Girls Service...
Celebrity Girls Call Noida 9873940964 Unlimited Short Providing Girls Service...Celebrity Girls Call Noida 9873940964 Unlimited Short Providing Girls Service...
Celebrity Girls Call Noida 9873940964 Unlimited Short Providing Girls Service...

Beautiful Girls Call Pune 000XX00000 Provide Best And Top Girl Service And No...
Beautiful Girls Call Pune 000XX00000 Provide Best And Top Girl Service And No...Beautiful Girls Call Pune 000XX00000 Provide Best And Top Girl Service And No...
Beautiful Girls Call Pune 000XX00000 Provide Best And Top Girl Service And No...

Best Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Service And ...
Best Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Service And ...Best Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Service And ...
Best Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Service And ...

Lucknow Girls Call Indira Nagar Lucknow 08630512678 Provide Best And Top Girl...
Lucknow Girls Call Indira Nagar Lucknow 08630512678 Provide Best And Top Girl...Lucknow Girls Call Indira Nagar Lucknow 08630512678 Provide Best And Top Girl...
Lucknow Girls Call Indira Nagar Lucknow 08630512678 Provide Best And Top Girl...

Experience, Excellence & Commitment are the characteristics that describe Fla...
Experience, Excellence & Commitment are the characteristics that describe Fla...Experience, Excellence & Commitment are the characteristics that describe Fla...
Experience, Excellence & Commitment are the characteristics that describe Fla...

CHAPTER-1-Introduction-to-Marketing.pptx
CHAPTER-1-Introduction-to-Marketing.pptxCHAPTER-1-Introduction-to-Marketing.pptx
CHAPTER-1-Introduction-to-Marketing.pptx

the potential of the development of the Ford–Fulkerson algorithm to solve the...
the potential of the development of the Ford–Fulkerson algorithm to solve the...the potential of the development of the Ford–Fulkerson algorithm to solve the...
the potential of the development of the Ford–Fulkerson algorithm to solve the...

Celonis Busniess Analyst Virtual Internship.pptx
Celonis Busniess Analyst Virtual Internship.pptxCelonis Busniess Analyst Virtual Internship.pptx
Celonis Busniess Analyst Virtual Internship.pptx

🚂🚘 Premium Girls Call Nashik 🛵🚡000XX00000 💃 Choose Best And Top Girl Service...
🚂🚘 Premium Girls Call Nashik  🛵🚡000XX00000 💃 Choose Best And Top Girl Service...🚂🚘 Premium Girls Call Nashik  🛵🚡000XX00000 💃 Choose Best And Top Girl Service...
🚂🚘 Premium Girls Call Nashik 🛵🚡000XX00000 💃 Choose Best And Top Girl Service...

Beautiful Girls Call 9711199171 9711199171 Provide Best And Top Girl Service ...
Beautiful Girls Call 9711199171 9711199171 Provide Best And Top Girl Service ...Beautiful Girls Call 9711199171 9711199171 Provide Best And Top Girl Service ...
Beautiful Girls Call 9711199171 9711199171 Provide Best And Top Girl Service ...

VIP Kolkata Girls Call Kolkata 0X0000000X Doorstep High-Profile Girl Service ...
VIP Kolkata Girls Call Kolkata 0X0000000X Doorstep High-Profile Girl Service ...VIP Kolkata Girls Call Kolkata 0X0000000X Doorstep High-Profile Girl Service ...
VIP Kolkata Girls Call Kolkata 0X0000000X Doorstep High-Profile Girl Service ...

DU degree offer diploma Transcript
DU degree offer diploma TranscriptDU degree offer diploma Transcript
DU degree offer diploma Transcript


Monitor Apache Spark 3 on Kubernetes using Metrics and Plugins

  • 1. Monitor Apache Spark 3 on Kubernetes using Metrics and Plugins Luca Canali Data Engineer, CERN
  • 2. About Luca • Data Engineer at CERN • Data analytics and Spark service, database services • 20+ years with databases and data engineering • Passionate about performance engineering • Repos, blogs, presentations • @LucaCanaliDB https://github.com/lucacanali http://cern.ch/canali
  • 3. Agenda  Apache Spark monitoring: ecosystem and motivations  Spark metrics system  Spark 3 plugins  Metrics for Spark on K8S and cloud storage  How you can run a Spark performance dashboard
  • 4. Performance Troubleshooting Goals • The key to good performance: • You run good execution plans • There are no serialization points • Without these all bets are off! • Attribution: I first heard this from Andrew Holdsworth (context: Oracle DB performance discussion ~2007) • Spark users care about performance at scale • Investigate execution plans and bottlenecks in the workload • Useful tools are the Spark Web UI and metrics instrumentation!
  • 5. Apache Spark Monitoring Ecosystem • Web UI • Details on jobs, stages, tasks, SQL, streaming, etc • Default URL: http://driver:4040 • https://spark.apache.org/docs/latest/web-ui.html • Spark REST API + Spark Listener @Developer API • Exposes task metrics and executor metrics • https://spark.apache.org/docs/latest/monitoring.html • Spark Metrics System • Implemented using the Dropwizard metrics library
  • 6. Spark Metrics System • Many metrics instrument Spark workloads: • https://spark.apache.org/docs/latest/monitoring.html#metrics • Metrics are emitted from the driver, executors and other Spark components into sinks (several sinks available) • Example of metrics: number of active tasks, jobs/stages completed and failed, executor CPU used, executor run time, garbage collection time, shuffle metrics, I/O metrics, metrics with memory usage details, etc.
  • 7. Explore Spark Metrics • Web UI Servlet Sink • Metrics from the driver + executor (executor metrics available only if Spark is in local mode) • By default: metrics are exposed using the metrics servlet on the WebUI http://driver_host:4040/metrics/json • Prometheus sink for the driver and for spark standalone, exposes metrics on the Web UI too • *.sink.prometheusServlet.class=org.apache.spark.metrics.sink.PrometheusServlet • *.sink.prometheusServlet.path=/metrics/prometheus • Jmx Sink • Use jmx sink and explore metrics using jconsole • Configuration: *.sink.jmx.class=org.apache.spark.metrics.sink.JmxSink
  • 8. Spark Metrics System and Monitoring Pipeline
  • 9. How to Use Spark Metrics – Sink to InfluxDB • Edit $SPARK_HOME/conf/metrics.properties • Alternative: use the config parameters spark.metrics.conf.* • Use this method if running on K8S on Spark version 2.x or 3.0, see also SPARK-30985 cat $SPARK_HOME/conf/metrics.properties *.sink.graphite.class"="org.apache.spark.metrics.sink.GraphiteSink" *.sink.graphite.host"="<graphiteEndPoint_influxDB_hostName>" *.sink.graphite.port"=<graphite_listening_port> *.sink.graphite.period"=10 *.sink.graphite.unit"=seconds *.sink.graphite.prefix"="lucatest" *.source.jvm.class"="org.apache.spark.metrics.source.JvmSource" $SPARK_HOME/bin/spark-shell --conf "spark.metrics.conf.*.sink.graphite.class"="org.apache.spark.metrics.sink.GraphiteSink“ --conf "spark.metrics.conf.*.sink.graphite.host"="<graphiteEndPoint_influxDB_hostName>" ..etc..
  • 10. Metrics Visualization with Grafana • Metrics visualized as time series • Metrics values visualized vs. time and detailed per executor Number of Active Tasks Executor JVM CPU Usage
  • 11. Metrics for Spark on Kubernetes • Spark on Kubernetes is GA since Spark 3.1.1 • Running Spark on cloud resources is widely used • Need for improved instrumentation in Spark • Spark 3 metrics system can be extended with plugins • Plugin metrics to monitor K8S pods’ resources usage (CPU, memory, network, etc) • Plugin instrumentation for cloud filesystems: S3A, GS, WASBS, OCI, CERN’s EOS, etc)
  • 12. Spark Plugins and Custom Extensions to the Metrics System • Plugin interface introduced in Spark 3 • Plugins are user-provided code run at the start of the executors (and of the driver) • Plugins allow to extend Spark metrics with custom code and instrumentation
  • 13. A First Look at the Spark Plugins API • Code snippets for demonstration • A Spark Plugin implementing a metric that reports the constant value 42 Spark 3.x Plugin API metricRegistry allows to register user-provided sources with Spark Metrics System
  • 14. ‘Kick the Tires’ of Spark Plugins ▪ From https://github.com/cerndb/SparkPlugins ▪ RunOSCommandPlugin - runs an OS command as the executor starts ▪ DemoMetricsPlugin - shows how to integrate with Spark Metrics bin/spark-shell --master k8s://https://<K8S URL> • --packages ch.cern.sparkmeasure:spark-plugins_2.12:0.1 • --conf spark.plugins=ch.cern.RunOSCommandPlugin, • ch.cern.DemoMetricsPlugin
  • 15. Plugins for Spark on Kubernetes • Measure metrics related to pods’ resources usage • Integrated with rest of Spark metrics • Plugin code implemented using cgroup instrumentation • Example: measure CPU from /sys/fs/cgroup/cpuacct/cpuacct.usage bin/spark-shell --master k8s://https://<K8S URL> --packages ch.cern.sparkmeasure:spark-plugins_2.12:0.1 --conf spark.kubernetes.container.image=<registry>/spark:v311 --conf spark.plugins=ch.cern.CgroupMetrics ...
  • 16. CgroupMetrics Plugin ▪ Metrics (gauges), in ch.cern.CgroupMetrics plugin: ▪ CPUTimeNanosec: CPU time used by the processes in the cgroup ▪ this includes CPU used by Python processes (PySpark UDF) ▪ MemoryRss: number of bytes of anonymous and swap cache memory. ▪ MemorySwap: number of bytes of swap usage. ▪ MemoryCache: number of bytes of page cache memory. ▪ NetworkBytesIn: network traffic inbound. ▪ NetworkBytesOut: network traffic outbound.
  • 17. Plugin to Measure Cloud Filesystems ▪ Example of how to measure S3 throughput metrics ▪ Note: Apache Spark instruments only HDFS and local filesystem ▪ Plugins uses Hadoop client API for Hadoop Compatible filesystems ▪ Metrics: bytesRead, bytesWritten, readOps, writeOps --conf spark.plugins=ch.cern.CloudFSMetrics --conf spark.cernSparkPlugin.cloudFsName=<name of the filesystem> (example: "s3a", "gs", "wasbs", "oci", "root", etc.)
  • 18. • Code and examples to get started: • https://github.com/cerndb/spark-dashboard • It simplifies the configuration of InfluxDB as a sink for Spark metrics • Grafana dashboards with pre-built panels, graphs, and queries • Option 1: Dockerfile • Use this for testing locally • From dockerhub: lucacanali/spark-dashboard:v01 • Option 2: Helm Chart • Use for testing on Kubernetes Tooling for a Spark Performance Dashboard
  • 19. Tooling for Spark Plugins • Code and examples to get started: • https://github.com/cerndb/SparkPlugins • --packages ch.cern.sparkmeasure:spark-plugins_2.12:0.1 • Plugins for OS metrics (Spark on K8S) • --conf spark.plugins=ch.cern.CgroupMetrics • Plugins for measuring cloud storage • Hadoop Compatible Filesystems: s3a, gs, wasbs, oci, root, etc.. • --conf spark.plugins=ch.cern.CloudFSMetrics • --conf spark.cernSparkPlugin.cloudFsName=<filesystem name>
  • 20. How to Deploy the Dashboard - Example docker run --network=host -d lucacanali/spark-dashboard:v01 INFLUXDB_ENDPOINT=`hostname` bin/spark-shell --master k8s://https://<K8S URL> • --packages ch.cern.sparkmeasure:spark-plugins_2.12:0.1 • --conf spark.plugins=ch.cern.CgroupMetrics • --conf "spark.metrics.conf.*.sink.graphite.class"= • "org.apache.spark.metrics.sink.GraphiteSink" • --conf "spark.metrics.conf.*.sink.graphite.host"=$INFLUXDB_ENDPOINT • --conf "spark.metrics.conf.*.sink.graphite.port"=2003 • --conf "spark.metrics.conf.*.sink.graphite.period"=10 • --conf "spark.metrics.conf.*.sink.graphite.unit"=seconds • --conf "spark.metrics.conf.*.sink.graphite.prefix"="luca“ • --conf spark.metrics.appStatusSource.enabled=true ...
  • 21. Spark Performance Dashboard • Visualize Spark metrics • Real-time + historical data • Summaries and time series of key metrics • Data for root-cause analysis
  • 22. Dashboard Annotations • Annotations to the workload graphs with: • Start/end time for job id, or stage id, or SQL id
  • 23. Dashboard Annotations • Annotations to the workload graphs with: • Start/end time for job id, or stage id, or SQL id INFLUXDB_HTTP_ENDPOINT="http://`hostname`:8086" --packages ch.cern.sparkmeasure:spark-measure_2.12:0.17 --conf spark.sparkmeasure.influxdbURL=$INFLUXDB_HTTP_ENDPOINT --conf spark.extraListeners=ch.cern.sparkmeasure.InfluxDBSink
  • 24. Demo – Spark Performance Dashboard (5 min)
  • 25. Use Plugins to Instrument Custom Libraries • Augment Spark metrics with metrics from custom code • Example: experimental way to measure I/O time with metrics • Measure read time, seek time and CPU time during read operations for HDFS, S3A, etc. ▪ Custom S3A jar with time instrumentation (for Hadoop 3.2.0, use with Spark 3.0 and 3.1): https://github.com/LucaCanali/hadoop/tree/s3aAndHDFSTimeInstrumentation ▪ Metrics: S3AReadTimeMuSec, S3ASeekTimeMuSec, S3AGetObjectMetadataMuSec ▪ Spark metrics with custom Spark plugin: ▪ --packages ch.cern.sparkmeasure:spark-plugins_2.12:0.1 ▪ --conf spark.plugins=ch.cern.experimental.S3ATimeInstrumentation
  • 26. Lessons Learned and Further Work ▪ Feedback on deploying the dashboard @CERN ▪ We provide the Spark dashboard as an optional configuration for the CERN Jupyter-based data analysis platform ▪ Cognitive load to understand the available metrics and troubleshooting process ▪ We set data retention and in general pay attention not to overload InfluxDB ▪ Core Spark development ▪ A native InfluxDB sink would be useful (currently Spark has a Graphite sink) ▪ Spark is not yet fully instrumented, a few areas yet to cover, for example instrumentation of I/O time and Python UDF run time.
  • 27. Conclusions ▪ Spark metrics and dashboard ▪ Provide extensive performance monitoring data. Complement the Web UI. ▪ Spark plugins ▪ Introduced in Spark 3.0, make it easy to augment the Spark metrics system. ▪ Use plugins to monitor Spark on Kubernetes and cloud filesystem usage. ▪ Tooling ▪ Get started with a dashboard based on InfluxDB and Grafana. ▪ Build your plugins and dashboards, and share your experience!
  • 28. Acknowledgments and Links ▪ Thanks to CERN data analytics and Spark service team ▪ Thanks to Apache Spark committers and Spark community ▪ For their help with PRs: SPARK-22190, SPARK-25170, SPARK-25228, SPARK- 26928, SPARK-27189, SPARK-28091, SPARK-29654, SPARK-30041, SPARK- 30775, SPARK-31711 ▪ Links: • https://github.com/cerndb/SparkPlugins • https://github.com/cerndb/spark-dashboard • https://db-blog.web.cern.ch/blog/luca-canali/2019-02-performance-dashboard- apache-spark • https://github.com/LucaCanali/sparkMeasure
