The document outlines the presentation on cloud deployment for the Angry Birds shop, emphasizing the architecture, scaling, caching strategies, and continuous deployment processes used to manage cloud services effectively. It discusses the advantages and drawbacks of using Amazon Web Services (AWS), alongside recommended adjustments for Magento performance. Lessons learned from the deployment experience highlight the importance of quick fixes, automated processes, and preparation for scalability.

1. Tuesday, April 24, 2012

2. Tuesday, April 24, 2012

3. Tuesday, April 24, 2012

4. Tuesday, April 24, 2012

5. Angry Birds Shop
Cloud Deployment
Presented by
Kian T. Gould and Daniel Pötzinger
Tuesday, April 24, 2012

6. Tuesday, April 24, 2012

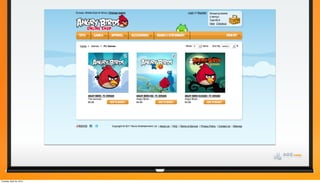

7. Tuesday, April 24, 2012

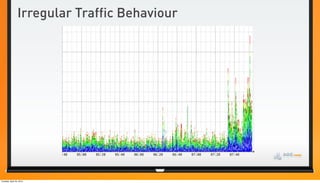

8. Irregular Traffic Behaviour
Tuesday, April 24, 2012

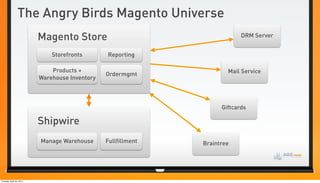

9. The Angry Birds Magento Universe
Magento Store DRM Server
Storefronts Reporting
Products + Mail Service
Ordermgmt
Warehouse Inventory
Giftcards
Shipwire
Manage Warehouse Fullfillment Braintree
Tuesday, April 24, 2012

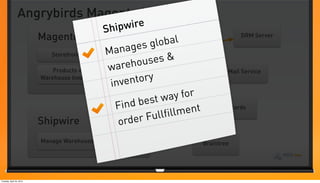

10. Angrybirds Magento Universe
Sh ipw ire
Magento Store bal
DRM Server
ges glo
M ana
es &
Storefronts Reporting
wa reh ous
Products + Mail Service
Ordermgmt
Warehouse Invetory
inv ent ory
ay for
ind be st w
F ent Giftcards
rF ullf illm
Shipwire o rde
Manage Warehouse Fullfillment Braintree
Tuesday, April 24, 2012

11. Why Amazon Cloud ?
Tuesday, April 24, 2012

12. ✓ Scales quickly on demand
✓ Pay only what you need
Tuesday, April 24, 2012

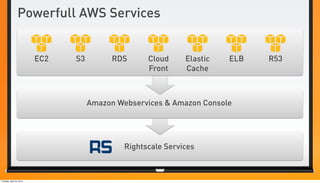

13. Powerfull AWS Services
EC2 S3 RDS Cloud Elastic ELB R53
Front Cache
Amazon Webservices & Amazon Console
Rightscale Services
Tuesday, April 24, 2012

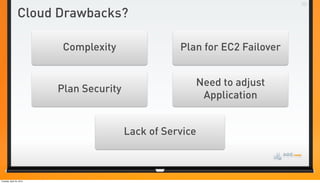

14. Cloud Drawbacks?
Complexity Plan for EC2 Failover
Need to adjust
Plan Security
Application
Lack of Service
Tuesday, April 24, 2012

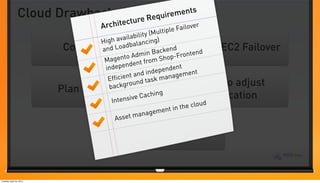

15. Cloud Drawbacks? ture Req uirem ents
Arch itec over
le Fail
ultip
ailab ility (M
H igh av cing)
balan
Complexity
and Load
Bac kend Plan for EC2 Failover
in
to Adm m Shop-Fro ntend
M agen
ende nt fro
indep depen dent
ient a nd in nage ment
Effic nd tas k ma
back grou Need to adjust
Plan Security ching
In tensi ve Ca Application
n the cloud
agem ent i
Asse t man
Lack of Service
Tuesday, April 24, 2012

16. Tuesday, April 24, 2012

17. Our Cloud Architecture
Tuesday, April 24, 2012

18. Tuesday, April 24, 2012

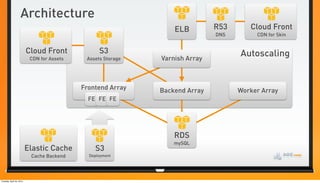

19. Architecture
ELB R53 Cloud Front
DNS CDN for Skin
Cloud Front S3 Autoscaling
CDN for Assets Assets Storage Varnish Array
Frontend Array Backend Array Worker Array
Autoscaling
FE FE FE
RDS
mySQL
Elastic Cache S3
Cache Backend Deployment
Tuesday, April 24, 2012

20. Scaling is about finding
the Bottleneck
Tuesday, April 24, 2012

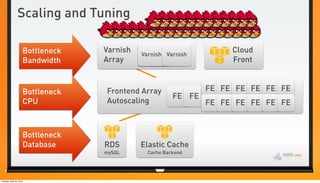

21. Scaling and Tuning
Bottleneck Varnish Load
Varnish Varnish
Cloud
Array Balancing Front
Bandwidth
Bottleneck Frontend Array FE FE FE FE FE FE
FE FE FE FE FE FE FE
CPU Autoscaling FE FE FE FE FE FE
Bottleneck
Database RDS Elastic Cache
mySQL Cache Backend
Tuesday, April 24, 2012

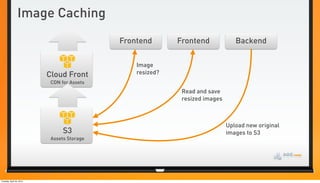

22. Image Caching
Frontend Frontend Backend
Cloud Front resized?
CDN for Assets
Read and save
resized images
Upload new original
S3 images to S3
Assets Storage
Tuesday, April 24, 2012

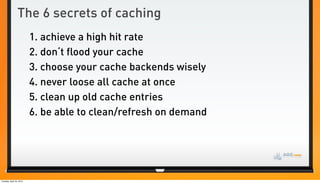

23. The 6 secrets of caching
1. achieve a high hit rate
2. don‘t flood your cache
3. choose your cache backends wisely
4. never loose all cache at once
5. clean up old cache entries
6. be able to clean/refresh on demand
Tuesday, April 24, 2012

24. Magento Performance Pointers
1. Asyncronous Cache Clearing Queue (Aoe_AsyncCache)
2. Take care of Cache Cleaning (Aoe_CacheCleaner)
3. Disable Magento Logs
4. Make page cacheable in Varnish (Aoe_Static)
5. Prefix bundeled JS and CSS with timestamp
6. and... Profile, Profile, Profile:
•xdebug + kcachegrind
•Newrelic
•xhprof
Tuesday, April 24, 2012

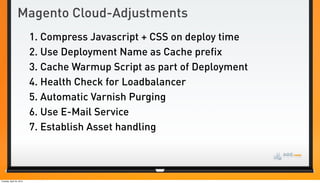

25. Magento Cloud-Adjustments
1. Compress Javascript + CSS on deploy time
2. Use Deployment Name as Cache prefix
3. Cache Warmup Script as part of Deployment
4. Health Check for Loadbalancer
5. Automatic Varnish Purging
6. Use E-Mail Service
7. Establish Asset handling
Tuesday, April 24, 2012

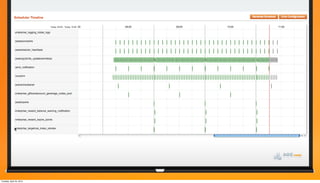

26. Tuesday, April 24, 2012

27. Lessons learned
1. 404s are too expensive
=> cache or redirect
2. Cloudfront with S3 backend
cannot handle gzip
=> deploy time bundeling/compression
3. Don‘t hit „Reports“ in the backend :-)
4.You cannot forsee everything
=> But you can be prepared to fix things quickly
=> continuous deployment
Tuesday, April 24, 2012

28. Tuesday, April 24, 2012

29. Continuous
Deployment
Tuesday, April 24, 2012

30. Tuesday, April 24, 2012

31. Don‘t be scared of
releasing to
production
Tuesday, April 24, 2012

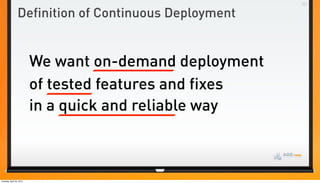

32. Definition of Continuous Deployment
We want on-demand deployment
of tested features and fixes
in a quick and reliable way
Tuesday, April 24, 2012

33. You can achieve this by
Automating everything
Build
Testing
Deployment
Tuesday, April 24, 2012

34. ..and
doing it frequently
Tuesday, April 24, 2012

35. Tuesday, April 24, 2012

36. The Deployment
Pipeline
Tuesday, April 24, 2012

37. Tuesday, April 24, 2012

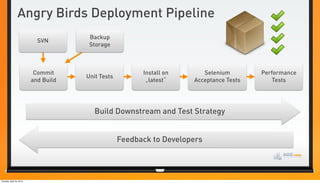

38. Angry Birds Deployment Pipeline
Backup
SVN
Storage
Commit Install on Selenium Performance
Unit Tests
and Build „latest“ Acceptance Tests Tests
Build Downstream and Test Strategy
Feedback to Developers
Tuesday, April 24, 2012

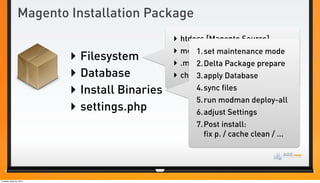

39. Magento Installation Package
‣ htdocs [Magento Source]
‣ media maintenance mode
‣ Filesystem 1.set
‣ .modman [Custom Packages]
2.Delta Package prepare
‣ Database ‣ changelog.txt
3.apply Database
‣ Install Binaries 4.sync files
5.run modman deploy-all
‣ settings.php 6.adjust Settings
7.Post install:
fix p. / cache clean / ...
Tuesday, April 24, 2012

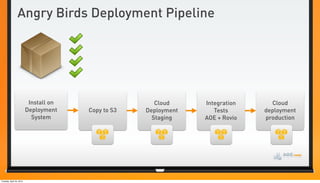

40. Angry Birds Deployment Pipeline
Install on Cloud Integration Cloud
Deployment Copy to S3 Deployment Tests deployment
System Staging AOE + Rovio production
Tuesday, April 24, 2012

41. Cloud Deployment
R53
Deployment „Version 88“ DNS Deployment „Version 89“
Varnish Array Start new Varnish Array by
release
ELB V V V ELB V V V
✓ cloning old deployment
✓ adjusting release number
Autoscaling Backend Worker Autoscaling Backend Worker
Frontend Array Array Array Frontend Array Array Array
FE FE FE BE BE BE W FE FE FE BE BE BE W
RDS
mySQL
S3
Tuesday, April 24, 2012

42. Tuesday, April 24, 2012

43. The real life
Tuesday, April 24, 2012

44. Tuesday, April 24, 2012

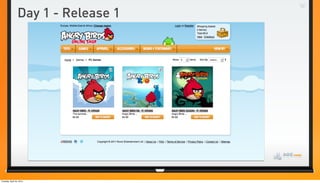

45. Day 1 - Release 1
Tuesday, April 24, 2012

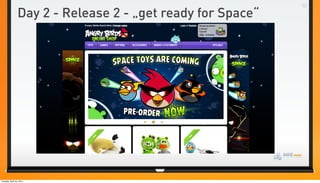

46. Day 2 - Release 2 - „get ready for Space“
Tuesday, April 24, 2012

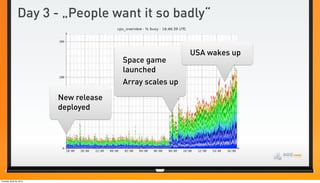

47. Day 3 - „People want it so badly“
USA wakes up
Space game
launched
Array scales up
New release
deployed
Tuesday, April 24, 2012

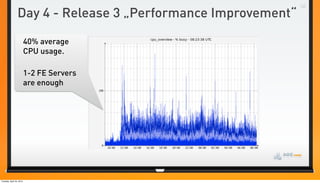

48. Day 4 - Release 3 „Performance Improvement“
40% average
CPU usage.
1-2 FE Servers
are enough
Tuesday, April 24, 2012

49. Tuesday, April 24, 2012

50. Thank you
Follow us on Twitter:
AOE: @aoemedia
Daniel P: @typo3media
