EXT:
Community

  Tymoteusz Motylewski
                T3DD12
Tymoteusz Motylewski
AOE media
Wiesbaden

TYPO3 & Magento

Twitter: @tmotyl
Mail: t.motylewski@gmail.com

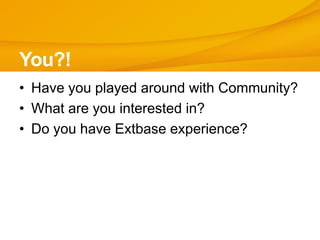

You?!
• Have you played around with Community?
• What are you interested in?
• Do you have Extbase experience?

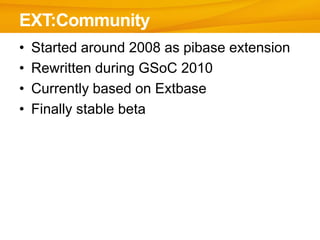

EXT:Community
•   Started around 2008 as pibase extension
•   Rewritten during GSoC 2010
•   Currently based on Extbase
•   Finally stable beta

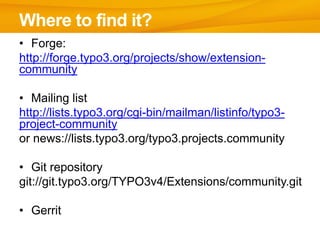

Where to find it?
• Forge:
http://forge.typo3.org/projects/show/extension-
community

• Mailing list
http://lists.typo3.org/cgi-bin/mailman/listinfo/typo3-
project-community
or news://lists.typo3.org/typo3.projects.community

• Git repository
git://git.typo3.org/TYPO3v4/Extensions/community.git

• Gerrit

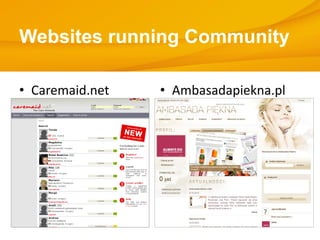

Websites running Community

• Caremaid.net            • Ambasadapiekna.pl




                 http://www.flickr.com/photos/dieselbug2007/414348333/

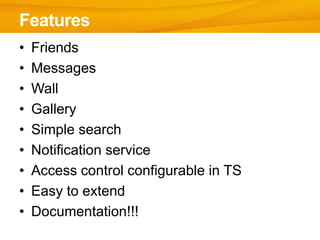

Features
•   Friends
•   Messages
•   Wall
•   Gallery
•   Simple search
•   Notification service
•   Access control configurable in TS
•   Easy to extend
•   Documentation!!!

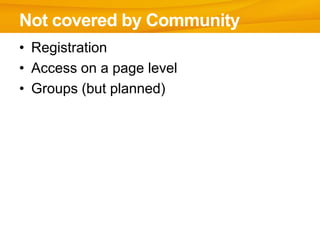

Not covered by Community
• Registration
• Access on a page level
• Groups (but planned)

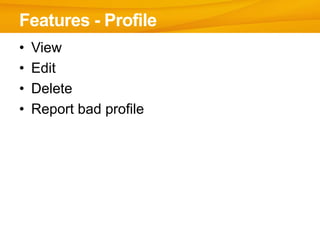

Features - Profile
•   View
•   Edit
•   Delete
•   Report bad profile

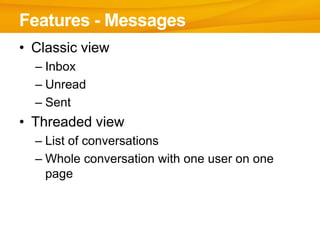

Features - Messages
• Classic view
  – Inbox
  – Unread
  – Sent
• Threaded view
  – List of conversations
  – Whole conversation with one user on one
    page

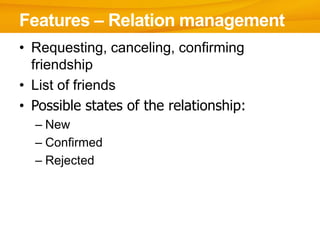

Features – Relation management
• Requesting, canceling, confirming
  friendship
• List of friends
• Possible states of the relationship:
  – New
  – Confirmed
  – Rejected

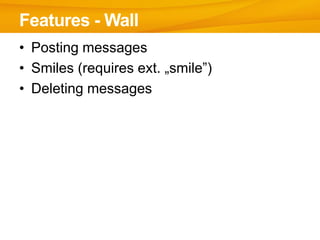

Features - Wall
• Posting messages
• Smiles (requires ext. „smile”)
• Deleting messages

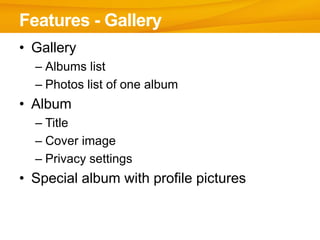

Features - Gallery
• Gallery
  – Albums list
  – Photos list of one album
• Album
  – Title
  – Cover image
  – Privacy settings
• Special album with profile pictures

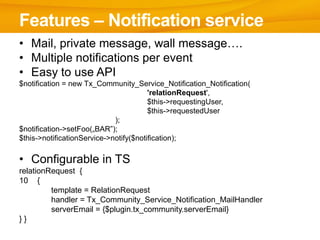

Features – Notification service
• Mail, private message, wall message….
• Multiple notifications per event
• Easy to use API
$notification = new Tx_Community_Service_Notification_Notification(
                                        'relationRequest',
                                        $this->requestingUser,
                                        $this->requestedUser
                             );
$notification->setFoo(„BAR”);
$this->notificationService->notify($notification);

• Configurable in TS
relationRequest {
10 {
         template = RelationRequest
         handler = Tx_Community_Service_Notification_MailHandler
         serverEmail = {$plugin.tx_community.serverEmail}
}}
Features – Notification service
Want to notify by SMS after receiving private message?
   1. Create own notification handler which implements
       Tx_Community_Service_Notification_HandlerInterface
       - send() method is required
       e.g. Tx_CommunityLocal_Service_Notification_SmsHandler

   2. Add typoscript configuration
   plugin.tx_community.settings.notification.rules {
       messageSend {
            20 {
            handler = Tx_CommunityLocal_Service_Notification_SmsHandler
            }
       }
   }

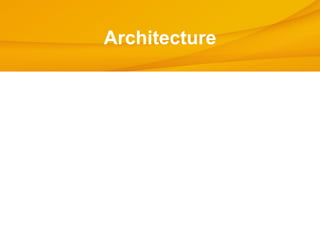

Architecture




        Architecture

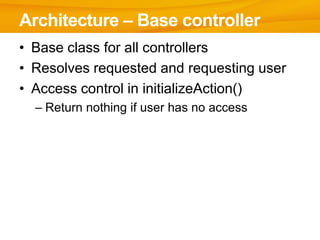

Architecture – Base controller
• Base class for all controllers
• Resolves requested and requesting user
• Access control in initializeAction()
  – Return nothing if user has no access

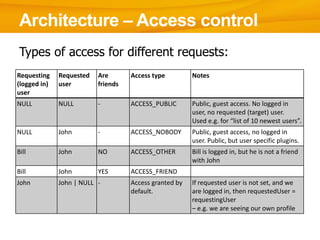

Architecture – Access control
 Types of access for different requests:
Requesting    Requested   Are       Access type         Notes
(logged in)   user        friends
user
NULL          NULL        -         ACCESS_PUBLIC       Public, guest access. No logged in
                                                        user, no requested (target) user.
                                                        Used e.g. for “list of 10 newest users”.
NULL          John        -         ACCESS_NOBODY       Public, guest access, no logged in
                                                        user. Public, but user specific plugins.
Bill          John        NO        ACCESS_OTHER        Bill is logged in, but he is not a friend
                                                        with John
Bill          John        YES       ACCESS_FRIEND
John          John | NULL -         Access granted by   If requested user is not set, and we
                                    default.            are logged in, then requestedUser =
                                                        requestingUser
                                                        – e.g. we are seeing our own profile

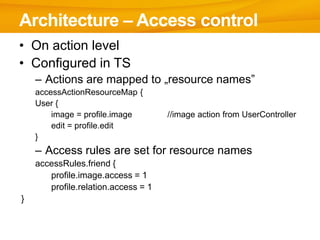

Architecture – Access control
• On action level
• Configured in TS
    – Actions are mapped to „resource names”
    accessActionResourceMap {
    User {
        image = profile.image        //image action from UserController
        edit = profile.edit
    }
    – Access rules are set for resource names
    accessRules.friend {
       profile.image.access = 1
       profile.relation.access = 1
}

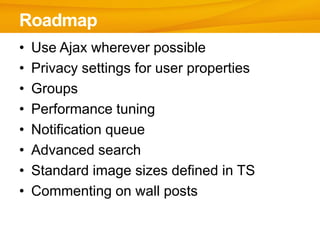

Roadmap
•   Use Ajax wherever possible
•   Privacy settings for user properties
•   Groups
•   Performance tuning
•   Notification queue
•   Advanced search
•   Standard image sizes defined in TS
•   Commenting on wall posts

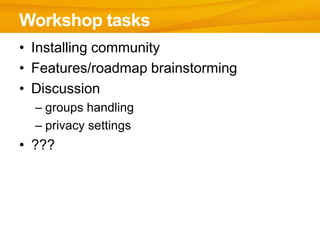

Workshop tasks
• Installing community
• Features/roadmap brainstorming
• Discussion
  – groups handling
  – privacy settings
• ???

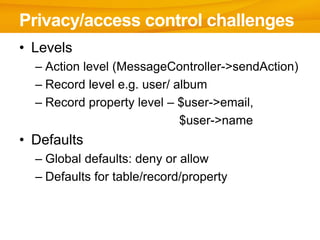

Privacy/access control challenges
• Levels
  – Action level (MessageController->sendAction)
  – Record level e.g. user/ album
  – Record property level – $user->email,
                             $user->name
• Defaults
  – Global defaults: deny or allow
  – Defaults for table/record/property
Privacy/access control challenges
• Allow user to change his privacy settings
• Easy to extend (new models, new
  controllers)
• Fast
• Transparent
• Configured in single place
• …

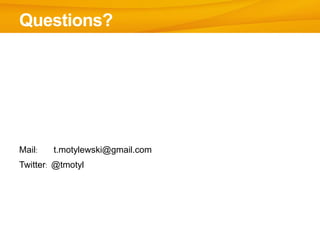

Questions?




Mail:   t.motylewski@gmail.com
Twitter: @tmotyl
