1. High performance websites
An introduction into xDebug profiling, Kcachegrind and JMeter

2. About Us
 Axel Jung  Timo Schmidt
 Software Developer  Software Developer
AOE media GmbH AOE media GmbH

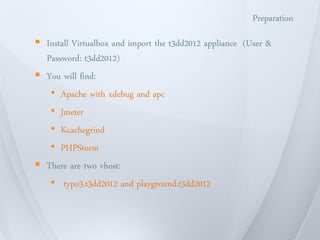

3. Preparation
 Install Virtualbox and import the t3dd2012 appliance (User &
Password: t3dd2012)
 You will find:
• Apache with xdebug and apc
• Jmeter
• Kcachegrind
• PHPStorm
 There are two vhost:
• typo3.t3dd2012 and playground.t3dd2012

5. Can you build a new Yes, we can!
website for me?

6. But I expect a lot of
visitors. Can you handle
them?
Yes, we can!

7. Yes, we can!
Really?

8. ...after inventing the next,
cutting edge, enterprise
architecture...

9. ...and some* days
of development...

10. The servers are not
fast enough for your application ;)

11. xDebug
INSTALL AND CONFIGURE

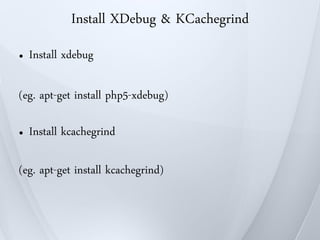

12. Install XDebug & KCachegrind
● Install xdebug
(eg. apt-get install php5-xdebug)
● Install kcachegrind
(eg. apt-get install kcachegrind)

13. Configure xDebug
● Configuration in
(/etc/php5/conf.d/xdebug.ini on Ubuntu)
● xdebug.profiler_enable_trigger = 1
● xdebug.profiler_output_dir = /..

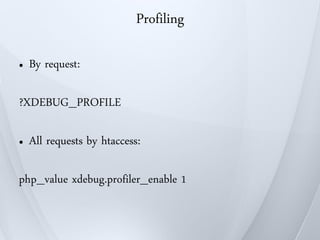

14. Profiling
● By request:
?XDEBUG_PROFILE
● All requests by htaccess:
php_value xdebug.profiler_enable 1

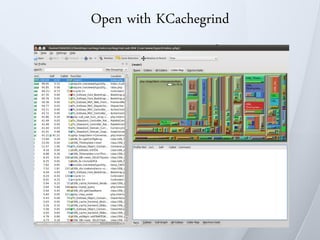

15. Open with KCachegrind

16. KCachegrind
OPTIMIZE WITH IDE AND MIND

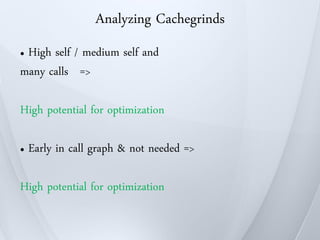

17. Analyzing Cachegrinds
●High self / medium self and
many calls =>
High potential for optimization
● Early in call graph & not needed =>
High potential for optimization

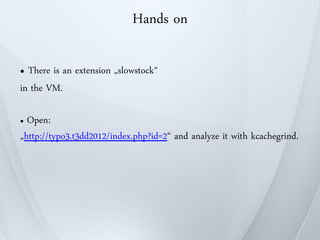

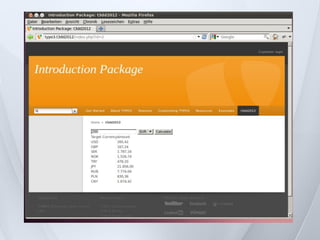

18. Hands on
● There is an extension „slowstock“
in the VM.
● Open:
„http://typo3.t3dd2012/index.php?id=2“ and analyze it with kcachegrind.

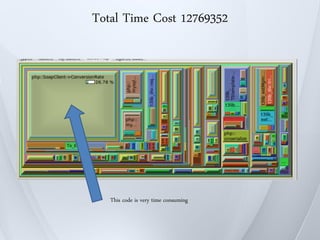

20. Total Time Cost 12769352
This code is very time consuming

21. Change 1 (SoapConversionRateProvider)
SoapClient is instantiated everytime
=> move to constructor

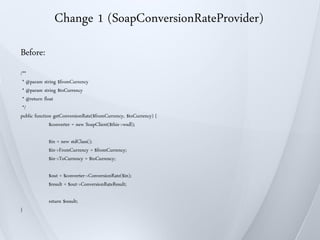

22. Change 1 (SoapConversionRateProvider)
Before:
/**
* @param string $fromCurrency
* @param string $toCurrency
* @return float
*/
public function getConversionRate($fromCurrency, $toCurrency) {
$converter = new SoapClient($this->wsdl);
$in = new stdClass();
$in->FromCurrency = $fromCurrency;
$in->ToCurrency = $toCurrency;
$out = $converter->ConversionRate($in);
$result = $out->ConversionRateResult;
return $result;
}

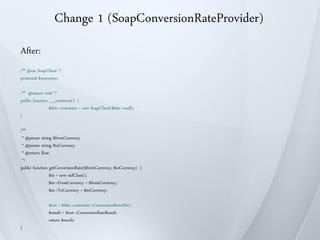

23. Change 1 (SoapConversionRateProvider)
After:
/** @var SoapClient */
protected $converter;
/** @return void */
public function __construct() {
$this->converter = new SoapClient($this->wsdl);
}
/**
* @param string $fromCurrency
* @param string $toCurrency
* @return float
*/
public function getConversionRate($fromCurrency, $toCurrency) {
$in = new stdClass();
$in->FromCurrency = $fromCurrency;
$in->ToCurrency = $toCurrency;
$out = $this->converter->ConversionRate($in);
$result = $out->ConversionRateResult;
return $result;
}

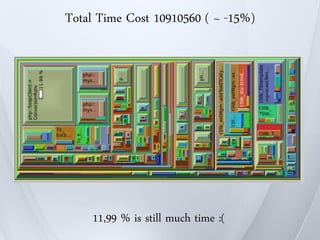

24. Total Time Cost 10910560 ( ~ -15%)
11,99 % is still much time :(

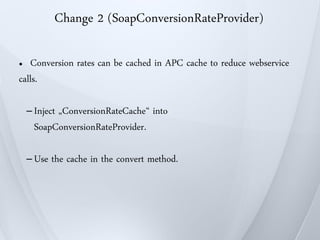

25. Change 2 (SoapConversionRateProvider)
● Conversion rates can be cached in APC cache to reduce webservice
calls.
– Inject
„ConversionRateCache“ into
SoapConversionRateProvider.
– Use the cache in the convert method.

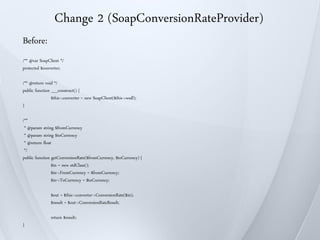

26. Change 2 (SoapConversionRateProvider)
Before:
/** @var SoapClient */
protected $converter;
/** @return void */
public function __construct() {
$this->converter = new SoapClient($this->wsdl);
}
/**
* @param string $fromCurrency
* @param string $toCurrency
* @return float
*/
public function getConversionRate($fromCurrency, $toCurrency) {
$in = new stdClass();
$in->FromCurrency = $fromCurrency;
$in->ToCurrency = $toCurrency;
$out = $this->converter->ConversionRate($in);
$result = $out->ConversionRateResult;
return $result;
}

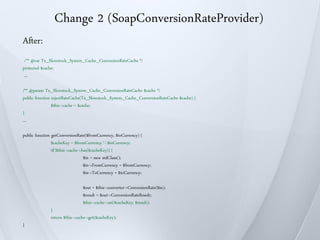

27. Change 2 (SoapConversionRateProvider)
After:
/** @var Tx_Slowstock_System_Cache_ConversionRateCache */
protected $cache;
...
/** @param Tx_Slowstock_System_Cache_ConversionRateCache $cache */
public function injectRateCache(Tx_Slowstock_System_Cache_ConversionRateCache $cache) {
$this->cache = $cache;
}
…
public function getConversionRate($fromCurrency, $toCurrency) {
$cacheKey = $fromCurrency.'-'.$toCurrency;
if(!$this->cache->has($cacheKey)) {
$in = new stdClass();
$in->FromCurrency = $fromCurrency;
$in->ToCurrency = $toCurrency;
$out = $this->converter->ConversionRate($in);
$result = $out->ConversionRateResult;
$this->cache->set($cacheKey, $result);
}
return $this->cache->get($cacheKey);
}

28. Change 2 (SoapConversionRateProvider)
After:
/** @var Tx_Slowstock_System_Cache_ConversionRateCache */
protected $cache;
...
/** @param Tx_Slowstock_System_Cache_ConversionRateCache $cache */
public function injectRateCache(Tx_Slowstock_System_Cache_ConversionRateCache $cache) {
$this->cache = $cache;
}
…
public function getConversionRate($fromCurrency, $toCurrency) {
$cacheKey = $fromCurrency.'-'.$toCurrency;
if(!$this->cache->has($cacheKey)) {
$in = new stdClass();
$in->FromCurrency = $fromCurrency;
$in->ToCurrency = $toCurrency;
$out = $this->converter->ConversionRate($in);
$result = $out->ConversionRateResult;
$this->cache->set($cacheKey, $result);
}
return $this->cache->get($cacheKey);
}

29. Total Time Cost 5187627 ( ~ -50%)
Much better, but let's look on the call
graph... do we need all that stuff?

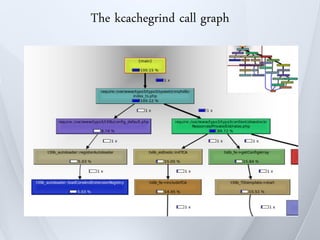

30. The kcachegrind call graph

31. The kcachegrind call graph
Do we need any TCA in Eid? No

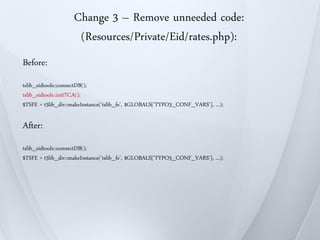

32. Change 3 – Remove unneeded code:
(Resources/Private/Eid/rates.php):
Before:
tslib_eidtools::connectDB();
tslib_eidtools::initTCA();
$TSFE = t3lib_div::makeInstance('tslib_fe', $GLOBALS['TYPO3_CONF_VARS'], ...);
After:
tslib_eidtools::connectDB();
$TSFE = t3lib_div::makeInstance('tslib_fe', $GLOBALS['TYPO3_CONF_VARS'], ...);

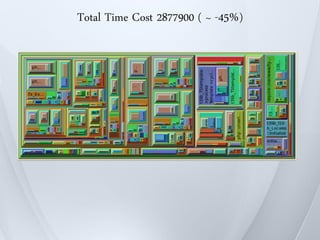

33. Total Time Cost 2877900 ( ~ -45%)

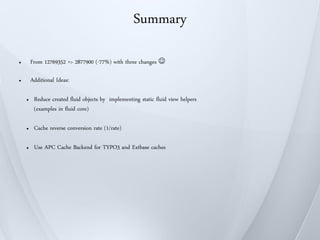

34. Summary
● From 12769352 => 2877900 (-77%) with three changes 
● Additional Ideas:
● Reduce created fluid objects by implementing static fluid view helpers
(examples in fluid core)
● Cache reverse conversion rate (1/rate)
● Use APC Cache Backend for TYPO3 and Extbase caches

35. JMeter
http://jmeter.apache.org/

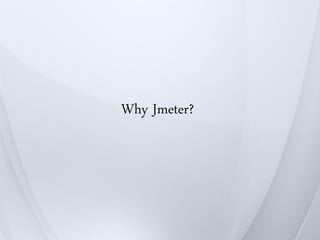

36. Why Jmeter?

37. JMeter
BUILD A SIMPLE WEB TESTPLAN

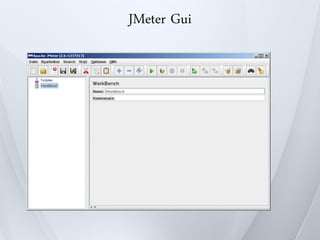

38. JMeter Gui

39. Add Thread Group

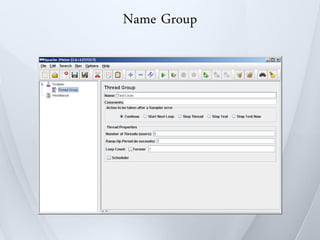

40. Name Group

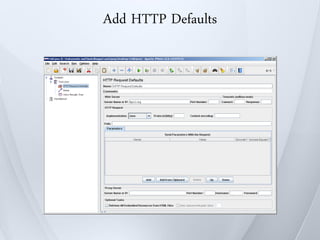

41. Add HTTP Defaults

42. Set Server

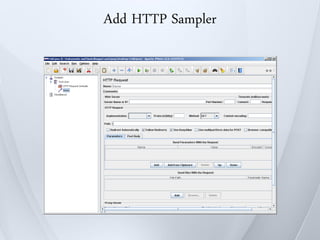

43. Add HTTP Sampler

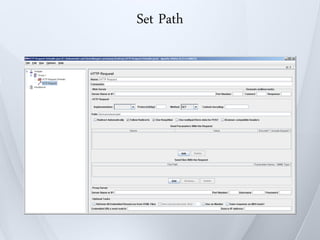

44. Set Path

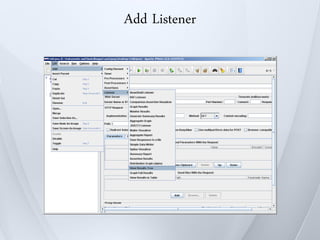

45. Add Listener

46. Start Tests

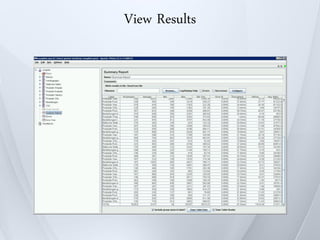

47. View Results

48. JMeter
RECORD WITH PROXY

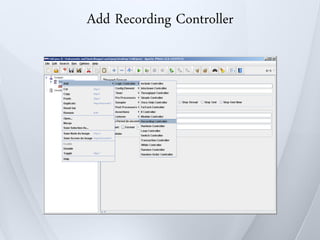

49. Add Recording Controller

50. Add Proxy Server

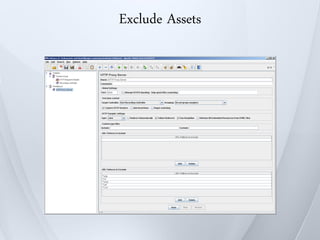

51. Exclude Assets

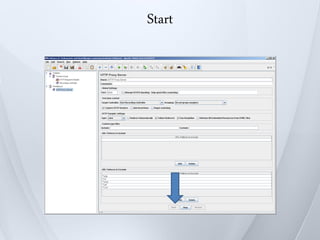

52. Start

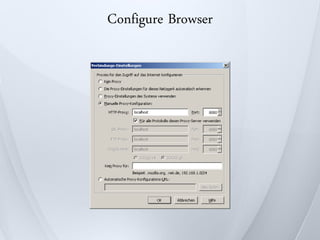

53. Configure Browser

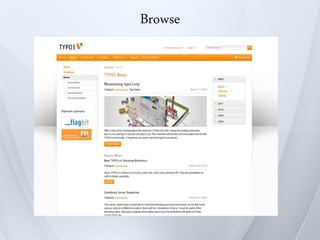

54. Browse

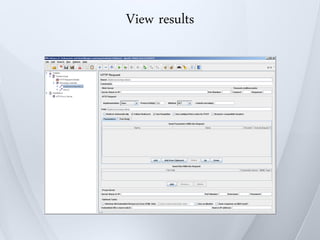

55. View results

56. JMeter
ADVANCED

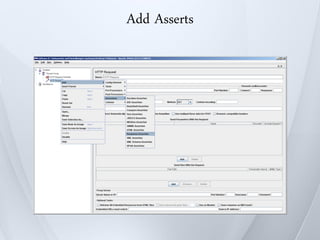

57. Add Asserts

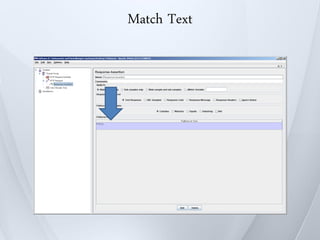

58. Match Text

59. Constant Timer

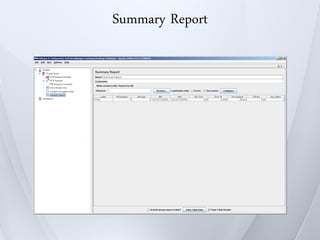

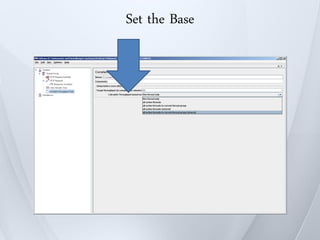

60. Set the Base

61. Summary Report

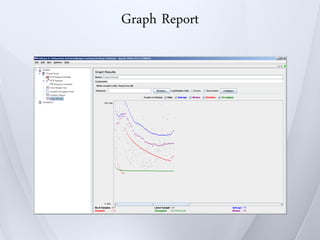

62. Graph Report

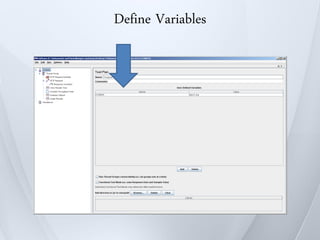

63. Define Variables

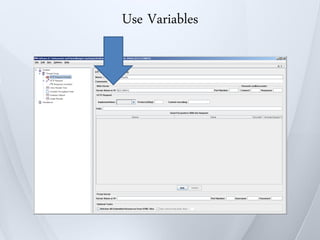

64. Use Variables

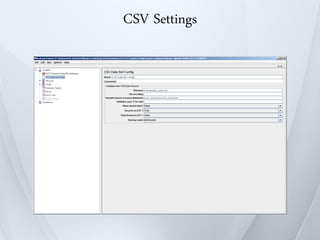

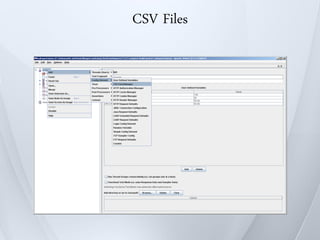

65. CSV Files

66. CSV Settings

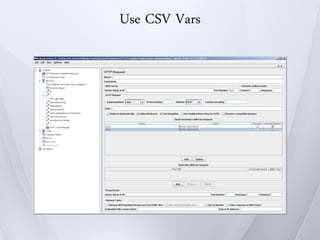

67. Use CSV Vars

68. Command Line
• /…/jmeter -n -t plan.jmx -l build/logs/testplan.jtl -j
build/logs/testplan.log

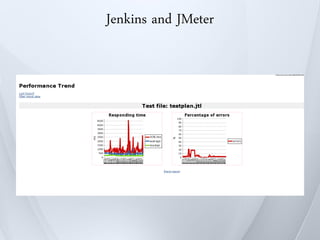

69. Jenkins and JMeter

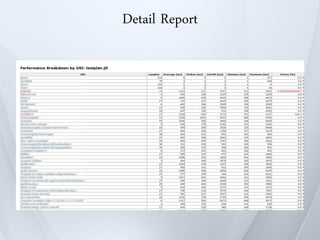

70. Detail Report

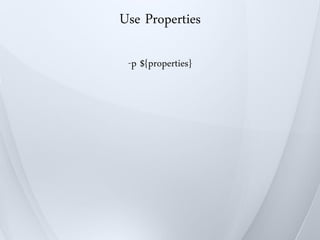

71. Use Properties
-p ${properties}

72. JMeter + Cloud
DISTRIBUTED TESTING

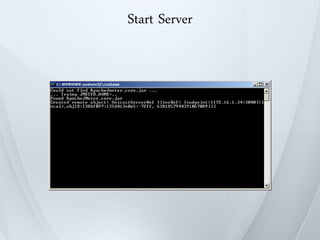

73. Start Server

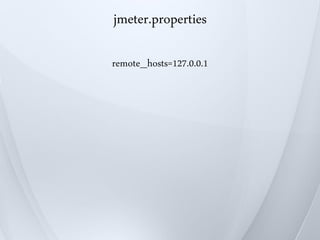

74. jmeter.properties
remote_hosts=127.0.0.1

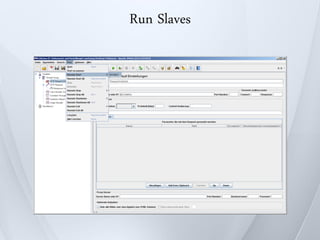

75. Run Slaves

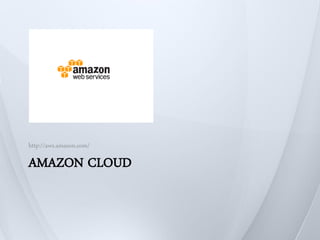

76. http://aws.amazon.com/
AMAZON CLOUD

77. Create User

78. EC2

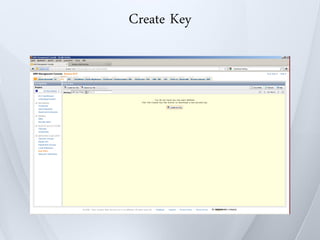

79. Create Key

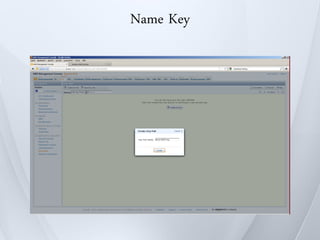

80. Name Key

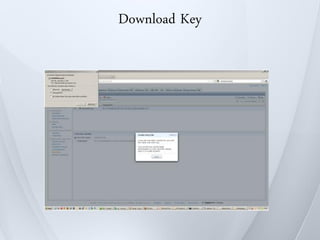

81. Download Key

82. Create Security Groups

83. Launch

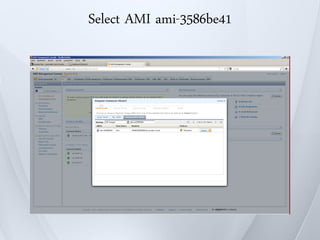

84. Select AMI ami-3586be41

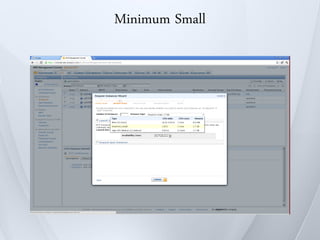

85. Minimum Small

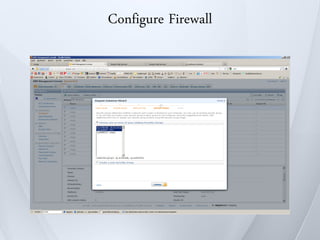

86. Configure Firewall

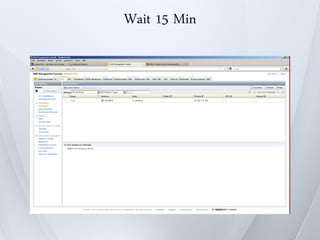

87. Wait 15 Min

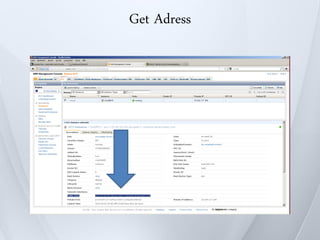

88. Get Adress

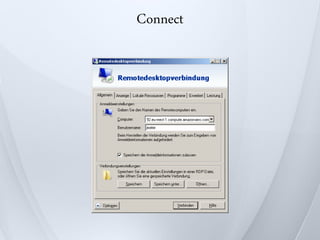

89. Connect

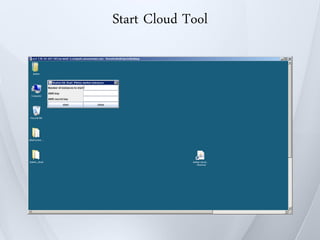

90. Start Cloud Tool

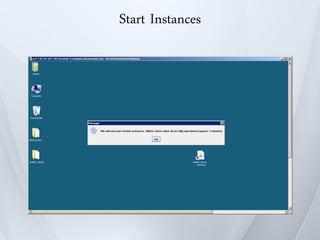

91. Start Instances

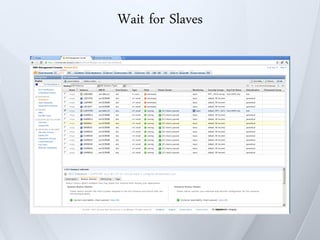

92. Wait for Slaves

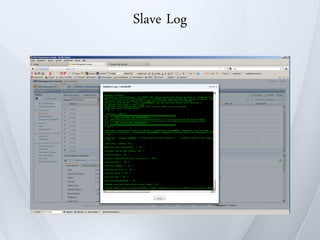

93. Slave Log

95. Close JMeter

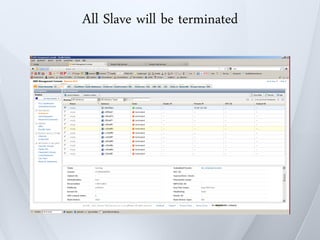

96. All Slave will be terminated

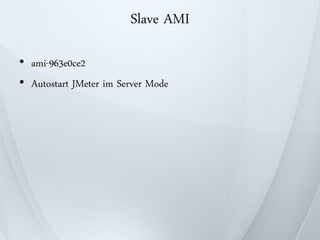

97. Slave AMI
• ami-963e0ce2
• Autostart JMeter im Server Mode

98. Costs
