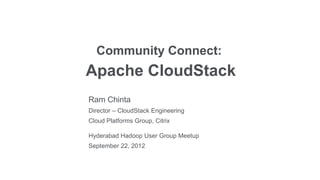

1. Community Connect:
Apache CloudStack
Ram Chinta
Director – CloudStack Engineering
Cloud Platforms Group, Citrix
Hyderabad Hadoop User Group Meetup
September 22, 2012

2. Agenda
• Introduction to CloudStack
• Essentials of a Cloud
• CloudStack Architecture
• Designing for diverse Workloads
• Hadoop and CloudStack
• Apache CloudStack Community

3. Introducing
Apache CloudStack

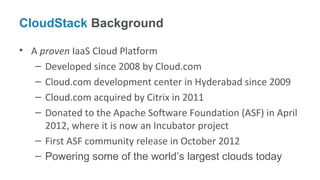

4. CloudStack Background
• A proven IaaS Cloud Platform
– Developed since 2008 by Cloud.com
– Cloud.com development center in Hyderabad since 2009
– Cloud.com acquired by Citrix in 2011
– Donated to the Apache Software Foundation (ASF) in April
2012, where it is now an Incubator project
– First ASF community release in October 2012
– Powering some of the world’s largest clouds today

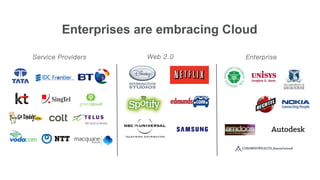

5. Enterprises are embracing Cloud
Service Providers Web 2.0 Enterprise

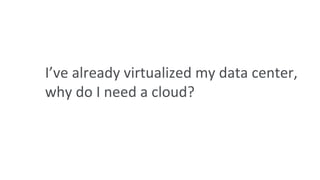

6. I’ve already virtualized my data center,
why do I need a cloud?

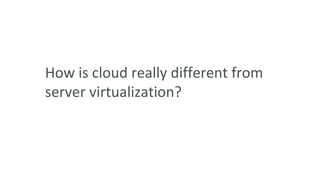

7. How is cloud really different from
server virtualization?

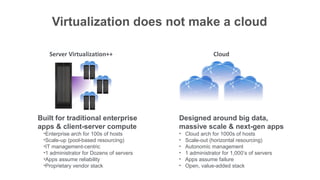

8. Virtualization does not make a cloud
Server Virtualization++ Cloud
Built for traditional enterprise Designed around big data,
apps & client-server compute massive scale & next-gen apps
•Enterprise arch for 100s of hosts • Cloud arch for 1000s of hosts
•Scale-up (pool-based resourcing) • Scale-out (horizontal resourcing)
•IT management-centric • Autonomic management
•1 administrator for Dozens of servers • 1 administrator for 1,000’s of servers
•Apps assume reliability • Apps assume failure
•Proprietary vendor stack • Open, value-added stack

9. Essentials of Cloud
• On-Demand and Self Serve
• Resource pooling, Multi-tenancy
• Massive Scale
• Rapid Elasticity
• APIs and Extreme Automation
• Total Homogeneous

10. CloudStack Architecture

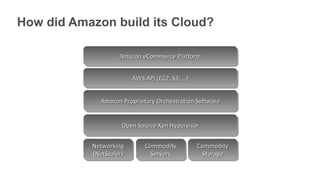

11. How did Amazon build its Cloud?
Amazon eCommerce Platform
Amazon eCommerce Platform
AWS API (EC2, S3, …)
AWS API (EC2, S3, …)
Amazon Proprietary Orchestration Software
Amazon Proprietary Orchestration Software
Open Source Xen Hypervisor
Open Source Xen Hypervisor
Networking
Networking Commodity
Commodity Commodity
Commodity
(NetScaler)
(NetScaler) Servers
Servers Storage
Storage

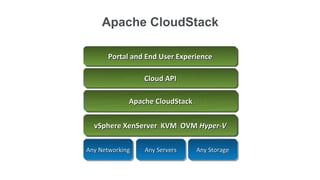

12. Apache CloudStack
Portal and End User Experience
Amazon eCommerce Platform
Portal and End User Experience
Amazon eCommerce Platform
AWS API (EC2, S3, …)
AWS Cloud APIS3, …)
API (EC2,
Cloud API
Amazon Proprietary CloudStack Software
Amazon Proprietary Orchestration Software
Apache CloudStack
Apache Orchestration
vSphere XenServerXen Hypervisor
Open Source KVM OVM Hyper-V
vSphere XenServerXen Hypervisor
Open Source KVM OVM Hyper-V
Any Networking
Any Networking Any Servers
Any Servers Any Storage
Any Storage

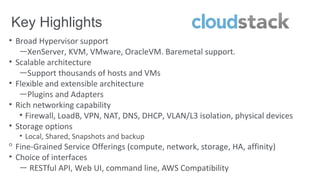

13. Key Highlights
• Broad Hypervisor support
—XenServer, KVM, VMware, OracleVM. Baremetal support.
• Scalable architecture
—Support thousands of hosts and VMs
• Flexible and extensible architecture
—Plugins and Adapters
• Rich networking capability
• Firewall, LoadB, VPN, NAT, DNS, DHCP, VLAN/L3 isolation, physical devices
• Storage options
• Local, Shared, Snapshots and backup
ᵒ Fine-Grained Service Offerings (compute, network, storage, HA, affinity)
• Choice of interfaces
— RESTful API, Web UI, command line, AWS Compatibility

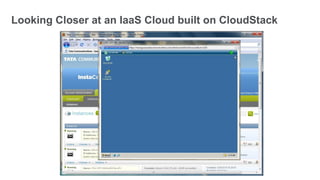

14. Looking Closer at an IaaS Cloud built on CloudStack

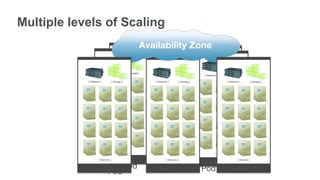

15. Multiple levels of Scaling
Availability Zone
VMOps VMOps Pod
VMOps CloudStack
Pod
CloudStack Pod CloudStack Pod Pod CloudStack Pod
Pod

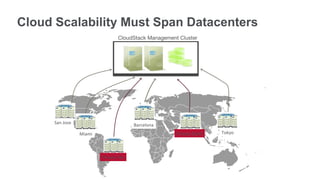

16. Cloud Scalability Must Span Datacenters
CloudStack Management Cluster
San Jose Barcelona
Miami Private Dehli Tokyo
Private Rio

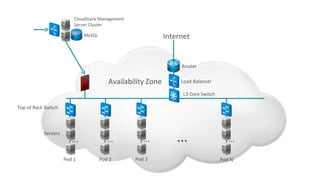

17. CloudStack Management
Server Cluster
MySQL Internet
Router
Availability Zone Load Balancer
L3 Core Switch
Top of Rack Switch
Servers
… … … … …
Pod 1 Pod 2 Pod 3 Pod N

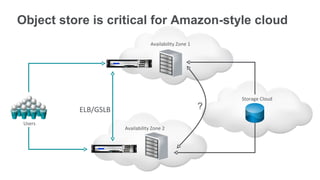

18. Object store is critical for Amazon-style cloud
Availability Zone 1
Storage Cloud
ELB/GSLB ?
Users
Availability Zone 2

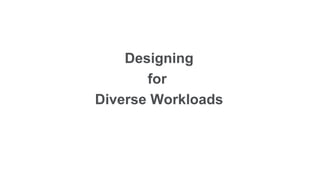

19. Designing
for
Diverse Workloads

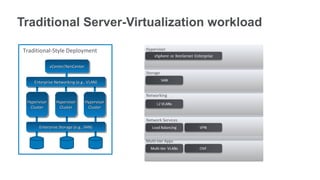

20. Traditional Server-Virtualization workload
Traditional-Style Deployment Hypervisor
vCenter/XenCenter
vCenter/XenCenter
Storage
Enterprise Networking (e.g., VLAN)
Enterprise Networking (e.g., VLAN)
Networking
Hypervisor
Hypervisor Hypervisor
Hypervisor Hypervisor
Hypervisor
Cluster
Cluster Cluster
Cluster Cluster
Cluster
Network Services
Enterprise Storage (e.g., SAN)
Enterprise Storage (e.g., SAN)
Multi-tier Apps

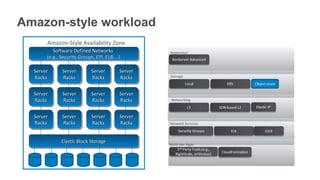

21. Amazon-style workload
Amazon-Style Availability Zone
Software Defined Networks
Software Defined Networks Hypervisor
(e.g., Security Groups, EIP, ELB,...)
(e.g., Security Groups, EIP, ELB,...)
Server
Server Server
Server Server
Server Server
Server
Racks Racks Racks Racks Storage
Racks Racks Racks Racks
Server
Server Server
Server Server
Server Server
Server
Racks
Racks Racks
Racks Racks
Racks Racks
Racks Networking
Server
Server Server
Server Server
Server Server
Server
Racks
Racks Racks
Racks Racks
Racks Racks
Racks Network Services
Elastic Block Storage
Elastic Block Storage Multi-tier Apps

22. Amazon-Style Cloud
Amazon-Style Availability Zone
CloudStack Mgmt
CloudStack Mgmt vCloud Director
Software Defined Networks
vCloud Director
Software Defined Networks
Server
Server (e.g., Security Groups, VPC,...)
(e.g., Security Groups, VPC,...)
Server
Server Server
Server vSphere
Server
vSphere
Server Server
Server
Racks
Racks Racks
Racks Racks
Racks Racks
Racks
Enterprise Networking (e.g., VLAN)
Enterprise Networking (e.g., VLAN)
Server
Server Server
Server Server
Server Server
Server
Availability
Availability Availability
Availability Availability
Availability Racks Racks Racks Racks
Zone Racks Racks Racks Racks
Zone
Zone Zone Zone
Zone
ESXi
ESXi ESXi
ESXi ESXi
ESXi
Server Cluster
Server
Server Cluster
Server Server
Cluster
Server
Cluster Server
Cluster
Server
Cluster
Racks
Racks Racks
Racks Racks
Racks Racks
Racks
Object Storage
Object Storage Elastic BlockStorage (e.g., SAN)
Enterprise Storage
Elastic BlockStorage (e.g., SAN)
Enterprise Storage

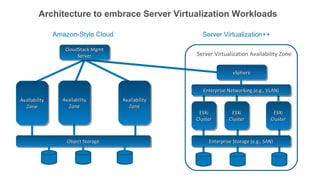

23. Architecture to embrace Server Virtualization Workloads
Amazon-Style Cloud Server Virtualization++
CloudStack Mgmt
CloudStack Mgmt
Server
Server
Server Virtualization Availability Zone
vSphere
vSphere
Enterprise Networking (e.g., VLAN)
Enterprise Networking (e.g., VLAN)
Availability
Availability Availability
Availability Availability
Availability
Zone
Zone Zone
Zone Zone
Zone
ESXi
ESXi ESXi
ESXi ESXi
ESXi
Cluster
Cluster Cluster
Cluster Cluster
Cluster
Object Storage
Object Storage Enterprise Storage (e.g., SAN)
Enterprise Storage (e.g., SAN)

24. Hadoop and CloudStack

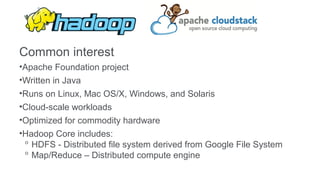

25. Common interest
•Apache Foundation project
•Written in Java
•Runs on Linux, Mac OS/X, Windows, and Solaris
•Cloud-scale workloads
•Optimized for commodity hardware
•Hadoop Core includes:
ᵒ HDFS - Distributed file system derived from Google File System
ᵒ Map/Reduce – Distributed compute engine

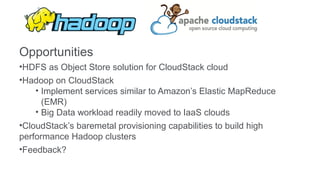

26. Opportunities
•HDFS as Object Store solution for CloudStack cloud
•Hadoop on CloudStack
• Implement services similar to Amazon’s Elastic MapReduce
(EMR)
• Big Data workload readily moved to IaaS clouds
•CloudStack’s baremetal provisioning capabilities to build high
performance Hadoop clusters
•Feedback?

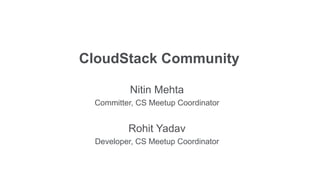

27. CloudStack Community
Nitin Mehta
Committer, CS Meetup Coordinator
Rohit Yadav
Developer, CS Meetup Coordinator

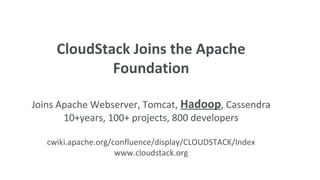

28. CloudStack Joins the Apache
Foundation
Joins Apache Webserver, Tomcat, Hadoop, Cassendra
10+years, 100+ projects, 800 developers
cwiki.apache.org/confluence/display/CLOUDSTACK/Index
www.cloudstack.org

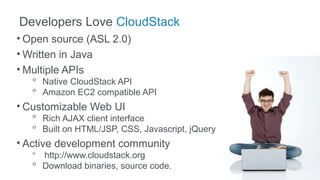

29. Developers Love CloudStack
• Open source (ASL 2.0)
• Written in Java
• Multiple APIs
ᵒ Native CloudStack API
ᵒ Amazon EC2 compatible API
• Customizable Web UI
ᵒ Rich AJAX client interface
ᵒ Built on HTML/JSP, CSS, Javascript, jQuery
• Active development community
ᵒ http://www.cloudstack.org
ᵒ Download binaries, source code.

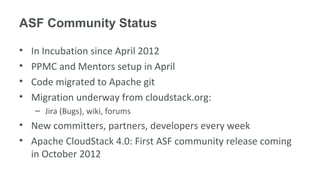

30. ASF Community Status
• In Incubation since April 2012
• PPMC and Mentors setup in April
• Code migrated to Apache git
• Migration underway from cloudstack.org:
– Jira (Bugs), wiki, forums
• New committers, partners, developers every week
• Apache CloudStack 4.0: First ASF community release coming
in October 2012

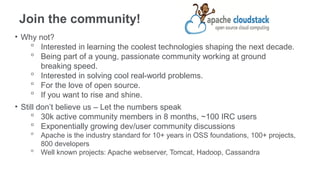

31. Join the community!
• Why not?
ᵒ Interested in learning the coolest technologies shaping the next decade.
ᵒ Being part of a young, passionate community working at ground
breaking speed.
ᵒ Interested in solving cool real-world problems.
ᵒ For the love of open source.
ᵒ If you want to rise and shine.
• Still don’t believe us – Let the numbers speak
ᵒ 30k active community members in 8 months, ~100 IRC users
ᵒ Exponentially growing dev/user community discussions
ᵒ Apache is the industry standard for 10+ years in OSS foundations, 100+ projects,
800 developers
ᵒ Well known projects: Apache webserver, Tomcat, Hadoop, Cassandra

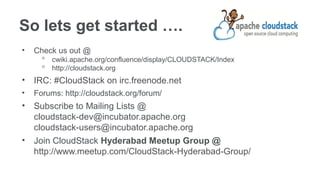

32. So lets get started ….
• Check us out @
ᵒ cwiki.apache.org/confluence/display/CLOUDSTACK/Index
ᵒ http://cloudstack.org
• IRC: #CloudStack on irc.freenode.net
• Forums: http://cloudstack.org/forum/
• Subscribe to Mailing Lists @
cloudstack-dev@incubator.apache.org
cloudstack-users@incubator.apache.org
• Join CloudStack Hyderabad Meetup Group @
http://www.meetup.com/CloudStack-Hyderabad-Group/
