- 1. ANGLE ANATOMY PRESENTOR :DR R GENICKSON JEYARAJ, JR MODERATOR : DR BHAGABAT NAYAK, CONSULTANT DR GARIMA, SR
- 2.
- 3. STRUCTURES IN ANGLE •POSTERIOR TO ANTERIOR • CILIARY BAND • SCLERAL SPUR • TRABECULAR MESHWORK • SCHWALBE’S LINE
- 4. CILIARY BAND • Thisstructural portion of ciliary body is visible in the A.C. as a result of iris insertion into ciliary body • Width depends on level of iris insertion • Wider in myopes and narrow in hyperopia • Color: grey to dark brown
- 5. SCLERAL SPUR • Mostanterior projection of the sclera aand site of attachment of longitudinal muscles of the ciliary body • This is the posterior Lip of scleral sulcus which is attached to the ciliary body posteriorly and corneo-scleral meshwork anteriorly • Color : prominent white line
- 6. TRABECULAR MESHWORK • Pigmentedband anterior to scleral spur • Although extent of TMW is from root of iris to Schwalbe's line it is considered as 2 portions • a) Anterior - between Schwalbe's line and anterior Edge of Schlemm's canal Involved in lesser degree of aqueous out flow • b) Posterior – Functional part , primary site of aqueous out flow • Appearance of functional TMW depends on amount of pigment deposition
- 7. • At birthno pigment and with age from faint to dark brown • Pigment deposition may be homogeneous or irregular • When lightly pigmented blood reflex in Schlemm's canal may be seen as a red band
- 8. SCHWALBE’S LINE • Junctionbetween anterior chamber angle structures and cornea where the Descemet's membrane terminates • Fine ridge anterior to TMW identified by a small built up of pigment • Landmark for TMW in narrow angle
- 9. IRIS PROCESSES • Smalltenuous extensions of anterior surface of the iris that insert at the level of scleral spur and cover the ciliary boy to a variable extend.
- 10. BLOOD VESSELS • Radialvessels at the angle recess base. • Pathological vessels run randomly • Any vessel that cross scleral spur onto trabecular meshwork is abnormal.
- 11.
- 12.
- 13.
- 14. Open angle closedangle
- 15.

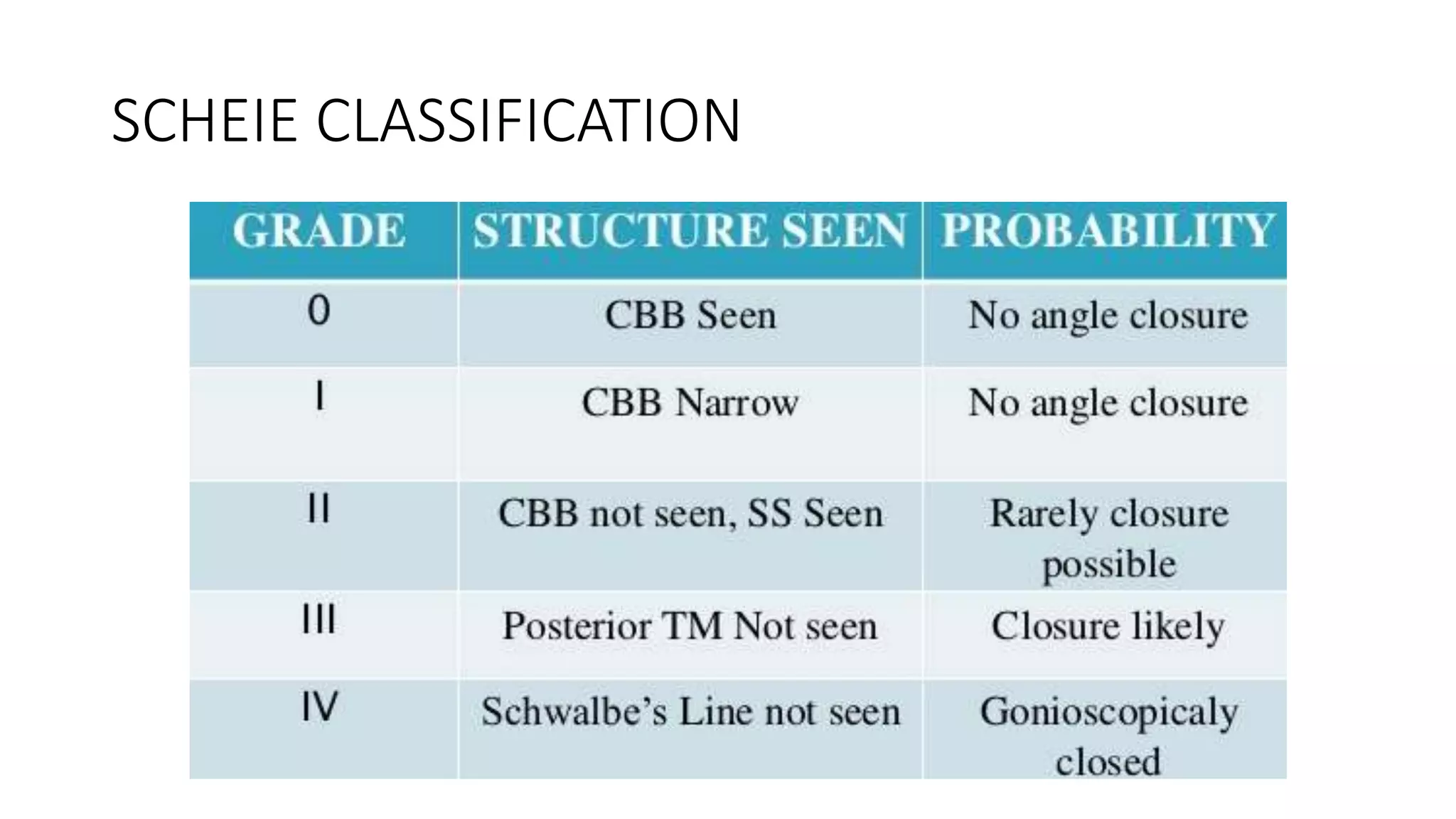

- 17. GRADING • SHAFFER’S GRADING •SCHIE’S CLASSIFICATION • SPAETH CLASSIFICATIOIN
- 18.
- 19.
- 20.
- 22. VAN HERICK SYSEMOF CLASSIFICATION
- 24.
- 25. PATHOLOGICAL FINDINGS INGONIOSCOPY
- 26. PERIPHERAL ANTERIOR SYNECHIAE •PRIMARY ANGLE CLOSURE GLAUCOMA • ANTERIOR UVEITIS • ICE SYNDROME
- 27. PERIPHERAL ANTERIOR SYNECHIAEIRIS PROCESSES • Free • Extend into scleral spur • Follow concavity of recess • Underlying structures are seen • Iris moves with indentation • Breaks with angle recession • Broad • Extending beyond scleral spur • Bridge concavity of recess • obscure structures • Resist movement • intact
- 28. NEOVASCULARIZATION • NEOVASCULAR GLAUCOMA •FUCHS HETEROCHROMIC CYCLITIS • CHRONIC ANTERIOR UVEITIS
- 29. TRAUMA • ANGLE RECESSION •TRABECULAR DIALYSIS • CYCLODIALYSIS • FOREIGN BODIES
- 30. HYPERPIGMENTATION • PHYSIOLOGICAL VARIENT •PIGMENT DISPERSION SYNDROME • PSEUDOPHAKIC PIGMENT DISPERSION • PSEUDOEXFOLIATION SYNDROME • BLUNT OCULAR TRAUMA • ANTERIOR UVEITIS • POST ACUTE ACG • POST YAG IRIDOTOMY • IRIS NEVUS,NEVUS OF OTA
- 32. BLOOD IN SCHLEMMCANAL • PHYSIOLOGICAL VARIENT • CAROTID ACAVERNOUS FISTULA AND DURAL SHUNT • STURGE WEBER SYNDROME • SVC OBSTRUCTION
- 33.
