1. ANGLE OF ANTERIOR CHAMBER
AND AQUEOUS HUMOR DYNAMICS
Dr. GARIYASHEE LAHKAR

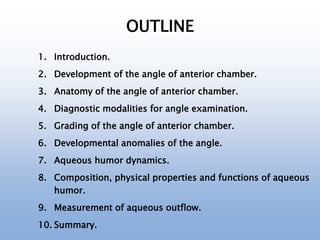

2. OUTLINE
1. Introduction.
2. Development of the angle of anterior chamber.
3. Anatomy of the angle of anterior chamber.
4. Diagnostic modalities for angle examination.
5. Grading of the angle of anterior chamber.
6. Developmental anomalies of the angle.
7. Aqueous humor dynamics.
8. Composition, physical properties and functions of aqueous
humor.
9. Measurement of aqueous outflow.
10. Summary.

3. INTRODUCTION
• ANGLE OF ANTERIOR CHAMBER:
The peripheral recess of
anterior chamber.
Clinically, can be visualized by
gonioscopic examination.
Plays an important role in the
process of aqueous drainage.

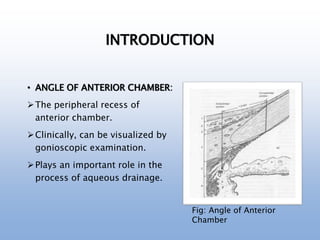

Fig: Angle of Anterior
Chamber

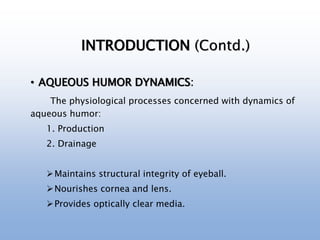

4. INTRODUCTION (Contd.)
• AQUEOUS HUMOR DYNAMICS:
The physiological processes concerned with dynamics of
aqueous humor:
1. Production
2. Drainage
Maintains structural integrity of eyeball.
Nourishes cornea and lens.
Provides optically clear media.

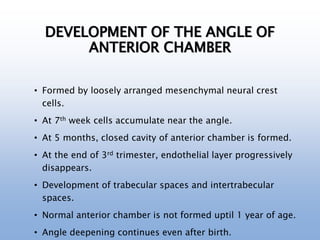

5. DEVELOPMENT OF THE ANGLE OF
ANTERIOR CHAMBER
• Formed by loosely arranged mesenchymal neural crest
cells.
• At 7th week cells accumulate near the angle.
• At 5 months, closed cavity of anterior chamber is formed.
• At the end of 3rd trimester, endothelial layer progressively
disappears.
• Development of trabecular spaces and intertrabecular
spaces.
• Normal anterior chamber is not formed uptil 1 year of age.
• Angle deepening continues even after birth.

6. DEVELOPMENT OF THE ANGLE OF
ANTERIOR CHAMBER

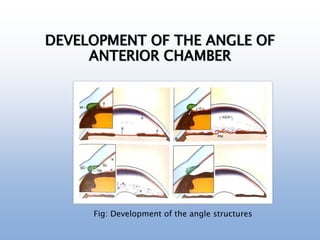

Fig: Development of the angle structures

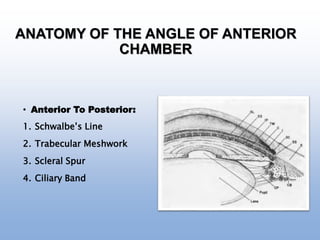

7. ANATOMY OF THE ANGLE OF ANTERIOR
CHAMBER
• Anterior To Posterior:
1. Schwalbe’s Line
2. Trabecular Meshwork
3. Scleral Spur
4. Ciliary Band

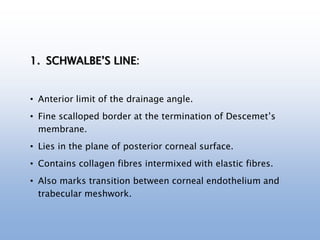

8. 1. SCHWALBE’S LINE:
• Anterior limit of the drainage angle.
• Fine scalloped border at the termination of Descemet’s
membrane.
• Lies in the plane of posterior corneal surface.
• Contains collagen fibres intermixed with elastic fibres.
• Also marks transition between corneal endothelium and
trabecular meshwork.

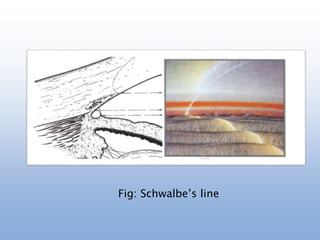

9. Fig: Schwalbe’s line

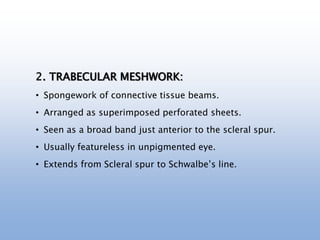

10. 2. TRABECULAR MESHWORK:
• Spongework of connective tissue beams.
• Arranged as superimposed perforated sheets.
• Seen as a broad band just anterior to the scleral spur.
• Usually featureless in unpigmented eye.
• Extends from Scleral spur to Schwalbe’s line.

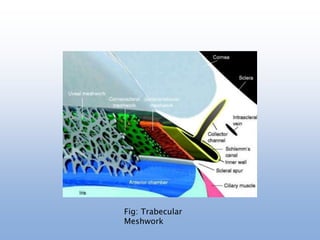

11. Fig: Trabecular
Meshwork

12. 2. TRABECULAR MESHWORK:
• Microscopically, trabecular meshwork consists of 3
portions:
1. Uveal Meshwork
2. Corneoscleral Meshwork
3. Juxtacannalicular /Cribriform Meshwork

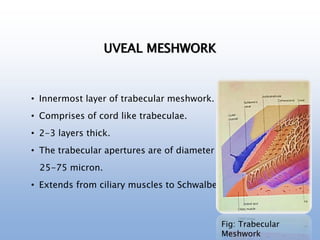

13. UVEAL MESHWORK
• Innermost layer of trabecular meshwork.
• Comprises of cord like trabeculae.
• 2-3 layers thick.
• The trabecular apertures are of diameter
25-75 micron.
• Extends from ciliary muscles to Schwalbe’s line.
Fig: Trabecular
Meshwork

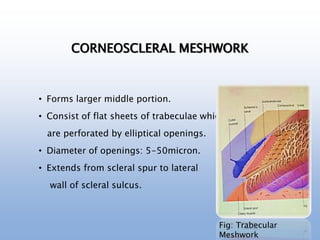

14. CORNEOSCLERAL MESHWORK
• Forms larger middle portion.
• Consist of flat sheets of trabeculae which
are perforated by elliptical openings.
• Diameter of openings: 5-50micron.
• Extends from scleral spur to lateral
wall of scleral sulcus.
Fig: Trabecular
Meshwork

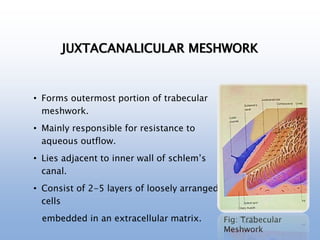

15. JUXTACANALICULAR MESHWORK
• Forms outermost portion of trabecular
meshwork.
• Mainly responsible for resistance to
aqueous outflow.
• Lies adjacent to inner wall of schlem’s
canal.
• Consist of 2-5 layers of loosely arranged
cells
embedded in an extracellular matrix. Fig: Trabecular
Meshwork

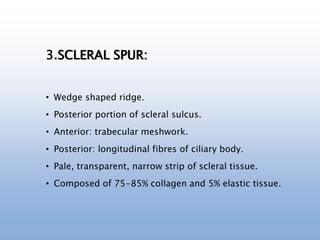

16. 3.SCLERAL SPUR:
• Wedge shaped ridge.
• Posterior portion of scleral sulcus.
• Anterior: trabecular meshwork.
• Posterior: longitudinal fibres of ciliary body.
• Pale, transparent, narrow strip of scleral tissue.
• Composed of 75-85% collagen and 5% elastic tissue.

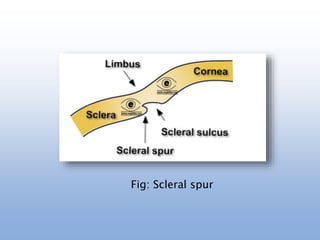

17. Fig: Scleral spur

18. 4. CILIARY BAND:
• Anterior most part of the ciliary body.
• Lies between its attachment to scleral spur
and insertion of iris.
• Forms posterior most landmark of angle
recess.
• Width depends upon the level of iris
insertion.
• Consists of longitudinal fibres.

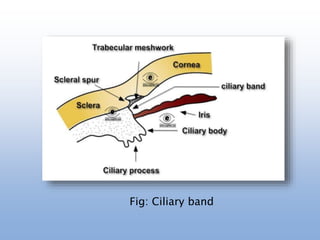

19. Fig: Ciliary band

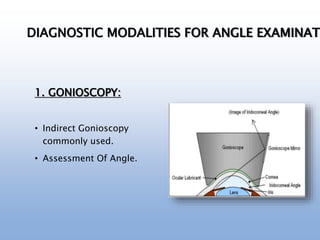

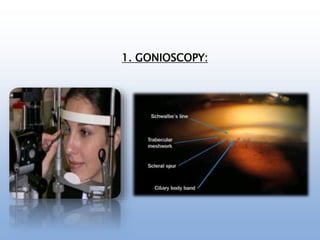

20. 1. GONIOSCOPY:
• Indirect Gonioscopy
commonly used.
• Assessment Of Angle.
DIAGNOSTIC MODALITIES FOR ANGLE EXAMINATI

21. 1. GONIOSCOPY:

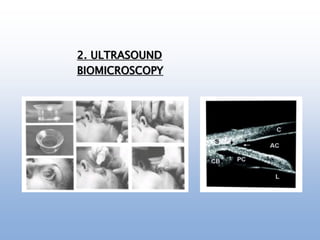

22. 2. ULTRASOUND
BIOMICROSCOPY

23. 3. ANTERIOR SEGMENT OCT

24. GRADING OF THE ANGLE OF ANTERIOR
CHAMBER
SHAFFER’S
GRADING

25. DEVELOPMENTAL ANOMALIES OF THE ANGLE
1. Primary Congenital Glaucoma
2. Posterior Embryotoxon
3. Axenfeld-Rigler Syndrome
4. Aniridia
5. Coloboma

26. AQUEOUS HUMOR DYNAMICS

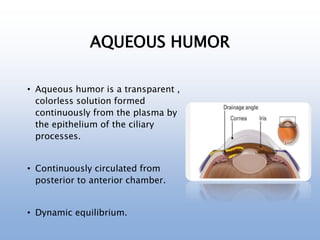

27. AQUEOUS HUMOR
• Aqueous humor is a transparent ,
colorless solution formed
continuously from the plasma by
the epithelium of the ciliary
processes.
• Continuously circulated from
posterior to anterior chamber.
• Dynamic equilibrium.

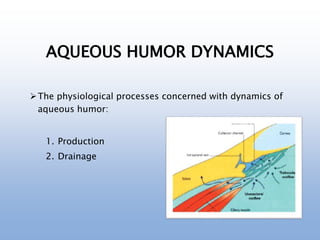

28. AQUEOUS HUMOR DYNAMICS
The physiological processes concerned with dynamics of
aqueous humor:
1. Production
2. Drainage

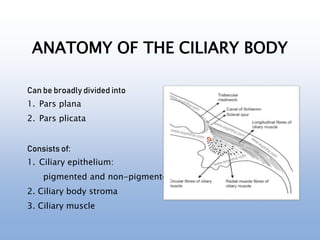

29. ANATOMY OF THE CILIARY BODY
Can be broadly divided into
1. Pars plana
2. Pars plicata
Consists of:
1. Ciliary epithelium:
pigmented and non-pigmented
2. Ciliary body stroma
3. Ciliary muscle

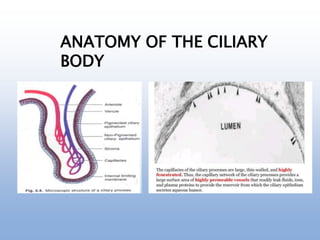

30. ANATOMY OF THE CILIARY
BODY

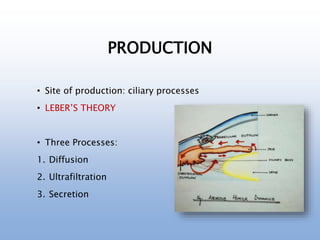

31. PRODUCTION
• Site of production: ciliary processes
• LEBER’S THEORY
• Three Processes:
1. Diffusion
2. Ultrafiltration
3. Secretion

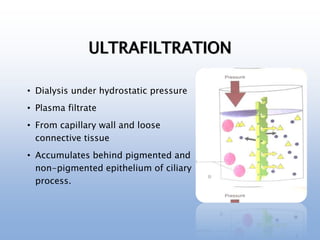

32. ULTRAFILTRATION
• Dialysis under hydrostatic pressure
• Plasma filtrate
• From capillary wall and loose
connective tissue
• Accumulates behind pigmented and
non-pigmented epithelium of ciliary
process.

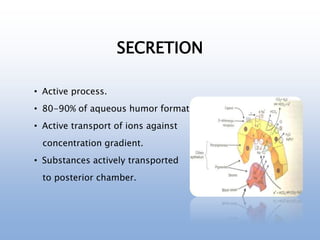

33. SECRETION
• Active process.
• 80-90% of aqueous humor formation.
• Active transport of ions against
concentration gradient.
• Substances actively transported
to posterior chamber.

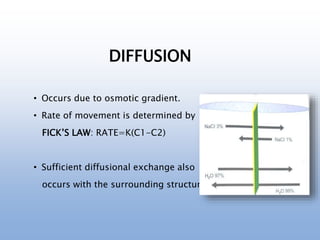

34. DIFFUSION
• Occurs due to osmotic gradient.
• Rate of movement is determined by
FICK’S LAW: RATE=K(C1-C2)
• Sufficient diffusional exchange also
occurs with the surrounding structures.

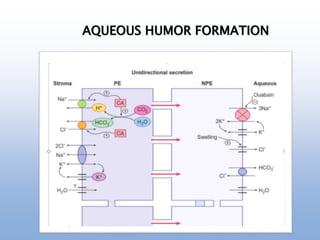

35. AQUEOUS HUMOR FORMATION

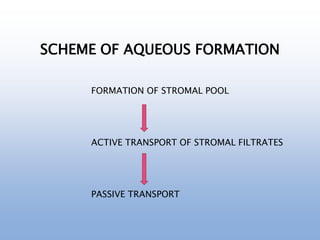

36. SCHEME OF AQUEOUS FORMATION
FORMATION OF STROMAL POOL
ACTIVE TRANSPORT OF STROMAL FILTRATES
PASSIVE TRANSPORT

37. SCHEME OF AQUEOUS
FORMATION

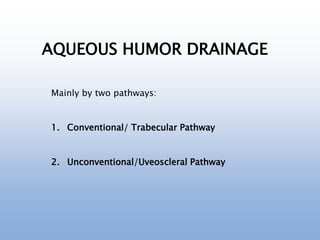

38. AQUEOUS HUMOR DRAINAGE
Mainly by two pathways:
1. Conventional/ Trabecular Pathway
2. Unconventional/Uveoscleral Pathway

39. ANATOMY OF THE OUTFLOW
SYSTEM
1. Trabecular Meshwork
2. Schlemn’s Canal
3. Collector Channels:
• Direct
• Indirect

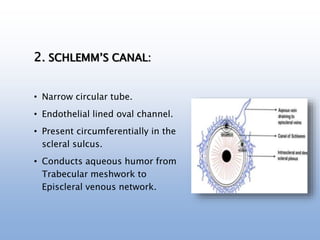

40. 2. SCHLEMM’S CANAL:
• Narrow circular tube.
• Endothelial lined oval channel.
• Present circumferentially in the
scleral sulcus.
• Conducts aqueous humor from
Trabecular meshwork to
Episcleral venous network.

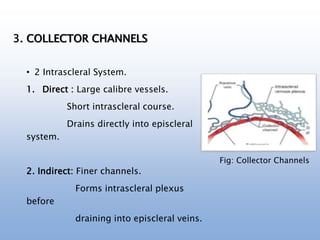

41. 3. COLLECTOR CHANNELS
• 2 Intrascleral System.
1. Direct : Large calibre vessels.
Short intrascleral course.
Drains directly into episcleral
system.
2. Indirect: Finer channels.
Forms intrascleral plexus
before
draining into episcleral veins.
Fig: Collector Channels

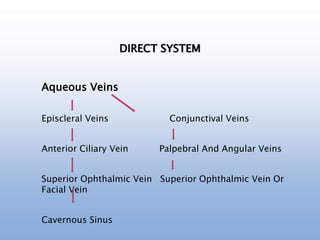

42. DIRECT SYSTEM
Aqueous Veins
Episcleral Veins Conjunctival Veins
Anterior Ciliary Vein Palpebral And Angular Veins
Superior Ophthalmic Vein Superior Ophthalmic Vein Or
Facial Vein
Cavernous Sinus

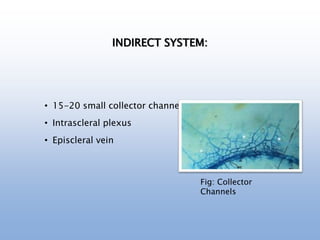

43. INDIRECT SYSTEM:
• 15-20 small collector channels
• Intrascleral plexus
• Episcleral vein
Fig: Collector
Channels

44. AQUEOUS HUMOR DRAINAGE

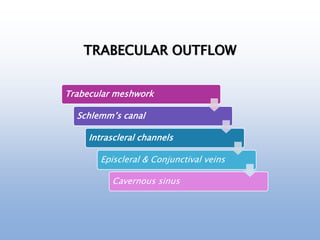

45. TRABECULAR OUTFLOW
Trabecular meshwork
Schlemm’s canal
Intrascleral channels
Episcleral & Conjunctival veins
Cavernous sinus

46. UVEOSCLERAL OUTFLOW
Ciliary body
Suprachoroidal space
Ciliary body venous circulation
Sclera

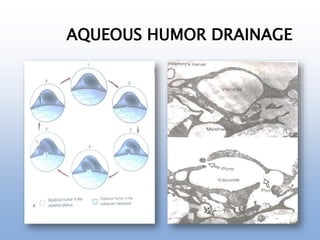

47. AQUEOUS HUMOR DRAINAGE

48. AQUEOUS HUMOR DRAINAGE

49. AQUEOUS HUMOR DRAINAGE

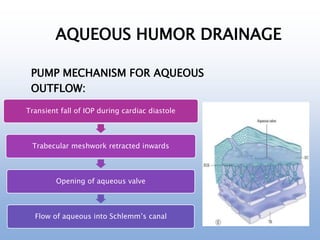

PUMP MECHANISM FOR AQUEOUS
OUTFLOW:
Transient fall of IOP during cardiac diastole
Trabecular meshwork retracted inwards
Opening of aqueous valve
Flow of aqueous into Schlemm’s canal

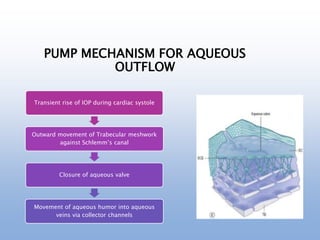

50. PUMP MECHANISM FOR AQUEOUS
OUTFLOW
Transient rise of IOP during cardiac systole
Outward movement of Trabecular meshwork
against Schlemm’s canal
Closure of aqueous valve
Movement of aqueous humor into aqueous
veins via collector channels

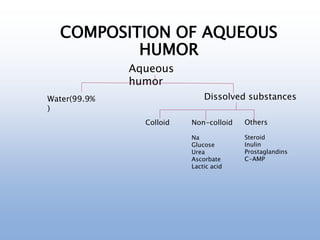

51. Aqueous
humor
Water(99.9%
)
Dissolved substances
Colloid Non-colloid
Na
Glucose
Urea
Ascorbate
Lactic acid
Others
Steroid
Inulin
Prostaglandins
C-AMP
COMPOSITION OF AQUEOUS
HUMOR

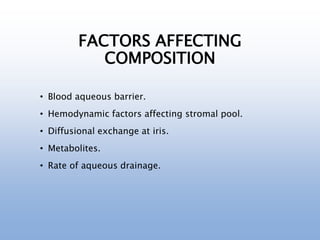

52. FACTORS AFFECTING
COMPOSITION
• Blood aqueous barrier.
• Hemodynamic factors affecting stromal pool.
• Diffusional exchange at iris.
• Metabolites.
• Rate of aqueous drainage.

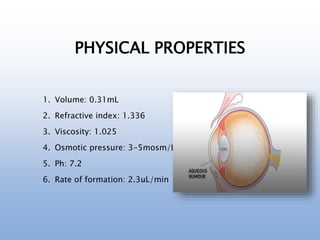

53. PHYSICAL PROPERTIES
1. Volume: 0.31mL
2. Refractive index: 1.336
3. Viscosity: 1.025
4. Osmotic pressure: 3-5mosm/L
5. Ph: 7.2
6. Rate of formation: 2.3uL/min

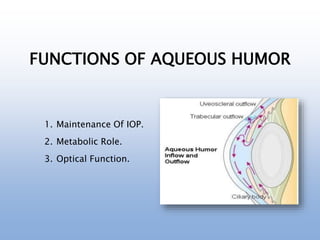

54. FUNCTIONS OF AQUEOUS HUMOR
1. Maintenance Of IOP.
2. Metabolic Role.
3. Optical Function.

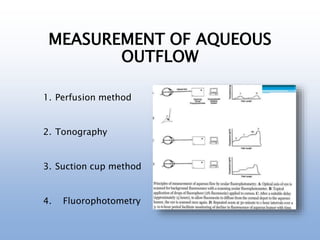

55. MEASUREMENT OF AQUEOUS
OUTFLOW
1. Perfusion method
2. Tonography
3. Suction cup method
4. Fluorophotometry

56. SUMMARY
• The angle of anterior chamber plays an important role in
the process of aqueous drainage.
• Gonioscopy is most reliable for assessment of angle
structures.
• A number of structural changes are observed in the angle
with advancing age that causes increased resistance in
ageing eyes.
• The aqueous humor fills the anterior and posterior
chamber of the eye.
• The aqueous humor remains in a state of dynamic
equilibrium by continuous process of production and
drainage.

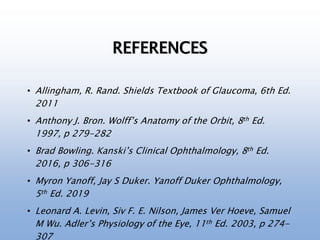

57. REFERENCES
