1. The document discusses JIB and Google Cloud Run for containerizing Java applications. 2. JIB is a tool that builds container images for Java applications faster and produces smaller images. It works by compiling the application to a container image without using Dockerfiles or needing a Docker daemon. 3. Google Cloud Run is a serverless platform that allows running containerized applications without having to manage infrastructure. It provides a fully managed environment to deploy containers.

1. Intro to JIB and Google Cloud Run
Saiyam Pathak
Twitter - @saiyampathak
Blog – https://medium.com/@saiyampathak
3rd August 2019

2. JIB -
Build
containers
faster with Jib

3. Containers
“Write once, run anywhere”

4. Building a Java
container

6. So I read some
tutorials

7. FROM ubuntu:14.04
RUN apt-get update && apt-get install -y python-software-properties software-properties-common
RUN add-apt-repository ppa:webupd8team/java
RUN echo "oracle-java8-installer shared/accepted-oracle-license-v1-1 boolean true"| debconf-set-selections
RUN apt-get update && apt-get install -y oracle-java8-installer maven
ADD . /usr/local/MyDemo
RUN cd /usr/local/petclinic && mvn install
CMD ["/usr/bin/java", "-cp", "/usr/local/petclinic/target/MyDemo-0.0.1-SNAPSHOT.war
," "petclinic.WebServer"]

8. So I read some more
tutorials

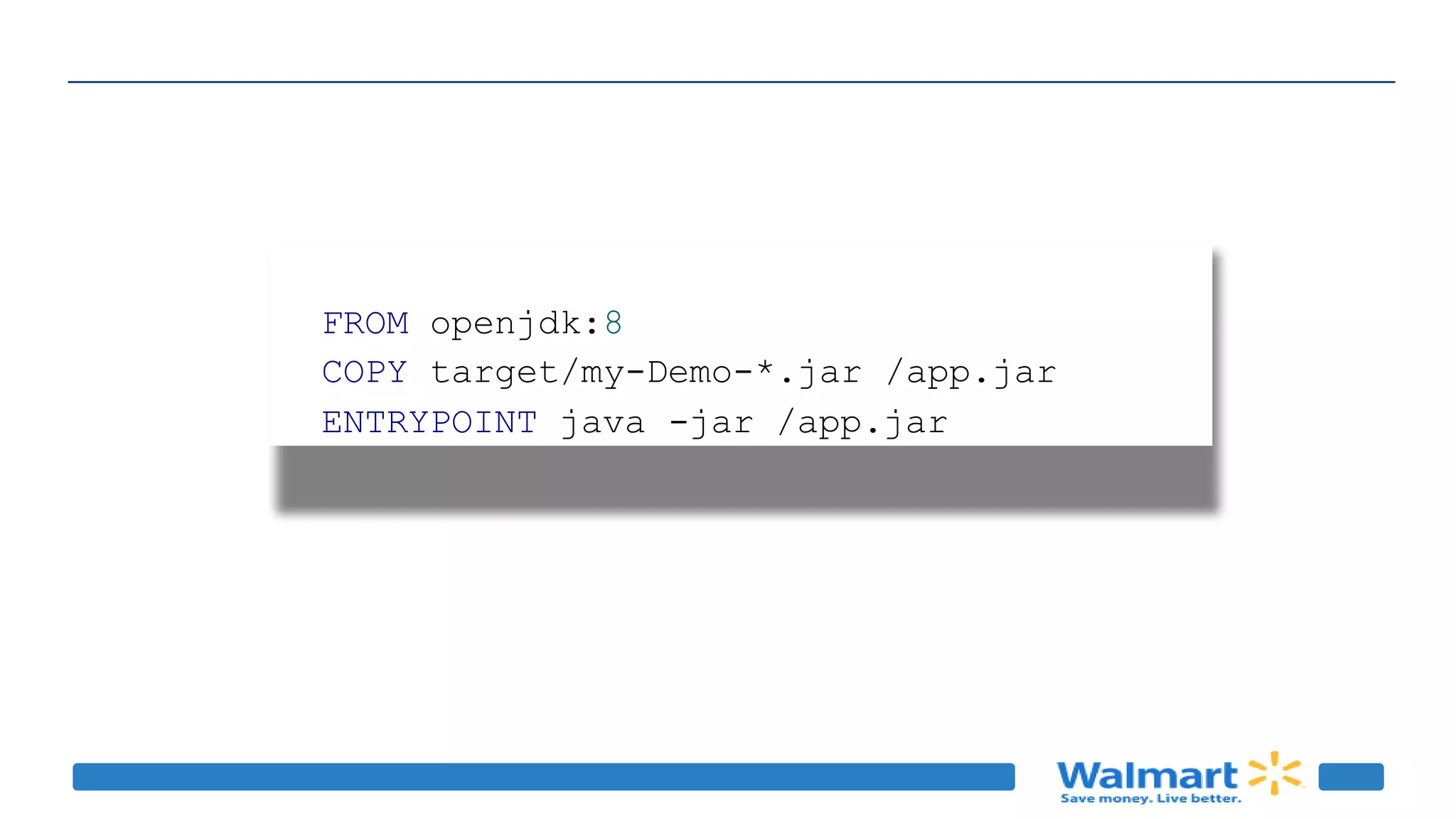

9. FROM openjdk:8
COPY target/my-Demo-*.jar /app.jar
ENTRYPOINT java -jar /app.jar

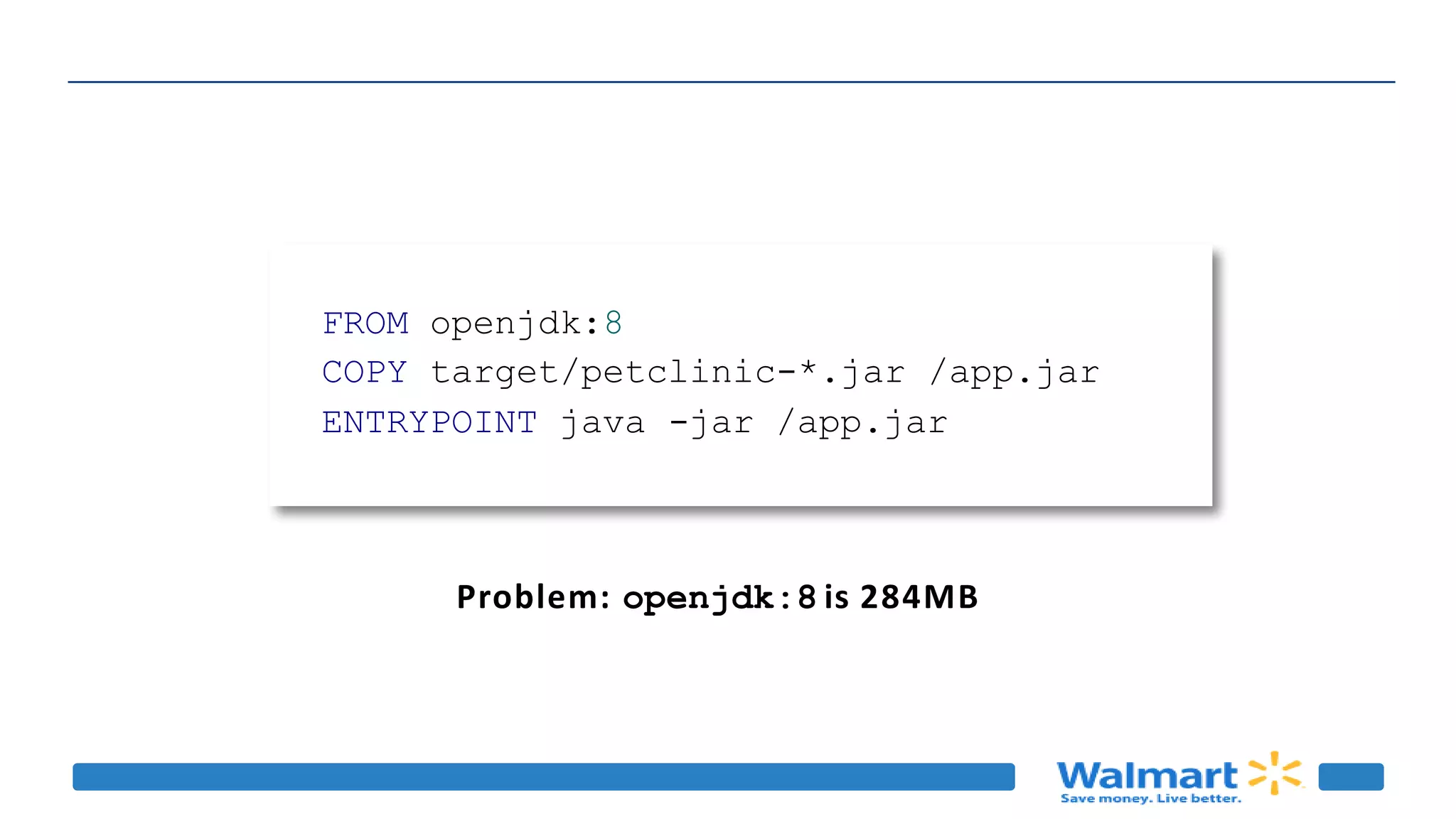

10. Problem: openjdk:8 is 284MB
FROM openjdk:8
COPY target/petclinic-*.jar /app.jar
ENTRYPOINT java -jar /app.jar

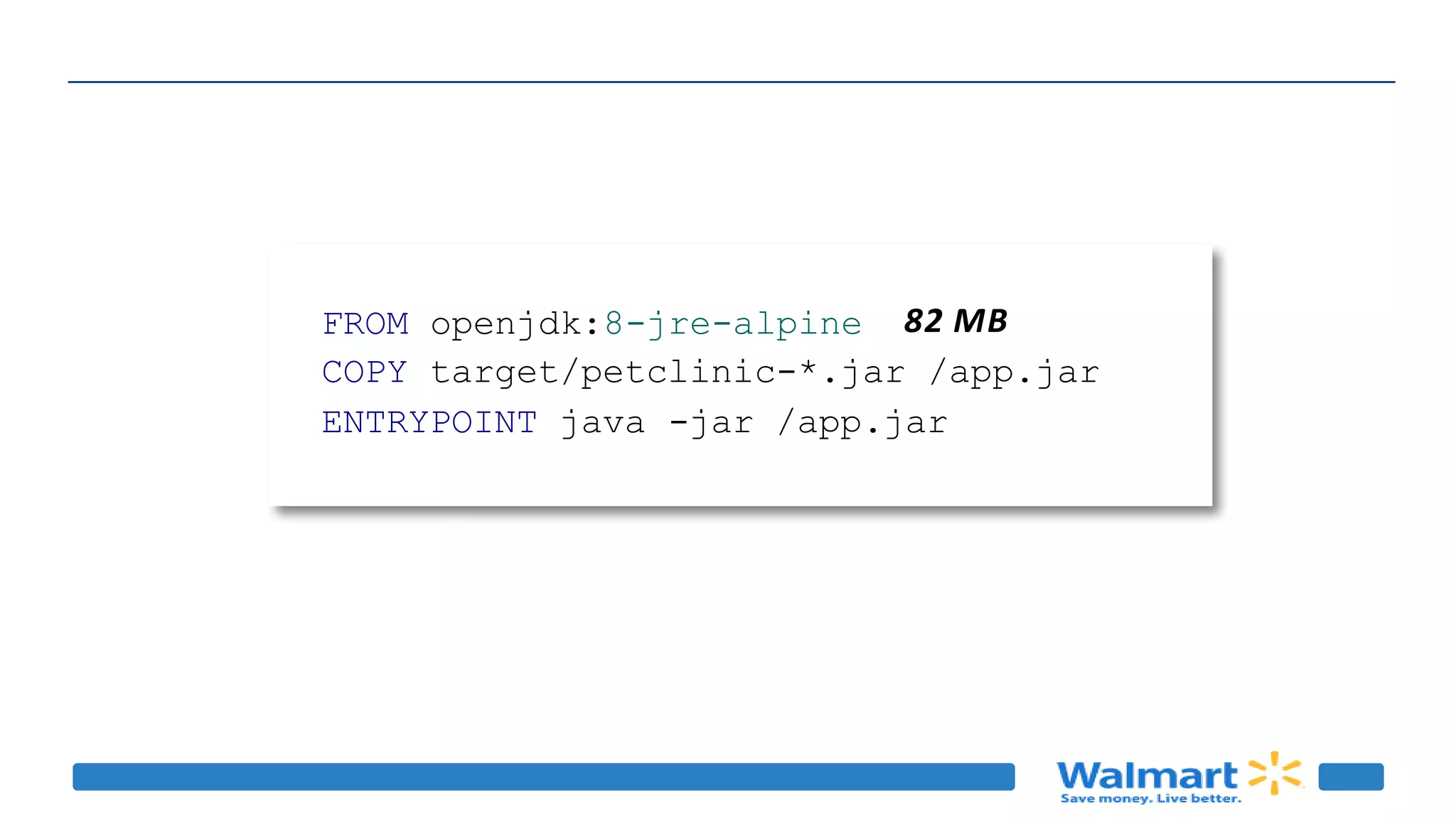

11. FROM openjdk:8-jre-alpine 82 MB
COPY target/petclinic-*.jar /app.jar
ENTRYPOINT java -jar /app.jar

12. Some more tutorials later

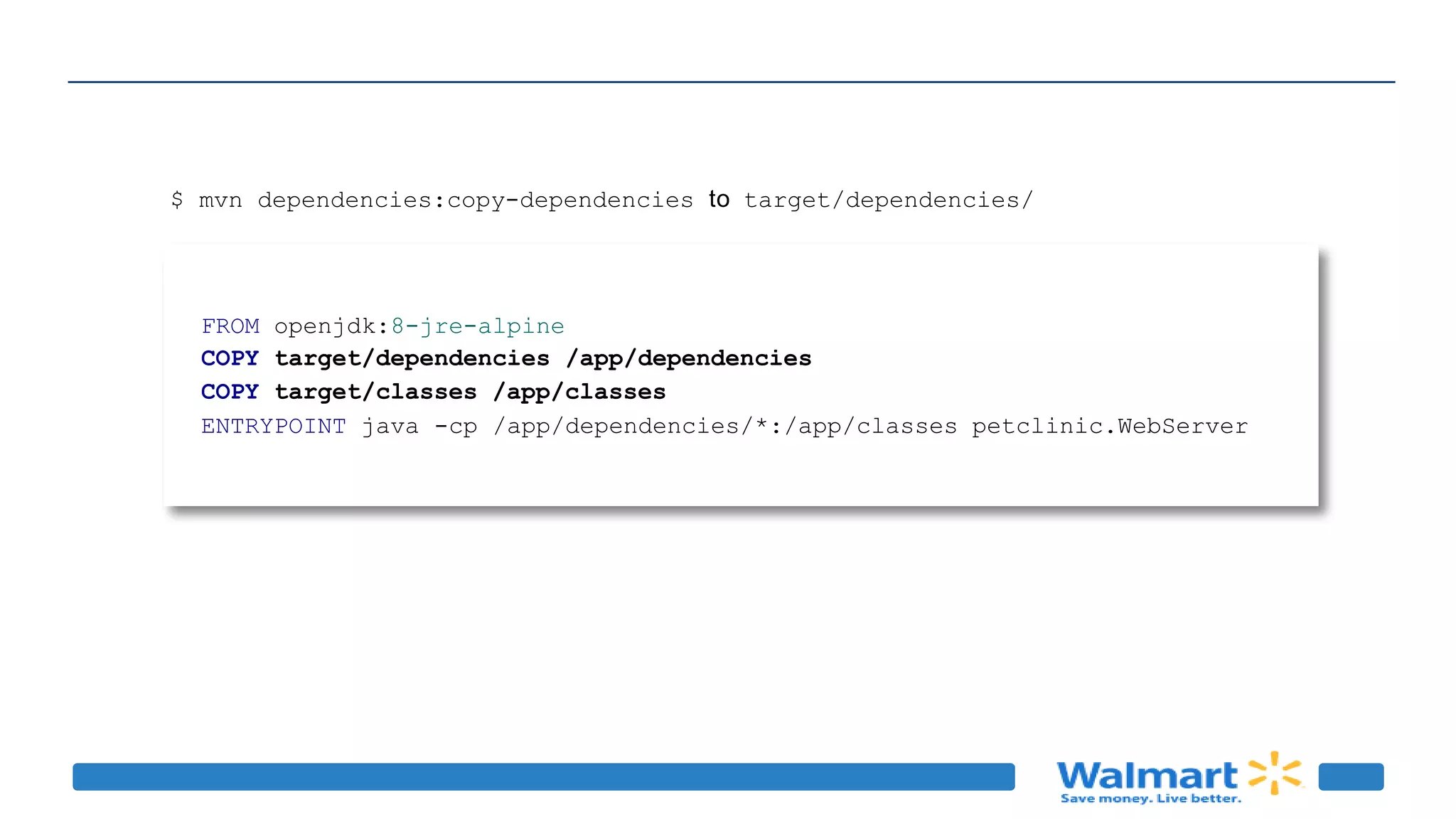

13. FROM openjdk:8-jre-alpine
COPY target/dependencies /app/dependencies
COPY target/classes /app/classes
ENTRYPOINT java -cp /app/dependencies/*:/app/classes petclinic.WebServer
$ mvn dependencies:copy-dependencies to target/dependencies/

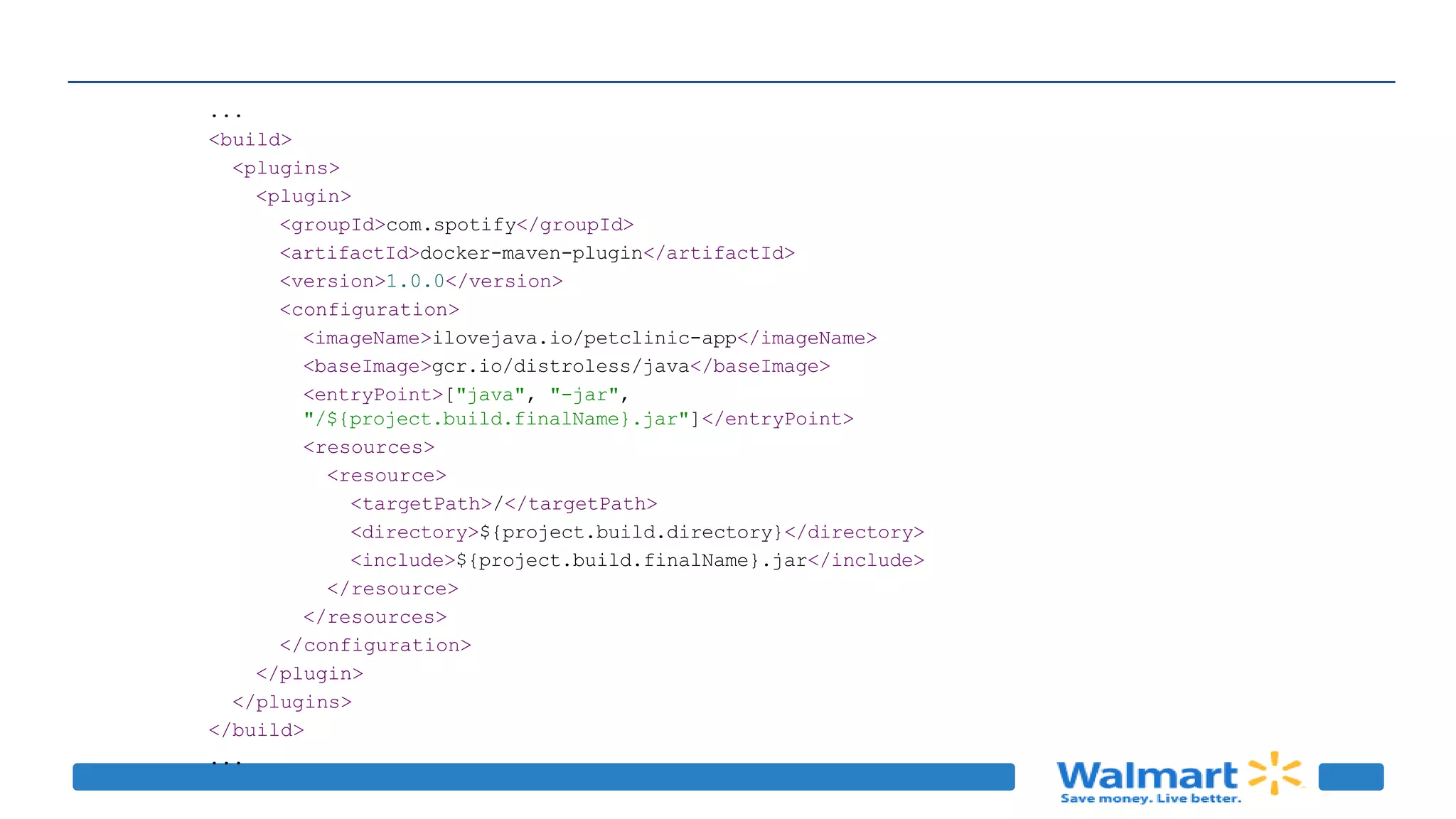

14. ...
<build>
<plugins>
<plugin>
<groupId>com.spotify</groupId>
<artifactId>docker-maven-plugin</artifactId>
<version>1.0.0</version>
<configuration>
<imageName>ilovejava.io/petclinic-app</imageName>
<baseImage>gcr.io/distroless/java</baseImage>
<entryPoint>["java", "-jar",
"/${project.build.finalName}.jar"]</entryPoint>
<resources>
<resource>
<targetPath>/</targetPath>
<directory>${project.build.directory}</directory>
<include>${project.build.finalName}.jar</include>
</resource>
</resources>
</configuration>
</plugin>
</plugins>
</build>
...

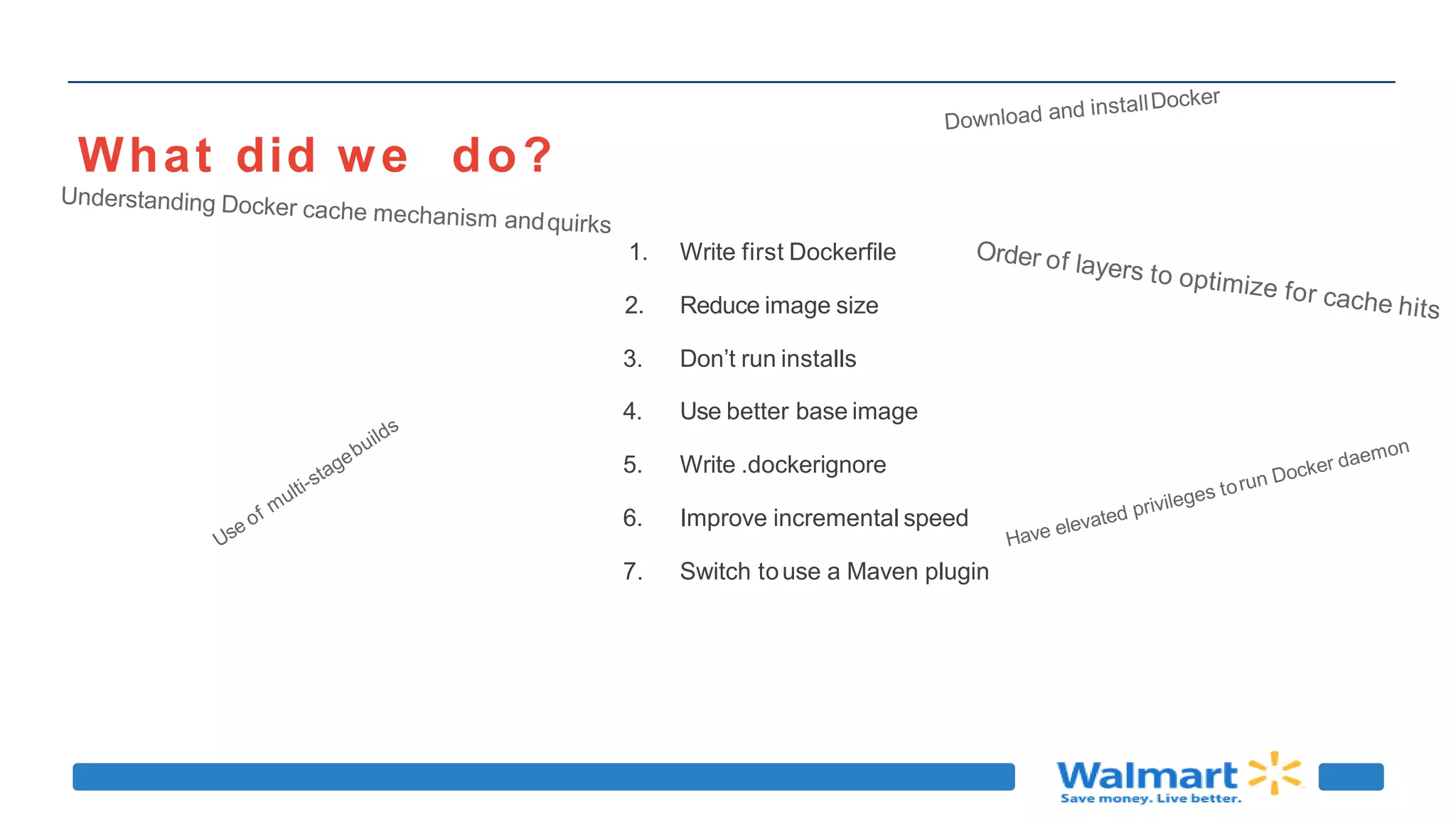

15. What did we do?
1. Write first Dockerfile
2. Reduce image size
3. Don’t run installs
4. Use better base image
5. Write .dockerignore
6. Improve incremental speed
7. Switch touse a Maven plugin

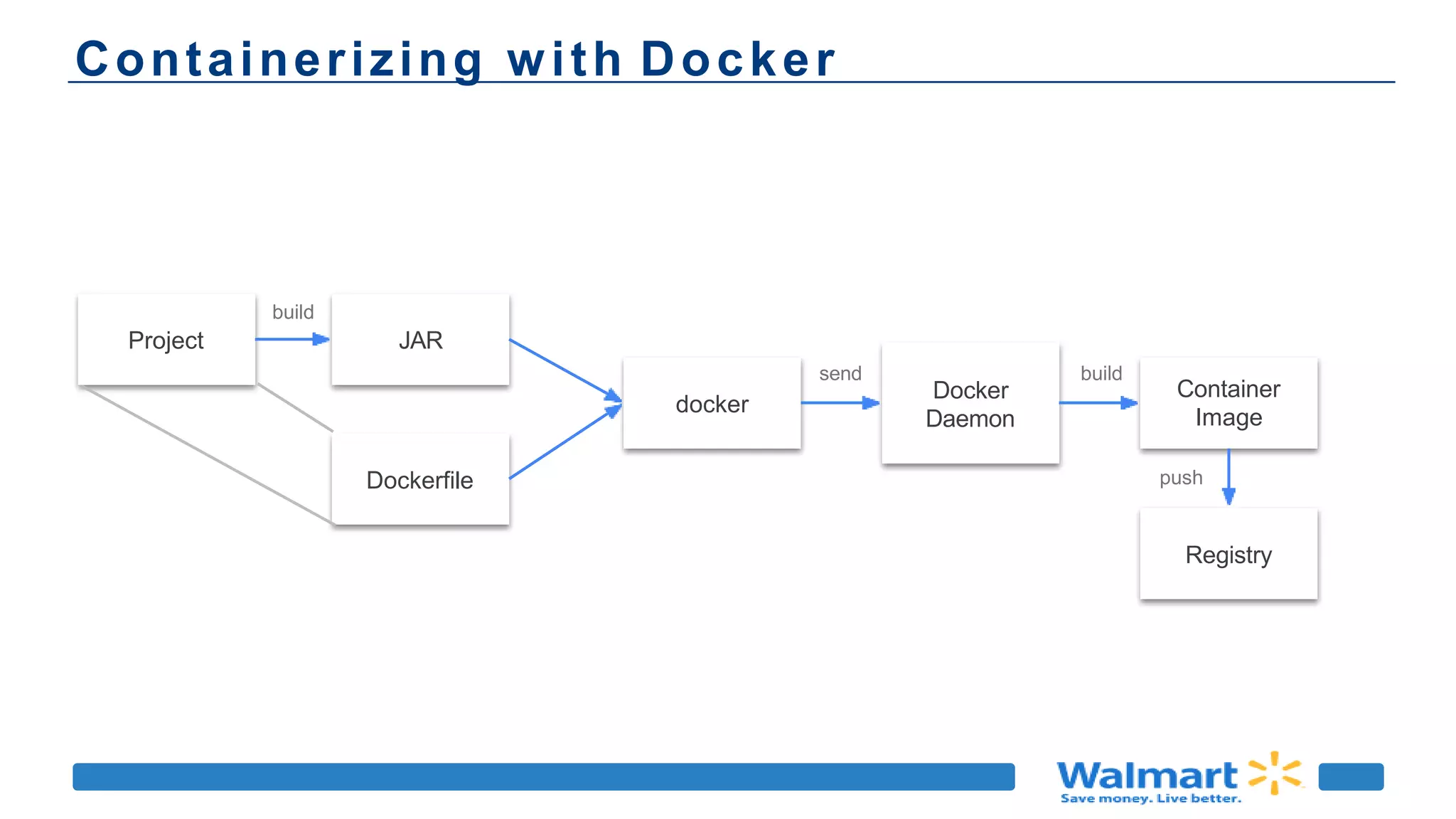

16. Containerizing with Docker
Project JAR
docker
Docker
Daemon
Container
Dockerfile
build
send build
push
Registry

17. I’m a Java developer, I don’t want to have to
care about Dockerfiles
Some Java Developer
Somewhere

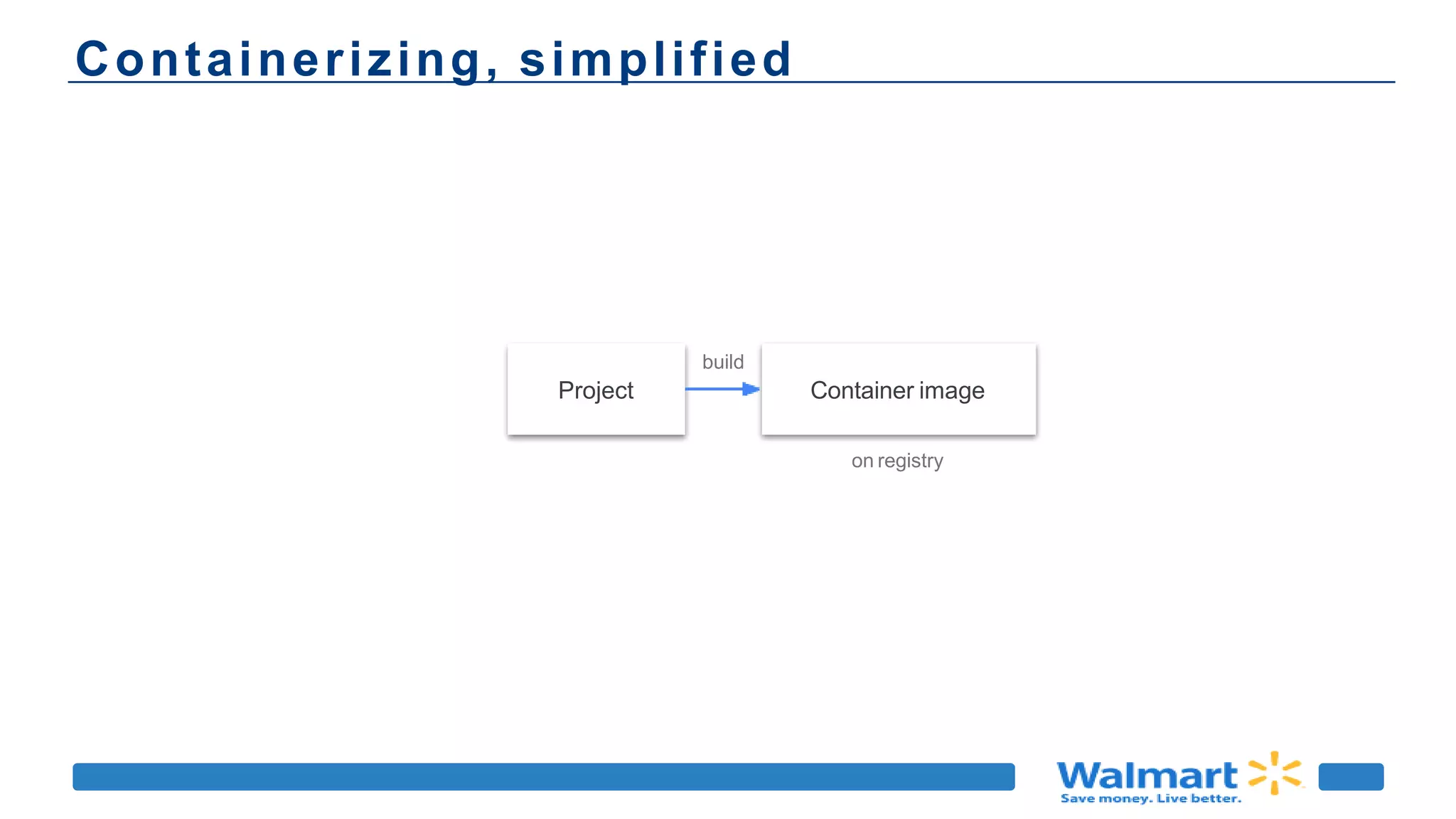

18. Containerizing, simplified
Project Container image
build
on registry

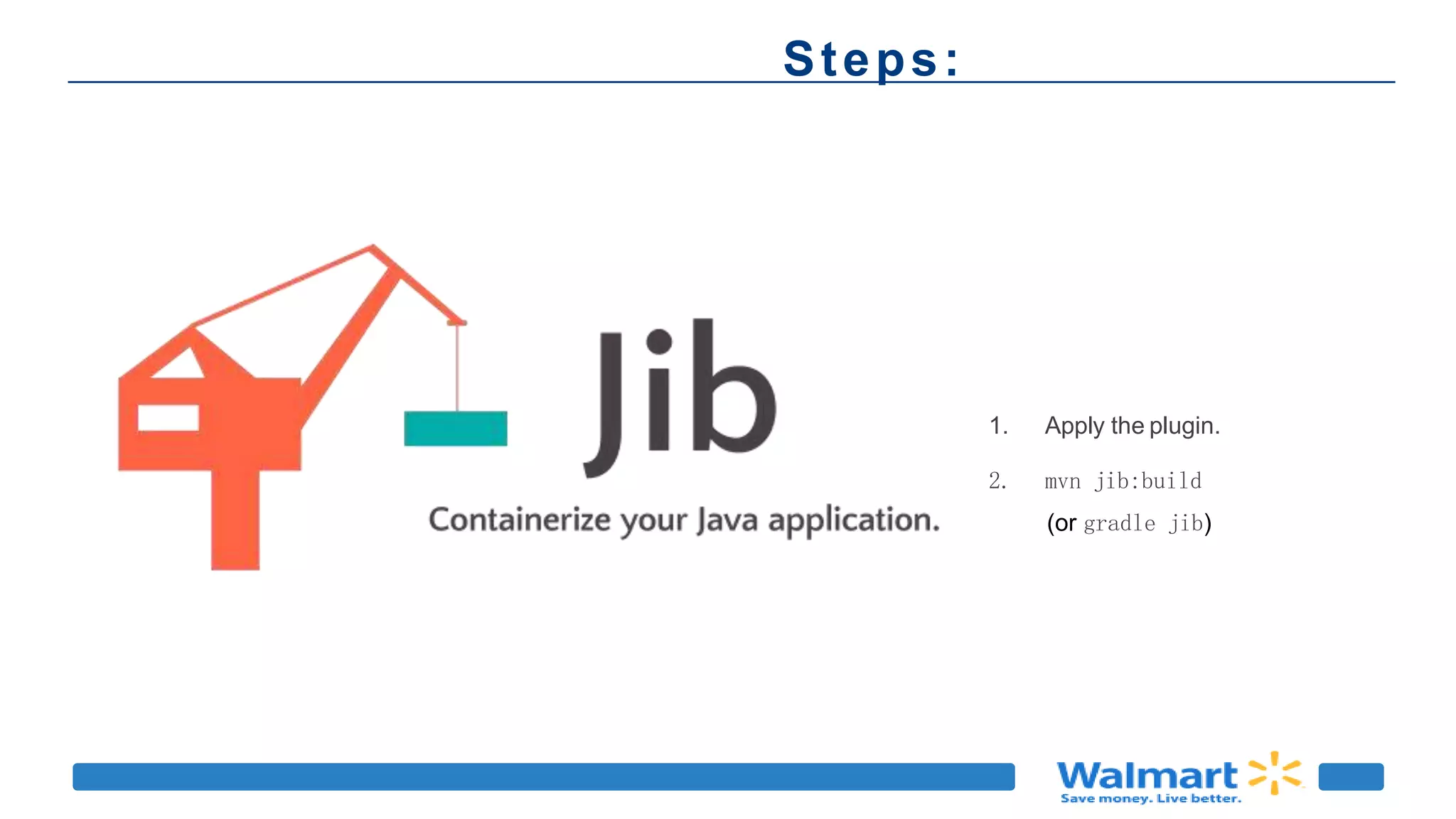

19. 1. Apply the plugin.
Steps:
1. Apply the plugin.
2. mvn jib:build
(or gradle jib)

20. Demo

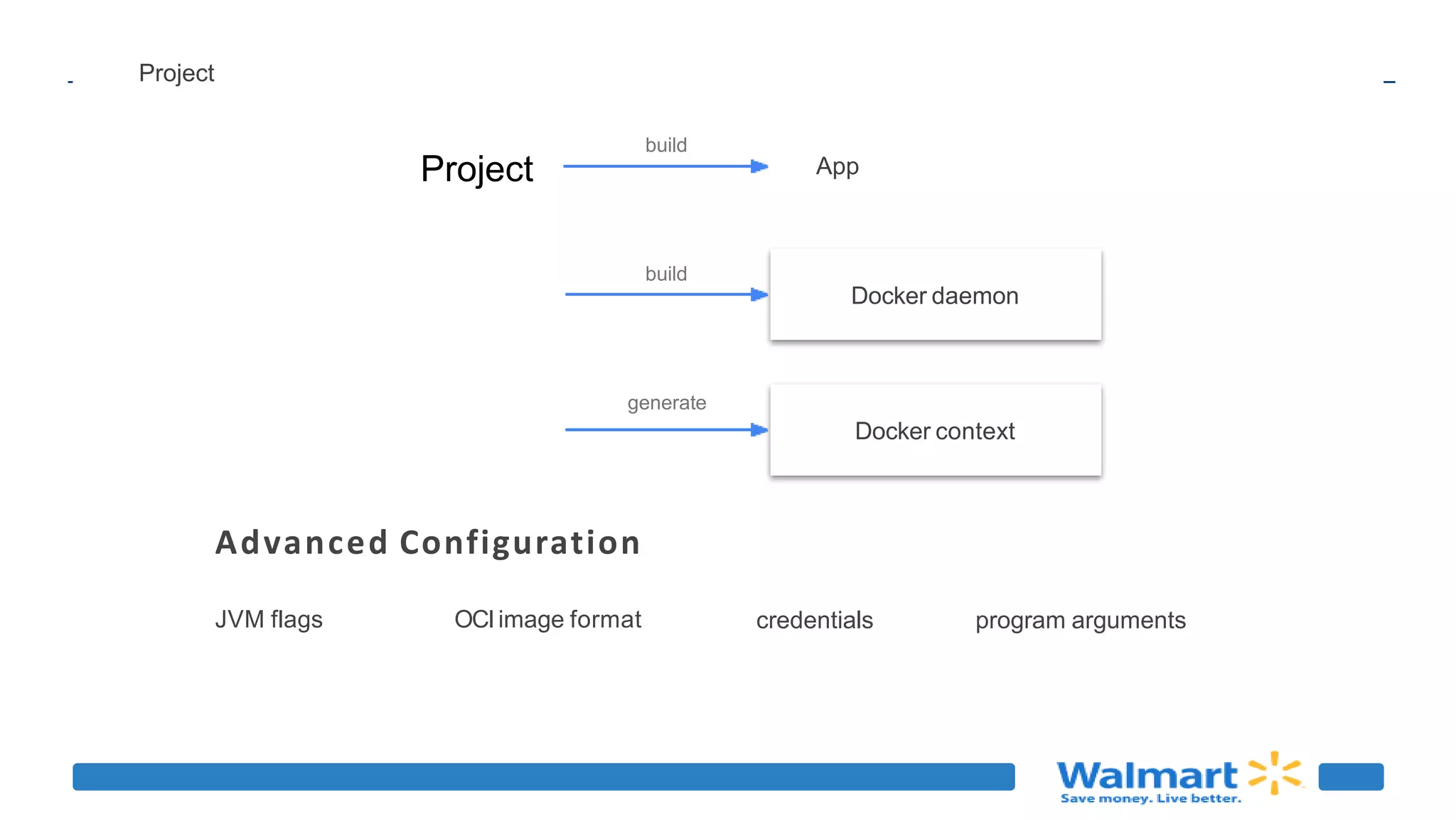

21. Project
App
build
Docker daemon
build
Docker context
generate
Advanced Configuration
JVM flags OCI image format credentials program arguments
Project

22. A “compiler” for
containers

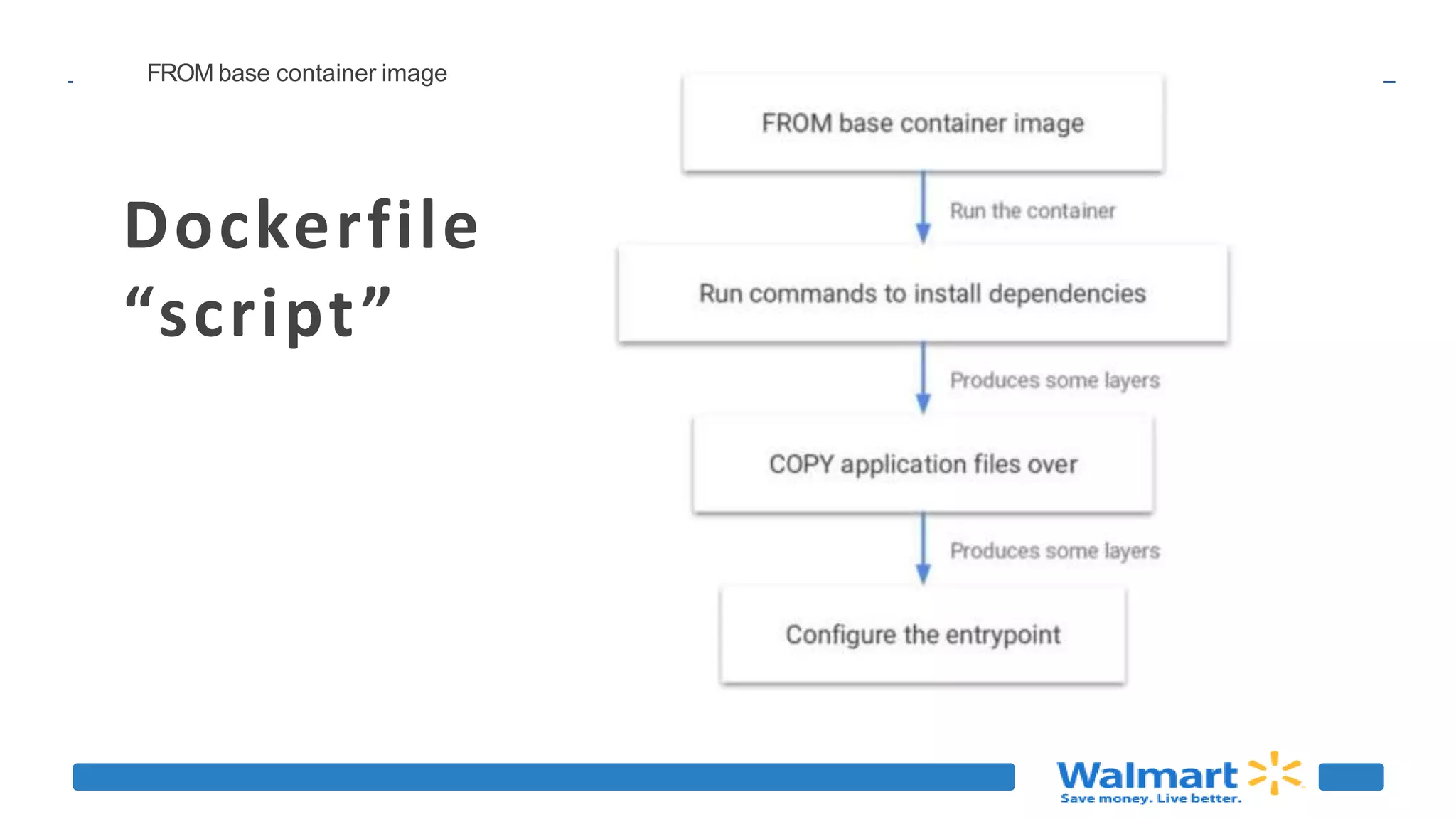

23. Dockerfile
“script”
FROM base container image

24. Compile Containerize

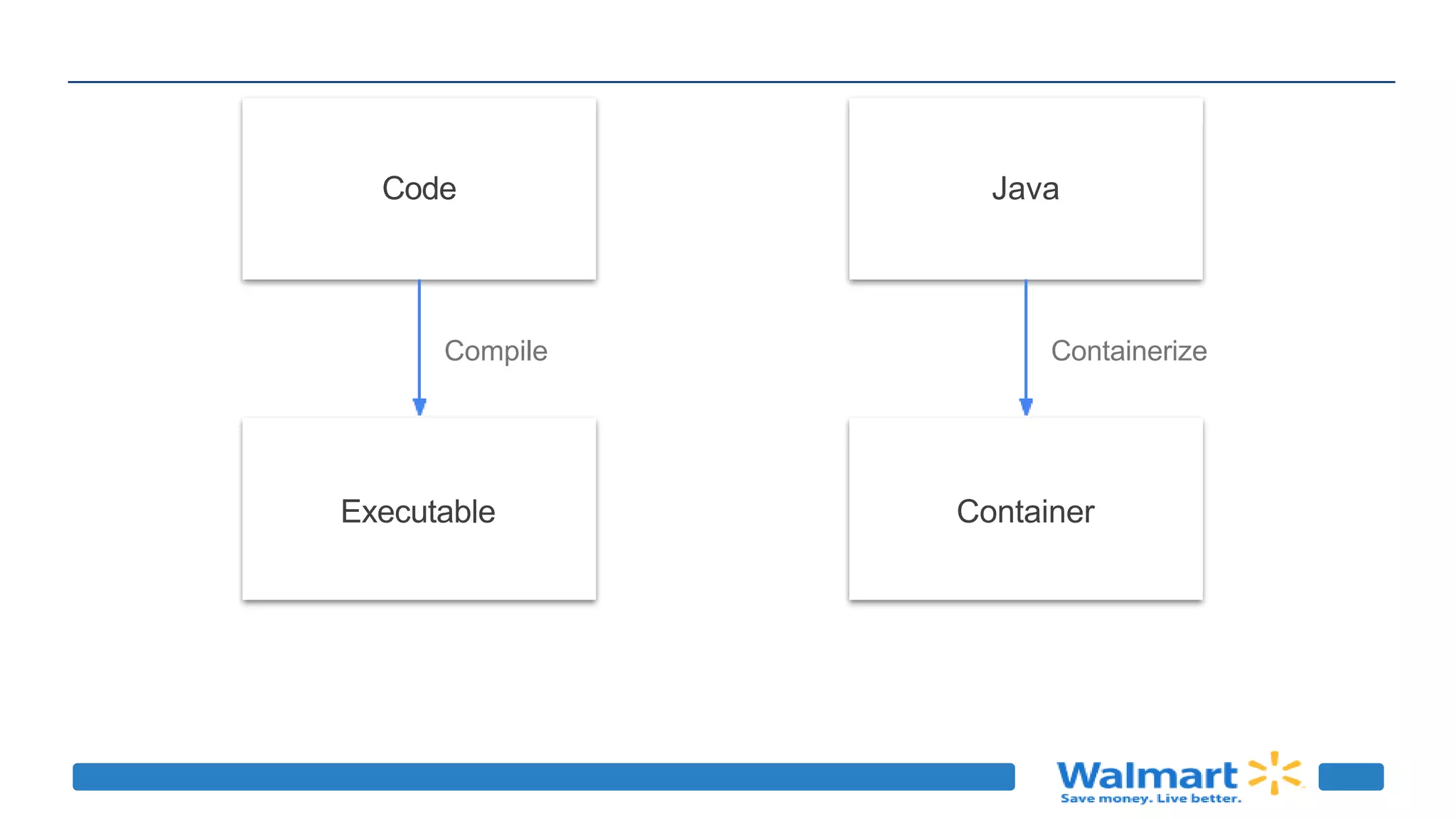

25. Code
Executable
Compile
Java
Container
Containerize

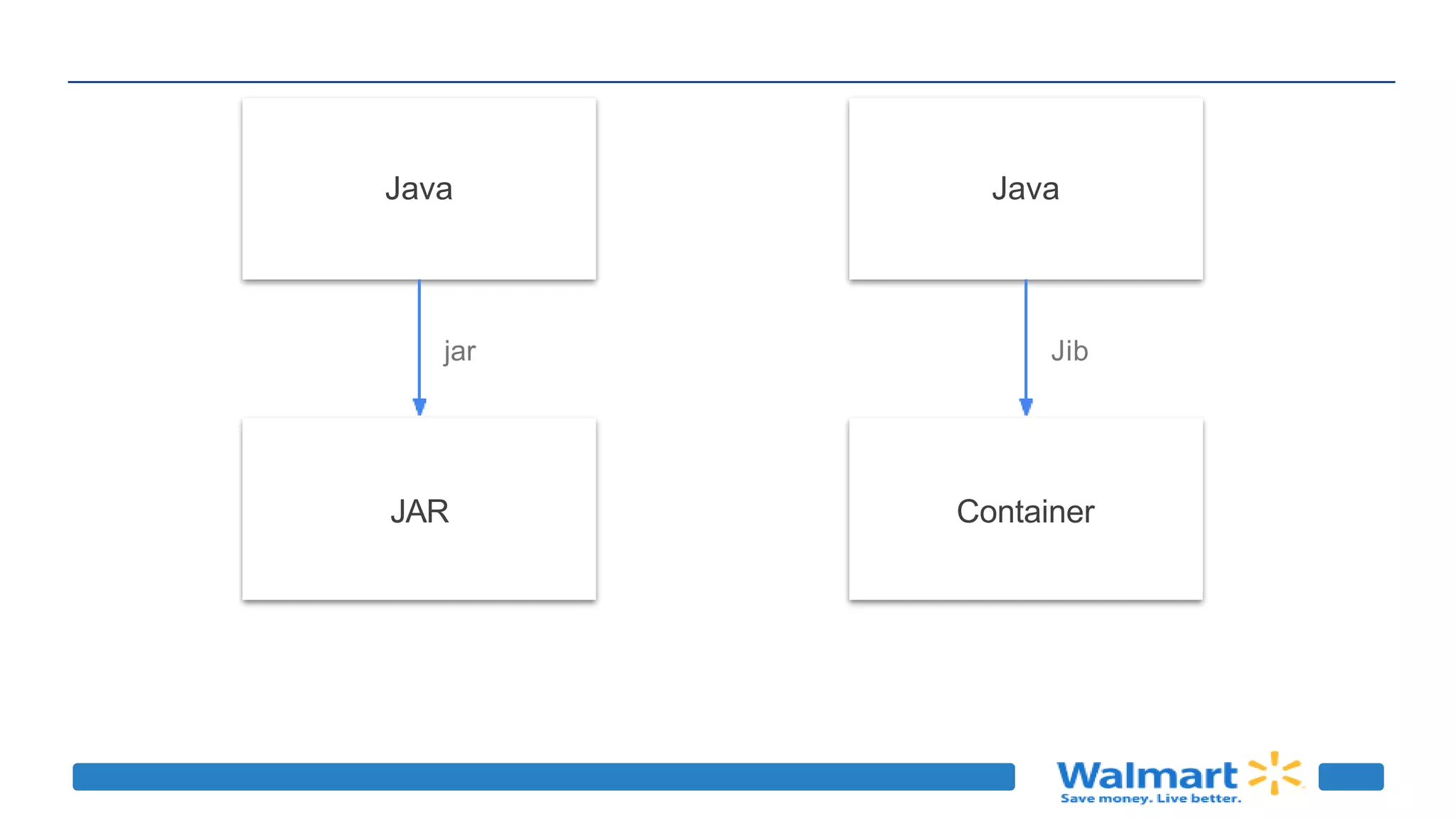

26. Java
JAR
jar
Java
Container
Jib

27. How Jib Works

28. Pure Java Speed
What benefits do w e get from Jib
Reproducibility

29. A container image is
directory of files

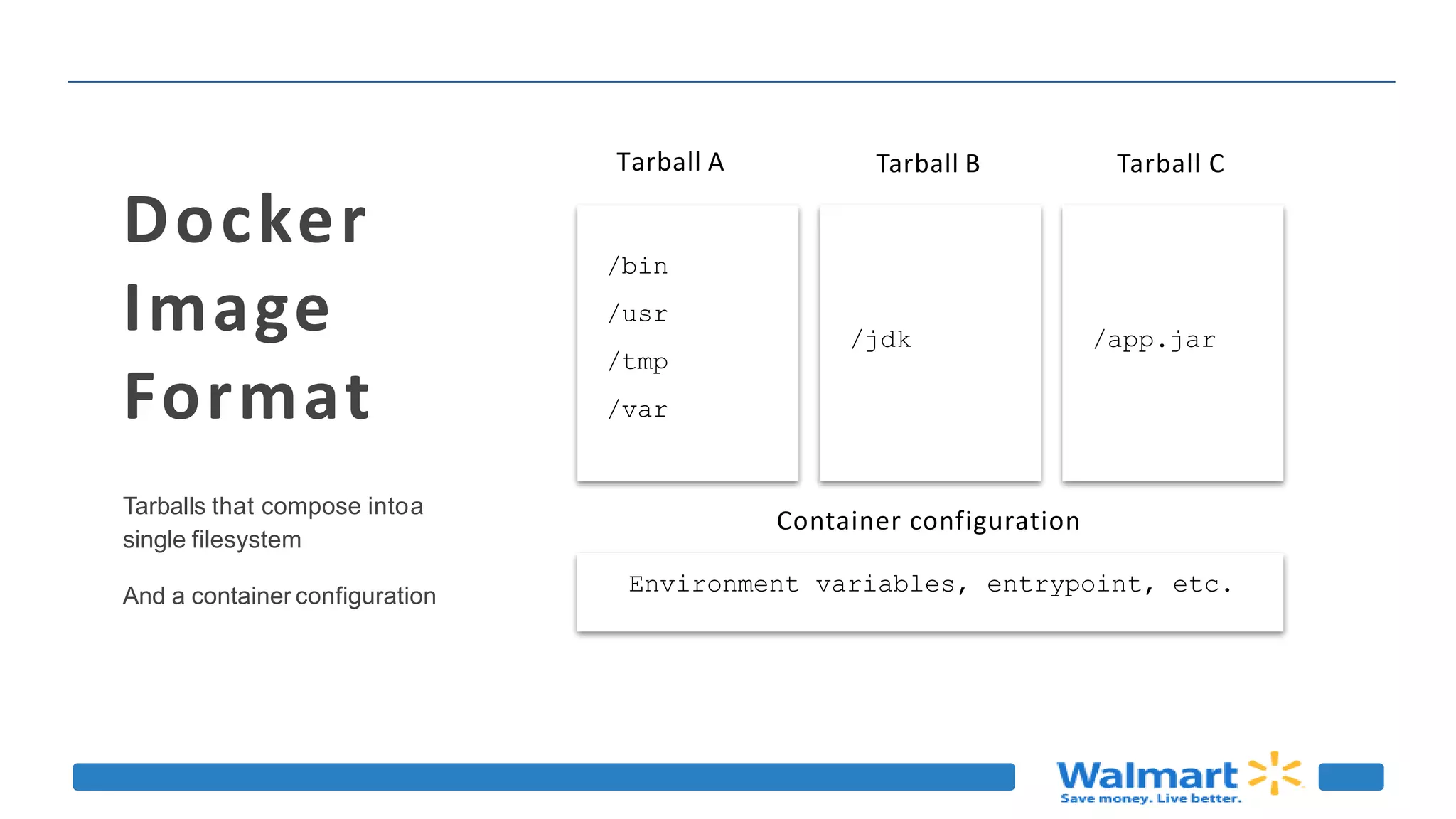

30. Docker
Format
Tarballs that compose intoa
single filesystem
And a container configuration
Tarball A Tarball B Tarball C
/bin
/usr
/tmp
/var
/jdk /app.jar
Environment variables, entrypoint, etc.
Container configuration

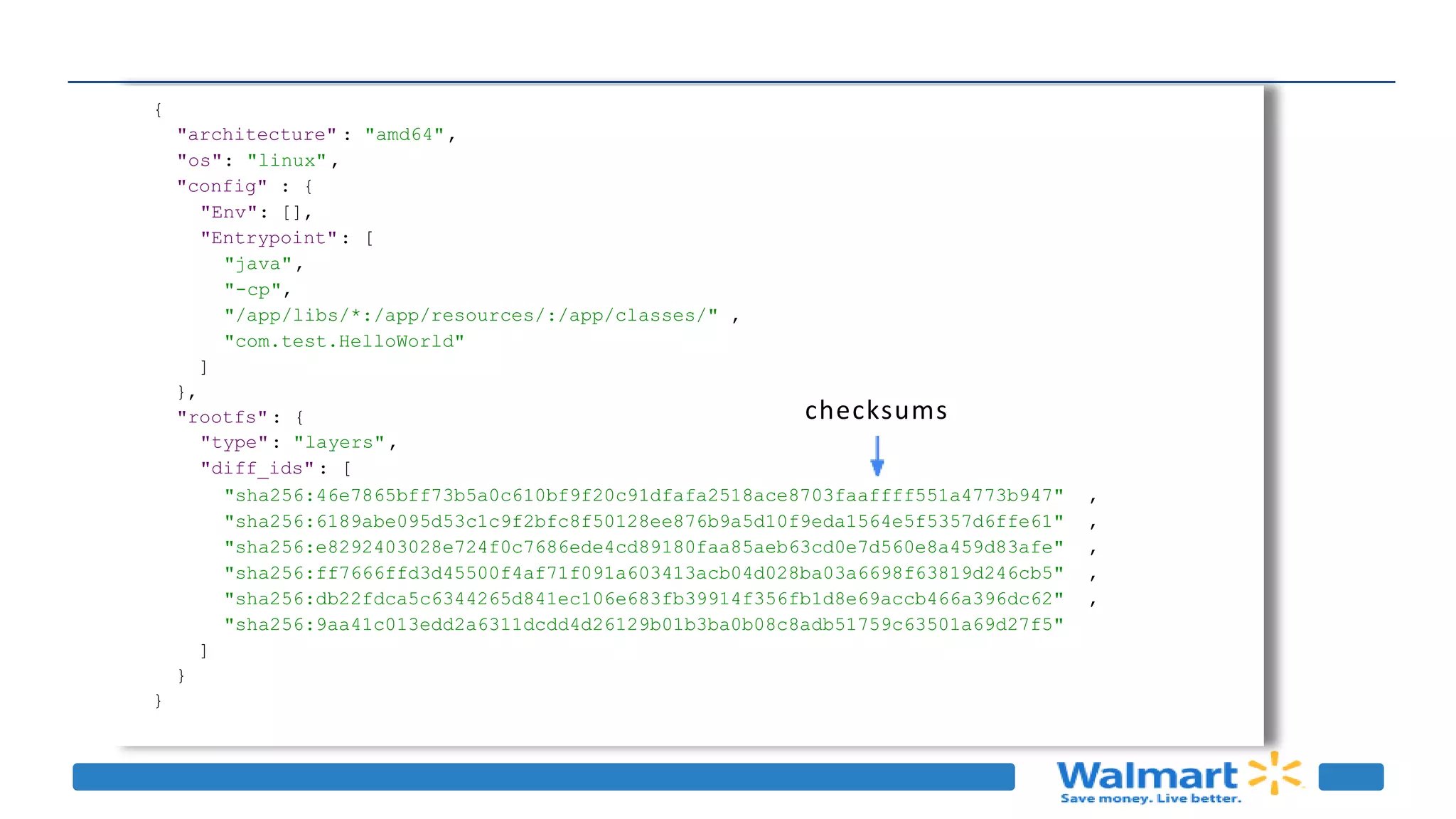

31. {
"architecture" : "amd64",
"os": "linux",
"config" : {
"Env": [],
"Entrypoint": [
"java",
"-cp",
"/app/libs/*:/app/resources/:/app/classes/" ,
"com.test.HelloWorld"
]
},
"rootfs": {
"type": "layers",
"diff_ids": [
"sha256:46e7865bff73b5a0c610bf9f20c91dfafa2518ace8703faaffff551a4773b947" ,
"sha256:6189abe095d53c1c9f2bfc8f50128ee876b9a5d10f9eda1564e5f5357d6ffe61" ,
"sha256:e8292403028e724f0c7686ede4cd89180faa85aeb63cd0e7d560e8a459d83afe" ,
"sha256:ff7666ffd3d45500f4af71f091a603413acb04d028ba03a6698f63819d246cb5" ,
"sha256:db22fdca5c6344265d841ec106e683fb39914f356fb1d8e69accb466a396dc62" ,
"sha256:9aa41c013edd2a6311dcdd4d26129b01b3ba0b08c8adb51759c63501a69d27f5"
]
}
}
checksums
github.com/GoogleContainerTools/jib

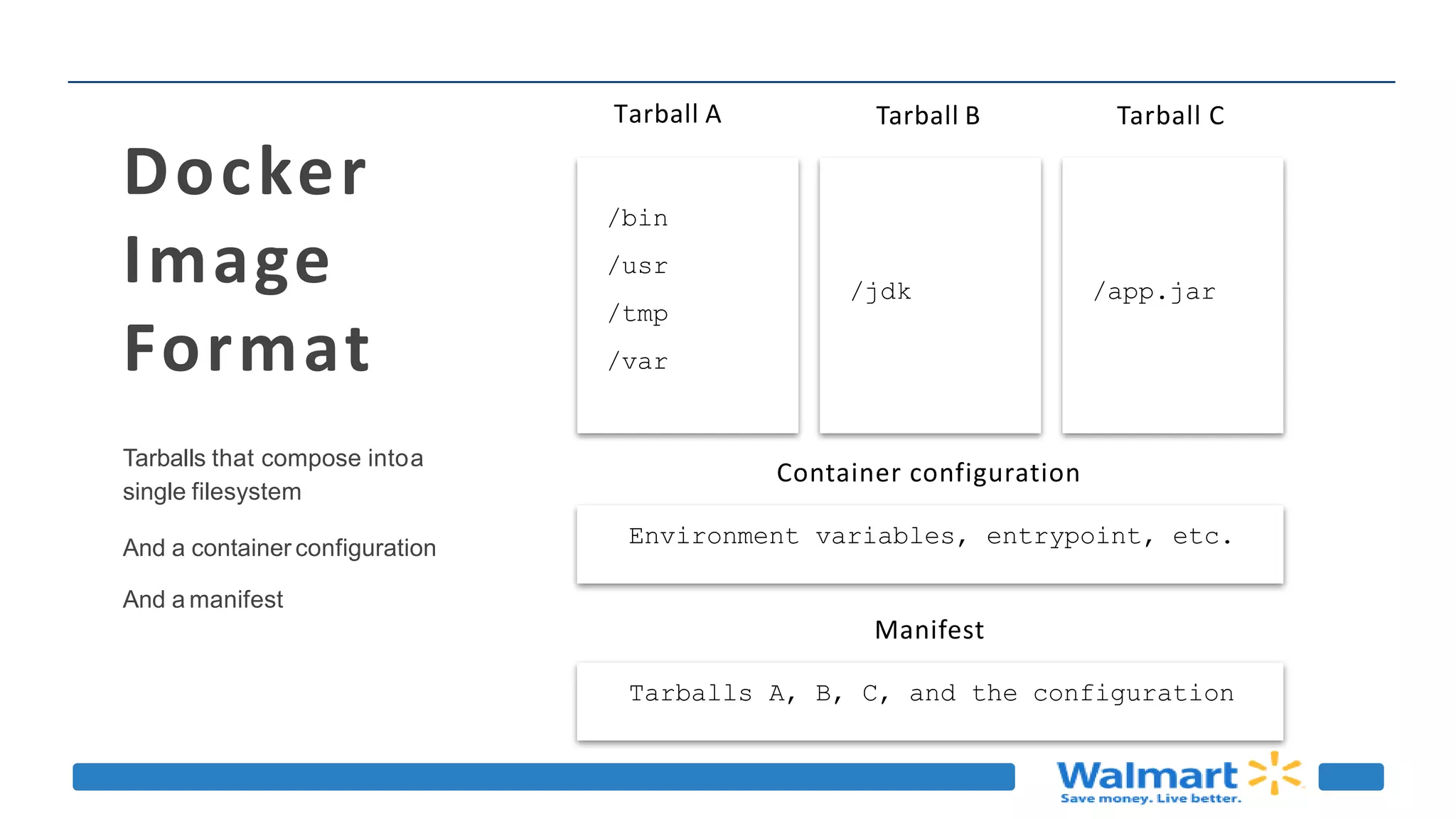

32. Docker
Format
Tarballs that compose intoa
single filesystem
And a container configuration
And a manifest
Tarball A Tarball B Tarball C
/bin
/usr
/tmp
/var
/jdk /app.jar
Tarballs A, B, C, and the configuration
Manifest
Environment variables, entrypoint, etc.
Container configuration

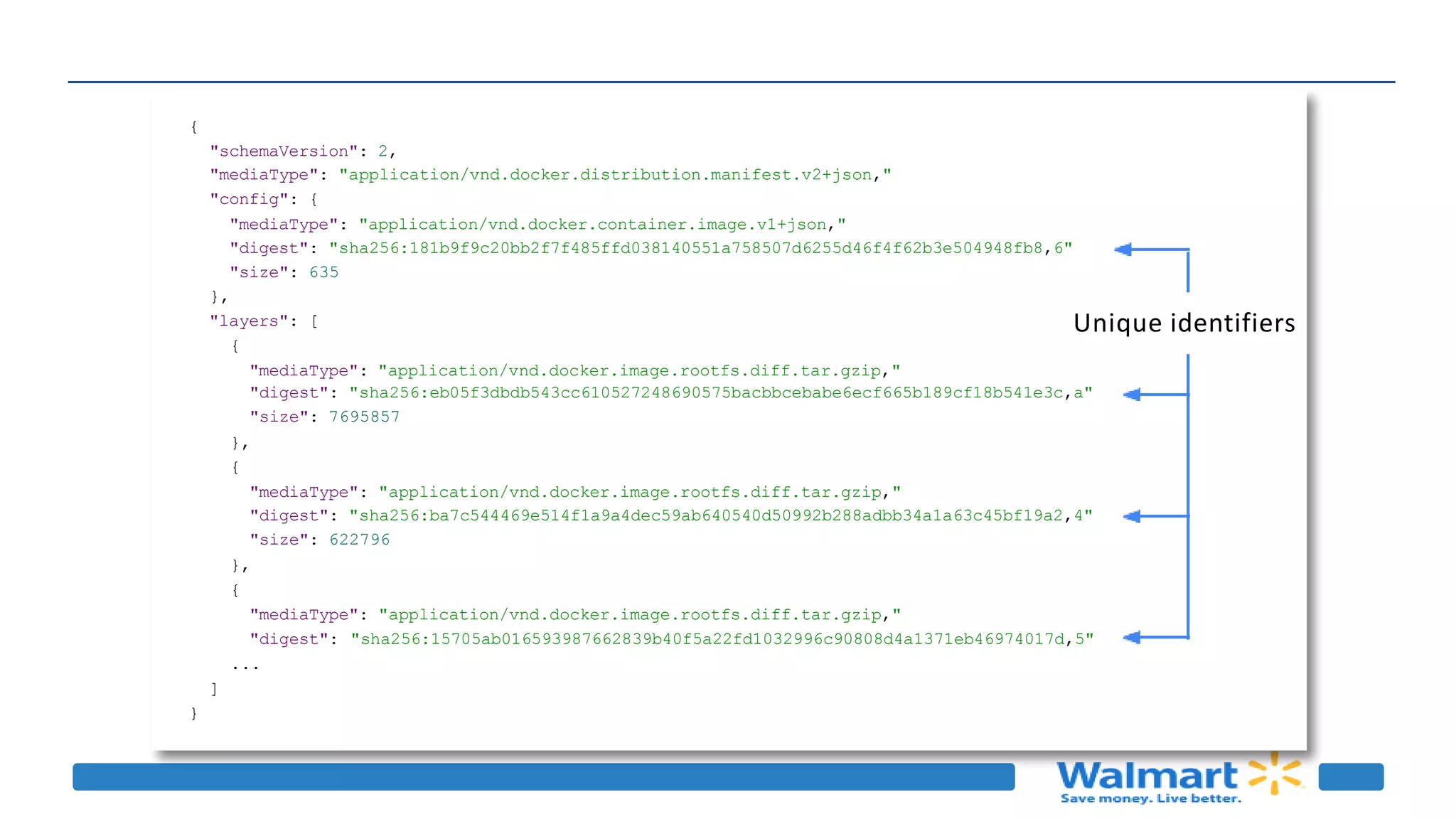

33. {
"schemaVersion": 2,
"mediaType": "application/vnd.docker.distribution.manifest.v2+json,"
"config": {
"mediaType": "application/vnd.docker.container.image.v1+json,"
"digest": "sha256:181b9f9c20bb2f7f485ffd038140551a758507d6255d46f4f62b3e504948fb8,6"
"size": 635
},
"layers": [
{
"mediaType": "application/vnd.docker.image.rootfs.diff.tar.gzip,"
"digest": "sha256:eb05f3dbdb543cc610527248690575bacbbcebabe6ecf665b189cf18b541e3c,a"
"size": 7695857
},
{
"mediaType": "application/vnd.docker.image.rootfs.diff.tar.gzip,"
"digest": "sha256:ba7c544469e514f1a9a4dec59ab640540d50992b288adbb34a1a63c45bf19a2,4"
"size": 622796
},
{
"mediaType": "application/vnd.docker.image.rootfs.diff.tar.gzip,"
"digest": "sha256:15705ab016593987662839b40f5a22fd1032996c90808d4a1371eb46974017d,5"
...
]
}
Unique identifiers

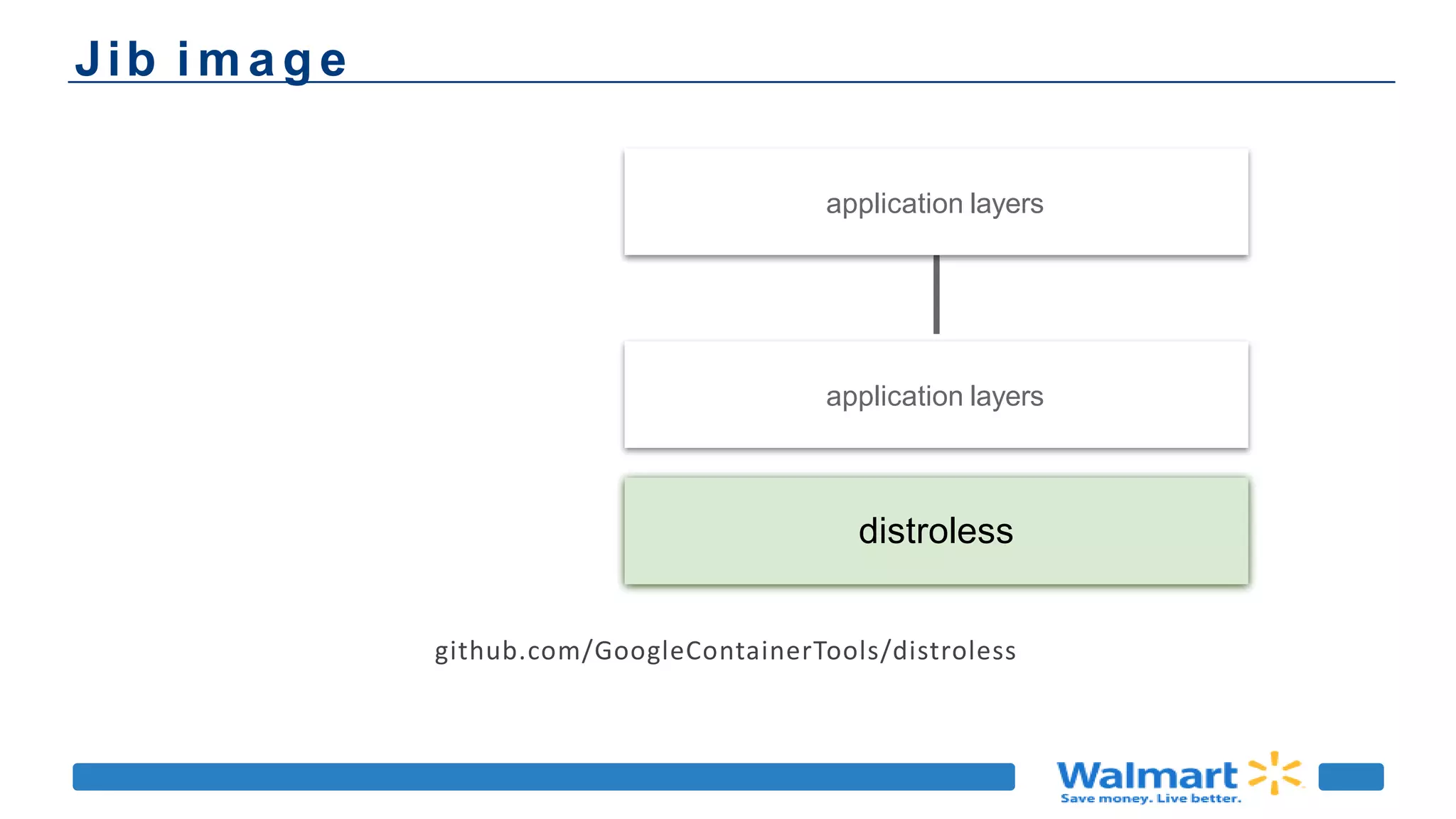

34. distroless
application layers
application layers
Jib i m a g e
github.com/GoogleContainerTools/distroless

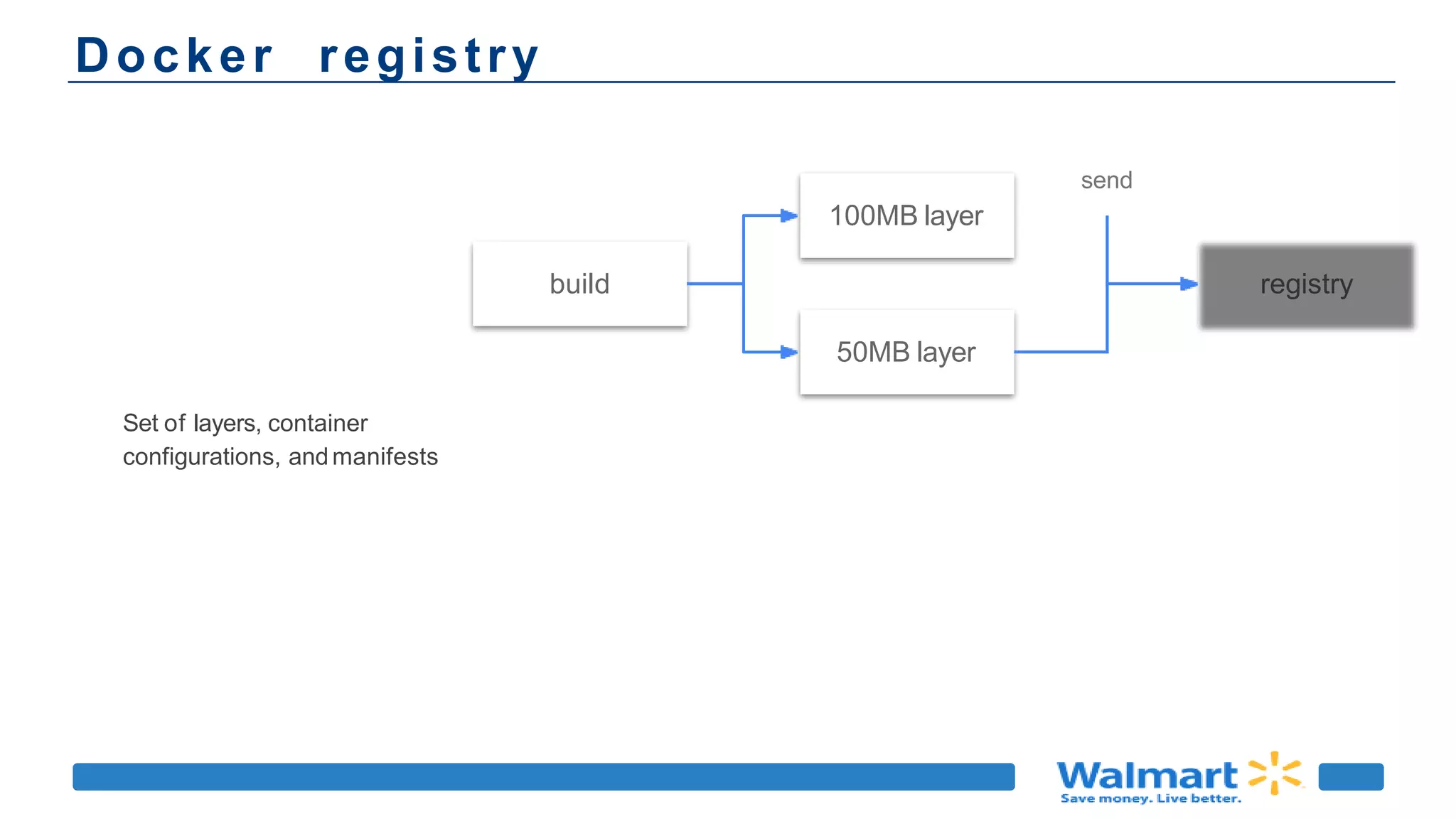

35. Docker registry
Set of layers, container
configurations, andmanifests
build registry
send
100MB layer
50MB layer

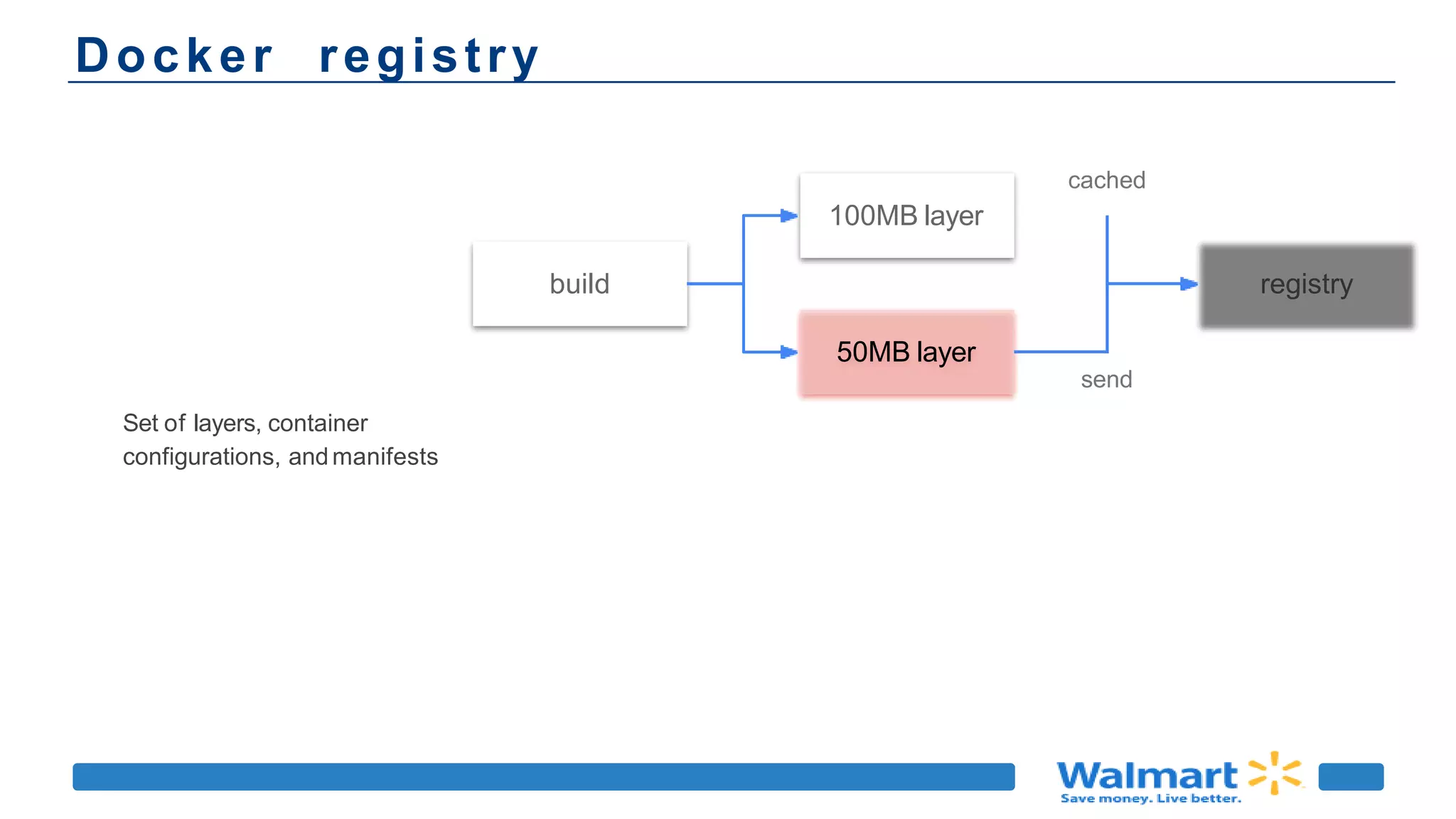

36. Docker registry
Set of layers, container
configurations, andmanifests
build registry
cached
100MB layer
50MB layer
send

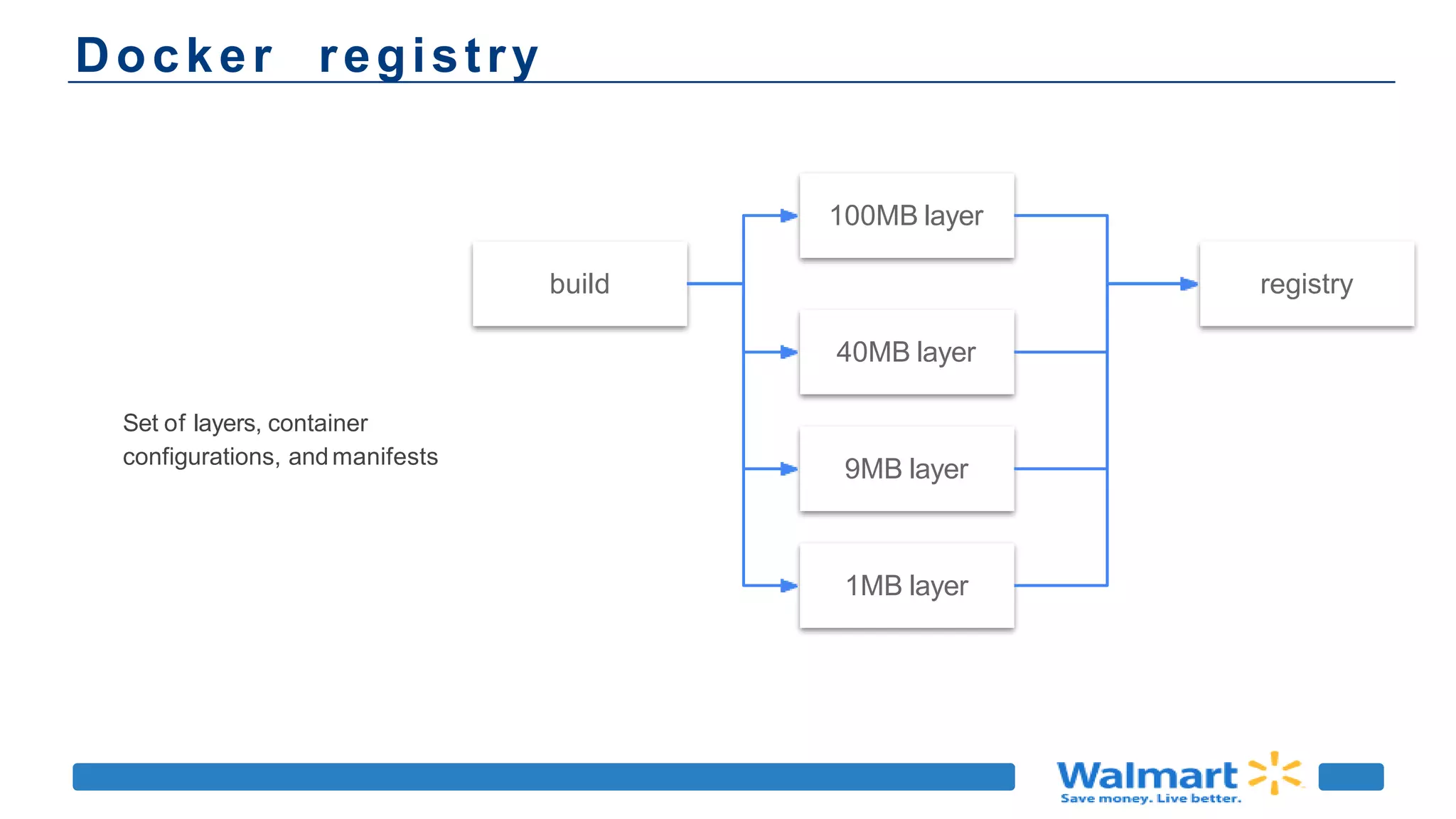

37. Docker registry
Set of layers, container
configurations, andmanifests
build
100MB layer
40MB layer
registry
9MB layer
1MB layer

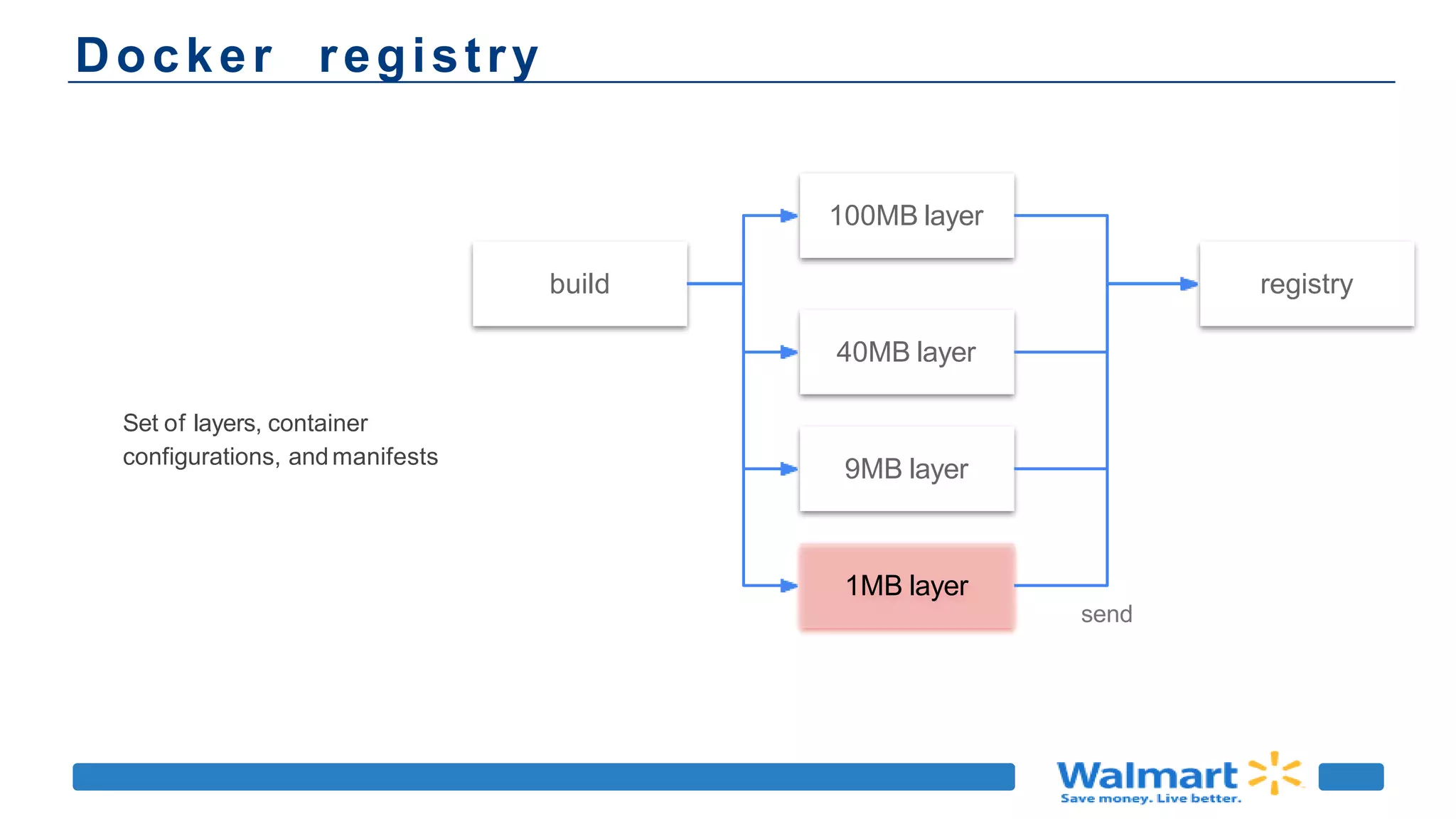

38. 1MB layer
Docker registry
Set of layers, container
configurations, andmanifests
build
100MB layer
40MB layer
registry
9MB layer
send

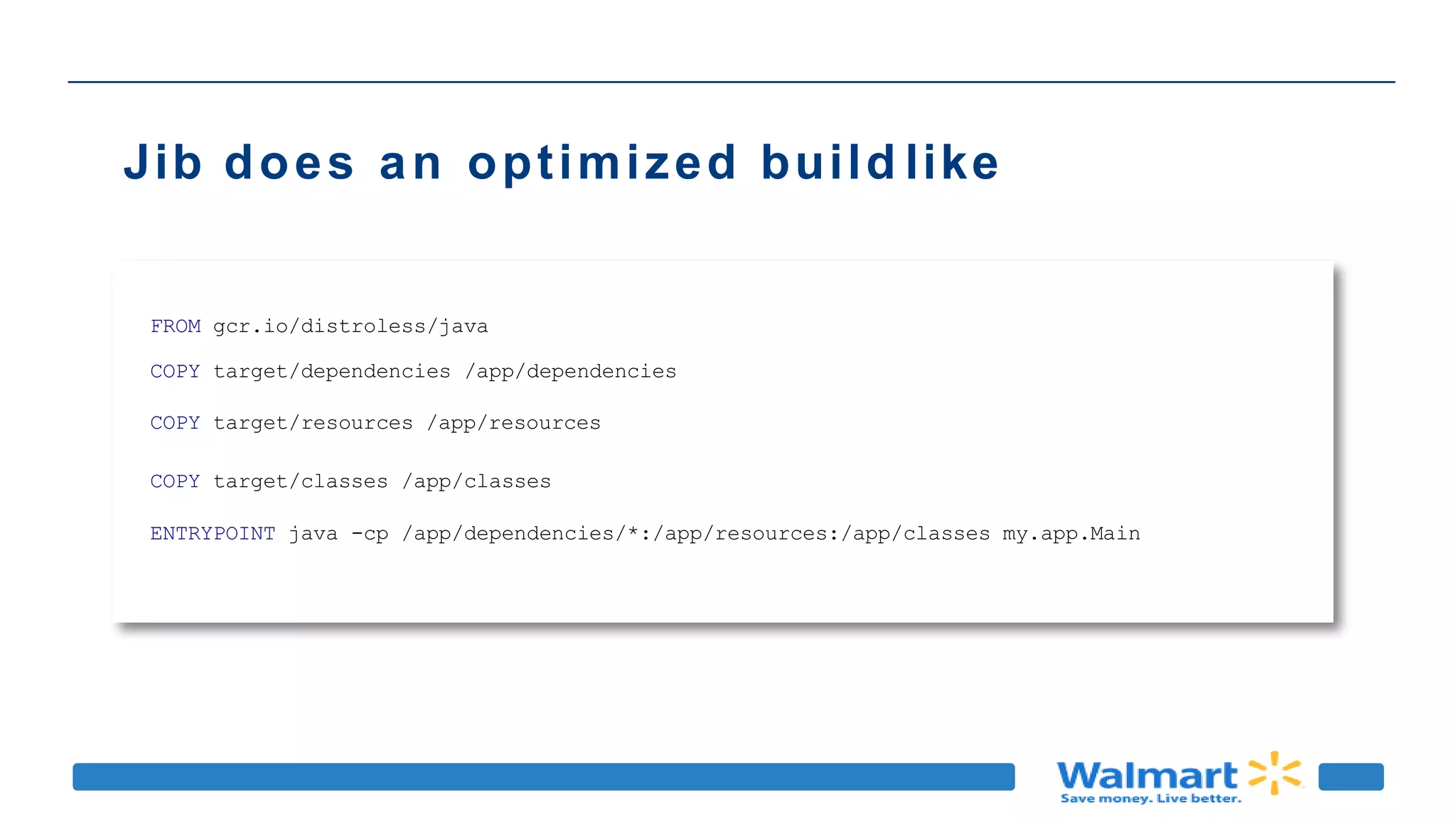

39. Jib does an optimized build like
FROM gcr.io/distroless/java
COPY target/dependencies /app/dependencies
COPY target/resources /app/resources
COPY target/classes /app/classes
ENTRYPOINT java -cp /app/dependencies/*:/app/resources:/app/classes my.app.Main

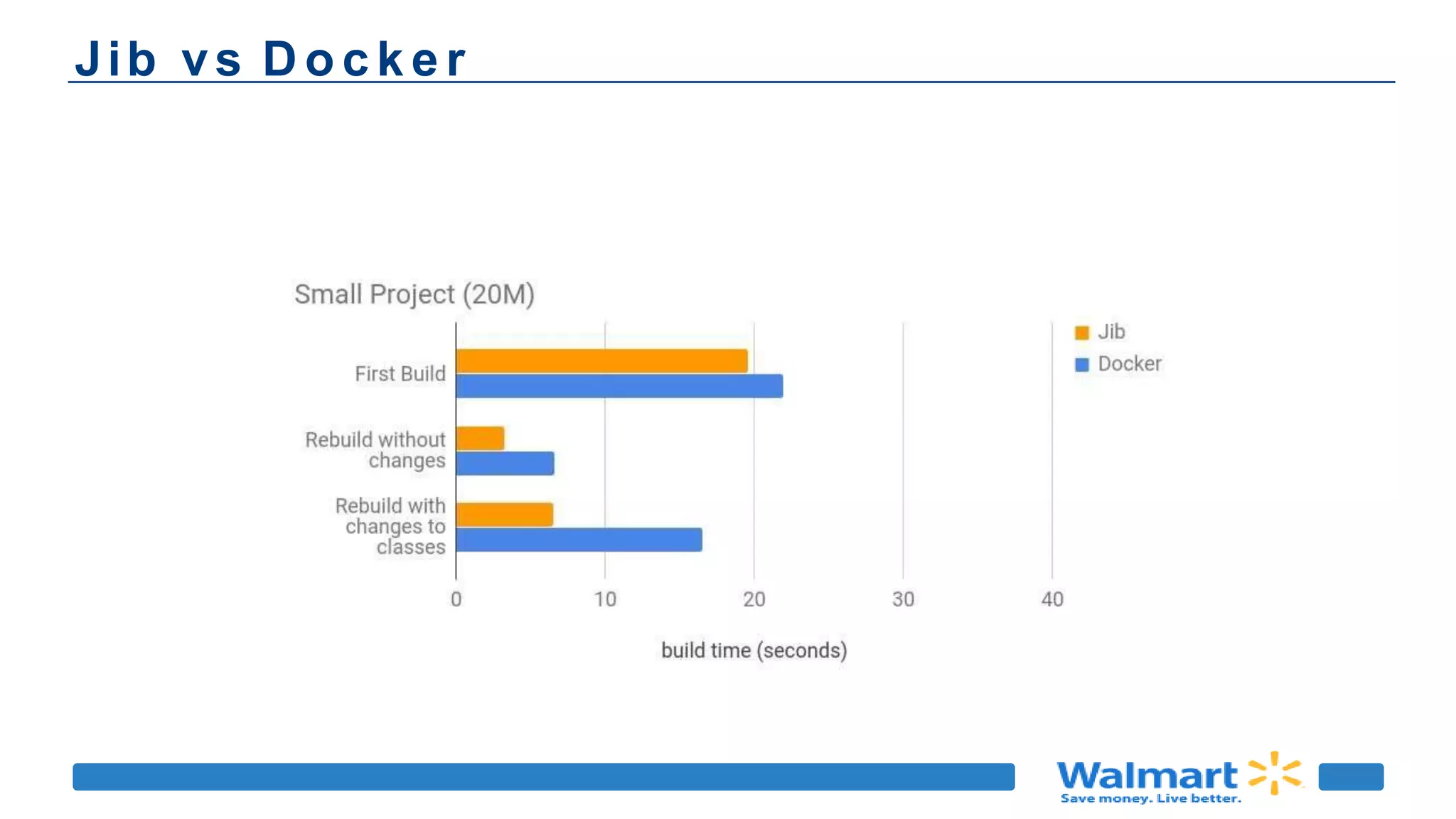

40. Jib vs D o c k e r

41. Jib vs D o c k e r

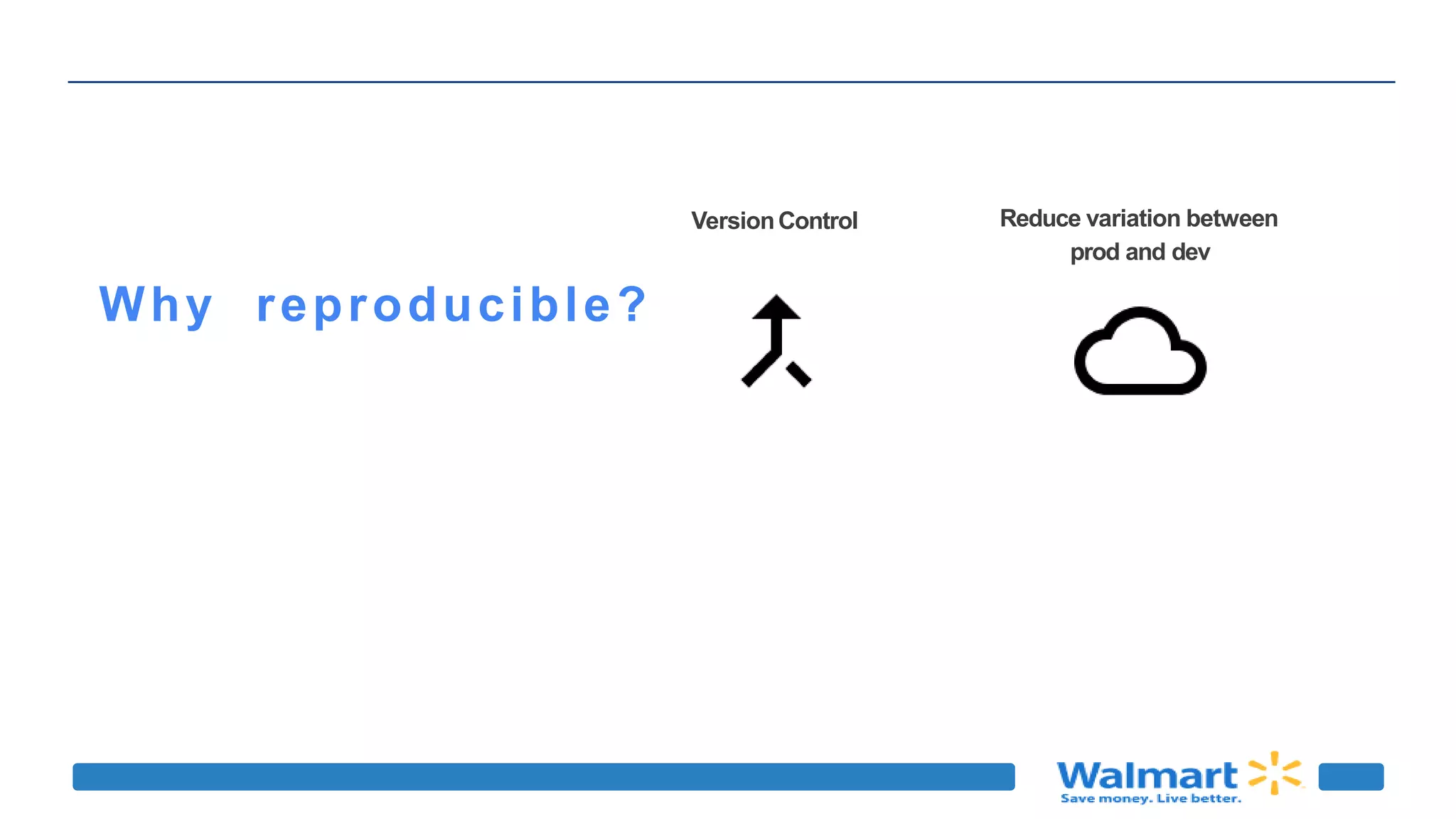

42. Why reproducible?
VersionControl Reduce variation between
prod and dev

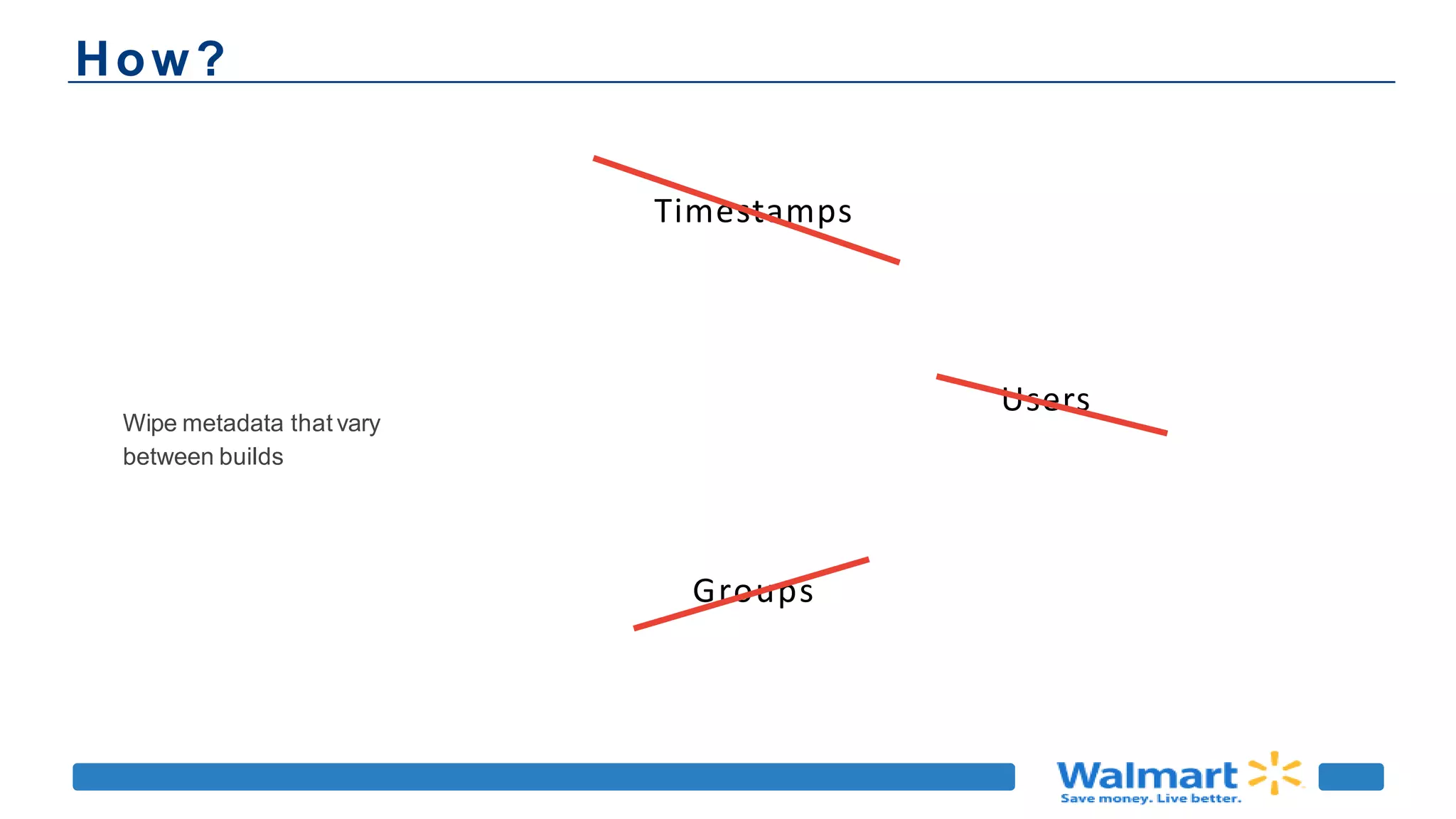

43. How?
Wipe metadata that vary
between builds
Timestamps
Users
Groups

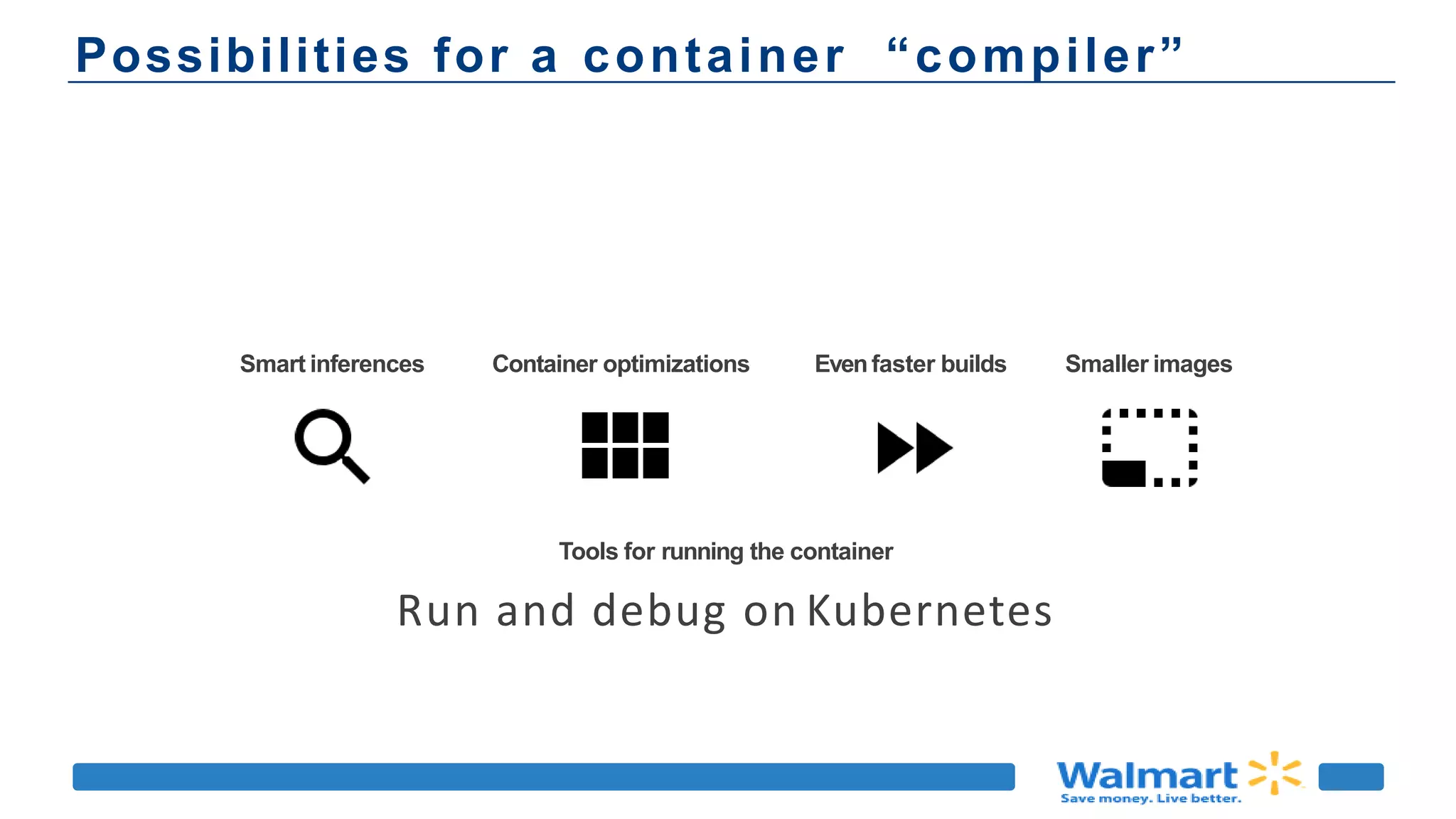

44. Possibilities for a container “compiler”
Smart inferences Container optimizations Evenfaster builds Smaller images
Tools for running the container
Run and debug on Kubernetes

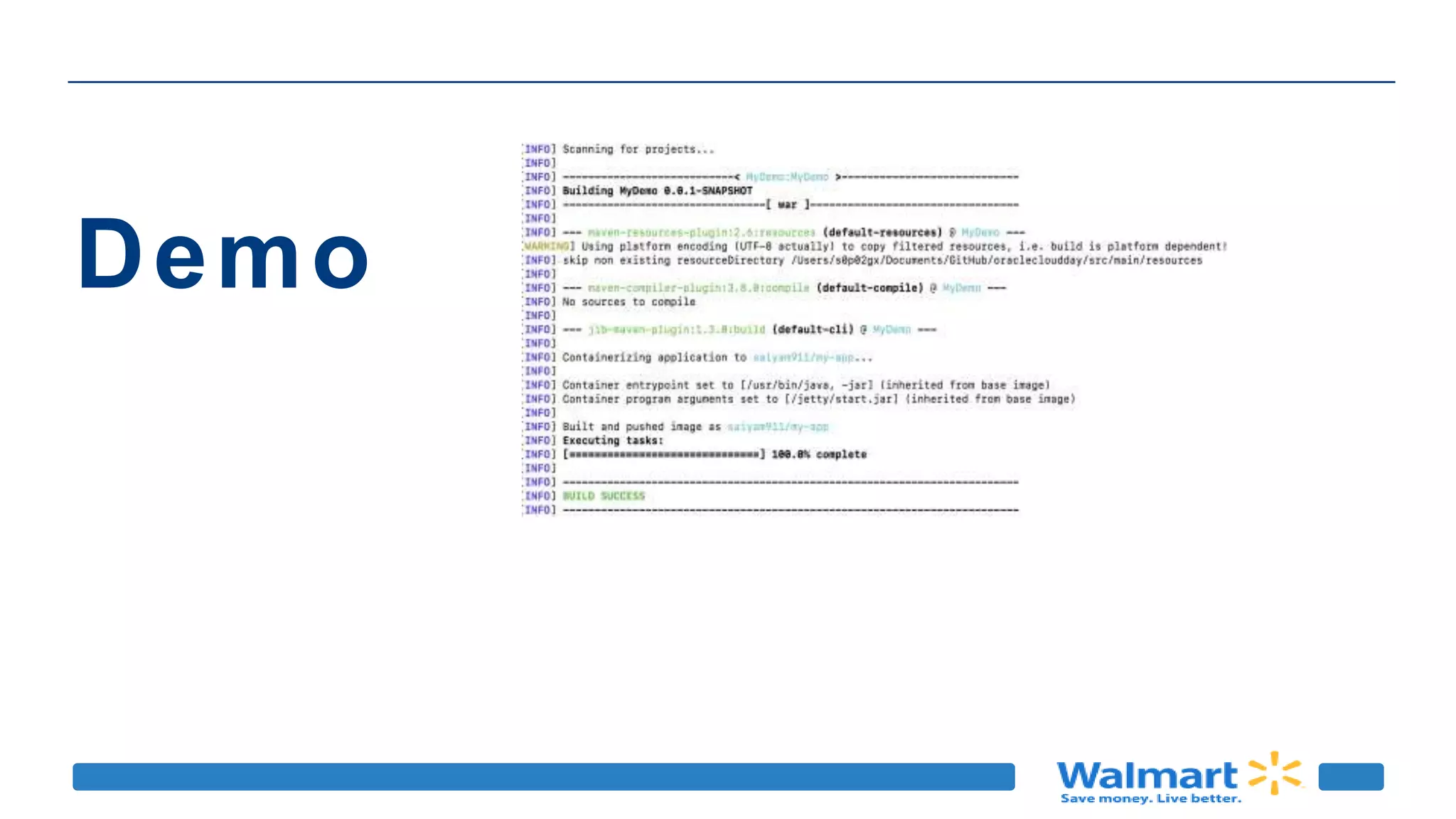

45. Demo

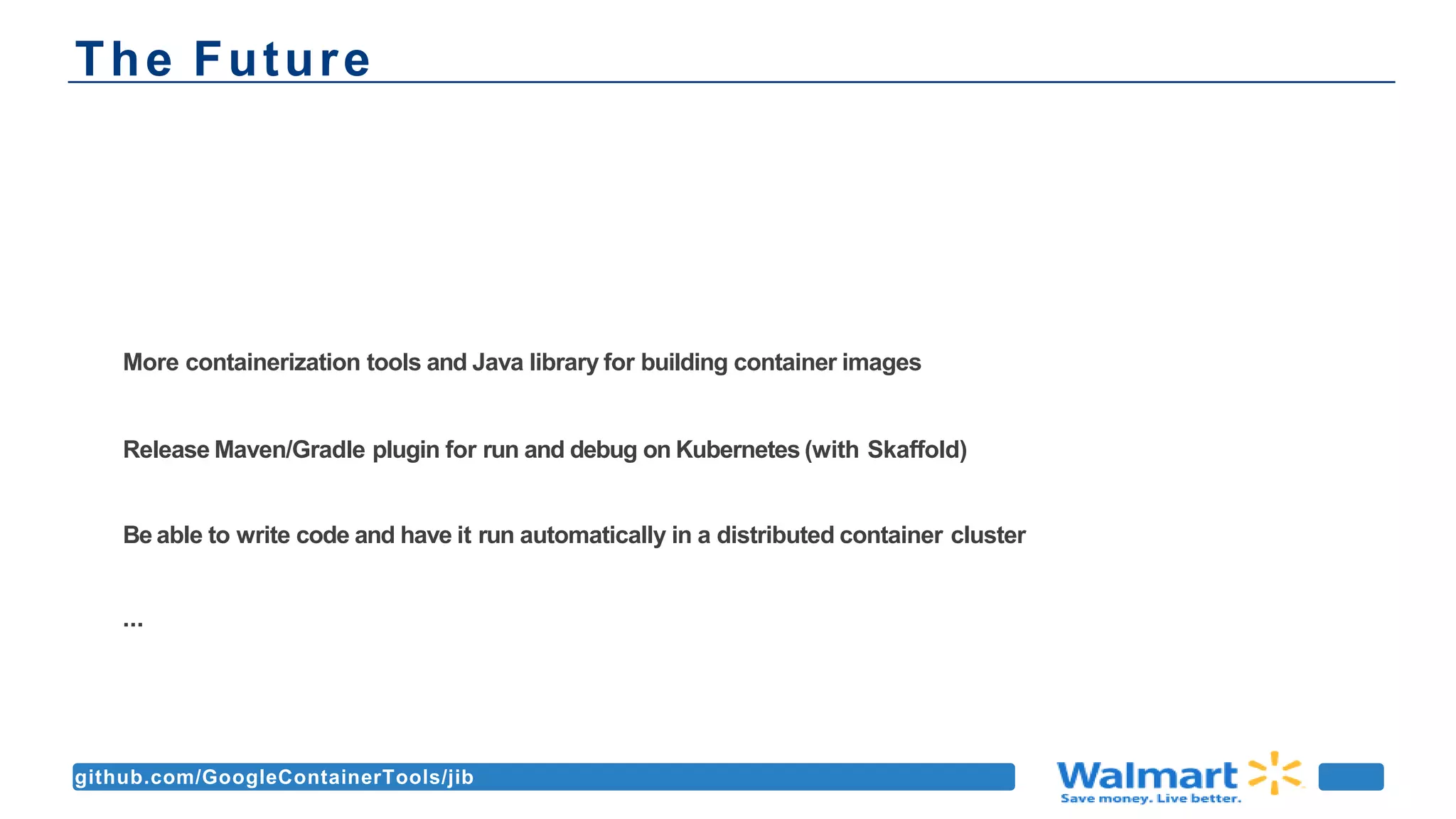

46. The Future
github.com/GoogleContainerTools/jib
More containerization tools and Java library for building container images
Release Maven/Gradle plugin for run and debug on Kubernetes (with Skaffold)
Be able to write code and have it run automatically in a distributed container cluster
...

47. github.com/GoogleContainerTools/jib
saturnism.me/talk/docker-tips-and-tricks
github.com/GoogleContainerTools/distroless
Special Thanks:
Q Chen - @coollog - For JIB
https://www.youtube.com/watch?v=H6gR_Cv4yWI

48. Cloud Run

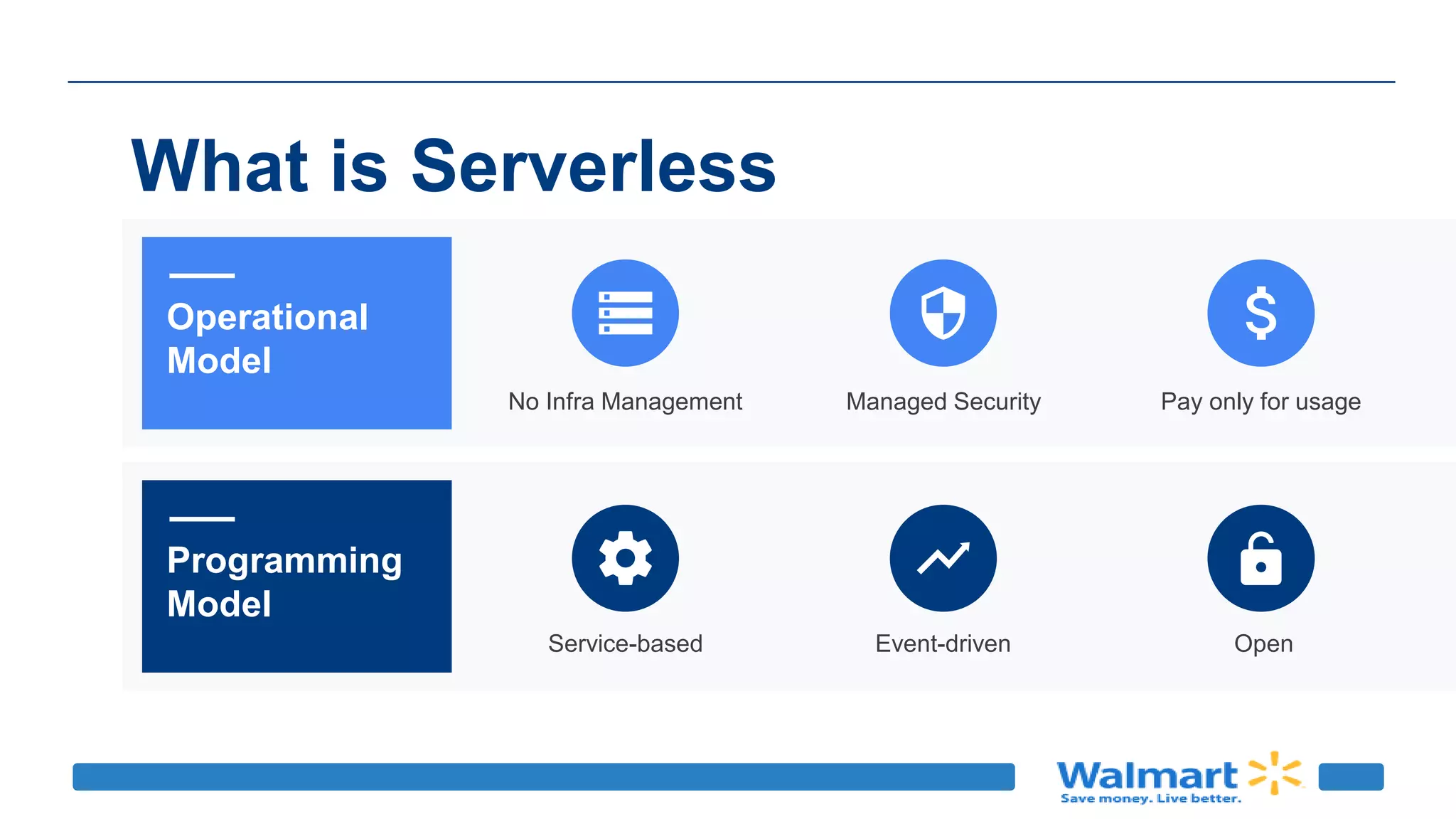

49. Operational
Model
Programming
Model
No Infra Management Managed Security Pay only for usage
Service-based Event-driven Open
What is Serverless

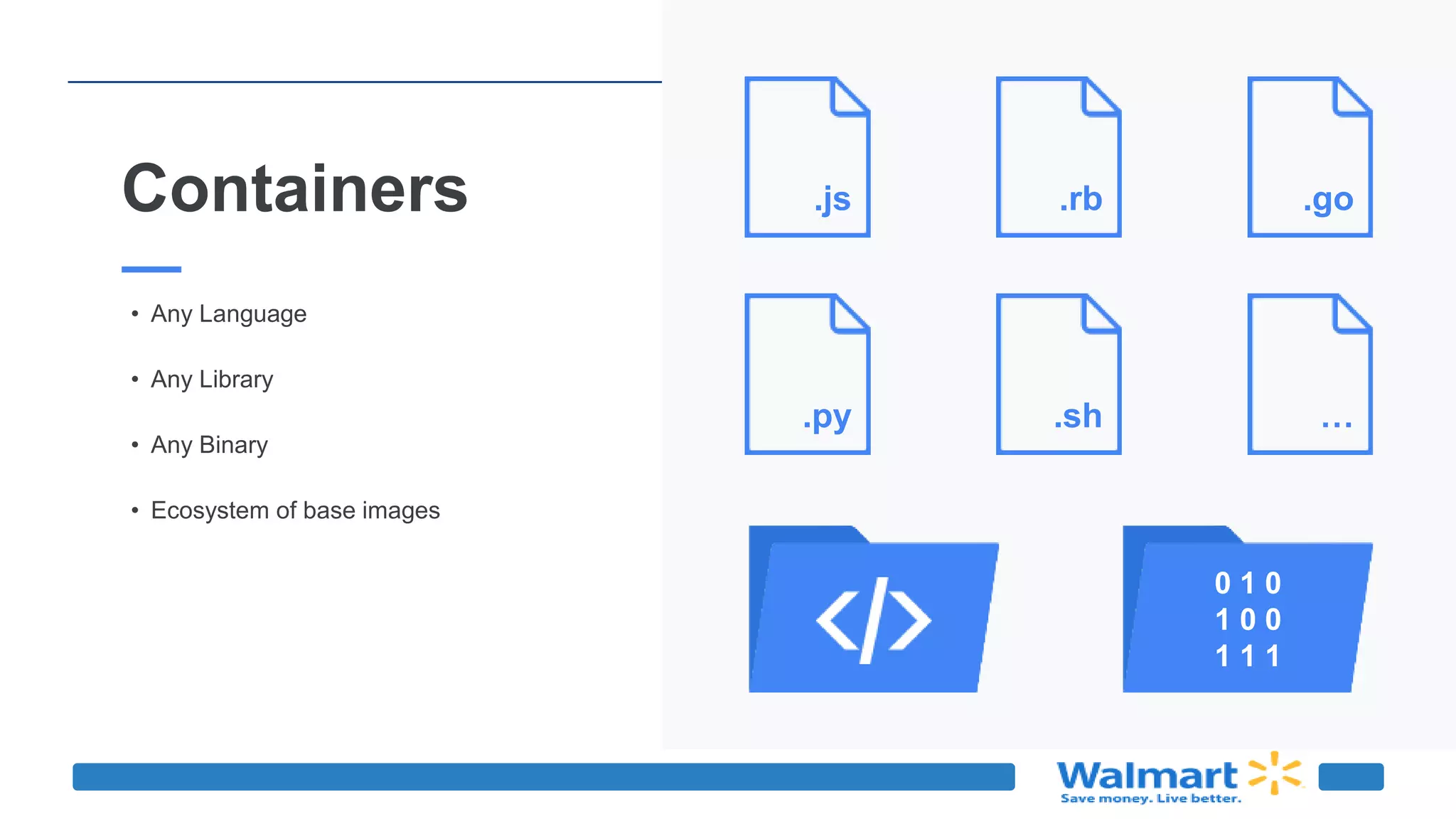

50. Containers
• Any Language
• Any Library
• Any Binary
• Ecosystem of base images
.js .rb .go
.py .sh …
0 1 0
1 0 0
1 1 1

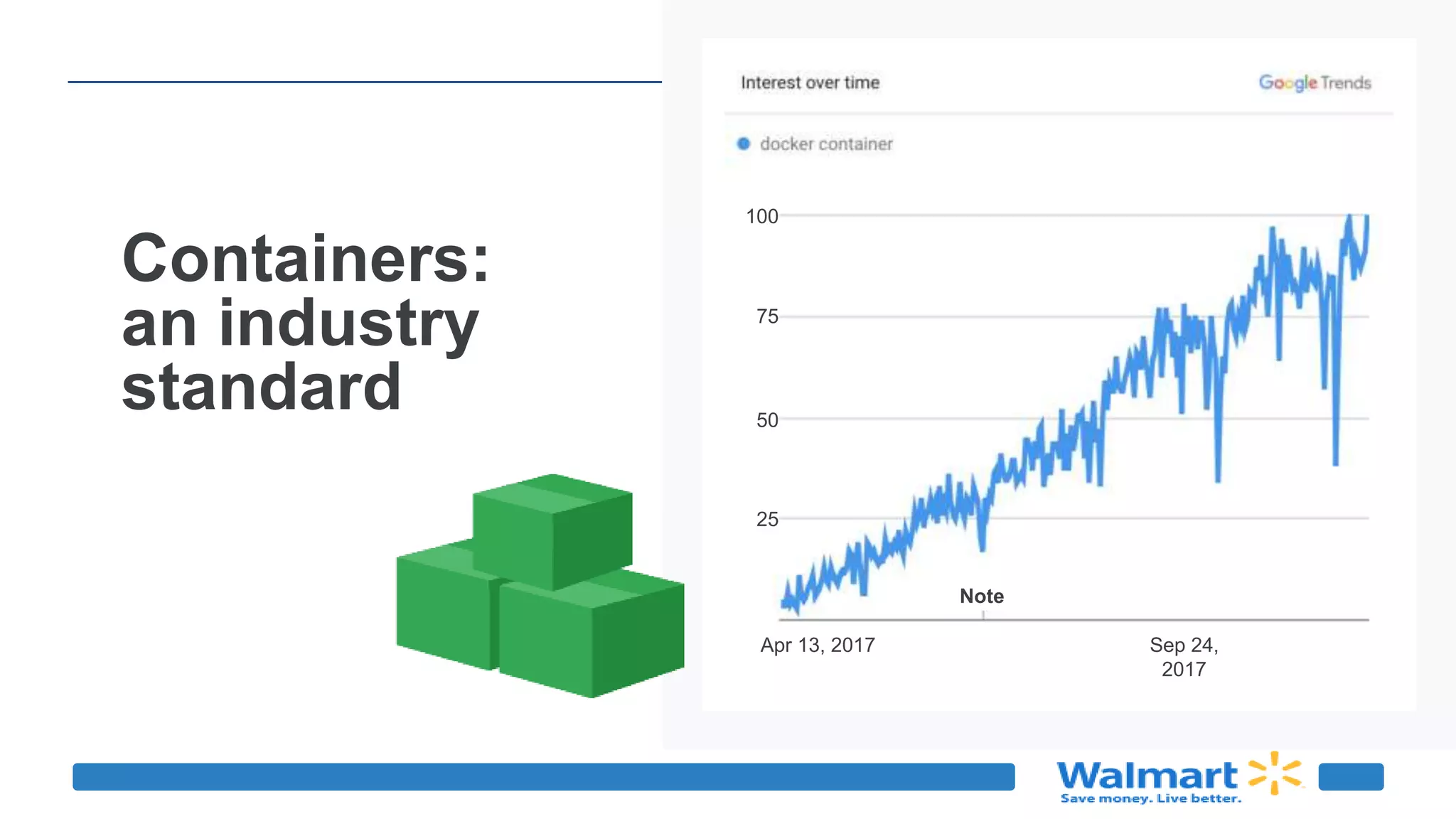

51. Containers:
an industry
standard
100
75
50
25
Note
Apr 13, 2017 Sep 24,
2017

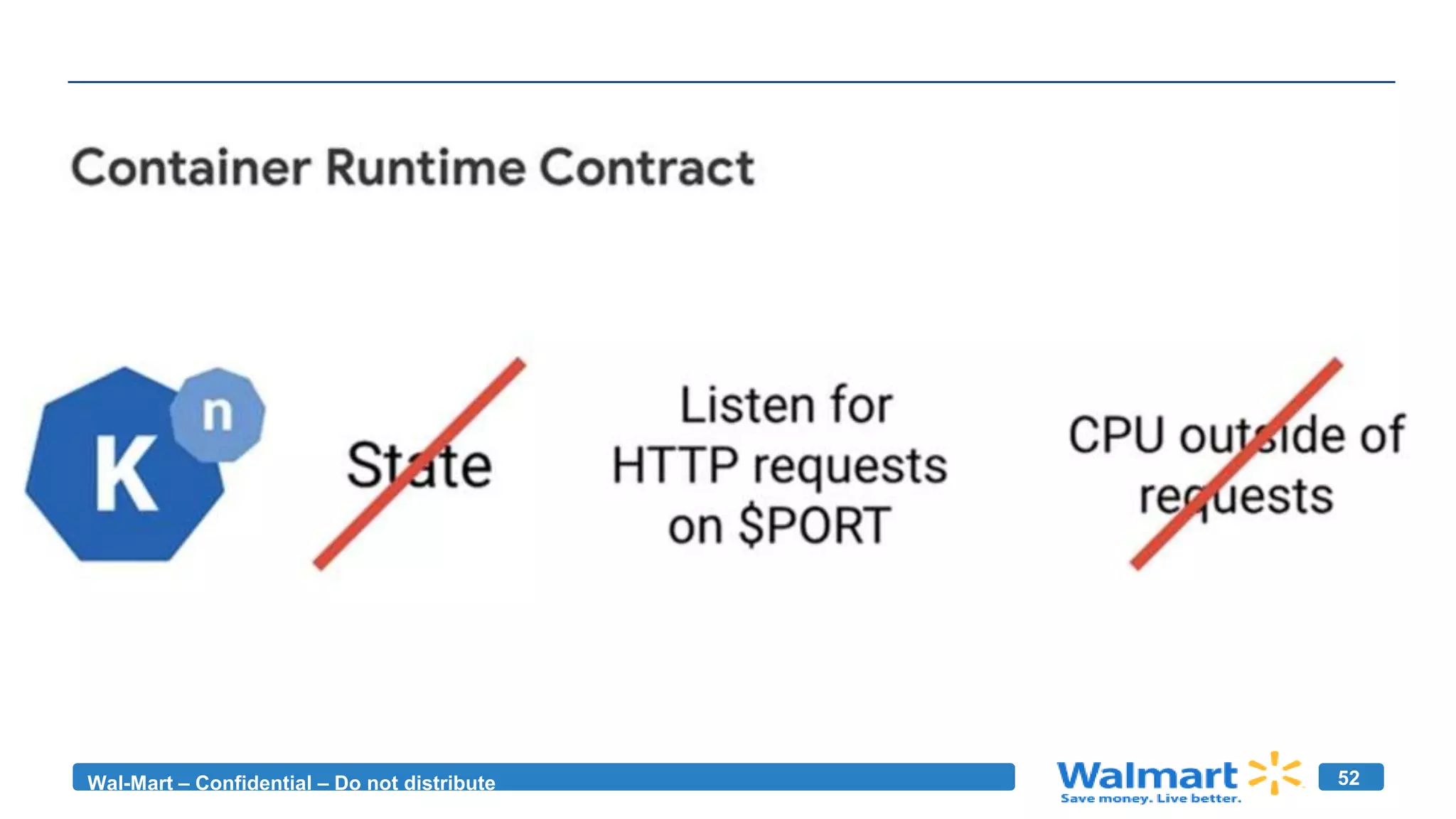

52. Wal-Mart – Confidential – Do not distribute 52

53. Introducing
Cloud Run
Bringing serverless to containers

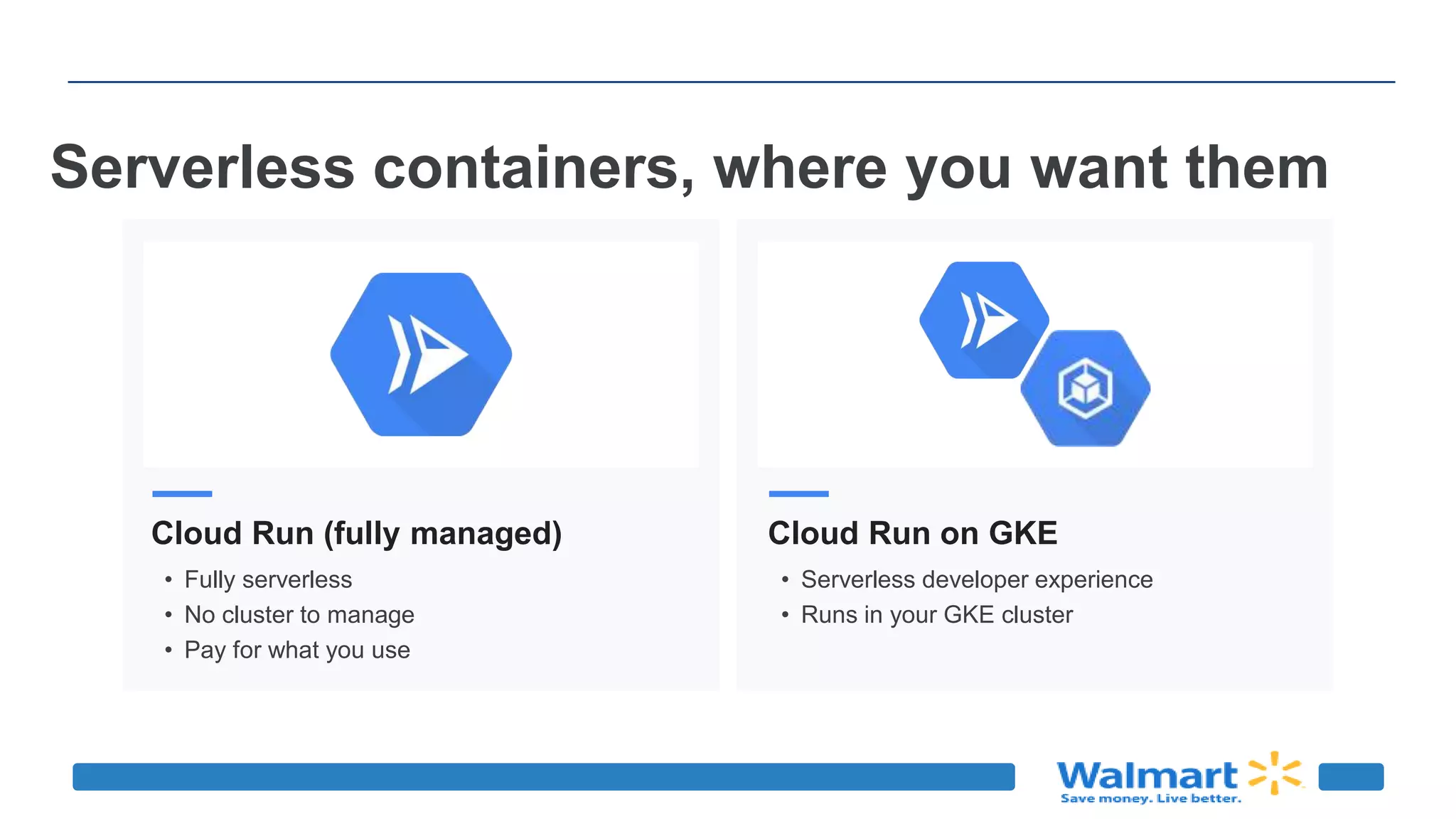

54. Serverless containers, where you want them
Cloud Run (fully managed)
• Fully serverless
• No cluster to manage
• Pay for what you use
Cloud Run on GKE
• Serverless developer experience
• Runs in your GKE cluster

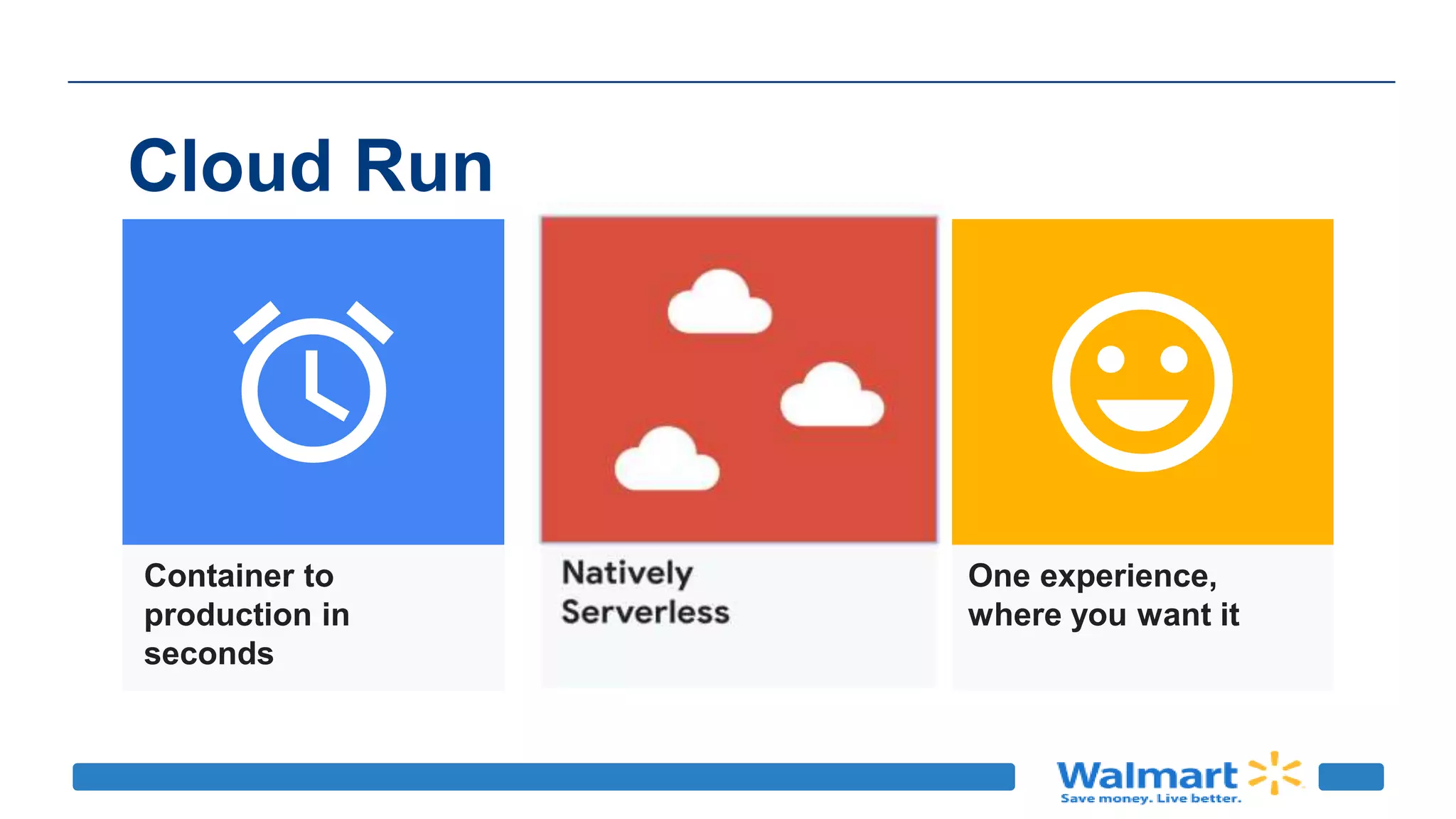

55. Cloud Run
Container to
production in
seconds
Natively
Serverless
One experience,
where you want it

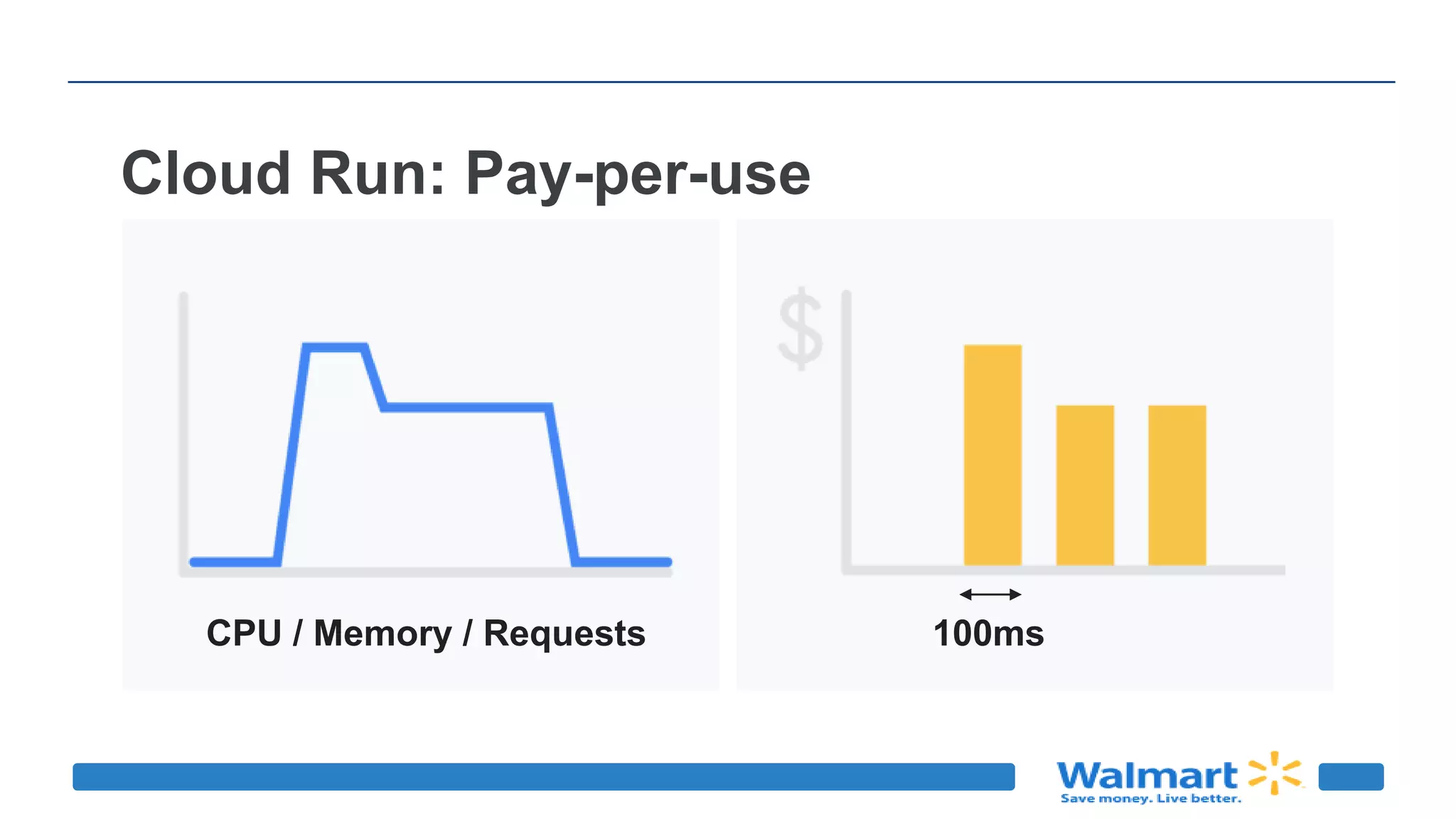

56. Cloud Run: Pay-per-use
CPU / Memory / Requests 100ms

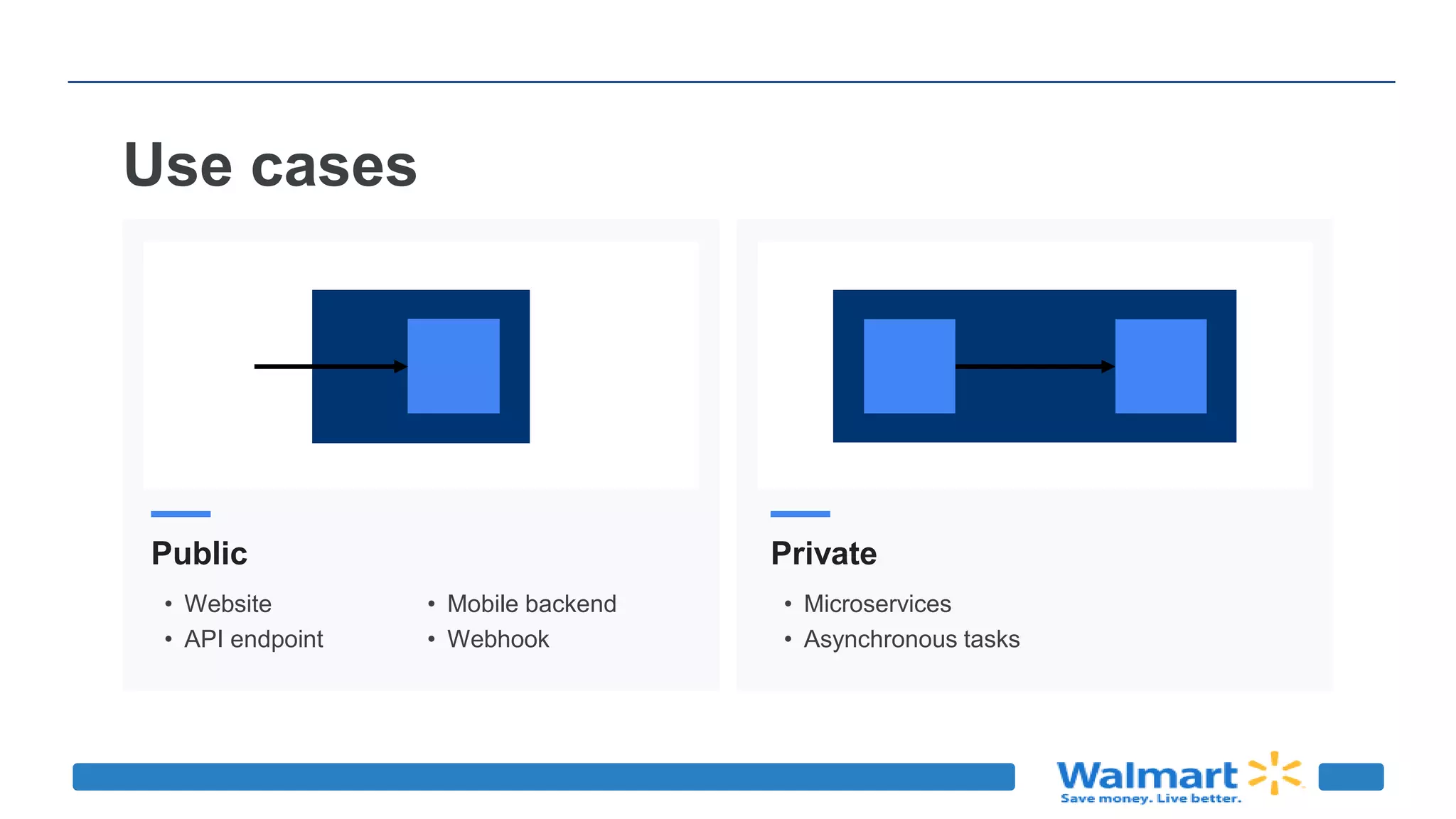

57. Use cases
Public
• Website
• API endpoint
Private
• Microservices
• Asynchronous tasks
• Mobile backend
• Webhook

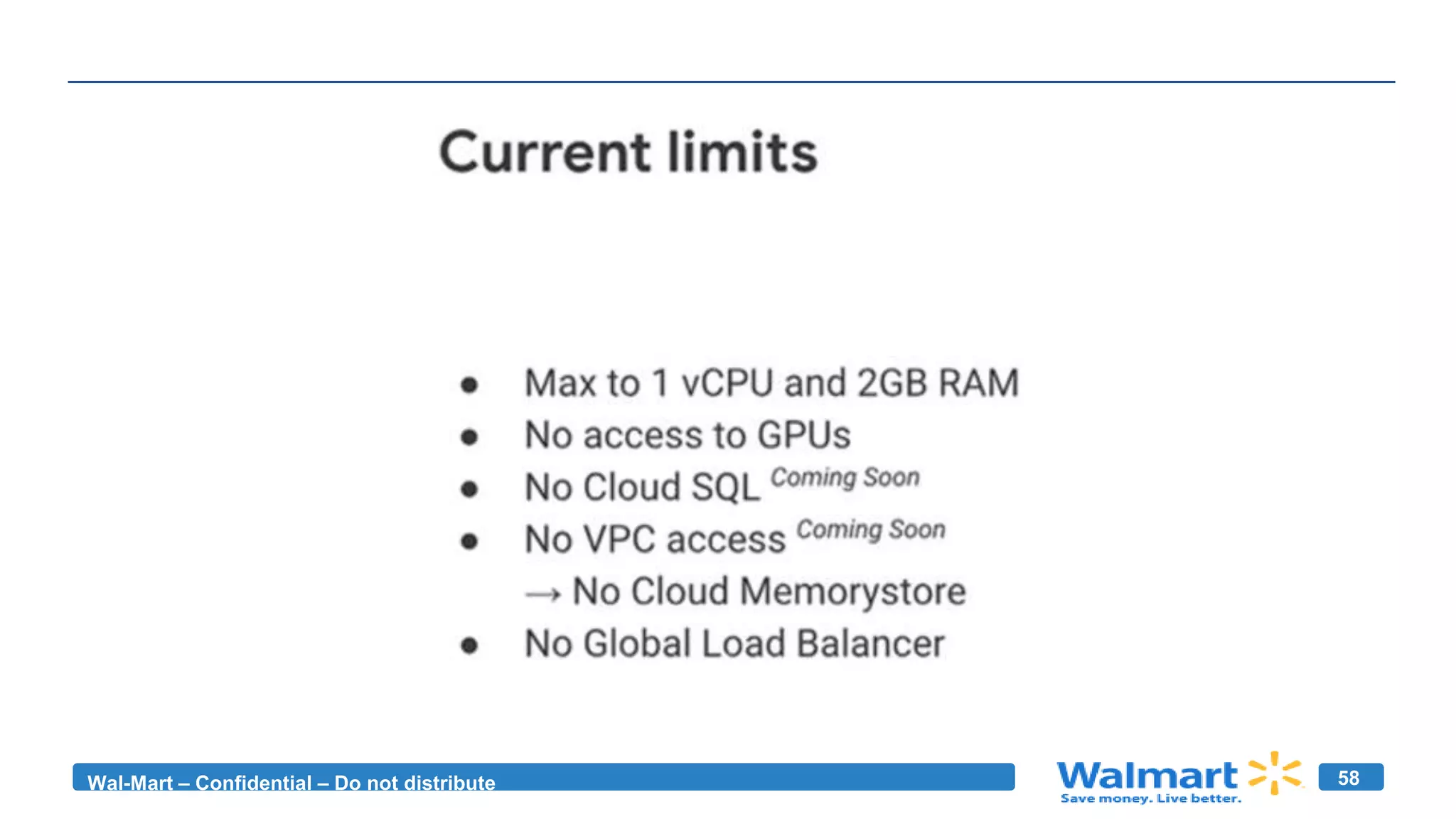

58. Wal-Mart – Confidential – Do not distribute 58

59. Q&A
Also:
● Cloud Run FAQ: github.com/ahmetb/cloud-run-faq
● Anytime on StackOverflow with the google-cloud-run tag
Steren - @steren – Google Cloud Run PM
Special Thanks to :

60. Thank You
Saiyam Pathak
Twitter - @saiyampathak
Blog – https://medium.com/@saiyampathak
3rd August 2019
