Introduction to Android- A session by Sagar Das
- 1. BASICS OF ANDROIDAPP DEVELOPMENT By Sagar Das
- 2. SAGAR DAS • StaffAndroid Engineer at Vivint Smart Home. • 10 years of experience. • Lives in Boston, MA • Public speaker, GDE for Android • GDG Organizer About me

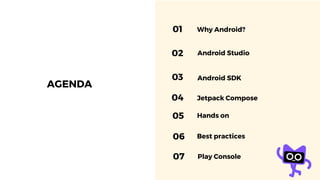

- 3. AGENDA 01 Why Android? 02Android Studio 03 Android SDK 04 Jetpack Compose 05 Hands on 06 Best practices Play Console 07

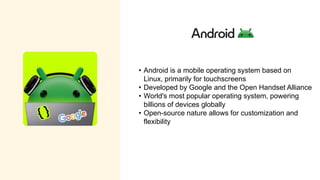

- 4. • Android isa mobile operating system based on Linux, primarily for touchscreens • Developed by Google and the Open Handset Alliance • World's most popular operating system, powering billions of devices globally • Open-source nature allows for customization and flexibility

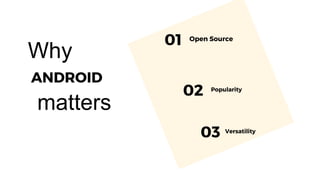

- 5. ANDROID 01 Open Source 02Popularity 03 Versatility Why matters

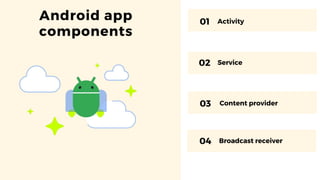

- 6. Activity Service Android app components 01 02 03 Contentprovider 04 Broadcast receiver

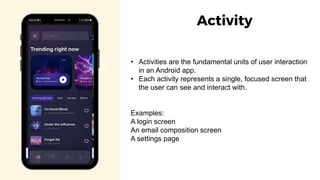

- 7. • Activities arethe fundamental units of user interaction in an Android app. • Each activity represents a single, focused screen that the user can see and interact with. Examples: A login screen An email composition screen A settings page Activity

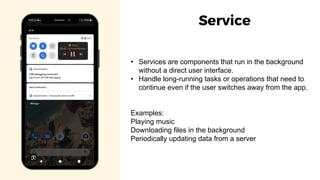

- 8. • Services arecomponents that run in the background without a direct user interface. • Handle long-running tasks or operations that need to continue even if the user switches away from the app. Examples: Playing music Downloading files in the background Periodically updating data from a server Service

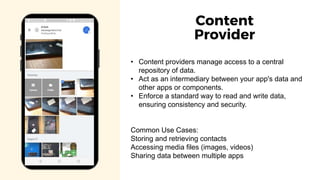

- 9. • Content providersmanage access to a central repository of data. • Act as an intermediary between your app's data and other apps or components. • Enforce a standard way to read and write data, ensuring consistency and security. Common Use Cases: Storing and retrieving contacts Accessing media files (images, videos) Sharing data between multiple apps Content Provider
- 10. • Broadcast receiversallow apps to respond to system- wide or custom messages (broadcasts). • Act as passive listeners for specific events they are registered to receive. Examples of broadcasts: Battery level change Incoming SMS App installation/removal Broadcast receiver

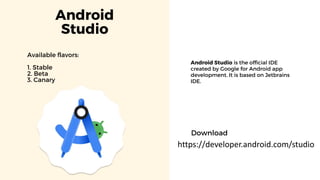

- 11. Android Studio Available flavors: 1. Stable 2.Beta 3. Canary Android Studio is the official IDE created by Google for Android app development. It is based on Jetbrains IDE. https://developer.android.com/studio Download

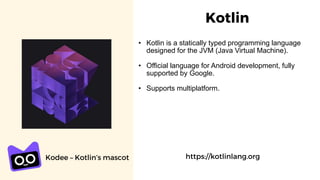

- 12. Kotlin https://kotlinlang.org • Kotlin isa statically typed programming language designed for the JVM (Java Virtual Machine). • Official language for Android development, fully supported by Google. • Supports multiplatform. Kodee – Kotlin’s mascot
- 13. Kotlin – Data types •Supports all of the commonly used data types: Int, Double, String, Boolean, etc. • Properties can be written as val (can’t be modified) or var (which can be modified). Example val name: String = "Alice" var age: Int = 25

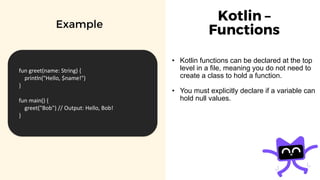

- 14. Kotlin – Functions • Kotlinfunctions can be declared at the top level in a file, meaning you do not need to create a class to hold a function. • You must explicitly declare if a variable can hold null values. Example fun greet(name: String) { println("Hello, $name!") } fun main() { greet("Bob") // Output: Hello, Bob! }

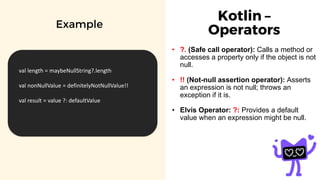

- 15. Kotlin – Operators • ?.(Safe call operator): Calls a method or accesses a property only if the object is not null. • !! (Not-null assertion operator): Asserts an expression is not null; throws an exception if it is. • Elvis Operator: ?: Provides a default value when an expression might be null. Example val length = maybeNullString?.length val nonNullValue = definitelyNotNullValue!! val result = value ?: defaultValue

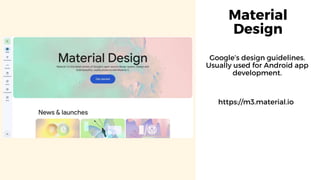

- 16. Material Design https://m3.material.io Google’s design guidelines. Usuallyused for Android app development.
- 17. Imperative Programming Tell the code“How” to do it. Example val textView = view.findViewById(R.id.myTextView) textView.text = "Hello, world!" Developer’s role is to provide the sequence of operations.
- 18. Declarative Programming Tell the code“what” needs to be done. Example @Composable fun MyComposableView() { Text(text = "Hello, world!") } Developer’s role on the sequence is abstracted. The framework takes care of achieving the goal.
- 19. Jetpack Compose https://developer.android.co m/jetpack/compose A declarative programming frameworkfor building UI elements in an Android app.

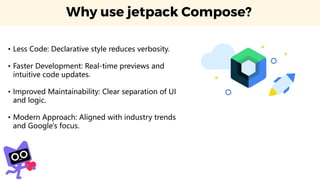

- 20. Why use jetpackCompose? • Less Code: Declarative style reduces verbosity. • Faster Development: Real-time previews and intuitive code updates. • Improved Maintainability: Clear separation of UI and logic. • Modern Approach: Aligned with industry trends and Google's focus.

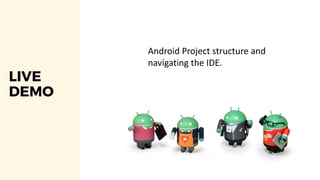

- 21. LIVE DEMO Android Project structureand navigating the IDE.

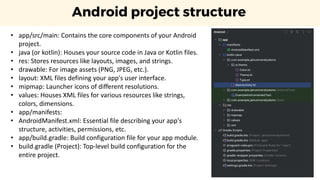

- 22. Android project structure •app/src/main: Contains the core components of your Android project. • java (or kotlin): Houses your source code in Java or Kotlin files. • res: Stores resources like layouts, images, and strings. • drawable: For image assets (PNG, JPEG, etc.). • layout: XML files defining your app's user interface. • mipmap: Launcher icons of different resolutions. • values: Houses XML files for various resources like strings, colors, dimensions. • app/manifests: • AndroidManifest.xml: Essential file describing your app's structure, activities, permissions, etc. • app/build.gradle: Build configuration file for your app module. • build.gradle (Project): Top-level build configuration for the entire project.
- 23.

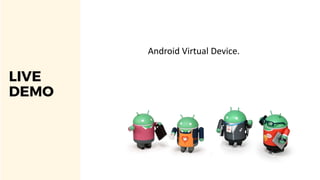

- 24. Android Virtual Device •AVDs are software emulators that mimic real Android devices within your computer. • Essential for testing your apps on different: • Screen sizes and resolutions • Android API levels (versions) • Hardware configurations (camera, sensors, etc.)
- 25.

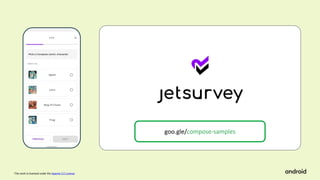

- 26. This work islicensed under the Apache 2.0 License goo.gle/compose-samples

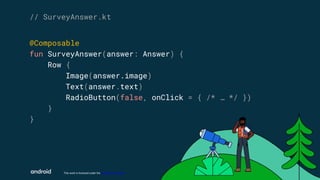

- 27. This work islicensed under the Apache 2.0 License @Composable fun SurveyAnswer(answer: Answer) { Row { Image(answer.image) Text(answer.text) RadioButton(false, onClick = { /* … */ }) } } // SurveyAnswer.kt
- 28. This work islicensed under the Apache 2.0 License Construct UI by describing what, not how.

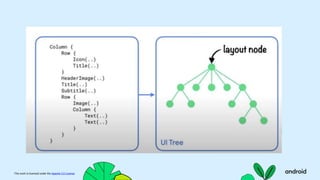

- 29. This work islicensed under the Apache 2.0 License

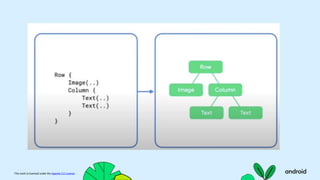

- 30. This work islicensed under the Apache 2.0 License

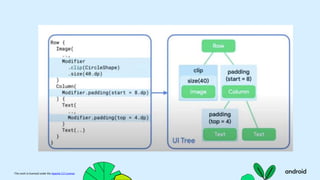

- 31. This work islicensed under the Apache 2.0 License
- 32. This work islicensed under the Apache 2.0 License Architecture patterns solves large scale problems, Where as Design patterns solve small scale problems.

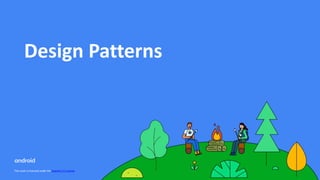

- 33. This work islicensed under the Apache 2.0 License Design Patterns
- 34. This work islicensed under the Apache 2.0 License Design patterns solves problems in one layer of the app.

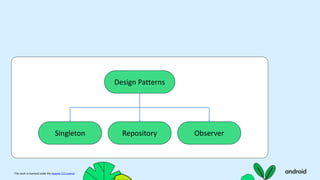

- 35. This work islicensed under the Apache 2.0 License Design Patterns Singleton Repository Observer
- 36. This work islicensed under the Apache 2.0 License Architecture Patterns
- 37. This work islicensed under the Apache 2.0 License Architecture patterns solves problems in multiple layers of the app.

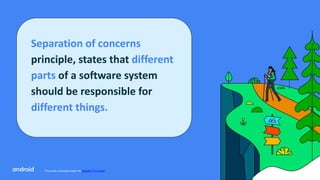

- 38. This work islicensed under the Apache 2.0 License Separation of concerns principle, states that different parts of a software system should be responsible for different things.

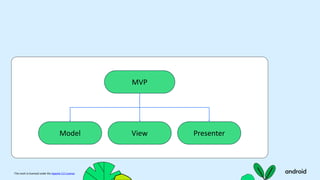

- 39. This work islicensed under the Apache 2.0 License MVP Model View Presenter
- 40. This work islicensed under the Apache 2.0 License Model - Stores the data. View - Displays the data. Presenter - Manages the data. Drawback: No place to handle user inputs.
- 41. This work islicensed under the Apache 2.0 License MVVM Model View ViewModel

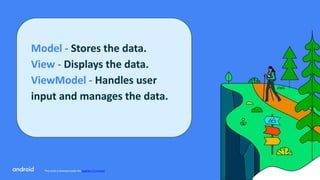

- 42. This work islicensed under the Apache 2.0 License Model - Stores the data. View - Displays the data. ViewModel - Handles user input and manages the data.

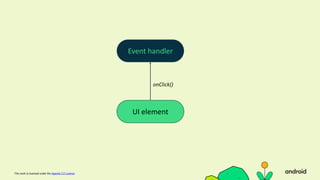

- 43. This work islicensed under the Apache 2.0 License Event handler UI element onClick()

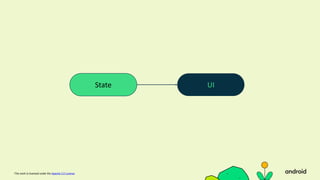

- 44. This work islicensed under the Apache 2.0 License UI State
- 45. This work islicensed under the Apache 2.0 License UI 2 State 2

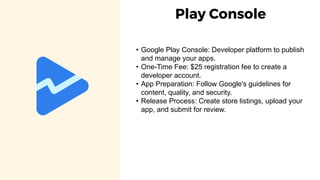

- 46. Play Console • GooglePlay Console: Developer platform to publish and manage your apps. • One-Time Fee: $25 registration fee to create a developer account. • App Preparation: Follow Google's guidelines for content, quality, and security. • Release Process: Create store listings, upload your app, and submit for review.
- 47.
- 48.
- 49.

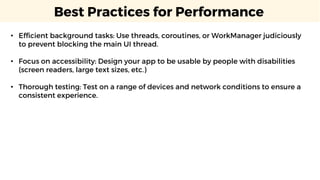

- 50. Best Practices forPerformance • Efficient background tasks: Use threads, coroutines, or WorkManager judiciously to prevent blocking the main UI thread. • Focus on accessibility: Design your app to be usable by people with disabilities (screen readers, large text sizes, etc.) • Thorough testing: Test on a range of devices and network conditions to ensure a consistent experience.
- 51.
- 52. https://www.linkedin.com/in/ sagar-das-077a4a7b/ THANKS Feel free toconnect on LinkedIN https://medium.com/@sagar.das Performance Engineering Blogs GDG BOSTON ANDROID @bostonandroid
