The document discusses debugging and profiling approaches for Android. It describes popular techniques like logging with logcat, using gdb for debugging, tracing with tools like DDMS and LTTng. It also discusses profiling CPU and memory usage with tools like smem and oprofile. Finally, it provides an overview of WiFi, Bluetooth, and radio interface layer subsystems in Android.

1. Android internals
Egor Elizarov
SPbSU 2012

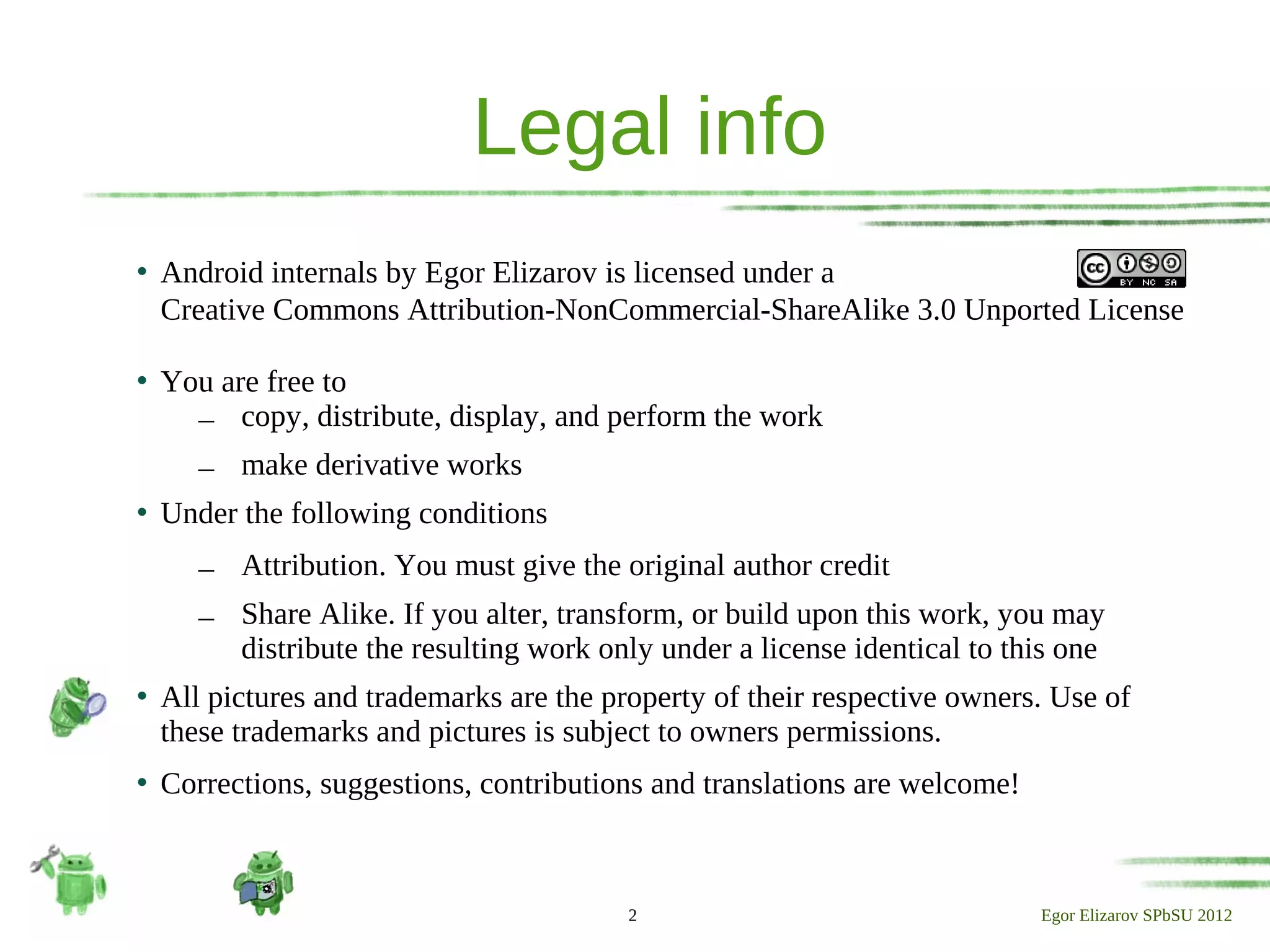

2. Legal info
 Android internals by Egor Elizarov is licensed under a
Creative Commons Attribution-NonCommercial-ShareAlike 3.0 Unported License
 You are free to
– copy, distribute, display, and perform the work
– make derivative works
 Under the following conditions
– Attribution. You must give the original author credit
– Share Alike. If you alter, transform, or build upon this work, you may
distribute the resulting work only under a license identical to this one
 All pictures and trademarks are the property of their respective owners. Use of
these trademarks and pictures is subject to owners permissions.
 Corrections, suggestions, contributions and translations are welcome!
2 Egor Elizarov SPbSU 2012

3. Lecture 10
Debugging / profiling
WiFi / Bluetooth / RIL
yegor.yelizarov(at)gmail.com
Rev: 1.1 http://vk.com/android_internals
Last update: 06/01/2012
3 Egor Elizarov SPbSU 2012

4. Previous time
 Suspend/Resume process
 Android PM main components
 Android Input subsystem
 *.kl, *.kcm, *.idc configuration files
 Sensor subsystem
 Input noise reduction approaches
 Android data storage
4 Egor Elizarov SPbSU 2012

5. Useful host/target configuration
5 Egor Elizarov SPbSU 2012

6. Debugging/profiling agenda

Very good presentation about debugging &
profiling by Tim Bird

Most popular approaches

Tools covered by Tim in brief

Few words about not covered approaches
6 Egor Elizarov SPbSU 2012

7. Debugging approaches
7 Egor Elizarov SPbSU 2012

8. Logging

logcat – obtaining android log
– For both C/C++ (LOGE) & Java (Log.e) code
– Have rich formatting options

dmesg – obtatining kernel log
– printk()
– Extra logs from userspace through /dev/kmsg

Stdio redirection
– For both Java (log.redirect-stdio) & Native (xargs) code
8 Egor Elizarov SPbSU 2012

9. GNU debugger (gdb)

DDD can be used as graphic backend

On target

$ gdbserver :1234 --attach pid

Or $gdbserver :1234 /system/bin/app
●
On host

$ adb forward tcp:1234 tcp:1234 && gdbclient app :1234 app

Or $ arm-eabi-gdb

# file ./out/target/product/generic/symbols/system/bin/app_process

# set solib-search-path
./out/target/product/generic/symbols/system/lib

# target remote target_ip:1234
9 Egor Elizarov SPbSU 2012

10. Google debuggers

Fastboot
– Protocol & tool to communicate with host over USB
– Install images, erase partitions, booting from host
– Supported in UBoot

ADB
– Remote shell, install, file copy, etc.
– Work over Network/USB
10 Egor Elizarov SPbSU 2012

11. Tracing & dumping

Strace
– Shows system calls for a process (or set of processes)

Dalvik Debug Monitor Servic (DDMS)
– Integrated into Eclipse
– Provides port-forwarding services, screen capture on the device,
thread and heap information on the device, logcat and much more

Dumpsys / Dumpstate
– Dumps huge amounts of information about the system, including
status, counts and statistics
– Dumpsys show status information from Android service
11 Egor Elizarov SPbSU 2012

12. Virtual Network Computing

VNC - Graphical desktop sharing system

Transmits input events from host to target

Transmits screen updates from target to host

On target
– androidvncserver &

On host
– vncviewer target_ip:5901
12 Egor Elizarov SPbSU 2012

13. Profiling approaches
13 Egor Elizarov SPbSU 2012

14. CPU and memory statistics

Common profiling workflow

Smem
– Analyze of system-wide memory usage

OProfile
– CPU usage statistic for both kernel & userspace
– Monitors execution point periodically
– Should be enabled in kernel
14 Egor Elizarov SPbSU 2012

15. Tracing

Bootchart
– Analyze system booting process
– init should be recompiled to add Bootchart support

TraceView
– Java methods tracing
– Can be used with DDMS
15 Egor Elizarov SPbSU 2012

16. Benchmarks

Rowboat bench
– Set of benchmarks for CPU, 2D, 3D, etc.
– Developed by Rowboat team

0xbench
– Another set of benchmarks
– Developed by 0xlab team

Lots of benchmarks in Google Play
16 Egor Elizarov SPbSU 2012

17. Linux Trace Toolkit next generation

Work for both kernel and userspace

Useful to debug threads and processes

Allow to trace only some events

Allow userspace events (/mnt/debugfs/ltt/write_event)

Kernel patches + ltt-control + ltt-viewer
17 Egor Elizarov SPbSU 2012

18. Add LTTng support to Android
18 Egor Elizarov SPbSU 2012

19. Different tricks

Activity Manager - control applications
– am start -a android.intent.action.MAIN -n
com.android.camera/com.android.camera.Camera &

input keyevent X – send keyboard events

sendevent – send touch events

setprop/getprop - control system properties

sqlite - access database

start/stop - restart whole system
19 Egor Elizarov SPbSU 2012

20. WiFi in Android

Supports IEEE 802.11 abgn

Supports both IPv4 and IPv6

Based on customized wpa_supplicant

Wifi drivers compiled as modules (Wifi HAL
can changed to support built-in drivers)
20 Egor Elizarov SPbSU 2012

21. Wifi subsystem
21 Egor Elizarov SPbSU 2012

22. Porting Wifi driver
22 Egor Elizarov SPbSU 2012

23. Bluetooth in Android

Bluetooth is covered by IEEE 802.15.1

Android BT is based on the BlueZ stack

Android provides subset of BlueZ functionality

Android supports point-to-point and multiple-
point connections

Supports maximum 9 simultaneous connections
23 Egor Elizarov SPbSU 2012

24. Bluetooth workflow
24 Egor Elizarov SPbSU 2012

25. Bluetooth subsystem
25 Egor Elizarov SPbSU 2012

26. RIL in Android

Most devices have separate Radio Frequency
module for signal strength measurement etc.

Modem often have own CPU with running OS
(Ex: Mentor Nucleus)

Usually have firmware

Often kernel interface to these devices is PPP
26 Egor Elizarov SPbSU 2012

27. RIL subsystem
27 Egor Elizarov SPbSU 2012

28. Next Time

Exam
28 Egor Elizarov SPbSU 2012
