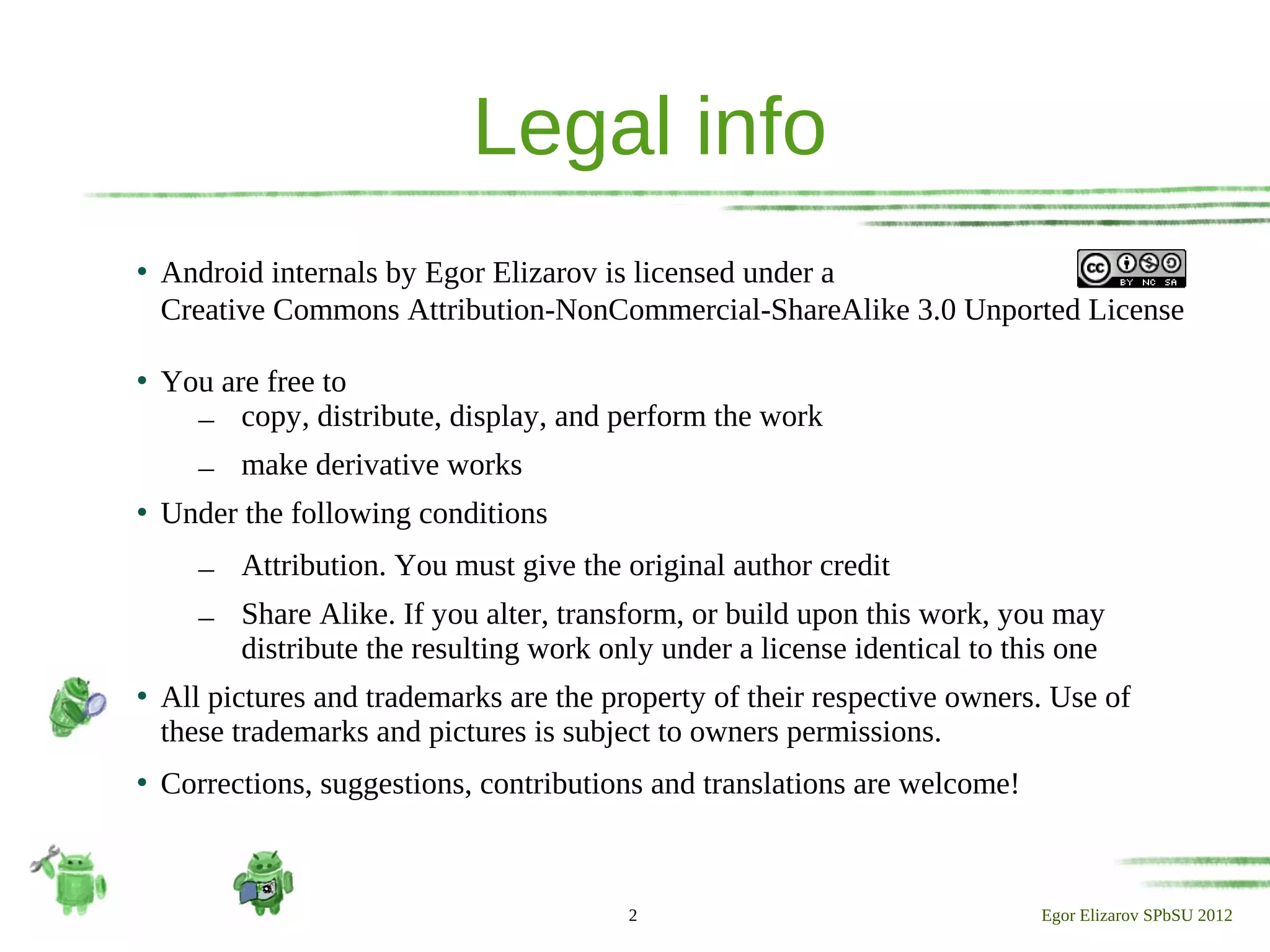

2. Legal info
 Android internals by Egor Elizarov is licensed under a
Creative Commons Attribution-NonCommercial-ShareAlike 3.0 Unported License
 You are free to
– copy, distribute, display, and perform the work
– make derivative works
 Under the following conditions
– Attribution. You must give the original author credit
– Share Alike. If you alter, transform, or build upon this work, you may
distribute the resulting work only under a license identical to this one
 All pictures and trademarks are the property of their respective owners. Use of
these trademarks and pictures is subject to owners permissions.
 Corrections, suggestions, contributions and translations are welcome!
2 Egor Elizarov SPbSU 2012

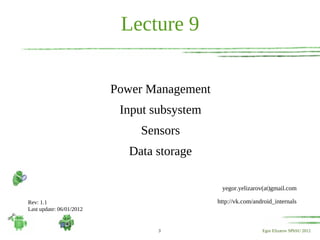

3. Lecture 9
Power Management
Input subsystem
Sensors
Data storage
yegor.yelizarov(at)gmail.com
Rev: 1.1 http://vk.com/android_internals
Last update: 06/01/2012
3 Egor Elizarov SPbSU 2012

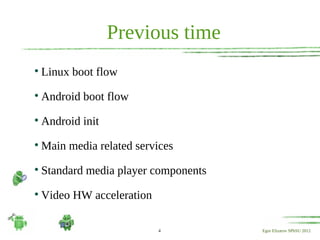

4. Previous time

Linux boot flow

Android boot flow

Android init

Main media related services

Standard media player components

Video HW acceleration
4 Egor Elizarov SPbSU 2012

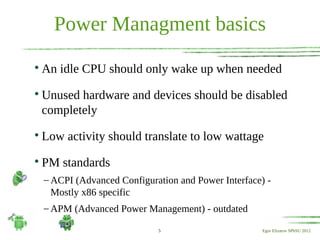

5. Power Managment basics

An idle CPU should only wake up when needed

Unused hardware and devices should be disabled
completely

Low activity should translate to low wattage

PM standards
– ACPI (Advanced Configuration and Power Interface) -
Mostly x86 specific
– APM (Advanced Power Management) - outdated
5 Egor Elizarov SPbSU 2012

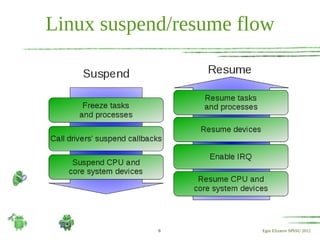

6. Linux suspend/resume flow
6 Egor Elizarov SPbSU 2012

7. Android Power Managment

Wakelocks
WakeLock Type CPU Screen Keyboard
PARTIAL_WAKE_LOCK On* Off Off
SCREEN_DIM_WAKE_LOCK On Dim Off
SCREEN_BRIGHT_WAKE_LOCK On Bright Off
FULL_WAKE_LOCK On Bright Bright
*If you hold a partial wakelock, the CPU will continue to run, irrespective of any timers and even after the user presses the power
button. In all other wakelocks, the CPU will run, but the user can still put the device to sleep using the power button.

Early Suspend (disable some devices)

Interaction with kernel through SysFs

Android kernel PM on top of Linux PM
7 Egor Elizarov SPbSU 2012

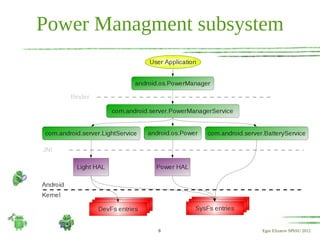

8. Power Managment subsystem
8 Egor Elizarov SPbSU 2012

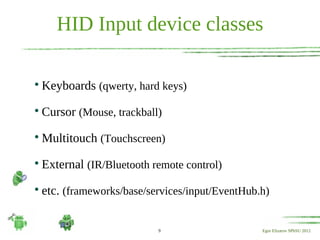

9. HID Input device classes

Keyboards (qwerty, hard keys)

Cursor (Mouse, trackball)

Multitouch (Touchscreen)

External (IR/Bluetooth remote control)

etc. (frameworks/base/services/input/EventHub.h)
9 Egor Elizarov SPbSU 2012

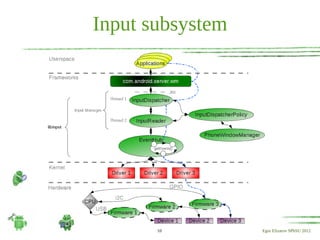

10. Input subsystem
10 Egor Elizarov SPbSU 2012

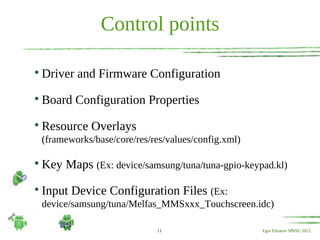

11. Control points

Driver and Firmware Configuration

Board Configuration Properties

Resource Overlays
(frameworks/base/core/res/res/values/config.xml)

Key Maps (Ex: device/samsung/tuna/tuna-gpio-keypad.kl)

Input Device Configuration Files (Ex:
device/samsung/tuna/Melfas_MMSxxx_Touchscreen.idc)
11 Egor Elizarov SPbSU 2012

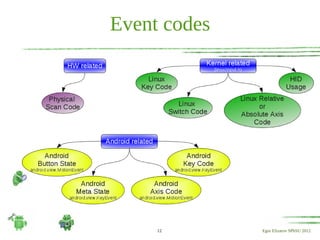

12. Event codes
12 Egor Elizarov SPbSU 2012

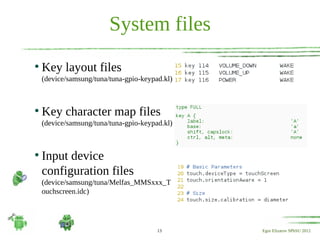

13. System files
●
Key layout files
(device/samsung/tuna/tuna-gpio-keypad.kl)
●
Key character map files
(device/samsung/tuna/tuna-gpio-keypad.kl)
●
Input device
configuration files
(device/samsung/tuna/Melfas_MMSxxx_T
ouchscreen.idc)
13 Egor Elizarov SPbSU 2012

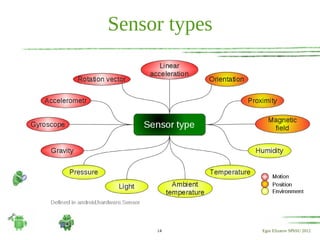

14. Sensor types
14 Egor Elizarov SPbSU 2012

15. Sensor subsystem
15 Egor Elizarov SPbSU 2012

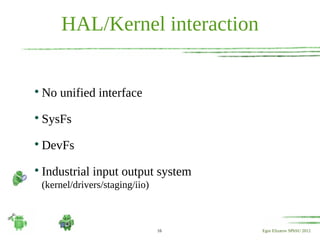

16. HAL/Kernel interaction

No unified interface

SysFs

DevFs

Industrial input output system
(kernel/drivers/staging/iio)
16 Egor Elizarov SPbSU 2012

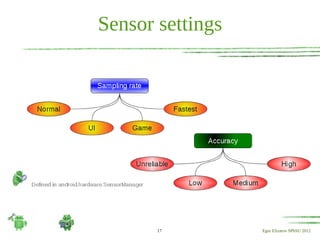

17. Sensor settings
17 Egor Elizarov SPbSU 2012

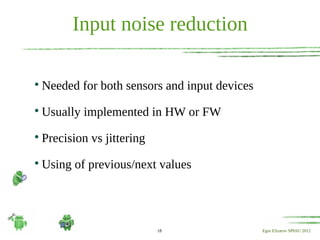

18. Input noise reduction

Needed for both sensors and input devices

Usually implemented in HW or FW

Precision vs jittering

Using of previous/next values
18 Egor Elizarov SPbSU 2012

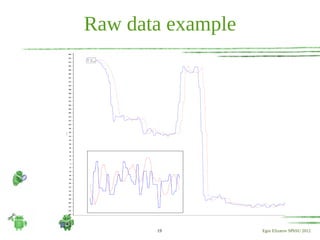

19. Raw data example
19 Egor Elizarov SPbSU 2012

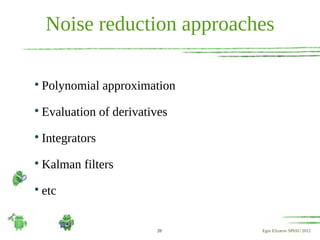

20. Noise reduction approaches

Polynomial approximation

Evaluation of derivatives

Integrators

Kalman filters

etc
20 Egor Elizarov SPbSU 2012

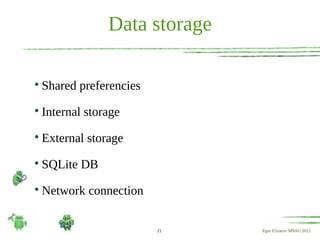

21. Data storage

Shared preferencies

Internal storage

External storage

SQLite DB

Network connection
21 Egor Elizarov SPbSU 2012

22. FS types

RootFs (linux permission support)

Ext*

yaffs

ubifs
●
External storage (same uid/gid for all files)

Fat

Ntfs / ntfs-3g
22 Egor Elizarov SPbSU 2012

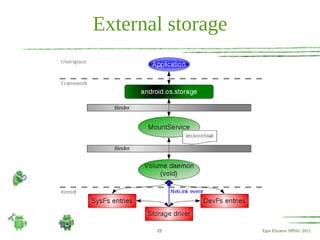

23. External storage
23 Egor Elizarov SPbSU 2012

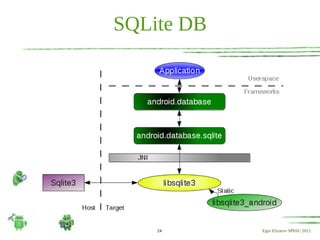

24. SQLite DB
24 Egor Elizarov SPbSU 2012

25. Next Time

Profiling /
Debugging

WiFi / BT / RIL
25 Egor Elizarov SPbSU 2012

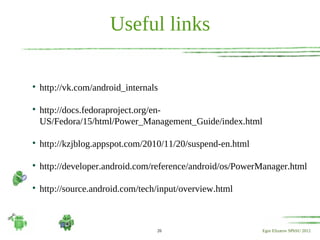

26. Useful links

http://vk.com/android_internals

http://docs.fedoraproject.org/en-
US/Fedora/15/html/Power_Management_Guide/index.html

http://kzjblog.appspot.com/2010/11/20/suspend-en.html

http://developer.android.com/reference/android/os/PowerManager.html

http://source.android.com/tech/input/overview.html
26 Egor Elizarov SPbSU 2012

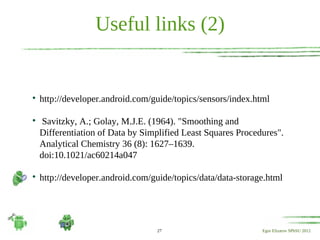

27. Useful links (2)

http://developer.android.com/guide/topics/sensors/index.html

Savitzky, A.; Golay, M.J.E. (1964). "Smoothing and
Differentiation of Data by Simplified Least Squares Procedures".
Analytical Chemistry 36 (8): 1627–1639.
doi:10.1021/ac60214a047

http://developer.android.com/guide/topics/data/data-storage.html
27 Egor Elizarov SPbSU 2012

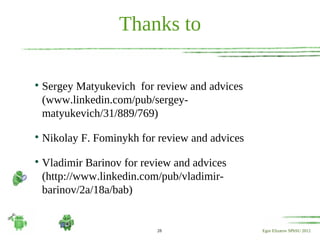

28. Thanks to

