An Analysis of Convolution for Inference

•

6 likes•6,793 views

Scott Gray presents at the 2016 ICML conference. Scott Gray went over various ways of computing convolution in the workshop on "On-device Intelligence".

Technology

An Analysis of Convolution for Inference
24 June 2016
Scott Gray
Nervana Systems
MAKING MACHINES SMARTER.™

Proprietary and conﬁdential. Do not distribute.ner va na

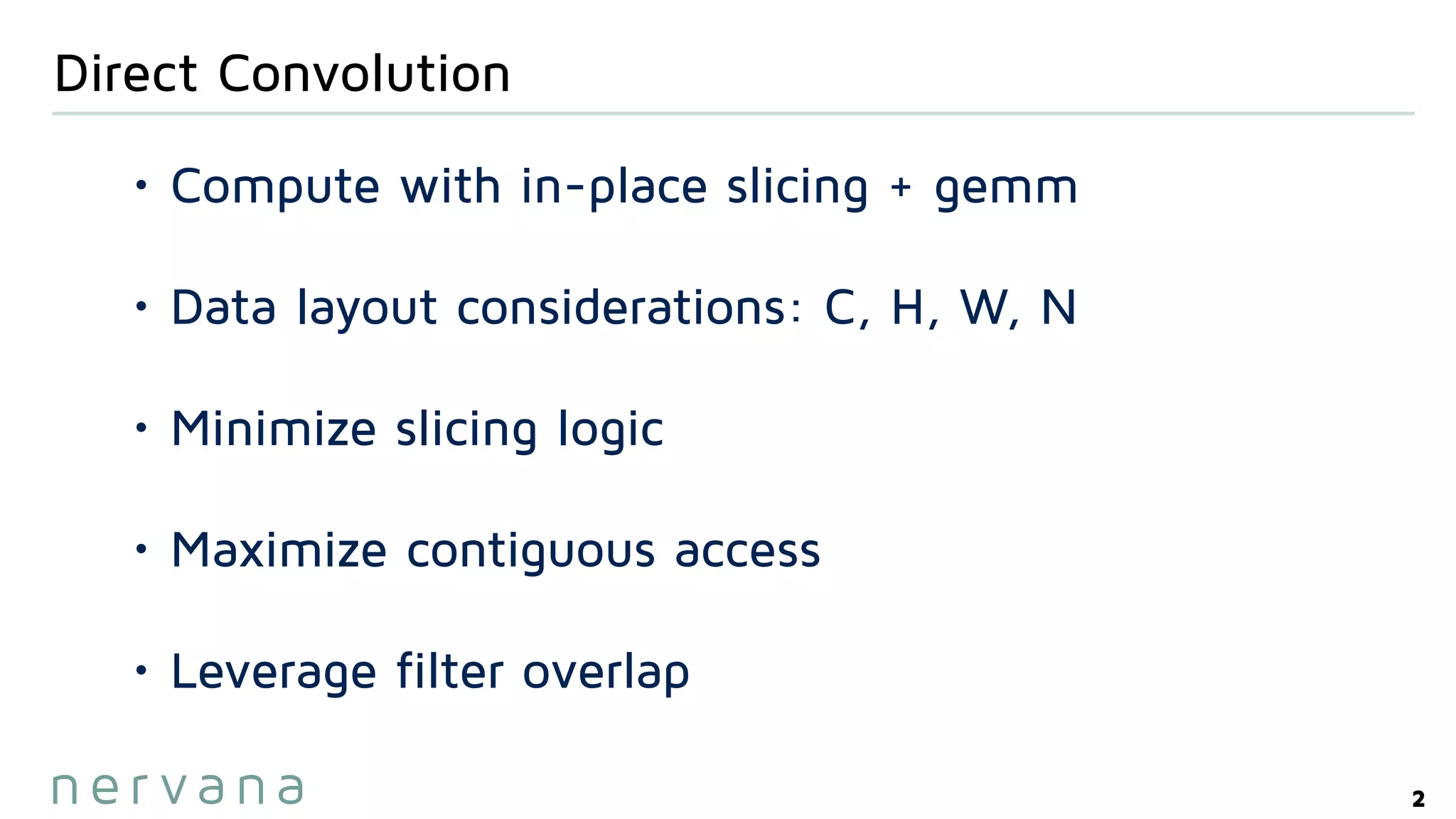

Direct Convolution
2
• Compute with in-place slicing + gemm
• Data layout considerations: C, H, W, N
• Minimize slicing logic
• Maximize contiguous access
• Leverage filter overlap

Proprietary and conﬁdential. Do not distribute.ner va na
Small N direct convolution: Without Superblocking
3
fprop
Q = (W-S+1 + 2 * pad) / stride
wi = sk + qj * stride - pad
Fig from V. Dumoulin,
https://github.com/vdumoulin/conv_arithmetic

Proprietary and conﬁdential. Do not distribute.ner va na
Small N direct convolution: With Superblocking
4
fprop
Q = (W-S+1 + 2 * pad) / stride
wi = sk + qj * stride - pad

Proprietary and conﬁdential. Do not distribute.ner va na
Small N direct convolution: Bprop for deconv
5
bprop
pad’ = S - pad - 1
wi = (qj - pad’ + sk) / stride

Proprietary and conﬁdential. Do not distribute.ner va na
Small N direct convolution: Dilated Filters
6
Dilated
S’ = (S-1) * rate + 1
Q = (W-S’+1 + 2*pad) / stride
wi = sk * rate + qj * stride - pad
Fig from F. Yu, V. Koltun
http://arxiv.org/abs/1511.07122v3

Proprietary and conﬁdential. Do not distribute.ner va na
Convolution with Algorithmic Speedups
7
• FFT and Winograd have same basic computational flow
• FFT tiles typically need to be much bigger
• Winograd history: Toom and Cook, then Lavin

Proprietary and conﬁdential. Do not distribute.ner va na
Winograd: input transform
8
Input Feature Map
4x4 stride 2
• Input transform
• 2D Winograd is a nested
product of 1D transforms
• Transforms can be
simplified to remove zeros

Proprietary and conﬁdential. Do not distribute.ner va na
Winograd: filter transform
9
• Filter transform
• Same as input but with
different coefficients
• Transform each feature map
independently

Proprietary and conﬁdential. Do not distribute.ner va na
Winograd: batched GEMM
10
• Point-wise Multiplication
• Posed as batched GEMM
operation

Proprietary and conﬁdential. Do not distribute.ner va na
Winograd: output transform
11
Output Feature Map
• Output transform
• Same as input and filter
• Transform back to pixel
space to obtain 2x2 output
tile

Proprietary and conﬁdential. Do not distribute.ner va na
Transforms for Increased Accuracy
12
Integer roots
4 0 -5 0 1 0
0 -4 -4 1 1 0
0 4 -4 -1 1 0
0 -2 -1 2 1 0
0 2 -1 -2 1 0
0 4 0 -5 0 1
0.87 0 -2.64 0 1 0
0 -1.4 -2.25 0.62 1 0
0 1.4 -2.25 -0.62 1 0
0 -0.58 -0.39 1.5 1 0
0 0.58 -0.39 -1.5 1 0
0 0.87 0 -2.64 0 1
Fractional roots
Input transforms for 4x4

$Proprietary and conﬁdential. Do not distribute.ner va na Precision 13 Percentage error from Convolution 0 5 10 15 20 25 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Direct 2x2 Winograd 4x4 winograd (Fractional Roots) 4x4 Winograd (Integer Roots) PercentageError Bit width Bits Direct 2x2 Winograd 4x4 frac 4x4 int 3 56.461 112.174 351.196 314.62 4 23.533 46.222 274.28 432.959 5 10.879 21.394 142.649 459.723 6 5.245 10.34 68.062 446.271 7 2.585 5.074 33.73 250.057 8 1.286 2.516 16.667 123.585 9 0.639 1.253 8.246 62.001 10 0.319 0.626 4.154 31.006 11 0.159 0.312 2.064 15.439 12 0.08 0.156 1.029 7.669 13 0.04 0.078 0.515 3.857 14 0.02 0.039 0.259 1.923 15 0.01 0.019 0.129 0.966 16 0.005 0.01 0.064 0.483$

Proprietary and conﬁdential. Do not distribute.ner va na
Multiplier Transistor Efficiency
14
Algo bits speedup transistors
performance
/ transistor
Direct 8 1.0 3000 1
2x2 9 2.25 3750 1.8
4x4 12 4.0 6000 2.0
Transistor Counts from Wikipedia:

Proprietary and conﬁdential. Do not distribute.ner va na
Logarithmic quantization
15
D. Miyashita, EH. Lee, B. Murmann
Convolutional Neural Networks using Logarithmic Data Representation
http://arxiv.org/abs/1603.01025v2

Proprietary and conﬁdential. Do not distribute.ner va na 16
Performance: VGG fp32 on GTX1080effectiveTFLOPS
Batch Size
VGG - Totals:
0
5
10
15
20
25
64 32 16 8 4 2 1
Neon Direct
Neon F(2x2,3x3)
Neon F(4x4,3x3)
cuDNN FFT

Proprietary and conﬁdential. Do not distribute.ner va na 17
Peak Performance: VGG fp32 on GTX1080effectiveTFLOPS
Batch Size
VGG - Layer 4.2:
0
5
10
15
20
25
64 32 16 8 4 2 1
Neon Direct
Neon F(2x2,3x3)
Neon F(4x4,3x3)
cuDNN FFT
