Oracle OpenWorld 2014 Review Part Four - PaaS Middleware

Review Oracle OpenWorld 2014
Part Three – PaaS - Middleware
Team AMIS
16th October 2014

2

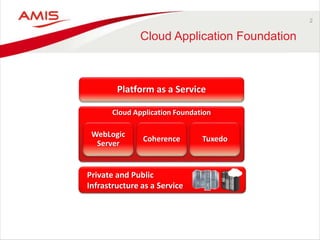

Cloud Application Foundation
Platform as a Service
Cloud Application Foundation
WebLogic
Server
Coherence Tuxedo
Private and Public
Infrastructure as a Service

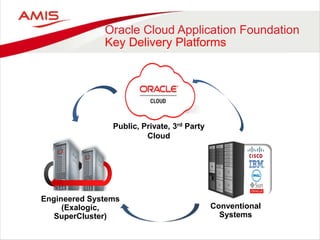

Oracle Cloud Application Foundation
Key Delivery Platforms
Engineered Systems
(Exalogic,
SuperCluster)
Public, Private, 3rd Party
Cloud
Conventional
Systems

6
WebLogic’s support for Java SE 8

7

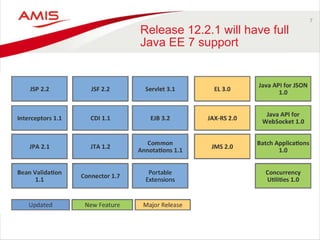

Release 12.2.1 will have full
Java EE 7 support

10

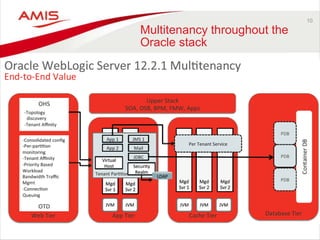

Multitenancy throughout the
Oracle stack

11
Elastic Clusters and
Multitenancy

12

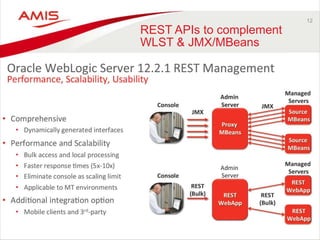

REST APIs to complement
WLST & JMX/MBeans

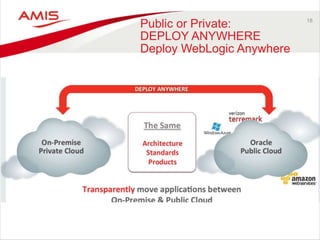

18 Public or Private:
DEPLOY ANYWHERE

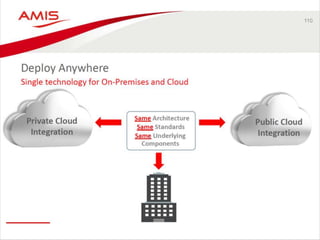

Deploy WebLogic Anywhere

19

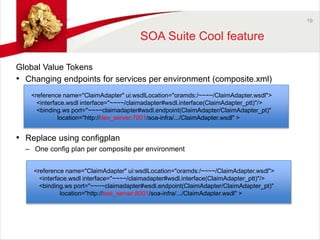

SOA Suite Cool feature
Global Value Tokens
• Changing endpoints for services per environment (composite.xml)
<reference name="ClaimAdapter" ui:wsdlLocation="oramds:/~~~~/ClaimAdapter.wsdl">
<interface.wsdl interface="~~~~/claimadapter#wsdl.interface(ClaimAdapter_ptt)"/>
<binding.ws port="~~~~claimadapter#wsdl.endpoint(ClaimAdapter/ClaimAdapter_pt)"
location="http://dev_server:7001/soa-infra/.../ClaimAdapter.wsdl" >
• Replace using configplan
– One config plan per composite per environment
location="http://test_server:8001/soa-infra/.../ClaimAdapter.wsdl" >

20
SOA Suite Cool feature Cont.
Global Value Token
location="http://${SoaServer}:${SoaServerPort}/soa-infra/.../ClaimAdapter.wsdl" >
• Token administration through
– EM console (soa-infra, SOA administration, Token Configuration)
– Mdm-url-resolver.xml

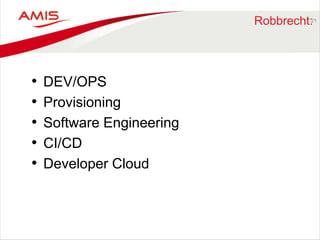

Robbrecht:
• DEV/OPS
• Provisioning
• Software Engineering
• CI/CD
• Developer Cloud
21

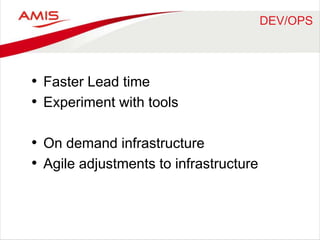

DEV/OPS
• Faster Lead time
• Experiment with tools
• On demand infrastructure
• Agile adjustments to infrastructure

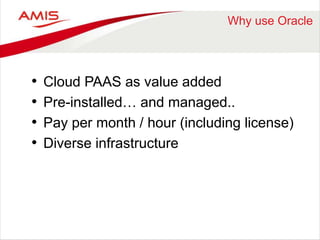

Why use Oracle
• Cloud PAAS as value added
• Pre-installed… and managed..
• Pay per month / hour (including license)
• Diverse infrastructure

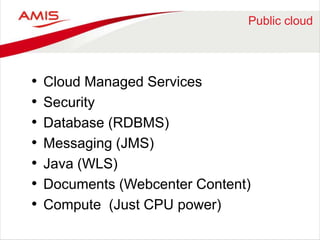

Public cloud
• Cloud Managed Services
• Security
• Database (RDBMS)
• Messaging (JMS)
• Java (WLS)
• Documents (Webcenter Content)
• Compute (Just CPU power)

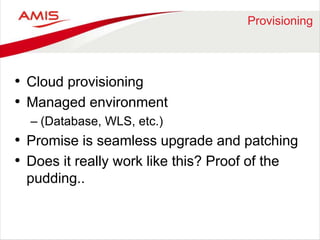

Provisioning
• Cloud provisioning
• Managed environment
– (Database, WLS, etc.)
• Promise is seamless upgrade and patching
• Does it really work like this? Proof of the
pudding..

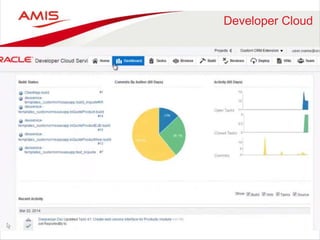

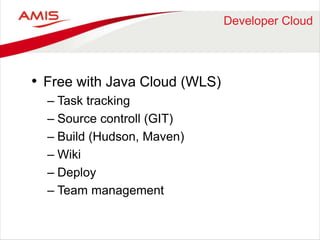

Developer Cloud
• Free with Java Cloud (WLS)
– Task tracking
– Source controll (GIT)
– Build (Hudson, Maven)
– Wiki
– Deploy
– Team management

Java & JavaOne
• Java 8 Benchmarks and case studies indicate dramatic
performance increase and code reduction when using
Java 8. Furthermore is it an enabler for a more
reactive style of programming. Don't wait to adopt
Java 8!
(Bert Ertman, Java Champion and board member Dutch Java User Group
(NLJUG))

30
Java 8 Overview
release: March 2014

37
Vision: Convergence
SE > Embedded > ME

40
Java and 3D
• JavaFX has many 3D features: JavaFX 3D

41

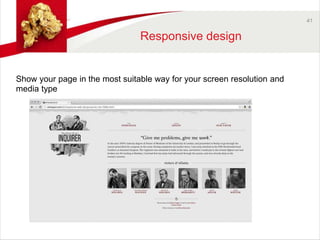

Responsive design
Show your page in the most suitable way for your screen resolution and
media type

42

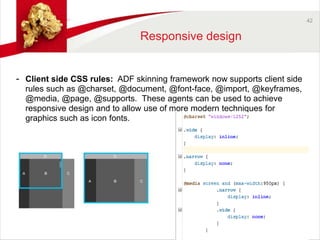

Responsive design
- Client side CSS rules: ADF skinning framework now supports client side
rules such as @charset, @document, @font-face, @import, @keyframes,
@media, @page, @supports. These agents can be used to achieve
responsive design and to allow use of more modern techniques for
graphics such as icon fonts.

45

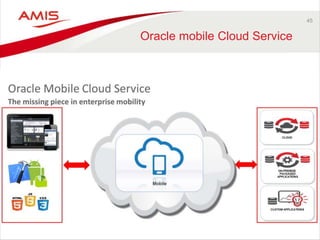

Oracle mobile Cloud Service

46
Oracle Mobile Cloud Service

48

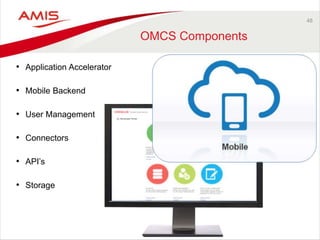

OMCS Components
• Application Accelerator
• Mobile Backend
• User Management
• Connectors
• API’s
• Storage

49
Oracle Mobile Cloud Service
Mobile App Web App
Service Bus
(WS*, SOAP, XML)
JDBC, RMI, HTTP
HTTPS, Email, VPN,…
On Premises
SaaS in the Cloud
SaaS APIs
Push
services
Mobile
Backend
APIs
Connectors
Storage/
Cache
Mobile
Backend
User
Manage
ment

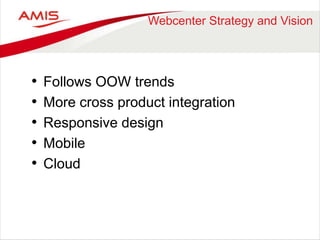

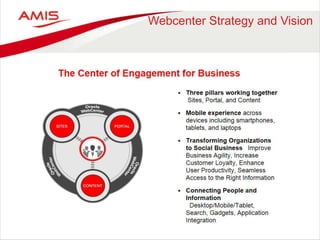

Webcenter Strategy and Vision
• Follows OOW trends
• More cross product integration
• Responsive design
• Mobile
• Cloud

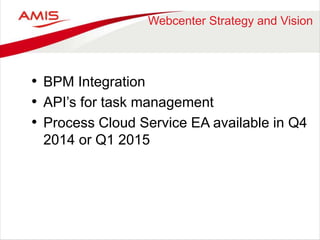

Webcenter Strategy and Vision
• BPM Integration
• API’s for task management
• Process Cloud Service EA available in Q4
2014 or Q1 2015

70

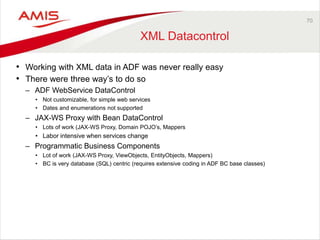

XML Datacontrol
• Working with XML data in ADF was never really easy
• There were three way’s to do so
– ADF WebService DataControl
• Not customizable, for simple web services
• Dates and enumerations not supported
– JAX-WS Proxy with Bean DataControl
• Lots of work (JAX-WS Proxy, Domain POJO’s, Mappers
• Labor intensive when services change
– Programmatic Business Components
• Lot of work (JAX-WS Proxy, ViewObjects, EntityObjects, Mappers)
• BC is very database (SQL) centric (requires extensive coding in ADF BC base classes)

71

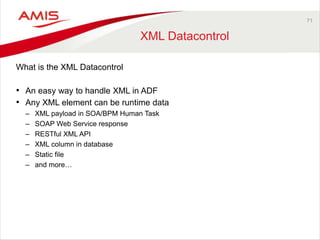

XML Datacontrol
What is the XML Datacontrol
• An easy way to handle XML in ADF
• Any XML element can be runtime data
– XML payload in SOA/BPM Human Task
– SOAP Web Service response
– RESTful XML API
– XML column in database
– Static file
– and more…

72

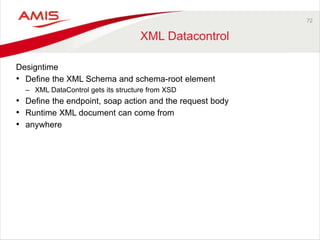

XML Datacontrol
Designtime
• Define the XML Schema and schema-root element
– XML DataControl gets its structure from XSD
• Define the endpoint, soap action and the request body
• Runtime XML document can come from
• anywhere

73

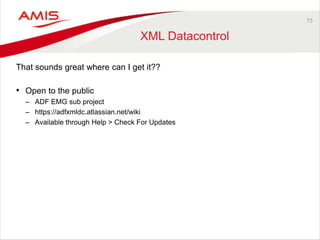

XML Datacontrol
That sounds great where can I get it??
• Open to the public
– ADF EMG sub project
– https://adfxmldc.atlassian.net/wiki
– Available through Help > Check For Updates

74

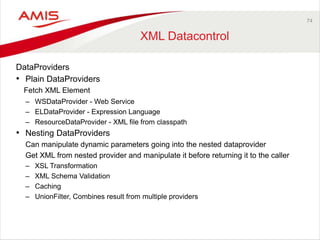

XML Datacontrol
DataProviders
• Plain DataProviders
Fetch XML Element
– WSDataProvider - Web Service
– ELDataProvider - Expression Language
– ResourceDataProvider - XML file from classpath
• Nesting DataProviders
Can manipulate dynamic parameters going into the nested dataprovider
Get XML from nested provider and manipulate it before returning it to the caller
– XSL Transformation
– XML Schema Validation
– Caching
– UnionFilter, Combines result from multiple providers

77

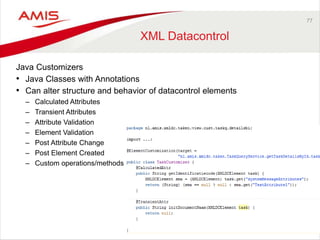

XML Datacontrol
Java Customizers
• Java Classes with Annotations
• Can alter structure and behavior of datacontrol elements
– Calculated Attributes
– Transient Attributes
– Attribute Validation
– Element Validation
– Post Attribute Change
– Post Element Created
– Custom operations/methods

78

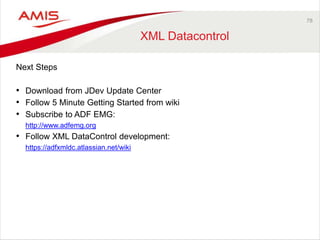

XML Datacontrol
Next Steps
• Download from JDev Update Center
• Follow 5 Minute Getting Started from wiki
• Subscribe to ADF EMG:
http://www.adfemg.org
• Follow XML DataControl development:
https://adfxmldc.atlassian.net/wiki

79
ADF Faces 12.1.3
• New af:deck and af:transition tags
– Make animation easy
– Make animation available pretty much anywhere
• af:transition can also be added to DVT components
• Animation can enhance a compelling experience
• Be consistent on what animates and how

80

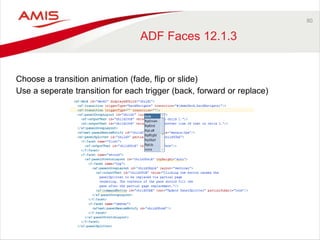

ADF Faces 12.1.3
Choose a transition animation (fade, flip or slide)
Use a seperate transition for each trigger (back, forward or replace)

81

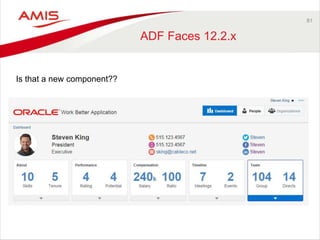

ADF Faces 12.2.x
Is that a new component??

82

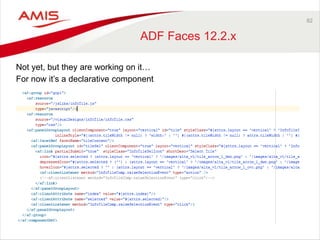

ADF Faces 12.2.x
Not yet, but they are working on it…
For now it’s a declarative component

83

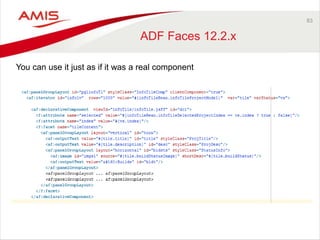

ADF Faces 12.2.x
You can use it just as if it was a real component

84

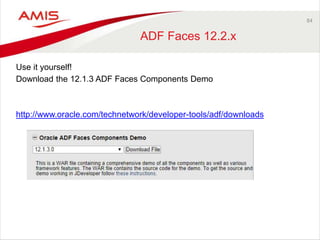

ADF Faces 12.2.x
Use it yourself!
Download the 12.1.3 ADF Faces Components Demo
http://www.oracle.com/technetwork/developer-tools/adf/downloads

85

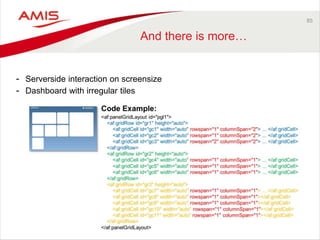

And there is more…
- Serverside interaction on screensize
- Dashboard with irregular tiles

86

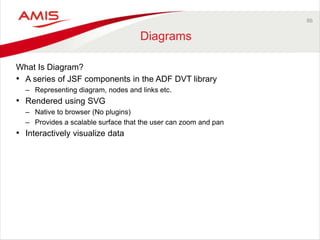

Diagrams
What Is Diagram?
• A series of JSF components in the ADF DVT library
– Representing diagram, nodes and links etc.
• Rendered using SVG
– Native to browser (No plugins)
– Provides a scalable surface that the user can zoom and pan
• Interactively visualize data

87

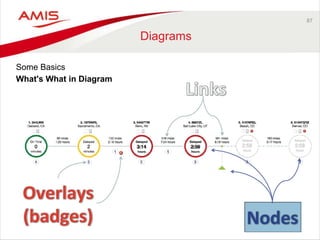

Diagrams
Some Basics
What's What in Diagram

88
Diagrams
Interactive out of the box

89

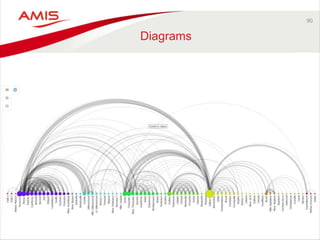

Diagrams
US state-to-state Migration

95

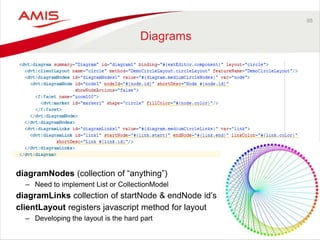

Diagrams
diagramNodes (collection of “anything”)
– Need to implement List or CollectionModel
diagramLinks collection of startNode & endNode id’s
clientLayout registers javascript method for layout
– Developing the layout is the hard part

96
Diagrams
More info on the Oracle Data Visualizations Blog
Including 10 blogs by Duncan Mills that will help you getting started
https://blogs.oracle.com/data-visualizations/
View diagram examples at the ADF Component Demo (under Features)
http://jdevadf.oracle.com/adf-richclient-demo/faces/feature/diagram
Download the source of the component demo to see how it’s done
http://www.oracle.com/technetwork/developer-tools/adf/downloads

97

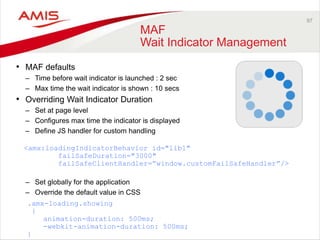

MAF
Wait Indicator Management
• MAF defaults
– Time before wait indicator is launched : 2 sec
– Max time the wait indicator is shown : 10 secs
• Overriding Wait Indicator Duration
– Set at page level
– Configures max time the indicator is displayed
– Define JS handler for custom handling
<amx:loadingIndicatorBehavior id="lib1"
failSafeDuration="3000"
failSafeClientHandler=”window.customFailSafeHandler”/>
– Set globally for the application
– Override the default value in CSS
.amx-loading.showing
{
animation-duration: 500ms;
-webkit-animation-duration: 500ms;
}

113
Still, that looks complex..
Wasn’t Cloud supposed to be
simple??

114

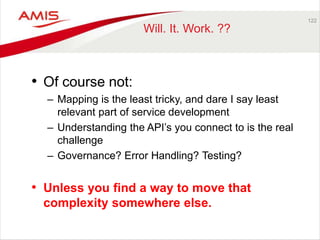

Let Oracle Make Things Simple
For You Again!

• Of course not:
– Mapping is the least tricky, and dare I say least
relevant part of service development
– Understanding the API’s you connect to is the real
challenge
– Governance? Error Handling? Testing?
• Unless you find a way to move that
complexity somewhere else.
122
Will. It. Work. ??

139

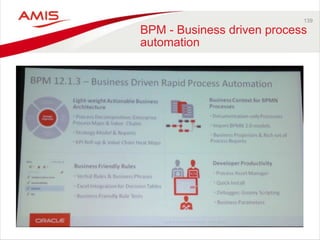

BPM - Business driven process
automation

145

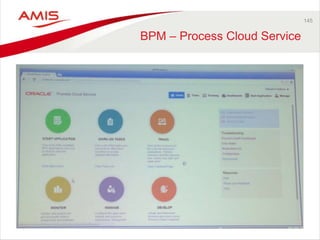

BPM – Process Cloud Service

148

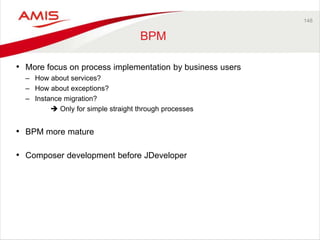

BPM
• More focus on process implementation by business users
– How about services?
– How about exceptions?
– Instance migration?
 Only for simple straight through processes
• BPM more mature
• Composer development before JDeveloper

152
API Management Concepts
• Connecting application developers to back-end processes should be
extremly easy
• API discovery without knowing where it is running (Cloud, on premise)
• An service virtualization platform, Service Bus, is a critical foundation
component of an API Management architecture

153

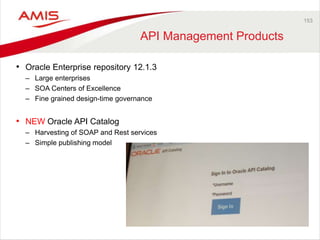

API Management Products
• Oracle Enterprise repository 12.1.3
– Large enterprises
– SOA Centers of Excellence
– Fine grained design-time governance
• NEW Oracle API Catalog
– Harvesting of SOAP and Rest services
– Simple publishing model

154
API Catalog - Harvest
• Collecting and publishing API’s
– Harvester
– Pass the API / WSDL
– Rest or SOAP

155

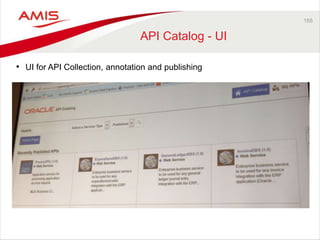

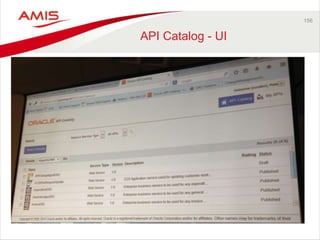

API Catalog - UI
• UI for API Collection, annotation and publishing

157

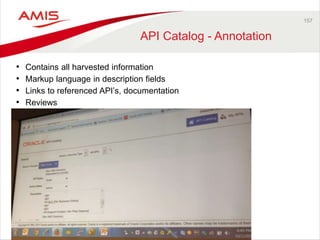

API Catalog - Annotation
• Contains all harvested information
• Markup language in description fields
• Links to referenced API’s, documentation
• Reviews

158

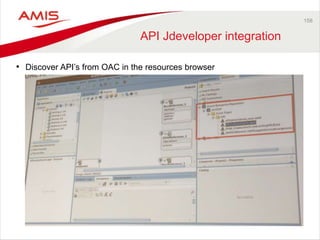

API Jdeveloper integration
• Discover API’s from OAC in the resources browser

159

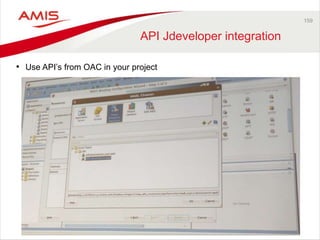

API Jdeveloper integration
• Use API’s from OAC in your project

160

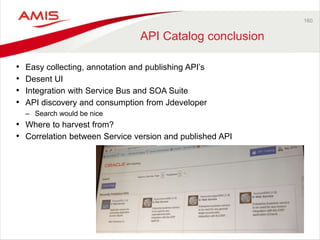

API Catalog conclusion
• Easy collecting, annotation and publishing API’s
• Desent UI
• Integration with Service Bus and SOA Suite
• API discovery and consumption from Jdeveloper
– Search would be nice
• Where to harvest from?
• Correlation between Service version and published API

165
Mobile Application Framework

166
MAF – Custom Components

167

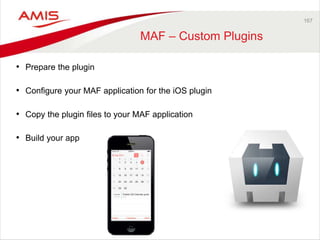

MAF – Custom Plugins
• Prepare the plugin
• Configure your MAF application for the iOS plugin
• Copy the plugin files to your MAF application
• Build your app

168

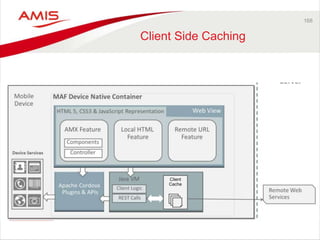

Client Side Caching
Client
Cache

169
Acronyms …..
• Security people love acronyms
• It may be “our” own fault
• MDM – Mobile Device Management
• EMM – Enterprise Mobility Management
• BYOD – Bring Your Own Device
• MTM – Mobile Threat Management
• MAM – Mobile Application Management
• COPE – Corporately Owned Personally Enabled

170

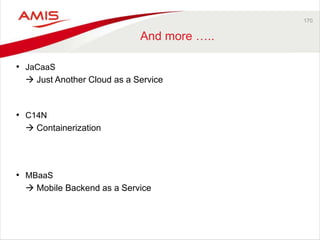

And more …..
• JaCaaS
 Just Another Cloud as a Service
• C14N
 Containerization
• MBaaS
 Mobile Backend as a Service

171
MAF / OMSS News Fact
• The latest version of Oracle Mobile Application Framework delivers in-depth
integration with Oracle Mobile Security Suite.
• The new functionality provides a single-step, design-time experience
that enables Oracle Mobile Application Framework-based applications to
leverage the Oracle Mobile Security Suite container protection services,
including authentication, encryption, data-leak protection, corporate policy
enforcement, selective wipe, and single sign-on.
• Integration between Oracle Mobile Application Framework and Oracle
Mobile Security Suite simplifies the mobile application development
process by extending existing corporate identity to native mobile
applications for a simple and powerful end-user experience.
• Oracle Mobile Security Suite’s container-based approach provides
users with a secure workspace for sensitive corporate data, and the
suite’s mobile identity capabilities provide users with virtually seamless
access to consumer and enterprise applications.

174
Mobile Accelerator ( cc=X ?)
• Mobile Apps Development for Business Users
• Seeing is believing

190

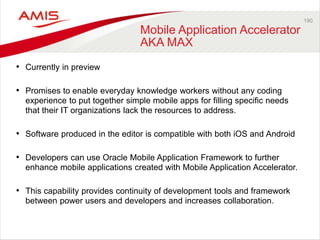

Mobile Application Accelerator
AKA MAX
• Currently in preview
• Promises to enable everyday knowledge workers without any coding
experience to put together simple mobile apps for filling specific needs
that their IT organizations lack the resources to address.
• Software produced in the editor is compatible with both iOS and Android
• Developers can use Oracle Mobile Application Framework to further
enhance mobile applications created with Mobile Application Accelerator.
• This capability provides continuity of development tools and framework
between power users and developers and increases collaboration.

193

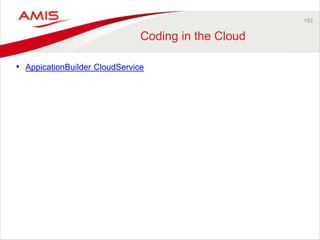

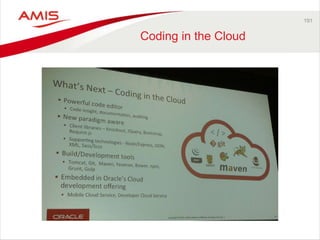

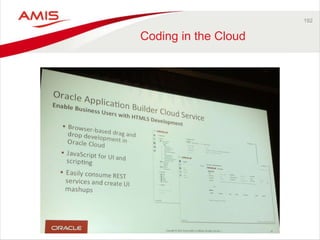

Coding in the Cloud
• AppicationBuilder CloudService

Oracle OpenWorld 2014 Review Part Four - PaaS Middleware

Oracle OpenWorld 2014 Review Part Four - PaaS Middleware

More Related Content

What's hot

Similar to Oracle OpenWorld 2014 Review Part Four - PaaS Middleware

More from Getting value from IoT, Integration and Data Analytics

Recently uploaded

Oracle OpenWorld 2014 Review Part Four - PaaS Middleware

Editor's Notes
