This page shows an overview of the product lineup and major applications of the products of General Application & Motor Solutions (GAMS) Business Unit of Nidec, the world’s comprehensive motor manufacturer. Nidec’s motors are all high-performance and high-efficiency products. We, excelling at satisfying specific needs of customers of all over the world, handle all orders very quickly, however large quantity they may be. Please feel free to contact us.

1. NIDEC CORPORATION
Nidec corporation
General Application Motor &
Solutions Business Unit

2. NIDEC CORPORATION
1.Company overview

3. 2/19
• Company: NIDEC CORPORATION
• Founder: Shigenobu Nagamori
(Chairman of the Board, President & CEO)
• Established: July 23,1973
• Paid-in capital: JPY87.8 billion
• Stock listings:
First section, the Tokyo Stock Exchange
First section, the Osaka Securities Exchange
• Consolidated revenue: JPY1.18 trillion (as of March 31, 2016)
• Nidec Group companies: Over 230 worldwide
• Nidec Group employees: Over 105,000 worldwide
• Main products:
- Small precision motors
- General motors and machinery
- Electronic and optical components, etc.
• Headquarters: Kyoto, Japan
Company profile

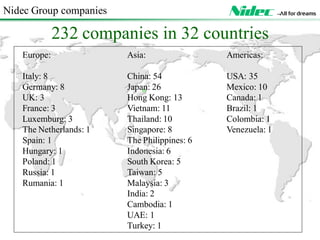

4. 3/19
Nidec’s global presence
Over 230 companies in
more than 30 countries

5. 4/19
We offer motors of all kinds:
from micro to super-large ones.
 Miniature vibration motor  Pump motor
Power output ranges from the 0.2W - 45MW (45,000,000W)!
Product Range

6. NIDEC CORPORATION
2.About General Application Motor
& Solutions Business Group

7. 6/19
Nidec Corporation
AMEC
Business
Unit
SPMS
Business
Unit
SPM
Business
Group
ACIM
Business
Unit
*General Application
Motor & Solutions
Nidec Business Unit Structure
GMS *
Business
Group

8. 7/19
We produce “energy saving, long life, low noise” brush-less DC
motors for every possible field and use.
General Application Motor & Solutions Business group(GMS) produces FAN motors and
various brush-less DC motors for audio visual, IT , office automation, telecommunication,
home appliance, environmental, and industry devices.
We have a variety of line-ups whose characteristics are energy saving, long life, and low
noise. Based on customers’ demand, we’ll promptly proceed to customize.
We establish new use of motors and develop new products in order to fill the customers’
demand.
General Application Motor & Solutions Business Group

9. 8/19
Custom
From Standard to Custom products for
all kinds of applications
Quietness and High Performance Earn Reliability
DC Fans & Blowers

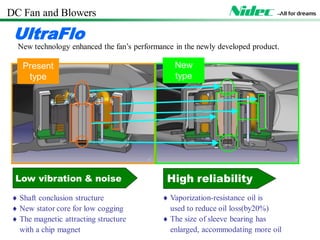

10. 9/19
 Shaft conclusion structure
 New stator core for low cogging
 The magnetic attracting structure
with a chip magnet
 Vaporization-resistance oil is
used to reduce oil loss(by20%)
 The size of sleeve bearing has
enlarged, accommodating more oil
Present
type
New
type
Low vibration & noise High reliability
New technology enhanced the fan’s performance in the newly developed product.
UltraFlo
DC Fans & Blowers

11. 10/19
10mm 15mm 25mm 28mm 32mm
40mm
60mm
80mm
92mm
120mm
38mm
70mm
56mm
ConsumerElectronicsServersTelecom
2UServers4U-6UServers172mm
51mm
NEW
SIZE
36mm
76mm
140mm
DICR
Down-
Sizing
Down-Sizing
Down-
Sizing
DICR
DICRDICR
AVEquipment
1U
DC Fan Motor Line-up

12. 11/19
 Longer Life time
 Run at high speed
 Low vibration & low noise
 Variety of Control/Signal Options
CMC motor has 4 series,13H/22H/24H/27H
Built-in Drive Circuit
CMC motors are used in many applications because of their many advantages.
Advantages
CMC Compact Motor Concept
The models have been developed as the
general-purpose lines of small brushless DC
motors with built-in drive circuits. Nidec
brushless motors are poised to explore into
various high-end market that normally set
high quality criteria for durability, credibility
and performance levels.
Series Size (mm) Power (W)
13H φ24.2 x 19.1 ～3W
22H φ35.6 x 40.0 ～8W
27H φ49.0 x 31.5 ～12W
24H φ42.0 x 34.0 ～10W
Inner Rotor Type Brushless DC Motor

13. 12/19
 Miniaturization by a thin flat motor
 Low noise and high efficiency
 High power by the outer rotor
 Highly accurate rotational speed control
Advantages 10W～50W output
Automotive
Household appliance
Office Equipment
Outer Rotor Type Brushless DC Motor

14. 13/19
Fan
Optical disk drive motor
Example of Utilization

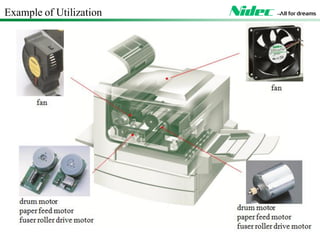

15. 14/19
Fan
Fan
Drum motor
Paper feed motor
Fuser roller drive motor
Drum motor
Paper feed motor
Fuser roller drive motor
Example of Utilization

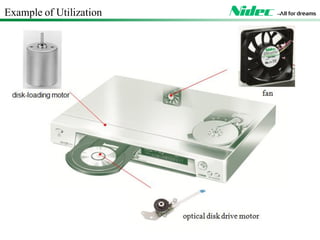

16. 15/19
Disk-loading motor Fan
Optical disk drive motor
Example of Utilization

17. 16/19
Fan
Optical disk drive motor
Example of Utilization

18. 17/19
Optical disk drive motor
Fan
Example of Utilization

19. 18/19Cooling fan
Pump motorHeat circulation motor
Exhaust fan
Example of Utilization

20. 19/19
Our Mission
We have advantages of various line-ups and business results in
audio visual, IT, office automation, telecommunication, home appliance,
environment, industry business field.
Our mission is to propose and satisfy diverse customers’ demand and
request. We have established substantial development structure, so our
staff in overseas communicate customers directly in order to produce
a complete product.
R&D center in Japan continuously works on development of new
technology and new product to add advanced solution to customers.
