The document discusses Applied Motion Products, Inc. and provides an overview of their stepper motor and drive products. It describes how stepper motors inherently have a resonance problem due to the rotor behaving like a mass on a spring. When the motor takes a step, the rotor settles into position after each step, but this settling can last over a second and cause rough motion or loss of torque and position if not addressed. Applied Motion drives aim to improve smoothness and accuracy by eliminating resonance and adding closed-loop control with encoder feedback.

1. Applied Motion Products, Inc.
Product Overview
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

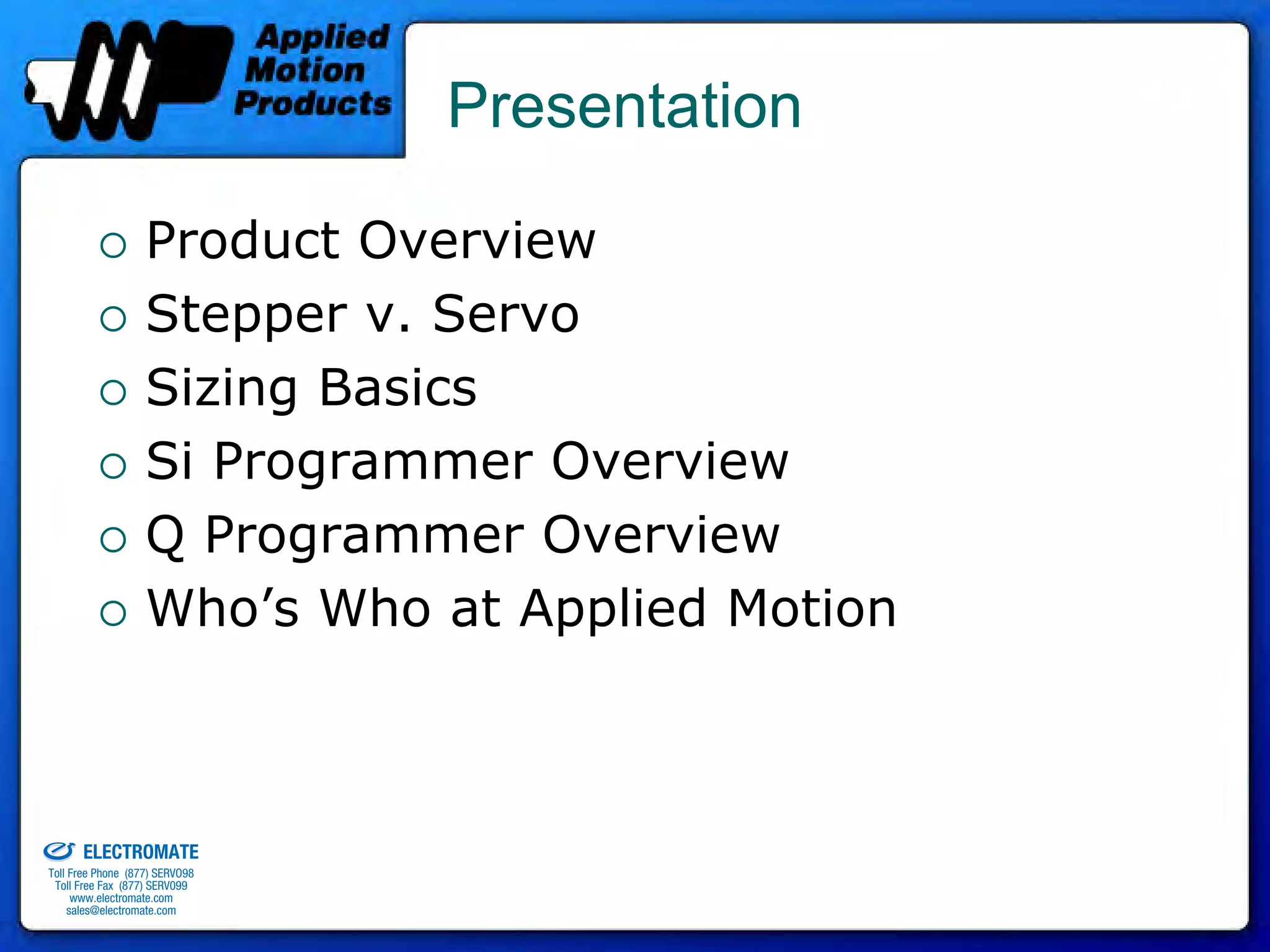

2. Presentation
Product Overview

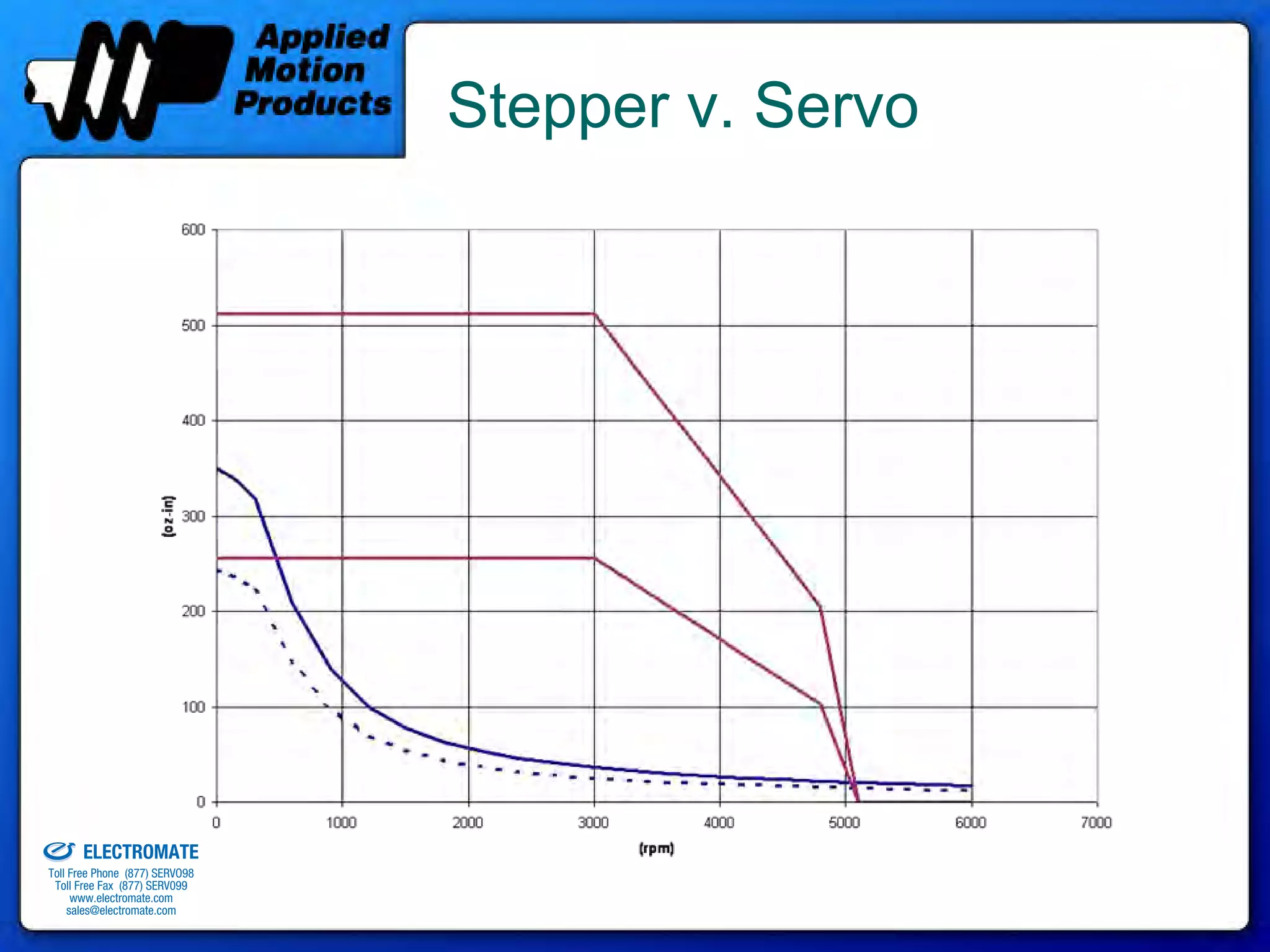

Stepper v. Servo

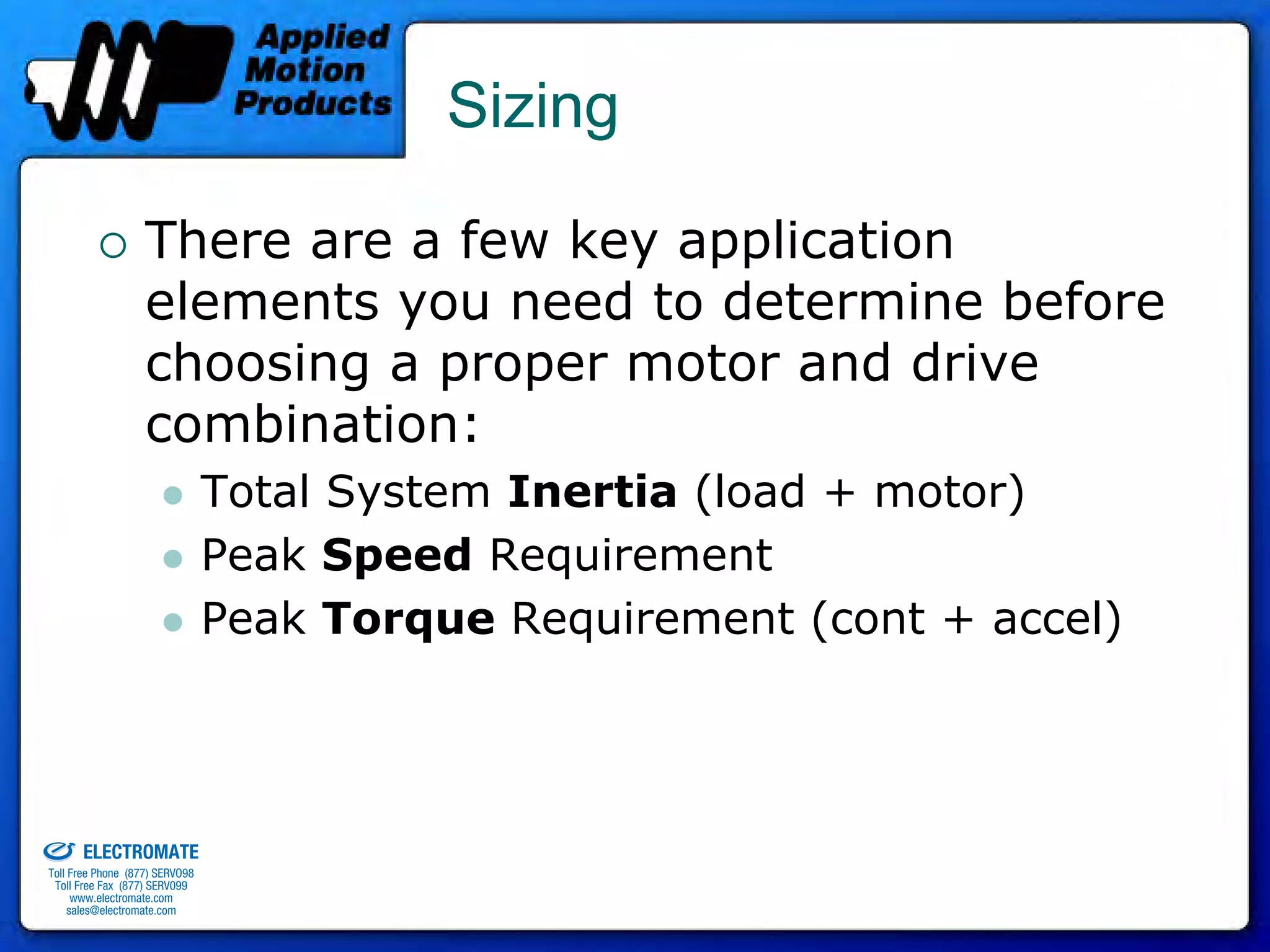

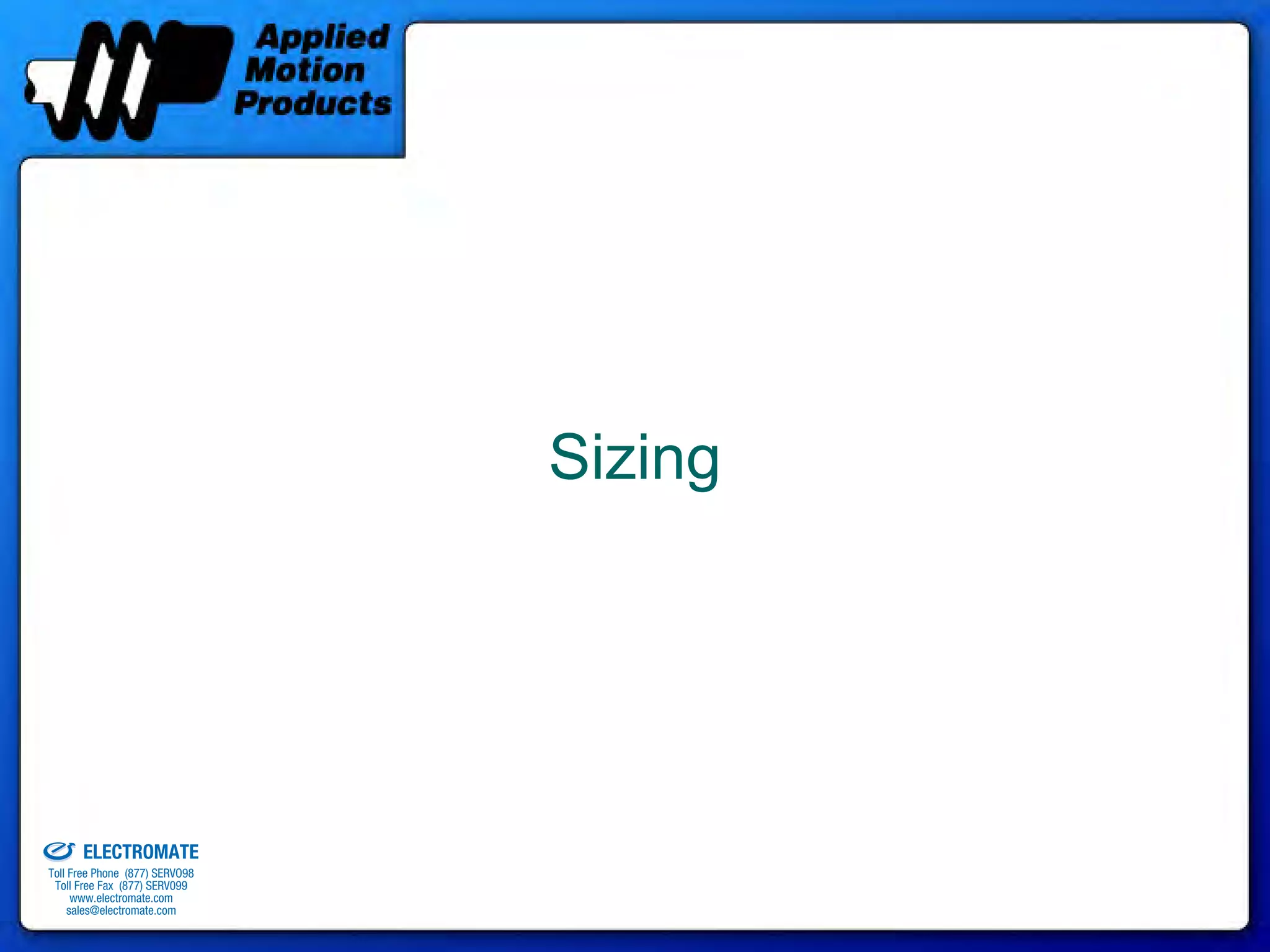

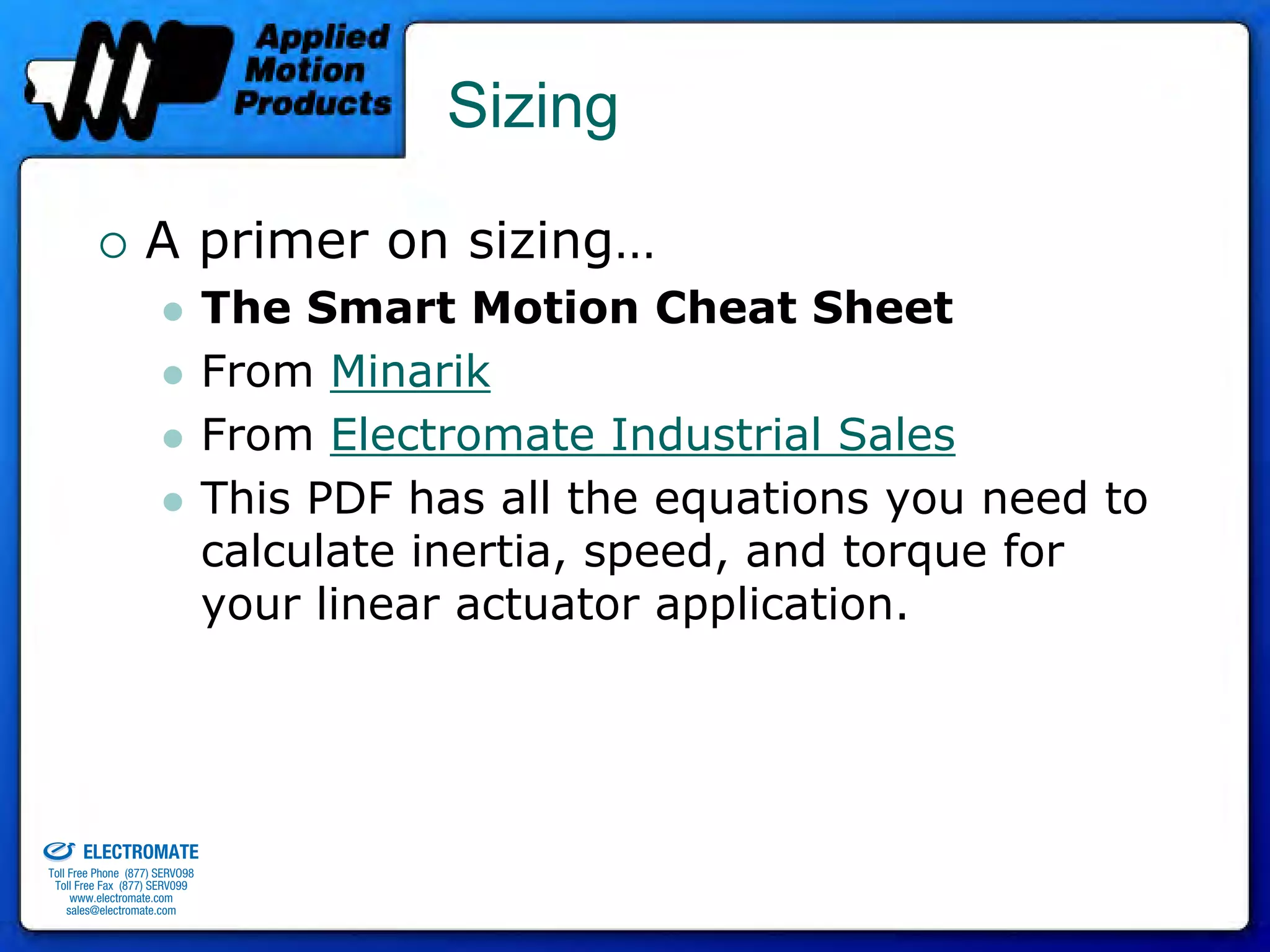

Sizing Basics

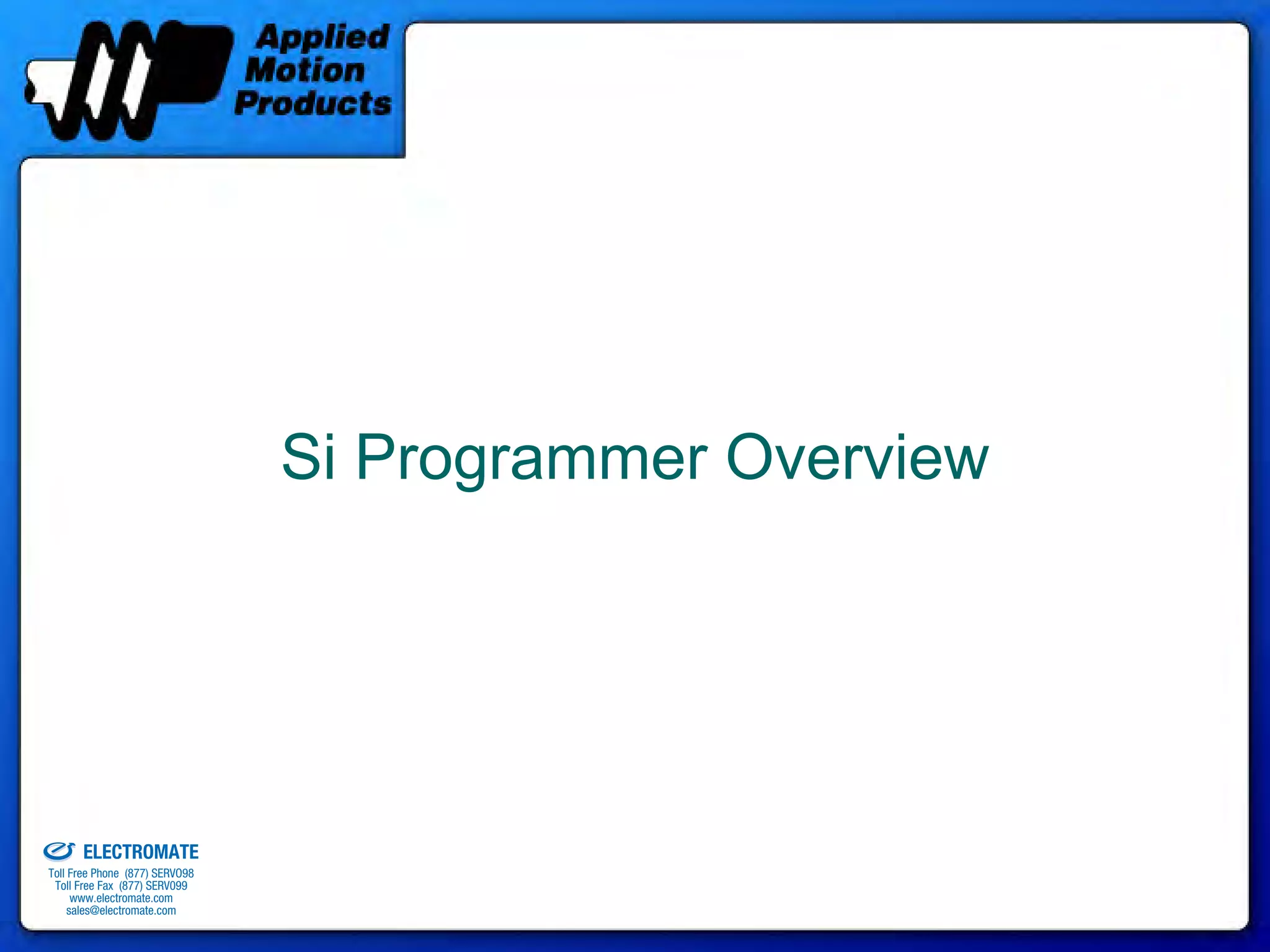

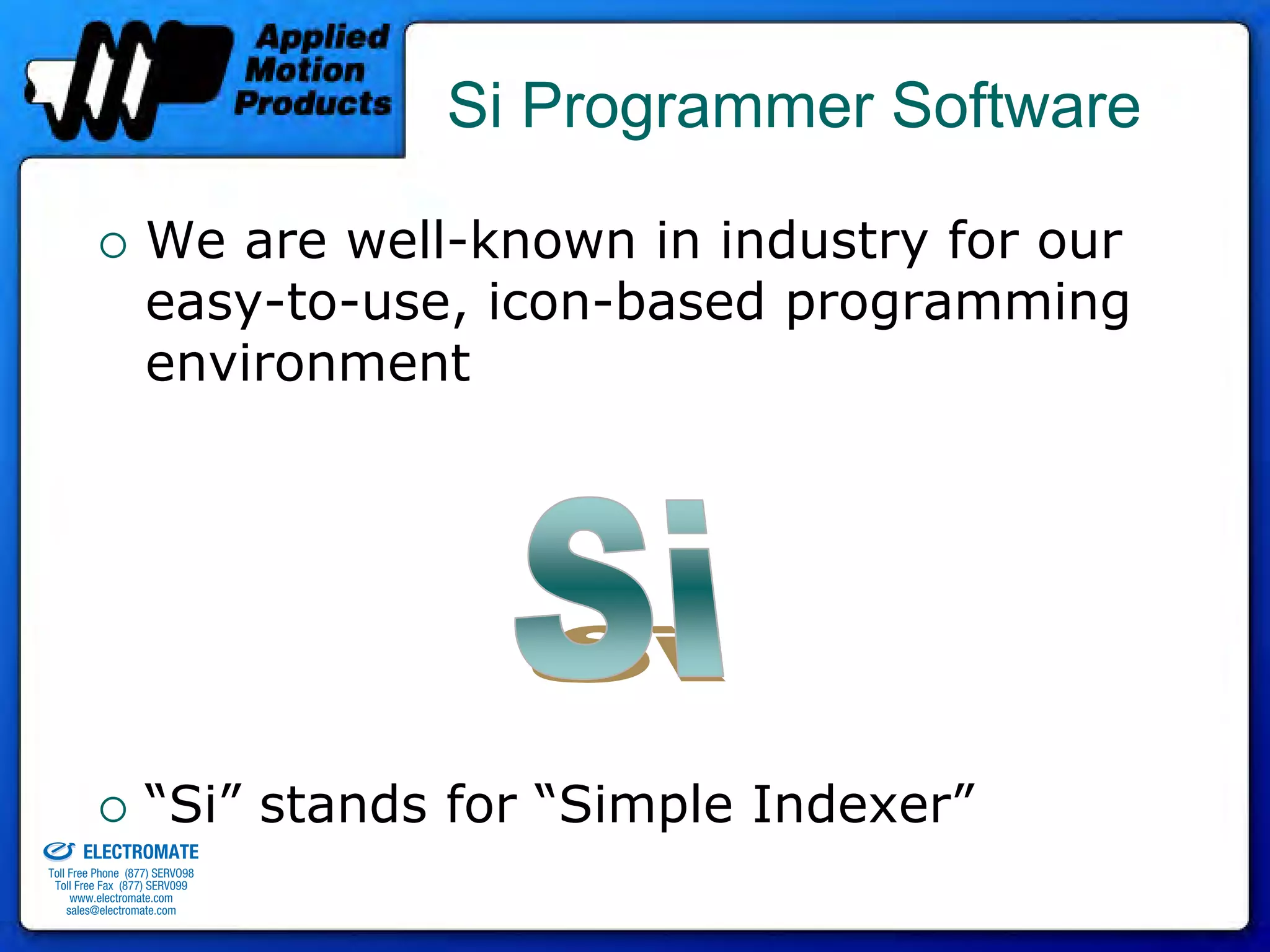

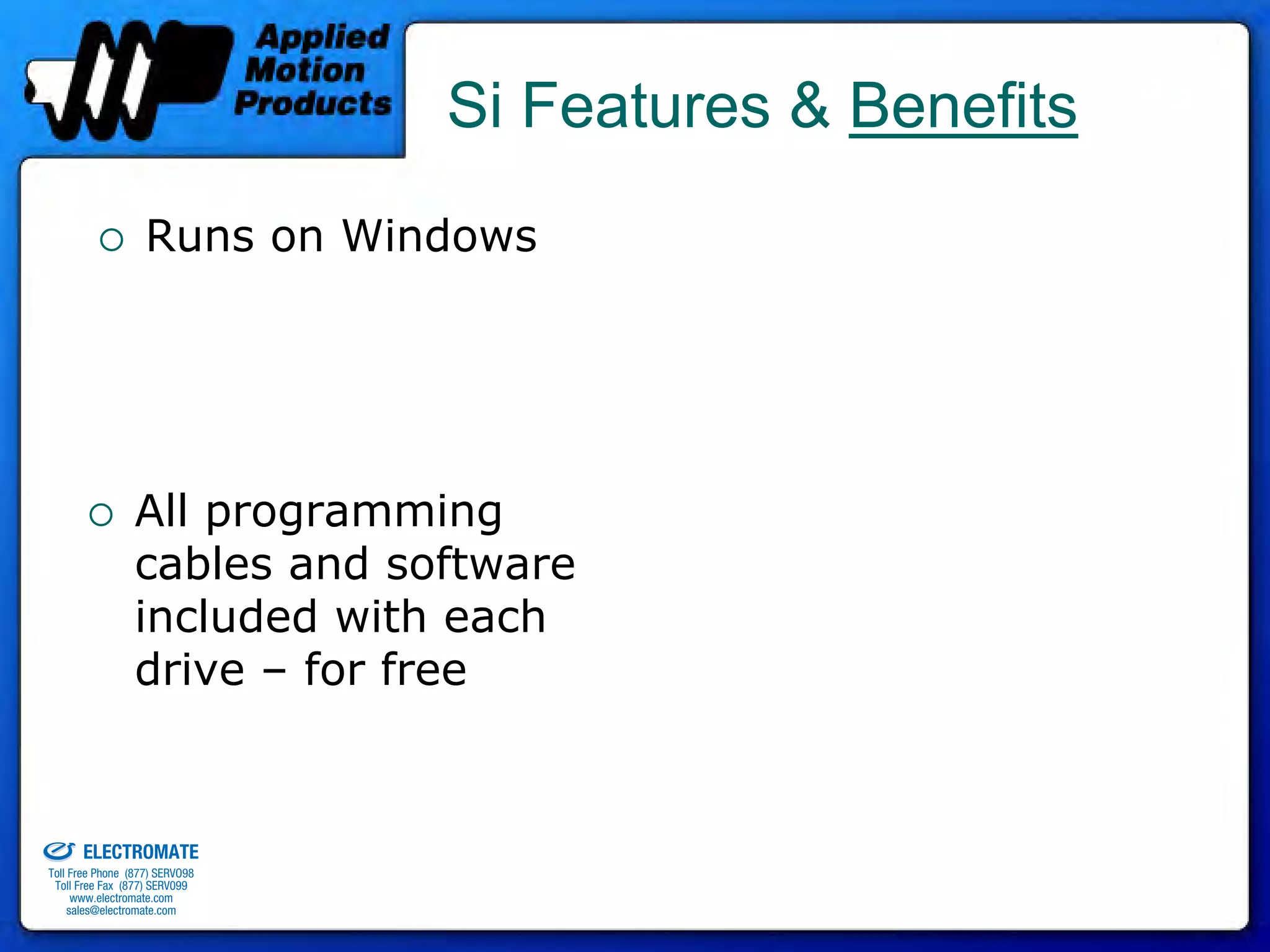

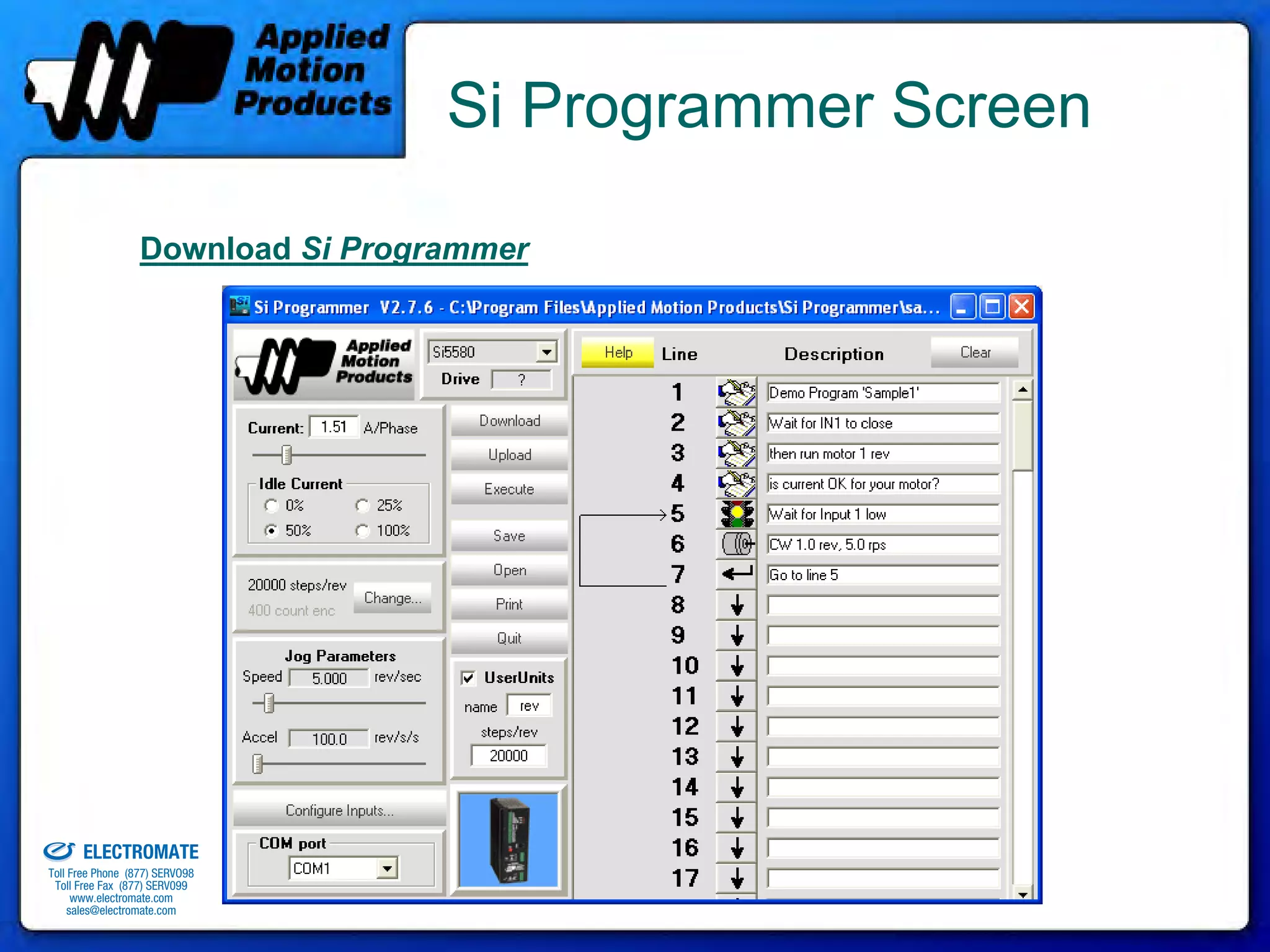

Si Programmer Overview

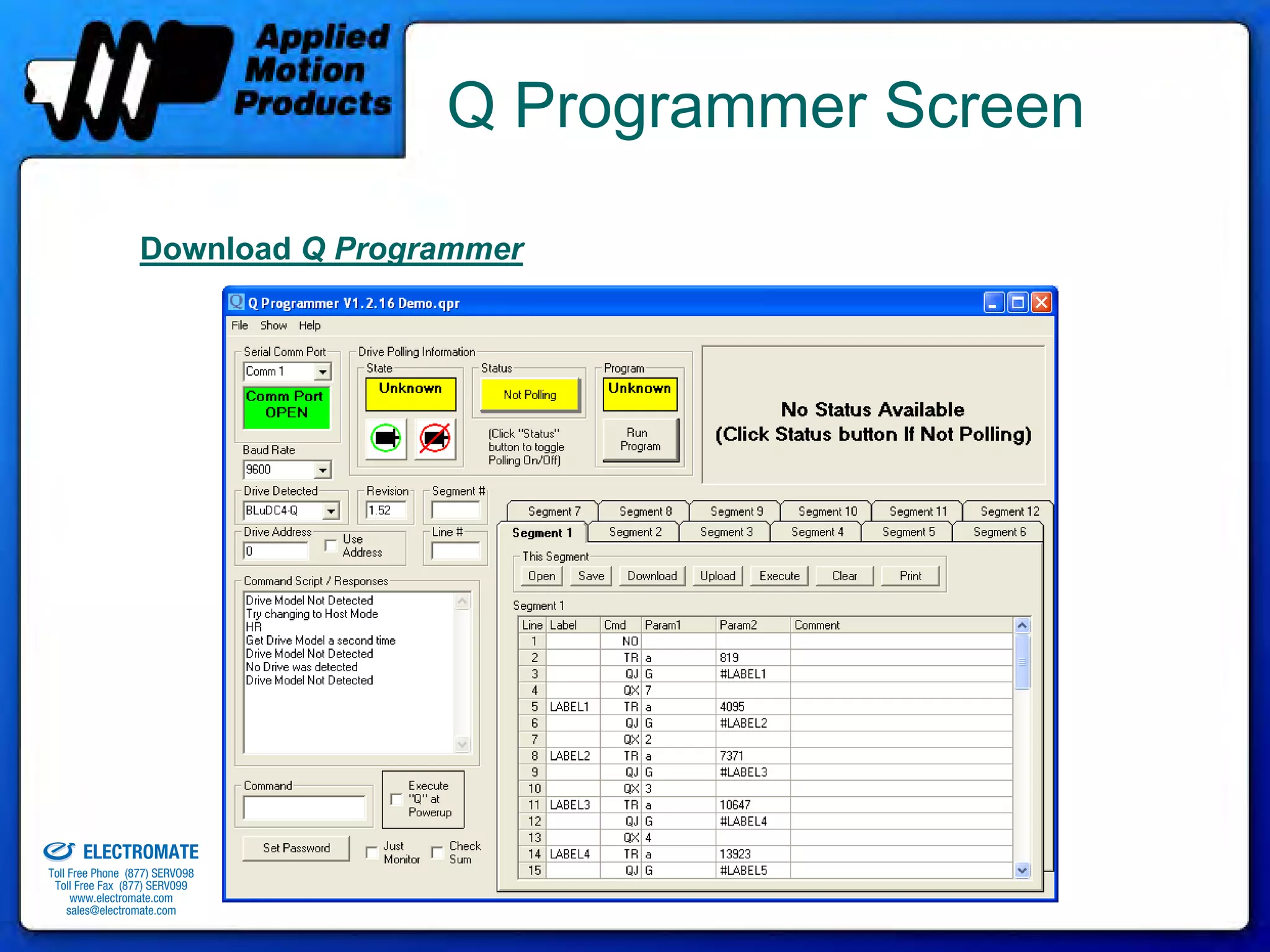

Q Programmer Overview

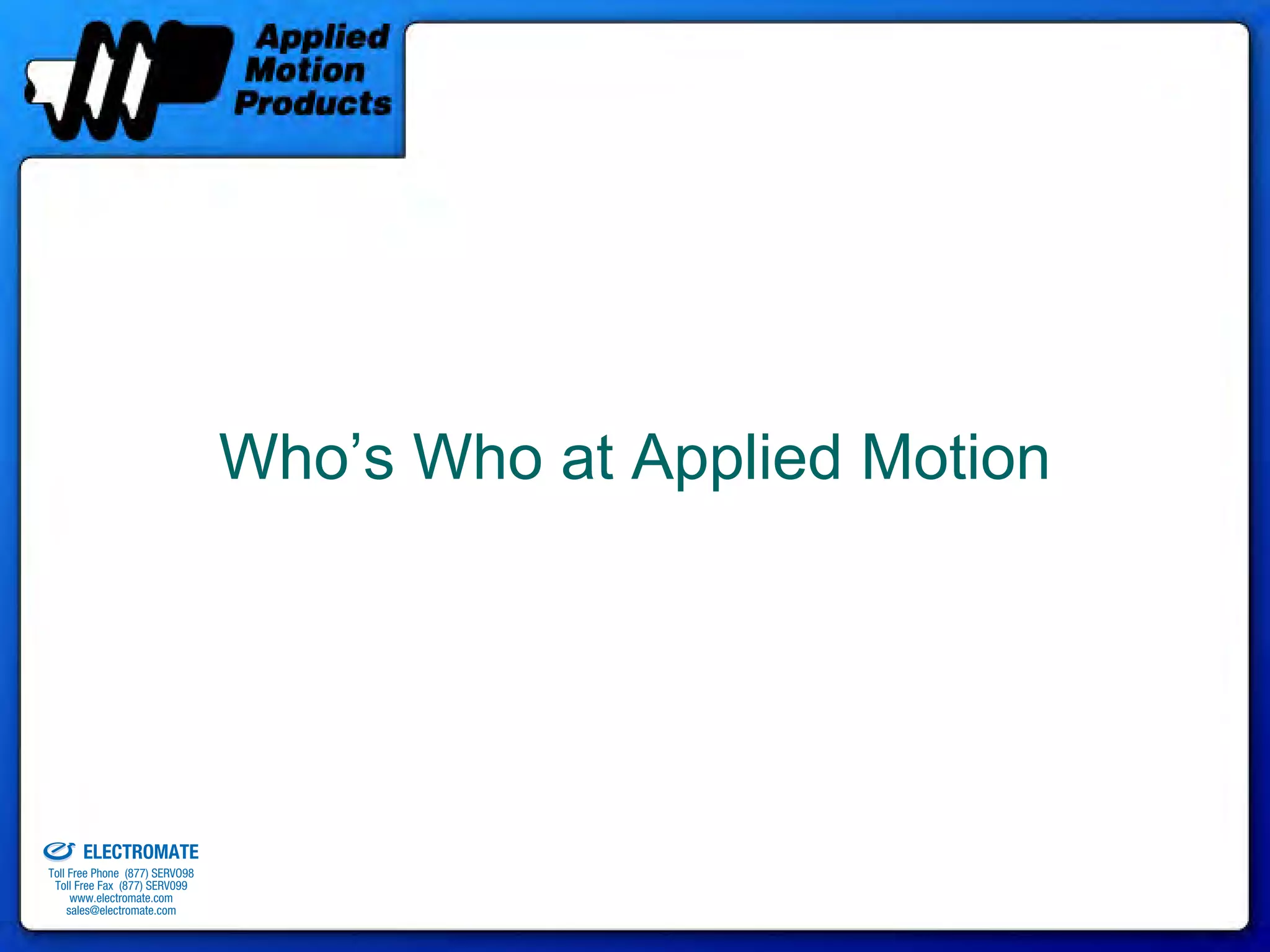

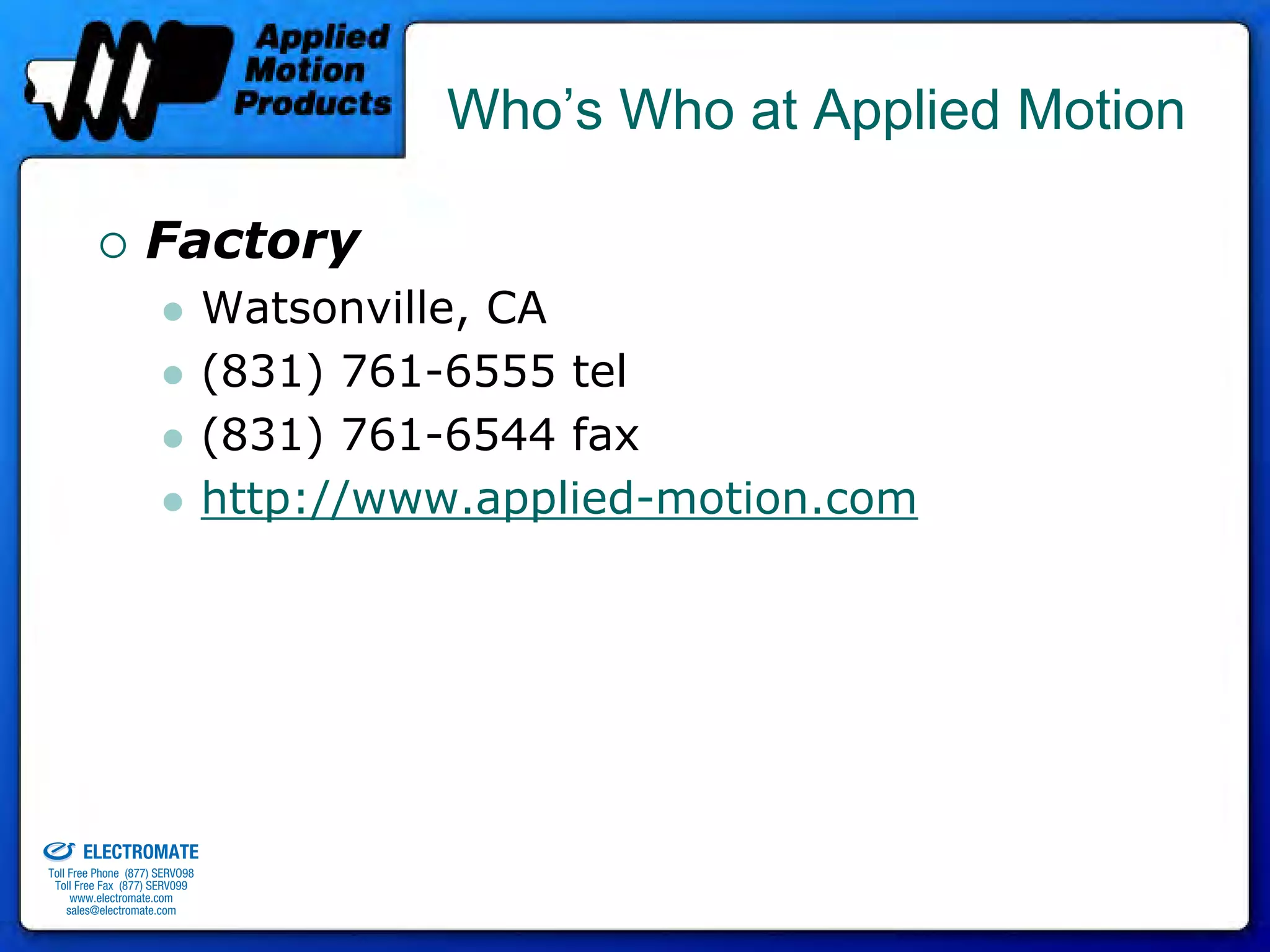

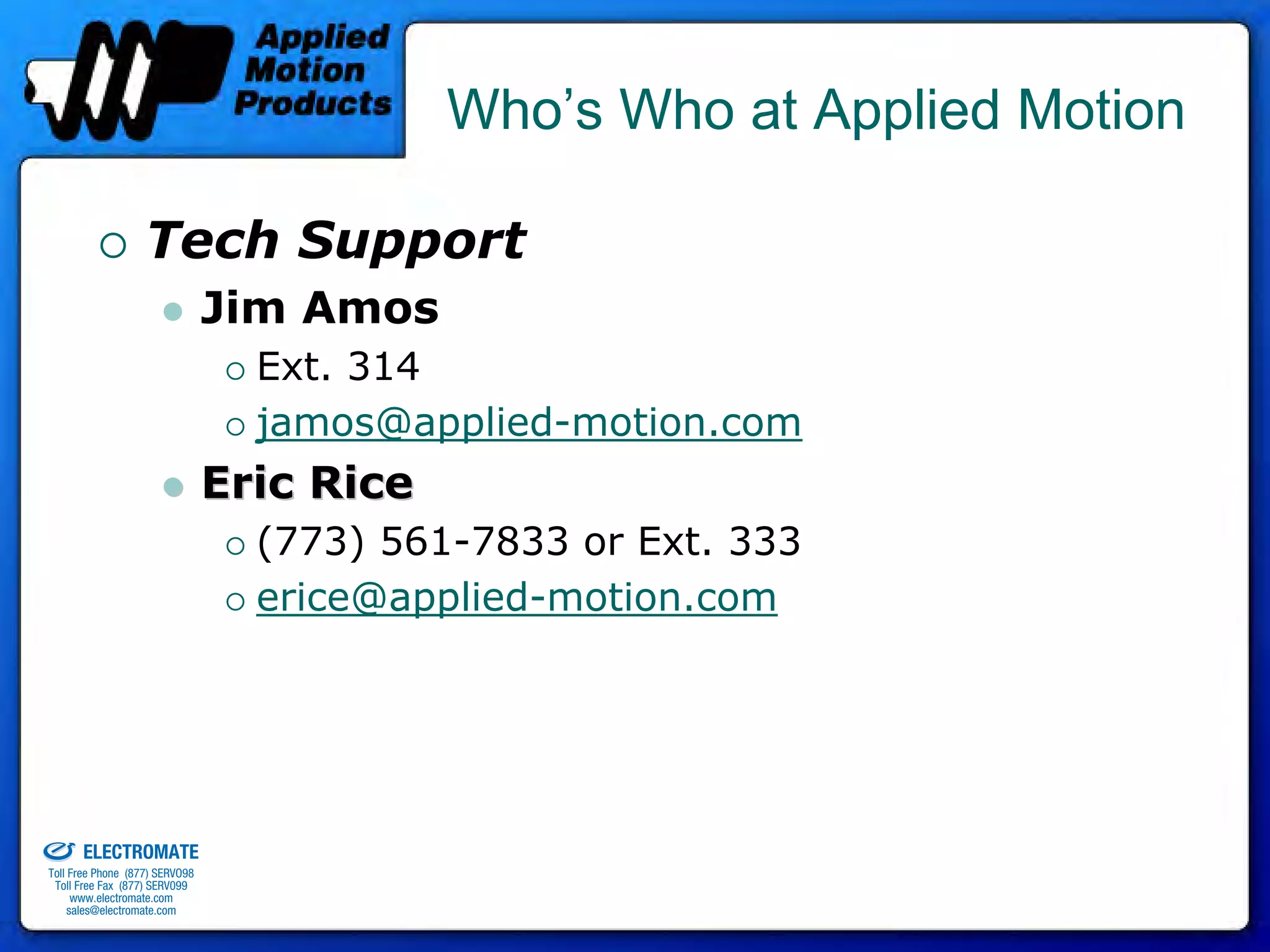

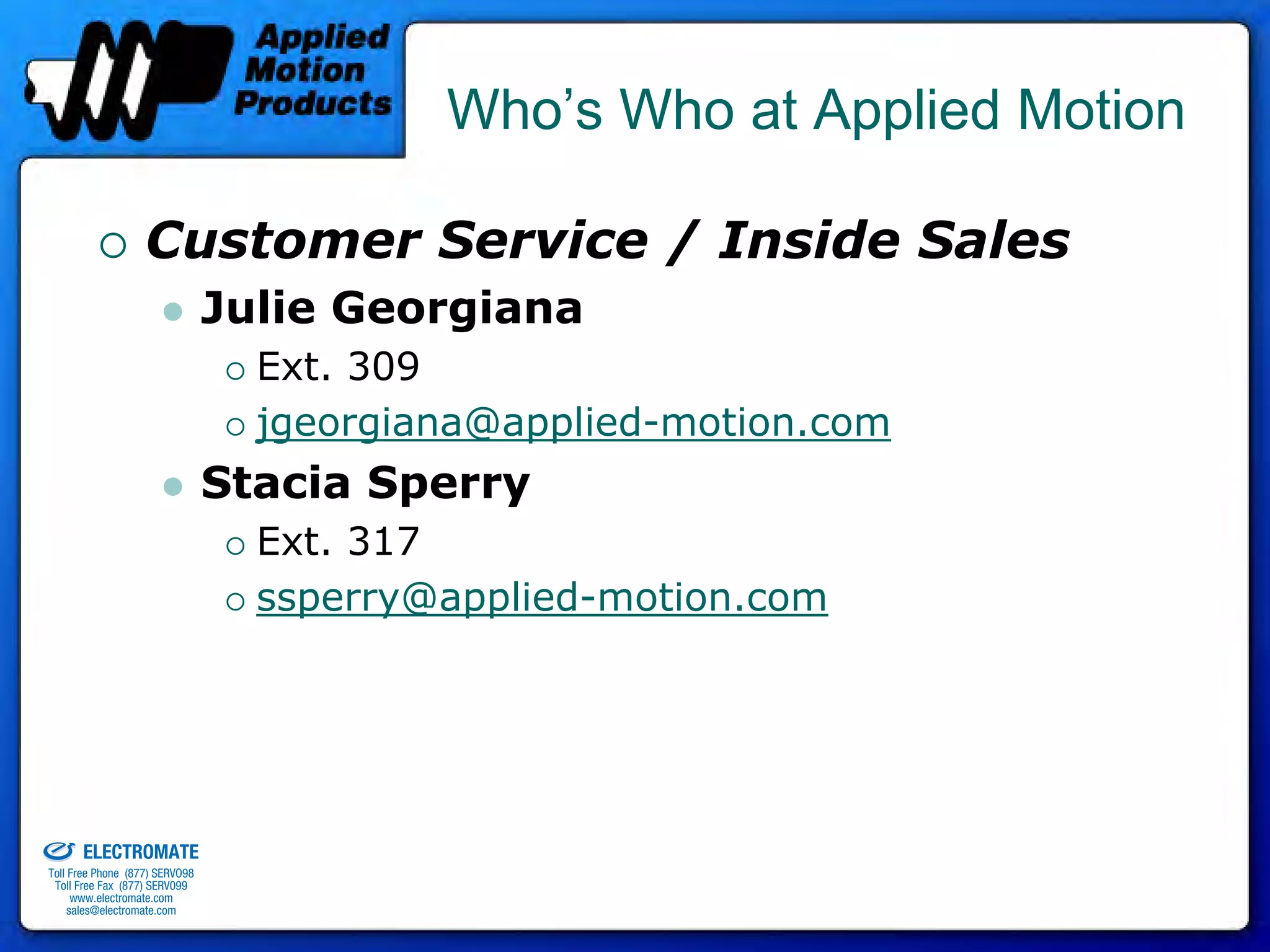

Who’s Who at Applied Motion
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

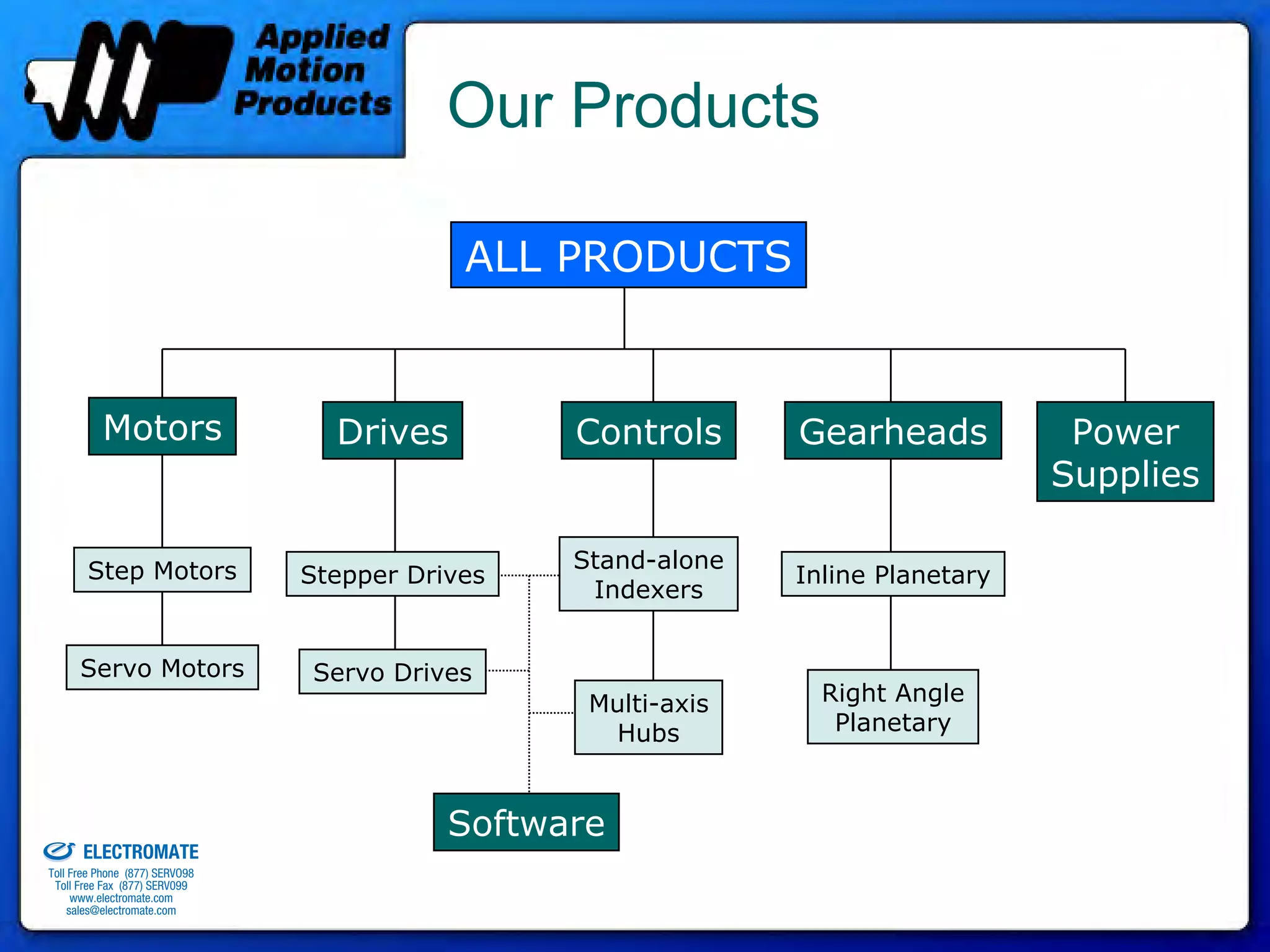

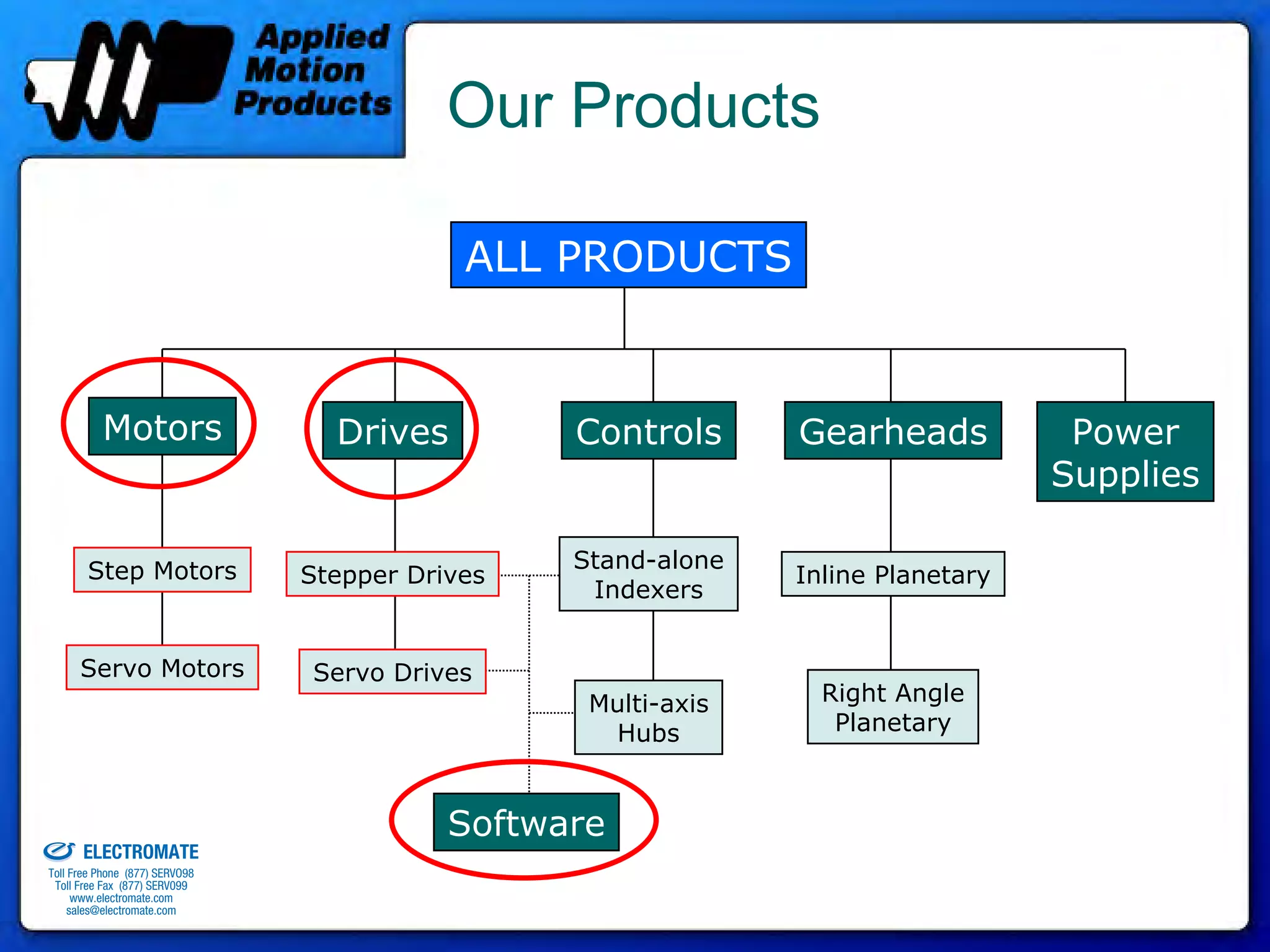

3. Our Products
ALL PRODUCTS
Motors Drives Controls Gearheads Power
Supplies
Step Motors Stand-alone
Stepper Drives Inline Planetary
Indexers

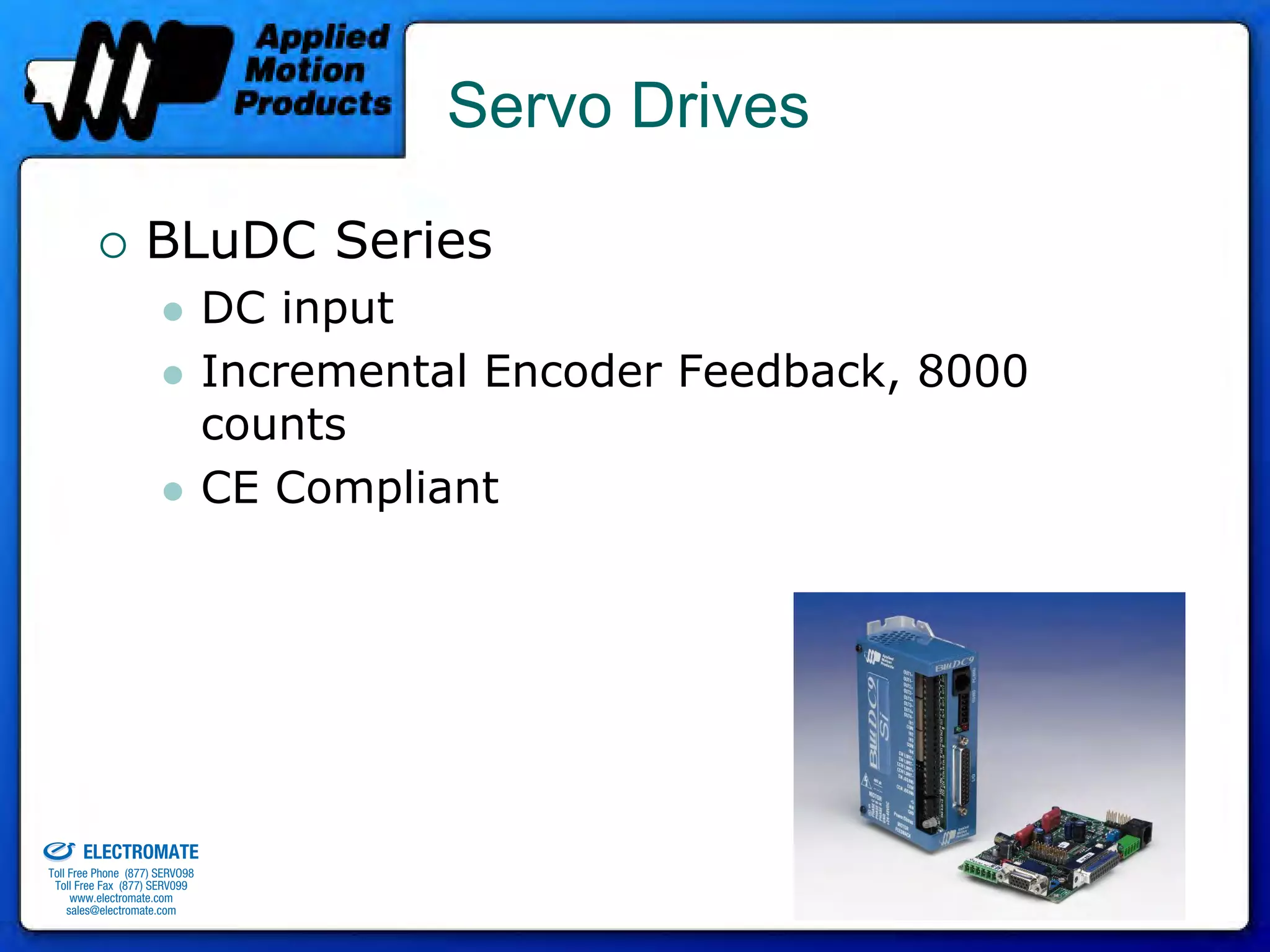

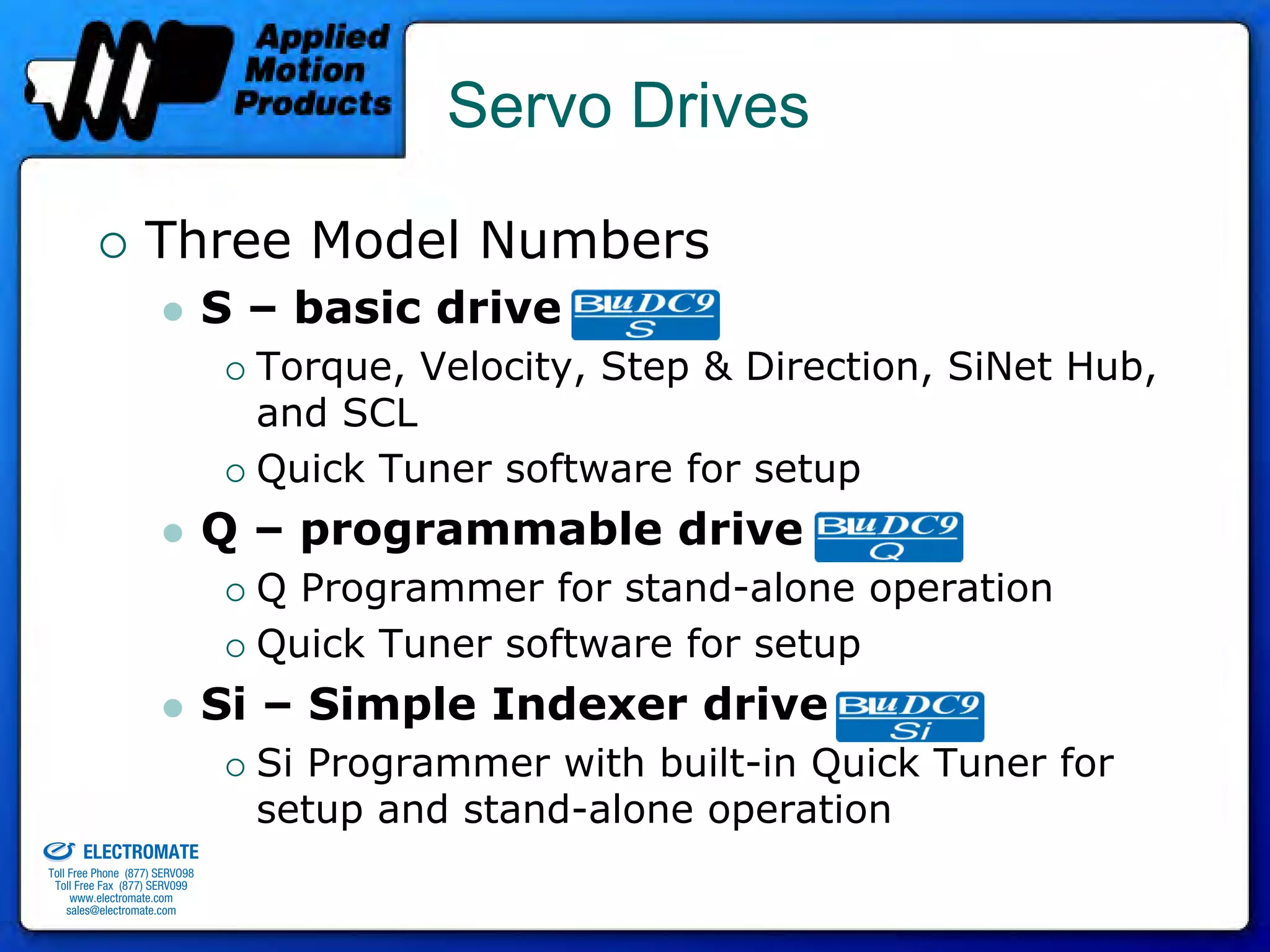

Servo Motors Servo Drives
Multi-axis Right Angle
Hubs Planetary
old & Serviced By:
Software
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

4. Our Products
ALL PRODUCTS
Motors Drives Controls Gearheads Power
Supplies
Step Motors Stand-alone
Stepper Drives Inline Planetary
Indexers
Servo Motors Servo Drives
Multi-axis Right Angle
Hubs Planetary
old & Serviced By:
Software
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

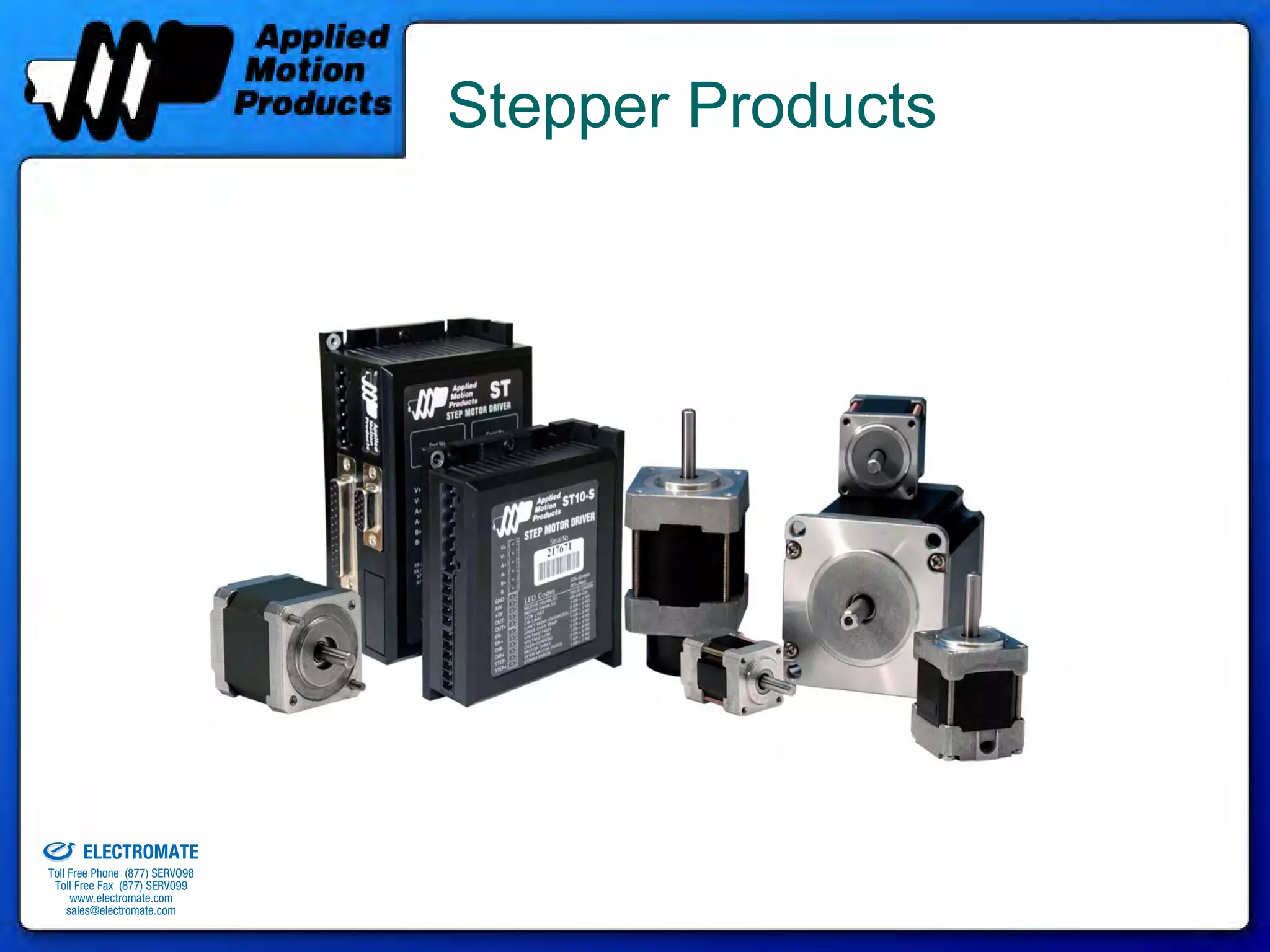

5. Stepper Products
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

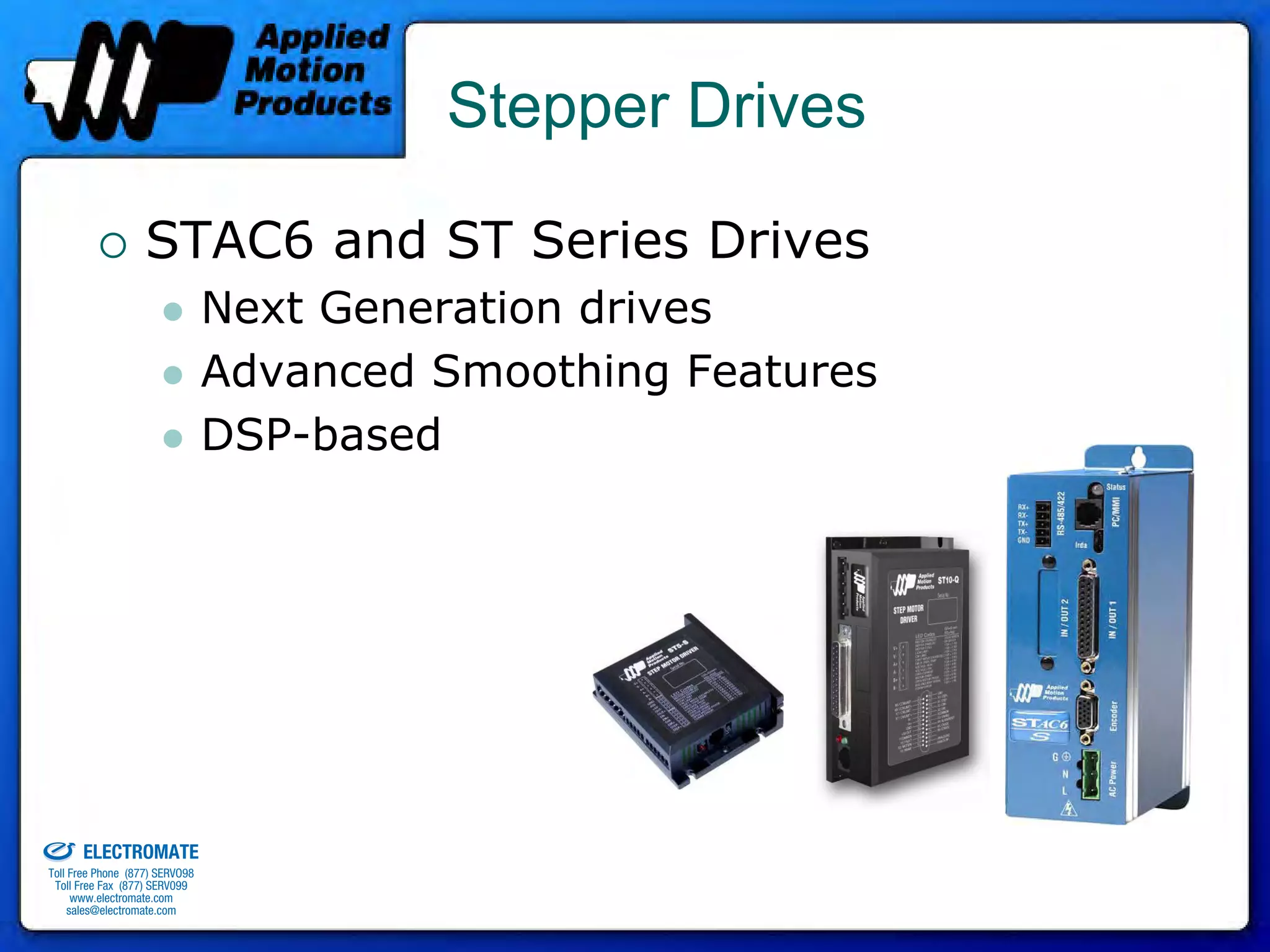

6. Stepper Drives

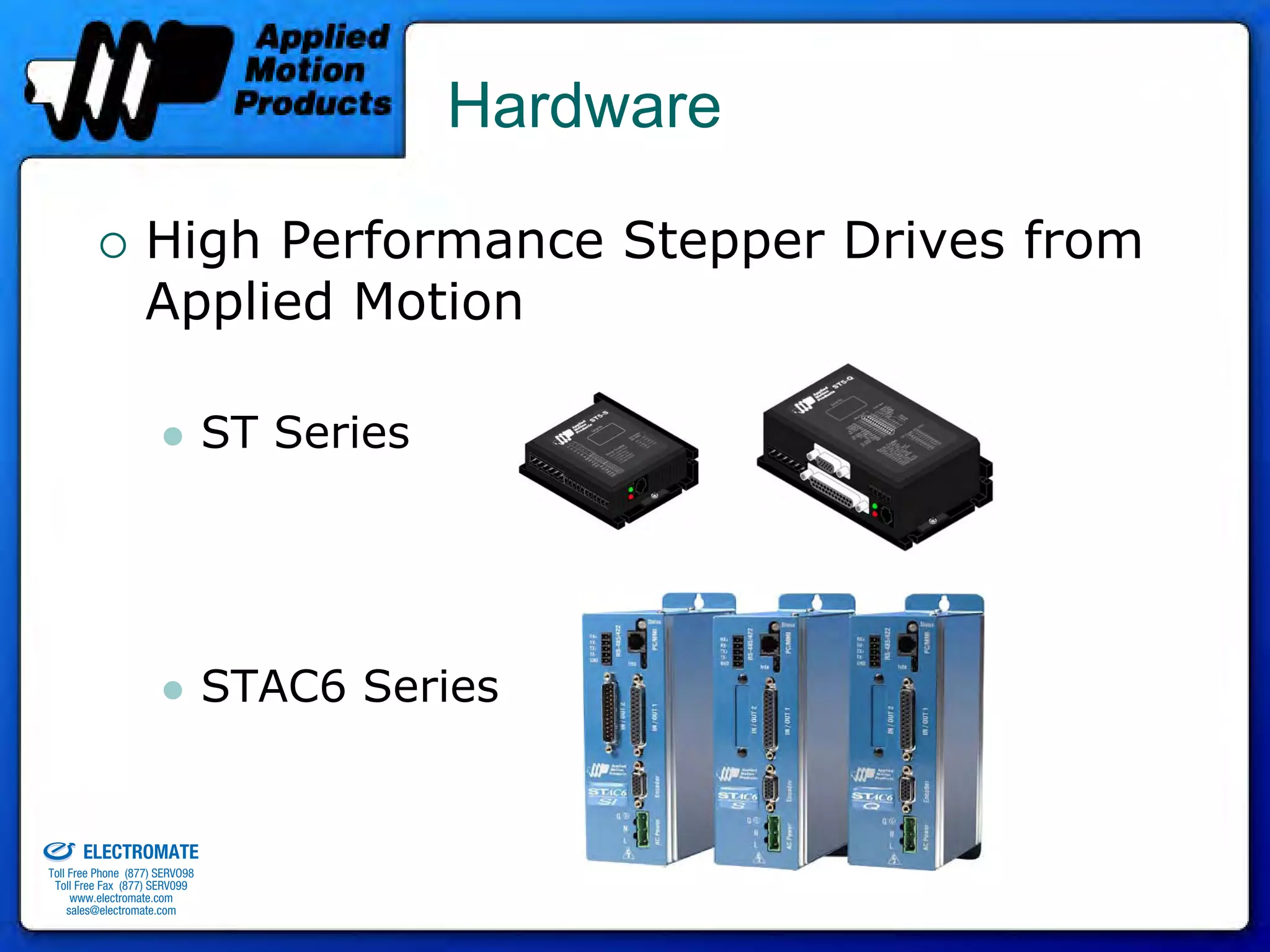

STAC6 and ST Series Drives
Next Generation drives
Advanced Smoothing Features
DSP-based
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

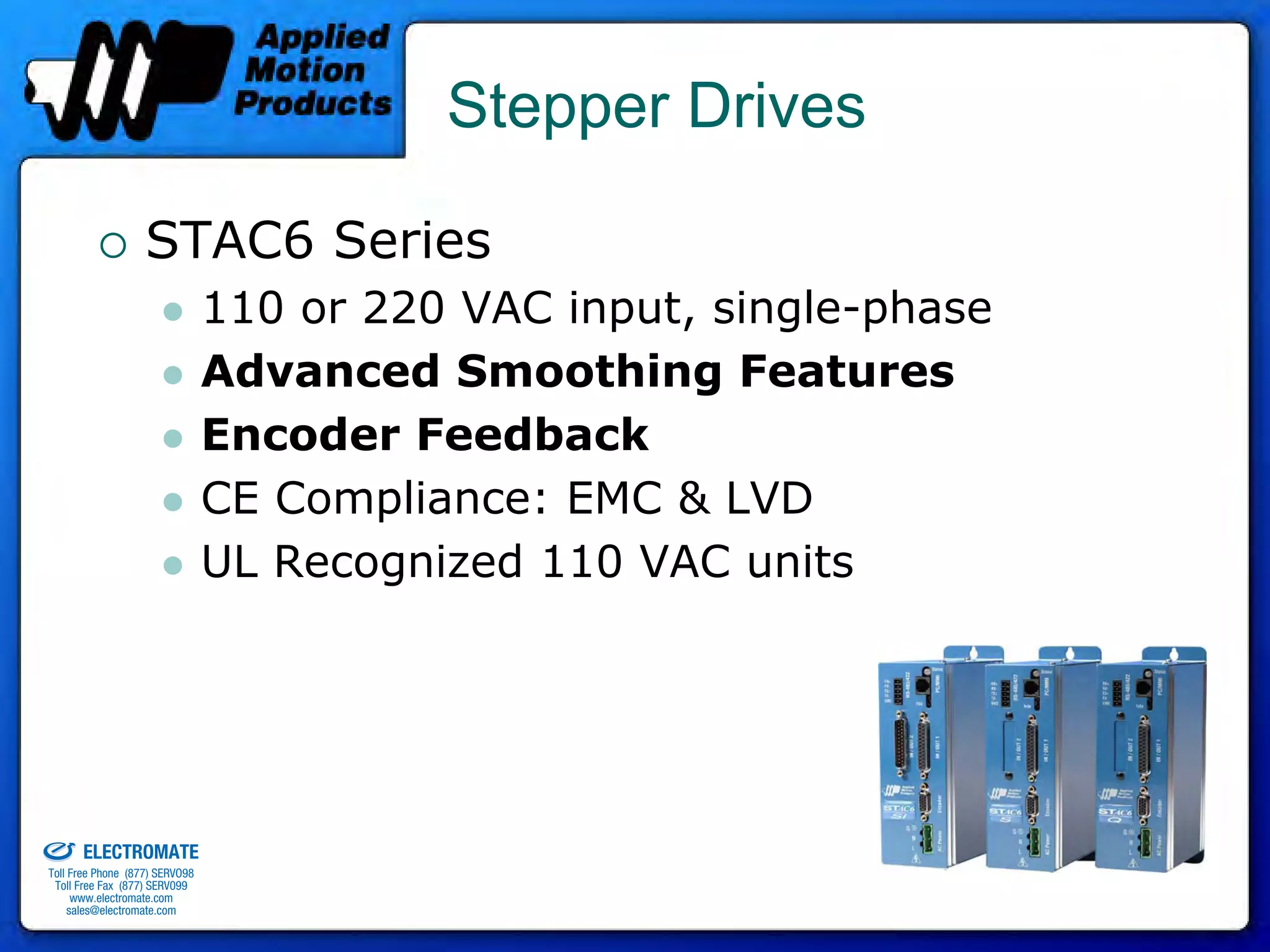

7. Stepper Drives

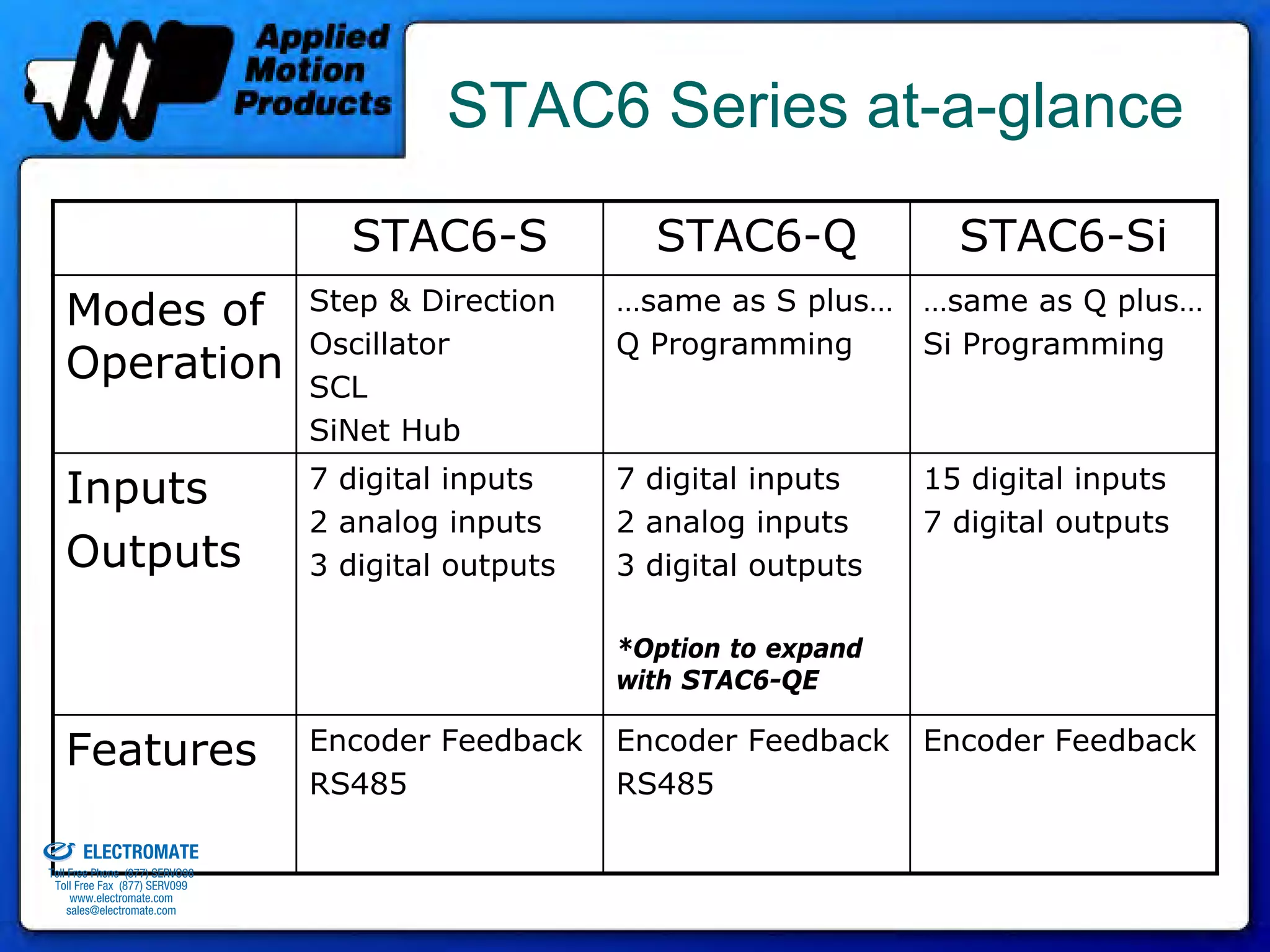

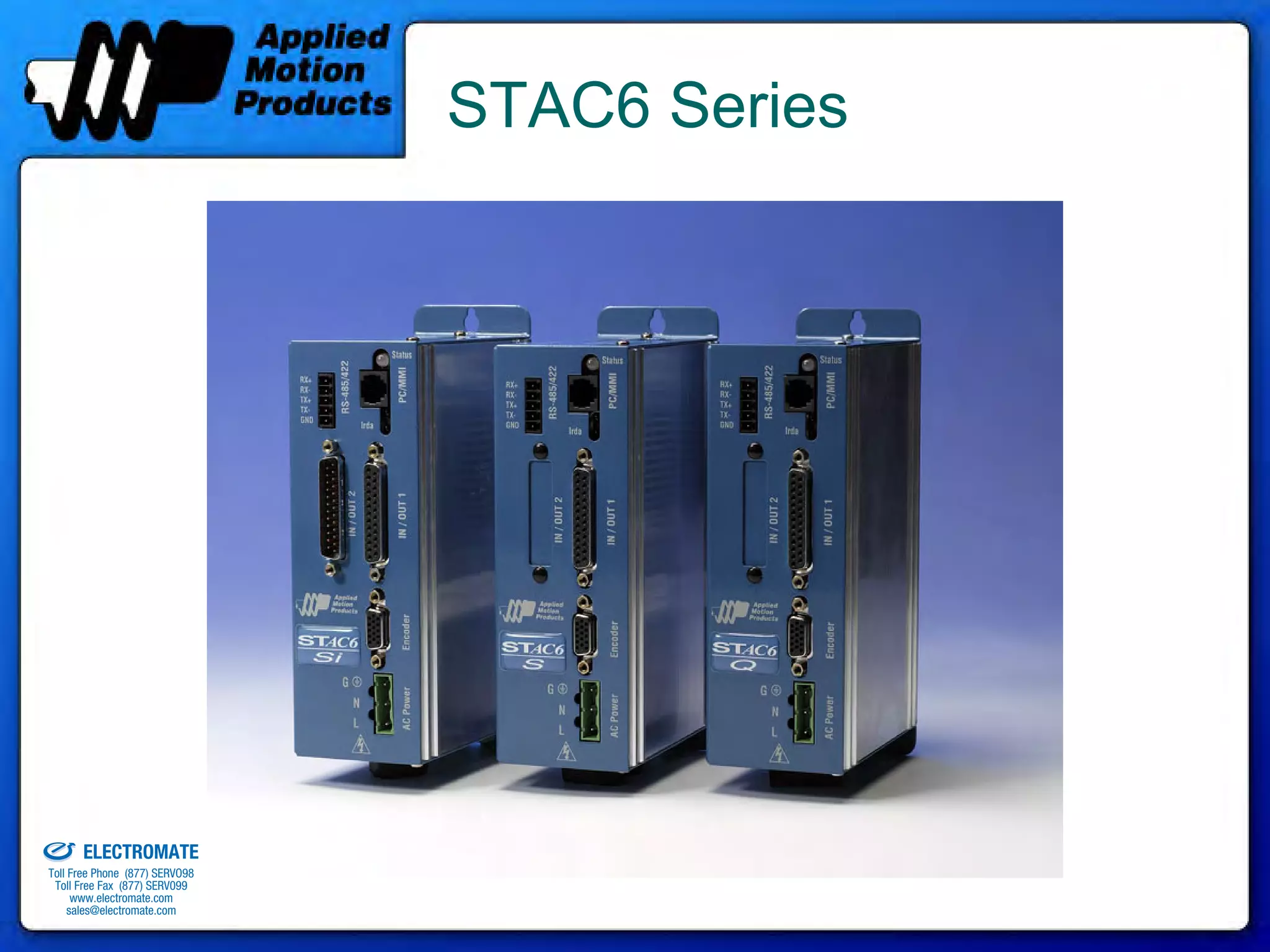

STAC6 Series
110 or 220 VAC input, single-phase
Advanced Smoothing Features
Encoder Feedback
CE Compliance: EMC & LVD
UL Recognized 110 VAC units
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

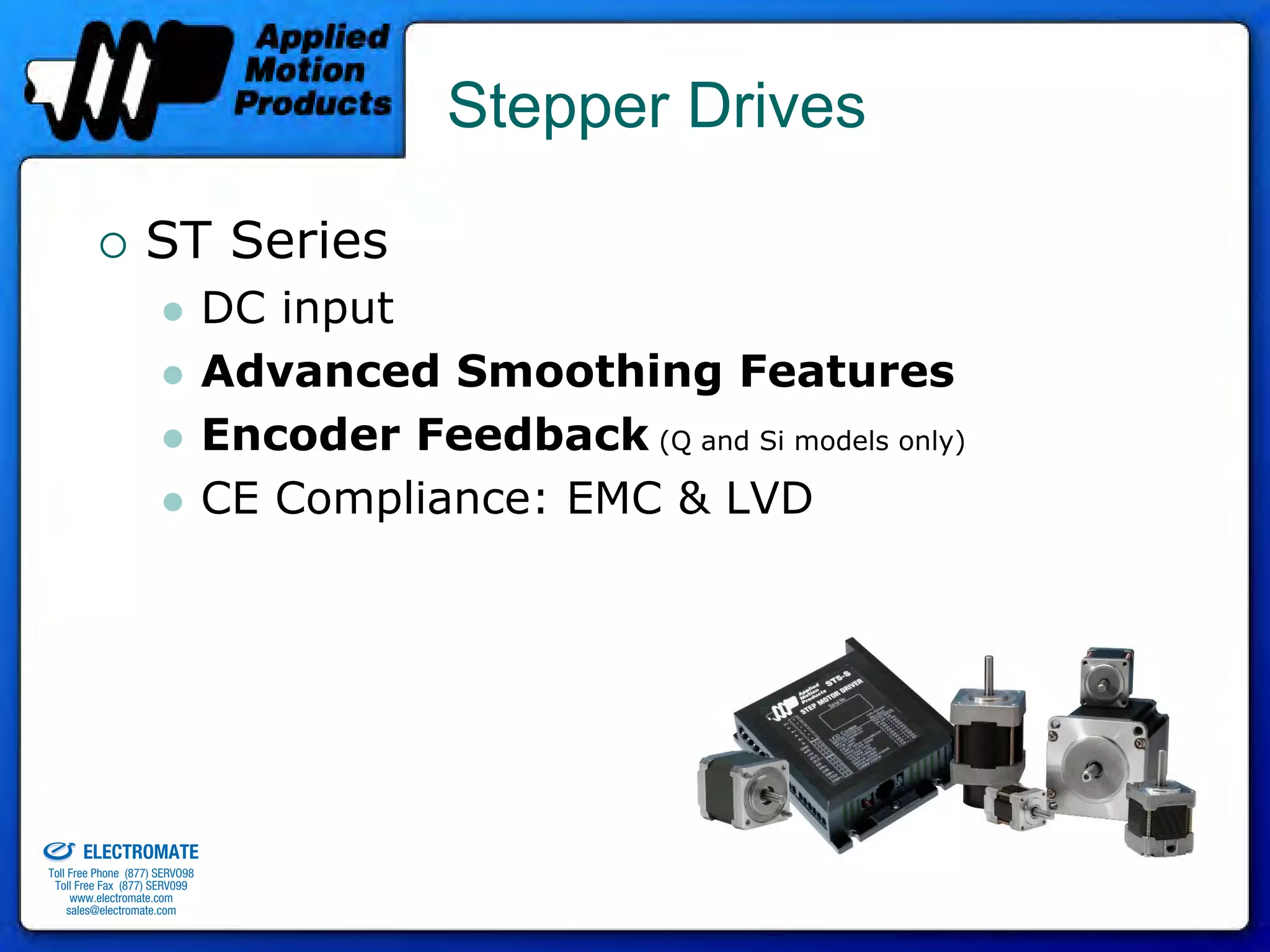

8. Stepper Drives

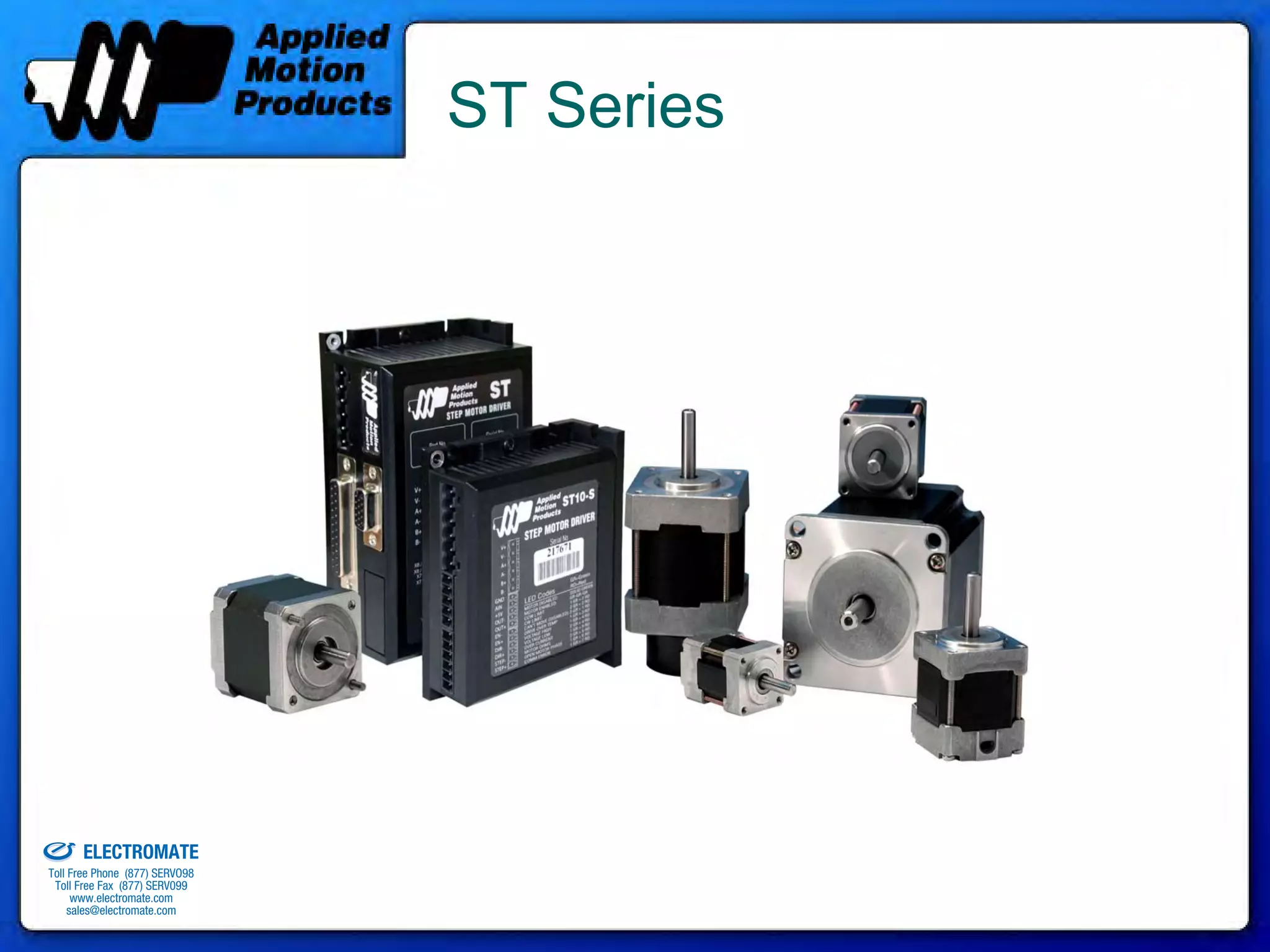

ST Series
DC input
Advanced Smoothing Features
Encoder Feedback (Q and Si models only)
CE Compliance: EMC & LVD
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

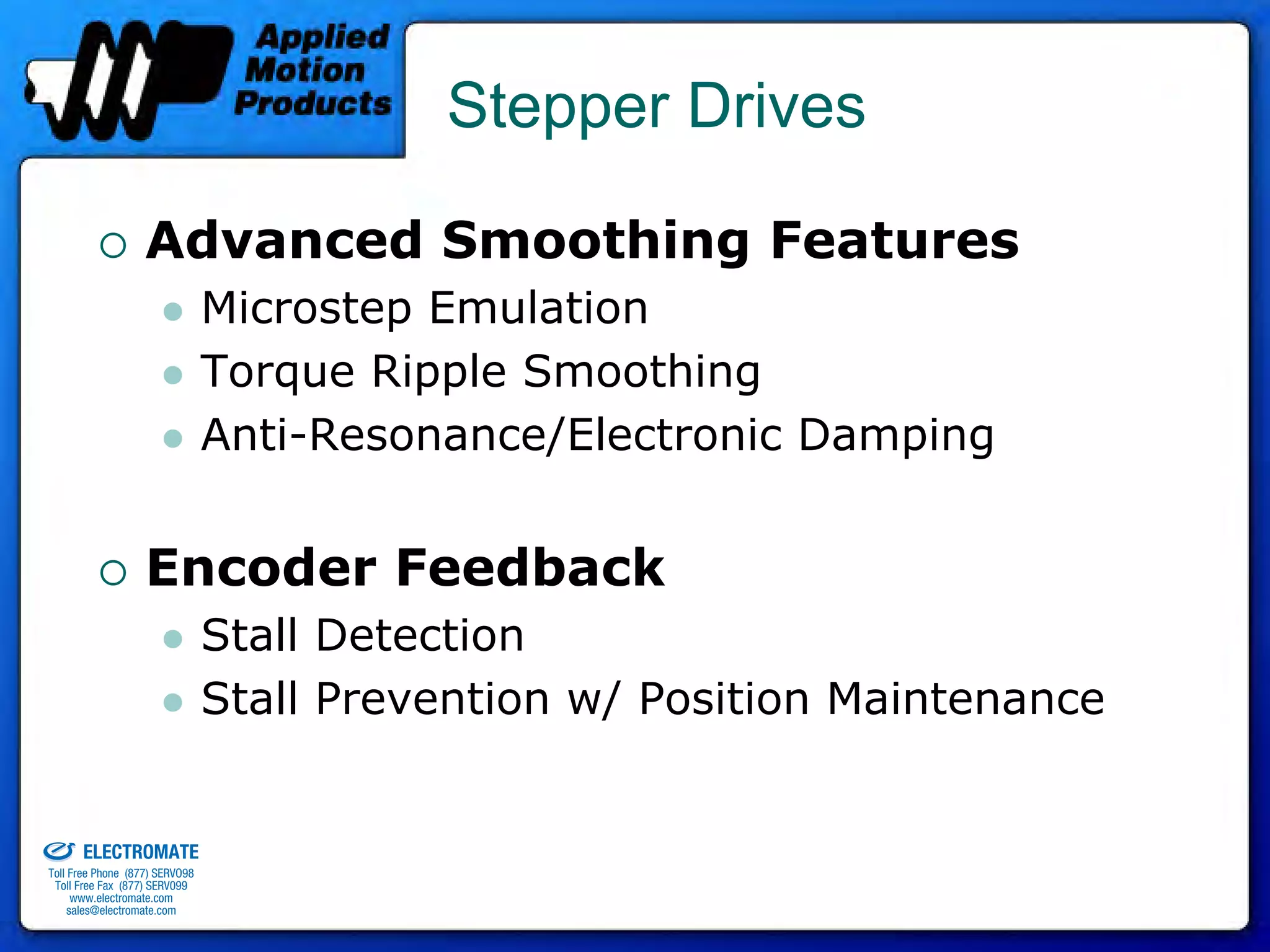

9. Stepper Drives
Advanced Smoothing Features
Microstep Emulation
Torque Ripple Smoothing
Anti-Resonance/Electronic Damping
Encoder Feedback
Stall Detection
Stall Prevention w/ Position Maintenance
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

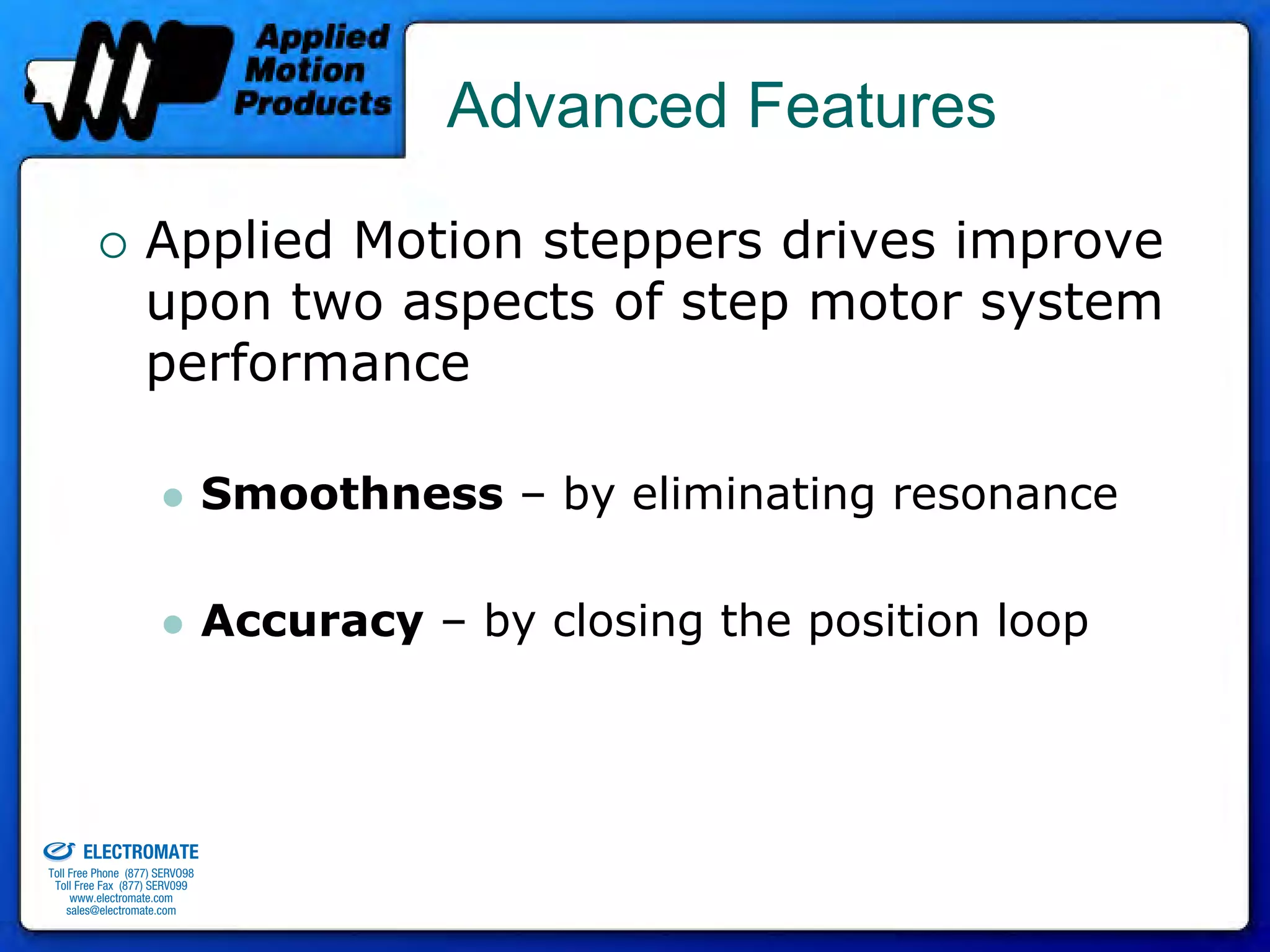

10. Advanced Features
Applied Motion steppers drives improve
upon two aspects of step motor system
performance
Smoothness – by eliminating resonance
Accuracy – by closing the position loop
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

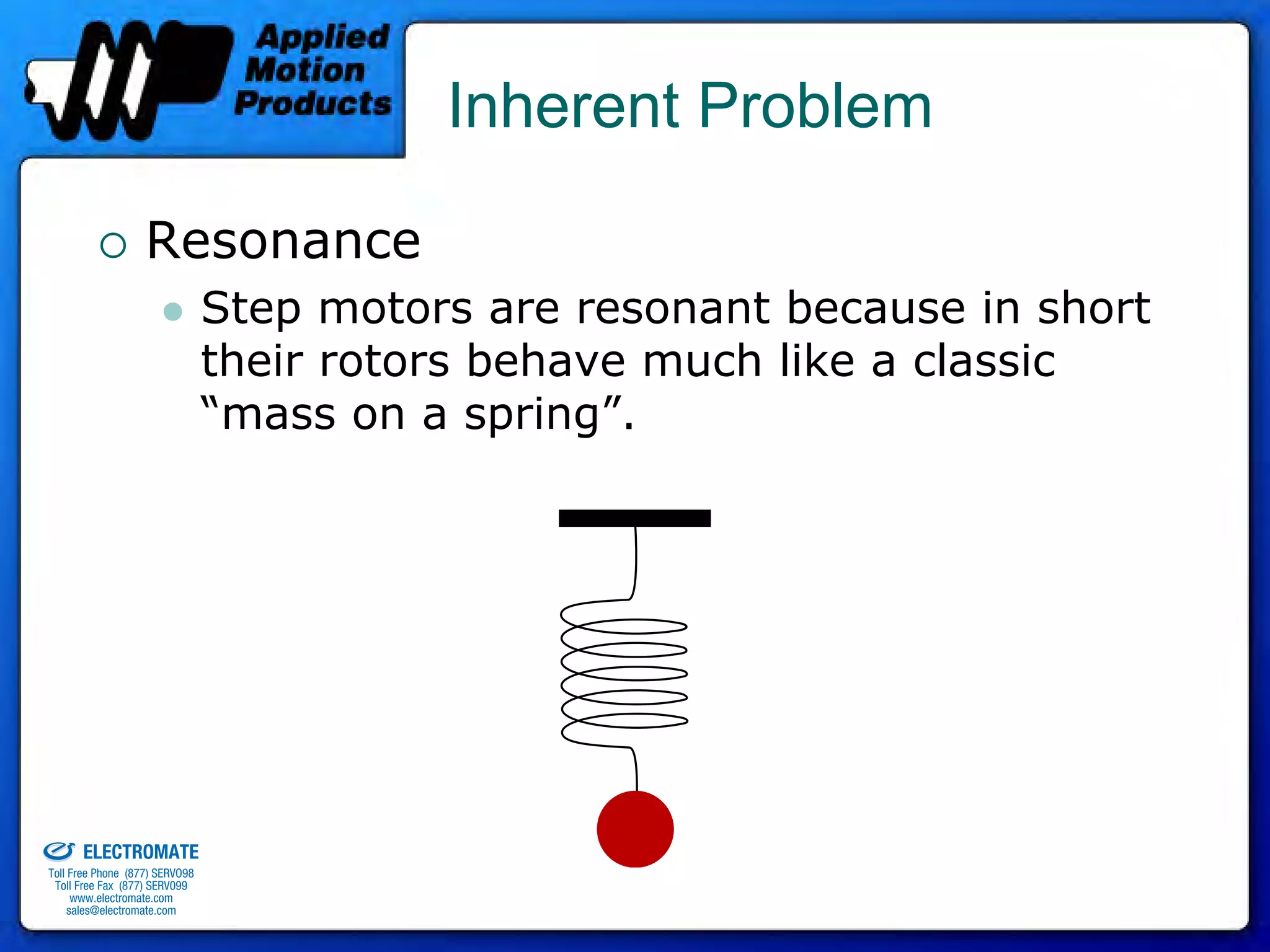

11. Inherent Problem
Resonance
Step motors are resonant because in short
their rotors behave much like a classic
“mass on a spring”.
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

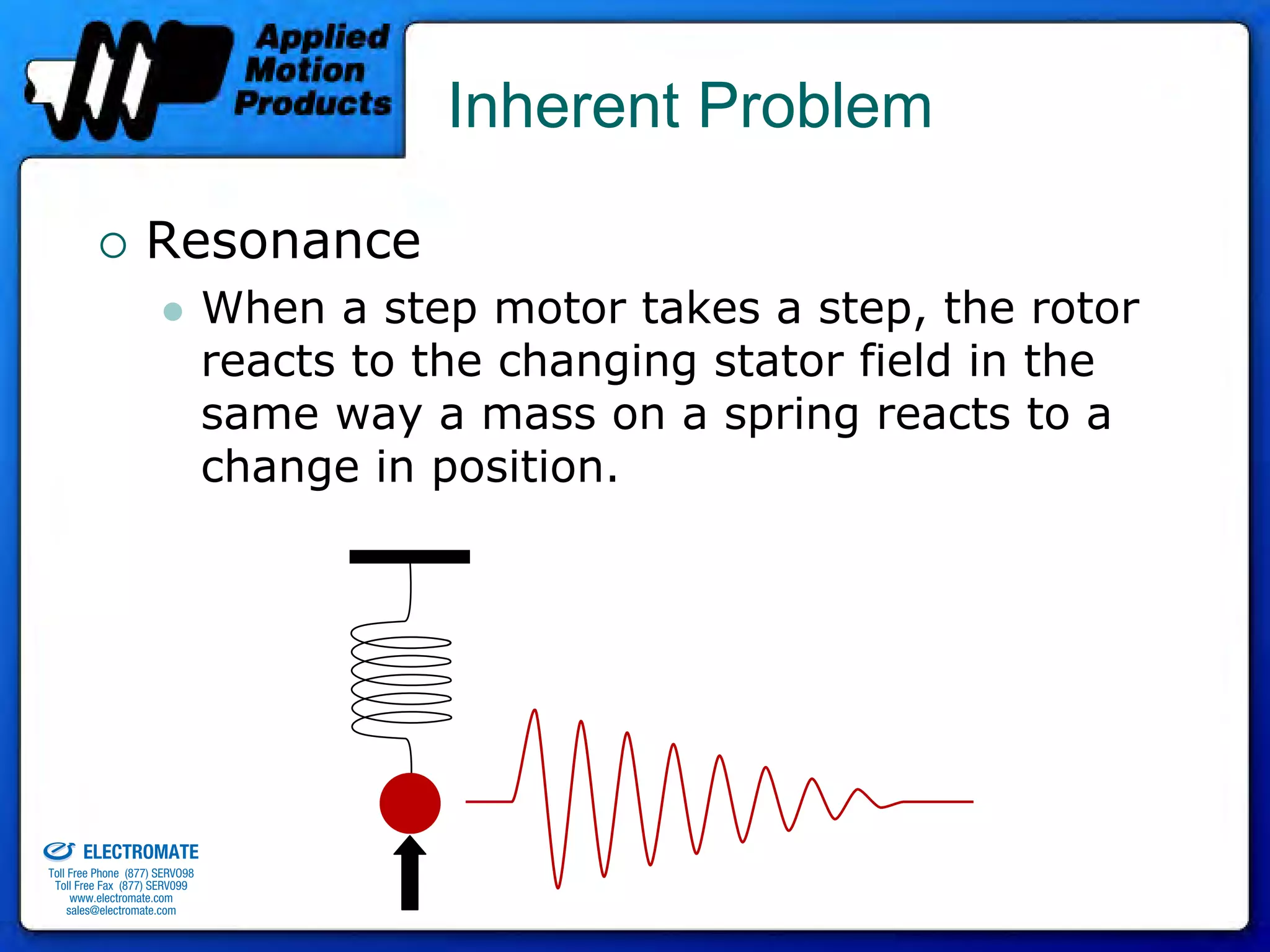

12. Inherent Problem
Resonance
When a step motor takes a step, the rotor
reacts to the changing stator field in the
same way a mass on a spring reacts to a
change in position.
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

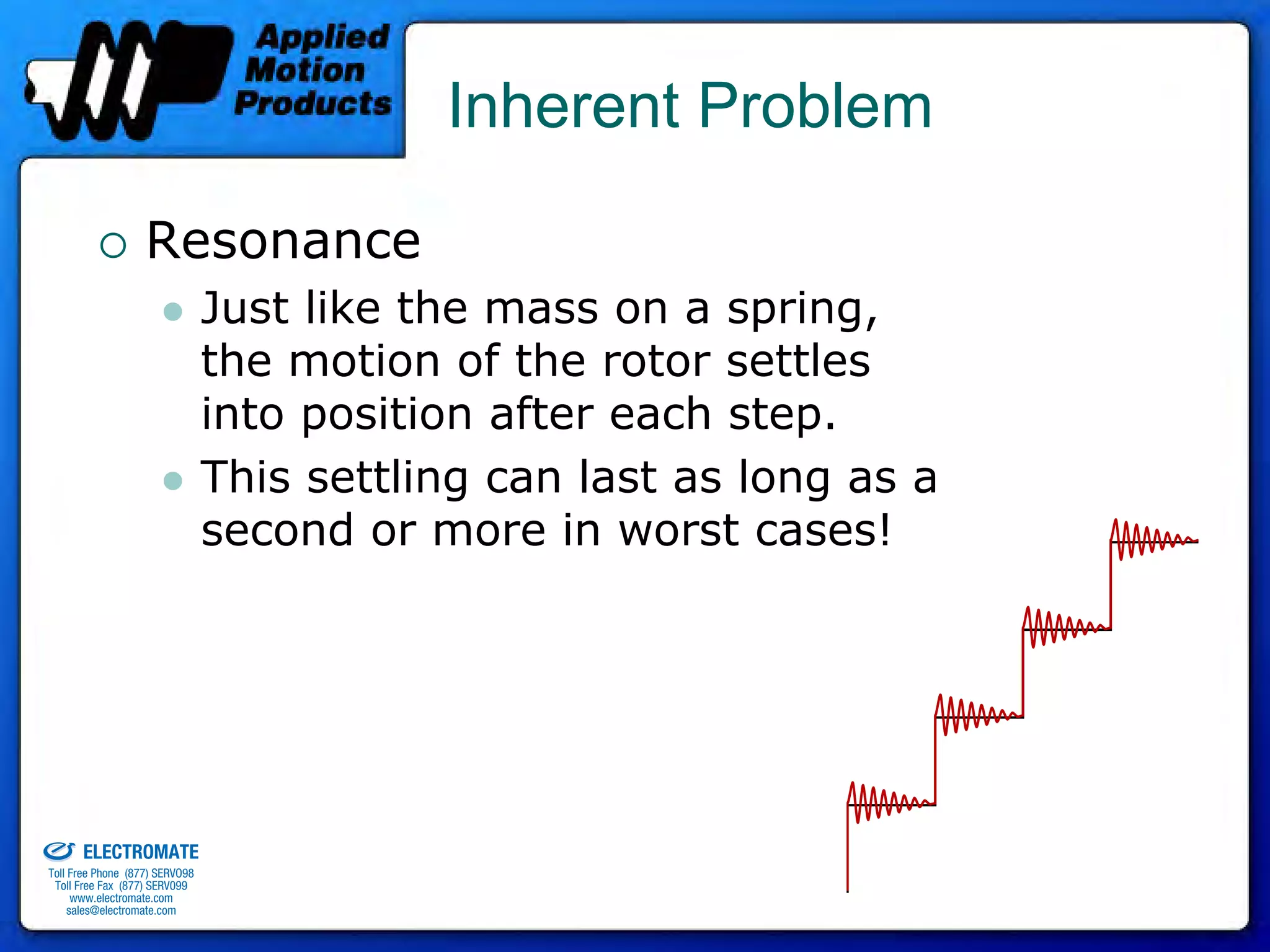

13. Inherent Problem
Resonance
Just like the mass on a spring,
the motion of the rotor settles
into position after each step.
This settling can last as long as a
second or more in worst cases!
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

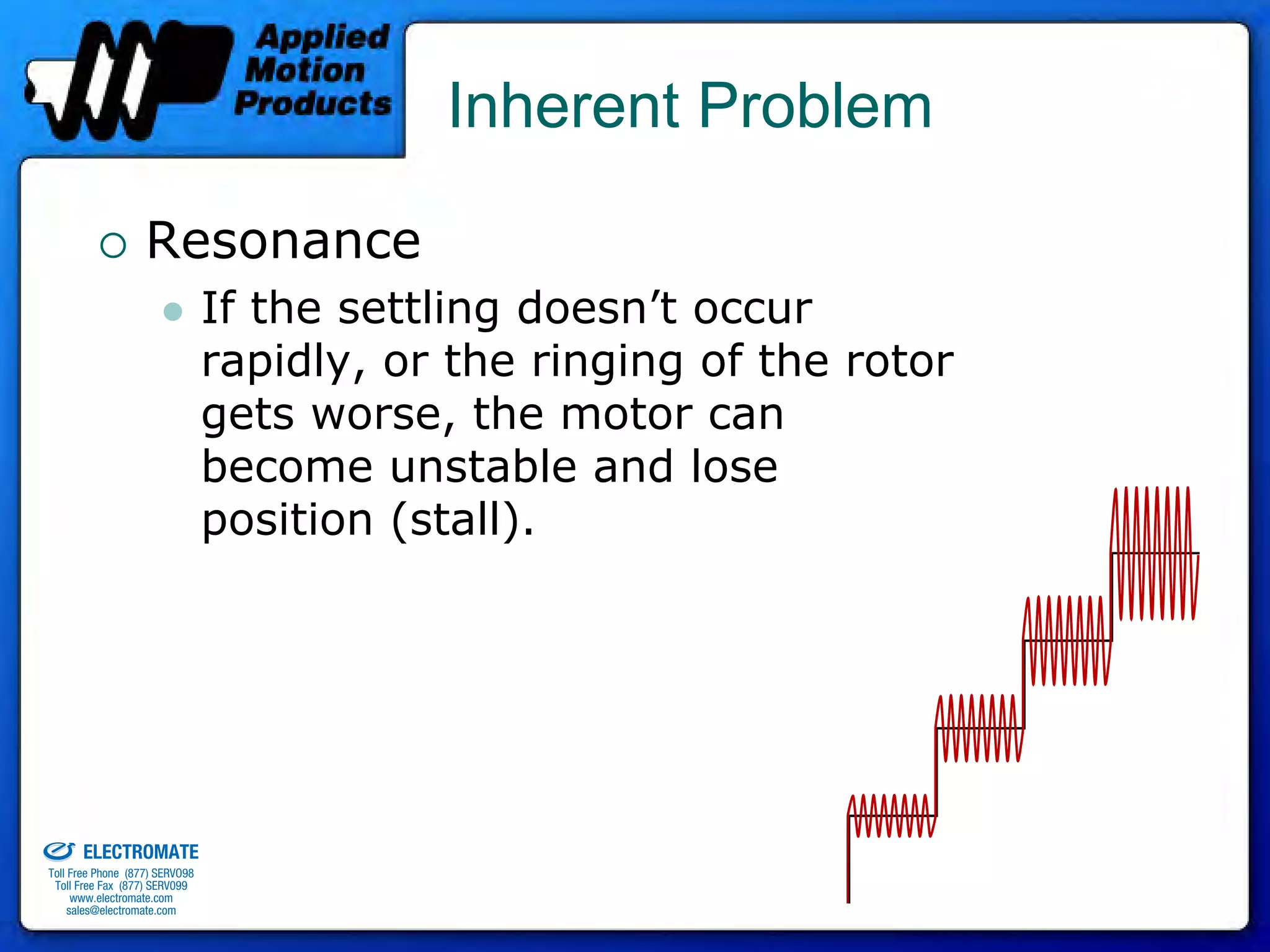

14. Inherent Problem
Resonance
If the settling doesn’t occur
rapidly, or the ringing of the rotor
gets worse, the motor can
become unstable and lose
position (stall).
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

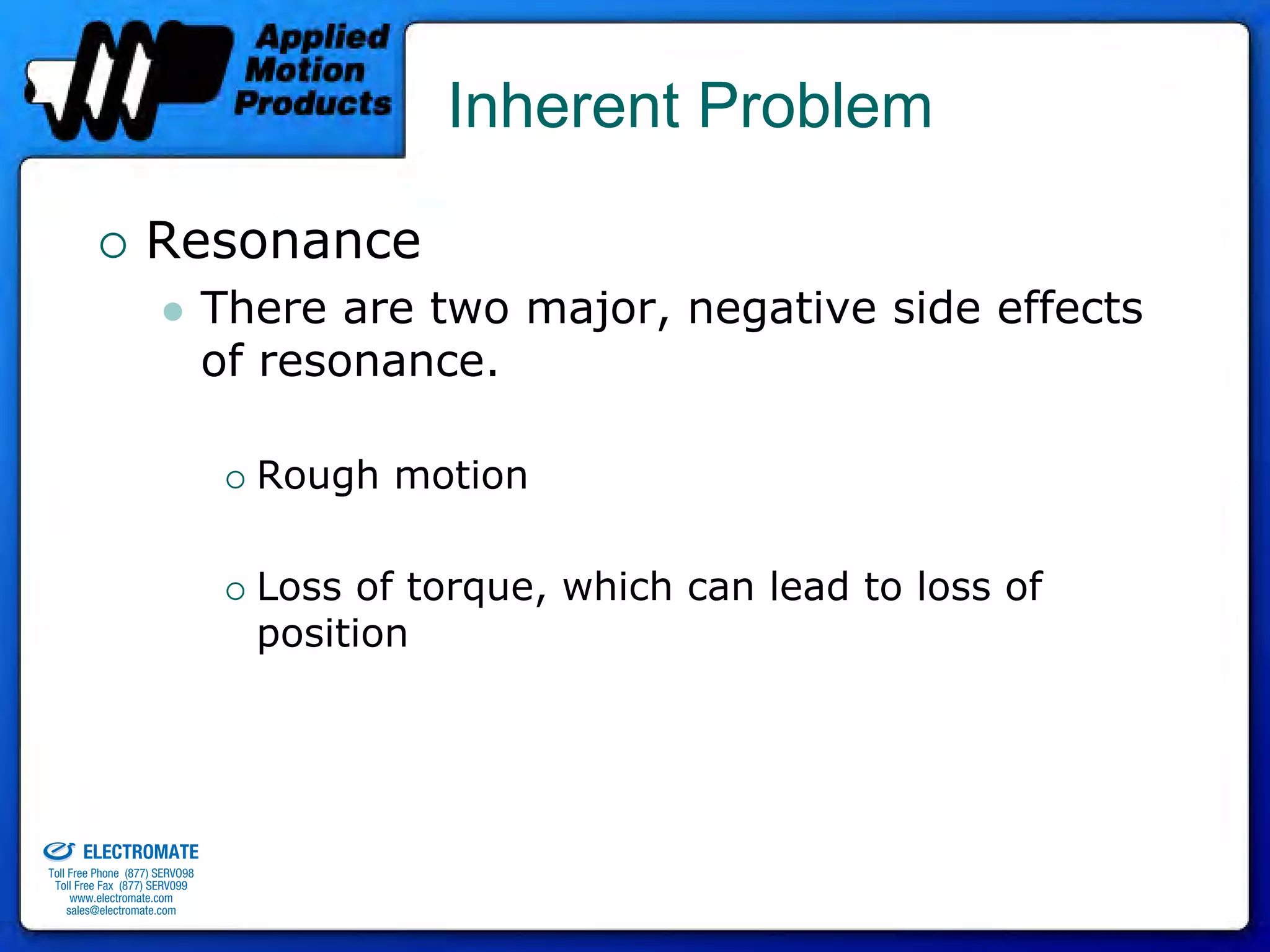

15. Inherent Problem
Resonance
There are two major, negative side effects
of resonance.
Rough motion
Loss of torque, which can lead to loss of
position
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

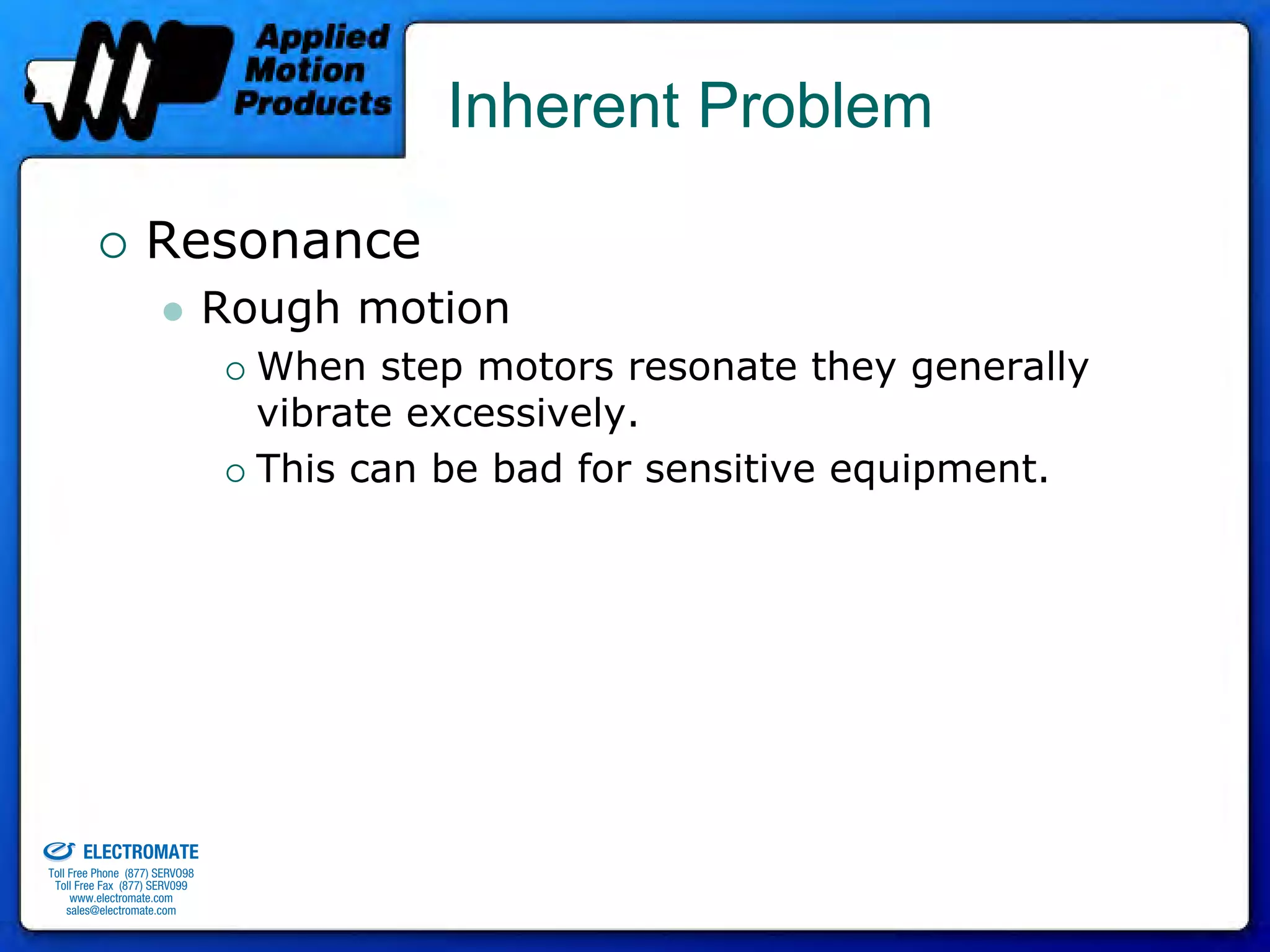

16. Inherent Problem
Resonance
Rough motion
When step motors resonate they generally
vibrate excessively.
This can be bad for sensitive equipment.
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

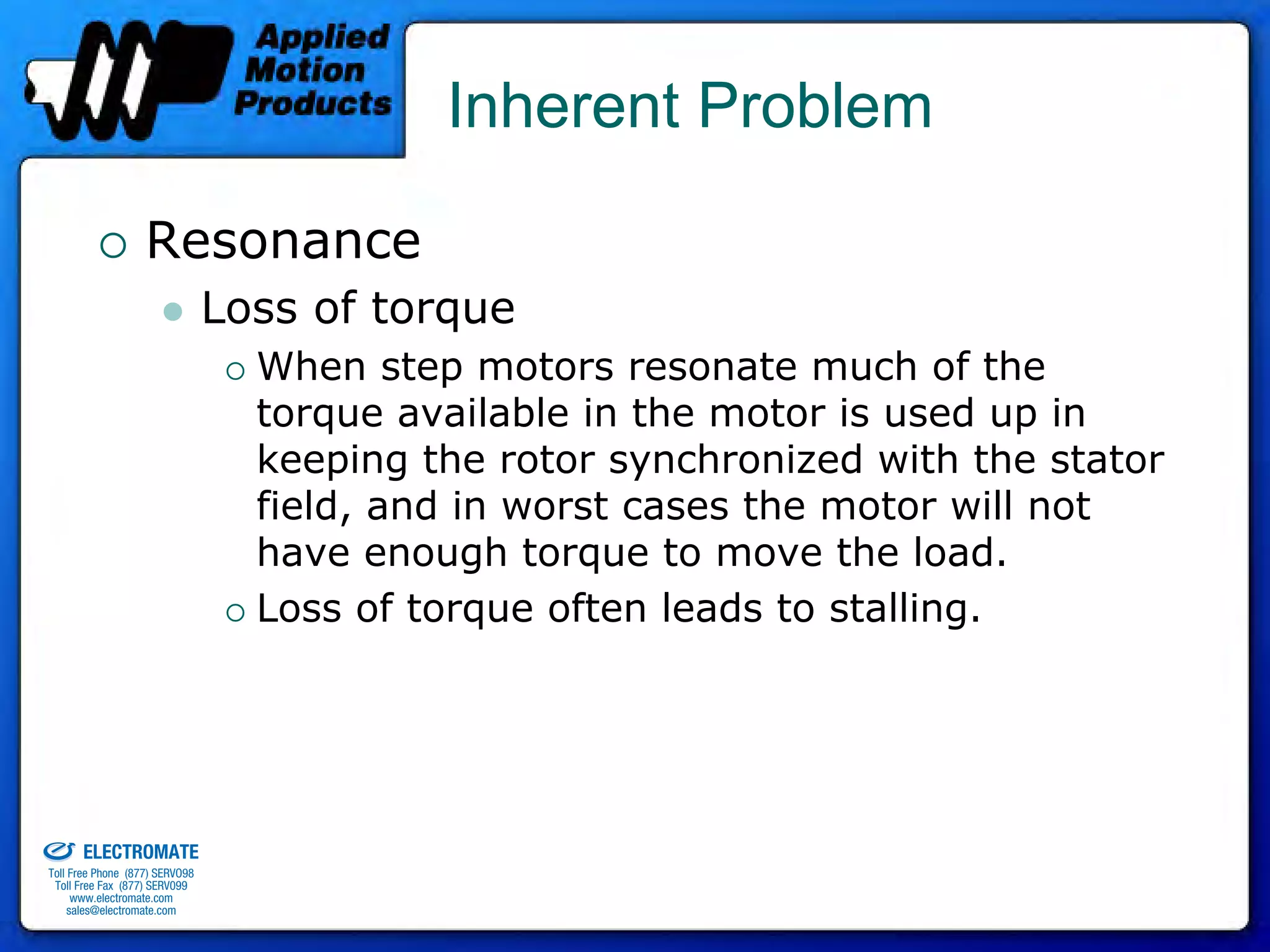

17. Inherent Problem
Resonance
Loss of torque
When step motors resonate much of the
torque available in the motor is used up in
keeping the rotor synchronized with the stator
field, and in worst cases the motor will not
have enough torque to move the load.
Loss of torque often leads to stalling.
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

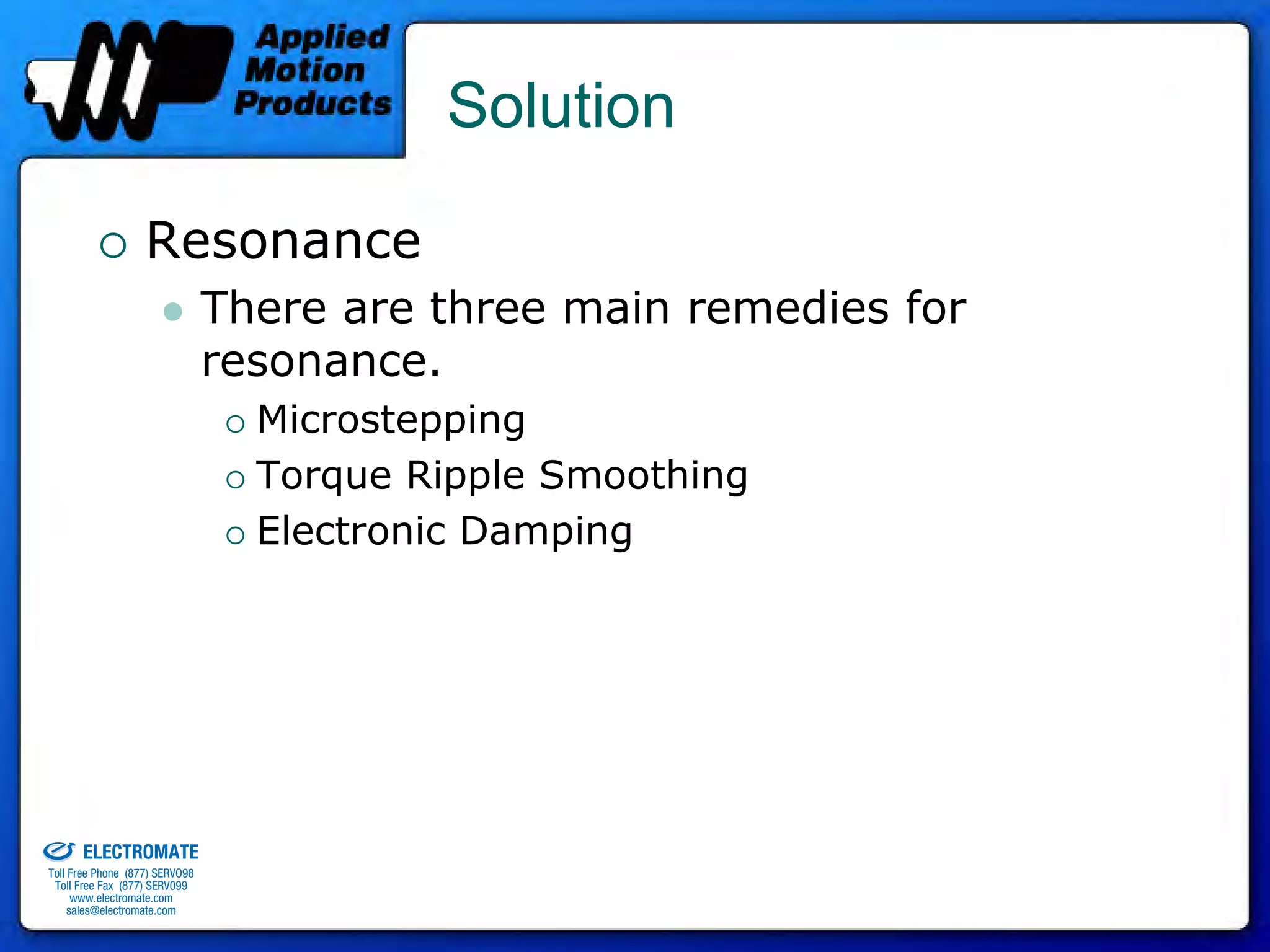

18. Solution
Resonance
There are three main remedies for
resonance.
Microstepping
Torque Ripple Smoothing
Electronic Damping
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

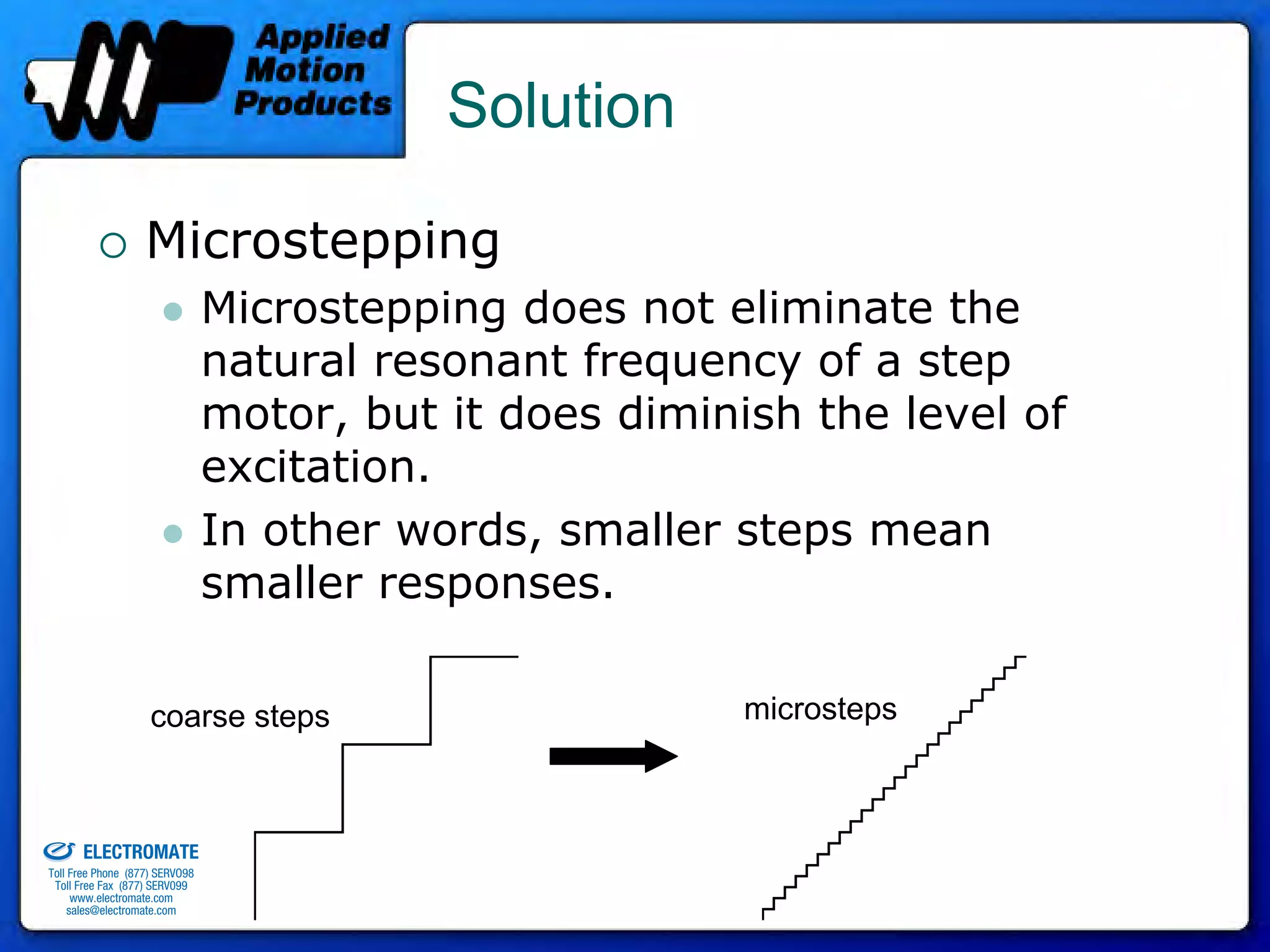

19. Solution
Microstepping
Microstepping does not eliminate the
natural resonant frequency of a step
motor, but it does diminish the level of
excitation.
In other words, smaller steps mean
smaller responses.
coarse steps microsteps
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

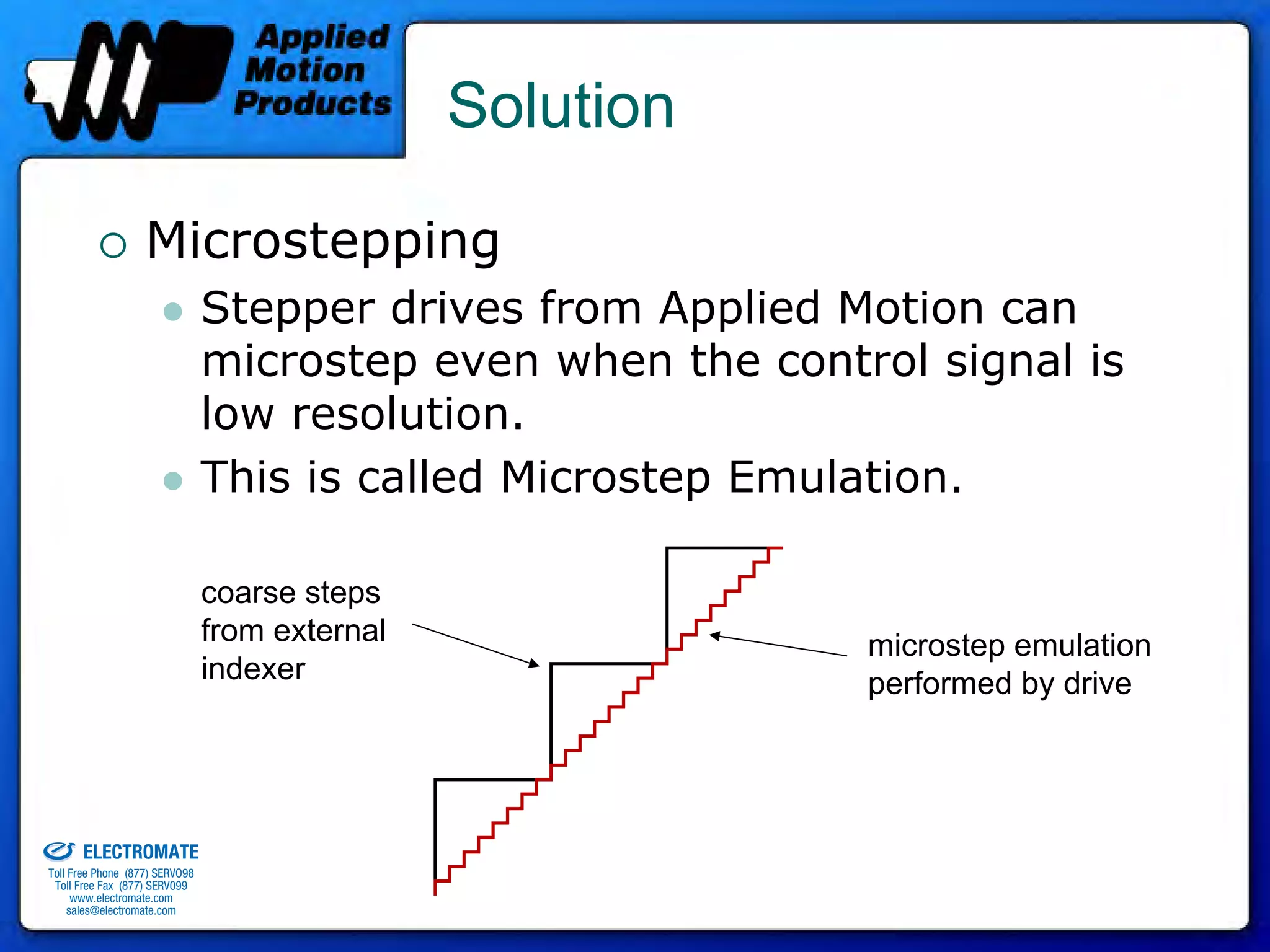

20. Solution
Microstepping
Stepper drives from Applied Motion can
microstep even when the control signal is
low resolution.
This is called Microstep Emulation.
coarse steps
from external microstep emulation
indexer performed by drive
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

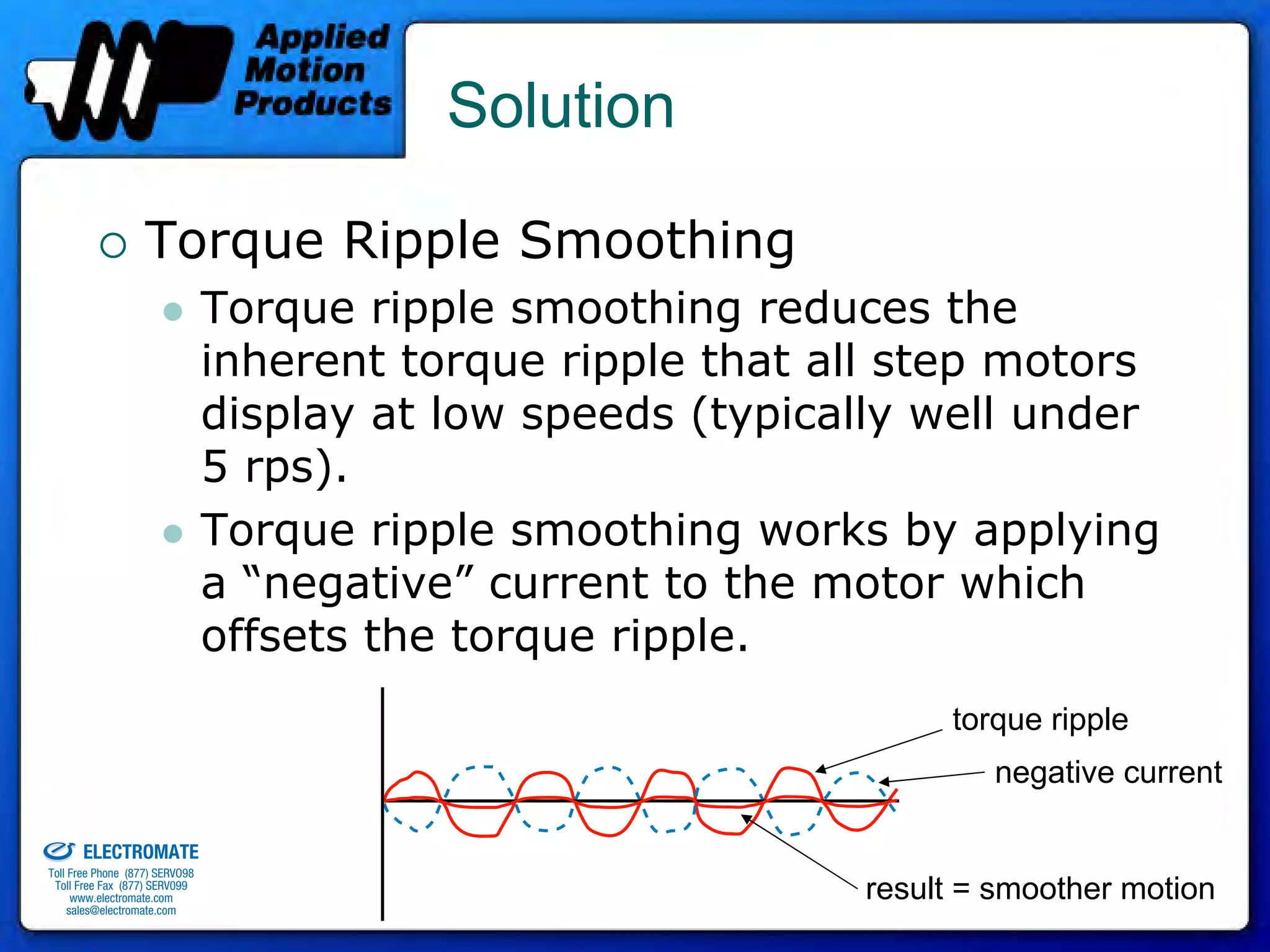

21. Solution
Torque Ripple Smoothing
Torque ripple smoothing reduces the
inherent torque ripple that all step motors
display at low speeds (typically well under
5 rps).
Torque ripple smoothing works by applying
a “negative” current to the motor which
offsets the torque ripple.
torque ripple
negative current
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
result = smoother motion

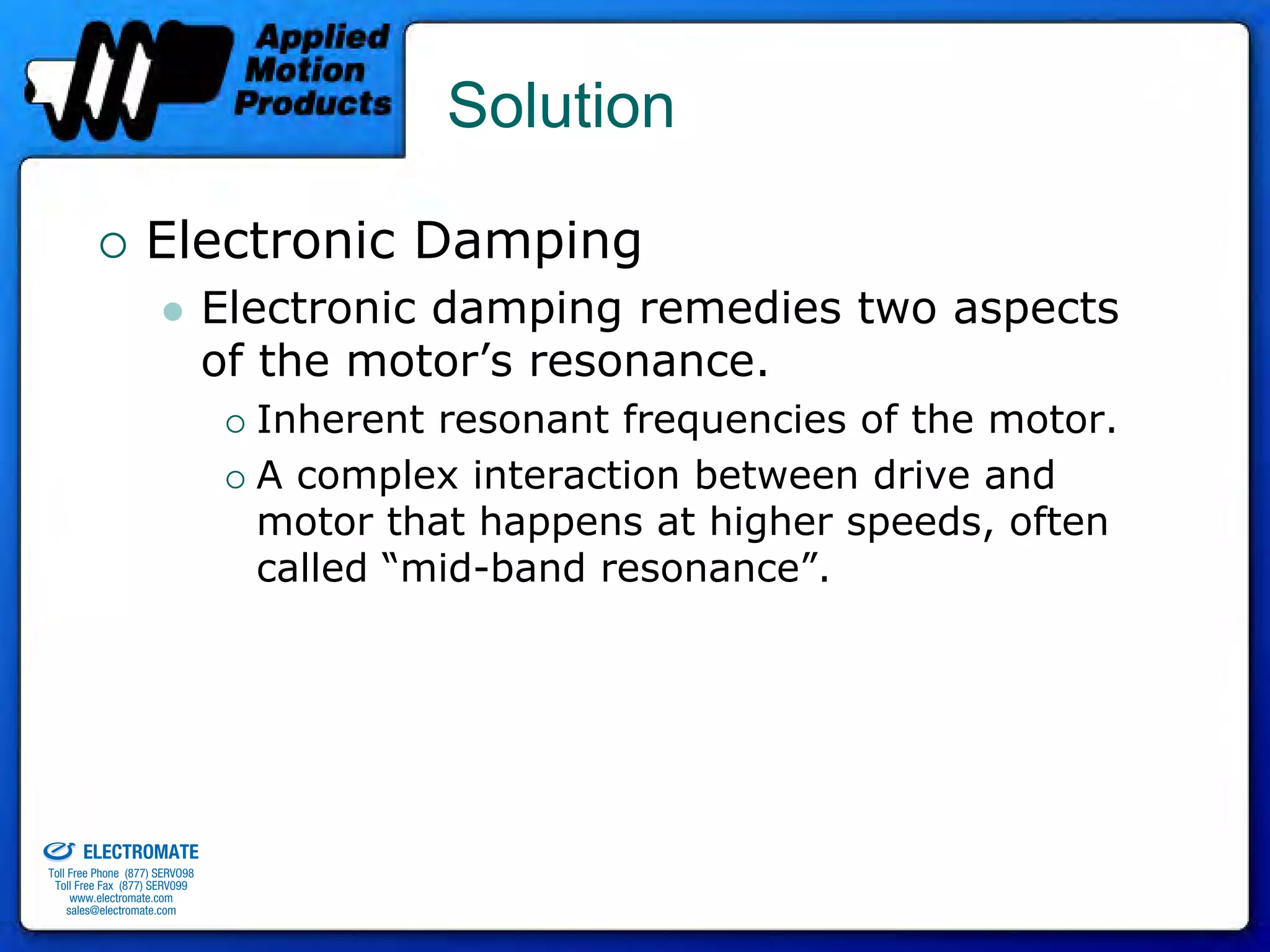

22. Solution
Electronic Damping
Electronic damping remedies two aspects
of the motor’s resonance.
Inherent resonant frequencies of the motor.
A complex interaction between drive and
motor that happens at higher speeds, often
called “mid-band resonance”.
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

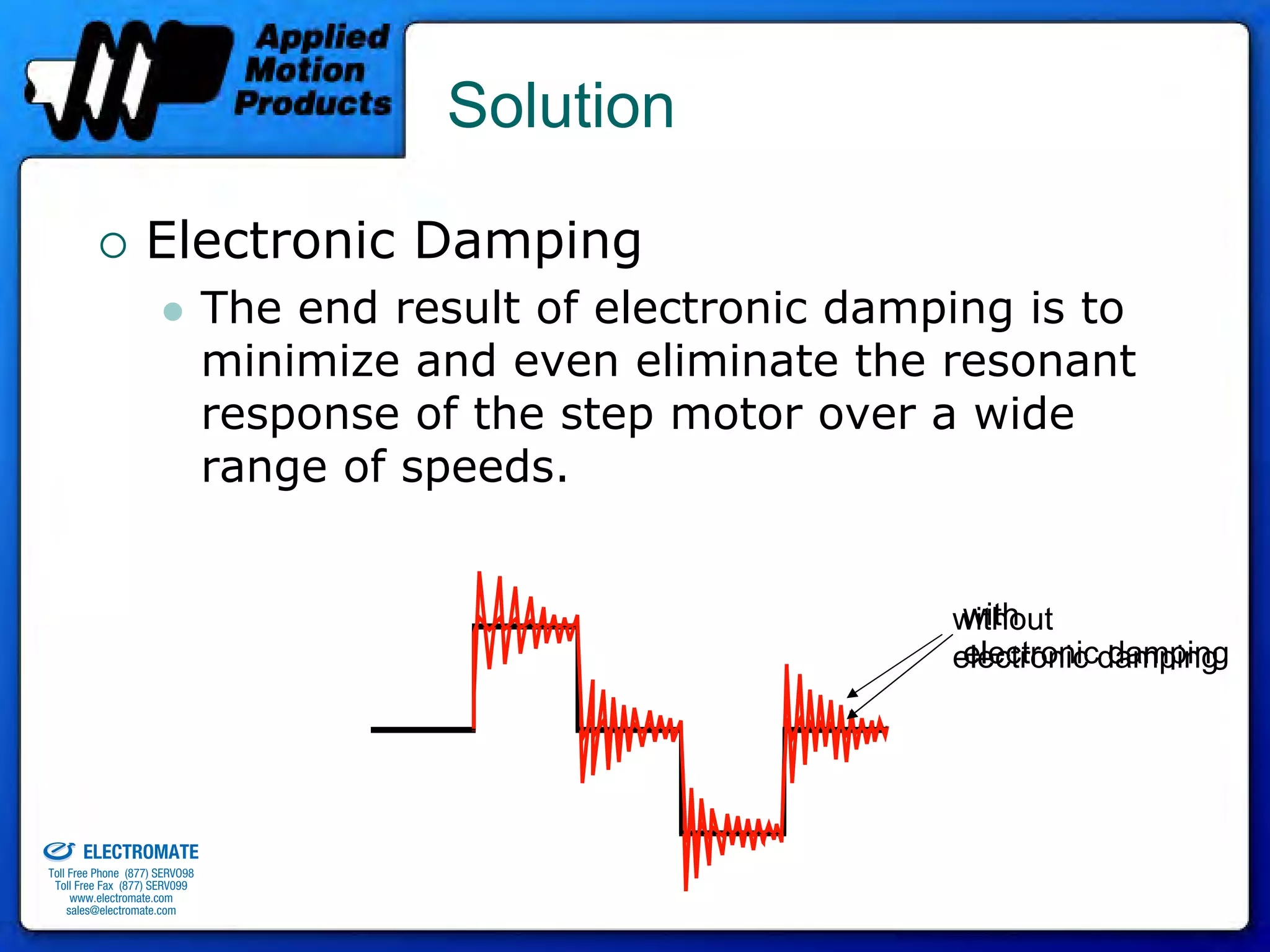

23. Solution
Electronic Damping
The end result of electronic damping is to
minimize and even eliminate the resonant
response of the step motor over a wide
range of speeds.
with
without
electronic damping
electronic damping
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

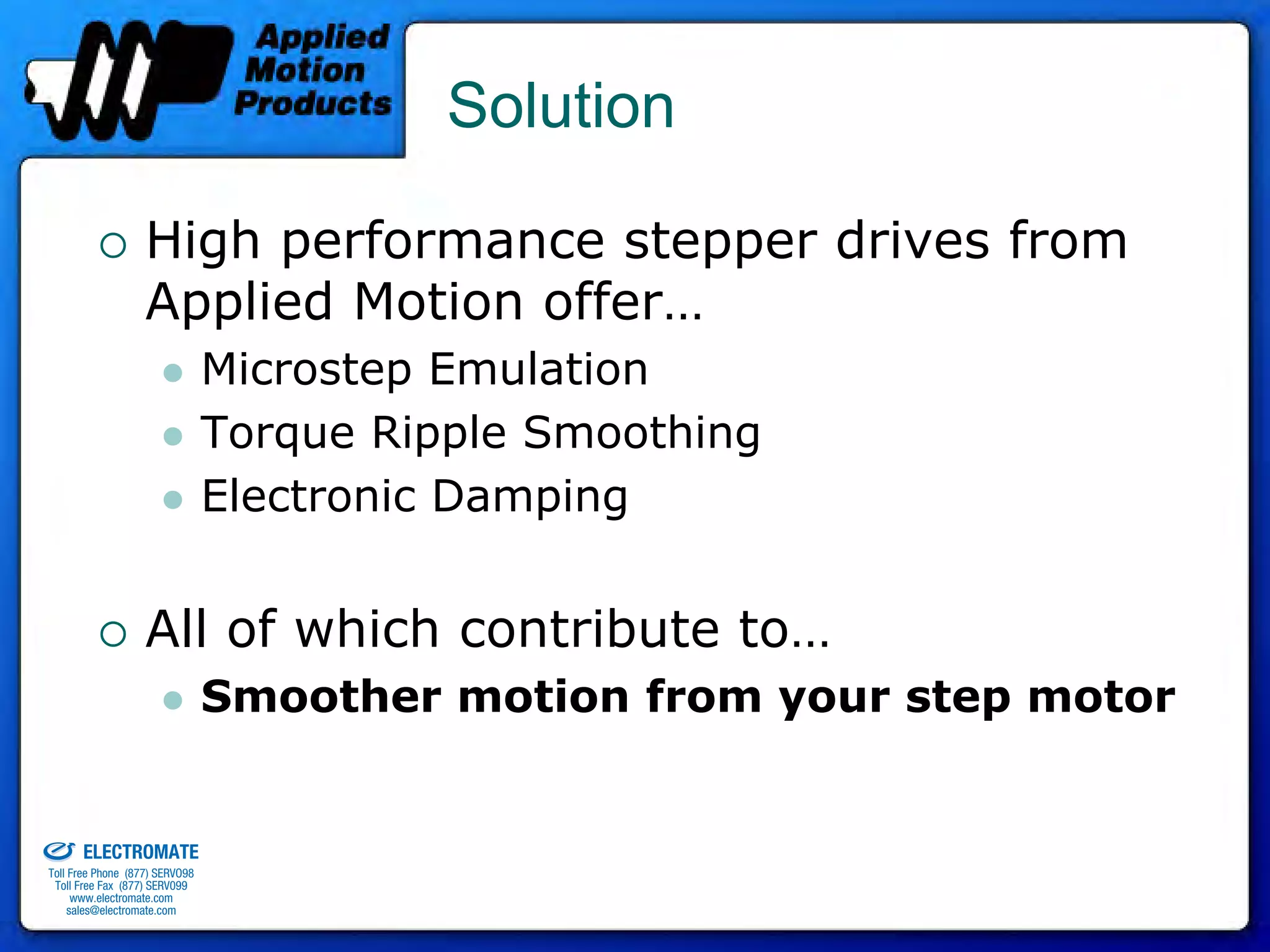

24. Solution
High performance stepper drives from
Applied Motion offer…
Microstep Emulation
Torque Ripple Smoothing
Electronic Damping
All of which contribute to…
Smoother motion from your step motor
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

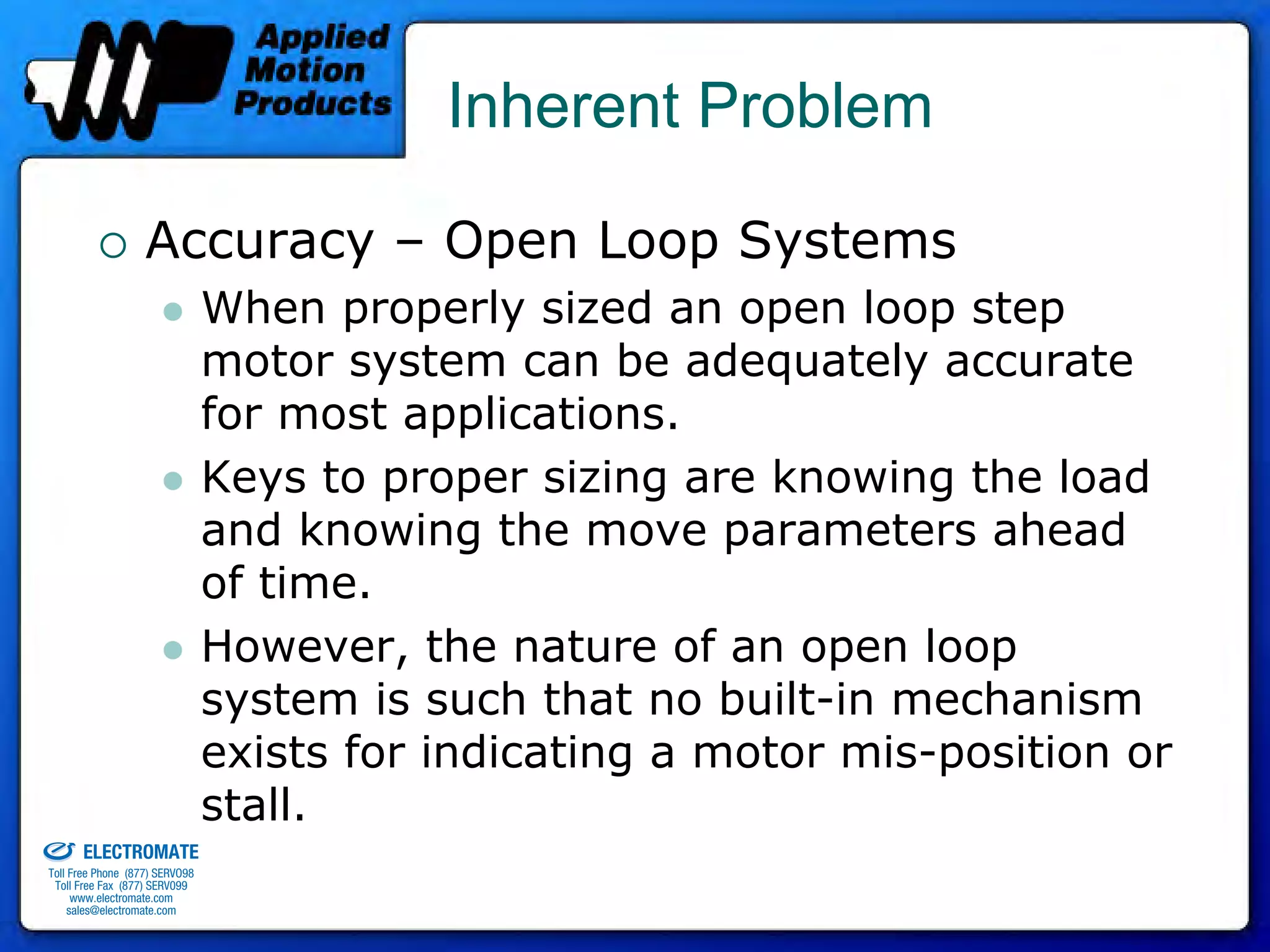

25. Inherent Problem
Accuracy – Open Loop Systems
When properly sized an open loop step
motor system can be adequately accurate
for most applications.
Keys to proper sizing are knowing the load
and knowing the move parameters ahead
of time.
However, the nature of an open loop
system is such that no built-in mechanism
exists for indicating a motor mis-position or
old & Serviced By:
stall.
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

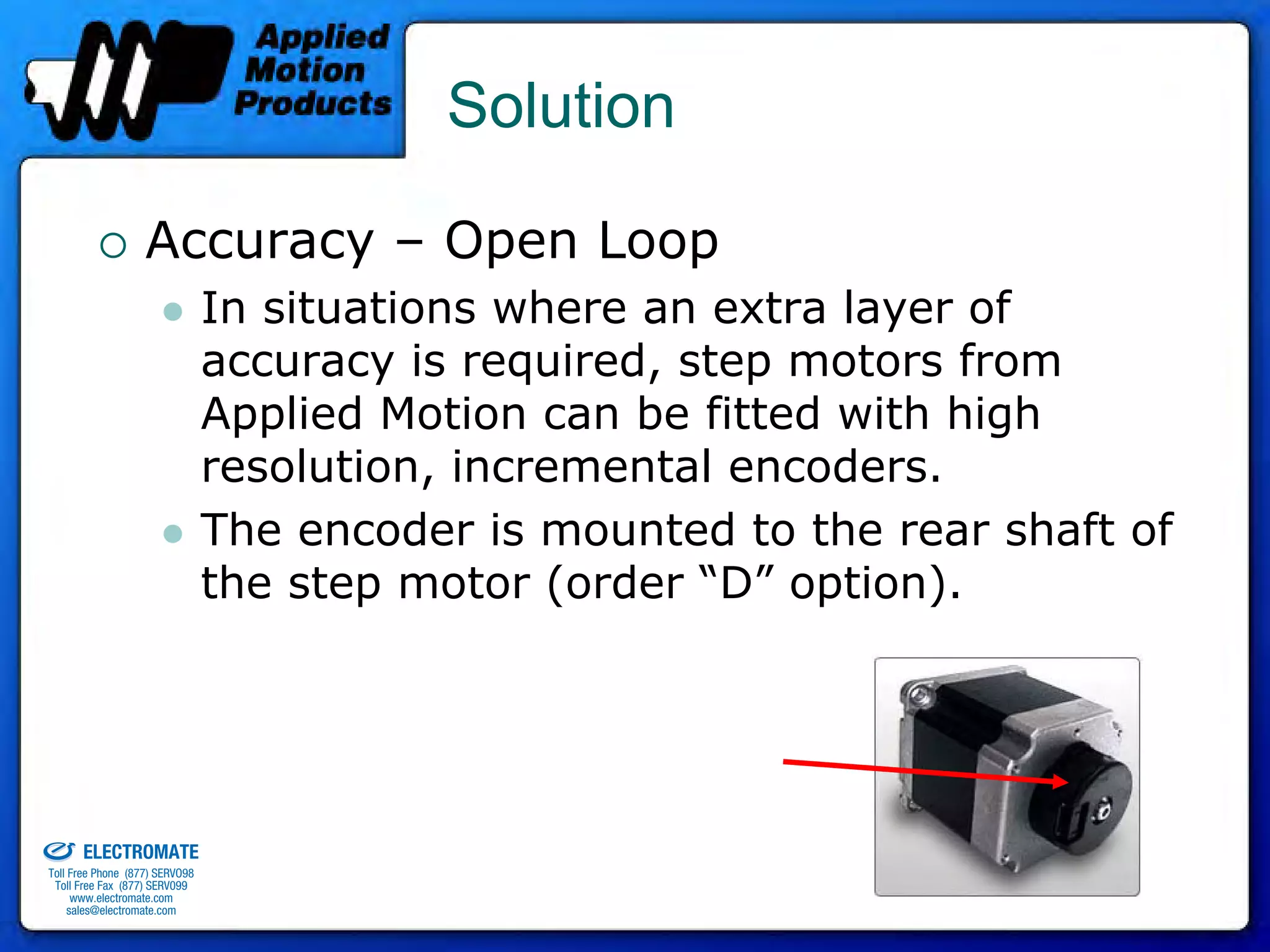

26. Solution
Accuracy – Open Loop
In situations where an extra layer of
accuracy is required, step motors from
Applied Motion can be fitted with high
resolution, incremental encoders.
The encoder is mounted to the rear shaft of
the step motor (order “D” option).
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

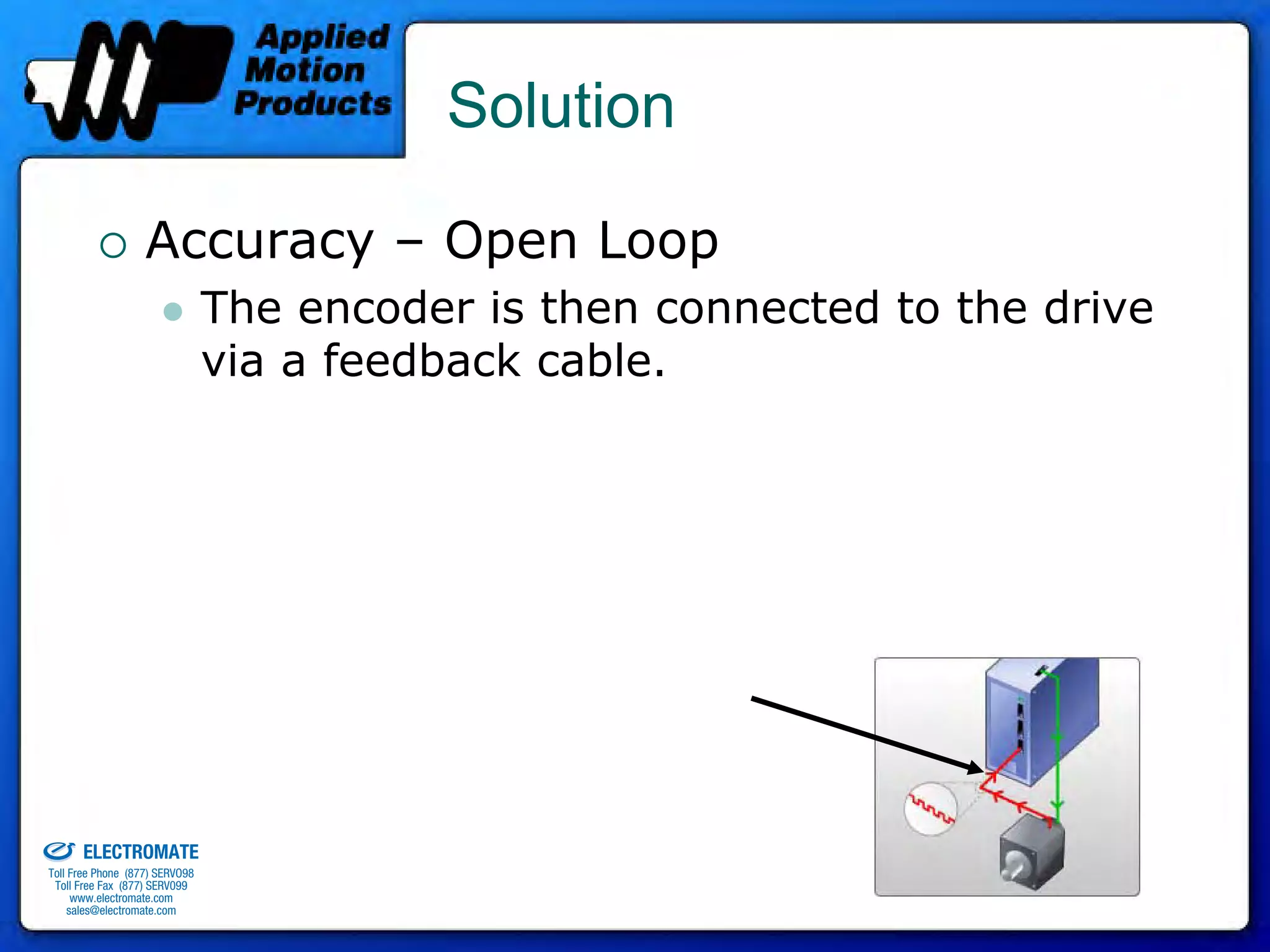

27. Solution
Accuracy – Open Loop
The encoder is then connected to the drive
via a feedback cable.
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

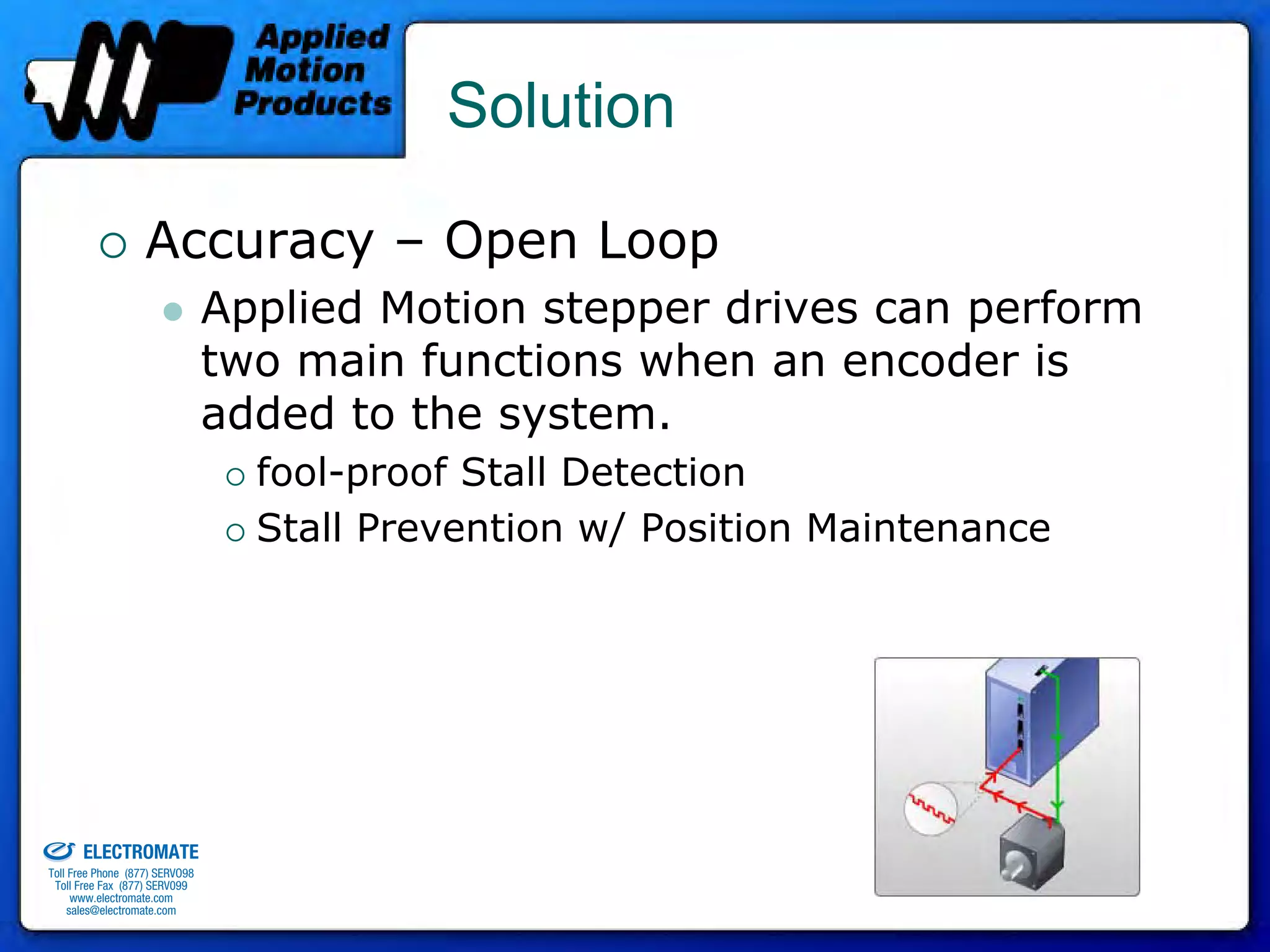

28. Solution
Accuracy – Open Loop
Applied Motion stepper drives can perform
two main functions when an encoder is
added to the system.
fool-proof Stall Detection
Stall Prevention w/ Position Maintenance
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

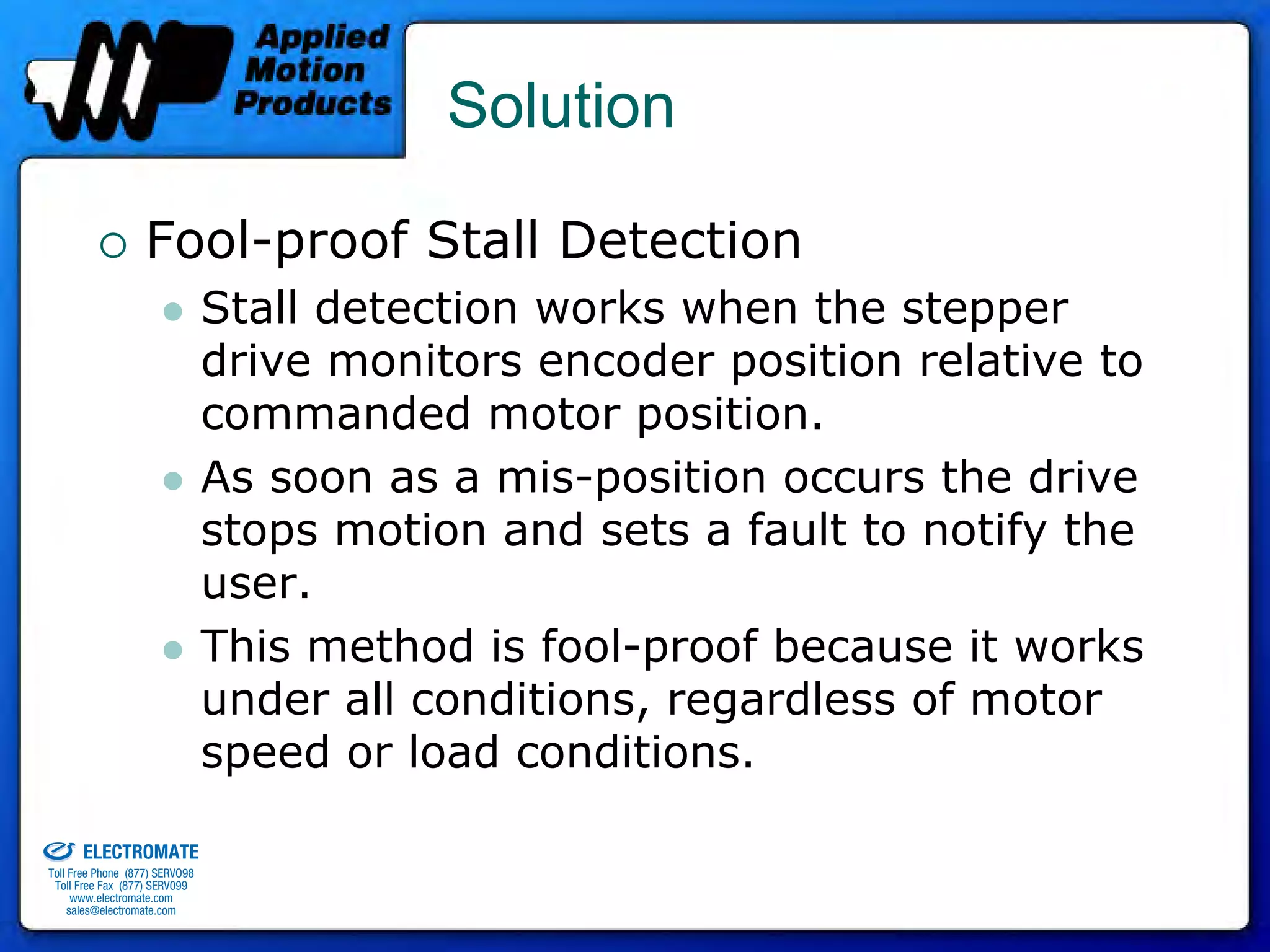

29. Solution
Fool-proof Stall Detection
Stall detection works when the stepper
drive monitors encoder position relative to
commanded motor position.
As soon as a mis-position occurs the drive
stops motion and sets a fault to notify the
user.
This method is fool-proof because it works
under all conditions, regardless of motor
speed or load conditions.
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

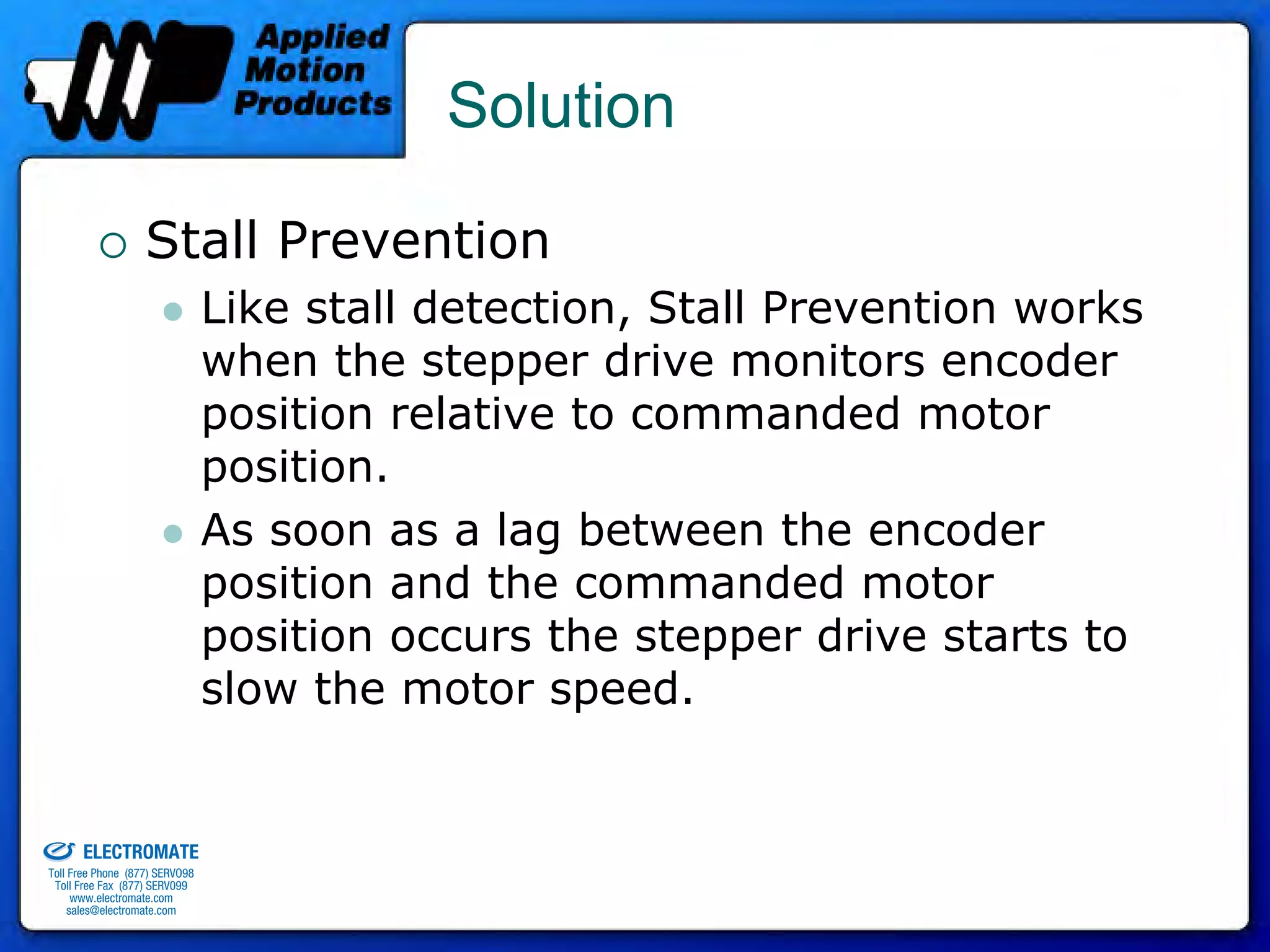

30. Solution
Stall Prevention
Like stall detection, Stall Prevention works
when the stepper drive monitors encoder
position relative to commanded motor
position.
As soon as a lag between the encoder
position and the commanded motor
position occurs the stepper drive starts to
slow the motor speed.
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

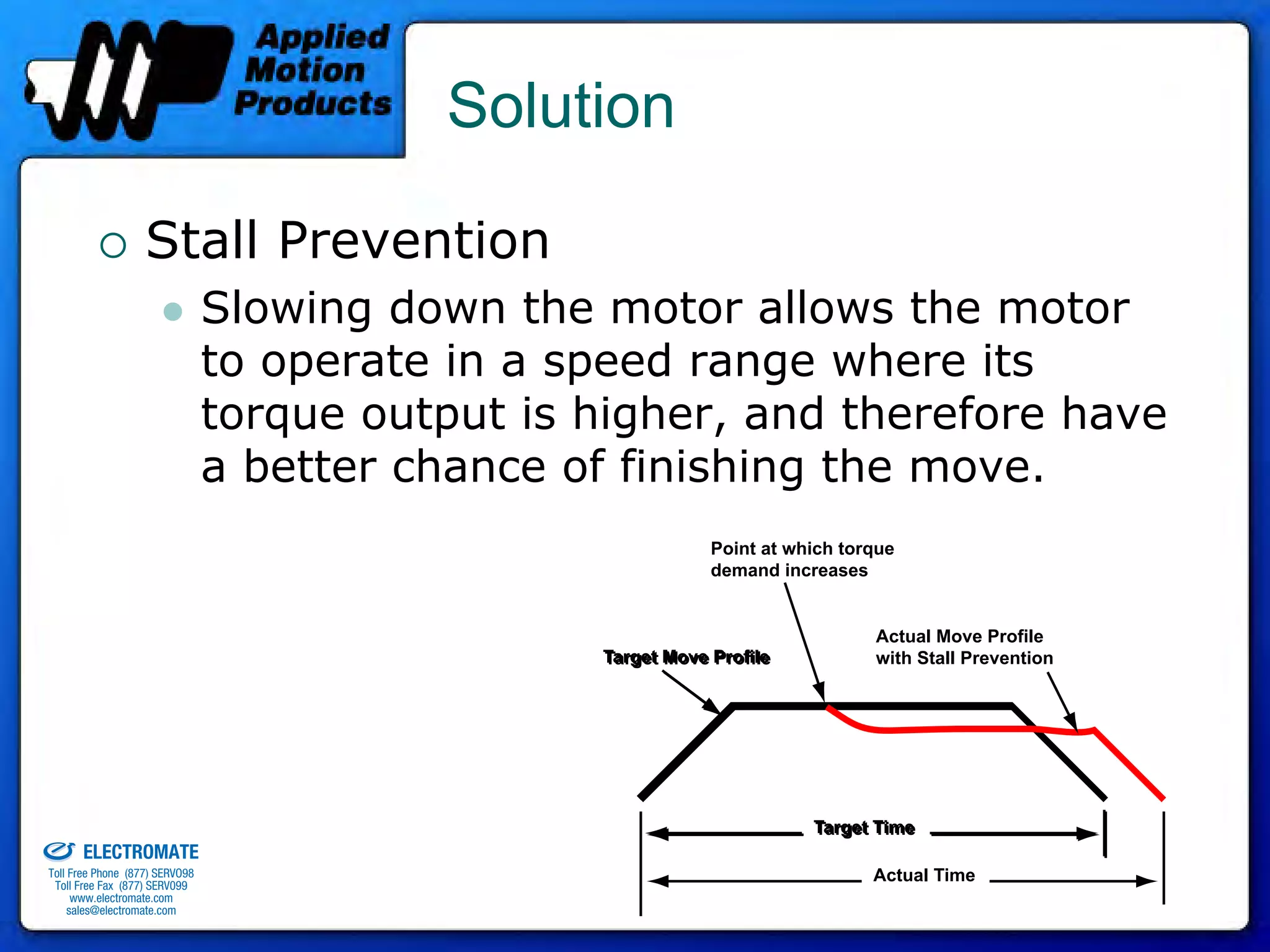

31. Solution
Stall Prevention
Slowing down the motor allows the motor
to operate in a speed range where its
torque output is higher, and therefore have
a better chance of finishing the move.
Point at which torque
demand increases
Actual Move Profile
Target Move Profile with Stall Prevention
old & Serviced By:
Target Time
ELECTROMATE
Toll Free Phone (877) SERVO98 Actual Time
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

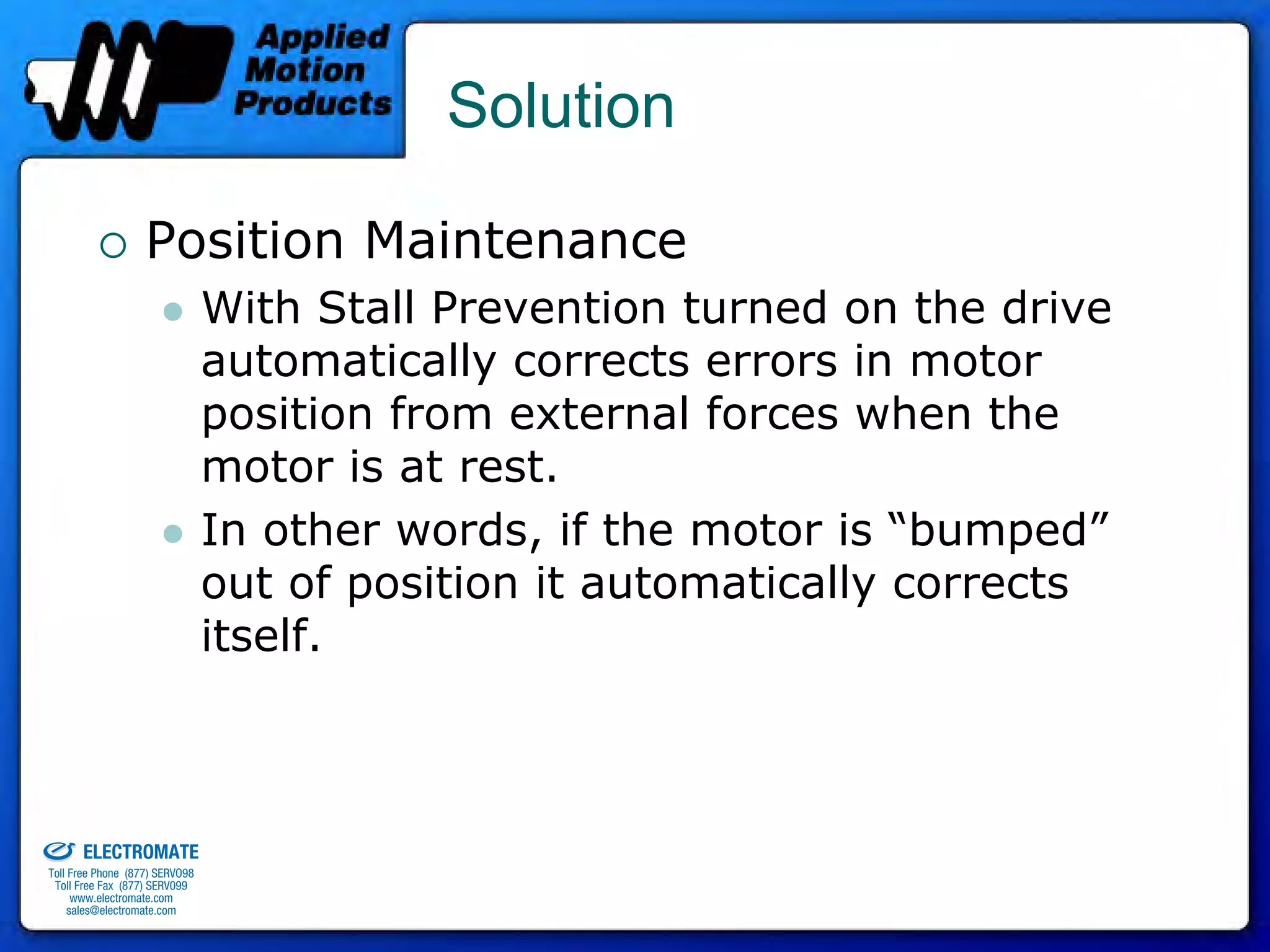

32. Solution
Position Maintenance
With Stall Prevention turned on the drive
automatically corrects errors in motor
position from external forces when the
motor is at rest.
In other words, if the motor is “bumped”
out of position it automatically corrects
itself.
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

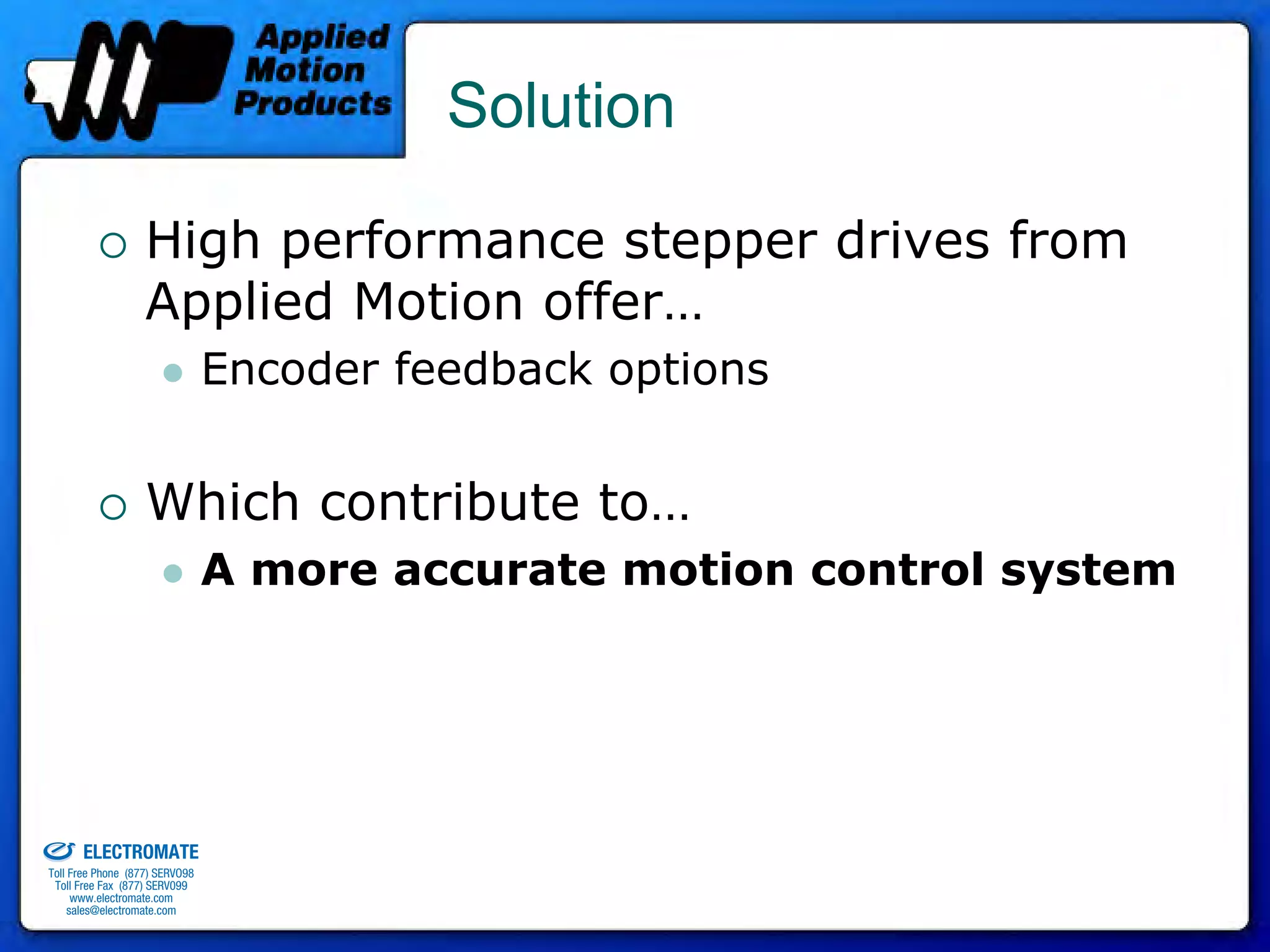

33. Solution
High performance stepper drives from
Applied Motion offer…
Encoder feedback options
Which contribute to…
A more accurate motion control system
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

34. Hardware
High Performance Stepper Drives from
Applied Motion
ST Series
STAC6 Series
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

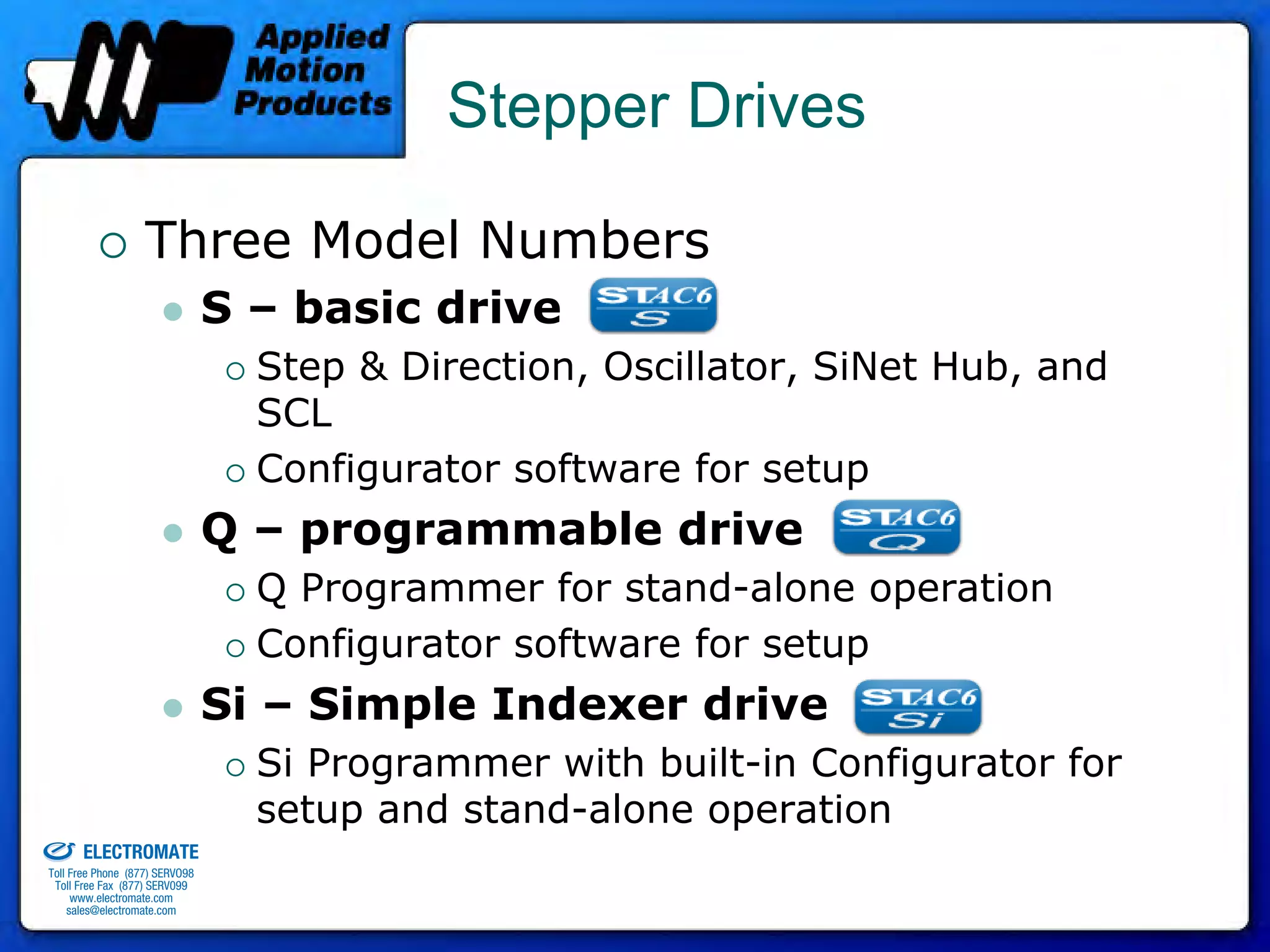

35. Stepper Drives
Three Model Numbers
S – basic drive
Step & Direction, Oscillator, SiNet Hub, and
SCL
Configurator software for setup
Q – programmable drive
Q Programmer for stand-alone operation
Configurator software for setup
Si – Simple Indexer drive
Si Programmer with built-in Configurator for
old & Serviced By:
setup and stand-alone operation
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

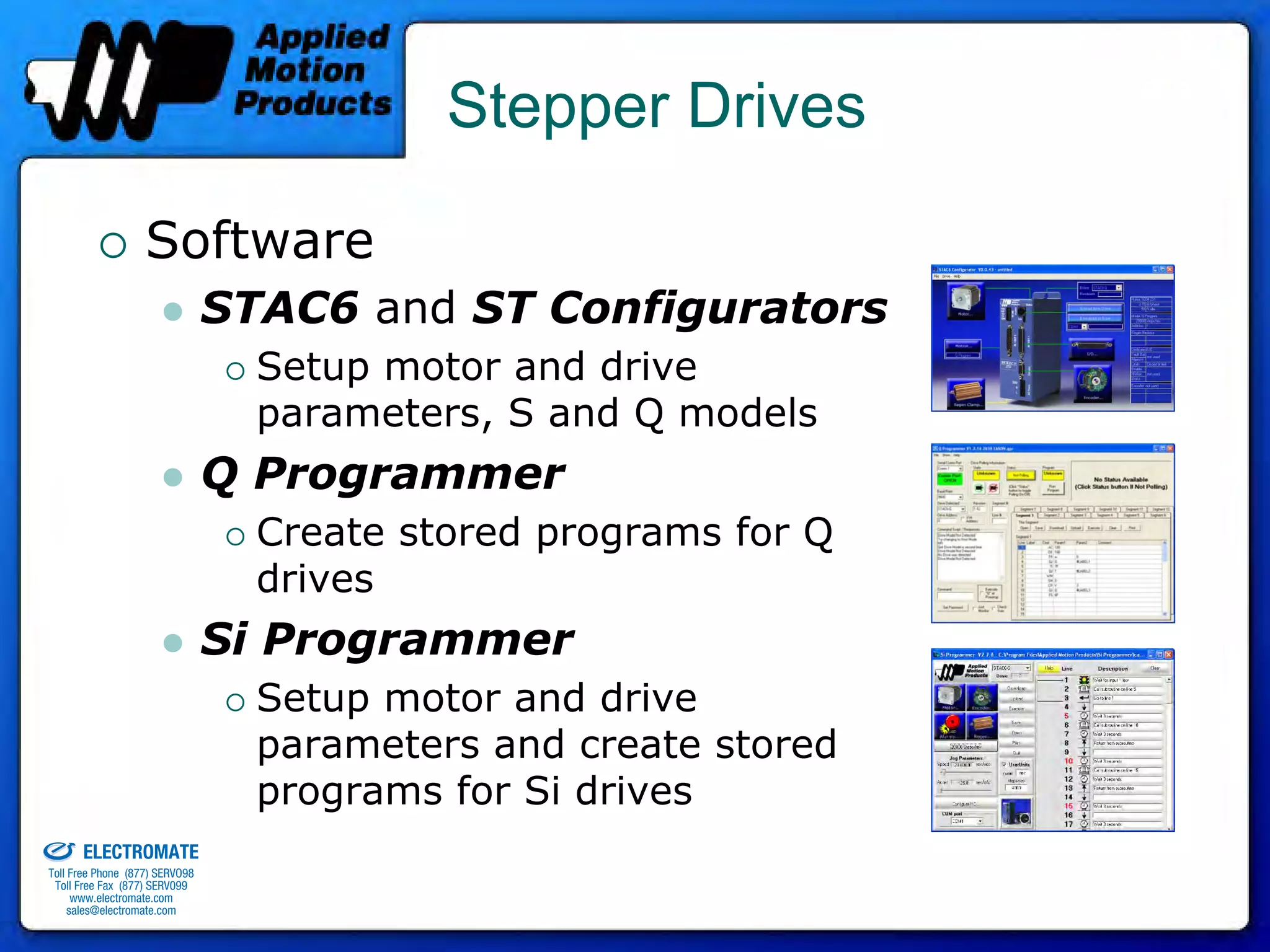

36. Stepper Drives
Software
STAC6 and ST Configurators
Setup motor and drive
parameters, S and Q models
Q Programmer
Create stored programs for Q
drives
Si Programmer
Setup motor and drive
parameters and create stored
programs for Si drives
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

37. ST Series
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

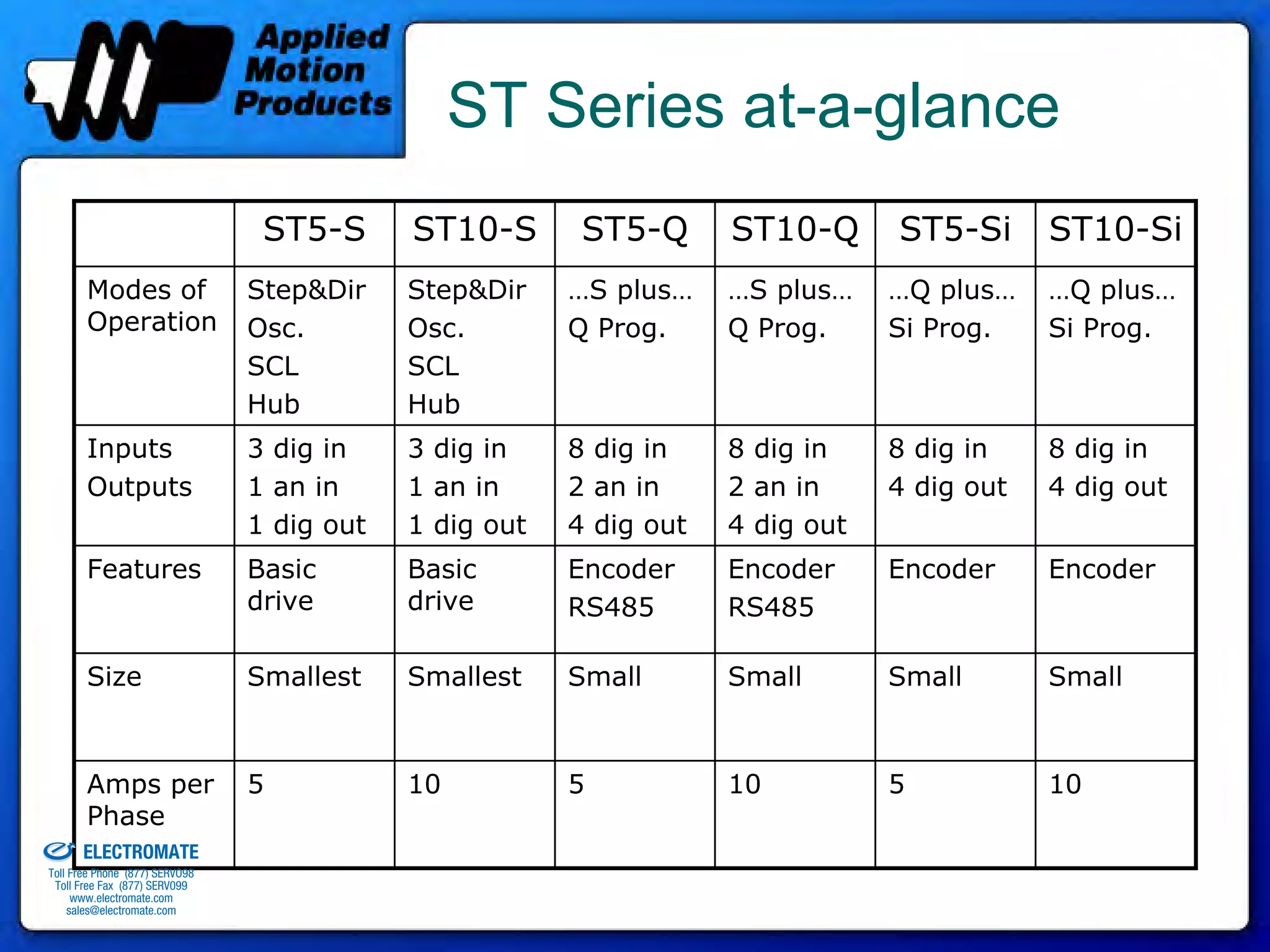

38. ST Series at-a-glance
ST5-S ST10-S ST5-Q ST10-Q ST5-Si ST10-Si
Modes of Step&Dir Step&Dir …S plus… …S plus… …Q plus… …Q plus…
Operation Osc. Osc. Q Prog. Q Prog. Si Prog. Si Prog.
SCL SCL
Hub Hub
Inputs 3 dig in 3 dig in 8 dig in 8 dig in 8 dig in 8 dig in
Outputs 1 an in 1 an in 2 an in 2 an in 4 dig out 4 dig out
1 dig out 1 dig out 4 dig out 4 dig out
Features Basic Basic Encoder Encoder Encoder Encoder
drive drive RS485 RS485
Size Smallest Smallest Small Small Small Small
Amps per 5 10 5 10 5 10
old & Serviced By: Phase
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

39. STAC6 Series
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

40. STAC6 Series at-a-glance
STAC6-S STAC6-Q STAC6-Si
Modes of Step & Direction …same as S plus… …same as Q plus…
Oscillator Q Programming Si Programming
Operation SCL
SiNet Hub
Inputs 7 digital inputs 7 digital inputs 15 digital inputs
2 analog inputs 2 analog inputs 7 digital outputs
Outputs 3 digital outputs 3 digital outputs
*Option to expand
with STAC6-QE
Features Encoder Feedback Encoder Feedback Encoder Feedback
RS485 RS485
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

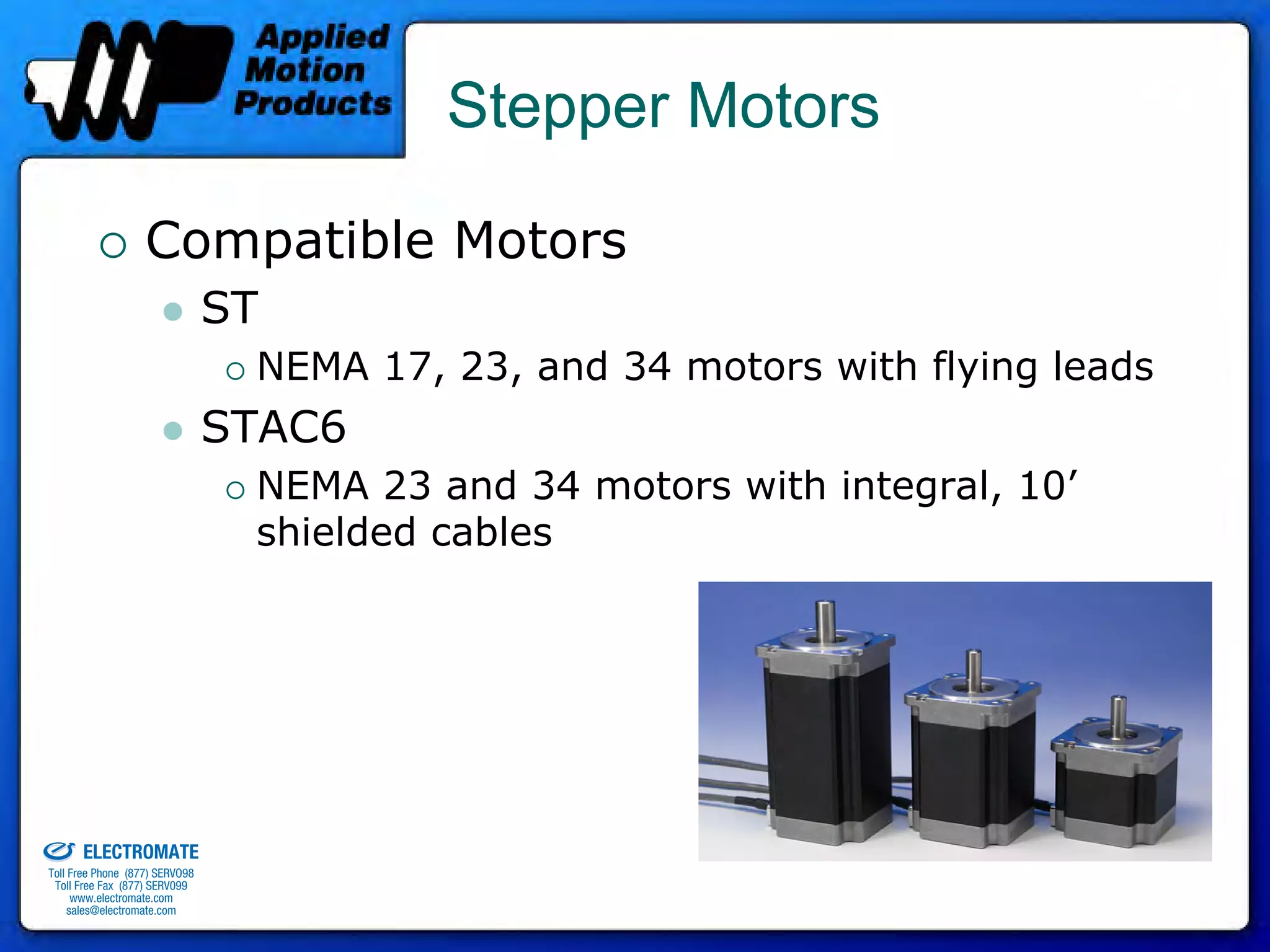

41. Stepper Motors
Compatible Motors
ST
NEMA 17, 23, and 34 motors with flying leads
STAC6
NEMA 23 and 34 motors with integral, 10’
shielded cables
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

42. STM Series Steppers
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

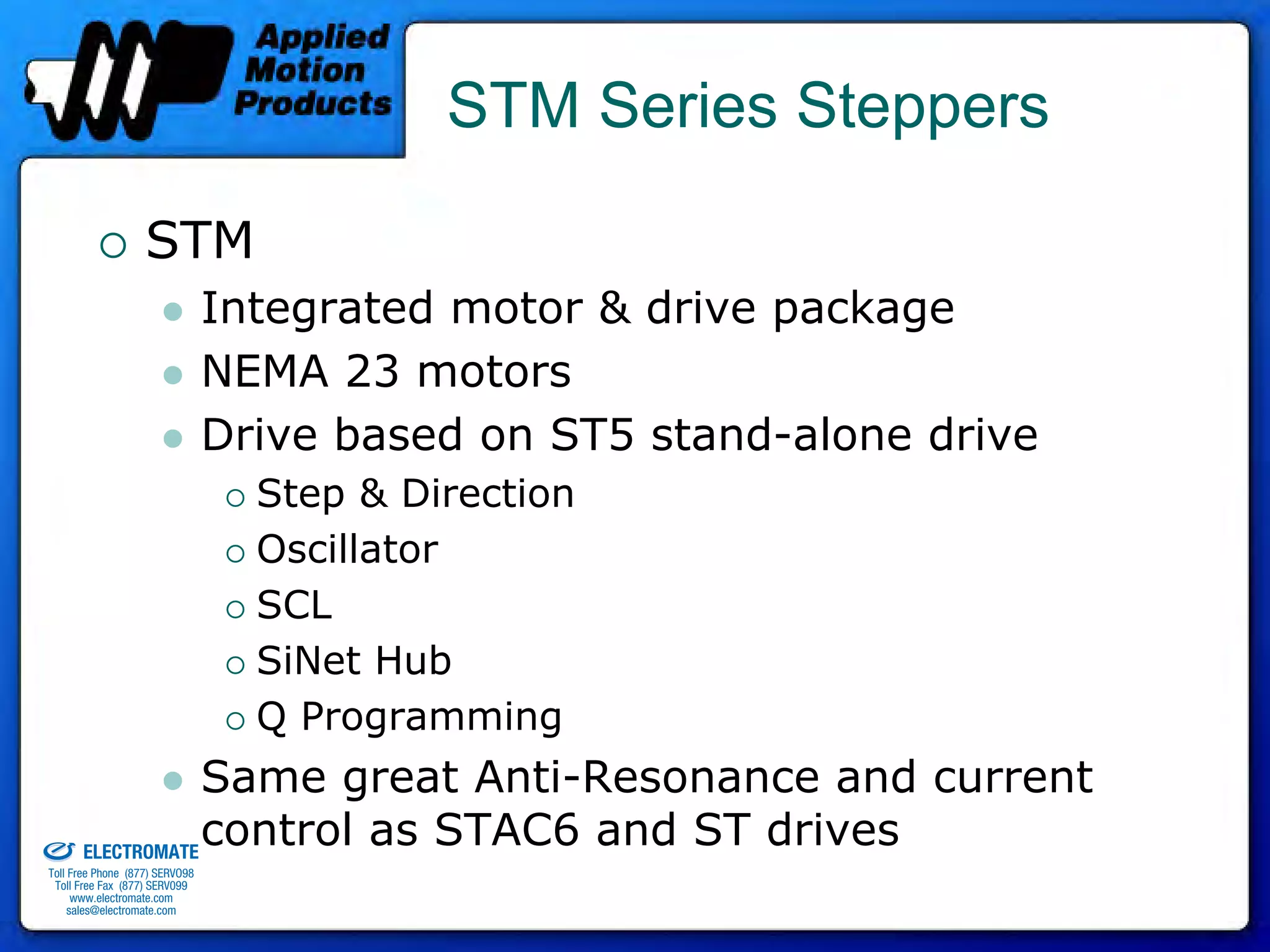

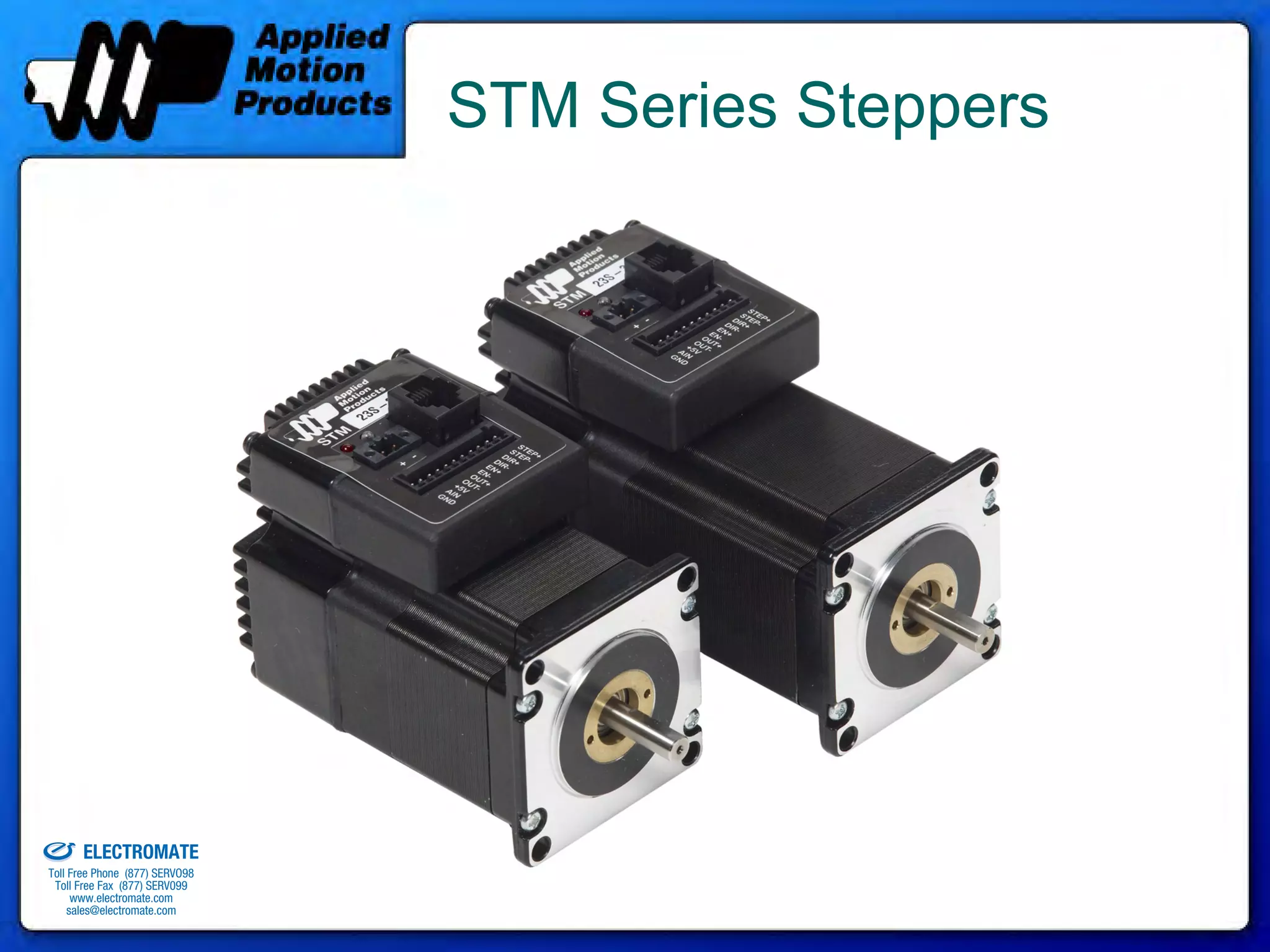

43. STM Series Steppers
STM
Integrated motor & drive package
NEMA 23 motors
Drive based on ST5 stand-alone drive
Step & Direction
Oscillator
SCL
SiNet Hub
Q Programming
Same great Anti-Resonance and current
old & Serviced By:
ELECTROMATE
control as STAC6 and ST drives
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

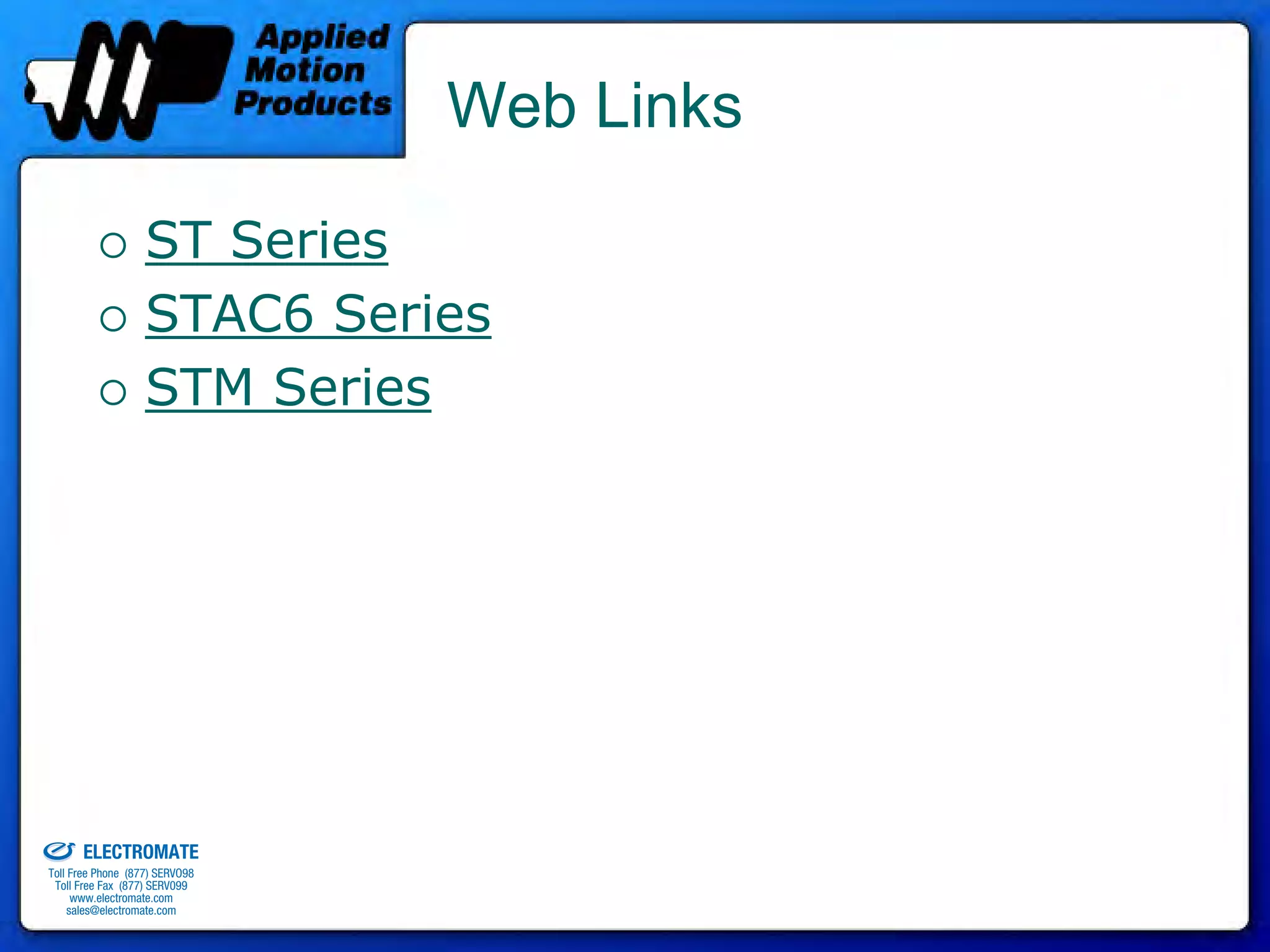

44. Web Links
ST Series
STAC6 Series
STM Series
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

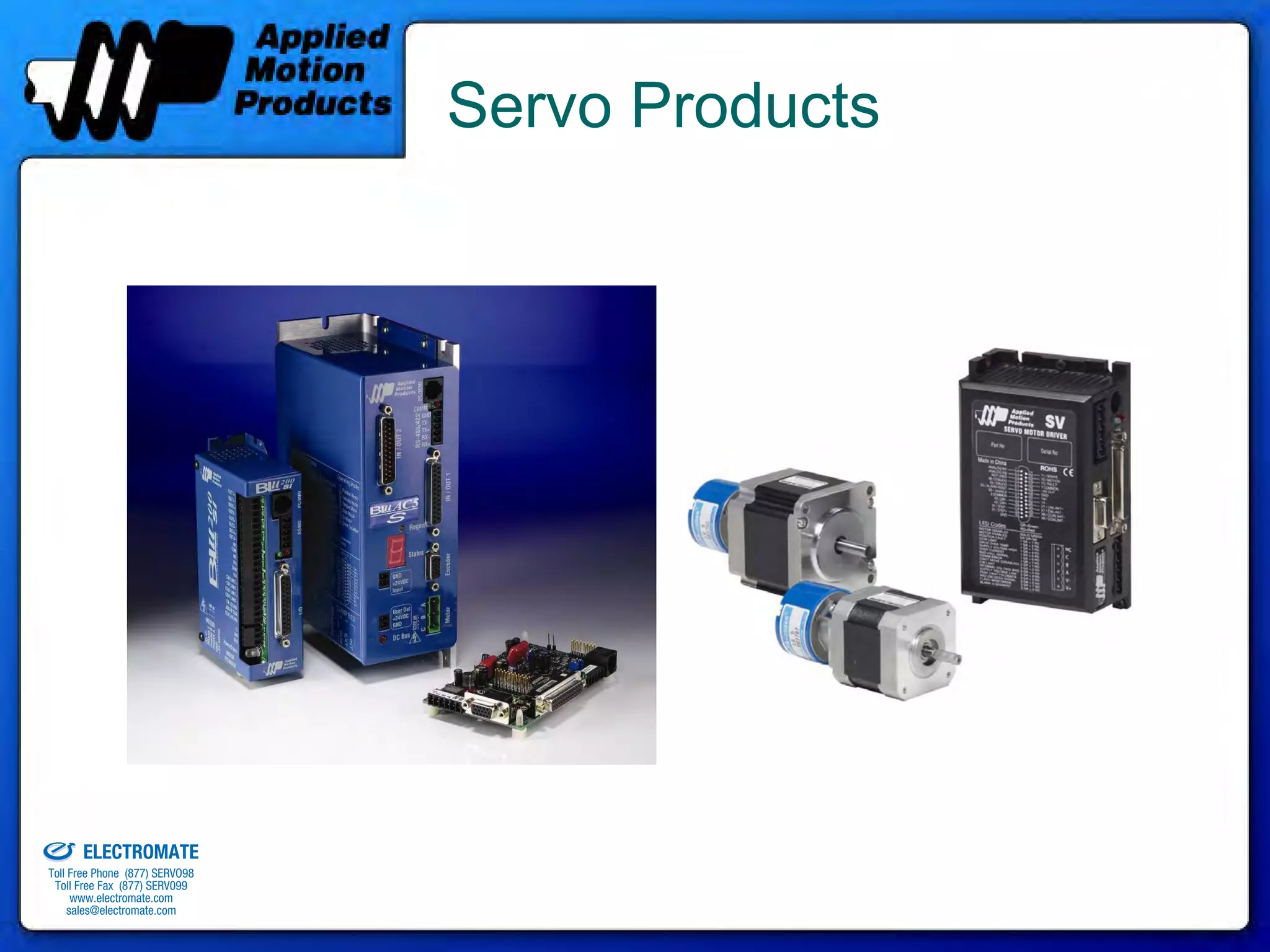

45. Servo Products
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

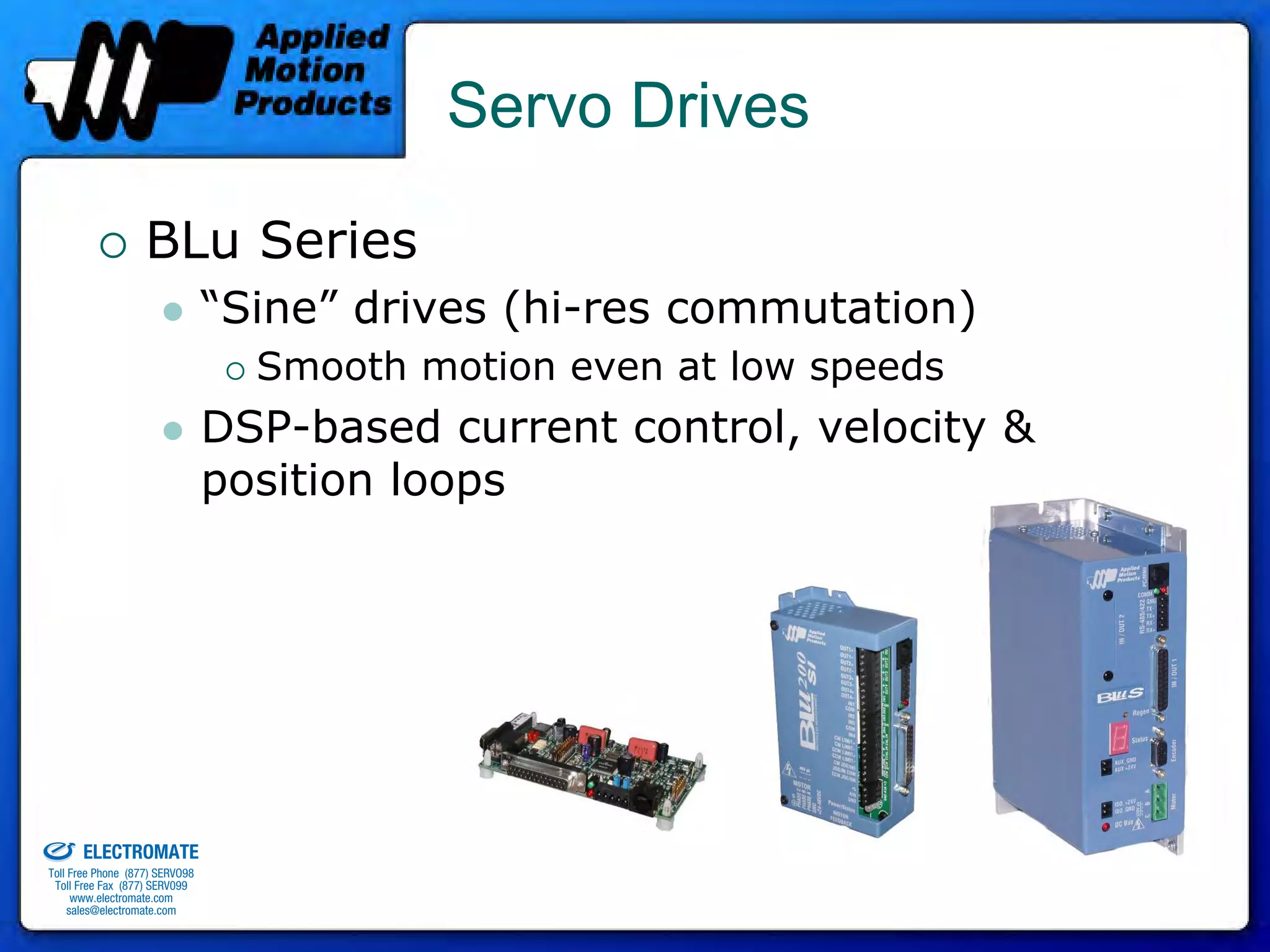

46. Servo Drives
BLu Series
“Sine” drives (hi-res commutation)
Smooth motion even at low speeds
DSP-based current control, velocity &
position loops
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

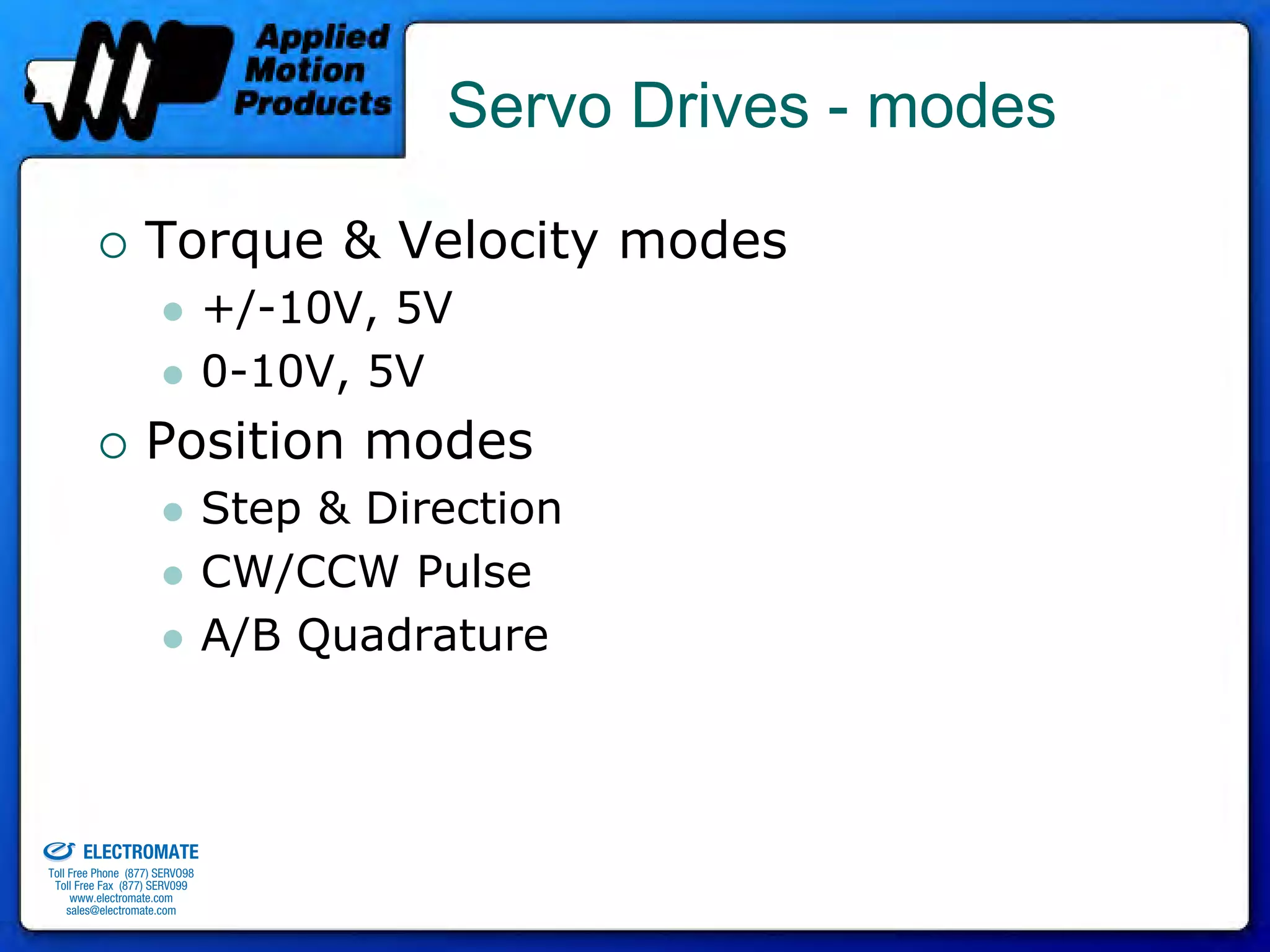

47. Servo Drives - modes
Torque & Velocity modes
+/-10V, 5V
0-10V, 5V
Position modes
Step & Direction
CW/CCW Pulse
A/B Quadrature
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

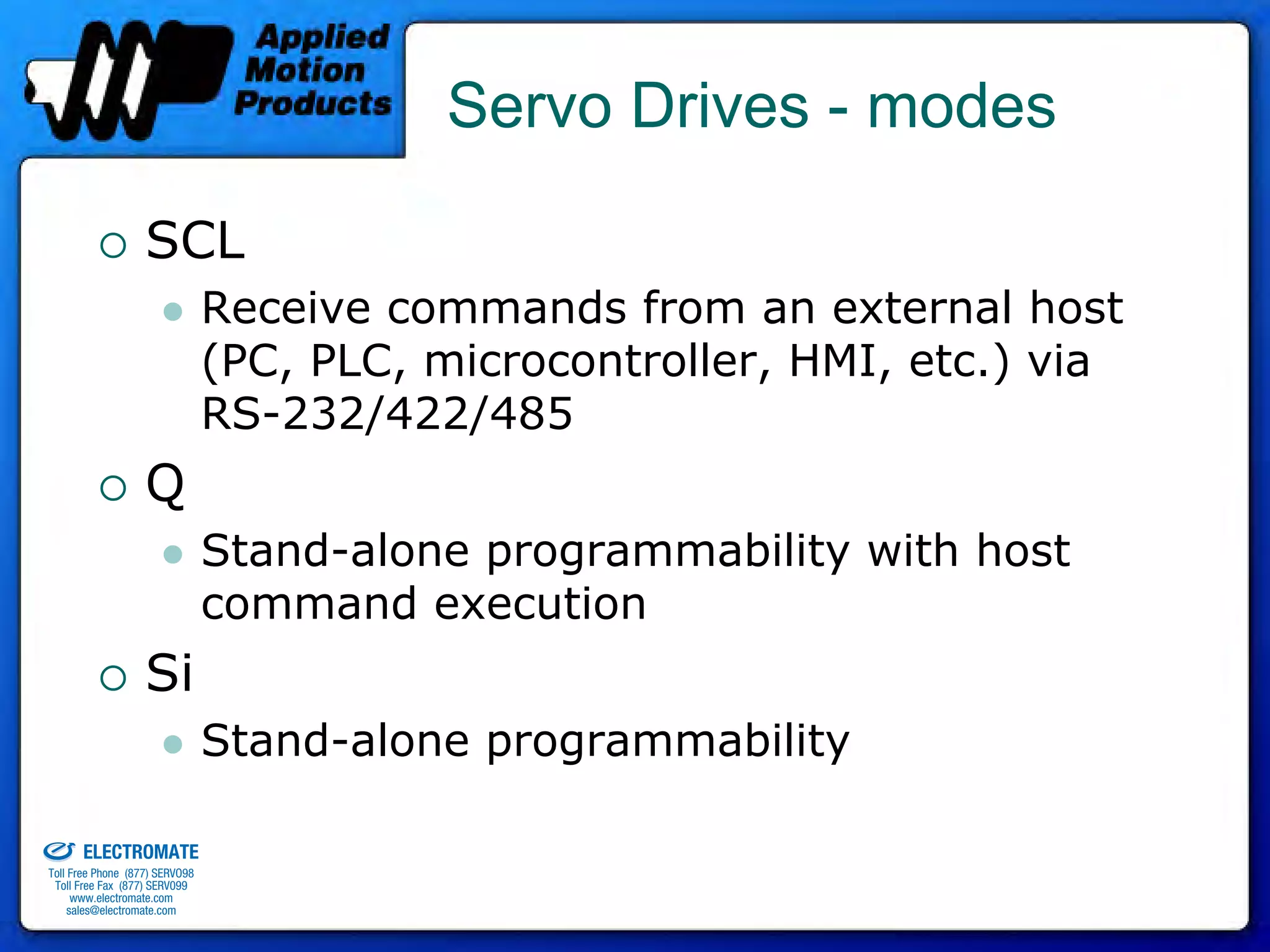

48. Servo Drives - modes
SCL
Receive commands from an external host
(PC, PLC, microcontroller, HMI, etc.) via
RS-232/422/485
Q
Stand-alone programmability with host
command execution
Si
Stand-alone programmability
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

49. Servo Drives
BLuDC Series
DC input
Incremental Encoder Feedback, 8000
counts
CE Compliant
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

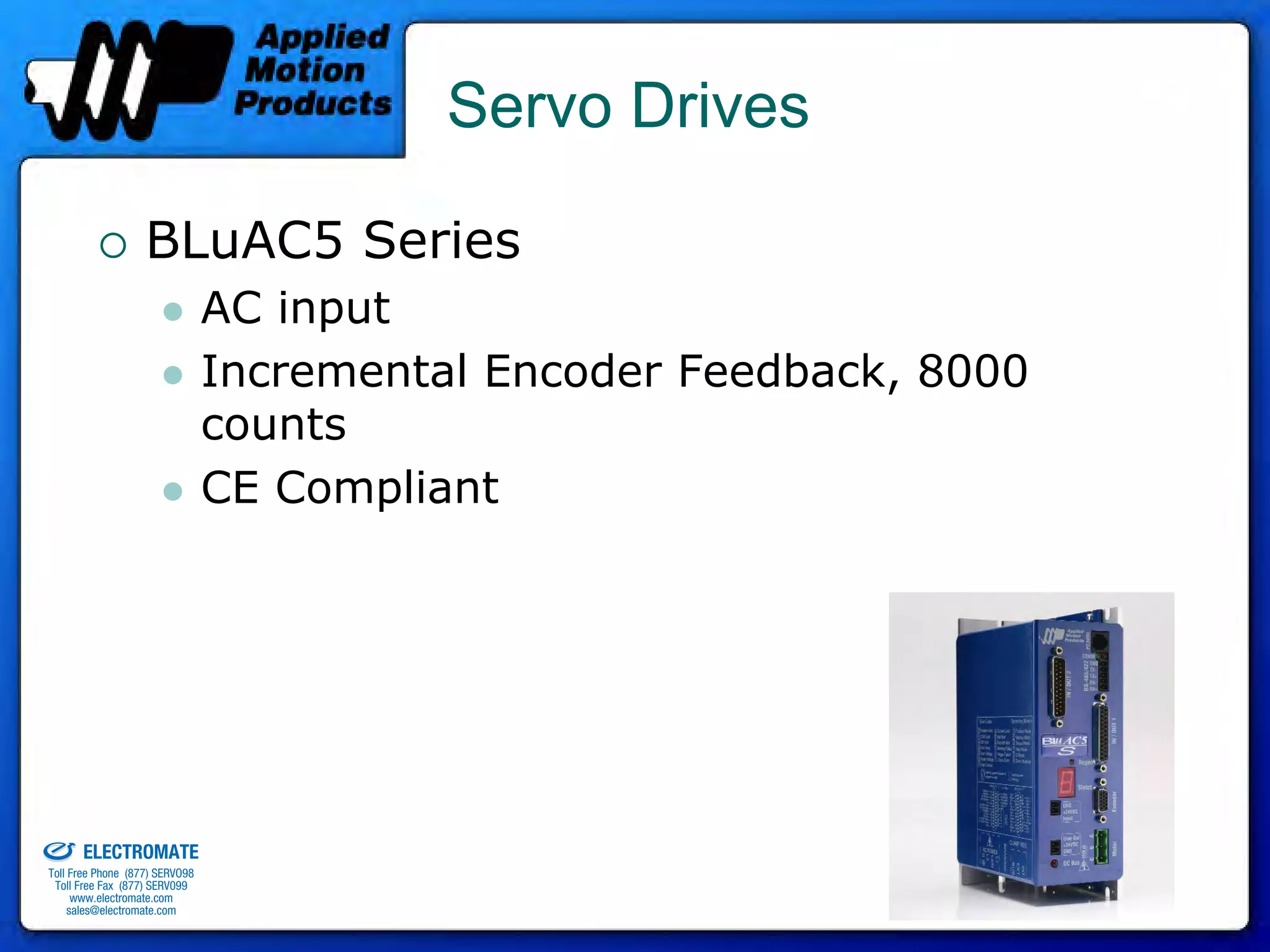

50. Servo Drives
BLuAC5 Series
AC input
Incremental Encoder Feedback, 8000
counts
CE Compliant
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

51. Servo Drives
Three Model Numbers
S – basic drive
Torque, Velocity, Step & Direction, SiNet Hub,
and SCL
Quick Tuner software for setup
Q – programmable drive
Q Programmer for stand-alone operation
Quick Tuner software for setup
Si – Simple Indexer drive
Si Programmer with built-in Quick Tuner for
old & Serviced By:
setup and stand-alone operation
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

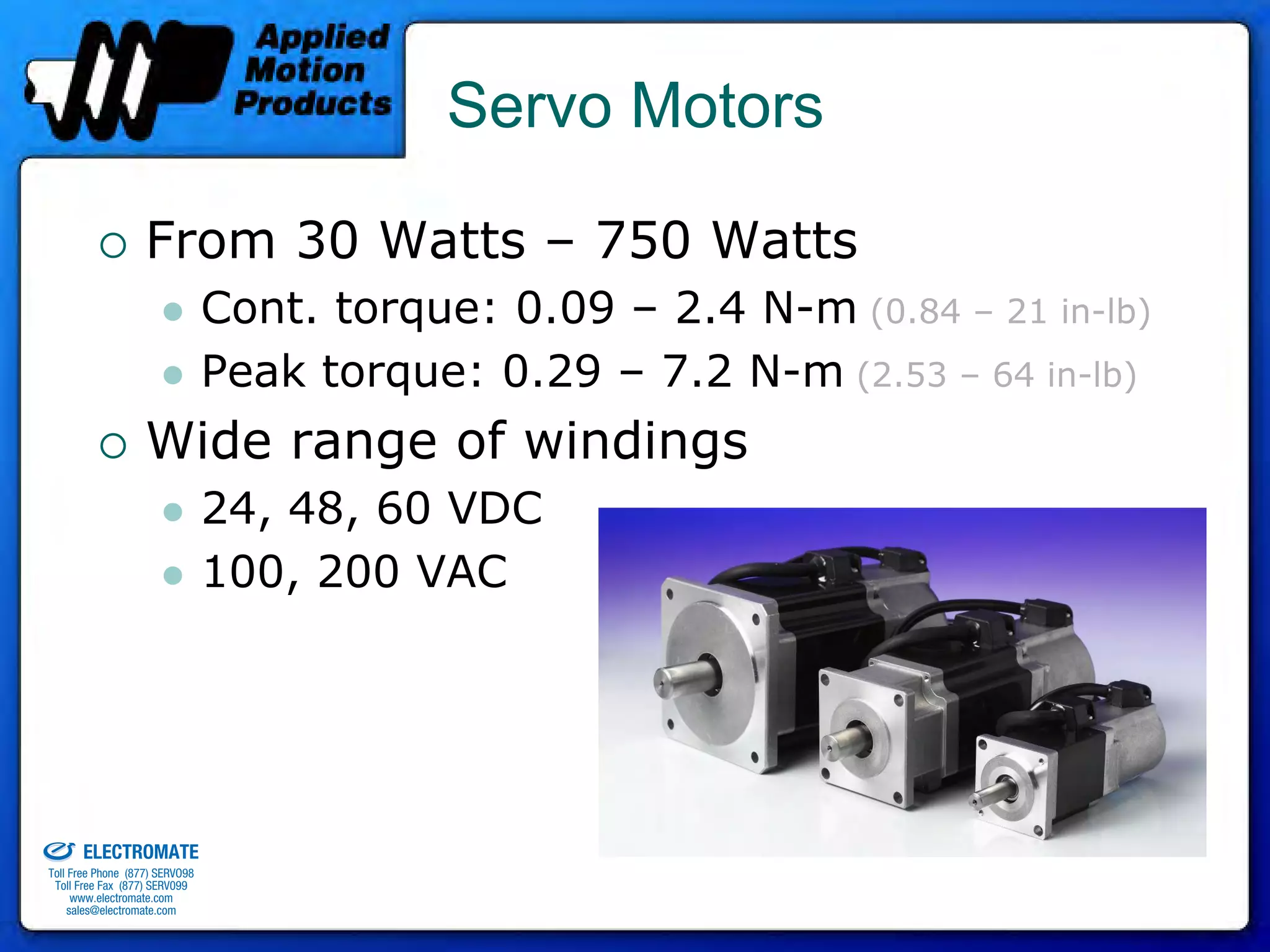

52. Servo Motors
From 30 Watts – 750 Watts
Cont. torque: 0.09 – 2.4 N-m (0.84 – 21 in-lb)
Peak torque: 0.29 – 7.2 N-m (2.53 – 64 in-lb)
Wide range of windings
24, 48, 60 VDC
100, 200 VAC
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

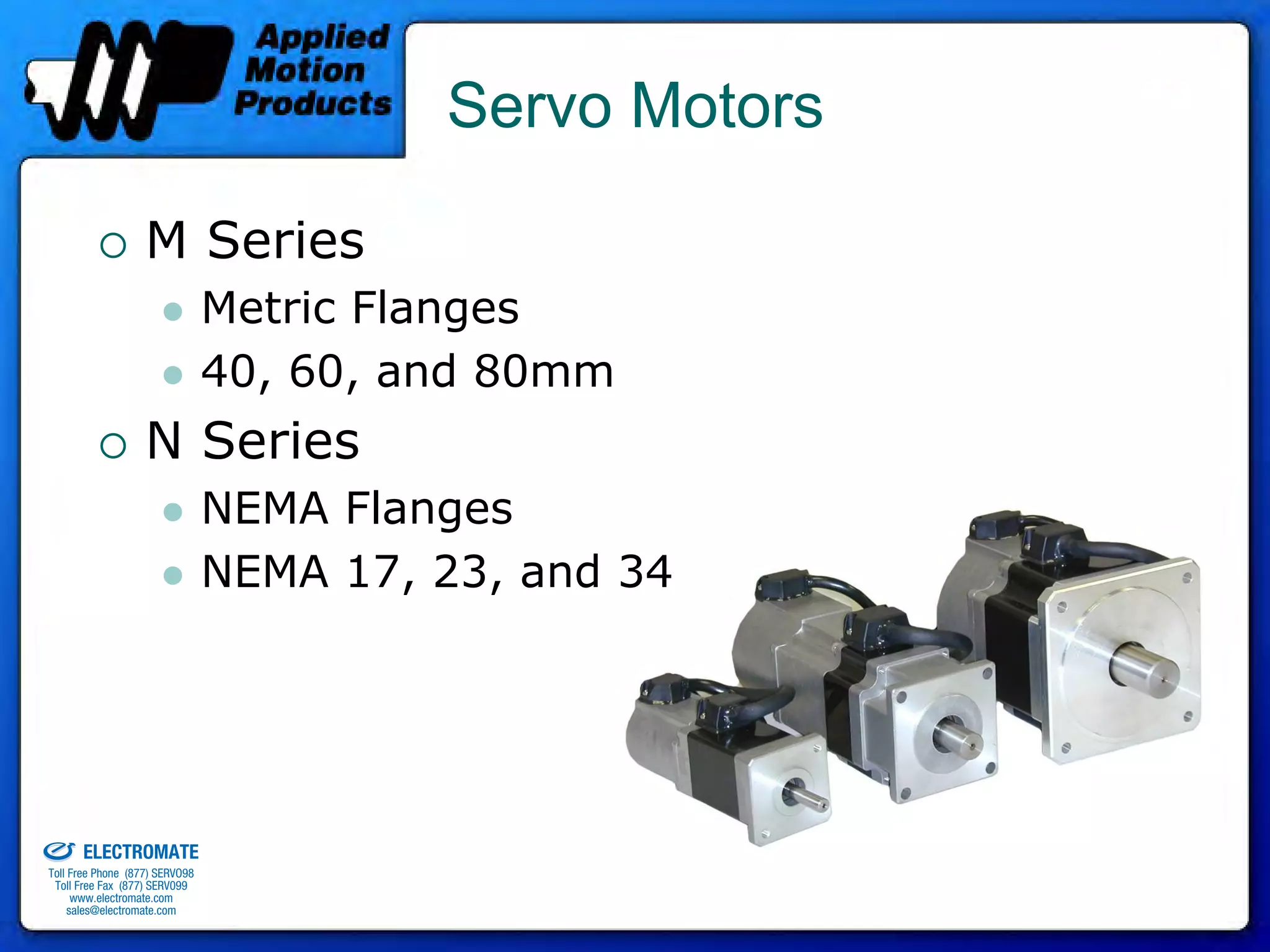

53. Servo Motors
M Series
Metric Flanges
40, 60, and 80mm
N Series
NEMA Flanges
NEMA 17, 23, and 34
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

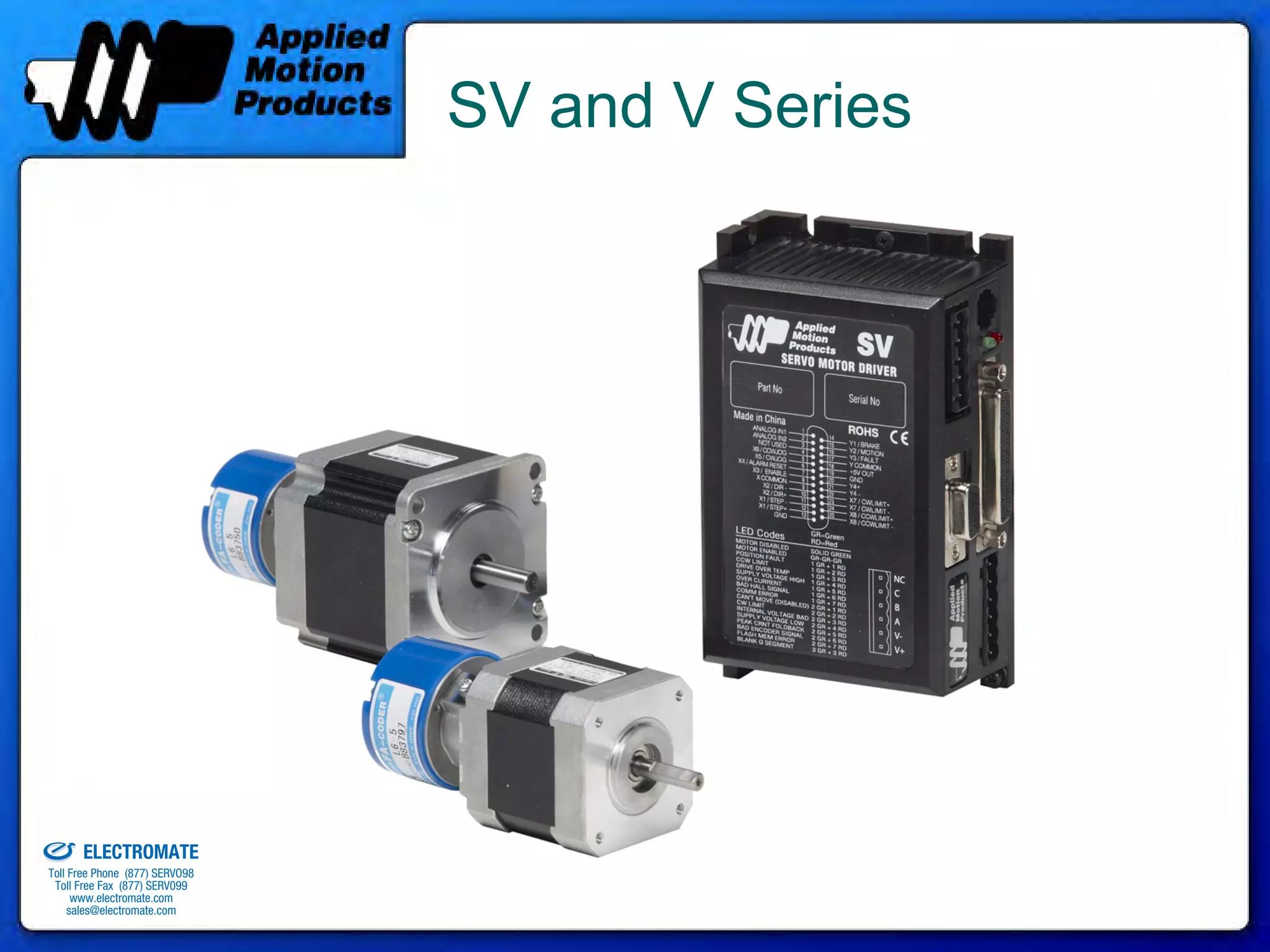

54. SV and V Series
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

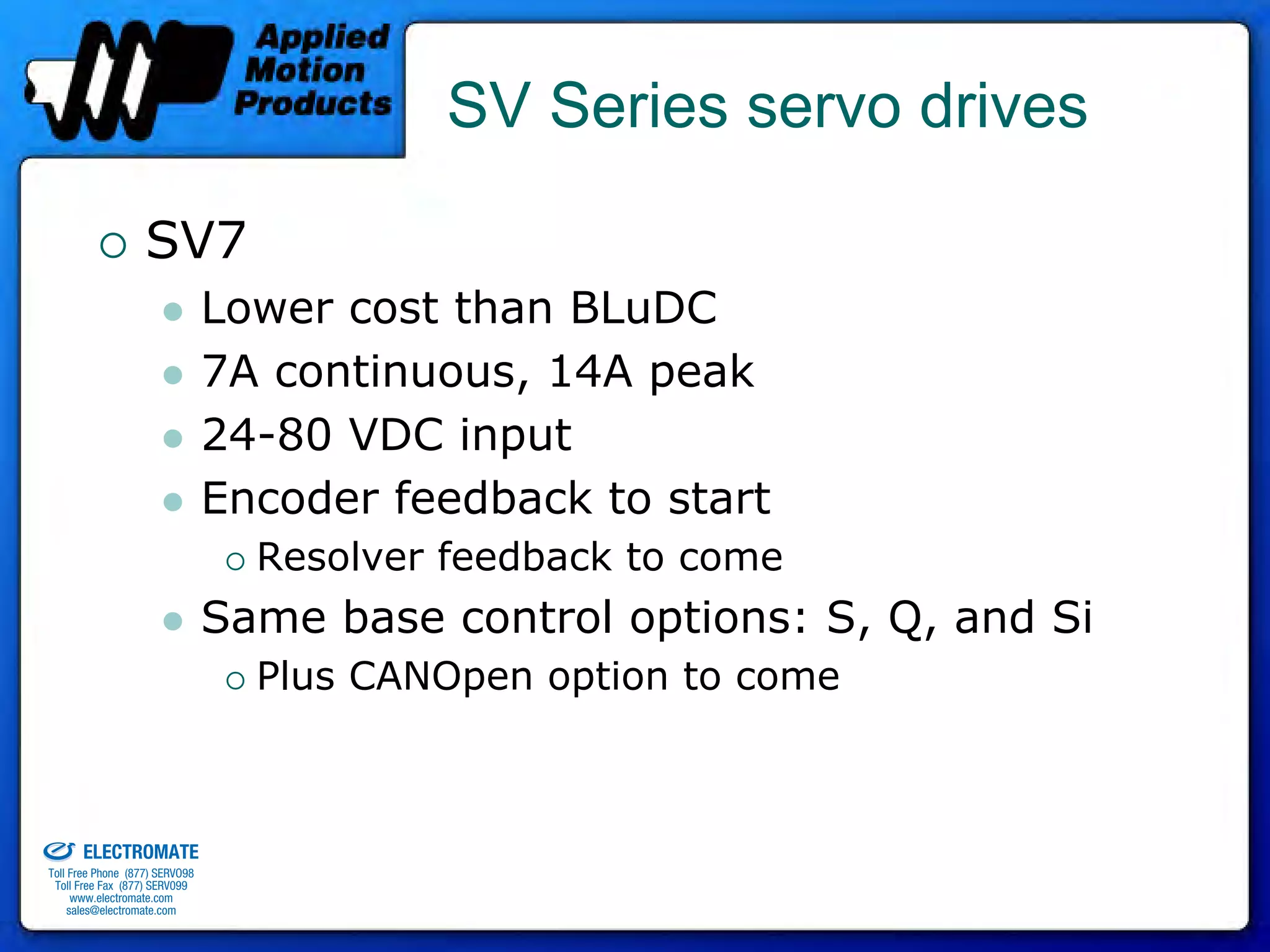

55. SV Series servo drives
SV7
Lower cost than BLuDC
7A continuous, 14A peak
24-80 VDC input
Encoder feedback to start
Resolver feedback to come
Same base control options: S, Q, and Si
Plus CANOpen option to come
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

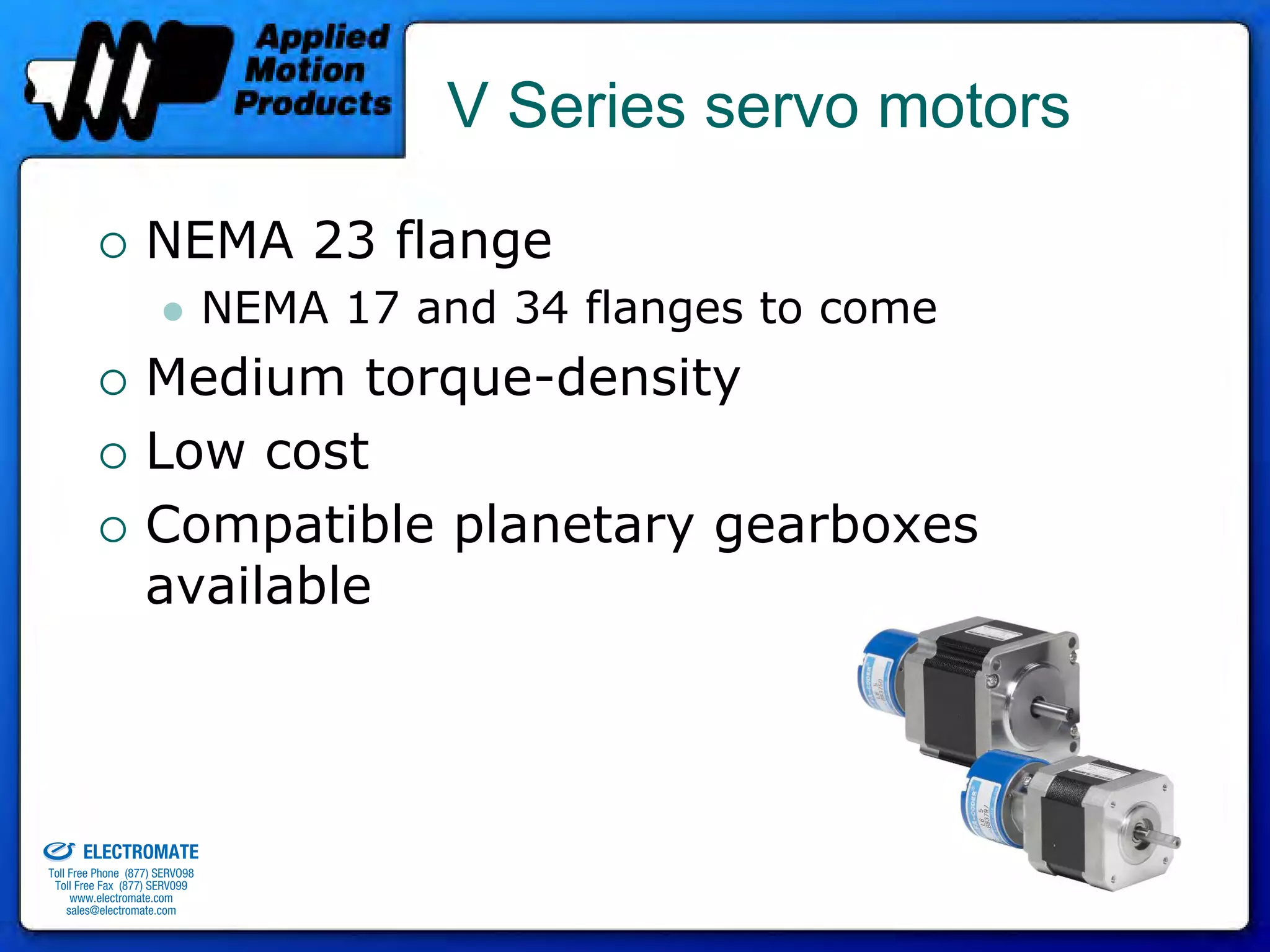

56. V Series servo motors
NEMA 23 flange
NEMA 17 and 34 flanges to come
Medium torque-density
Low cost
Compatible planetary gearboxes
available
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

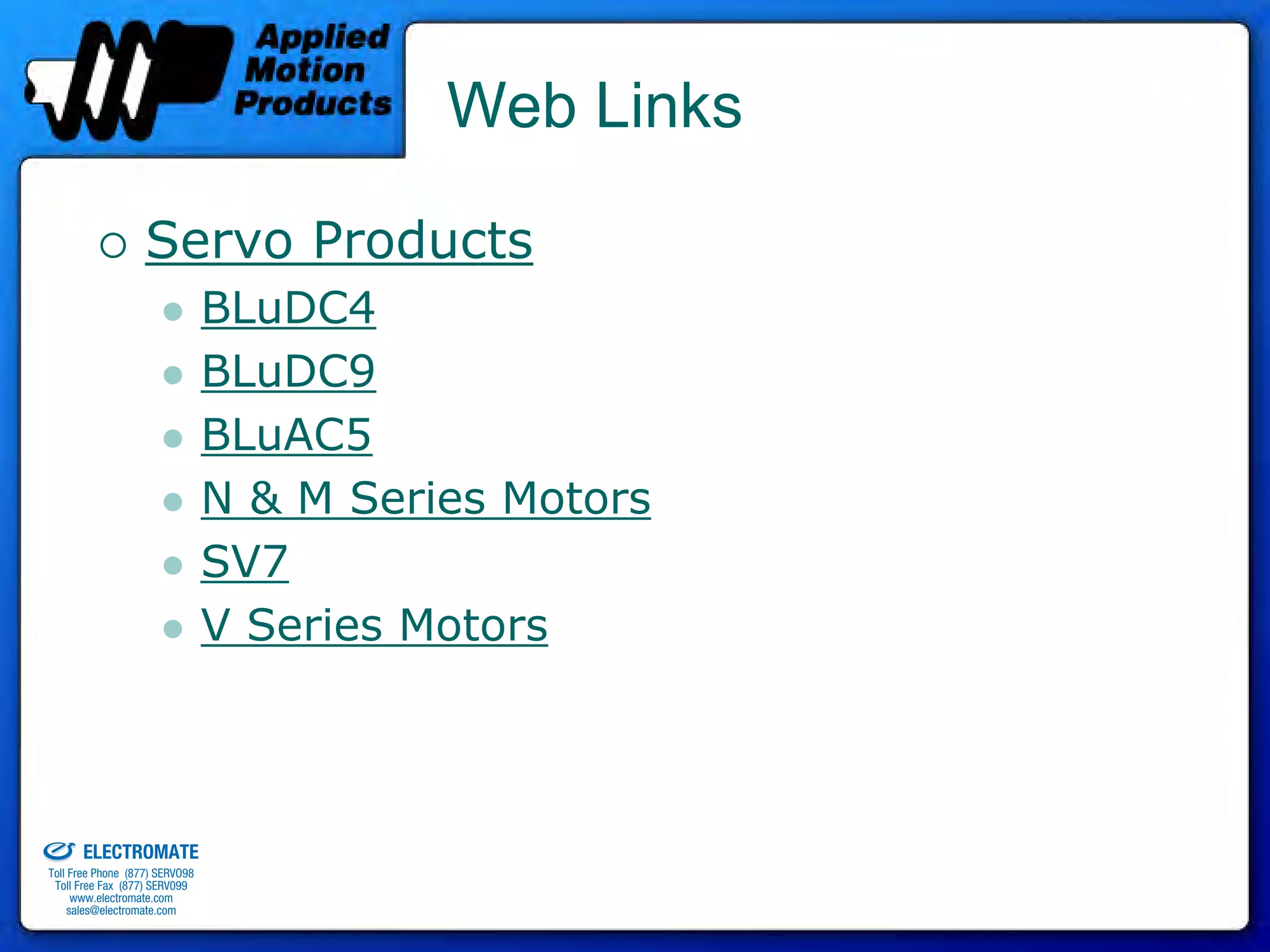

57. Web Links
Servo Products
BLuDC4
BLuDC9
BLuAC5
N & M Series Motors
SV7
V Series Motors
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

58. Stepper v. Servo
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

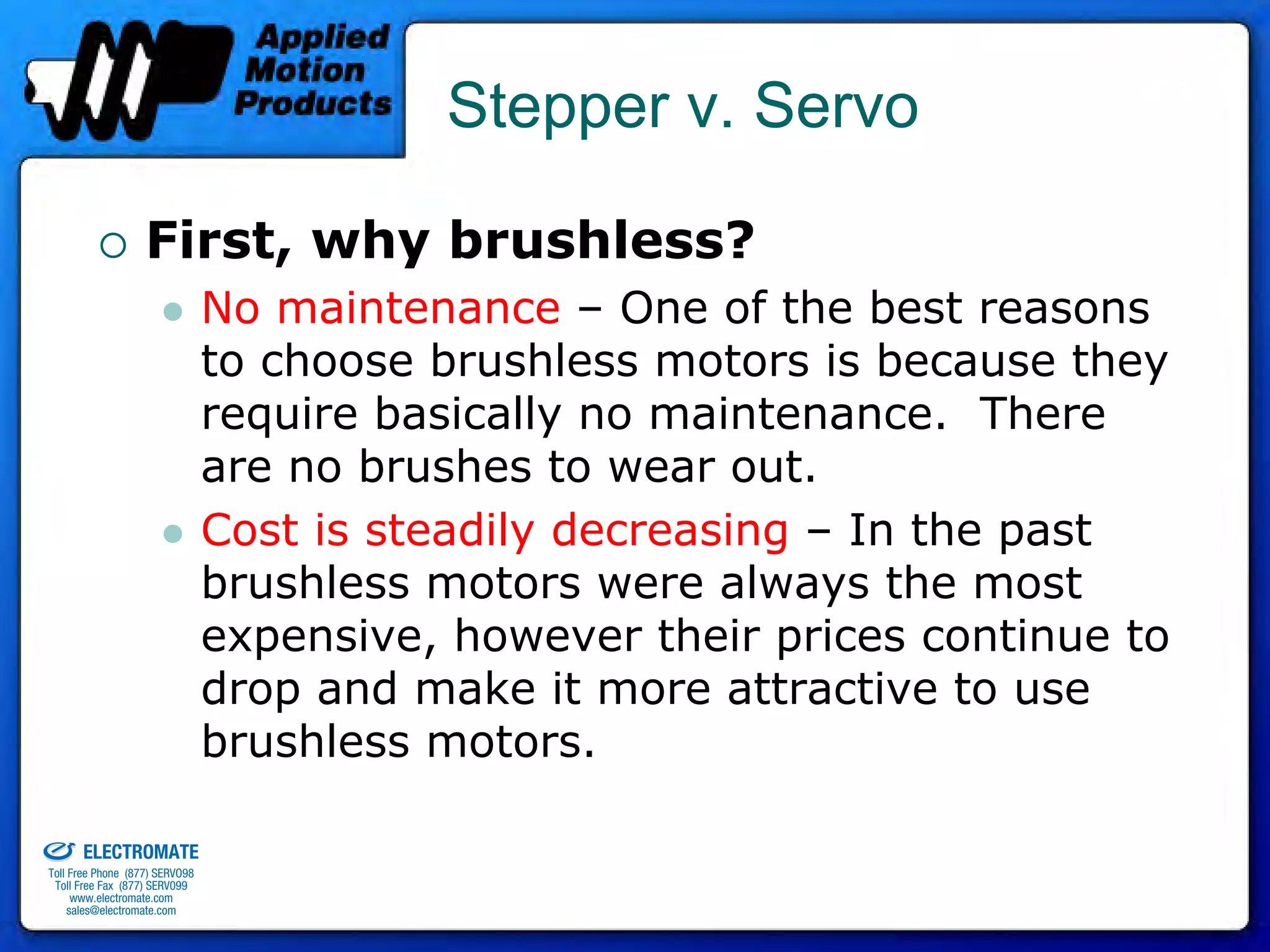

59. Stepper v. Servo
First, why brushless?
No maintenance – One of the best reasons
to choose brushless motors is because they
require basically no maintenance. There
are no brushes to wear out.
Cost is steadily decreasing – In the past
brushless motors were always the most
expensive, however their prices continue to
drop and make it more attractive to use
brushless motors.
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

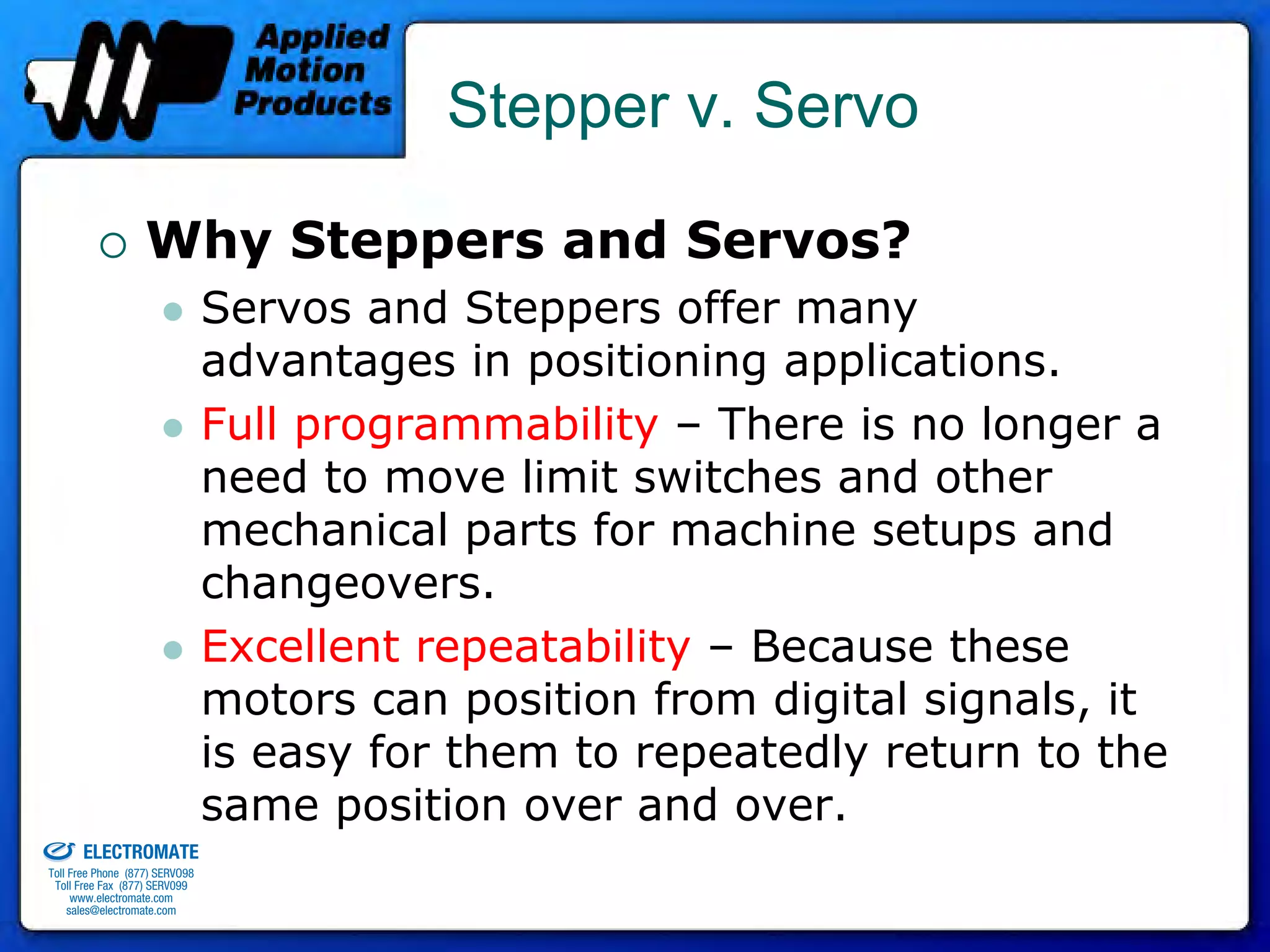

60. Stepper v. Servo
Why Steppers and Servos?
Servos and Steppers offer many
advantages in positioning applications.
Full programmability – There is no longer a
need to move limit switches and other
mechanical parts for machine setups and
changeovers.
Excellent repeatability – Because these
motors can position from digital signals, it
is easy for them to repeatedly return to the
old & Serviced By:
same position over and over.
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

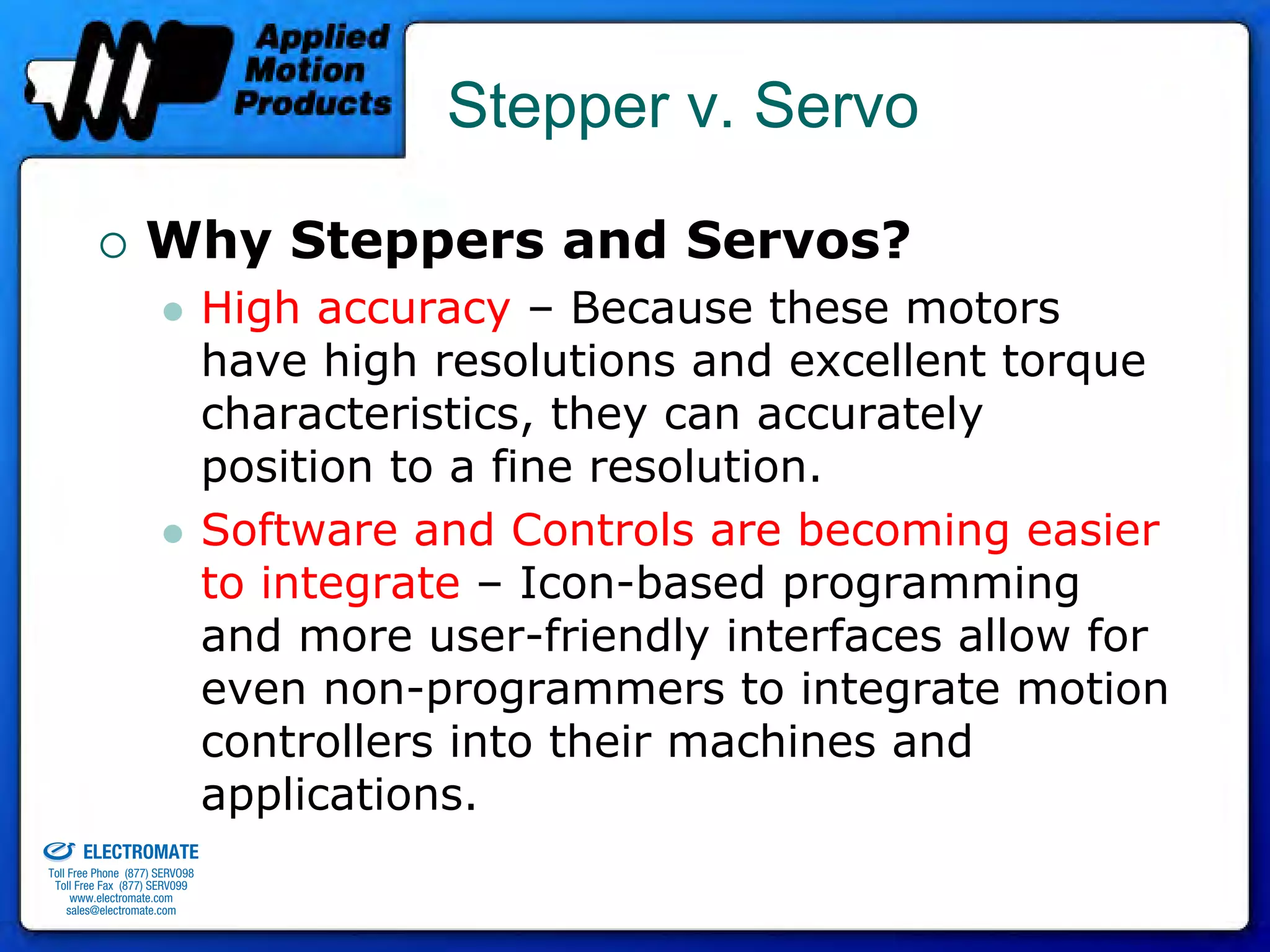

61. Stepper v. Servo
Why Steppers and Servos?
High accuracy – Because these motors
have high resolutions and excellent torque
characteristics, they can accurately
position to a fine resolution.
Software and Controls are becoming easier
to integrate – Icon-based programming
and more user-friendly interfaces allow for
even non-programmers to integrate motion
controllers into their machines and
old & Serviced By:
applications.
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

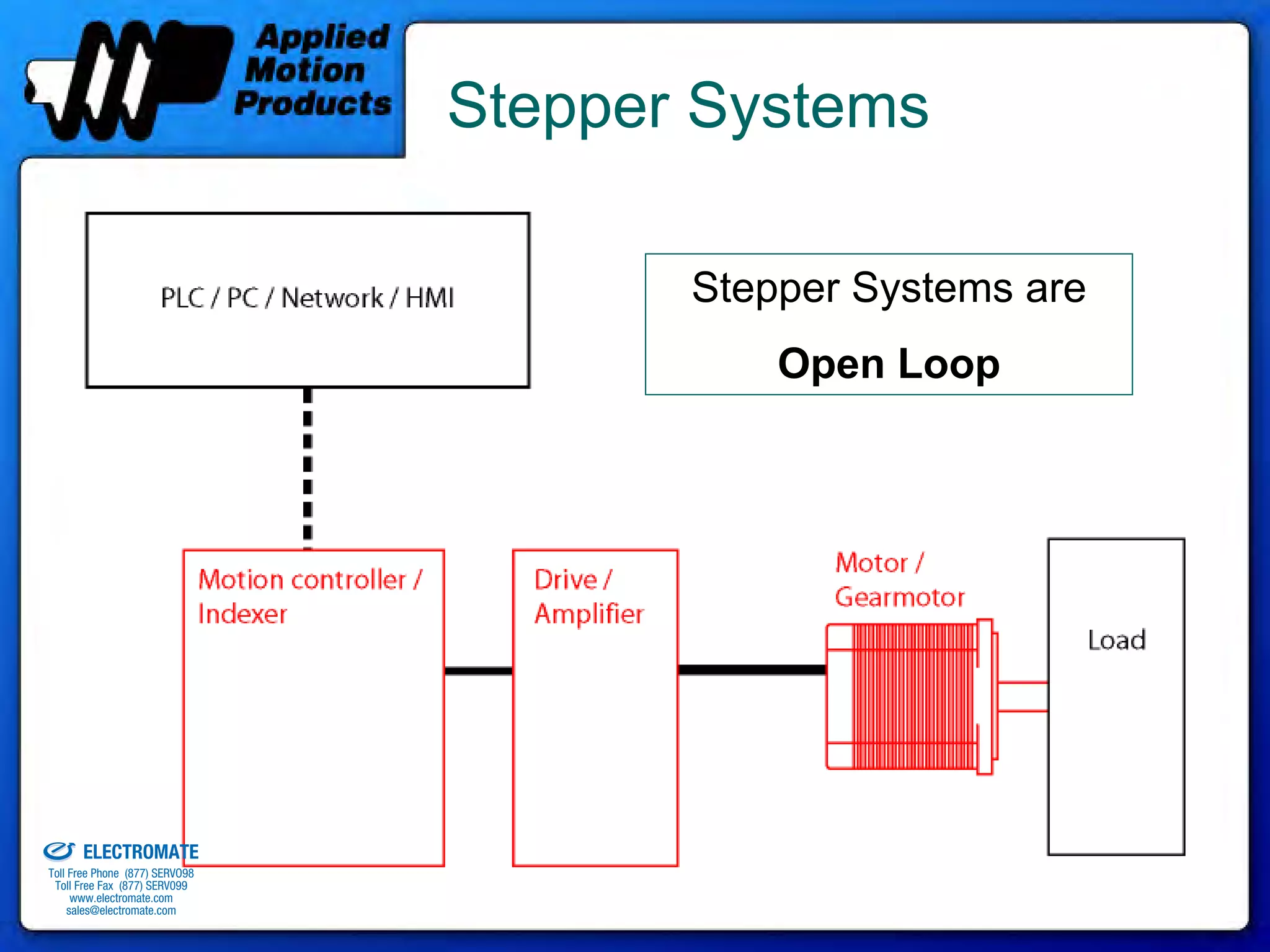

62. Stepper Systems
Stepper Systems are
Open Loop
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

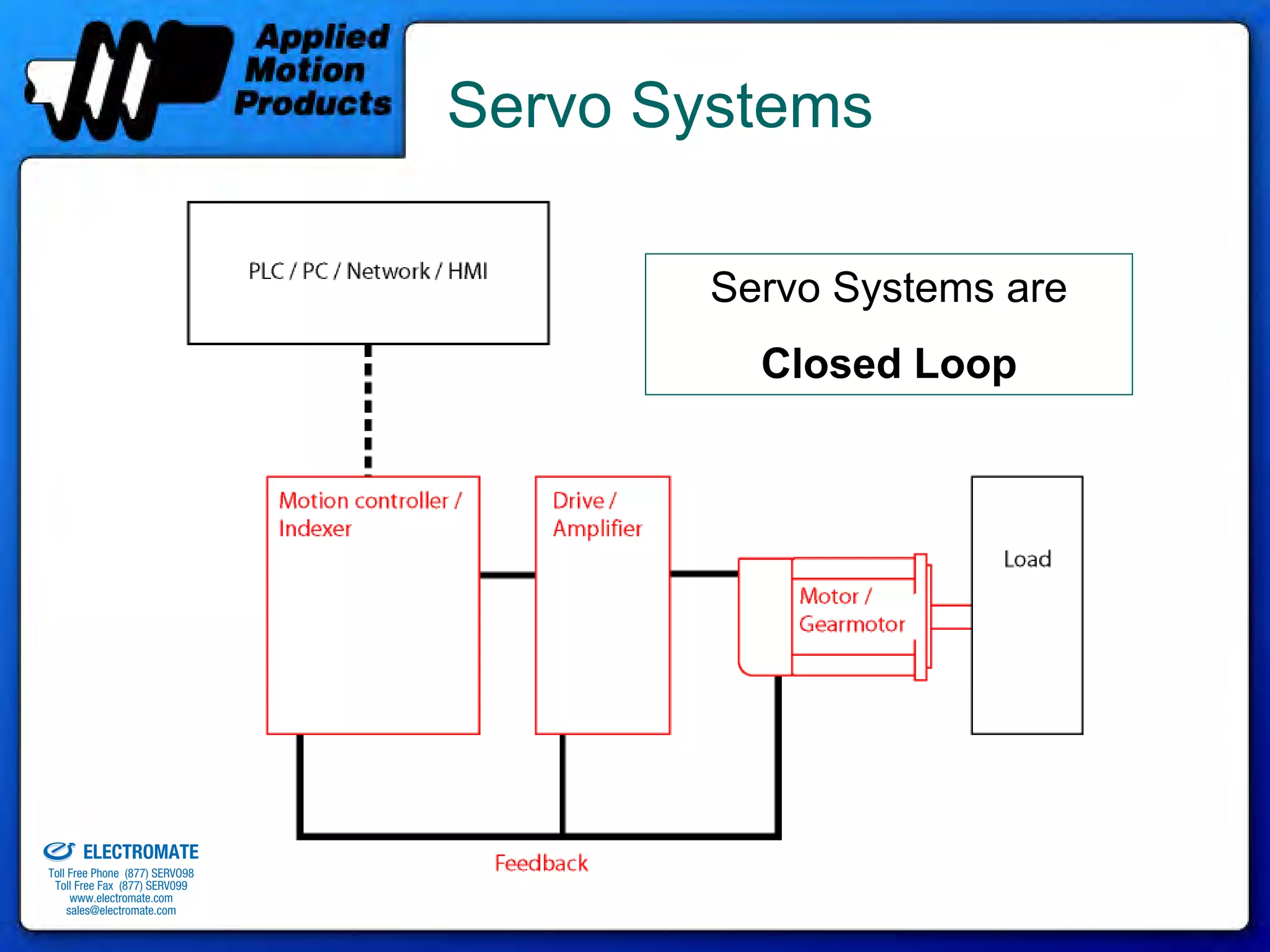

63. Servo Systems
Servo Systems are
Closed Loop
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

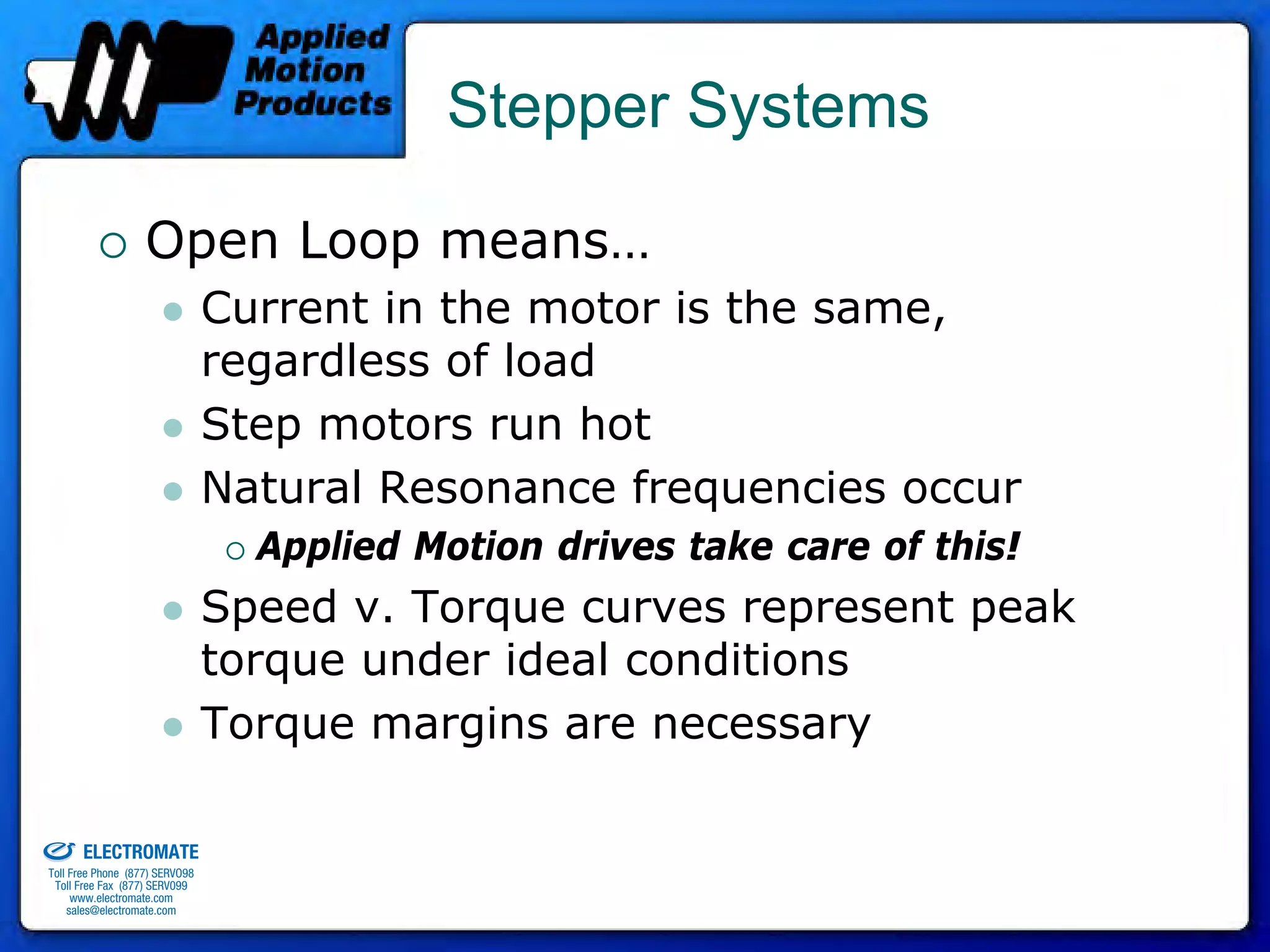

64. Stepper Systems
Open Loop means…
Current in the motor is the same,
regardless of load
Step motors run hot
Natural Resonance frequencies occur
Applied Motion drives take care of this!

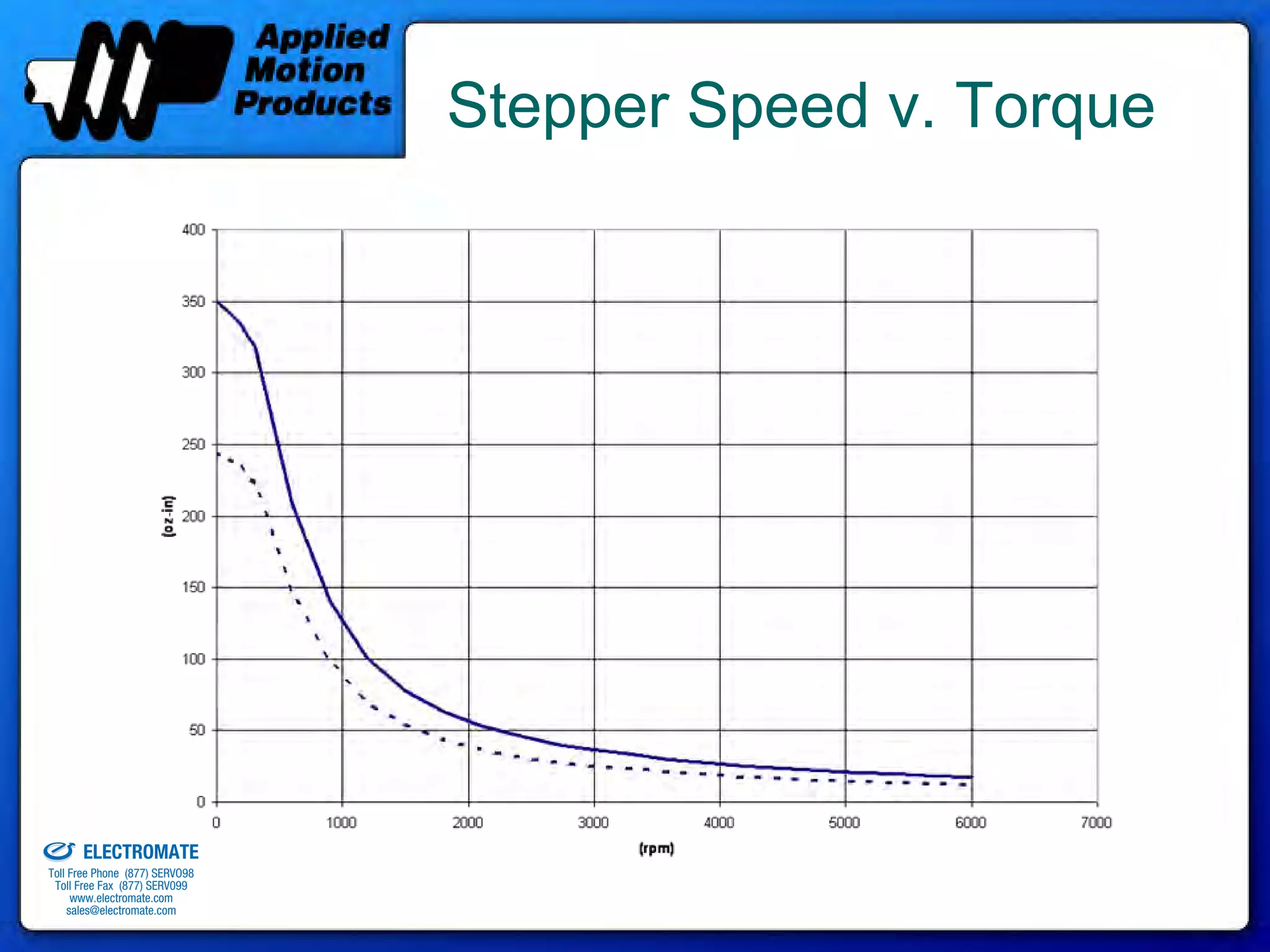

Speed v. Torque curves represent peak
torque under ideal conditions
Torque margins are necessary
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

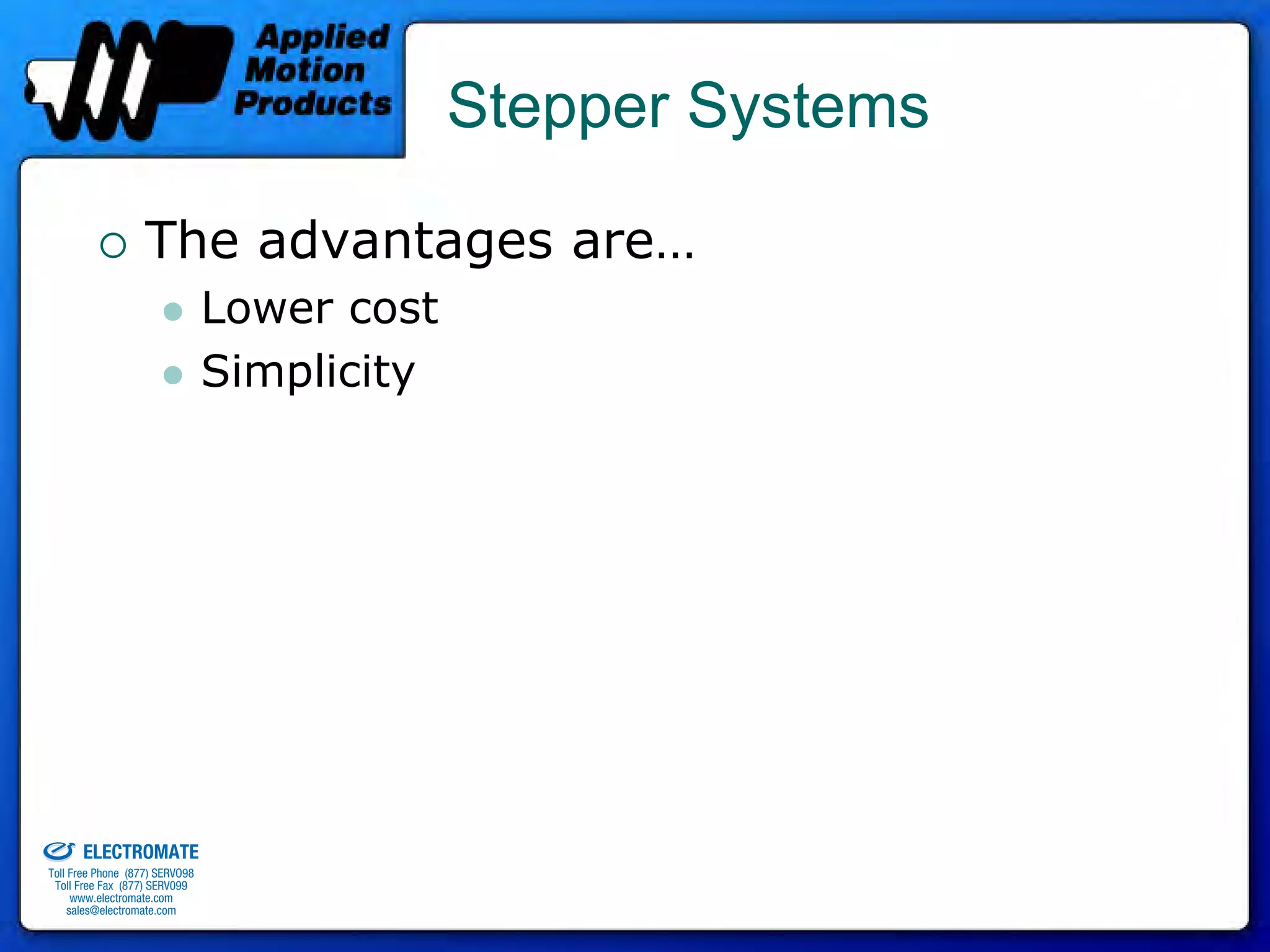

65. Stepper Systems
The advantages are…
Lower cost
Simplicity
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

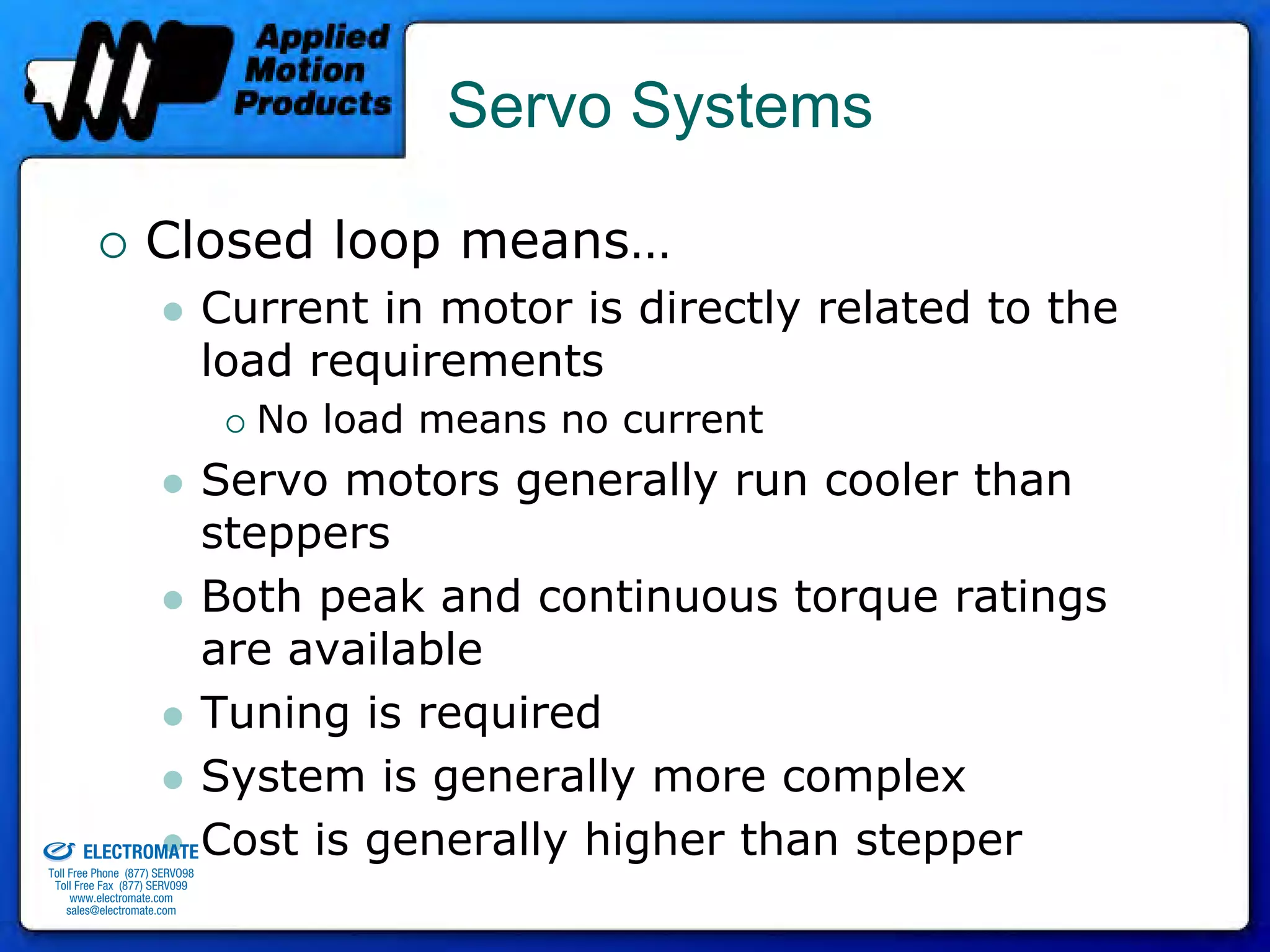

66. Servo Systems
Closed loop means…
Current in motor is directly related to the
load requirements
No load means no current
Servo motors generally run cooler than
steppers
Both peak and continuous torque ratings
are available
Tuning is required
System is generally more complex
ELECTROMATE Cost is generally higher than stepper
old & Serviced By:
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

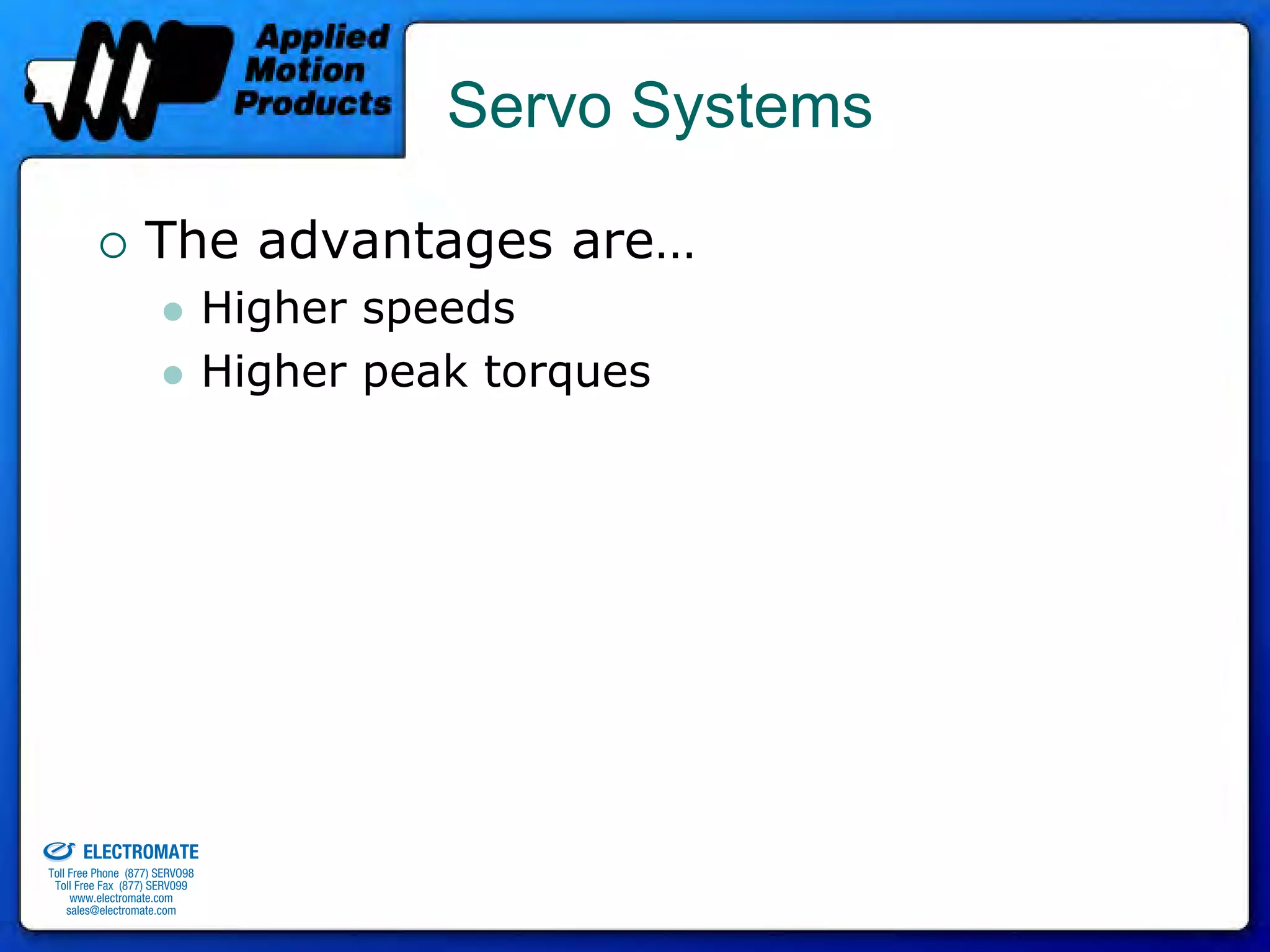

67. Servo Systems
The advantages are…
Higher speeds
Higher peak torques
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

68. Stepper Speed v. Torque
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

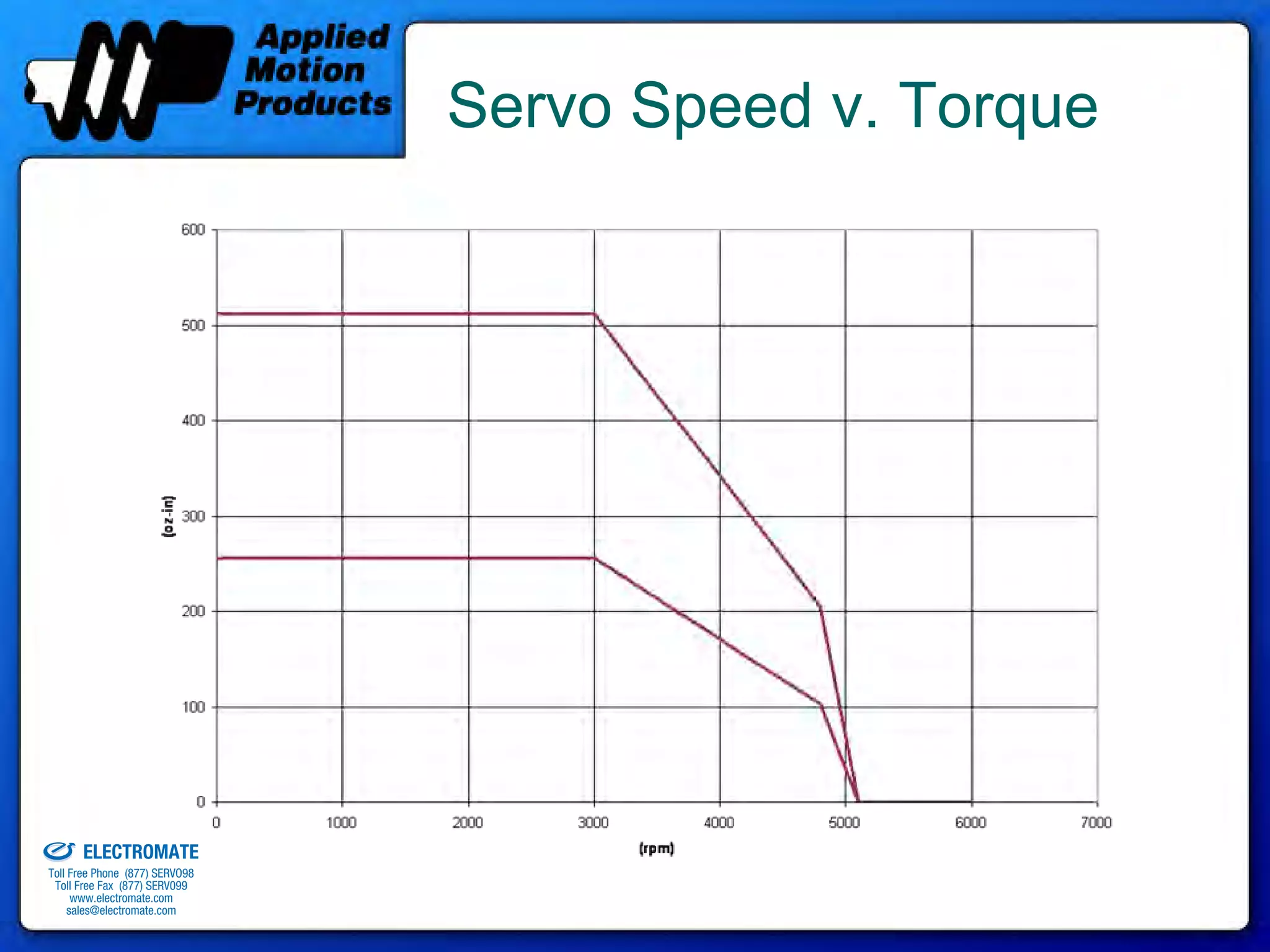

69. Servo Speed v. Torque
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

70. Stepper v. Servo
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

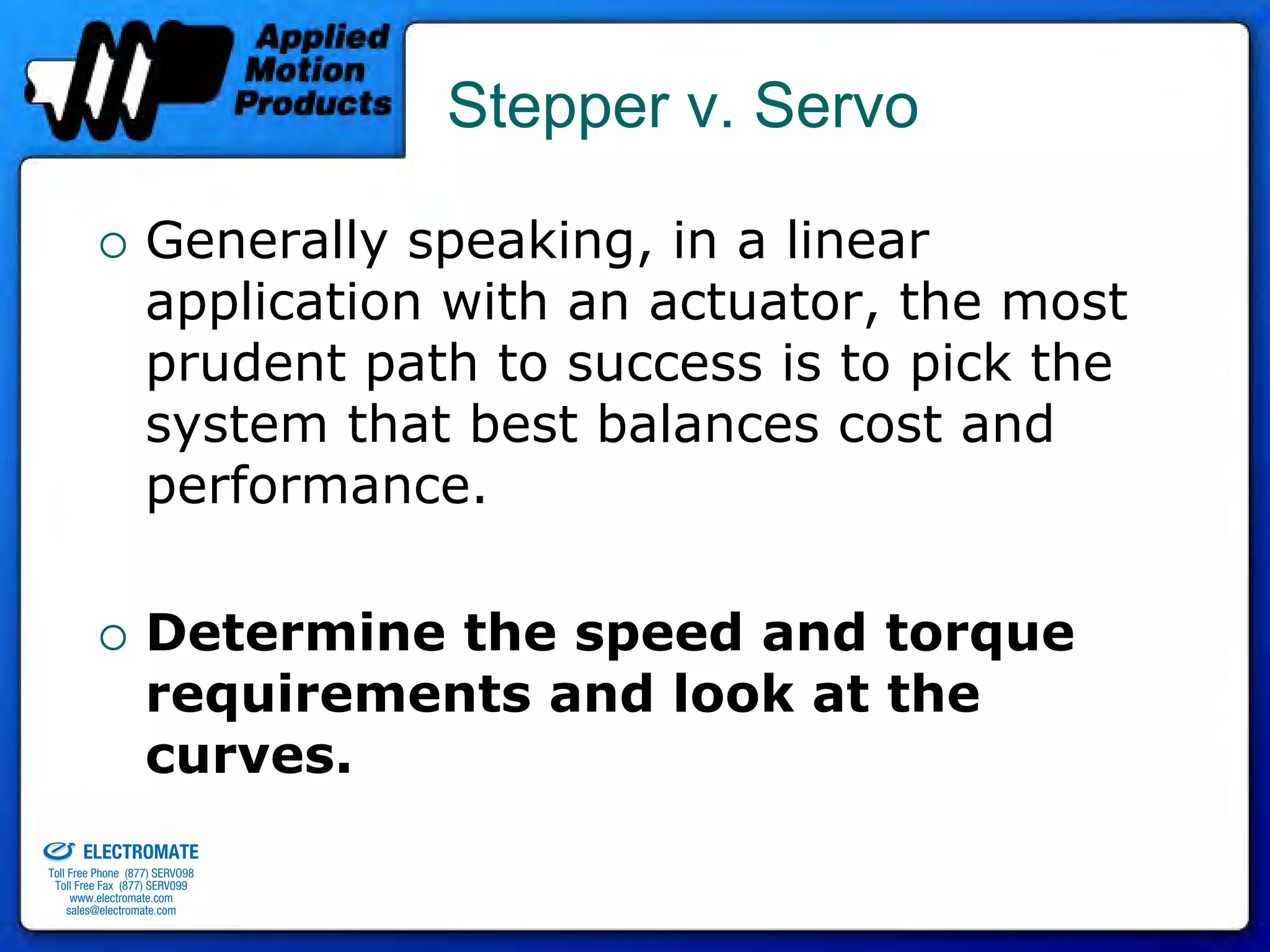

71. Stepper v. Servo
Generally speaking, in a linear
application with an actuator, the most
prudent path to success is to pick the
system that best balances cost and
performance.
Determine the speed and torque
requirements and look at the
curves.
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

72. Sizing
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

73. Sizing
There are a few key application
elements you need to determine before
choosing a proper motor and drive
combination:
Total System Inertia (load + motor)
Peak Speed Requirement
Peak Torque Requirement (cont + accel)
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

74. Sizing
A primer on sizing…
The Smart Motion Cheat Sheet
From Minarik
From Electromate Industrial Sales
This PDF has all the equations you need to
calculate inertia, speed, and torque for
your linear actuator application.
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

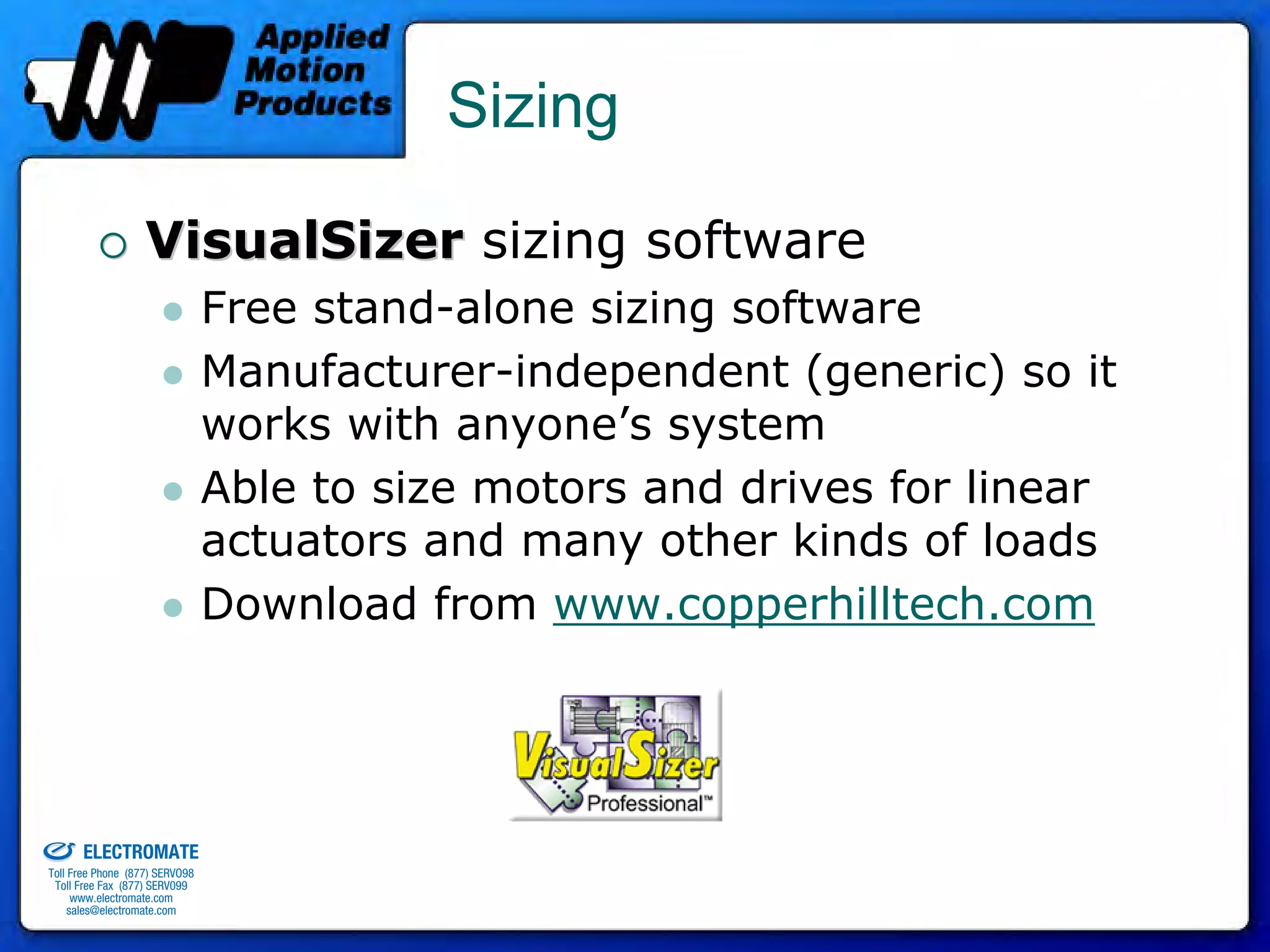

75. Sizing
VisualSizer sizing software
Free stand-alone sizing software
Manufacturer-independent (generic) so it
works with anyone’s system
Able to size motors and drives for linear
actuators and many other kinds of loads
Download from www.copperhilltech.com
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

76. Si Programmer Overview
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

77. Si Programmer Software
We are well-known in industry for our
easy-to-use, icon-based programming
environment
old & Serviced By:
“Si” stands for “Simple Indexer”
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

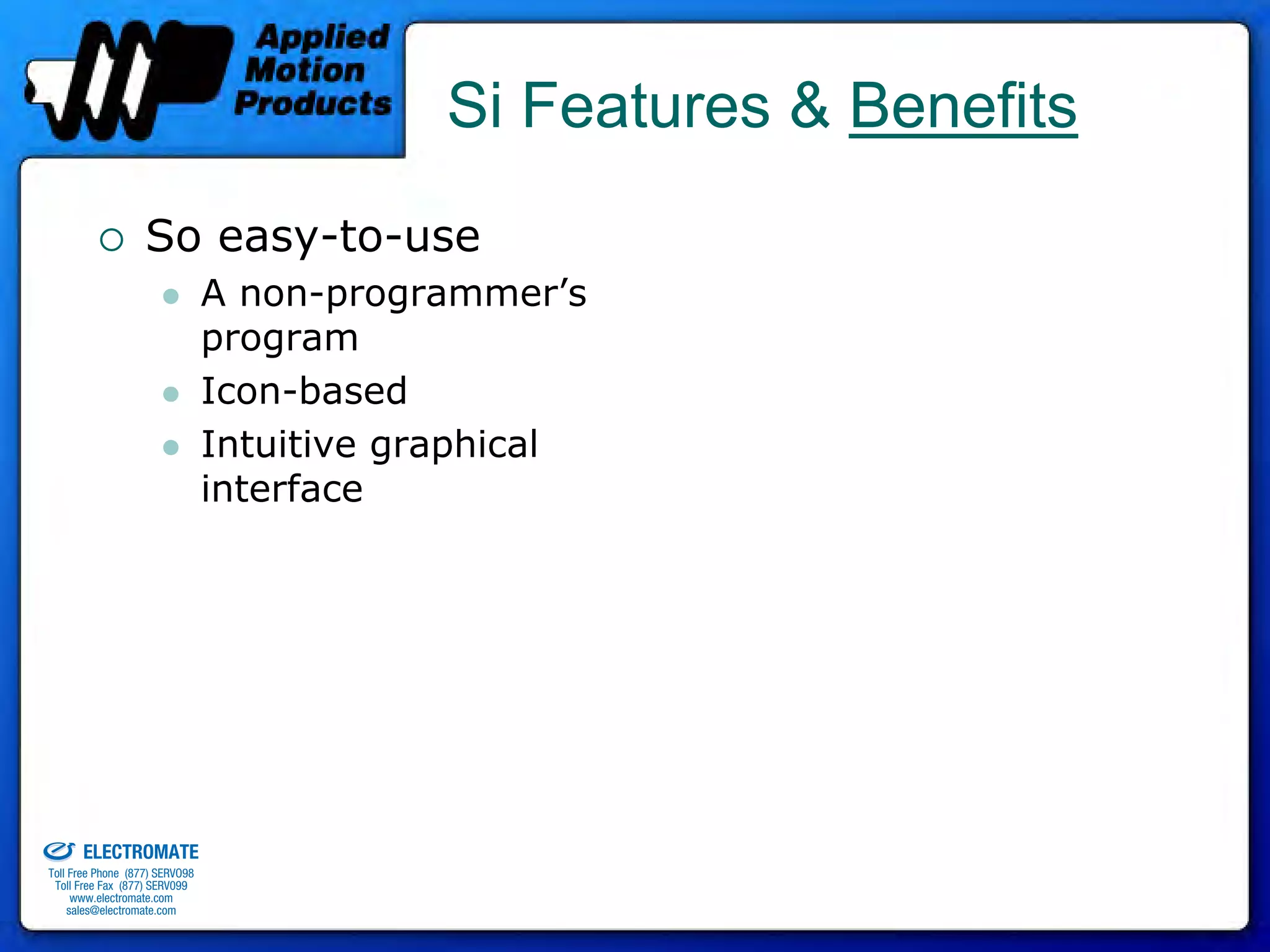

78. Si Features & Benefits
So easy-to-use
A non-programmer’s
program
Icon-based
Intuitive graphical
interface
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

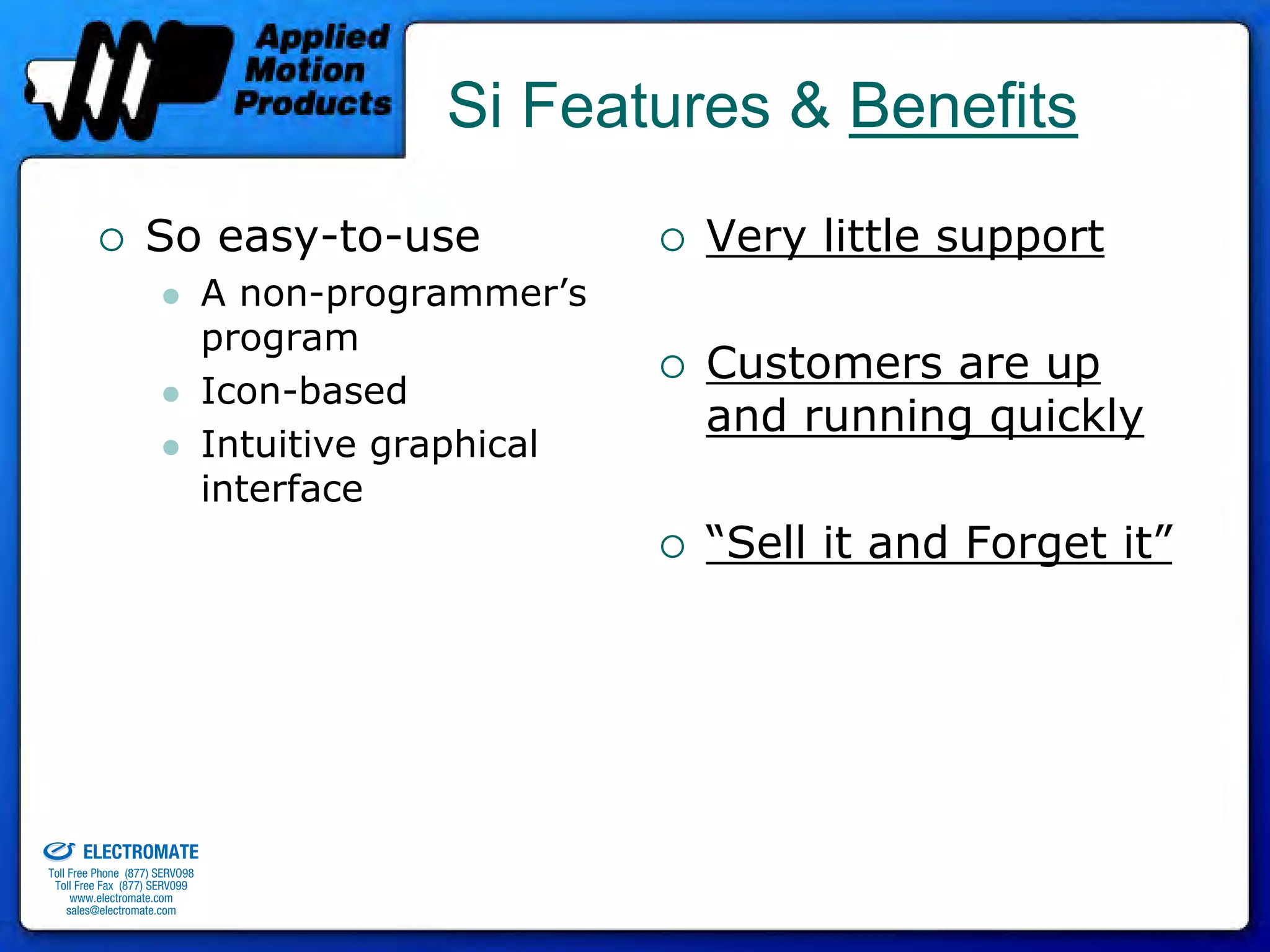

79. Si Features & Benefits
So easy-to-use Very little support
A non-programmer’s
program
Customers are up
Icon-based
and running quickly
Intuitive graphical
interface
“Sell it and Forget it”
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

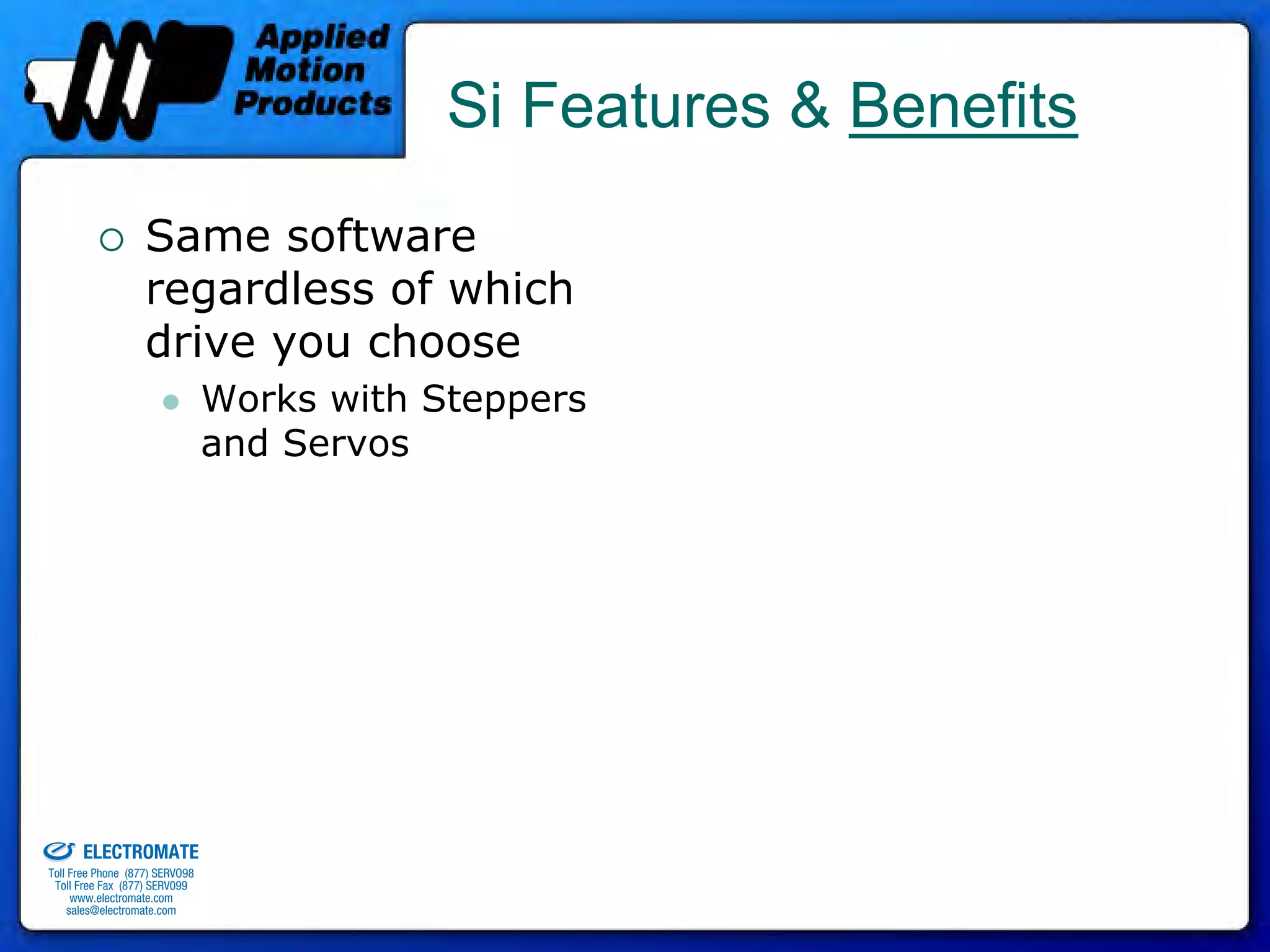

80. Si Features & Benefits
Same software
regardless of which
drive you choose
Works with Steppers
and Servos
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

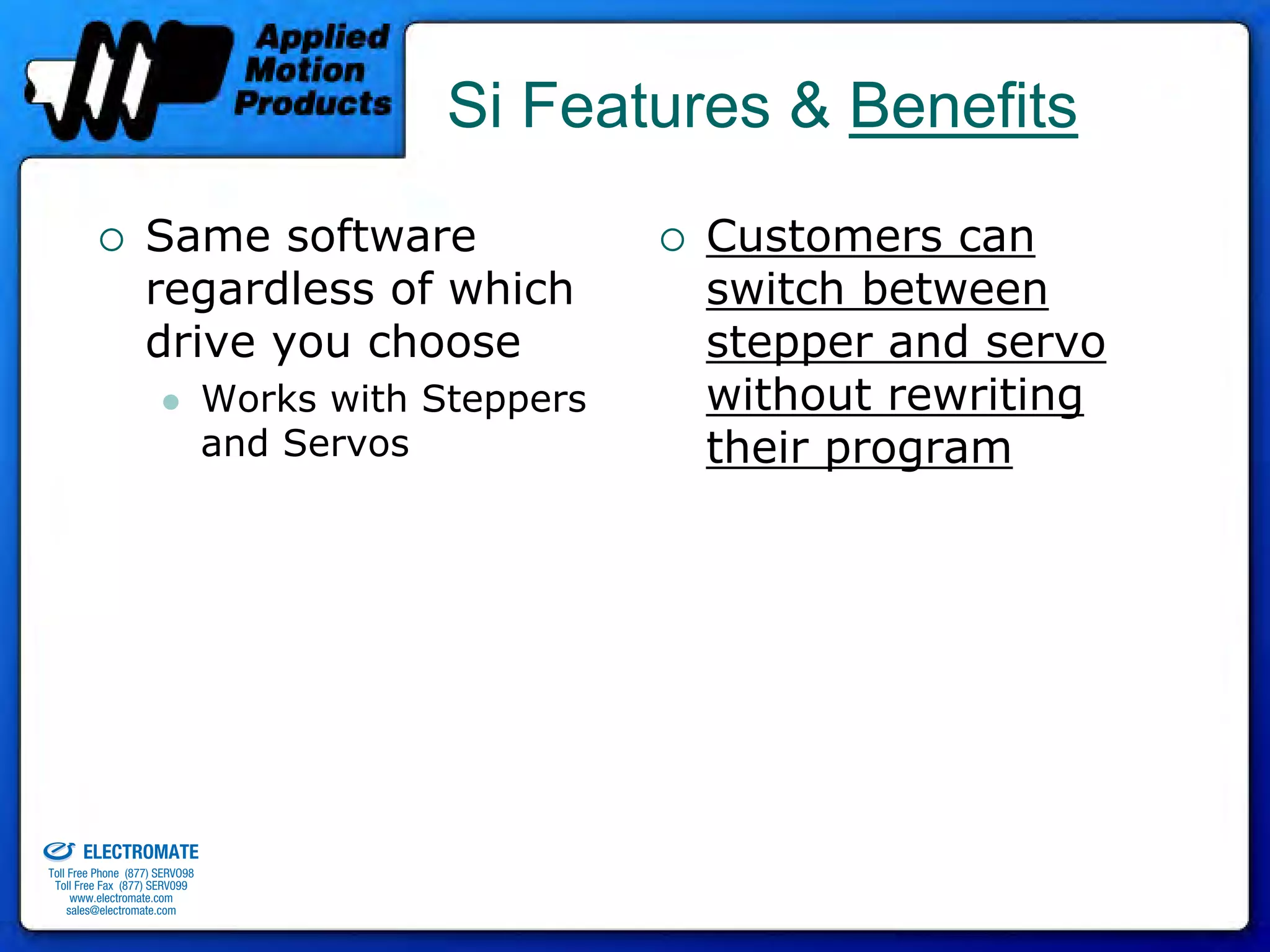

81. Si Features & Benefits
Same software Customers can
regardless of which switch between
drive you choose stepper and servo
Works with Steppers without rewriting
and Servos their program
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

82. Si Features & Benefits
Runs on Windows
All programming
cables and software
included with each
drive – for free
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

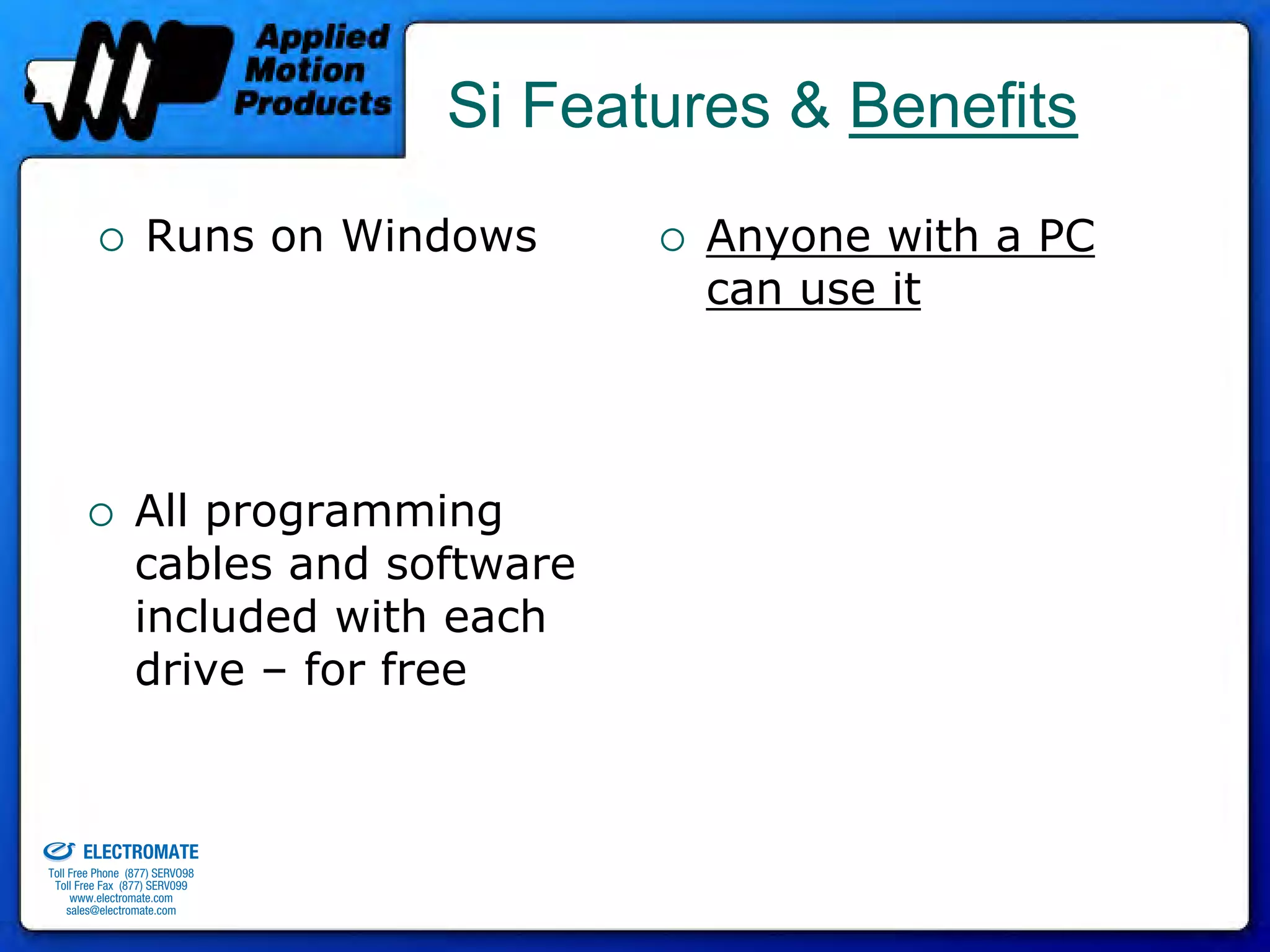

83. Si Features & Benefits
Runs on Windows Anyone with a PC
can use it
All programming
cables and software
included with each
drive – for free
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

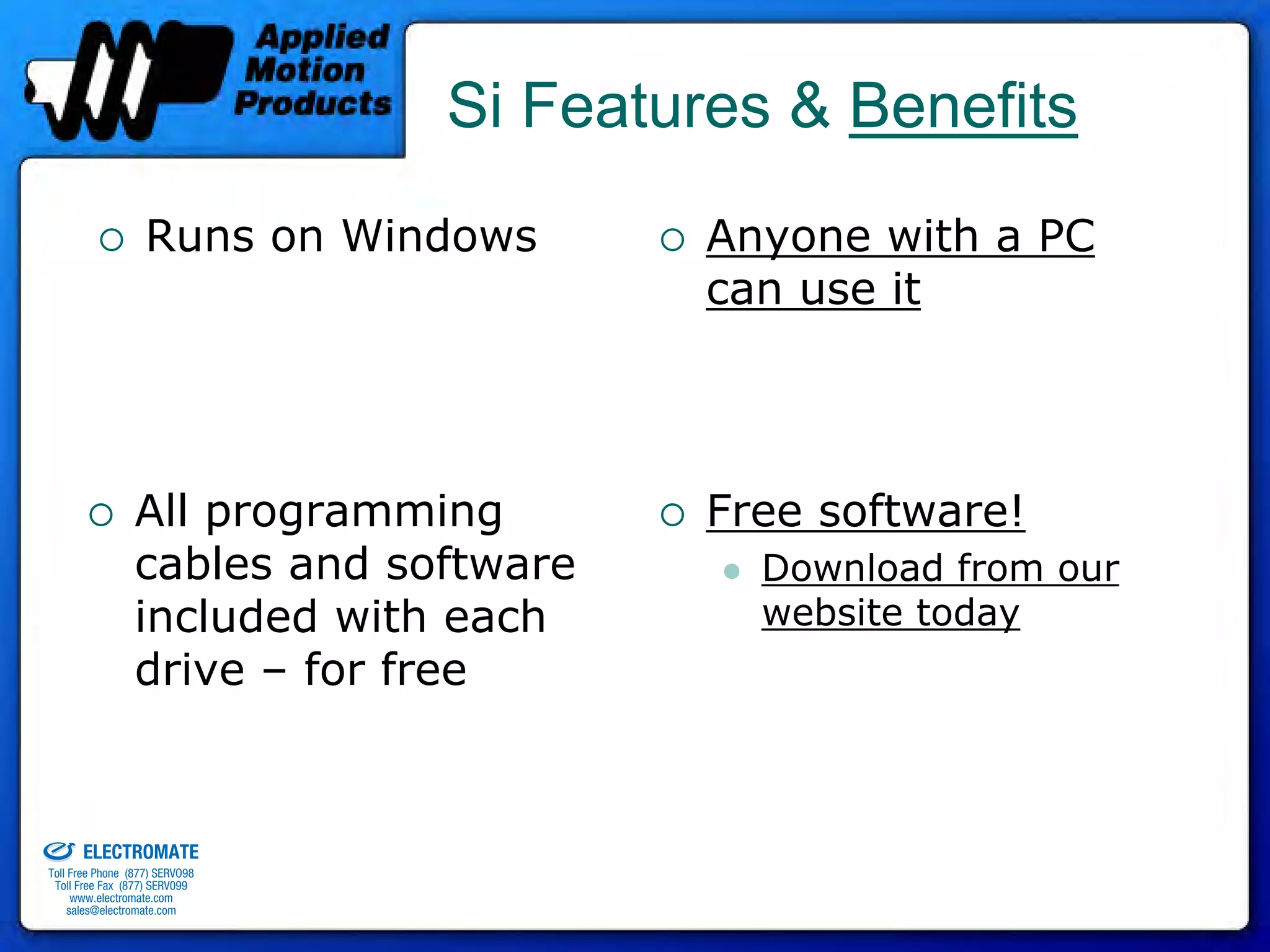

84. Si Features & Benefits
Runs on Windows Anyone with a PC
can use it
All programming Free software!
cables and software Download from our
included with each website today
drive – for free
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

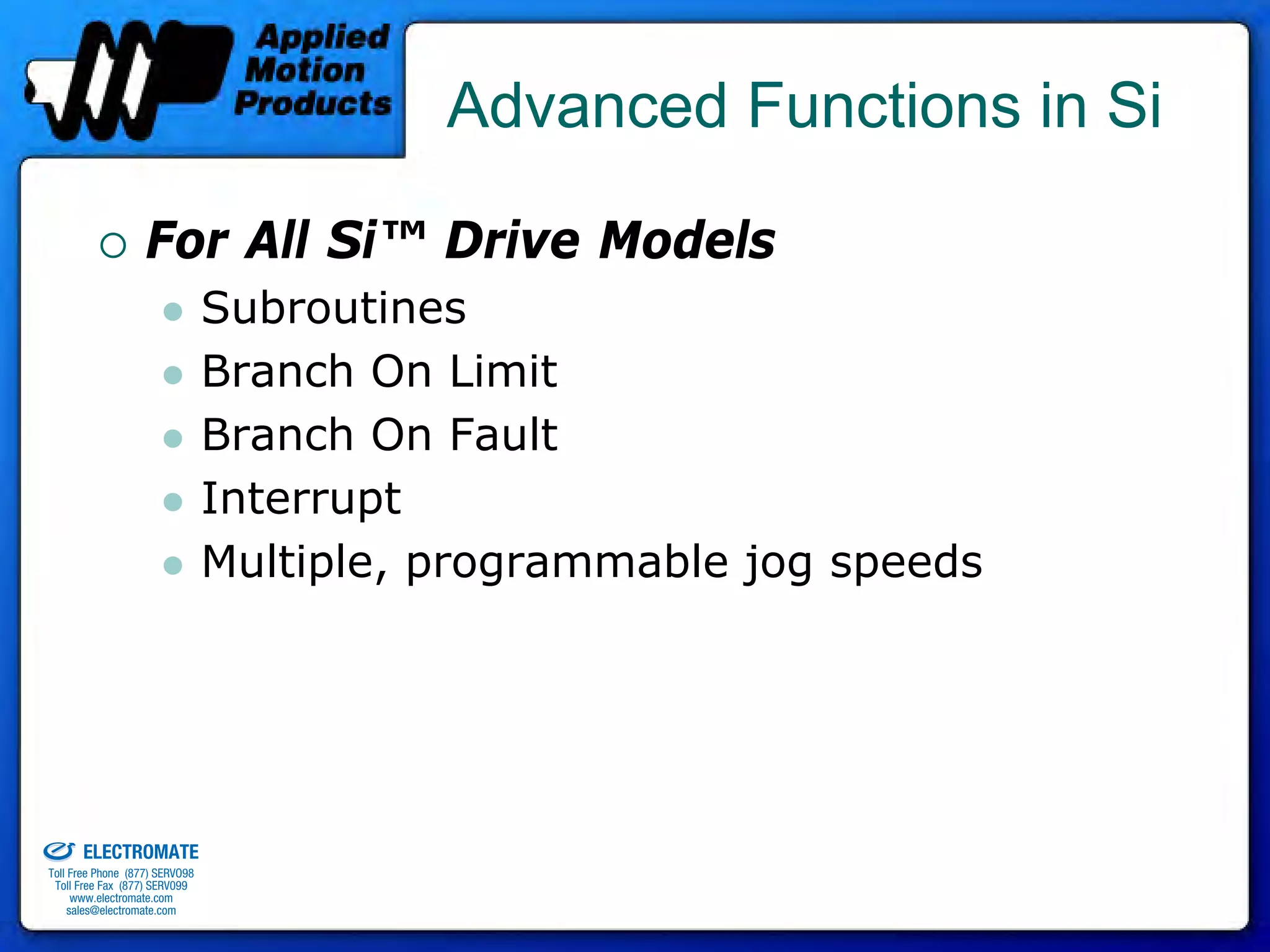

85. Advanced Functions in Si
For All Si™ Drive Models
Subroutines
Branch On Limit
Branch On Fault
Interrupt
Multiple, programmable jog speeds
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

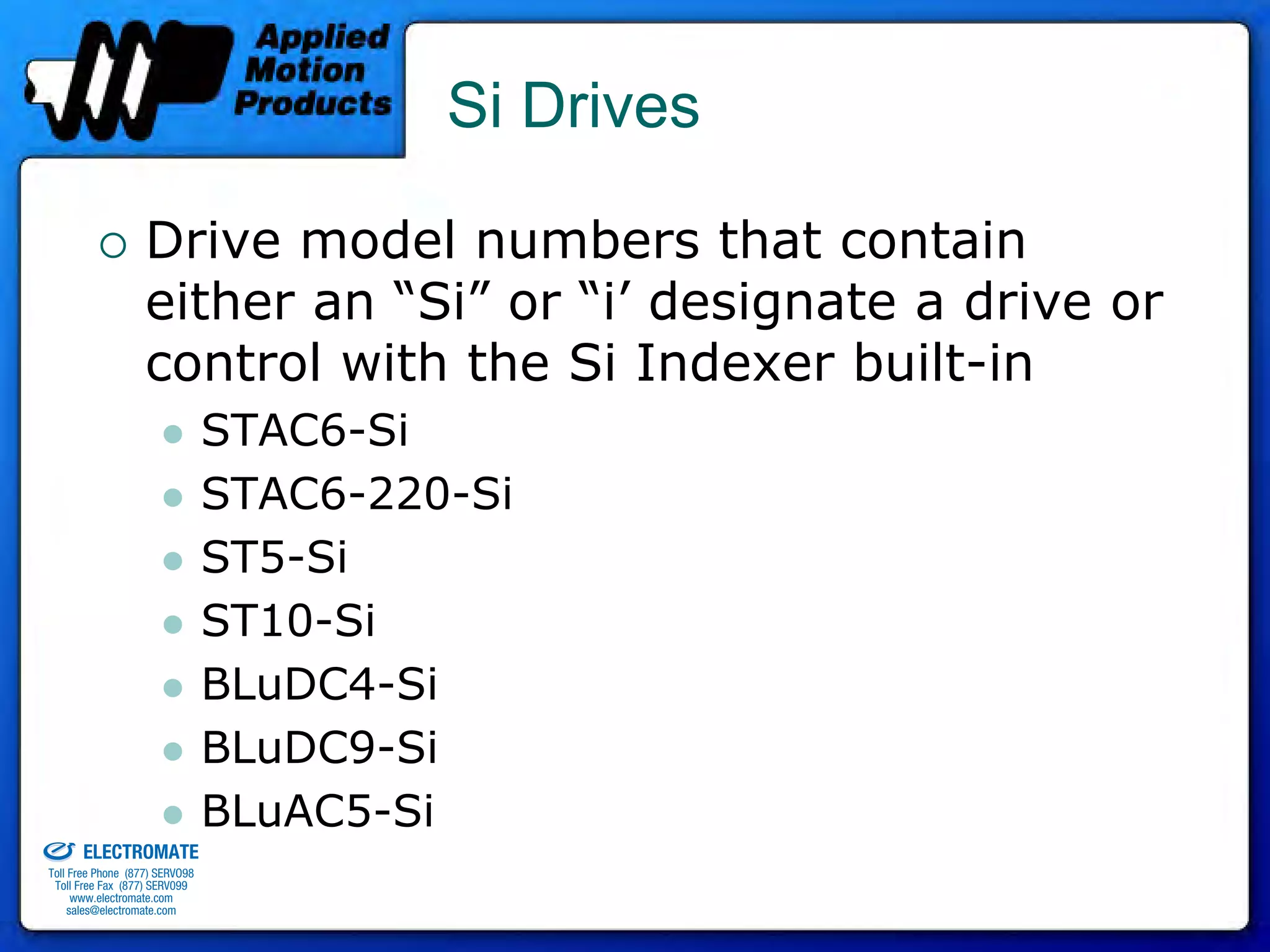

86. Si Drives
Drive model numbers that contain
either an “Si” or “i’ designate a drive or
control with the Si Indexer built-in
STAC6-Si
STAC6-220-Si
ST5-Si
ST10-Si
BLuDC4-Si
BLuDC9-Si
old & Serviced By: BLuAC5-Si
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

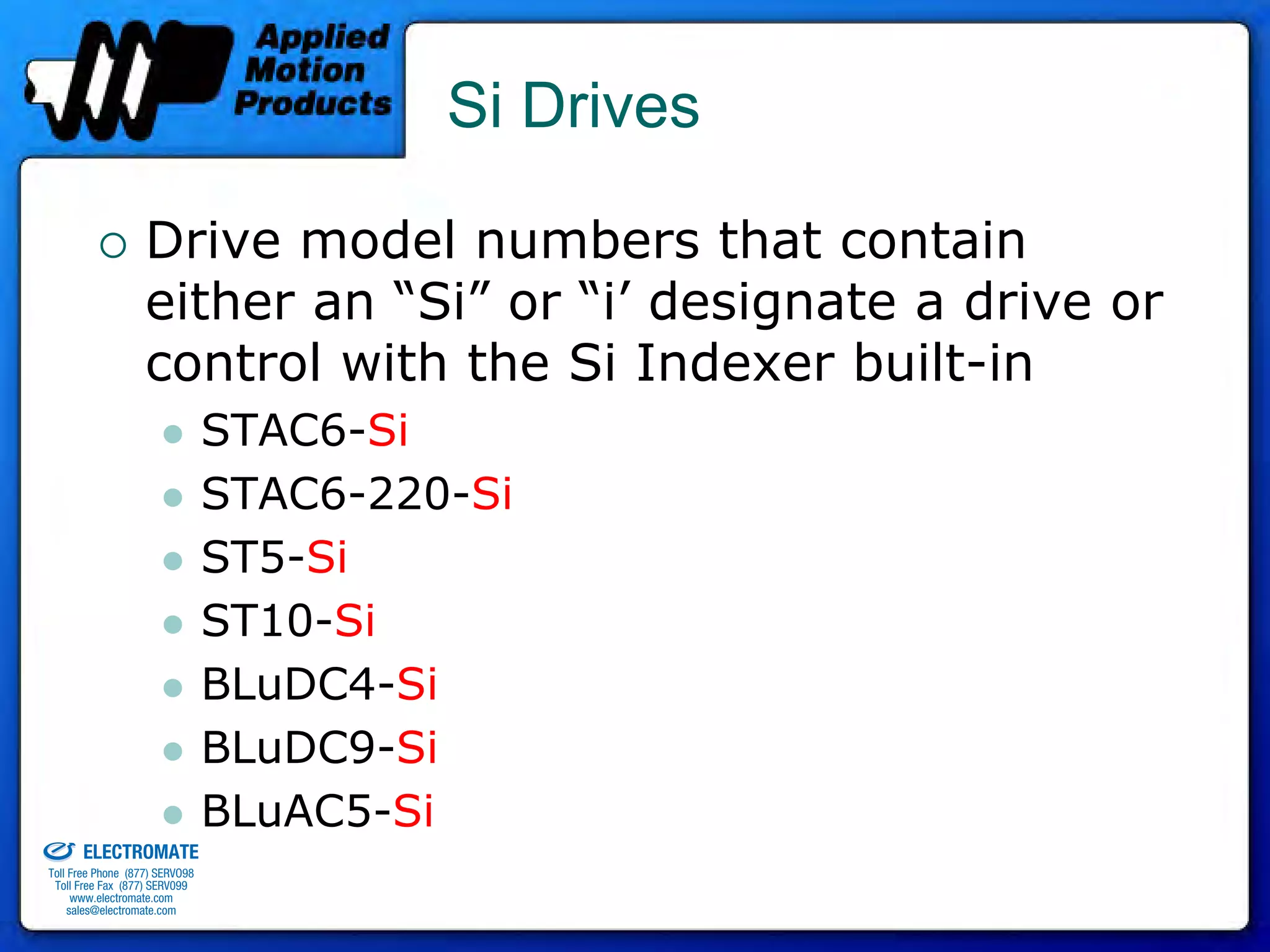

87. Si Drives
Drive model numbers that contain
either an “Si” or “i’ designate a drive or
control with the Si Indexer built-in
STAC6-Si
STAC6-220-Si
ST5-Si
ST10-Si
BLuDC4-Si
BLuDC9-Si
old & Serviced By: BLuAC5-Si
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

88. Si Programmer Screen
Download Si Programmer
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

89. Q Programmer Overview
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

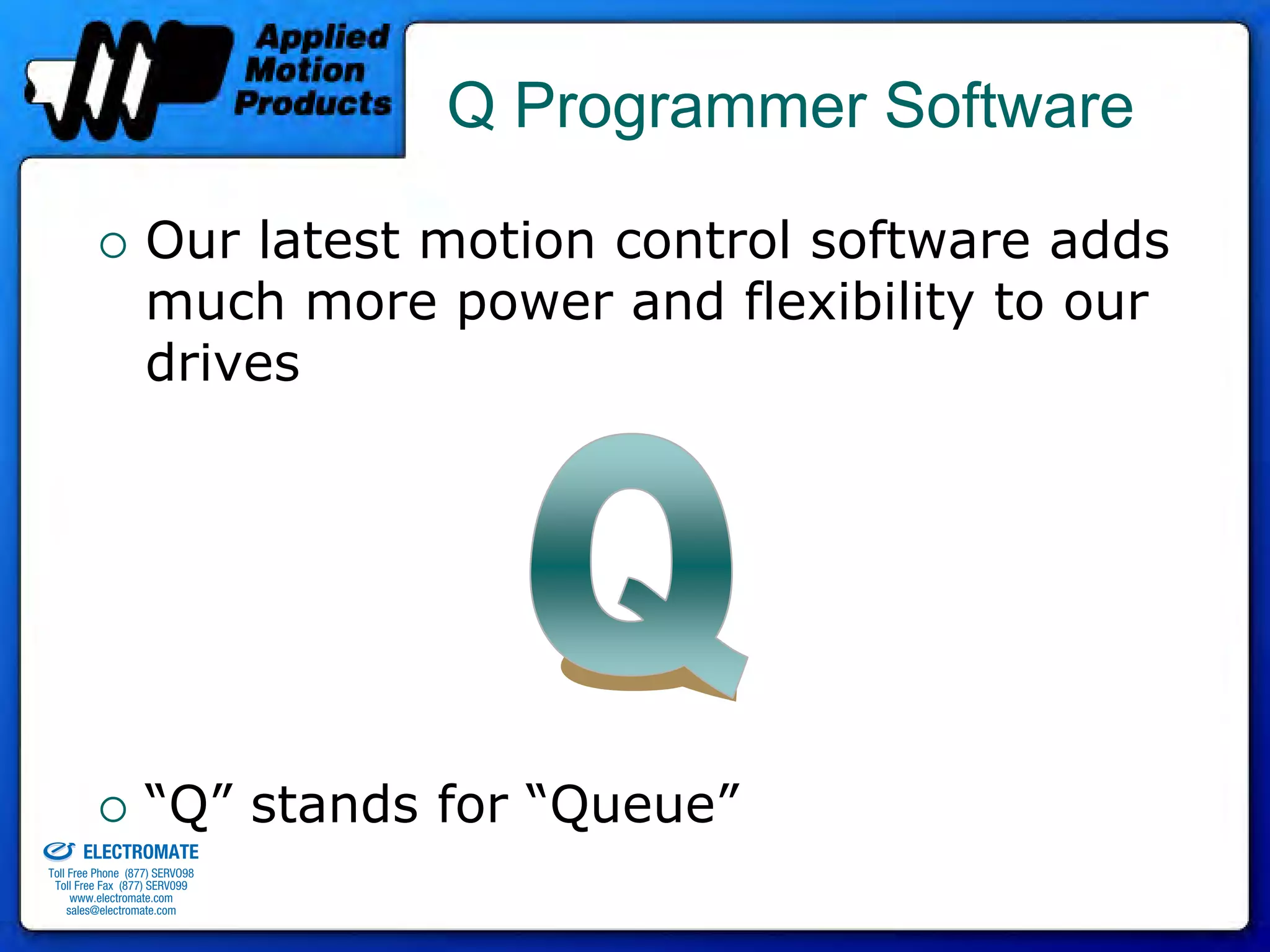

90. Q Programmer Software
Our latest motion control software adds
much more power and flexibility to our
drives
old & Serviced By:
“Q” stands for “Queue”
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

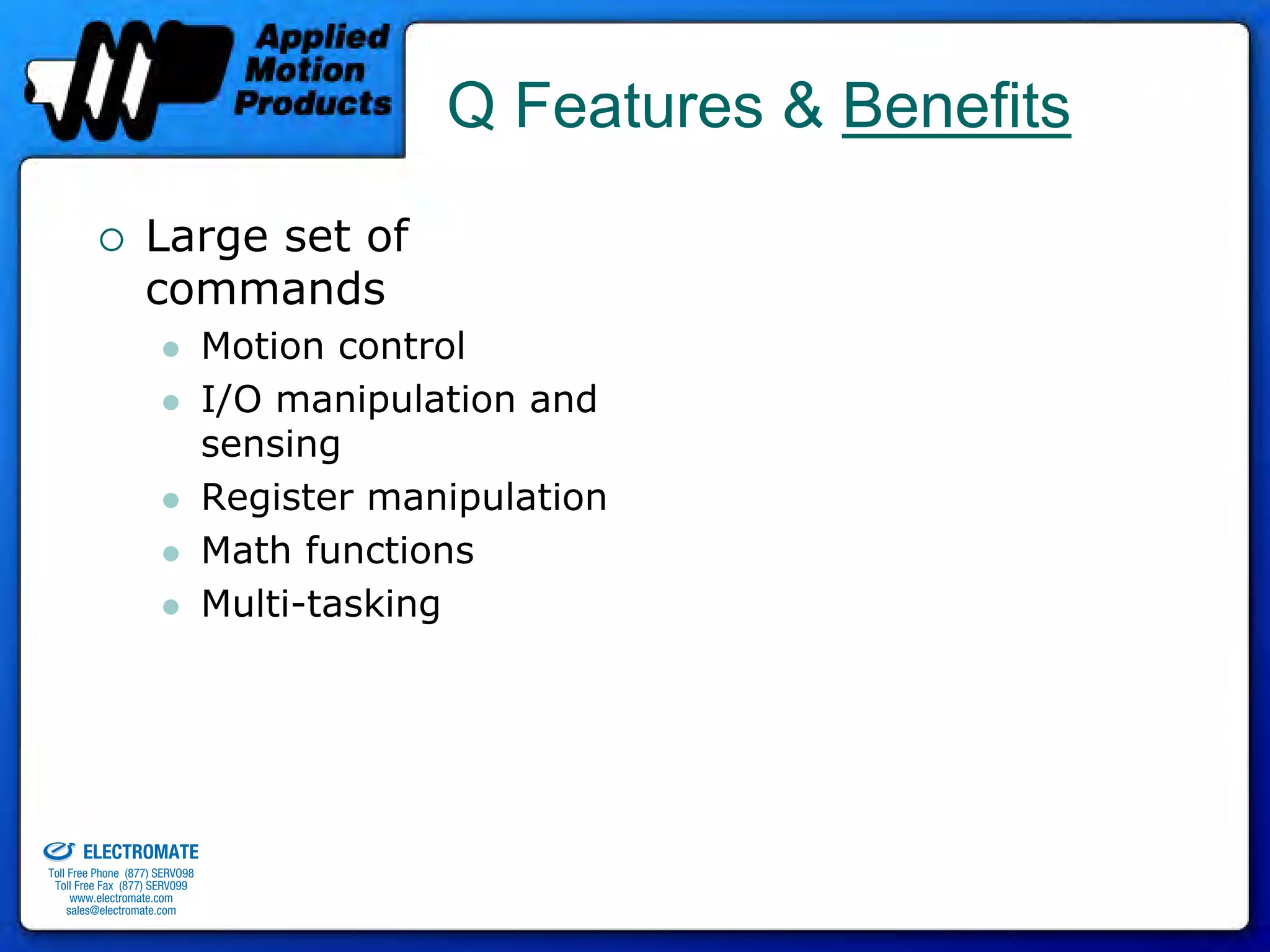

91. Q Features & Benefits
Large set of
commands
Motion control
I/O manipulation and
sensing
Register manipulation
Math functions
Multi-tasking
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

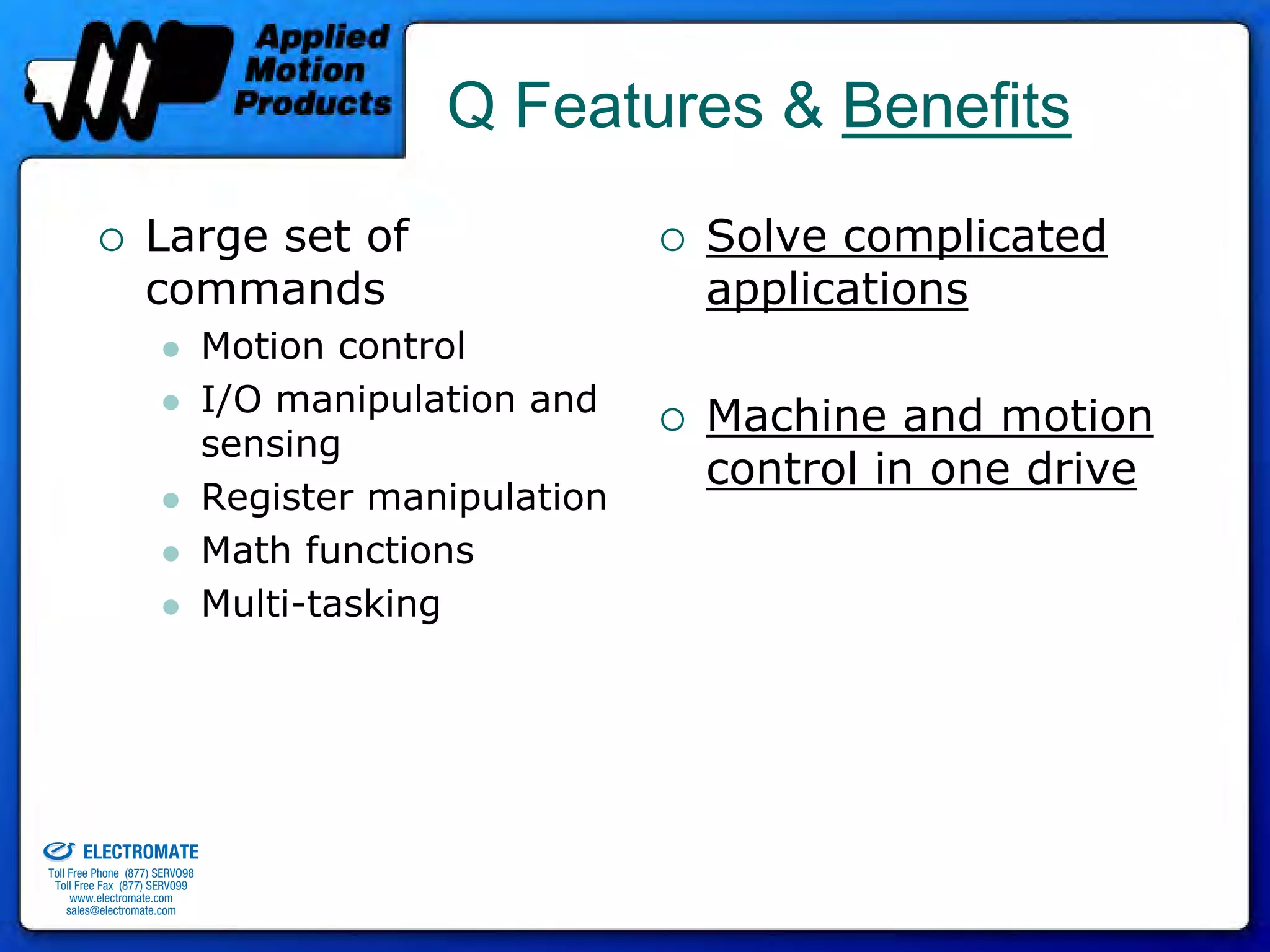

92. Q Features & Benefits
Large set of Solve complicated
commands applications
Motion control
I/O manipulation and
Machine and motion
sensing
control in one drive
Register manipulation
Math functions
Multi-tasking
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

93. Q Features & Benefits
Runs on Windows
All programming
cables and software
included with each
drive – for free
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

94. Q Features & Benefits
Runs on Windows Anyone with a PC
can use it
All programming Free software!
cables and software Download from our
included with each website today
drive – for free
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

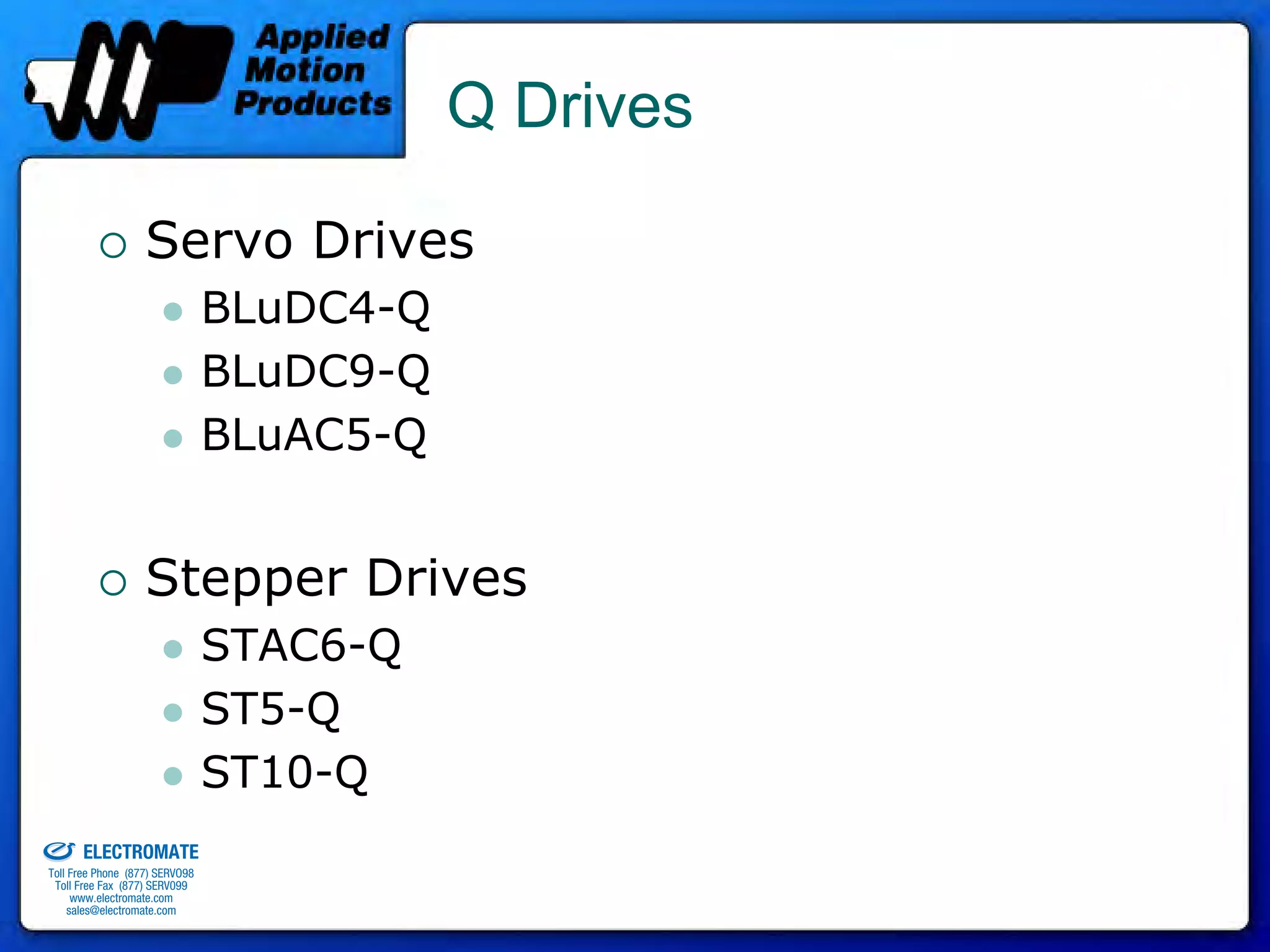

95. Q Drives
Servo Drives
BLuDC4-Q
BLuDC9-Q
BLuAC5-Q
Stepper Drives
STAC6-Q
ST5-Q
ST10-Q
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

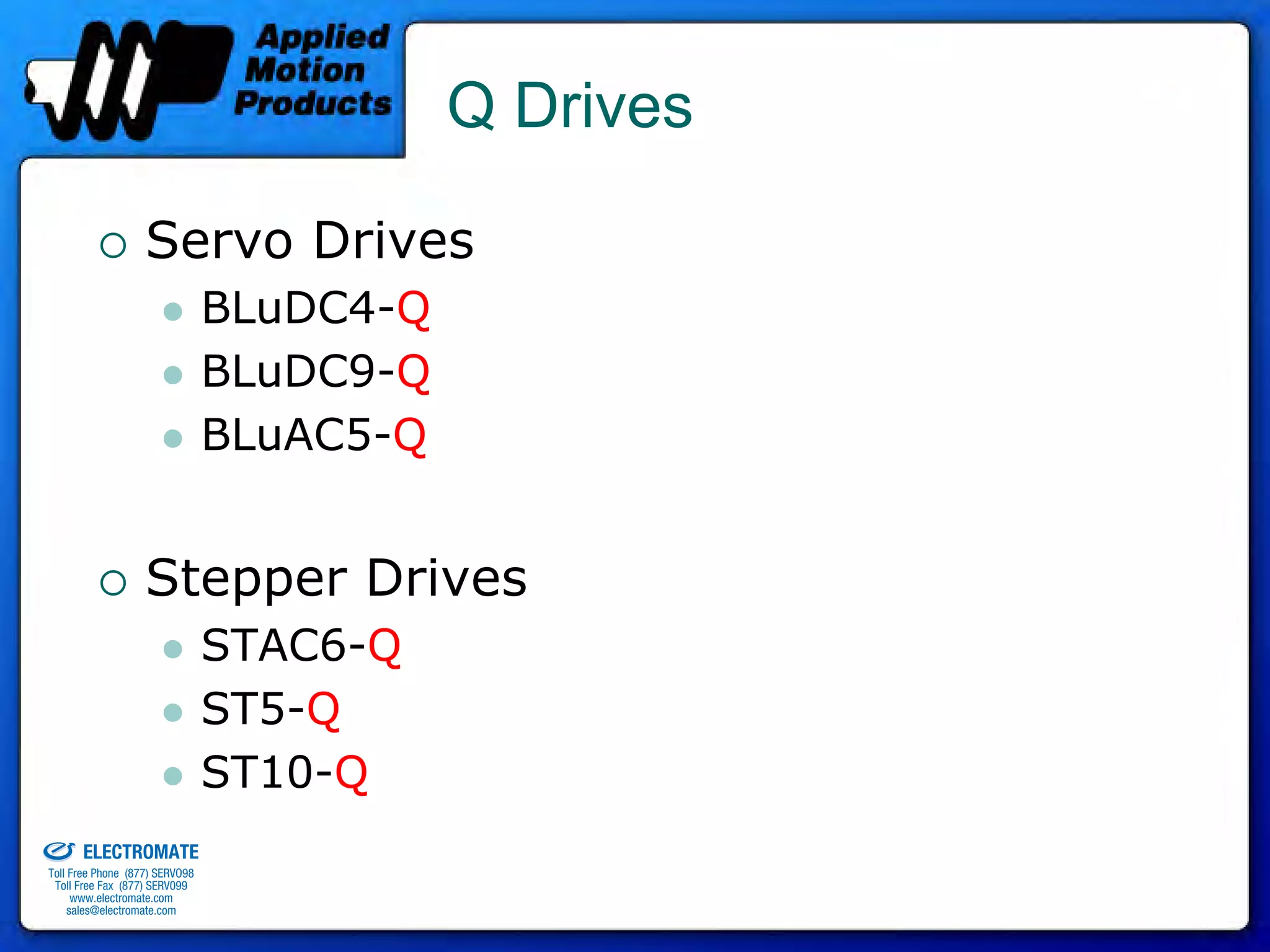

96. Q Drives
Servo Drives
BLuDC4-Q
BLuDC9-Q
BLuAC5-Q
Stepper Drives
STAC6-Q
ST5-Q
ST10-Q
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

97. Q Programmer Screen
Download Q Programmer
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

98. Who’s Who at Applied Motion
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

99. Who’s Who at Applied Motion
Factory
Watsonville, CA
(831) 761-6555 tel
(831) 761-6544 fax
http://www.applied-motion.com
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

100. Who’s Who at Applied Motion
Customer Service / Inside Sales
Julie Georgiana
Ext. 309
jgeorgiana@applied-motion.com
Stacia Sperry
Ext. 317
ssperry@applied-motion.com
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

101. Who’s Who at Applied Motion
Regional Sales
West: Mike Fahey
Ext. 338
mfahey@applied-motion.com
Midwest: Matt Liiste
(952) 212-4016
mliiste@applied-motion.com
East: Dennis Joyce
(413) 245-0315
djoyce@applied-motion.com
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

102. Who’s Who at Applied Motion
Tech Support
Jim Amos
Ext. 314
jamos@applied-motion.com
Eric Rice
(773) 561-7833 or Ext. 333
erice@applied-motion.com
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

103. Questions?
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

104. Thanks for Attending!
old & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
