All you need to know about Orient Me
- 1. Social Connections 11Chicago, June 1-2 2017 All you need to know about Orient Me Nico Meisenzahl, panagenda @nmeisenzahl
- 2.
- 3. Social Connections 11Chicago, June 1-2 2017 Nico Meisenzahl • Consultant at panagenda • IBM Connections since version 3.0 / 2010 • IBM Notes / Domino since 2008 • Focusing in ICS • Deployment & consulting • Optimization and migration • “panagendian” since 2016 • IBM Champion @nmeisenzahl linkedin.com/in/nicomeisenzahl meisenzahl.org nico.meisenzahl +49 170 7355081 nico.meisenzahl@panagenda.com

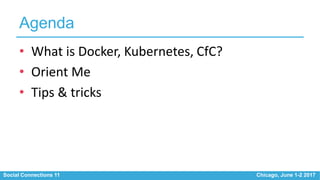

- 4. Social Connections 11Chicago, June 1-2 2017 Agenda • What is Docker, Kubernetes, CfC? • Orient Me • Tips & tricks
- 5. Social Connections 11Chicago, June 1-2 2017 What is…
- 6. Social Connections 11Chicago, June 1-2 2017 What is Docker? • xx

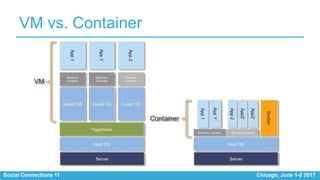

- 7. Social Connections 11Chicago, June 1-2 2017 VM vs. Container

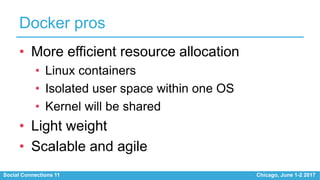

- 8. Social Connections 11Chicago, June 1-2 2017 Docker pros • More efficient resource allocation • Linux containers • Isolated user space within one OS • Kernel will be shared • Light weight • Scalable and agile

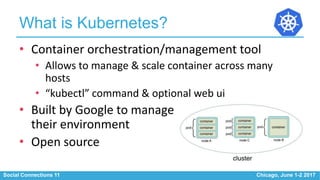

- 9. Social Connections 11Chicago, June 1-2 2017 What is Kubernetes? • Container orchestration/management tool • Allows to manage & scale container across many hosts • “kubectl” command & optional web ui • Built by Google to manage their environment • Open source

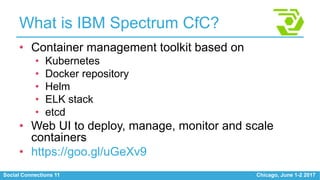

- 10. Social Connections 11Chicago, June 1-2 2017 What is IBM Spectrum CfC? • Container management toolkit based on • Kubernetes • Docker repository • Helm • ELK stack • etcd • Web UI to deploy, manage, monitor and scale containers • https://goo.gl/uGeXv9

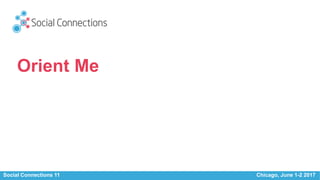

- 11. Social Connections 11Chicago, June 1-2 2017 Orient Me

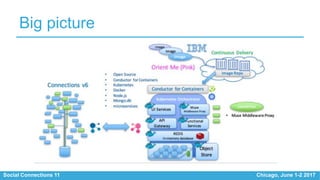

- 12. Social Connections 11Chicago, June 1-2 2017 Big picture
- 13. Social Connections 11Chicago, June 1-2 2017 Based on… • IBM services/code • Apache ZooKeeper • MongoDB • Redis • Solr

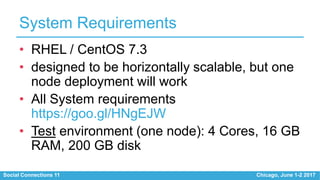

- 14. Social Connections 11Chicago, June 1-2 2017 System Requirements • RHEL / CentOS 7.3 • designed to be horizontally scalable, but one node deployment will work • All System requirements https://goo.gl/HNgEJW • Test environment (one node): 4 Cores, 16 GB RAM, 200 GB disk

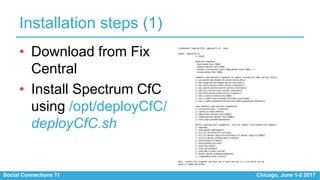

- 15. Social Connections 11Chicago, June 1-2 2017 Installation steps (1) • Download from Fix Central • Install Spectrum CfC using /opt/deployCfC/ deployCfC.sh

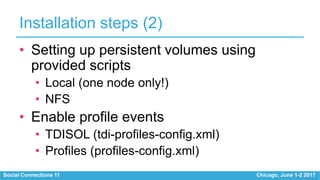

- 16. Social Connections 11Chicago, June 1-2 2017 Installation steps (2) • Setting up persistent volumes using provided scripts • Local (one node only!) • NFS • Enable profile events • TDISOL (tdi-profiles-config.xml) • Profiles (profiles-config.xml)

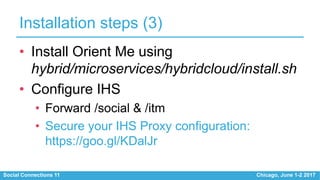

- 17. Social Connections 11Chicago, June 1-2 2017 Installation steps (3) • Install Orient Me using hybrid/microservices/hybridcloud/install.sh • Configure IHS • Forward /social & /itm • Secure your IHS Proxy configuration: https://goo.gl/KDalJr

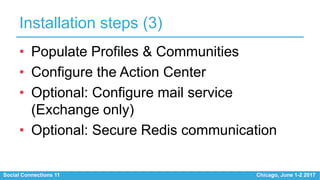

- 18. Social Connections 11Chicago, June 1-2 2017 Installation steps (3) • Populate Profiles & Communities • Configure the Action Center • Optional: Configure mail service (Exchange only) • Optional: Secure Redis communication

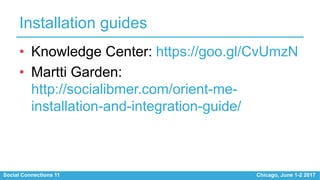

- 19. Social Connections 11Chicago, June 1-2 2017 Installation guides • Knowledge Center: https://goo.gl/CvUmzN • Martti Garden: http://socialibmer.com/orient-me- installation-and-integration-guide/

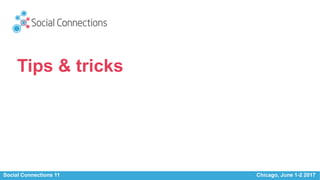

- 20. Social Connections 11Chicago, June 1-2 2017 Tips & tricks

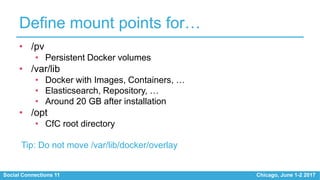

- 21. Social Connections 11Chicago, June 1-2 2017 Define mount points for… • /pv • Persistent Docker volumes • /var/lib • Docker with Images, Containers, … • Elasticsearch, Repository, … • Around 20 GB after installation • /opt • CfC root directory Tip: Do not move /var/lib/docker/overlay

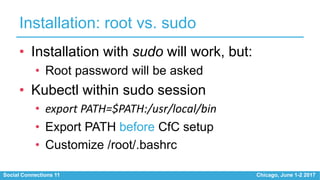

- 22. Social Connections 11Chicago, June 1-2 2017 Installation: root vs. sudo • Installation with sudo will work, but: • Root password will be asked • Kubectl within sudo session • export PATH=$PATH:/usr/local/bin • Export PATH before CfC setup • Customize /root/.bashrc

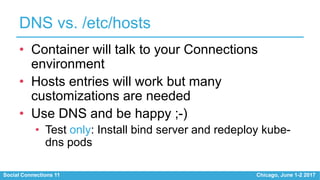

- 23. Social Connections 11Chicago, June 1-2 2017 DNS vs. /etc/hosts • Container will talk to your Connections environment • Hosts entries will work but many customizations are needed • Use DNS and be happy ;-) • Test only: Install bind server and redeploy kube- dns pods

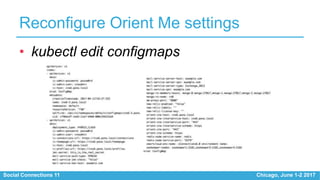

- 24. Social Connections 11Chicago, June 1-2 2017 Reconfigure Orient Me settings • kubectl edit configmaps

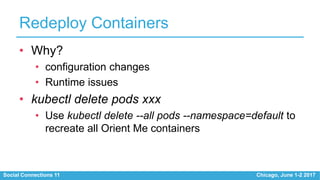

- 25. Social Connections 11Chicago, June 1-2 2017 Redeploy Containers • Why? • configuration changes • Runtime issues • kubectl delete pods xxx • Use kubectl delete --all pods --namespace=default to recreate all Orient Me containers

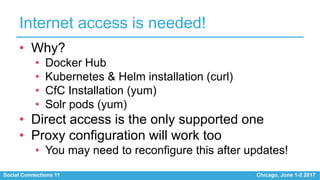

- 26. Social Connections 11Chicago, June 1-2 2017 Internet access is needed! • Why? • Docker Hub • Kubernetes & Helm installation (curl) • CfC Installation (yum) • Solr pods (yum) • Direct access is the only supported one • Proxy configuration will work too • You may need to reconfigure this after updates!

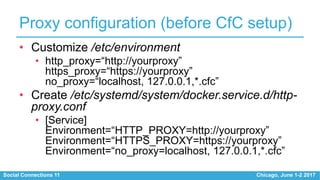

- 27. Social Connections 11Chicago, June 1-2 2017 Proxy configuration (before CfC setup) • Customize /etc/environment • http_proxy=“http://yourproxy” https_proxy=“https://yourproxy” no_proxy=“localhost, 127.0.0.1,*.cfc” • Create /etc/systemd/system/docker.service.d/http- proxy.conf • [Service] Environment=“HTTP_PROXY=http://yourproxy” Environment=“HTTPS_PROXY=https://yourproxy” Environment=“no_proxy=localhost, 127.0.0.1,*.cfc”

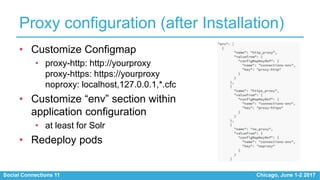

- 28. Social Connections 11Chicago, June 1-2 2017 Proxy configuration (after Installation) • Customize Configmap • proxy-http: http://yourproxy proxy-https: https://yourproxy noproxy: localhost,127.0.0.1,*.cfc • Customize “env” section within application configuration • at least for Solr • Redeploy pods
- 29. Social Connections 11Chicago, June 1-2 2017 footer.jsp • will not be loaded on Orient Me • Move your customizations into header.sjp • Touchpoint • Piwik • …
- 30. Social Connections 11Chicago, June 1-2 2017 Changing the admin user password 1. Change password using CfC UI 2. Login to local Docker registry • docker login master.cfc:8500 3. Recreate secrets • kubectl delete secret myregkey • kubectl create secret docker-registry myregkey --docker- server=https://master.cfc:8500 --docker- username=admin --docker-password=<yourpsw> -- docker-email=connections@us.ibm.com

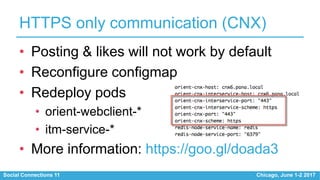

- 31. Social Connections 11Chicago, June 1-2 2017 HTTPS only communication (CNX) • Posting & likes will not work by default • Reconfigure configmap • Redeploy pods • orient-webclient-* • itm-service-* • More information: https://goo.gl/doada3

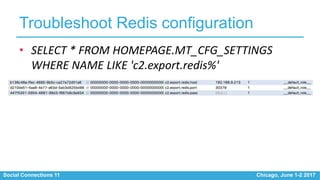

- 32. Social Connections 11Chicago, June 1-2 2017 Troubleshoot Redis configuration • SELECT * FROM HOMEPAGE.MT_CFG_SETTINGS WHERE NAME LIKE 'c2.export.redis%'

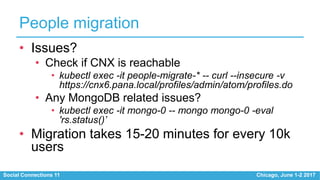

- 33. Social Connections 11Chicago, June 1-2 2017 People migration • Issues? • Check if CNX is reachable • kubectl exec -it people-migrate-* -- curl --insecure -v https://cnx6.pana.local/profiles/admin/atom/profiles.do • Any MongoDB related issues? • kubectl exec -it mongo-0 -- mongo mongo-0 -eval 'rs.status()’ • Migration takes 15-20 minutes for every 10k users

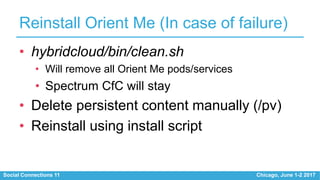

- 34. Social Connections 11Chicago, June 1-2 2017 Reinstall Orient Me (In case of failure) • hybridcloud/bin/clean.sh • Will remove all Orient Me pods/services • Spectrum CfC will stay • Delete persistent content manually (/pv) • Reinstall using install script

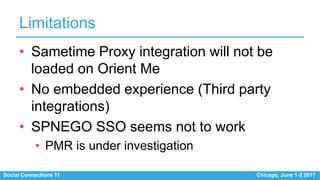

- 35. Social Connections 11Chicago, June 1-2 2017 Limitations • Sametime Proxy integration will not be loaded on Orient Me • No embedded experience (Third party integrations) • SPNEGO SSO seems not to work • PMR is under investigation

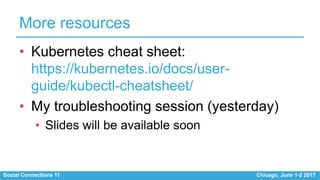

- 36. Social Connections 11Chicago, June 1-2 2017 More resources • Kubernetes cheat sheet: https://kubernetes.io/docs/user- guide/kubectl-cheatsheet/ • My troubleshooting session (yesterday) • Slides will be available soon

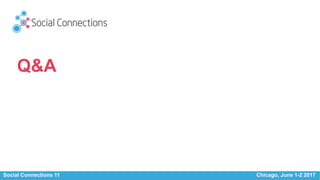

- 37. Social Connections 11Chicago, June 1-2 2017 Q&A
- 39.
Editor's Notes
- #7 Ship, micro services, isolated containers, more efficient resources usage From a development toolset to a production solution
- #8 hardware virtualization vs. operating-system-level virtualization. OS resources will be shared. Only binaries/libraries, app itself are part of the container
- #9 isolated CPU, memory, I/O, and network resources
- #11 Etcd = With etcd you can easily manage cluster coordination and state management
- #14 Apache ZooKeeper enables highly reliable distributed coordination of group services used by an application. MongoDB is an open-source database that uses a document-oriented rather than relational data model. Redis is an open source (BSD licensed), in-memory data structure store, used as a database, cache and message broker. Solr provides distributed indexing, replication and load-balanced querying, automated failover and recovery, and centralized configuration.
- #18 ProxyRequest Off
