Uploaded byBret McGowen - NYC Google Developer Advocate
Where should I run my code? Serverless, Containers, Virtual Machines and more
The document discusses various cloud computing options including serverless, containers, and virtual machines, highlighting Google's offerings such as Compute Engine, App Engine, Kubernetes Engine, and Cloud Functions. It emphasizes the importance of choosing the right infrastructure based on application needs, team structure, and scalability requirements. Additionally, the document provides insights into the distinctions between managing applications within virtual machines versus utilizing container orchestration with Kubernetes and serverless paradigms.
More Related Content
Similar to Where should I run my code? Serverless, Containers, Virtual Machines and more
![[Mobi] Kubernetes: Up & Running](https://cdn.slidesharecdn.com/ss_thumbnails/kubernetes-up-running-191215233517-thumbnail.jpg?width=640&height=640&fit=bounds)
Where should I run my code? Serverless, Containers, Virtual Machines and more
- 1. @BretMcG Bret McGowen Google Developer Advocate @BretMcG Whereto run your code in the cloud Serverless, containers, or virtual machines

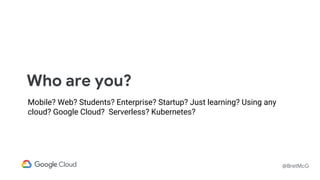

- 2. @BretMcG Who are you? Mobile?Web? Students? Enterprise? Startup? Just learning? Using any cloud? Google Cloud? Serverless? Kubernetes?
- 3. @BretMcG Virtual machines Containers &Kubernetes Platform as a Service Serverless Functions
- 4.
- 5. @BretMcG Quiz time! Cloud Functions AppEngine Kubernetes Engine (GKE) Compute Engine

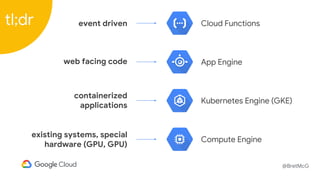

- 6. @BretMcG Cloud Functions App Engine KubernetesEngine (GKE) Compute Engine event driven web facing code containerized applications existing systems, special hardware (GPU, GPU) tl;dr
- 7.
- 8.
- 9. @BretMcG @BretMcG Virtual Machine OS Application Runtime Application Hardware Dedicated Server OS Application Runtime Application Hardware Containers OS Application Runtime Application Hardware FunctionsFunctions Functions Application Platform OS Application Runtime Application Hardware Functions Serverless OS Application Runtime Application Hardware Functions Infrastructure Container Platform Function Compute Engine Kubernetes Engine App Engine Cloud Functions On-Premises Highly customizable Highly managed
- 10. @BretMcG Don't stress about the"wrong" decision

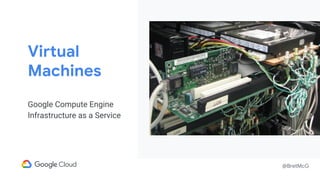

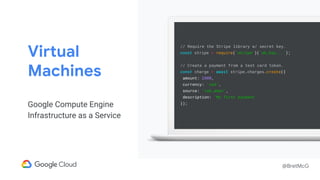

- 11. @BretMcG Virtual Machines Google Compute Engine Infrastructureas a Service // Require the Stripe library w/ secret key. const stripe = require('stripe')('sk_key...'); // Create a payment from a test card token. const charge = await stripe.charges.create({ amount: 2000, currency: 'usd', source: 'tok_amex', description: 'My first payment' });
- 12.
- 13. @BretMcG @BretMcG Dedicated Server OS Application Runtime Application Hardware Containers OS Application Runtime Application Hardware Functions Functions ApplicationPlatform OS Application Runtime Application Hardware Functions Serverless OS Application Runtime Application Hardware Functions Container Platform Function Kubernetes Engine App Engine Cloud Functions On-Premises Virtual Machine OS Application Runtime Application Hardware Functions Infrastructure Compute Engine Highly customizable Highly managed
- 14. @BretMcG Virtual machines andnetworking ● Per VM max: 160 CPUs, 3,844 GB of RAM, 64 TB of disk, 96 GPUs, TPUs ● Independently configurable, including disk! ● Sole tenant nodes Start quickly, ~20 seconds to user code running Pre-built images, or create your own ● Debian, CentOS, CoreOS, Ubuntu, RHEL, SUSE ● Windows Server Datacenter: 2008, 2012 R2, 2016 What is Compute Engine? Run your software

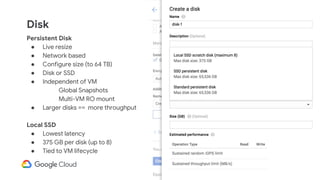

- 15. @BretMcG Disk Persistent Disk ● Liveresize ● Network based ● Configure size (to 64 TB) ● Disk or SSD ● Independent of VM Global Snapshots Multi-VM RO mount ● Larger disks == more throughput Local SSD ● Lowest latency ● 375 GB per disk (up to 8) ● Tied to VM lifecycle
- 16. @BretMcG More than justvirtual machines Can run Docker containers directly on Container Optimized OS Managed Instance Groups ● template / image based ● autoscaling ● regional groups (multi-zone) ● rolling updates and canaries Load Balancer --> Google Front End, 1M QPS

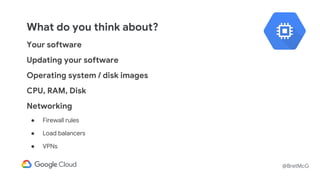

- 17. @BretMcG What do youthink about? Your software Updating your software Operating system / disk images CPU, RAM, Disk Networking ● Firewall rules ● Load balancers ● VPNs

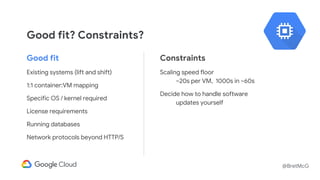

- 18. @BretMcG Good fit? Constraints? Goodfit Existing systems (lift and shift) 1:1 container:VM mapping Specific OS / kernel required License requirements Running databases Network protocols beyond HTTP/S Constraints Scaling speed floor ~20s per VM, 1000s in ~60s Decide how to handle software updates yourself
- 19.
- 20. @BretMcG Why Compute Engine? Consistency- ask for 10 VMs, you get 10 good VMs Custom VMs - choose RAM and CPU, GPUs Live disk resize - also any size disk on any machine Billing - Sustained use discounts, preemptible VMs, per minute billing Live migrations - your VMs stay up longer Architecture - good fit for most existing systems BTW, we run services on GCE, too.
- 21.
- 22.
- 23. @BretMcG Hello world! Hello world! Hello world! Hello world!Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Image byConnie Zhou Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Hello world! Google Kubernetes Engine (GKE) Managed Kubernetes or Containers as a Service
- 24. @BretMcG @BretMcG Dedicated Server OS Application Runtime Application Hardware Functions Application Platform OS Application Runtime Application Hardware Functions Serverless OS Application Runtime Application Hardware Functions PlatformFunction App Engine Cloud Functions On-Premises Virtual Machine OS Application Runtime Application Hardware Functions Infrastructure Compute Engine Containers OS Application Runtime Application Hardware Functions Container Kubernetes Engine Highly customizable Highly managed
- 25.

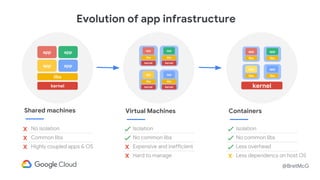

- 26. @BretMcG kernel libs app app app app Shared machines x x x Noisolation Common libs Highly coupled apps & OS x libs app kernel libs app libs app libs app Containers Isolation No common libs Less overhead Less dependency on host OS Evolution of app infrastructure x x app libs kernel libs app app kernel app libs libs kernel kernel Virtual Machines Isolation No common libs Expensive and inefficient Hard to manage

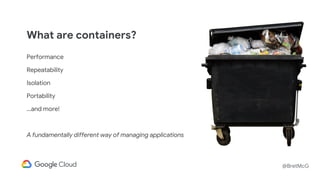

- 27. @BretMcG What are containers? Performance Repeatability Isolation Portability ...andmore! A fundamentally different way of managing applications

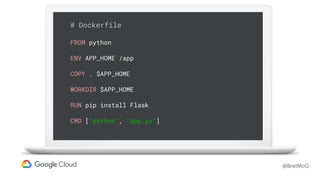

- 28. @BretMcG # Dockerfile FROM python ENVAPP_HOME /app COPY . $APP_HOME WORKDIR $APP_HOME RUN pip install Flask CMD ["python", "app.py"]

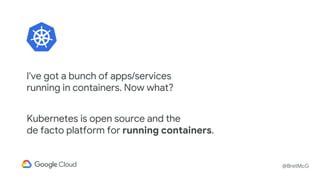

- 29. @BretMcG I've got abunch of apps/services running in containers. Now what? Kubernetes is open source and the de facto platform for running containers.

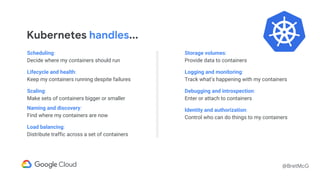

- 30. @BretMcG Kubernetes handles... Scheduling: Decide wheremy containers should run Lifecycle and health: Keep my containers running despite failures Scaling: Make sets of containers bigger or smaller Naming and discovery: Find where my containers are now Load balancing: Distribute traffic across a set of containers Storage volumes: Provide data to containers Logging and monitoring: Track what’s happening with my containers Debugging and introspection: Enter or attach to containers Identity and authorization: Control who can do things to my containers

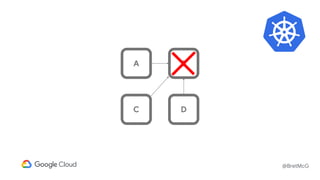

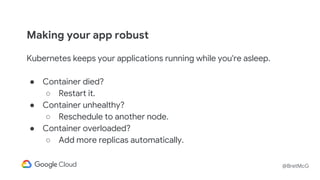

- 31. @BretMcG Making your approbust Kubernetes keeps your applications running while you're asleep. ● Container died? ○ Restart it. ● Container unhealthy? ○ Reschedule to another node. ● Container overloaded? ○ Add more replicas automatically.
- 32.
- 33.
- 34.

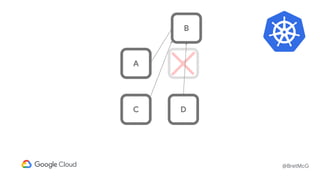

- 35.

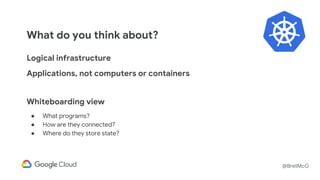

- 36. @BretMcG What do youthink about? Logical infrastructure Applications, not computers or containers Whiteboarding view ● What programs? ● How are they connected? ● Where do they store state?

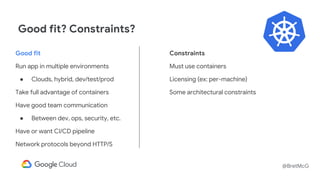

- 37. @BretMcG Good fit? Constraints? Goodfit Run app in multiple environments ● Clouds, hybrid, dev/test/prod Take full advantage of containers Have good team communication ● Between dev, ops, security, etc. Have or want CI/CD pipeline Network protocols beyond HTTP/S Constraints Must use containers Licensing (ex: per-machine) Some architectural constraints
- 38.
- 39.

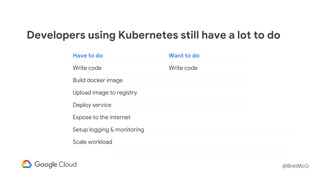

- 40. @BretMcG Developers using Kubernetesstill have a lot to do Have to do Write code Build docker image Upload image to registry Deploy service Expose to the internet Setup logging & monitoring Scale workload Want to do Write code

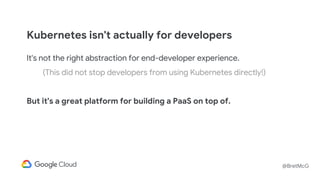

- 41. @BretMcG It's not theright abstraction for end-developer experience. (This did not stop developers from using Kubernetes directly!) But it's a great platform for building a PaaS on top of. Kubernetes isn't actually for developers
- 42.

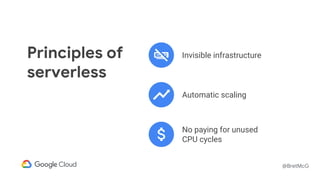

- 43. @BretMcG Principles of serverless Invisible infrastructure Automaticscaling No paying for unused CPU cycles

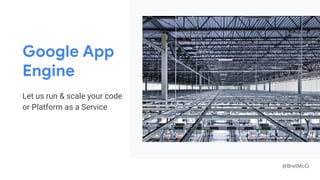

- 44. @BretMcG Google App Engine Let usrun & scale your code or Platform as a Service

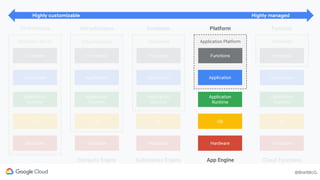

- 45. @BretMcG @BretMcG Dedicated Server OS Application Runtime Application Hardware Functions Serverless OS Application Runtime Application Hardware Functions Function Cloud Functions On-Premises VirtualMachine OS Application Runtime Application Hardware Functions Infrastructure Compute Engine Containers OS Application Runtime Application Hardware Functions Container Kubernetes Engine Application Platform OS Application Runtime Application Hardware Functions Platform App Engine Highly customizable Highly managed

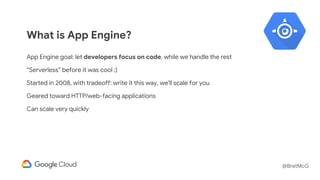

- 46. @BretMcG What is AppEngine? App Engine goal: let developers focus on code, while we handle the rest “Serverless” before it was cool ;) Started in 2008, with tradeoff: write it this way, we'll scale for you Geared toward HTTP/web-facing applications Can scale very quickly

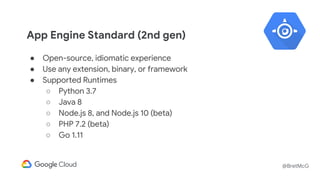

- 47. @BretMcG App Engine Standard(2nd gen) ● Open-source, idiomatic experience ● Use any extension, binary, or framework ● Supported Runtimes ○ Python 3.7 ○ Java 8 ○ Node.js 8, and Node.js 10 (beta) ○ PHP 7.2 (beta) ○ Go 1.11
- 48. @BretMcG App Engine Standard (2ndgen) ● Open-source, idiomatic experience ● Use any extension, binary, or framework ● Supported Runtimes ○ Python 3.7 ○ Java 8 ○ Node.js 8, and Node.js 10 (beta) ○ PHP 7.2 (beta) ○ Go 1.11 App Engine Flexible ● Runs Docker containers ● Open source runtimes for Node.js, Ruby, Java, Python, Go, PHP, .NET ● Also, if it runs in a Docker container, you can run it ← nearly everything
- 49. @BretMcG App Engine runtimes StandardStandard 2nd generation (soon!) Flexible Python 2.X, Java, PHP, Go Node.js 8 & 10, Python 3.7, Go 1.11, PHP 7.2, Node.js, Ruby, Java, Python, Go, PHP, .NET & custom container images Sandboxed processes Runs on managed VMs GAE specific APIs + GCP APIs Use GCP APIs directly No binary modules/libraries any extension, binary, or framework open-source, idiomatic experience

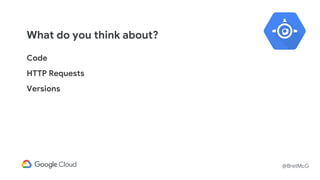

- 50. @BretMcG What do youthink about? Code HTTP Requests Versions

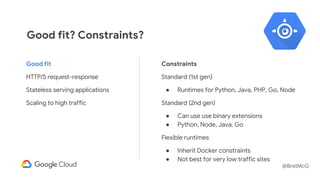

- 51. @BretMcG Good fit? Constraints? Goodfit HTTP/S request-response Stateless serving applications Scaling to high traffic Constraints Standard (1st gen) ● Runtimes for Python, Java, PHP, Go, Node Standard (2nd gen) ● Can use use binary extensions ● Python, Node, Java, Go Flexible runtimes ● Inherit Docker constraints ● Not best for very low traffic sites

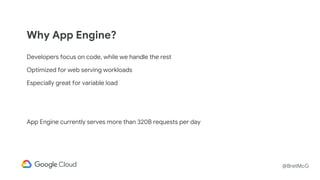

- 52. @BretMcG Why App Engine? Developersfocus on code, while we handle the rest Optimized for web serving workloads Especially great for variable load App Engine currently serves more than 320B requests per day

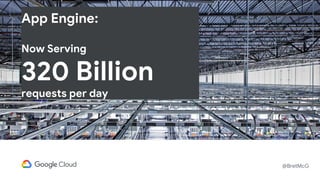

- 53. @BretMcG App Engine: Now Serving 320Billion requests per day
- 54.
- 55.
- 56.
- 57. @BretMcG @BretMcG Dedicated Server OS Application Runtime Application Hardware Functions On-Premises Virtual Machine OS Application Runtime Application Hardware Functions Infrastructure ComputeEngine Containers OS Application Runtime Application Hardware Functions Container Kubernetes Engine Application Platform OS Application Runtime Application Hardware Functions Platform App Engine Serverless OS Application Runtime Application Hardware Functions Function Cloud Functions Highly customizable Highly managed

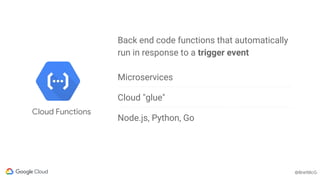

- 58. @BretMcG @BretMcG Back end codefunctions that automatically run in response to a trigger event Microservices Cloud "glue" Node.js, Python, Go Cloud Functions
- 59. @BretMcG @BretMcG Cloud Function eventtriggers Cloud storage (incl. Firebase) Cloud Pub/Sub HTTPS Firebase realtime database & the new Firestore database Firebase authentication Google analytics for Firebase Firebase hosting Firebase Crashlytics

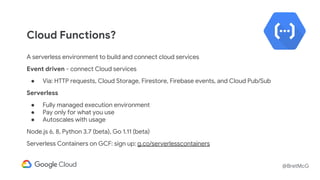

- 60. @BretMcG Cloud Functions? A serverlessenvironment to build and connect cloud services Event driven - connect Cloud services ● Via: HTTP requests, Cloud Storage, Firestore, Firebase events, and Cloud Pub/Sub Serverless ● Fully managed execution environment ● Pay only for what you use ● Autoscales with usage Node.js 6, 8, Python 3.7 (beta), Go 1.11 (beta) Serverless Containers on GCF: sign up: g.co/serverlesscontainers
- 61. @BretMcG What do youthink about? Events Function definitions
- 62. @BretMcG Good fit? Constraints? Goodfit “Serverless” Using Pub/Sub and/or Cloud Storage Don't want to think about runtime env Data transformations (ETL) Cloud-based HTTP glue Constraints Two runtimes today: JS on Node.js and Python Function level granularity Must interact via events

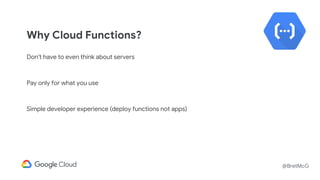

- 63. @BretMcG Why Cloud Functions? Don'thave to even think about servers Pay only for what you use Simple developer experience (deploy functions not apps)
- 64.

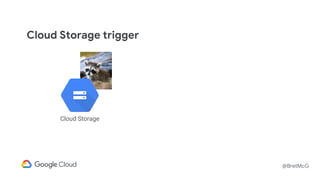

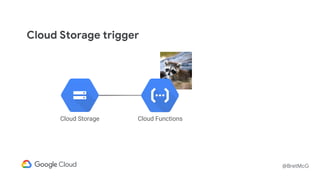

- 65. @BretMcG Cloud Storage CloudFunctions Cloud Storage trigger

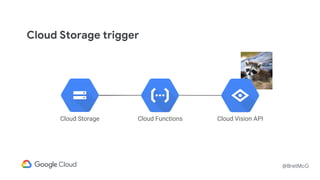

- 66. @BretMcG Cloud Storage CloudFunctions Cloud Vision API Cloud Storage trigger

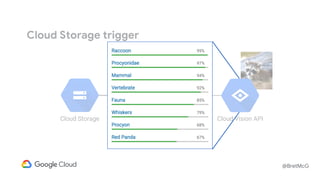

- 67. @BretMcG Cloud Storage CloudFunctions Cloud Vision API Cloud Storage trigger
- 68.
- 69.

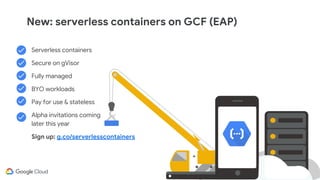

- 70. @BretMcG @BretMcG Serverless containers Secure ongVisor Fully managed BYO workloads Pay for use & stateless Alpha invitations coming later this year Sign up: g.co/serverlesscontainers New: serverless containers on GCF (EAP)
- 71.
- 72.
- 73.
- 74. @BretMcG Where should Irun my code?
- 75.

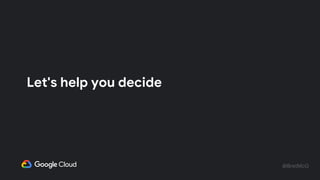

- 76. @BretMcG Let's help youdecide

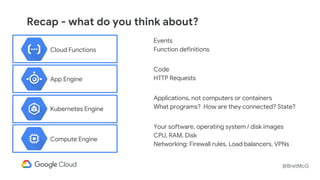

- 77. @BretMcG Recap - whatdo you think about? Events Function definitions Code HTTP Requests Applications, not computers or containers What programs? How are they connected? State? Your software, operating system / disk images CPU, RAM, Disk Networking: Firewall rules, Load balancers, VPNs Cloud Functions App Engine Kubernetes Engine Compute Engine

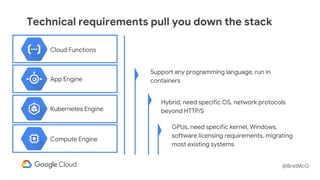

- 78. @BretMcG Technical requirements pullyou down the stack GPUs, need specific kernel, Windows, software licensing requirements, migrating most existing systems Hybrid, need specific OS, network protocols beyond HTTP/S Support any programming language, run in containers Cloud Functions App Engine Kubernetes Engine Compute Engine

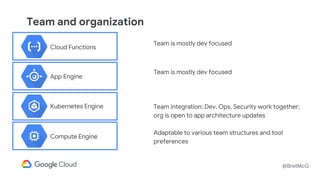

- 79. @BretMcG Team and organization Teamis mostly dev focused Team is mostly dev focused Team integration: Dev, Ops, Security work together; org is open to app architecture updates Adaptable to various team structures and tool preferences Cloud Functions App Engine Kubernetes Engine Compute Engine

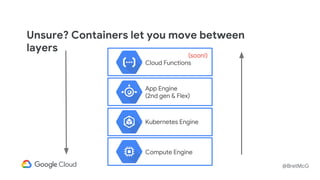

- 80. @BretMcG Unsure? Containers letyou move between layers Cloud Functions App Engine (2nd gen & Flex) Kubernetes Engine Compute Engine (soon!)
- 81. @BretMcG Most systems usemultiple services
- 82.
- 83.
- 84. @BretMcG Kubernetes vs CloudFunctions

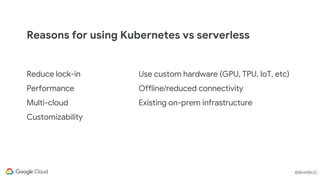

- 85. @BretMcG @BretMcG Reasons for usingKubernetes vs serverless Reduce lock-in Performance Multi-cloud Customizability Use custom hardware (GPU, TPU, IoT, etc) Offline/reduced connectivity Existing on-prem infrastructure
- 86. @BretMcG App Engine vsCloud Functions

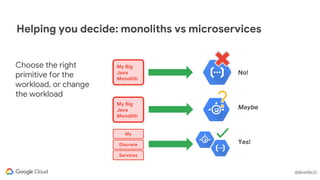

- 87. @BretMcG @BretMcG Helping you decide:monoliths vs microservices Choose the right primitive for the workload, or change the workload My Big Java Monolith My Big Java Monolith No! Maybe My Discrete Services Yes! ✓

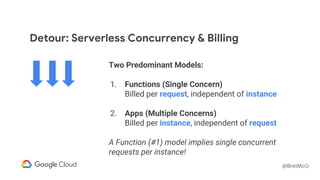

- 88. @BretMcG Detour: Serverless Concurrency& Billing Two Predominant Models: 1. Functions (Single Concern) Billed per request, independent of instance 2. Apps (Multiple Concerns) Billed per instance, independent of request A Function (#1) model implies single concurrent requests per instance!

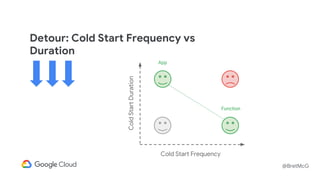

- 89. @BretMcG Detour: Cold StartFrequency vs Duration ColdStartDuration Cold Start Frequency App Function
- 90. @BretMcG Detour: Single vsMulti-purpose App Function Multi Purpose Some Shared State Multi-concurrent Single Purpose No Shared State Single-concurrent

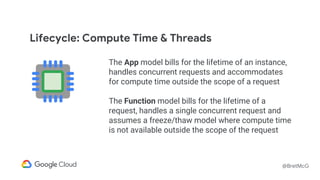

- 91. @BretMcG Lifecycle: Compute Time& Threads The App model bills for the lifetime of an instance, handles concurrent requests and accommodates for compute time outside the scope of a request The Function model bills for the lifetime of a request, handles a single concurrent request and assumes a freeze/thaw model where compute time is not available outside the scope of the request
- 92. @BretMcG Why not addone more option?
- 93. @BretMcG Kubernetes • Powerful • Canbe Scary Serverless • Higher-level abstraction • Similar in concept, but a lot friendlier and easier to manage Kubernetes and Serverless

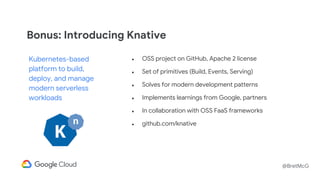

- 94. @BretMcG ● OSS projecton GitHub, Apache 2 license ● Set of primitives (Build, Events, Serving) ● Solves for modern development patterns ● Implements learnings from Google, partners ● In collaboration with OSS FaaS frameworks ● github.com/knative Kubernetes-based platform to build, deploy, and manage modern serverless workloads Bonus: Introducing Knative

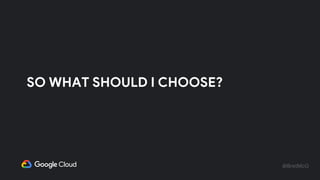

- 95. @BretMcG SO WHAT SHOULDI CHOOSE?

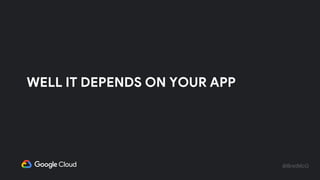

- 96. @BretMcG WELL IT DEPENDSON YOUR APP
- 97.
- 98.

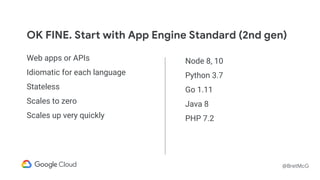

- 99. @BretMcG OK FINE. Startwith App Engine Standard (2nd gen) Web apps or APIs Idiomatic for each language Stateless Scales to zero Scales up very quickly Node 8, 10 Python 3.7 Go 1.11 Java 8 PHP 7.2
- 100.
