This session will focus on the practicals of building a fully-functional stack of container cluster tools, with different options for stacking those tools from the OS-up. We’ve all seen examples of common technologies stacks, like the good ol’ LAMP and MEAN stacks for apps, but what about lower-level infrastructure? And can we get it without cloud vendor lock in please? Oh and pure containers and infrastructure-as-code too? With Docker, sure thing! This session will cover: Which OS/Distro and Kernel to use VM’s or Bare Metal Recommended Swarm architectures Tool stacks for “pure open source”, “cloud-service based”, and “Docker EE” scenarios Demos of these tools working together including InfraKit, Docker, Swarm, Flow-Proxy, ELK, Prometheus, REX-Ray, and more.

1. BRET FISHER
Docker Captain, DevOps Dude,
Author of Docker Mastery
Building Your Docker Tech Stack
bretfisher.com/dockercon18
@bretfisher

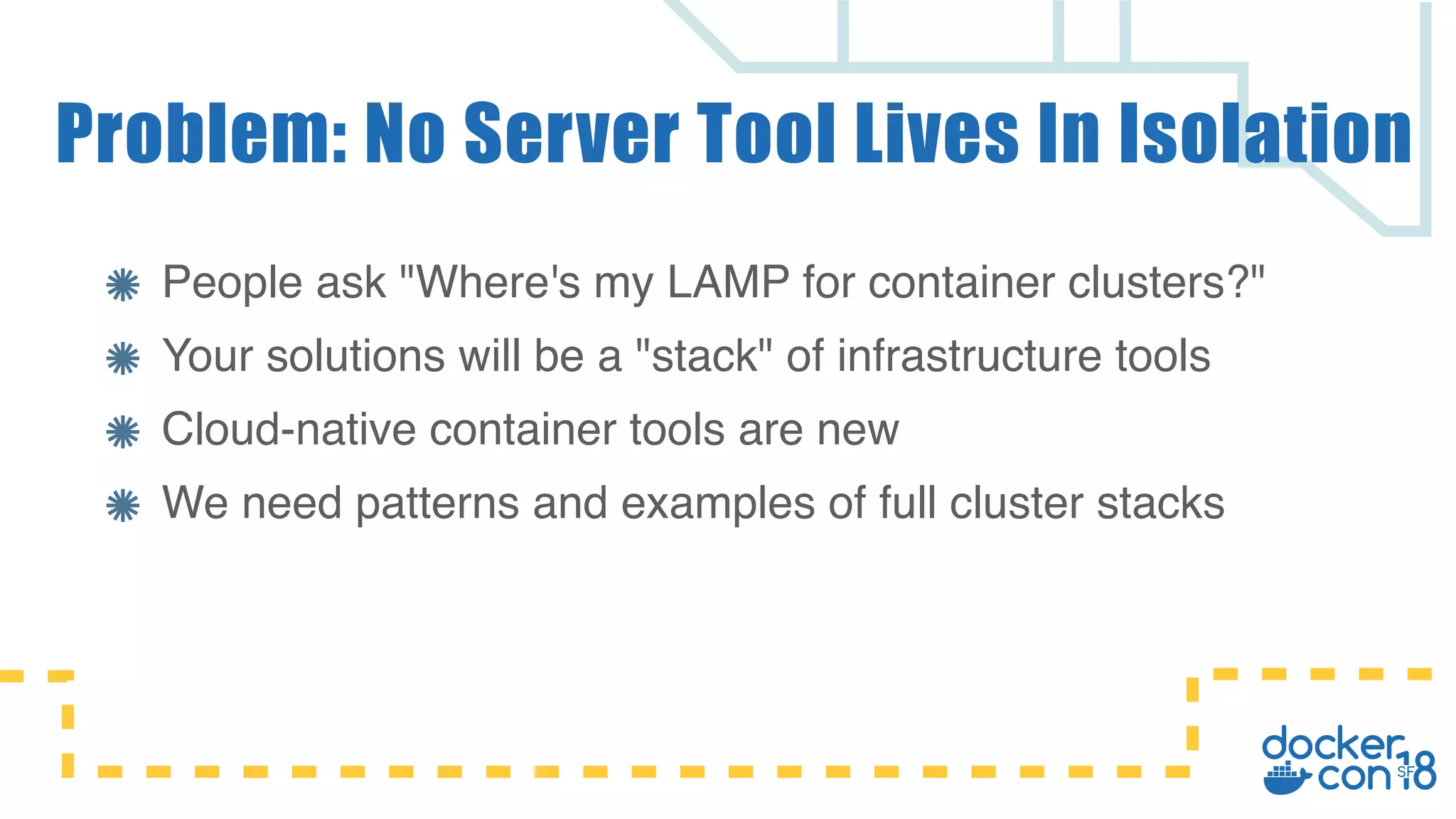

2. People ask "Where's my LAMP for container clusters?"
Your solutions will be a "stack" of infrastructure tools
Cloud-native container tools are new
We need patterns and examples of full cluster stacks
Problem: No Server Tool Lives In Isolation

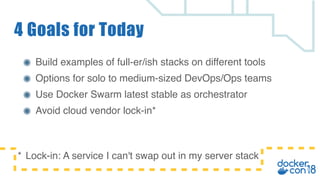

3. Build examples of full-er/ish stacks on different tools
Options for solo to medium-sized DevOps/Ops teams
Use Docker Swarm latest stable as orchestrator
Avoid cloud vendor lock-in*
4 Goals for Today
* Lock-in: A service I can't swap out in my server stack

4. Limit "going production Docker" project scope. Go Lean!
Focus first on quality Dockerfiles
Stay on your familiar host OS with 4.x Kernel
Use base images of familiar OS (keep same pkg mgr)
Swarm CE can be 1 or more nodes, use it everywhere
Swarm EE is your "easy button" for security and ops
Last Time On Bret's DockerCon Talk

5. Two Stacks, Same Core
Docker CE Swarm
Used for Dev/Test
Heavy use of OSS/free
Gluttony of choice for 3rd party
Newest engine features
Docker EE Swarm
Used for Staging/Prod
Heavy use of paid support
Use Docker Solution Briefs
Mature engine with hotfixes
++

6. Clusters are Complex
Start small and simple, grow them as you grow

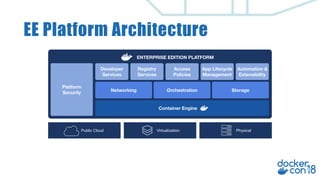

7. EE Platform Architecture
PhysicalVirtualizationPublic Cloud
Platform
Security
Developer
Services
Registry
Services
Access
Policies
App Lifecycle
Management
Automation &
Extensibility
Networking Orchestration Storage
Container Engine
ENTERPRISE EDITION PLATFORM

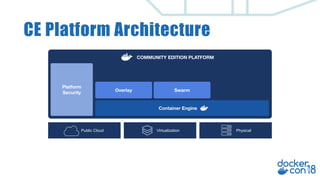

8. CE Platform Architecture
Public Cloud
Overlay Swarm
Container Engine
COMMUNITY EDITION PLATFORM
PhysicalVirtualization
Platform
Security

9. v
Sci-Fi, Am I Right!

10. v
Epic Battle Royale, on Swarm
dogvs.cat
VS

11. v
Epic Battle Royale, on Swarm
dogvs.cat
Sci-Fi Sounds Edition

12. dogvs.cat App Services
www.dogvs.cat vote.dogvs.cat blog.dogvs.catresult.dogvs.cat
(Stack Files)

13. dogvs.cat
Swarm CE,
(Han) Solo Sysadmin
or

14. Cloud agnostic, minimal infra
Apps auto-recover on node fail
Incoming TLS
Centralized logging
Centralized monitoring
Healthcheck all containers
Infra Requirements of dogvs.cat
Performance auto-scaling
Self-healing nodes
Support serverless functions
Services highly available
Han Solo Requirements Optional Requirements for Later

15. Simple Infrastructure, Easy Deployment
"How can I deploy a multi-tier app
on a few servers, with all the bells
and whistles of orchestration with
load balancing and auto recovery?"
Han Solo,
The Sysadmin

16. 3+ Droplets (Ubuntu 16.04)
Block Storage (Volumes)
Load Balancer (incoming HTTP)
Digital Ocean dogvs.cat
Services Needed for High Availability

17. App Services
www.dogvs.cat vote.dogvs.cat blog.dogvs.catresult.dogvs.cat

18. App Services + L7 Proxy
www.dogvs.cat vote.dogvs.cat blog.dogvs.catresult.dogvs.cat

19. App Services + L7 Proxy + Overlay
www.dogvs.cat vote.dogvs.cat blog.dogvs.catresult.dogvs.cat

20. App Services + L7 Proxy + Ops
www.dogvs.cat vote.dogvs.cat blog.dogvs.catresult.dogvs.cat

21. Cluster + External Load Balancer
www.dogvs.cat vote.dogvs.cat blog.dogvs.catresult.dogvs.cat

22. Open Source Stack
Swarm GUI Portainer
Central Monitoring Prometheus + Grafana
Central Logging Elastic ELK
Layer 7 Proxy Traefik + Let's Encrypt
Storage REX-Ray + Digital Ocean Volumes
Networking Docker Swarm Overlay
Orchestration Docker Swarm
Runtime Docker CE
HW / OS Docker Machine + Digital Ocean

23. Deploy Nodes: Docker Machine
./create-servers.sh
./enable-monitoring.sh
./create-swarm.sh

24. Deploy Storage: RexRay Plug-in
docker stack deploy -c stack-rexray.yml rexray

25. Deploy Proxy Stack: Traefik with Let's Encrypt
docker network create --driver overlay proxy
docker stack deploy -c stack-proxy.yml proxy
http://www.dogvs.cat:8080/dashboard/

26. Deploy Ops Stacks:
Prometheus + ELK + Portainer
docker stack deploy -c stack-swarmprom.yml prom
docker stack deploy -c stack-elk.yml elk
docker stack deploy -c stack-portainer.yml portainer

27. Our Apps: Voting + Ghost + Static Site
docker stack deploy -c stack-ghost.yml ghost
docker stack deploy -c stack-voting.yml vote
docker stack deploy -c stack-menu.yml menu

28. Deploy Stacks: Maintenance Tasks
docker stack deploy -c stack-prune.yml prune
backups (in stack file with app)

29. Day Two Operations: Updates
stack deploy ∞
micromanage update_config and healthcheck
tune your limits and reservations

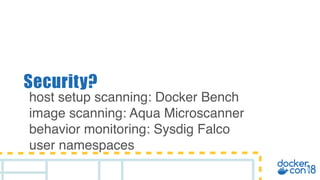

30. Security?
host setup scanning: Docker Bench
image scanning: Aqua Microscanner
behavior monitoring: Sysdig Falco
user namespaces

31. Next Steps
more nodes? make 'em workers
CI/CD stacks: gitlab, jenkins
make redis, mysql, psql HA
add app metrics to Prometheus
swap Overlay for Weave Net
swap ELK for Papertrail, etc.
swap Prometheus for Sysdig,
Datadog, Librato, etc.
add socat proxy to Traefik

32. Swarm EE,
Amazonian DevOps
dogvscat.biz
or

33. Complex Infrastructure, Harder Deployment
"How can I deploy many multi-tier
app on a many servers, with all the
b e l l s a n d w h i s t l e s o f H A
orchestration, have load balancing
at all levels, with failover and
auto recovery?"
Amazonian
Team

34. CE Platform Architecture
PhysicalVirtualizationPublic Cloud
Platform
Security
Networking Orchestration
Container Engine
COMMUNITY EDITION PLATFORM

35. EE Platform Architecture
PhysicalVirtualizationPublic Cloud
Platform
Security
Developer
Services
Registry
Services
Access
Policies
App Lifecycle
Management
Automation &
Extensibility
Networking Orchestration Storage
Container Engine
ENTERPRISE EDITION PLATFORM

36. No More One Size Fits All
Docker for
AWS
Docker for
Azure

37. Docker Certified Infrastructure

38. v
Reference
Architecture
Automation
Tools
Ecosystem
Integration
Docker Certified Infrastructure

39. DCI AWS

40. Docker EE on AWS Stack
Swarm GUI Docker EE UCP
Central Monitoring AWS Cloudwatch + Telegraph
Central Logging AWS Cloudwatch Logs
Registry Docker EE DTR
Layer 7 Proxy HTTP Routing Mesh (Interlock+Nginx)
Storage Docker Cloudstor EBS/EFS
Networking Docker Swarm Overlay
Orchestration Docker Swarm
Runtime Docker EE
HW / OS Terraform + Ansible + AWS

41. Deploy Nodes: Terraform + Ansible
terraform apply
ansible-playbook -i inventory install.yml

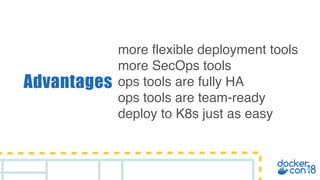

42. Advantages
more flexible deployment tools
more SecOps tools
ops tools are fully HA
ops tools are team-ready
deploy to K8s just as easy

43. Deploy Apps
docker stack deploy -c stack-ghost.yml ghost
docker stack deploy -c stack-voting.yml vote
docker stack deploy -c stack-menu.yml menu

44. Next Steps
All the things in Swarm CE
monitoring via CloudWatch and
Telegraph
logging via CloudWatch Logs

45. Summary
Infrastructure as code, make everything repeatable
No "special" nodes, use remote management
Grow as you go, assume you'll resize
Look for compose files of popular tools to make stacks
Don't throw out the good in search of the perfect

46. I'd like to
thank the
internet

47. Support
the open source
you use

48. PLEASE VOTE SO I WIN ALL
THE DOCKERS FRIDAY!
Thanks! 🤗
bretfisher.com/dockercon18
"Building Your Docker Tech Stack"
