From OverTheWallOps to
DevOps
Using OpenShift for SysOps and Engineering
April 17th, 2019 – DevOpsDays Houston
Shaun Ladewig, Systems Architect
Robert Stone, Advisory Engineering
Endurance International Group
Overview
• Infrastructure (Ops)
• Why OpenShift?
• Parts of OpenShift
• Planning your cluster
• Maintenance
• Troubleshooting Common Issues
• OpenShift Usage (Dev)
• High Level Overview
• How the Pieces Fit Together
• Step by Step
• Components in Depth
• Real World
• Migrating from Existing to “The New Hotness”
Why OpenShift?
• Get Started Fast
• Kubernetes under the hood
• Infrastructure as YAML/JSON
• Ease of Use
• Interfaces
• Tagging
• Containers all the way down
okd.io
Staples
Guillaume Bolduc

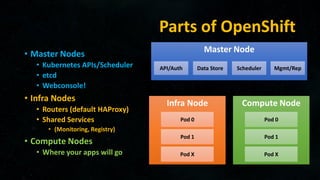

Parts of OpenShift
• Master Nodes
• Kubernetes APIs/Scheduler
• etcd
• Webconsole!
• Infra Nodes
• Routers (default HAProxy)
• Shared Services
• (Monitoring, Registry)
• Compute Nodes
• Where your apps will go
Master Node
Infra Node
API/Auth
Pod 0
Data Store Scheduler Mgmt/Rep
Pod 1
Pod X
Compute Node
Pod 0
Pod 1
Pod X
Planning your 1st Cluster I (on-prem edition)
• OpenShift 3.11
• Operating System
• Nodes
• Hypervisior
• Upfront Considerations
• Consider Carefully!
• Physical Layout
• Mmmmm... compliance
• Network Plugin
• osm_cluster_network_cidr
• Storage
• Type
• Location

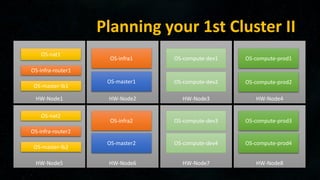

Planning your 1st Cluster II
HW-Node1
OS-nat1
OS-infra-router1
HW-Node2
OS-infra1
OS-master1
HW-Node3 HW-Node4
OS-compute-dev1
OS-compute-dev2
HW-Node5 HW-Node6 HW-Node7 HW-Node8
OS-master2
OS-infra2
OS-nat2
OS-infra-router2
OS-compute-dev3
OS-compute-dev4
OS-compute-prod1
OS-compute-prod2
OS-compute-prod3
OS-compute-prod4
OS-master-lb1
OS-master-lb2
Maintenance
• Cleanup / Pruning
• Registry
• Projects
• Backups
• etcd node
• configs
• Monitoring
• Alerts sent somewhere YOU WILL WATCH!
• Upgrading nodes
• If using ansible, git pull branch, and run upgrade
Troubleshooting Common Issues
• The Events Page
• First place to look
• Cattle not Pets
• If you used atomic, and the node is dead…
• Delete the node, reload, and scale-up
• GlusterFS
High Level Overview
Docker Image
Build Config Build Config
Image Stream Image Stream
Secret Secret
Container Container
Deployment Config
POD
Service
Route

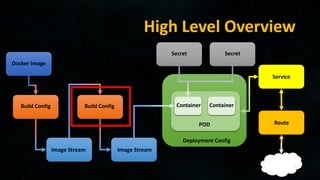

High Level Overview
Docker Image
Build Config Build Config
Image Stream Image Stream
Secret Secret
Container Container
Deployment Config
POD
Service
Route
Docker Image
• What is it?
• The Operating System
• (And sometimes more!)
• Based on an Upstream Image
• Why?
• Upstream Updates
• Security Fixes/Patches
docker.com
Cameron Kirby
High Level Overview
Docker Image
Build Config Build Config
Image Stream Image Stream
Secret Secret
Container Container
Deployment Config
POD
Service
Route
Build Config I – Docker
• Recipes for making an Image
• Docker Build
• Got root?
• Install rpms and other server
applications
• Setting Up the s2i Scripts SOCIAL.CUT
Wikipedia Jenkins.io
High Level Overview
Docker Image
Build Config Build Config
Image Stream Image Stream
Secret Secret
Container Container
Deployment Config
POD
Service
Route
Image Stream I - Builder
• “git” for completed builds
• Collection of builds
• Tagged
• Latest
• Version Numbers
• Watchable
• Trigger downstream events
Viktor Talashuk
High Level Overview
Docker Image
Build Config Build Config
Image Stream Image Stream
Secret Secret
Container Container
Deployment Config
POD
Service
Route
Build Config II – Source
• Source Build
• s2i assemble
• Incorporates Source Code
• Runs as unprivileged user
• “Puts stuff in the right place”
• Produces a runnable image
High Level Overview
Docker Image
Build Config Build Config
Image Stream Image Stream
Secret Secret
Container Container
Deployment Config
POD
Service
Route

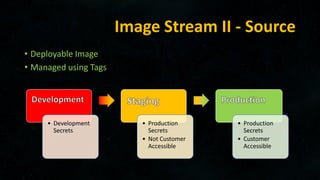

Image Stream II - Source
• Deployable Image
• Managed using Tags
• Development
Secrets
• Production
Secrets
• Not Customer
Accessible
• Production
Secrets
• Customer
Accessible
High Level Overview
Docker Image
Build Config Build Config
Image Stream Image Stream
Secret Secret
Container Container
Deployment Config
POD
Service
Route

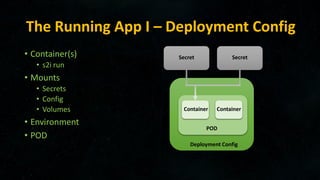

The Running App I – Deployment Config
• Container(s)
• s2i run
• Mounts
• Secrets
• Config
• Volumes
• Environment
• POD
Secret Secret
Container Container
Deployment Config
POD
The Running App II – Deployment Config
• Resource Allocation
• CPU
• Memory
• Health Checks
• Liveness Probe
• Readiness Probe
• Triggerable
• Versioned
High Level Overview
Docker Image
Build Config Build Config
Image Stream Image Stream
Secret Secret
Container Container
Deployment Config
POD
Service
Route
Networking
• Service
• Internal Connectivity
• Internal Load Balancer
• Proxy to Pods
• Route
• External Connectivity
• Exposes a Service
• Via a Hostname
• TLS Termination
Migrating To Container Based
Docker Image
Build Config Build Config
Image Stream Image Stream
Secret Secret
Container Container
Deployment Config
POD
Service
Route
