The document discusses opinionated containers and containerizing game server applications. Containerizing simple applications like TeamSpeak is straightforward, but complex games like Team Fortress 2 pose unique challenges due to requirements for specific configuration files, port mappings, and handling of persisted state. While containerizing opinionated applications is becoming more common, the game server ecosystem presents difficulties around proprietary assets, obscured documentation, and hacker behavior that promote inflexible environments. Standardizing configuration methods and allowing external persisted state could help containerized game servers become more compatible and deployable at scale.

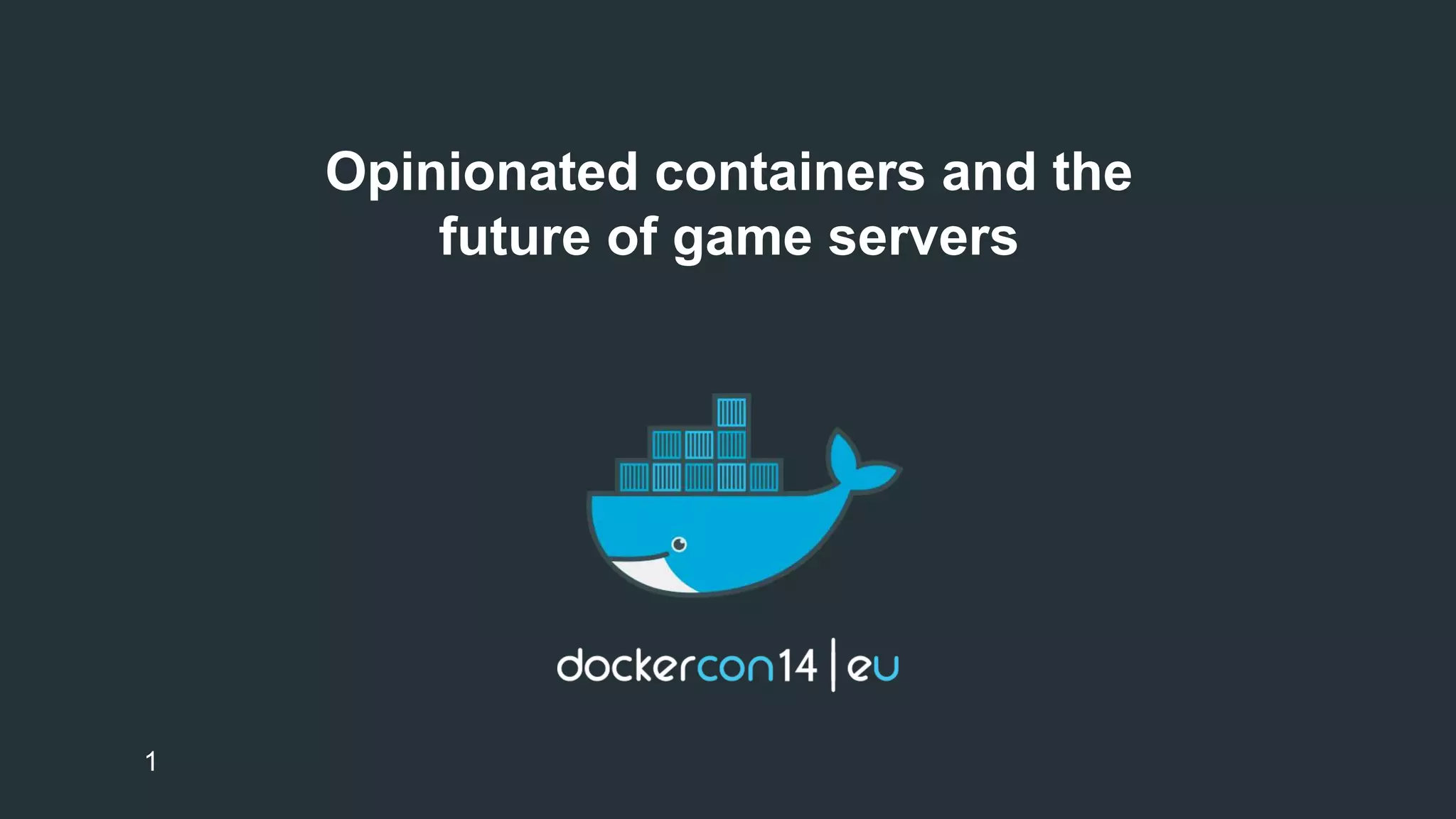

1. Opinionated containers and the
future of game servers
1

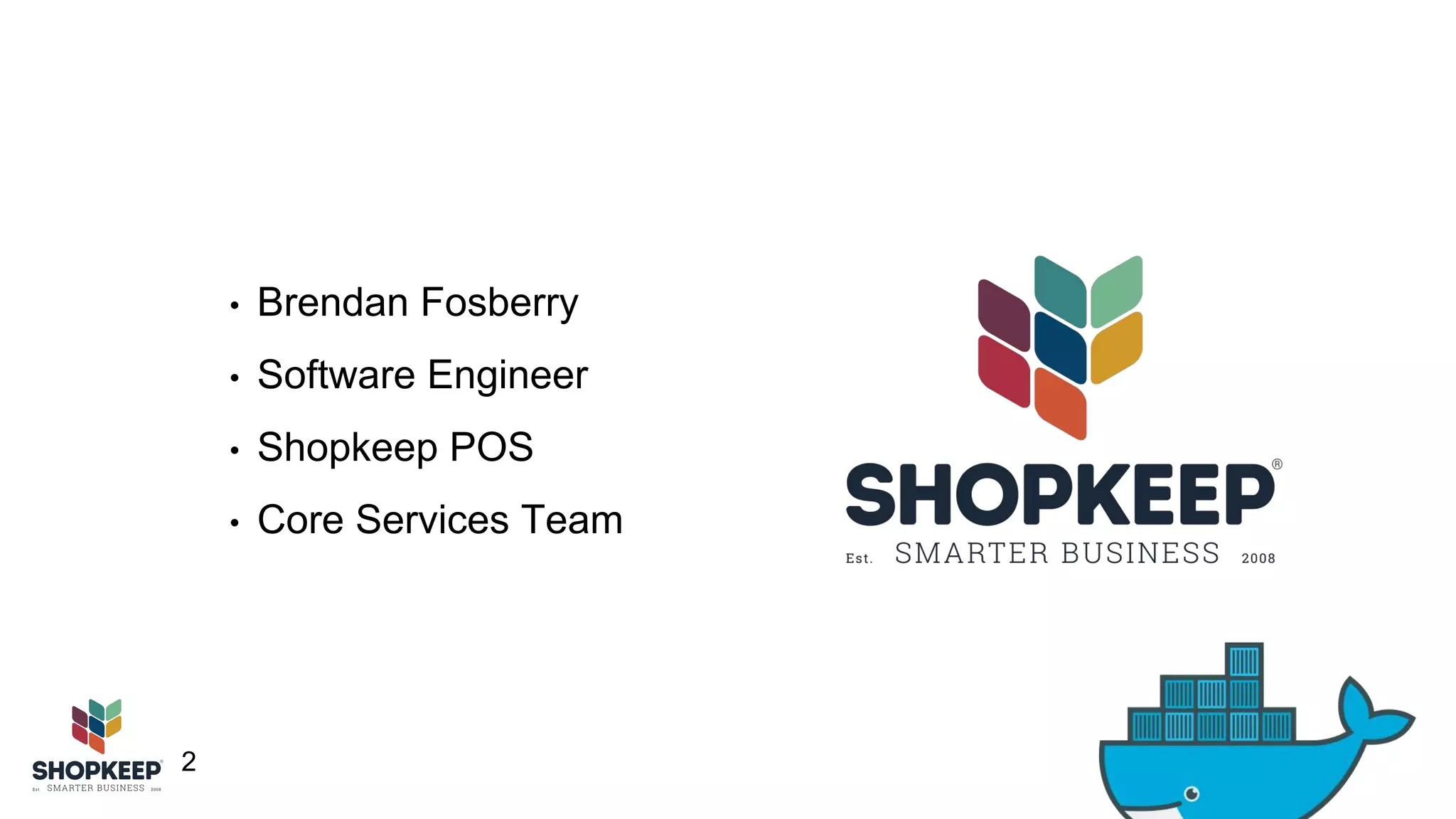

2. 2
• Brendan Fosberry
• Software Engineer
• Shopkeep POS
• Core Services Team

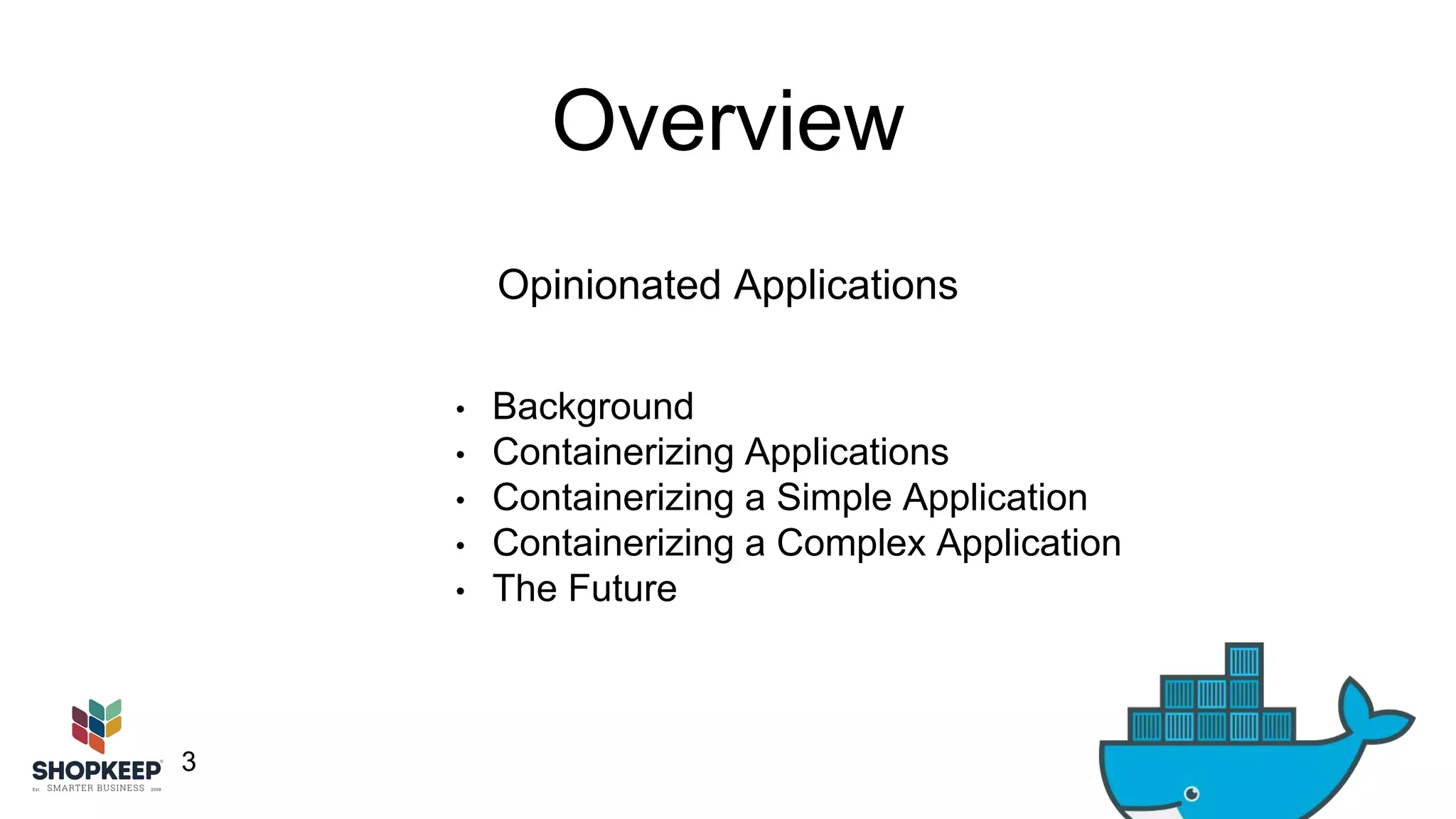

3. 3
Overview
Opinionated Applications
• Background
• Containerizing Applications
• Containerizing a Simple Application
• Containerizing a Complex Application
• The Future

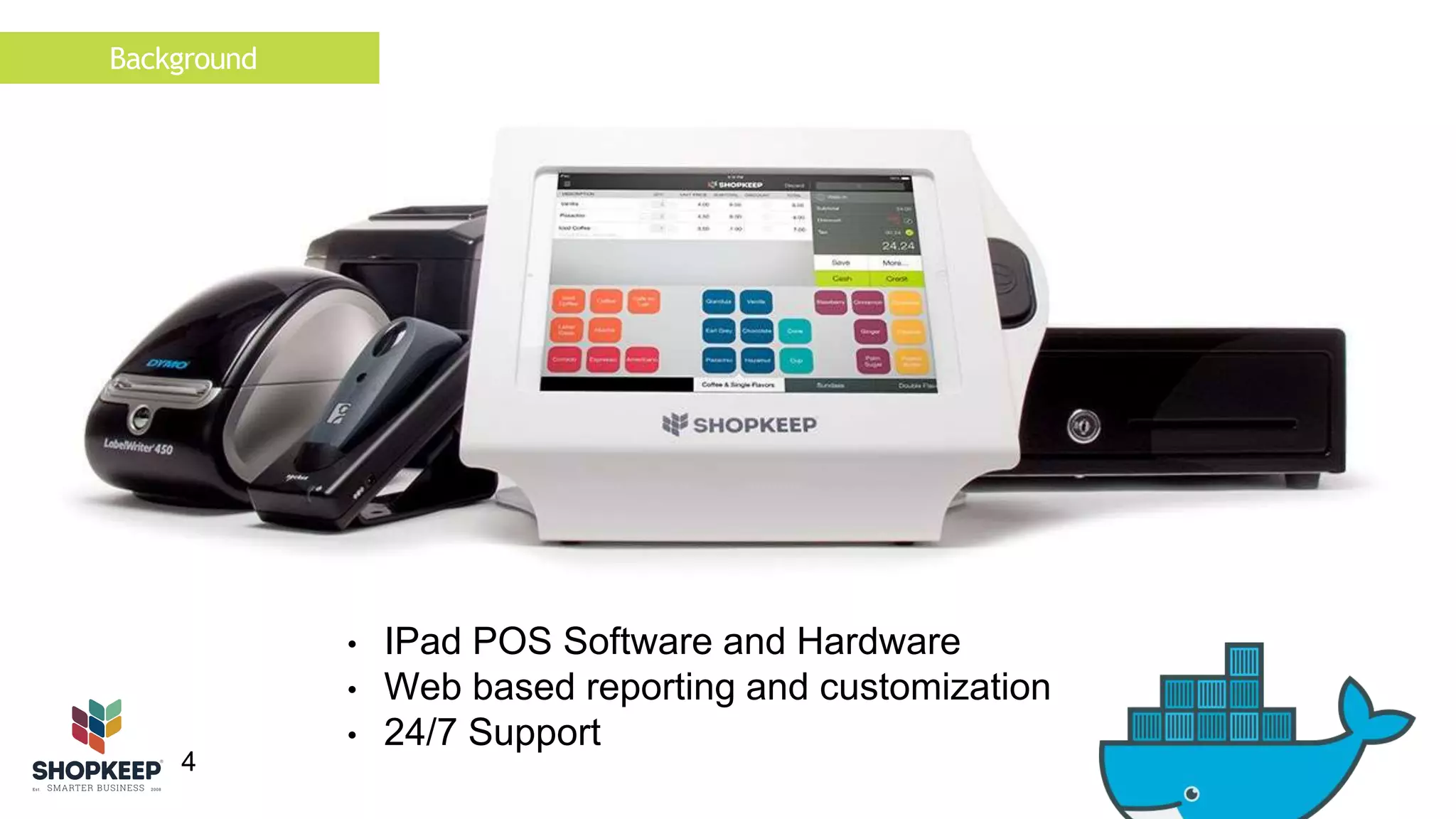

4. 4
• IPad POS Software and Hardware
• Web based reporting and customization
• 24/7 Support
Background

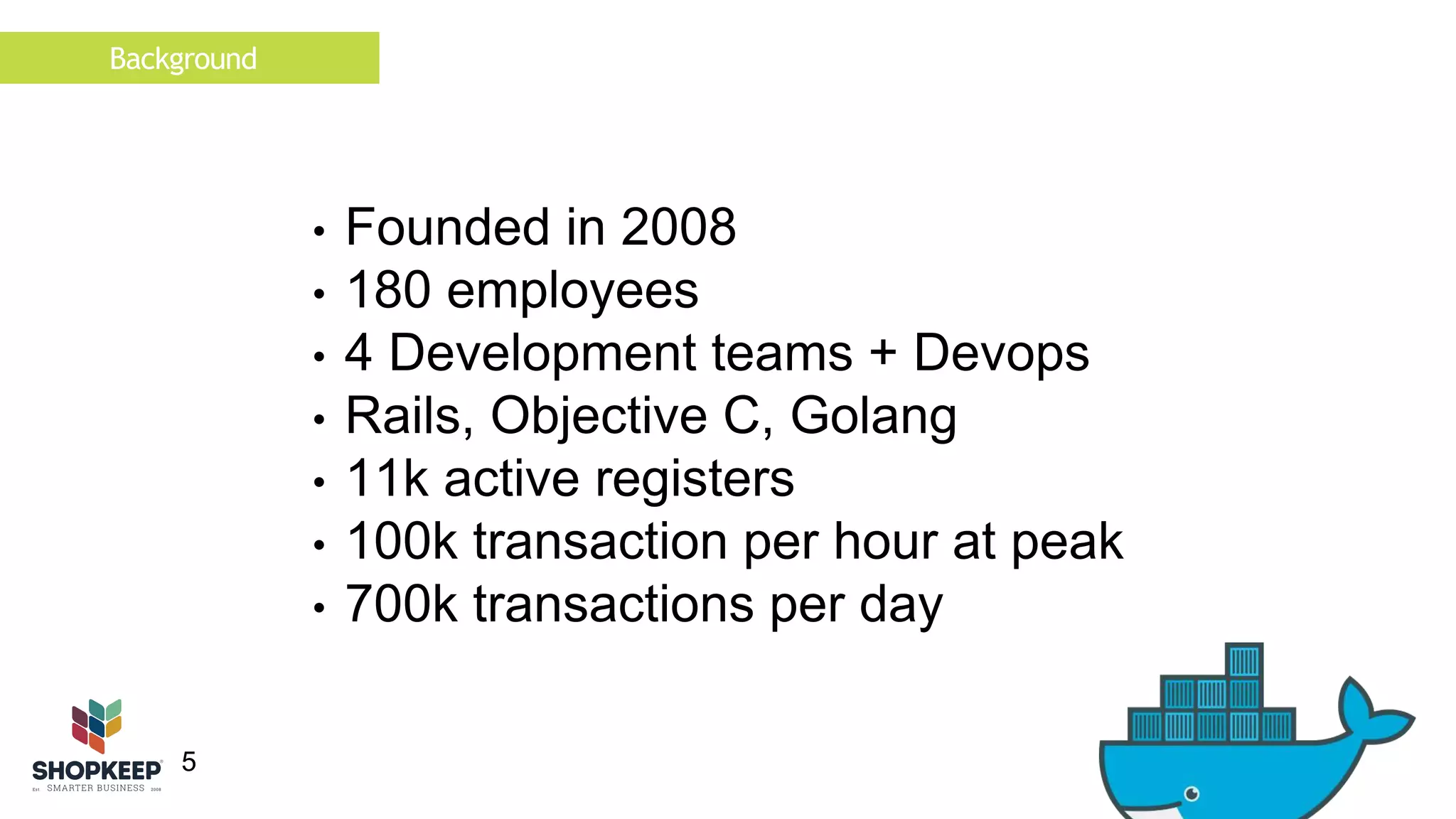

5. Background
5
• Founded in 2008
• 180 employees
• 4 Development teams + Devops
• Rails, Objective C, Golang
• 11k active registers
• 100k transaction per hour at peak
• 700k transactions per day

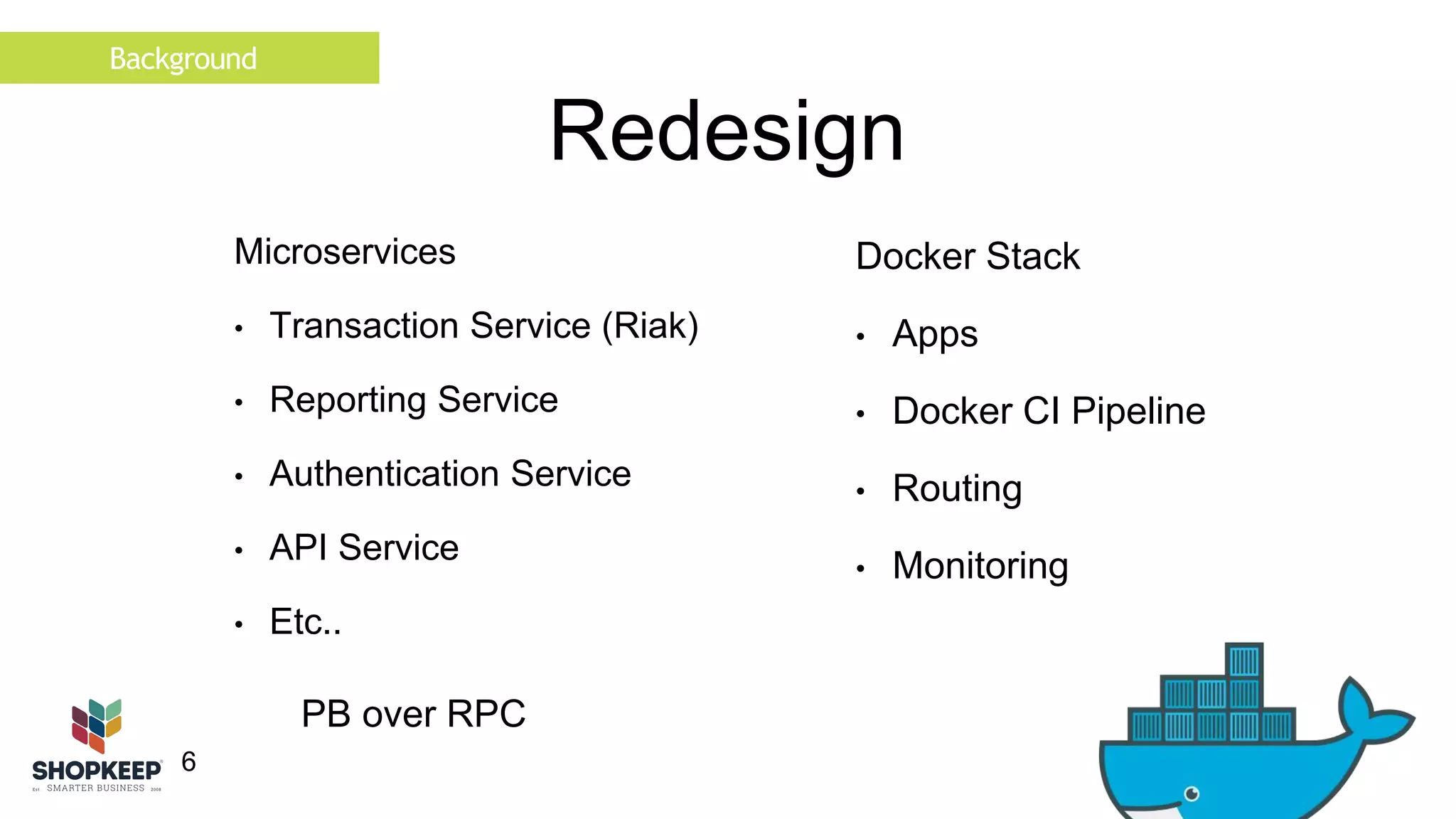

6. Background
6
Redesign
Microservices
• Transaction Service (Riak)
• Reporting Service
• Authentication Service
• API Service
• Etc..
Docker Stack
• Apps
• Docker CI Pipeline
• Routing
• Monitoring
PB over RPC

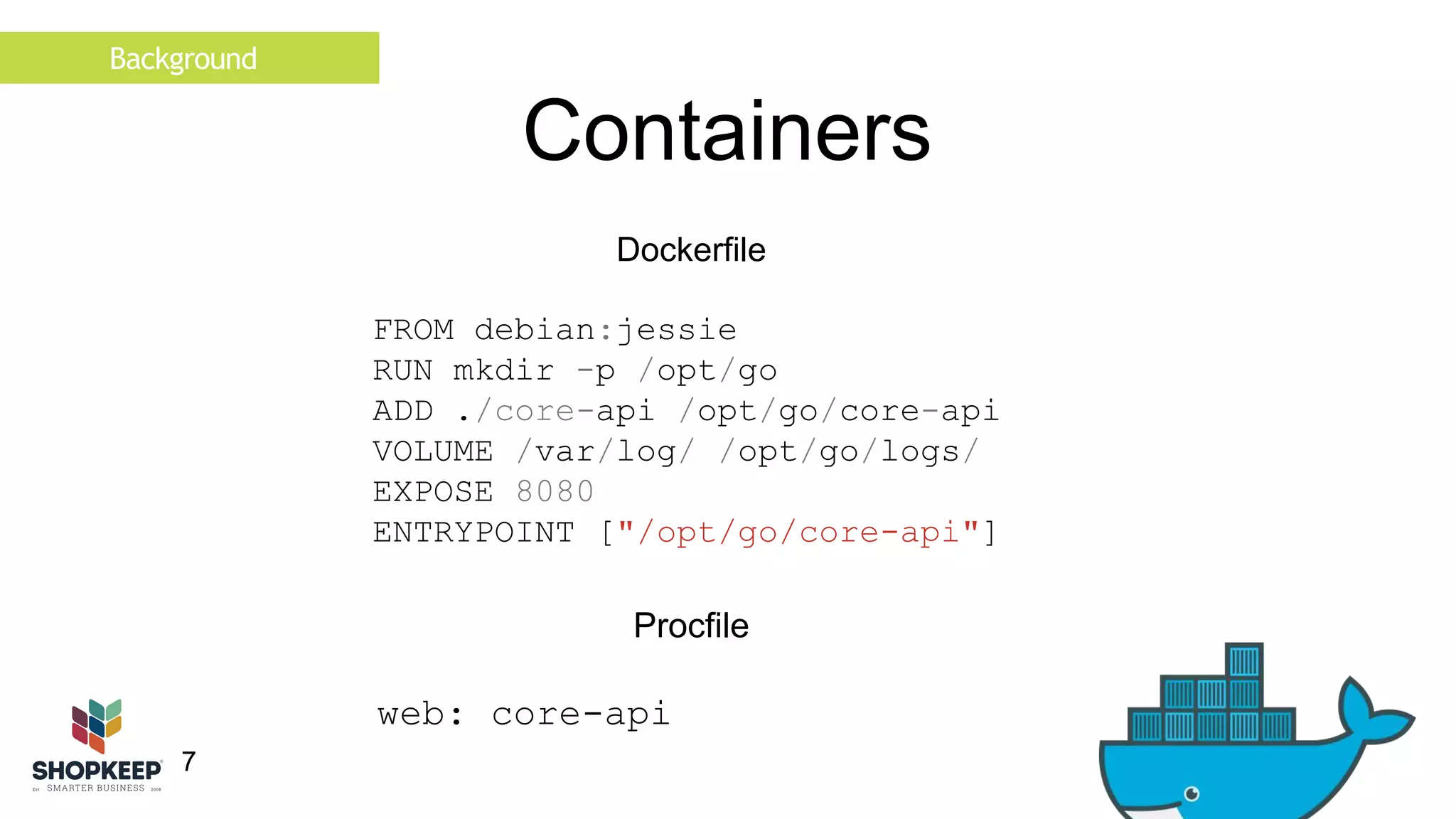

7. Background
7
Containers
Dockerfile
FROM debian:jessie
RUN mkdir -p /opt/go
ADD ./core-api /opt/go/core-api
VOLUME /var/log/ /opt/go/logs/
EXPOSE 8080
ENTRYPOINT ["/opt/go/core-api"]
Procfile
web: core-api

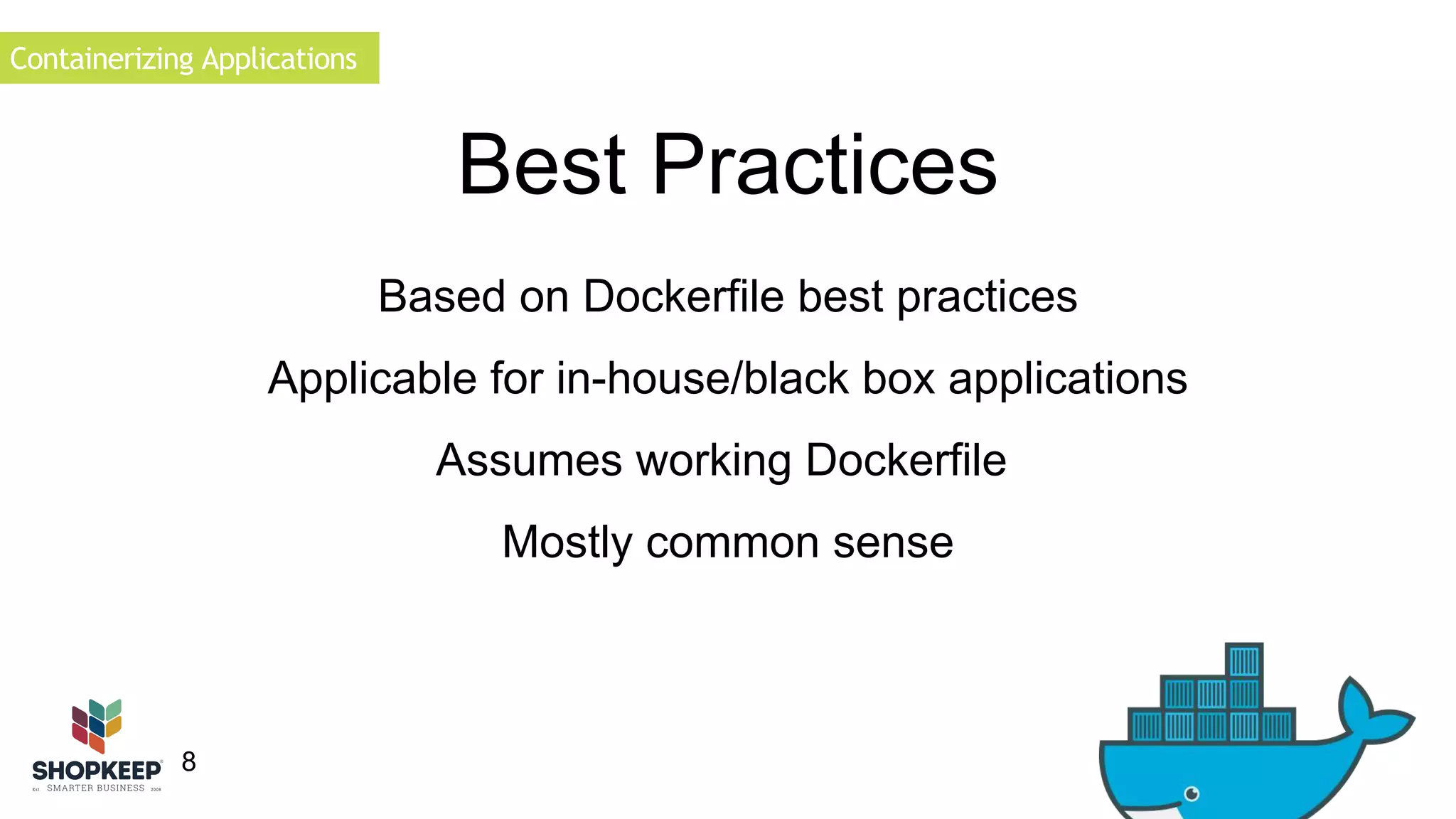

8. Containerizing Applications
8
Best Practices
Based on Dockerfile best practices
Applicable for in-house/black box applications
Assumes working Dockerfile
Mostly common sense

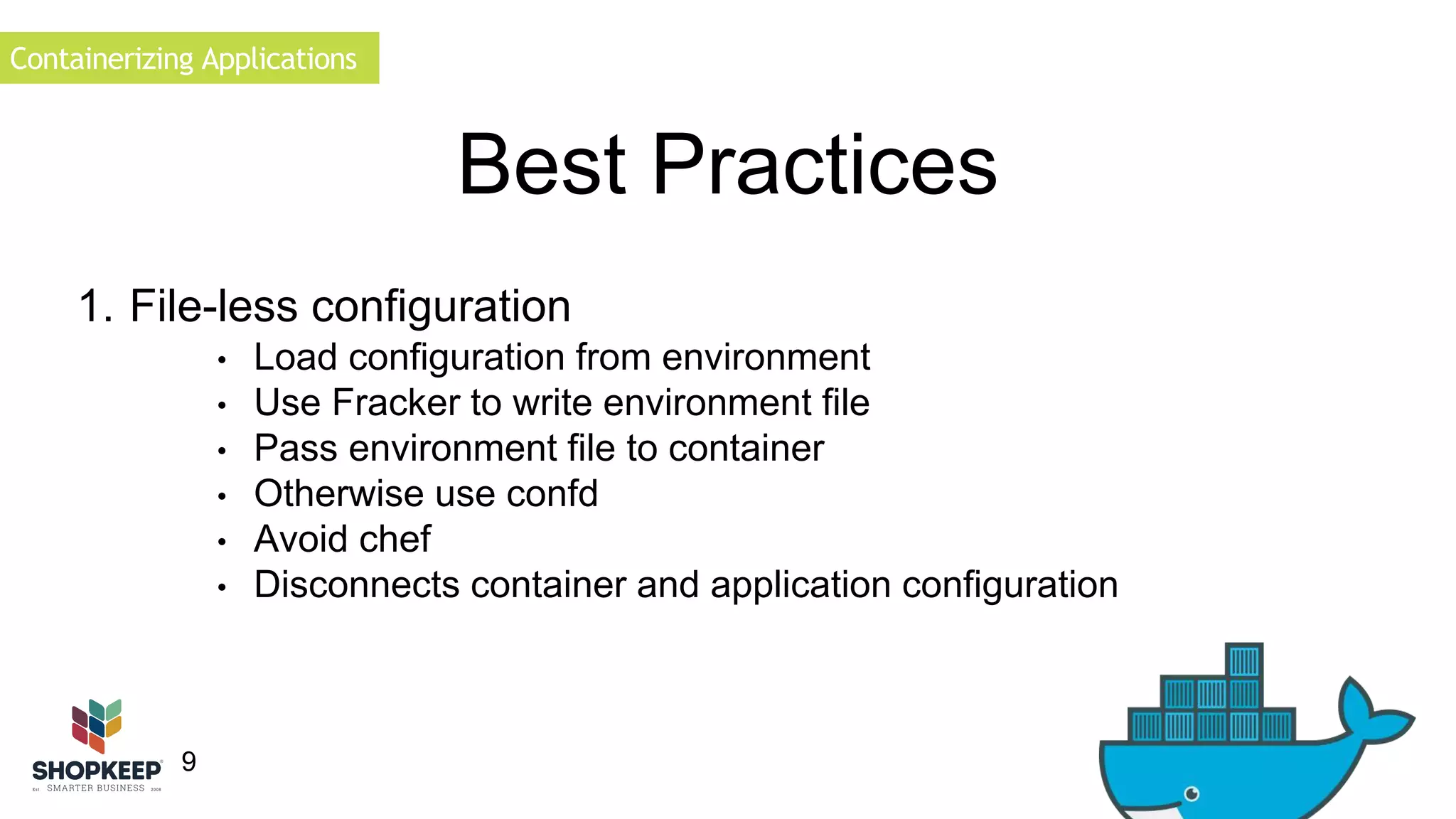

9. Containerizing Applications
9
Best Practices
1. File-less configuration
• Load configuration from environment
• Use Fracker to write environment file
• Pass environment file to container
• Otherwise use confd
• Avoid chef
• Disconnects container and application configuration

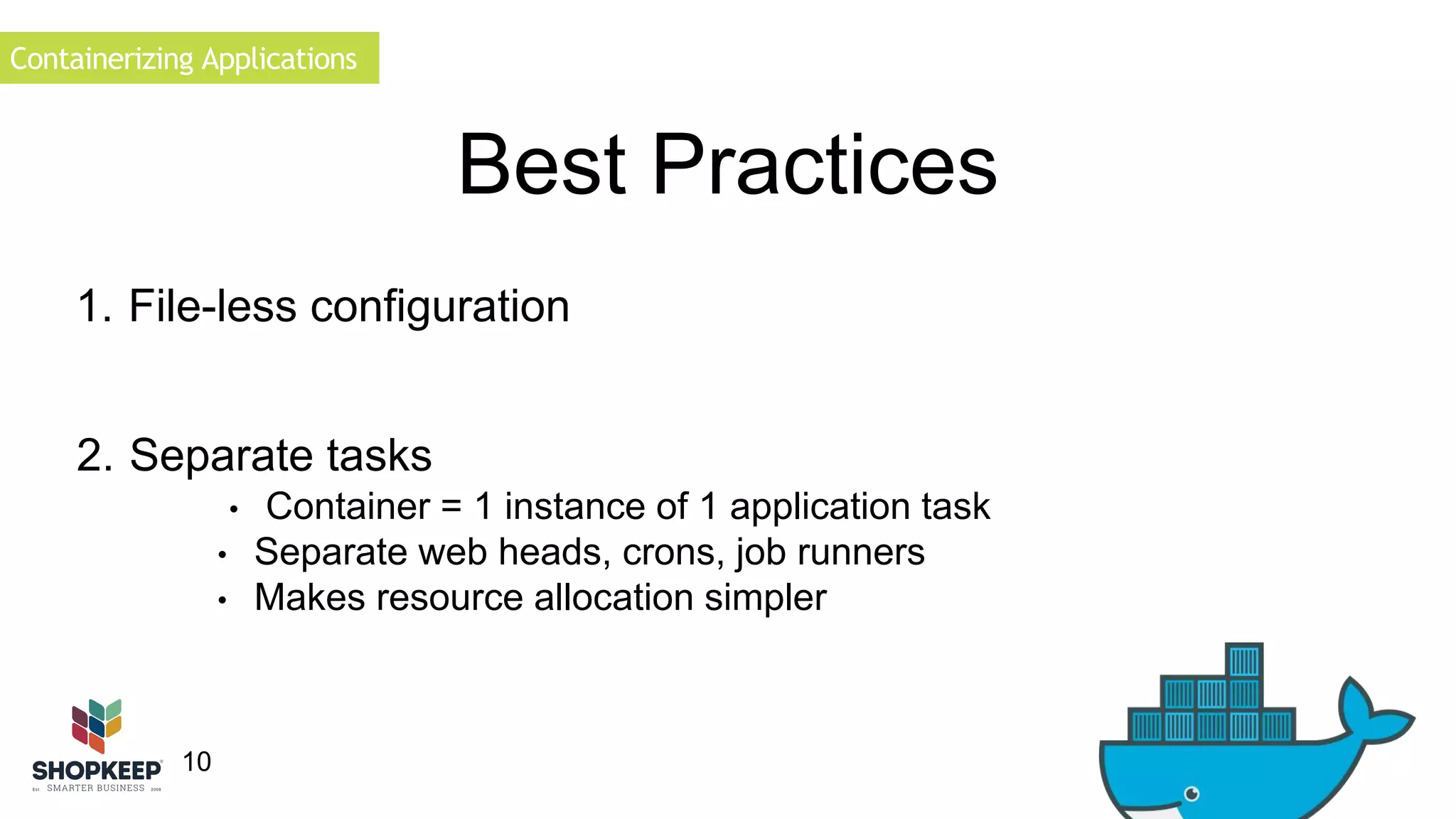

10. Containerizing Applications
10
Best Practices
1. File-less configuration
2. Separate tasks
• Container = 1 instance of 1 application task
• Separate web heads, crons, job runners
• Makes resource allocation simpler

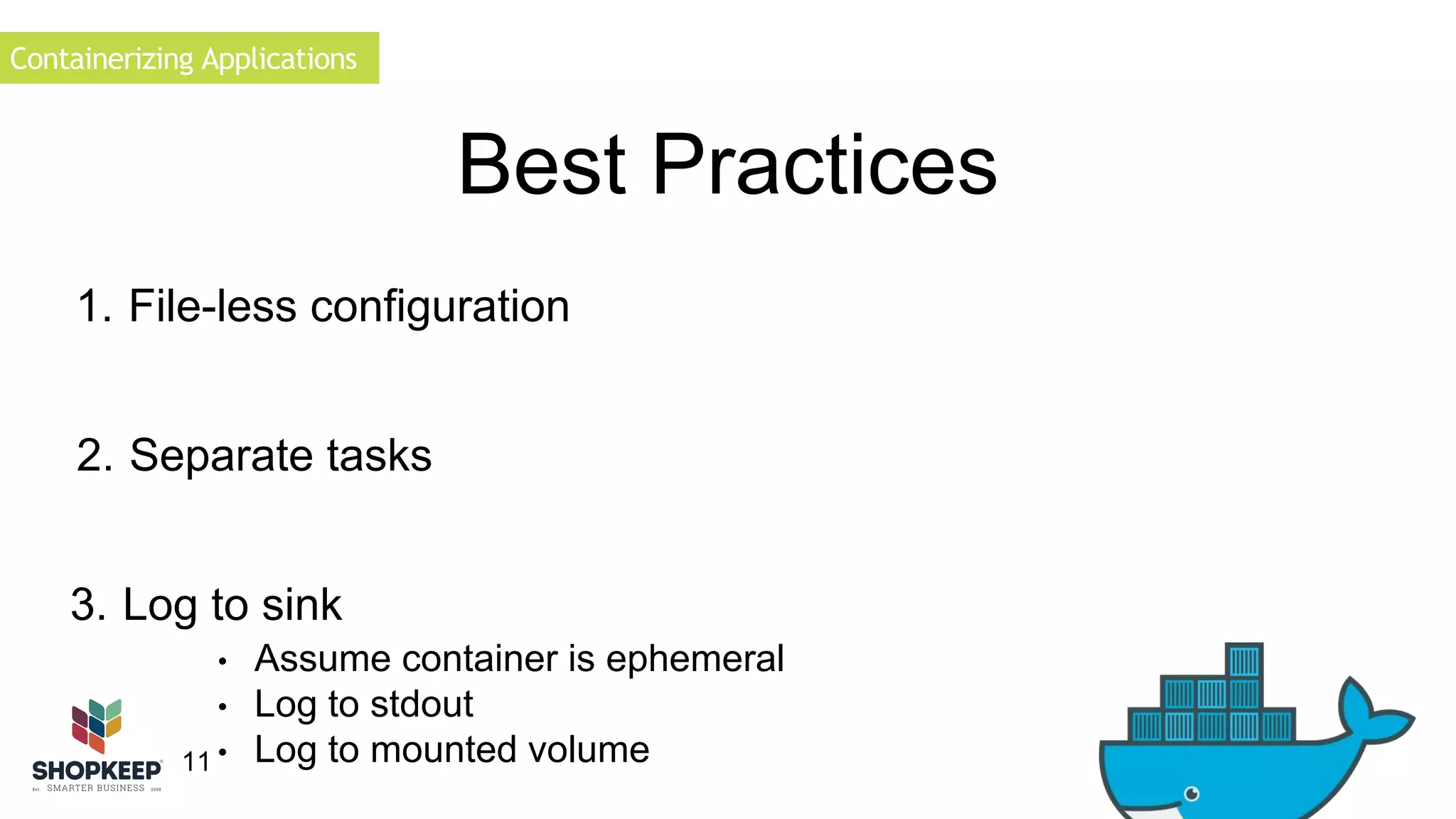

11. Containerizing Applications
3. Log to sink
11
Best Practices
1. File-less configuration
2. Separate tasks
• Assume container is ephemeral
• Log to stdout
• Log to mounted volume

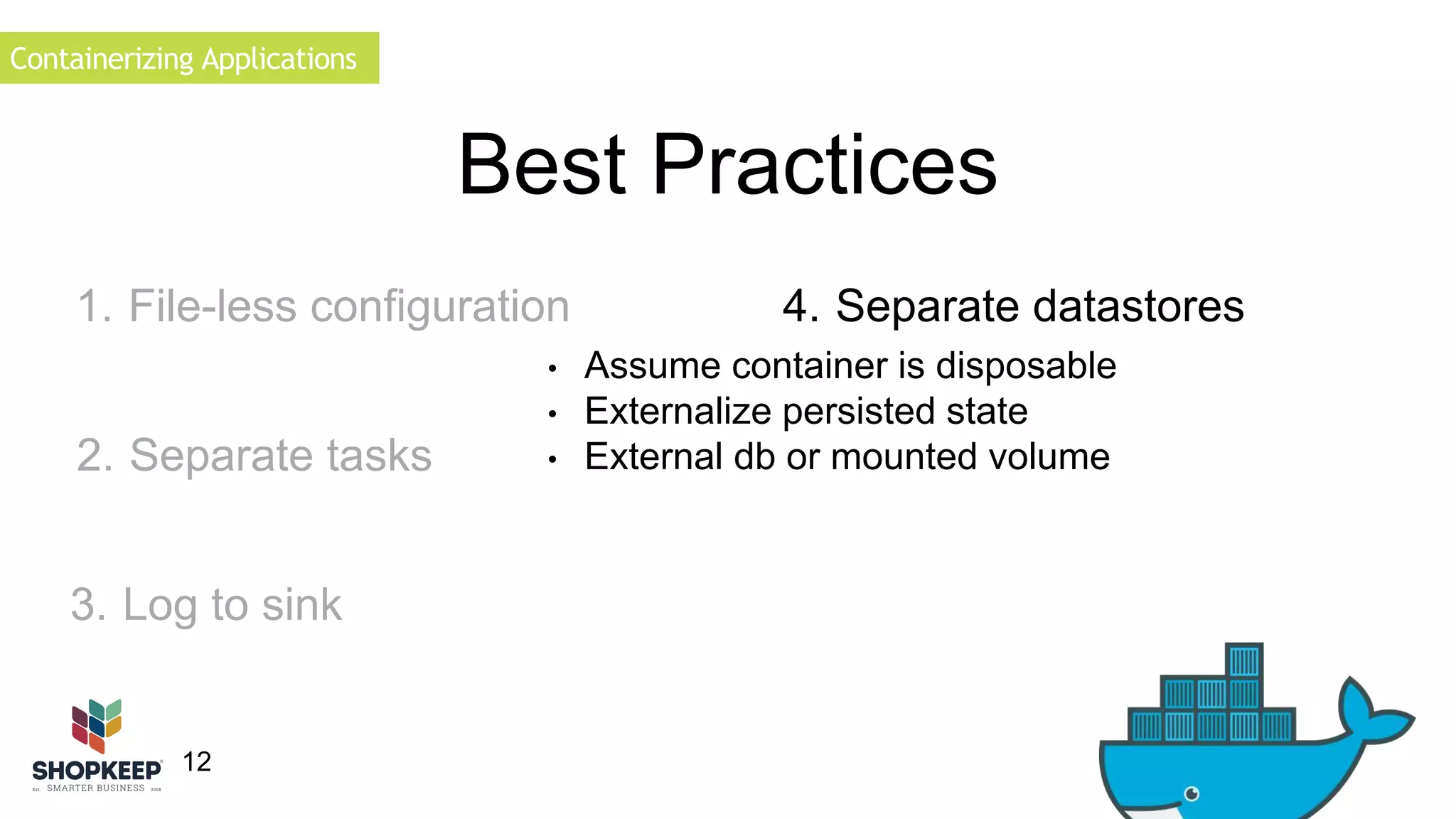

12. Containerizing Applications
12
Best Practices
1. File-less configuration
2. Separate tasks
• Assume container is disposable
• Externalize persisted state
• External db or mounted volume
3. Log to sink
4. Separate datastores

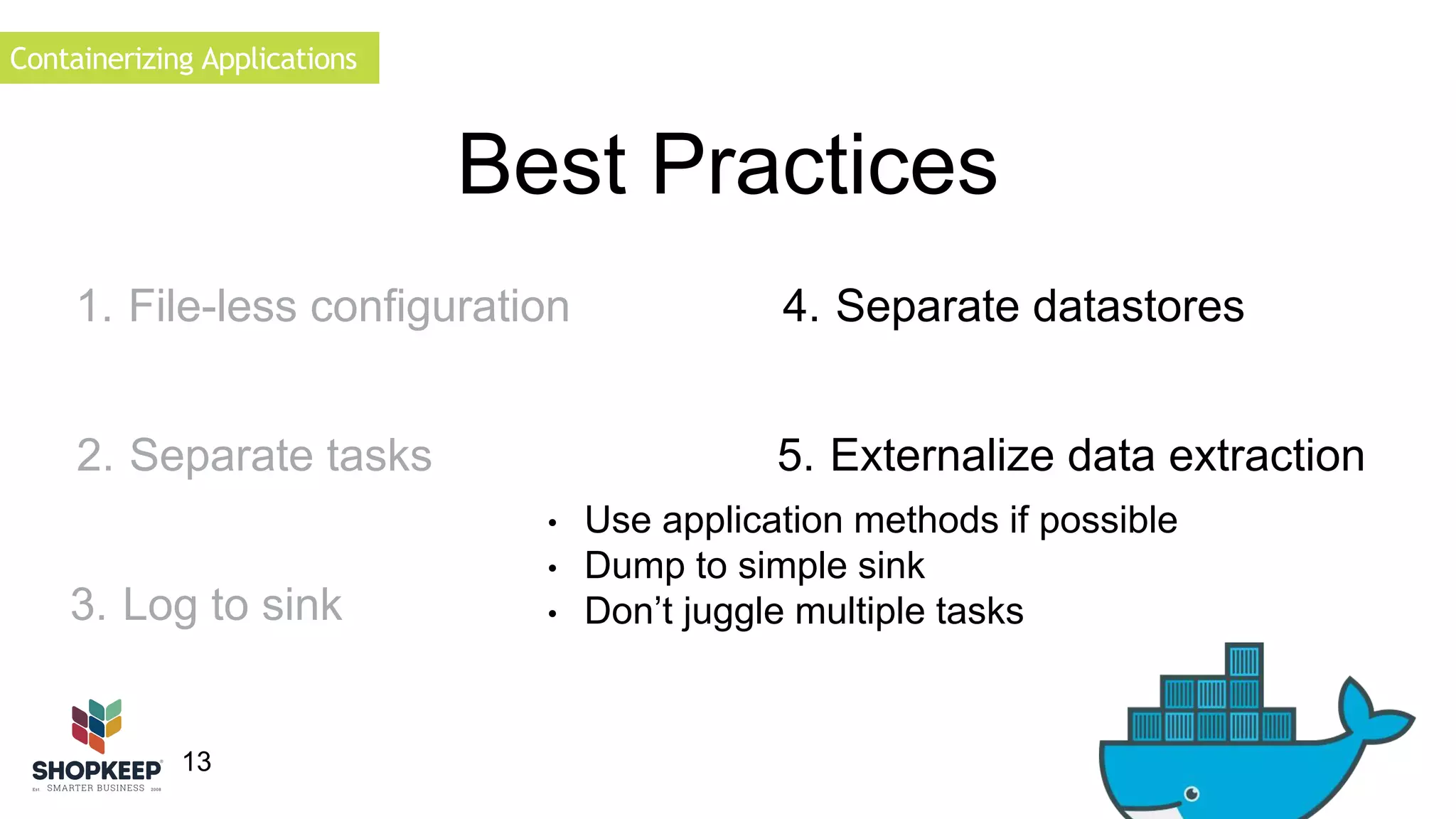

13. Containerizing Applications
1. File-less configuration
13
Best Practices
4. Separate datastores
5. Externalize data extraction
• Use application methods if possible
• Dump to simple sink
• Don’t juggle multiple tasks
2. Separate tasks
3. Log to sink

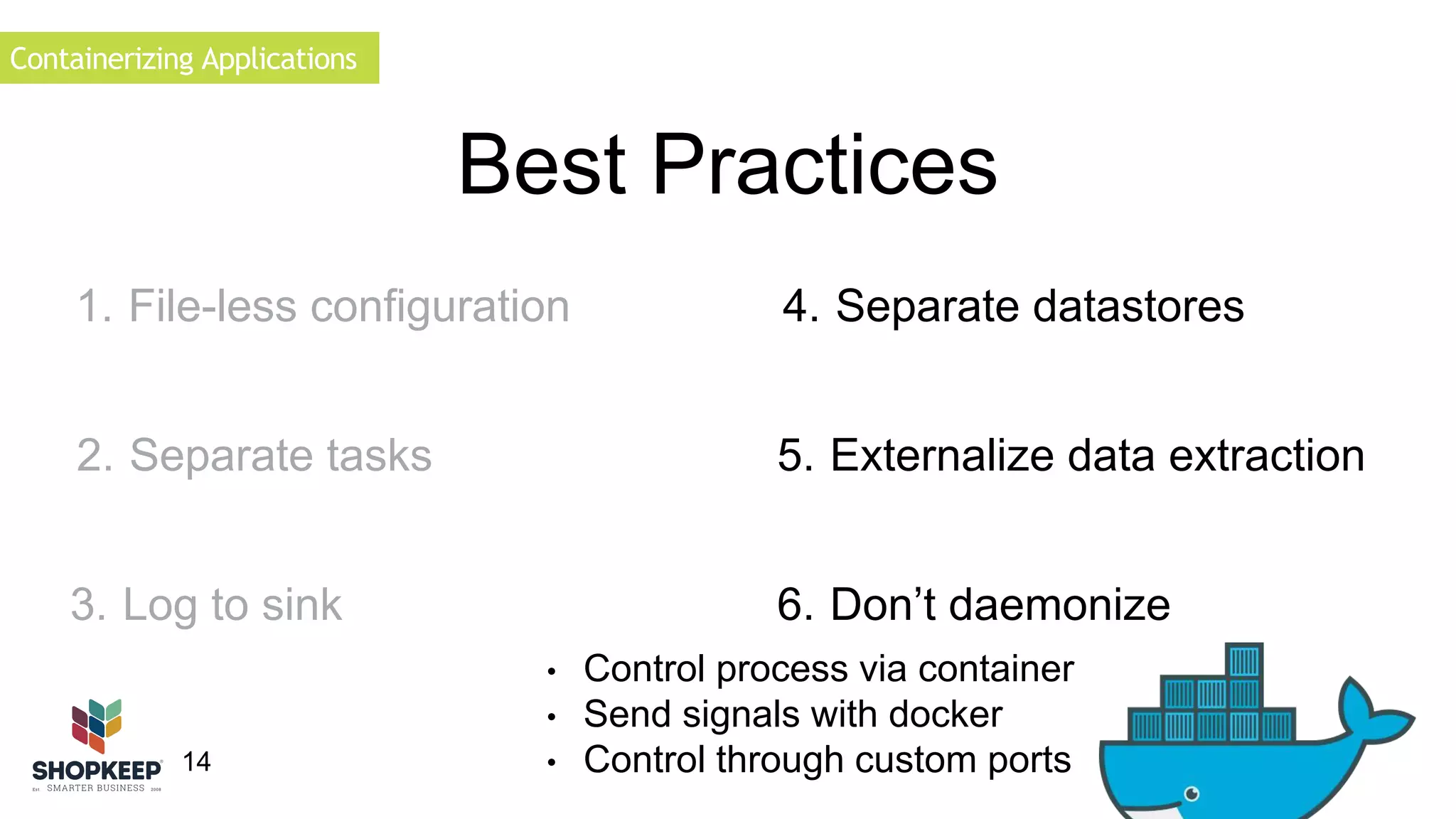

14. Containerizing Applications
1. File-less configuration
14
Best Practices
4. Separate datastores
5. Externalize data extraction
6. Don’t daemonize
• Control process via container
• Send signals with docker
• Control through custom ports
2. Separate tasks
3. Log to sink

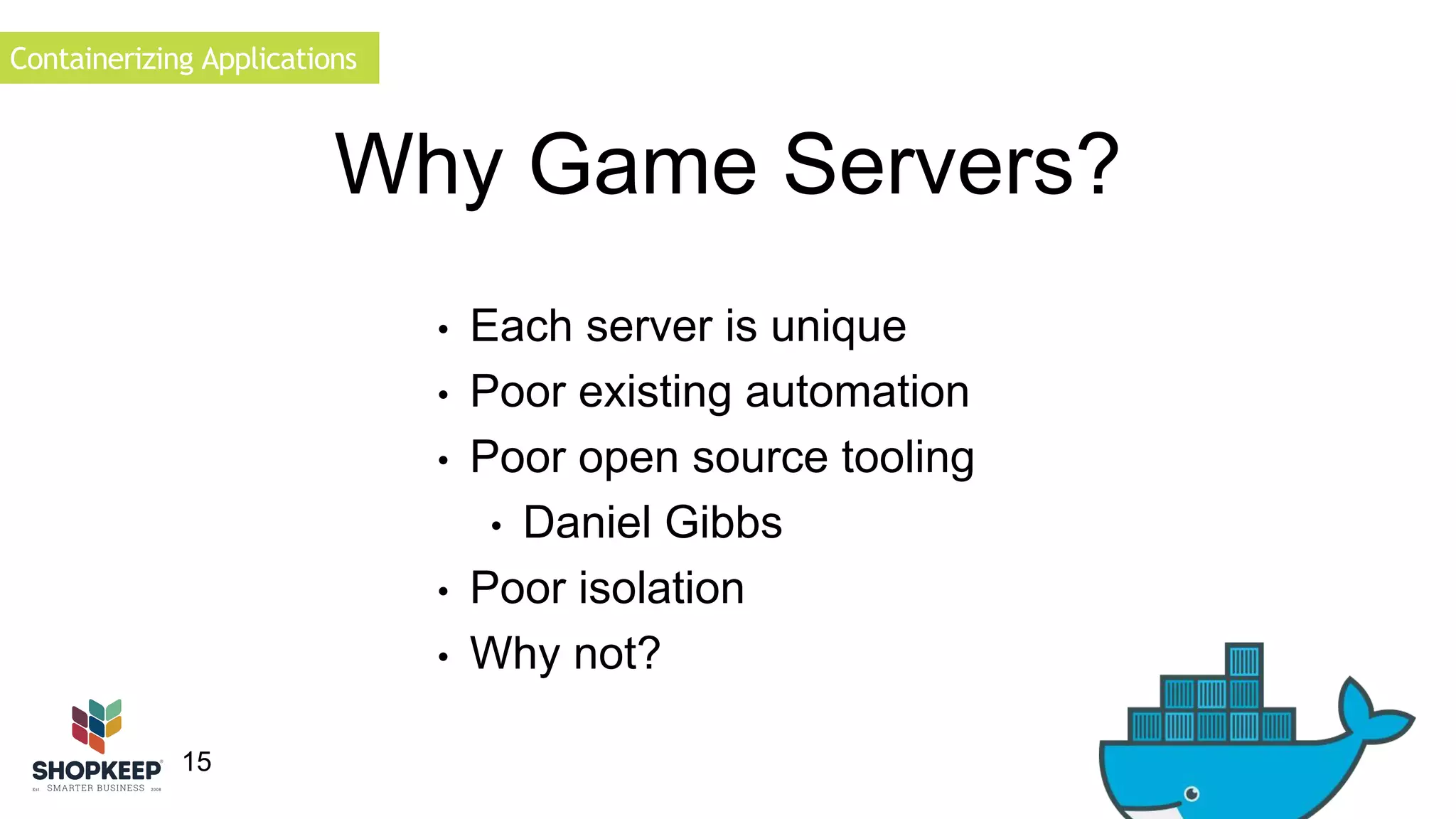

15. Containerizing Applications
15
Why Game Servers?
• Each server is unique
• Poor existing automation
• Poor open source tooling
• Daniel Gibbs
• Poor isolation
• Why not?

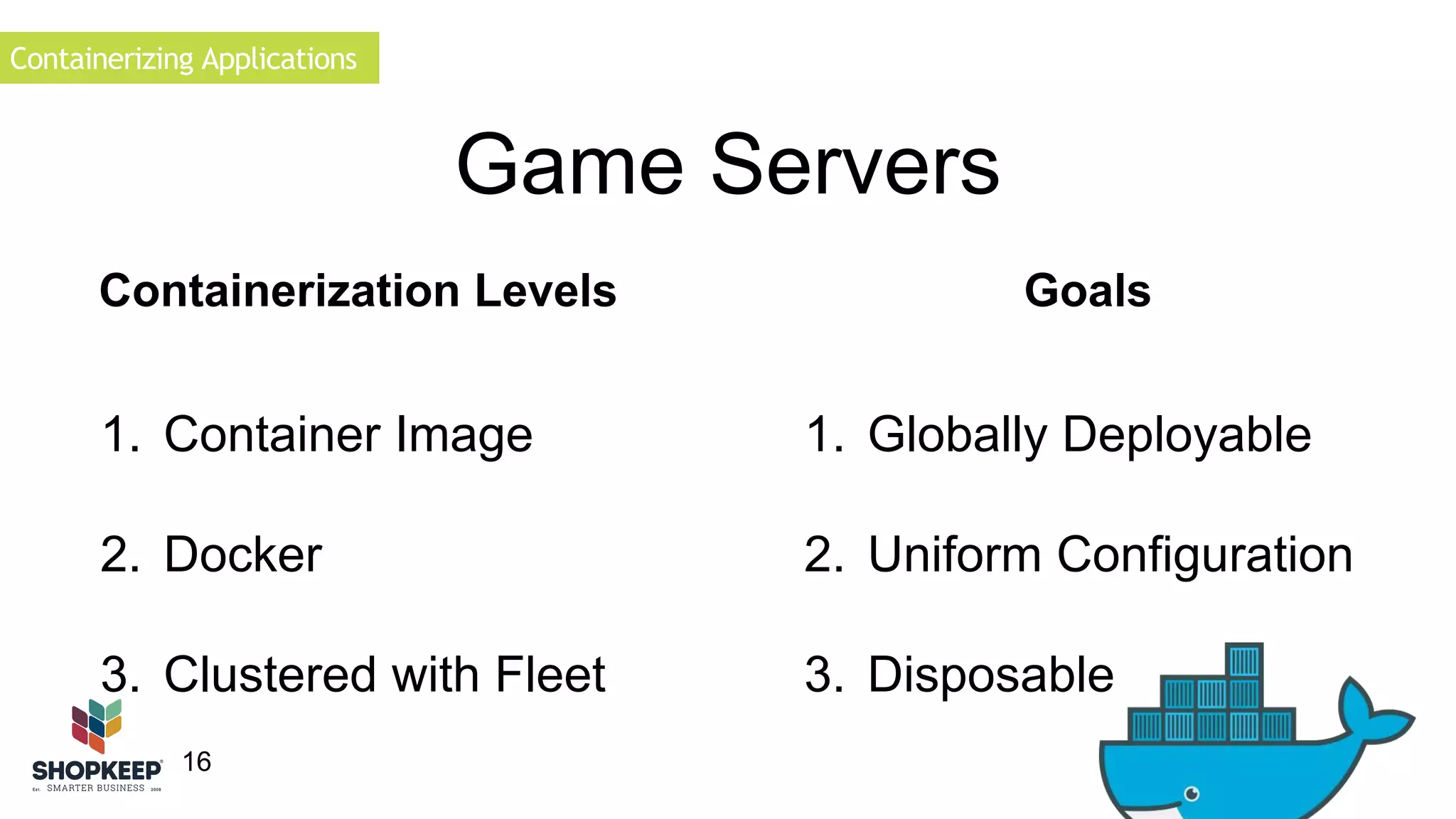

16. Containerizing Applications
16
Game Servers
Containerization Levels Goals
1. Globally Deployable
2. Uniform Configuration
3. Disposable
1. Container Image
2. Docker
3. Clustered with Fleet

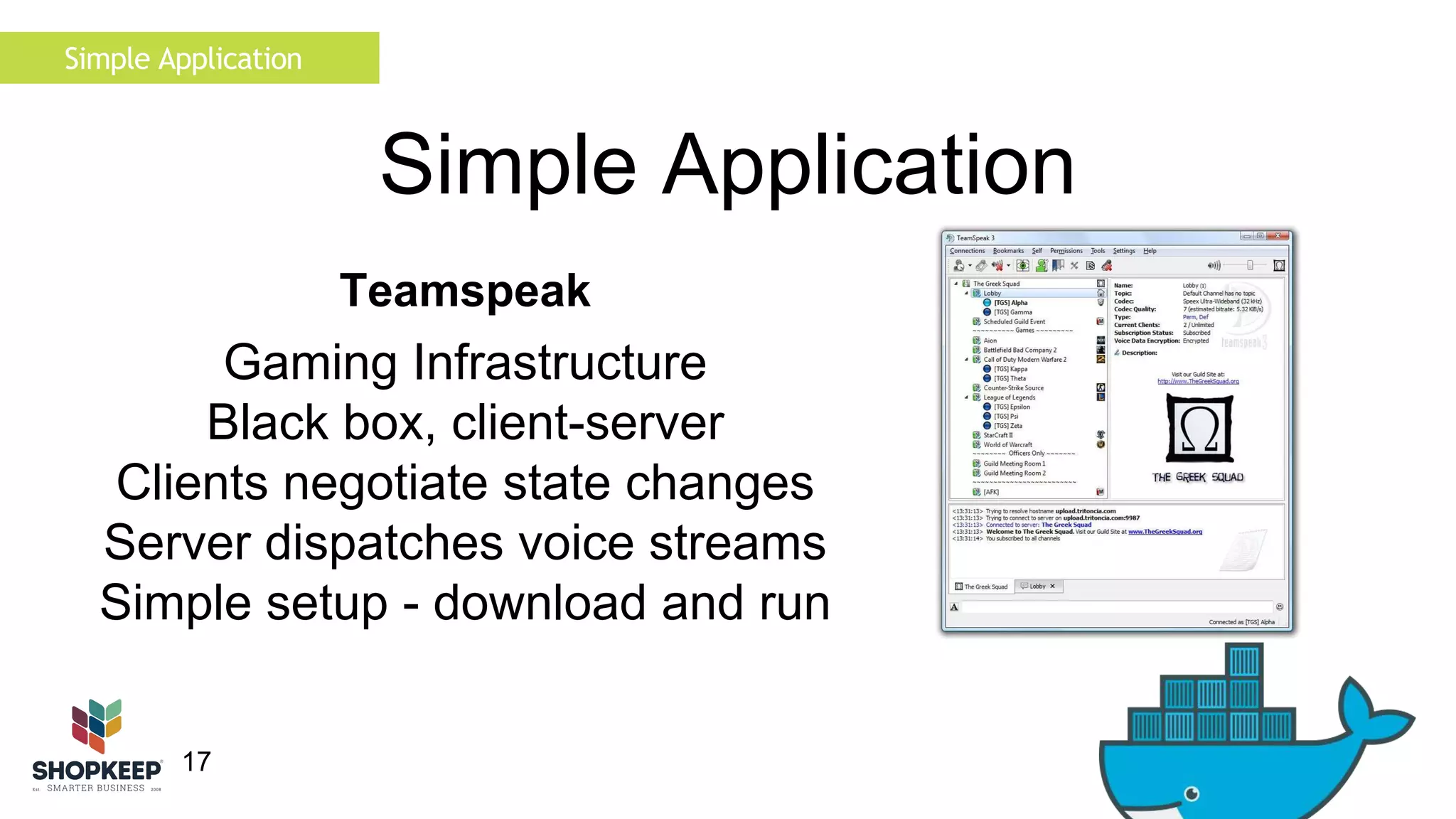

17. Simple Application
17
Simple Application
Teamspeak
Gaming Infrastructure
Black box, client-server
Clients negotiate state changes
Server dispatches voice streams
Simple setup - download and run

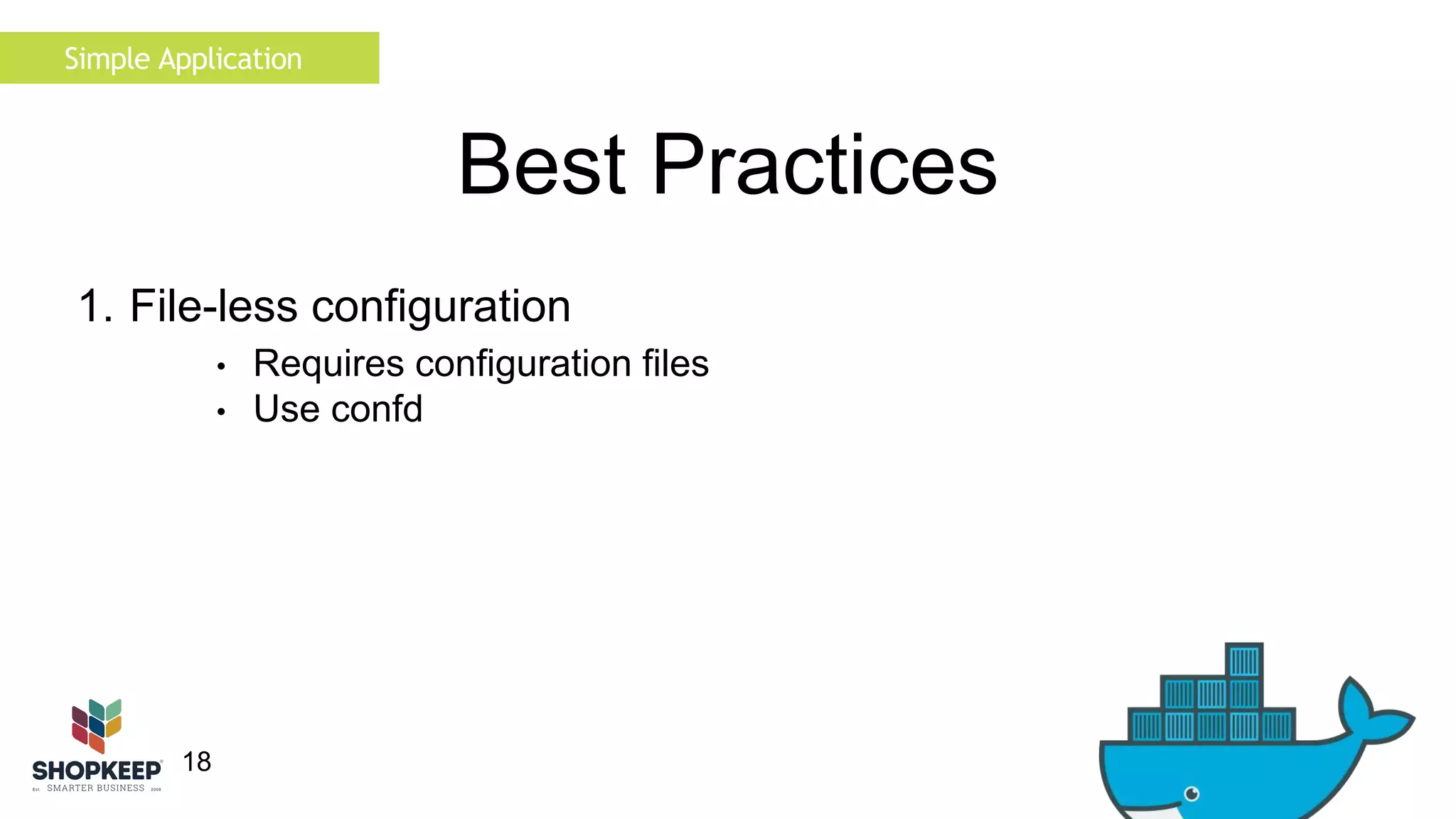

18. Simple Application
18
Best Practices
1. File-less configuration
• Requires configuration files
• Use confd

19. Simple Application
19
Best Practices

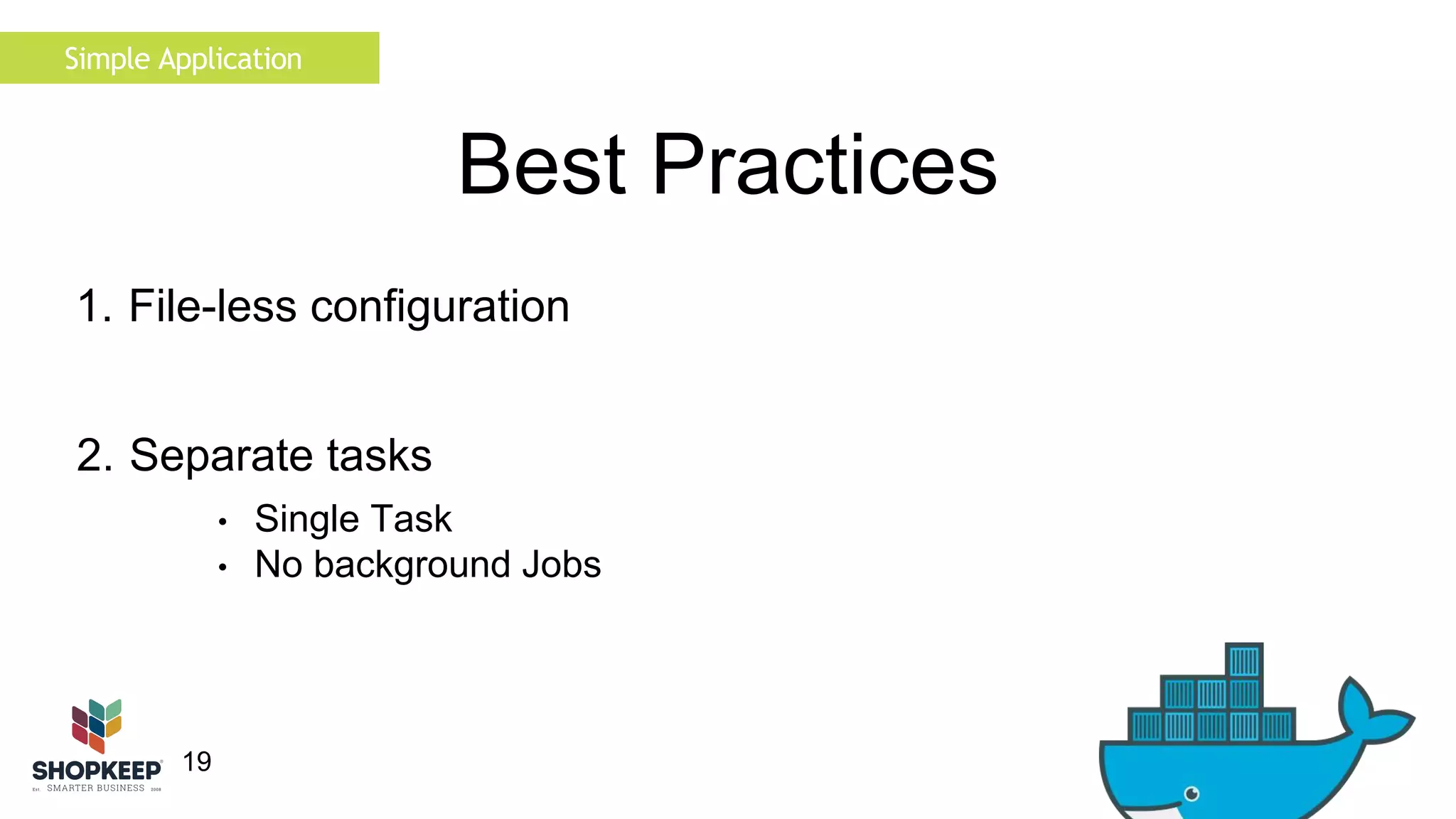

1. File-less configuration
2. Separate tasks
• Single Task
• No background Jobs

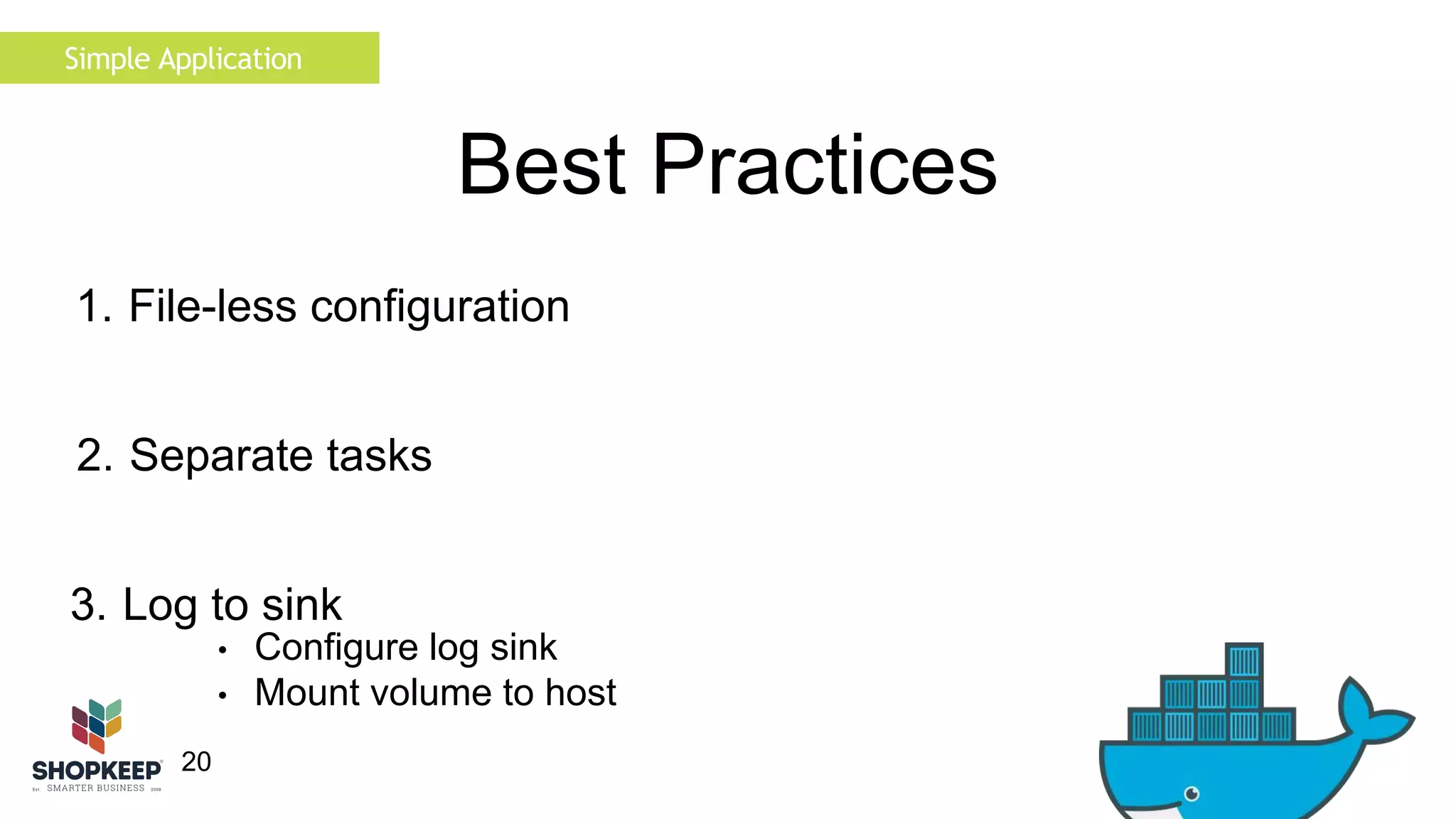

20. Simple Application
3. Log to sink
20
Best Practices
1. File-less configuration
2. Separate tasks
• Configure log sink
• Mount volume to host

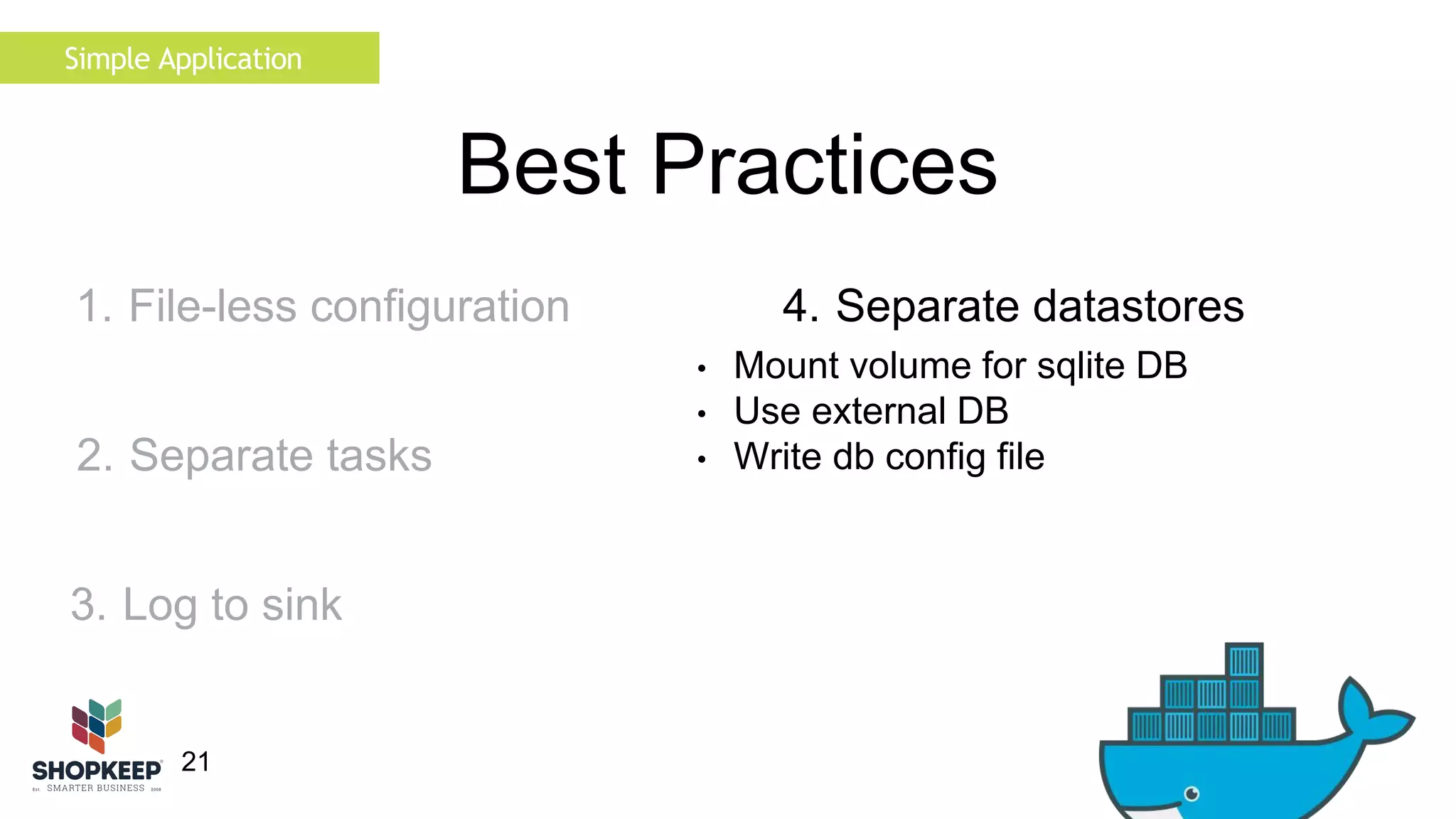

21. 21
Best Practices
4. Separate datastores
• Mount volume for sqlite DB
• Use external DB
• Write db config file
Simple Application
1. File-less configuration
2. Separate tasks
3. Log to sink

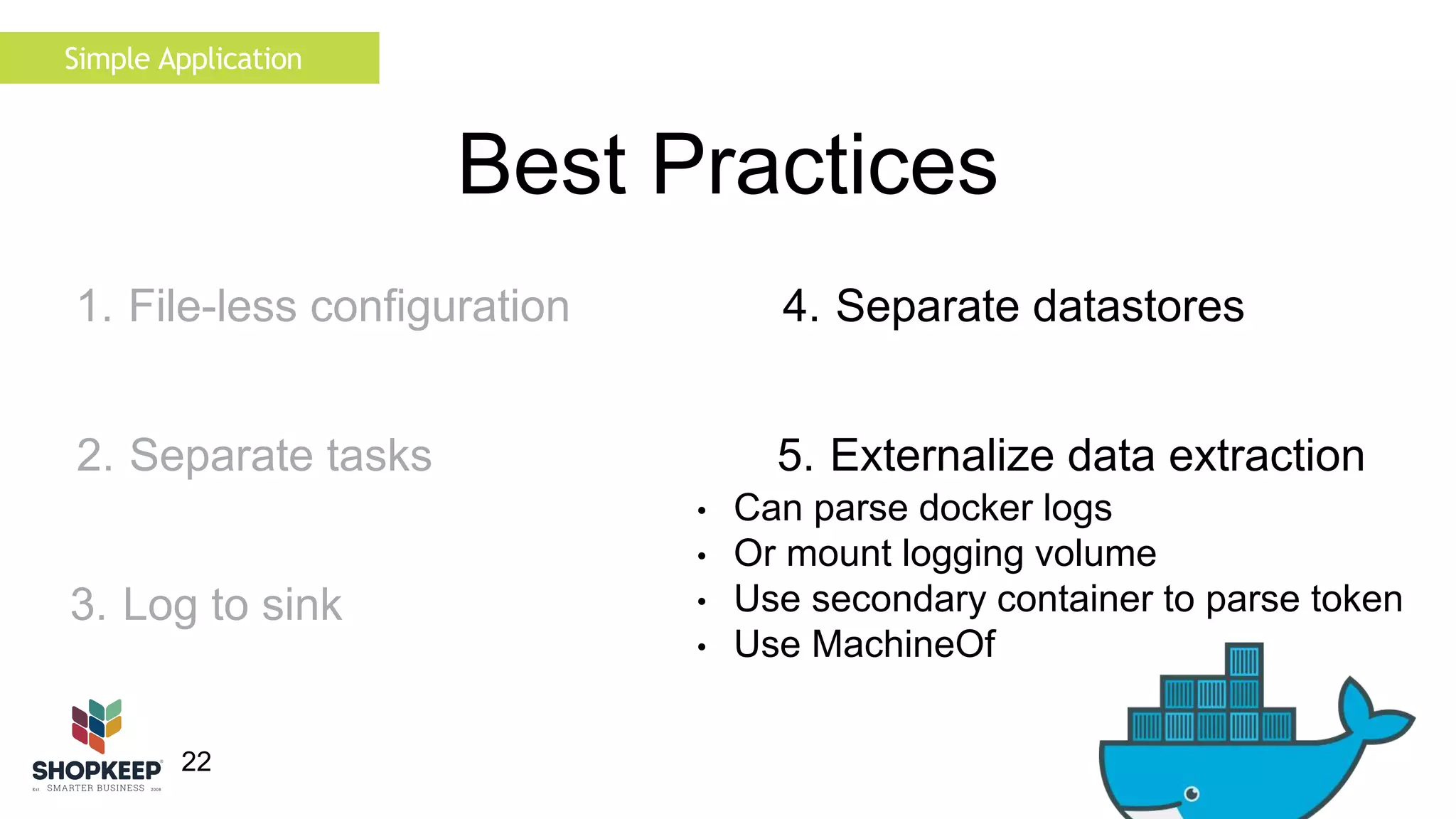

22. 22
Best Practices
4. Separate datastores
5. Externalize data extraction
• Can parse docker logs
• Or mount logging volume
• Use secondary container to parse token
• Use MachineOf
Simple Application
1. File-less configuration
2. Separate tasks
3. Log to sink

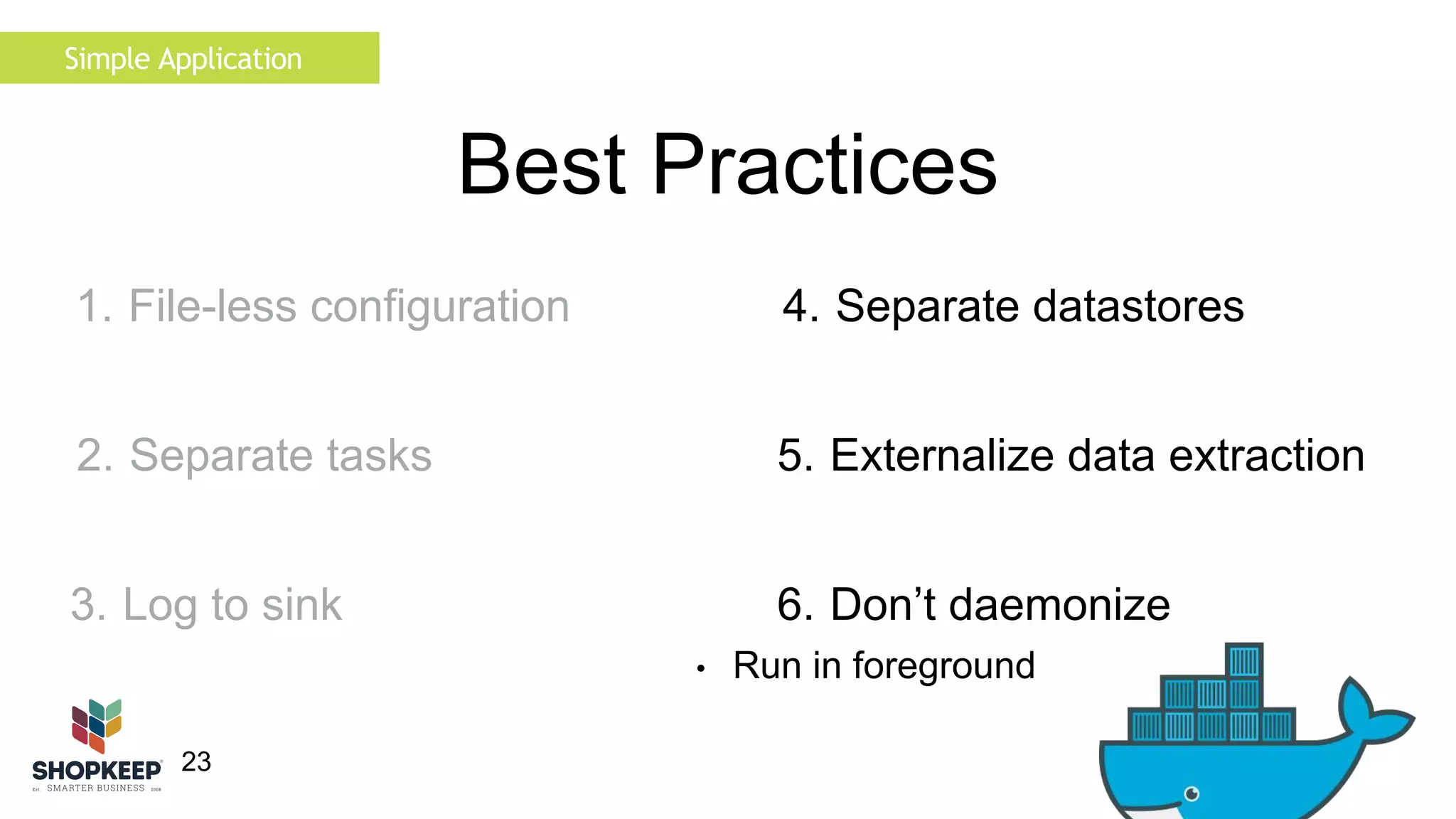

23. 23
Best Practices
4. Separate datastores
5. Externalize data extraction
6. Don’t daemonize
• Run in foreground
Simple Application
1. File-less configuration
2. Separate tasks
3. Log to sink

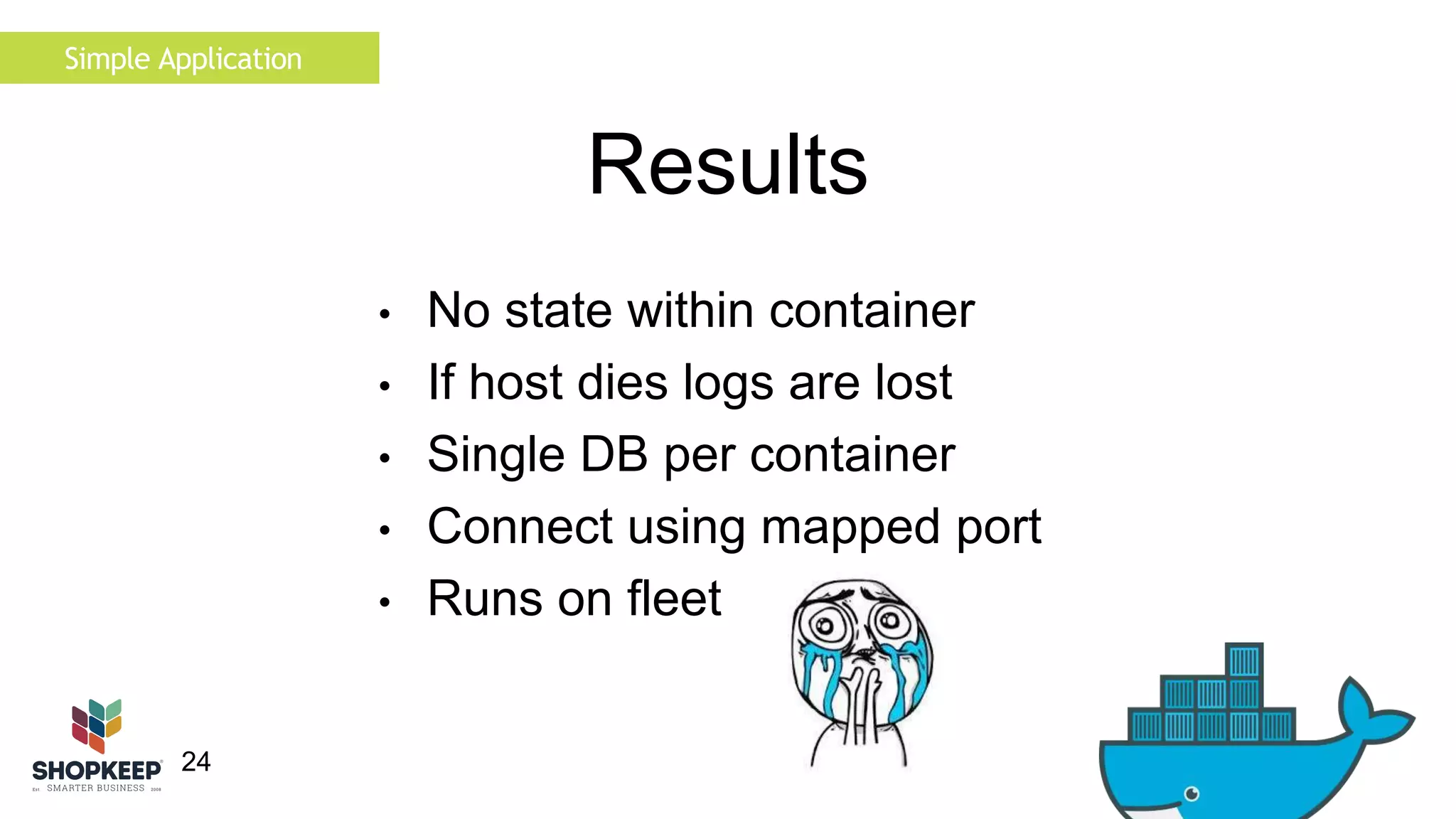

24. 24
Results
Simple Application
• No state within container
• If host dies logs are lost
• Single DB per container
• Connect using mapped port
• Runs on fleet

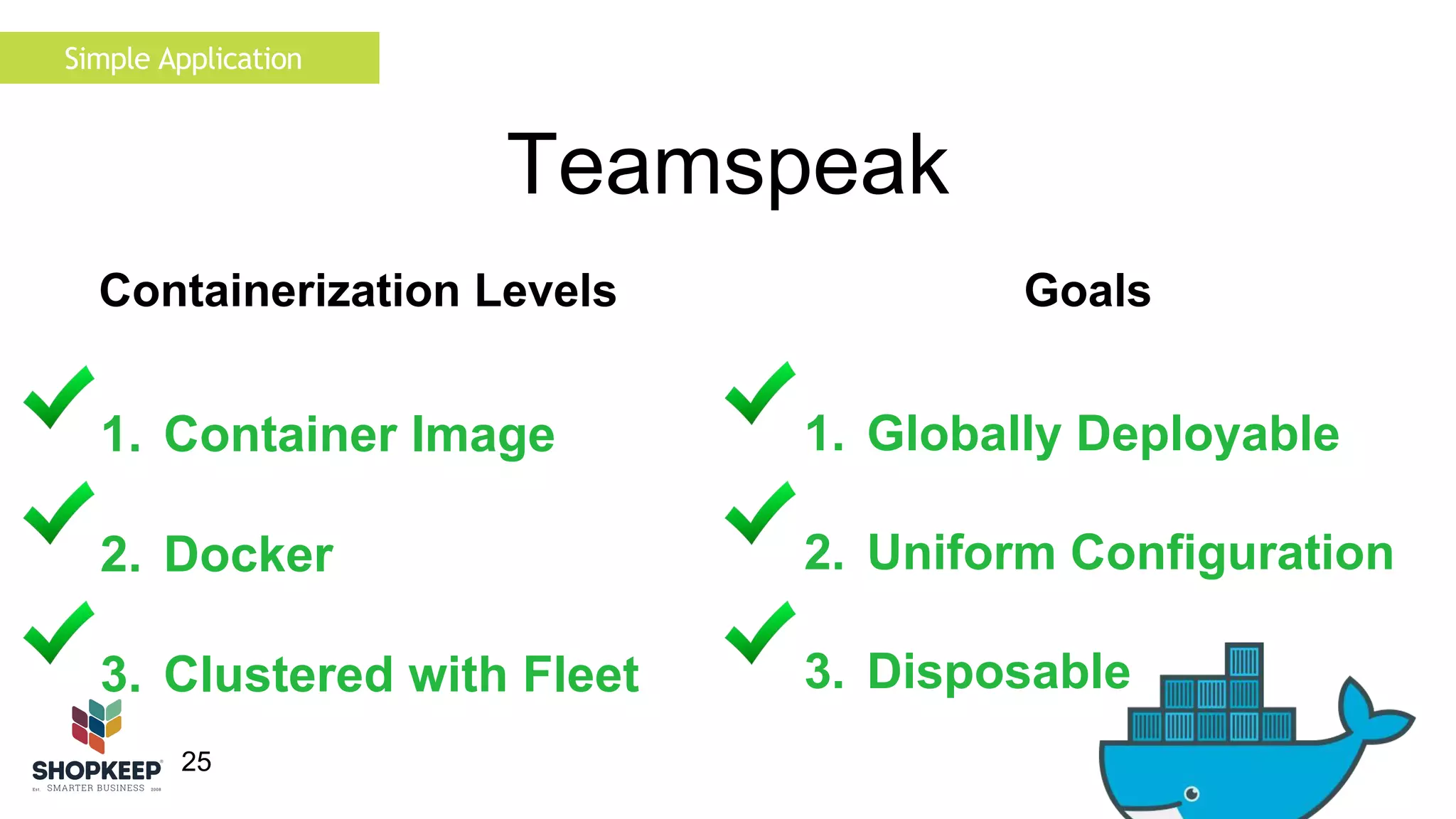

25. Simple Application
25
Teamspeak
Containerization Levels Goals
1. Globally Deployable
2. Uniform Configuration
3. Disposable
1. Container Image
2. Docker
3. Clustered with Fleet

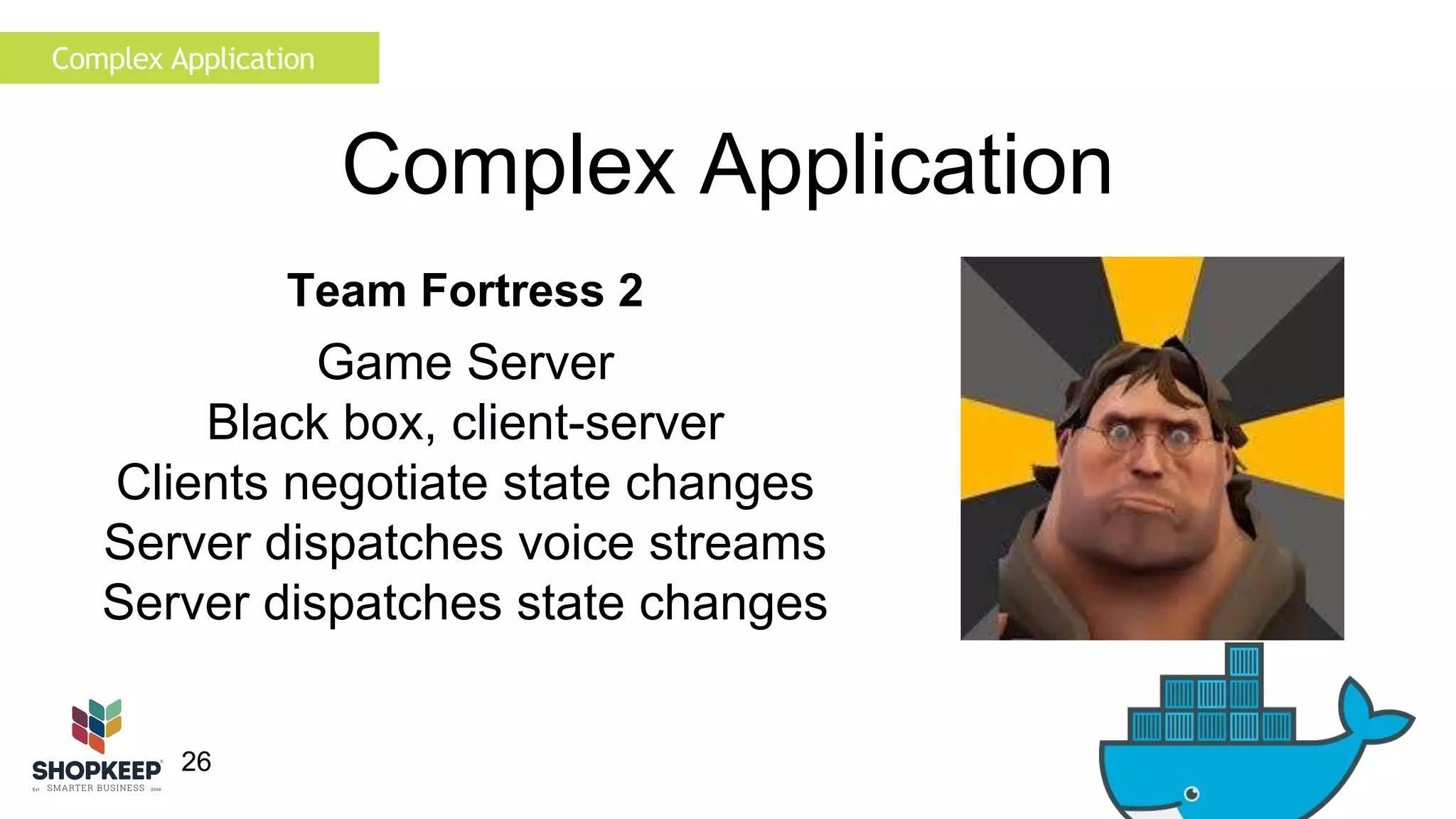

26. Complex Application
26
Complex Application
Team Fortress 2
Game Server
Black box, client-server
Clients negotiate state changes
Server dispatches voice streams
Server dispatches state changes

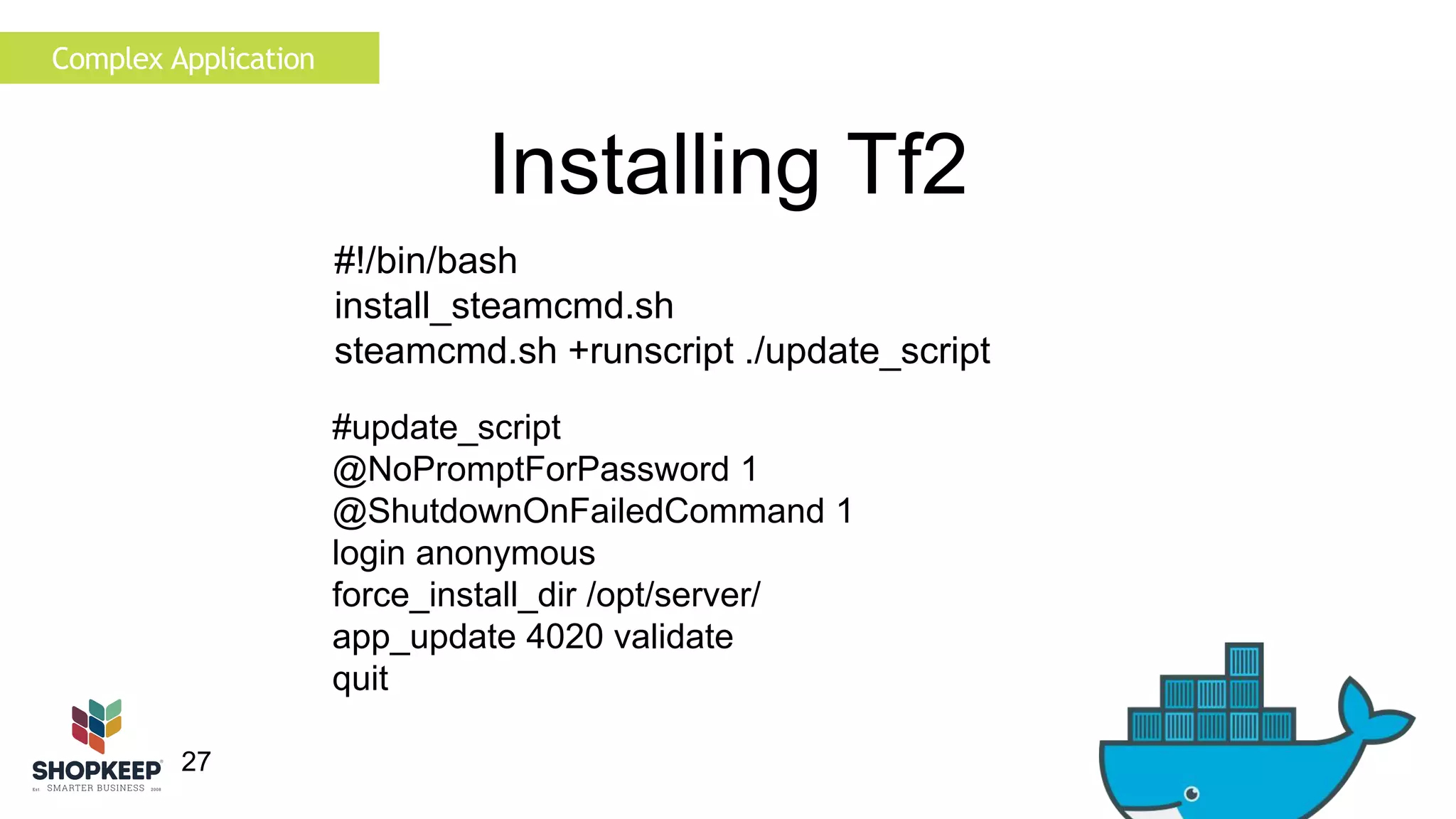

27. 27
Installing Tf2
#update_script
@NoPromptForPassword 1
@ShutdownOnFailedCommand 1
login anonymous
force_install_dir /opt/server/
app_update 4020 validate
quit
Complex Application
#!/bin/bash
install_steamcmd.sh
steamcmd.sh +runscript ./update_script

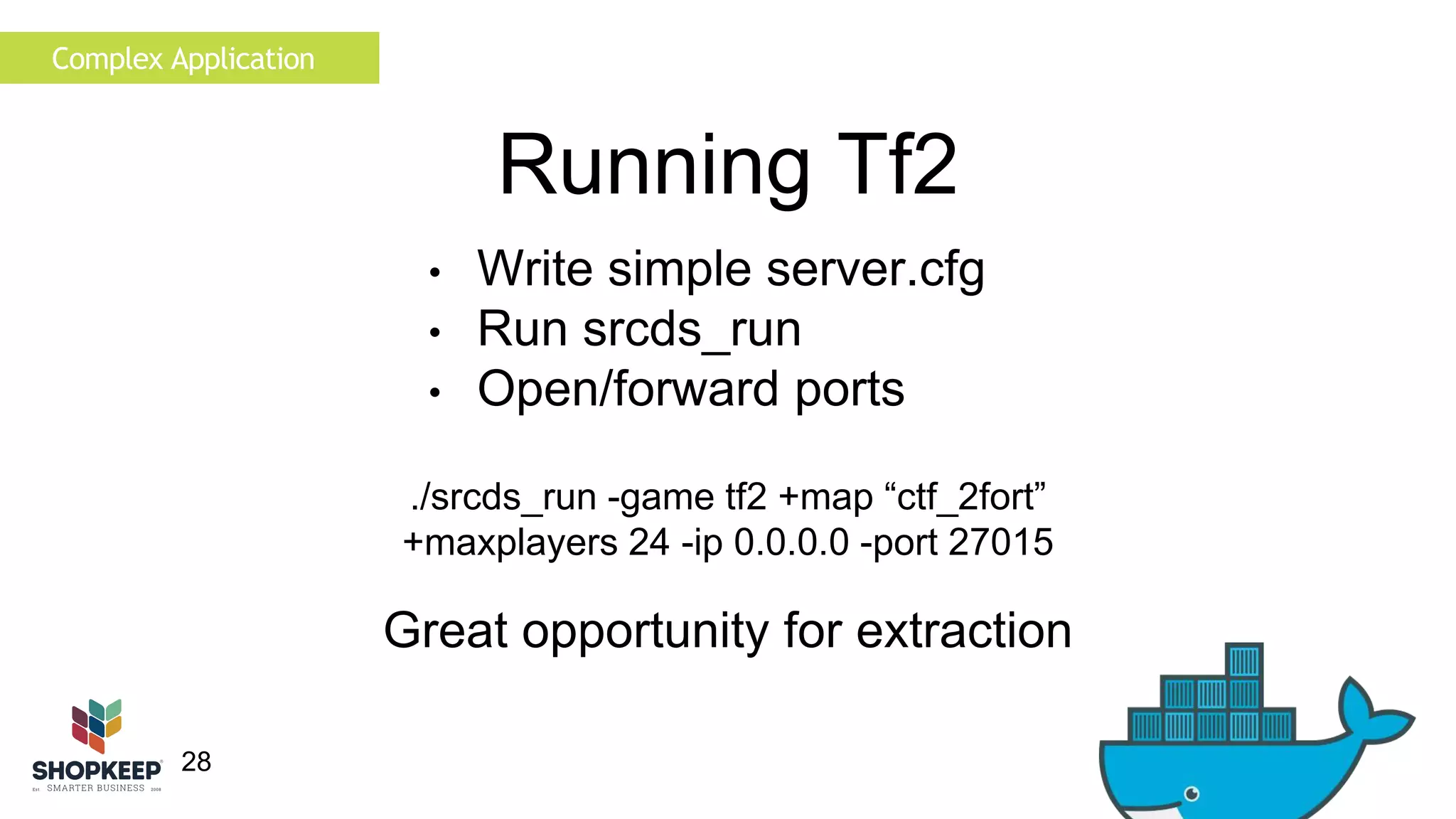

28. 28
Running Tf2
• Write simple server.cfg
• Run srcds_run
• Open/forward ports
./srcds_run -game tf2 +map “ctf_2fort”
+maxplayers 24 -ip 0.0.0.0 -port 27015
Complex Application
Great opportunity for extraction

29. Complex Application
29
Best Practices
1. File-less configuration
• Requires configuration files
• Use confd

30. Complex Application
30
Best Practices
1. File-less configuration
2. Separate tasks
• Single Task
• No background Jobs

31. Complex Application
3. Log to sink
31
Best Practices
1. File-less configuration
2. Separate tasks
• Configure log sink
• Mount volume to host

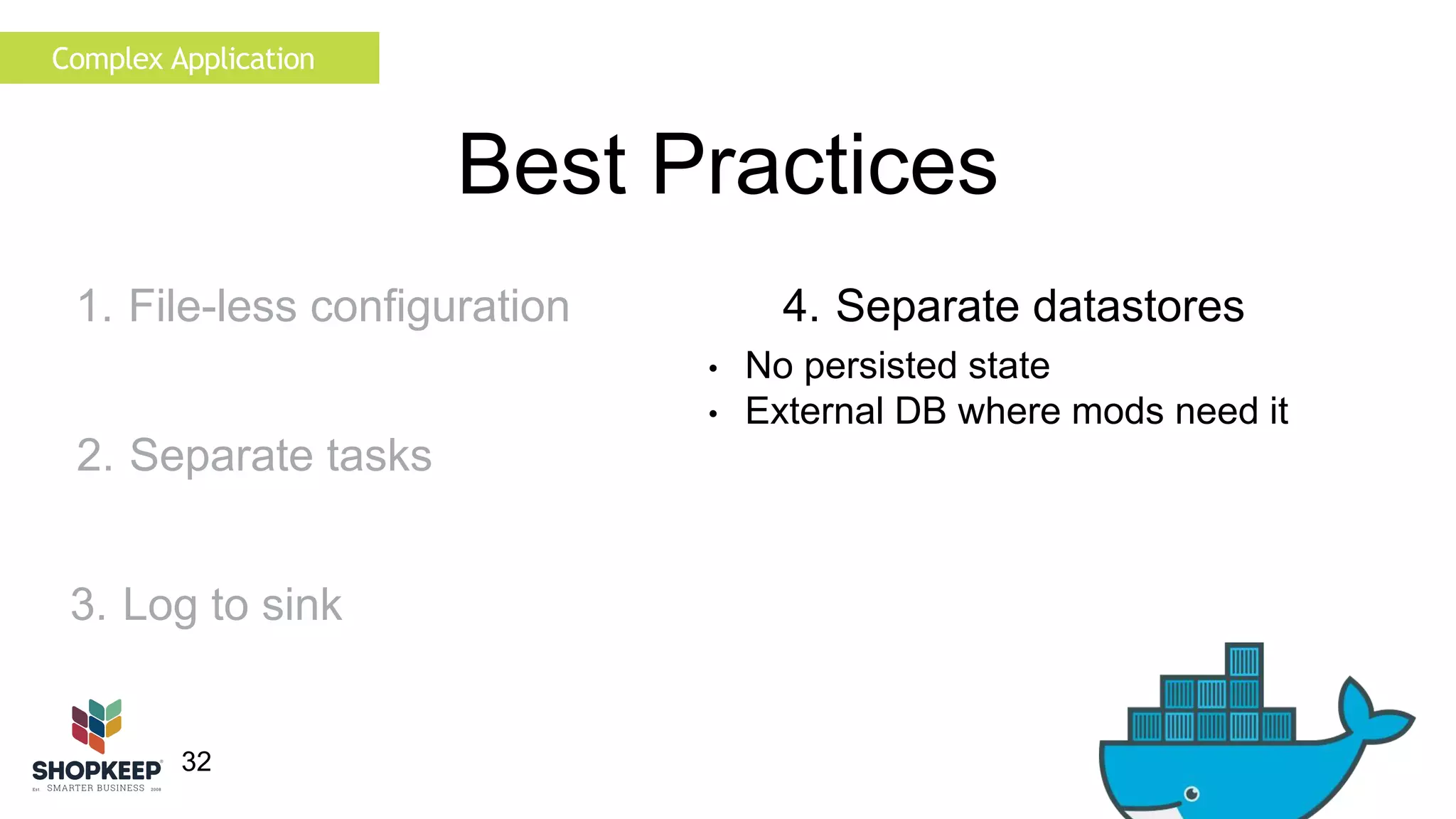

32. 32
Best Practices
4. Separate datastores
• No persisted state
• External DB where mods need it
Complex Application
1. File-less configuration
2. Separate tasks
3. Log to sink

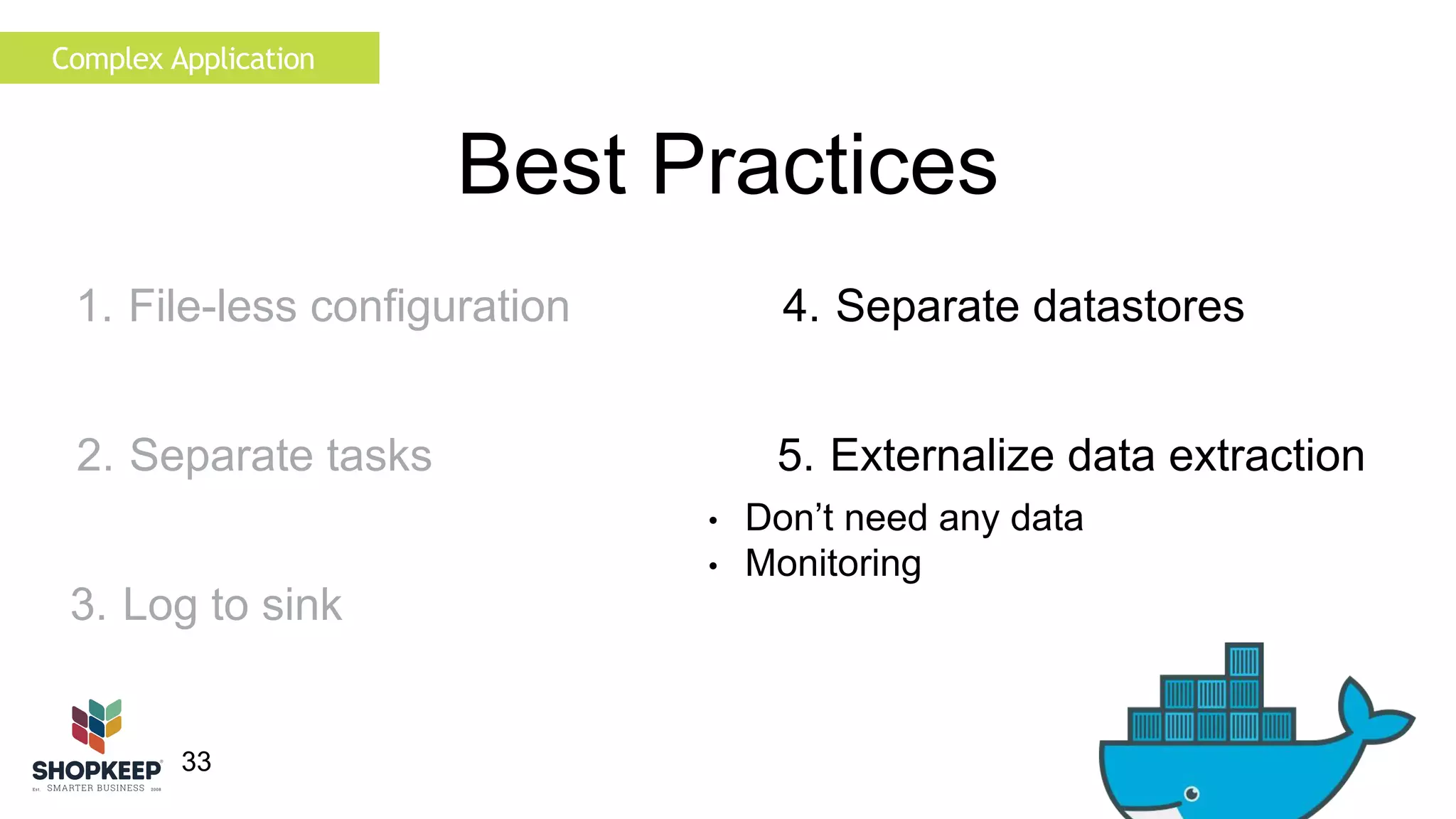

33. 33
Best Practices
4. Separate datastores
5. Externalize data extraction
• Don’t need any data
• Monitoring
Complex Application
1. File-less configuration
2. Separate tasks
3. Log to sink

34. 34
Best Practices
4. Separate datastores
5. Externalize data extraction
6. Don’t daemonize
• Run in foreground
Complex Application
1. File-less configuration
2. Separate tasks
3. Log to sink

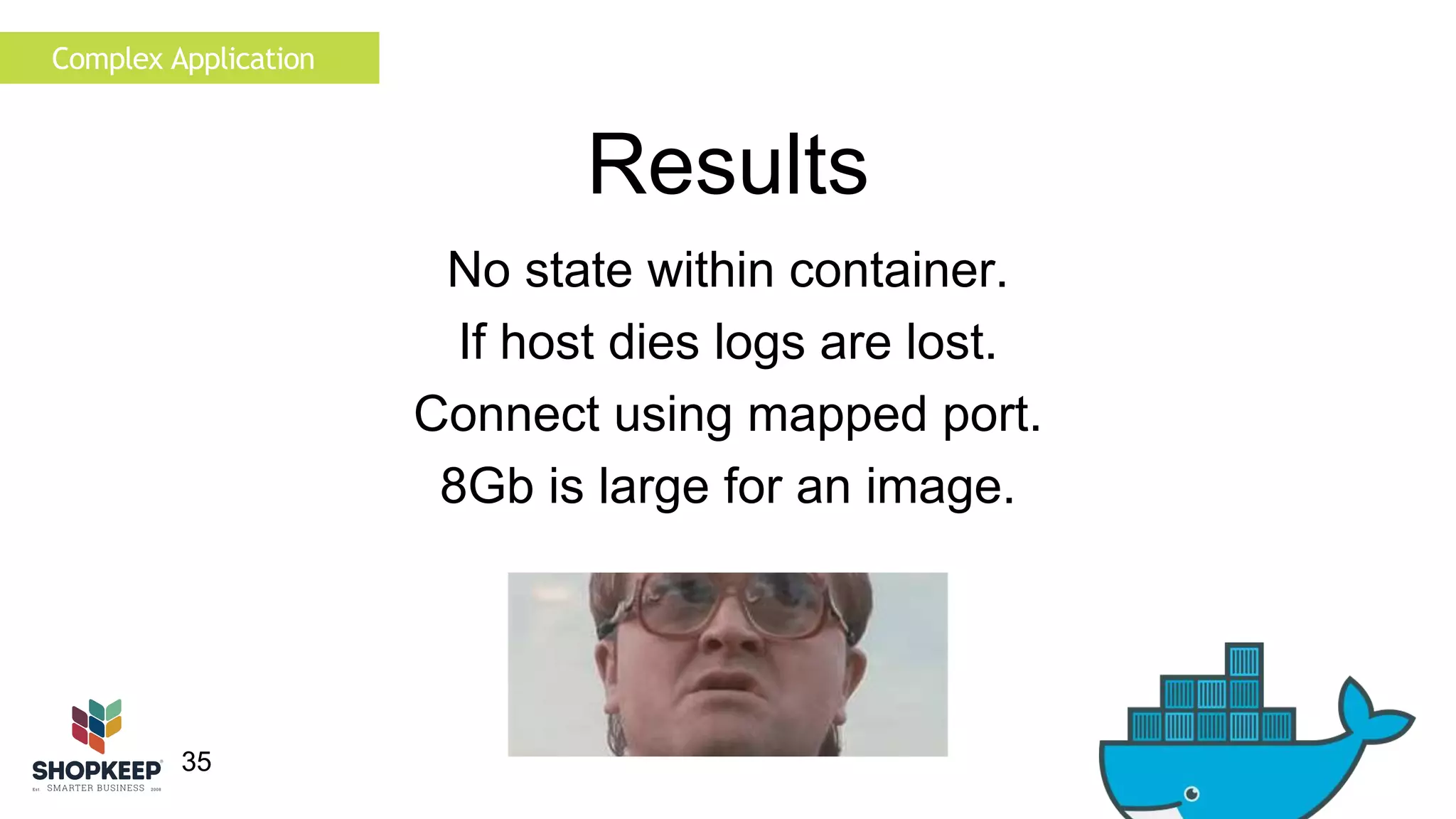

35. 35
Results
Complex Application
No state within container.
If host dies logs are lost.
Connect using mapped port.
8Gb is large for an image.

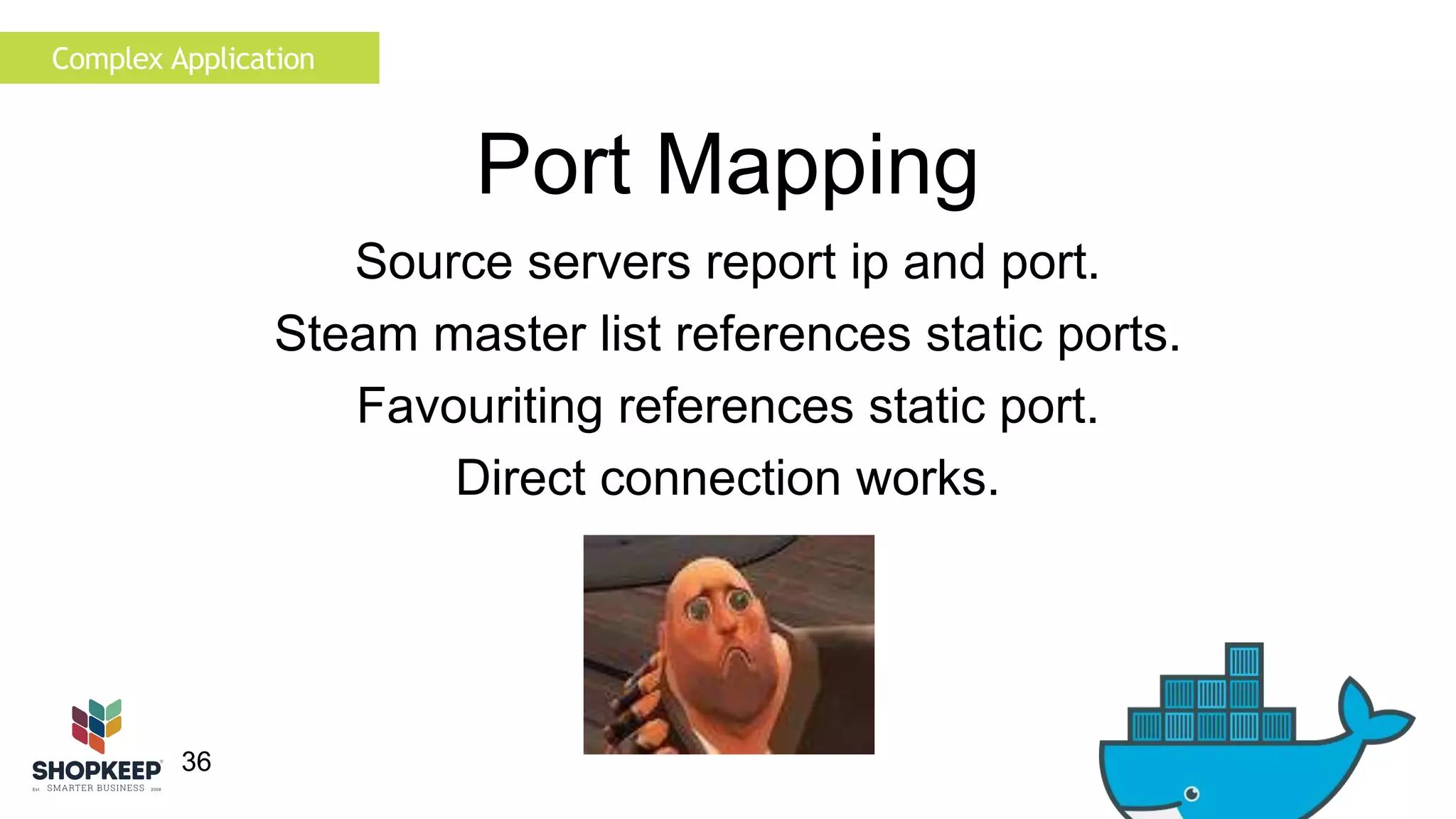

36. 36
Port Mapping
Complex Application
Source servers report ip and port.
Steam master list references static ports.
Favouriting references static port.
Direct connection works.

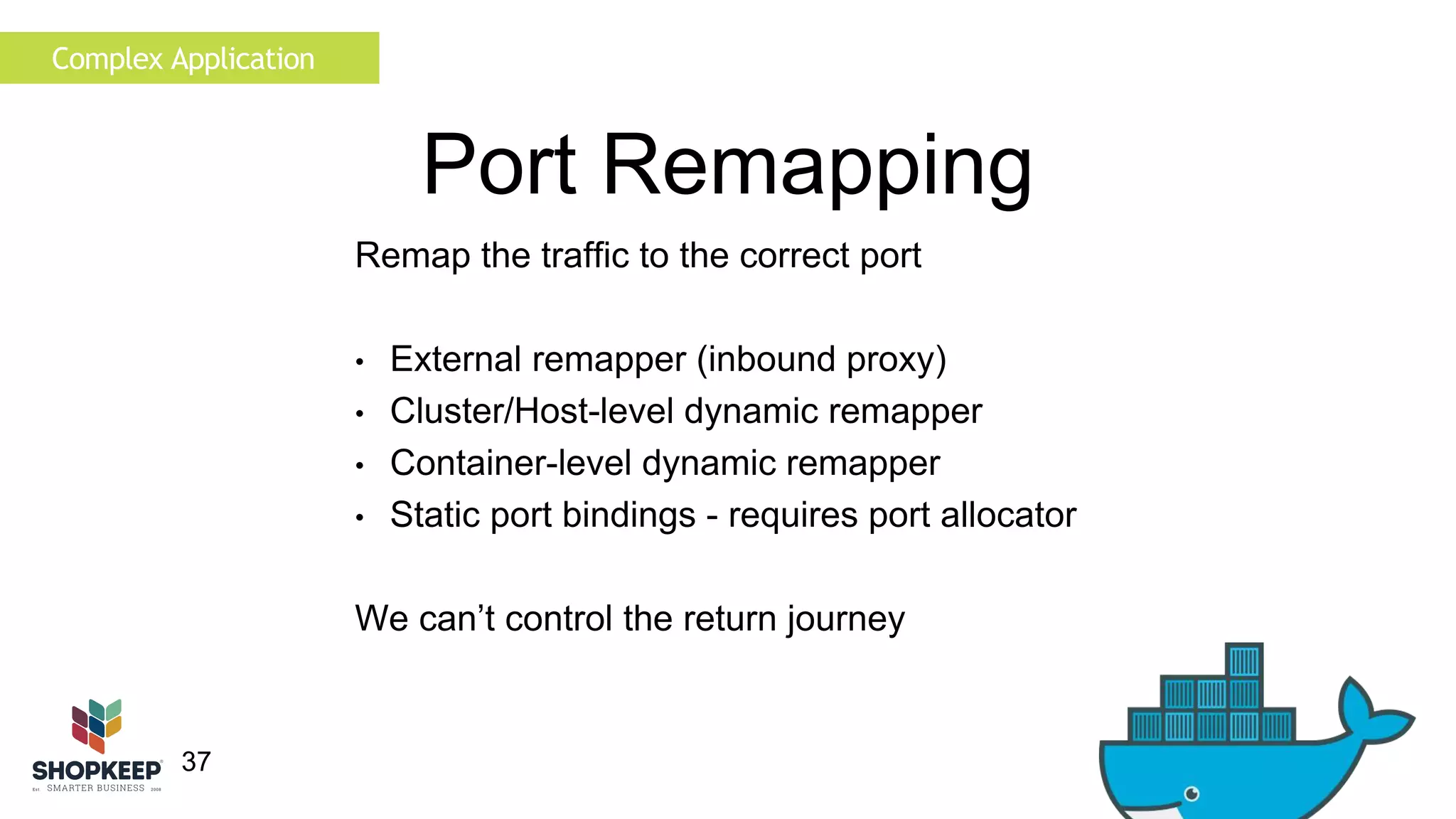

37. Complex Application
37
Port Remapping
Remap the traffic to the correct port
• External remapper (inbound proxy)
• Cluster/Host-level dynamic remapper
• Container-level dynamic remapper
• Static port bindings - requires port allocator
We can’t control the return journey

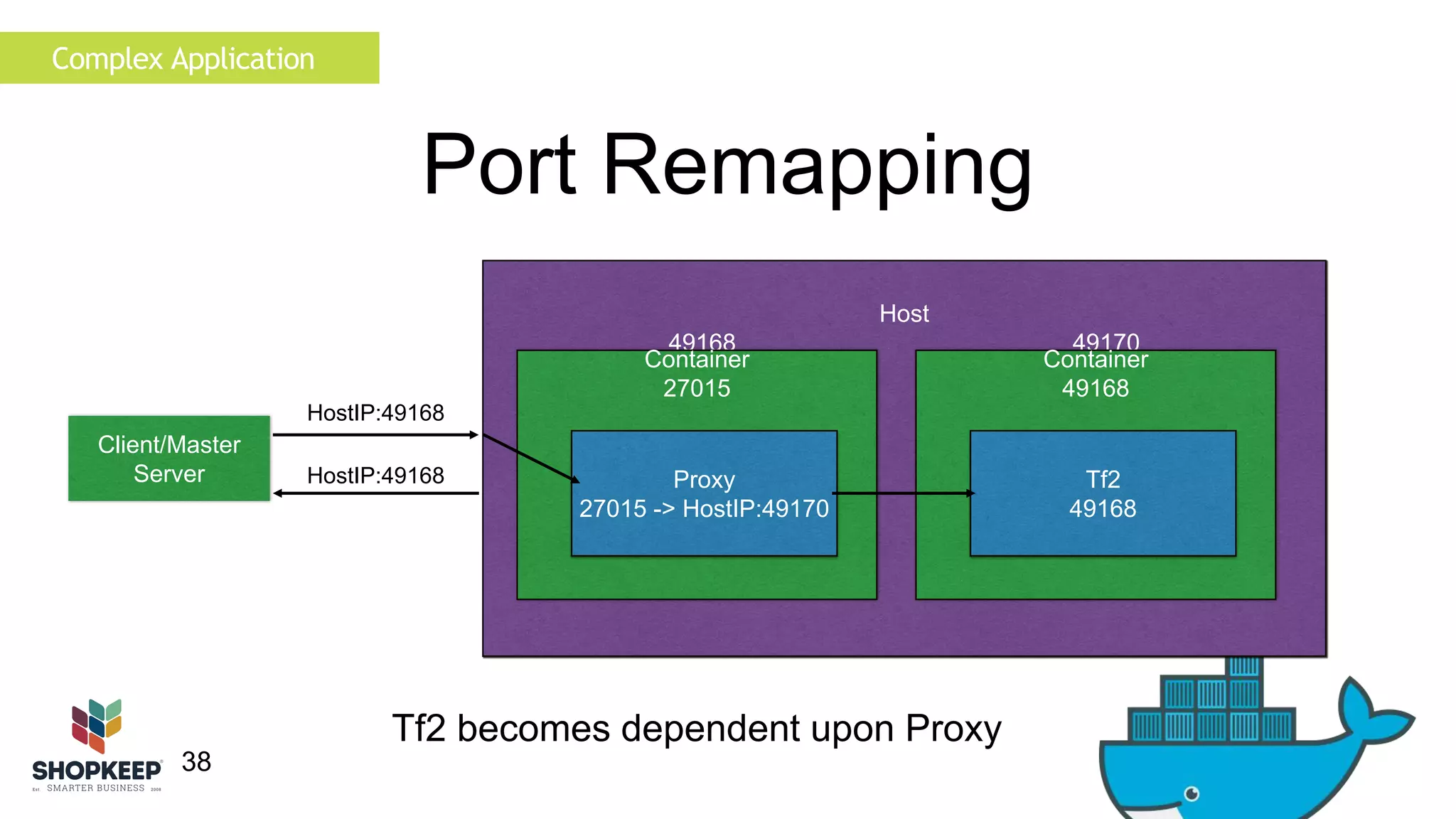

38. 38
Port Remapping
Host
49168 49170
Container
49168
Complex Application
Tf2
49168
Client/Master
Server
HostIP:49168
Container
27015
Proxy
27015 -> HostIP:49170
HostIP:49168
Tf2 becomes dependent upon Proxy

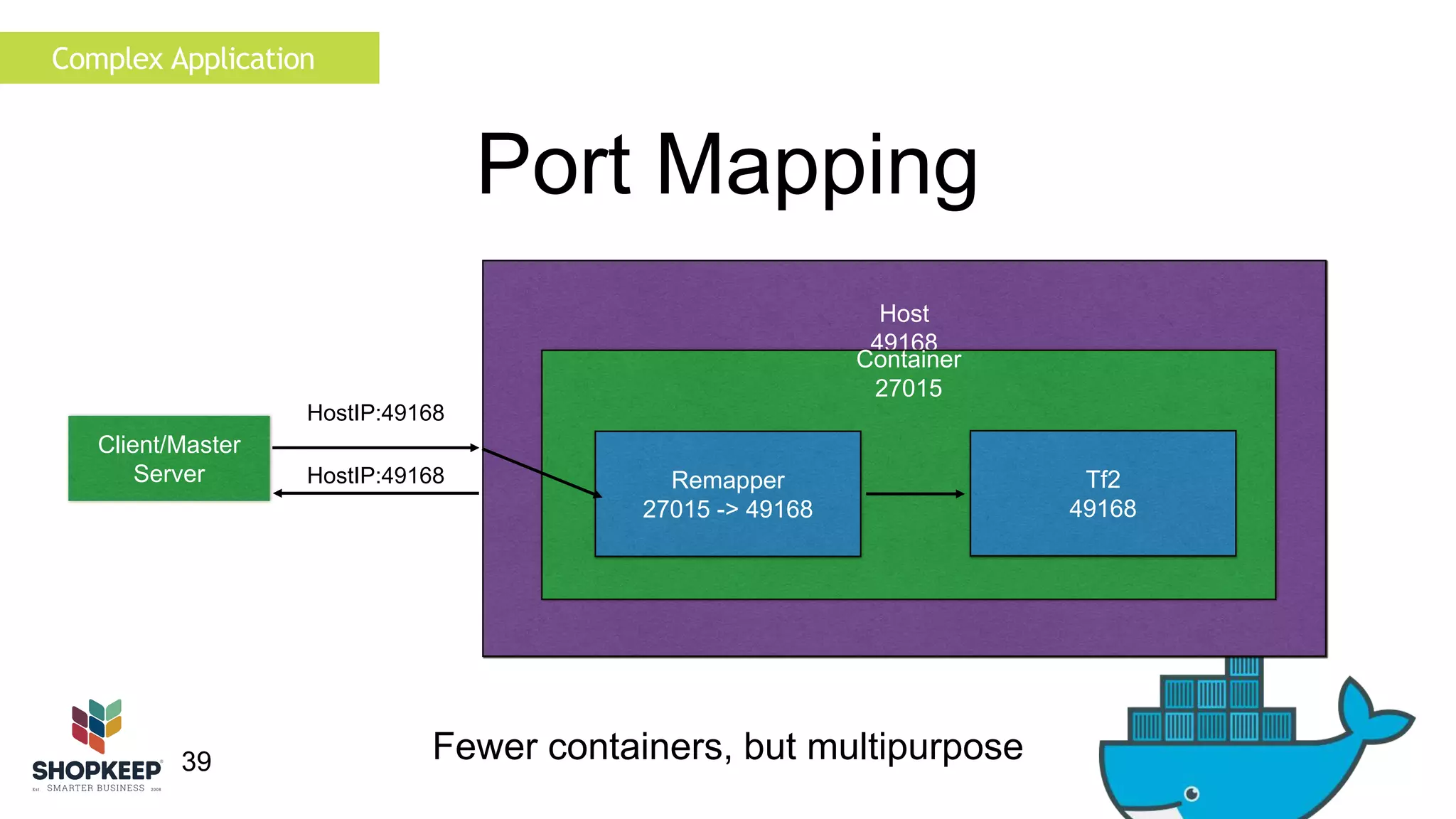

39. 39
Host
49168
Container
27015
Complex Application
Tf2
49168
Client/Master
Server
HostIP:49168
Port Mapping
HostIP:49168 Remapper
27015 -> 49168
Fewer containers, but multipurpose

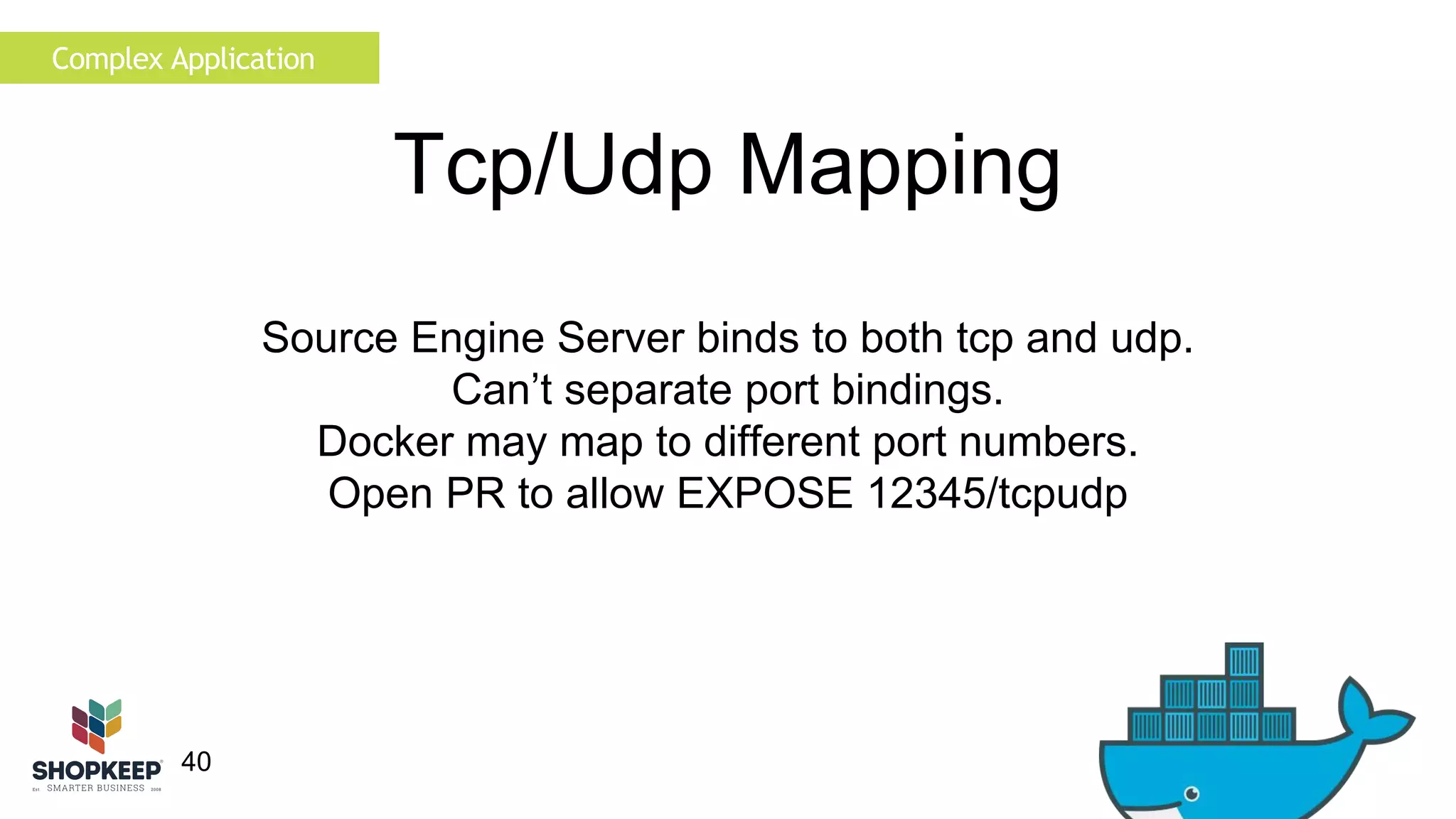

40. Complex Application
40
Tcp/Udp Mapping
Source Engine Server binds to both tcp and udp.
Can’t separate port bindings.
Docker may map to different port numbers.
Open PR to allow EXPOSE 12345/tcpudp

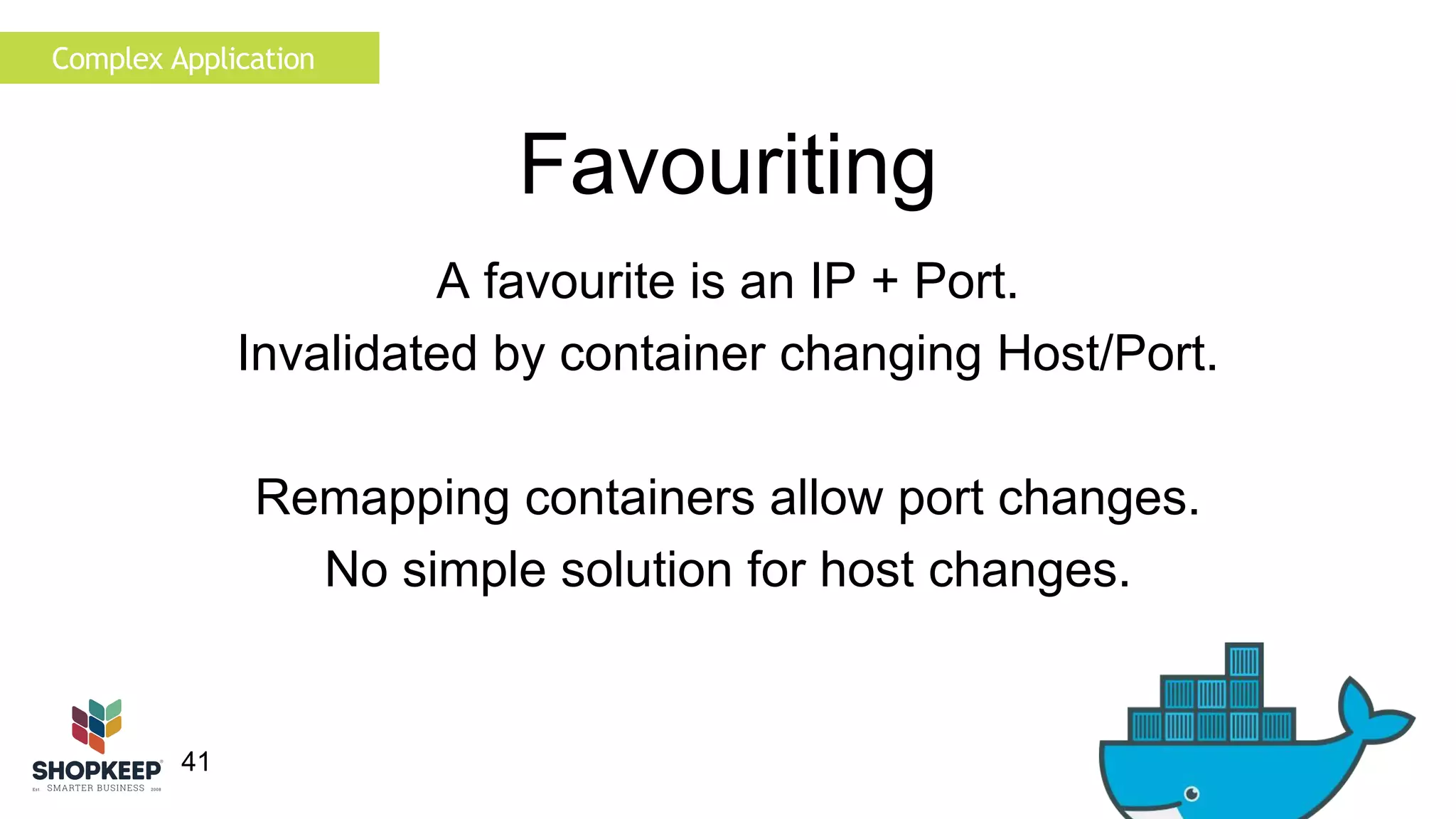

41. Complex Application
41
Favouriting
A favourite is an IP + Port.
Invalidated by container changing Host/Port.
Remapping containers allow port changes.
No simple solution for host changes.

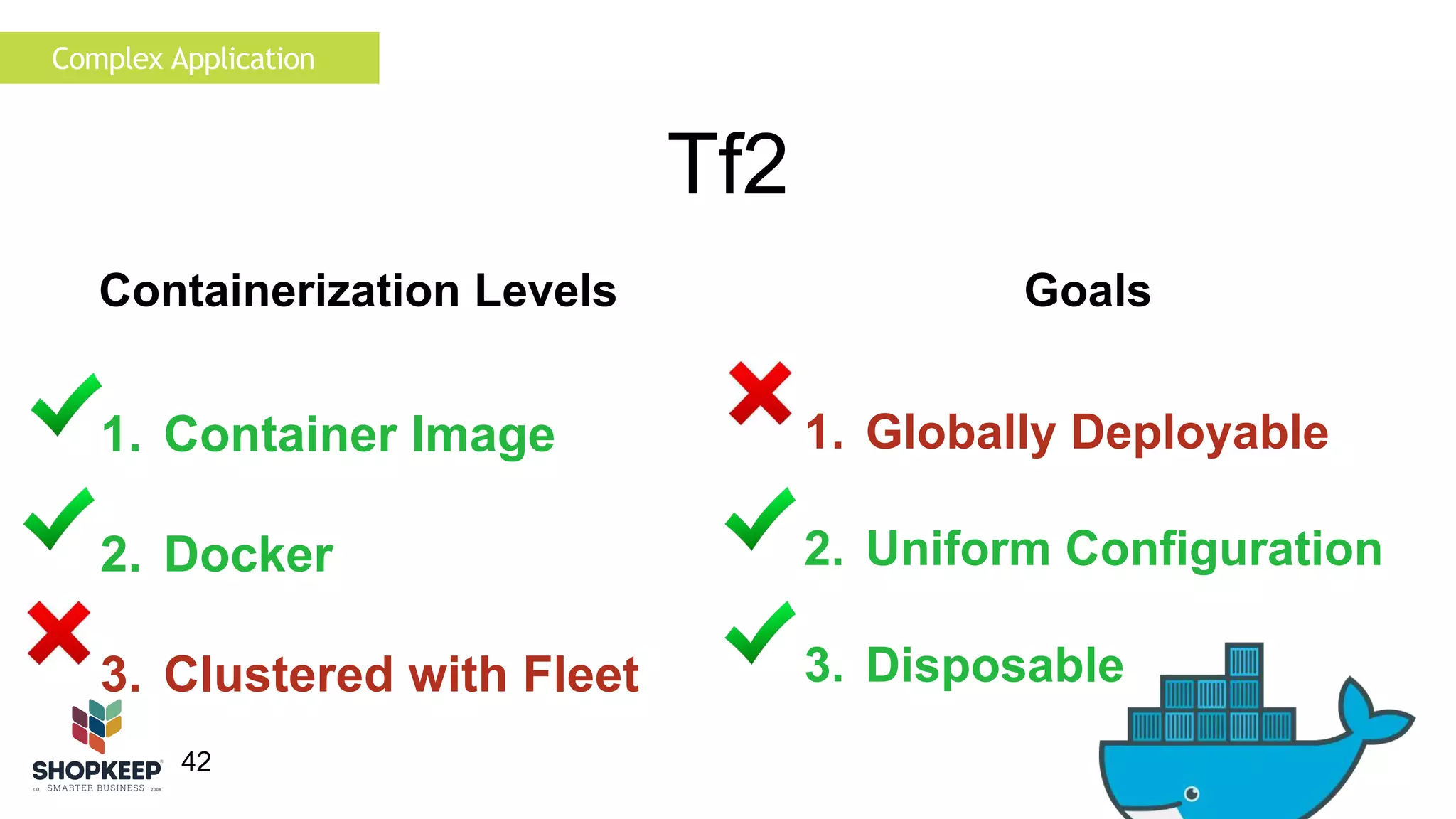

42. Complex Application
1. Container Image
2. Docker
3. Clustered with Fleet
42
Tf2
Containerization Levels Goals
1. Globally Deployable
2. Uniform Configuration
3. Disposable

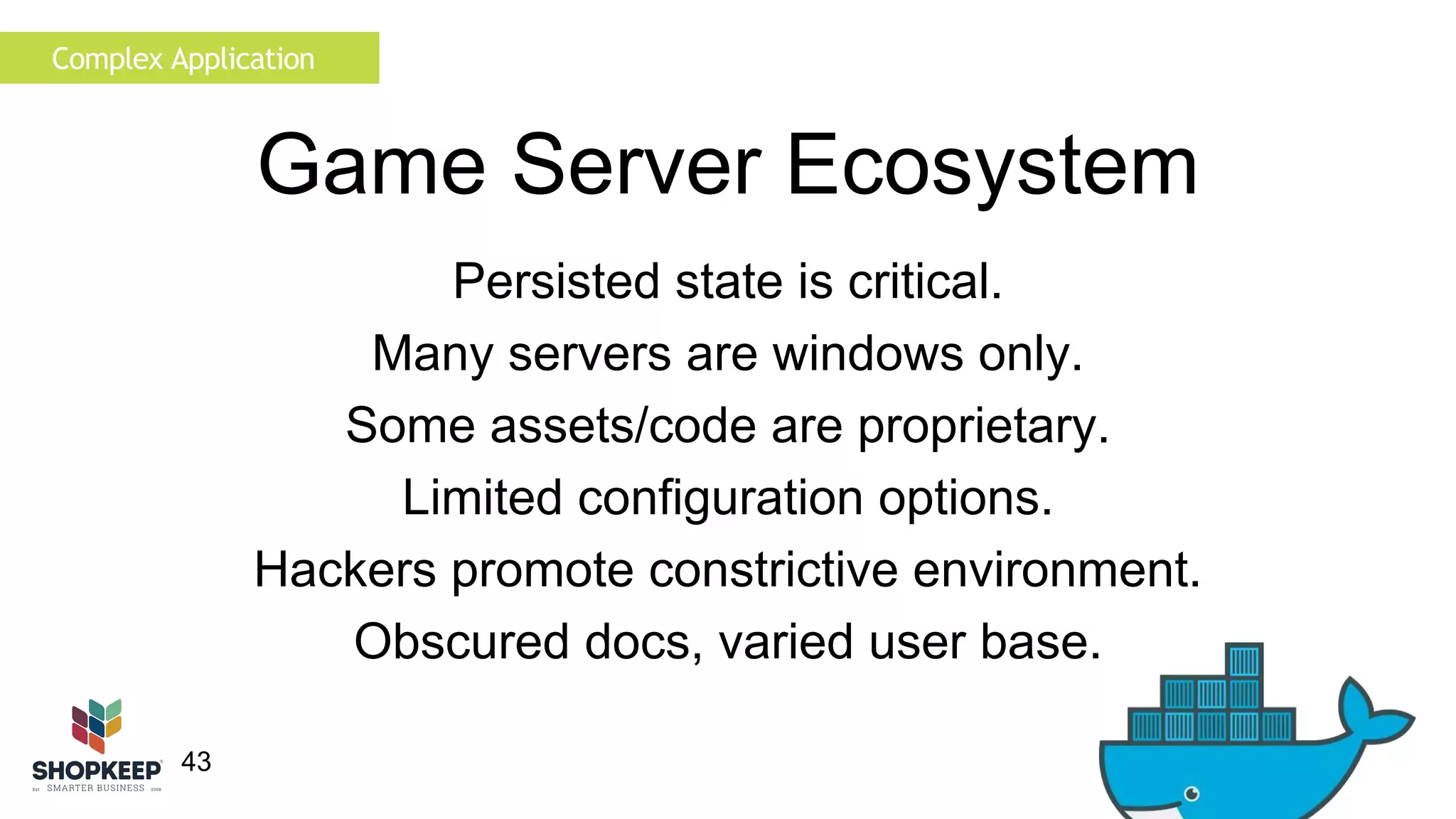

43. Complex Application
43
Game Server Ecosystem
Persisted state is critical.
Many servers are windows only.
Some assets/code are proprietary.
Limited configuration options.
Hackers promote constrictive environment.
Obscured docs, varied user base.

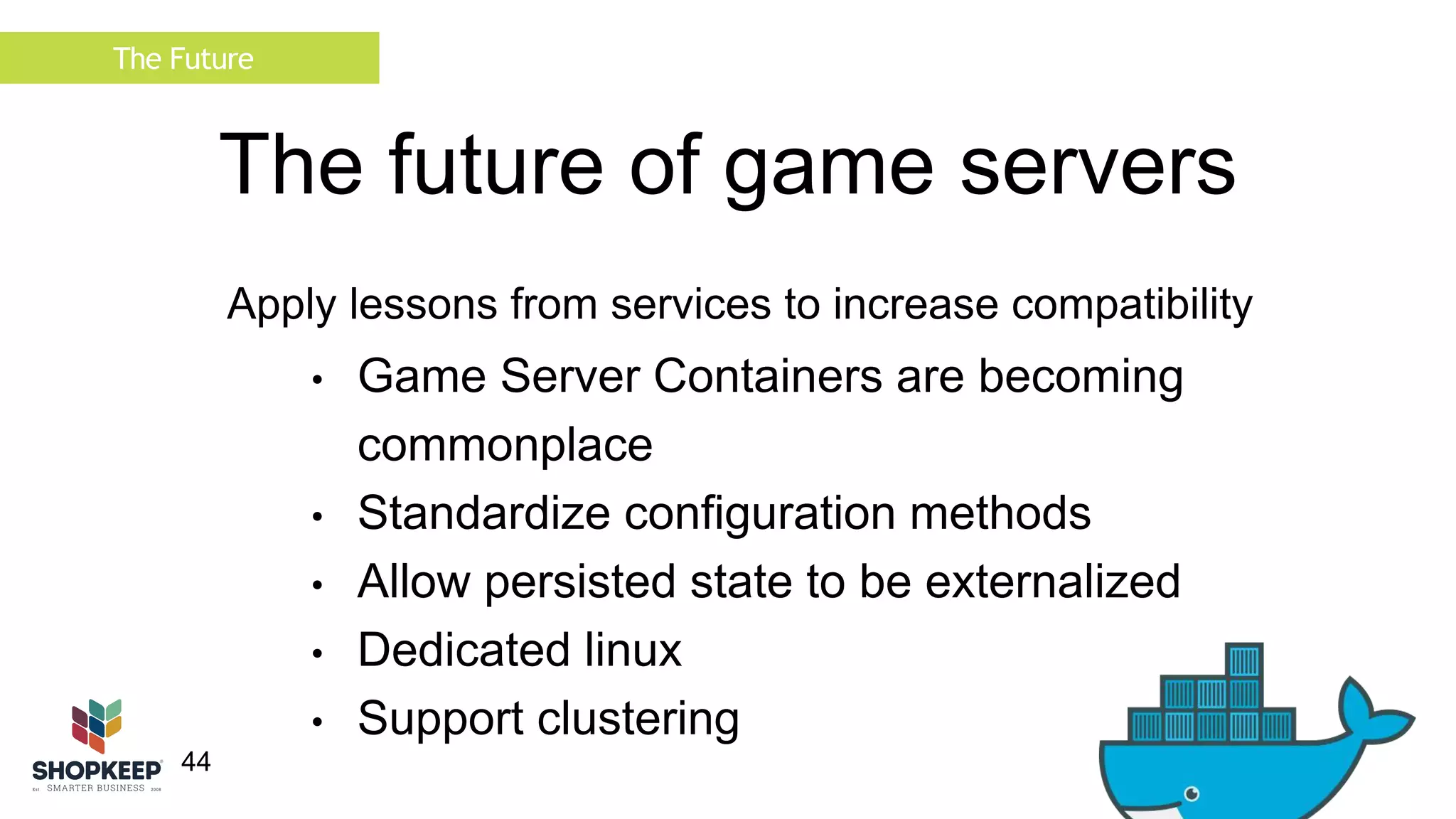

44. The Future
44
The future of game servers
Apply lessons from services to increase compatibility
• Game Server Containers are becoming
commonplace
• Standardize configuration methods
• Allow persisted state to be externalized
• Dedicated linux
• Support clustering

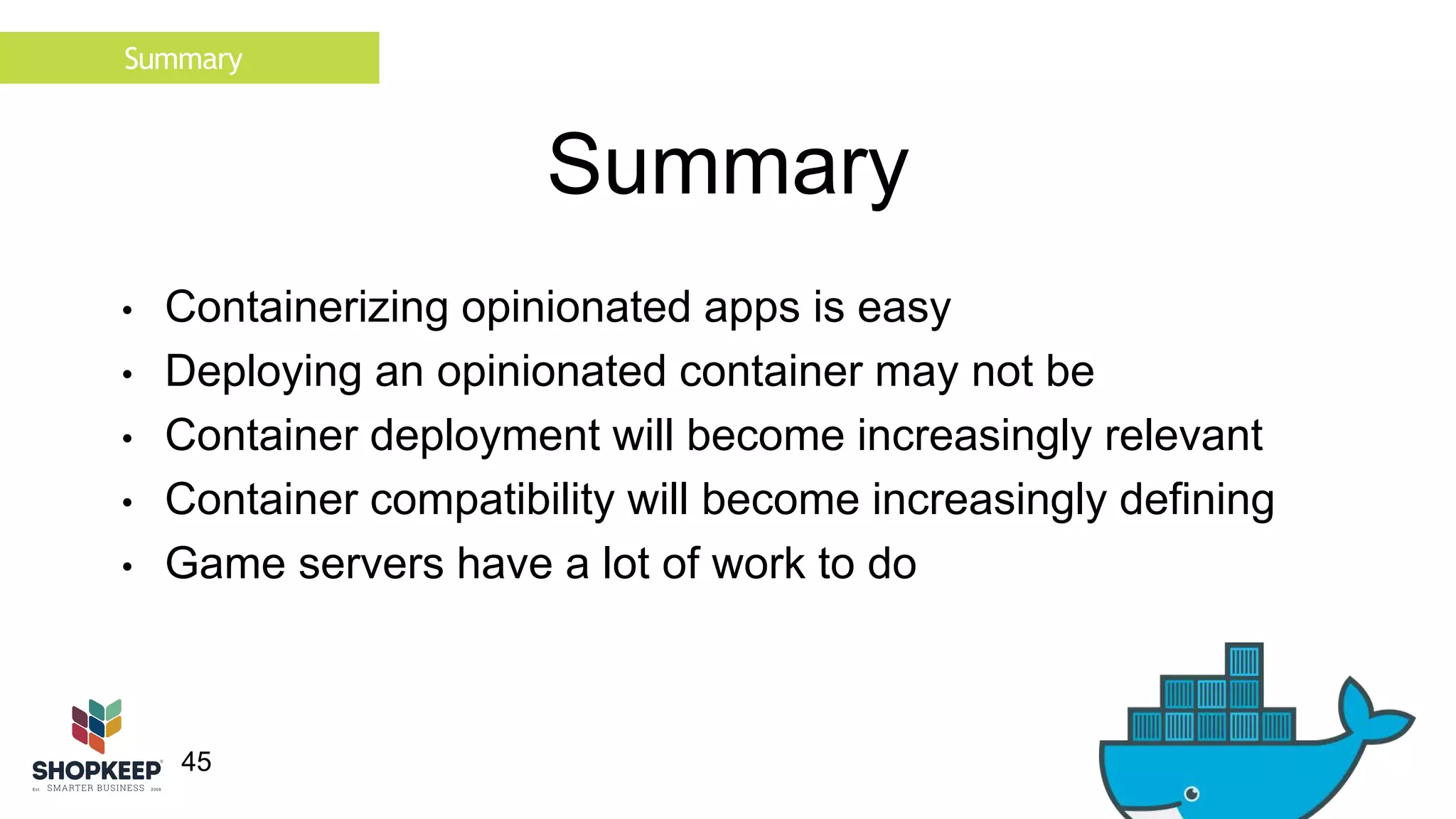

45. Summary
45
Summary
• Containerizing opinionated apps is easy
• Deploying an opinionated container may not be
• Container deployment will become increasingly relevant
• Container compatibility will become increasingly defining
• Game servers have a lot of work to do

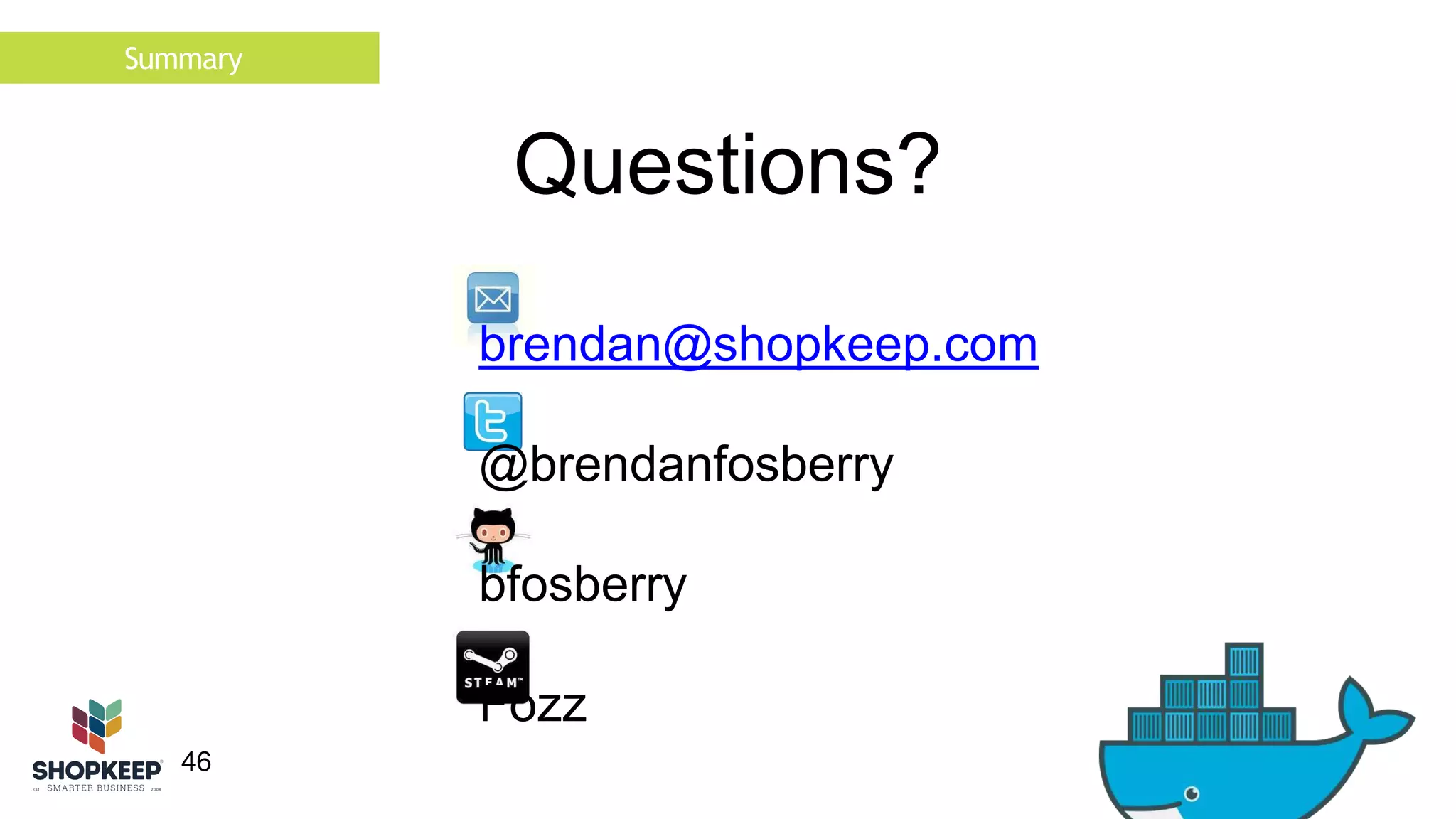

46. Summary
46
Questions?
brendan@shopkeep.com
@brendanfosberry
bfosberry
Fozz

47. Thank You.
47
