The document outlines a self-contained IT park designed to international standards, emphasizing energy efficiency and a vibrant environment with ample green spaces. Features include solar energy systems, rainwater harvesting, and high-efficiency equipment aimed at promoting quality of life and architectural value. The planning focuses on sustainable design aspects such as natural light maximization and public amenities.

12. SITE SURROUNDINGS

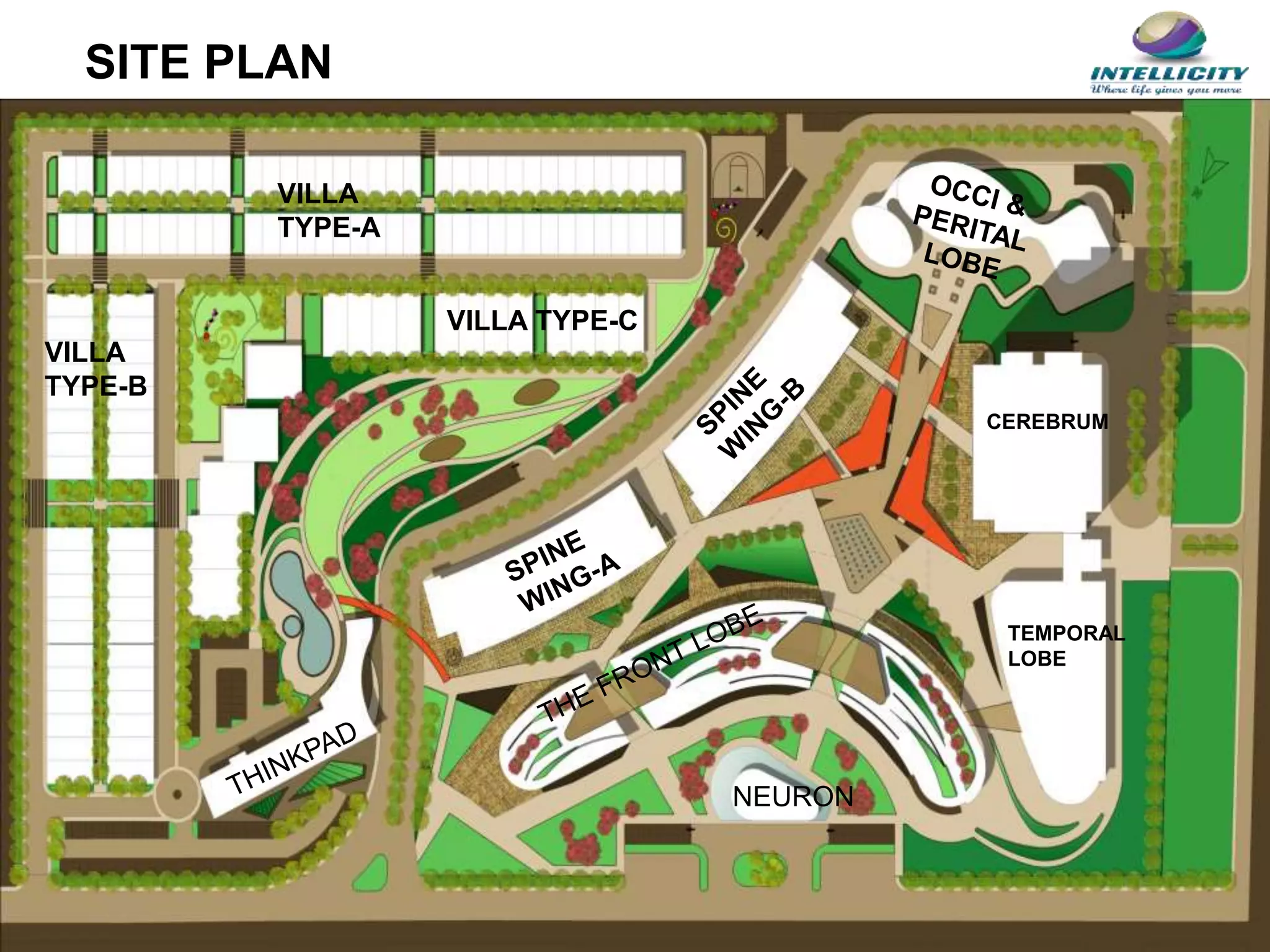

14. SITE PLAN
CEREBRUM
TEMPORAL
LOBE
NEURON
VILLA
TYPE-A
VILLA TYPE-C
VILLA
TYPE-B

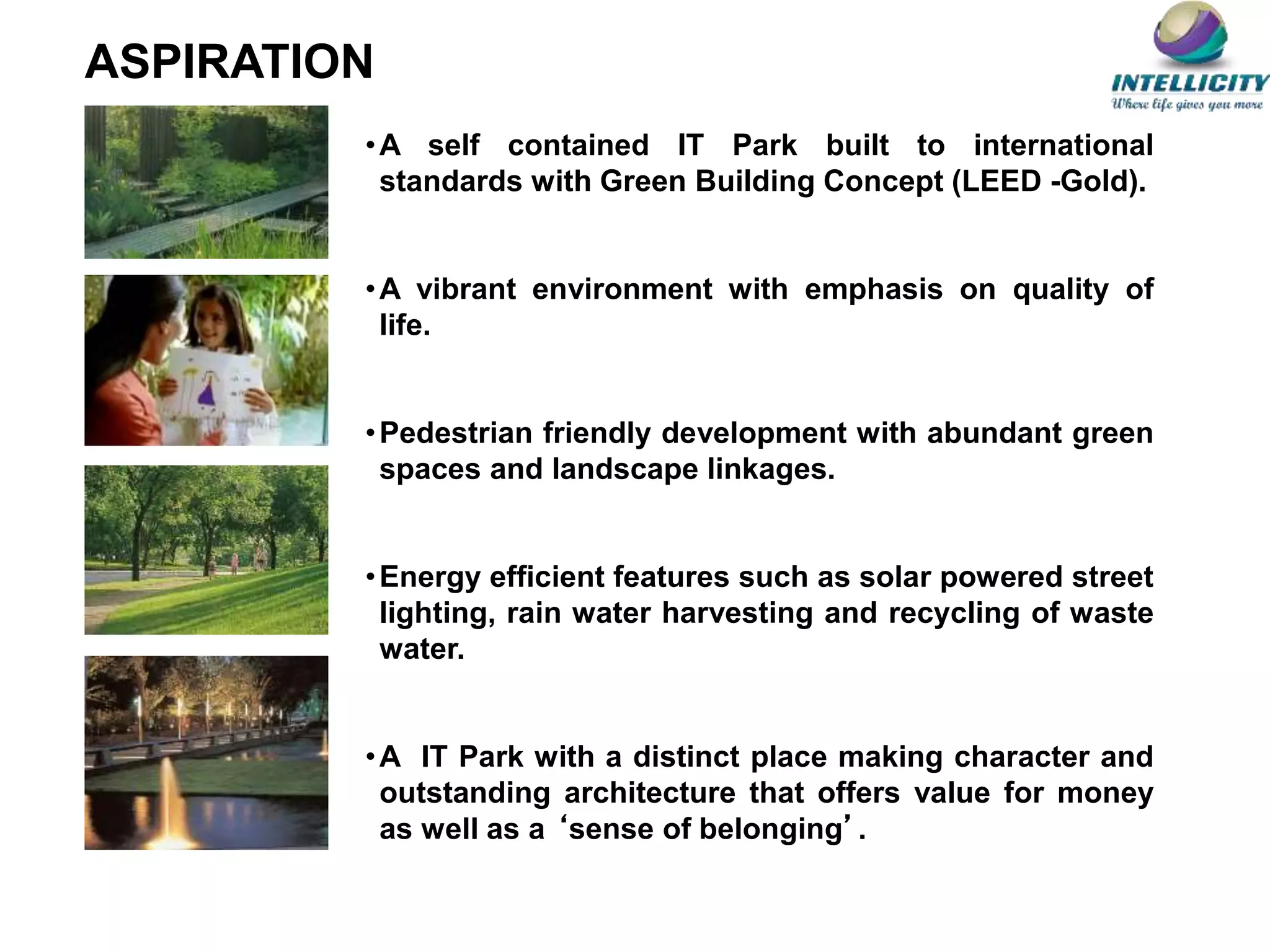

15. •A self contained IT Park built to international
standards with Green Building Concept (LEED -Gold).
•A vibrant environment with emphasis on quality of
life.
•Pedestrian friendly development with abundant green
spaces and landscape linkages.
•Energy efficient features such as solar powered street
lighting, rain water harvesting and recycling of waste
water.
•A IT Park with a distinct place making character and
outstanding architecture that offers value for money
as well as a ‘sense of belonging’.
ASPIRATION

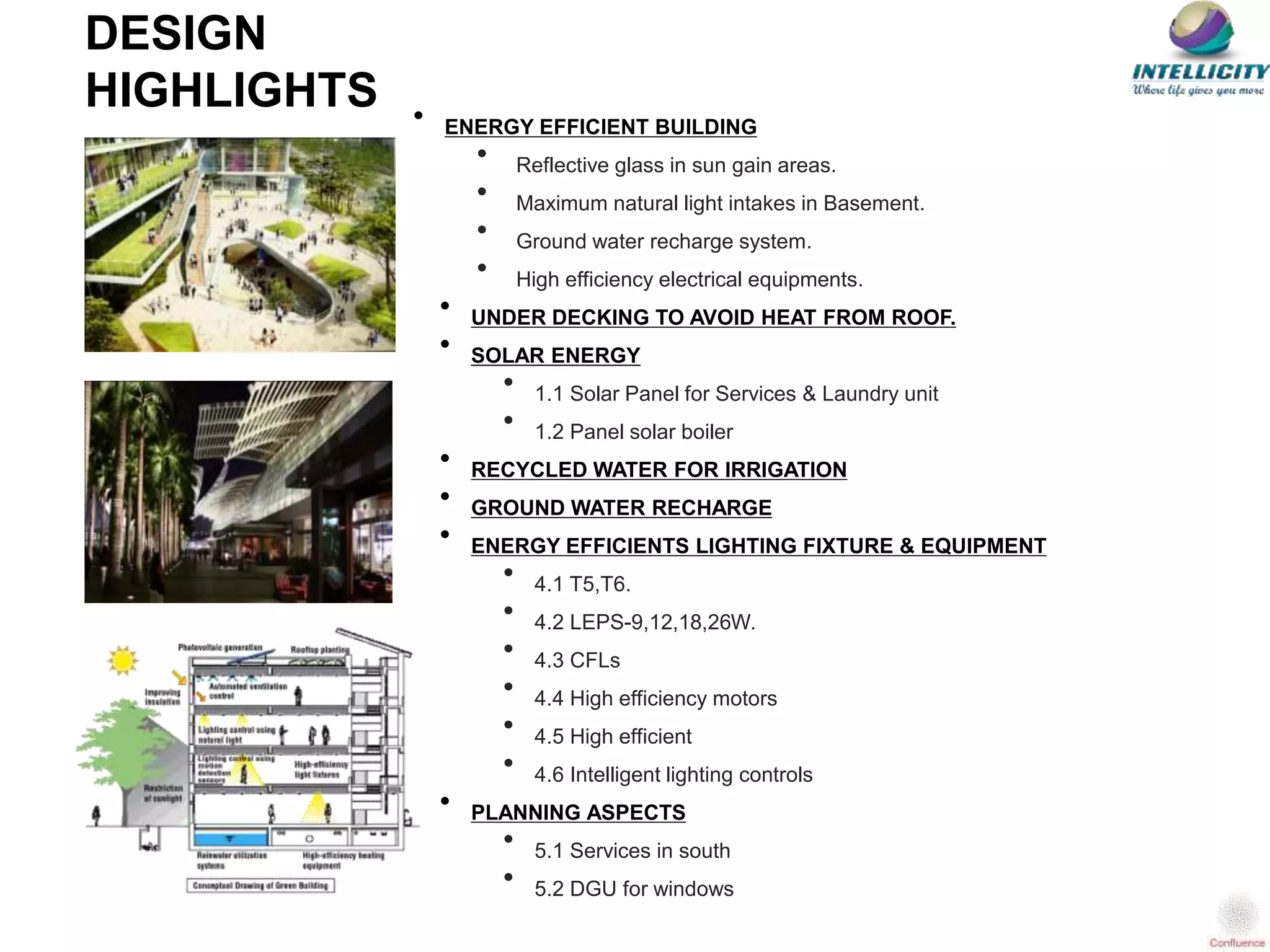

16. • ENERGY EFFICIENT BUILDING
• Reflective glass in sun gain areas.
• Maximum natural light intakes in Basement.
• Ground water recharge system.
• High efficiency electrical equipments.
• UNDER DECKING TO AVOID HEAT FROM ROOF.
• SOLAR ENERGY
• 1.1 Solar Panel for Services & Laundry unit
• 1.2 Panel solar boiler
• RECYCLED WATER FOR IRRIGATION
• GROUND WATER RECHARGE
• ENERGY EFFICIENTS LIGHTING FIXTURE & EQUIPMENT
• 4.1 T5,T6.
• 4.2 LEPS-9,12,18,26W.
• 4.3 CFLs
• 4.4 High efficiency motors
• 4.5 High efficient
• 4.6 Intelligent lighting controls
• PLANNING ASPECTS
• 5.1 Services in south
• 5.2 DGU for windows
DESIGN
HIGHLIGHTS

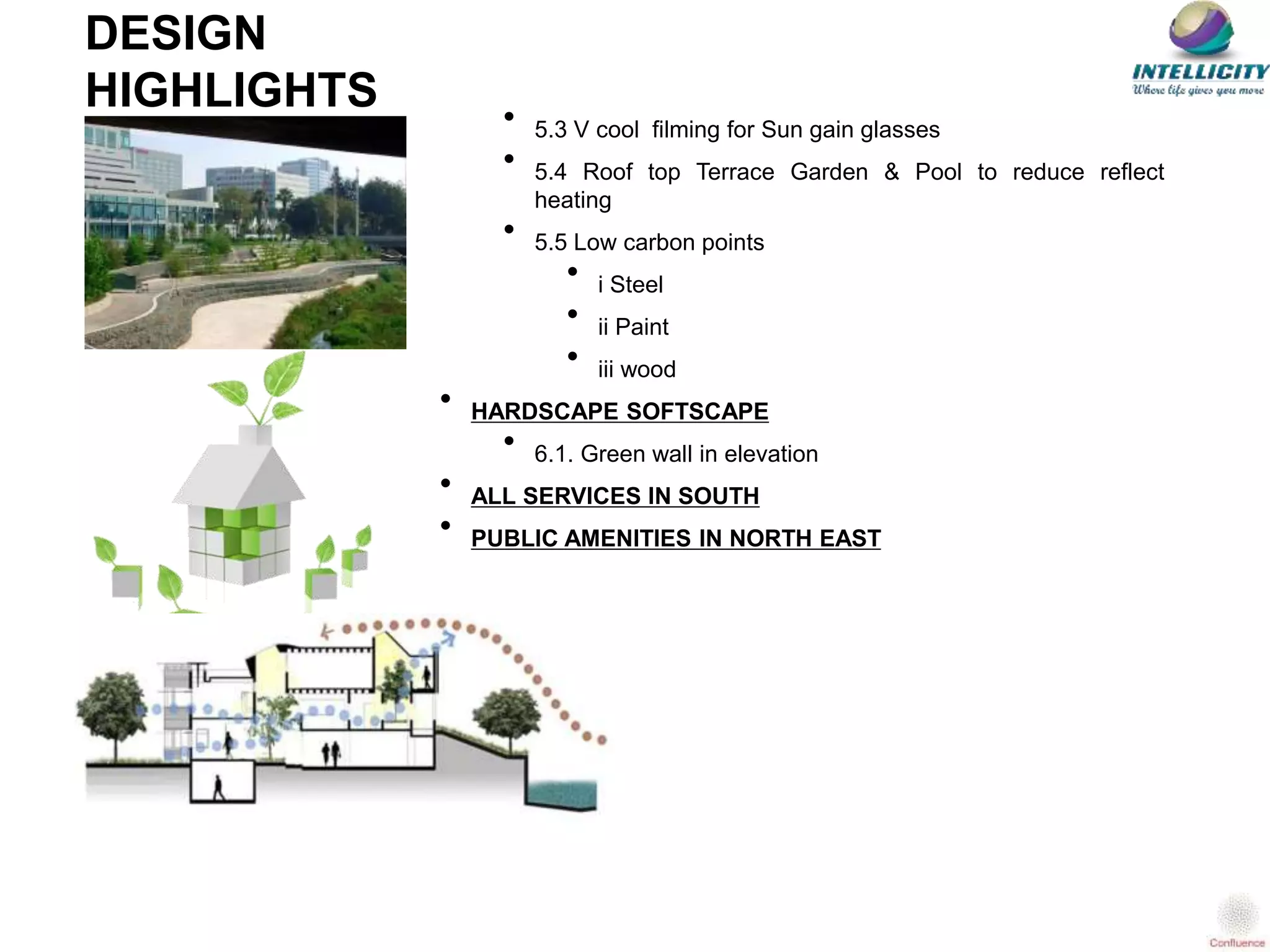

17. • 5.3 V cool filming for Sun gain glasses
• 5.4 Roof top Terrace Garden & Pool to reduce reflect
heating
• 5.5 Low carbon points
• i Steel
• ii Paint
• iii wood
• HARDSCAPE SOFTSCAPE
• 6.1. Green wall in elevation
• ALL SERVICES IN SOUTH
• PUBLIC AMENITIES IN NORTH EAST
DESIGN
HIGHLIGHTS

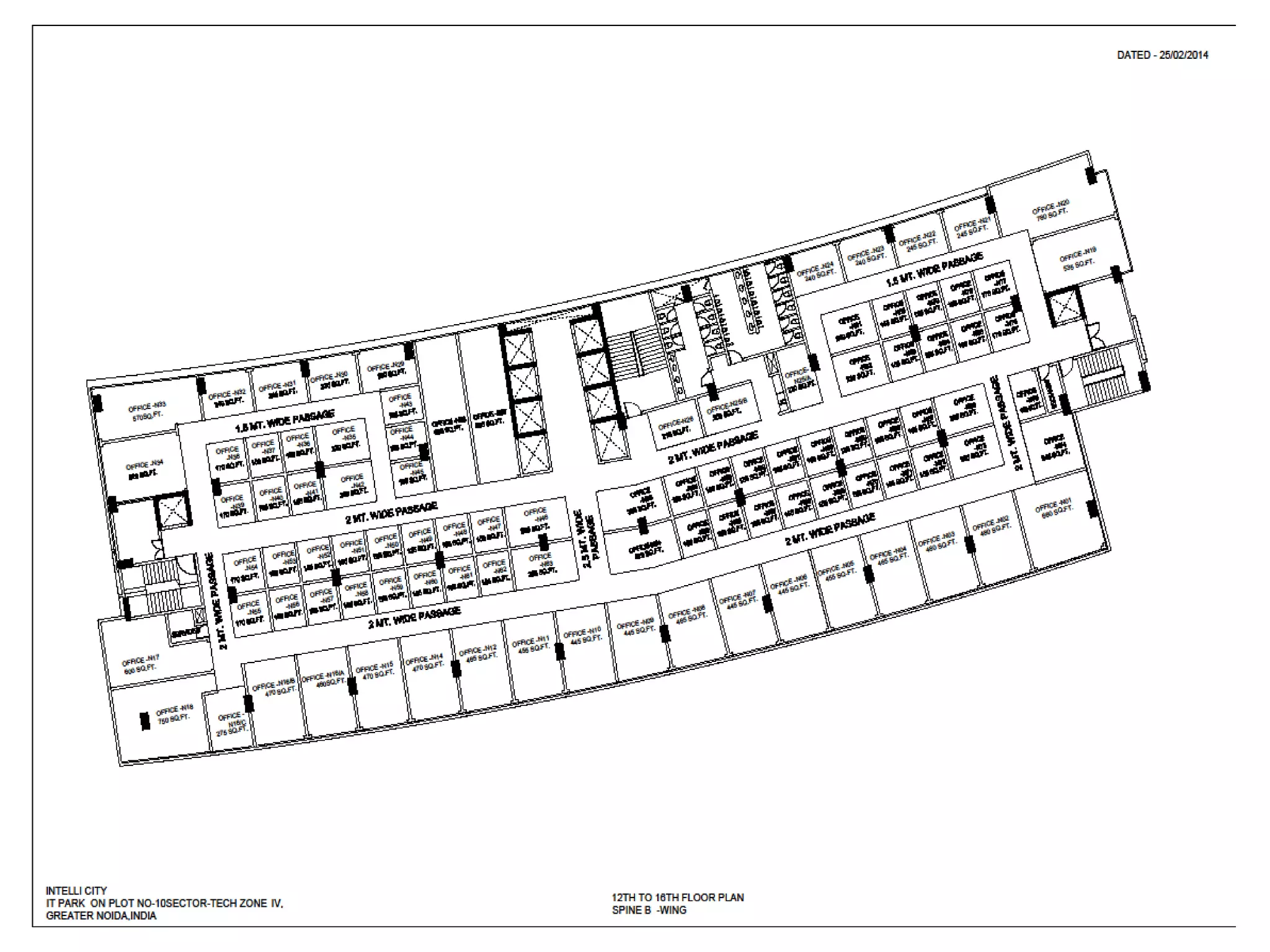

20. LOCABLE OFFICE PLAN SPINE
2 TO 16 FLOOR 6 NO. OF HIGH SPEED LIFT
DEDICATED FOR OFFICE

22. LOCKABLE OFFICE PLAN
6 NO. OF HIGH SPEED LIFT
DEDICATED FOR OFFICE
SPINE
17 FLOOR

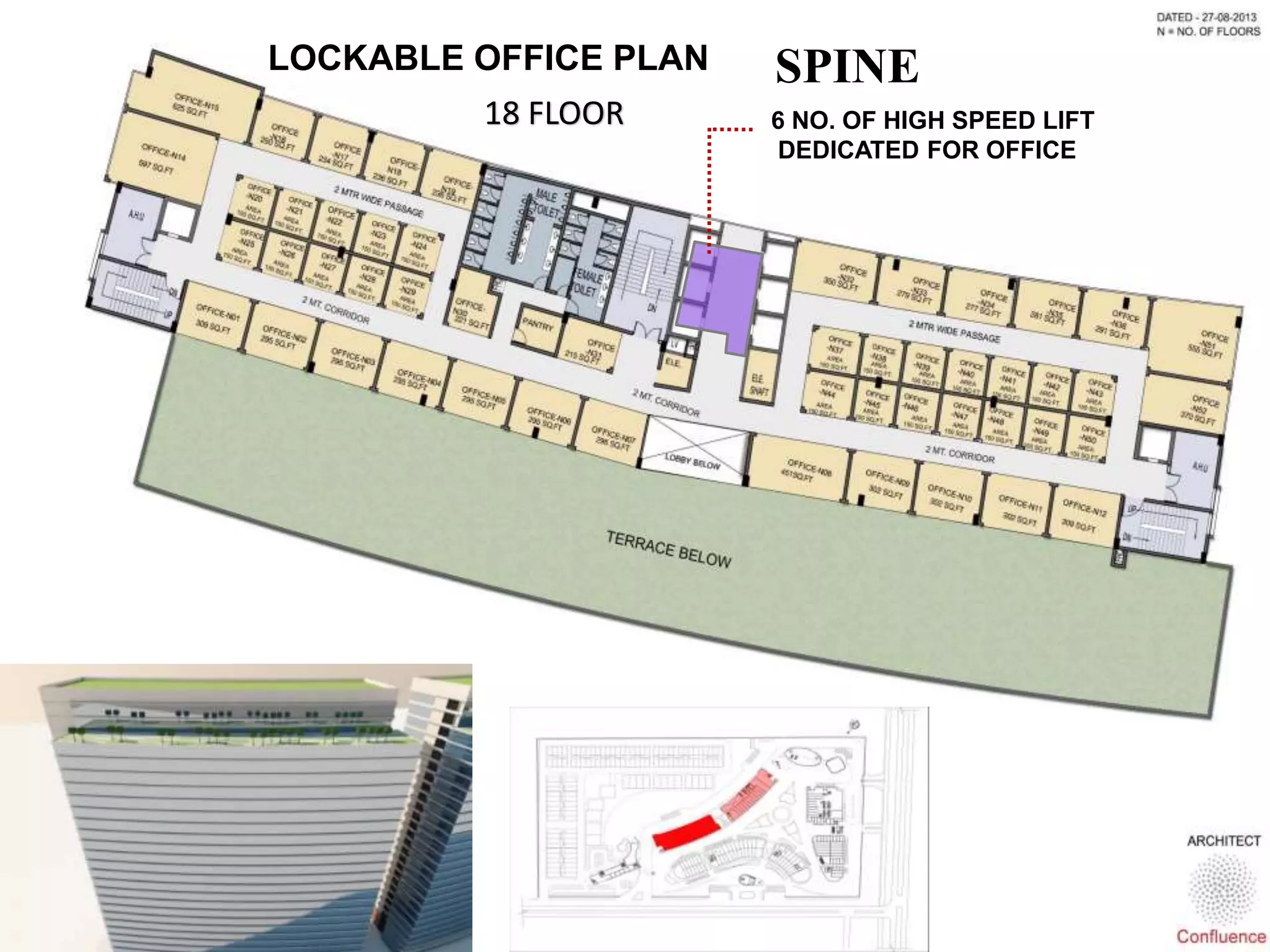

23. LOCKABLE OFFICE PLAN
6 NO. OF HIGH SPEED LIFT
DEDICATED FOR OFFICE
SPINE
18 FLOOR

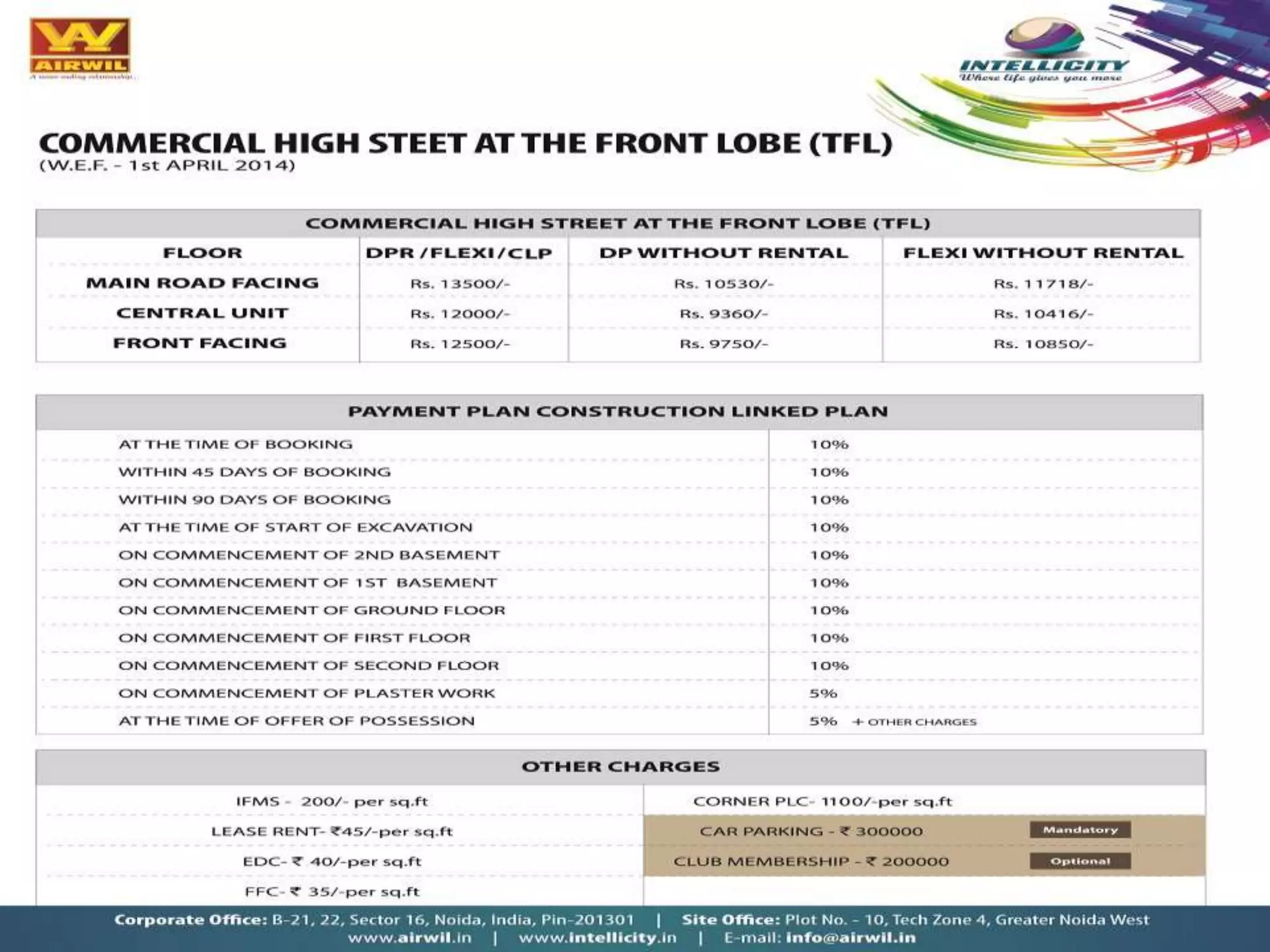

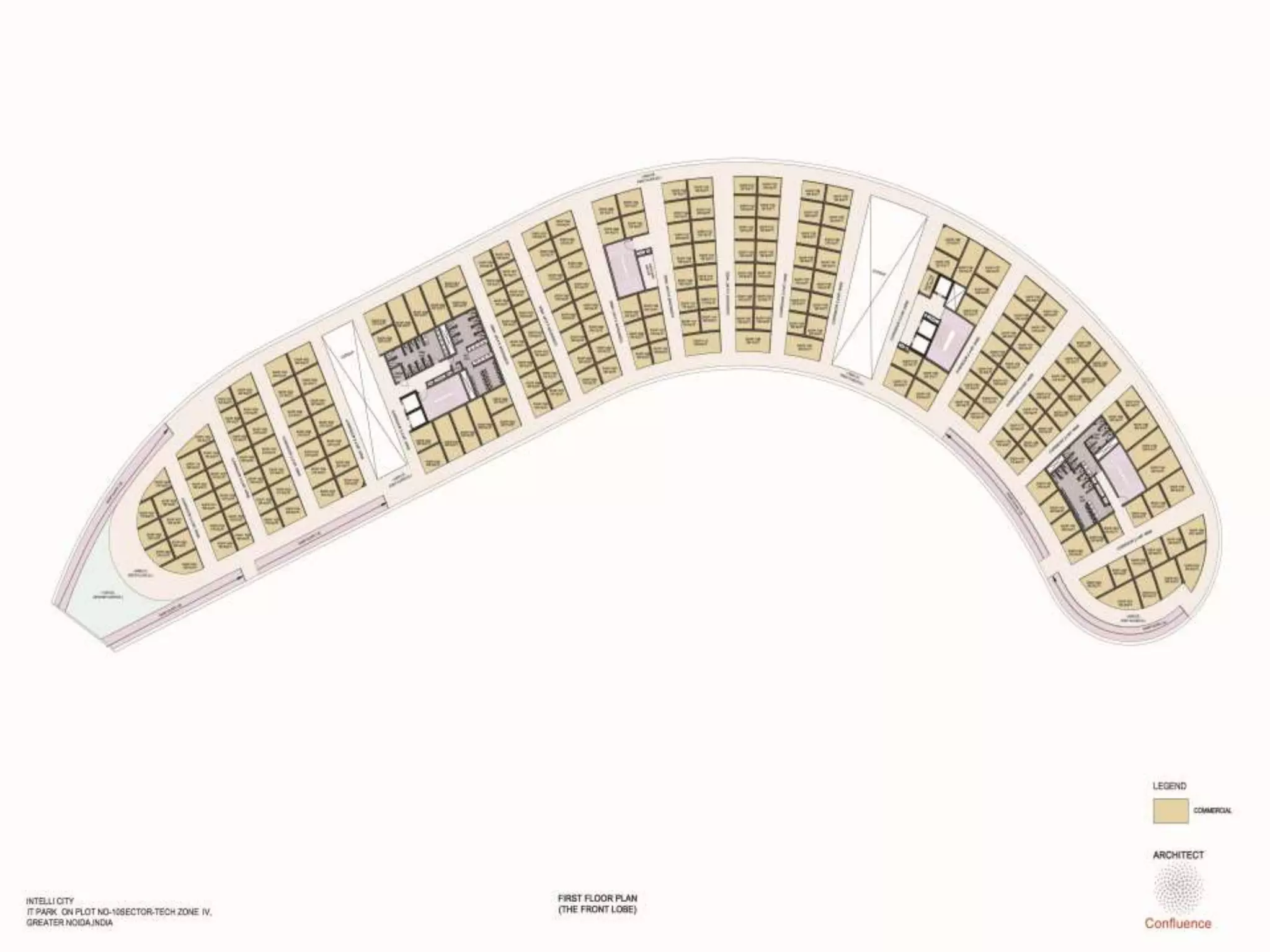

24. THE FRONT LOBE (TFL)

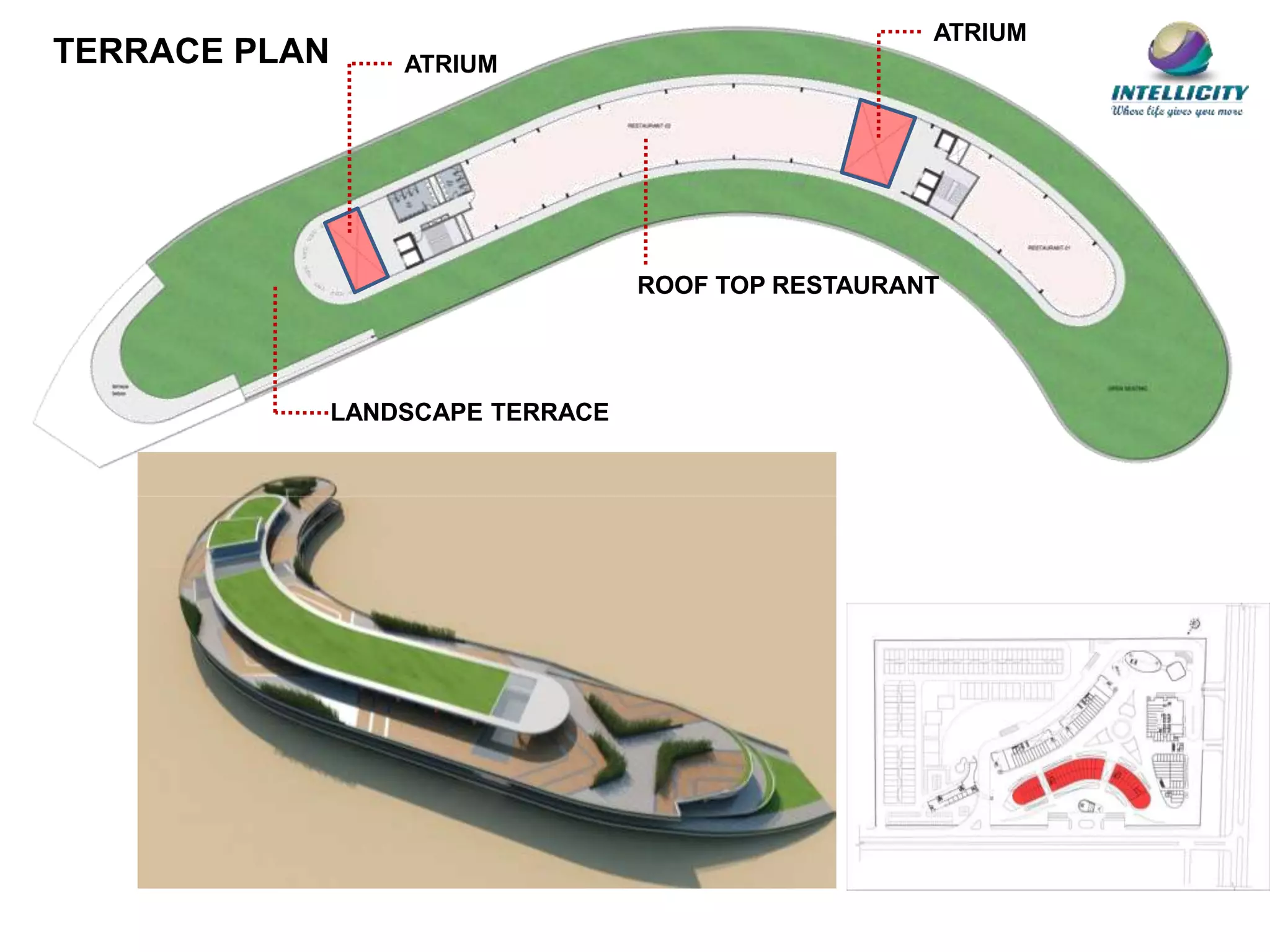

29. TERRACE PLAN
ROOF TOP RESTAURANT
ATRIUM
ATRIUM
LANDSCAPE TERRACE

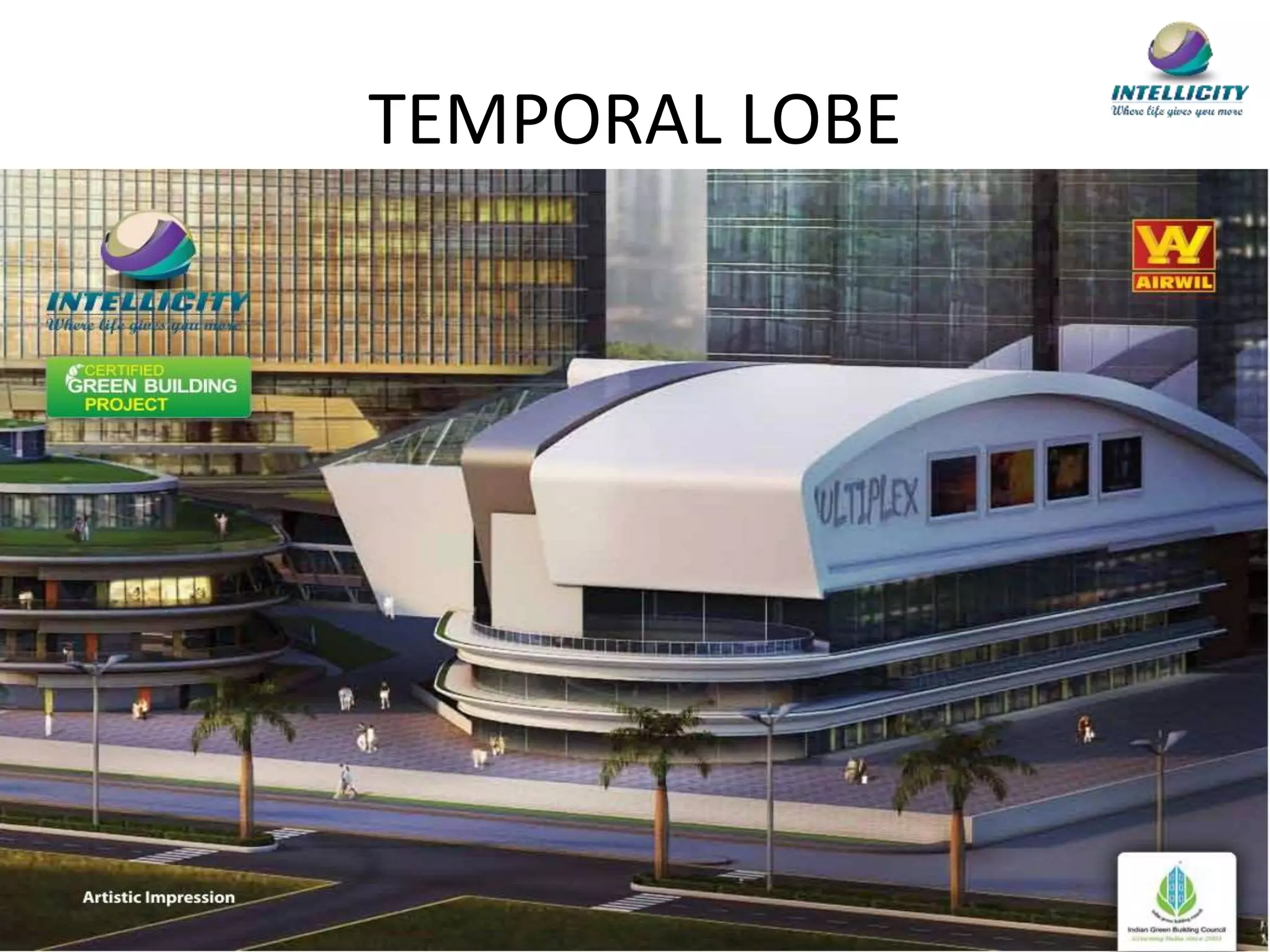

30. TEMPORAL LOBE
