MATERIALS AND HARDWARE MODULE 06
Introduction to Materials • How are Engineering materials classified? – Metals – Polymers – Ceramics – Glass – Composite – Wood
Metals • Pure Metals – Elements which come from a particular area of the periodic table. • Alloys – Contain more than one element – Their properties can be changed by changing the elements present in the alloy – Ex: Steel (Fe+C), Stainless Steel (Fe+C+Cr+Ni), Gold Jewellery (Au+Cu)

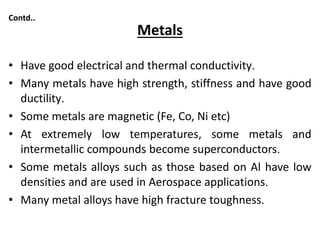

Metals • Have good electrical and thermal conductivity. • Many metals have high strength, stiffness and have good ductility. • Some metals are magnetic (Fe, Co, Ni etc) • At extremely low temperatures, some metals and intermetallic compounds become superconductors. • Some metals alloys such as those based on Al have low densities and are used in Aerospace applications. • Many metal alloys have high fracture toughness. Contd..

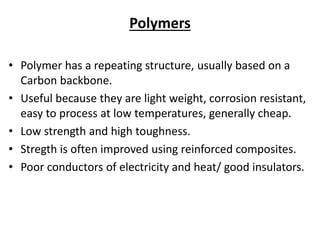

Polymers • Polymer has a repeating structure, usually based on a Carbon backbone. • Useful because they are light weight, corrosion resistant, easy to process at low temperatures, generally cheap. • Low strength and high toughness. • Stregth is often improved using reinforced composites. • Poor conductors of electricity and heat/ good insulators.

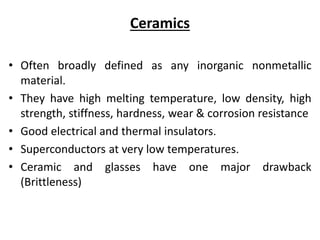

Ceramics • Often broadly defined as any inorganic nonmetallic material. • They have high melting temperature, low density, high strength, stiffness, hardness, wear & corrosion resistance • Good electrical and thermal insulators. • Superconductors at very low temperatures. • Ceramic and glasses have one major drawback (Brittleness)
Glass • Amorphous, inorganic, non metallic materials. • High range of applications (from bottles to fibre optics). • Very brittle

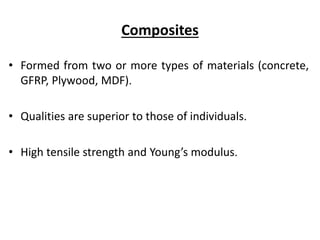

Composites • Formed from two or more types of materials (concrete, GFRP, Plywood, MDF). • Qualities are superior to those of individuals. • High tensile strength and Young’s modulus.

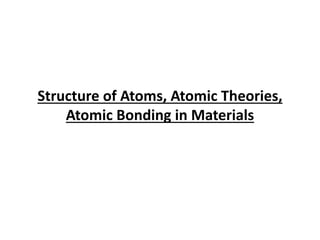

Structure of Atoms, Atomic Theories, Atomic Bonding in Materials
Atomic Structure All the materials are composed of very small particles called atoms. An atom consists of a center nucleus of positive charge around which small negatively charged particles called electrons revolve in different paths or orbits.

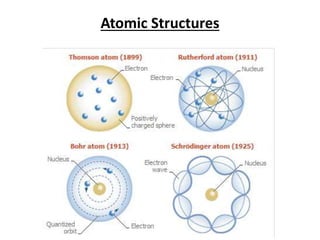

Atomic Structures
Atomic Structure (Fundamental Concepts) • Atom consists of a very small nucleus (Protons and neutrons and is encircled by moving electrons). • Both electrons and protons are electrically charged; (-) for electrons and (+) for protons; neutrons are neutral. • Each chemical element is characterized by the number of protons in the nucleus, or the atomic number (Z). • The atomic mass (A) is the sum of masses of protons and neutrons within the nucleus. • Some elements have two or more different atomic masses, which are called isotopes.

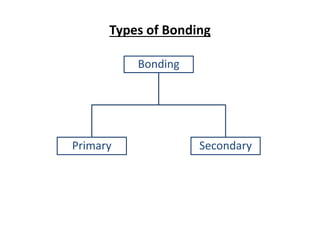

Types of Bonding Bonding Primary Secondary
Types of Bonds S/No Material Dominant Bond (Who Controls Material) Other Bonds 1 2 3 Metals Ceramics Polymers Metalic Covalent/ Ionic Van Der Walls/ Hydrogen Covalent Ionic/ Covalent Covalent

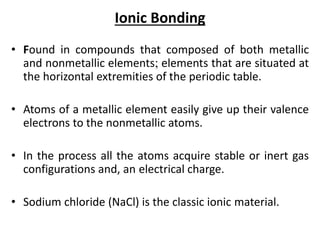

Ionic Bonding • Found in compounds that composed of both metallic and nonmetallic elements; elements that are situated at the horizontal extremities of the periodic table. • Atoms of a metallic element easily give up their valence electrons to the nonmetallic atoms. • In the process all the atoms acquire stable or inert gas configurations and, an electrical charge. • Sodium chloride (NaCl) is the classic ionic material.
Periodic Table

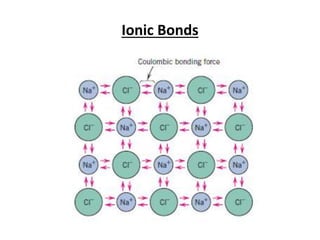

Ionic Bonds

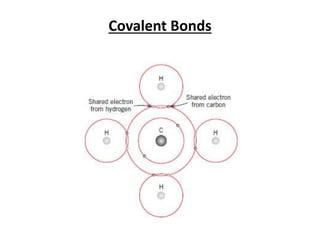

Covalent Bonds

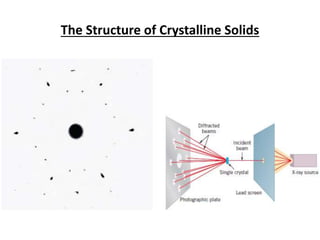

The Structure of Crystalline Solids

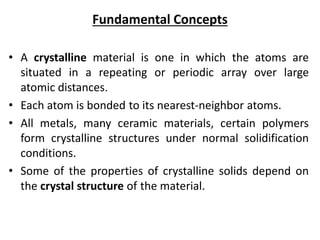

Fundamental Concepts • A crystalline material is one in which the atoms are situated in a repeating or periodic array over large atomic distances. • Each atom is bonded to its nearest-neighbor atoms. • All metals, many ceramic materials, certain polymers form crystalline structures under normal solidification conditions. • Some of the properties of crystalline solids depend on the crystal structure of the material.
FCC Structure

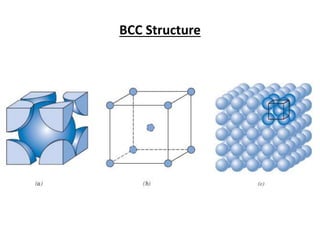

BCC Structure

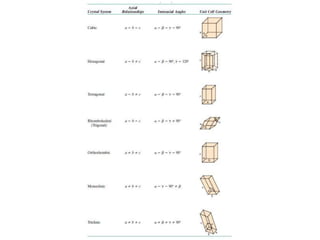

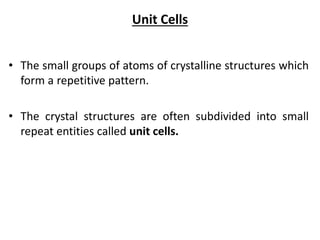

Unit Cells • The small groups of atoms of crystalline structures which form a repetitive pattern. • The crystal structures are often subdivided into small repeat entities called unit cells.

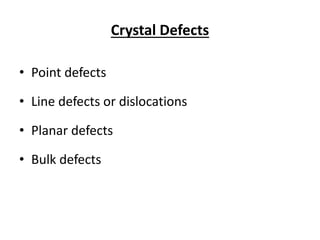

Crystal Defects • Point defects • Line defects or dislocations • Planar defects • Bulk defects
Point Defects • Defects related to a single atom • Specific for crystalline materials

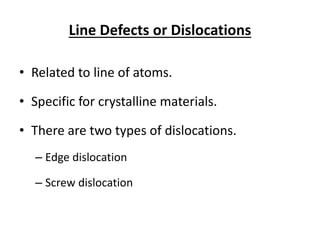

Line Defects or Dislocations • Related to line of atoms. • Specific for crystalline materials. • There are two types of dislocations. – Edge dislocation – Screw dislocation

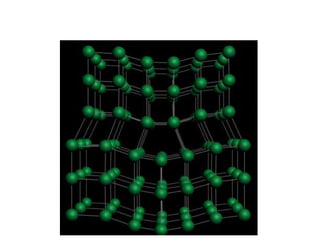

Edge Dislocation
Screw Dislocation

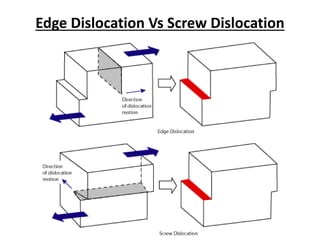

Edge Dislocation Vs Screw Dislocation

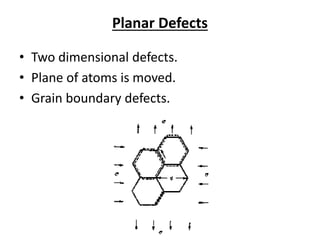

Planar Defects • Two dimensional defects. • Plane of atoms is moved. • Grain boundary defects.

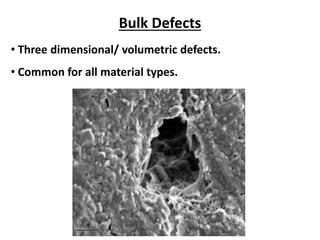

Bulk Defects • Three dimensional/ volumetric defects. • Common for all material types.

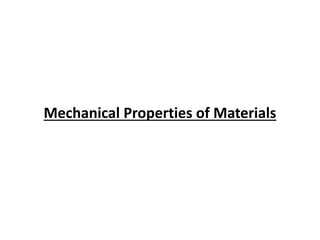

Mechanical Properties of Materials

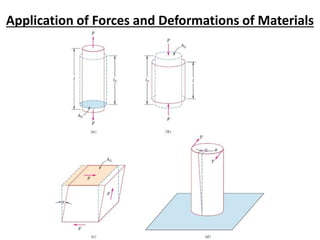

Application of Forces and Deformations of Materials

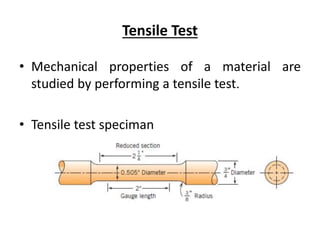

Tensile Test • Mechanical properties of a material are studied by performing a tensile test. • Tensile test speciman

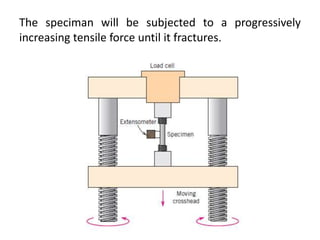

The speciman will be subjected to a progressively increasing tensile force until it fractures.

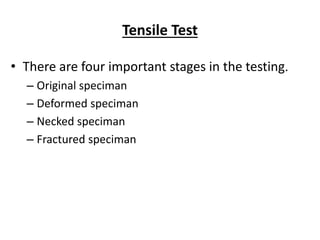

Tensile Test • There are four important stages in the testing. – Original speciman – Deformed speciman – Necked speciman – Fractured speciman

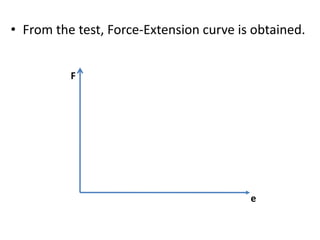

• From the test, Force-Extension curve is obtained. F e

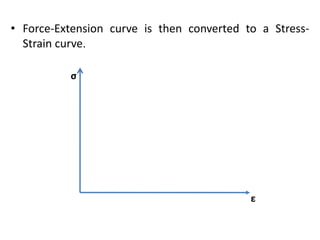

• Force-Extension curve is then converted to a Stress- Strain curve. σ ε

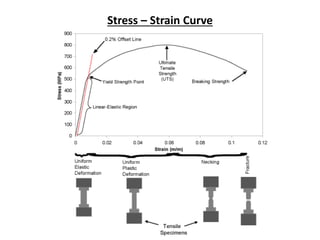

Stress – Strain Curve

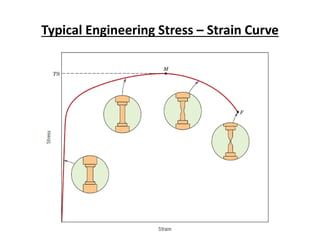

Typical Engineering Stress – Strain Curve

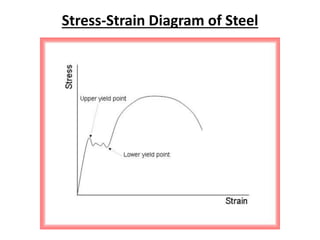

Stress-Strain Diagram of Steel

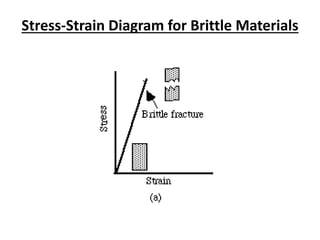

Stress-Strain Diagram for Brittle Materials

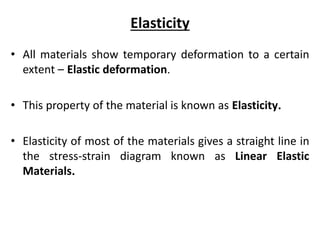

Elasticity • All materials show temporary deformation to a certain extent – Elastic deformation. • This property of the material is known as Elasticity. • Elasticity of most of the materials gives a straight line in the stress-strain diagram known as Linear Elastic Materials.

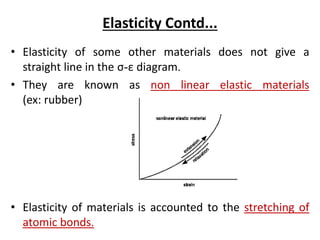

Elasticity Contd... • Elasticity of some other materials does not give a straight line in the σ-ε diagram. • They are known as non linear elastic materials (ex: rubber) • Elasticity of materials is accounted to the stretching of atomic bonds.

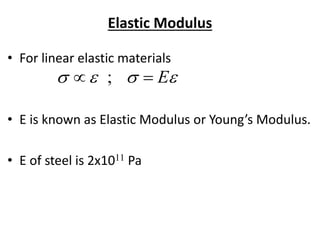

Elastic Modulus • For linear elastic materials • E is known as Elastic Modulus or Young’s Modulus. • E of steel is 2x1011 Pa  E ;

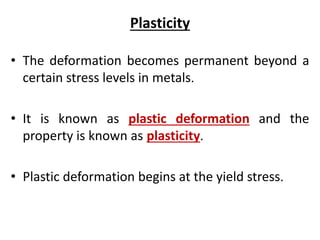

Plasticity • The deformation becomes permanent beyond a certain stress levels in metals. • It is known as plastic deformation and the property is known as plasticity. • Plastic deformation begins at the yield stress.

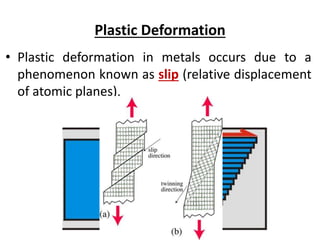

Plastic Deformation • Plastic deformation in metals occurs due to a phenomenon known as slip (relative displacement of atomic planes).

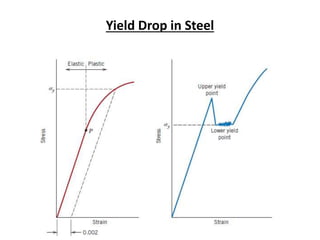

Yield Drop in Steel

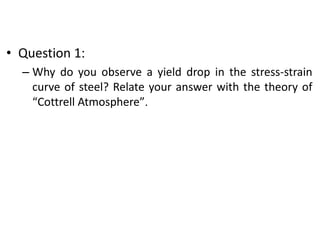

• Question 1: – Why do you observe a yield drop in the stress-strain curve of steel? Relate your answer with the theory of “Cottrell Atmosphere”.
Ductile and Brittle Materials • Ductile Materials – Materials that exhibit plastic deformation (Most metals are ductile) • Brittle Materials – Materials that do not have plasticity (glass, cast iron)

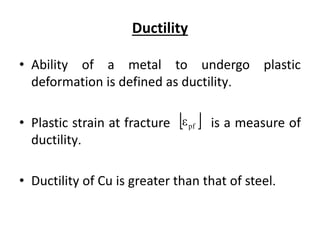

Ductility • Ability of a metal to undergo plastic deformation is defined as ductility. • Plastic strain at fracture is a measure of ductility. • Ductility of Cu is greater than that of steel.  pfε

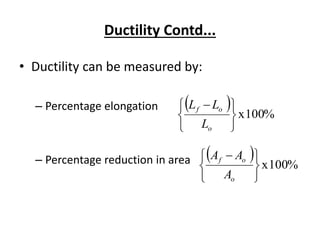

Ductility Contd... • Ductility can be measured by: – Percentage elongation – Percentage reduction in area   %100x        o of L LL   %100x        o of A AA

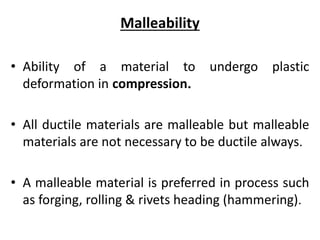

Malleability • Ability of a material to undergo plastic deformation in compression. • All ductile materials are malleable but malleable materials are not necessary to be ductile always. • A malleable material is preferred in process such as forging, rolling & rivets heading (hammering).

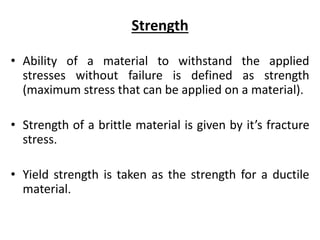

Strength • Ability of a material to withstand the applied stresses without failure is defined as strength (maximum stress that can be applied on a material). • Strength of a brittle material is given by it’s fracture stress. • Yield strength is taken as the strength for a ductile material.

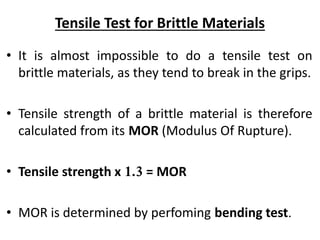

Tensile Test for Brittle Materials • It is almost impossible to do a tensile test on brittle materials, as they tend to break in the grips. • Tensile strength of a brittle material is therefore calculated from its MOR (Modulus Of Rupture). • Tensile strength x 1.3 = MOR • MOR is determined by perfoming bending test.

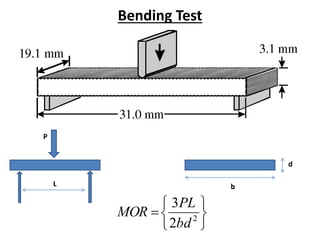

Bending Test P L b d        2 2 3 bd PL MOR
Compression Test

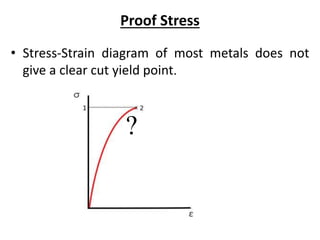

Proof Stress • Stress-Strain diagram of most metals does not give a clear cut yield point. ?

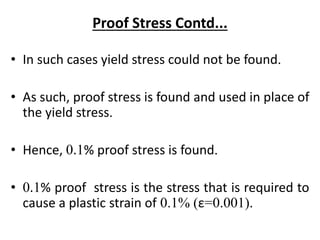

Proof Stress Contd... • In such cases yield stress could not be found. • As such, proof stress is found and used in place of the yield stress. • Hence, 0.1% proof stress is found. • 0.1% proof stress is the stress that is required to cause a plastic strain of 0.1% (ε=0.001).

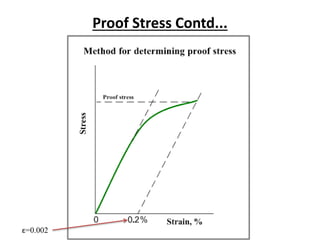

Proof Stress Contd... ε=0.002

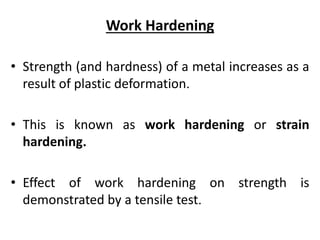

Work Hardening • Strength (and hardness) of a metal increases as a result of plastic deformation. • This is known as work hardening or strain hardening. • Effect of work hardening on strength is demonstrated by a tensile test.

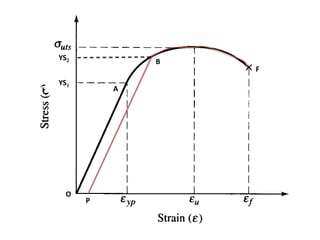

YS1 YS2 A O P B F

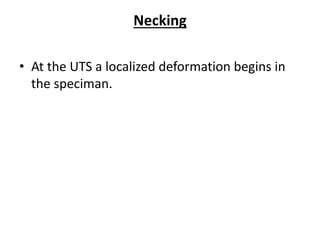

Necking • At the UTS a localized deformation begins in the speciman.

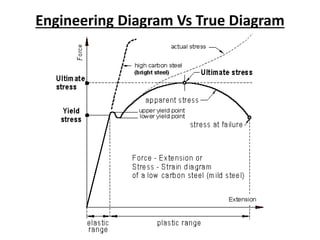

Engineering Diagram Vs True Diagram

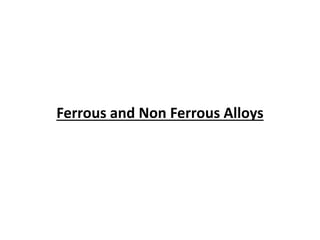

Ferrous and Non Ferrous Alloys

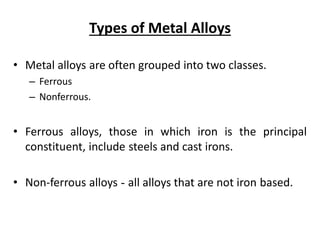

Types of Metal Alloys • Metal alloys are often grouped into two classes. – Ferrous – Nonferrous. • Ferrous alloys, those in which iron is the principal constituent, include steels and cast irons. • Non-ferrous alloys - all alloys that are not iron based.

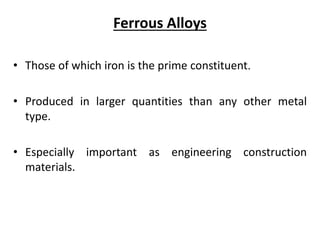

Ferrous Alloys • Those of which iron is the prime constituent. • Produced in larger quantities than any other metal type. • Especially important as engineering construction materials.

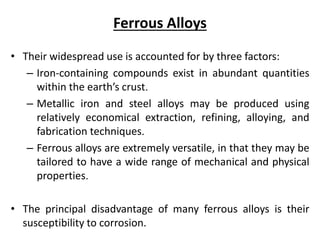

Ferrous Alloys • Their widespread use is accounted for by three factors: – Iron-containing compounds exist in abundant quantities within the earth’s crust. – Metallic iron and steel alloys may be produced using relatively economical extraction, refining, alloying, and fabrication techniques. – Ferrous alloys are extremely versatile, in that they may be tailored to have a wide range of mechanical and physical properties. • The principal disadvantage of many ferrous alloys is their susceptibility to corrosion.

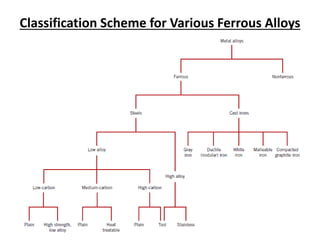

Classification Scheme for Various Ferrous Alloys
Fe – C Phase Diagram 75
Steels • Iron-Carbon alloys that may contain appreciable concentrations of other alloying elements. • The mechanical properties are sensitive to the content of carbon, which is normally less than 2.0 wt%. • More common steels are classified according to carbon concentration (low, medium, and high carbon types). • Subclasses also exist within each group according to the concentration of other alloying elements. • Plain carbon steels contain only residual concentrations of impurities other than carbon and a little manganese. • For alloy steels, more alloying elements are intentionally added in specific concentrations.

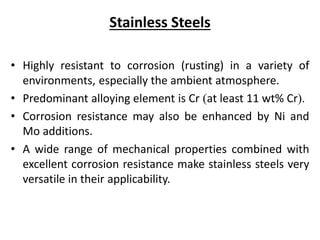

Stainless Steels • Highly resistant to corrosion (rusting) in a variety of environments, especially the ambient atmosphere. • Predominant alloying element is Cr (at least 11 wt% Cr). • Corrosion resistance may also be enhanced by Ni and Mo additions. • A wide range of mechanical properties combined with excellent corrosion resistance make stainless steels very versatile in their applicability.

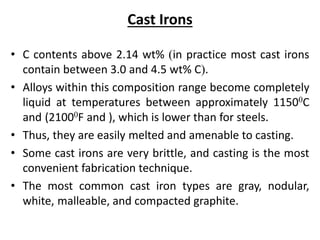

Cast Irons • C contents above 2.14 wt% (in practice most cast irons contain between 3.0 and 4.5 wt% C). • Alloys within this composition range become completely liquid at temperatures between approximately 11500C and (21000F and ), which is lower than for steels. • Thus, they are easily melted and amenable to casting. • Some cast irons are very brittle, and casting is the most convenient fabrication technique. • The most common cast iron types are gray, nodular, white, malleable, and compacted graphite.

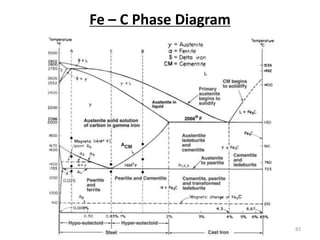

Fe – C Phase Diagram 82

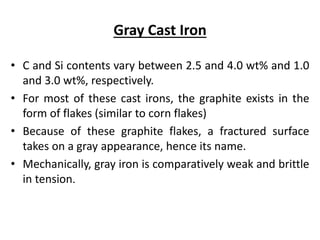

Gray Cast Iron • C and Si contents vary between 2.5 and 4.0 wt% and 1.0 and 3.0 wt%, respectively. • For most of these cast irons, the graphite exists in the form of flakes (similar to corn flakes) • Because of these graphite flakes, a fractured surface takes on a gray appearance, hence its name. • Mechanically, gray iron is comparatively weak and brittle in tension.

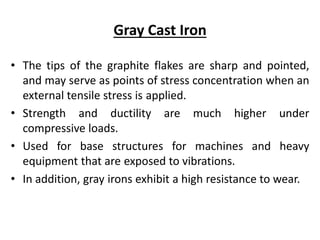

Gray Cast Iron • The tips of the graphite flakes are sharp and pointed, and may serve as points of stress concentration when an external tensile stress is applied. • Strength and ductility are much higher under compressive loads. • Used for base structures for machines and heavy equipment that are exposed to vibrations. • In addition, gray irons exhibit a high resistance to wear.
Gray Cast Iron
Ductile (or Nodular) Iron • Adding a small amount of Mg and/or cerium to the gray iron before casting. • Graphite still forms, but as nodules or sphere-like particles instead of flakes. • Castings are stronger and much more ductile than gray iron. • Ductile iron has mechanical characteristics approaching those of steel. • Applications include valves, pump bodies, crankshafts, gears, and other automotive and machine components.

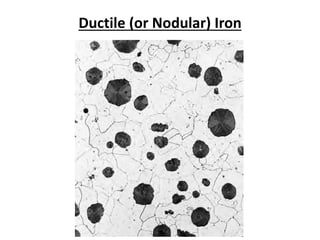

Ductile (or Nodular) Iron

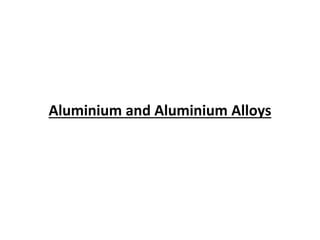

Aluminium and Aluminium Alloys

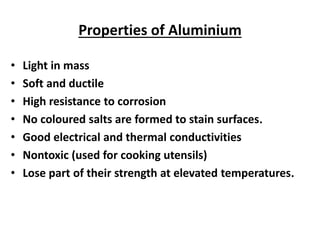

Properties of Aluminium • Light in mass • Soft and ductile • High resistance to corrosion • No coloured salts are formed to stain surfaces. • Good electrical and thermal conductivities • Nontoxic (used for cooking utensils) • Lose part of their strength at elevated temperatures.

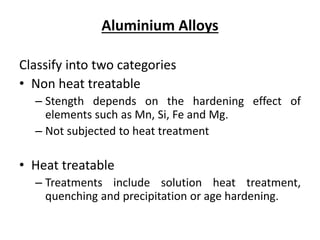

Aluminium Alloys Classify into two categories • Non heat treatable – Stength depends on the hardening effect of elements such as Mn, Si, Fe and Mg. – Not subjected to heat treatment • Heat treatable – Treatments include solution heat treatment, quenching and precipitation or age hardening.

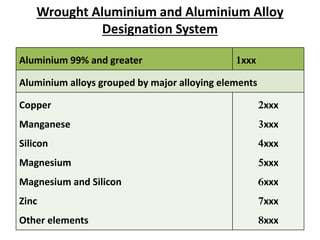

Wrought Aluminium and Aluminium Alloy Designation System Aluminium 99% and greater 1xxx Aluminium alloys grouped by major alloying elements Copper Manganese Silicon Magnesium Magnesium and Silicon Zinc Other elements 2xxx 3xxx 4xxx 5xxx 6xxx 7xxx 8xxx

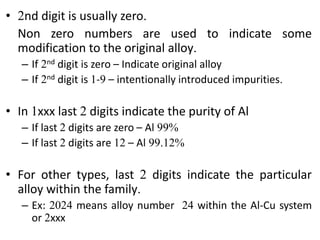

• 2nd digit is usually zero. Non zero numbers are used to indicate some modification to the original alloy. – If 2nd digit is zero – Indicate original alloy – If 2nd digit is 1-9 – intentionally introduced impurities. • In 1xxx last 2 digits indicate the purity of Al – If last 2 digits are zero – Al 99% – If last 2 digits are 12 – Al 99.12% • For other types, last 2 digits indicate the particular alloy within the family. – Ex: 2024 means alloy number 24 within the Al-Cu system or 2xxx

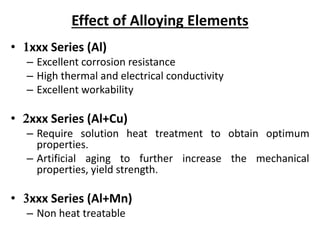

Effect of Alloying Elements • 1xxx Series (Al) – Excellent corrosion resistance – High thermal and electrical conductivity – Excellent workability • 2xxx Series (Al+Cu) – Require solution heat treatment to obtain optimum properties. – Artificial aging to further increase the mechanical properties, yield strength. • 3xxx Series (Al+Mn) – Non heat treatable

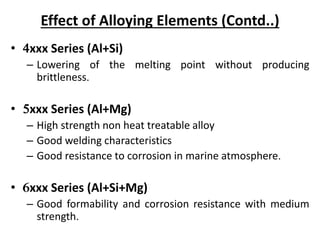

Effect of Alloying Elements (Contd..) • 4xxx Series (Al+Si) – Lowering of the melting point without producing brittleness. • 5xxx Series (Al+Mg) – High strength non heat treatable alloy – Good welding characteristics – Good resistance to corrosion in marine atmosphere. • 6xxx Series (Al+Si+Mg) – Good formability and corrosion resistance with medium strength.

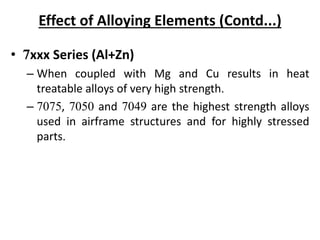

Effect of Alloying Elements (Contd...) • 7xxx Series (Al+Zn) – When coupled with Mg and Cu results in heat treatable alloys of very high strength. – 7075, 7050 and 7049 are the highest strength alloys used in airframe structures and for highly stressed parts.

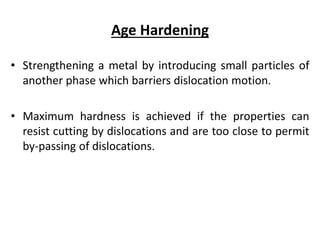

Age Hardening • Strengthening a metal by introducing small particles of another phase which barriers dislocation motion. • Maximum hardness is achieved if the properties can resist cutting by dislocations and are too close to permit by-passing of dislocations.

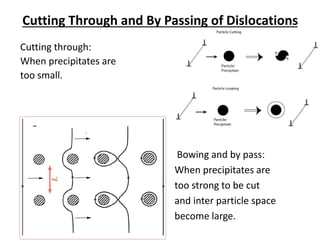

Cutting Through and By Passing of Dislocations Cutting through: When precipitates are too small. Bowing and by pass: When precipitates are too strong to be cut and inter particle space become large.

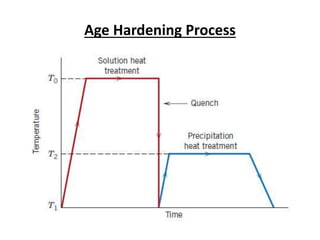

Age Hardening Process

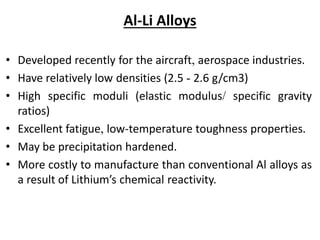

Al-Li Alloys • Developed recently for the aircraft, aerospace industries. • Have relatively low densities (2.5 - 2.6 g/cm3) • High specific moduli (elastic modulus/ specific gravity ratios) • Excellent fatigue, low-temperature toughness properties. • May be precipitation hardened. • More costly to manufacture than conventional Al alloys as a result of Lithium’s chemical reactivity.

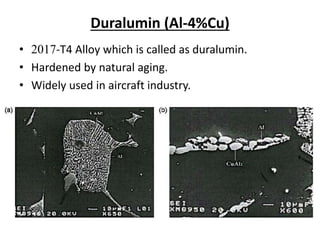

Duralumin (Al-4%Cu) • 2017-T4 Alloy which is called as duralumin. • Hardened by natural aging. • Widely used in aircraft industry.

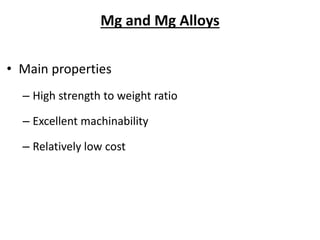

Mg and Mg Alloys • Main properties – High strength to weight ratio – Excellent machinability – Relatively low cost

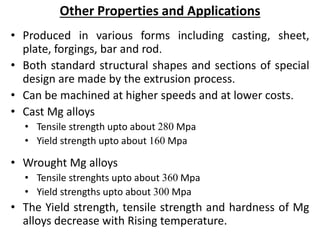

Other Properties and Applications • Produced in various forms including casting, sheet, plate, forgings, bar and rod. • Both standard structural shapes and sections of special design are made by the extrusion process. • Can be machined at higher speeds and at lower costs. • Cast Mg alloys • Tensile strength upto about 280 Mpa • Yield strength upto about 160 Mpa • Wrought Mg alloys • Tensile strenghts upto about 360 Mpa • Yield strengths upto about 300 Mpa • The Yield strength, tensile strength and hardness of Mg alloys decrease with Rising temperature.

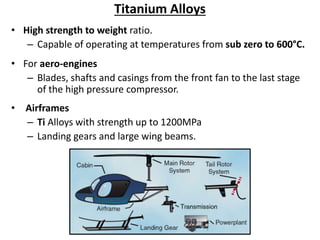

Titanium Alloys • High strength to weight ratio. – Capable of operating at temperatures from sub zero to 600°C. • For aero-engines – Blades, shafts and casings from the front fan to the last stage of the high pressure compressor. • Airframes – Ti Alloys with strength up to 1200MPa – Landing gears and large wing beams.

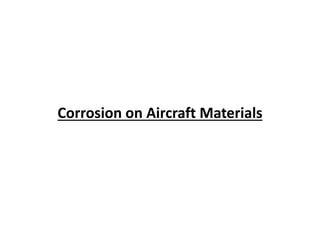

Corrosion on Aircraft Materials

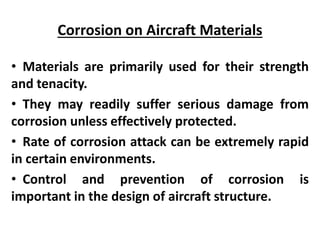

Corrosion on Aircraft Materials • Materials are primarily used for their strength and tenacity. • They may readily suffer serious damage from corrosion unless effectively protected. • Rate of corrosion attack can be extremely rapid in certain environments. • Control and prevention of corrosion is important in the design of aircraft structure.

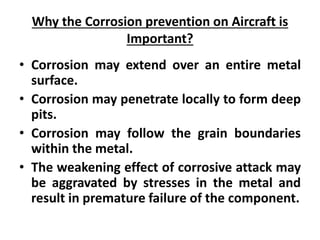

Why the Corrosion prevention on Aircraft is Important? • Corrosion may extend over an entire metal surface. • Corrosion may penetrate locally to form deep pits. • Corrosion may follow the grain boundaries within the metal. • The weakening effect of corrosive attack may be aggravated by stresses in the metal and result in premature failure of the component.

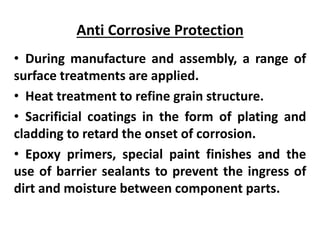

Anti Corrosive Protection • During manufacture and assembly, a range of surface treatments are applied. • Heat treatment to refine grain structure. • Sacrificial coatings in the form of plating and cladding to retard the onset of corrosion. • Epoxy primers, special paint finishes and the use of barrier sealants to prevent the ingress of dirt and moisture between component parts.

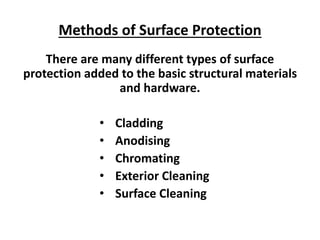

Methods of Surface Protection There are many different types of surface protection added to the basic structural materials and hardware. • Cladding • Anodising • Chromating • Exterior Cleaning • Surface Cleaning

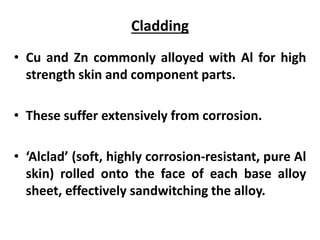

Cladding • Cu and Zn commonly alloyed with Al for high strength skin and component parts. • These suffer extensively from corrosion. • ‘Alclad’ (soft, highly corrosion-resistant, pure Al skin) rolled onto the face of each base alloy sheet, effectively sandwitching the alloy.

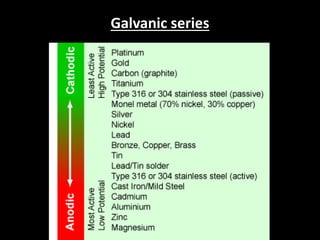

Galvanic series

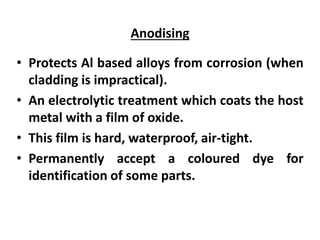

Anodising • Protects Al based alloys from corrosion (when cladding is impractical). • An electrolytic treatment which coats the host metal with a film of oxide. • This film is hard, waterproof, air-tight. • Permanently accept a coloured dye for identification of some parts.

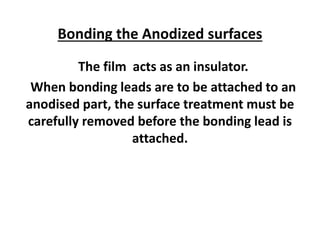

Bonding the Anodized surfaces The film acts as an insulator. When bonding leads are to be attached to an anodised part, the surface treatment must be carefully removed before the bonding lead is attached.

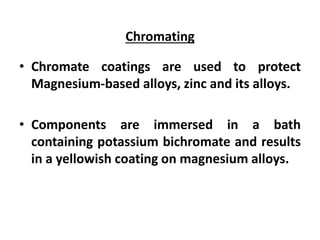

Chromating • Chromate coatings are used to protect Magnesium-based alloys, zinc and its alloys. • Components are immersed in a bath containing potassium bichromate and results in a yellowish coating on magnesium alloys.

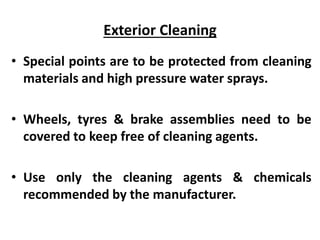

Exterior Cleaning • Special points are to be protected from cleaning materials and high pressure water sprays. • Wheels, tyres & brake assemblies need to be covered to keep free of cleaning agents. • Use only the cleaning agents & chemicals recommended by the manufacturer.
Surface Cleaning • Most aircraft will be cleaned before starting the large inspections. • To keep clean the aircraft always. • Dirt, trapped moisture, solvents can cover up cracked or damaged components.

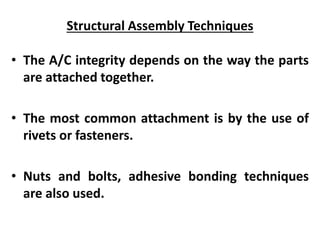

Structural Assembly Techniques • The A/C integrity depends on the way the parts are attached together. • The most common attachment is by the use of rivets or fasteners. • Nuts and bolts, adhesive bonding techniques are also used.

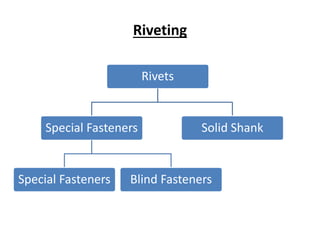

Riveting Rivets Special Fasteners Special Fasteners Blind Fasteners Solid Shank

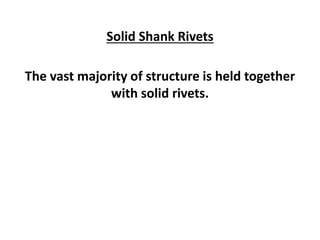

Solid Shank Rivets The vast majority of structure is held together with solid rivets.

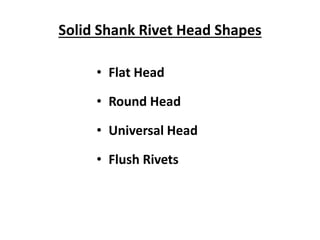

Solid Shank Rivet Head Shapes • Flat Head • Round Head • Universal Head • Flush Rivets

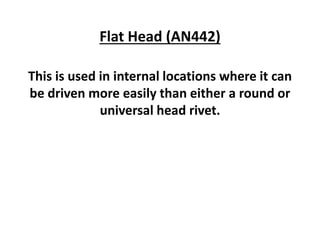

Flat Head (AN442) This is used in internal locations where it can be driven more easily than either a round or universal head rivet.

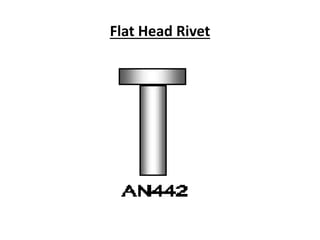

Flat Head Rivet

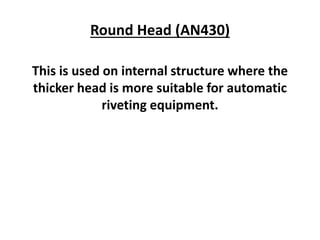

Round Head (AN430) This is used on internal structure where the thicker head is more suitable for automatic riveting equipment.

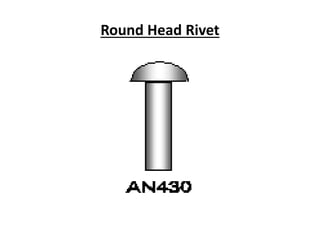

Round Head Rivet

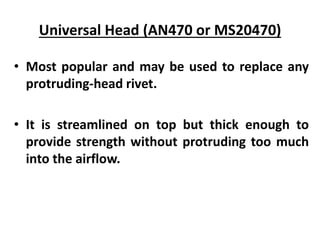

Universal Head (AN470 or MS20470) • Most popular and may be used to replace any protruding-head rivet. • It is streamlined on top but thick enough to provide strength without protruding too much into the airflow.

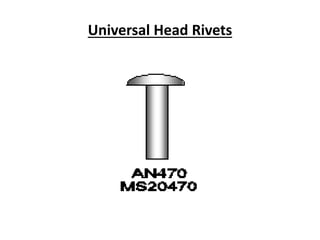

Universal Head Rivets

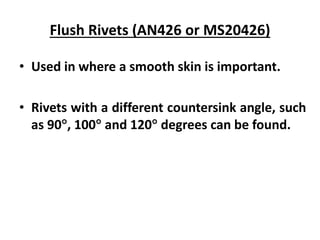

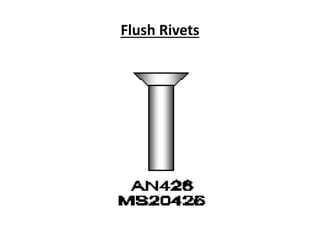

Flush Rivets (AN426 or MS20426) • Used in where a smooth skin is important. • Rivets with a different countersink angle, such as 90, 100 and 120 degrees can be found.
Flush Rivets

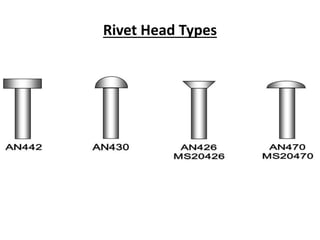

Rivet Head Types

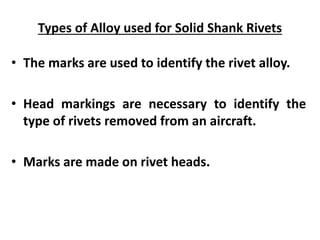

Types of Alloy used for Solid Shank Rivets • The marks are used to identify the rivet alloy. • Head markings are necessary to identify the type of rivets removed from an aircraft. • Marks are made on rivet heads.

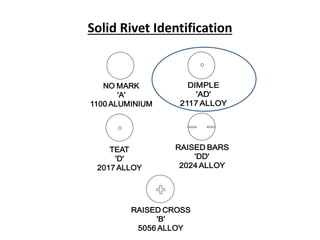

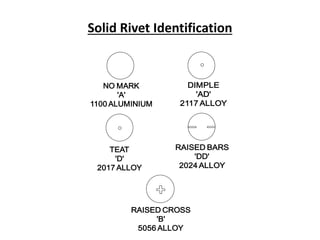

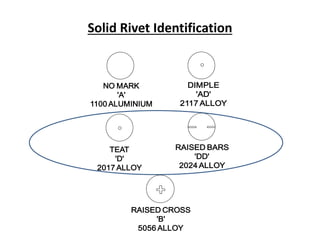

Solid Rivet Identification

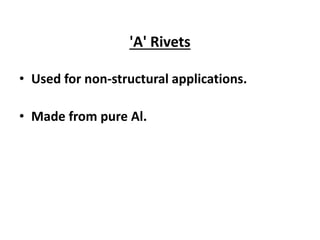

'A' Rivets • Used for non-structural applications. • Made from pure Al.
Solid Rivet Identification

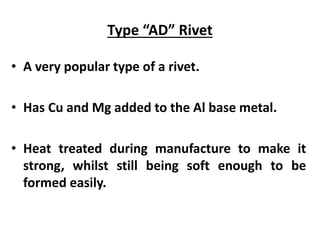

Type “AD” Rivet • A very popular type of a rivet. • Has Cu and Mg added to the Al base metal. • Heat treated during manufacture to make it strong, whilst still being soft enough to be formed easily.
Solid Rivet Identification

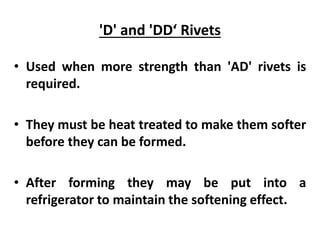

'D' and 'DD‘ Rivets • Used when more strength than 'AD' rivets is required. • They must be heat treated to make them softer before they can be formed. • After forming they may be put into a refrigerator to maintain the softening effect.

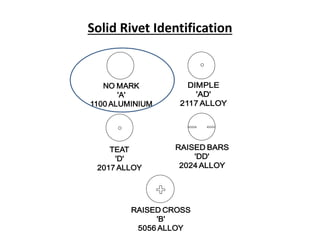

Solid Rivet Identification

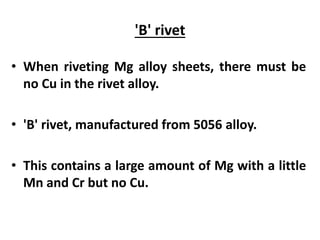

'B' rivet • When riveting Mg alloy sheets, there must be no Cu in the rivet alloy. • 'B' rivet, manufactured from 5056 alloy. • This contains a large amount of Mg with a little Mn and Cr but no Cu.

More Related Content

PPTX
Aircraft materials lecture 1
byKanupriya jhanji

PPT
AIRCRAFT MATERIALS.ppt
byParameshwarBanakar1

PPTX
6.5 materials and hardware
byMahmoud Jadallah

PDF
Aircraft drawingsbasics
byAgustin Limachi

PPT
Aerospace fastener applications_part2_r2010
byMerlin4SC

PDF
Aircraft Metal Structural Repair.pdf
byChristine Maffla

PPT
Solid rivets
byHuseyinkucuk6155

DOCX
Aviation tools_ munna
byMuhammad Munna

Aircraft materials lecture 1
byKanupriya jhanji

AIRCRAFT MATERIALS.ppt
byParameshwarBanakar1

6.5 materials and hardware
byMahmoud Jadallah

Aircraft drawingsbasics
byAgustin Limachi

Aerospace fastener applications_part2_r2010
byMerlin4SC

Aircraft Metal Structural Repair.pdf
byChristine Maffla

Solid rivets
byHuseyinkucuk6155

Aviation tools_ munna
byMuhammad Munna


What's hot

PPTX
AIRCRAFT STRUCTURES (1).pptx
byakshayMN7

PPT
Theory of flight final
byJohn Christian De Leon

PDF
ATDA Commercial Transport Airframe Part 2.pdf
byGeoffrey Wardle. MSc. MSc. Snr.MAIAA

PPTX
Aircraft maintenance and manuals week 2
byJairo Gutierrez

DOC
Application of Composite Material in Aerospace Industry
byNational Elevator Cab & Door Corp.

PPTX
Fuselage structures
byalpha_sherdil

DOCX
V n diagram
bySuthan Rajendran

PPTX
Aviation accidents and incidents
bystargate1280

PDF
Airframe Maintenance and Repair
byDeepanBooramurthy

PPTX
Weight and balance
byabarget

PPTX
Composite Materials in Aircraft Structures
byRahul Dubey

PPTX
Solid Shank Rivet Codes
byaimeeharden

PPT
Aircraft basics
byRohit Ranjan

PPTX
Unit 4 Aircraft Materials and Structures.pptx
byVishnuRaj977966

PPT
Aircraft Design
byahmad bassiouny

PPTX
Ppt 2 (1)
byHimanshuLakhara5

PPTX
Drag polar | Flight Mechanics | GATE Aerospace
byAge of Aerospace

PPTX
Ate 102 corrosion
byhalpiger0001

PPTX
Composite Materials Used in Aerospace Industry
bySazzad Hossain

PPSX
Materials for aircrafts
byJMB

AIRCRAFT STRUCTURES (1).pptx
byakshayMN7

Theory of flight final
byJohn Christian De Leon

ATDA Commercial Transport Airframe Part 2.pdf
byGeoffrey Wardle. MSc. MSc. Snr.MAIAA

Aircraft maintenance and manuals week 2
byJairo Gutierrez

Application of Composite Material in Aerospace Industry
byNational Elevator Cab & Door Corp.

Fuselage structures
byalpha_sherdil

V n diagram
bySuthan Rajendran

Aviation accidents and incidents
bystargate1280

Airframe Maintenance and Repair
byDeepanBooramurthy

Weight and balance
byabarget

Composite Materials in Aircraft Structures
byRahul Dubey

Solid Shank Rivet Codes
byaimeeharden

Aircraft basics
byRohit Ranjan

Unit 4 Aircraft Materials and Structures.pptx
byVishnuRaj977966

Aircraft Design
byahmad bassiouny

Ppt 2 (1)
byHimanshuLakhara5

Drag polar | Flight Mechanics | GATE Aerospace
byAge of Aerospace

Ate 102 corrosion
byhalpiger0001

Composite Materials Used in Aerospace Industry
bySazzad Hossain

Materials for aircrafts
byJMB


Viewers also liked

PDF
EASA Part-66 Module10 mcq's
byArmghan Saeed

PPTX
EASA PART-66 MODULE 8.4 : FLIGHT STABILITY AND DYNAMICS
bysoulstalker

PDF
EASA Part-66 Module08 mcq's
byArmghan Saeed

PDF
EASA Part-66 Module17 mcq's
byArmghan Saeed

PDF
EASA Part-66 Module06 mcq's
byArmghan Saeed

PDF
EASA Part-66 Module11 mcq's
byArmghan Saeed

PPTX
EASA PART 66 Module 2 : Physics
bysoulstalker

PDF
EASA Part-66 Module15 mcq's
byArmghan Saeed

PPTX
EASA PART 66 Module 15.10 : Lubrication Systems
bysoulstalker

PDF
EASA Part-66 Module09 mcq's
byArmghan Saeed

PDF
EASA Part-66 Module07 mcq's
byArmghan Saeed

PPTX
EASA PART-66 MODULE 8.3 : THEORY OF FLIGHT
bysoulstalker

PPTX
EASA PART-66 MODULE 8.1 : PHYSICS OF ATMOSPHERE
bysoulstalker

PDF
A/C Hardware chapter 5
byKatoning Wetan

PDF
EASA Part-66 Module04 mcq's
byArmghan Saeed

PDF
EASA Part-66 Module03 mcq's
byArmghan Saeed

PPTX
EASA PART-66 MODULE 8.2 : AERODYNAMICS
bysoulstalker

PDF
EASA Part-66 Module01 mcq's
byArmghan Saeed

PPTX
Easa
bygoldair2014

PDF
EASA Part-66 Module05 mcq's
byArmghan Saeed

EASA Part-66 Module10 mcq's
byArmghan Saeed

EASA PART-66 MODULE 8.4 : FLIGHT STABILITY AND DYNAMICS
bysoulstalker

EASA Part-66 Module08 mcq's
byArmghan Saeed

EASA Part-66 Module17 mcq's
byArmghan Saeed

EASA Part-66 Module06 mcq's
byArmghan Saeed

EASA Part-66 Module11 mcq's
byArmghan Saeed

EASA PART 66 Module 2 : Physics
bysoulstalker

EASA Part-66 Module15 mcq's
byArmghan Saeed

EASA PART 66 Module 15.10 : Lubrication Systems
bysoulstalker

EASA Part-66 Module09 mcq's
byArmghan Saeed

EASA Part-66 Module07 mcq's
byArmghan Saeed

EASA PART-66 MODULE 8.3 : THEORY OF FLIGHT
bysoulstalker

EASA PART-66 MODULE 8.1 : PHYSICS OF ATMOSPHERE
bysoulstalker

A/C Hardware chapter 5
byKatoning Wetan

EASA Part-66 Module04 mcq's
byArmghan Saeed

EASA Part-66 Module03 mcq's
byArmghan Saeed

EASA PART-66 MODULE 8.2 : AERODYNAMICS
bysoulstalker

EASA Part-66 Module01 mcq's
byArmghan Saeed

Easa
bygoldair2014

EASA Part-66 Module05 mcq's
byArmghan Saeed


Similar to Aircraft materials and hardware

PDF
Properties of engineering materials
byNabeelBhutta1

PDF
Introduction to Mechanical Metallurgy (Our course project)
byRishabh Gupta

PPTX
MATERIALS TECHNOLOGY
bypalanivendhan

PPTX
Mech props
byAKASH SAHA

PPT
14773 engineering materials 1 (1)
bynayakq

PPT
stress strain
bySb Parmar

PPT
Ch06 8-m-more
byIbrahim Abuawwad

PPT
THE NATURE OF MATERIALS
byLionel Wolberger

PPTX
Lecture Note Mechanical Properties in Material Engineering.pptx
byMaisara Mat Akhir

PPT
Engineering materials & properties
byFayyaz ASNT NDT LEVEL III

PPTX
Biomaterials and biosciences biometals.pptx
byKoustavGhosh26

PPTX
Lecture 1 Stress vs. Strength.pptx
byYacineHalwane

PPTX
MME+201+_+INTRODUCTION+TO+PHYSICAL+METALLURGY_336976.pptx
byamirsadrasarraf

PPT
Properties of materials
byEhab Hegazy

PDF
EDM Module - 5 Mechanical Properties.pdf
by582004rohangautam

PPTX
aircraft-materials.pptx
byKathirvelK13

PDF
Lesson-5-Destructive-Testing-and-Intro-to-Materials.pdf
byssusera85eeb1

PPT
Ch02
byklivsie

PPTX
Science and properties of materials Slides.pptx
byEmmanuelWusu1

PPTX
Stress and Strain PPT Slides.pptx
byhome

Properties of engineering materials
byNabeelBhutta1

Introduction to Mechanical Metallurgy (Our course project)
byRishabh Gupta

MATERIALS TECHNOLOGY
bypalanivendhan

Mech props
byAKASH SAHA

14773 engineering materials 1 (1)
bynayakq

stress strain
bySb Parmar

Ch06 8-m-more
byIbrahim Abuawwad

THE NATURE OF MATERIALS
byLionel Wolberger

Lecture Note Mechanical Properties in Material Engineering.pptx
byMaisara Mat Akhir

Engineering materials & properties
byFayyaz ASNT NDT LEVEL III

Biomaterials and biosciences biometals.pptx
byKoustavGhosh26

Lecture 1 Stress vs. Strength.pptx
byYacineHalwane

MME+201+_+INTRODUCTION+TO+PHYSICAL+METALLURGY_336976.pptx
byamirsadrasarraf

Properties of materials
byEhab Hegazy

EDM Module - 5 Mechanical Properties.pdf
by582004rohangautam

aircraft-materials.pptx
byKathirvelK13

Lesson-5-Destructive-Testing-and-Intro-to-Materials.pdf
byssusera85eeb1

Ch02
byklivsie

Science and properties of materials Slides.pptx
byEmmanuelWusu1

Stress and Strain PPT Slides.pptx
byhome


Recently uploaded

PPTX
1.1 Structure of Materials_Material science.pptx
byDr. Sandip Thorat

PPTX
UNIT 1.3-Structure of Polymers_Material Science-.pptx
byDr. Sandip Thorat

PPTX
PEMET 413 KTU 2024 SCHEME MODULE 2 LECTURE 4.pptx
byVINAY B

PDF
Performance Benchmarking Strategies for AI/HPC/EdgeAI
byDanny Jiang

PDF
Lathe Machine: Definition, Parts, Types, Working and Operations
byAatif Razi

PDF
Seminar topic on scaffolding and its types.pdf
byMOTOSIFSHAIKH

PPTX
MET 464- MICRO AND AND NANO MANUFACTURING -MOD 2.pptx KTU 2019
byVINAY B

PDF
Software Engineering : Process Model
byGunjalSanjay

PDF
Life Cycle Analysis of Electric and Internal Combustion Engine Vehicles
byUniversity Institute of Technology, Barkatullah University

PDF
CRYPTOCURRENCY FORENSICS: A COMPREHENSIVE REPORT ON TRACKING ILLICIT DIGITAL ...
byGarima Singh

PDF
E120A390QSR 1.2″ Round OLED Display Module 390×390 AMOLED
bySyluxdisplay

PPTX
22PEOIT4C Unit 3 Session 18 First Order Logic.pptx
byGuru Nanak Technical Institutions

PDF
TR095A120SPC 0.95″ AMOLED Display Module, 120×120 Resolution
bySyluxdisplay

PDF
BO139A454SPI 1.39″ Round AMOLED Display Module, 454×454, SPI & MIPI
bySyluxdisplay

PPTX
PEMET 413 KTU 2024 MODULE 2 LECTURE 3.pptx
byVINAY B

PPTX
uCOS_II_LED_Multitasking_Exp.no.2.pptx uCOS_II_LED_Multitasking_Exp.no.2.pptx
bySanjivani College of Engineering, Kopargaon, Ahmednagar, Maharashtra, India

PPTX
Ion exchange or demineralization to soften water.pptx
byChemical Engineering Dept. NIT Rourkela-769008, Odisha, India

PDF
Introduction to Software , Product and Process
byGunjalSanjay

DOCX
Hallucination Reduction In Generative Artificial Intelligence (1).docx
by21nitinsinha

PPTX
TechSprint Intro Session GDGOC PUSSGRC
bykashvidua39

1.1 Structure of Materials_Material science.pptx
byDr. Sandip Thorat

UNIT 1.3-Structure of Polymers_Material Science-.pptx
byDr. Sandip Thorat

PEMET 413 KTU 2024 SCHEME MODULE 2 LECTURE 4.pptx
byVINAY B

Performance Benchmarking Strategies for AI/HPC/EdgeAI
byDanny Jiang

Lathe Machine: Definition, Parts, Types, Working and Operations
byAatif Razi

Seminar topic on scaffolding and its types.pdf
byMOTOSIFSHAIKH

MET 464- MICRO AND AND NANO MANUFACTURING -MOD 2.pptx KTU 2019
byVINAY B

Software Engineering : Process Model
byGunjalSanjay

Life Cycle Analysis of Electric and Internal Combustion Engine Vehicles
byUniversity Institute of Technology, Barkatullah University

CRYPTOCURRENCY FORENSICS: A COMPREHENSIVE REPORT ON TRACKING ILLICIT DIGITAL ...
byGarima Singh

E120A390QSR 1.2″ Round OLED Display Module 390×390 AMOLED
bySyluxdisplay

22PEOIT4C Unit 3 Session 18 First Order Logic.pptx
byGuru Nanak Technical Institutions

TR095A120SPC 0.95″ AMOLED Display Module, 120×120 Resolution
bySyluxdisplay

BO139A454SPI 1.39″ Round AMOLED Display Module, 454×454, SPI & MIPI
bySyluxdisplay

PEMET 413 KTU 2024 MODULE 2 LECTURE 3.pptx
byVINAY B

uCOS_II_LED_Multitasking_Exp.no.2.pptx uCOS_II_LED_Multitasking_Exp.no.2.pptx
bySanjivani College of Engineering, Kopargaon, Ahmednagar, Maharashtra, India

Ion exchange or demineralization to soften water.pptx
byChemical Engineering Dept. NIT Rourkela-769008, Odisha, India

Introduction to Software , Product and Process
byGunjalSanjay

Hallucination Reduction In Generative Artificial Intelligence (1).docx
by21nitinsinha

TechSprint Intro Session GDGOC PUSSGRC
bykashvidua39


Aircraft materials and hardware

  • 1.
  • 2.
    Introduction to Materials •How are Engineering materials classified? – Metals – Polymers – Ceramics – Glass – Composite – Wood
  • 3.
    Metals • Pure Metals –Elements which come from a particular area of the periodic table. • Alloys – Contain more than one element – Their properties can be changed by changing the elements present in the alloy – Ex: Steel (Fe+C), Stainless Steel (Fe+C+Cr+Ni), Gold Jewellery (Au+Cu)
  • 4.
    Metals • Have goodelectrical and thermal conductivity. • Many metals have high strength, stiffness and have good ductility. • Some metals are magnetic (Fe, Co, Ni etc) • At extremely low temperatures, some metals and intermetallic compounds become superconductors. • Some metals alloys such as those based on Al have low densities and are used in Aerospace applications. • Many metal alloys have high fracture toughness. Contd..
  • 5.
    Polymers • Polymer hasa repeating structure, usually based on a Carbon backbone. • Useful because they are light weight, corrosion resistant, easy to process at low temperatures, generally cheap. • Low strength and high toughness. • Stregth is often improved using reinforced composites. • Poor conductors of electricity and heat/ good insulators.
  • 6.
    Ceramics • Often broadlydefined as any inorganic nonmetallic material. • They have high melting temperature, low density, high strength, stiffness, hardness, wear & corrosion resistance • Good electrical and thermal insulators. • Superconductors at very low temperatures. • Ceramic and glasses have one major drawback (Brittleness)
  • 7.
    Glass • Amorphous, inorganic,non metallic materials. • High range of applications (from bottles to fibre optics). • Very brittle
  • 8.
    Composites • Formed fromtwo or more types of materials (concrete, GFRP, Plywood, MDF). • Qualities are superior to those of individuals. • High tensile strength and Young’s modulus.
  • 9.
    Structure of Atoms,Atomic Theories, Atomic Bonding in Materials
  • 10.
    Atomic Structure All thematerials are composed of very small particles called atoms. An atom consists of a center nucleus of positive charge around which small negatively charged particles called electrons revolve in different paths or orbits.
  • 11.
  • 12.
    Atomic Structure (FundamentalConcepts) • Atom consists of a very small nucleus (Protons and neutrons and is encircled by moving electrons). • Both electrons and protons are electrically charged; (-) for electrons and (+) for protons; neutrons are neutral. • Each chemical element is characterized by the number of protons in the nucleus, or the atomic number (Z). • The atomic mass (A) is the sum of masses of protons and neutrons within the nucleus. • Some elements have two or more different atomic masses, which are called isotopes.
  • 13.
  • 14.
    Types of Bonds S/NoMaterial Dominant Bond (Who Controls Material) Other Bonds 1 2 3 Metals Ceramics Polymers Metalic Covalent/ Ionic Van Der Walls/ Hydrogen Covalent Ionic/ Covalent Covalent
  • 15.
    Ionic Bonding • Foundin compounds that composed of both metallic and nonmetallic elements; elements that are situated at the horizontal extremities of the periodic table. • Atoms of a metallic element easily give up their valence electrons to the nonmetallic atoms. • In the process all the atoms acquire stable or inert gas configurations and, an electrical charge. • Sodium chloride (NaCl) is the classic ionic material.
  • 16.
  • 17.
  • 18.
  • 19.
    The Structure ofCrystalline Solids
  • 20.
    Fundamental Concepts • Acrystalline material is one in which the atoms are situated in a repeating or periodic array over large atomic distances. • Each atom is bonded to its nearest-neighbor atoms. • All metals, many ceramic materials, certain polymers form crystalline structures under normal solidification conditions. • Some of the properties of crystalline solids depend on the crystal structure of the material.
  • 22.
  • 23.
  • 24.
    Unit Cells • Thesmall groups of atoms of crystalline structures which form a repetitive pattern. • The crystal structures are often subdivided into small repeat entities called unit cells.
  • 25.
    Crystal Defects • Pointdefects • Line defects or dislocations • Planar defects • Bulk defects
  • 26.
    Point Defects • Defectsrelated to a single atom • Specific for crystalline materials
  • 27.
    Line Defects orDislocations • Related to line of atoms. • Specific for crystalline materials. • There are two types of dislocations. – Edge dislocation – Screw dislocation
  • 28.
  • 29.
  • 30.
    Edge Dislocation VsScrew Dislocation
  • 31.
    Planar Defects • Twodimensional defects. • Plane of atoms is moved. • Grain boundary defects.
  • 32.
    Bulk Defects • Threedimensional/ volumetric defects. • Common for all material types.
  • 33.
  • 34.
    Application of Forcesand Deformations of Materials
  • 35.
    Tensile Test • Mechanicalproperties of a material are studied by performing a tensile test. • Tensile test speciman
  • 36.
    The speciman willbe subjected to a progressively increasing tensile force until it fractures.
  • 37.
    Tensile Test • Thereare four important stages in the testing. – Original speciman – Deformed speciman – Necked speciman – Fractured speciman
  • 38.
    • From thetest, Force-Extension curve is obtained. F e
  • 39.
    • Force-Extension curveis then converted to a Stress- Strain curve. σ ε
  • 40.
  • 41.
  • 42.
  • 43.
    Stress-Strain Diagram forBrittle Materials
  • 44.
    Elasticity • All materialsshow temporary deformation to a certain extent – Elastic deformation. • This property of the material is known as Elasticity. • Elasticity of most of the materials gives a straight line in the stress-strain diagram known as Linear Elastic Materials.
  • 45.
    Elasticity Contd... • Elasticityof some other materials does not give a straight line in the σ-ε diagram. • They are known as non linear elastic materials (ex: rubber) • Elasticity of materials is accounted to the stretching of atomic bonds.
  • 46.
    Elastic Modulus • Forlinear elastic materials • E is known as Elastic Modulus or Young’s Modulus. • E of steel is 2x1011 Pa  E ;
  • 47.
    Plasticity • The deformationbecomes permanent beyond a certain stress levels in metals. • It is known as plastic deformation and the property is known as plasticity. • Plastic deformation begins at the yield stress.
  • 48.
    Plastic Deformation • Plasticdeformation in metals occurs due to a phenomenon known as slip (relative displacement of atomic planes).
  • 49.
  • 50.
    • Question 1: –Why do you observe a yield drop in the stress-strain curve of steel? Relate your answer with the theory of “Cottrell Atmosphere”.
  • 51.
    Ductile and BrittleMaterials • Ductile Materials – Materials that exhibit plastic deformation (Most metals are ductile) • Brittle Materials – Materials that do not have plasticity (glass, cast iron)
  • 52.
    Ductility • Ability ofa metal to undergo plastic deformation is defined as ductility. • Plastic strain at fracture is a measure of ductility. • Ductility of Cu is greater than that of steel.  pfε
  • 53.
    Ductility Contd... • Ductilitycan be measured by: – Percentage elongation – Percentage reduction in area   %100x        o of L LL   %100x        o of A AA
  • 54.
    Malleability • Ability ofa material to undergo plastic deformation in compression. • All ductile materials are malleable but malleable materials are not necessary to be ductile always. • A malleable material is preferred in process such as forging, rolling & rivets heading (hammering).
  • 55.
    Strength • Ability ofa material to withstand the applied stresses without failure is defined as strength (maximum stress that can be applied on a material). • Strength of a brittle material is given by it’s fracture stress. • Yield strength is taken as the strength for a ductile material.
  • 56.
    Tensile Test forBrittle Materials • It is almost impossible to do a tensile test on brittle materials, as they tend to break in the grips. • Tensile strength of a brittle material is therefore calculated from its MOR (Modulus Of Rupture). • Tensile strength x 1.3 = MOR • MOR is determined by perfoming bending test.
  • 57.
  • 58.
  • 59.
    Proof Stress • Stress-Straindiagram of most metals does not give a clear cut yield point. ?
  • 60.
    Proof Stress Contd... •In such cases yield stress could not be found. • As such, proof stress is found and used in place of the yield stress. • Hence, 0.1% proof stress is found. • 0.1% proof stress is the stress that is required to cause a plastic strain of 0.1% (ε=0.001).
  • 61.
  • 62.
    Work Hardening • Strength(and hardness) of a metal increases as a result of plastic deformation. • This is known as work hardening or strain hardening. • Effect of work hardening on strength is demonstrated by a tensile test.
  • 63.
  • 64.
    Necking • At theUTS a localized deformation begins in the speciman.
  • 65.
  • 66.
    Ferrous and NonFerrous Alloys
  • 67.
    Types of MetalAlloys • Metal alloys are often grouped into two classes. – Ferrous – Nonferrous. • Ferrous alloys, those in which iron is the principal constituent, include steels and cast irons. • Non-ferrous alloys - all alloys that are not iron based.
  • 68.
    Ferrous Alloys • Thoseof which iron is the prime constituent. • Produced in larger quantities than any other metal type. • Especially important as engineering construction materials.
  • 69.
    Ferrous Alloys • Theirwidespread use is accounted for by three factors: – Iron-containing compounds exist in abundant quantities within the earth’s crust. – Metallic iron and steel alloys may be produced using relatively economical extraction, refining, alloying, and fabrication techniques. – Ferrous alloys are extremely versatile, in that they may be tailored to have a wide range of mechanical and physical properties. • The principal disadvantage of many ferrous alloys is their susceptibility to corrosion.
  • 70.
    Classification Scheme forVarious Ferrous Alloys
  • 71.
    Fe – CPhase Diagram 75
  • 72.
    Steels • Iron-Carbon alloysthat may contain appreciable concentrations of other alloying elements. • The mechanical properties are sensitive to the content of carbon, which is normally less than 2.0 wt%. • More common steels are classified according to carbon concentration (low, medium, and high carbon types). • Subclasses also exist within each group according to the concentration of other alloying elements. • Plain carbon steels contain only residual concentrations of impurities other than carbon and a little manganese. • For alloy steels, more alloying elements are intentionally added in specific concentrations.
  • 73.
    Stainless Steels • Highlyresistant to corrosion (rusting) in a variety of environments, especially the ambient atmosphere. • Predominant alloying element is Cr (at least 11 wt% Cr). • Corrosion resistance may also be enhanced by Ni and Mo additions. • A wide range of mechanical properties combined with excellent corrosion resistance make stainless steels very versatile in their applicability.
  • 74.
    Cast Irons • Ccontents above 2.14 wt% (in practice most cast irons contain between 3.0 and 4.5 wt% C). • Alloys within this composition range become completely liquid at temperatures between approximately 11500C and (21000F and ), which is lower than for steels. • Thus, they are easily melted and amenable to casting. • Some cast irons are very brittle, and casting is the most convenient fabrication technique. • The most common cast iron types are gray, nodular, white, malleable, and compacted graphite.
  • 75.
    Fe – CPhase Diagram 82
  • 76.
    Gray Cast Iron •C and Si contents vary between 2.5 and 4.0 wt% and 1.0 and 3.0 wt%, respectively. • For most of these cast irons, the graphite exists in the form of flakes (similar to corn flakes) • Because of these graphite flakes, a fractured surface takes on a gray appearance, hence its name. • Mechanically, gray iron is comparatively weak and brittle in tension.
  • 77.
    Gray Cast Iron •The tips of the graphite flakes are sharp and pointed, and may serve as points of stress concentration when an external tensile stress is applied. • Strength and ductility are much higher under compressive loads. • Used for base structures for machines and heavy equipment that are exposed to vibrations. • In addition, gray irons exhibit a high resistance to wear.
  • 78.
  • 79.
    Ductile (or Nodular)Iron • Adding a small amount of Mg and/or cerium to the gray iron before casting. • Graphite still forms, but as nodules or sphere-like particles instead of flakes. • Castings are stronger and much more ductile than gray iron. • Ductile iron has mechanical characteristics approaching those of steel. • Applications include valves, pump bodies, crankshafts, gears, and other automotive and machine components.
  • 80.
  • 81.
  • 82.
    Properties of Aluminium •Light in mass • Soft and ductile • High resistance to corrosion • No coloured salts are formed to stain surfaces. • Good electrical and thermal conductivities • Nontoxic (used for cooking utensils) • Lose part of their strength at elevated temperatures.
  • 83.
    Aluminium Alloys Classify intotwo categories • Non heat treatable – Stength depends on the hardening effect of elements such as Mn, Si, Fe and Mg. – Not subjected to heat treatment • Heat treatable – Treatments include solution heat treatment, quenching and precipitation or age hardening.
  • 84.
    Wrought Aluminium andAluminium Alloy Designation System Aluminium 99% and greater 1xxx Aluminium alloys grouped by major alloying elements Copper Manganese Silicon Magnesium Magnesium and Silicon Zinc Other elements 2xxx 3xxx 4xxx 5xxx 6xxx 7xxx 8xxx
  • 85.
    • 2nd digitis usually zero. Non zero numbers are used to indicate some modification to the original alloy. – If 2nd digit is zero – Indicate original alloy – If 2nd digit is 1-9 – intentionally introduced impurities. • In 1xxx last 2 digits indicate the purity of Al – If last 2 digits are zero – Al 99% – If last 2 digits are 12 – Al 99.12% • For other types, last 2 digits indicate the particular alloy within the family. – Ex: 2024 means alloy number 24 within the Al-Cu system or 2xxx
  • 86.
    Effect of AlloyingElements • 1xxx Series (Al) – Excellent corrosion resistance – High thermal and electrical conductivity – Excellent workability • 2xxx Series (Al+Cu) – Require solution heat treatment to obtain optimum properties. – Artificial aging to further increase the mechanical properties, yield strength. • 3xxx Series (Al+Mn) – Non heat treatable
  • 87.
    Effect of AlloyingElements (Contd..) • 4xxx Series (Al+Si) – Lowering of the melting point without producing brittleness. • 5xxx Series (Al+Mg) – High strength non heat treatable alloy – Good welding characteristics – Good resistance to corrosion in marine atmosphere. • 6xxx Series (Al+Si+Mg) – Good formability and corrosion resistance with medium strength.
  • 88.
    Effect of AlloyingElements (Contd...) • 7xxx Series (Al+Zn) – When coupled with Mg and Cu results in heat treatable alloys of very high strength. – 7075, 7050 and 7049 are the highest strength alloys used in airframe structures and for highly stressed parts.
  • 89.
    Age Hardening • Strengtheninga metal by introducing small particles of another phase which barriers dislocation motion. • Maximum hardness is achieved if the properties can resist cutting by dislocations and are too close to permit by-passing of dislocations.
  • 90.
    Cutting Through andBy Passing of Dislocations Cutting through: When precipitates are too small. Bowing and by pass: When precipitates are too strong to be cut and inter particle space become large.
  • 91.
  • 92.
    Al-Li Alloys • Developedrecently for the aircraft, aerospace industries. • Have relatively low densities (2.5 - 2.6 g/cm3) • High specific moduli (elastic modulus/ specific gravity ratios) • Excellent fatigue, low-temperature toughness properties. • May be precipitation hardened. • More costly to manufacture than conventional Al alloys as a result of Lithium’s chemical reactivity.
  • 93.
    Duralumin (Al-4%Cu) • 2017-T4Alloy which is called as duralumin. • Hardened by natural aging. • Widely used in aircraft industry.
  • 94.
    Mg and MgAlloys • Main properties – High strength to weight ratio – Excellent machinability – Relatively low cost
  • 95.
    Other Properties andApplications • Produced in various forms including casting, sheet, plate, forgings, bar and rod. • Both standard structural shapes and sections of special design are made by the extrusion process. • Can be machined at higher speeds and at lower costs. • Cast Mg alloys • Tensile strength upto about 280 Mpa • Yield strength upto about 160 Mpa • Wrought Mg alloys • Tensile strenghts upto about 360 Mpa • Yield strengths upto about 300 Mpa • The Yield strength, tensile strength and hardness of Mg alloys decrease with Rising temperature.
  • 96.
    Titanium Alloys • Highstrength to weight ratio. – Capable of operating at temperatures from sub zero to 600°C. • For aero-engines – Blades, shafts and casings from the front fan to the last stage of the high pressure compressor. • Airframes – Ti Alloys with strength up to 1200MPa – Landing gears and large wing beams.
  • 97.
  • 98.
    Corrosion on AircraftMaterials • Materials are primarily used for their strength and tenacity. • They may readily suffer serious damage from corrosion unless effectively protected. • Rate of corrosion attack can be extremely rapid in certain environments. • Control and prevention of corrosion is important in the design of aircraft structure.
  • 99.
    Why the Corrosionprevention on Aircraft is Important? • Corrosion may extend over an entire metal surface. • Corrosion may penetrate locally to form deep pits. • Corrosion may follow the grain boundaries within the metal. • The weakening effect of corrosive attack may be aggravated by stresses in the metal and result in premature failure of the component.
  • 100.
    Anti Corrosive Protection •During manufacture and assembly, a range of surface treatments are applied. • Heat treatment to refine grain structure. • Sacrificial coatings in the form of plating and cladding to retard the onset of corrosion. • Epoxy primers, special paint finishes and the use of barrier sealants to prevent the ingress of dirt and moisture between component parts.
  • 101.
    Methods of SurfaceProtection There are many different types of surface protection added to the basic structural materials and hardware. • Cladding • Anodising • Chromating • Exterior Cleaning • Surface Cleaning
  • 102.
    Cladding • Cu andZn commonly alloyed with Al for high strength skin and component parts. • These suffer extensively from corrosion. • ‘Alclad’ (soft, highly corrosion-resistant, pure Al skin) rolled onto the face of each base alloy sheet, effectively sandwitching the alloy.
  • 103.
  • 104.
    Anodising • Protects Albased alloys from corrosion (when cladding is impractical). • An electrolytic treatment which coats the host metal with a film of oxide. • This film is hard, waterproof, air-tight. • Permanently accept a coloured dye for identification of some parts.
  • 105.
    Bonding the Anodizedsurfaces The film acts as an insulator. When bonding leads are to be attached to an anodised part, the surface treatment must be carefully removed before the bonding lead is attached.
  • 106.
    Chromating • Chromate coatingsare used to protect Magnesium-based alloys, zinc and its alloys. • Components are immersed in a bath containing potassium bichromate and results in a yellowish coating on magnesium alloys.
  • 107.
    Exterior Cleaning • Specialpoints are to be protected from cleaning materials and high pressure water sprays. • Wheels, tyres & brake assemblies need to be covered to keep free of cleaning agents. • Use only the cleaning agents & chemicals recommended by the manufacturer.
  • 108.
    Surface Cleaning • Mostaircraft will be cleaned before starting the large inspections. • To keep clean the aircraft always. • Dirt, trapped moisture, solvents can cover up cracked or damaged components.
  • 110.
    Structural Assembly Techniques •The A/C integrity depends on the way the parts are attached together. • The most common attachment is by the use of rivets or fasteners. • Nuts and bolts, adhesive bonding techniques are also used.
  • 111.
  • 112.
    Solid Shank Rivets Thevast majority of structure is held together with solid rivets.
  • 113.
    Solid Shank RivetHead Shapes • Flat Head • Round Head • Universal Head • Flush Rivets
  • 114.
    Flat Head (AN442) Thisis used in internal locations where it can be driven more easily than either a round or universal head rivet.
  • 115.
  • 116.
    Round Head (AN430) Thisis used on internal structure where the thicker head is more suitable for automatic riveting equipment.
  • 117.
  • 118.
    Universal Head (AN470or MS20470) • Most popular and may be used to replace any protruding-head rivet. • It is streamlined on top but thick enough to provide strength without protruding too much into the airflow.
  • 119.
  • 120.
    Flush Rivets (AN426or MS20426) • Used in where a smooth skin is important. • Rivets with a different countersink angle, such as 90, 100 and 120 degrees can be found.
  • 121.
  • 122.
  • 123.
    Types of Alloyused for Solid Shank Rivets • The marks are used to identify the rivet alloy. • Head markings are necessary to identify the type of rivets removed from an aircraft. • Marks are made on rivet heads.
  • 124.
  • 125.
    'A' Rivets • Usedfor non-structural applications. • Made from pure Al.
  • 126.
  • 127.
    Type “AD” Rivet •A very popular type of a rivet. • Has Cu and Mg added to the Al base metal. • Heat treated during manufacture to make it strong, whilst still being soft enough to be formed easily.
  • 128.
  • 129.
    'D' and 'DD‘Rivets • Used when more strength than 'AD' rivets is required. • They must be heat treated to make them softer before they can be formed. • After forming they may be put into a refrigerator to maintain the softening effect.
  • 130.
  • 131.
    'B' rivet • Whenriveting Mg alloy sheets, there must be no Cu in the rivet alloy. • 'B' rivet, manufactured from 5056 alloy. • This contains a large amount of Mg with a little Mn and Cr but no Cu.

Editor's Notes

  • #4 More than 60000 materials are available in the world.
  • #7 The repeating structure results in large chain like molecules.
  • #38 Definition: Reaction of materials to the action of external stresses is indicated as mechanical properties.
  • #54 Yield drop in steel due to the “Cottrell Atmosphere”.
  • #57 Graph showing permanent strain.
  • #58 Note: Brittleness is the property that is opposite to ductility.
  • #60 UTS is not considered since significant plastic deformation takes place before the UTS is reached.
  • #62 However, as brittle materials are much stronger in compression than in tension, their compressive strength is more important than their tensile strength. Compressive strength is found by performing the compression test.
  • #64 Proof stress is a substitution for yield stress.
  • #65 0.5% is the maximum.
  • #68 Test stopped at B and the speciman is unloaded. It is then reloaded. The new stress-strain diagram is PBF This shows that the strength has increased from YS1 to YS2 Maximum work hardening strength is UTS. If we want to increase the strength beyond UTS, we should alloy the metal. Work Hardening increases the strength and hardness while decreasing the ductility and toughness.
  • #77 Steels are Iron-Carbon alloys that may contain appreciable concentrations of other alloying elements. There are thousands of alloys that have different compositions and/or heat treatments. The mechanical properties are sensitive to the content of carbon, which is normally less than 1.0 wt%. Some of the more common steels are classified according to carbon concentration—namely, into low-, medium-, and high carbon types. Subclasses also exist within each group according to the concentration of other alloying elements. Plain carbon steels contain only residual concentrations of impurities other than carbon and a little manganese. For alloy steels, more alloying elements are intentionally added in specific concentrations.
  • #105 Types of Corrosion
