1. Aggregating IOT DATA for
operators nfv cloud
Sumedha Swamy
Sr. Product Marketing Manager
Samita ChakrabartI
Principal Engineer

2. EAB-15:019299 Uen | Commercial in confidence | © Ericsson AB 2015 | 2015-03-12 | Page 2
Networked Society Film
https://youtu.be/X_elkz3Cb-Y

3. EAB-15:019299 Uen | Commercial in confidence | © Ericsson AB 2015 | 2015-03-12 | Page 3

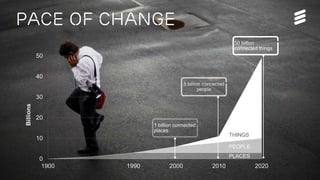

PACE OF CHANGE
1 billion connected
places
50 billion
connected things
PLACES
PEOPLE
THINGS

4. EAB-15:019299 Uen | Commercial in confidence | © Ericsson AB 2015 | 2015-03-12 | Page 4
Broadband experience
everywhere anytime
Massive Machine
Type Communication
Critical Machine
Type Communication
Ubiquitous Connectivity
New Use Cases
New applications demand network and energy performance far beyond the today’s limits

5. EAB-15:019299 Uen | Commercial in confidence | © Ericsson AB 2015 | 2015-03-12 | Page 5

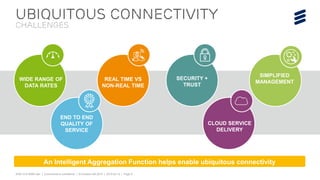

An Intelligent Aggregation Function helps enable ubiquitous connectivity
REAL TIME VS
NON-REAL TIME
WIDE RANGE OF
DATA RATES
SIMPLIFIED
MANAGEMENT
SECURITY +
TRUST
END TO END
QUALITY OF
SERVICE
CLOUD SERVICE
DELIVERY
Ubiquitous Connectivity
Challenges

6. EAB-15:019299 Uen | Commercial in confidence | © Ericsson AB 2015 | 2015-03-12 | Page 6

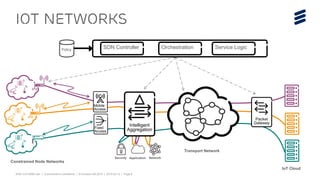

IOT Networks
Policy
SDN Controller Orchestration Service Logic
IoT Cloud
Security NetworkApplication
Fixed
Access
Mobile
Access
Packet
Gateway
Intelligent
Aggregation
Constrained Node Networks
Transport Network

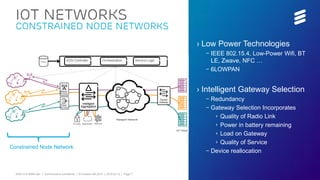

7. EAB-15:019299 Uen | Commercial in confidence | © Ericsson AB 2015 | 2015-03-12 | Page 7
IoT Networks
Constrained Node Networks
› Low Power Technologies
– IEEE 802.15.4, Low-Power Wifi, BT
LE, Zwave, NFC …
– 6LOWPAN
› Intelligent Gateway Selection
– Redundancy
– Gateway Selection Incorporates
› Quality of Radio Link
› Power in battery remaining
› Load on Gateway
› Quality of Service
– Device reallocation
Constrained Node Network

8. EAB-15:019299 Uen | Commercial in confidence | © Ericsson AB 2015 | 2015-03-12 | Page 8

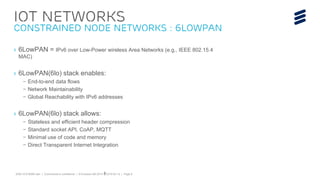

IoT Networks
Constrained Node Networks : 6loWpan
› 6LowPAN = IPv6 over Low-Power wireless Area Networks (e.g., IEEE 802.15.4
MAC)
› 6LowPAN(6lo) stack enables:
– End-to-end data flows
– Network Maintainability
– Global Reachability with IPv6 addresses
› 6LowPAN(6lo) stack allows:
– Stateless and efficient header compression
– Standard socket API, CoAP, MQTT
– Minimal use of code and memory
– Direct Transparent Internet Integration
8

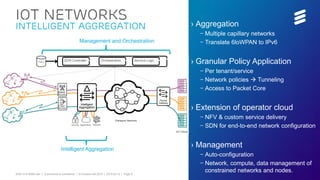

9. EAB-15:019299 Uen | Commercial in confidence | © Ericsson AB 2015 | 2015-03-12 | Page 9
IoT Networks
Intelligent Aggregation › Aggregation
– Multiple capillary networks
– Translate 6loWPAN to IPv6
› Granular Policy Application
– Per tenant/service
– Network policies  Tunneling
– Access to Packet Core
› Extension of operator cloud
– NFV & custom service delivery
– SDN for end-to-end network configuration
› Management
– Auto-configuration
– Network, compute, data management of
constrained networks and nodes.
Intelligent Aggregation
Management and Orchestration

10. EAB-15:019299 Uen | Commercial in confidence | © Ericsson AB 2015 | 2015-03-12 | Page 10

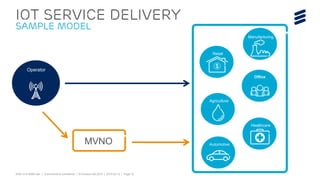

IoT Service Delivery
Sample Model
Operator
Retail
Office
Healthcare
Agriculture
Automotive
Manufacturing
MVNO
