1. Geometric Transformations
CSE P 576
Larry Zitnick (larryz@microsoft.com)

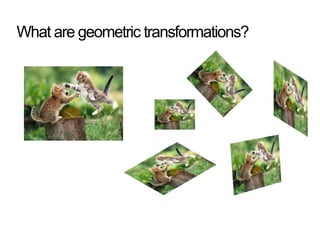

2. What are geometric transformations?

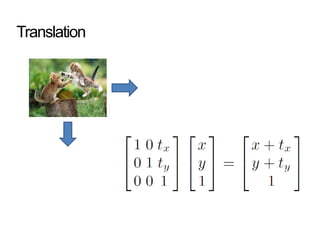

3. Translation

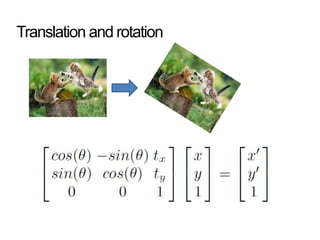

4. Translation and rotation

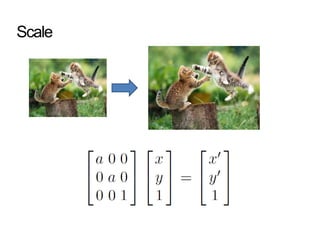

5. Scale

6. Similarity transformations

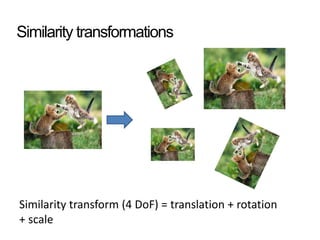

Similarity transform (4 DoF) = translation + rotation
+ scale

7. Aspect ratio

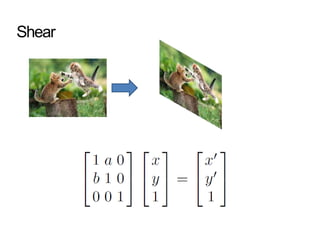

8. Shear

9. Affine transformations

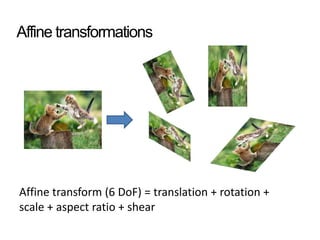

Affine transform (6 DoF) = translation + rotation +
scale + aspect ratio + shear

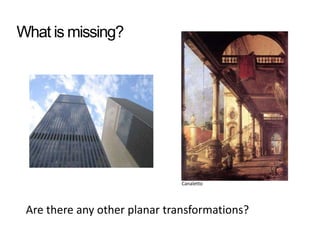

10. What is missing?
Are there any other planar transformations?
Canaletto

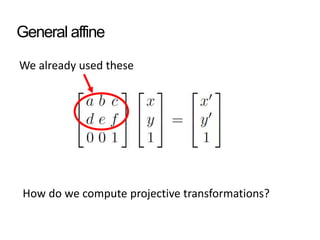

11. General affine
We already used these
How do we compute projective transformations?

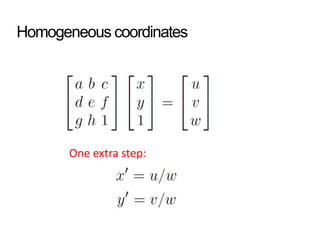

12. Homogeneous coordinates
One extra step:

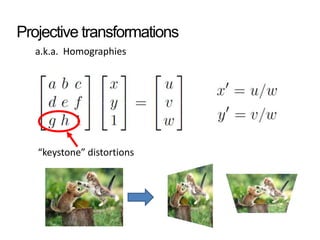

13. Projective transformations
a.k.a. Homographies
“keystone” distortions

14. Finding the transformation
How can we find the transformation between these images?

15. Finding the transformation
Translation = 2 degrees of freedom
Similarity = 4 degrees of freedom
Affine = 6 degrees of freedom
Homography = 8 degrees of freedom
How many corresponding points do we
need to solve?
