ADS Workshop on PCI Express(r)

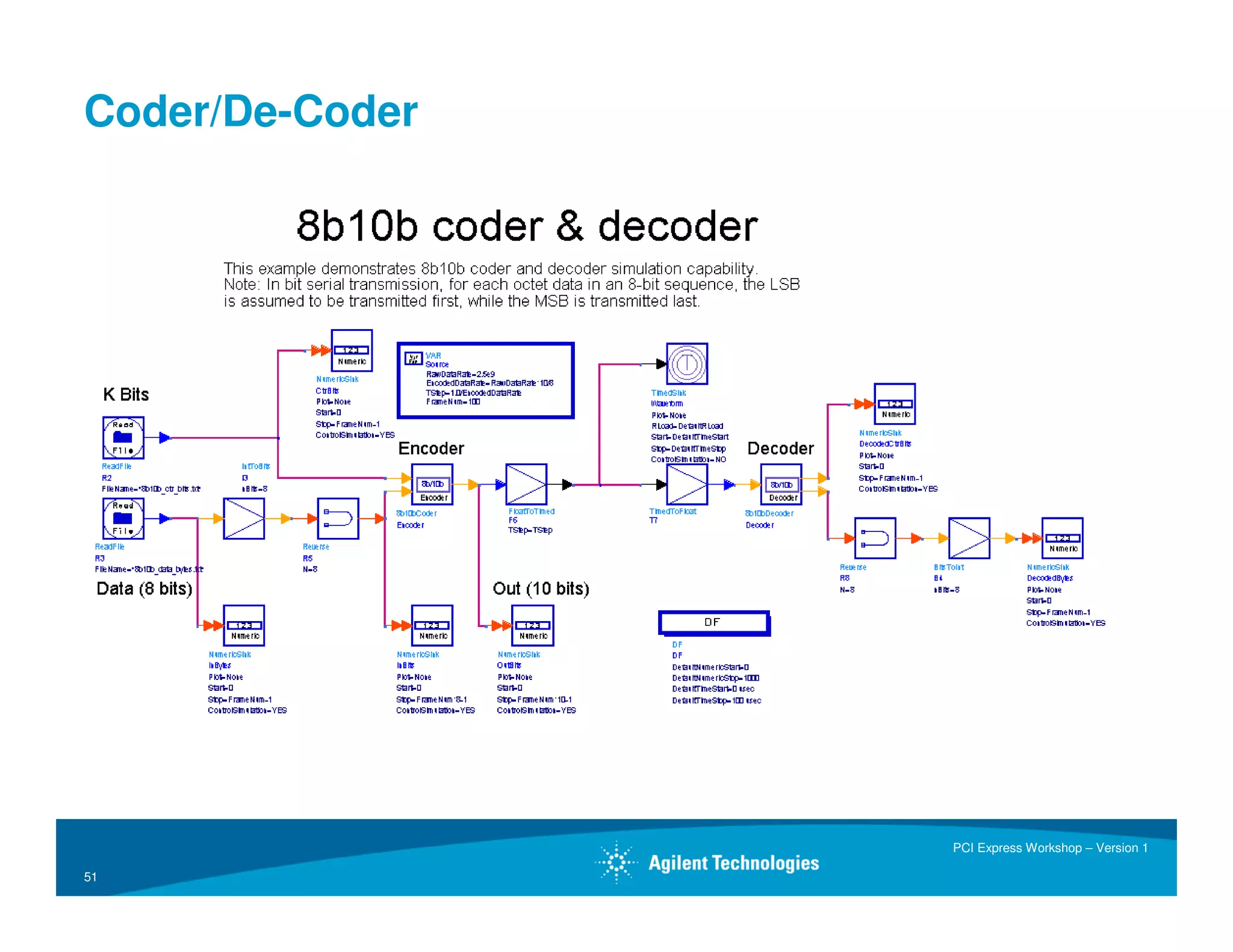

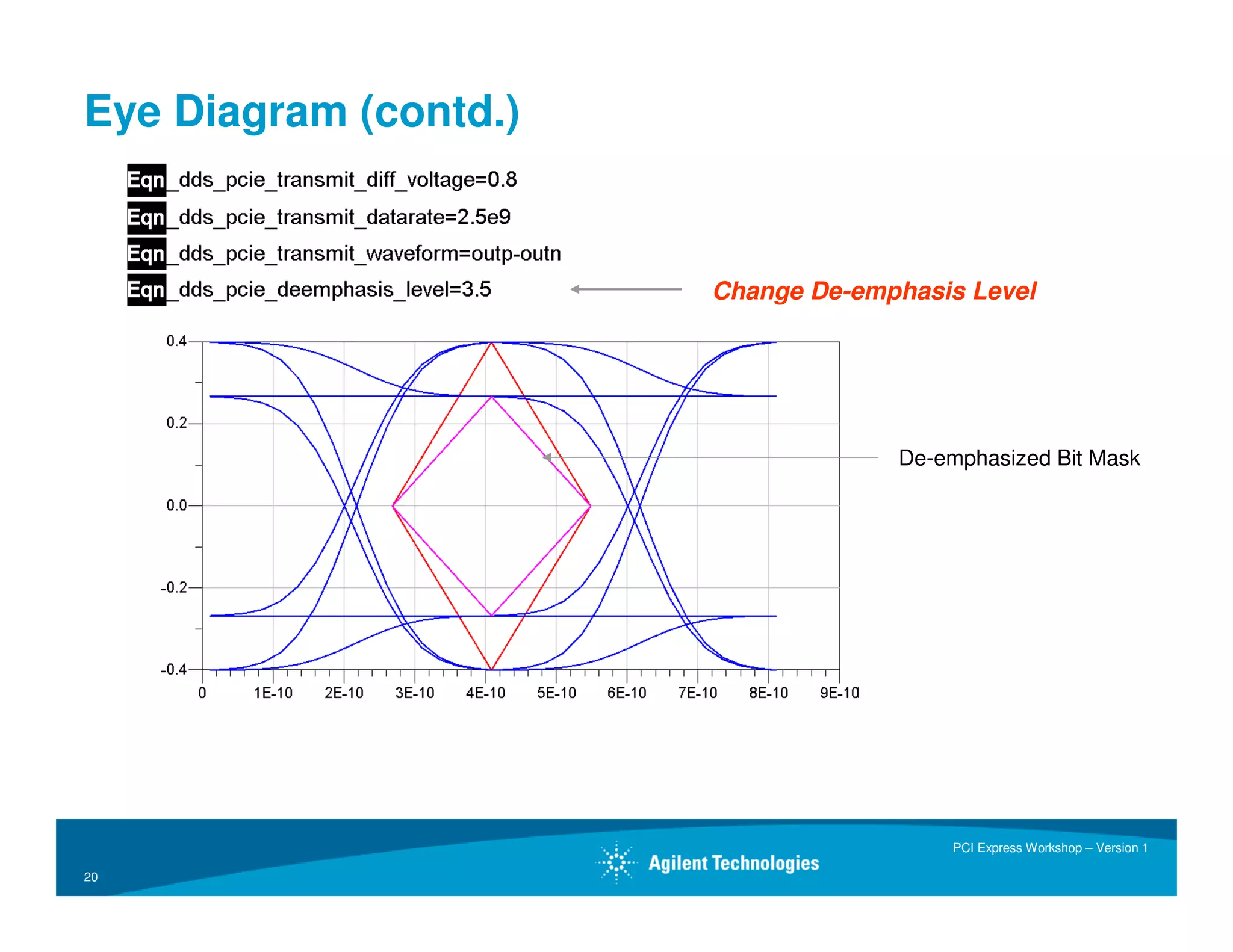

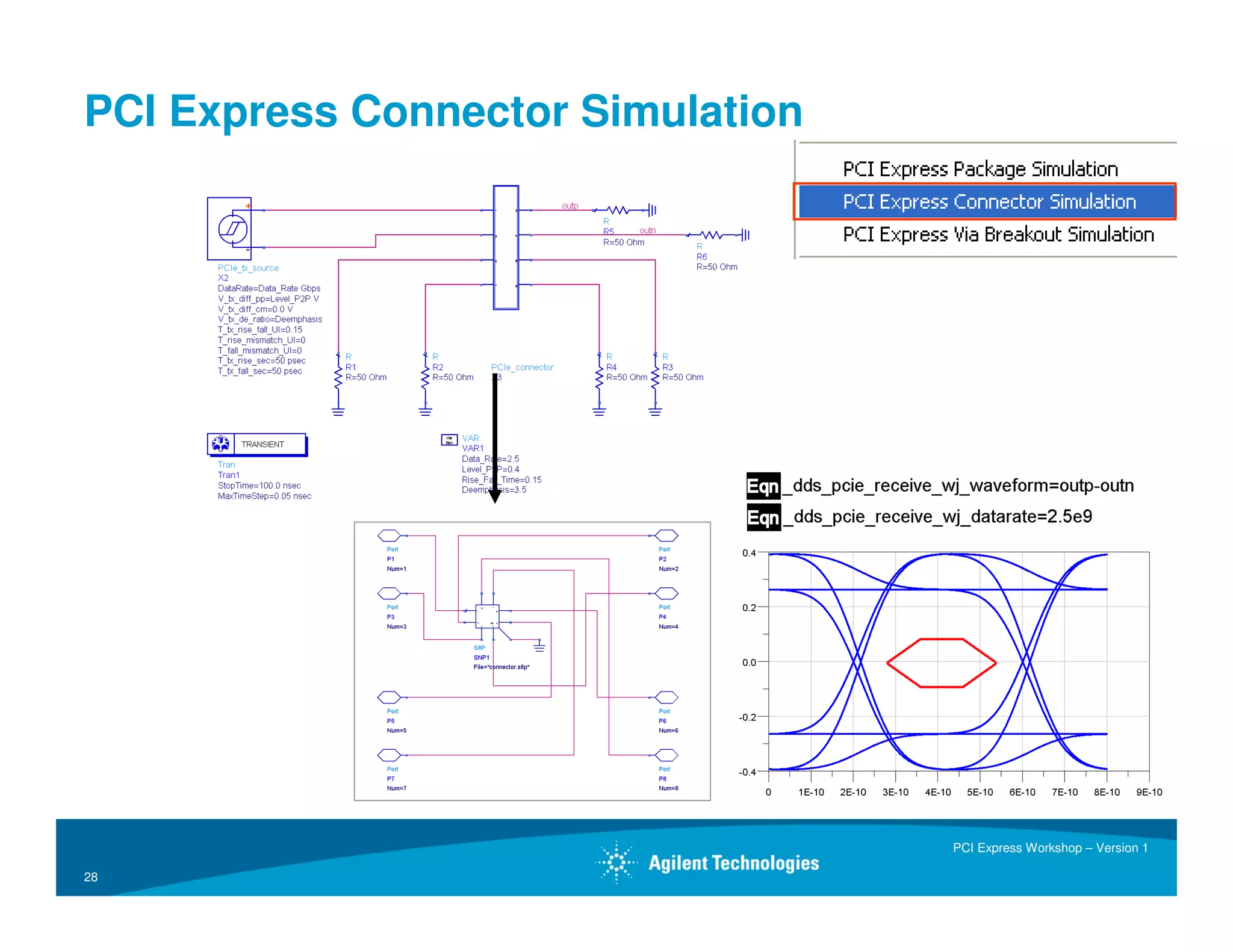

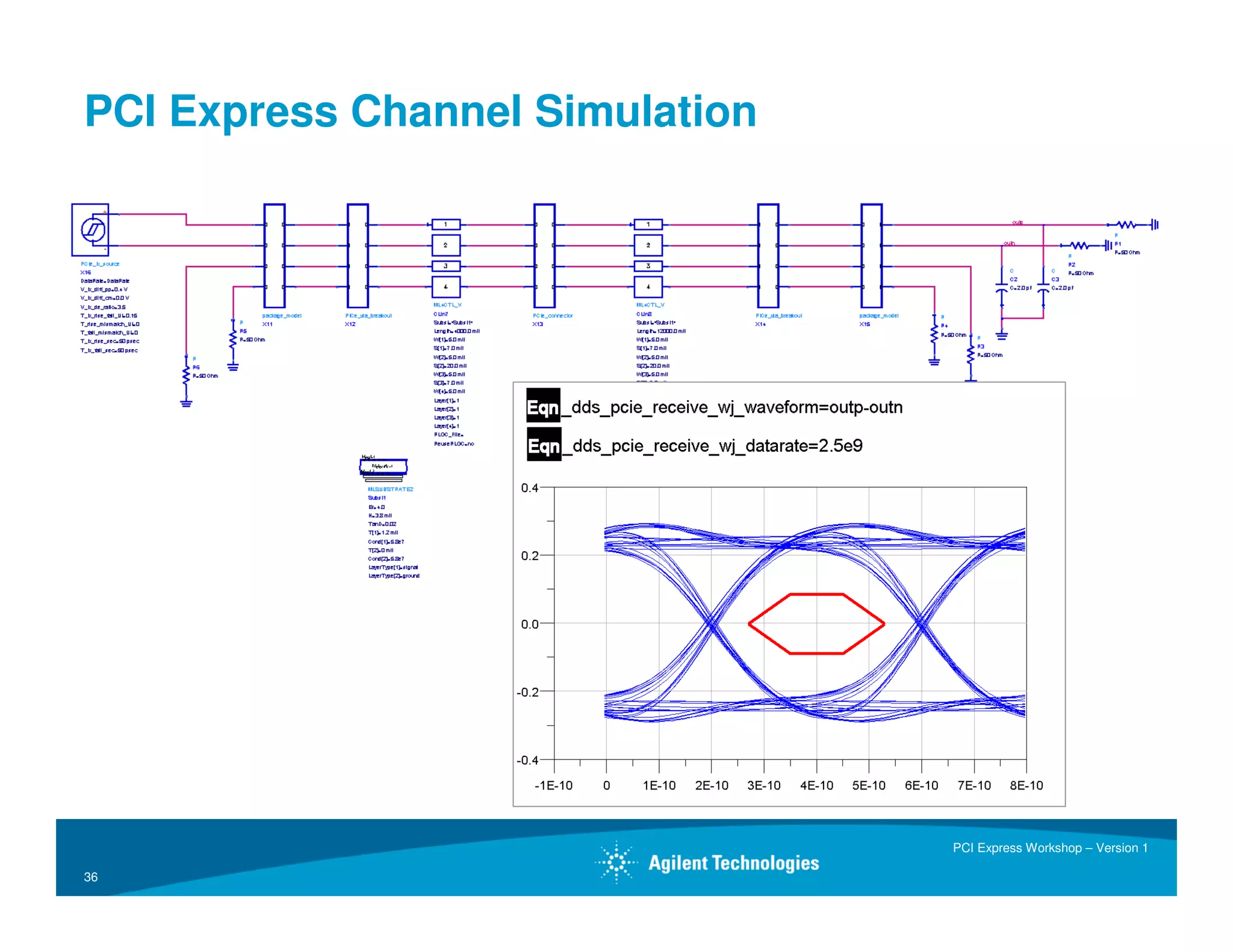

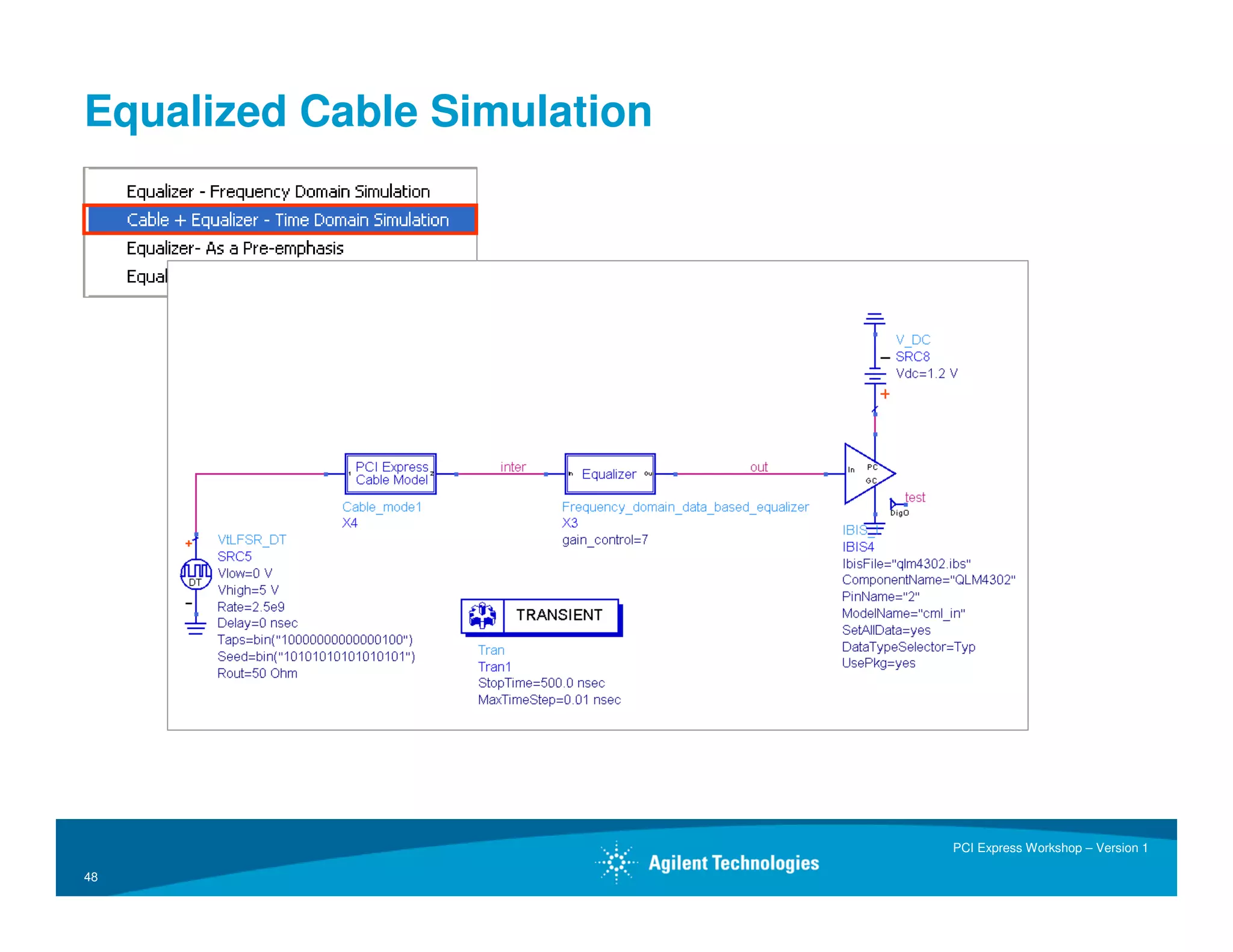

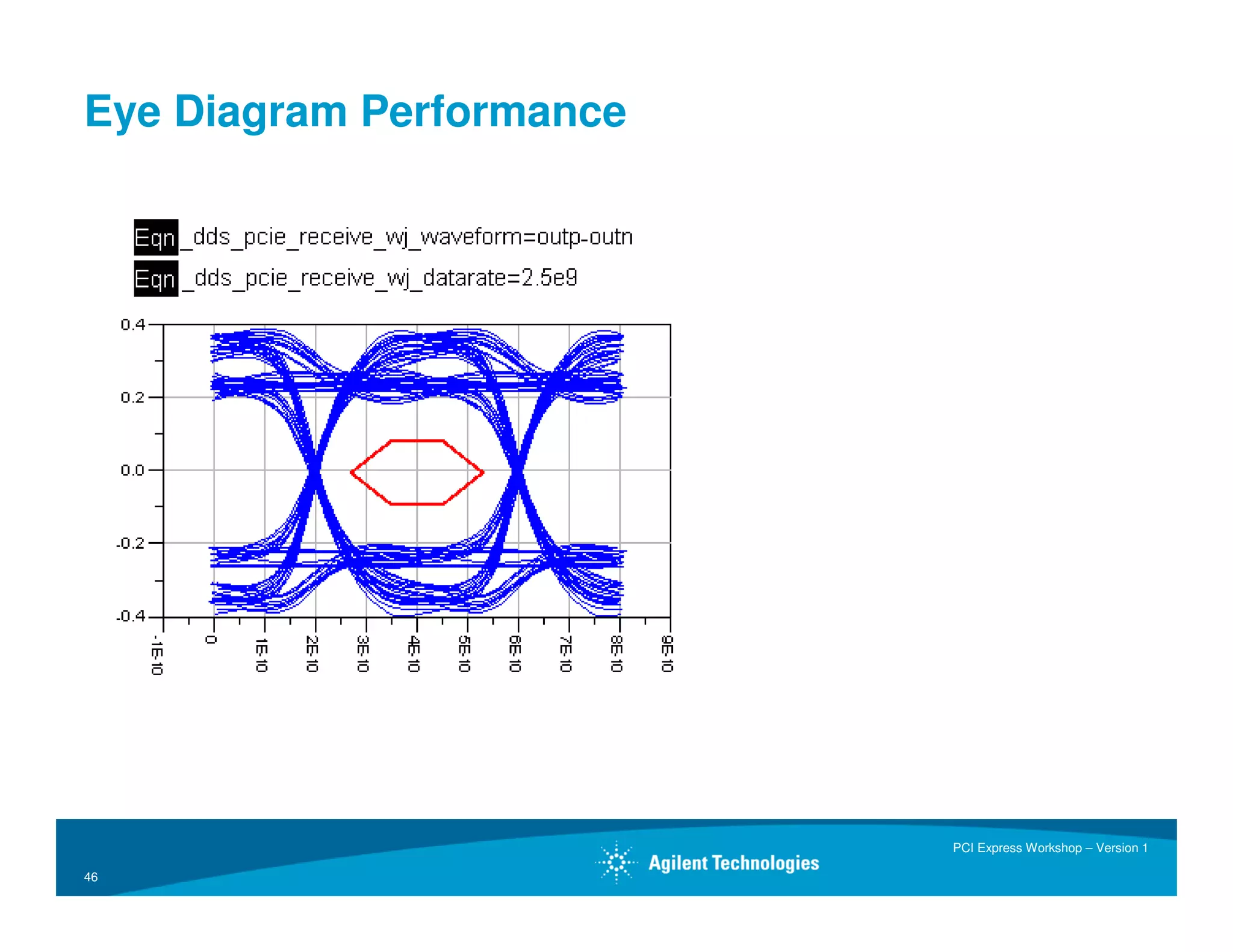

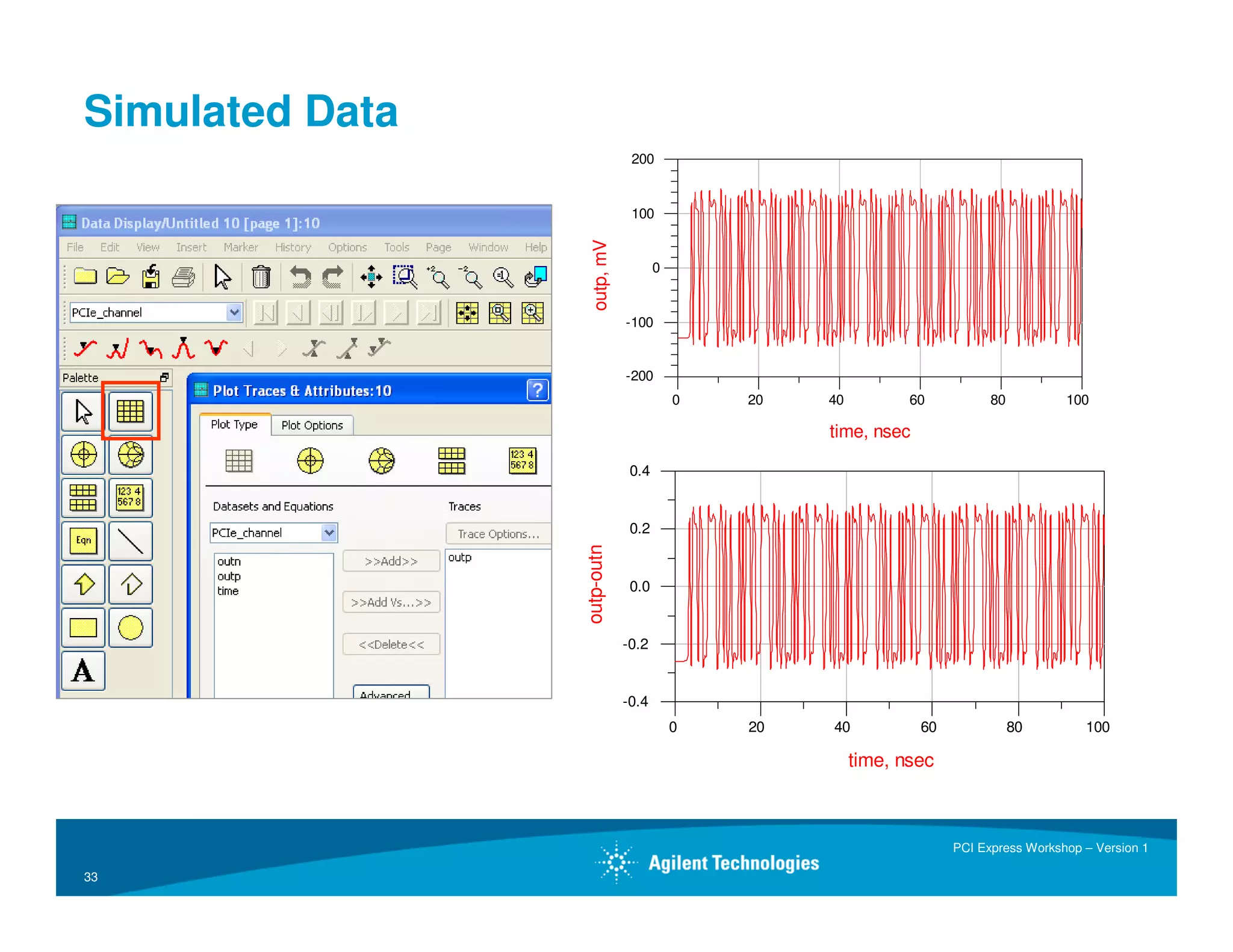

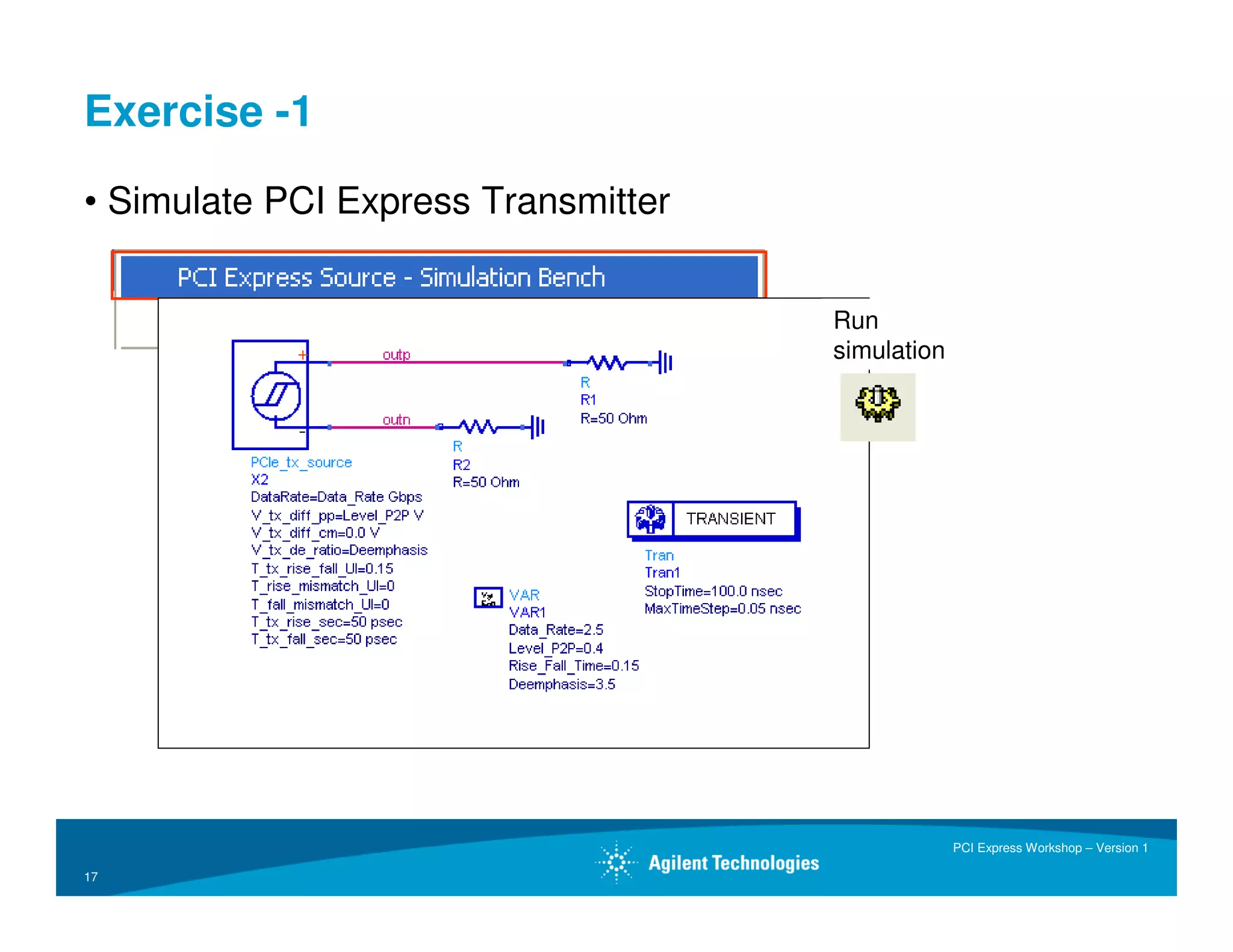

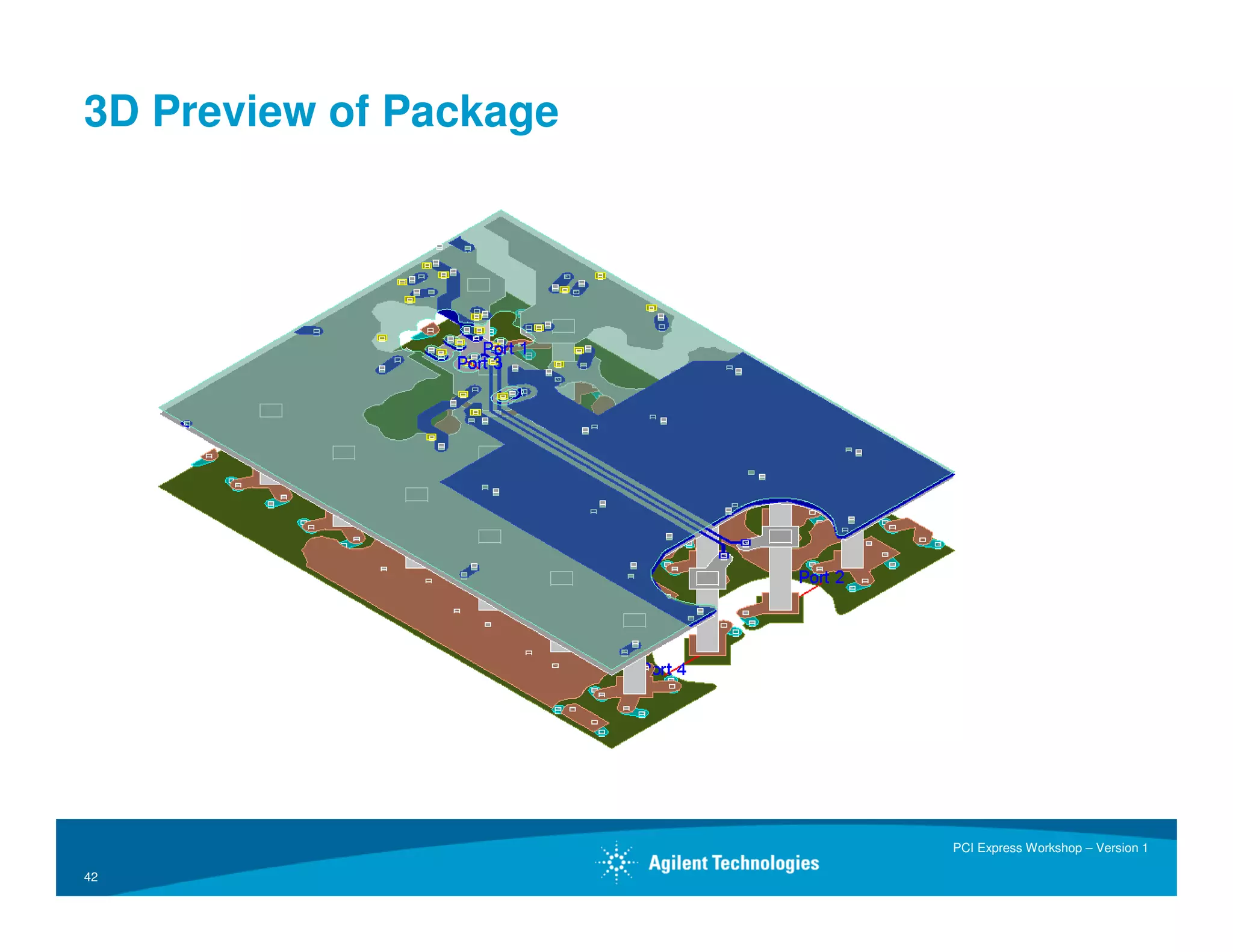

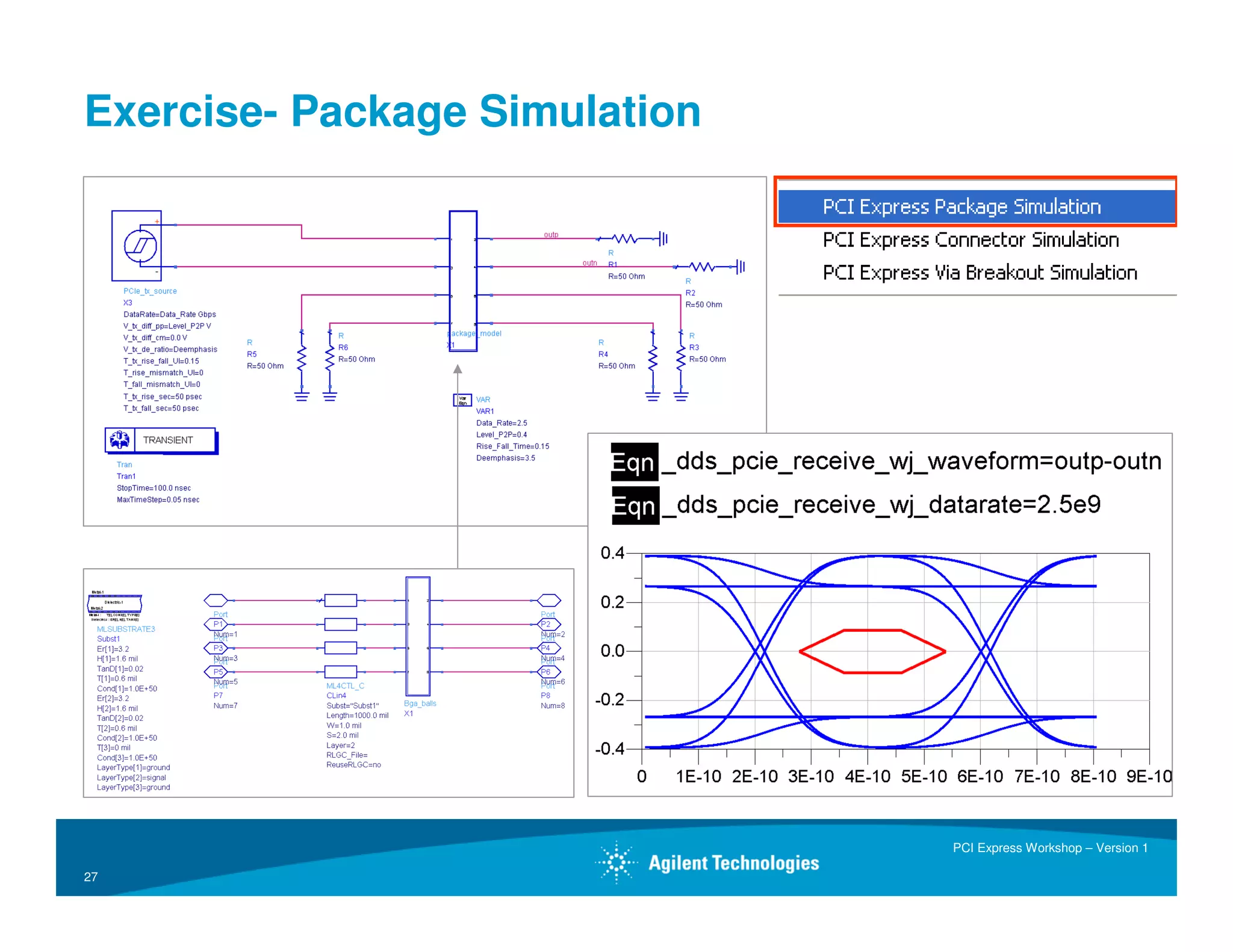

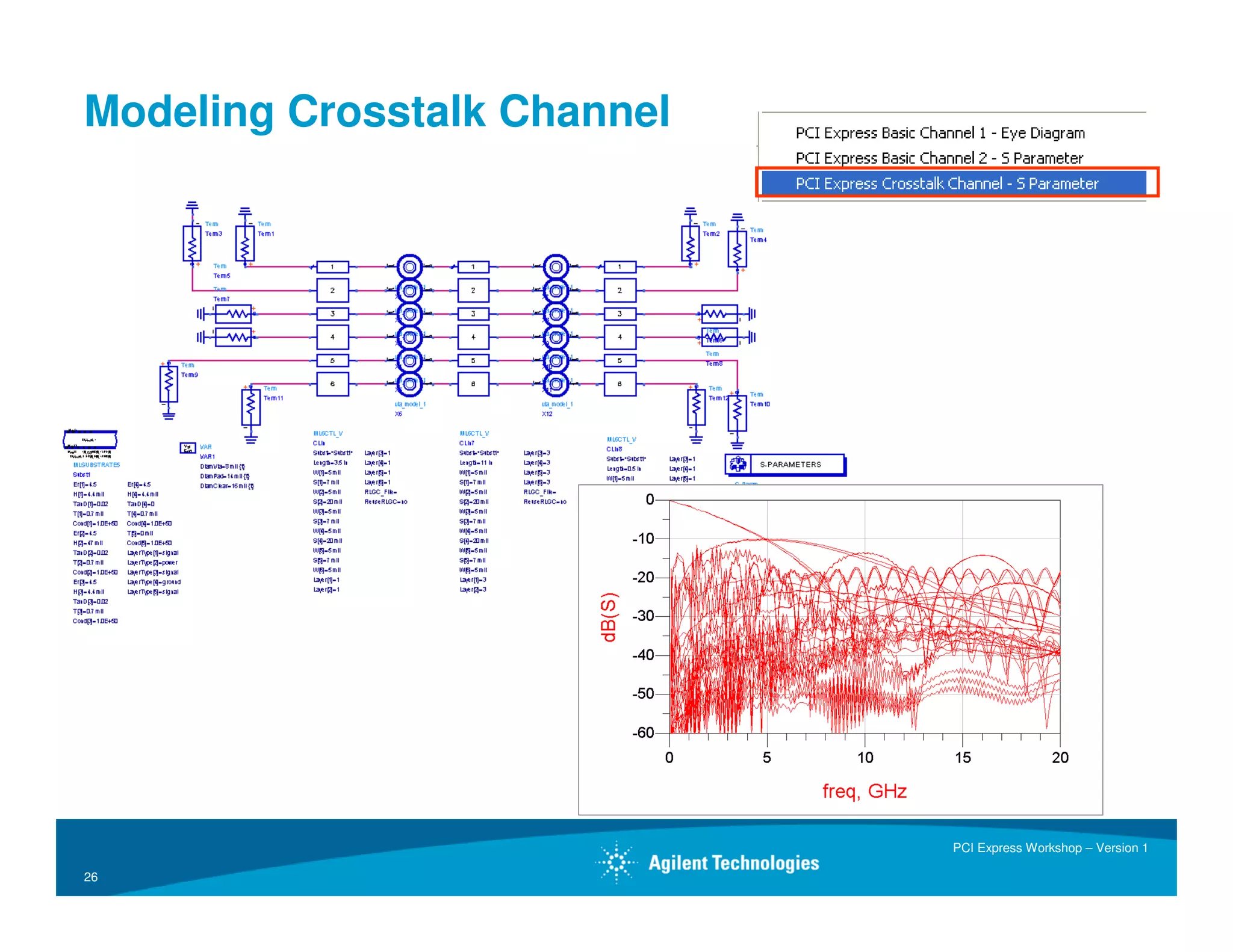

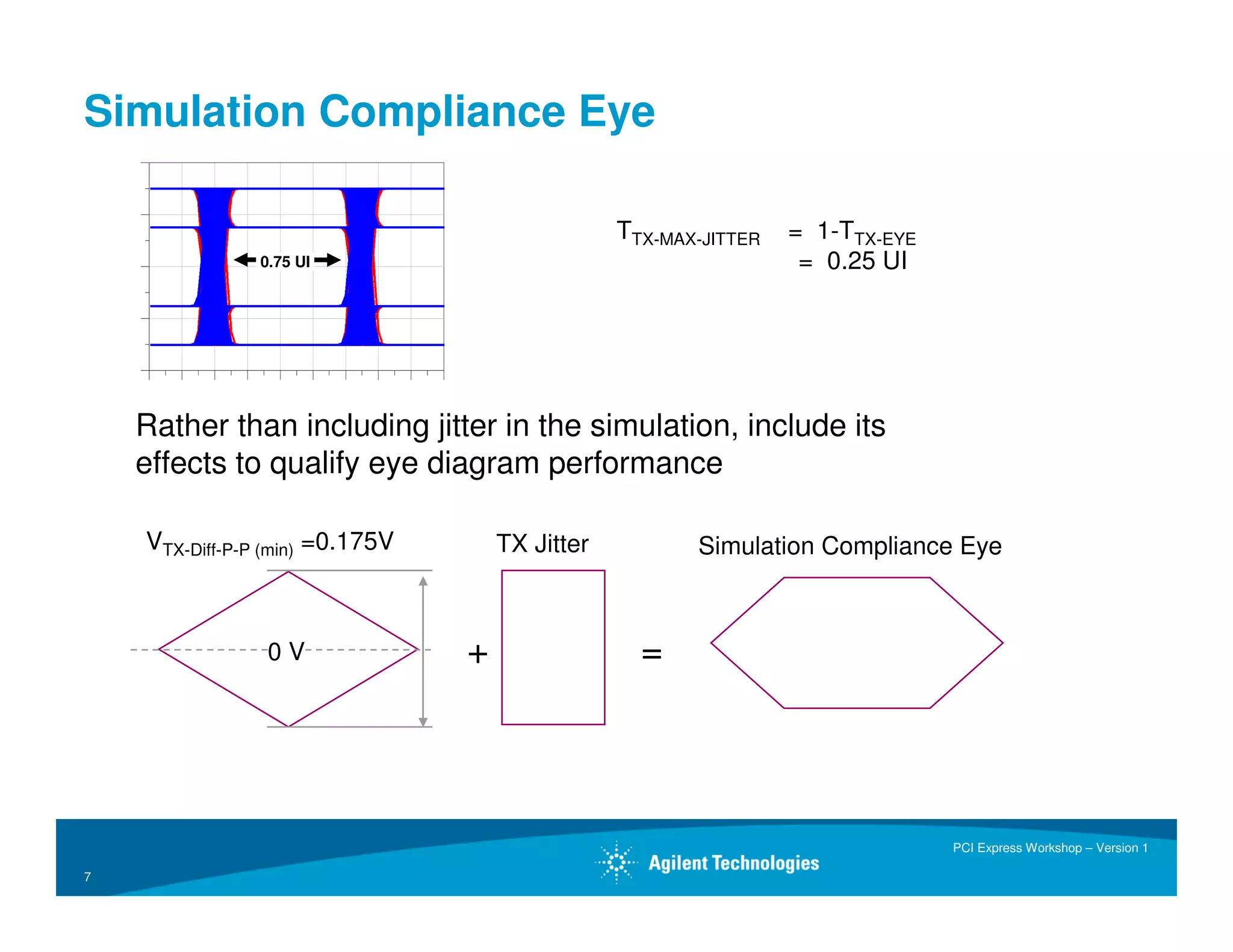

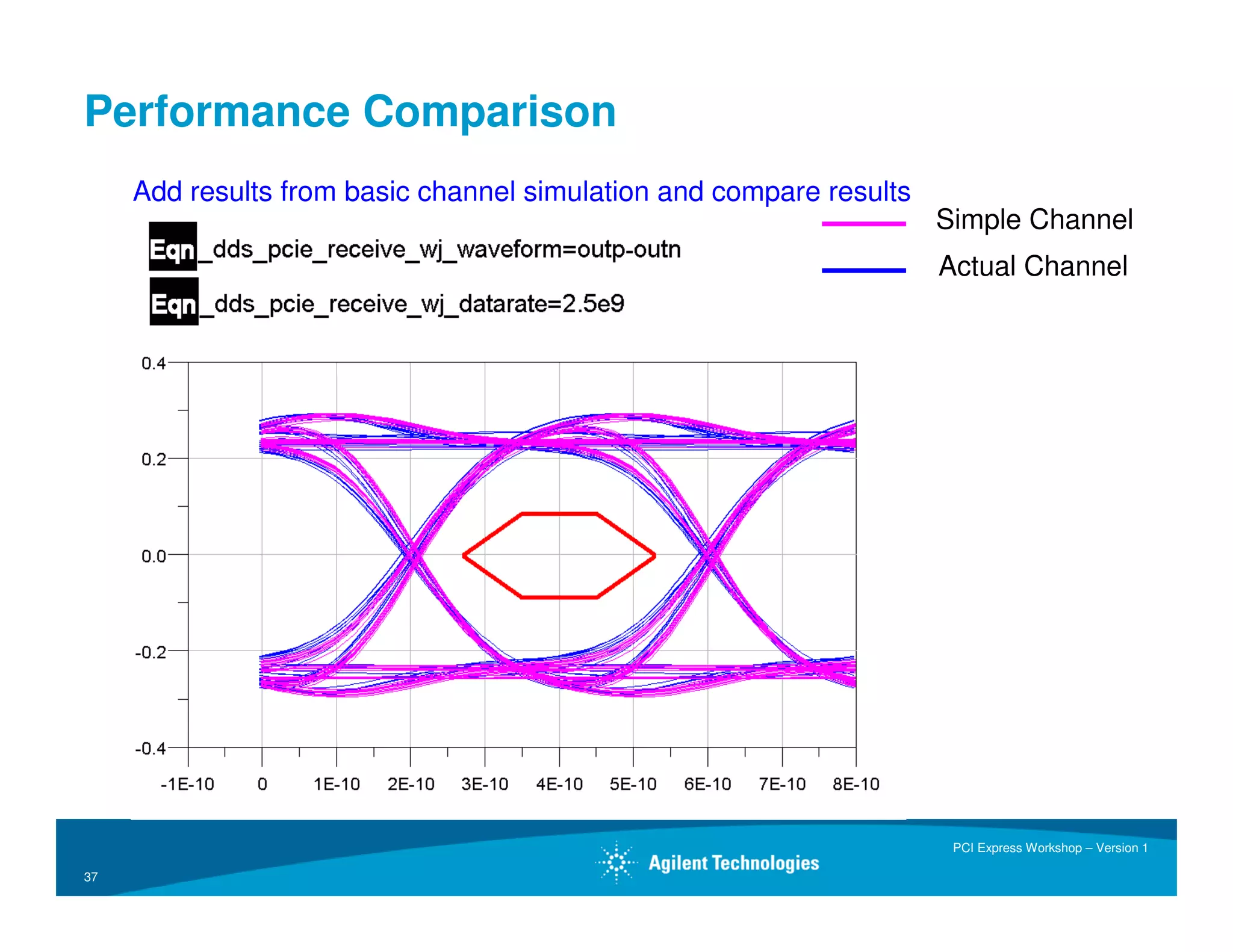

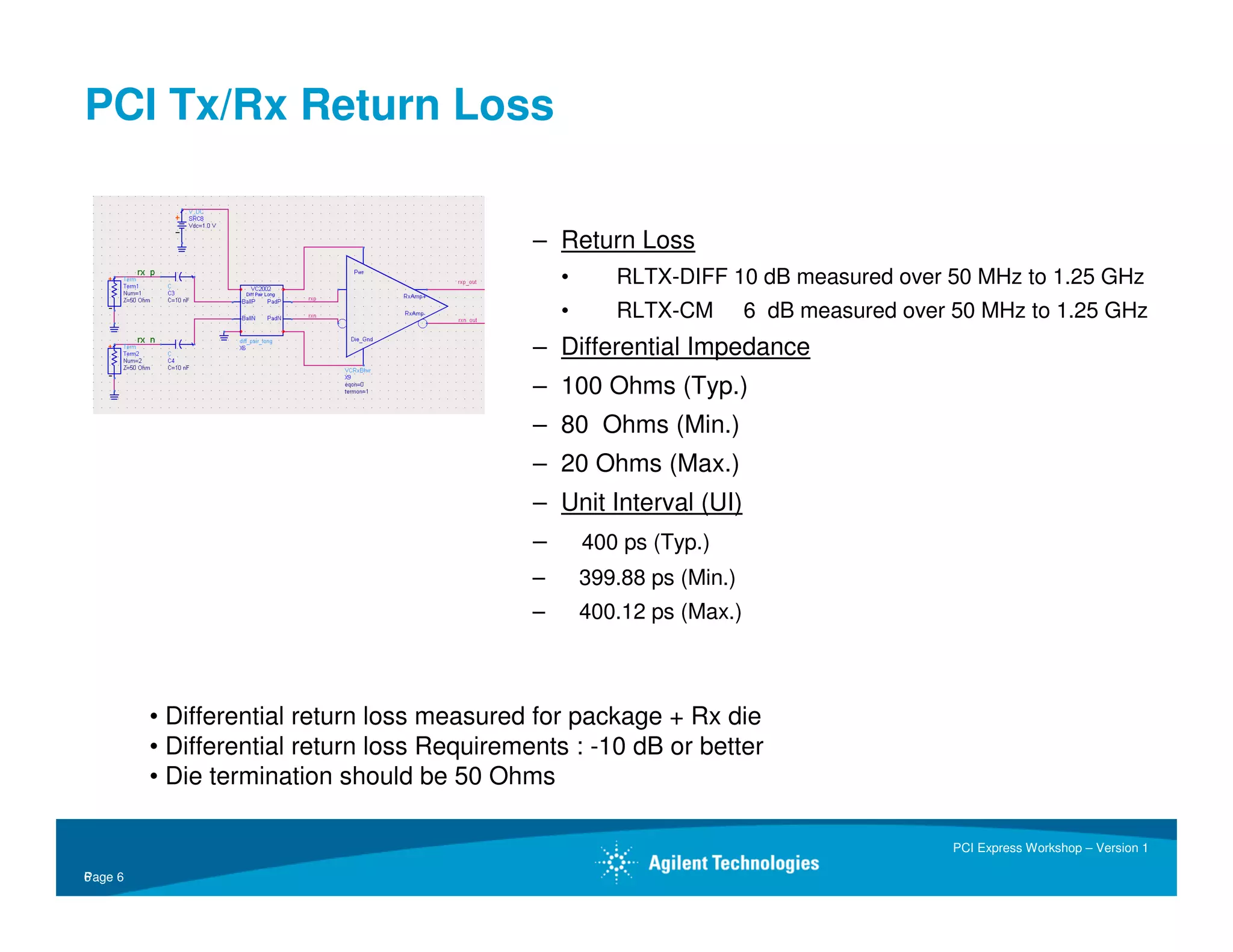

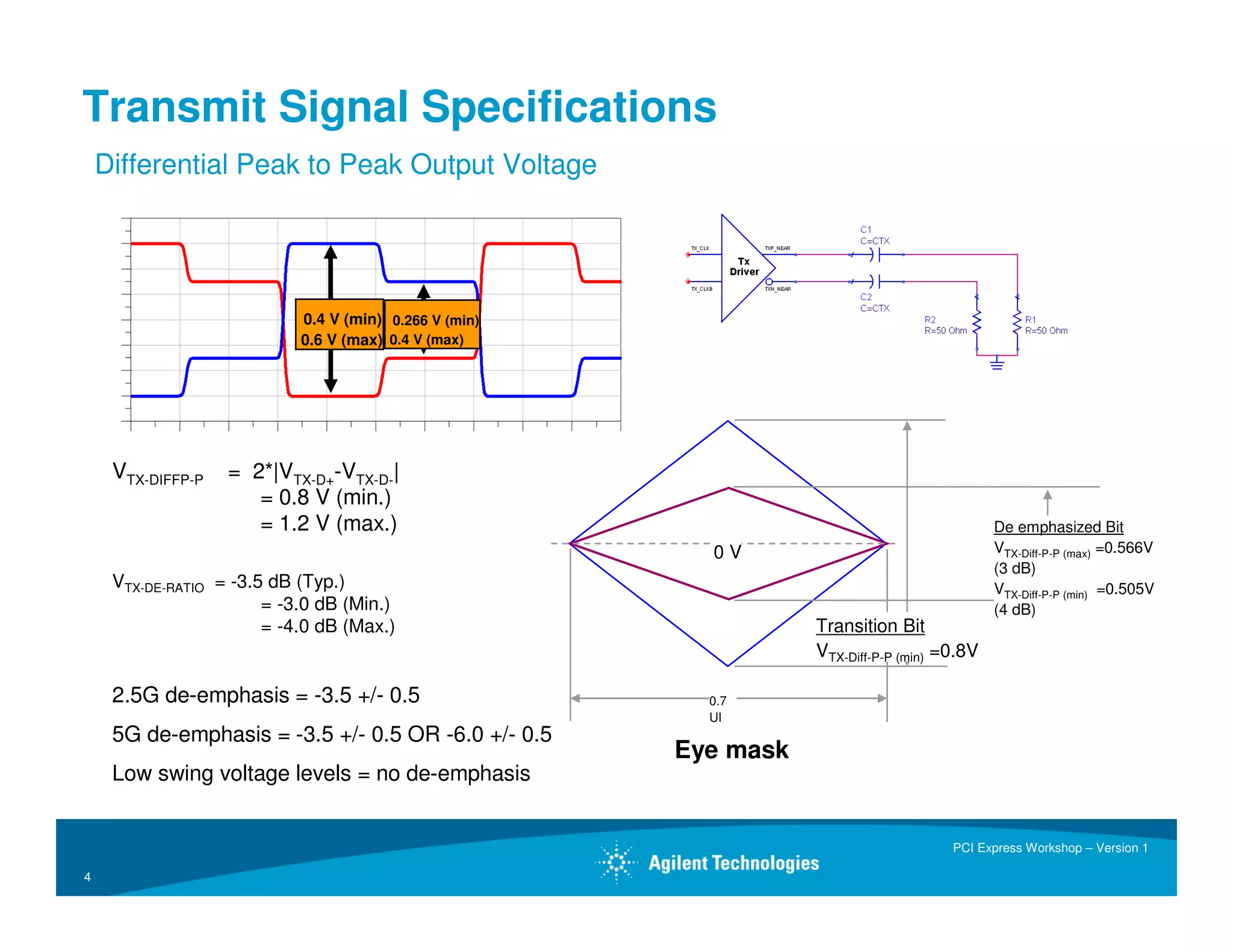

The document is a workshop presentation on PCI Express, covering its key specifications, channel creation, and analysis. It includes details on physical components, signal specifications, and design guidelines for compliance testing and simulation of PCI Express channels. Various exercises are proposed to create and simulate PCI Express sources, addressing jitter, eye diagrams, and layout co-simulation.
